The Standard: Getting AV Hardware Into the Drawing Set Before It’s Too Late
The most expensive AV mistake isn’t choosing the wrong product.
It’s choosing the right product—and designing a room that can’t support it.
You see it all the time once projects reach the field. A large-format display shows up, and suddenly the room starts pushing back. There’s no structural consideration for the load. Power is close, but not where it needs to be. Conduit ends just short of the actual equipment location. The furniture layout looks clean on paper, but doesn’t account for the footprint of the display system at all.
At that point, the problem looks like an installation issue. But it isn’t.
It’s a coordination failure that started much earlier—back when the drawing set was still flexible, and AV simply wasn’t part of the conversation yet.
AV Didn’t Miss the Project. It Missed the Moment
By the time AV enters most projects, the critical decisions have already been made.
Power and data rough-in are established. Wall framing is defined. Ceiling heights are locked. Furniture layouts are approved. The room has already taken shape—without the hardware that’s supposed to live inside it.
So when AV is finally introduced, it’s not being designed in. It’s being worked around.
That’s when cost shows up in the form of rework, compromise, and small decisions that slowly chip away at the original intent. Not because anyone made a bad call, but because the timing didn’t allow for a better one.
The Real Gap Is Language
Architects aren’t overlooking AV. They’re operating in a system that AV hasn’t fully entered.
Architecture communicates visually and dimensionally. Floor plans, elevations, sections, finish schedules—these are the tools that drive decisions. If something doesn’t appear in that system, it doesn’t meaningfully influence the design.
AV, on the other hand, is often introduced as a list: model numbers, quantities, and product selections living in a separate section of the spec. That format works for procurement, but it doesn’t work for design.
So the hardware never shows up where it matters most—inside the drawing set, at the moment when spatial decisions are still being made.
A Shift Is Already Happening
Clients are no longer asking for technology as an afterthought. They’re asking for spaces where technology feels intentional, integrated, and aligned with the architecture around it.
A display isn’t just a screen anymore. It’s part of the room.
That shift changes the expectation. If the display system contributes to the experience of the space, it has to be treated like any other architectural element. It needs a footprint in plan, a position in elevation, and a role in the overall composition of the room.
That kind of integration doesn’t happen late in the process. It has to start early.
From Equipment to System
For AV to hold its place in a project, it needs to be specified the same way everything else that survives specification pressure is specified—as part of the system.
That means thinking beyond product selection and into design intent.

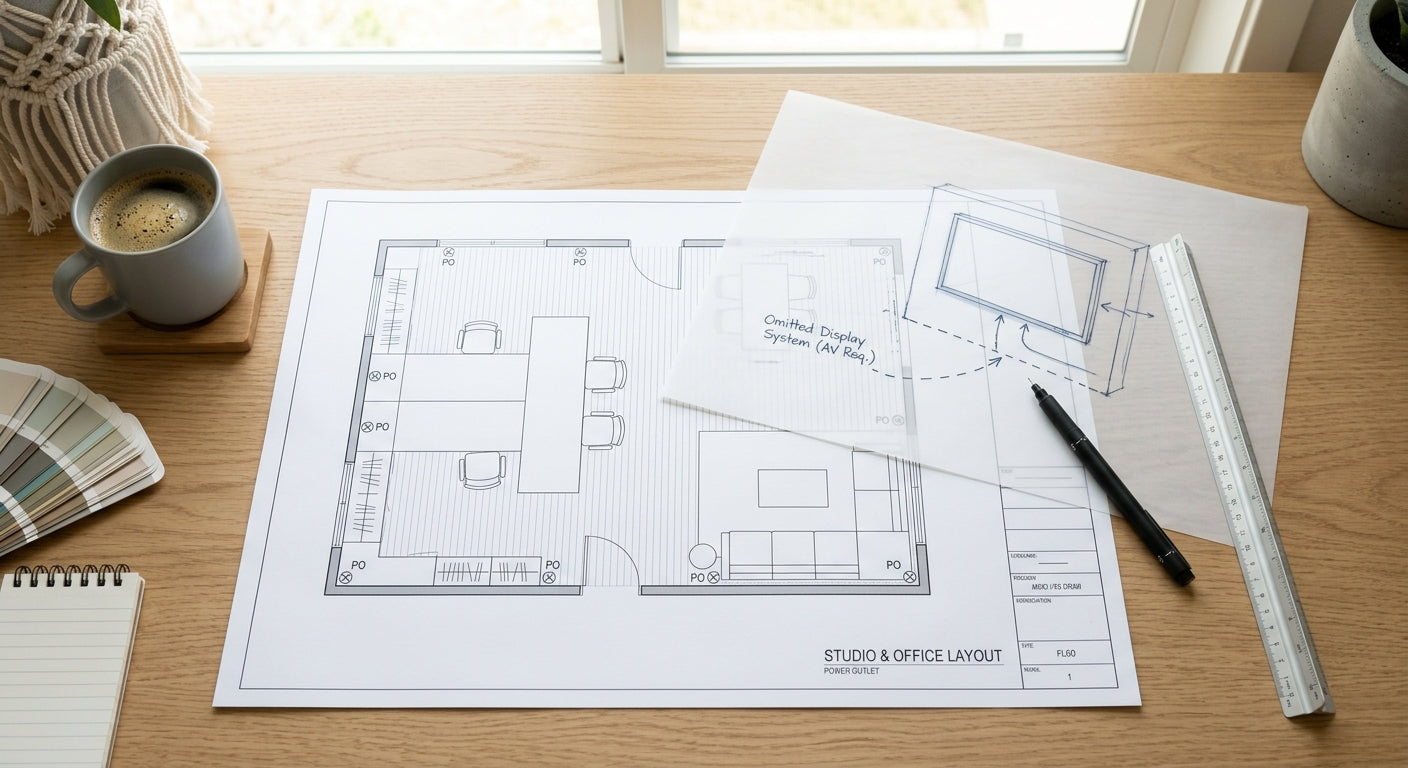

The hardware needs to be drawn, not just listed. It needs to show up in plan view so furniture layouts account for it. It needs to exist in elevation so sightlines and clearances can be verified. It needs to be included in the finish schedule so it aligns with the rest of the space.
Once it’s treated this way, something important changes. It stops being a removable line item and becomes part of the room’s structure—something that other decisions depend on, rather than something that can be deferred.
Why Coordination Breaks Down
One of the most common friction points is structural coordination, particularly around wall-mounted systems. If a display requires backing, anchoring, or coordination with the structural engineer, that decision has to be made early. If it isn’t, it tends to get pushed.
And once it’s pushed, it rarely comes back in the same form.
This is why so many AV conversations happen too late. Not because the hardware isn’t important, but because it introduces dependencies that the project hasn’t accounted for yet.
Removing Friction at the Right Layer
A floor-supported display system changes that dynamic in a meaningful way.
Instead of depending on the wall, the system manages its load through the floor. That eliminates the need for structural backing, simplifies coordination, and removes one of the biggest barriers to early specification.
From a design standpoint, it also gives architects something they can work with immediately—clear dimensions, known heights, and a defined footprint that can be incorporated into the room layout from the beginning.
At a standard configuration, the display lands at a predictable height, which allows sightlines and accessibility to be verified early. Adjustment ranges can be understood without redesign. The system becomes something that can be drawn and coordinated, not something that needs to be figured out later.
Consistency Is Designed, Not Achieved
As projects scale beyond a single room, the importance of early specification becomes even more obvious.
A one-off installation can absorb a certain amount of improvisation. A multi-room or multi-site deployment cannot. Small inconsistencies—slightly different display heights, minor variations in cable routing, changes in assembly approach—compound quickly.
What looks acceptable in one room becomes noticeable across twenty.
Consistency comes from decisions made early and systems that support repeatability. Hardware that assembles the same way every time, that aligns predictably, and that doesn’t require interpretation in the field is what allows a design to scale without degrading.
The Details That Quietly Matter
At this level, things like finish and logistics stop being secondary considerations.
A finish that resists wear and aligns with the architectural palette prevents issues during submittal review and long-term use. Shipping and staging become critical when deploying across multiple rooms or locations—hardware needs to arrive efficiently, store cleanly, and assemble without specialized tools or field modification.
These aren’t dramatic design decisions, but they have a real impact on how smoothly a project moves from specification to installation.
Compliance Sets the Boundaries
There are also requirements that don’t allow for interpretation.
TAA compliance and ADA considerations—these aren’t preferences. They determine whether a product can be specified at all, particularly in higher education, enterprise, and government environments.
When these requirements are accounted for early, they simplify the process. When they’re addressed late, they create friction that can force last-minute changes.
The Standard
Getting AV hardware into the drawing set before design development closes isn’t extra work. It’s simply doing the work at the right time.
Because once walls are built, power is placed, and layouts are finalized, every change becomes more expensive and more visible.
When AV is part of the drawing set from the beginning, it coordinates cleanly with the rest of the project. It installs predictably. And it delivers the experience the space was designed to provide.
At that point, the AV specifier isn’t trying to make a finished room work.
They’re part of the team that designed it that way from the start.
The Bottom Line
If AV isn’t in the drawing set, it isn’t part of the system.
And if it isn’t part of the system, it won’t survive.
