Artwork Guidelines For Custom Textile Covers for Logitech Rally Bar Huddle

Read guide

PDF · Letter PDF · A4

Guide details Applicability and revision

Download the textile cover artwork template and review print areas, scale, and file preparation.

ProductCustom Covers for Logitech Rally Bar Huddle

Hardware generationTextile covers

Guide revisionrelease-2026-10-28

Applies to

Custom textile covers for Logitech Rally Bar Huddle using the linked artwork template.

In this guide · 2 sections

Download the artwork template file.

Tips

1. Your final printing graphic is a 24-inch x 5.25-inch rectangle. Make sure all artwork fits inside the template. The inner area appears on the front of the cover, the middle area wraps around its edges, and the outer area is trimmed and folded onto the back, where it will not be visible.

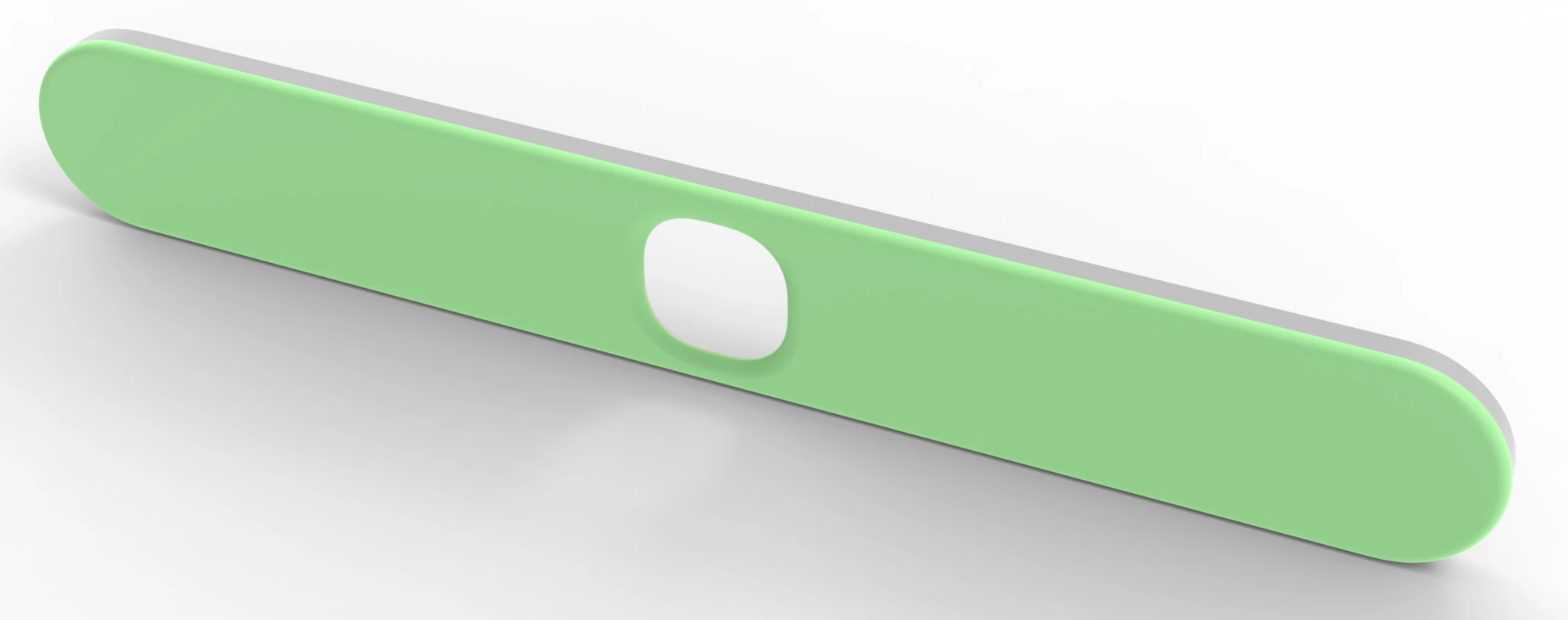

Front of the Rally Bar Huddle cover, with the printable front surface highlighted green around the central camera opening.

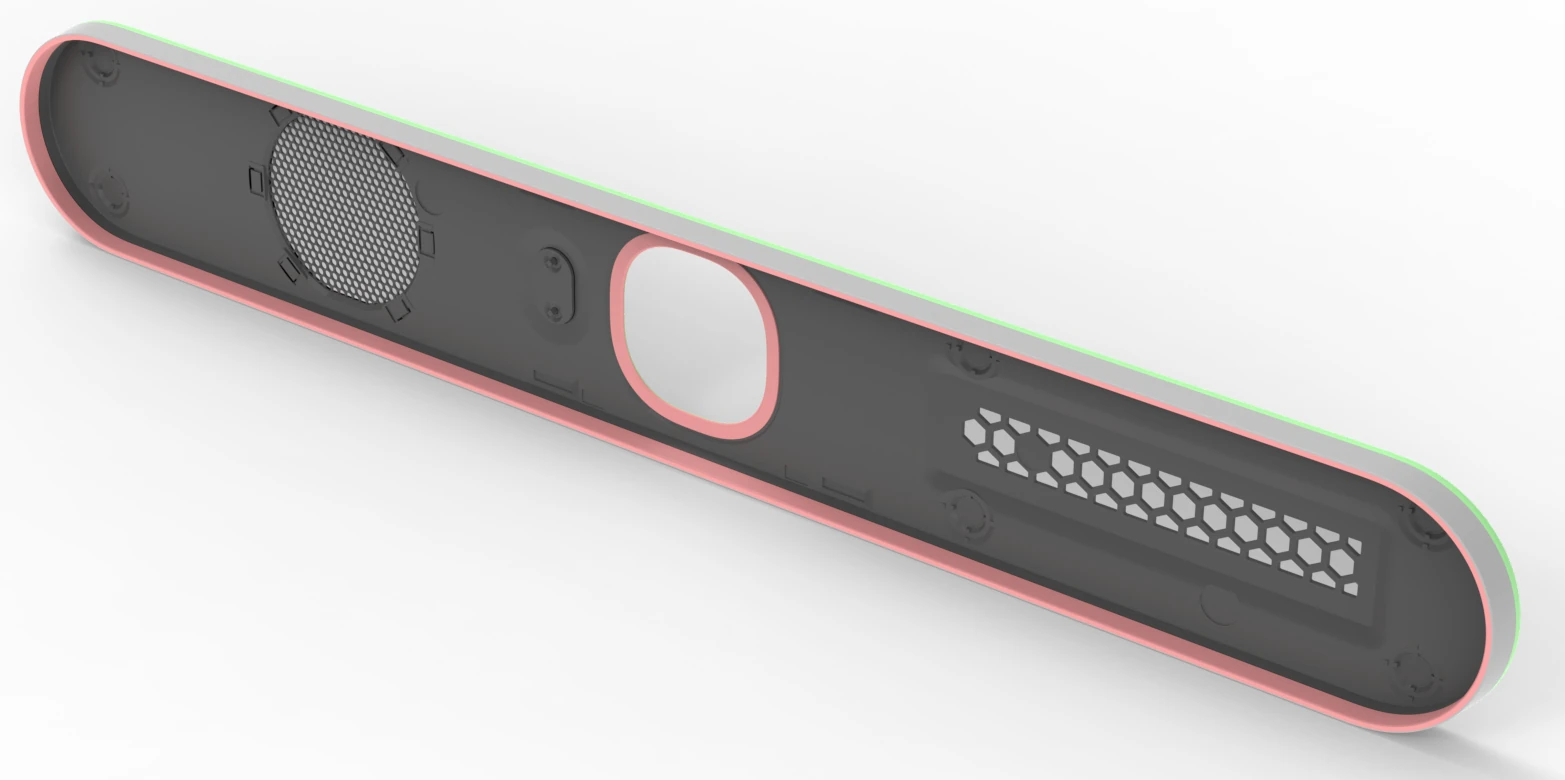

Rear of the cover showing the surrounding edge, speaker openings, and central camera cutout, with pink trim margins around the edges.

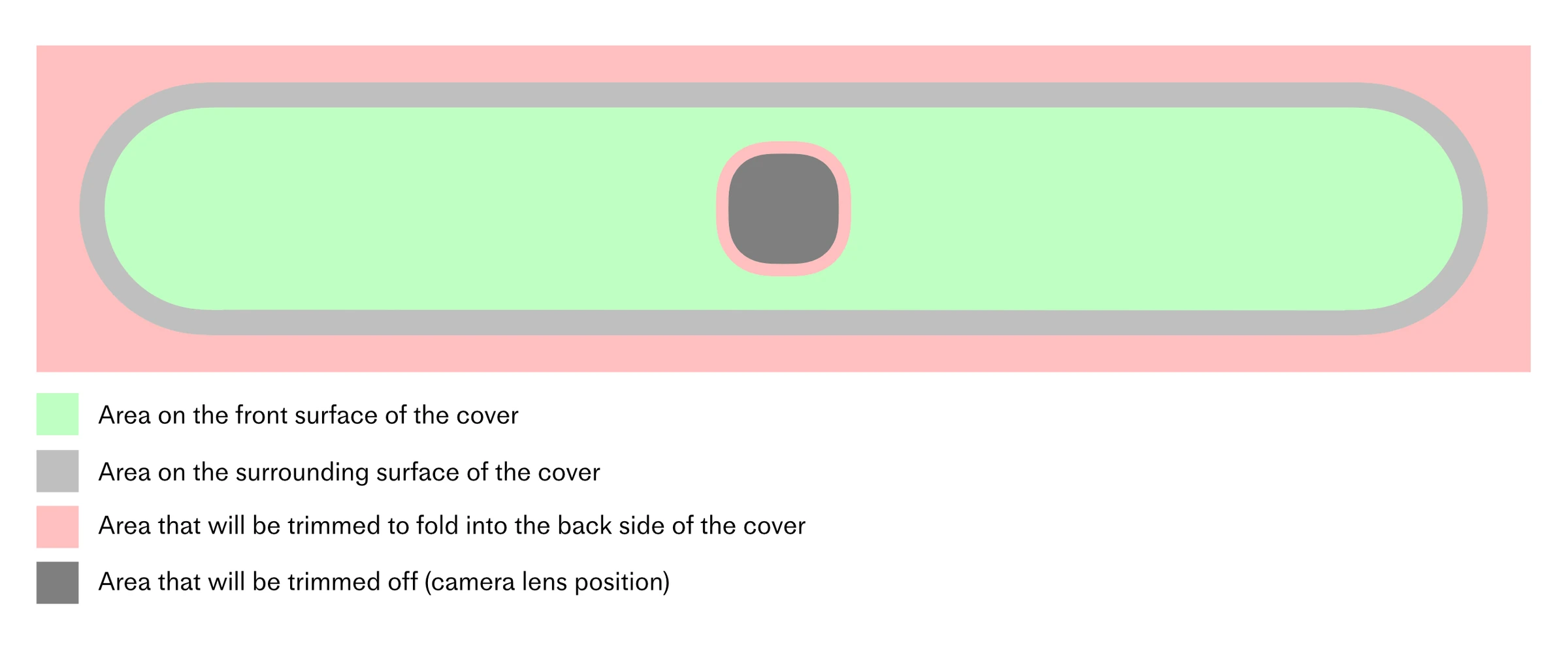

Template diagram: green marks the front surface, light gray the surrounding surface, pink the fabric folded onto the back, and dark gray the camera opening that is trimmed out.

2. Check the scale. The cover is 21.6 inches wide and 3.1 inches tall. Keep your artwork in proportion at the final print size.

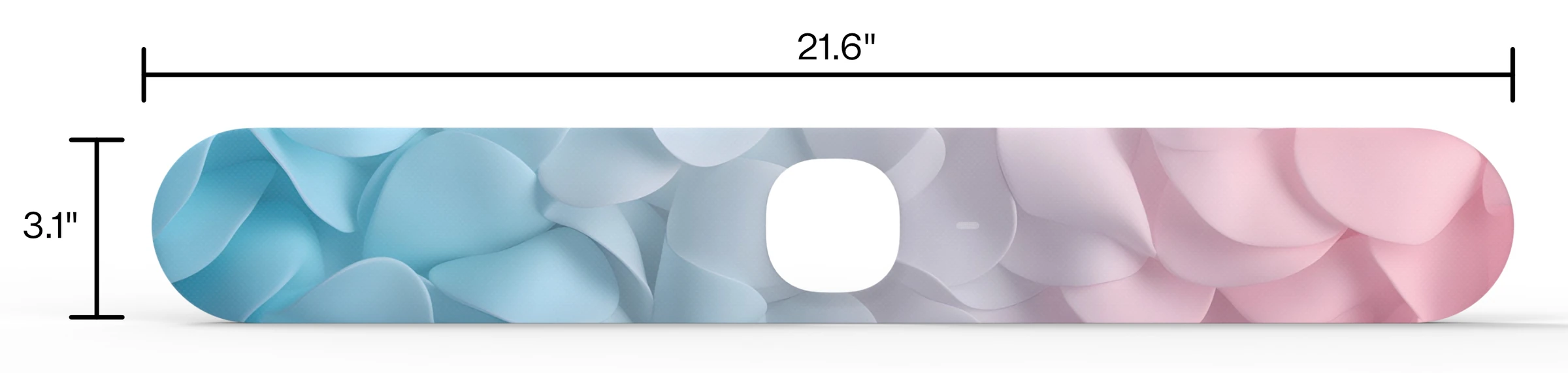

Example cover with blue and pink artwork, dimensioned 21.6 inches wide by 3.1 inches tall, with the central camera opening kept clear.

3. Recommended print file: a PDF at 300 DPI in CMYK color mode.
