Orient the Front Panel Supports for the left and right outermost legs with their panel dividers facing down to allow the longer Outer Front Panels to pass through.

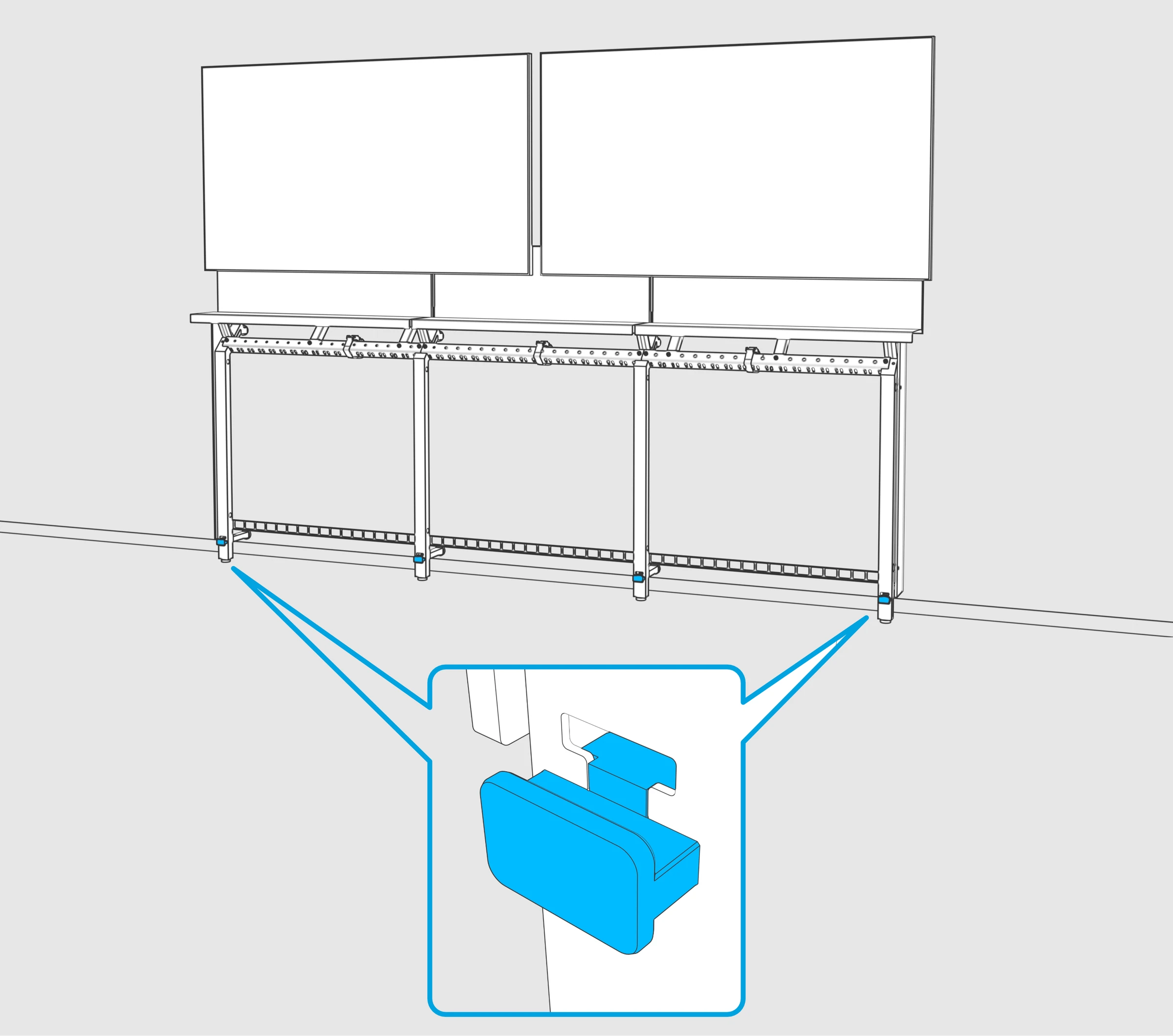

Framework outer legs highlighted, with the front panel support shown in the downward-divider orientation.

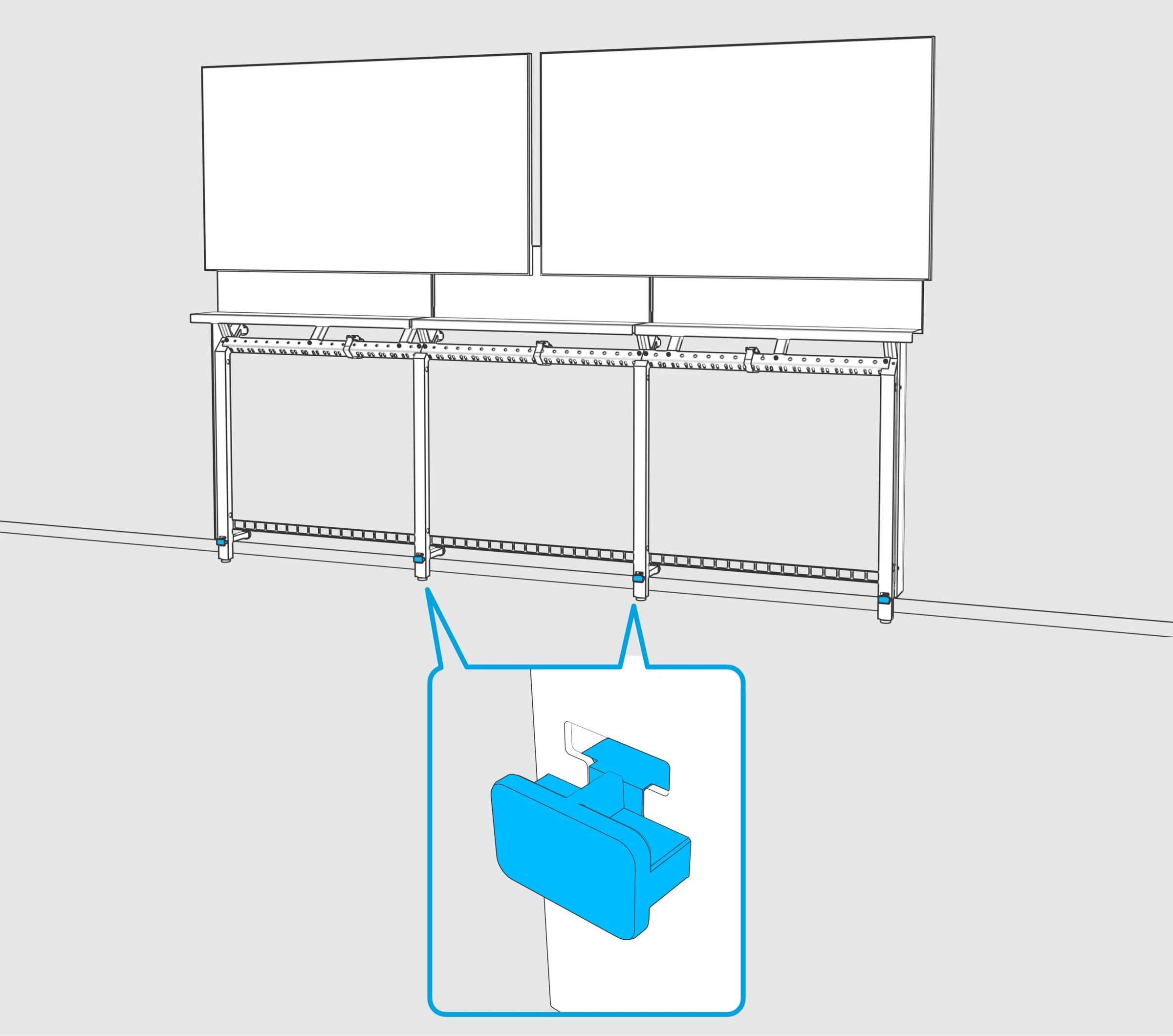

Insert the Front Panel Support into this opening on the front of each leg and press down until fully seated.

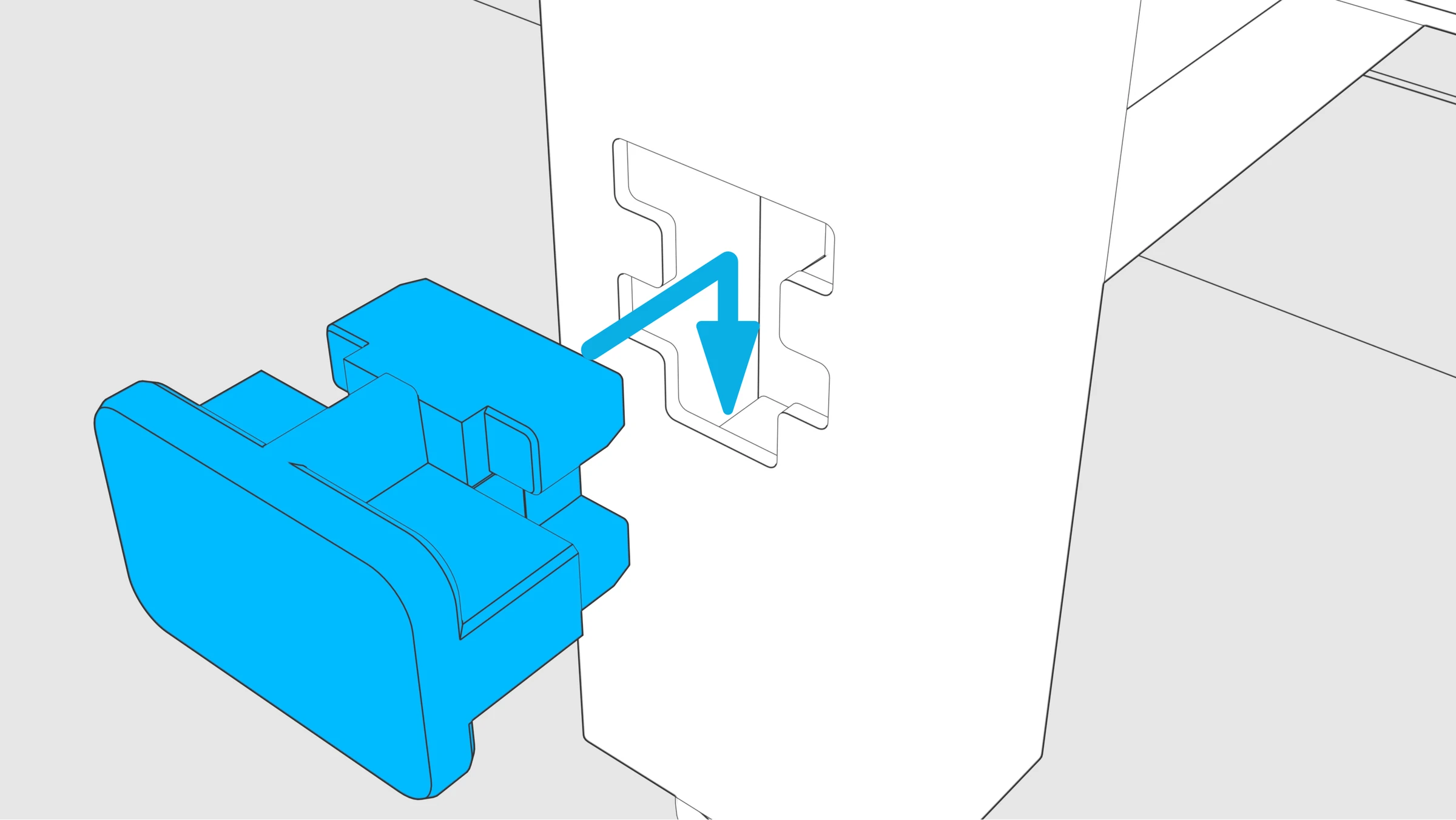

Front panel support aligned with the keyed opening in a leg; an arrow turns downward to show the seated position.

Install Inner Front Panels first. Ensure your panel’s grain and pattern is consistent throughout the installation.

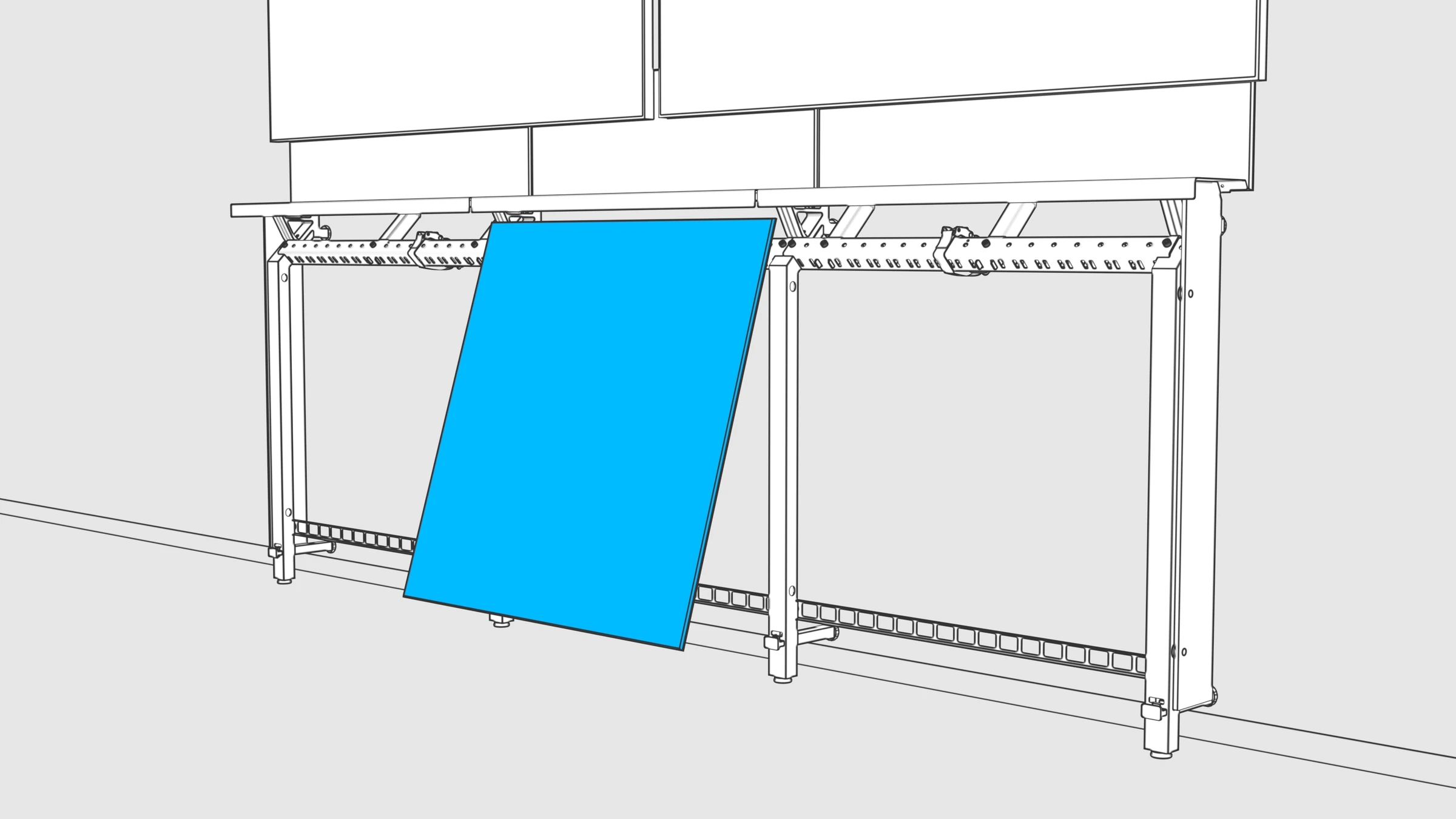

Inner front panel angled toward the center bay of the Framework structure.

Slide front panels up into the shelf-support channels, then seat the bottom edges into the Front Panel Supports.

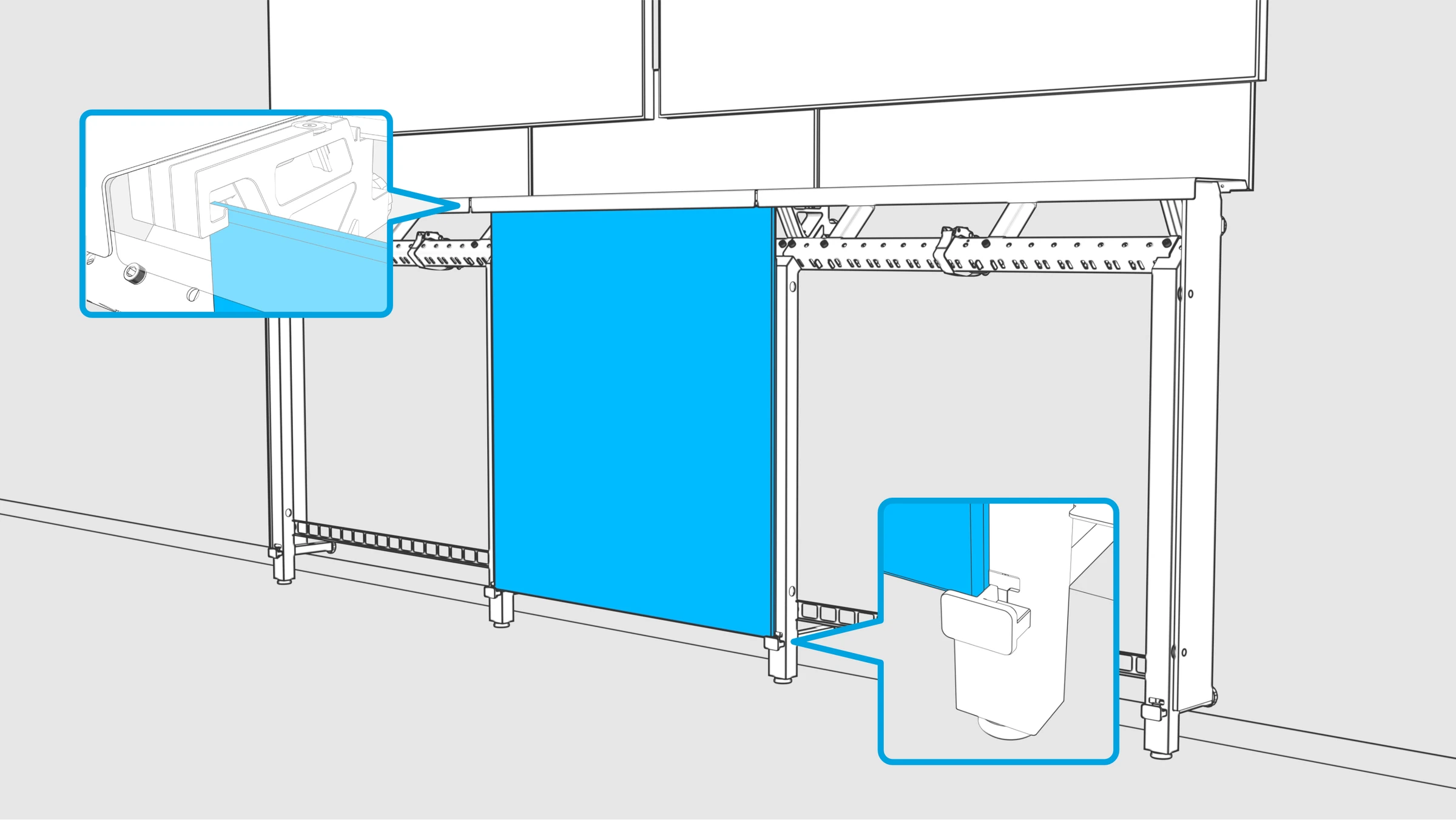

Inner panel beneath the shelf support, with close-ups of its top channel and bottom edge resting on the leg support.

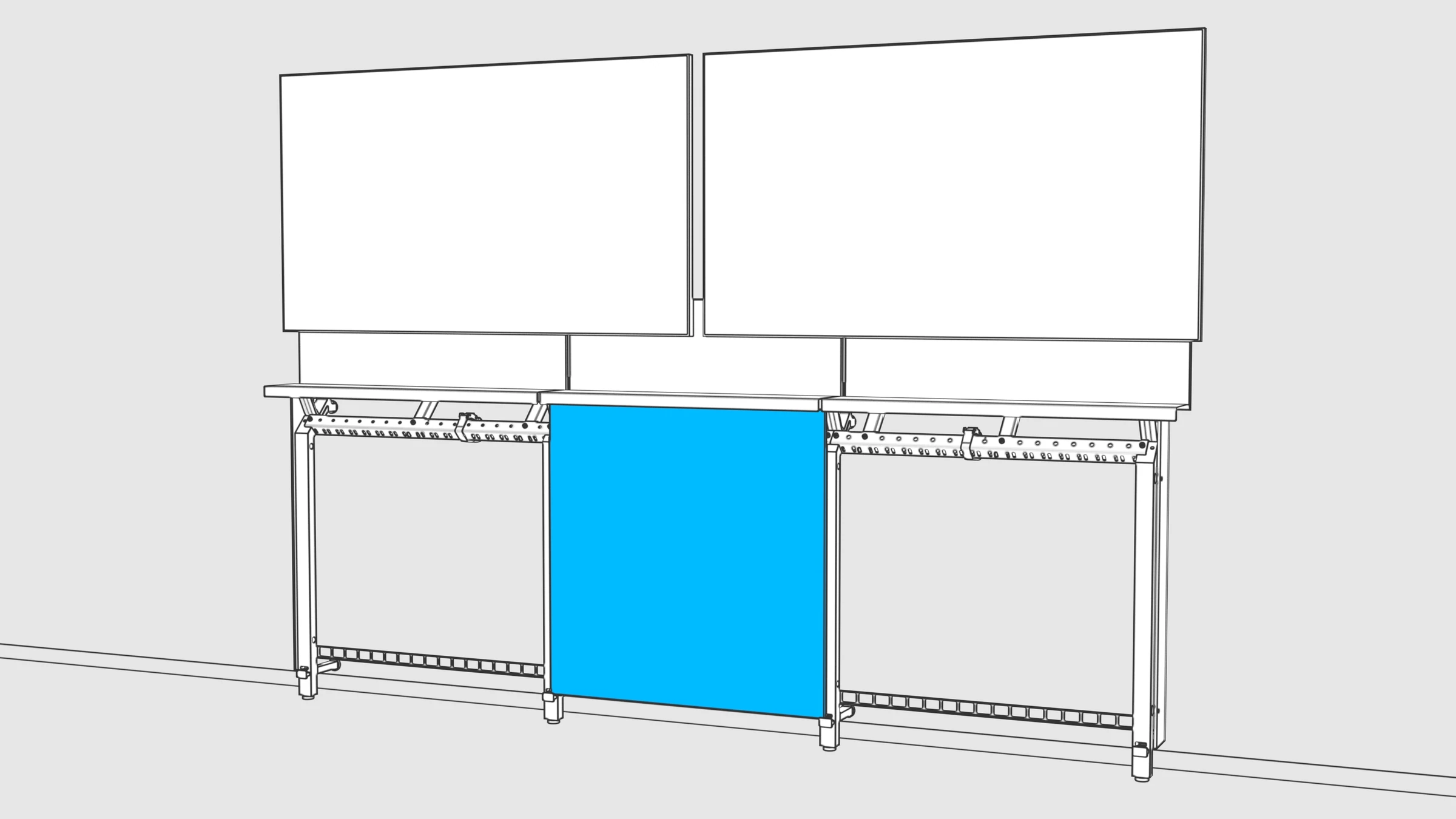

Inner front panel seated vertically in the center bay below the displays.

Repeat this technique for all inner panels, then install two outer panels. Adjust panels as needed to ensure consistent panel gaps.

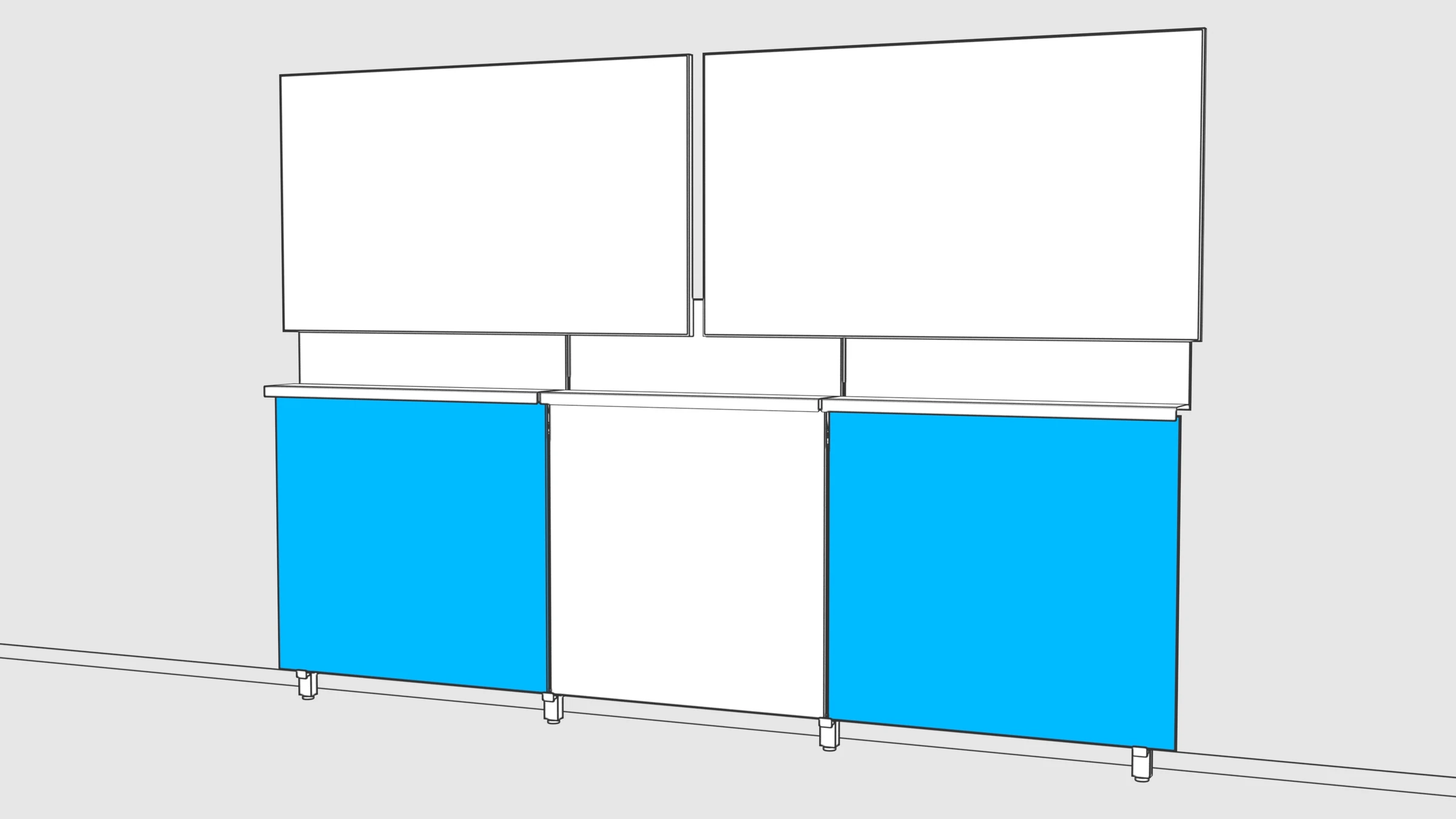

Two outer panels highlighted on either side of the installed inner panel.

And that’s it! You’re done! You’ve successfully installed, configured, and paneled your 3-Bay Heckler Framework.

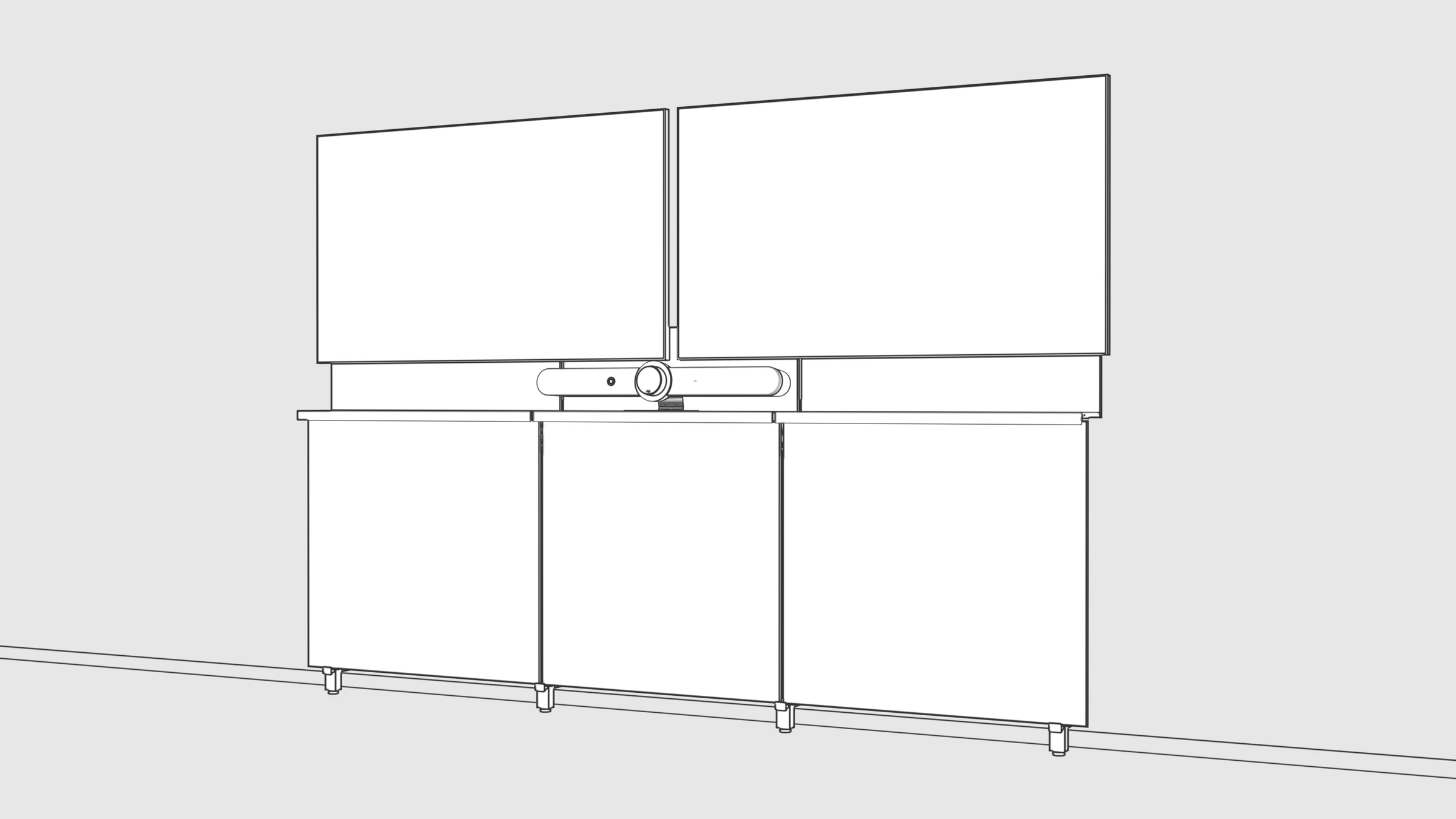

Completed three-bay Framework with front panels beneath two displays and a video bar.

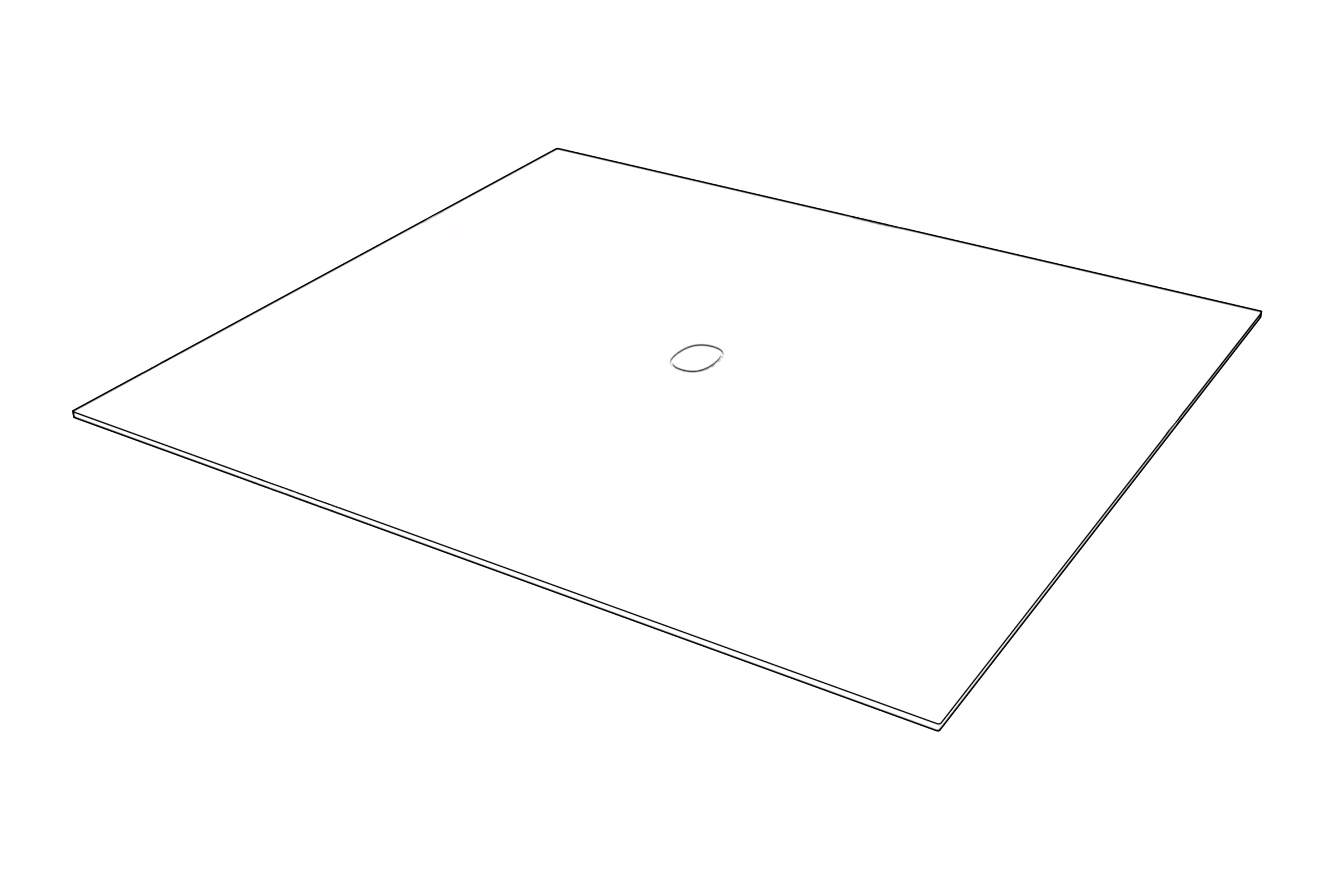

Perspective view of a rectangular panel with a small circular opening near its center.
