Thank you for choosing the Heckler Stand for Rally Board 65. To ensure safe and proper assembly, operation, and maintenance of this product, it is essential to thoroughly read and understand this user guide before beginning any assembly.
Failure to follow the instructions and safety guidelines provided in this manual may result in serious personal injury, equipment damage, or voided warranties.
- Assembly Requirements: This product requires multiple people to safely mount the display. Attempting to mount the display alone could result in injury or damage to the equipment.
- Weight and Stability: Ensure that the stand is placed on a stable, level surface during assembly and when in use. Uneven or unstable surfaces may cause the stand to tip over, leading to potential injury or damage.
- Use Proper Tools: Only use the recommended tools for assembly. Improper tools or techniques may damage the components and compromise the safety and stability of the stand.
- Display Mounting: This stand is compatible only with the Logitech Rally Board 65. Attempting to mount other devices and displays can cause instability resulting in injury or damage.
- Secure All Components: Ensure all bolts, screws, and other fasteners are securely tightened and engaged as per the instructions. Loose or improperly engaged components may cause the stand or display to become unstable.
- Electrical Safety: If your display or any attached components require electrical connections, ensure that all wiring is correctly installed and free of damage. Avoid routing cables where they could be pinched or damaged during assembly or operation.
- Routine Inspection: Regularly inspect the stand and mounted display for any signs of wear, damage, or loose components. Address any issues immediately to maintain safety and functionality.
Heckler Design is not liable for any injuries, damages, or losses resulting from improper assembly, use, or maintenance of this product. By assembling and using this product, you agree to follow all safety guidelines and instructions provided in this user guide.
a. 1 x Beam (R1027)
b. 2 x Column (R1042)
c. 4 x Leg (R1028)
d. 4 x caster (F189)
e. 1 x Assembly Hex Key (F523)
f. 1 x Assembly Hex Key (F674)
g. 2 x Column Cap (P282)
h. 4 x Cable manager (P275)
i. 4 x Display lower mounting screw (F296)
j. 2 X Display upper mounting screw (F694)

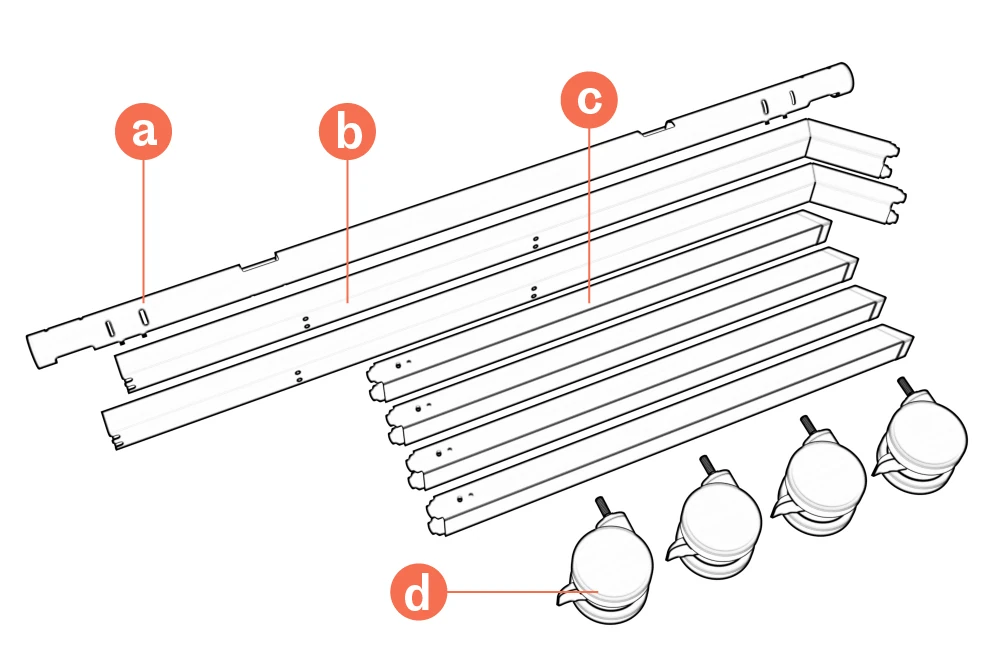

Enlarge image ↗ Parts diagram labeled a–d: beam, two columns, four legs, and four casters.

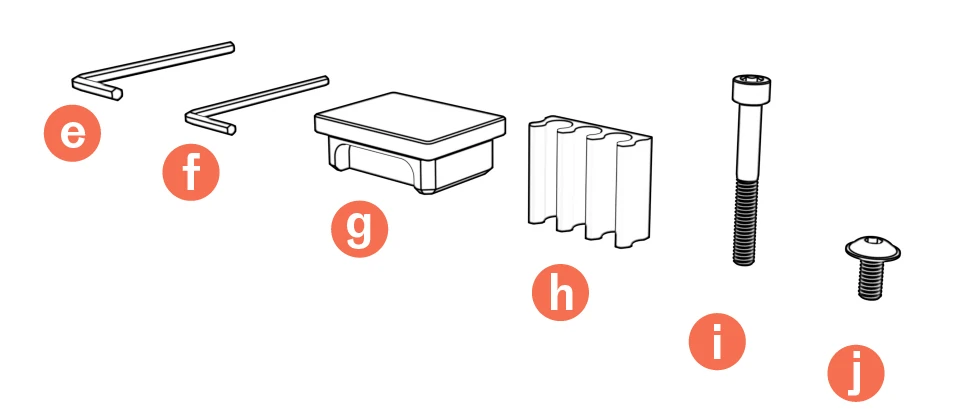

Enlarge image ↗ Hardware diagram labeled e–j: two hex keys, column cap, cable manager, long lower mounting screw, and short upper mounting screw.
Engage the caster brake.
The casters have a total lock feature, locking the wheels from spinning as well as the swivel axis from swiveling.
Thread the caster into the leg socket.

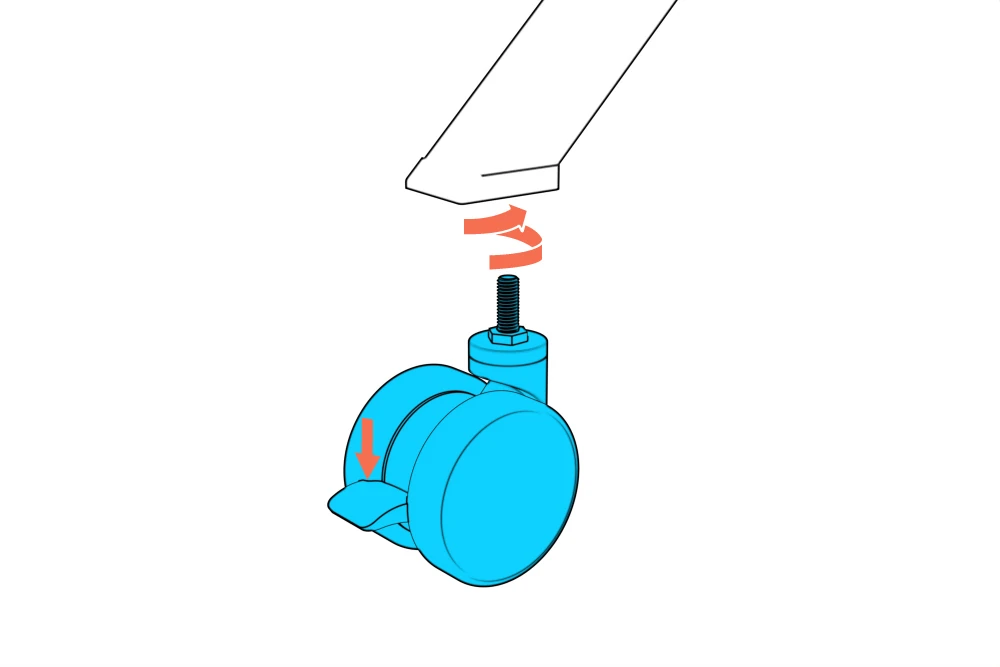

Enlarge image ↗ Threaded caster beneath a leg socket, with arrows showing brake engagement and rotation.
Thread the caster all the way into the leg insert. The hex feature of the caster should be fully seated inside the leg socket.

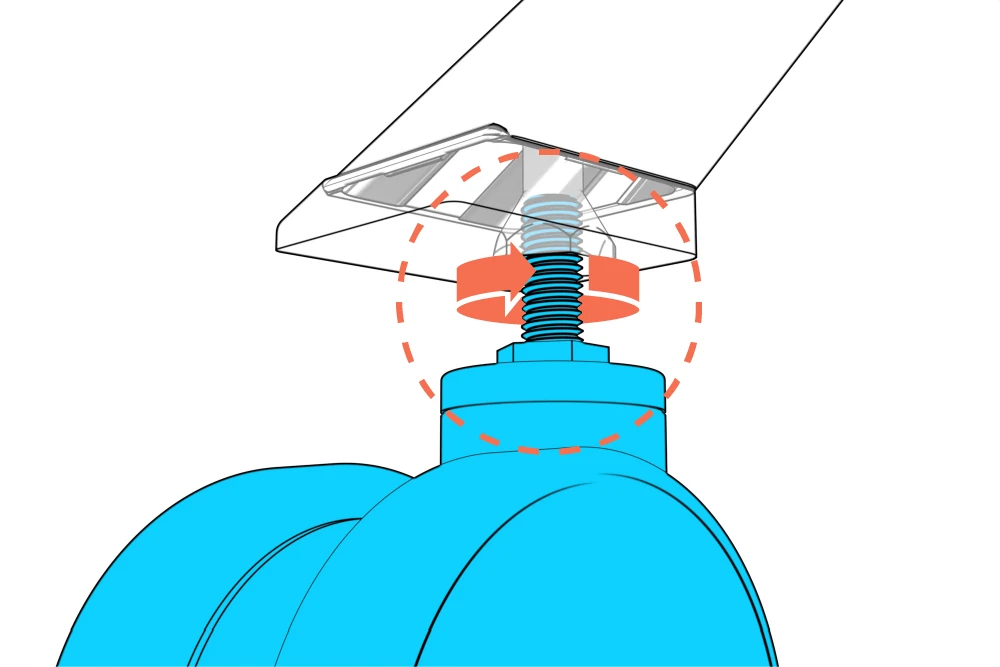

Enlarge image ↗ Close-up shows the caster threading into the leg insert.

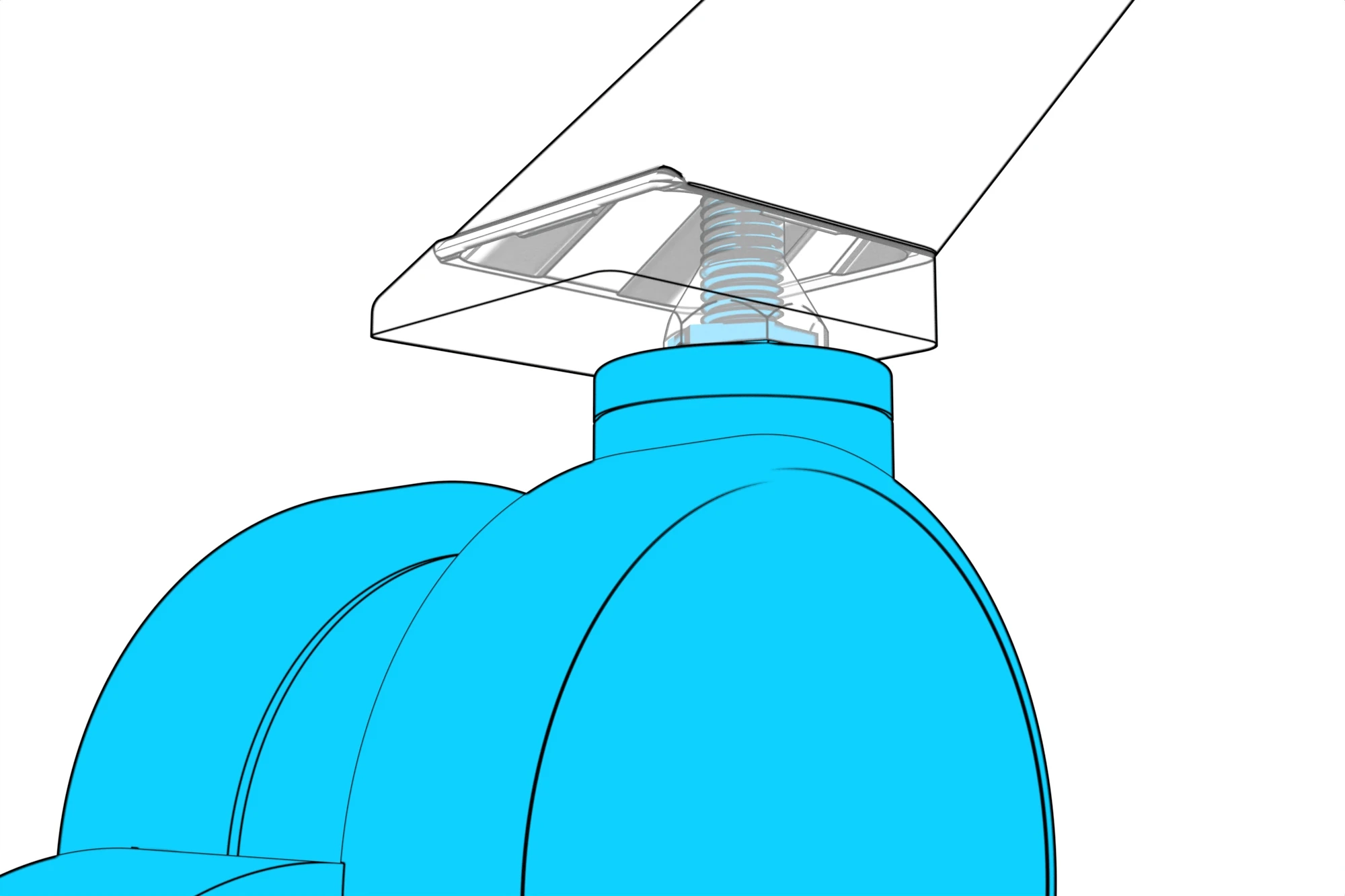

Enlarge image ↗ Caster fully seated against the leg socket.
Lay the beam on the ground and install the first leg.
If the leg becomes misaligned during your installation attempt, remove the leg from the socket and try again. Attempting to pry or force a misaligned leg into position may cause damage to the stand.
Use the supplied hex key to back out each set screw so the leg can slide into the socket without striking the tips of the set screws.

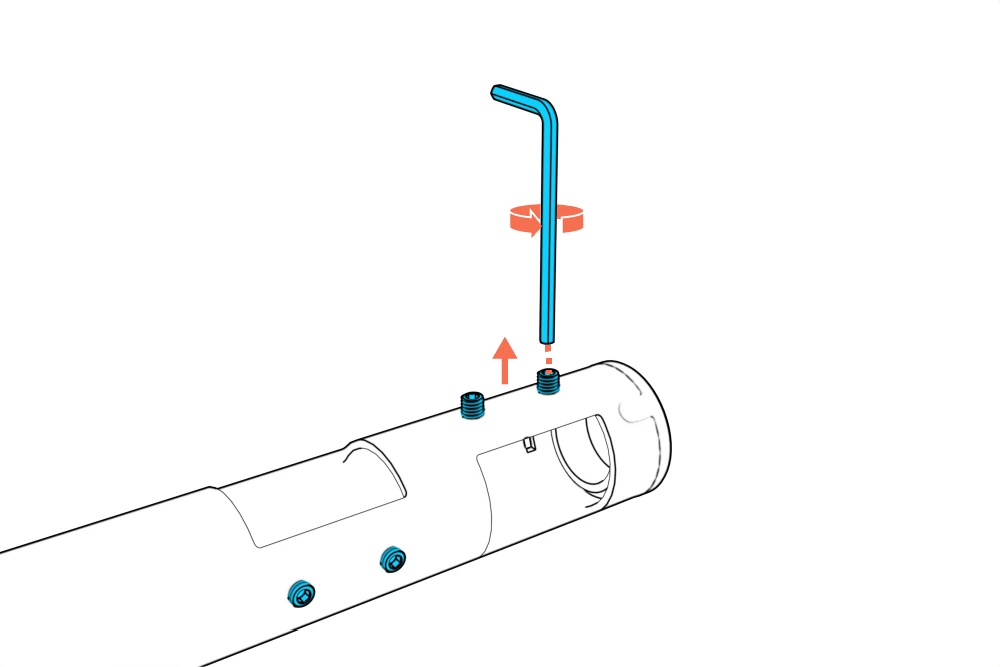

Enlarge image ↗ Hex key backing out the two set screws beside a leg socket.
Each leg socket ships with two set screws pre-installed. Check to ensure two set screws are present at each leg socket location. If any set screws are missing, check your packaging and contact Heckler customer service for replacement parts.
Orient the leg so that the surface with the two holes aligns with the two set screws.
Insert the leg into the socket.

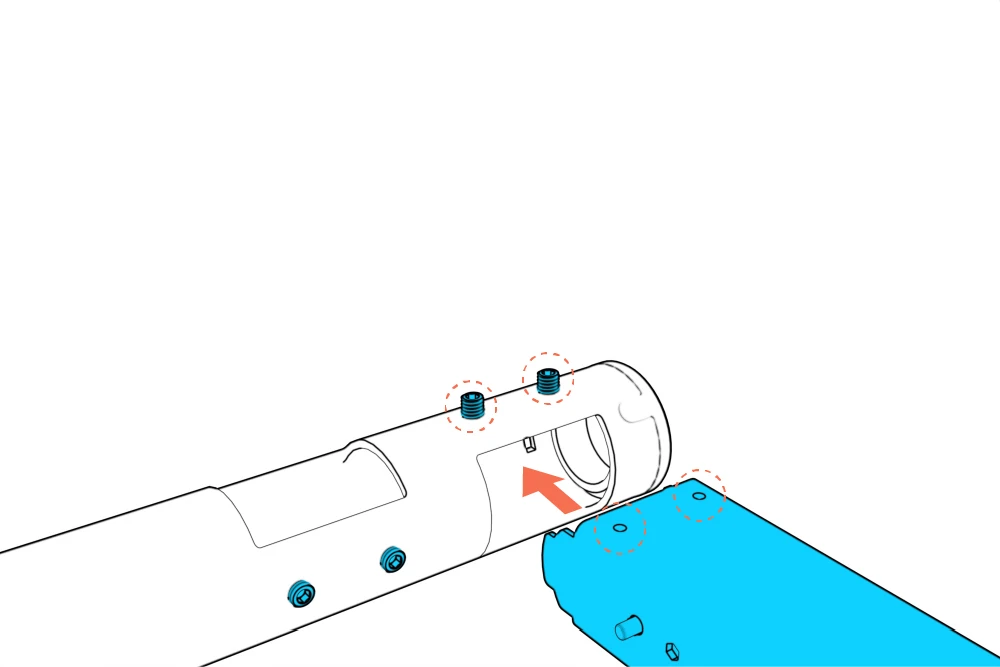

Enlarge image ↗ Leg aligned with the beam socket so its two holes face the set screws.
Depress the silver safety push pin on the side of the leg, then push the leg fully into the socket.

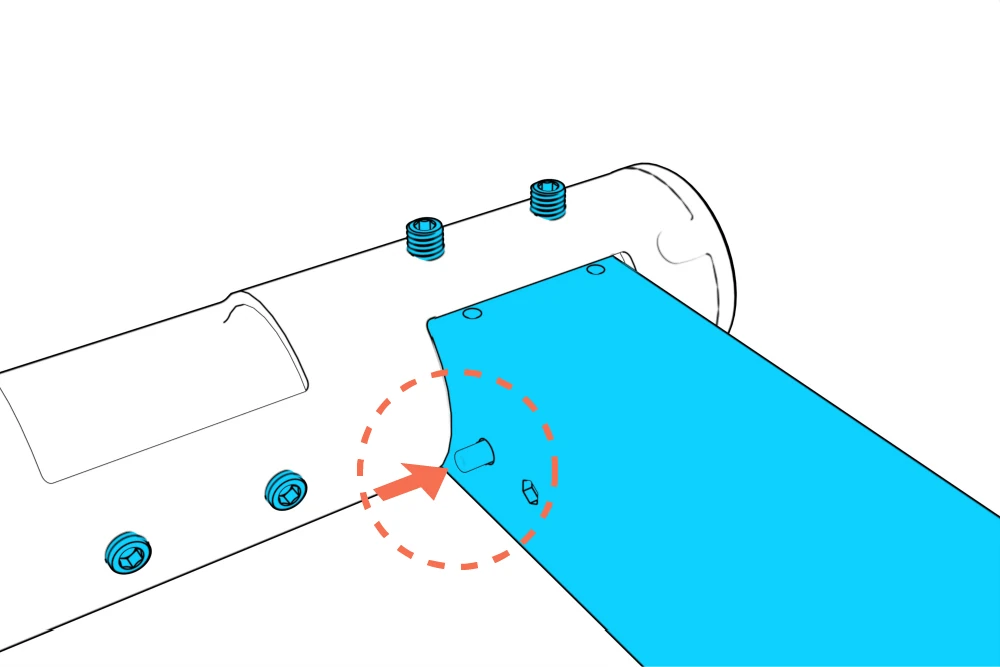

Enlarge image ↗ Safety button pressed inward while the leg enters the beam socket.
When correctly inserted, the safety push pin will click inside of the round beam tube and the two tabs on the end of the leg will be flush with the outside surface of the beam.

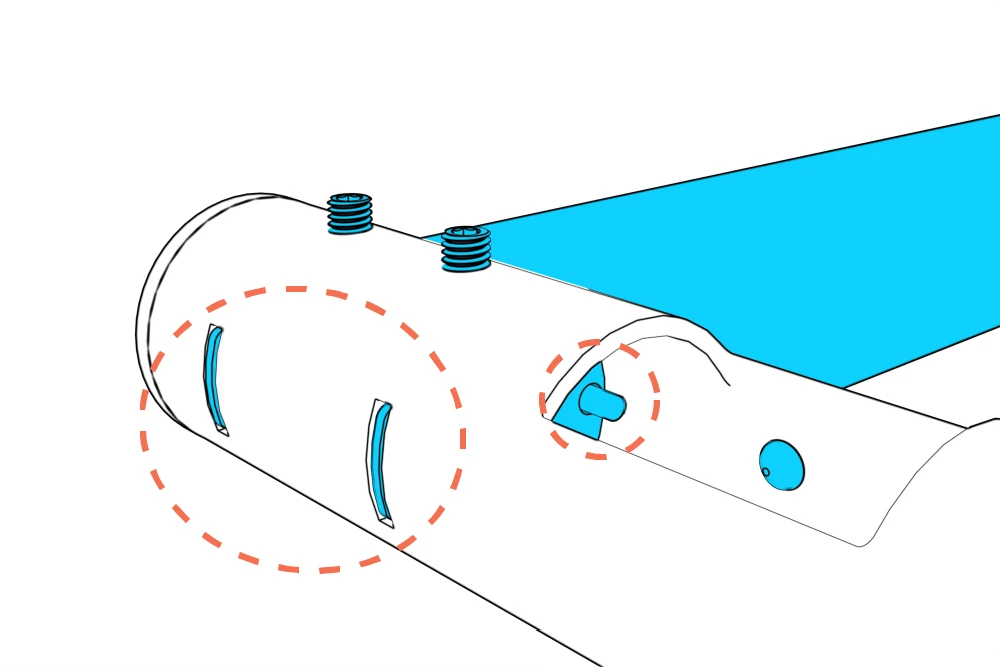

Enlarge image ↗ Seated leg with its end tabs and spring pin circled.
Tighten the two set screws.
Tighten the screws firmly, but do not overtighten.
As the set screws fasten into place, the conical tip of the set screws will align with the conical holes in the leg. You’ll feel the leg align into its final position.

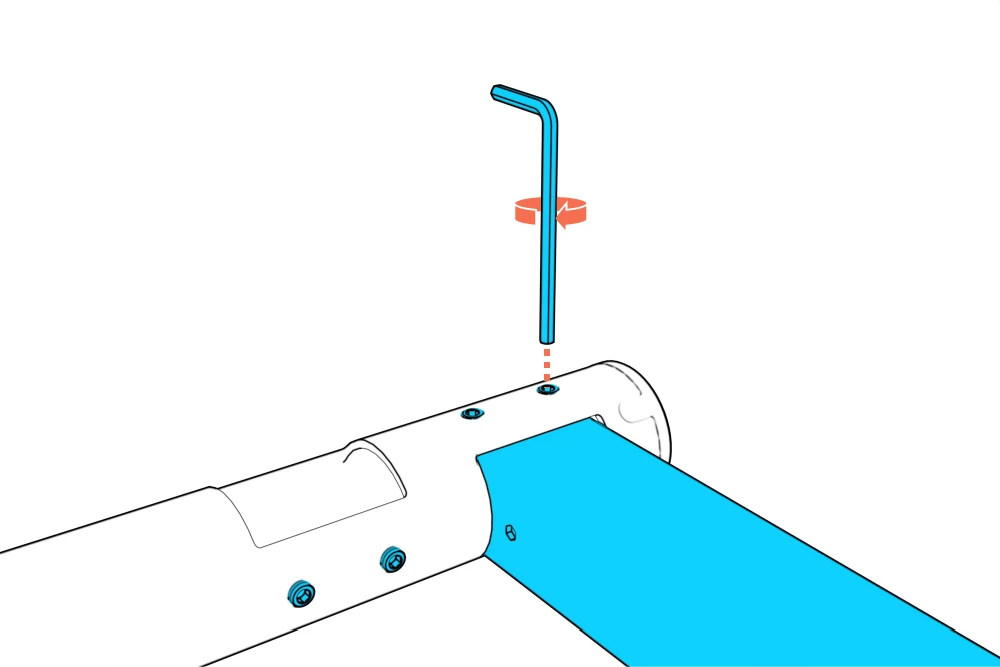

Enlarge image ↗ Hex key tightening a leg set screw.
Ensure the set screws are fully screwed into the leg. The set screws should rest near-flush to the beam surface. The set screws should not sink into the beam beyond flush.

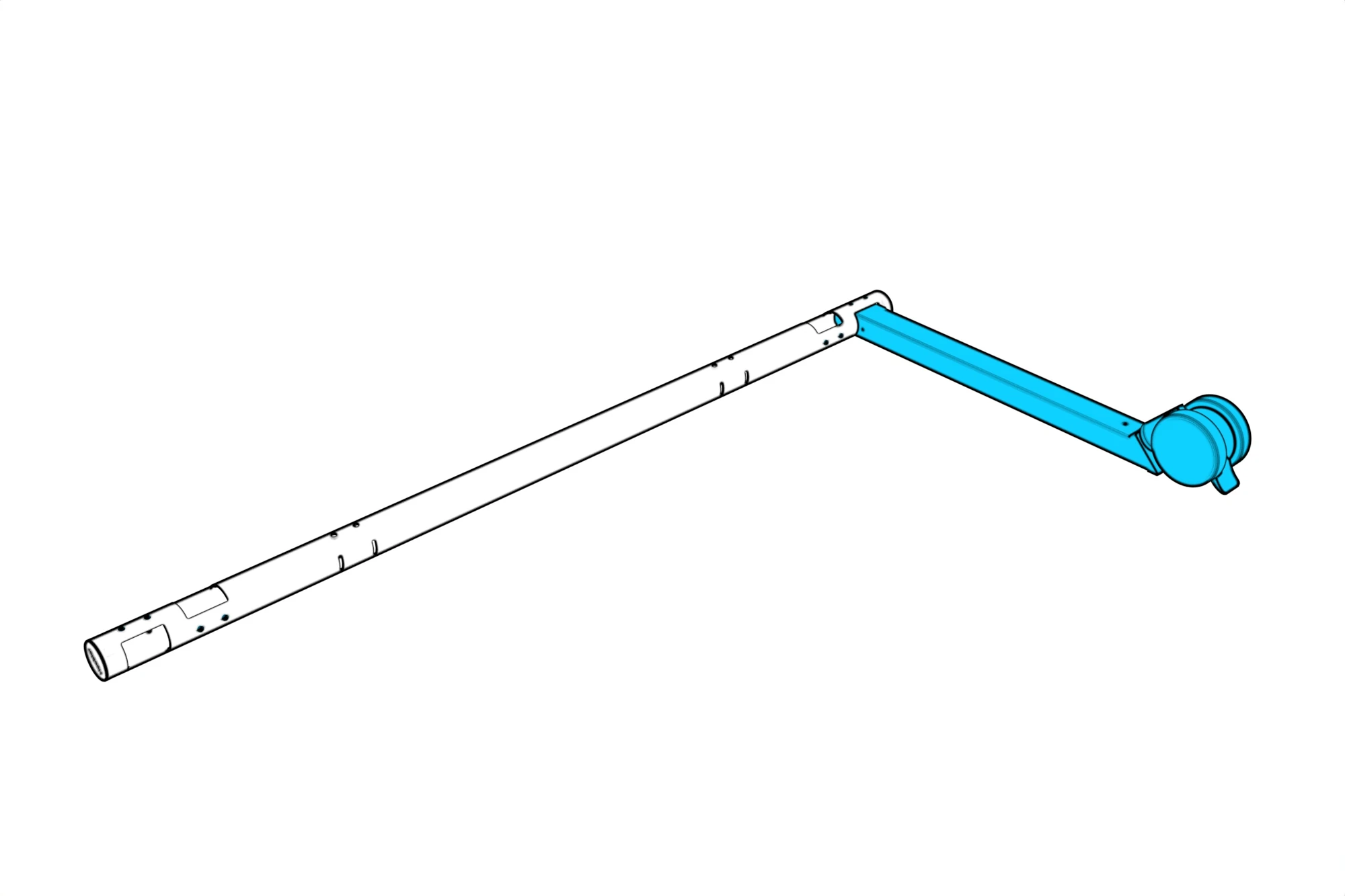

Enlarge image ↗ First leg installed in the beam.
Repeat this process for the rear leg while the beam and first leg rest on the ground or tabletop.

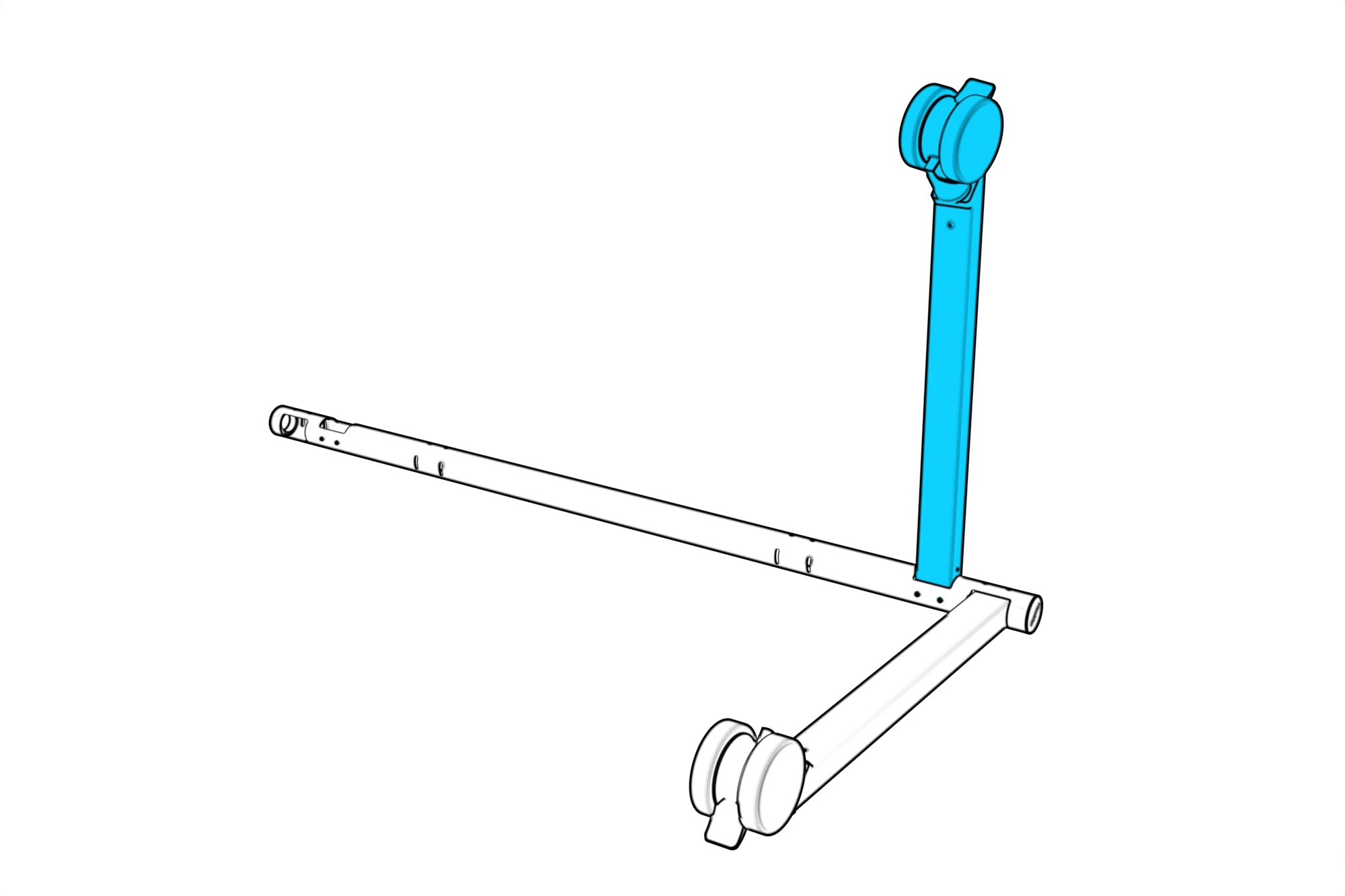

Enlarge image ↗ Rear leg installed while the beam rests on the first leg.
Repeat the process with the remaining two legs.
Upright the completed stand base.

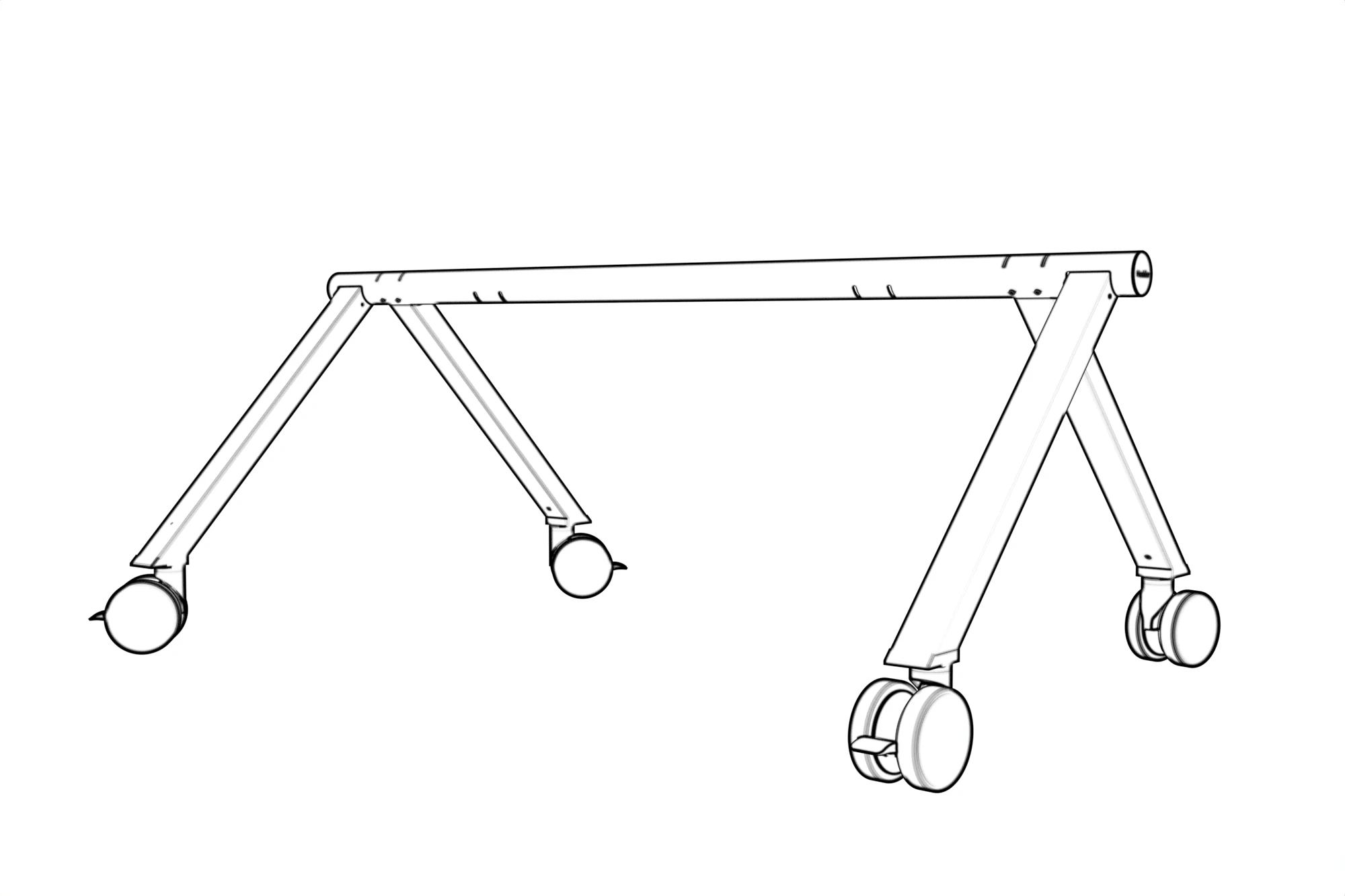

Enlarge image ↗ Completed four-leg base.
Engage the brake on all four casters.

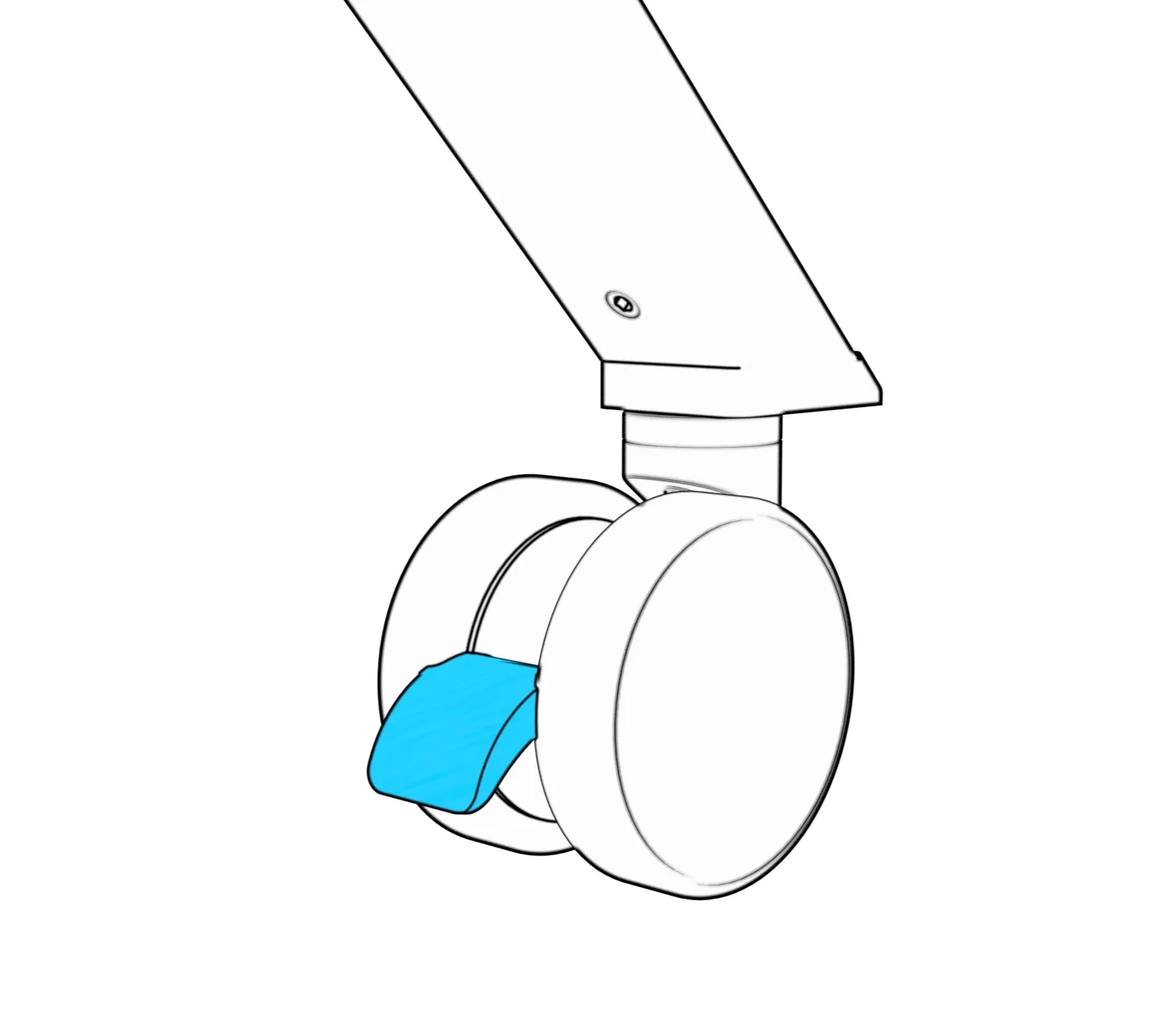

Enlarge image ↗ Close-up of the caster brake being pressed down.
Identify the two column sockets on the beam.
Use the supplied hex key to back out each set screw so the column can slide into the socket without striking the tips of the set screws.
Each column socket ships with two set screws pre-installed. Check to ensure two set screws are present at each column socket location. If any set screws are missing, check your packaging and contact Heckler customer service for replacement parts.

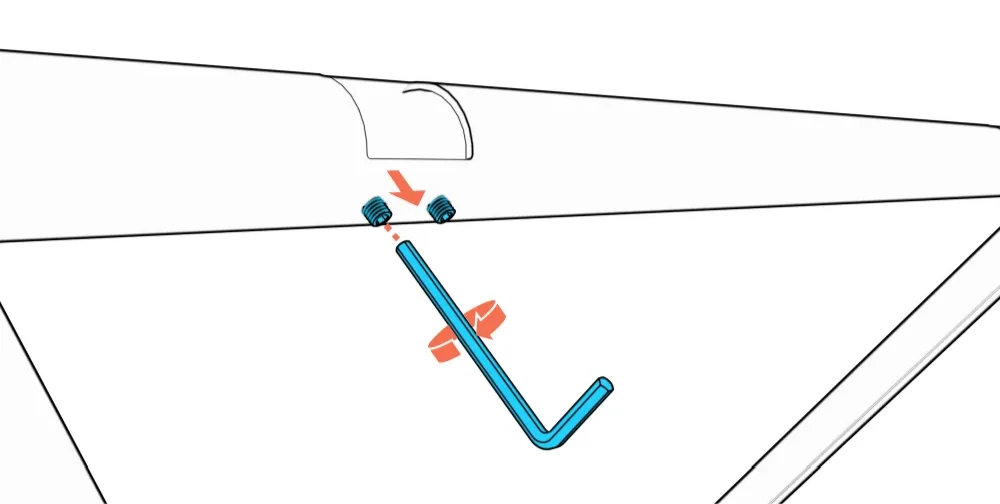

Enlarge image ↗ Hex key backing out the two set screws beside a column socket.
Align and insert the end of the column with the socket on the beam.
Hold the column vertically throughout this process to ensure proper socket alignment. If the column becomes misaligned during your installation attempt, remove the column from the socket and try again. Attempting to pry or force a misaligned column into position may cause damage to the stand.

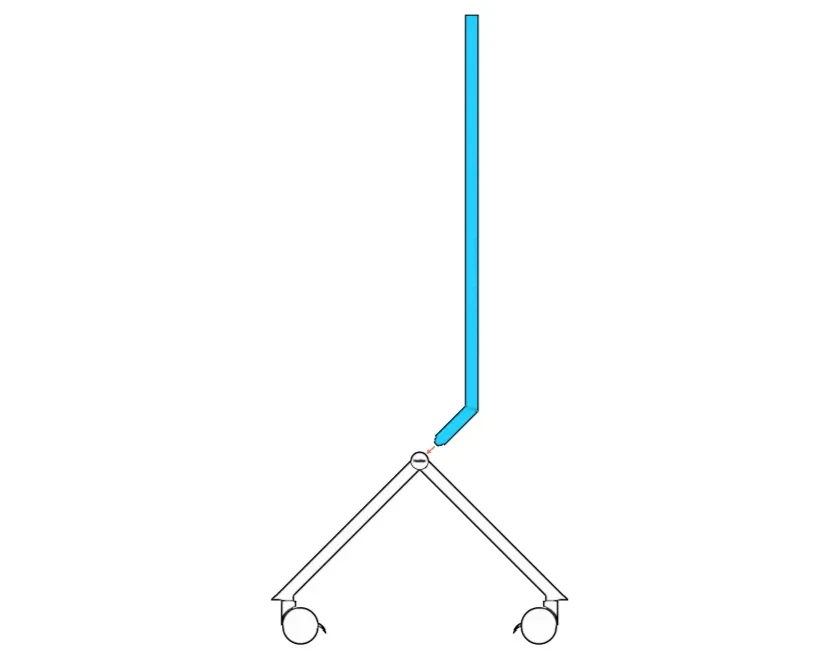

Enlarge image ↗ Bent column upright above the beam socket.

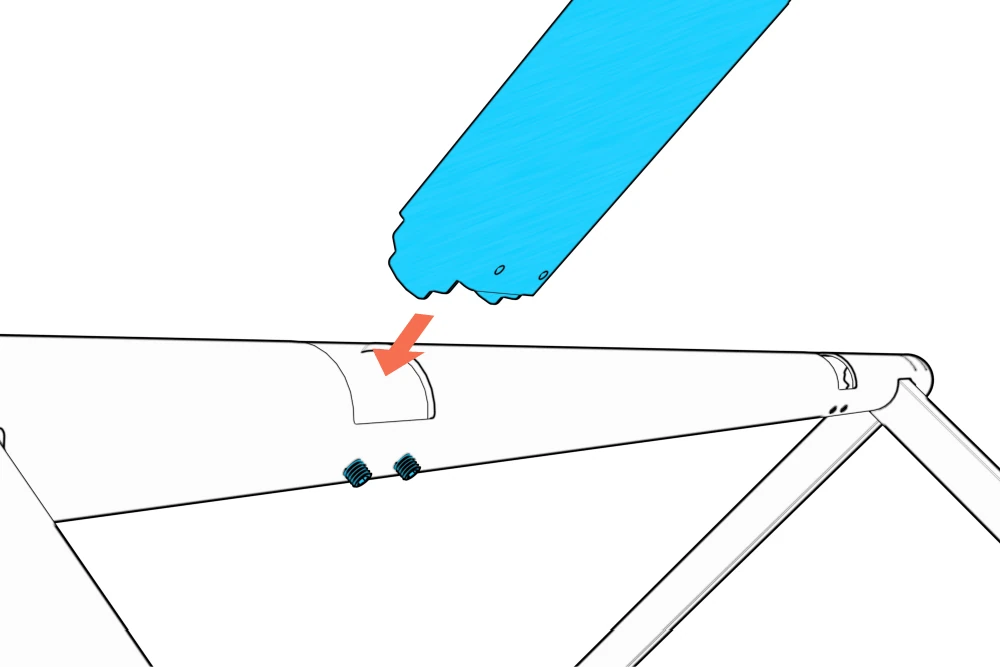

Enlarge image ↗ Column entering the beam with the set screws backed out.

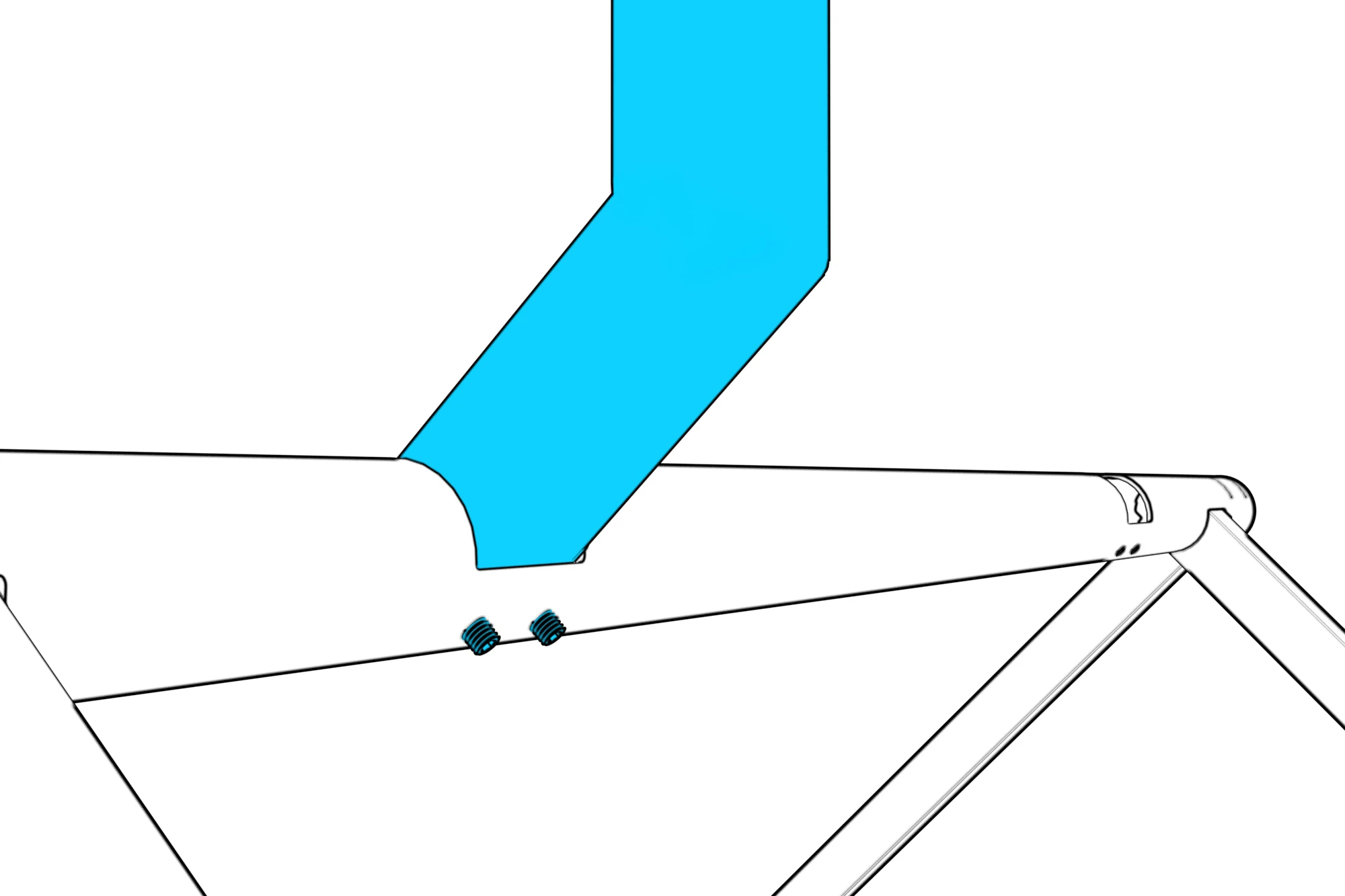

Enlarge image ↗ Column seated in the beam.
Ensure the tabs of the column rest flush with the outer surface of the beam. Tighten both column set screws firmly without overtightening. They should sit near-flush with the beam surface, not below it.

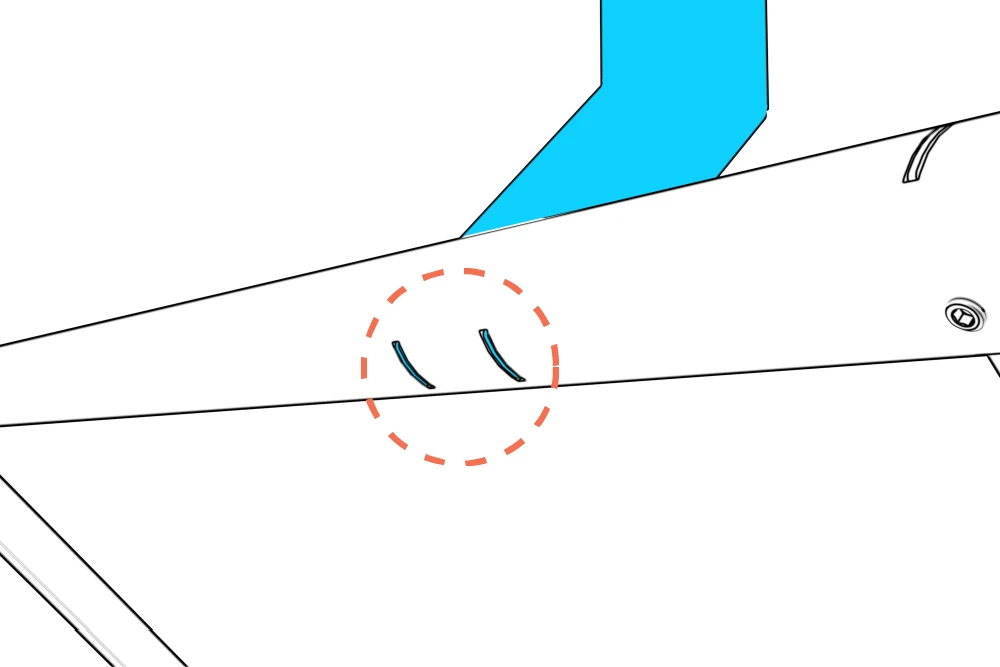

Enlarge image ↗ Close-up circles the column tabs flush with the opposite face of the beam.

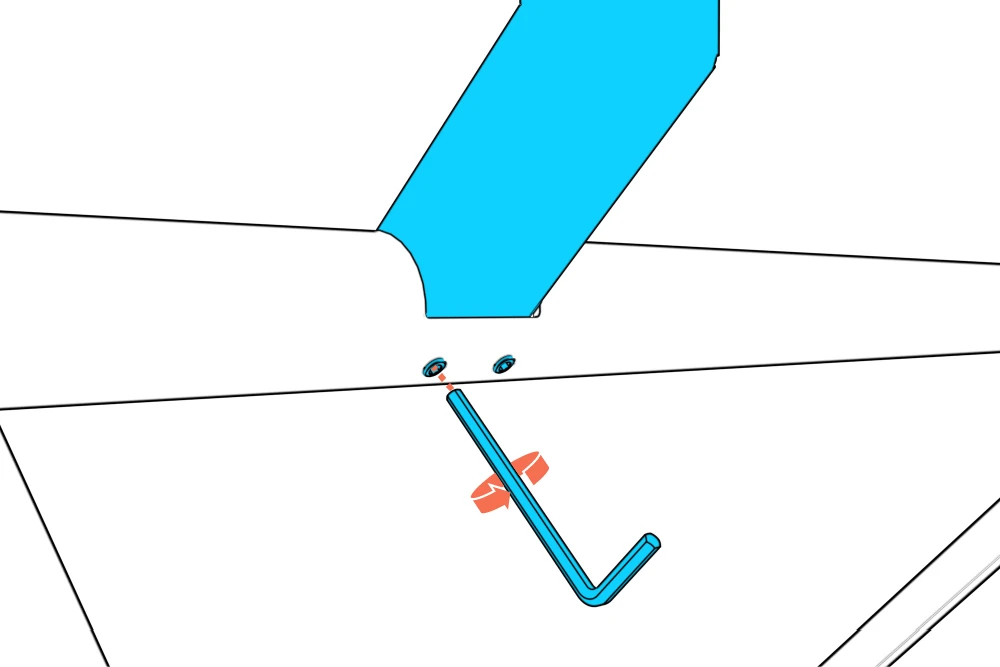

Enlarge image ↗ Hex key tightening a column set screw.

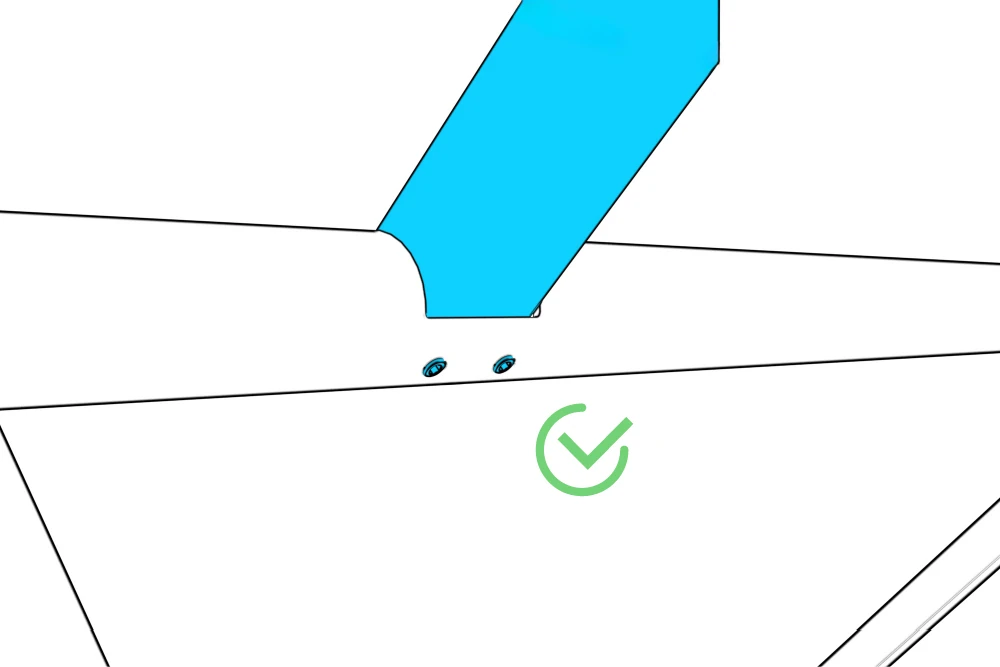

Enlarge image ↗ Two near-flush column set screws with a green check mark.

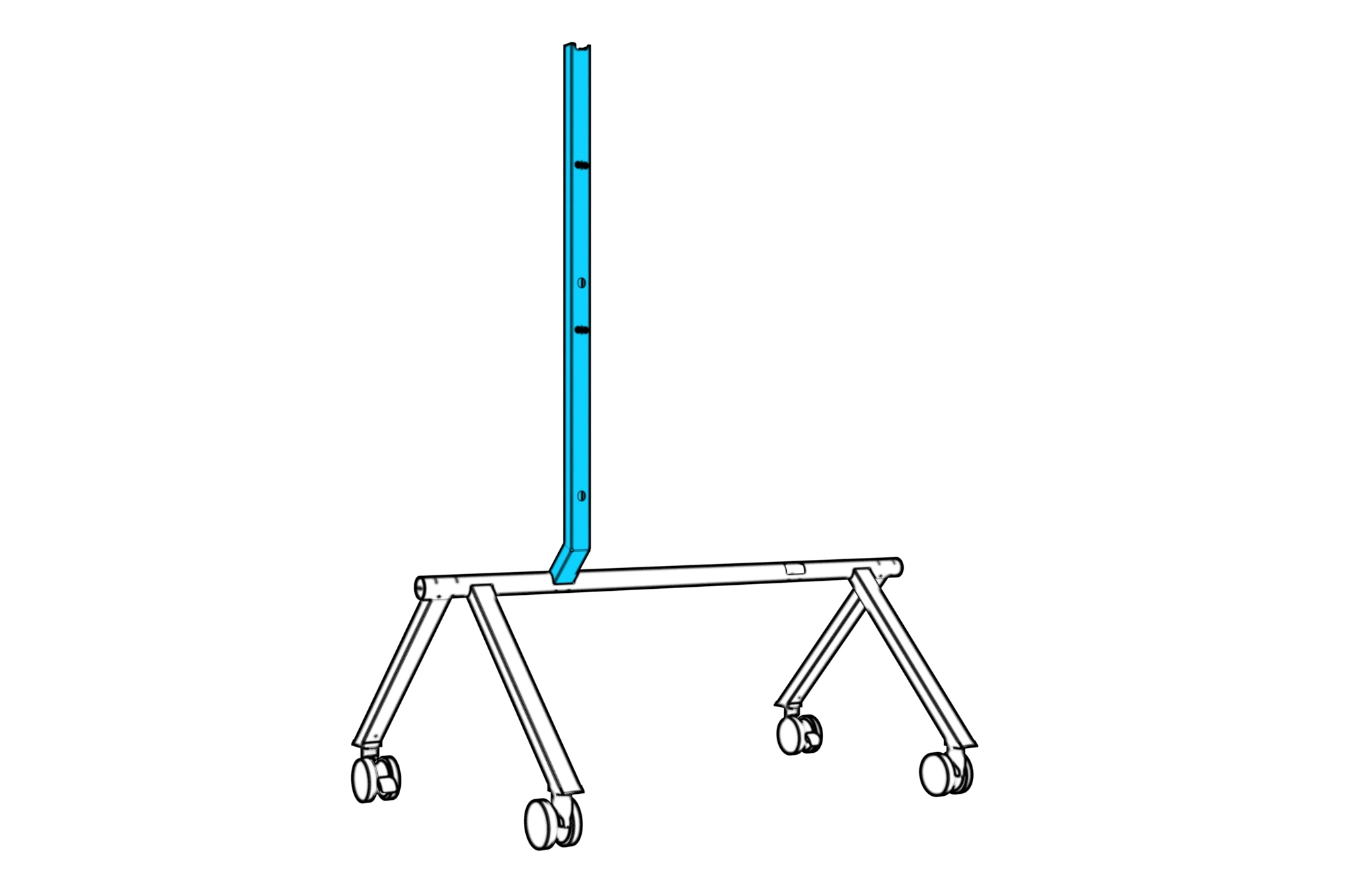

Enlarge image ↗ First column installed in the base.
Repeat this process to install the second column.

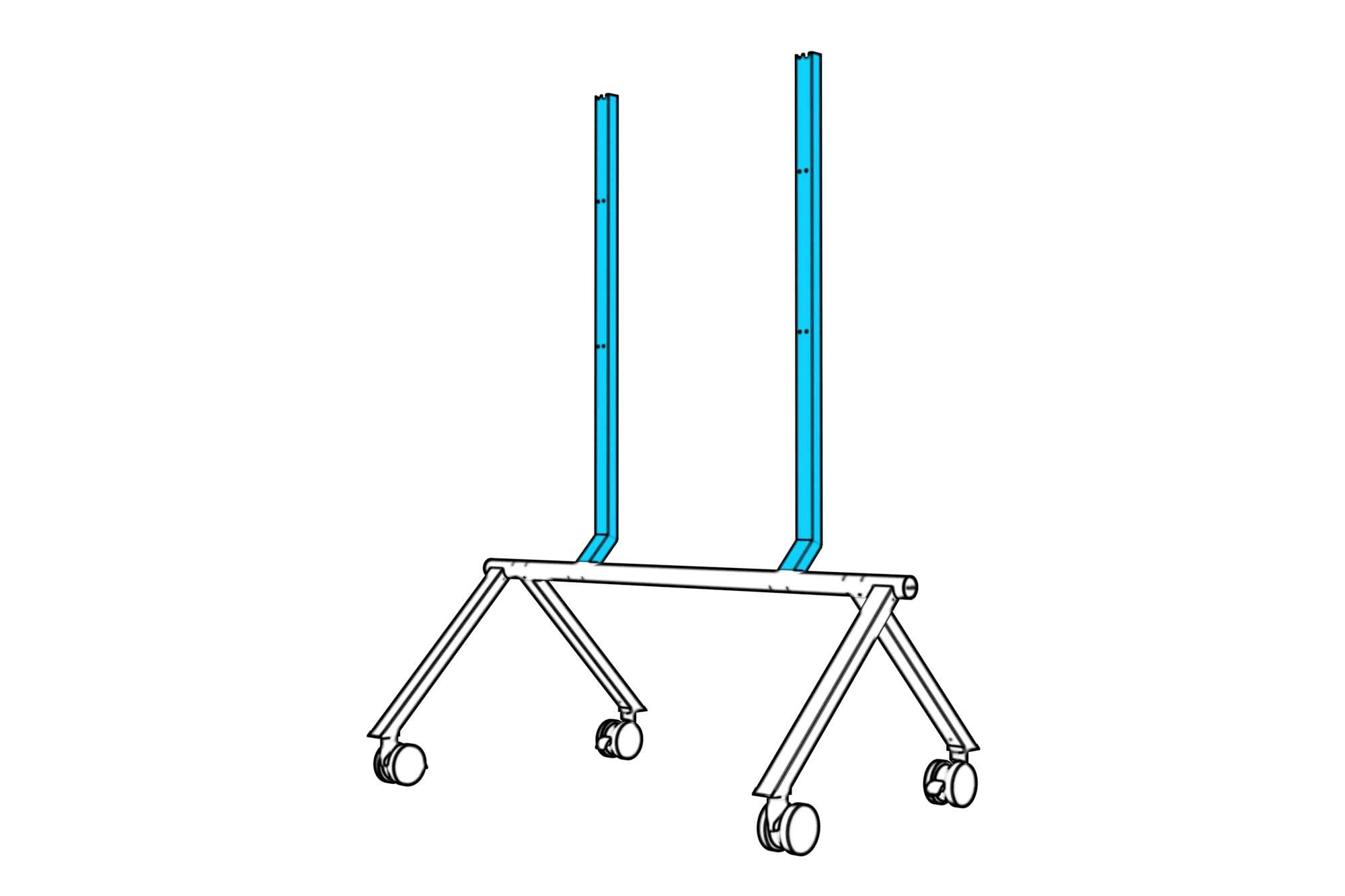

Enlarge image ↗ Both columns installed in the base.
Rally Board 65 has both VESA compatible mounting points and proprietary, outer mounting points. This stand relies on the proprietary, outer mounting points located on the far outer sides of the rectangular protruding feature on the rear of Rally Board 65.
Choose the display orientation.

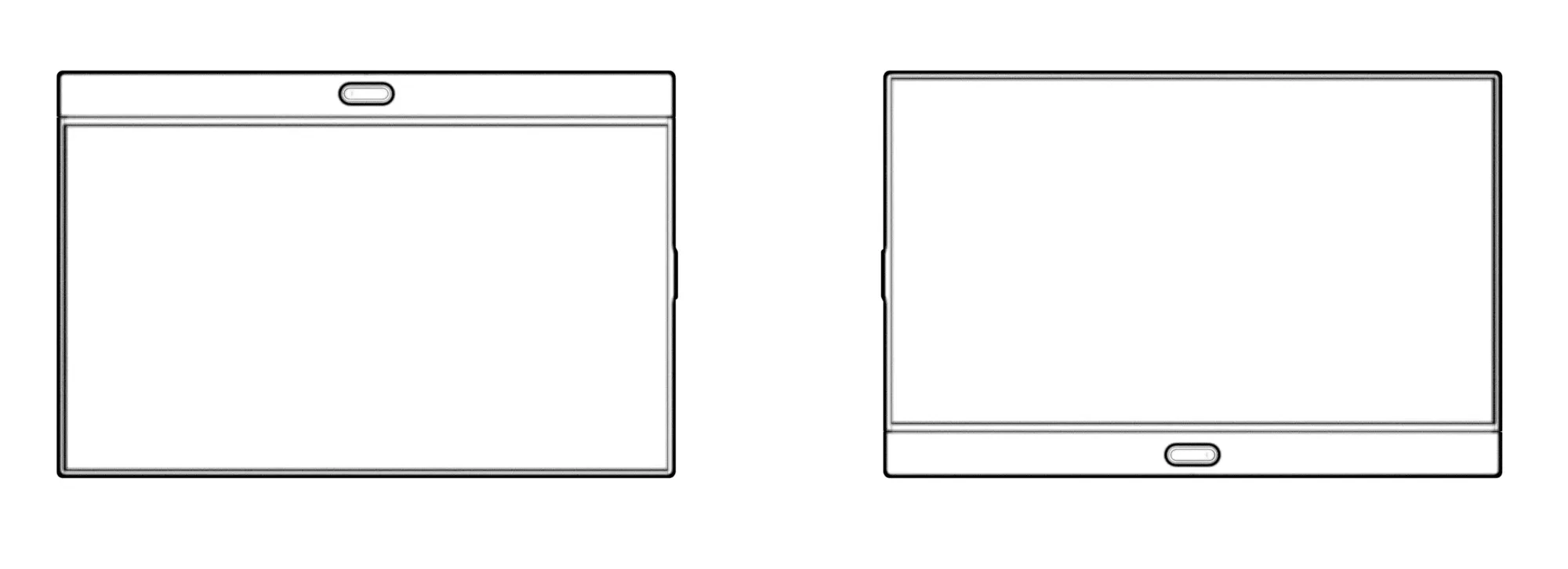

Enlarge image ↗ Rally Board shown in camera-above and camera-below orientations.
Locate the upper two mounting holes, which are 11.6 inches (295 mm) from the top. The display is symmetrical, so the mounting hole distance is the same on both sides.

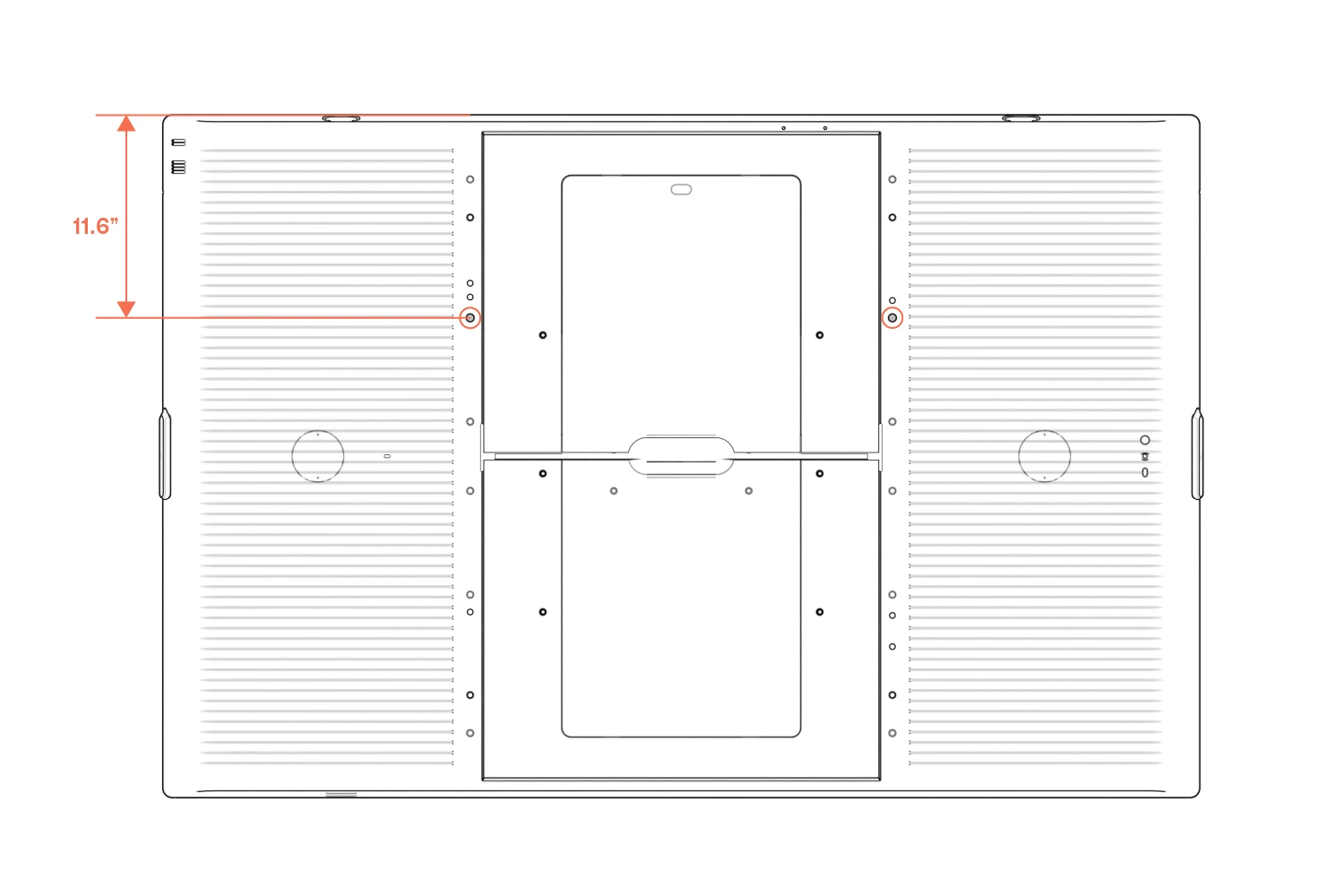

Enlarge image ↗ Rear of the display with the upper outer mounting holes marked 11.6 inches from the top.
Fasten the display upper mounting screws to these two locations.
Engage at least four rotations of thread, but do not fully tighten. Leave about 0.2 inches of space between the screw head and the rear surface of the Rally Board 65.

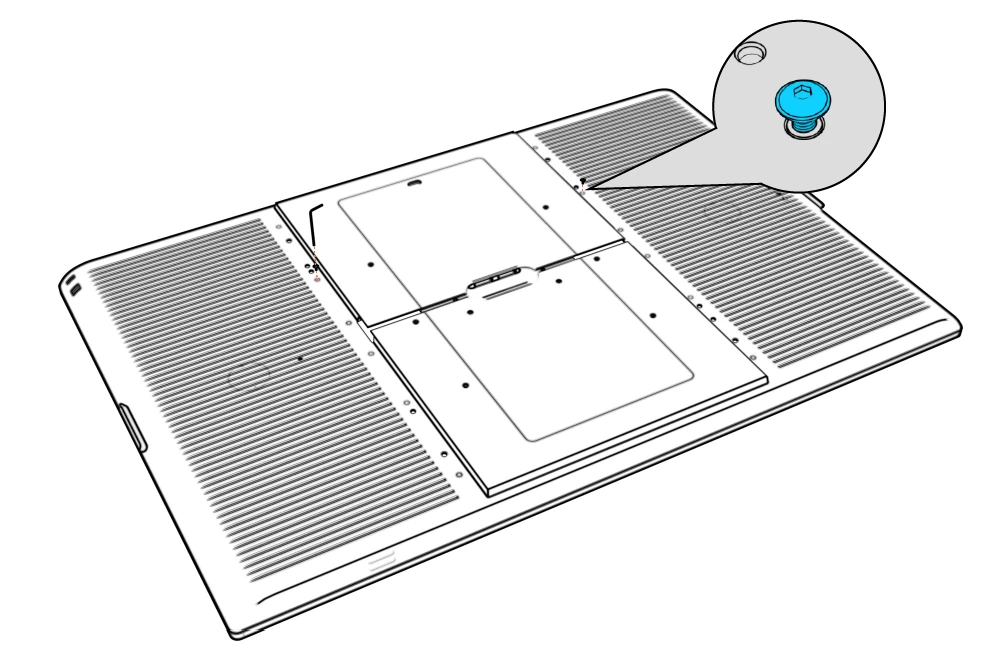

Enlarge image ↗ Short upper mounting screws positioned at the rear mounting holes, with an enlarged detail.
Bring the Rally Board 65 close to the columns, then lower the upper two mounting screws to rest in the inner slots at the top of each column.

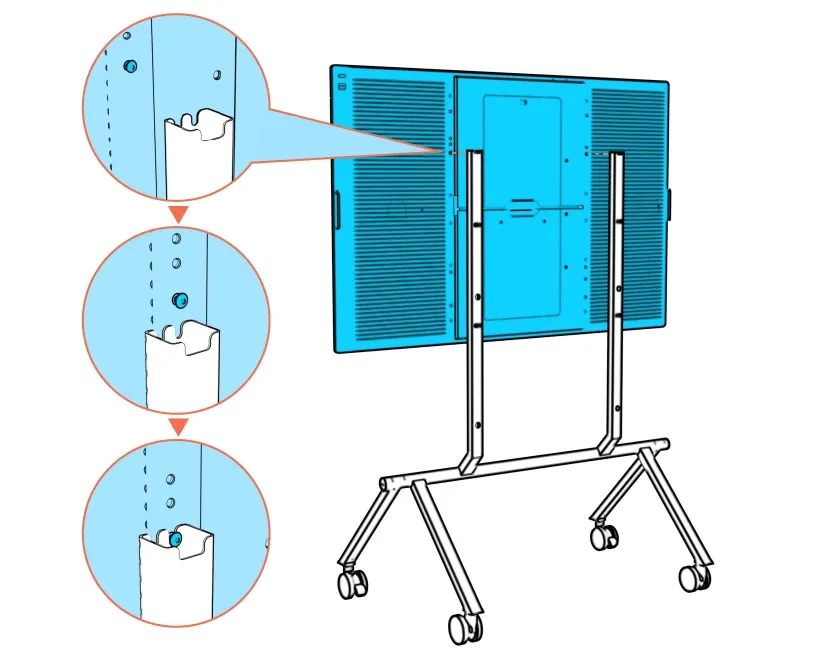

Enlarge image ↗ Three views show the upper display screws lowering into the slots at the tops of the columns.
Fully tighten the upper two mounting screws.

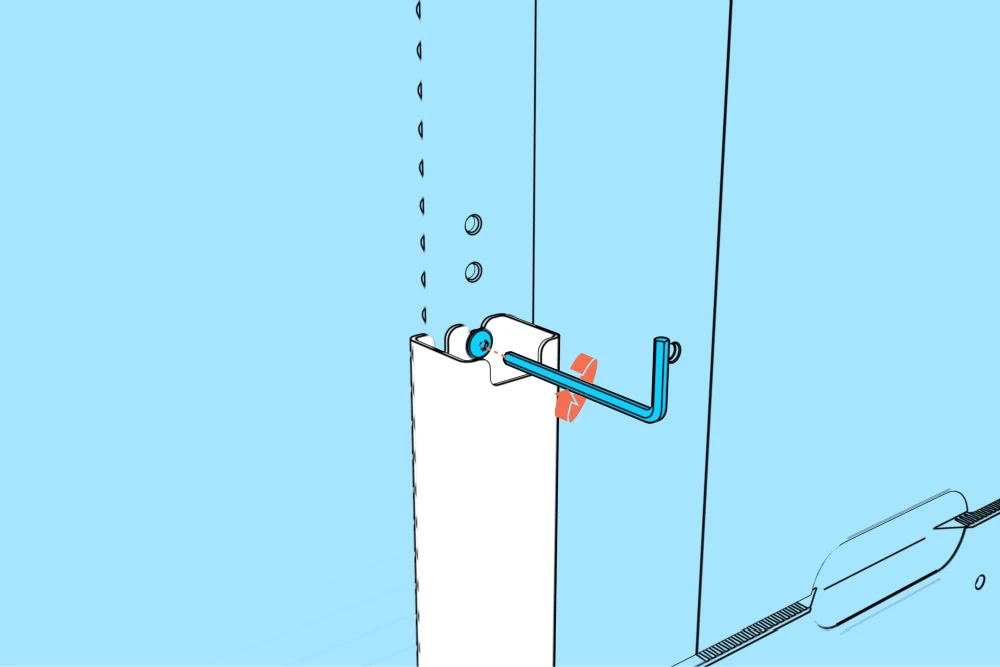

Enlarge image ↗ Hex key tightening an upper display mounting screw.
Insert the four lower display mounting screws through the inner holes on the rear of each column.
Fully fasten each of the four screws until the Rally Board is held tight to the columns and the head of each screw is flush to the rear surface of each column.

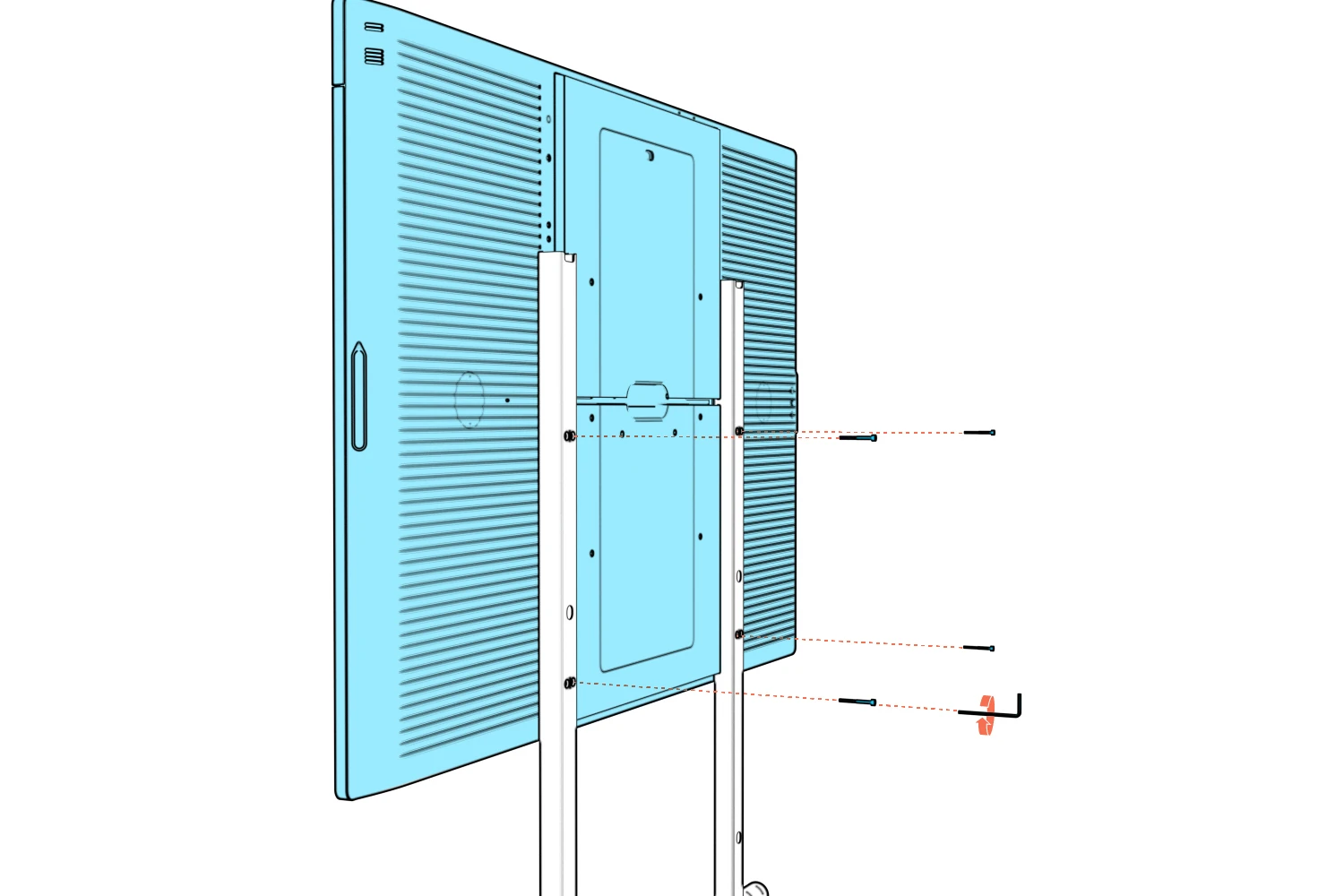

Enlarge image ↗ Four long lower mounting screws aligned with holes through the rear of the columns.

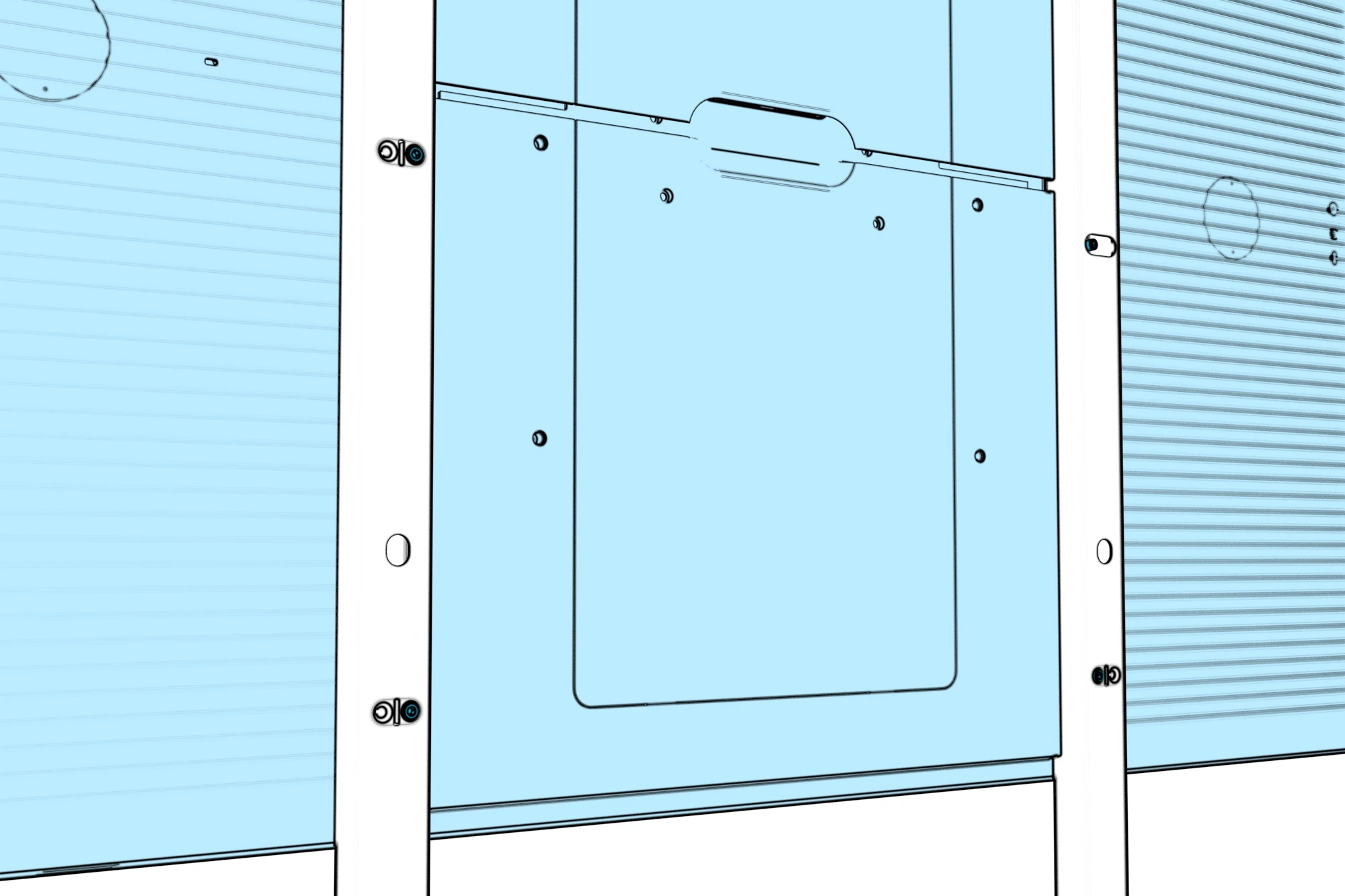

Enlarge image ↗ Four lower screw heads seated flush with the rear faces of the columns.

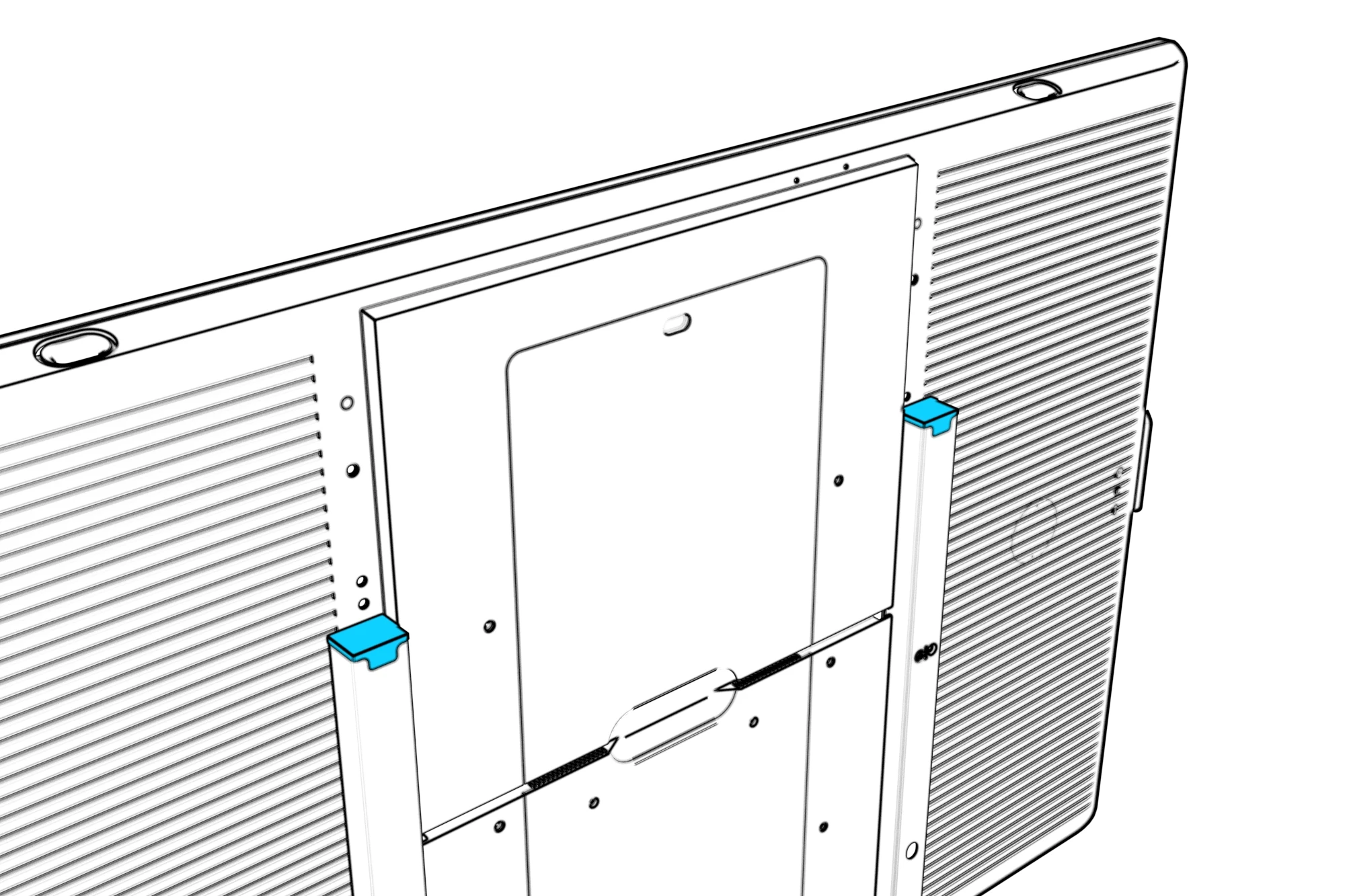

Enlarge image ↗ Caps aligned above the open tops of the columns.
Install cable managers into the columns.

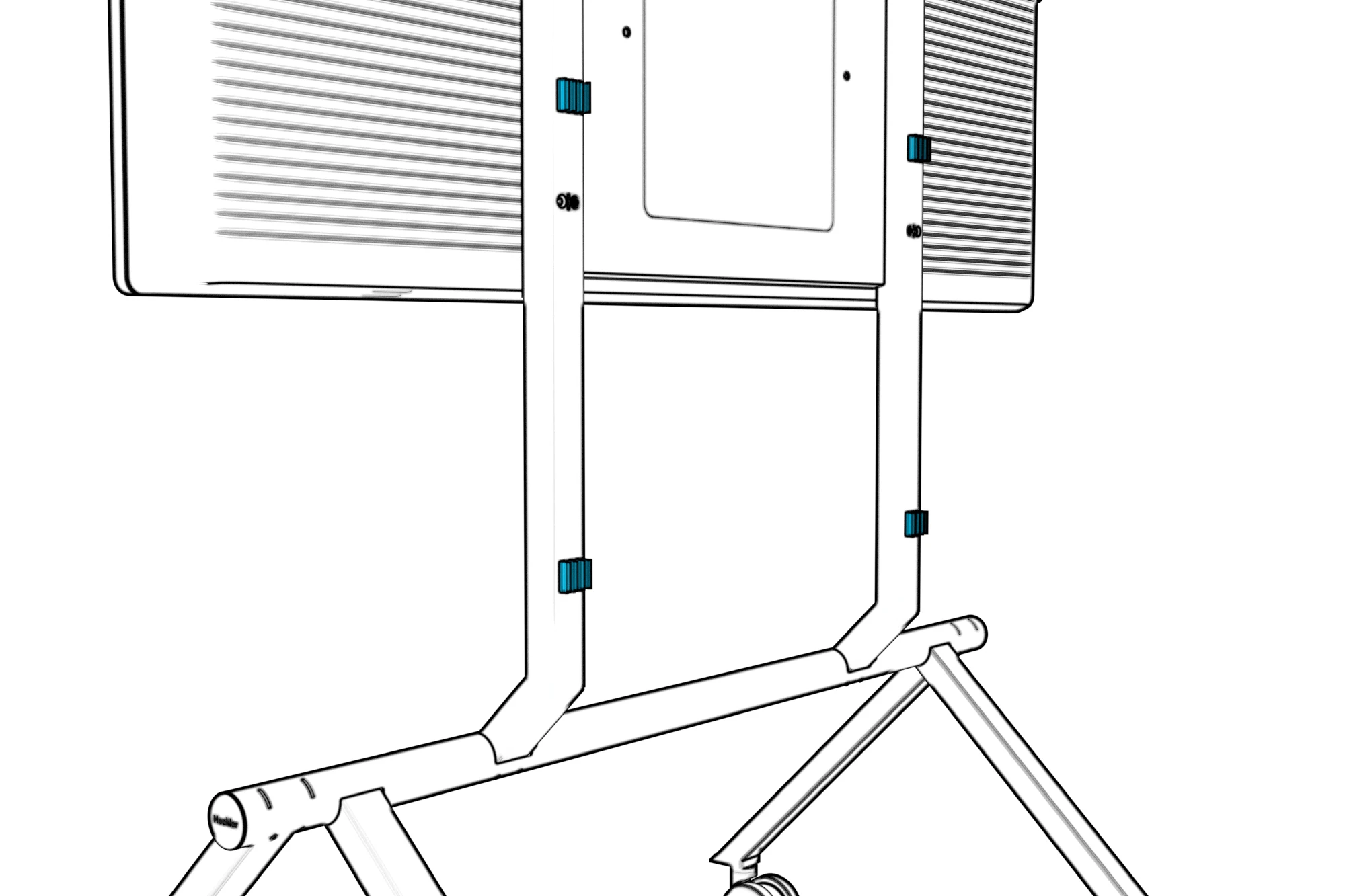

Enlarge image ↗ Four cable managers installed along the columns.
Route cables along the columns.

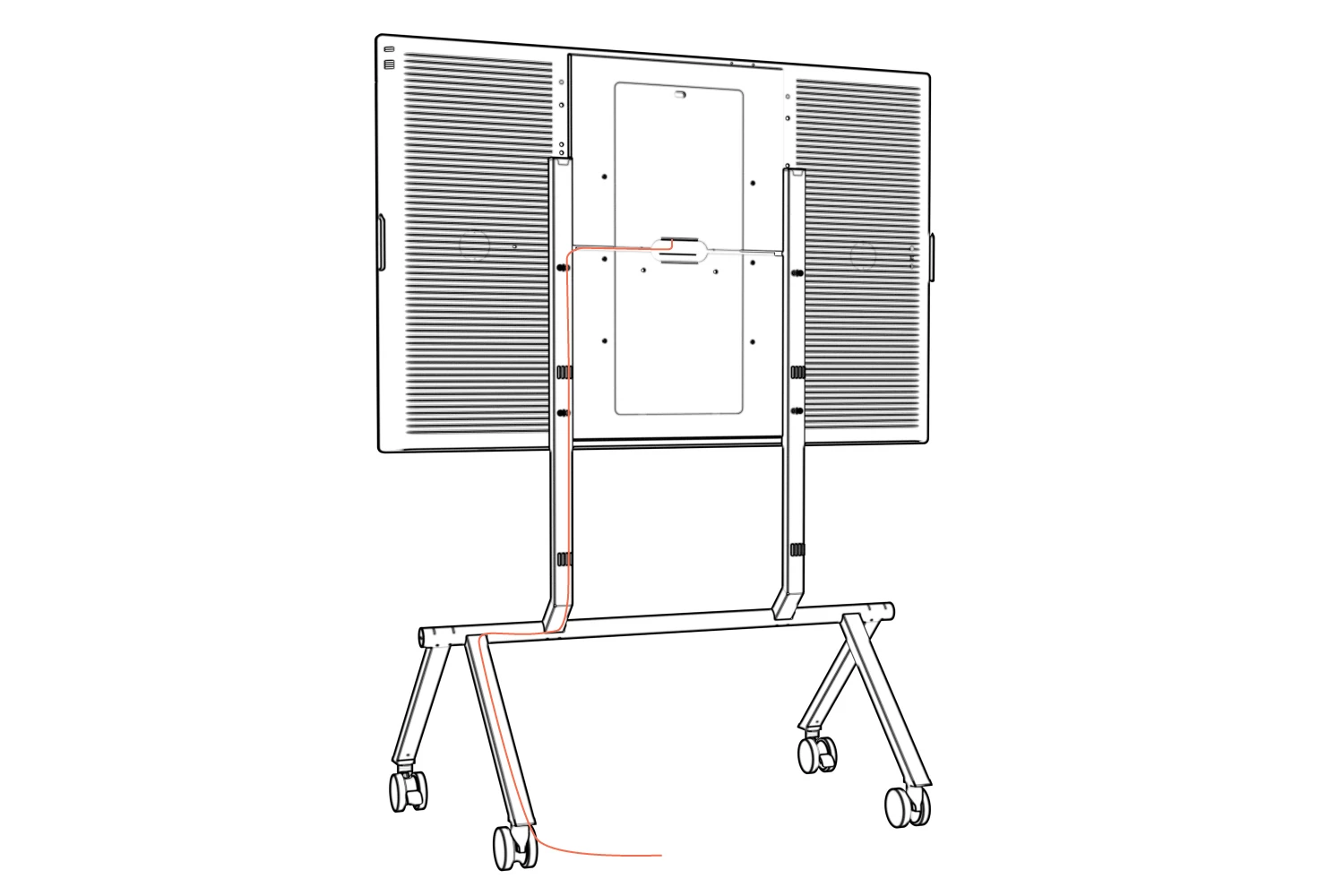

Enlarge image ↗ Cable routed from the display down a column toward the floor.

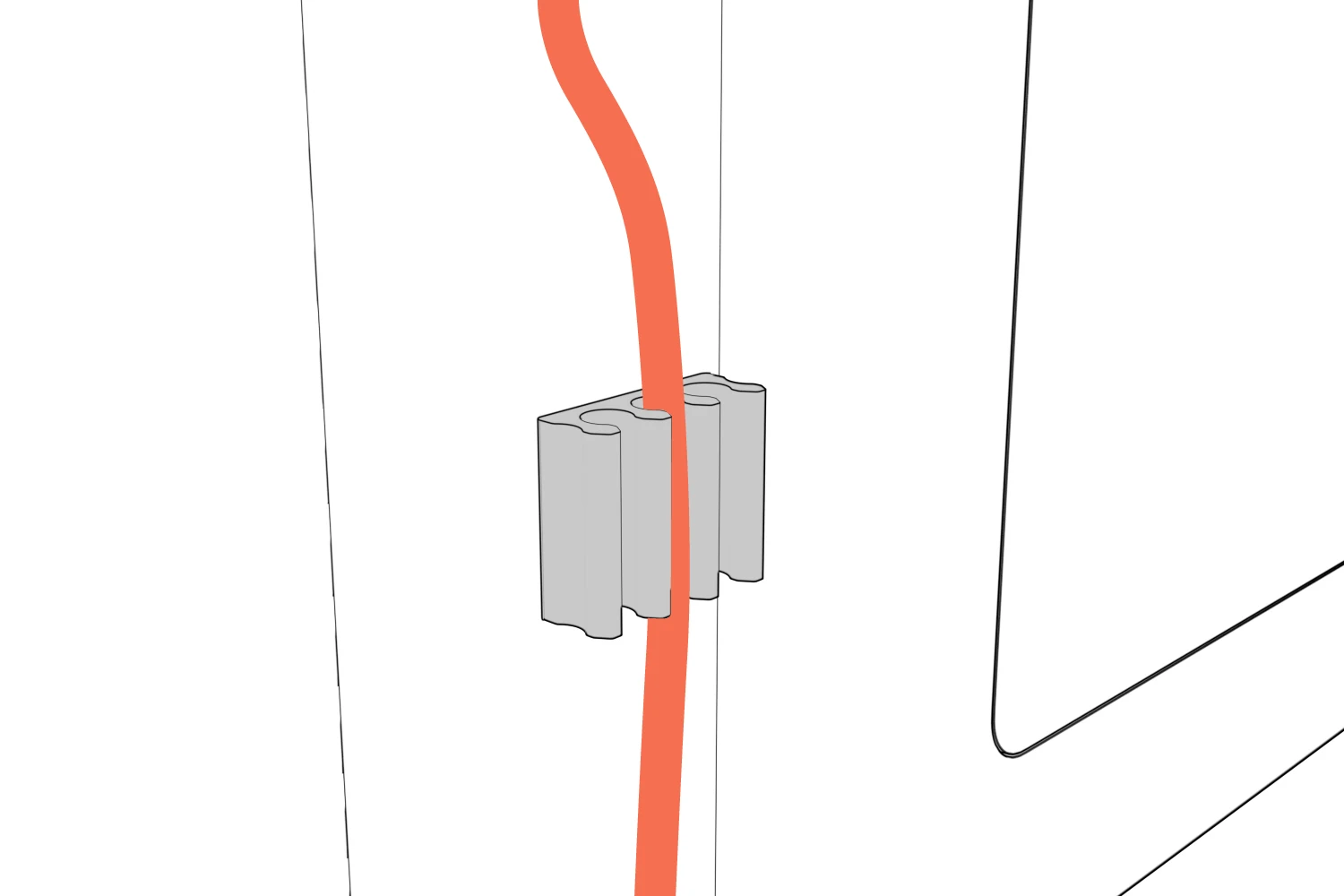

Enlarge image ↗ Close-up of cable held in a cable manager.

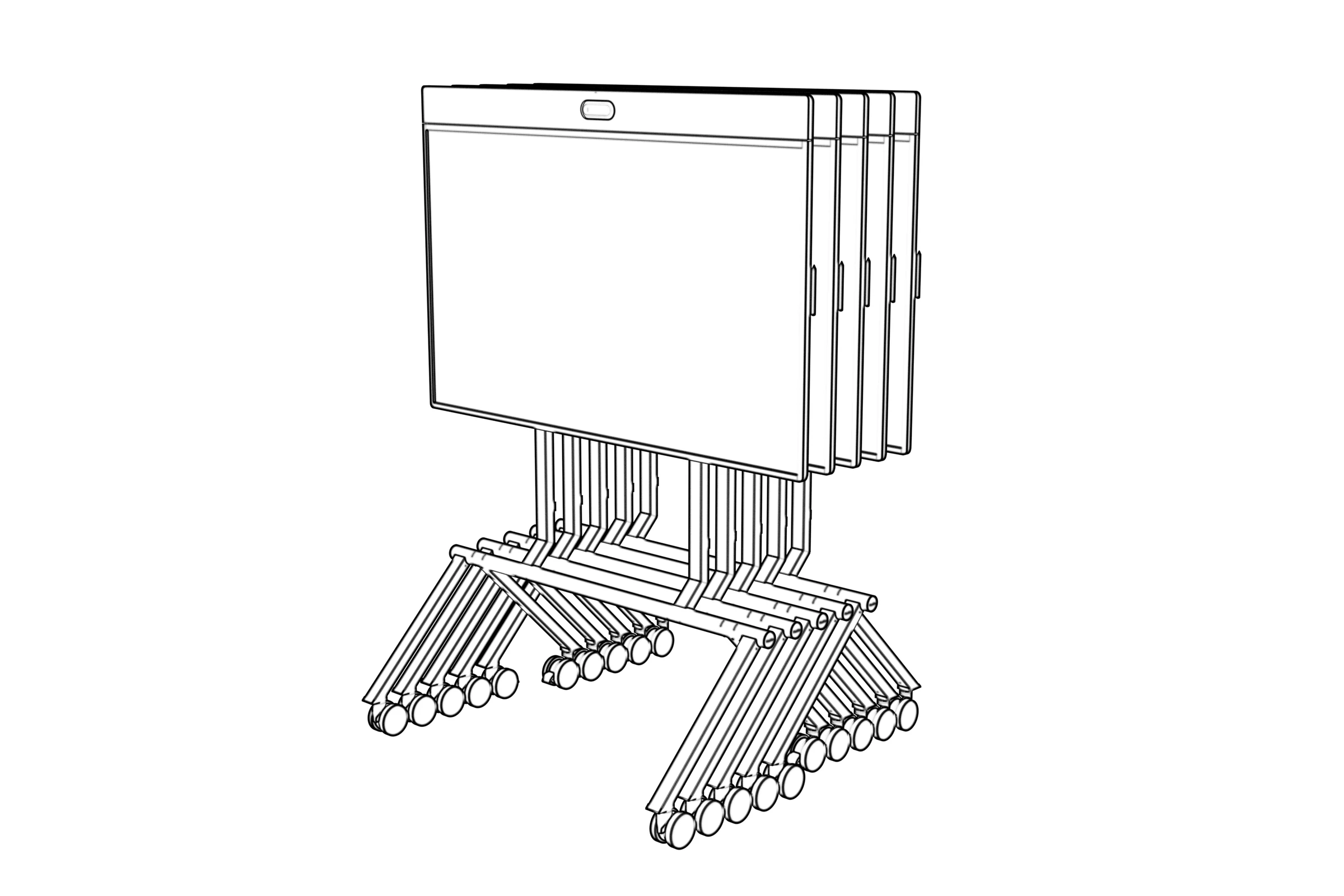

Enlarge image ↗ Multiple Rally Board stands nested together.

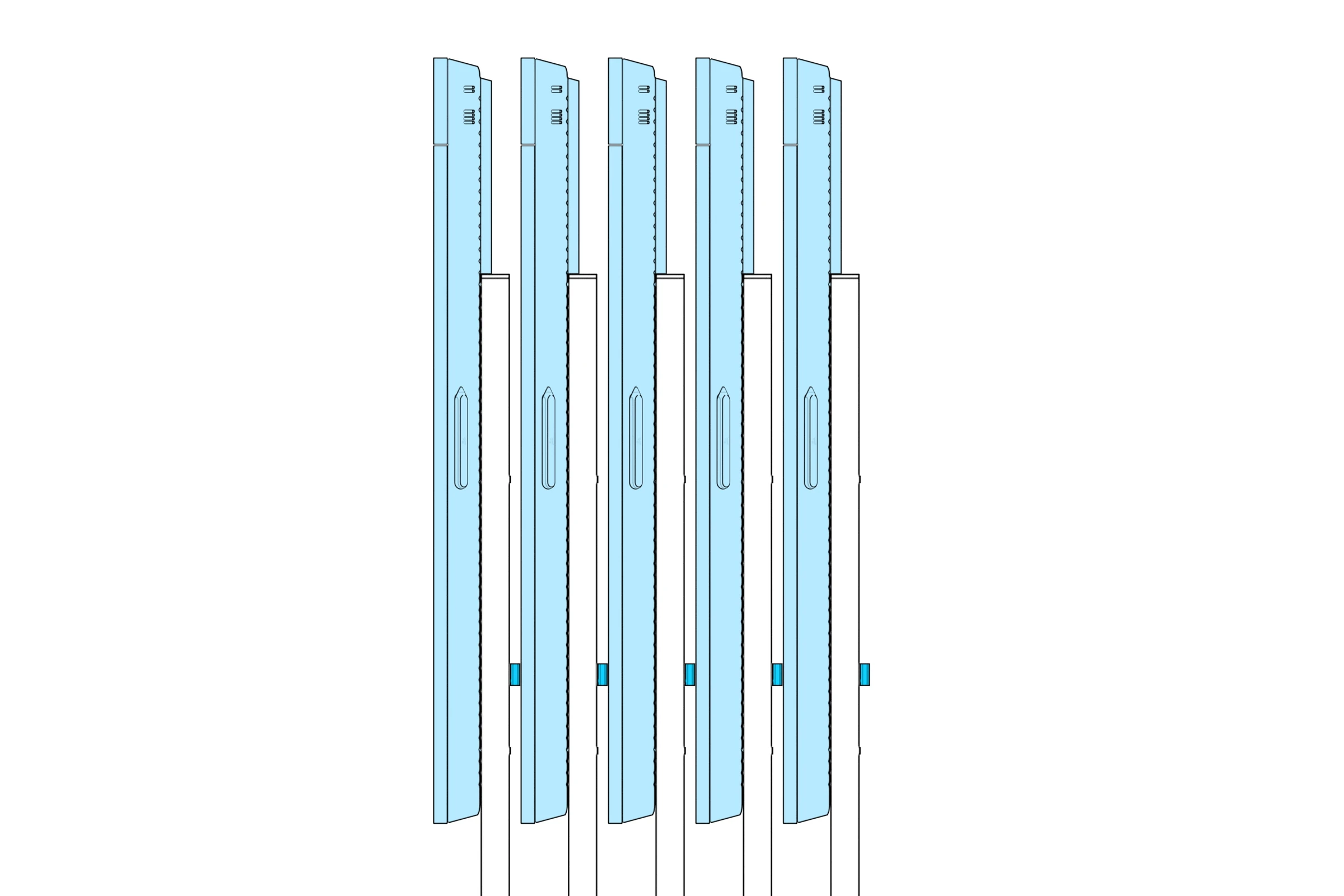

Enlarge image ↗ Side view of nested stands showing the cable-manager spacers between them.
With the display removed, loosen the set screws.

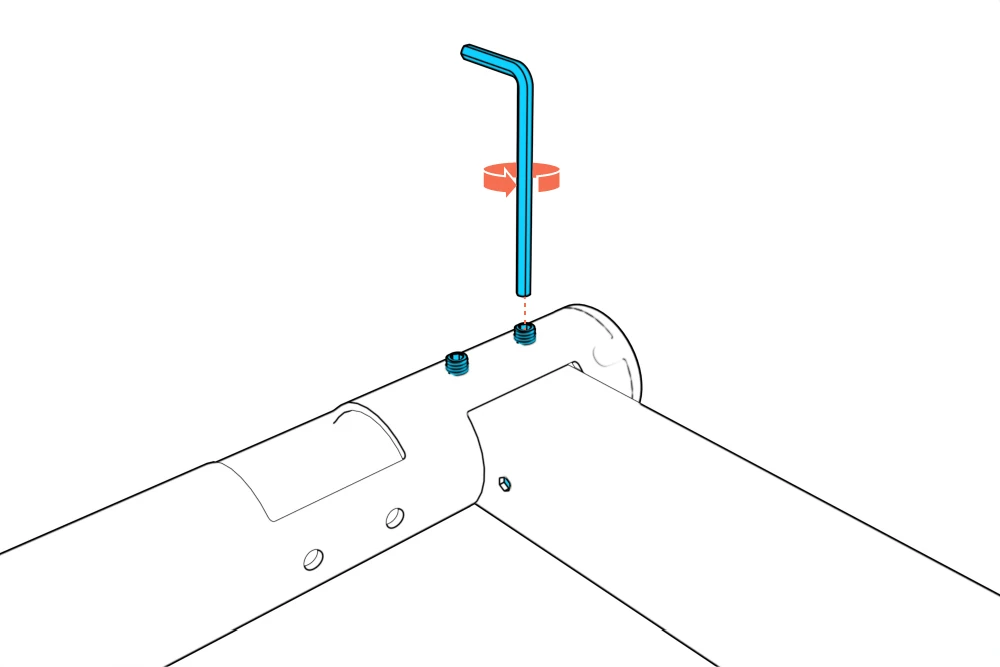

Enlarge image ↗ Hex key loosening a leg set screw on an unloaded base.
Insert the provided hex key or other thin object into the hex-shaped hole.

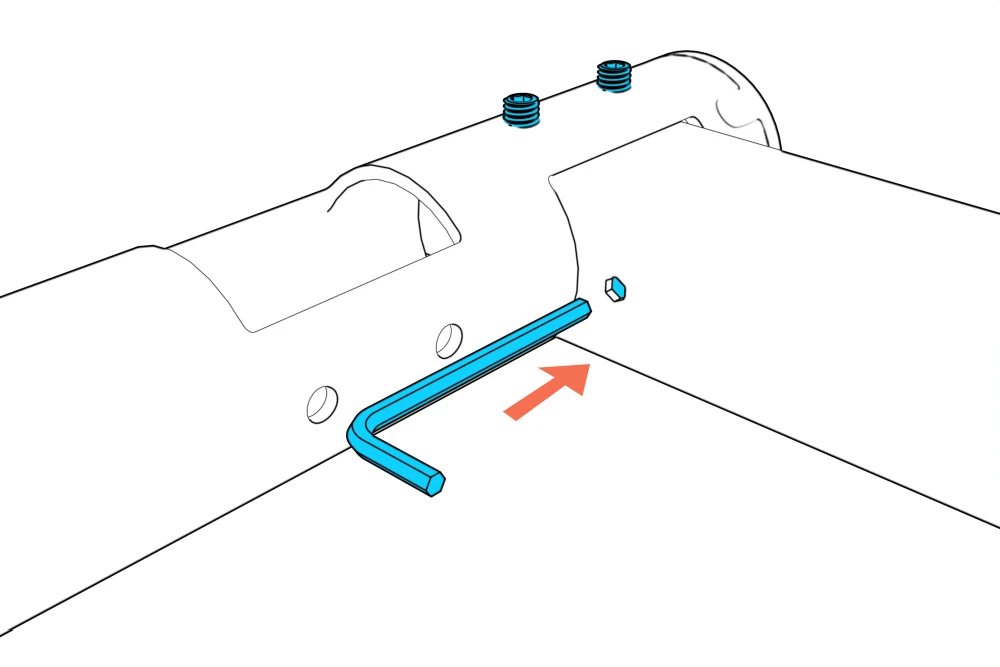

Enlarge image ↗ Hex key inserted through the hex-shaped access hole in the beam.
Push inward to disengage the safety spring pin.

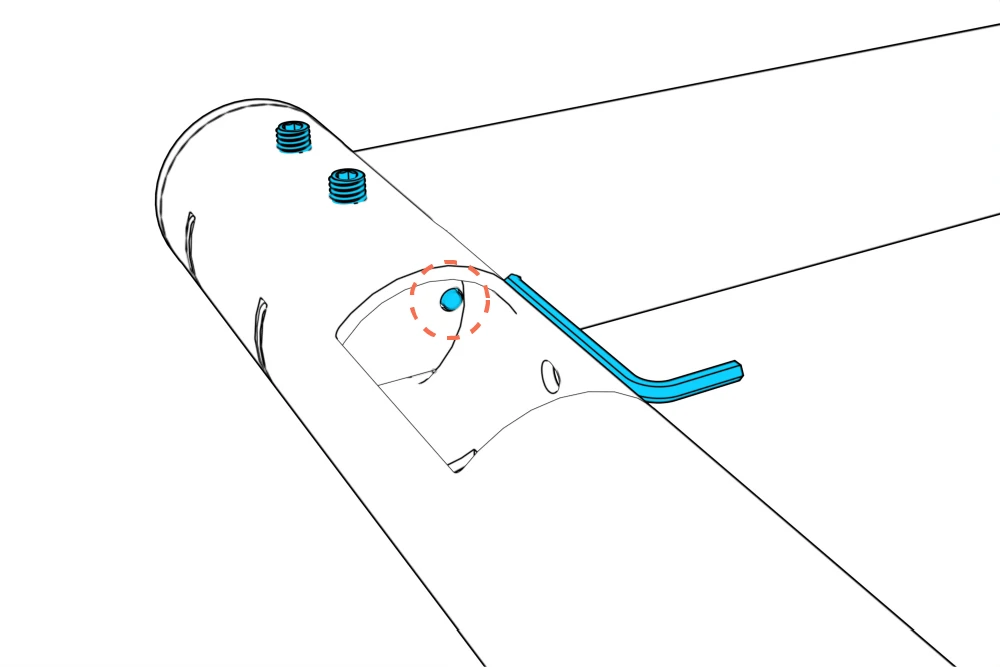

Enlarge image ↗ Close-up shows the hex key pressing the safety spring pin inward.
Slide the leg or column out while holding the key in place.

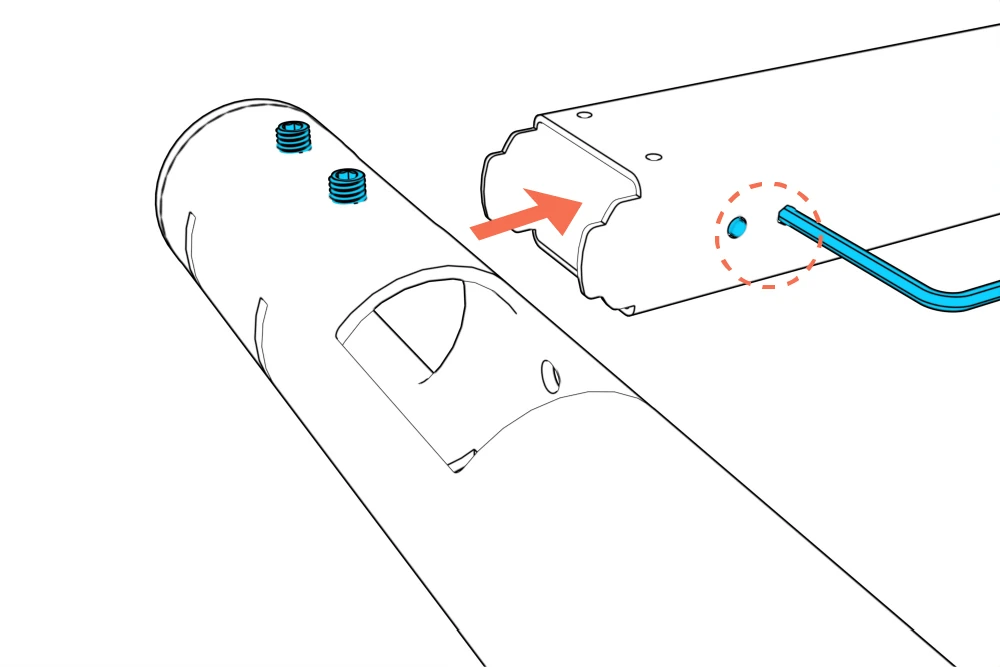

Enlarge image ↗ Leg sliding out of the beam while the hex key holds the pin inward.

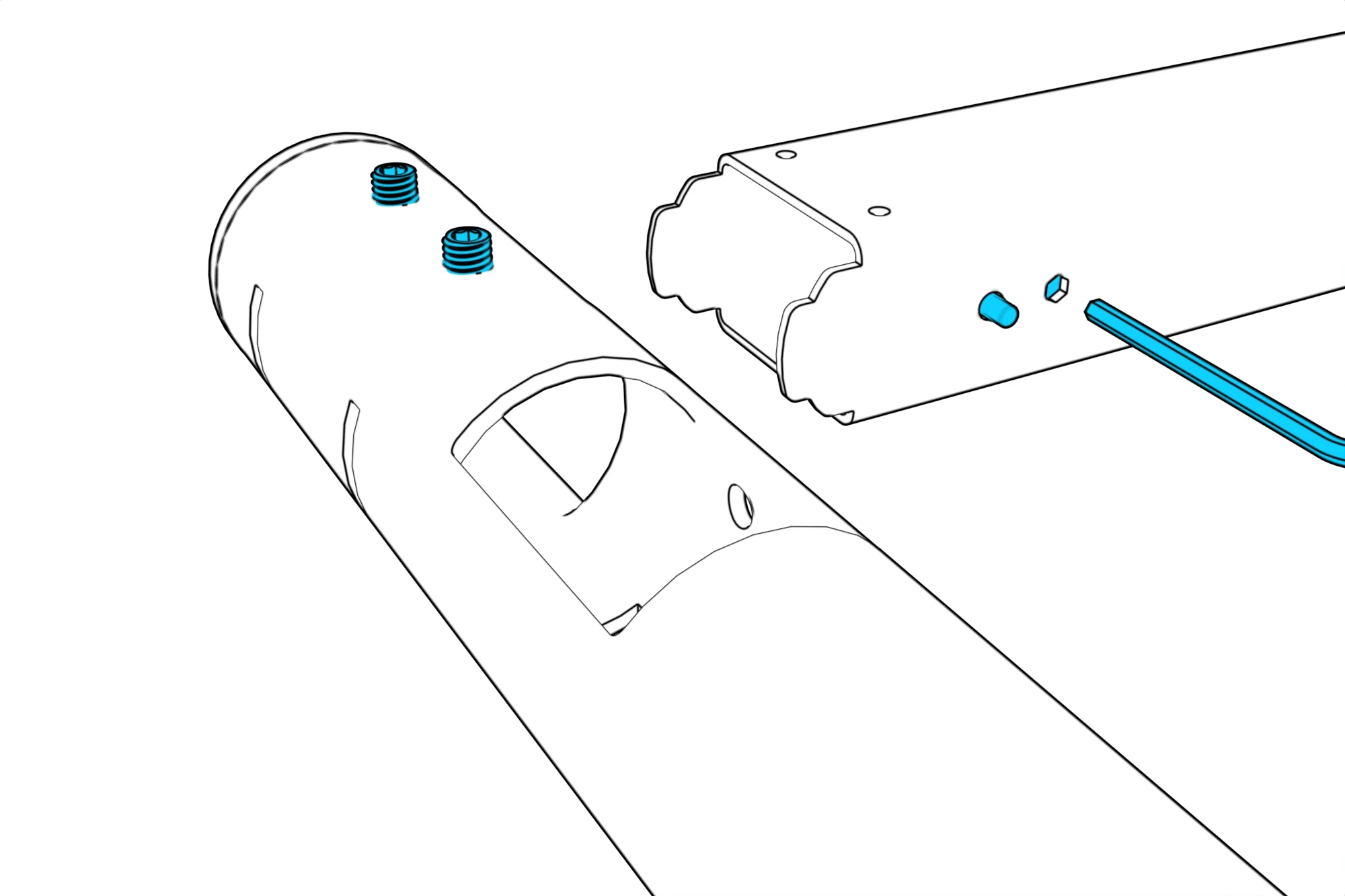

Enlarge image ↗ Leg separated from the beam, with the safety pin released.
Repeat this process for each leg and column.
