H1050 Heckler XL Display Stand

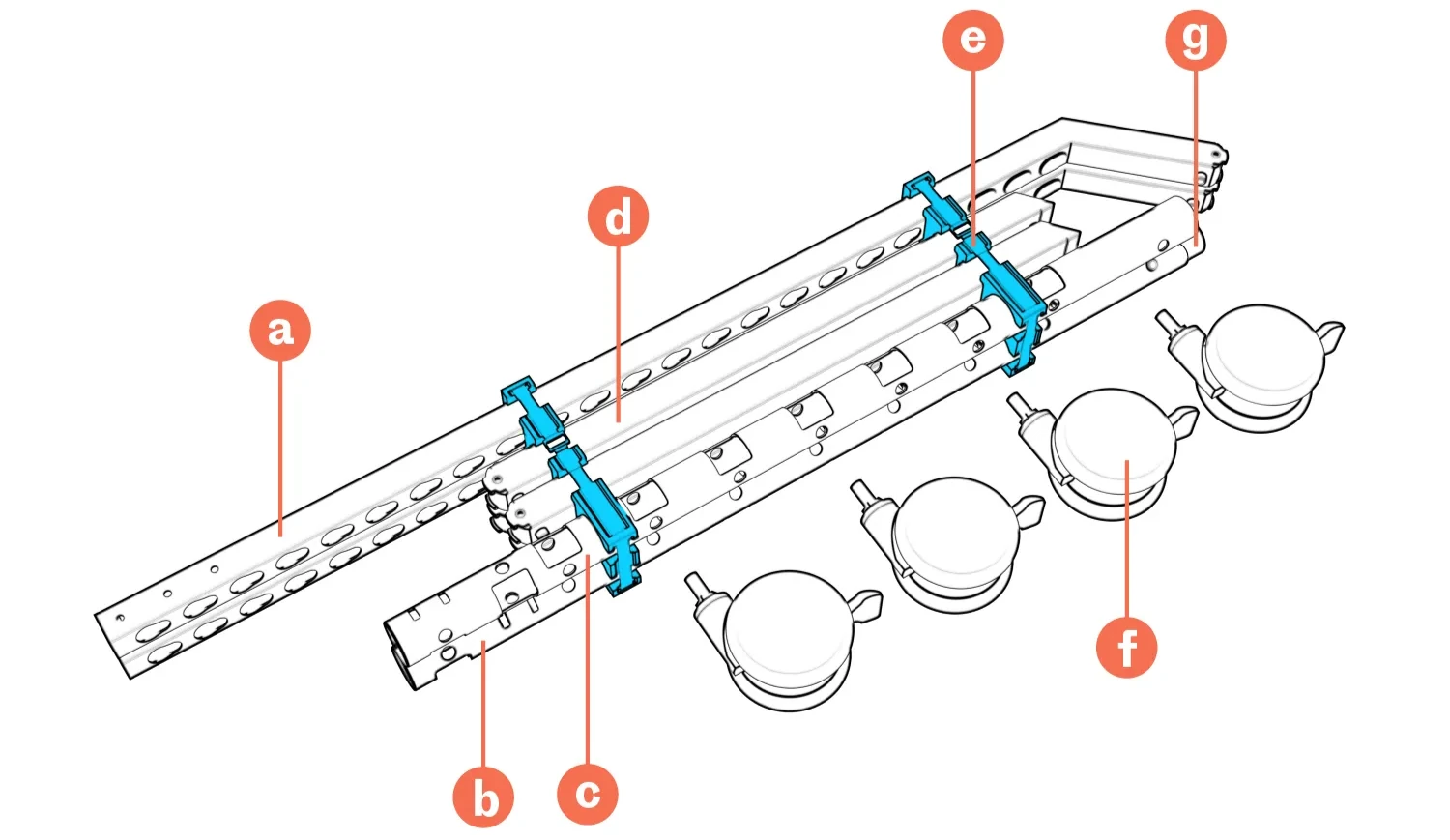

Packed columns, left and right beam halves, legs, storage rings, casters, and coupler labeled a through g.

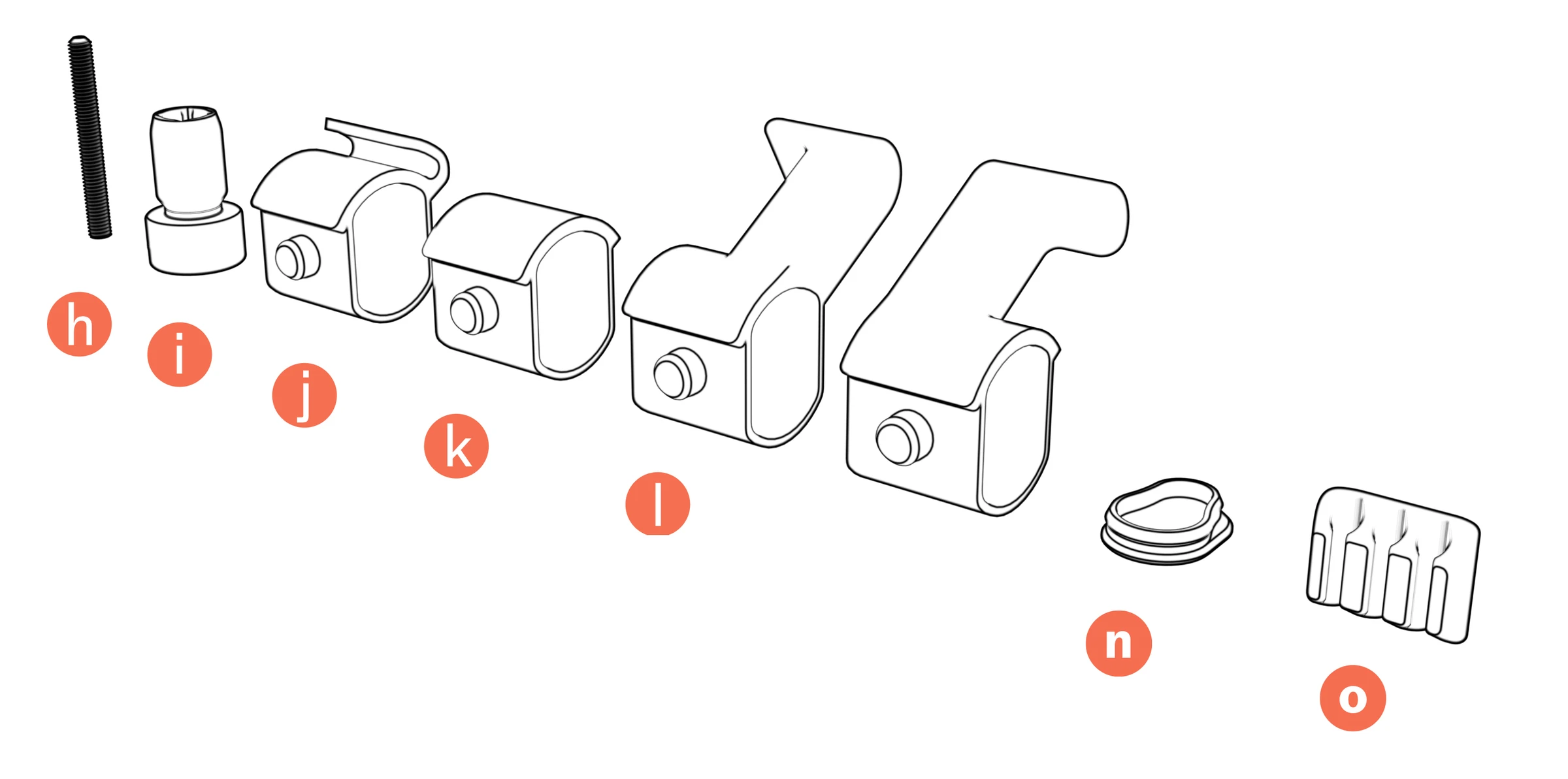

Display set screw, mounting anchor, cable hooks, beam plugs, cord-wrap hooks, column plug, and cable manager labeled h through o.

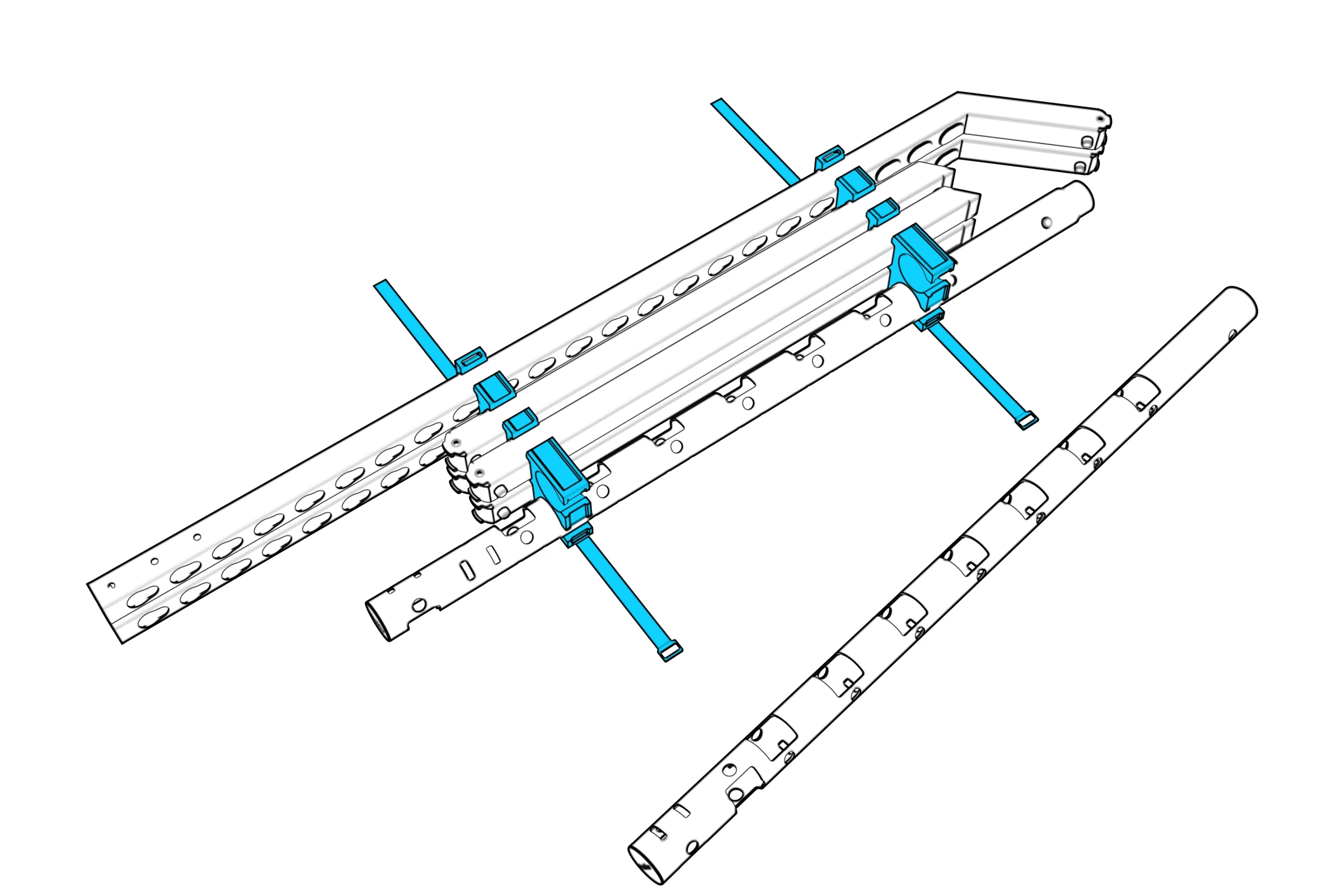

Packed stand with straps released and storage rings holding the columns and legs together.

Coupler inside a beam half, with arrows indicating depression of the spring button and outward sliding.

Coupler extended from the beam half with its next spring button projecting through the beam.

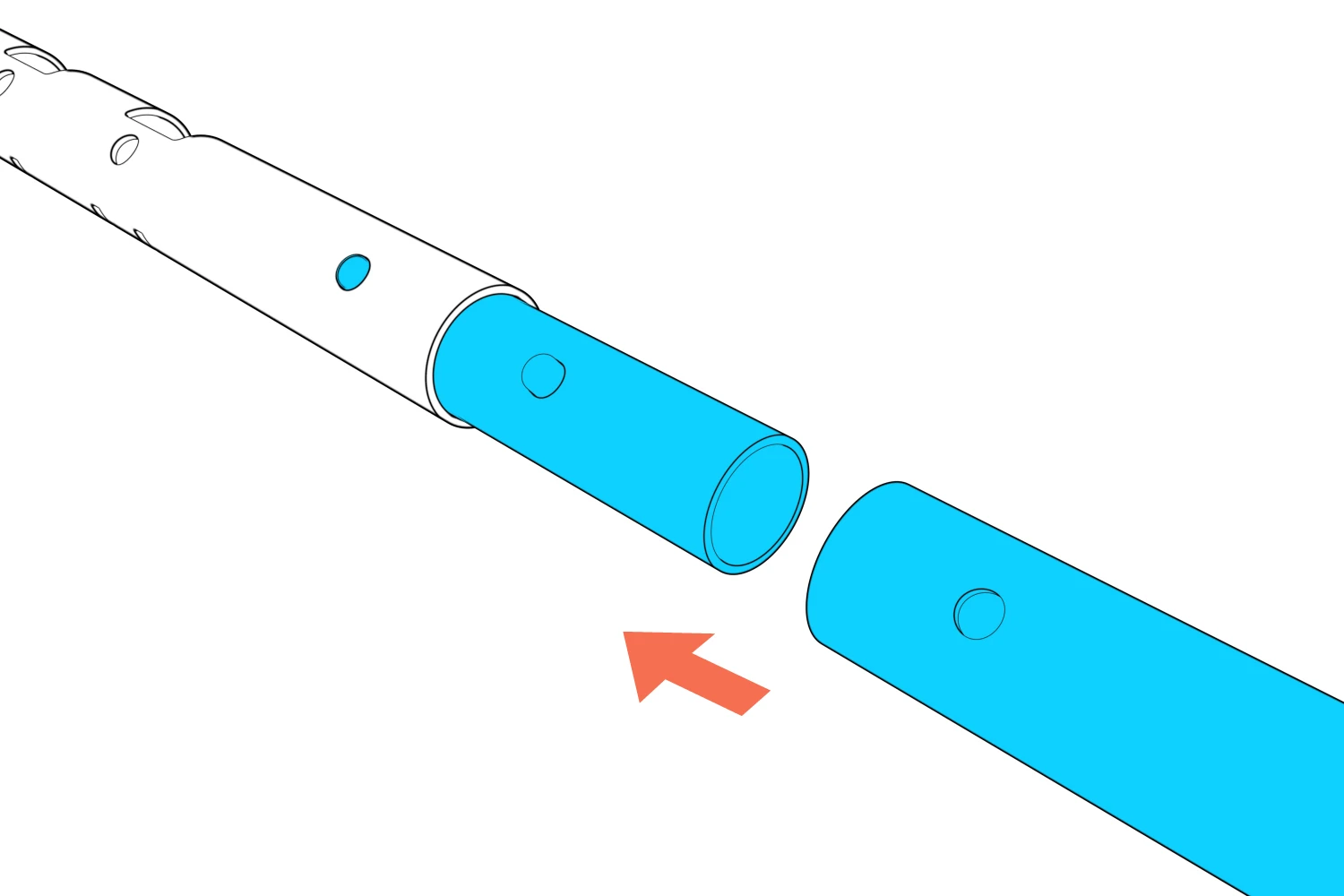

Second beam half aligned with the exposed coupler.

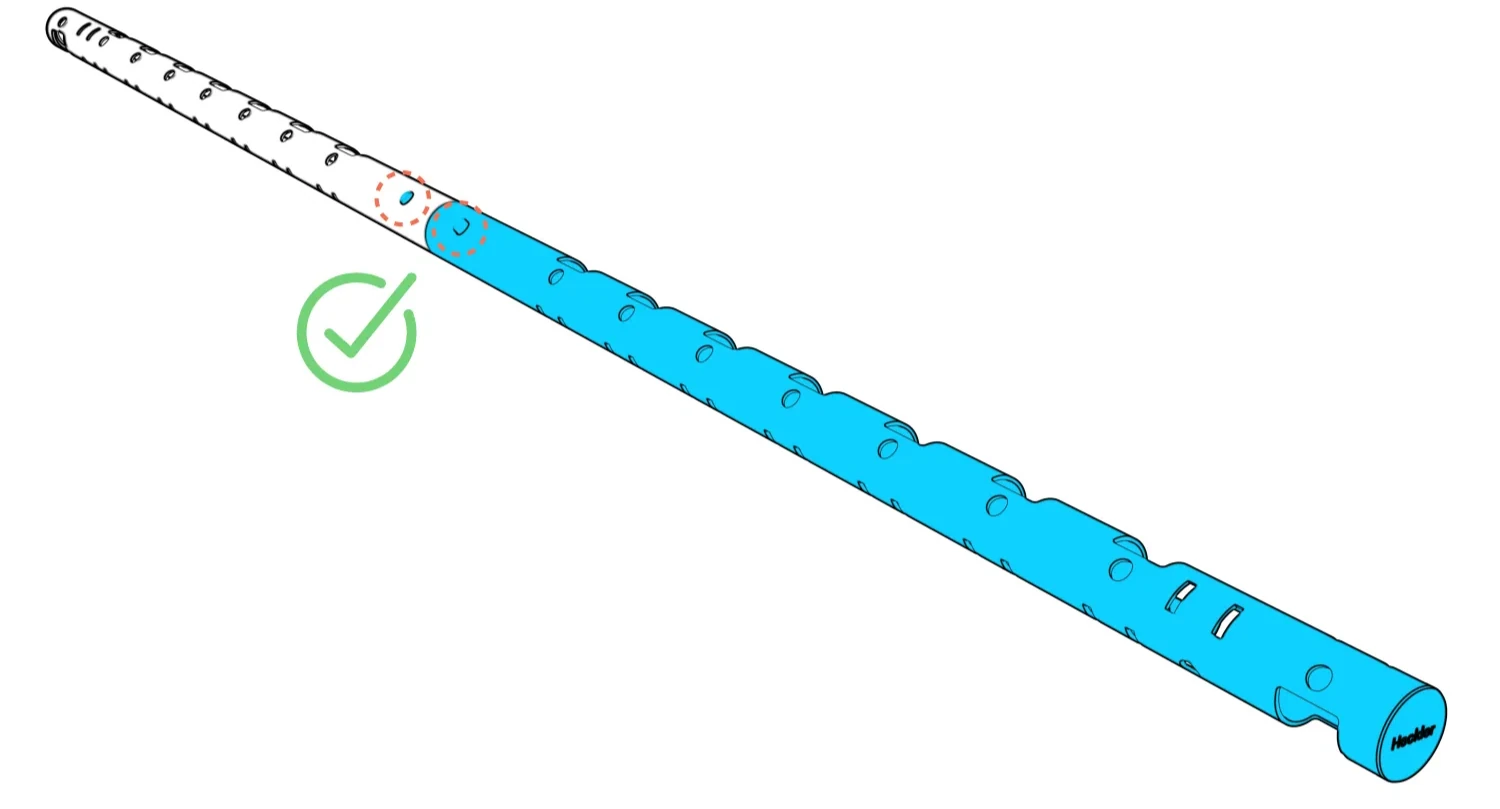

Joined beam halves with the spring-button connection circled and a check indicating proper assembly.

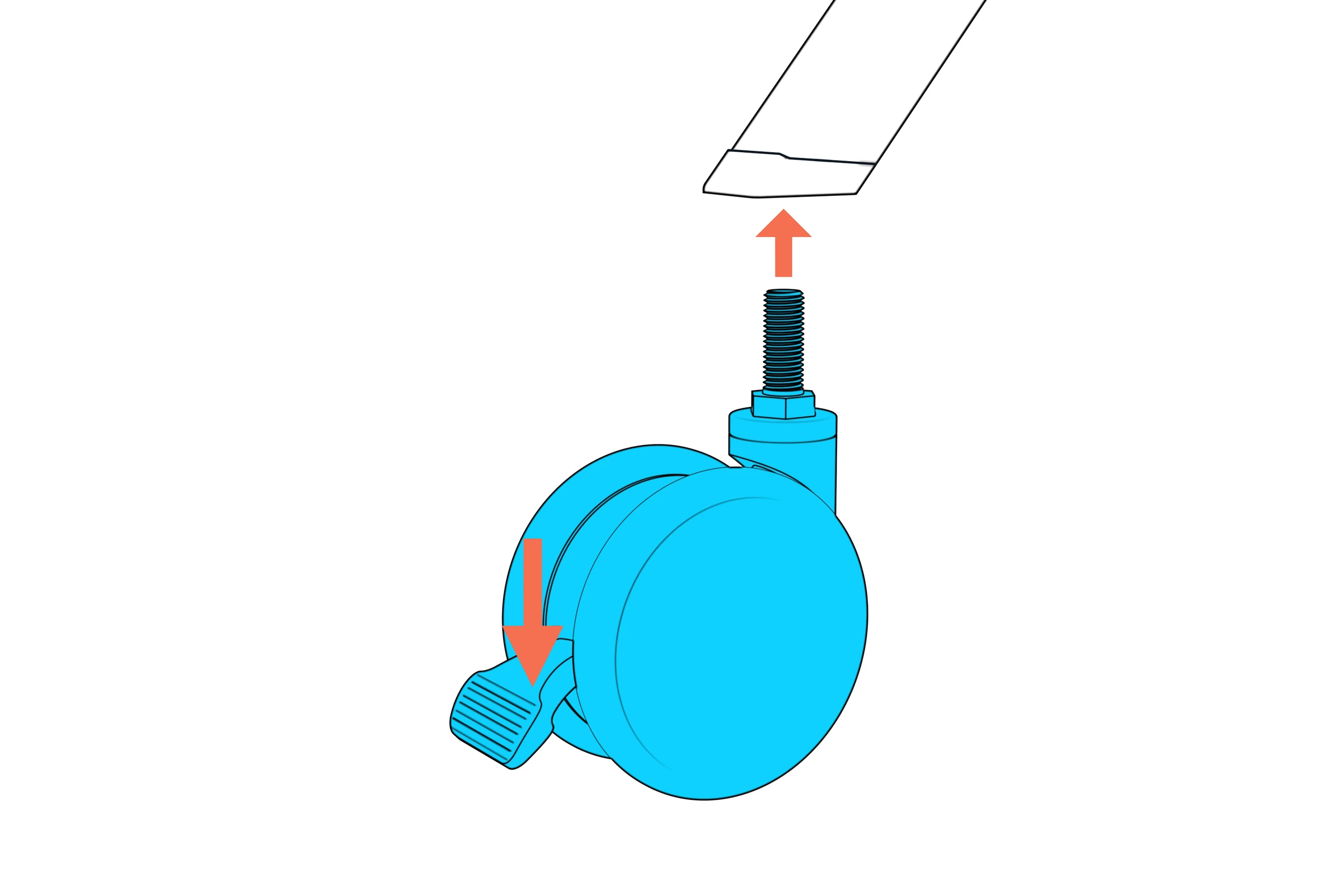

Threaded caster post aligned below a leg socket, with its brake pedal depressed.

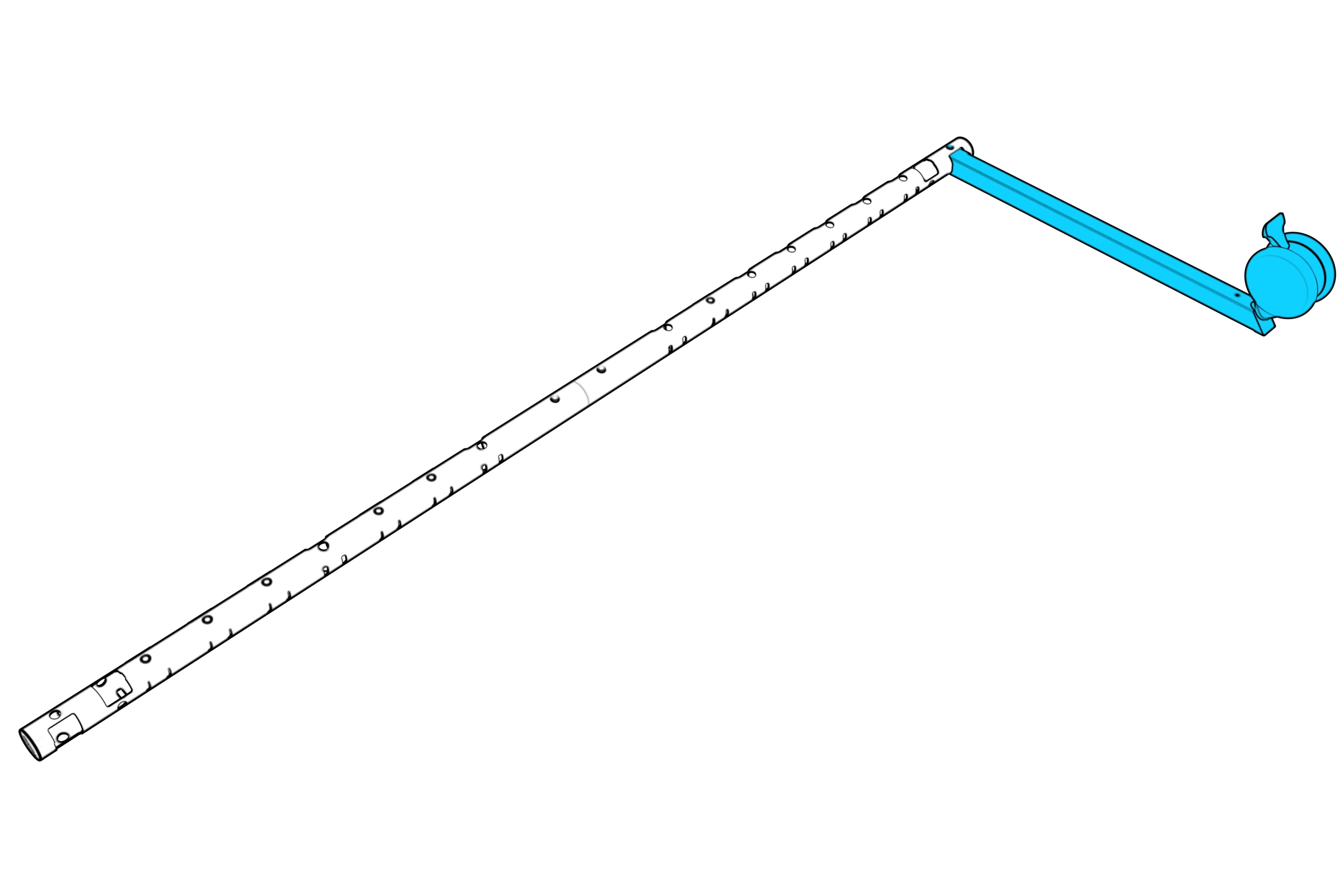

Beam lying on the surface with the first leg installed.

Leg side screw aligned with the notch in a beam socket.

Two spring buttons being pressed while the leg enters the beam.

Two tabs on the leg projecting through slots in the beam.

Leg seated in the beam with its spring button protruding.

Both spring-button heads circled where they project through opposite sides of the beam.

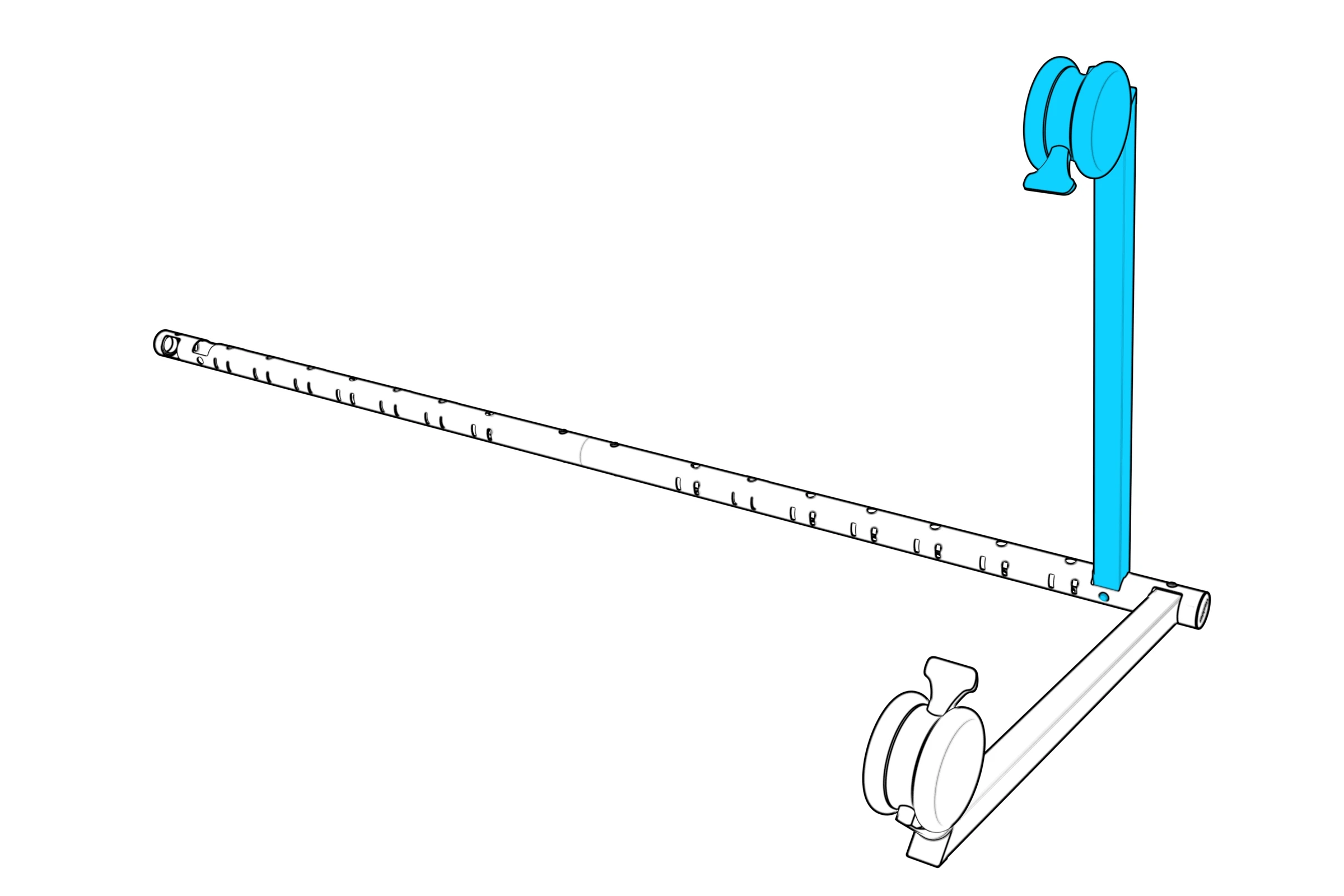

Rear leg entering the beam while the first leg rests on the surface.

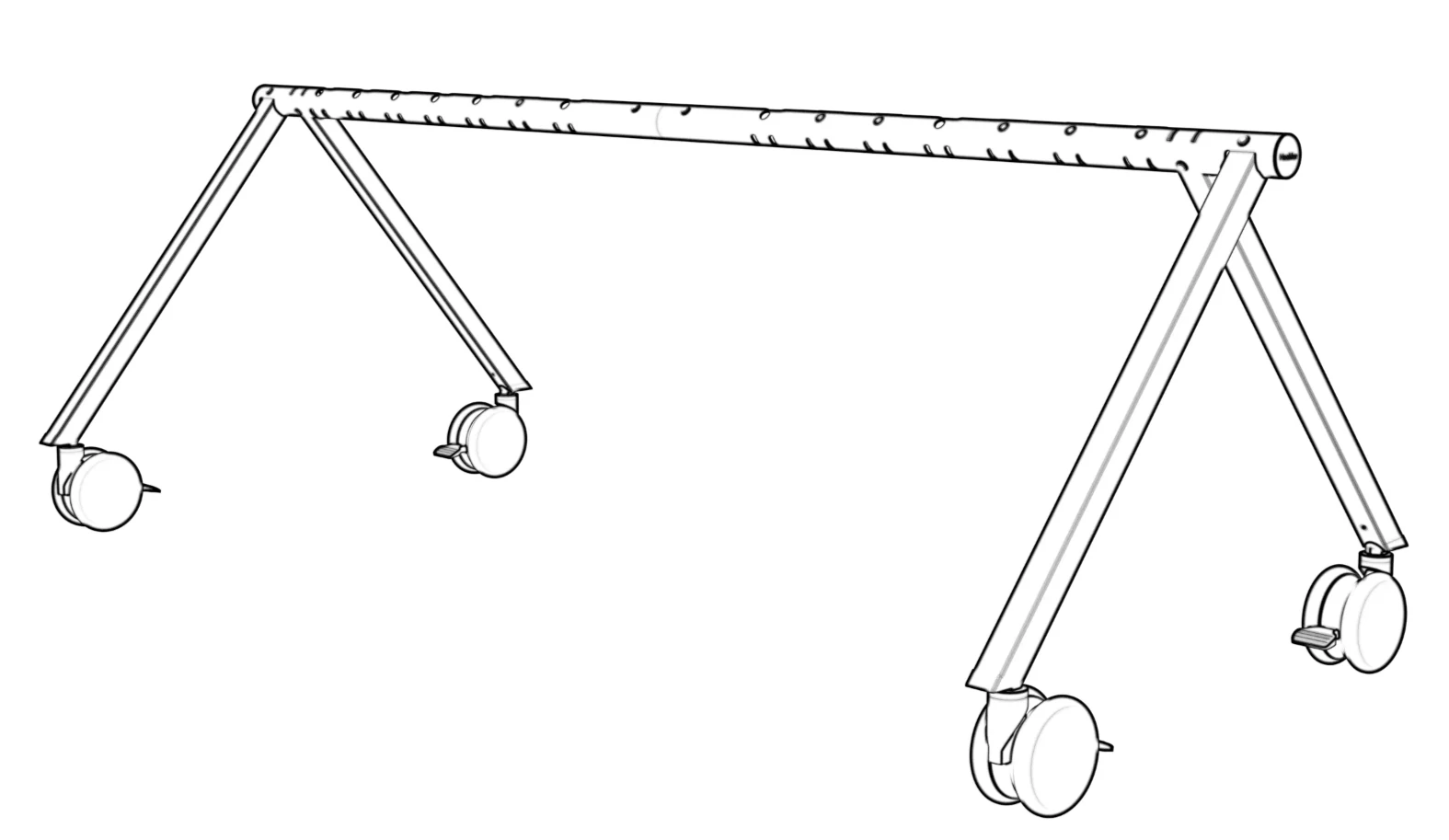

Completed upright base with four legs and casters.

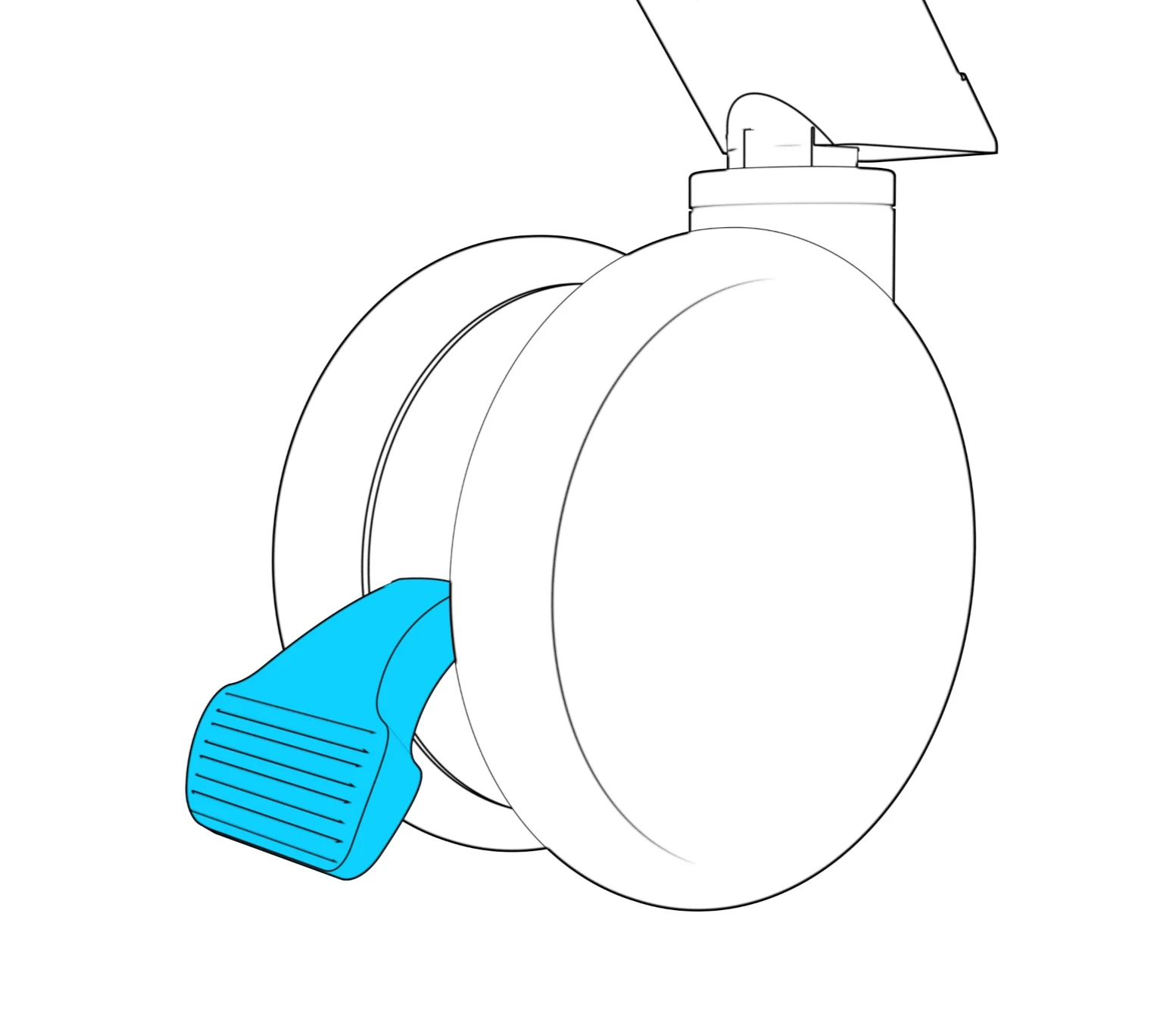

Close-up of a caster with its brake engaged.

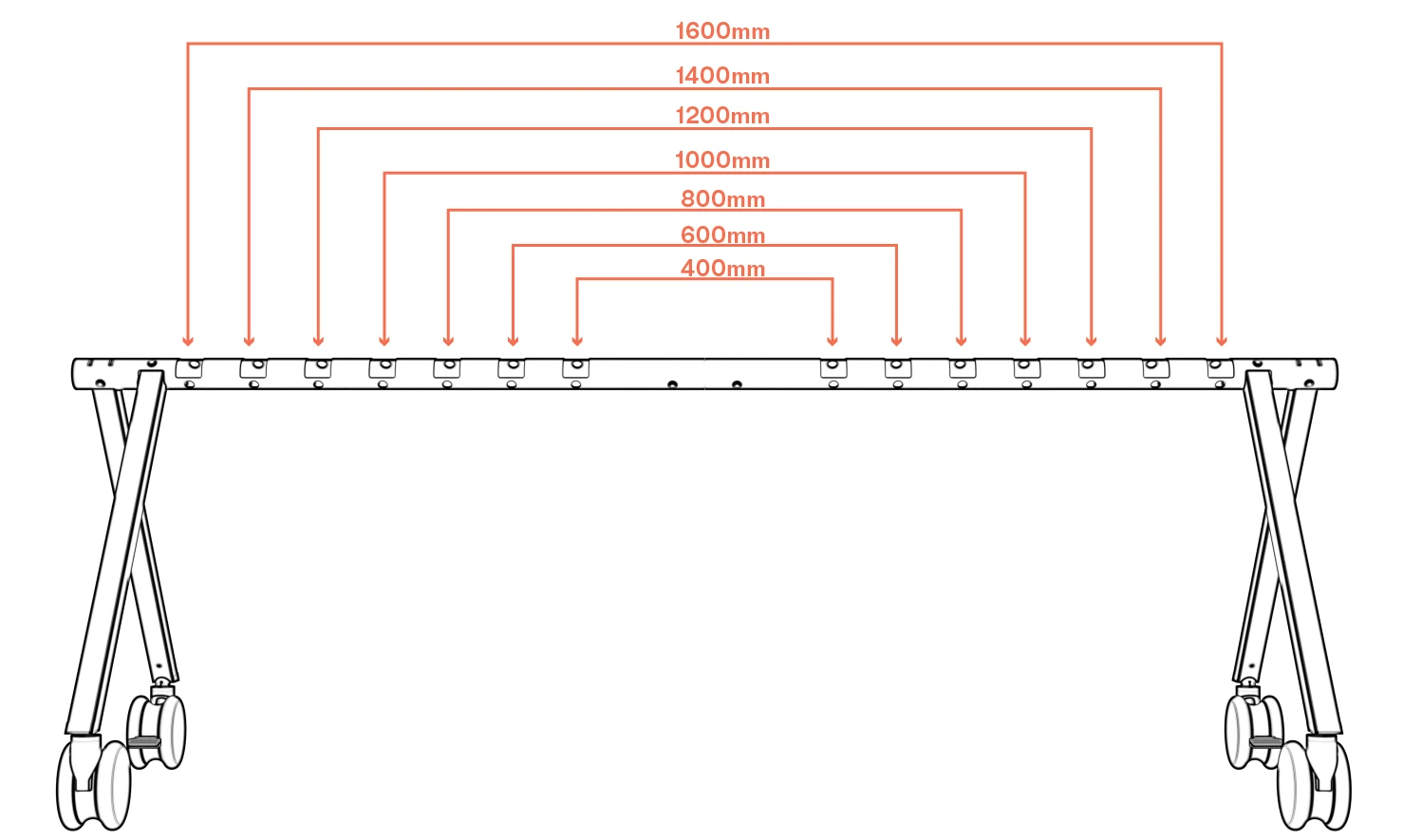

Symmetric column socket positions on the beam labeled 400, 600, 800, 1000, 1200, 1400, and 1600 mm.

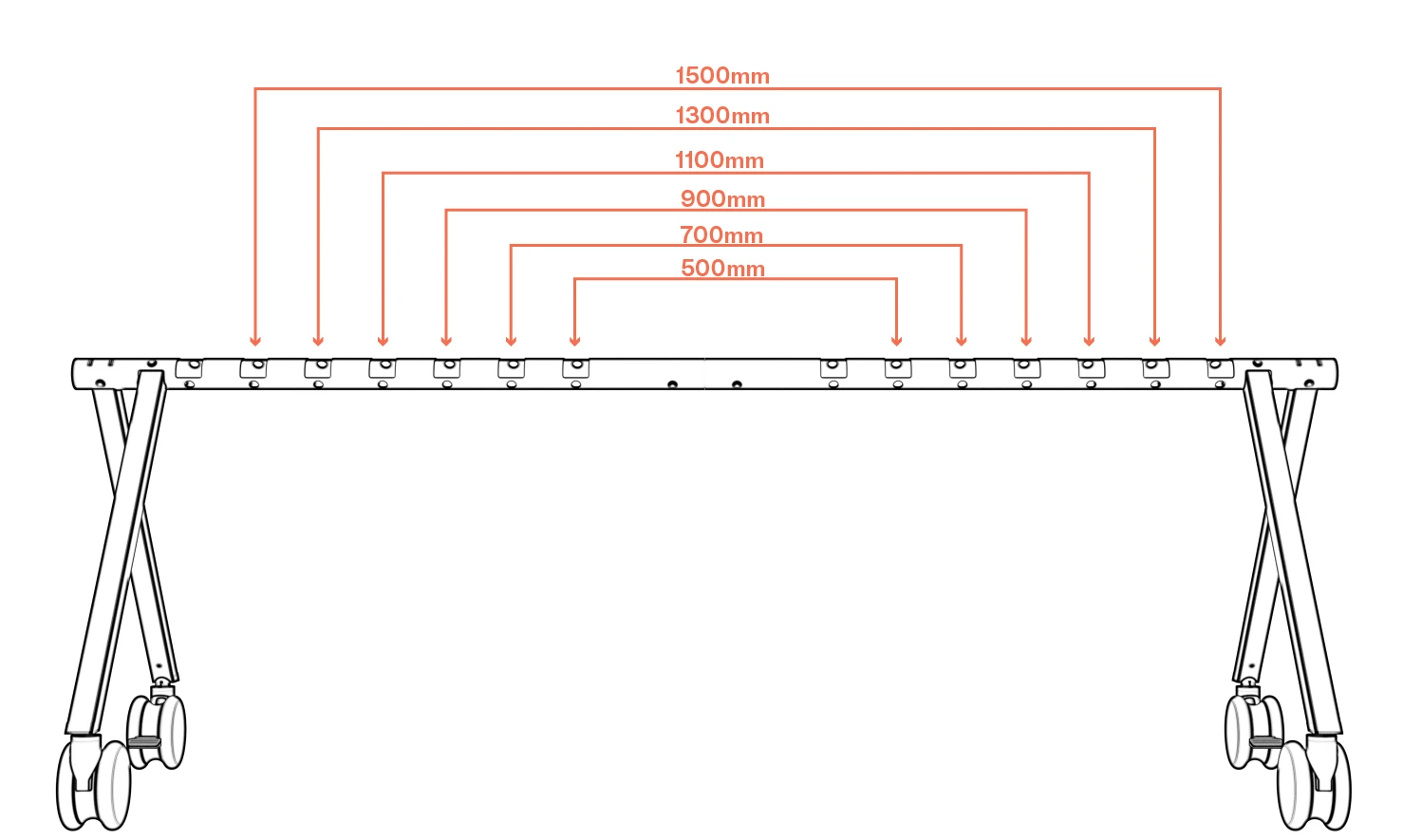

Offset column socket positions on the beam labeled 500, 700, 900, 1100, 1300, and 1500 mm.

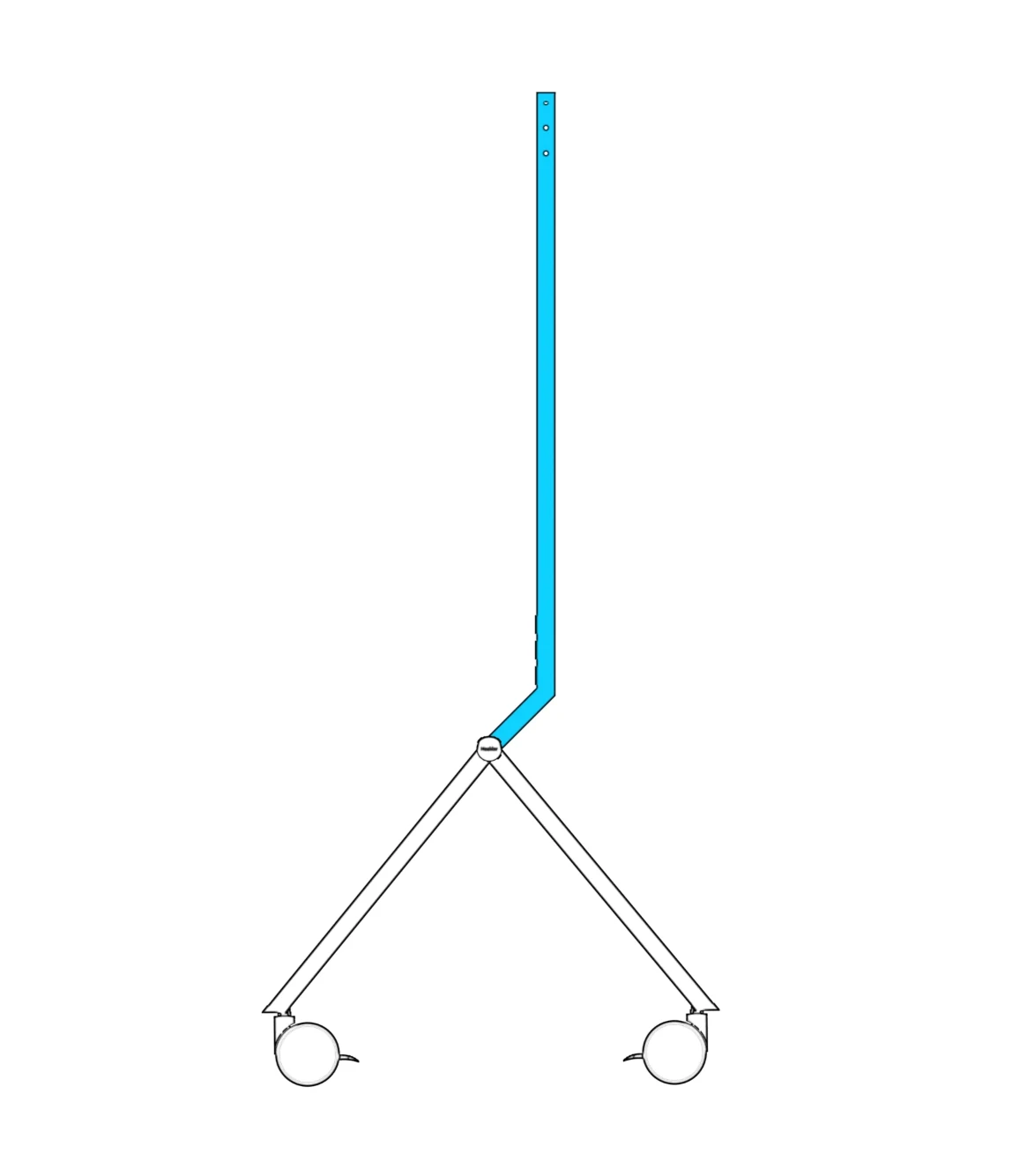

Side view of a column held upright as it approaches the beam.

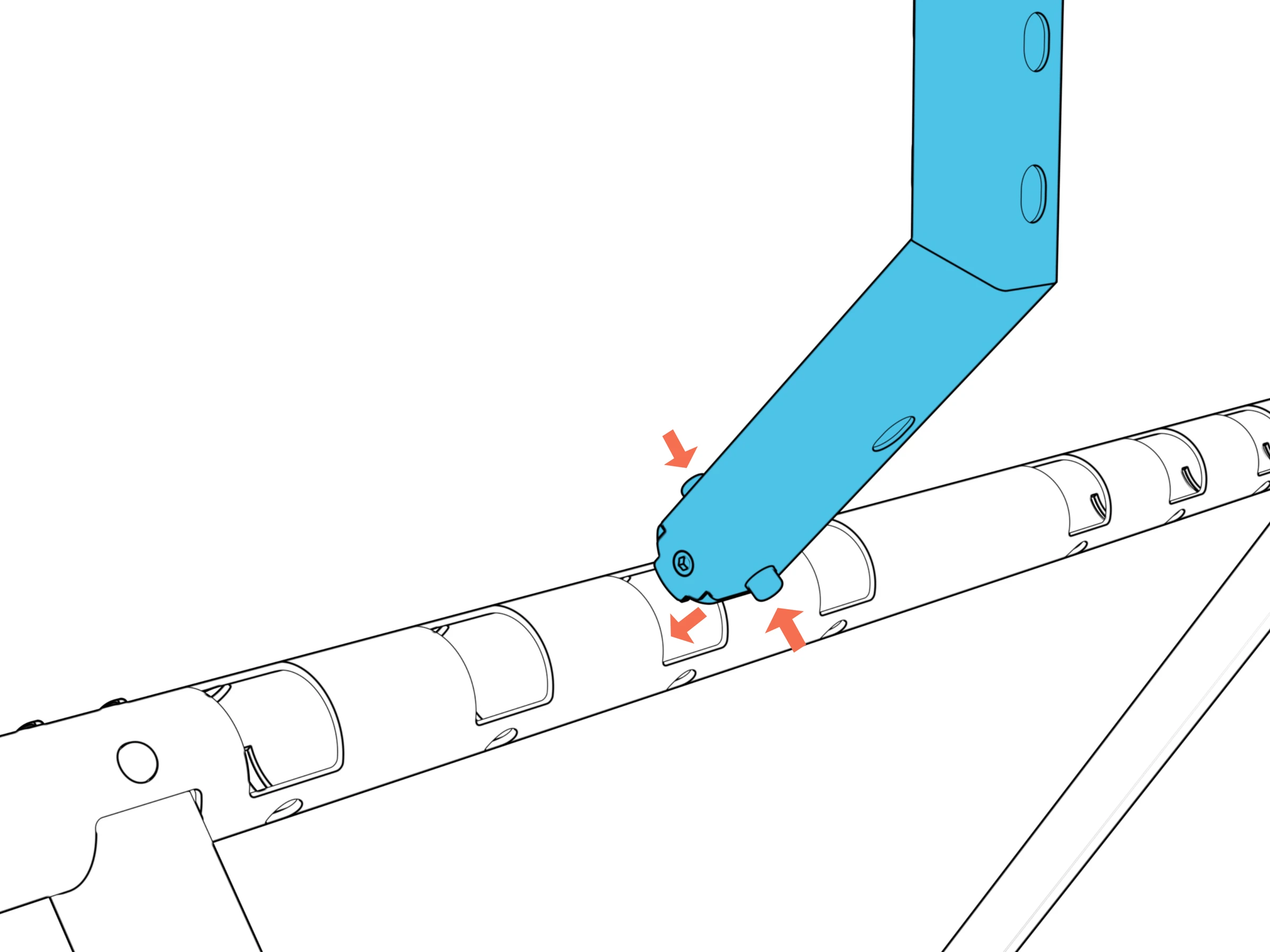

Column spring buttons being pressed as its lower end enters the beam socket.

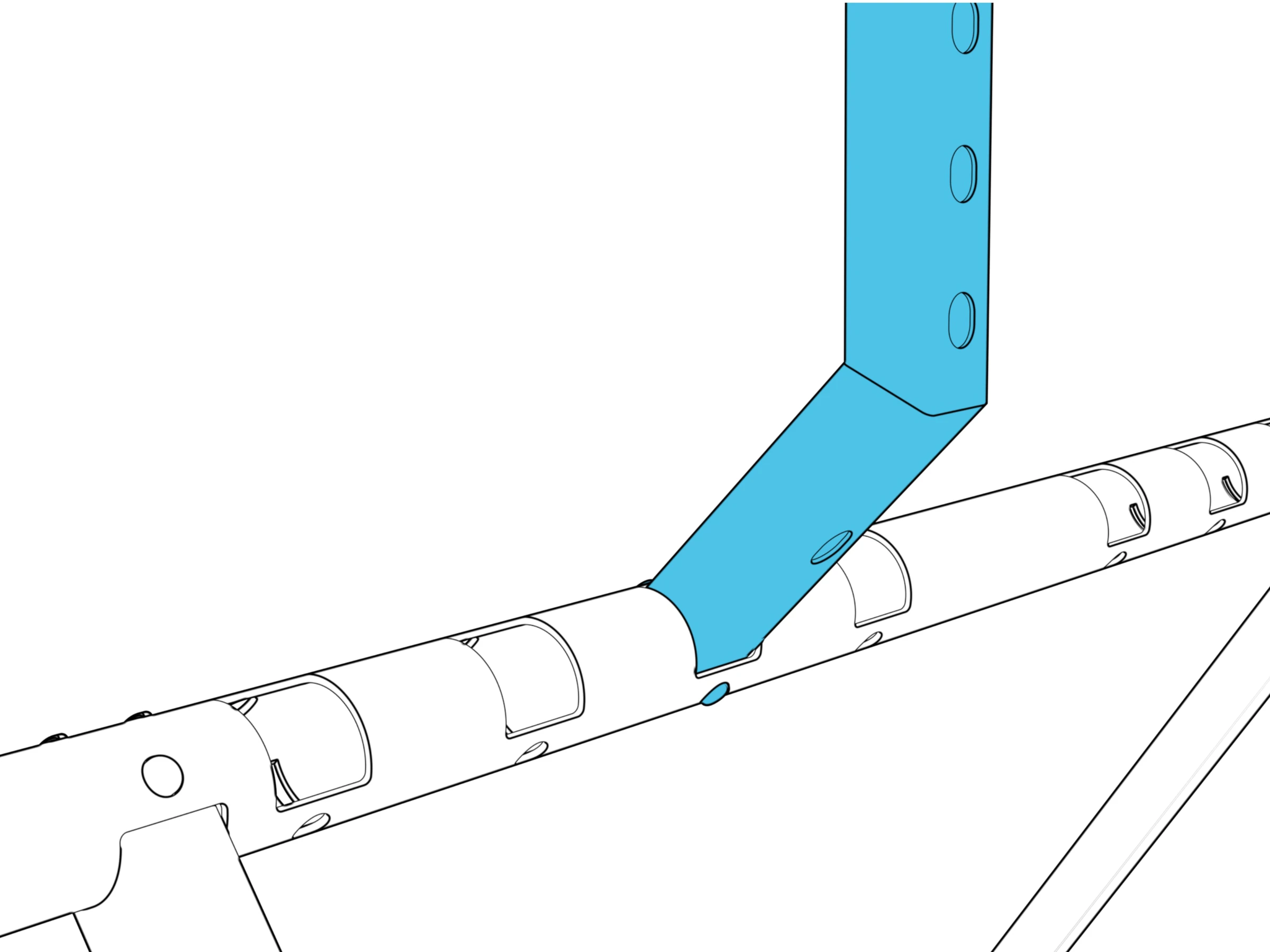

Column fully seated in the beam socket.

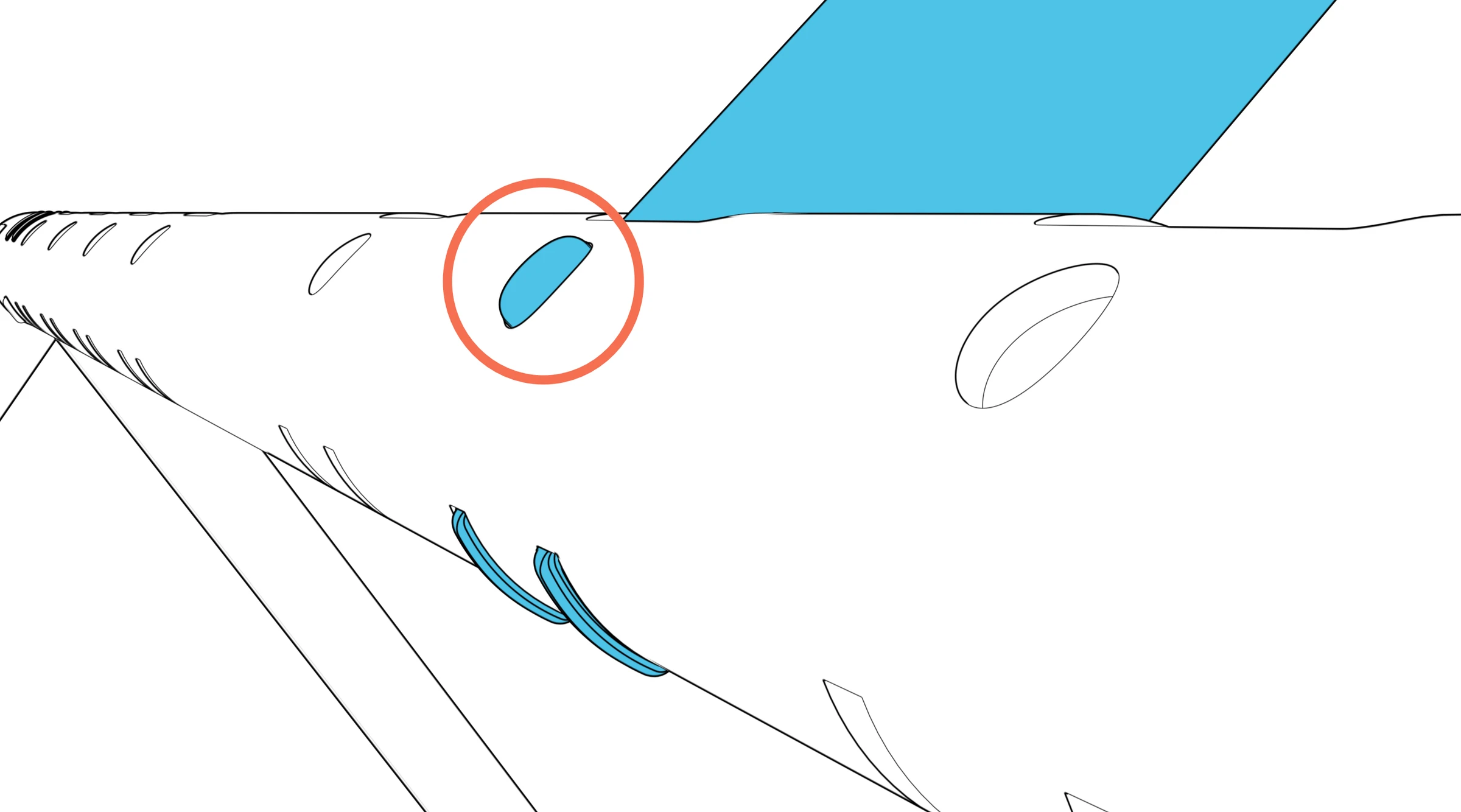

Close-up of a column spring-button head projecting through the beam, with the opposing tab connection visible.

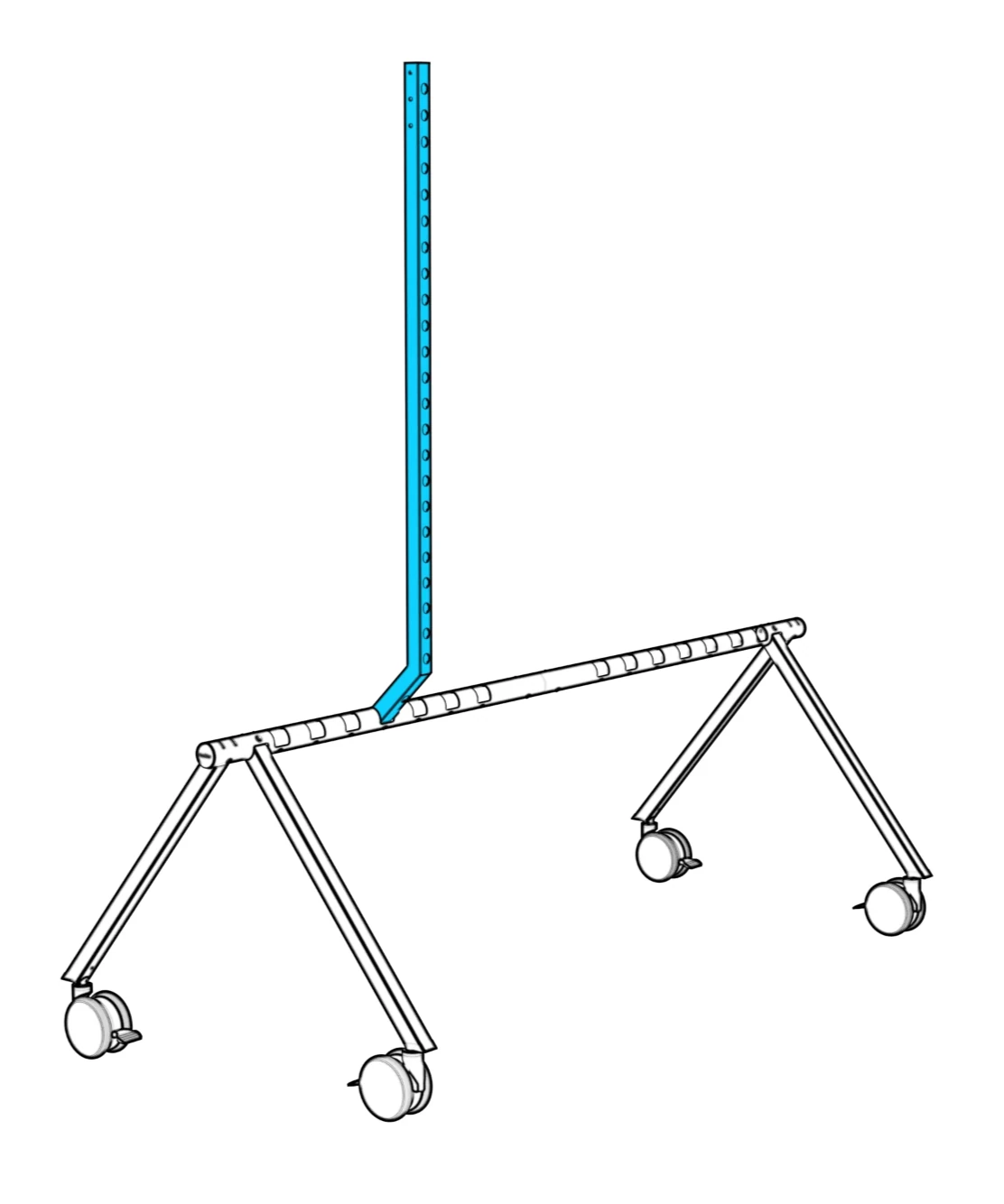

Stand with the first upright column installed.

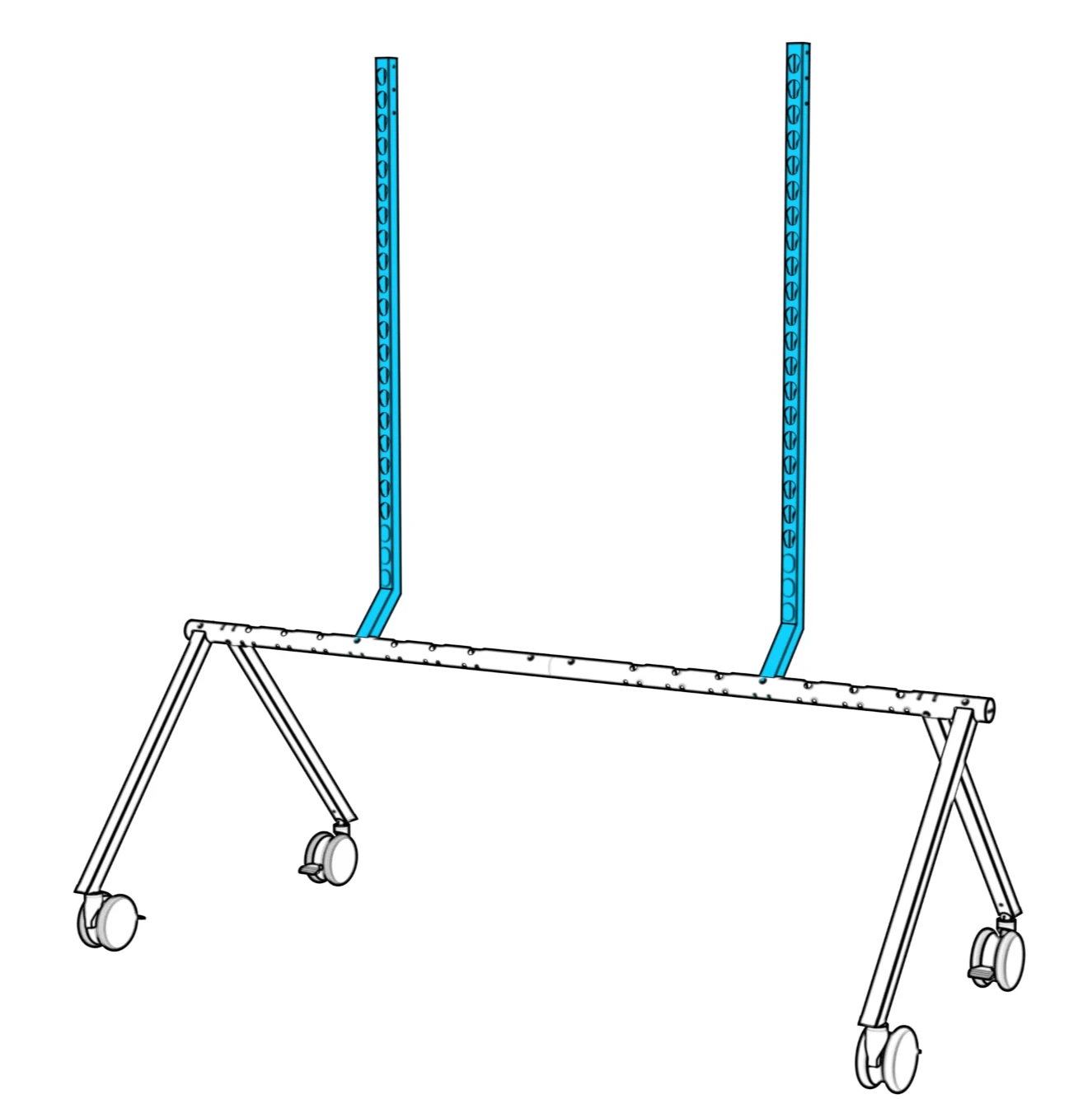

Stand with both upright columns installed.

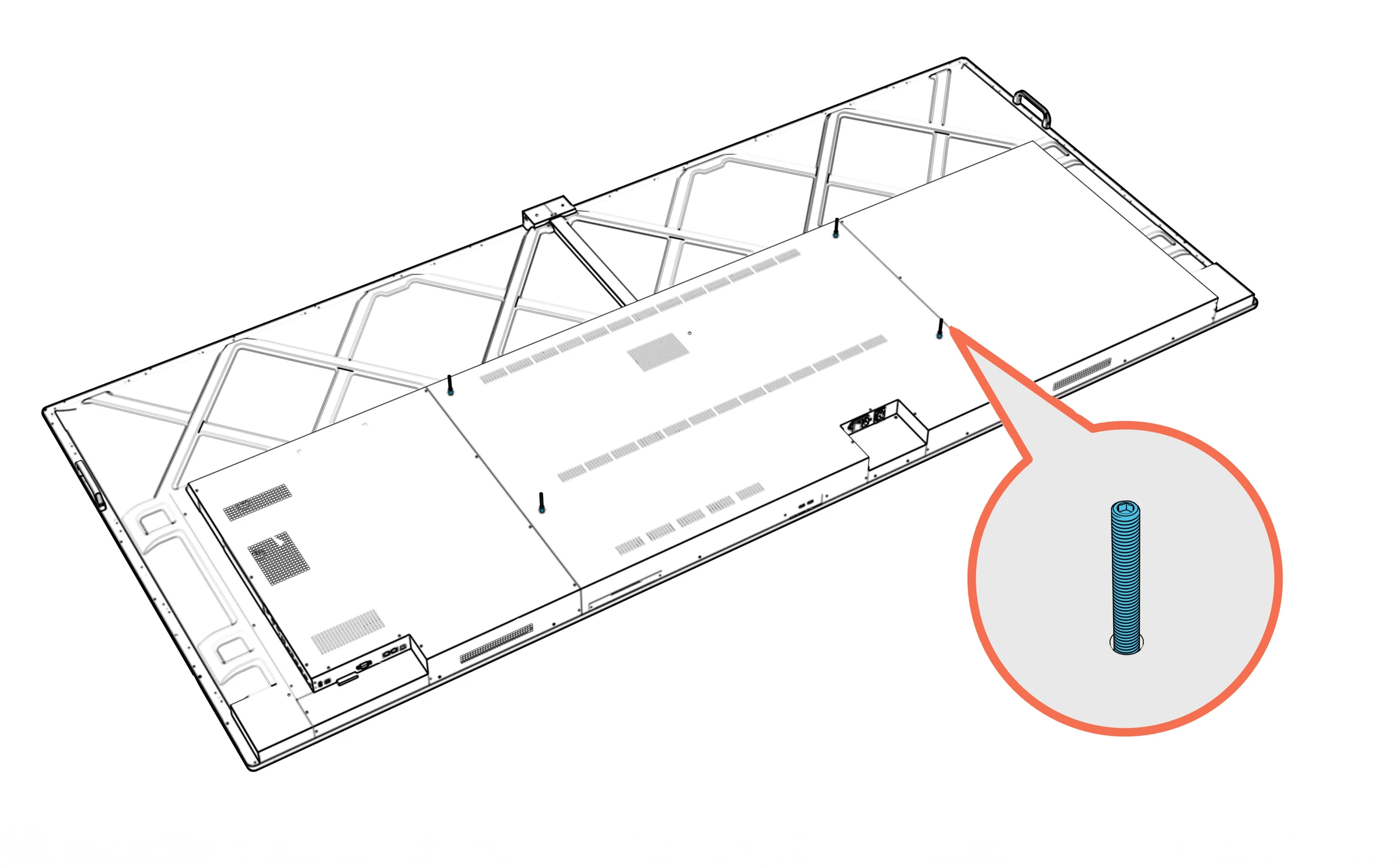

Rear of a large display with four M8 set screws installed, one enlarged.

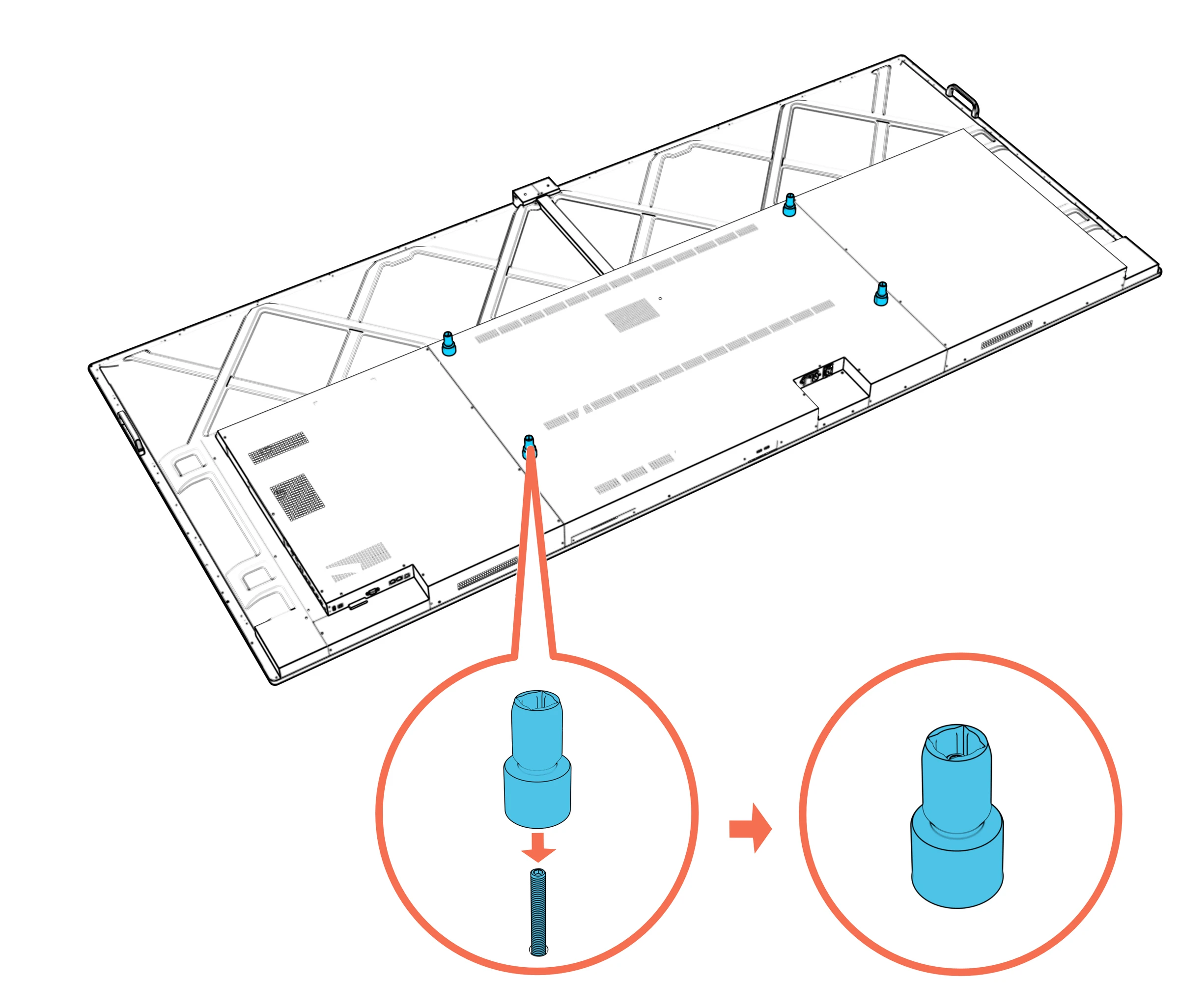

Four display mounting anchors threading onto the set screws on the rear of the display.

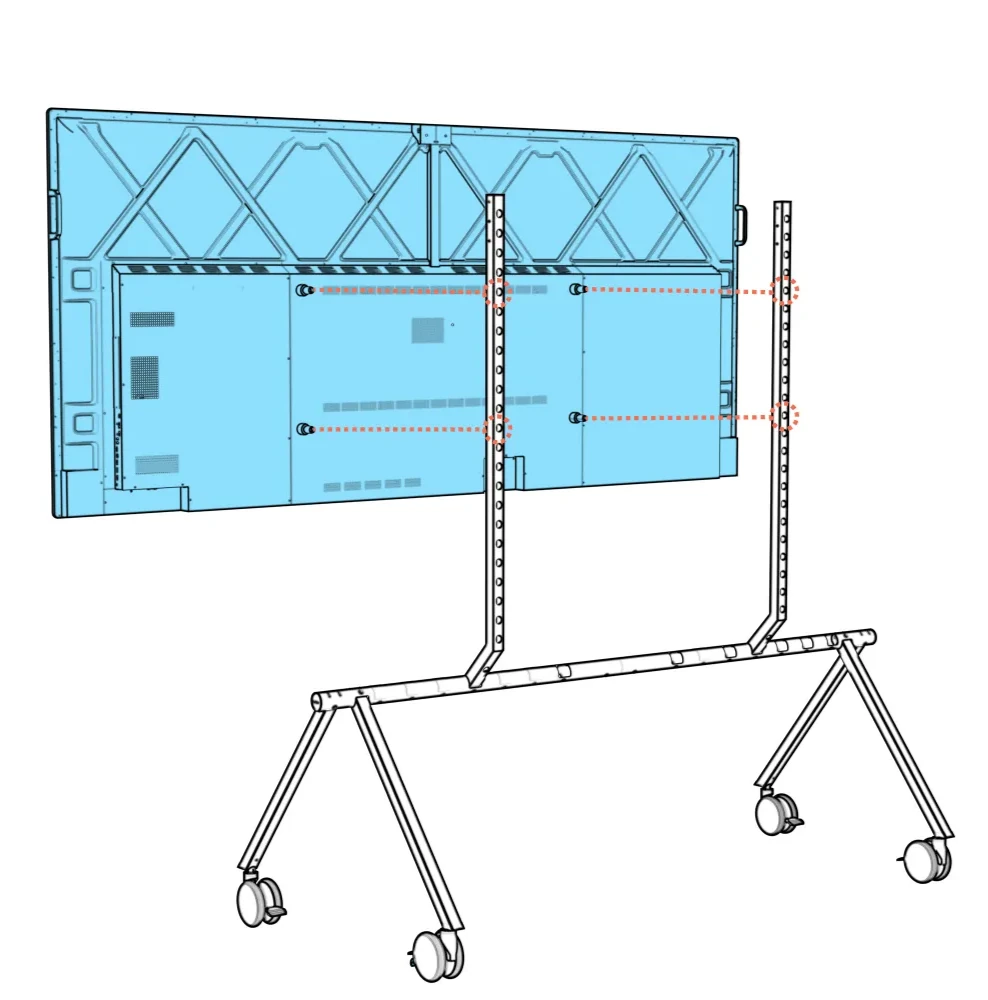

Display aligned with mounting holes at the selected height on both stand columns.

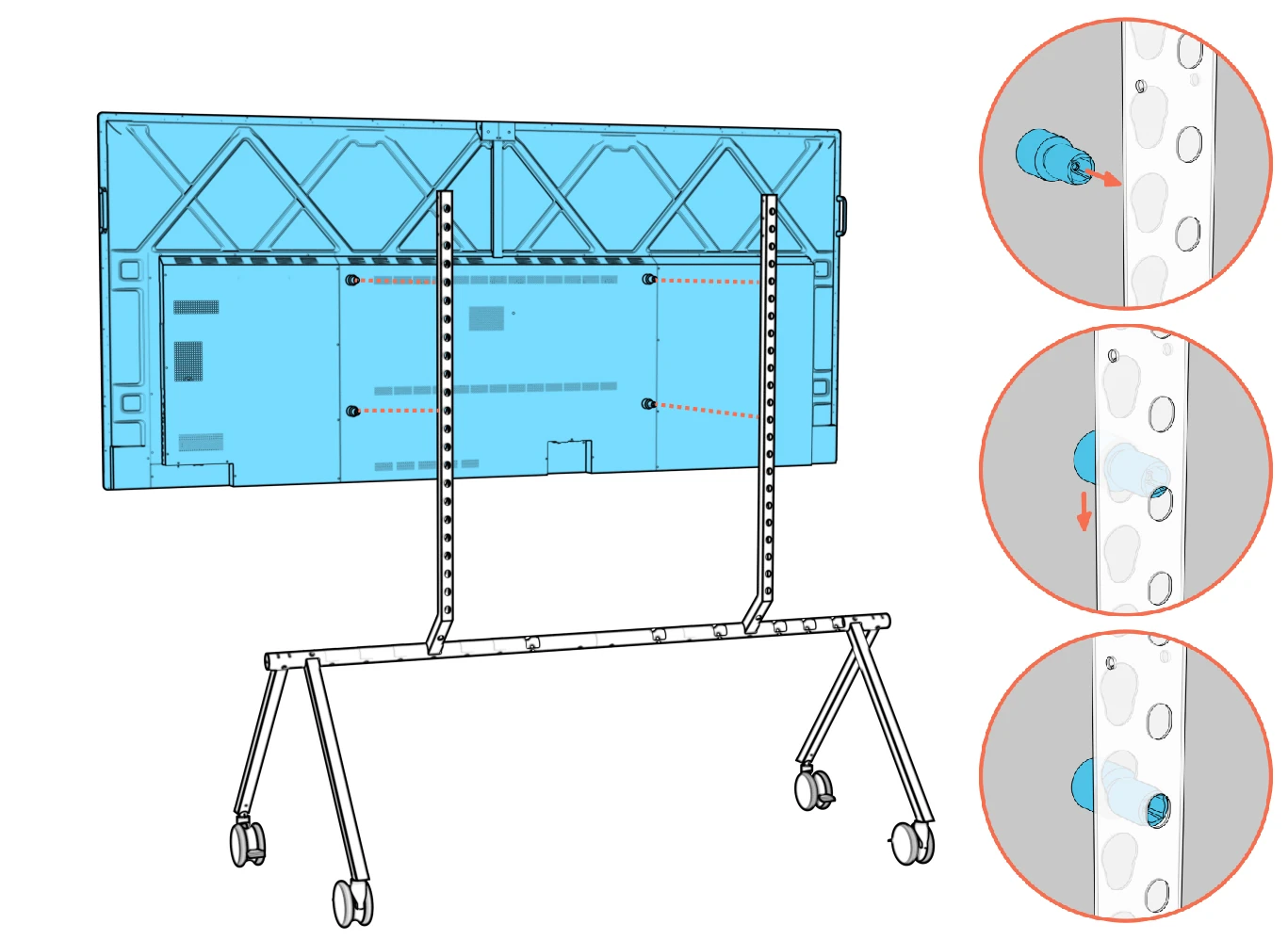

Display anchors inserting into the column keyholes and lowering into the narrow slots, shown in close-ups.

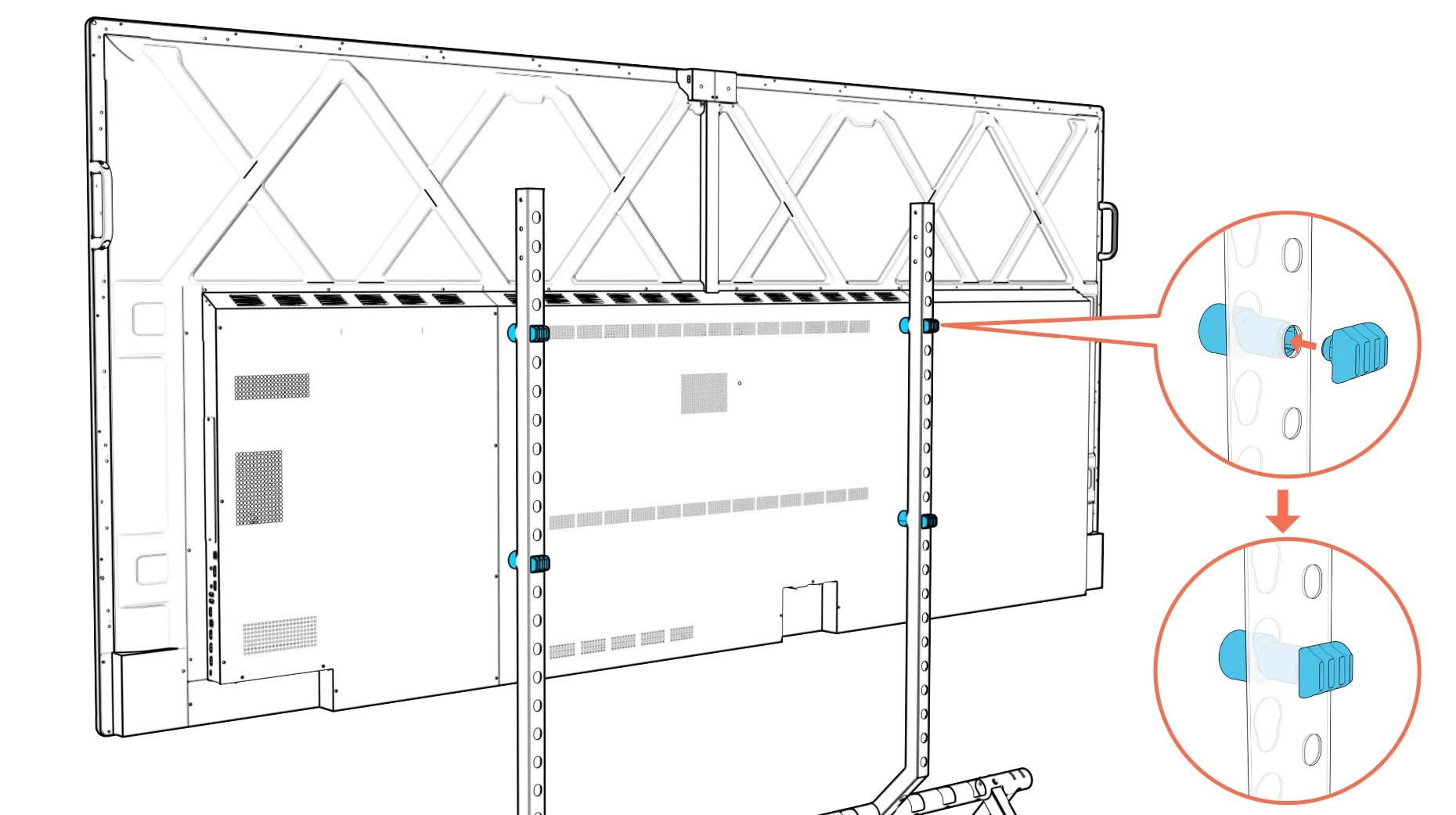

Four cable managers securing the display anchors from the rear of the columns, with an insertion close-up.

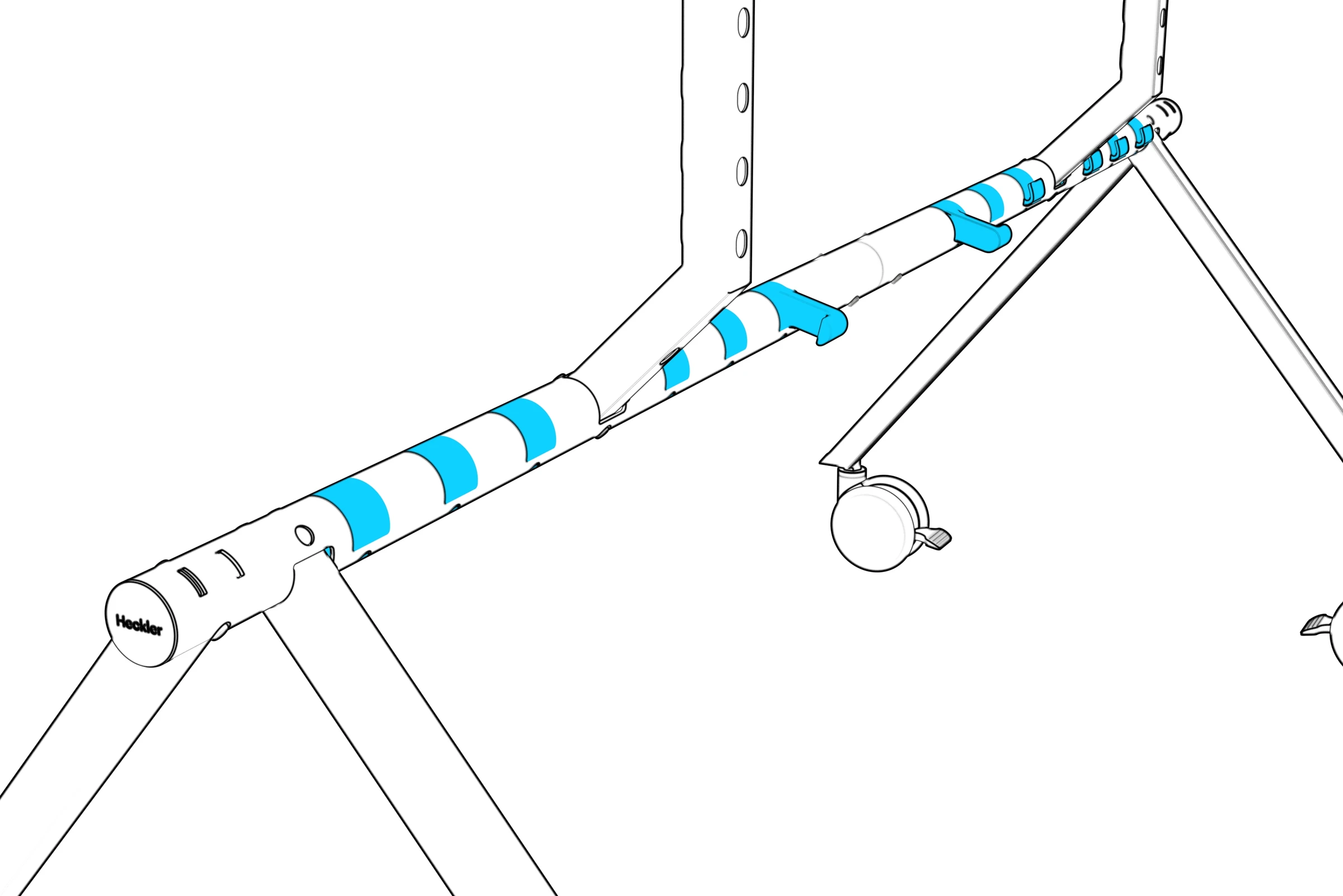

Cable guides, beam plugs, and cord-wrap hooks positioned in unused beam sockets.

Cable guide aligned with an unused beam socket.

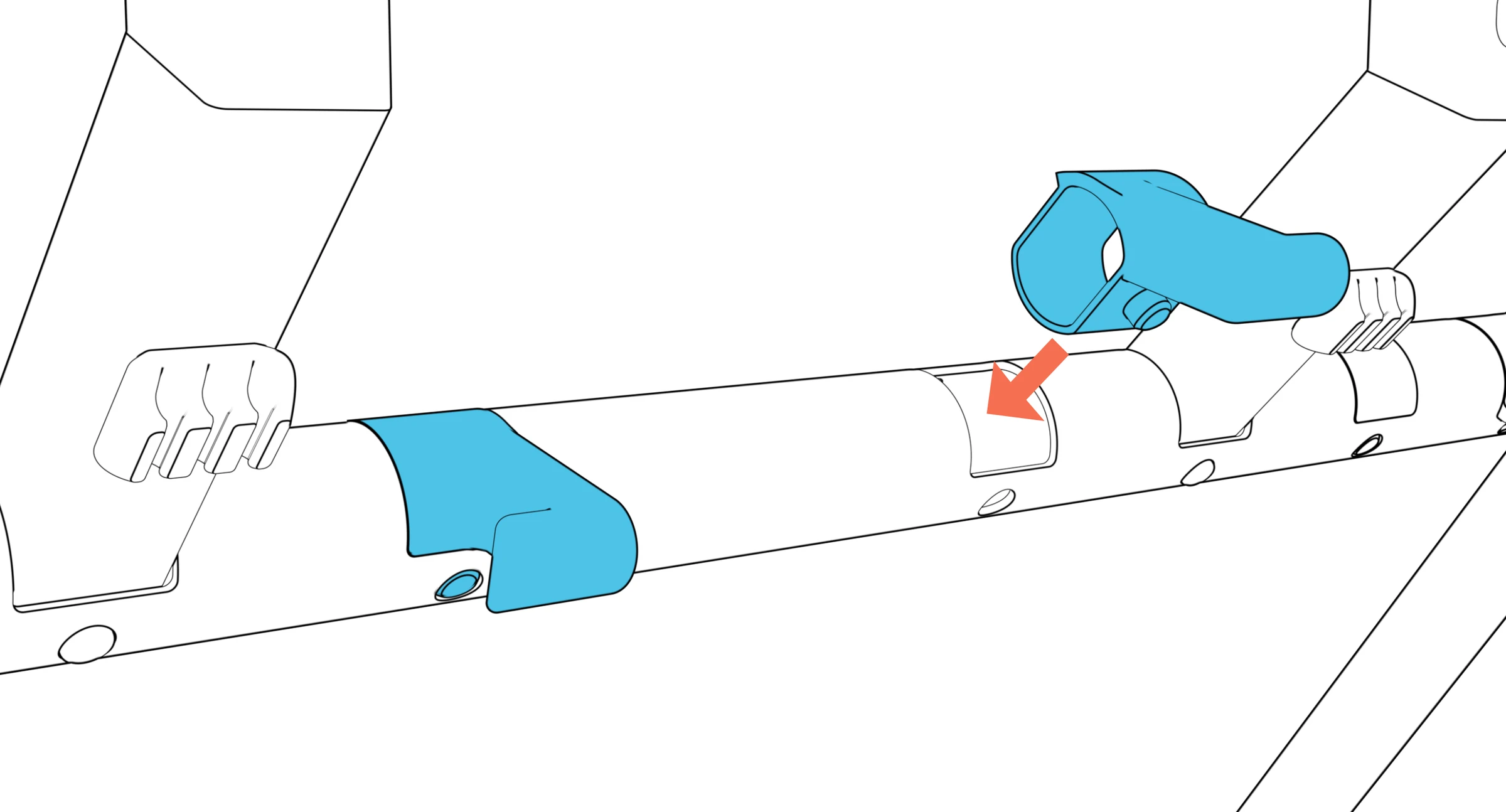

Cord-wrap hook aligned with a beam socket beside the opposite hook.

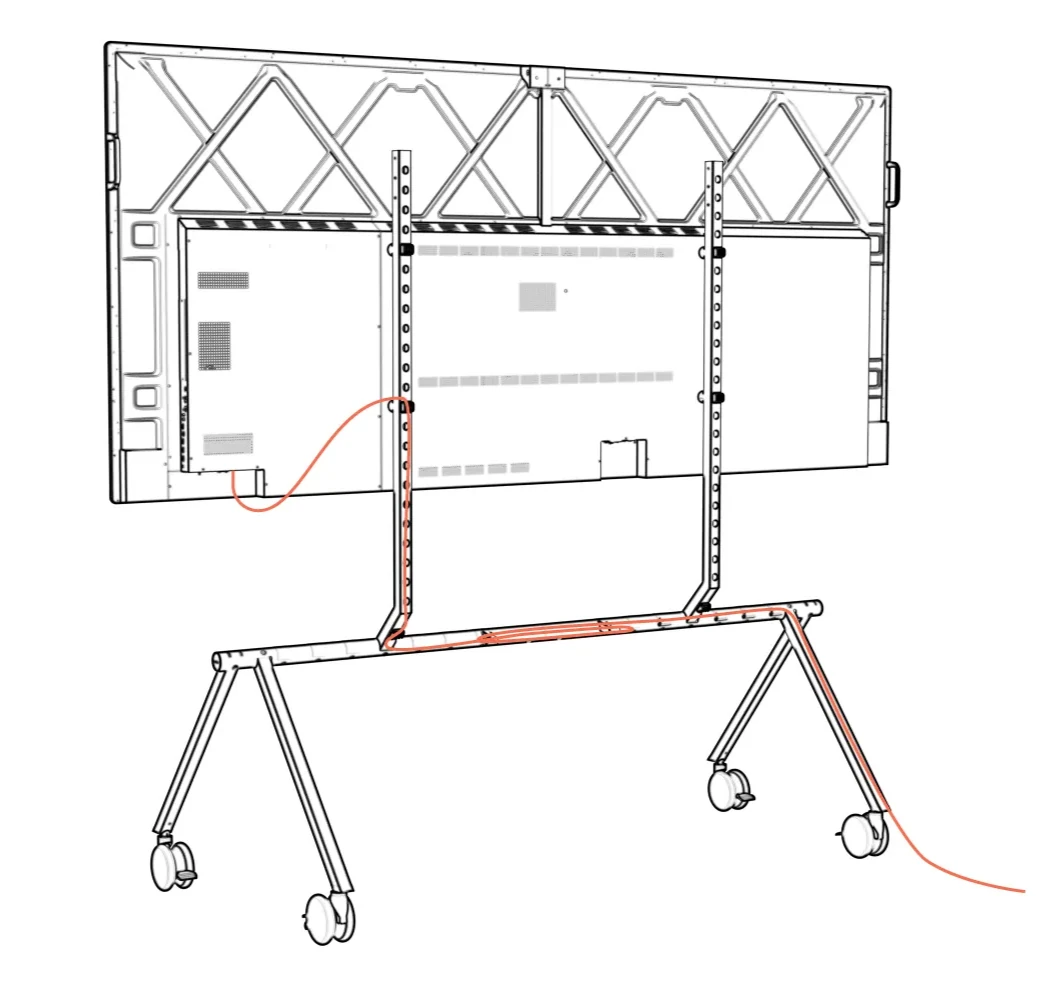

Rear of the installed display with a cable routed down a column and along the beam to the floor.

Close-up of a cable seated in a column cable manager.

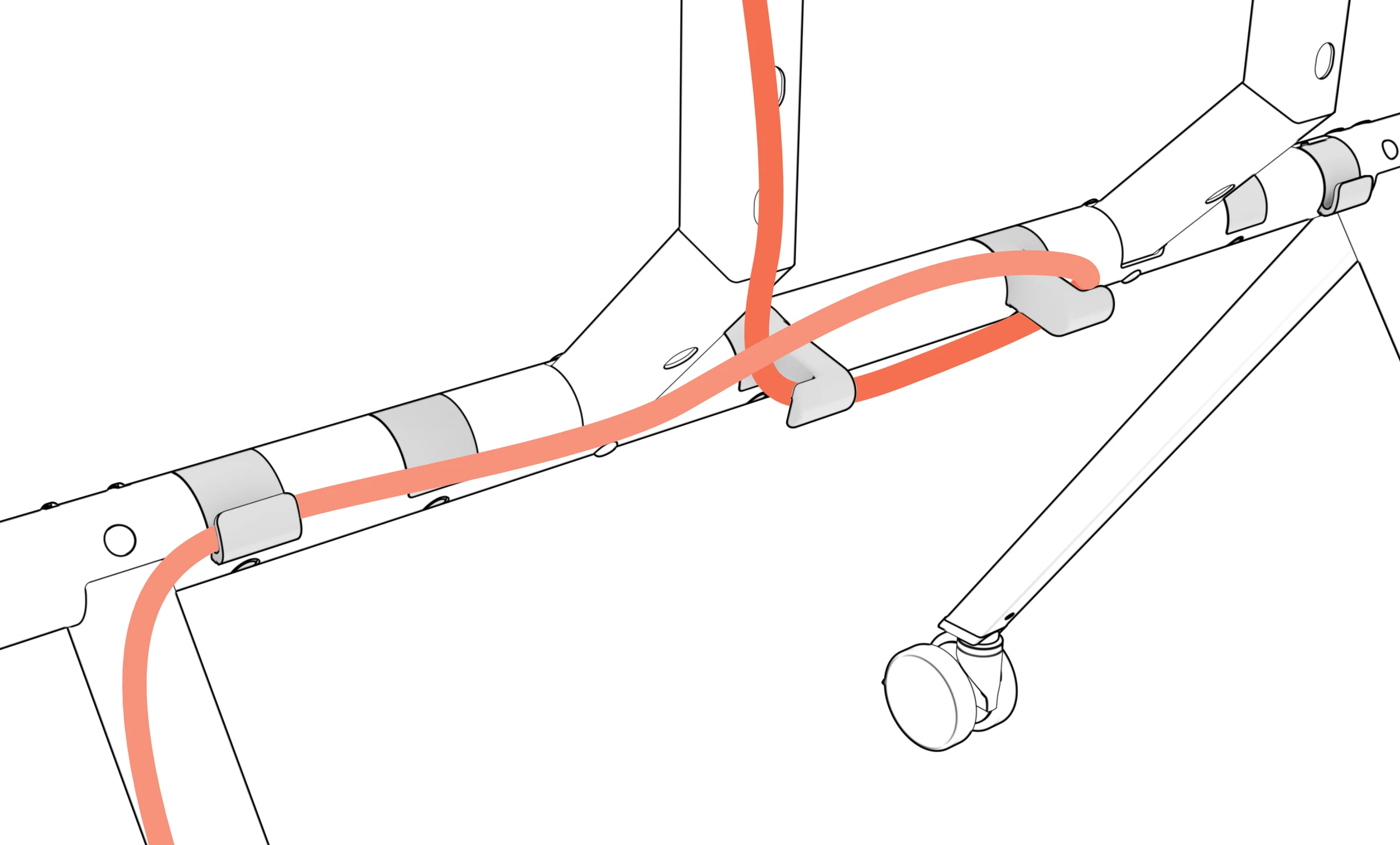

Cable looped between the beam cord-wrap hooks and retained by cable guides.

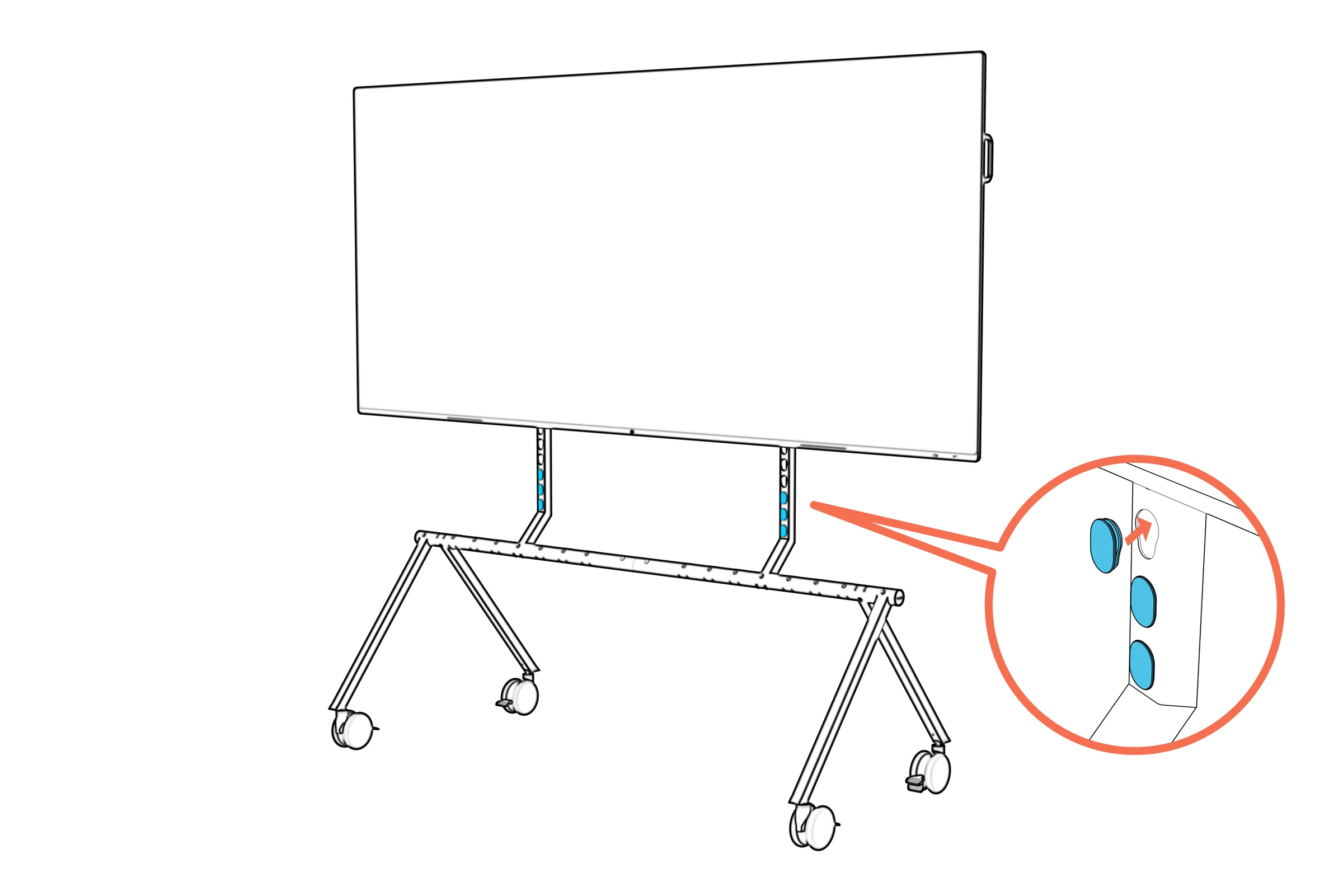

Column plugs aligned with unused front column holes, with a close-up of the plug positions.

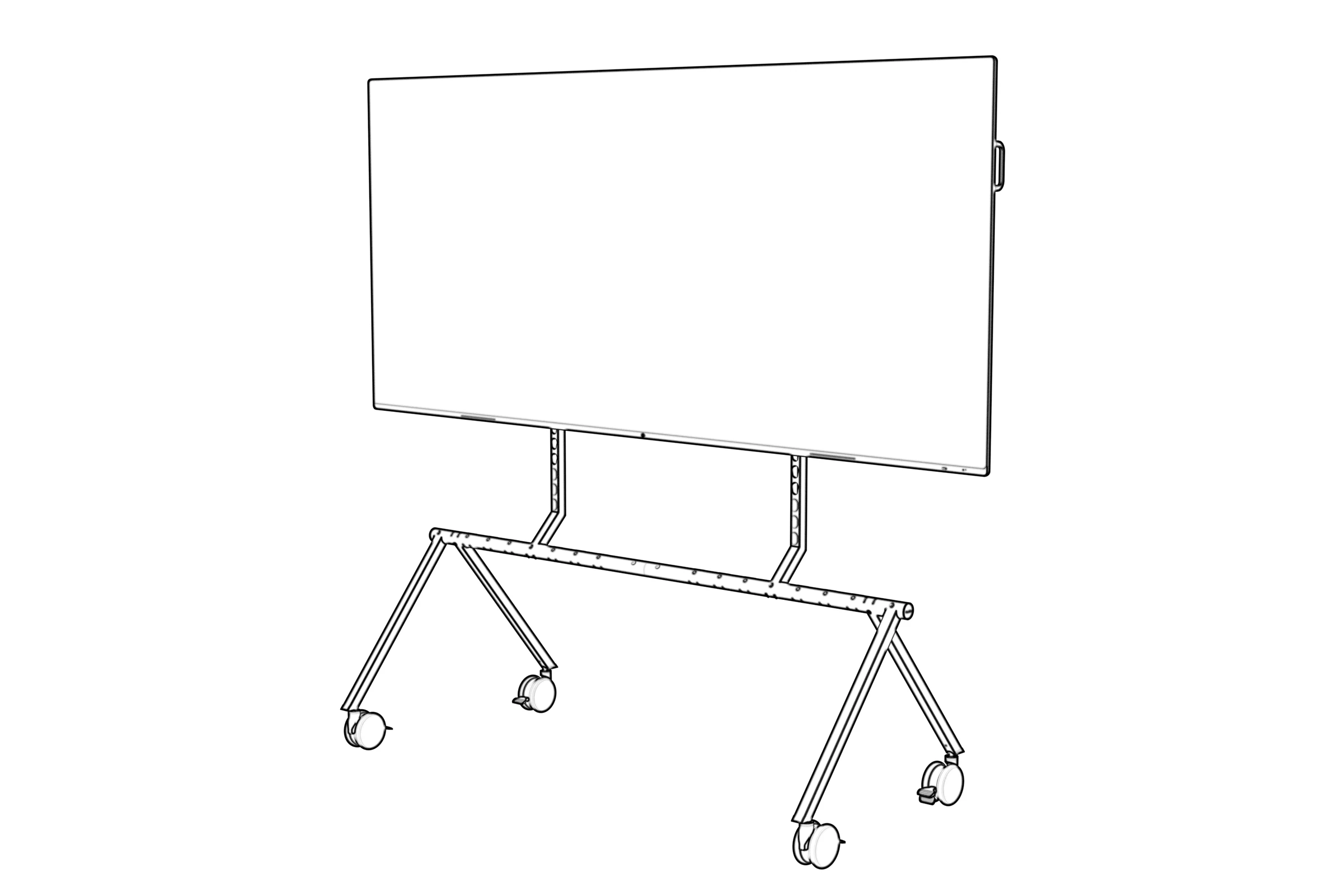

Completed XL display stand viewed from the front.

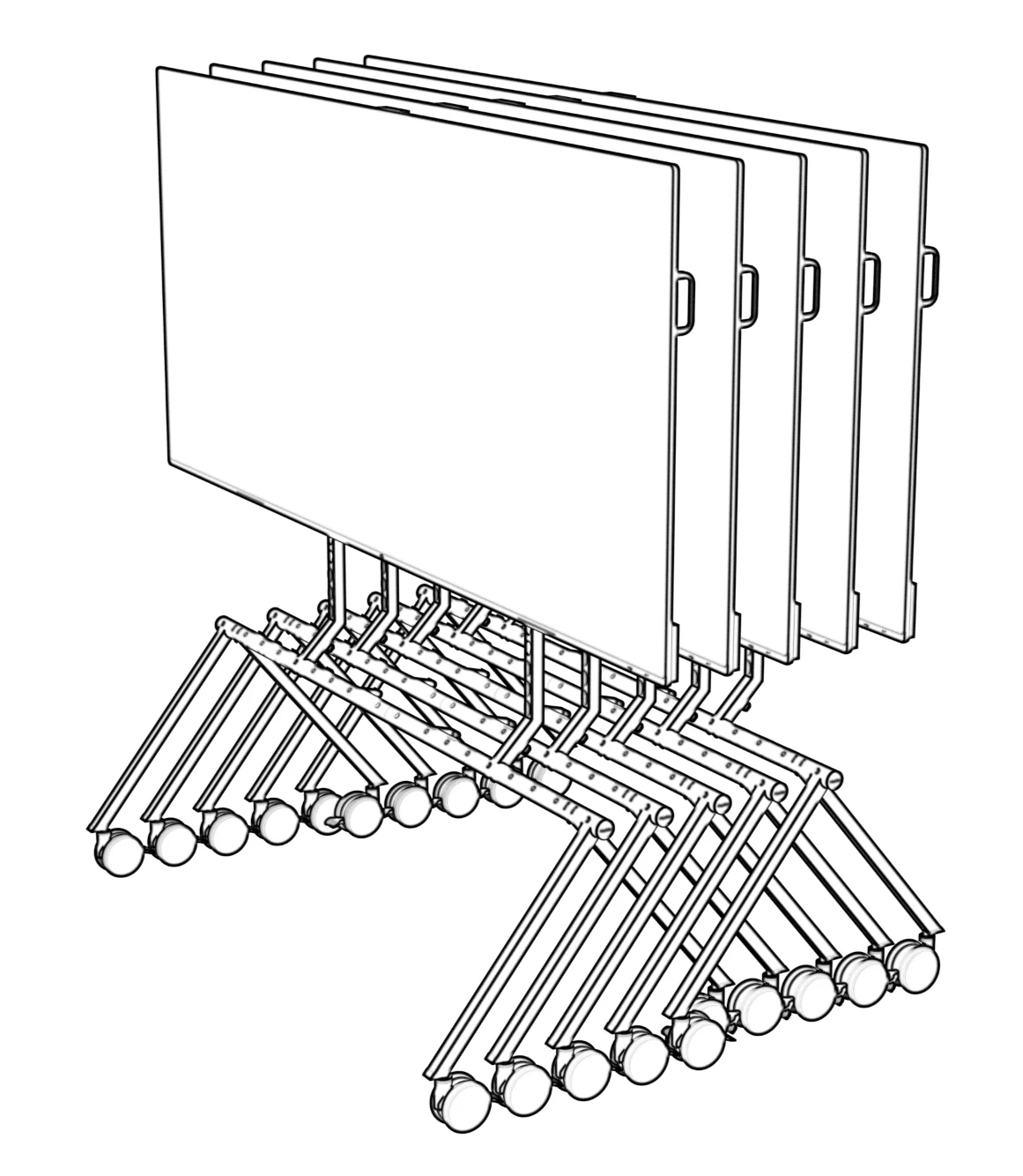

Multiple display stands nested closely together for storage.

Side view of nested displays with column cable managers circled at the contact points.

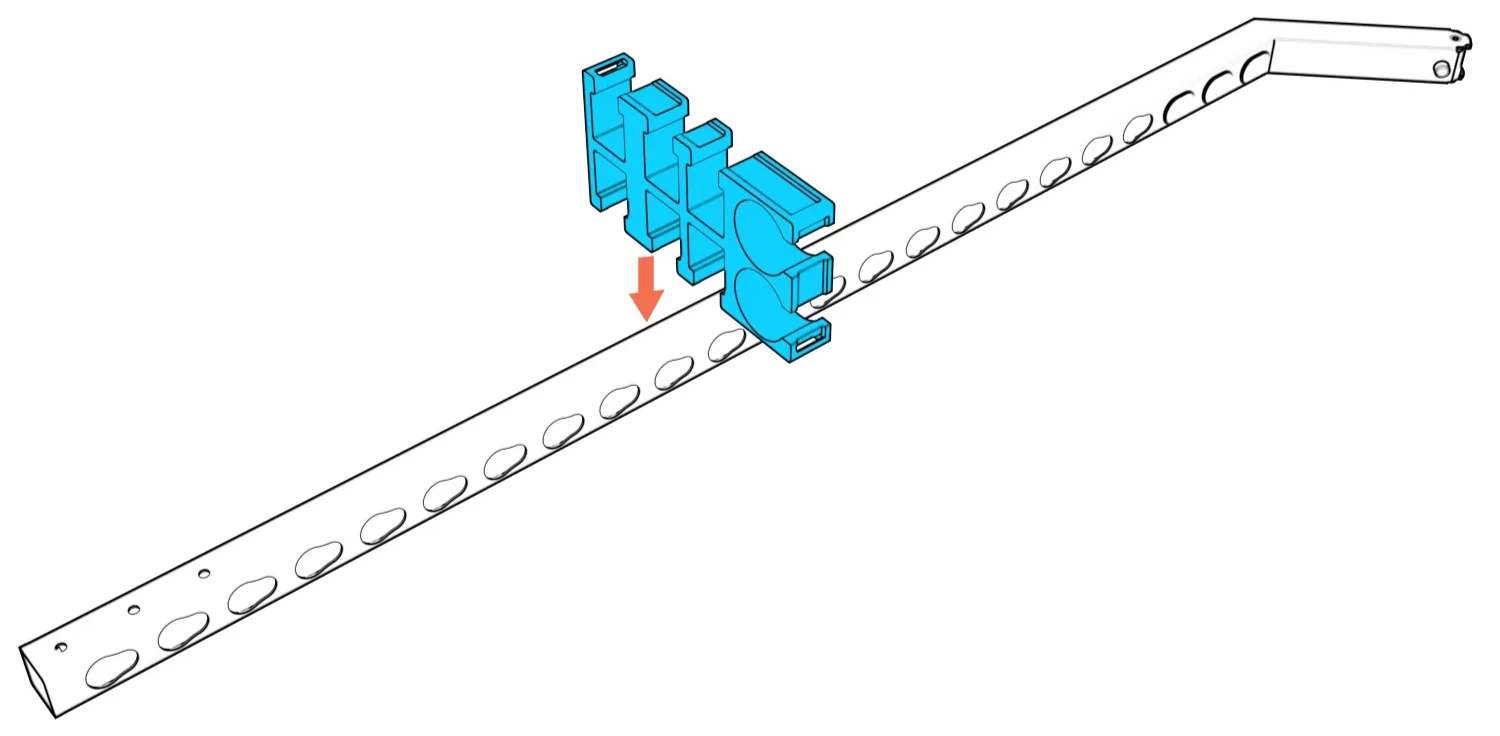

First storage ring aligned with a detached column.

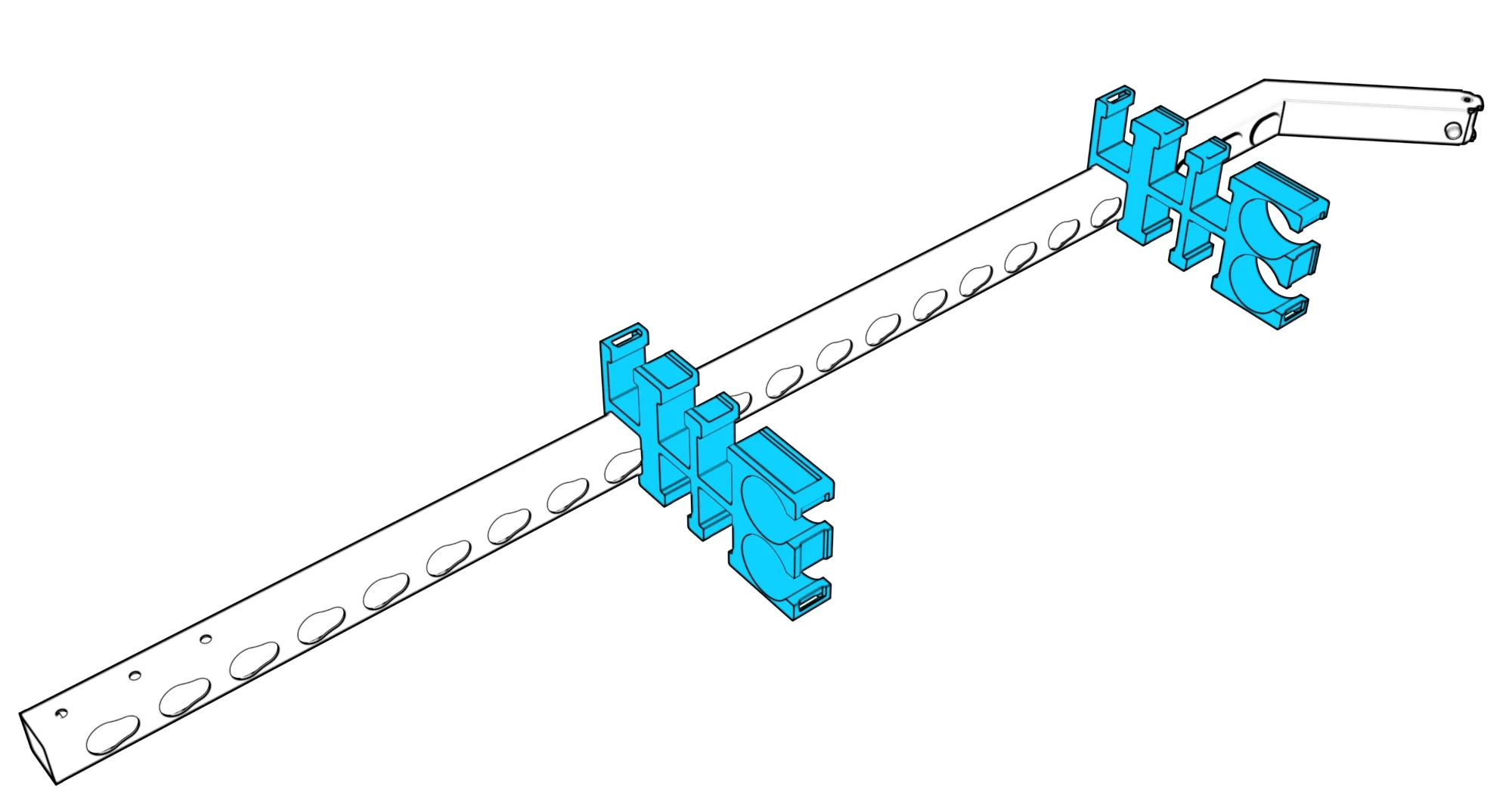

Two storage rings fitted along the column.

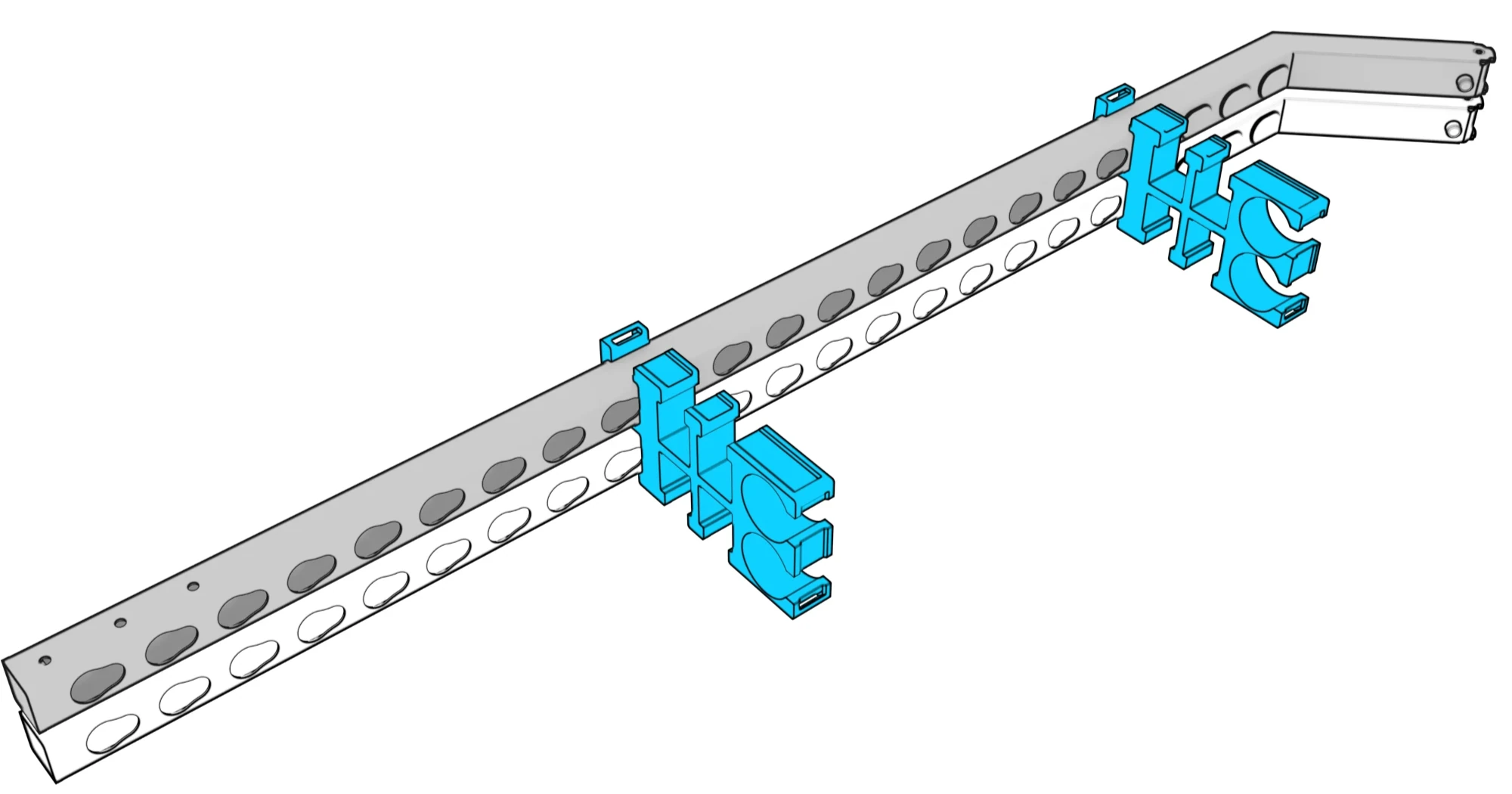

Second column nested alongside the first in the storage rings.

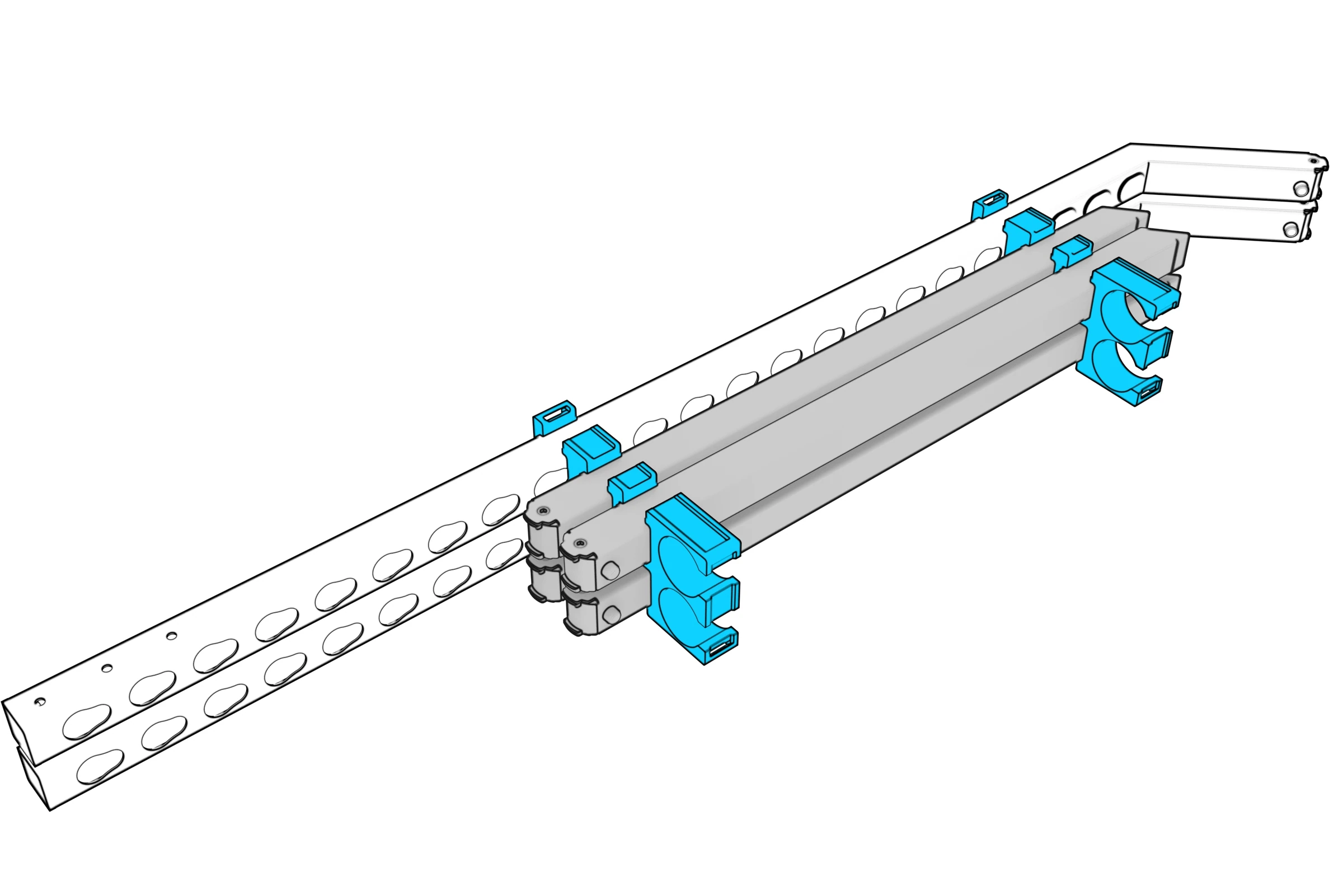

Four detached legs nested between the columns in the storage rings.

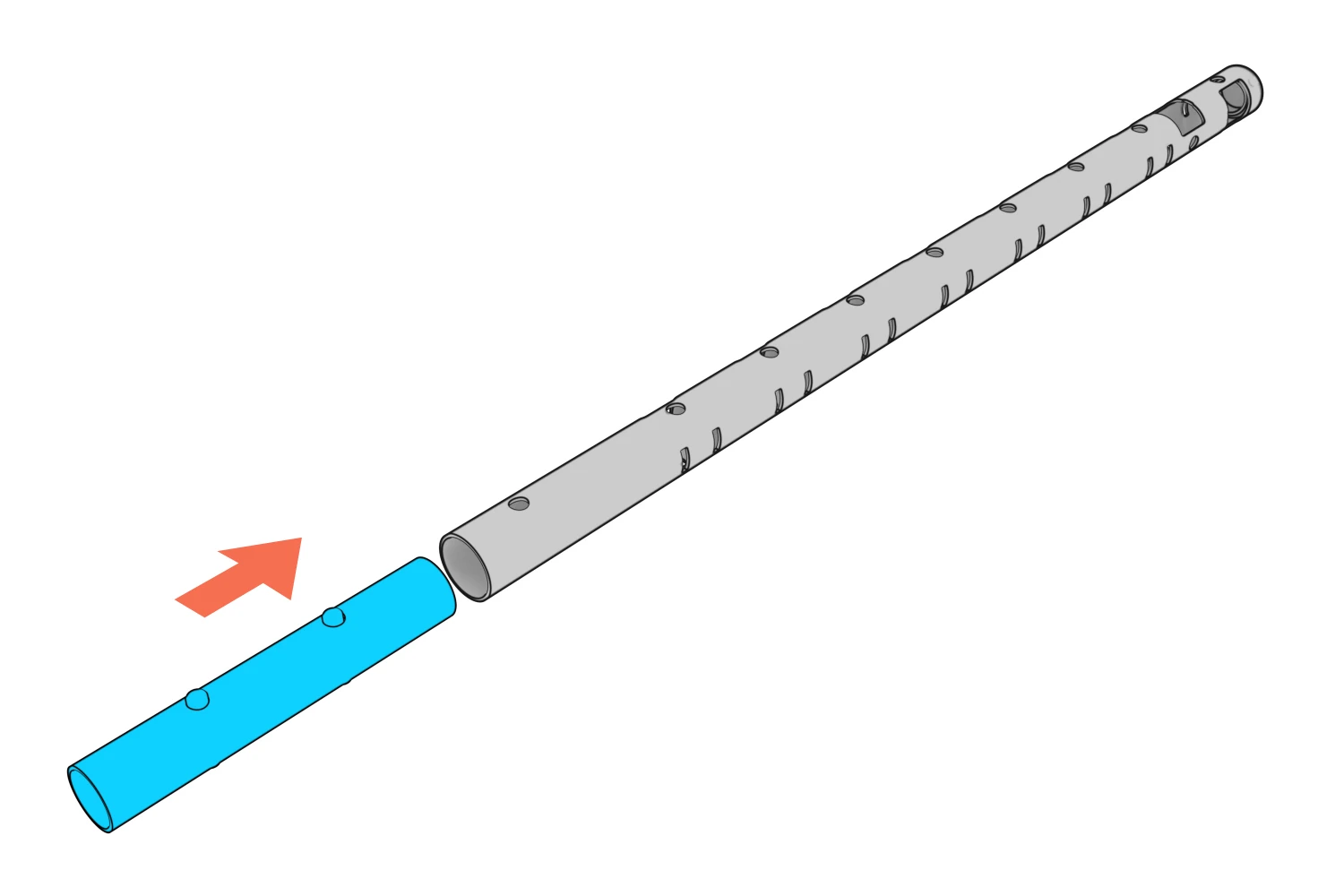

Coupler aligned with the end of a detached beam half for storage.

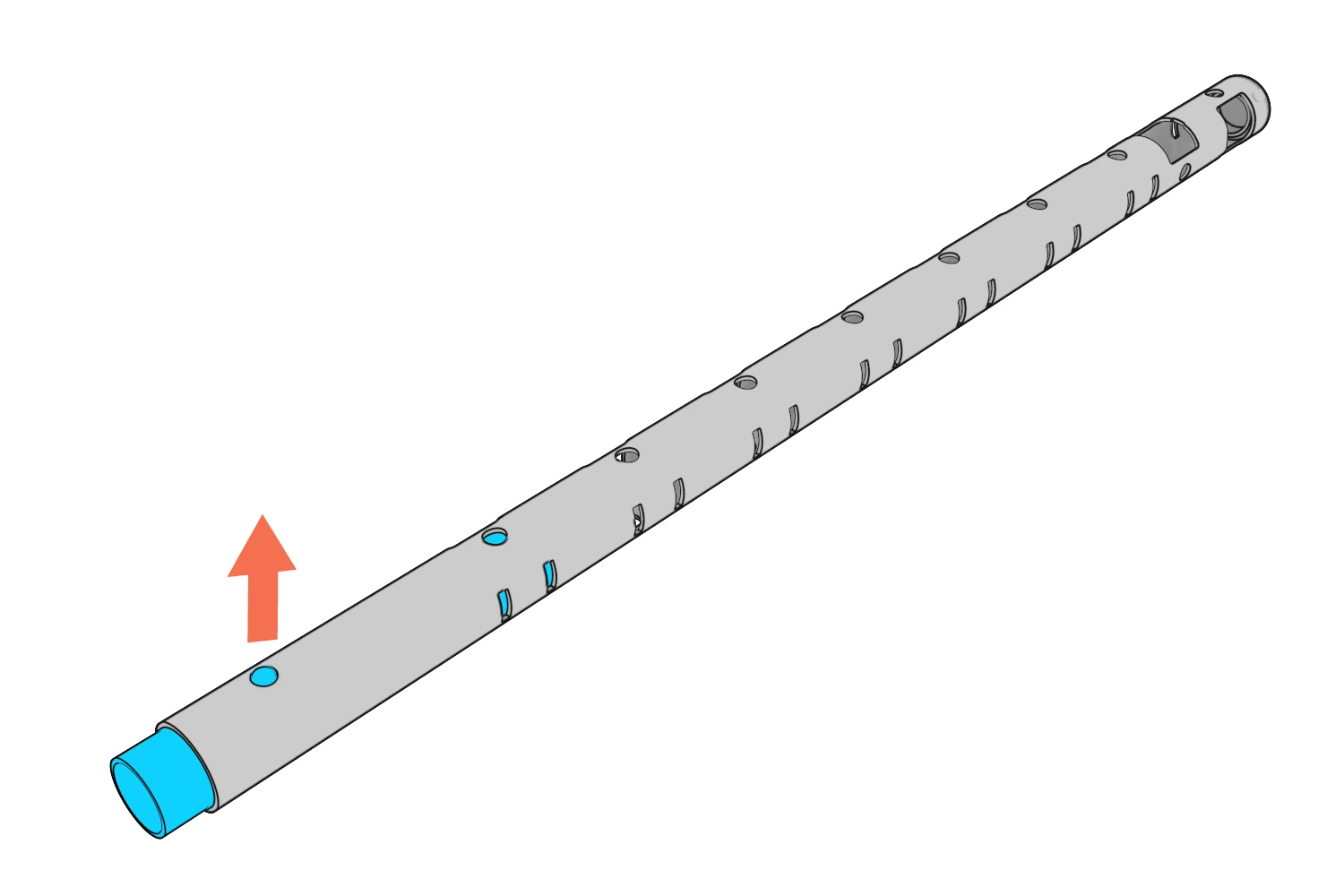

Coupler slid into the beam half with its spring button engaged.

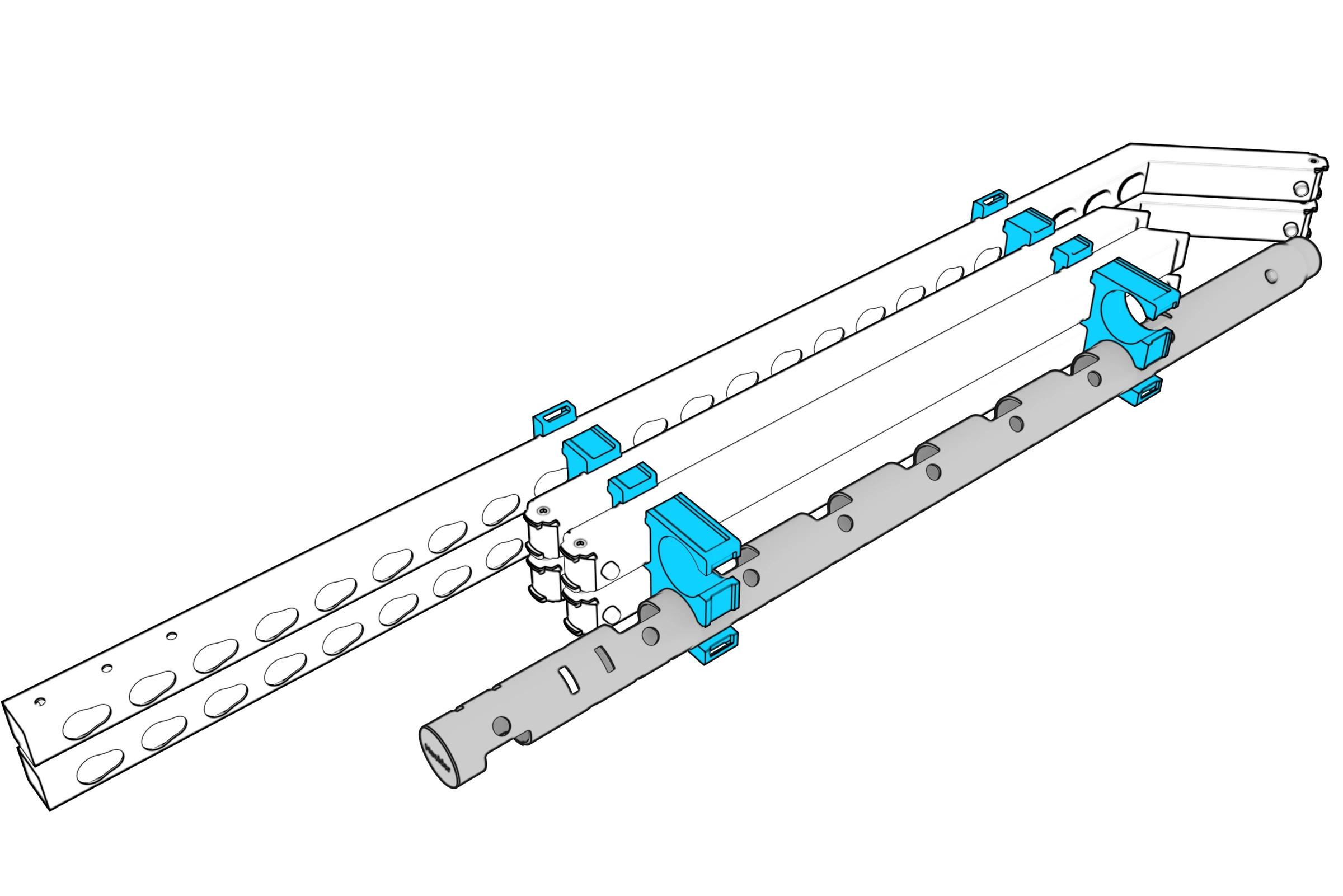

First beam half seated alongside the packed columns and legs.

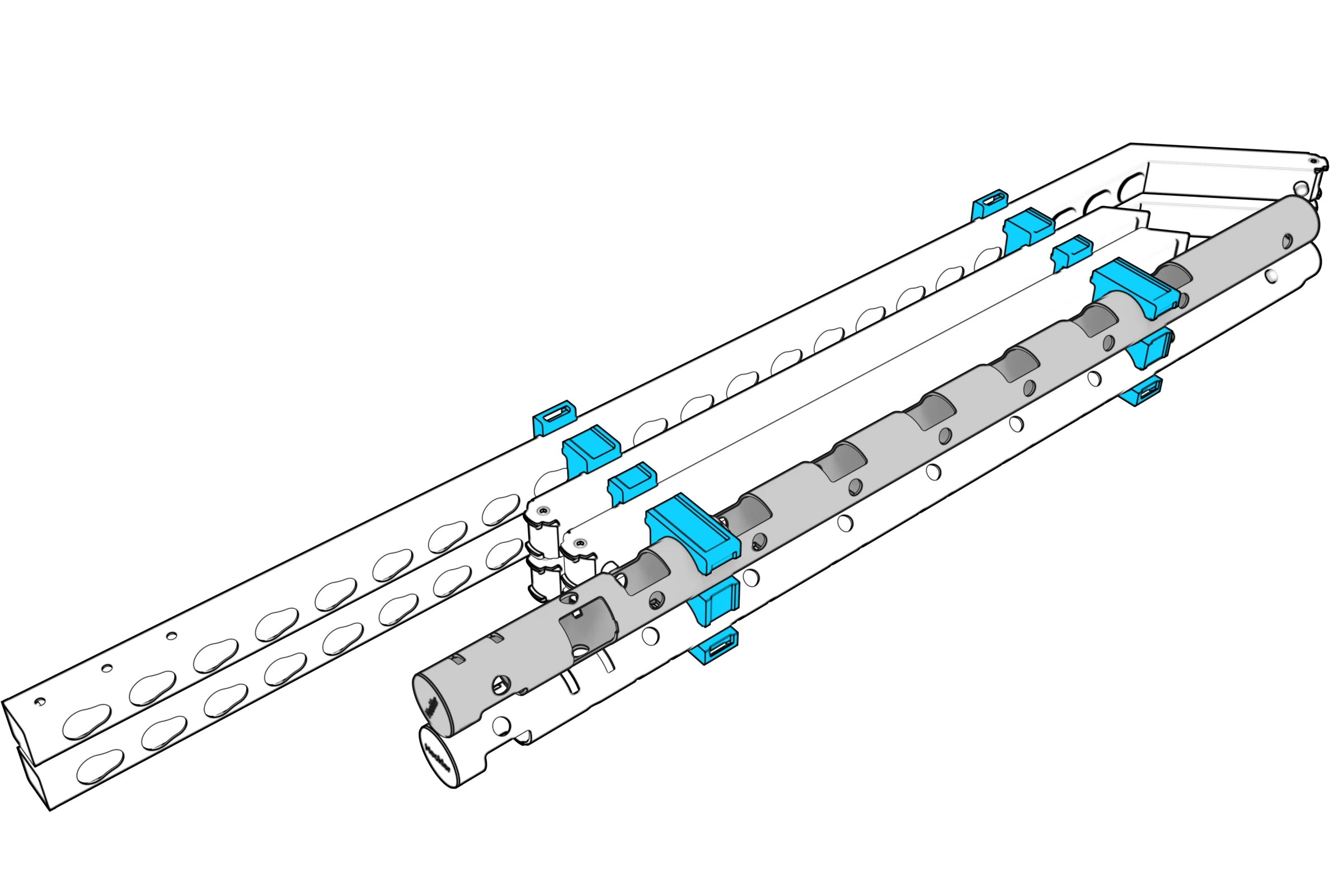

Both beam halves seated alongside the packed columns and legs.

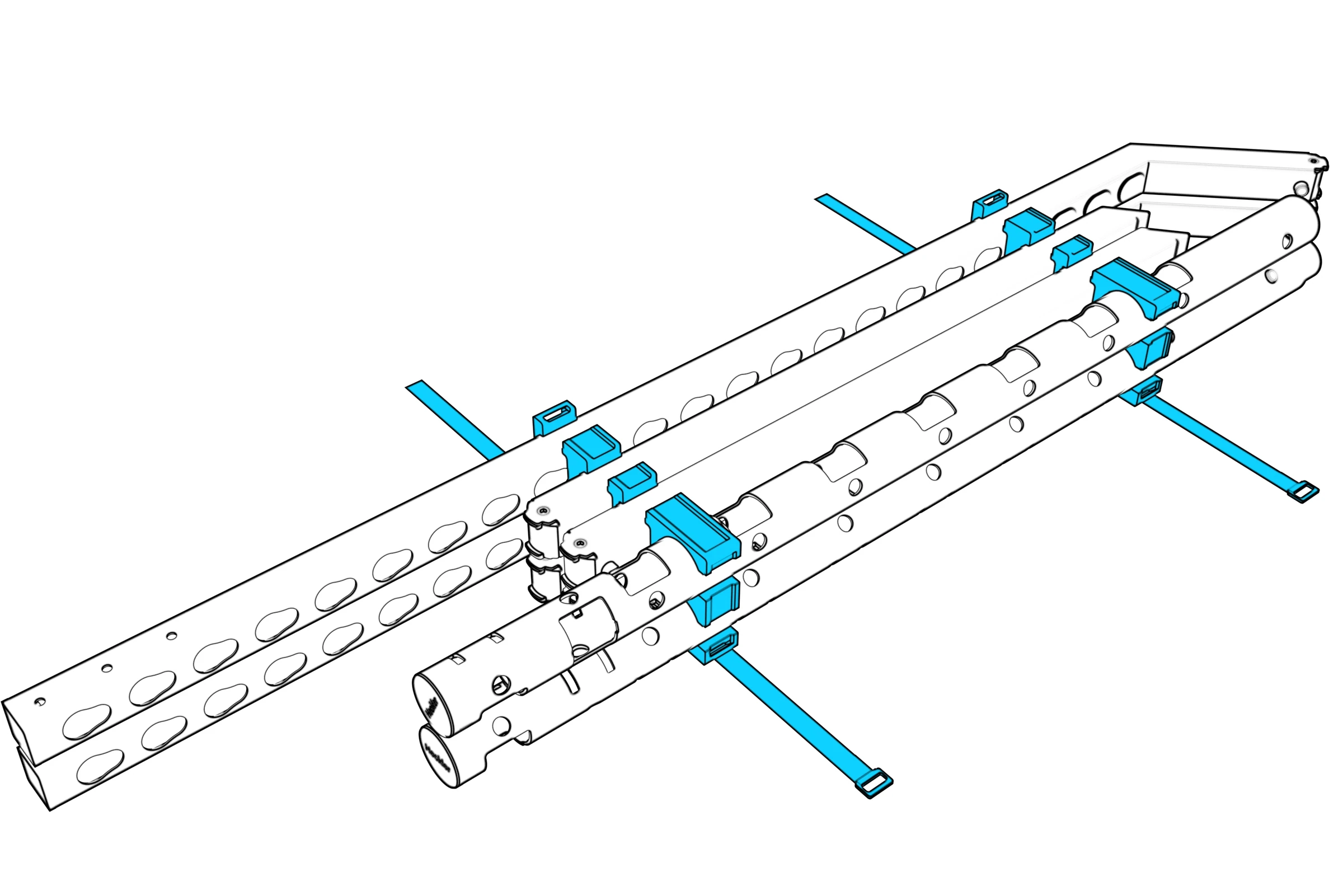

Two straps threaded around the packed components through their buckles.

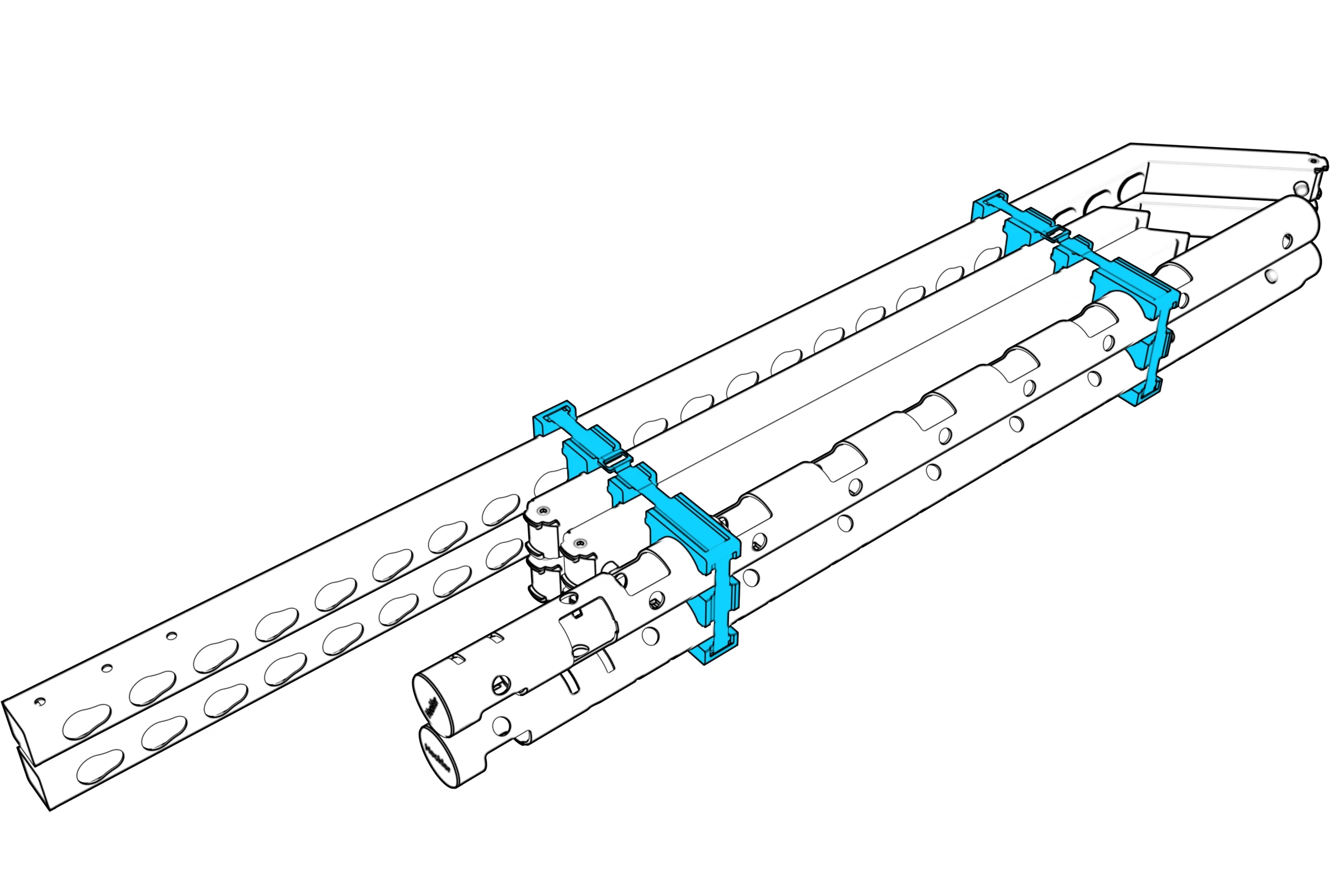

Straps tightened around the components held in the storage rings.

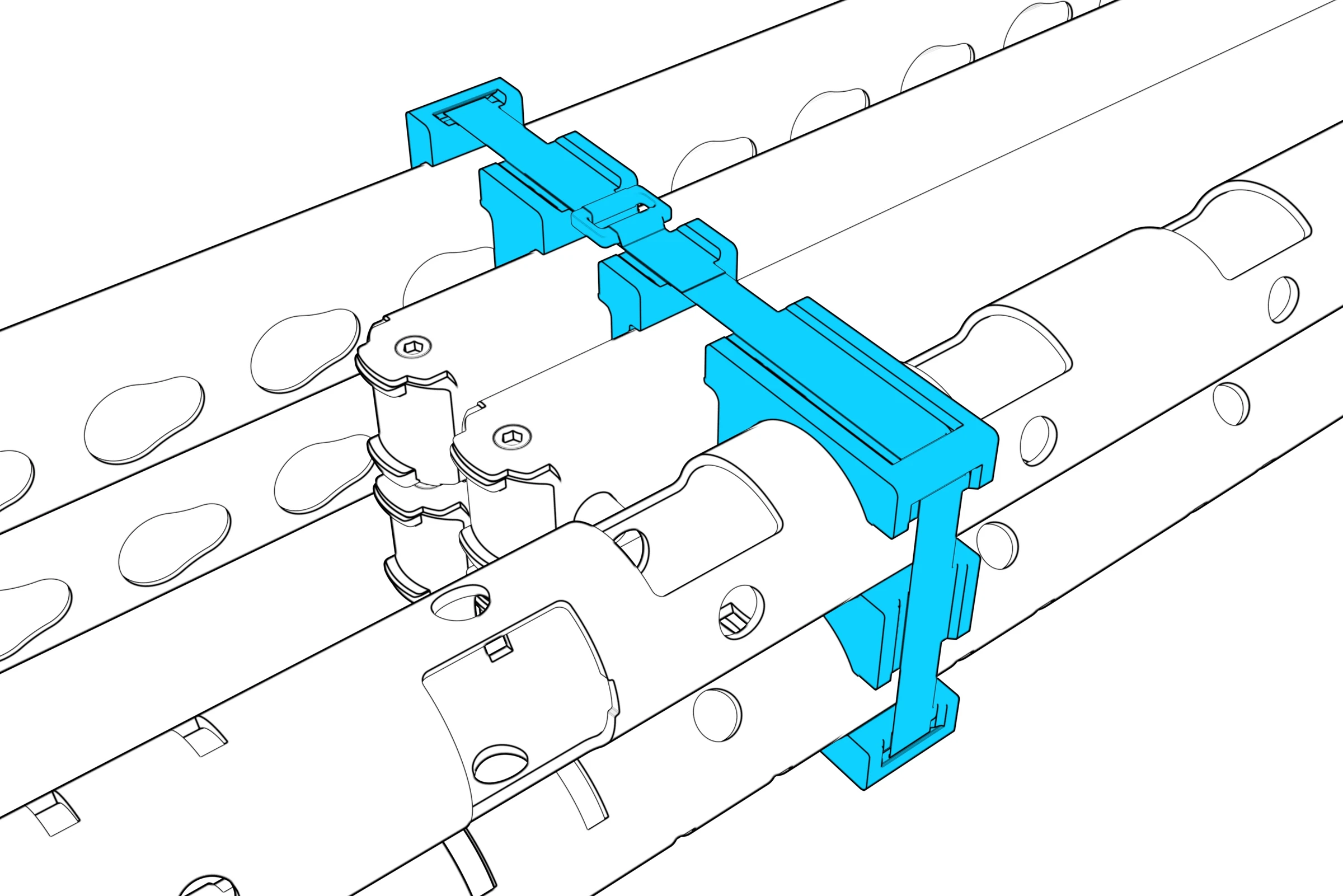

Close-up of a tightened strap and buckle securing the packed stand.
