User guide

H1054 Logitech Tap Shelf for Heckler Mobile Fleet MKII

Read guide
PDF · Letter PDF · A4
Guide details Applicability and revision

Fit the Tap feet and MKII shelf to the stand column, then position the controller.

ProductH1054
Hardware generationH1054 · MKII
Guide revisionrelease-2026-10-28
Applies to

H1054 Logitech Tap Shelf for Heckler Mobile Fleet MKII.

In this guide · 2 sections

In the box

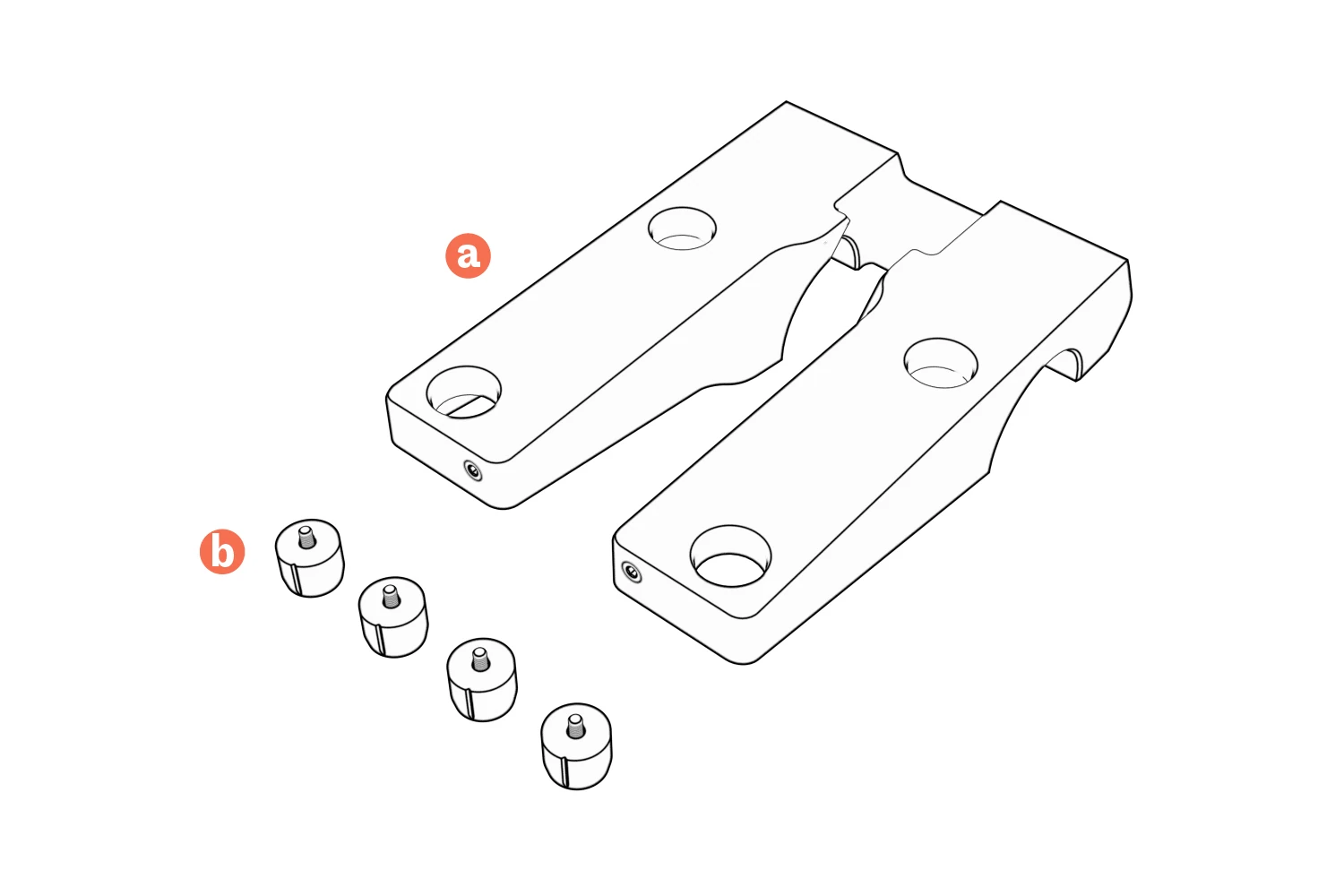

Tap shelf and four mounting feet labeled a and b.

a. 1 x Logitech Tap Shelf

b. 4 x Logitech Tap feet

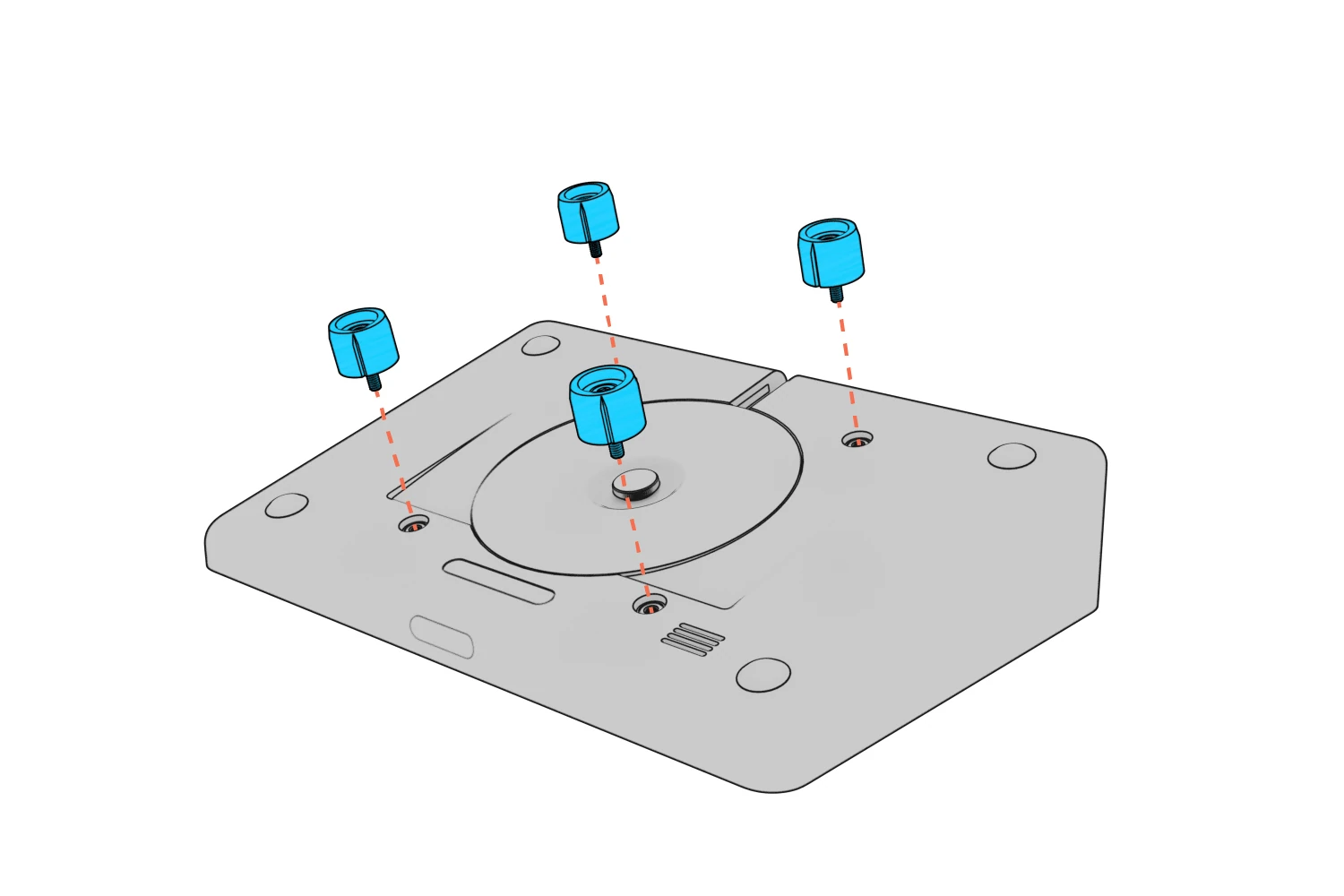

Install the feet on the underside of Logitech Tap.

Four mounting feet aligned with the holes on the underside of a Logitech Tap.

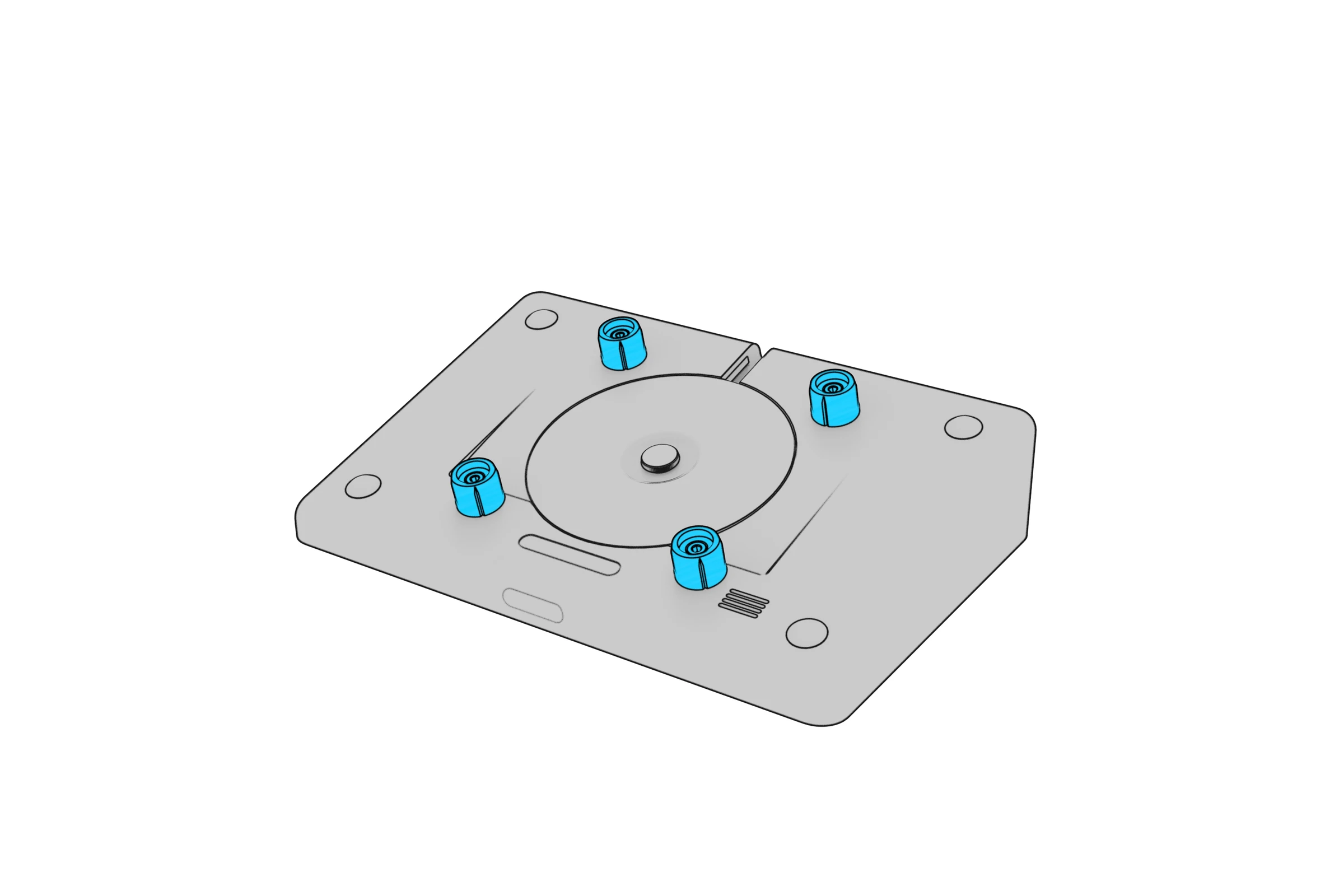

Four feet installed beneath the Logitech Tap.

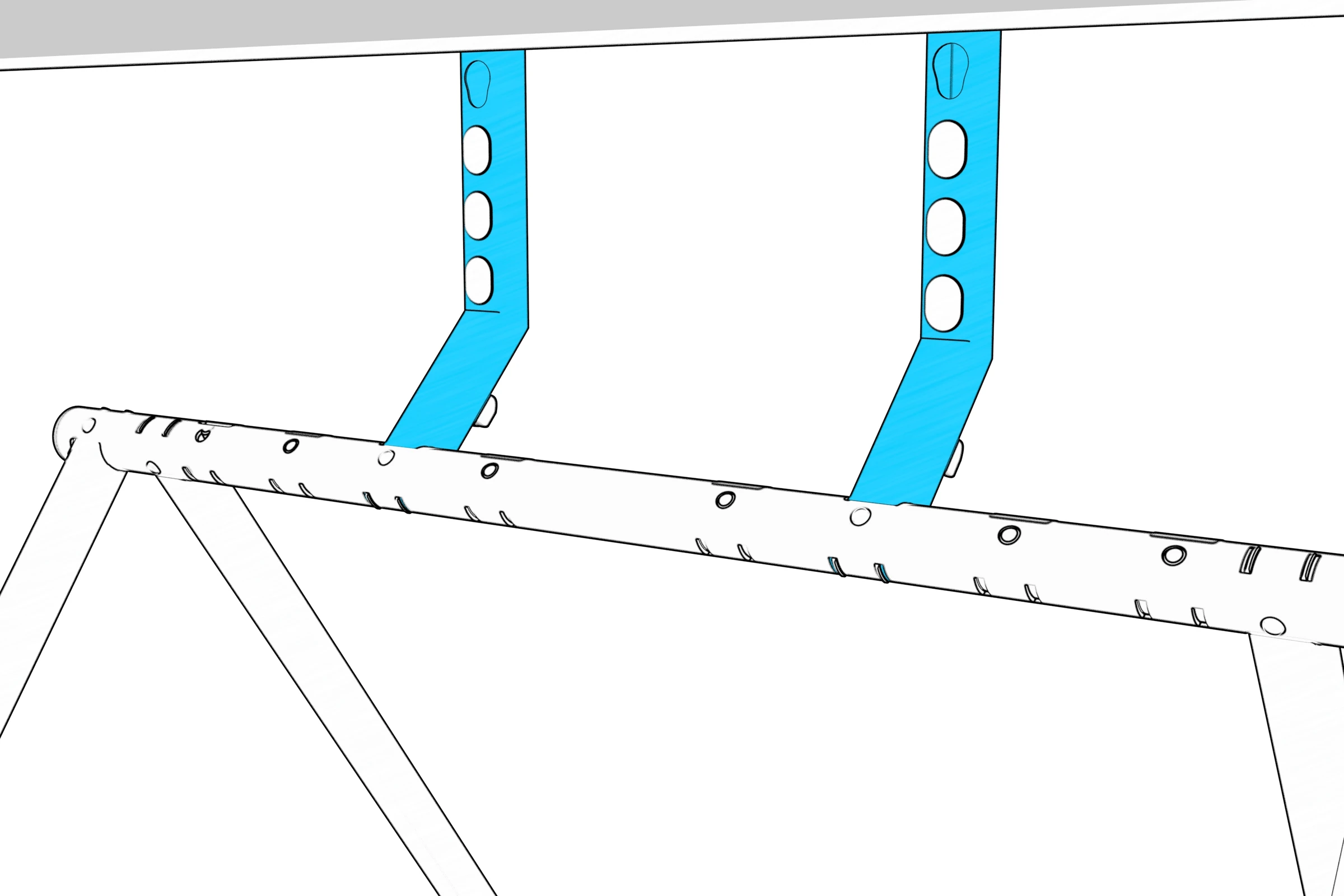

Choose the column on which to mount the Logitech Tap Shelf.

Two stand columns highlighted as alternative shelf mounting positions.

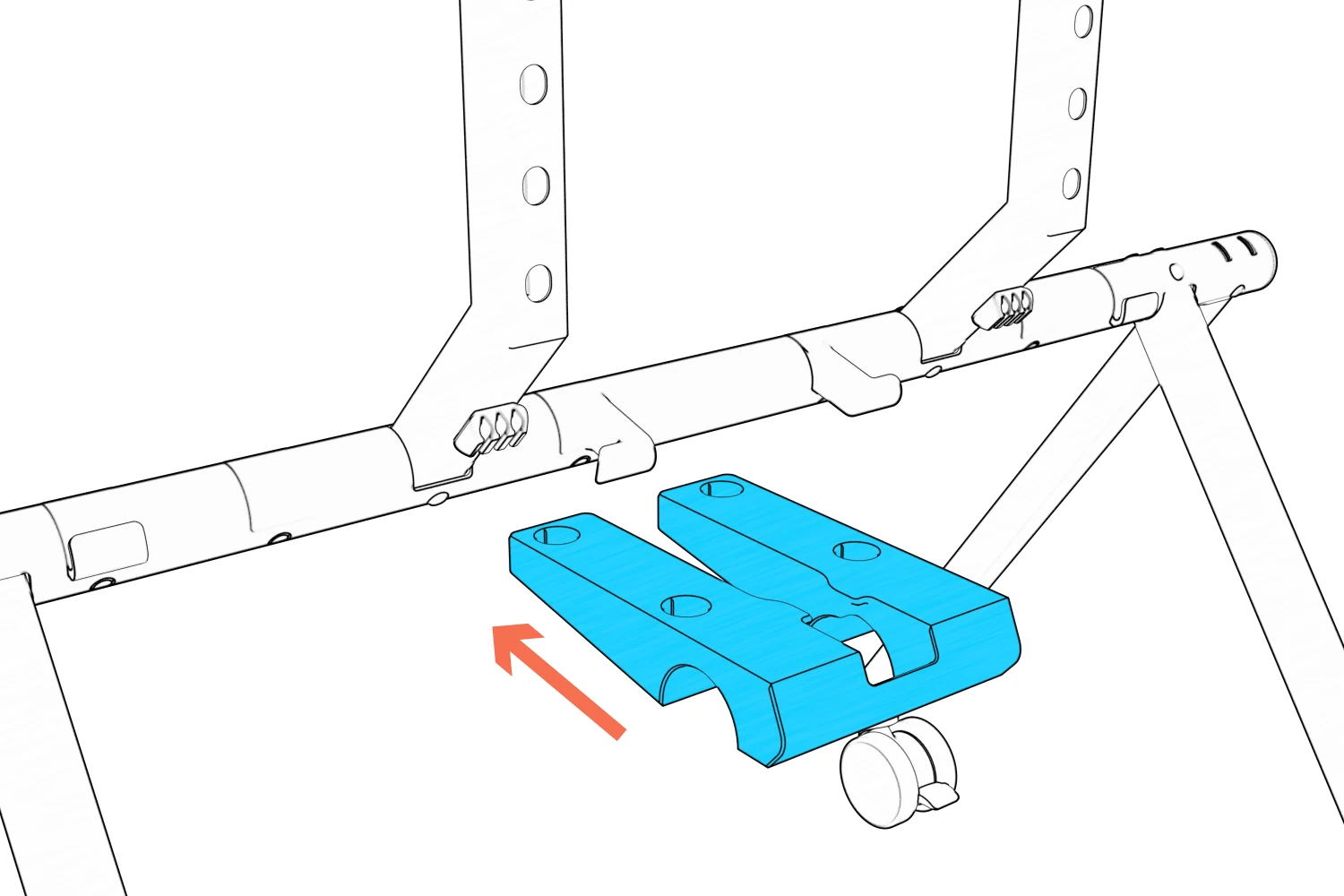

Slide the shelf toward the column from behind the stand.

Shelf approaching a stand column from behind the beam.

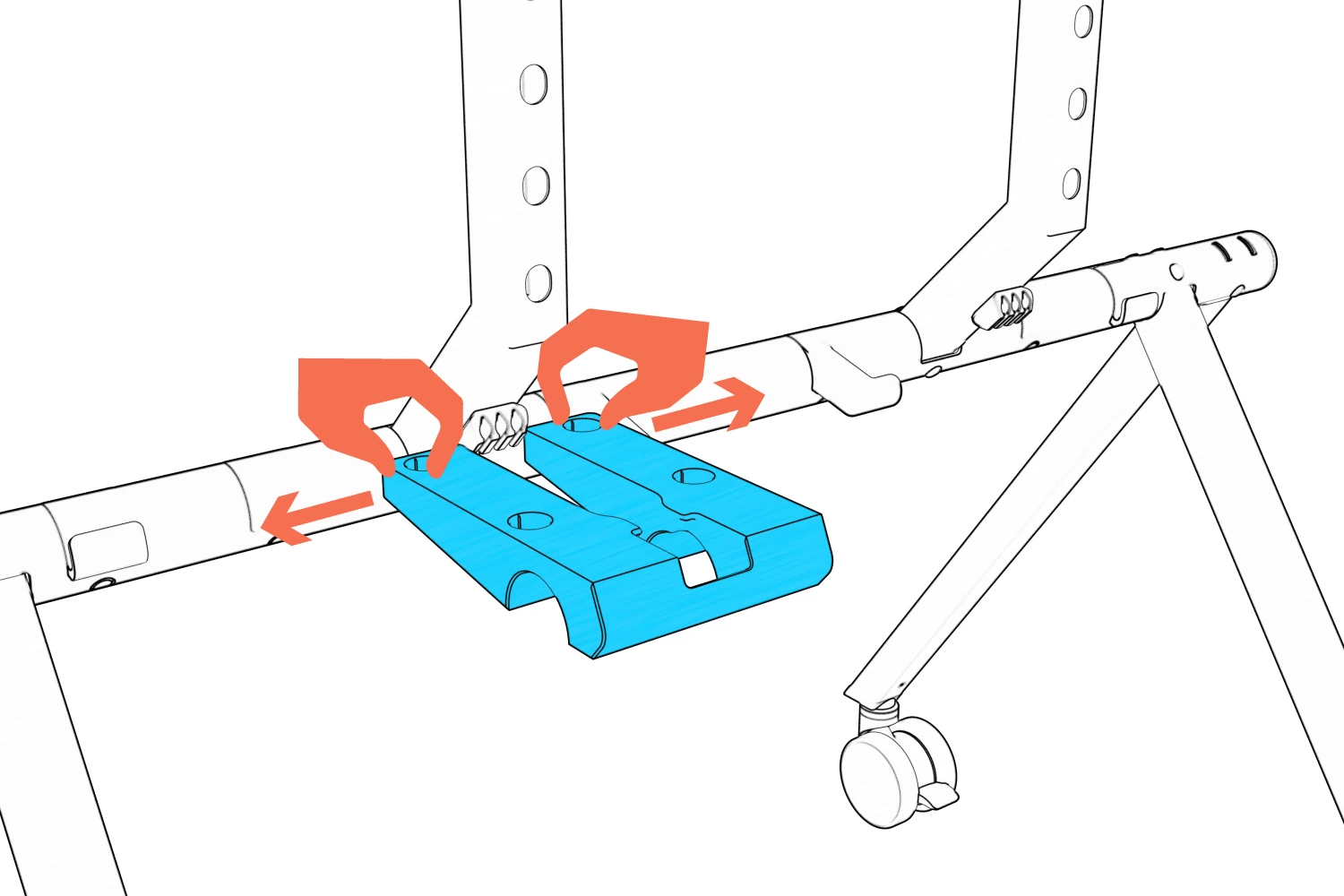

Spread the two ends of the shelf to fit around the column.

Two hands spreading the shelf’s flexible ends around the column.

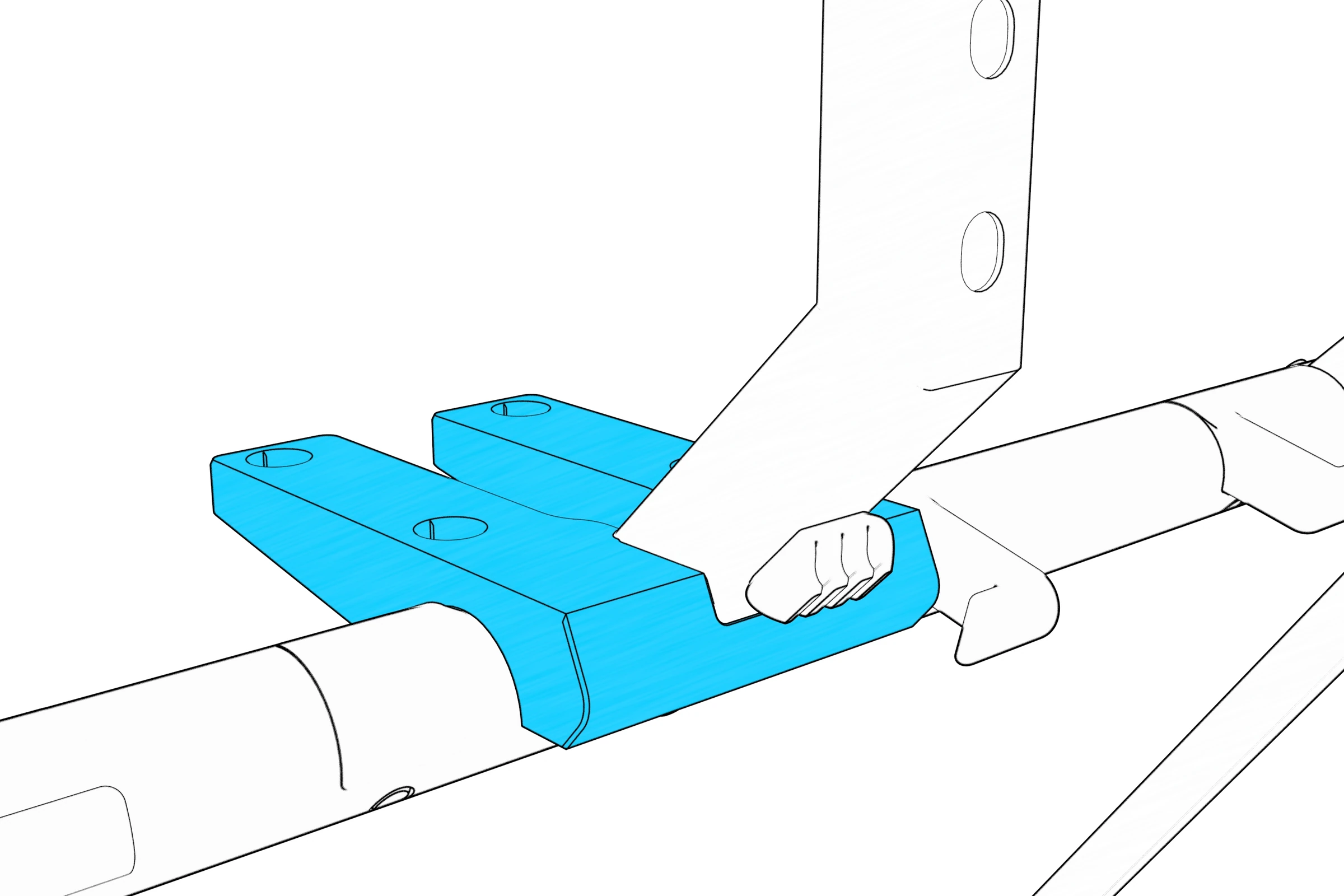

Shelf fitted around the column and seated on the beam.

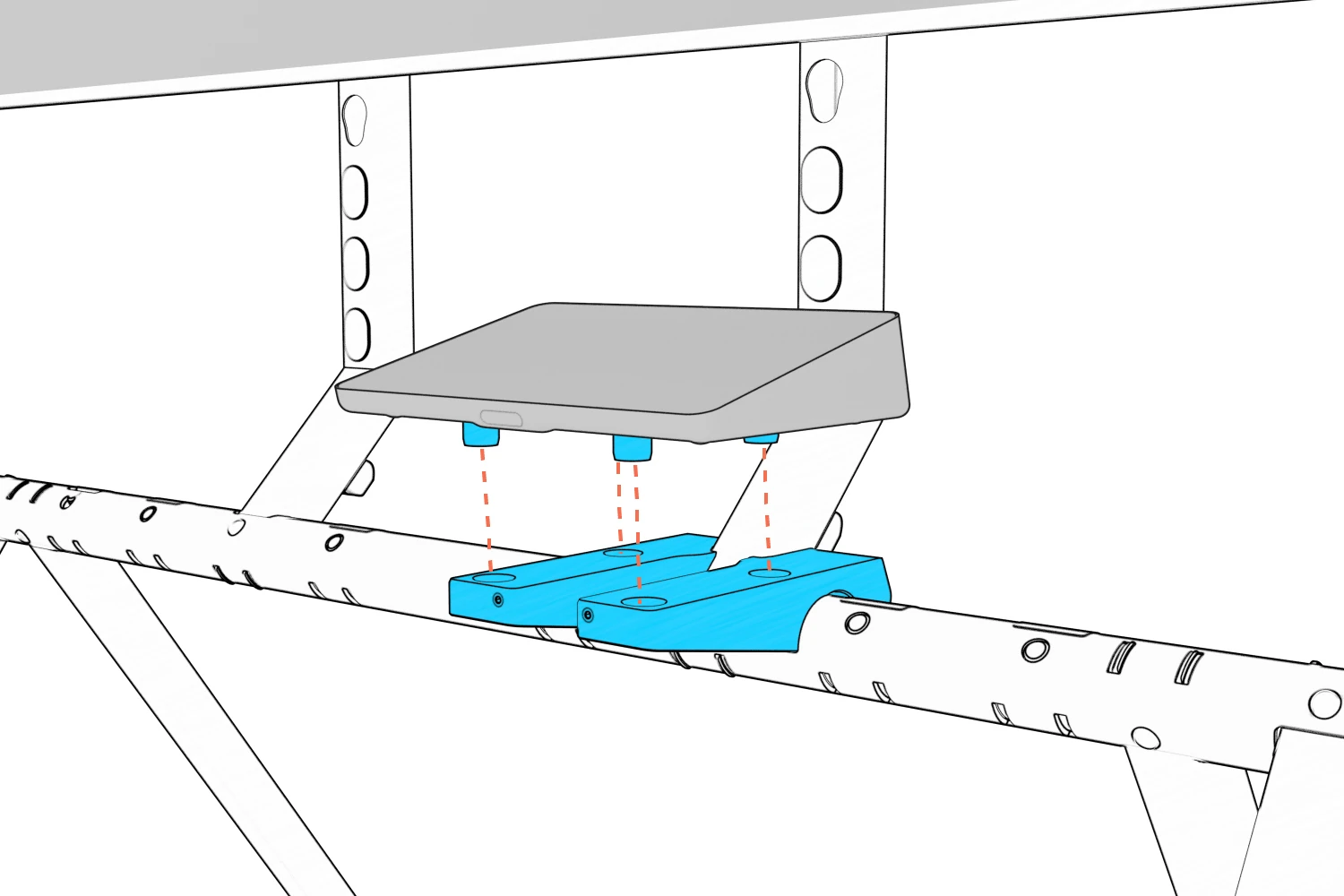

Lower the Tap onto the shelf, aligning its four installed feet with the shelf holes.

Tap with installed feet aligned over the four shelf holes.

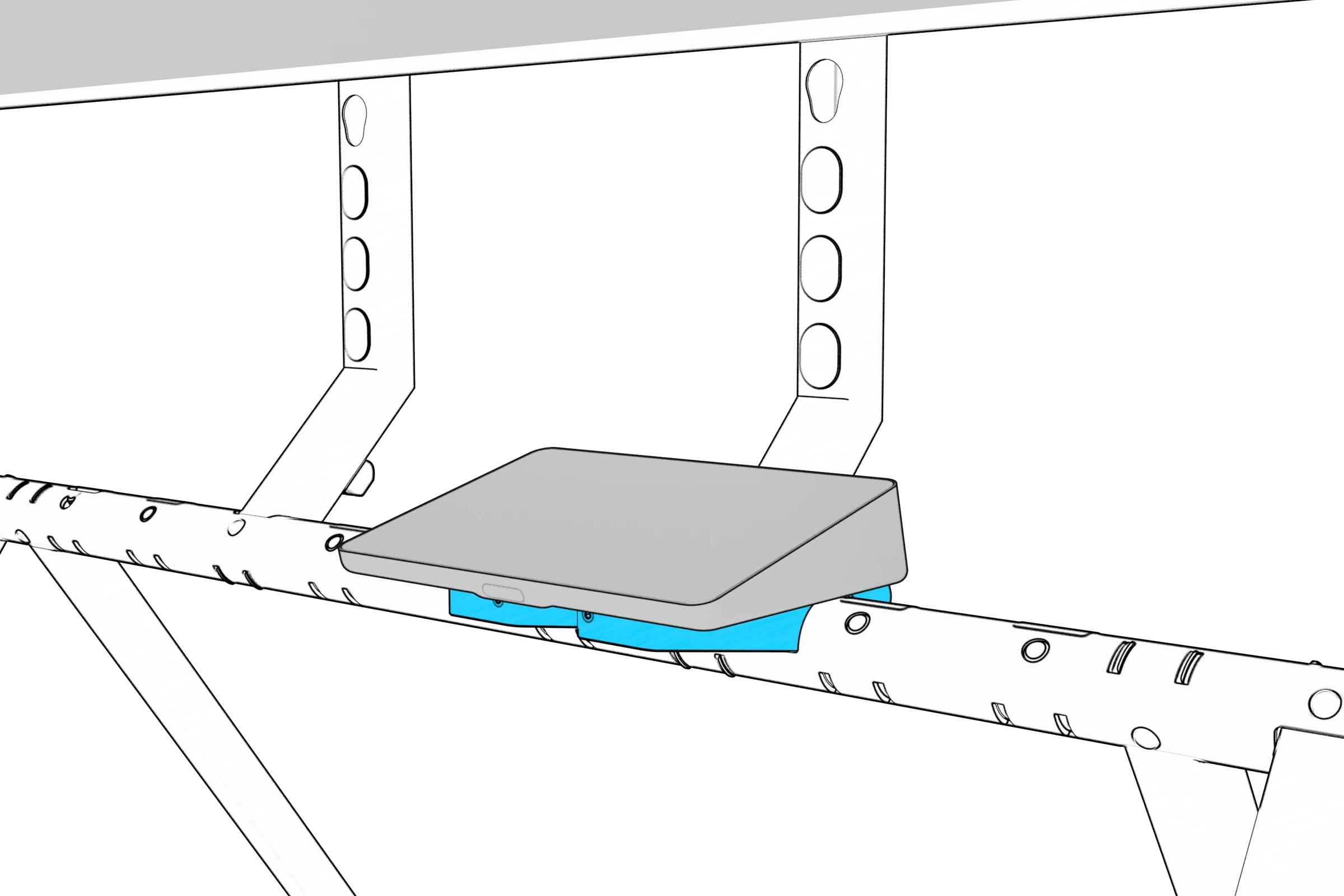

The Tap is now seated on the shelf.

Logitech Tap seated on its shelf at the stand column.
