In this guide · 14 sections 01 Safety Information and Precautions02 In the box03 Unpack the box04 Assemble the beam05 Install casters06 Install legs07 Install columns08 Install the display09 Organize cables10 Nesting multiple stands11 Disassembly and storage12 Assembly Bundle 113 Assembly Bundle 214 Questions?Important: Read Before Assembly
Thank you for choosing the Heckler Dual Display Stand. To ensure safe and proper assembly, operation, and maintenance of this product, it is essential to thoroughly read and understand this user guide before beginning any assembly.
Failure to follow the instructions and safety guidelines provided in this manual may result in serious personal injury, equipment damage, or voided warranties.
- Assembly Requirements: This product requires multiple people to assemble and safely mount the display. Attempting to assemble or mount the display alone could result in injury or damage to the equipment.
- Weight and Stability: Ensure that the stand is placed on a stable, level surface during assembly and when in use. Uneven or unstable surfaces may cause the stand to tip over, leading to potential injury or damage.
- Display Mounting: Mounting a display on this stand requires careful attention to weight limits and proper alignment. Exceeding weight limits or incorrect mounting can cause the display to fall, resulting in injury or damage.
- Secure All Components: Ensure all bolts, screws, and other fasteners are securely tightened and engaged as per the instructions. Loose or improperly engaged components may cause the stand or display to become unstable.
- Electrical Safety: If your display or any attached components require electrical connections, ensure that all wiring is correctly installed and free of damage. Avoid routing cables where they could be pinched or damaged during assembly or operation.
- Routine Inspection: Regularly inspect the stand and mounted display for any signs of wear, damage, or loose components. Address any issues immediately to maintain safety and functionality.
Heckler is not liable for any injuries, damages, or losses resulting from improper assembly, use, or maintenance of this product. By assembling and using this product, you agree to follow all safety guidelines and instructions provided in this user guide.
a. 4 x Column (R1015)
b. 6 x Leg (R1011)
c. 1 x Left Beam (R1004)
d. 1 x Right Beam (R1007)
e. 1 x Middle Beam (R1005)
f. 2 x Coupler (R1006)
g. 6 x 4-inch Caster (F190)
h. 8 x M6 display mounting screw (F589)
i. 8 x M6 display mounting anchor (P124)
j. 8 x M8 display mounting screw (F519)
k. 8 x M8 display mounting anchor (P123)
l. 6 x Beam cable hook (P122)
m. 10 x Beam plug (P119)
n. 1 x Beam cable wrap left (P121)
o. 1 x Beam cable wrap right (P120)
p. 12 x Column plug (P125)
q. 12 x Cable manager (P118)
r. 4 x package ring, buckle and Velcro tape (P141, P144, F213, F947)

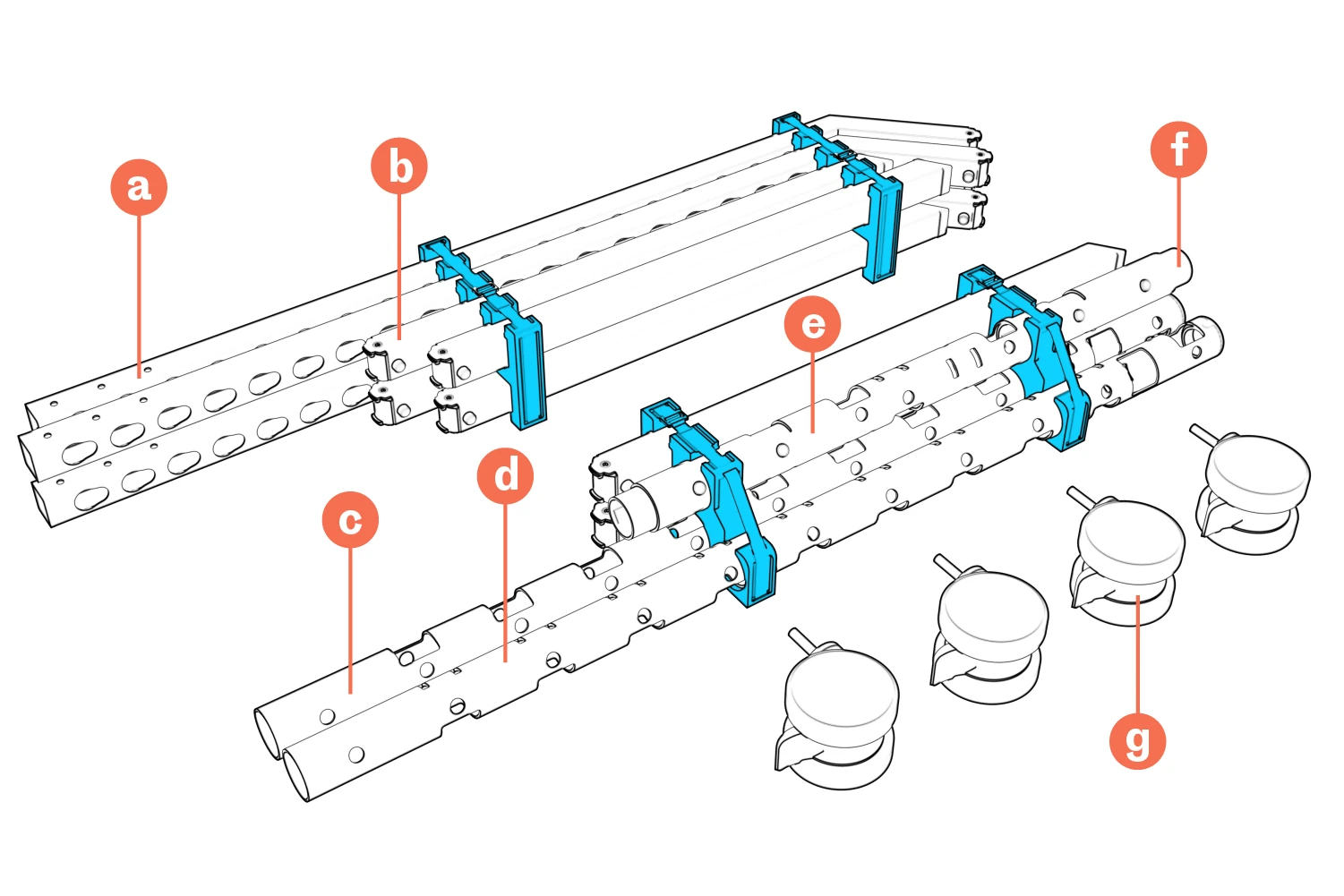

Enlarge image ↗ Packed columns, legs, three beam segments, couplers, and casters labeled a through g.

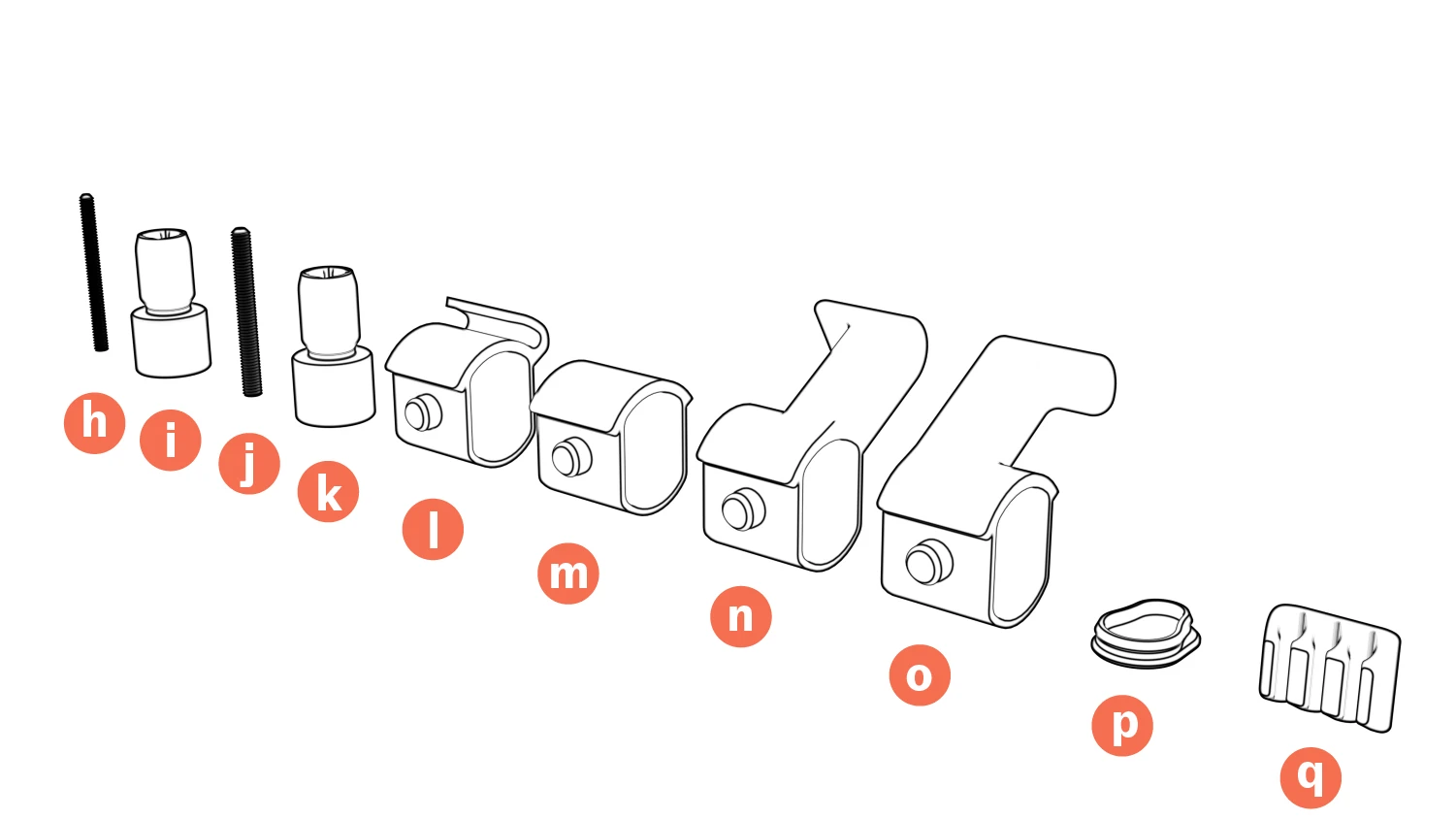

Enlarge image ↗ M6 and M8 mounting hardware, cable hooks, beam plugs, cord-wrap hooks, column plugs, and cable managers labeled h through q.
This stand includes reusable packaging rings and Velcro straps. Do not discard these items as they can be used to conveniently pack and transport your disassembled stand in the future.

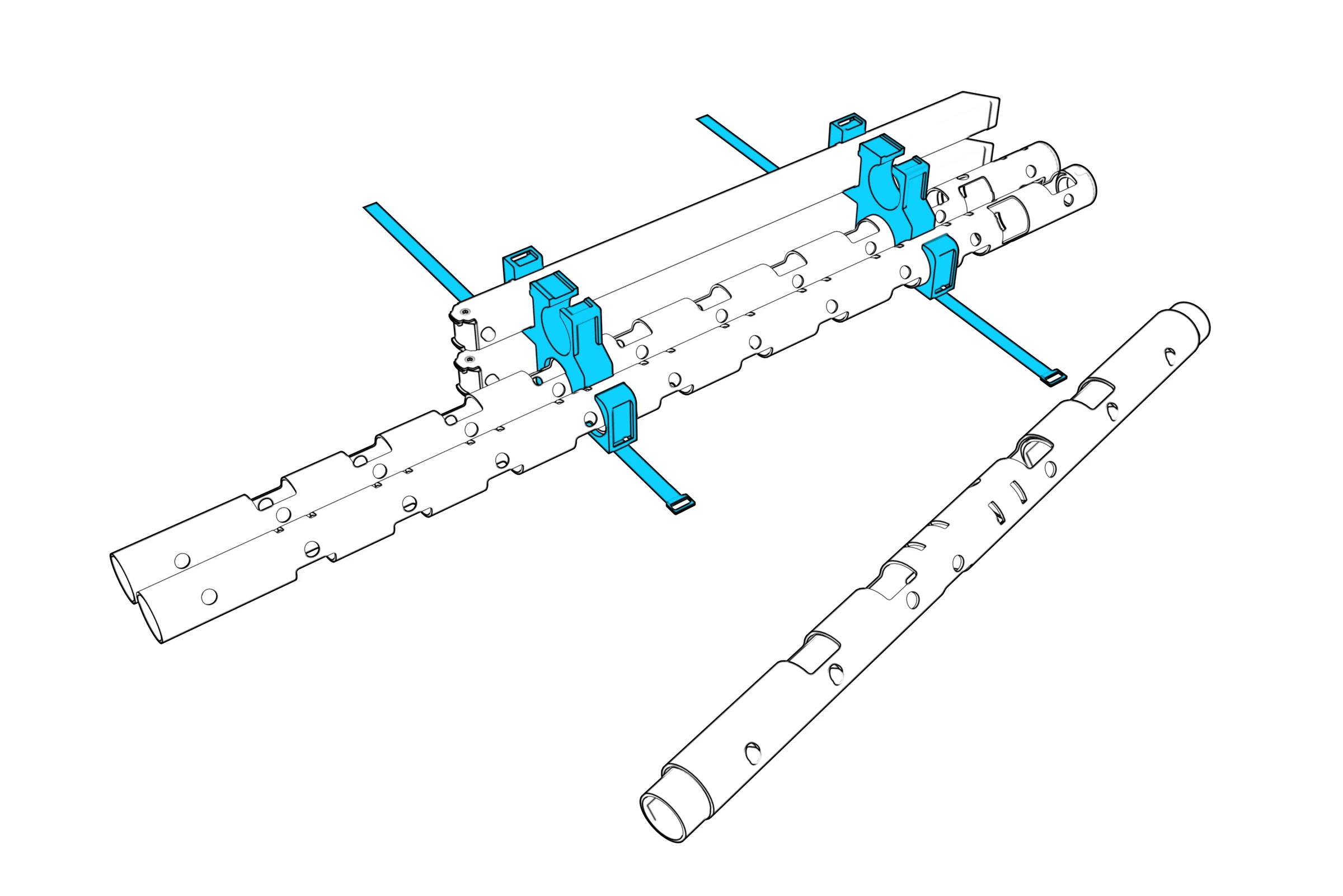

Enlarge image ↗ Packed stand with straps released and the components held in storage rings.
The beam of this stand ships in three beam segments. The three parts connect using two included stainless steel couplers.
To save space, the couplers are inserted into beam segments during shipping. Depress each coupler’s spring buttons to remove the coupler from its storage location.

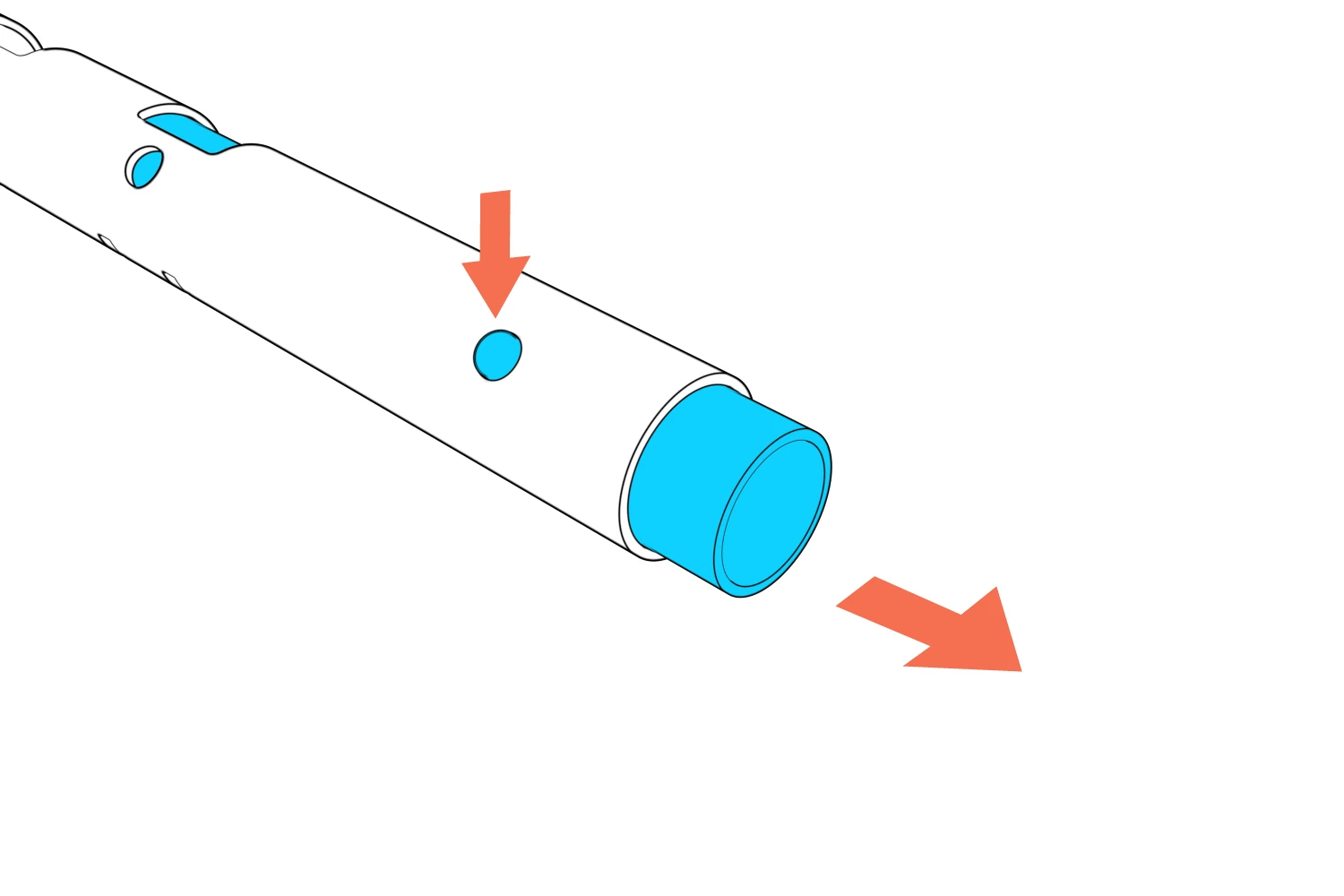

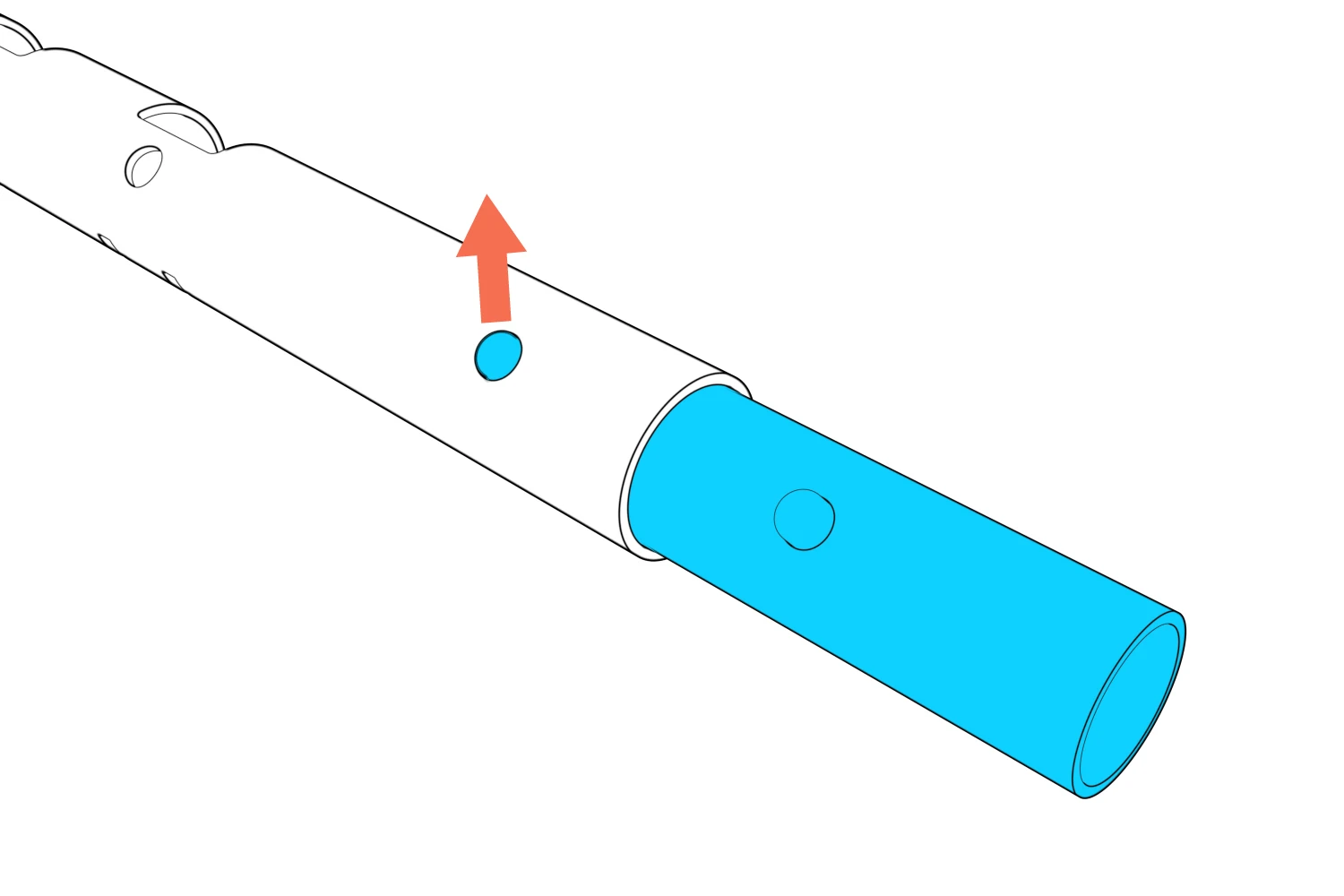

Simultaneously depress both spring buttons completely and slide the coupler outward until the next pair of spring buttons snaps into position.
Enlarge image ↗ Coupler spring button being depressed with an arrow indicating outward sliding.
Enlarge image ↗ Coupler extended from a beam segment with its next spring button projecting through the beam.

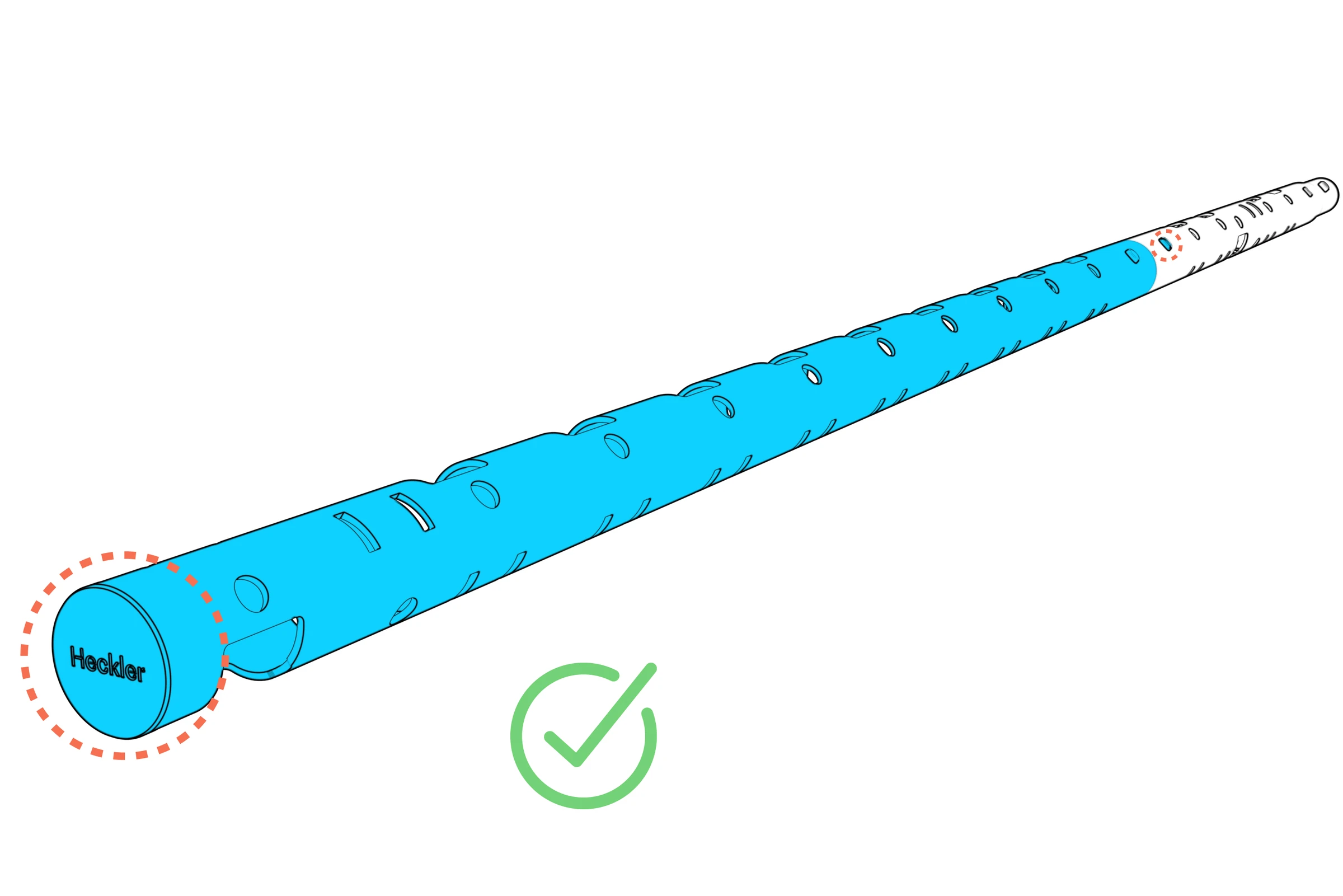

Fasten the left beam segment to the center beam segment.

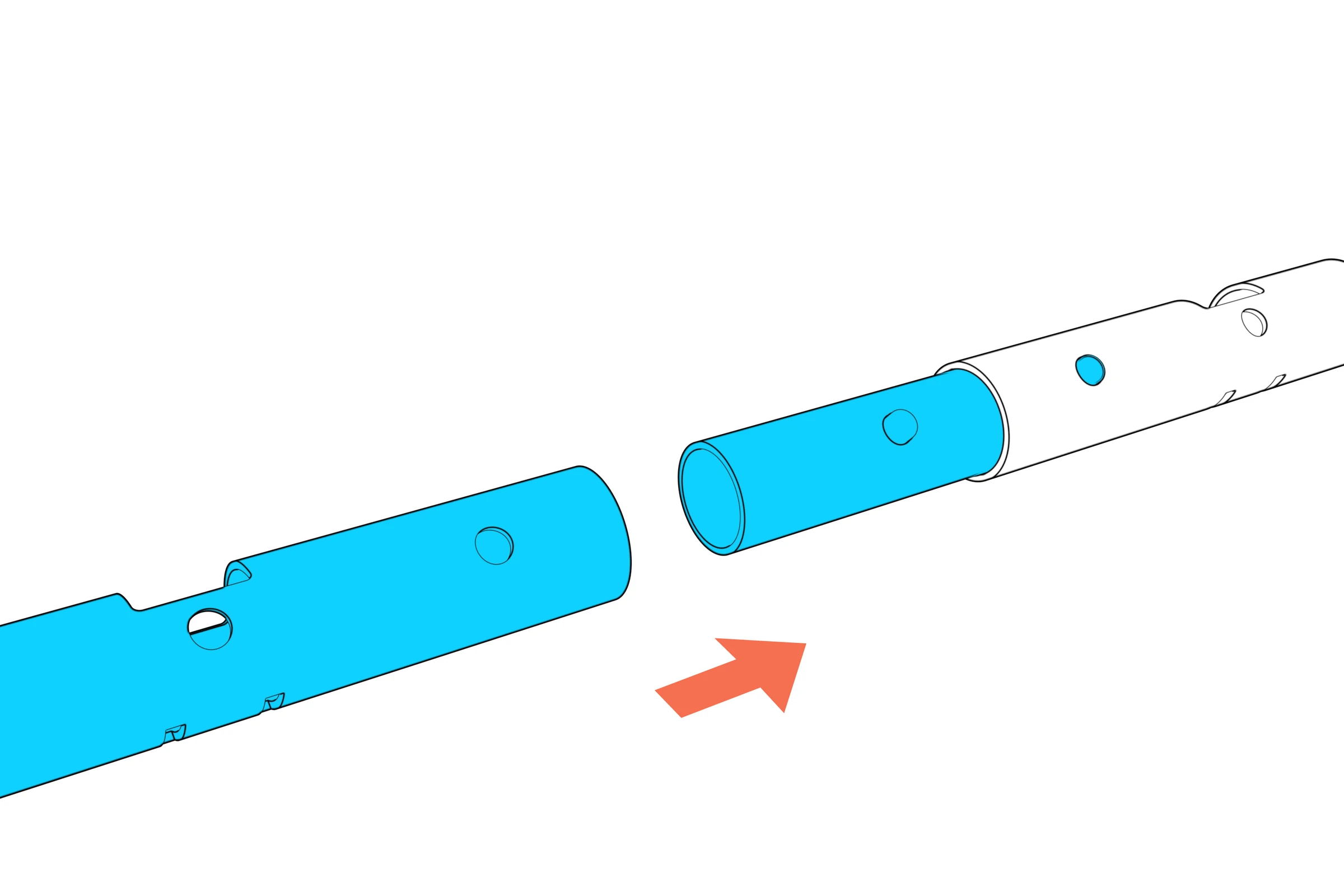

Enlarge image ↗ Left beam segment aligned with the exposed center-beam coupler.
Enlarge image ↗ Joined left and center beam segments with their connection circled and the logo upright.

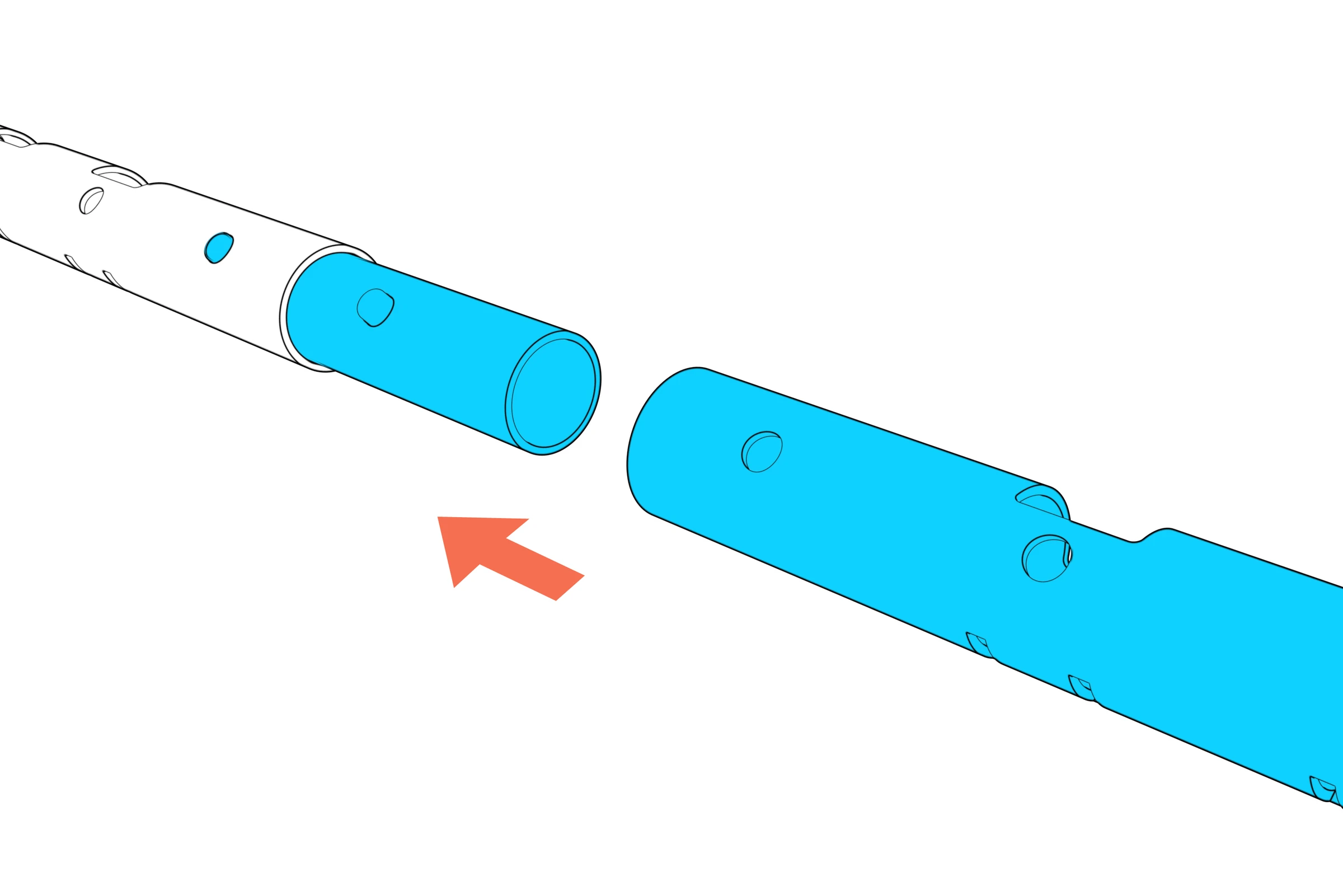

Fasten the right beam segment to the center beam segment.
Ensure all beam segments are installed in the correct orientation by checking for consistent alignment of the leg socket holes across all three beam segments. Also, check the Heckler logo on the end of the left and right beam segments. Both logos should be right-side up while the array of open VESA sockets should be angled upwards.
Enlarge image ↗ Right beam segment aligned with the exposed center-beam coupler.

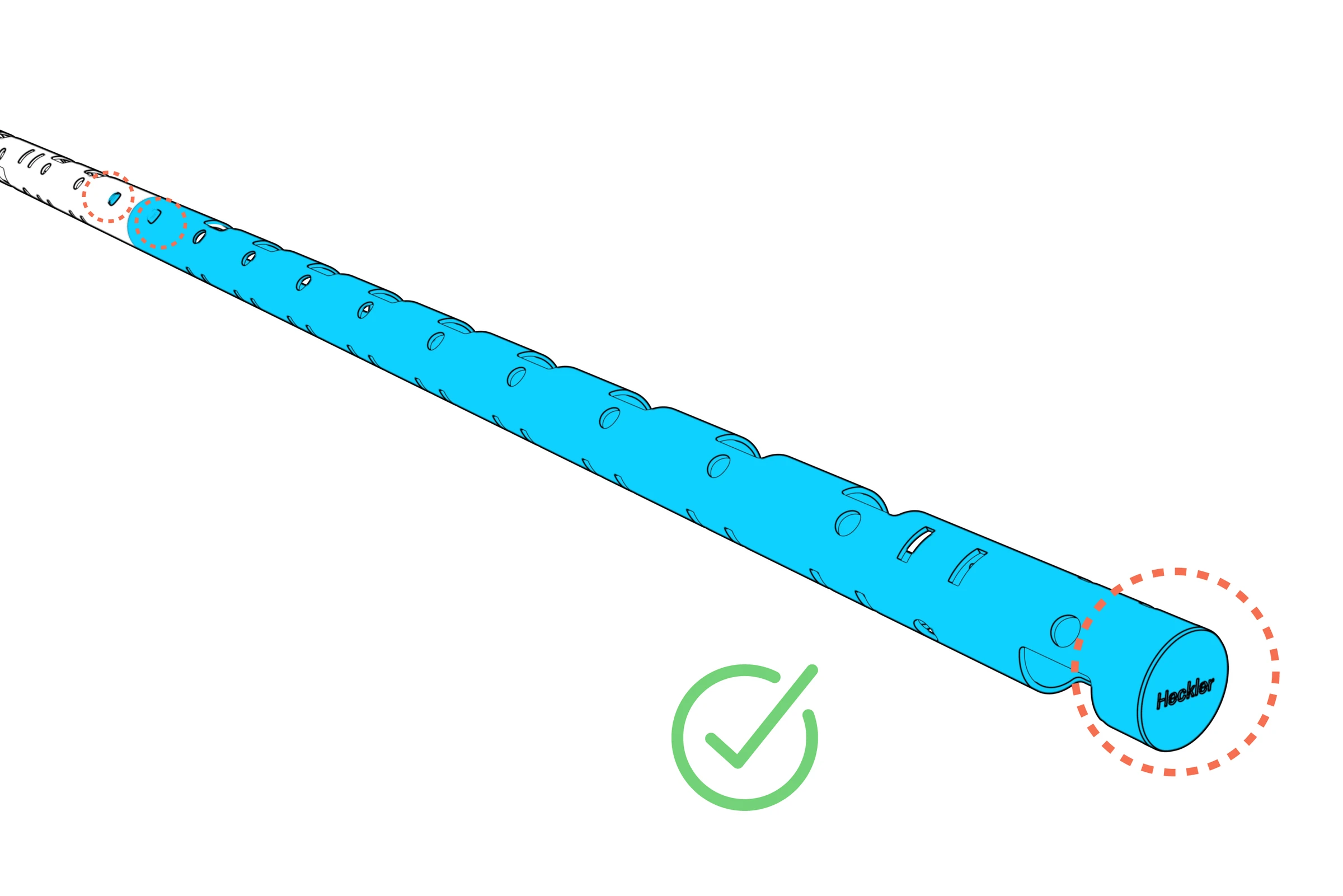

Enlarge image ↗ Joined right and center beam segments with their connection circled and the logo upright.

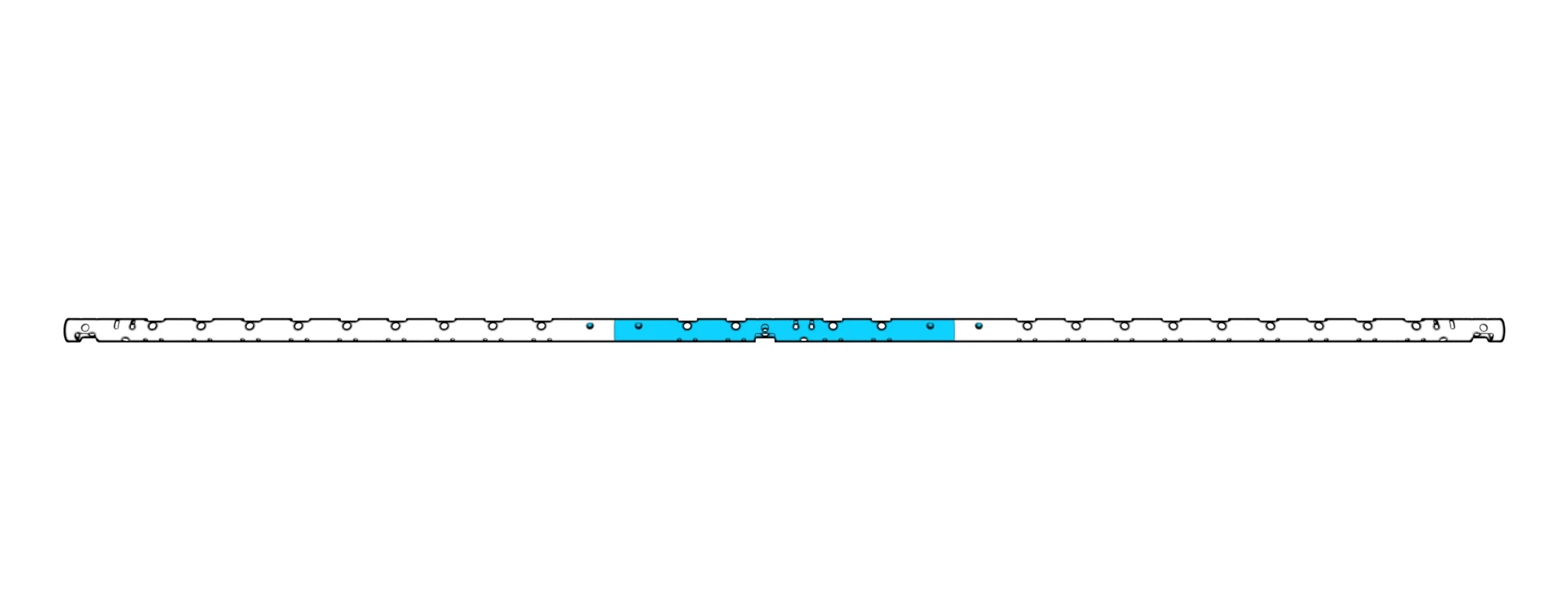

Enlarge image ↗ Complete three-segment beam viewed from the front, with the middle segment highlighted.
Engage the caster brake.
The casters have a total lock feature, locking the wheels from spinning as well as the swivel axis from swiveling.
Insert the caster post into the leg socket.
Enlarge image ↗ Caster post aligned below the leg socket with the brake pedal depressed.
Rotate the caster until the hex shapes are aligned.
Push until you feel the grip ring pop into position. The hex feature should be fully seated inside the leg socket.
Enlarge image ↗ Caster hex feature aligned with the leg socket and then fully seated, shown in two views.

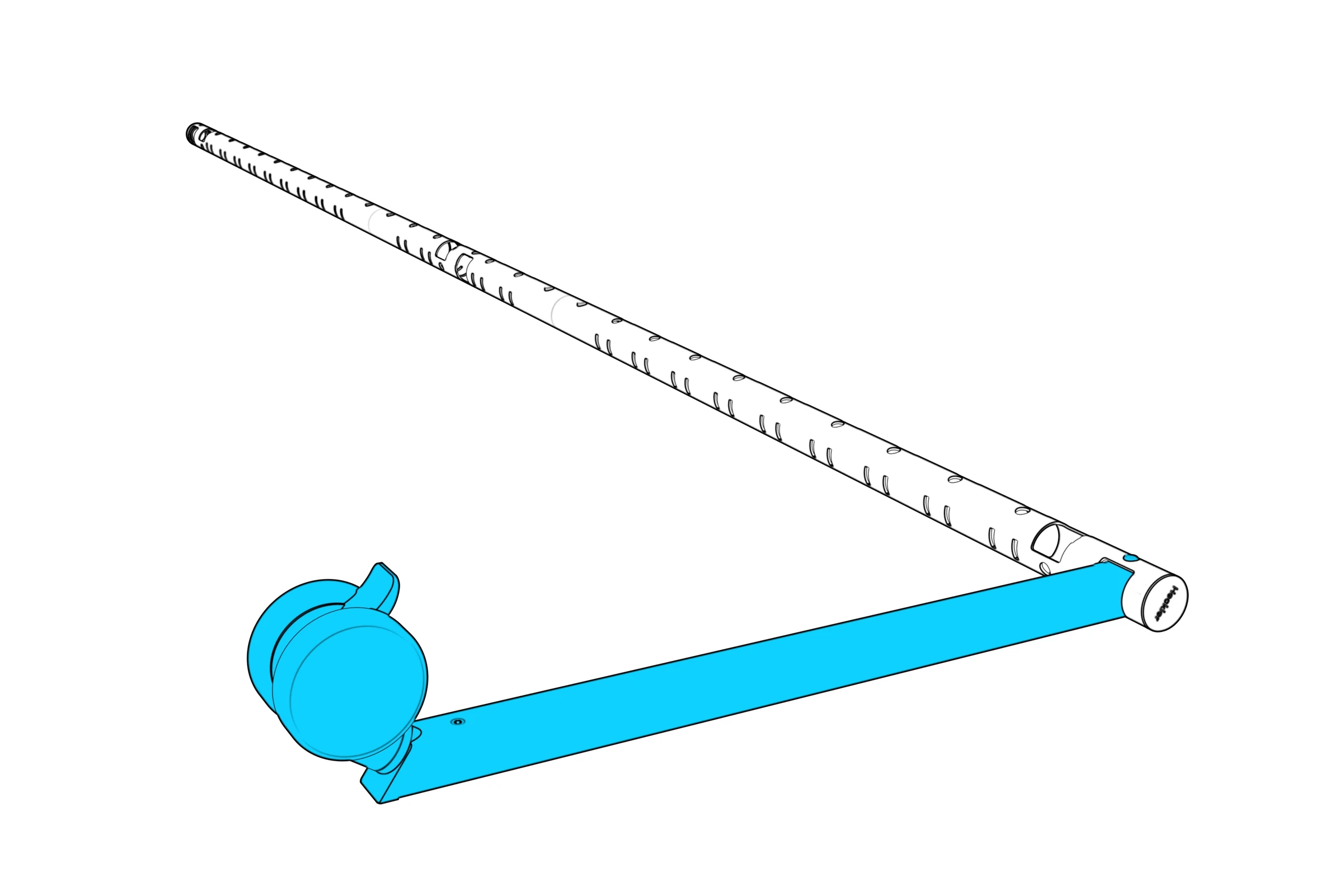

Lay the beam on the ground and install the first leg.
Enlarge image ↗ Beam resting on a surface with the first leg installed.

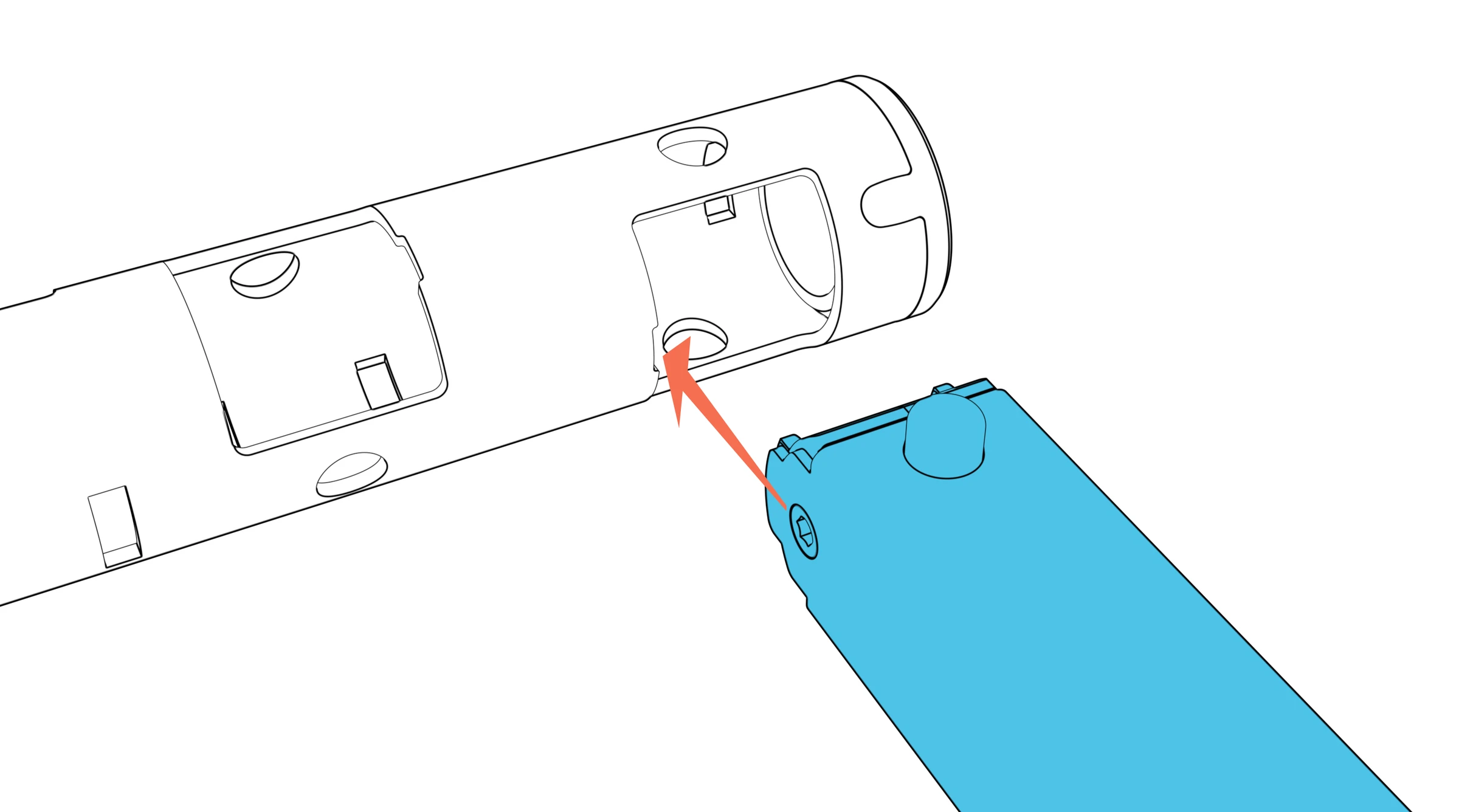

To install each leg in its correct orientation, align the screw head on the side of the leg to the notch on the beam socket.
If the leg becomes misaligned during your installation attempt, remove the leg from the socket and try again. Attempting to pry or force a misaligned leg into position may cause damage to the stand.
Enlarge image ↗ Leg side screw aligned with the notch in the beam socket.

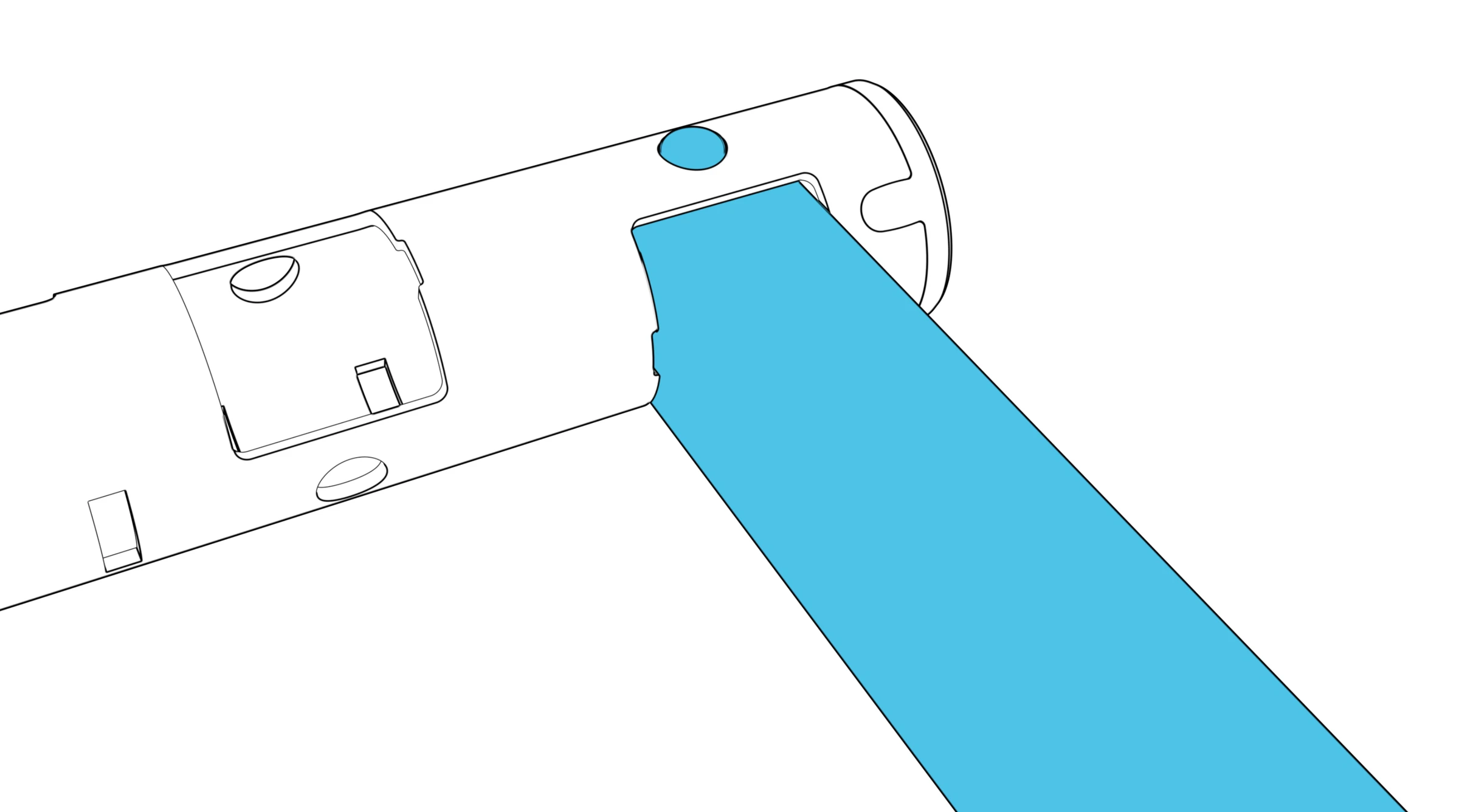

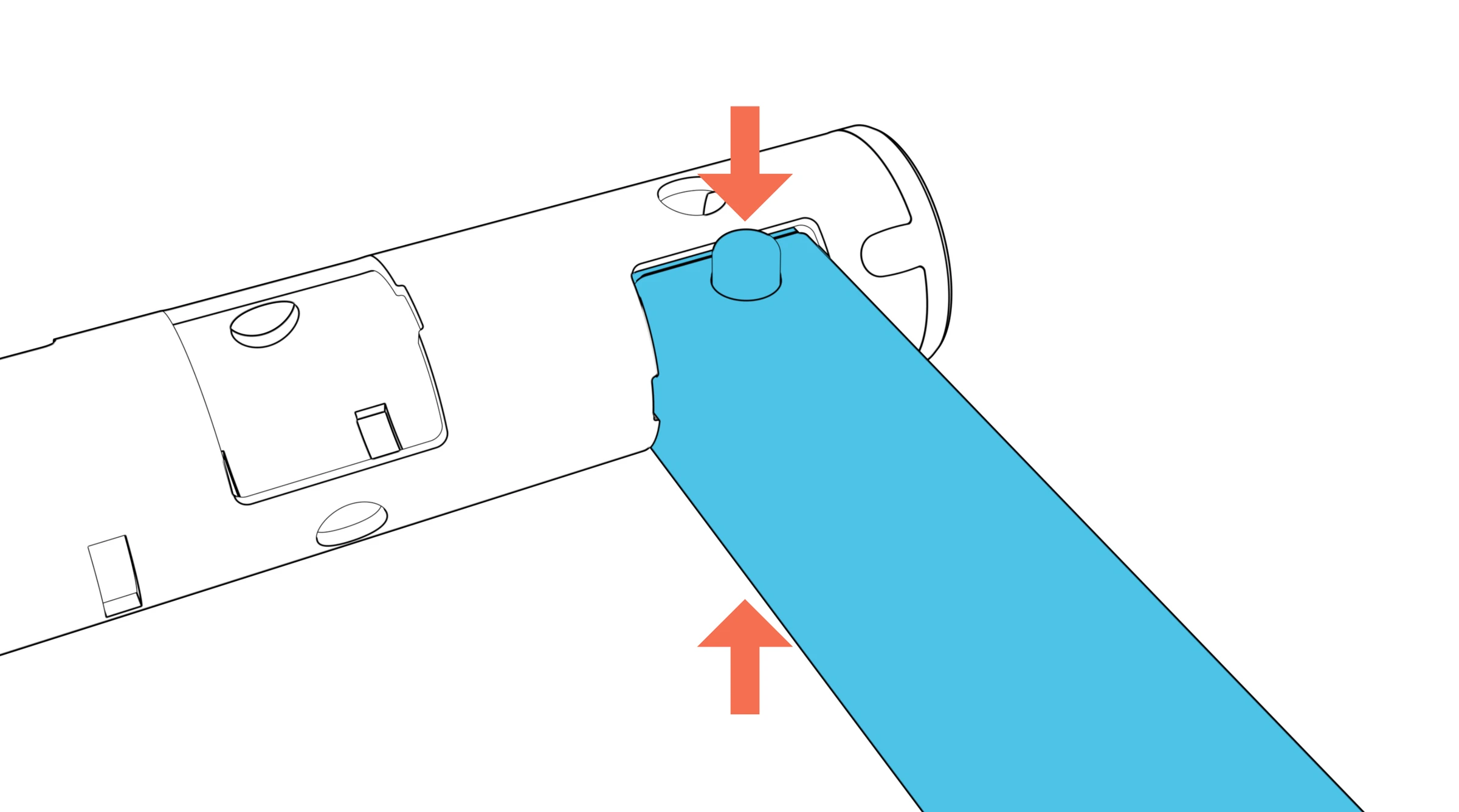

Once the leg has entered its socket, depress both spring buttons completely, then continue inserting the leg until the two tabs on the top of the leg pass through the slots in the surface of the beam and both spring buttons pop through the holes on the beam.
Enlarge image ↗ Both spring buttons depressed while the leg enters the beam.
Enlarge image ↗ Two leg tabs projecting through the slots in the beam.
Enlarge image ↗ Leg seated with its spring button protruding through the beam.
Use the second leg on each side of the beam as leverage to ensure that both button heads on all legs fully extend through the beam.
Enlarge image ↗ Both spring-button heads circled on opposite sides of the beam.

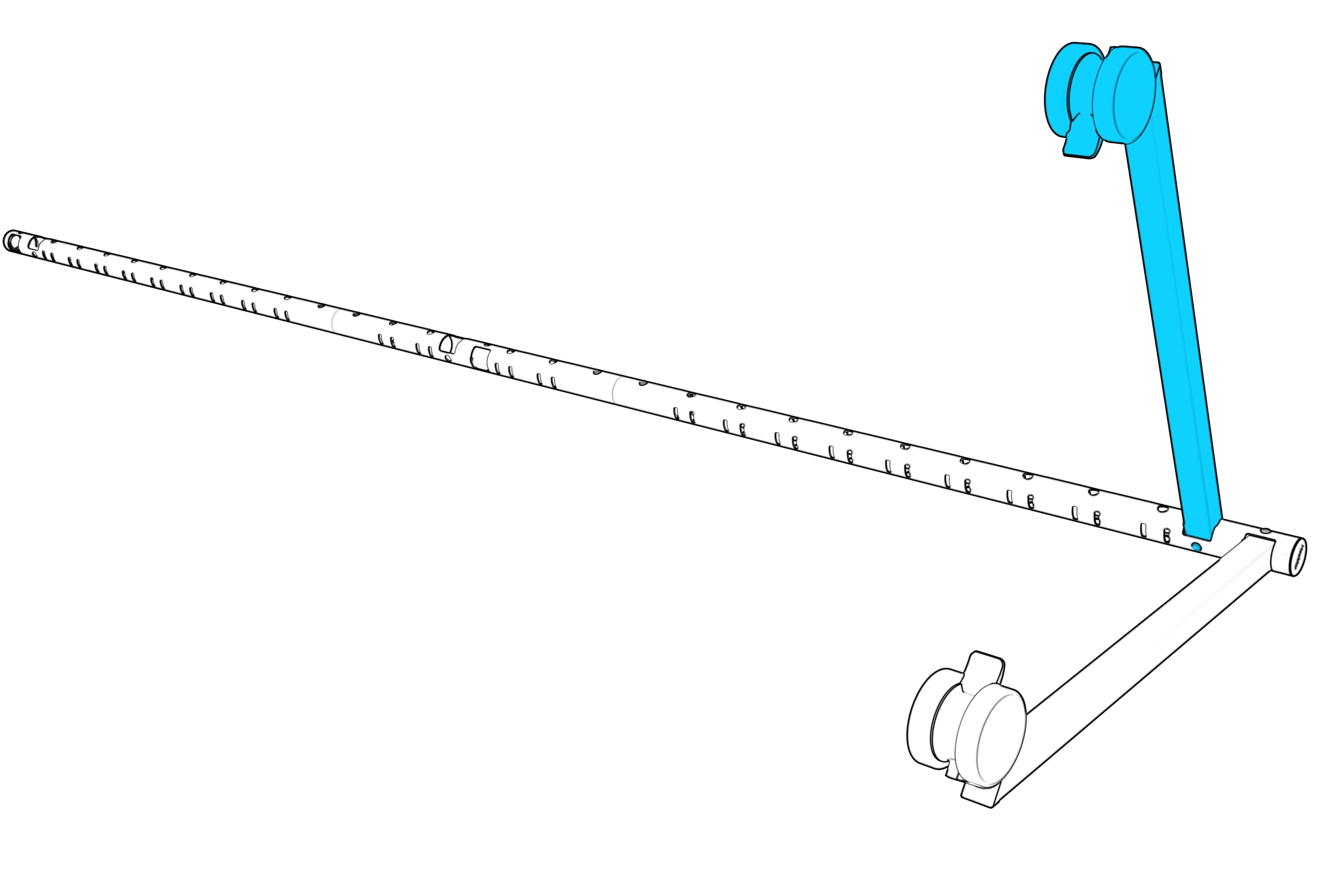

Repeat this process for the rear leg while the beam and first leg rest on the ground or tabletop.
Enlarge image ↗ Second leg entering the rear socket while the first leg rests on the surface.
Repeat the process with the remaining four legs.
Upright the completed stand base.

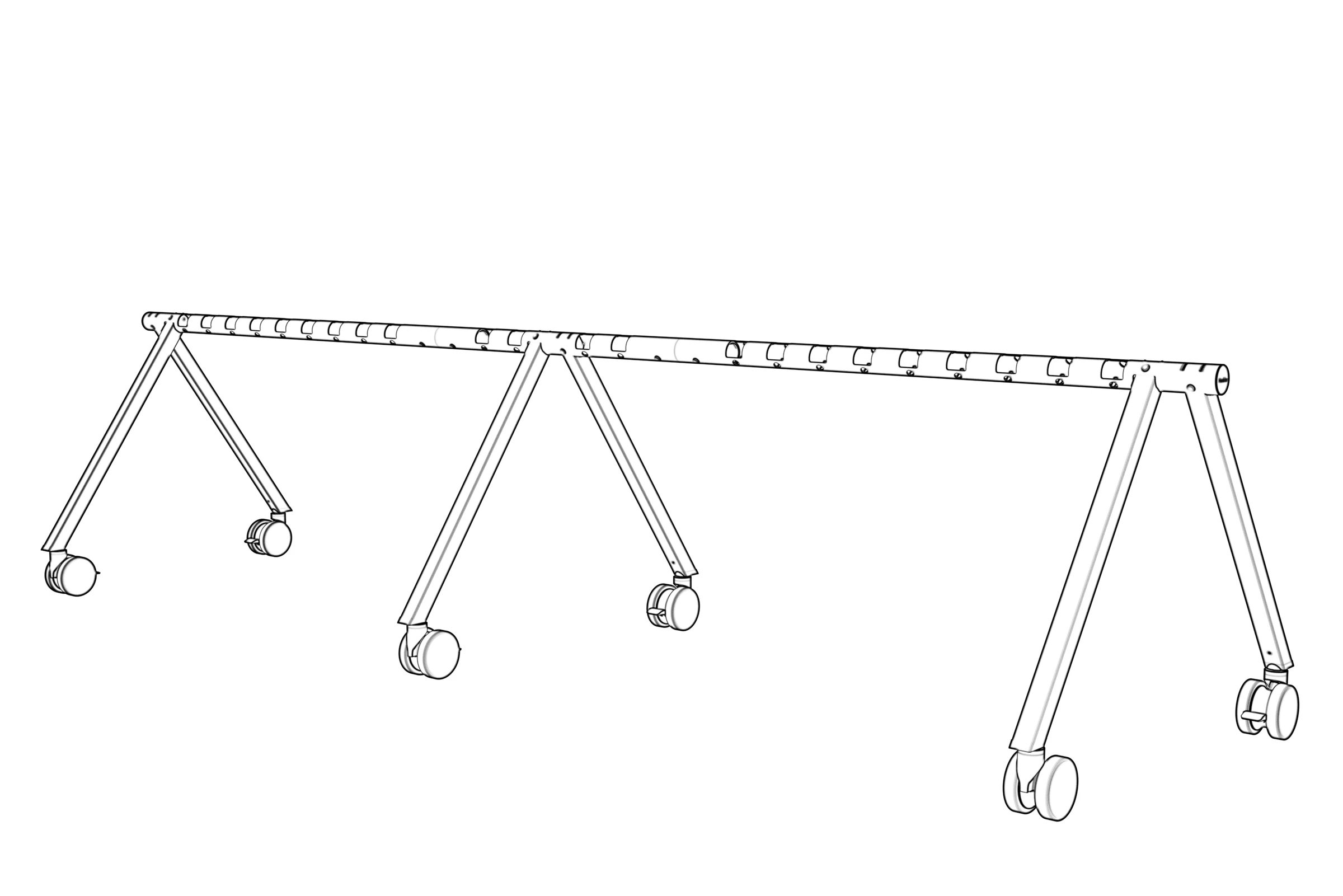

Enlarge image ↗ Completed base with six legs and six casters.
Engage the brake on all six casters.
Enlarge image ↗ Close-up of an engaged caster brake.
Identify your displays’ horizontal VESA pattern and choose the corresponding column inserts on the beam.
Heckler Dual Display Stand is compatible with most displays with VESA 200, VESA 300, VESA 400, VESA 500, VESA 600, VESA 700, and VESA 800 mounting patterns.

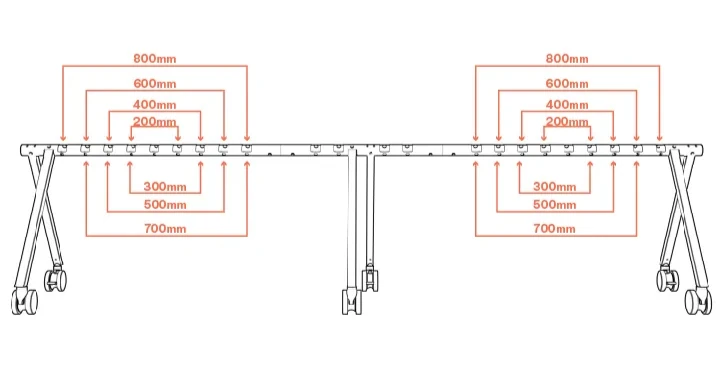

Enlarge image ↗ Beam socket map showing two arrays labeled 200, 300, 400, 500, 600, 700, and 800 mm.

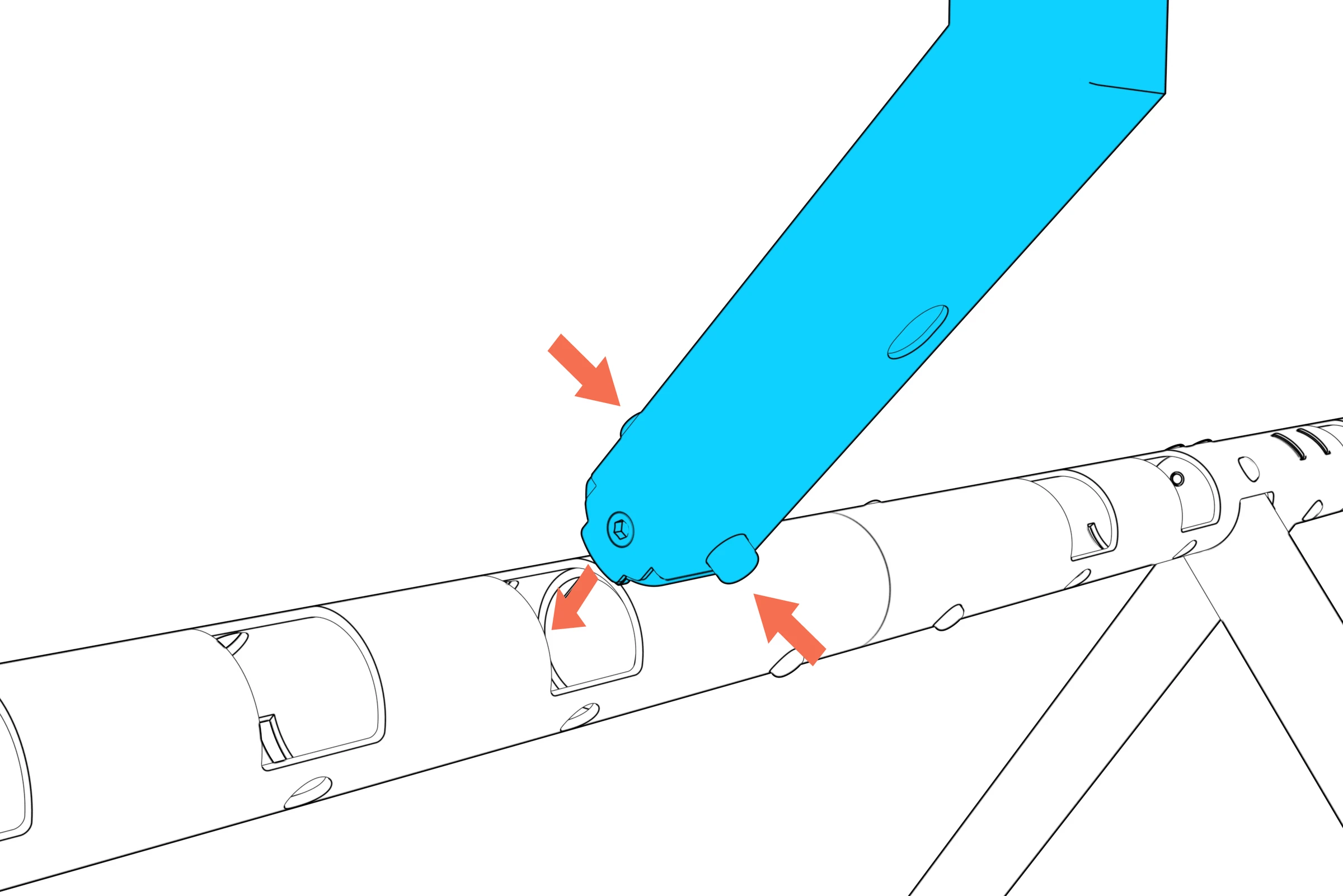

Align and insert the end of the column with the socket on the beam. When the column end approaches the beam, depress both spring button heads and continue inserting the column until both spring button heads extend fully through the beam.
Hold the column vertically throughout this process to ensure proper socket alignment. If the column becomes misaligned during your installation attempt, remove the column from the socket and try again.

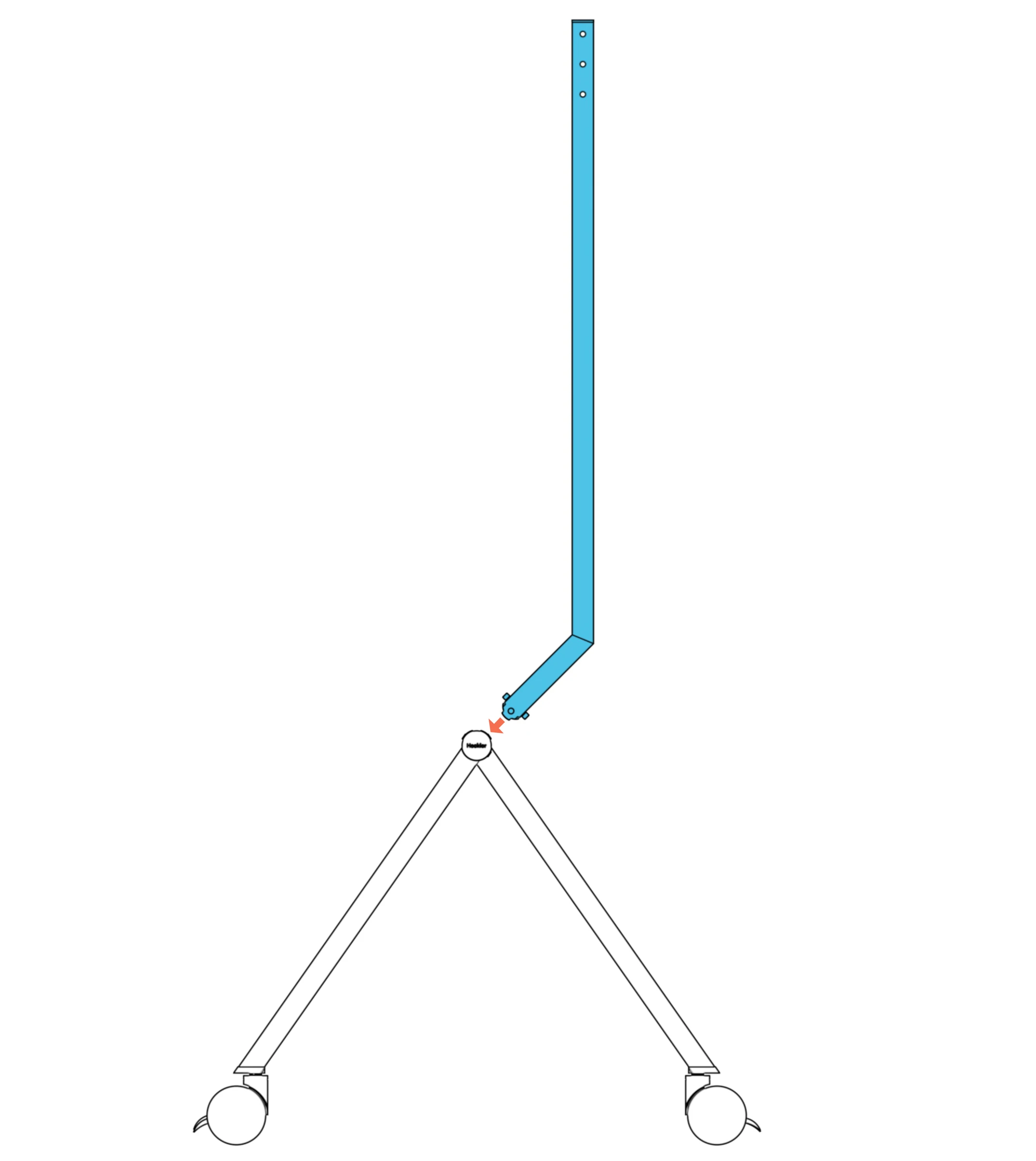

Enlarge image ↗ Side view of an upright column approaching the beam socket.
Enlarge image ↗ Column spring buttons depressed as the column enters the beam.

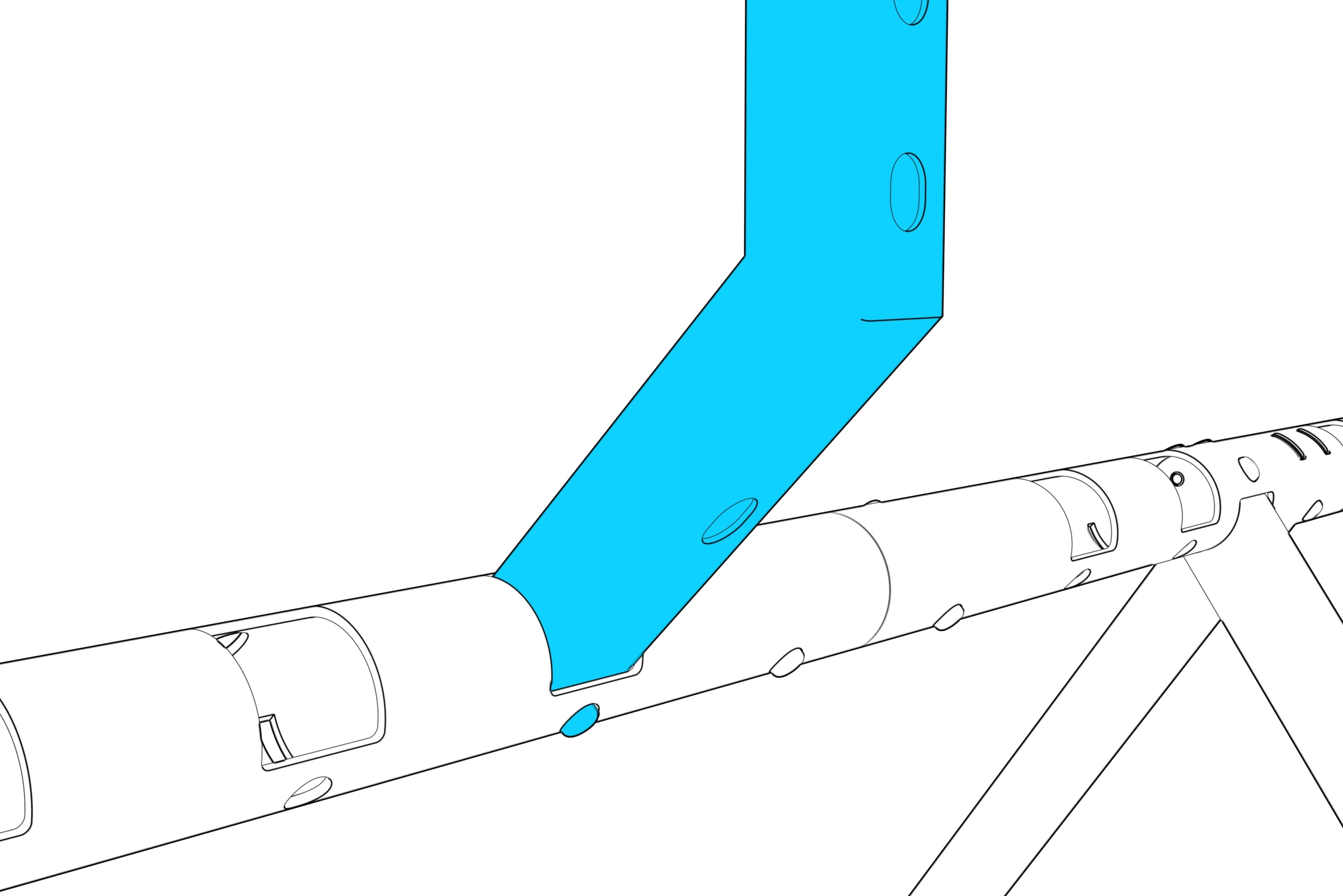

Enlarge image ↗ Column fully seated in the beam.
Ensure both spring button heads are fully engaged through the beam.

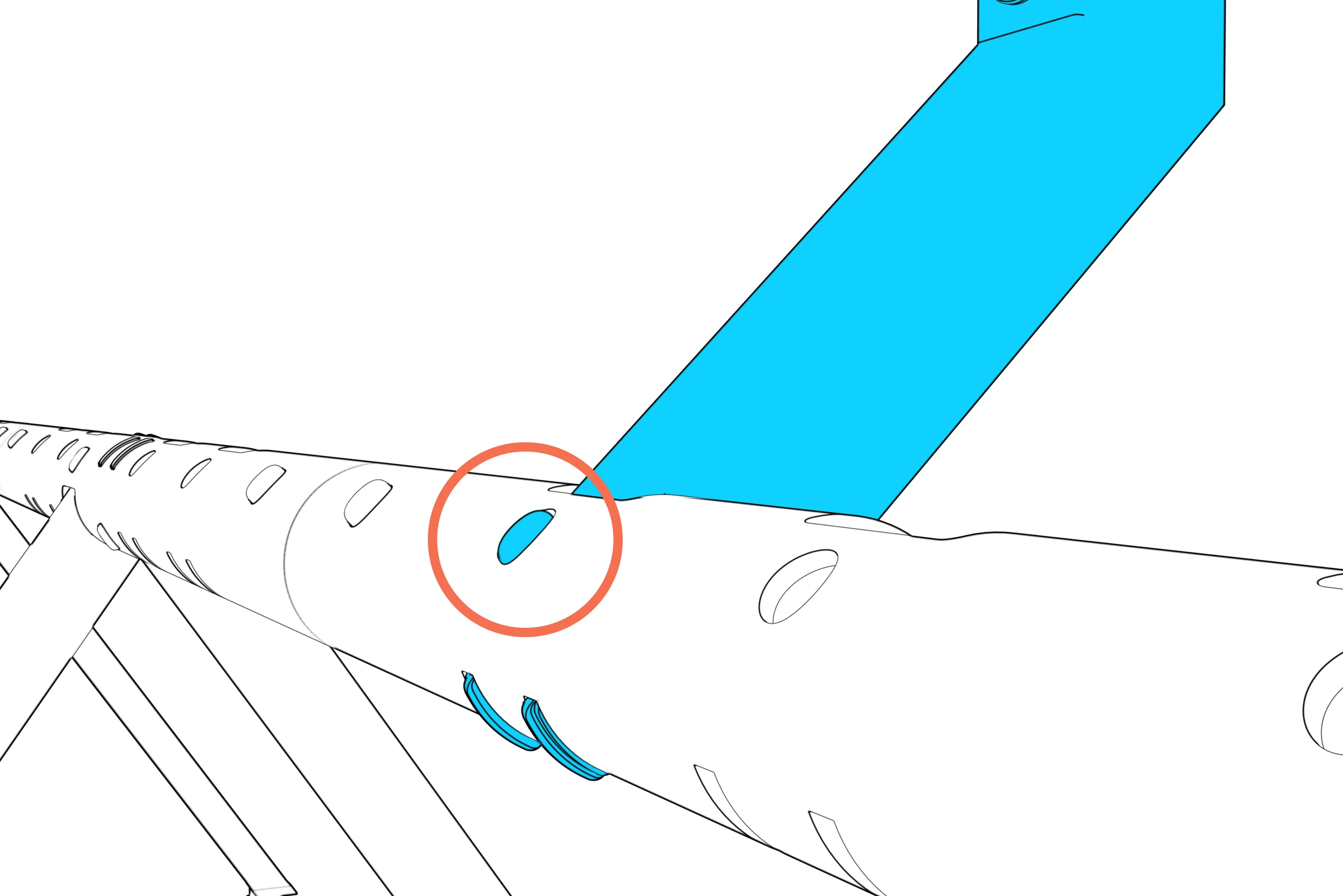

Enlarge image ↗ Close-up of the column spring-button head projecting through the beam.

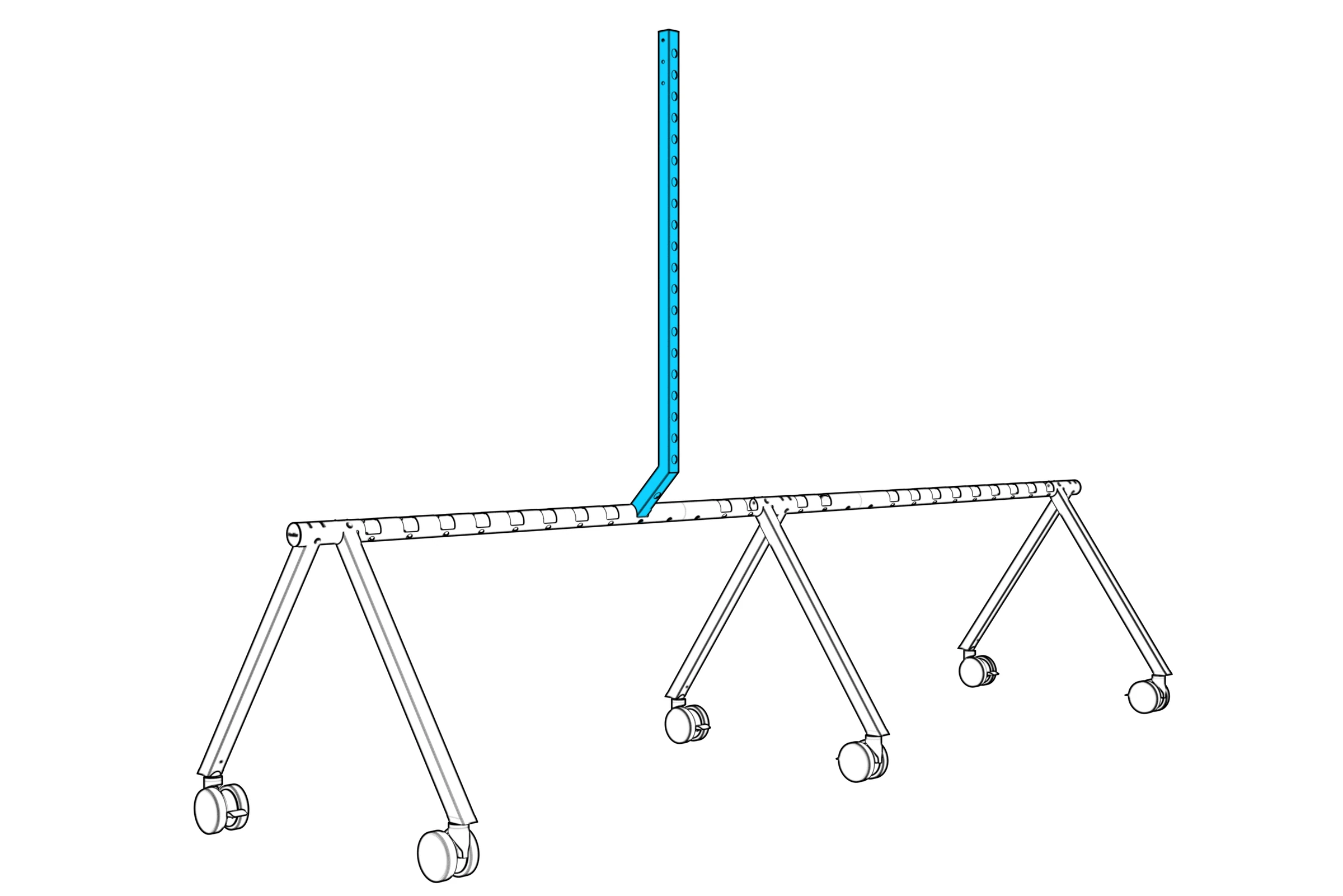

Enlarge image ↗ Base with the first upright column installed.
Repeat this process to install all four columns.

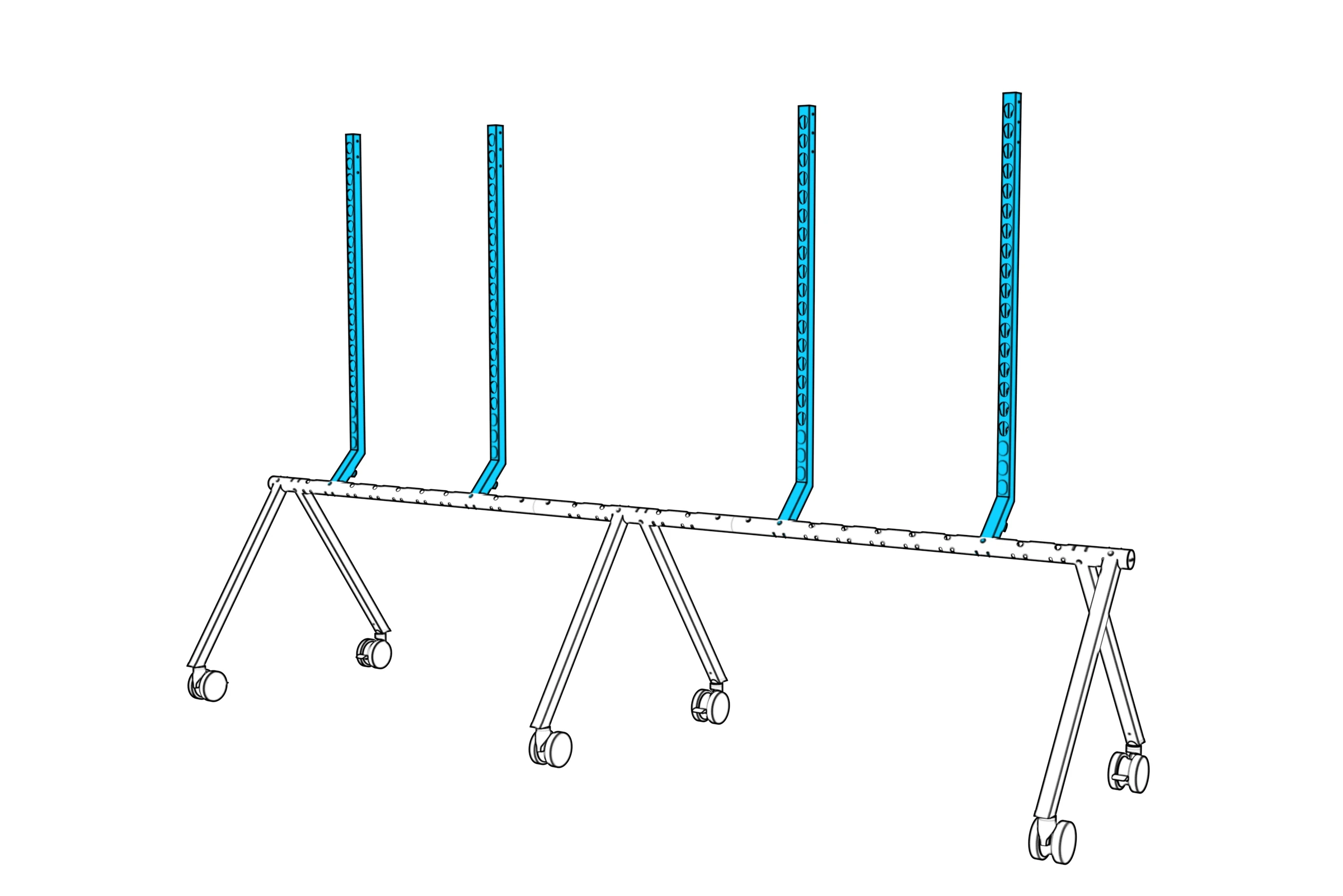

Enlarge image ↗ Base with all four upright columns installed.
Heckler Dual Display Stand is compatible with most 65 inch and 75 inch displays, weighing up to 150 pounds each.
Heckler Dual Display Stand is compatible with most displays with VESA 200, VESA 300, VESA 400, VESA 500, VESA 600, VESA 700, and VESA 800 mounting patterns.

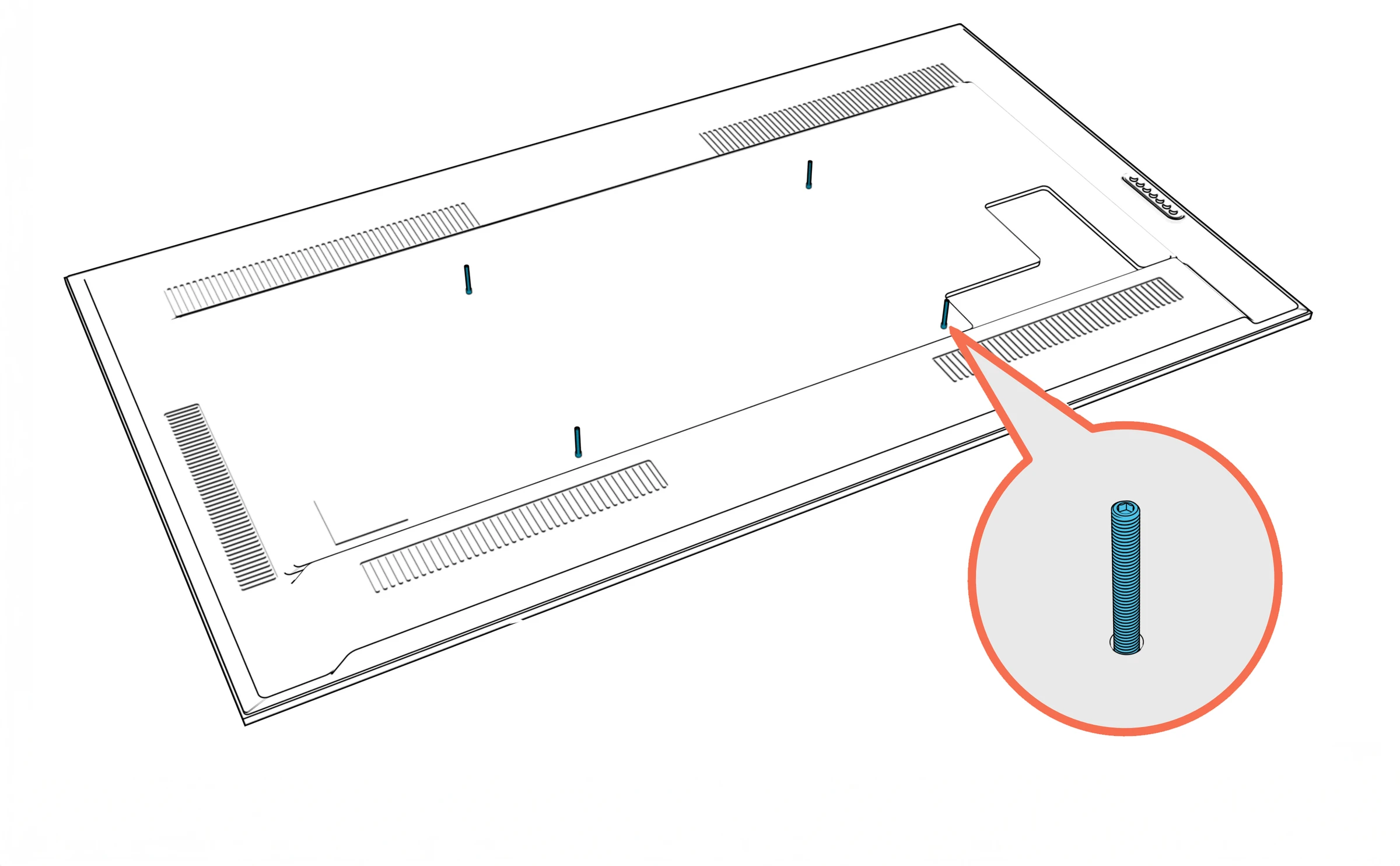

Fasten the supplied M6 or M8 set screws into the four VESA mounting positions on your display.
In most cases, you can fasten these by hand—no tools needed. If you do use a tool (not included), be careful not to over-tighten the set screws.
Enlarge image ↗ Four set screws installed on the rear of a display, with one enlarged.

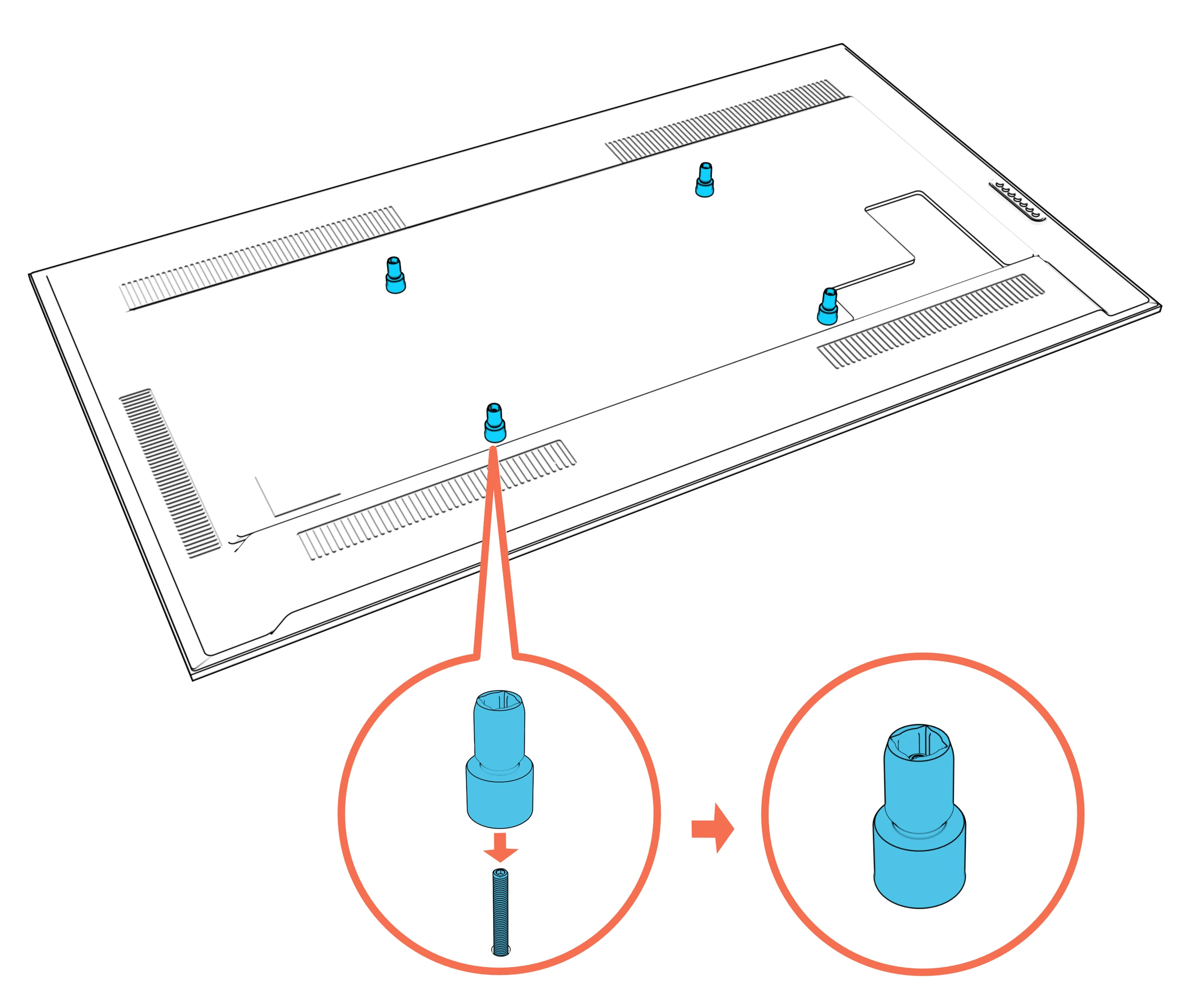

Fully fasten the display anchors to the set screws. Do not over-tighten.
Each display anchor features an embedded steel nut. Ensure the set screw fully threads through this nut.
Enlarge image ↗ Four mounting anchors installed over the display set screws, with two detail views.

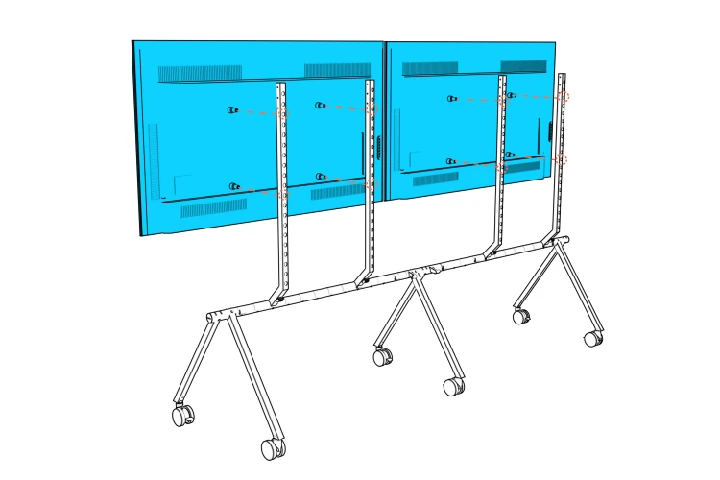

Select the mounting position on the columns that provides your desired display height.
Enlarge image ↗ Two displays aligned with the four stand columns.

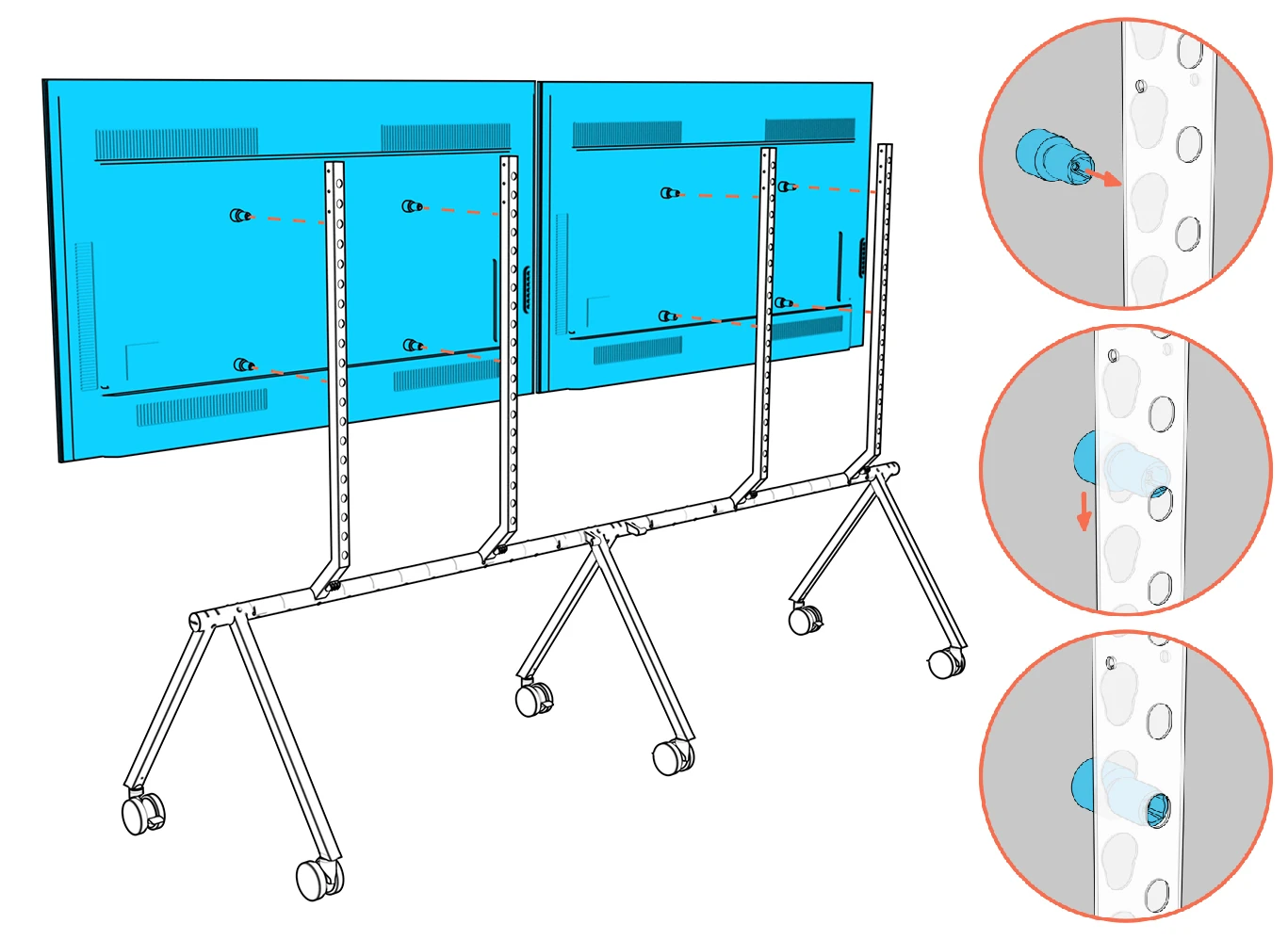

Carefully move the display close to the columns. Fully insert all four display anchors into the mounting keyholes on the columns. Then, gently lower the anchors onto the keyholes. This action secures the display to the stand.
Enlarge image ↗ Display anchors entering the column keyholes and lowering into the slots, shown in close-ups.
To ensure a secure assembly, you must properly affix the display. Do this by inserting a cable manager through the rear holes on each column that correspond to each display anchor.

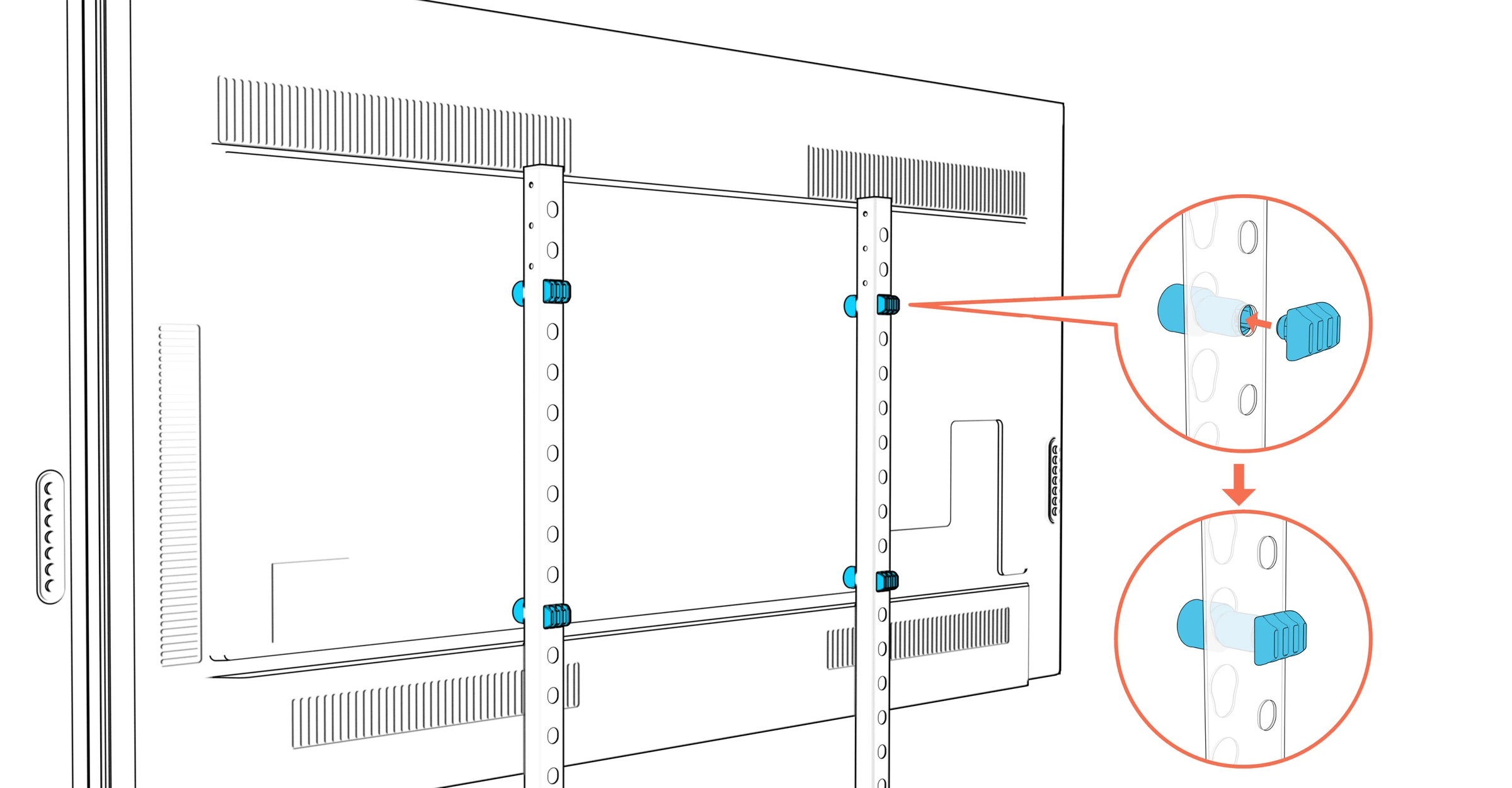

Enlarge image ↗ Rear of a display with four cable managers securing its anchors, with insertion detail views.
Once both displays are installed, a gap will be present between the two displays. This is normal. If the gap is greater than 50 mm, in most cases, you can move the columns one socket towards the center of the beam to reduce the gap.

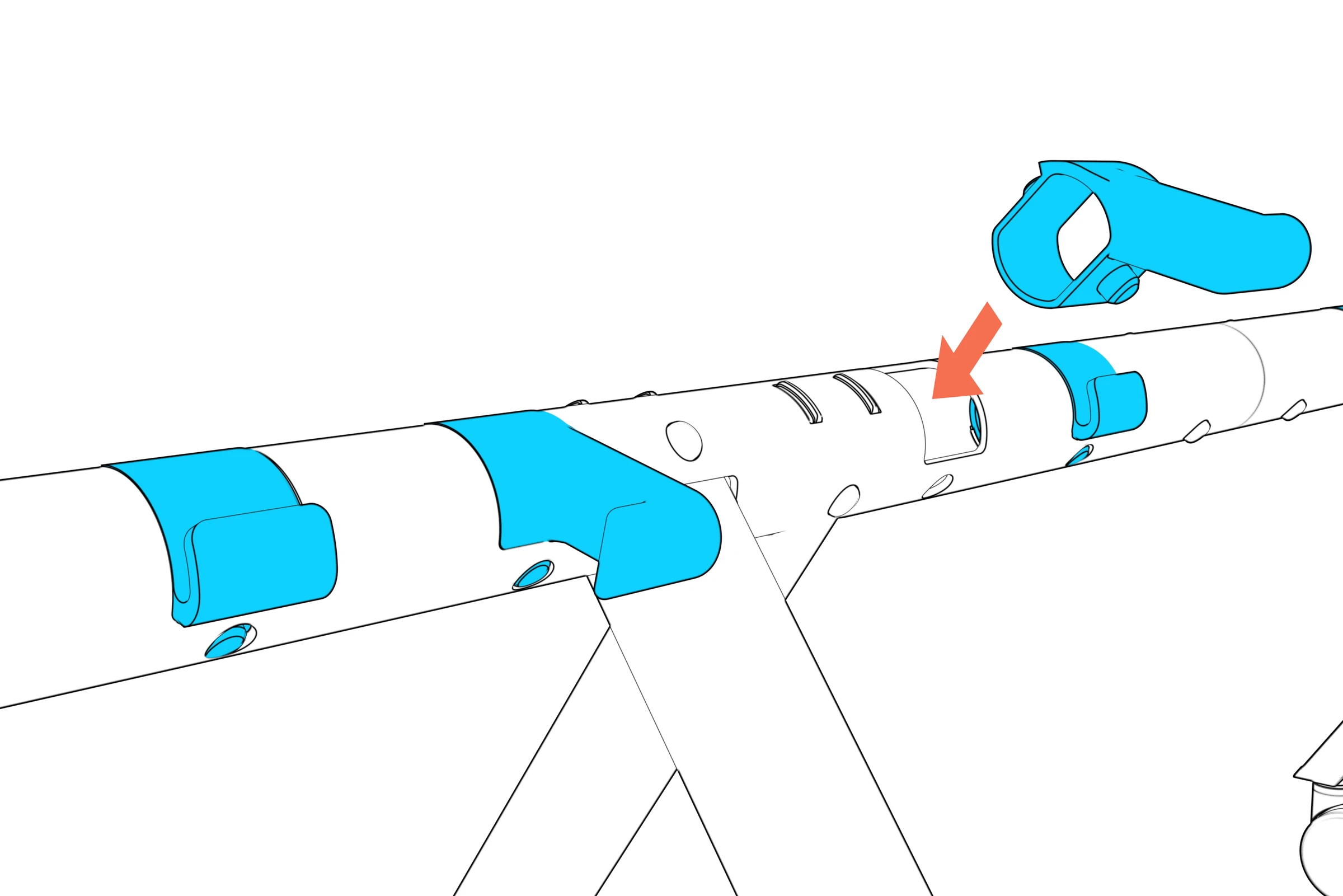

Install cable guides, beam plugs, and cord wrap hooks into the unused sockets on the beam.

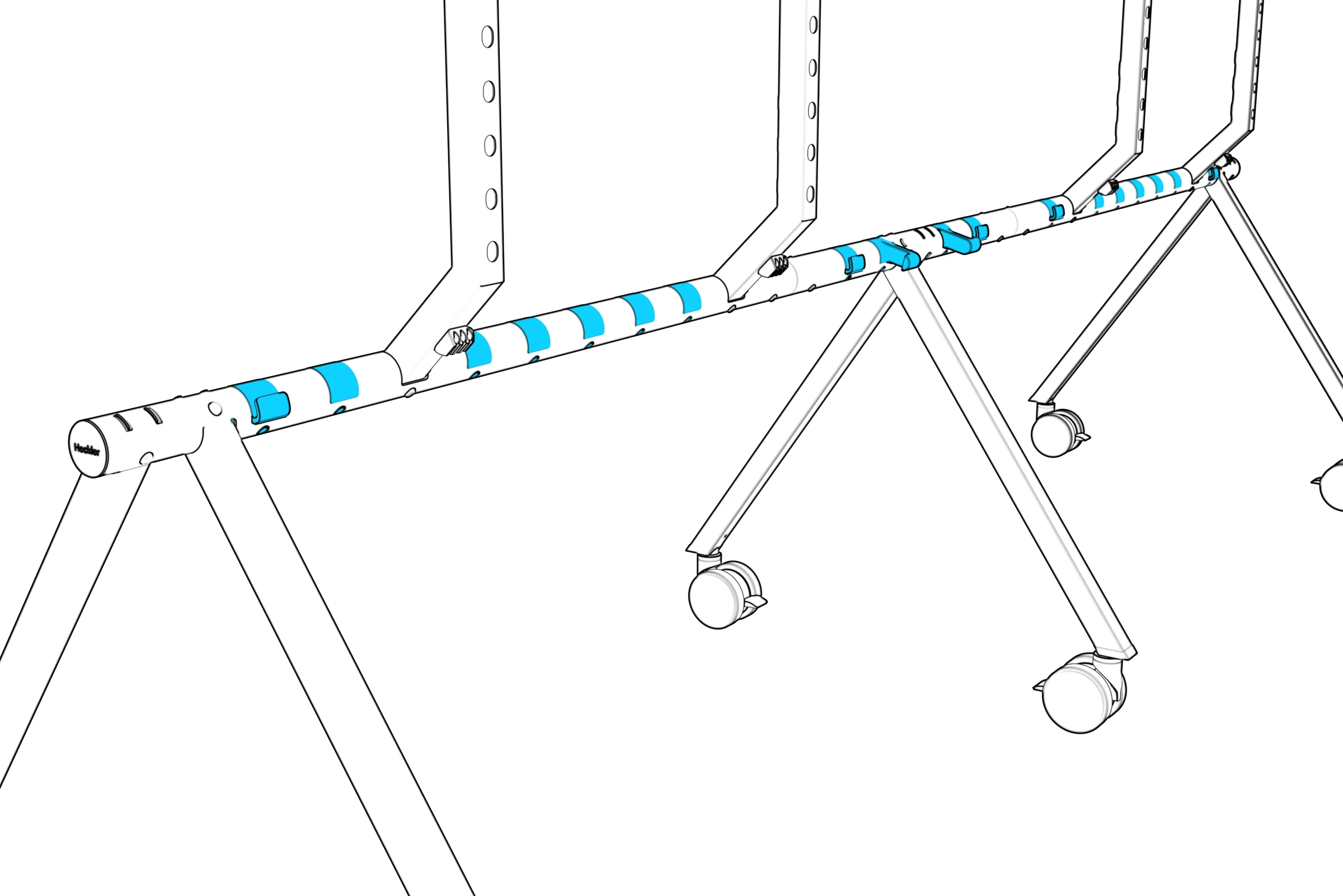

Enlarge image ↗ Cable guides, beam plugs, and cord-wrap hooks installed in the beam.

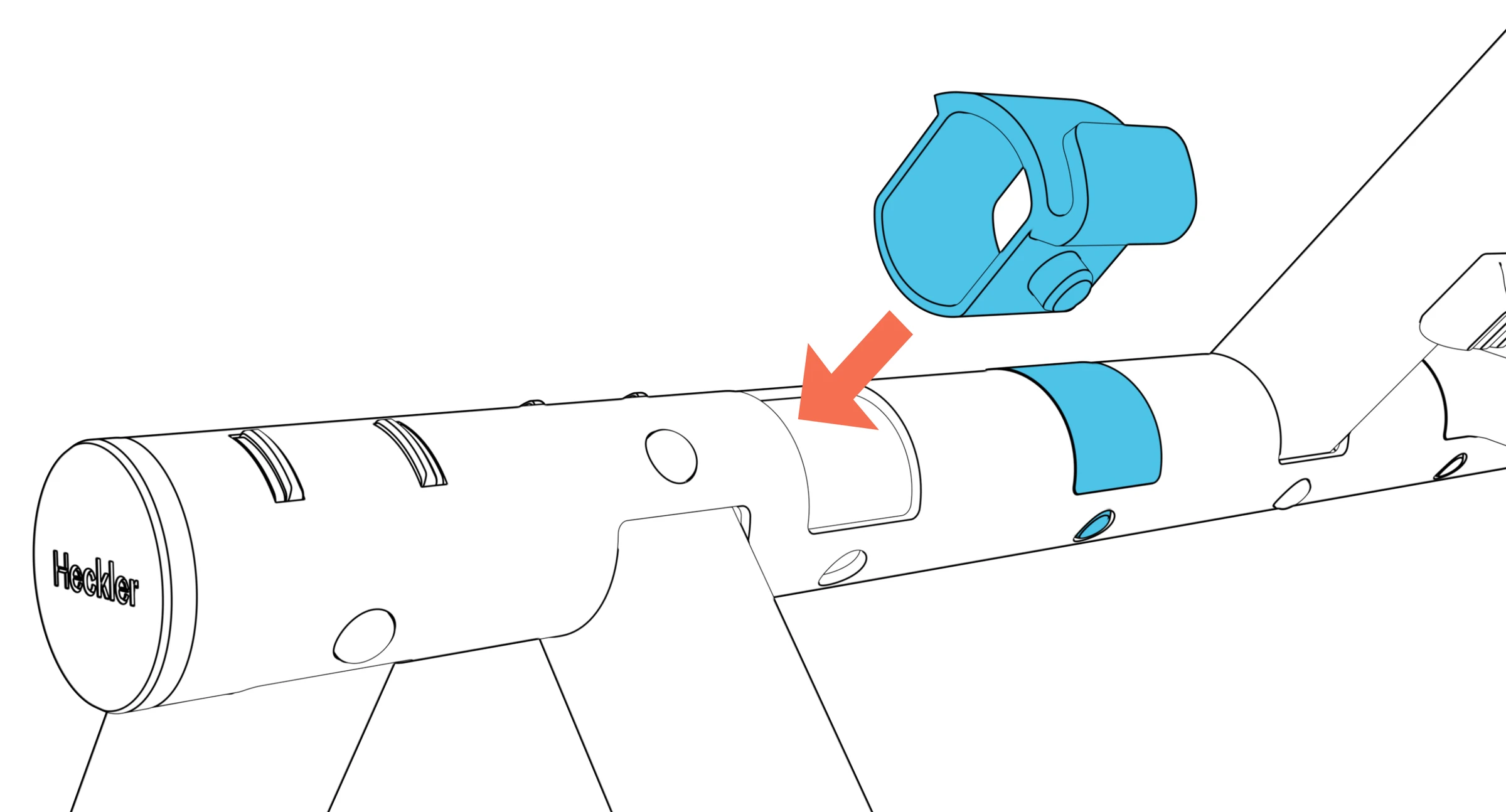

Enlarge image ↗ Cable guide aligned with an unused beam socket.
Enlarge image ↗ Cord-wrap hook aligned with a beam socket.

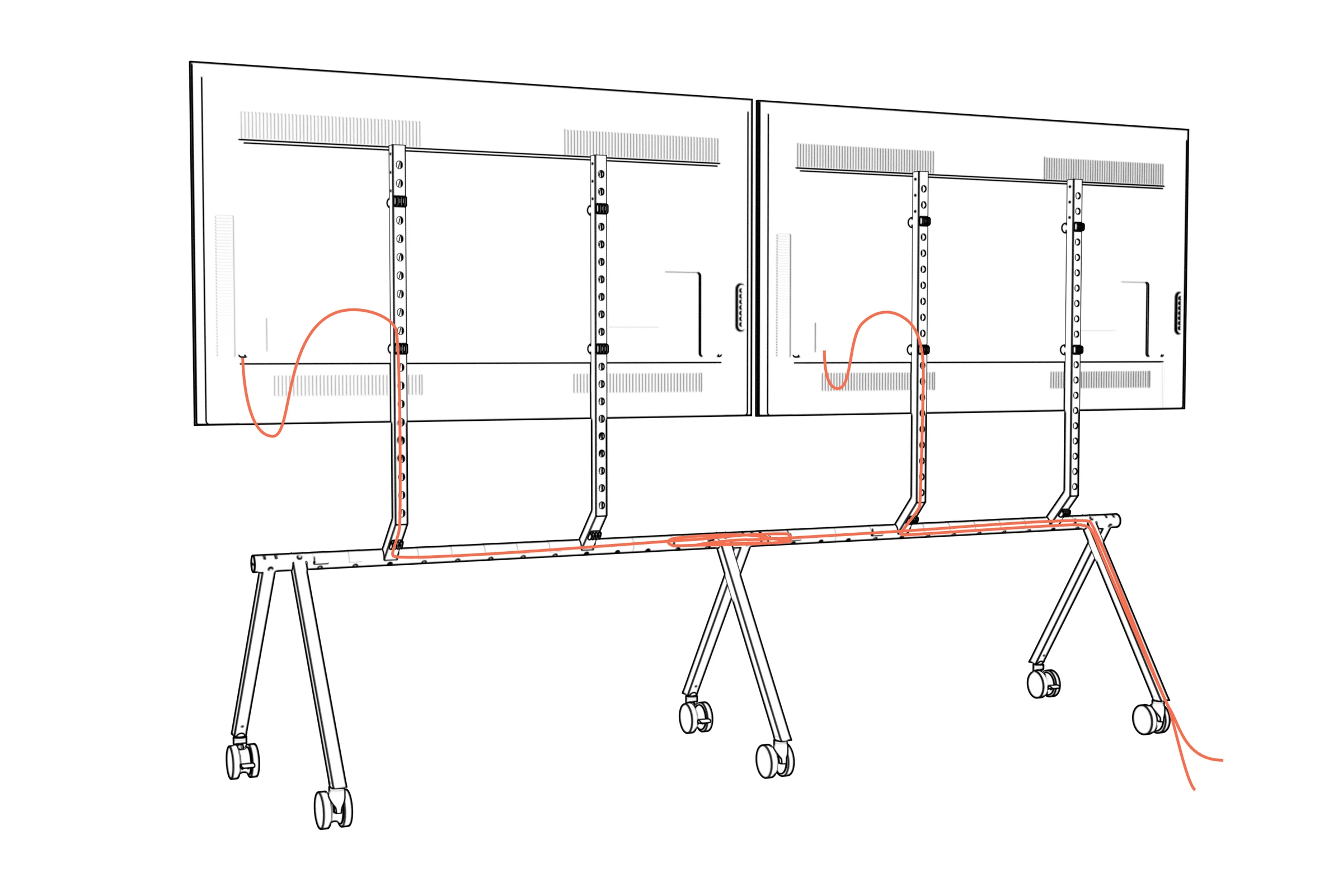

Route cables along the columns and the beam.
Enlarge image ↗ Rear of both displays with cables routed down the columns and along the beam to the floor.

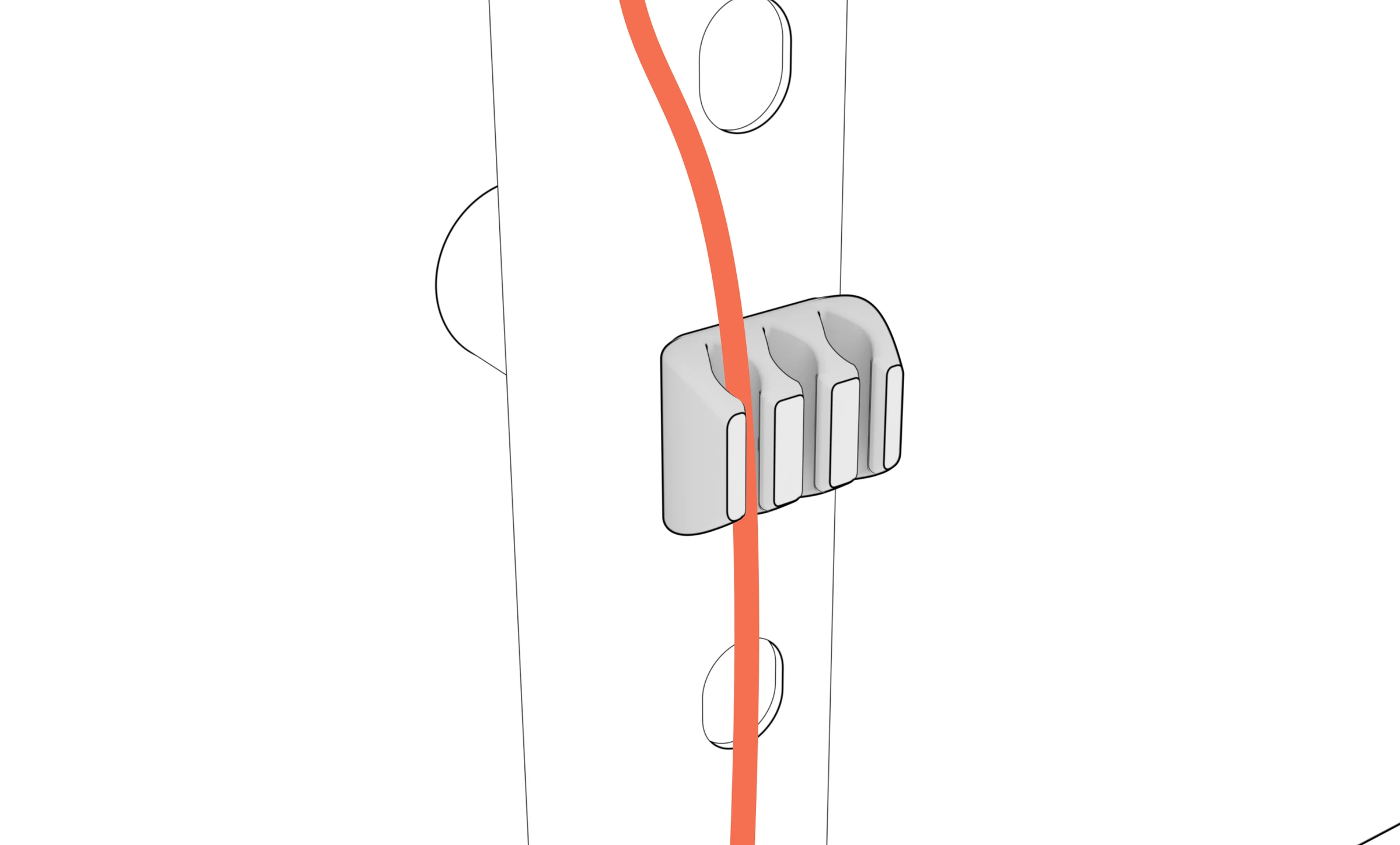

Enlarge image ↗ Close-up of a cable retained by a column cable manager.

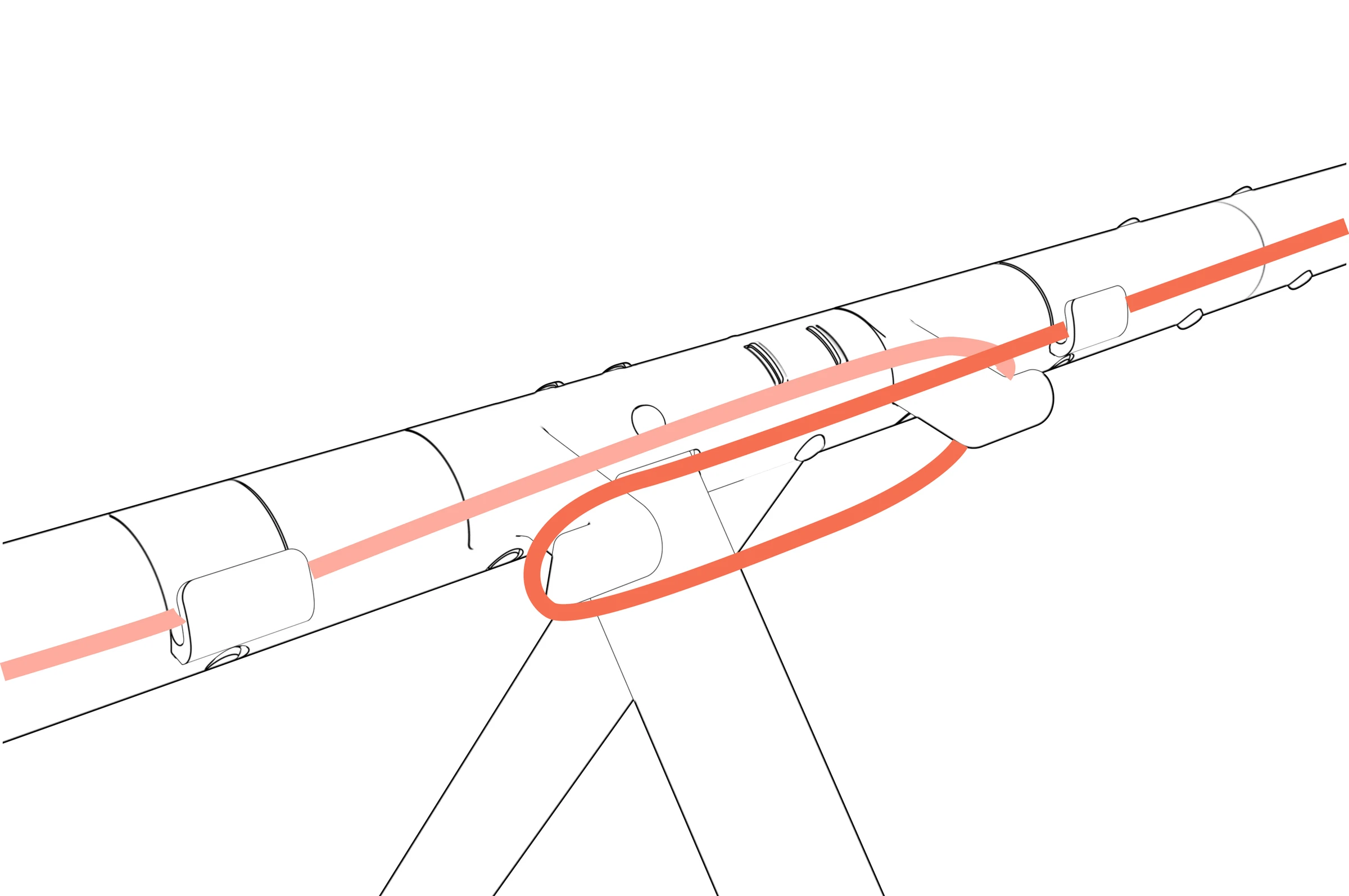

Enlarge image ↗ Cable looped between the beam cord-wrap hooks.

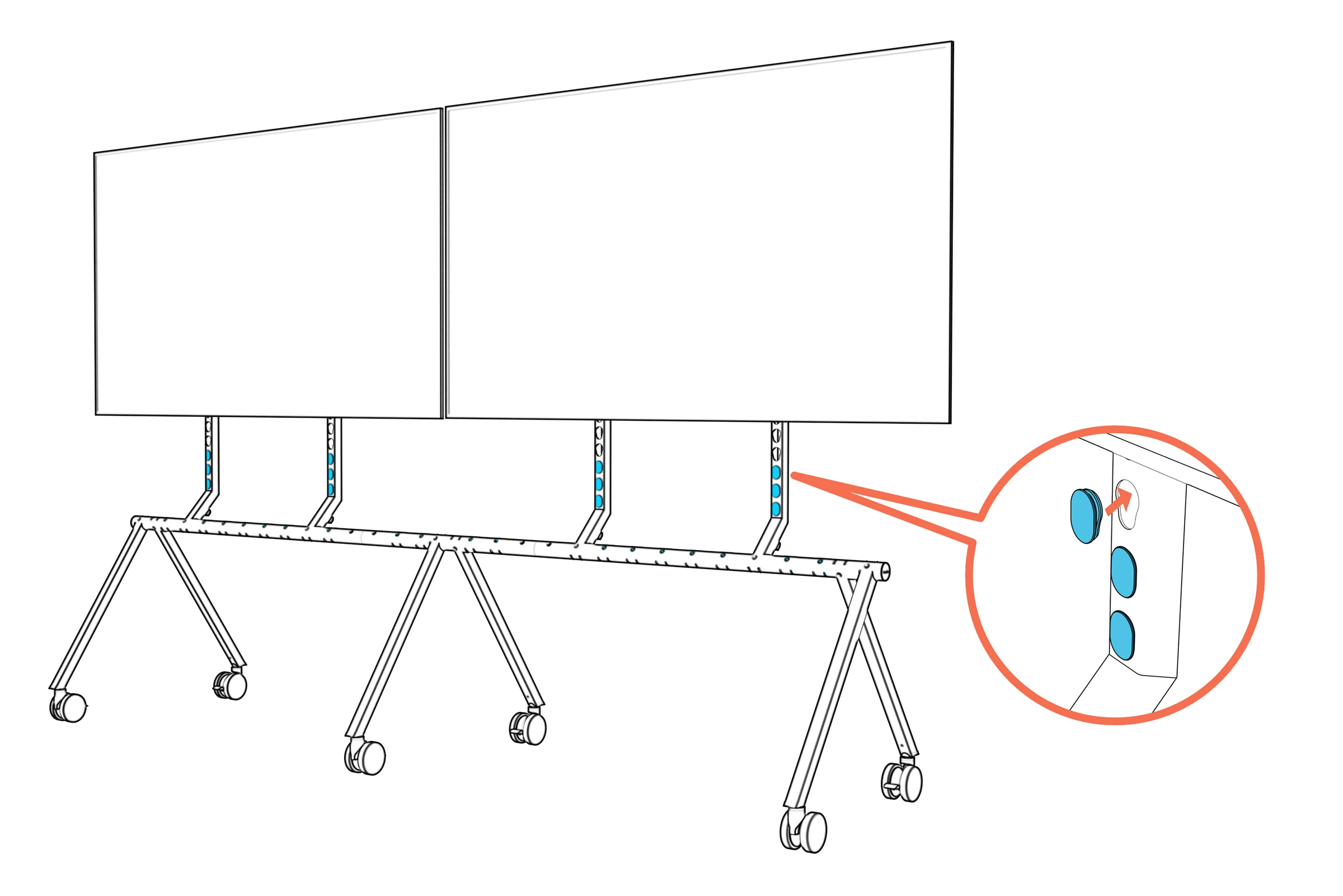

Use column plugs to cover unused but visible holes on the column’s front surface.
Enlarge image ↗ Column plugs positioned in unused front holes, with a detail inset.

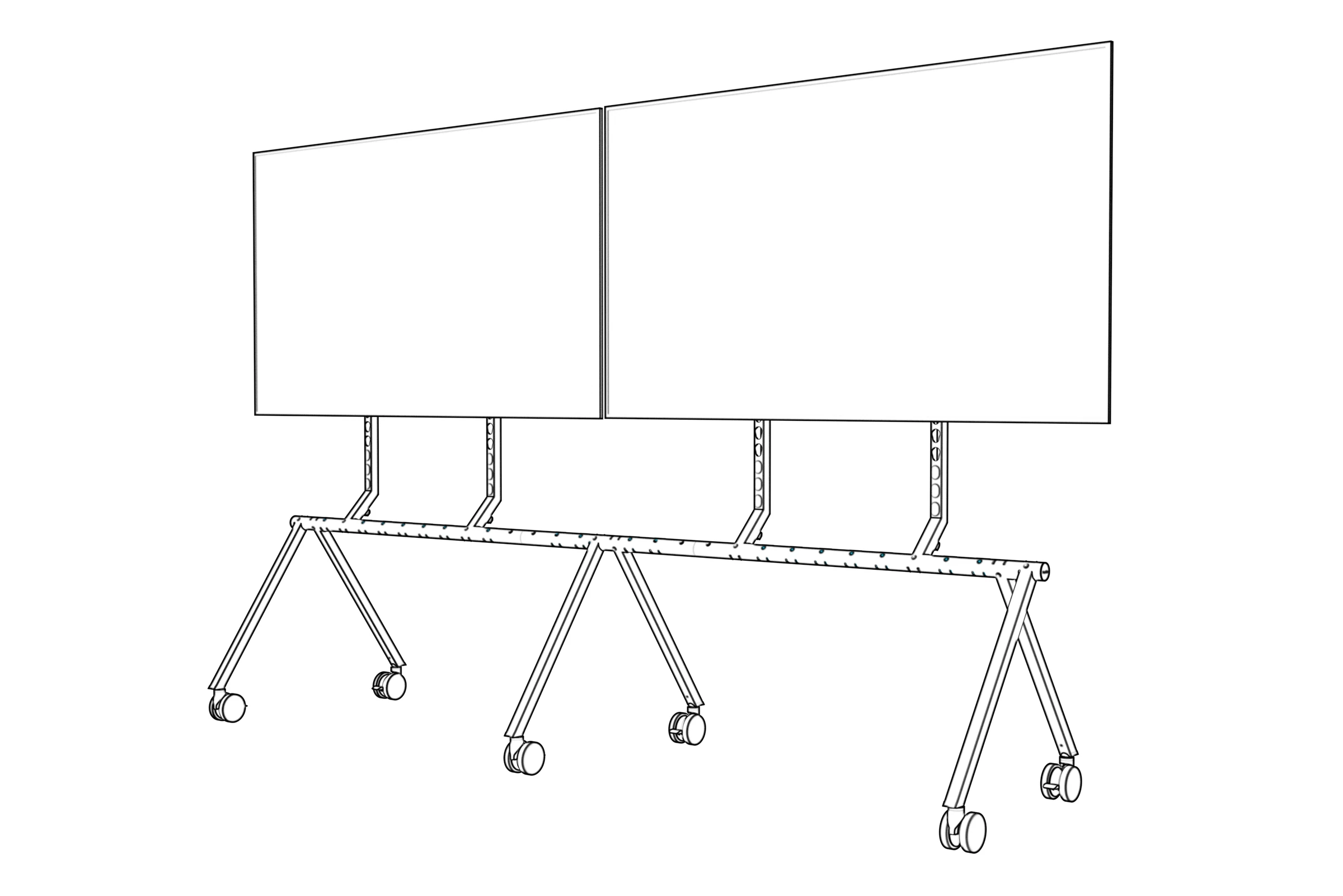

Enlarge image ↗ Completed dual-display stand viewed from the front.

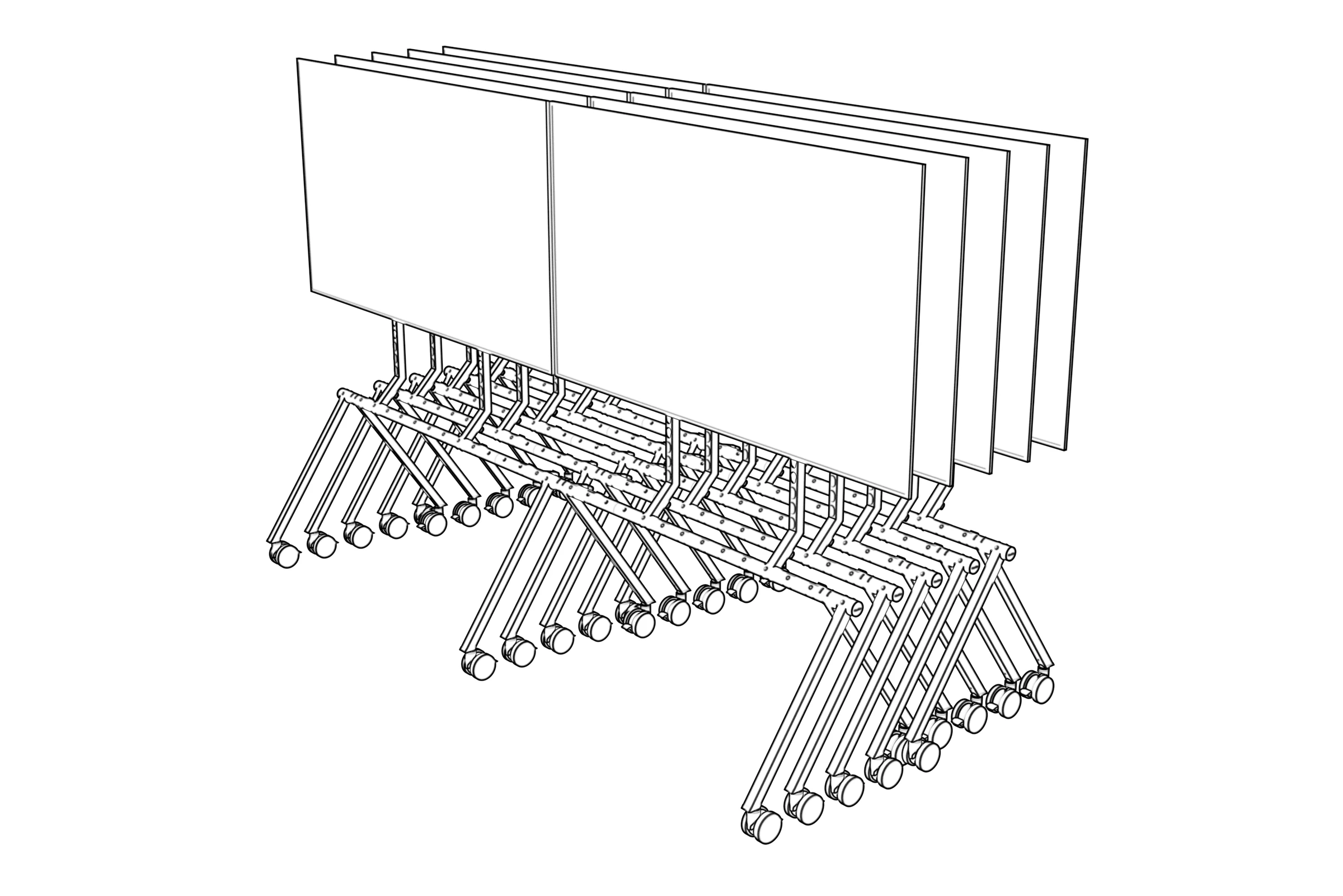

Enlarge image ↗ Multiple dual-display stands nested together.

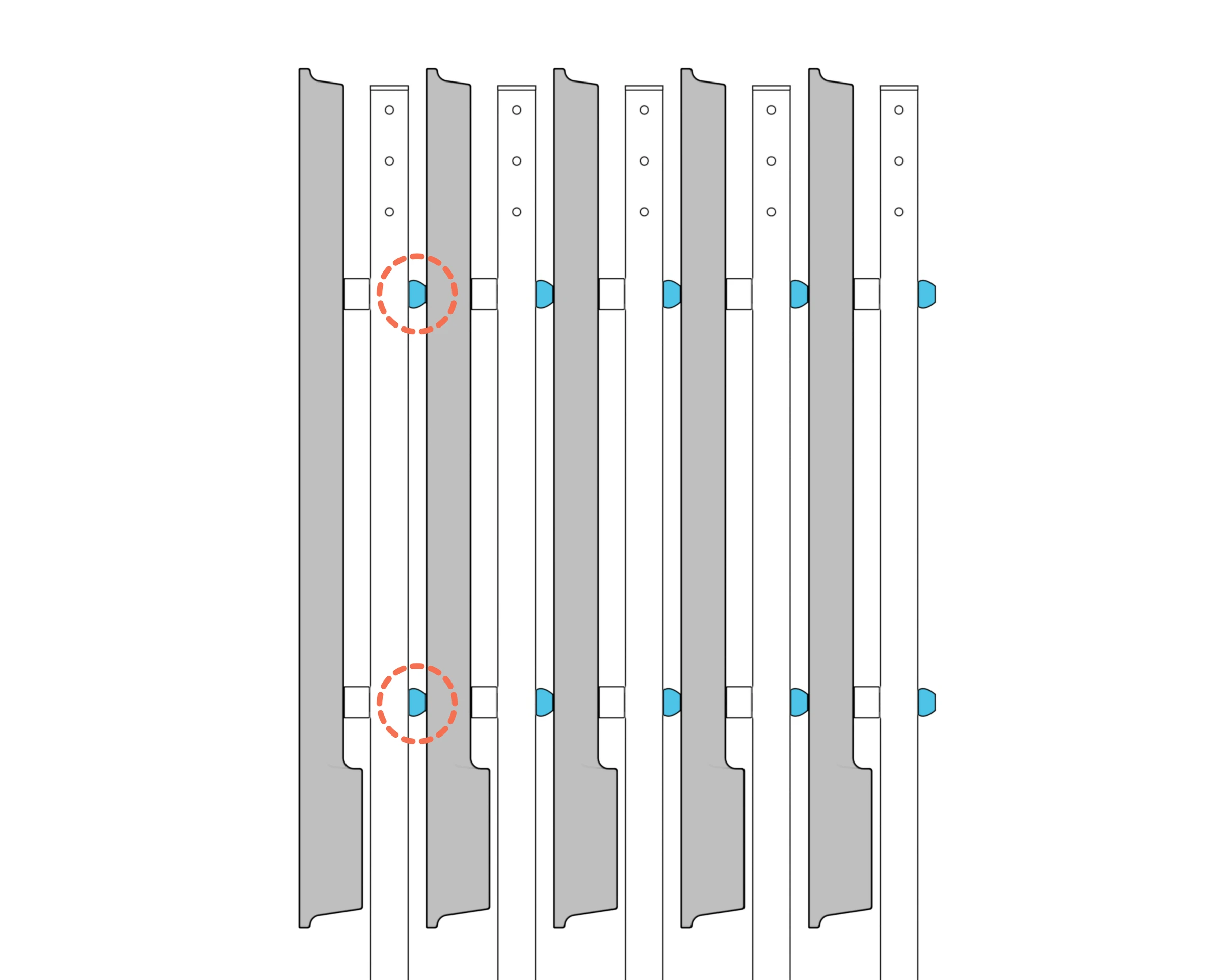

Enlarge image ↗ Side view of nested displays with the cable-manager contact points circled.

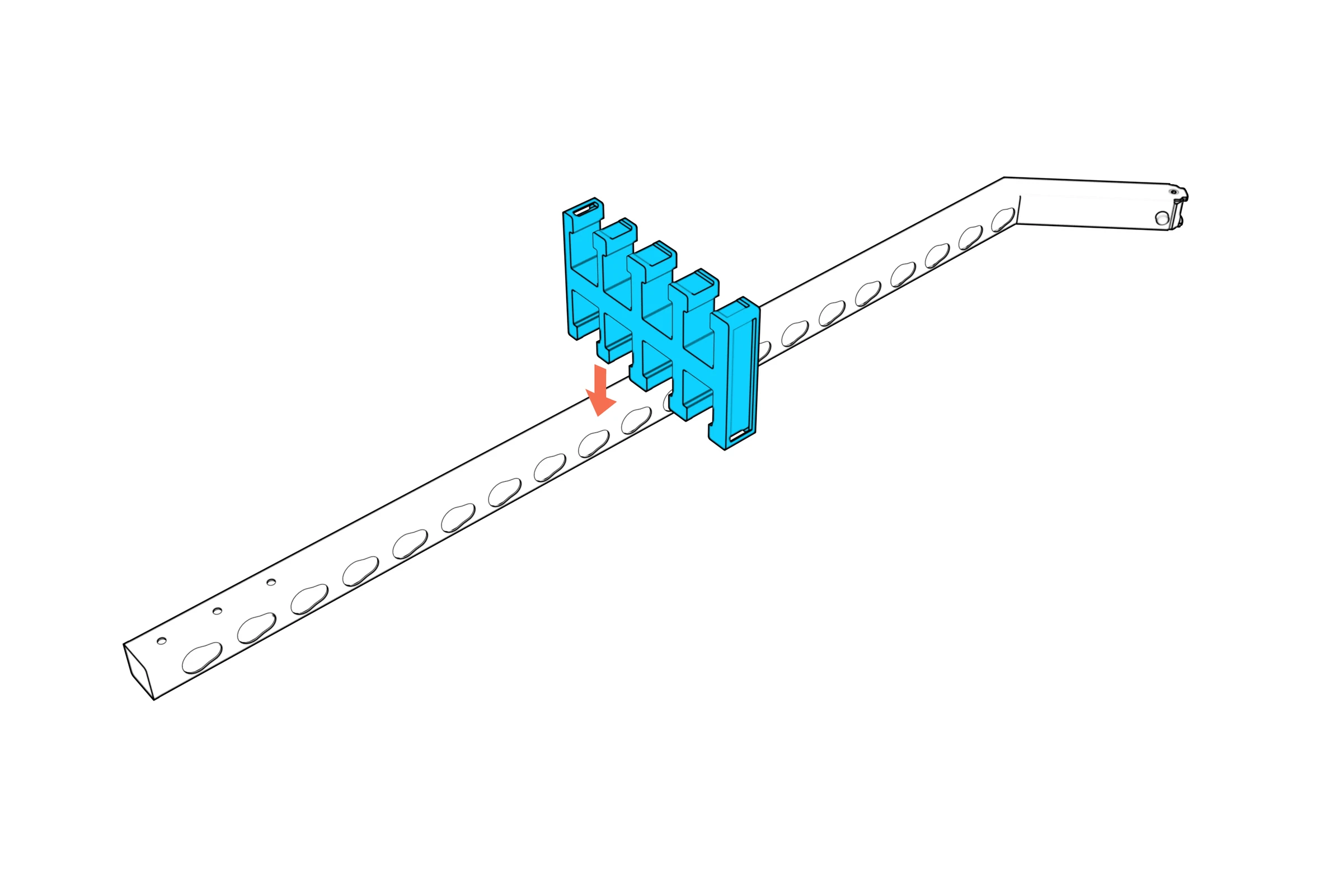

With the displays removed and the stand disassembled, attach the first storage ring to the column as shown.
Enlarge image ↗ First storage ring aligned with a detached column.

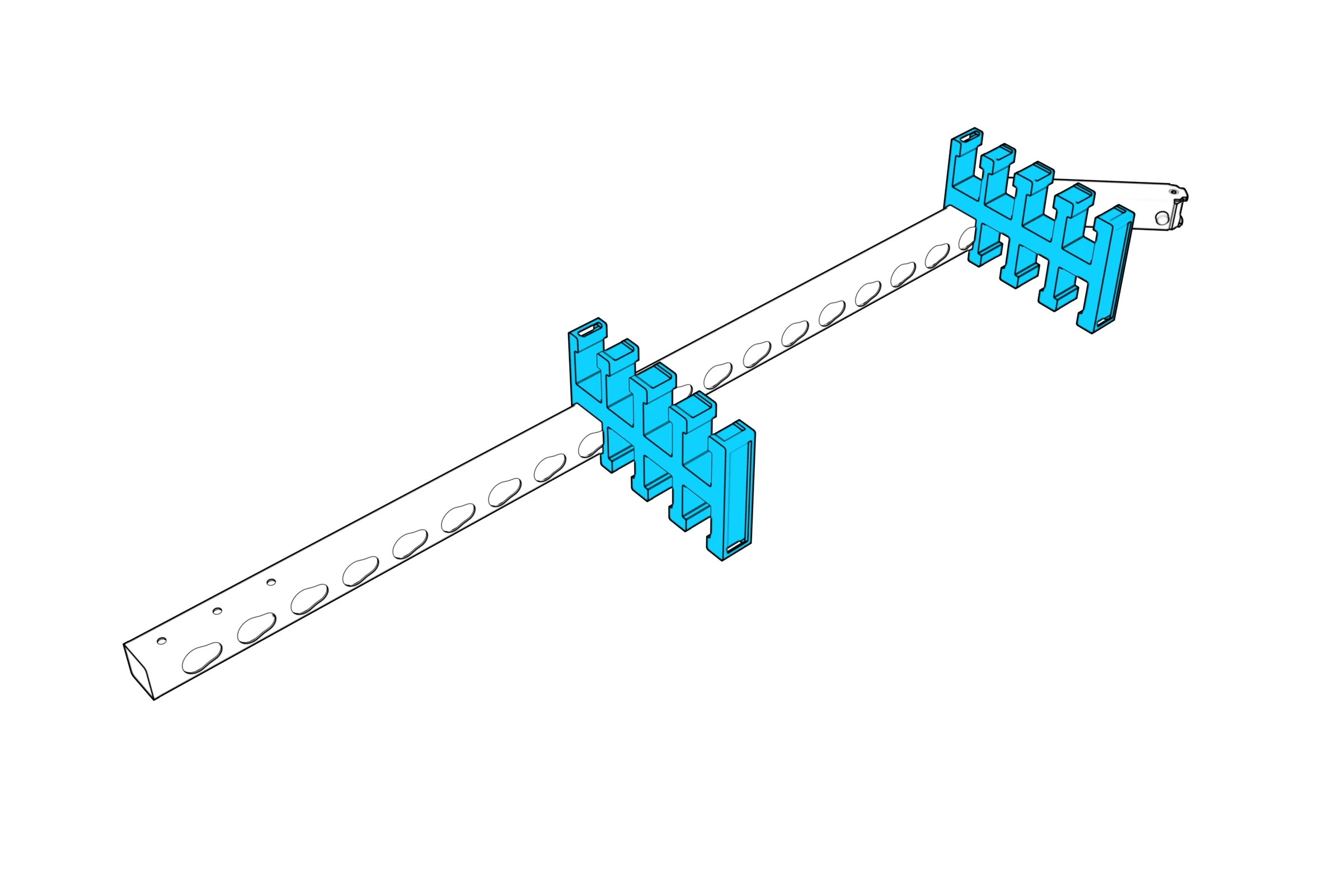

Place the second storage ring as shown.
Enlarge image ↗ Two storage rings fitted along the column.

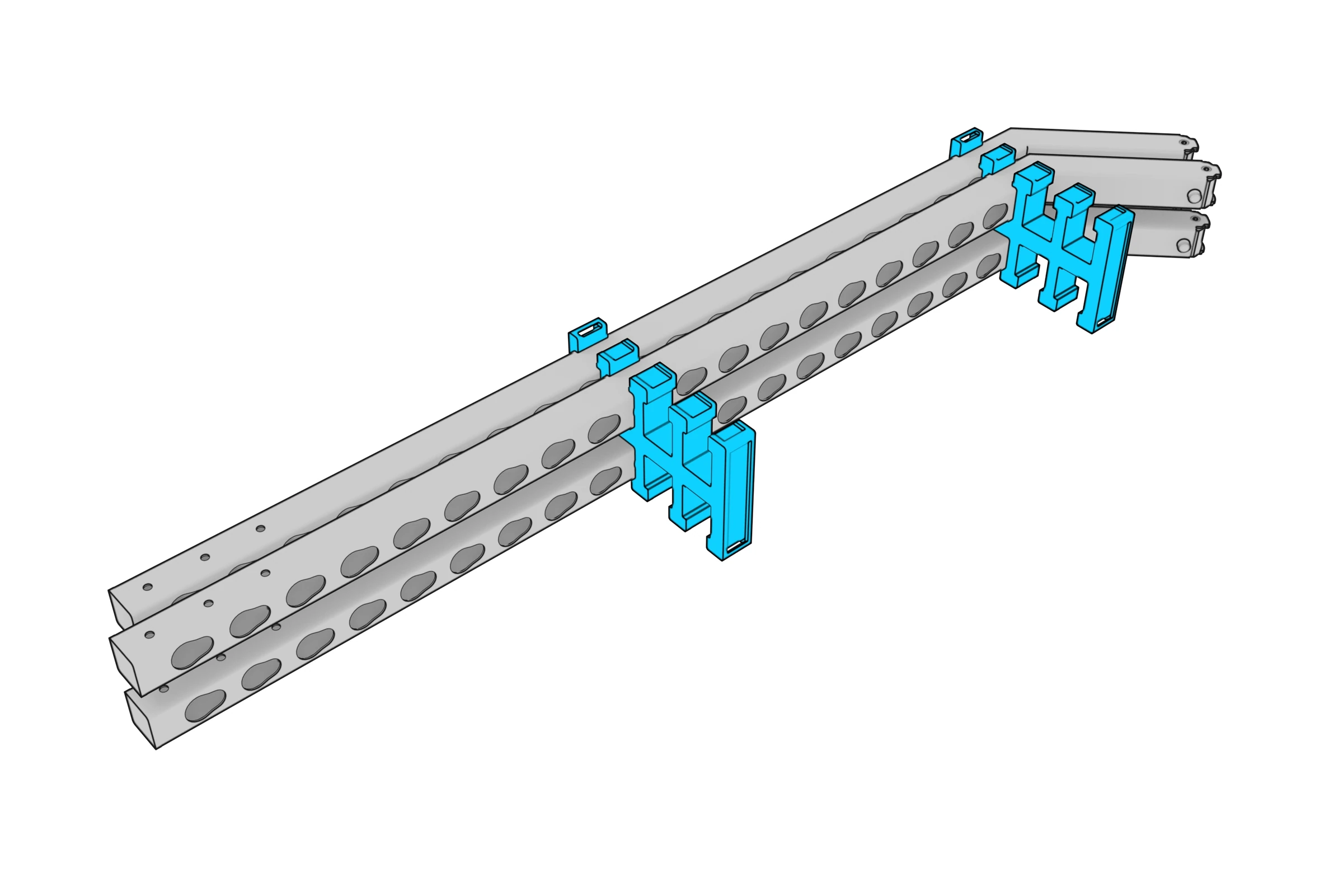

Place the remaining three columns as shown.
Enlarge image ↗ Four columns nested together in the storage rings.
Place four legs as shown.

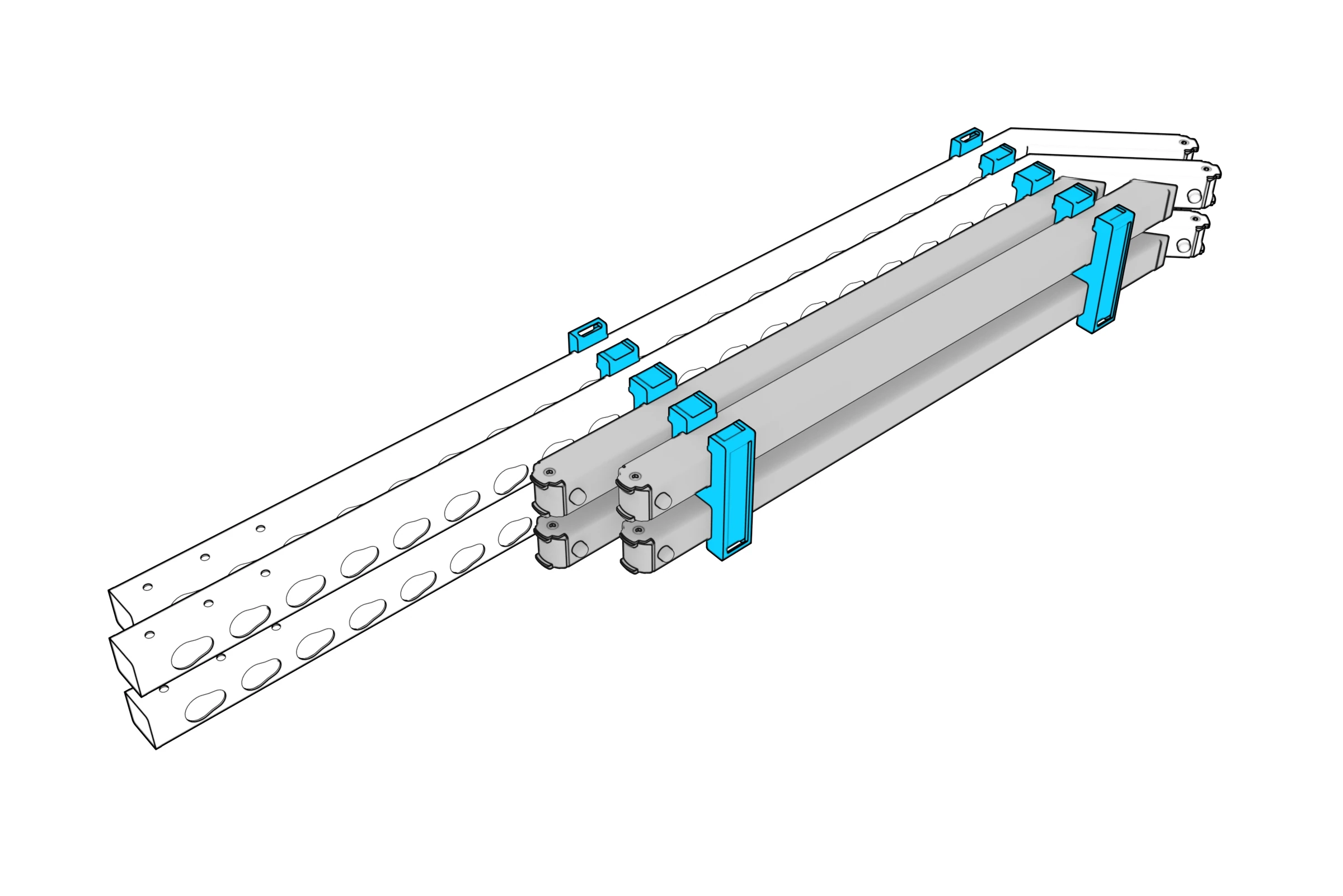

Enlarge image ↗ Four detached legs packed with the columns.
Install the Velcro straps with steel buckles.

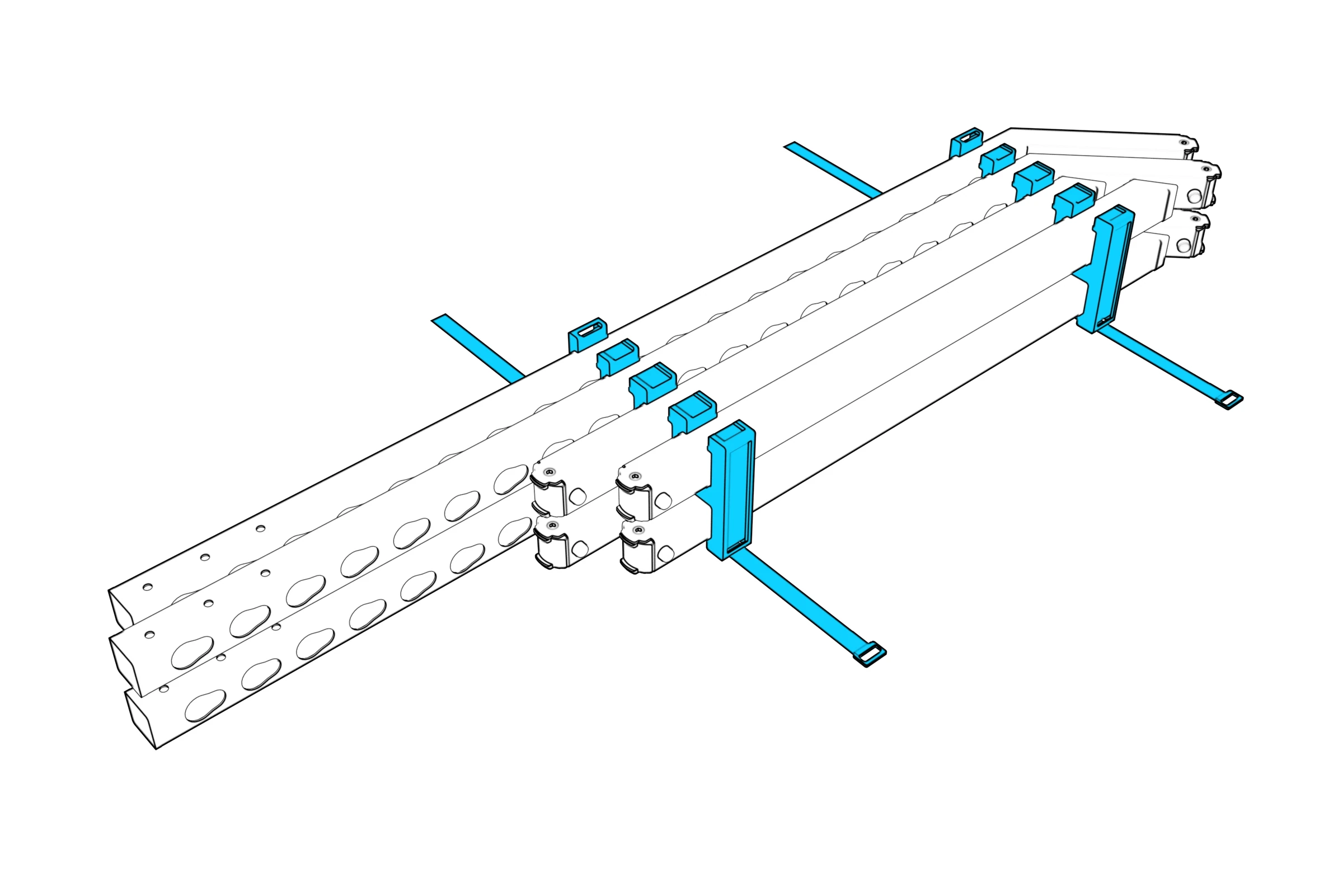

Enlarge image ↗ Two straps threaded around the first bundle of components.

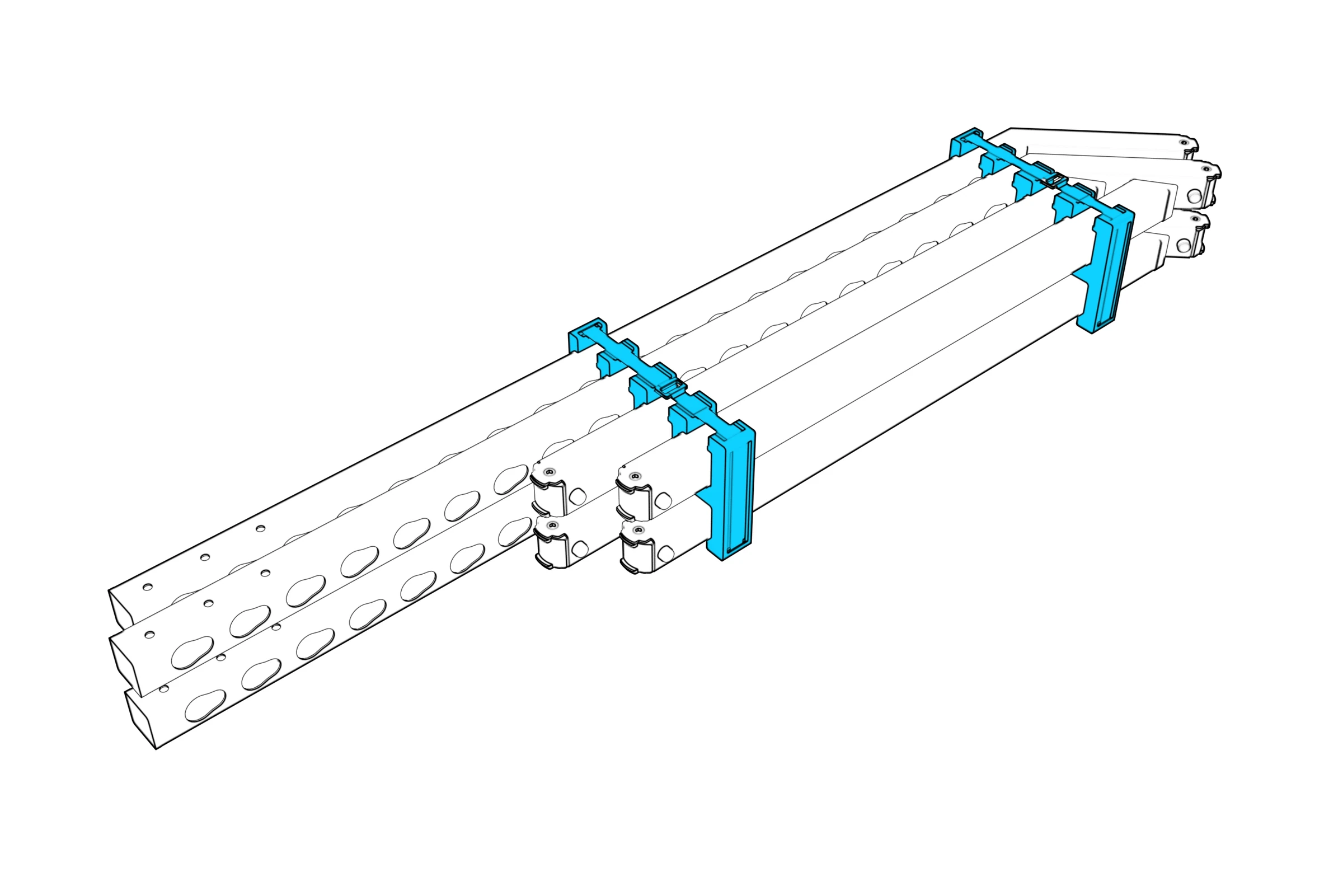

Enlarge image ↗ Straps tightened around the first bundle.

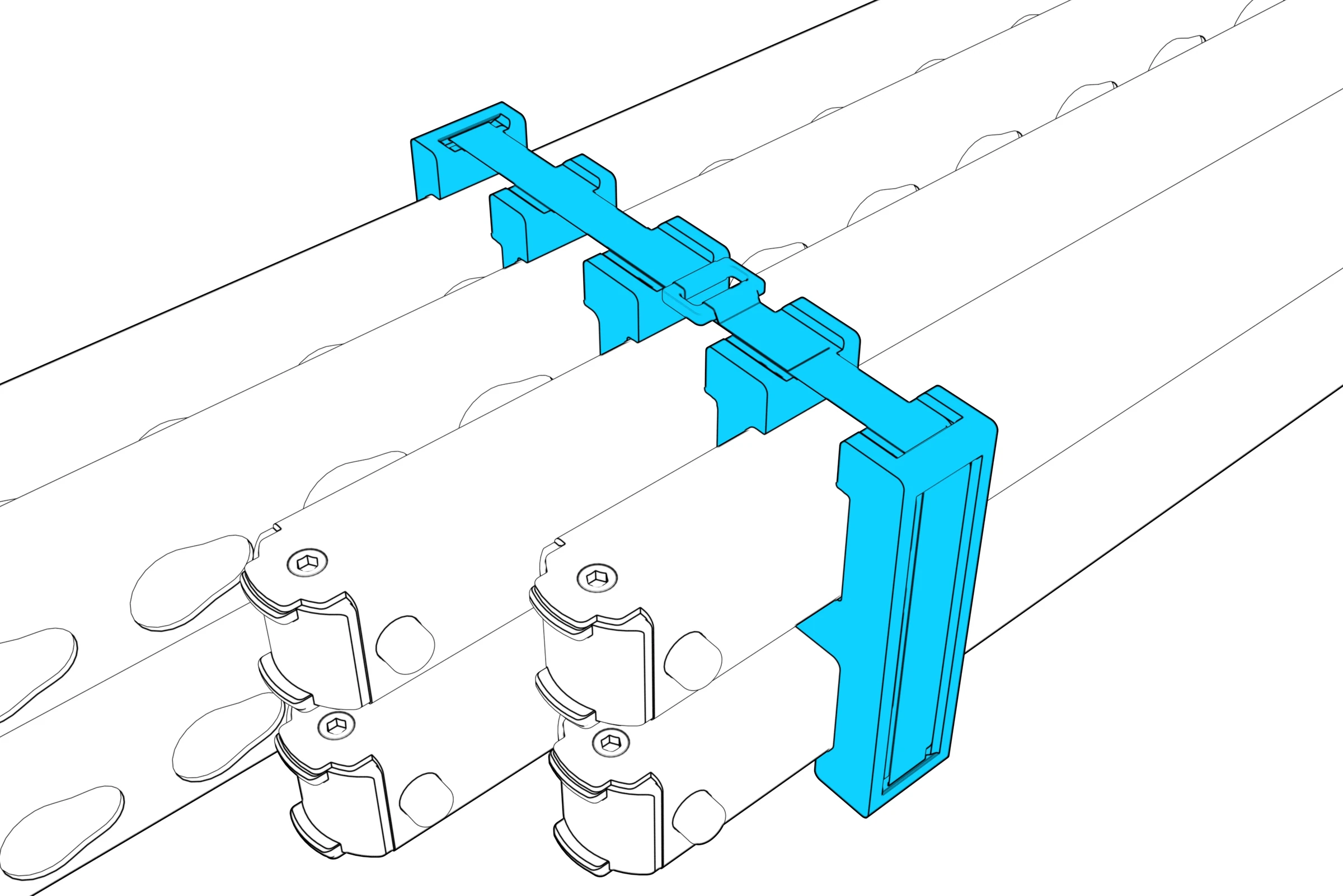

Enlarge image ↗ Close-up of a tightened strap and buckle.

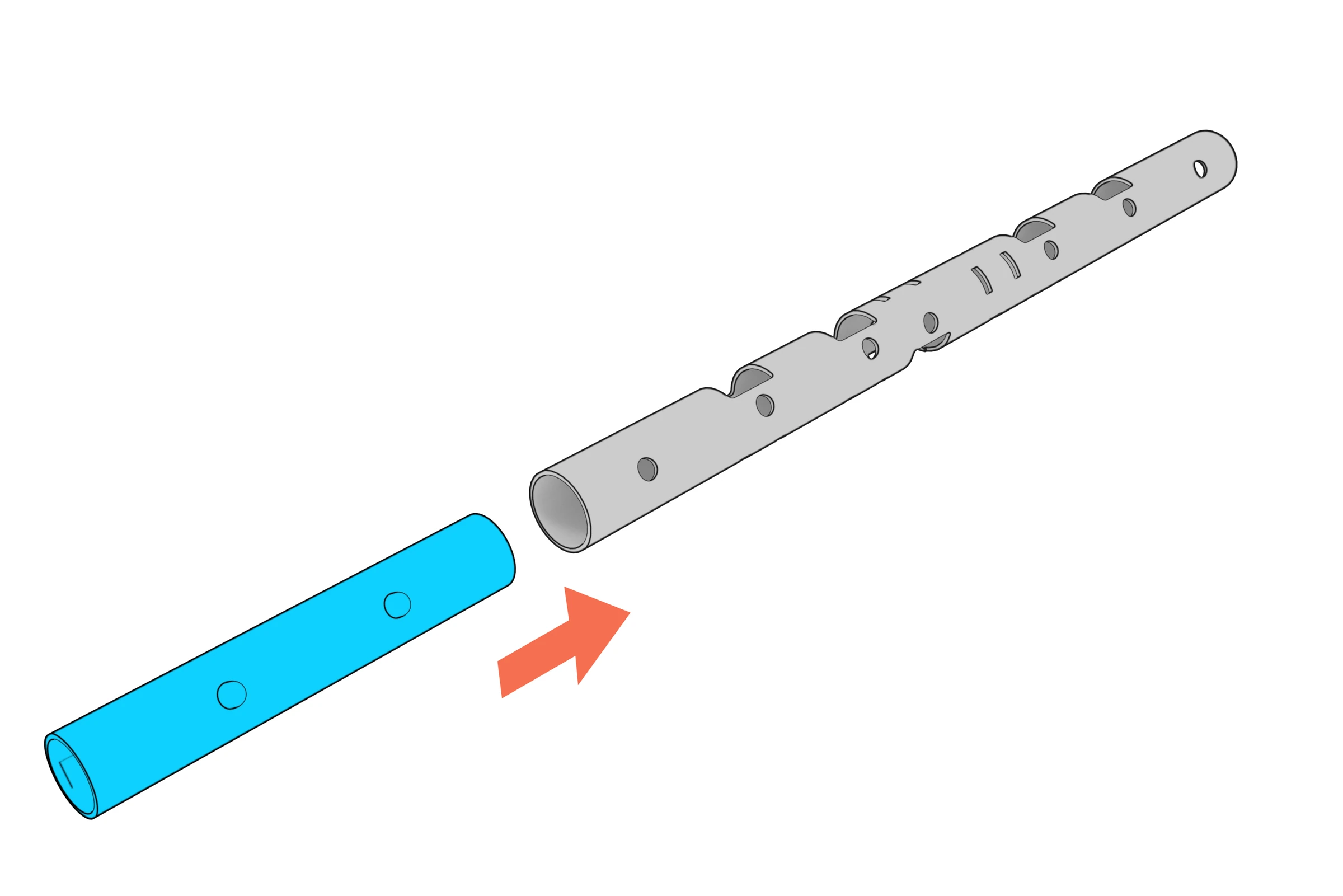

Slide the coupler into the center beam.
Enlarge image ↗ Coupler sliding into the detached center beam.

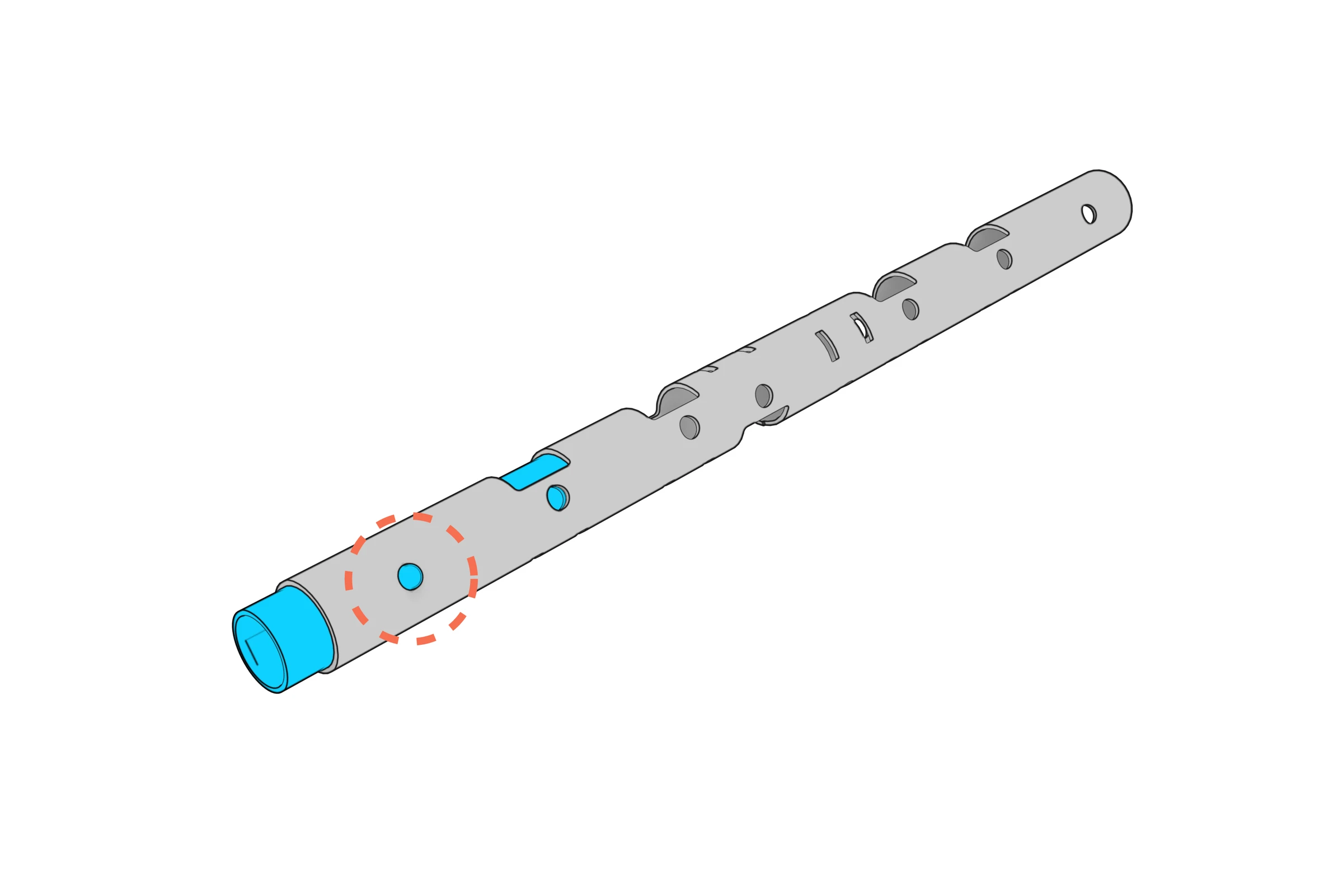

Enlarge image ↗ Coupler stored inside the center beam with its button engaged.

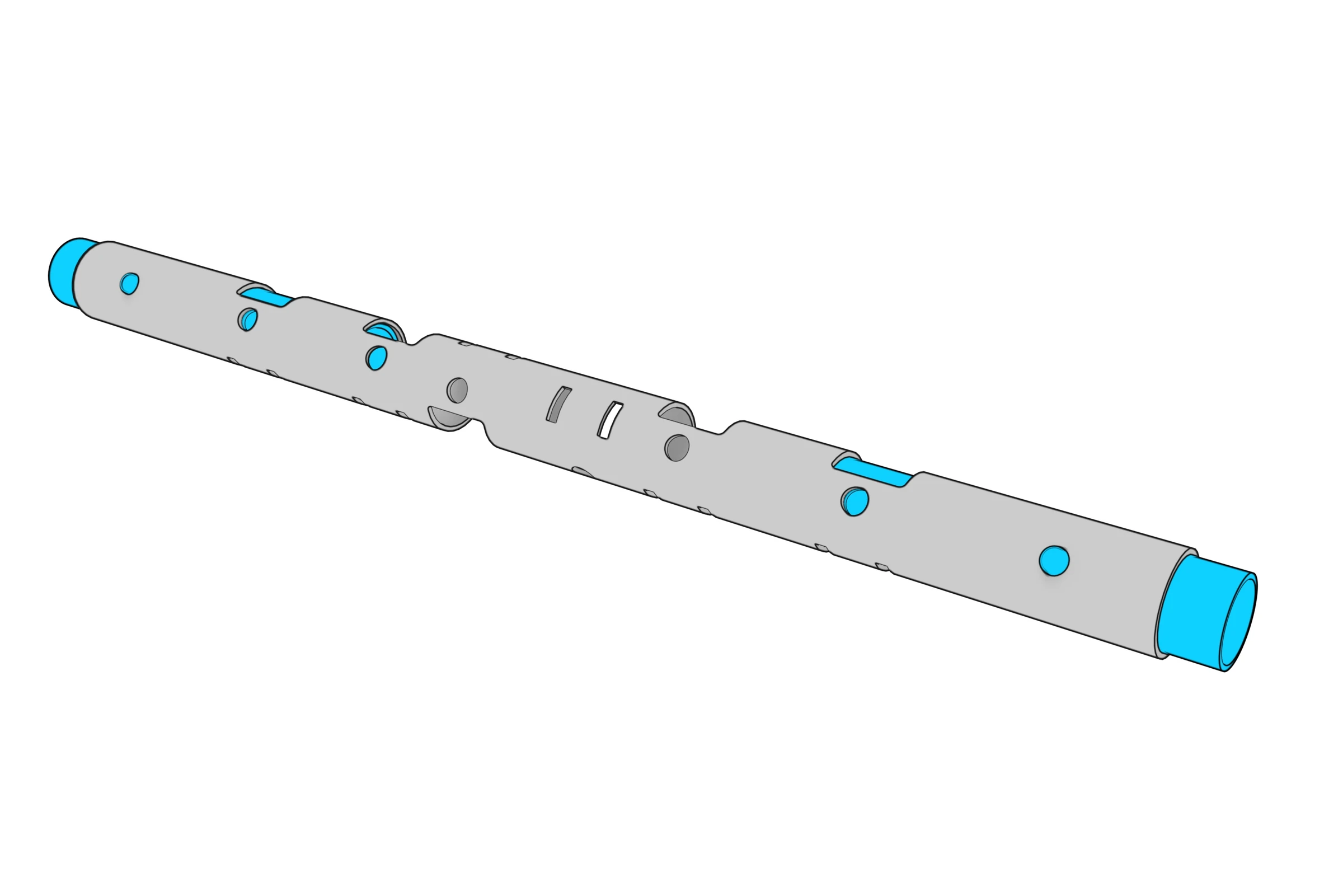

Repeat the step above and place the beams as shown.
Enlarge image ↗ Both couplers stored inside the center beam.

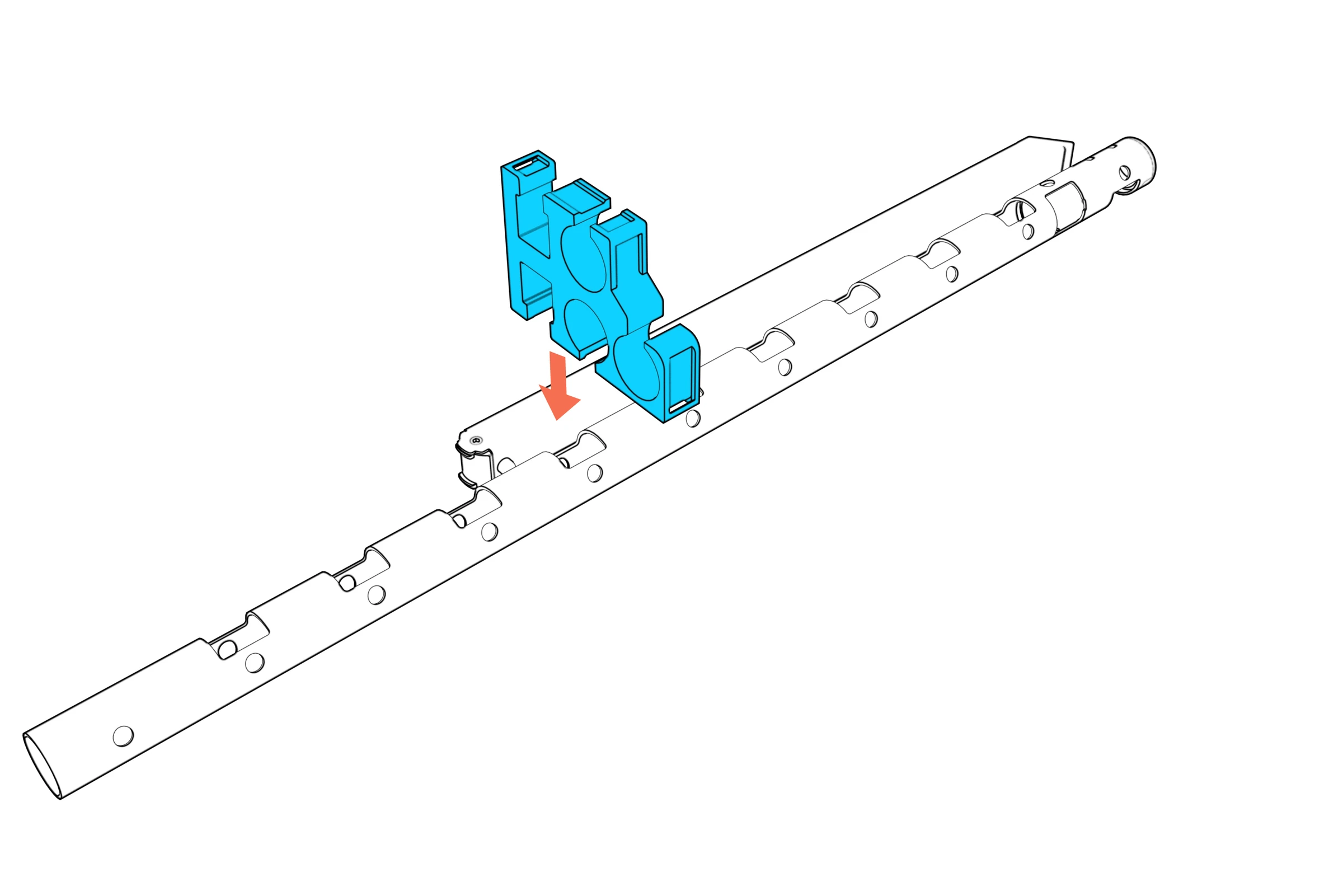

Attach the first storage ring to the leg and beam as shown.
Enlarge image ↗ First storage ring aligned with a detached leg and beam.

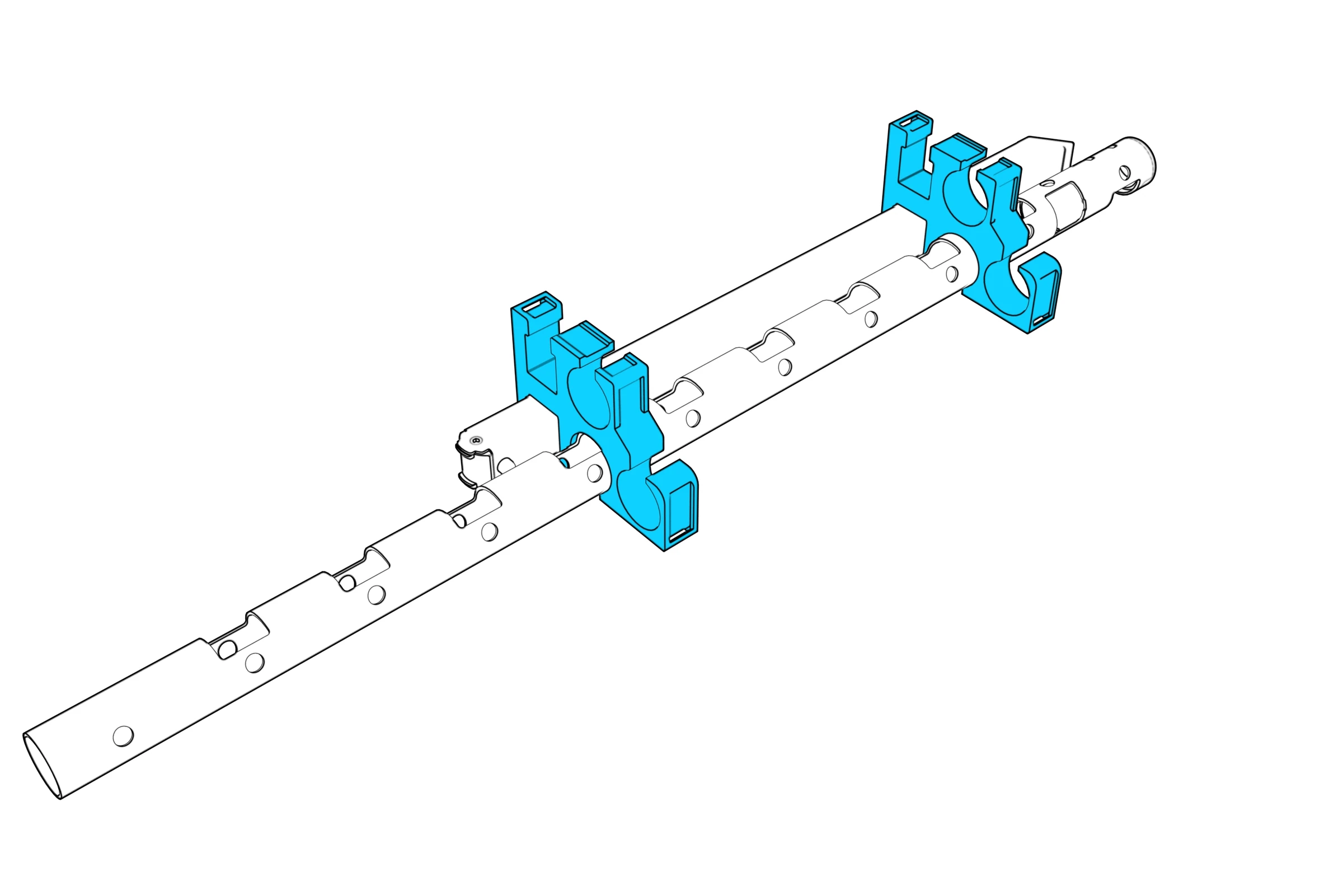

Place the second storage ring as shown.
Enlarge image ↗ Two storage rings fitted around a leg and beam.

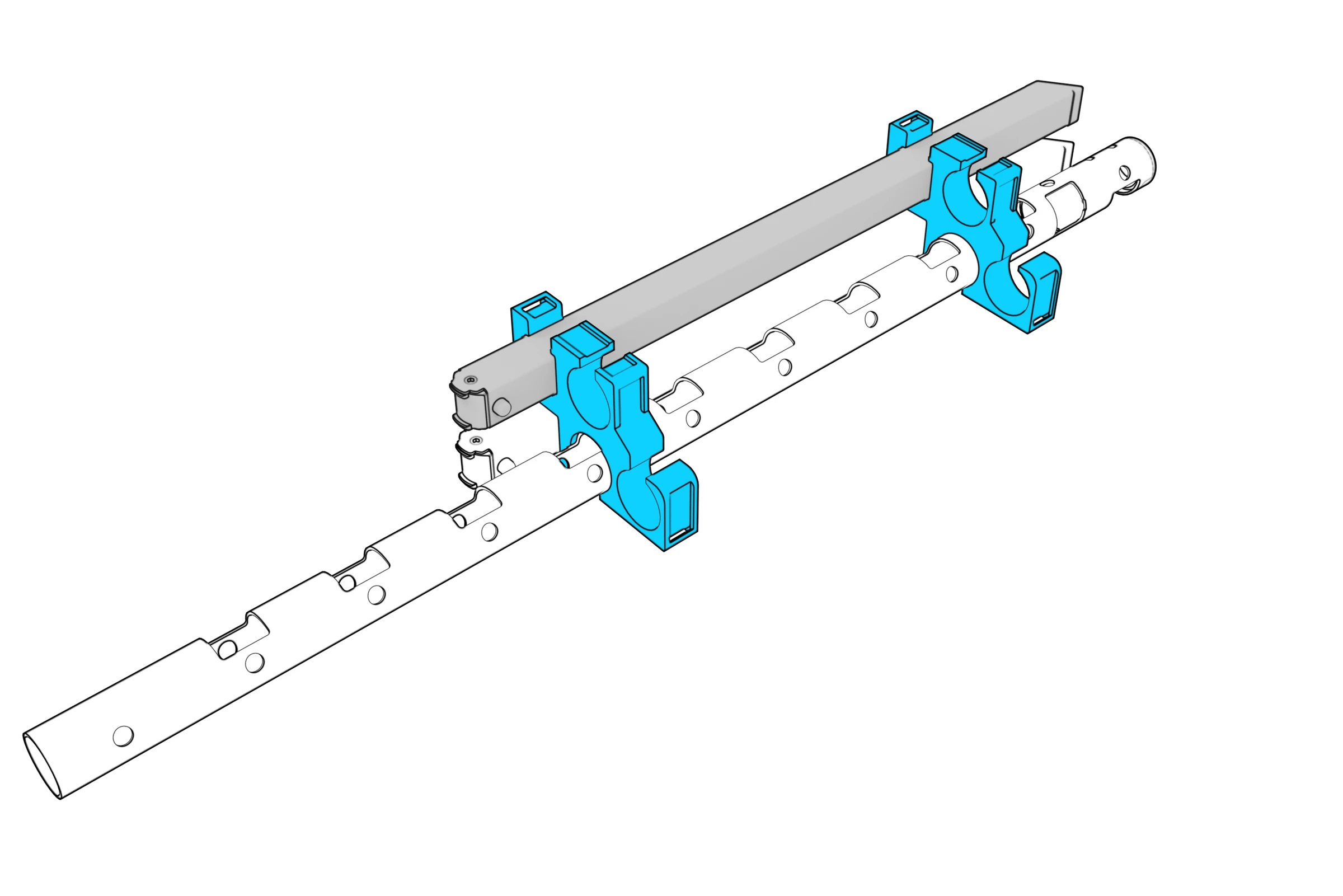

Place the second leg as shown.
Enlarge image ↗ Second leg nested alongside the first.

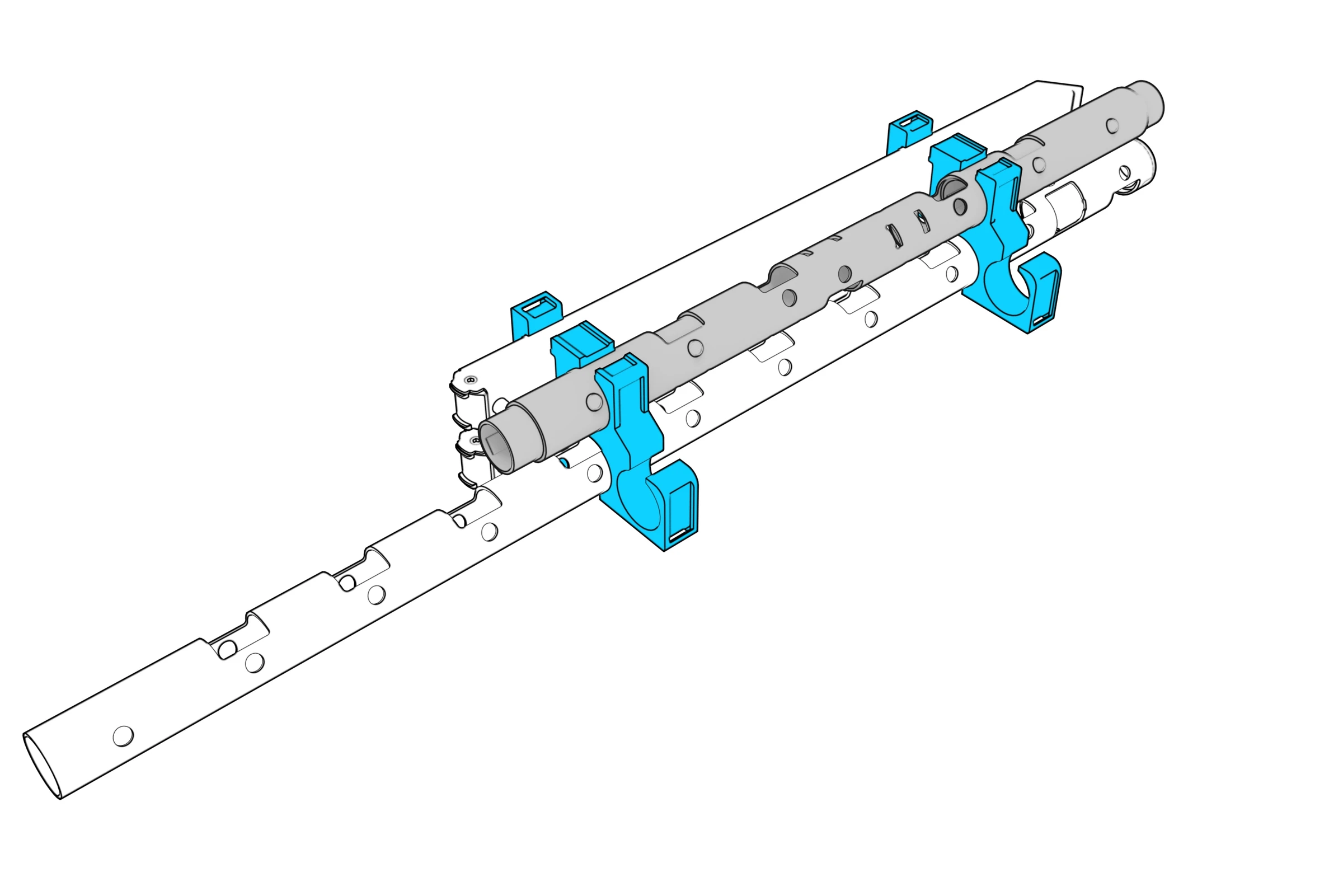

Place the center beam as shown.
Enlarge image ↗ Center beam placed in the second storage bundle.
Place the other beam as shown.

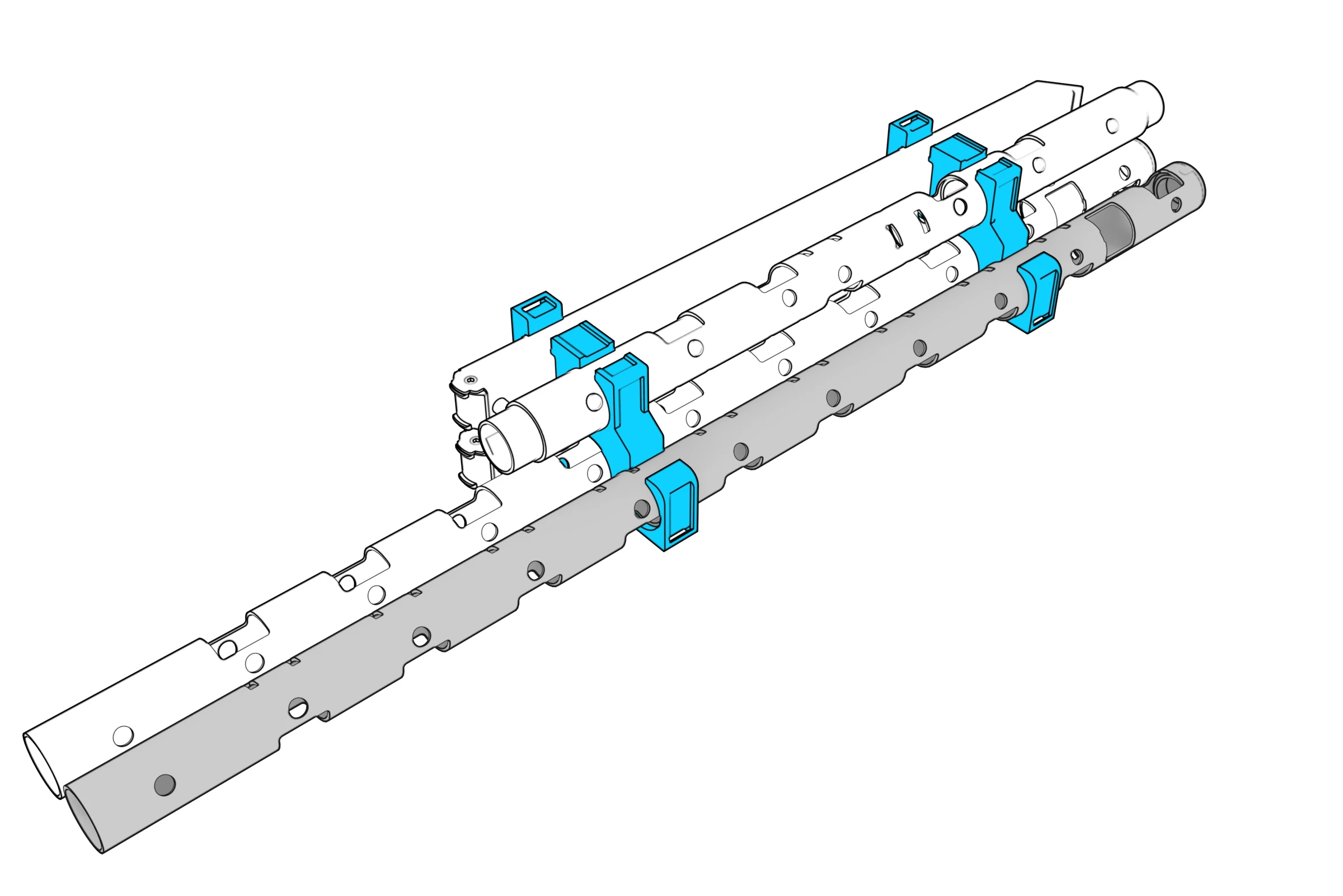

Enlarge image ↗ Remaining beam placed alongside the other bundled components.

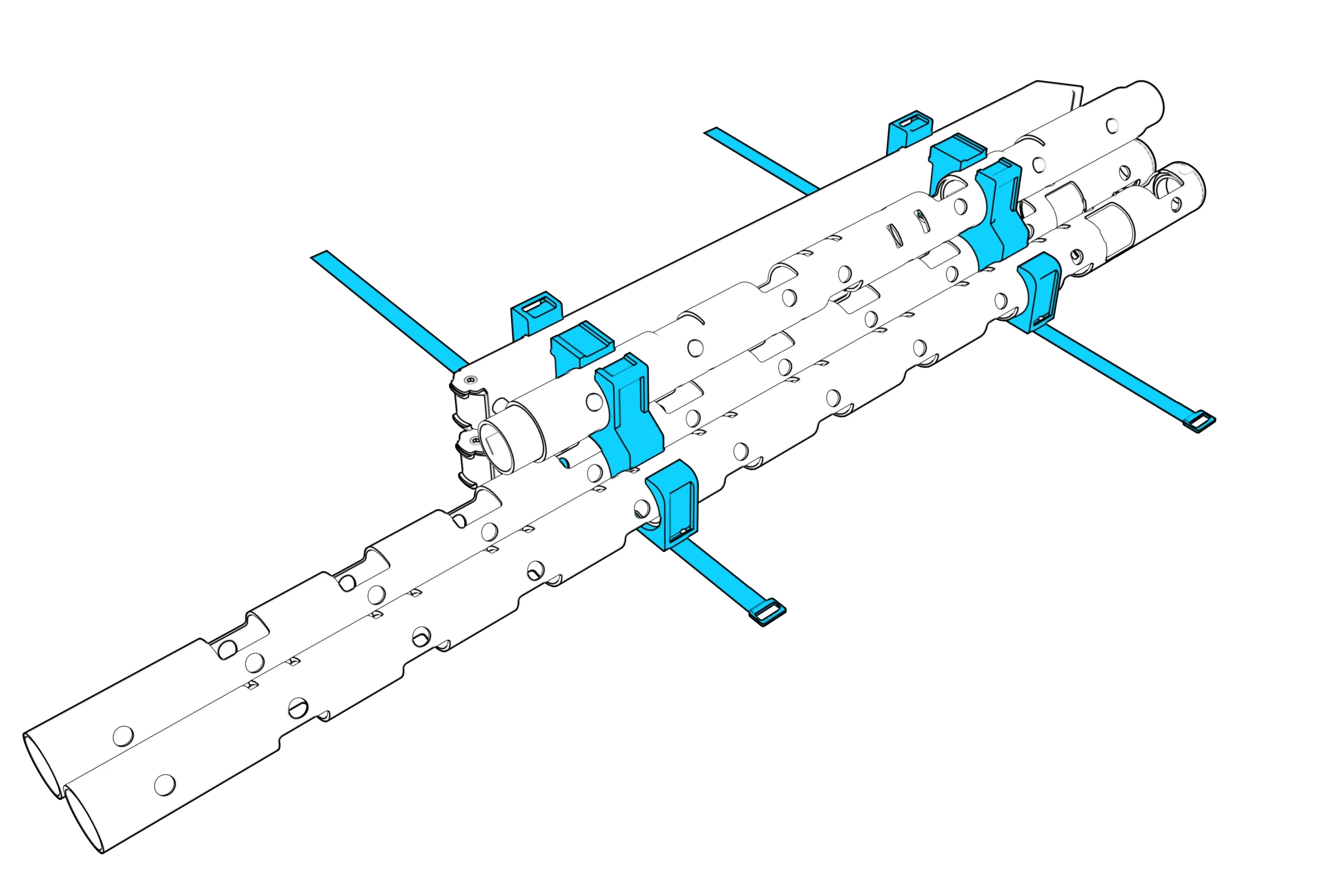

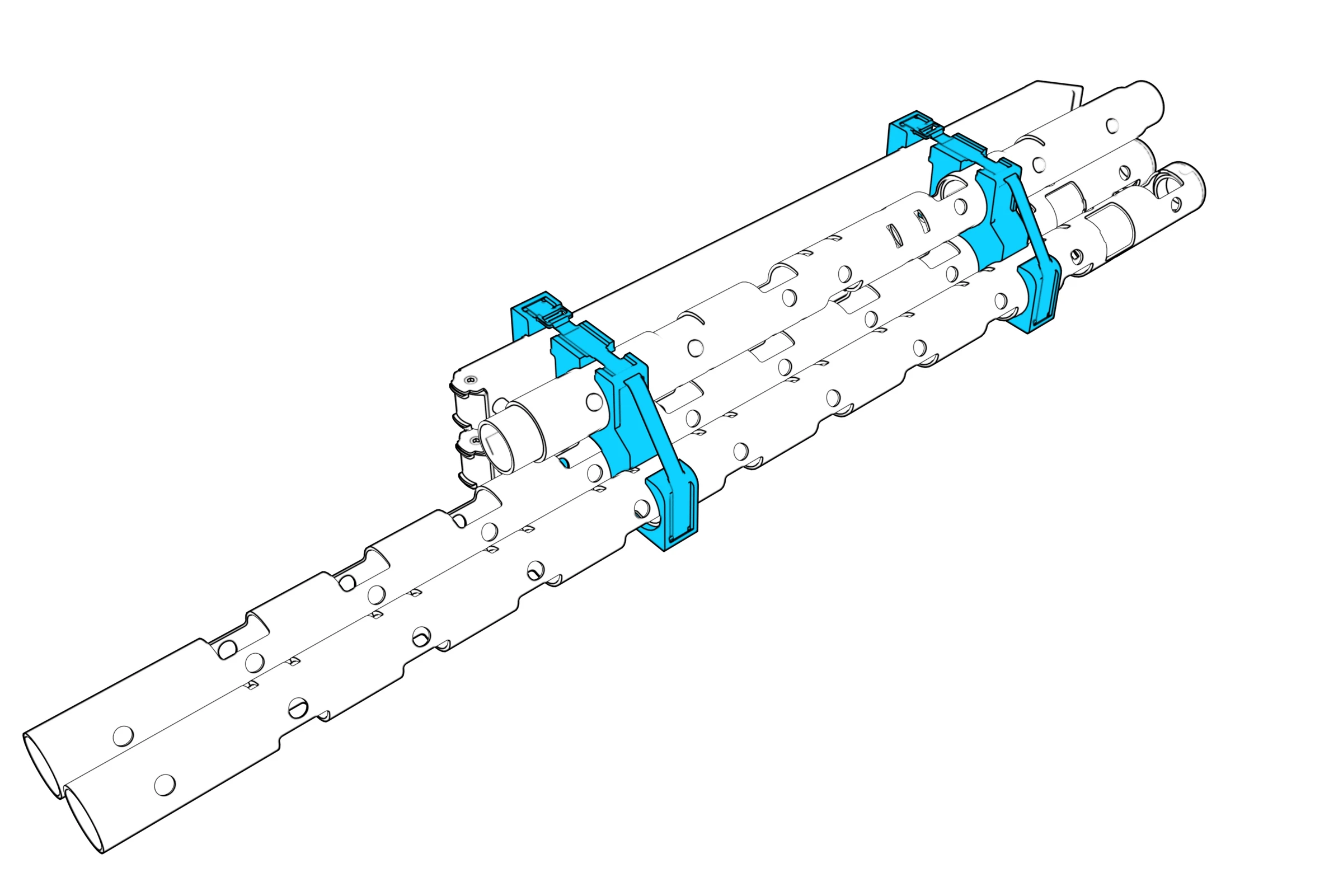

Install the Velcro straps with steel buckles.
Enlarge image ↗ Straps open around the second bundle.
Enlarge image ↗ Straps tightened around the second bundle.
