User guide

H1076 Light Kit for Heckler Credenza Neo

Read guide
PDF · Letter PDF · A4
Guide details Applicability and revision

Position the LED strips on Credenza Neo and connect and secure the controller, power supply, and cables.

ProductH1076
Hardware generationH1076
Guide revisionrelease-2026-10-28
Applies to

H1076 Light Kit for Heckler Credenza Neo.

In this guide · 10 sections

In the box

a. 2 x 450 mm LED light strips

b. 1 x Power adapter

c. 1 x LED light-strip controller

d. 1 x Wireless remote

e. 2 x Alcohol wipes

f. 3 x LED strip connecting covers g. 3 x LED strip connectors

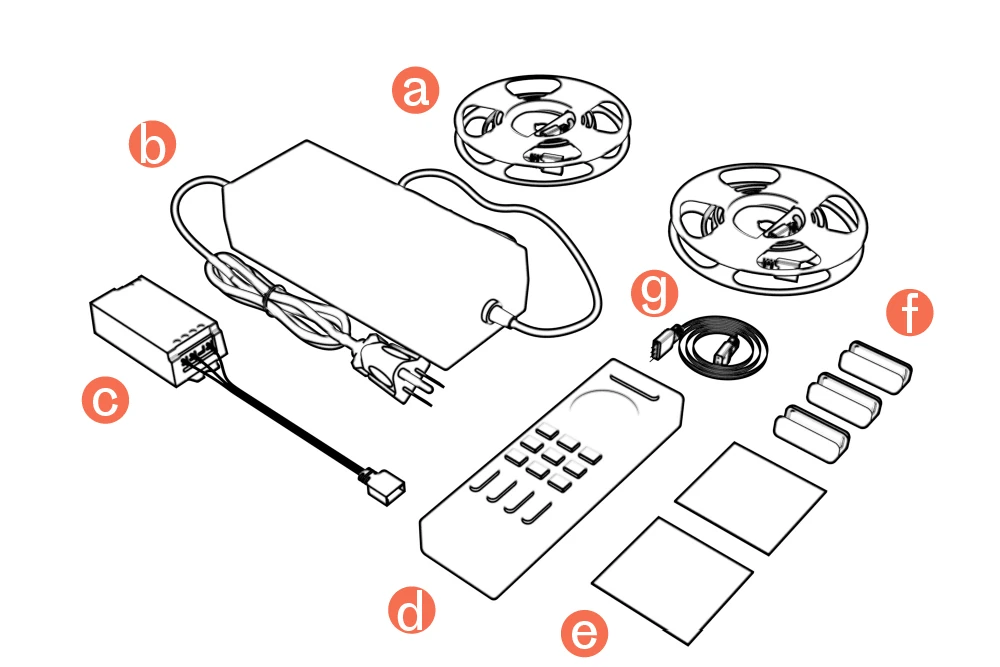

Kit components labeled a–g: LED strips, power adapter, controller, wireless remote, alcohol wipes, connector covers, and connecting cable.

Determine where to adhere the LED strips

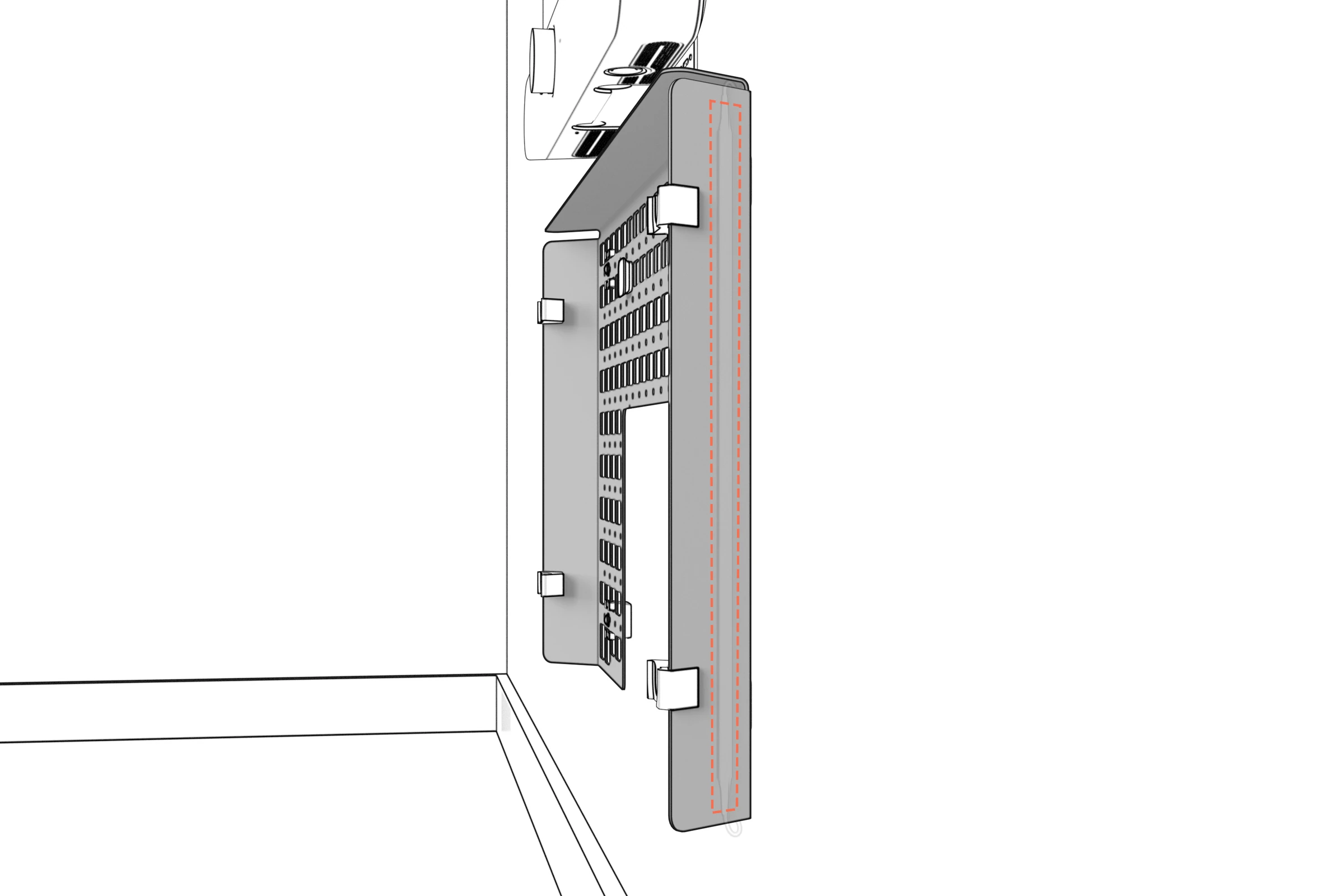

Rear side edge of Credenza Neo with the vertical LED-strip location outlined.

Clean the rear mounting surfaces with an alcohol wipe

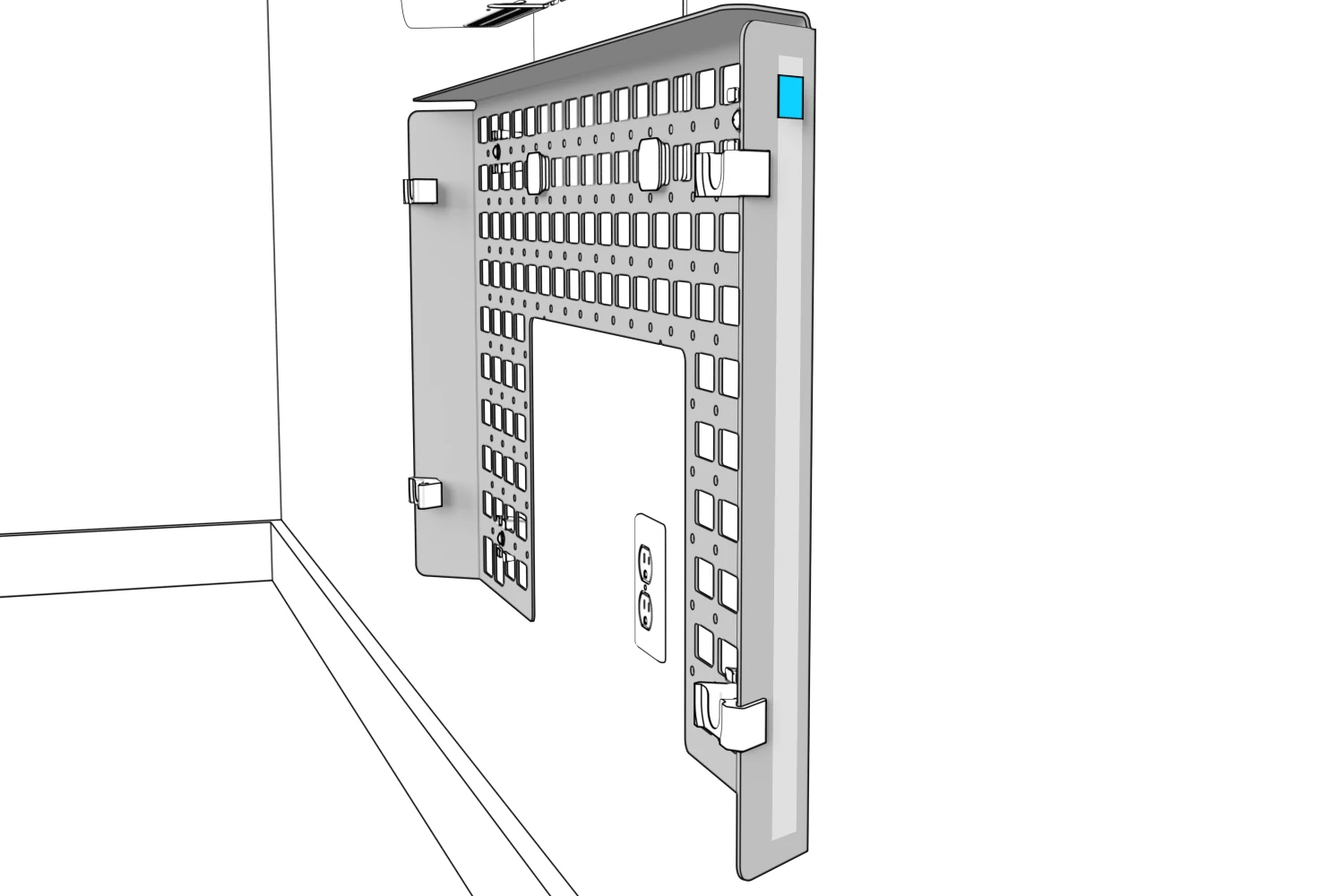

Alcohol wipe on the rear-right edge of the Credenza Neo chassis.

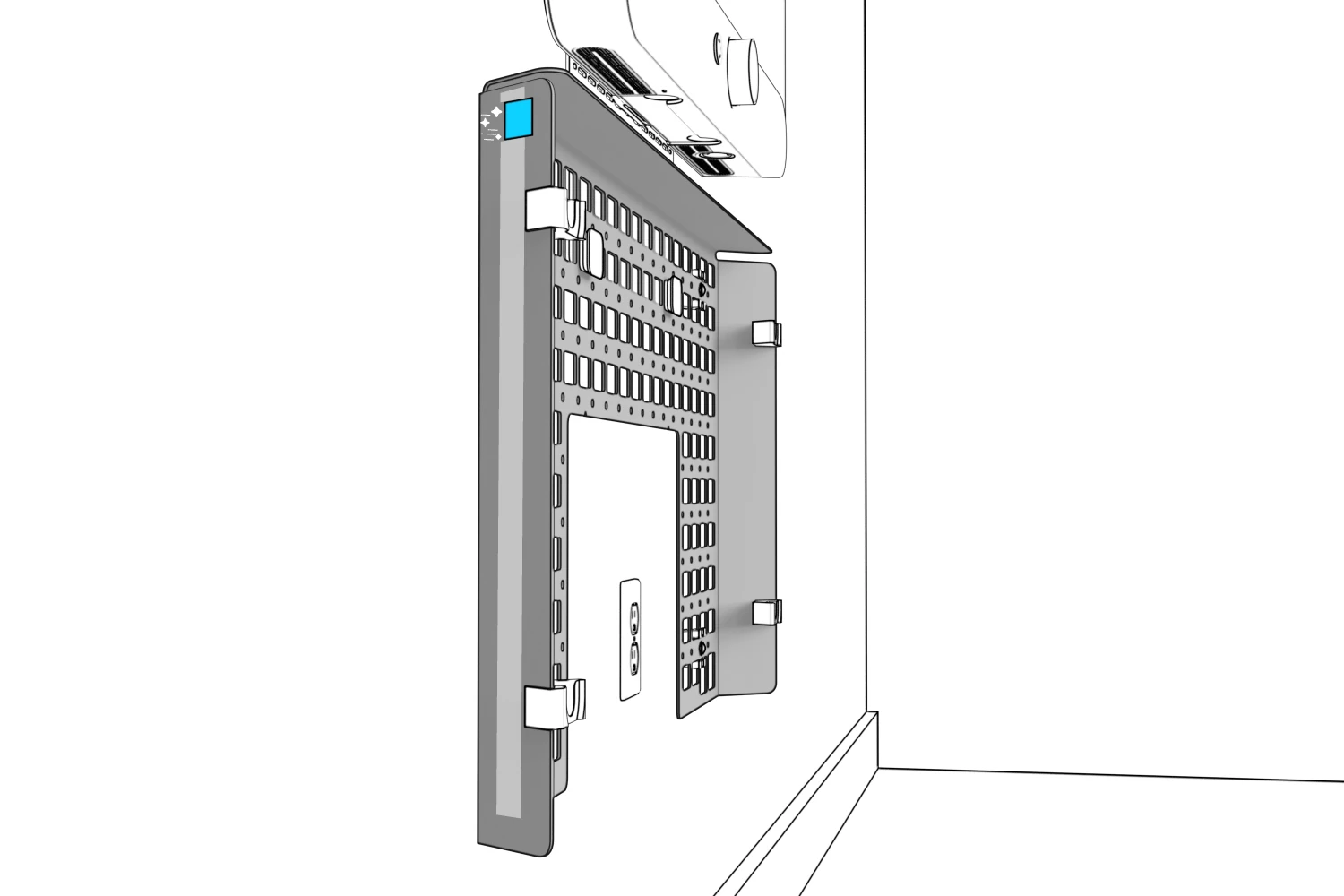

Alcohol wipe on the rear-left edge of the Credenza Neo chassis.

Adhere the right LED strip with its male connector at the bottom-right corner

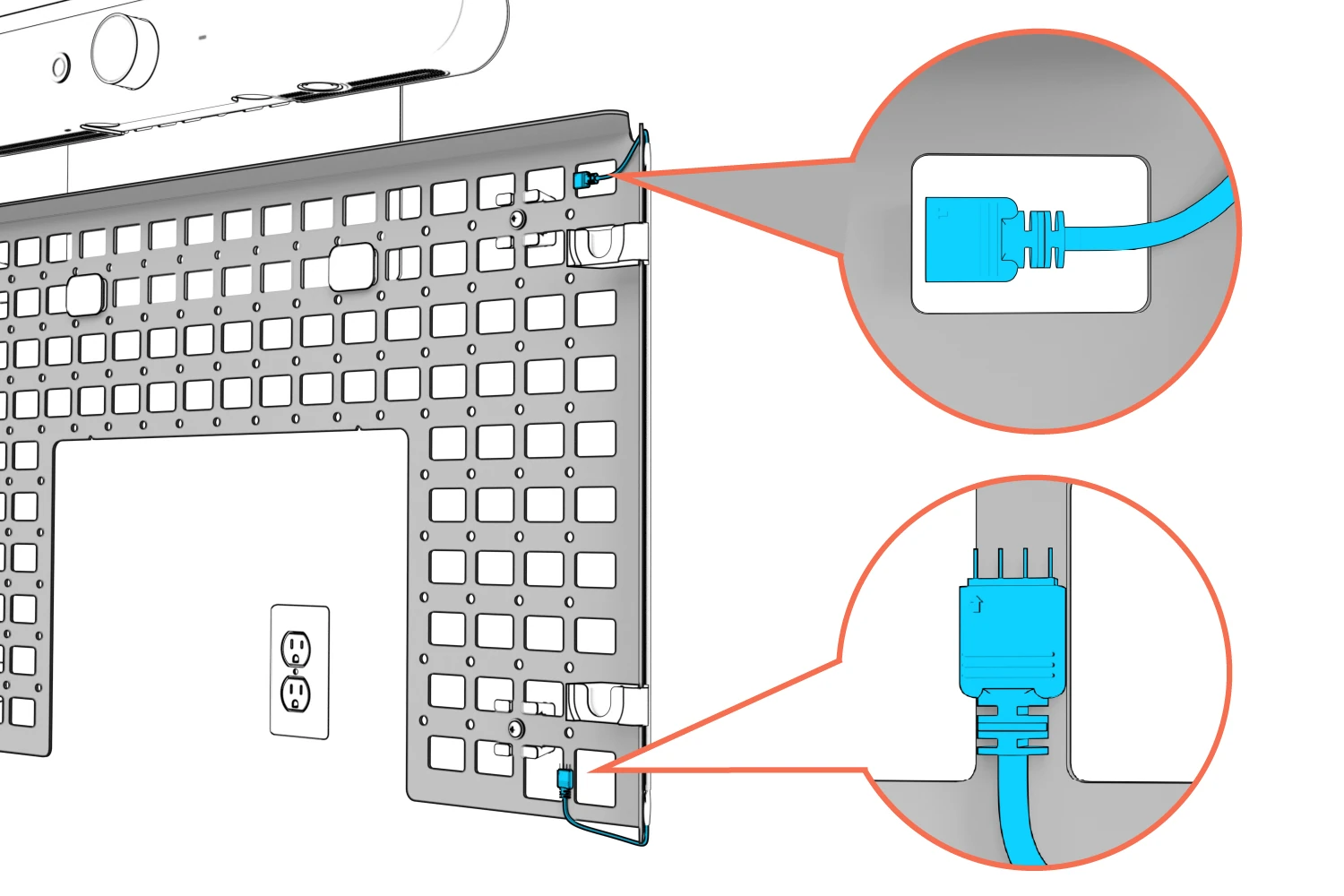

LED strip adhered along the right edge, with enlarged female upper and male lower cable connectors.

Connect the extension cable, align the arrows, and route it through the chassis from the front

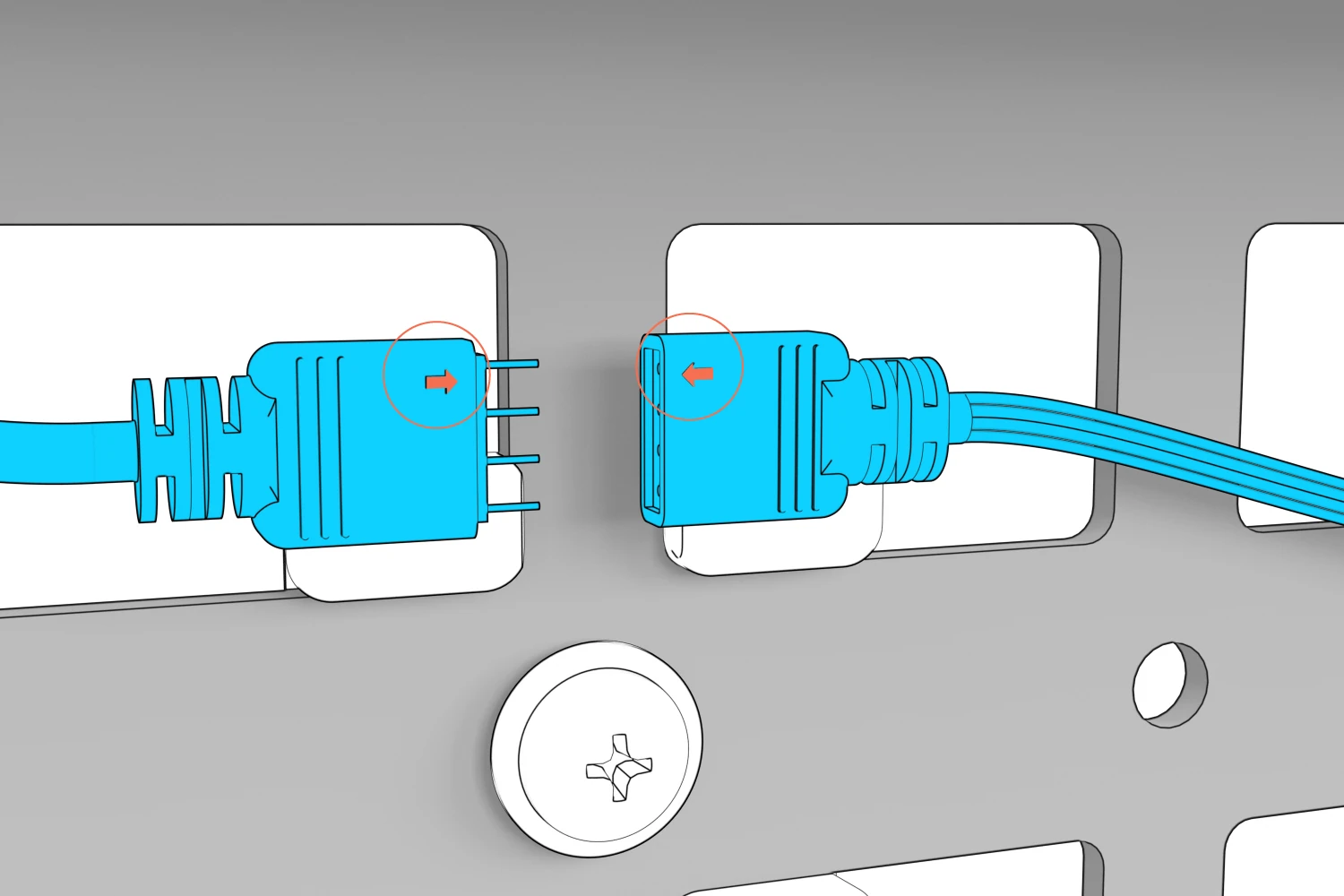

LED-strip and extension-cable connectors aligned with their arrow marks facing each other.

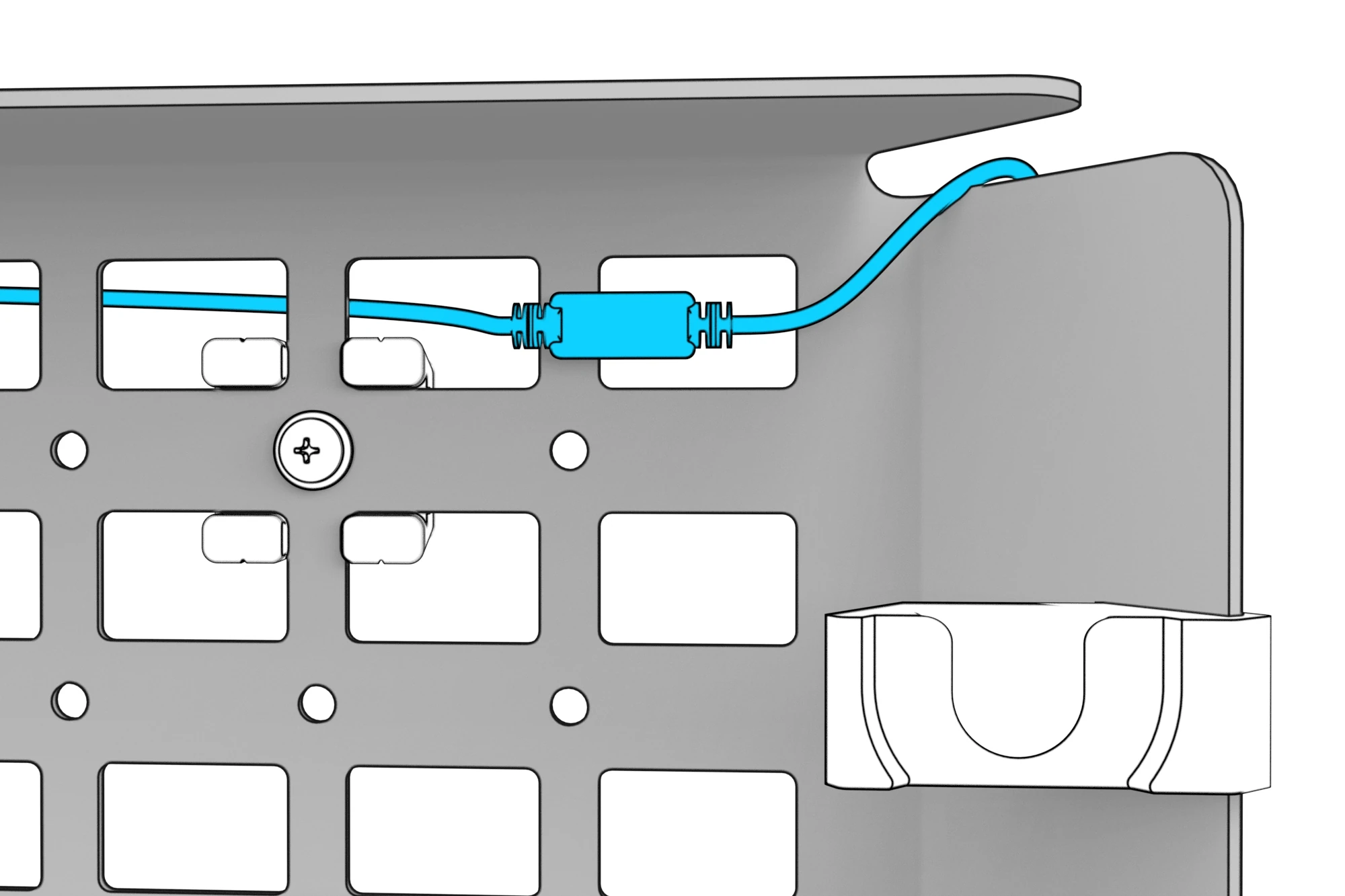

Connected extension cable routed through chassis openings along the upper edge.

Connect the extension cable to the left LED strip, then adhere the strip to the metal

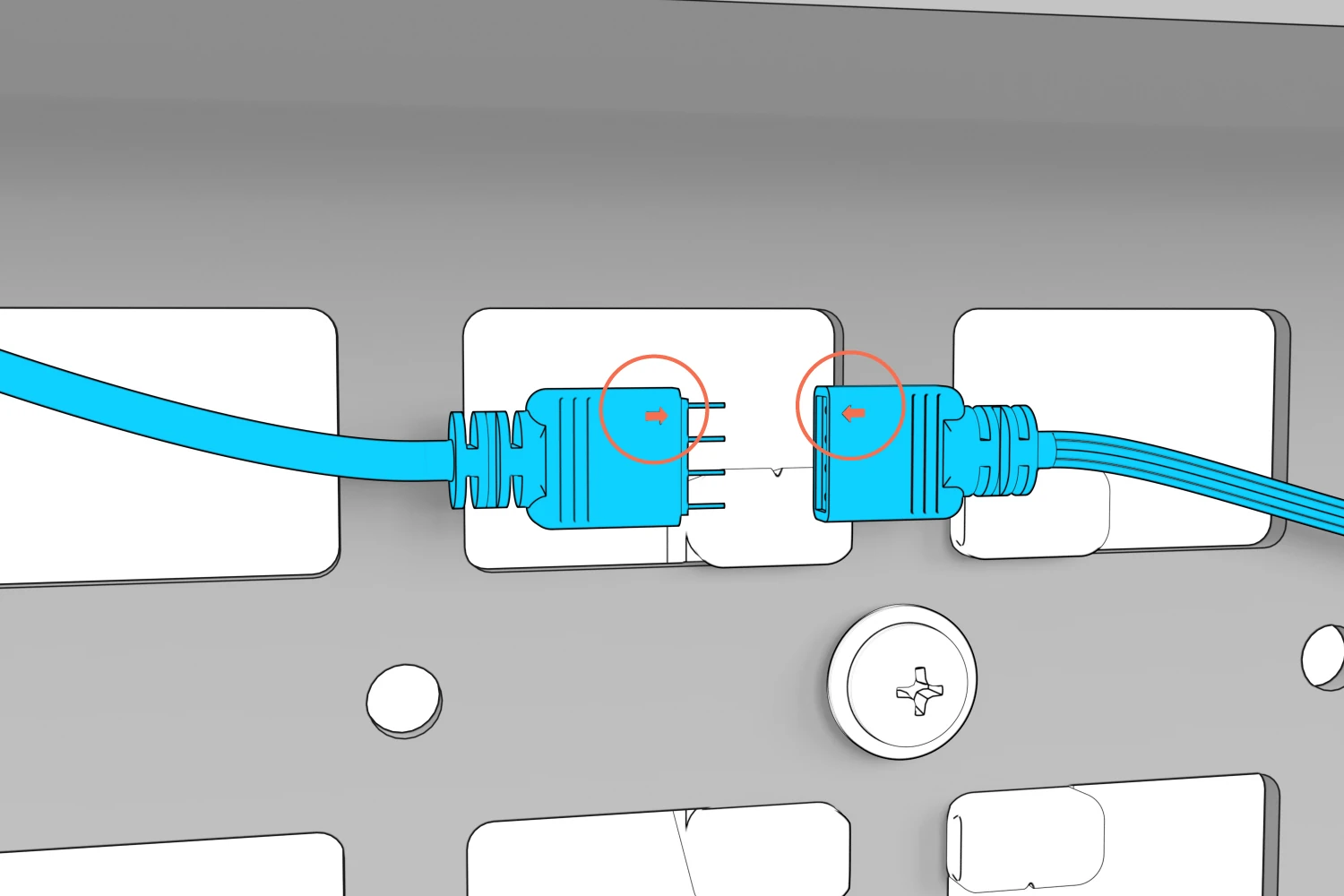

Extension cable aligned with the left LED-strip connector, with matching arrow marks highlighted.

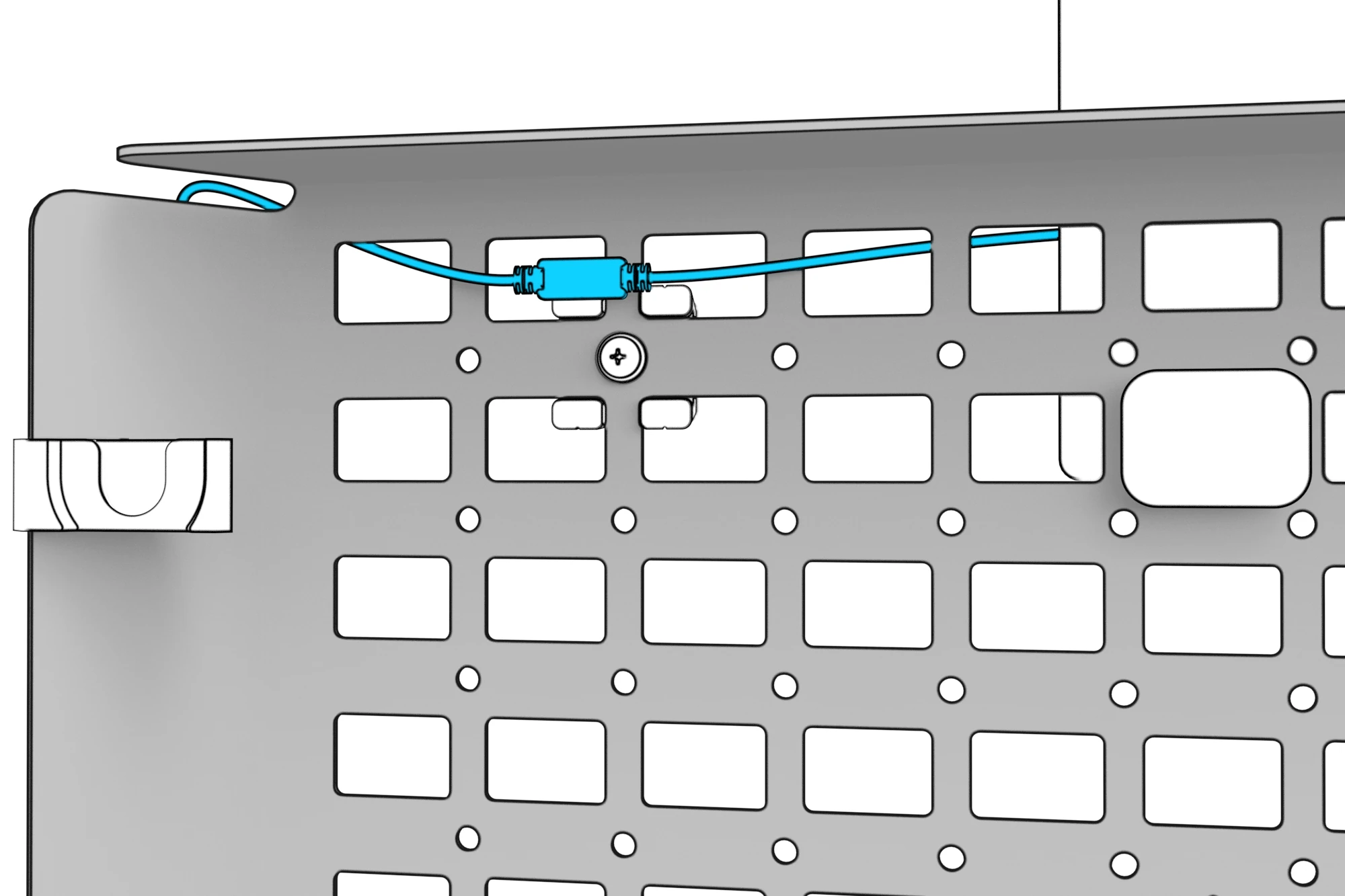

Left LED strip connected to the extension cable along the chassis top.

Connect the right LED strip to the controller and power adapter

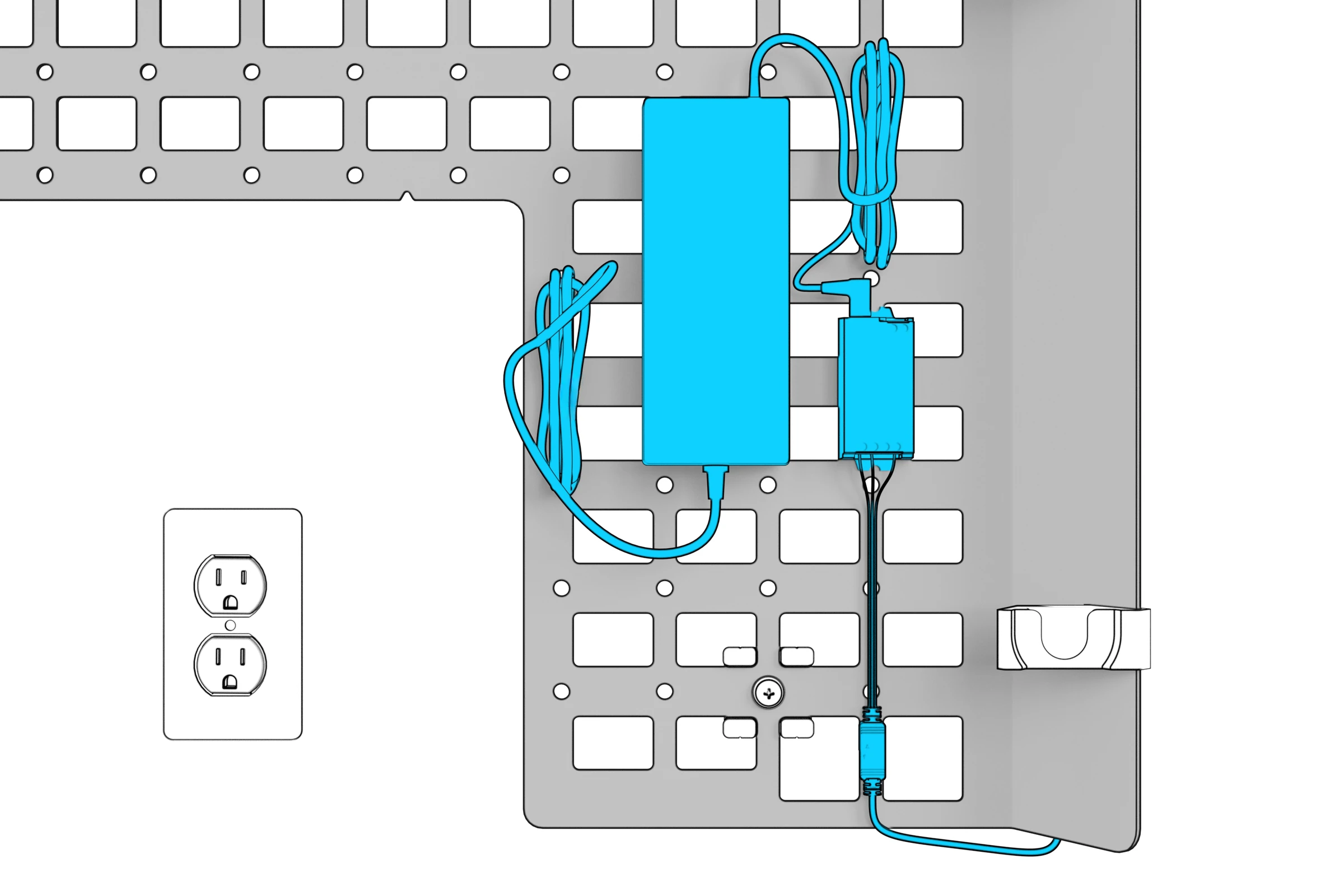

Right LED strip connected to the controller and power adapter on the chassis grid.

Secure the LED connections with the connecting covers

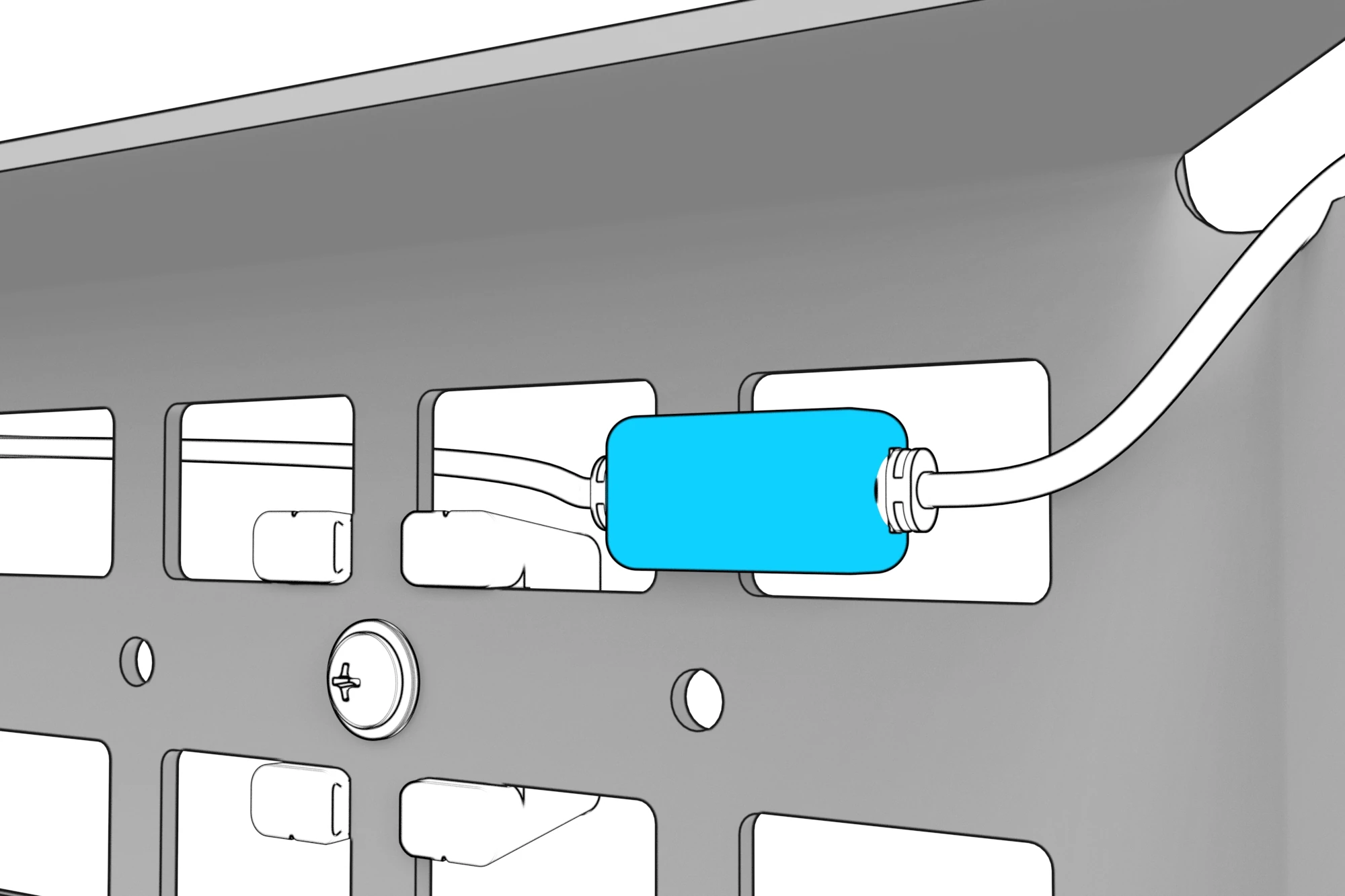

Protective connecting cover fitted around an LED-strip cable connection.

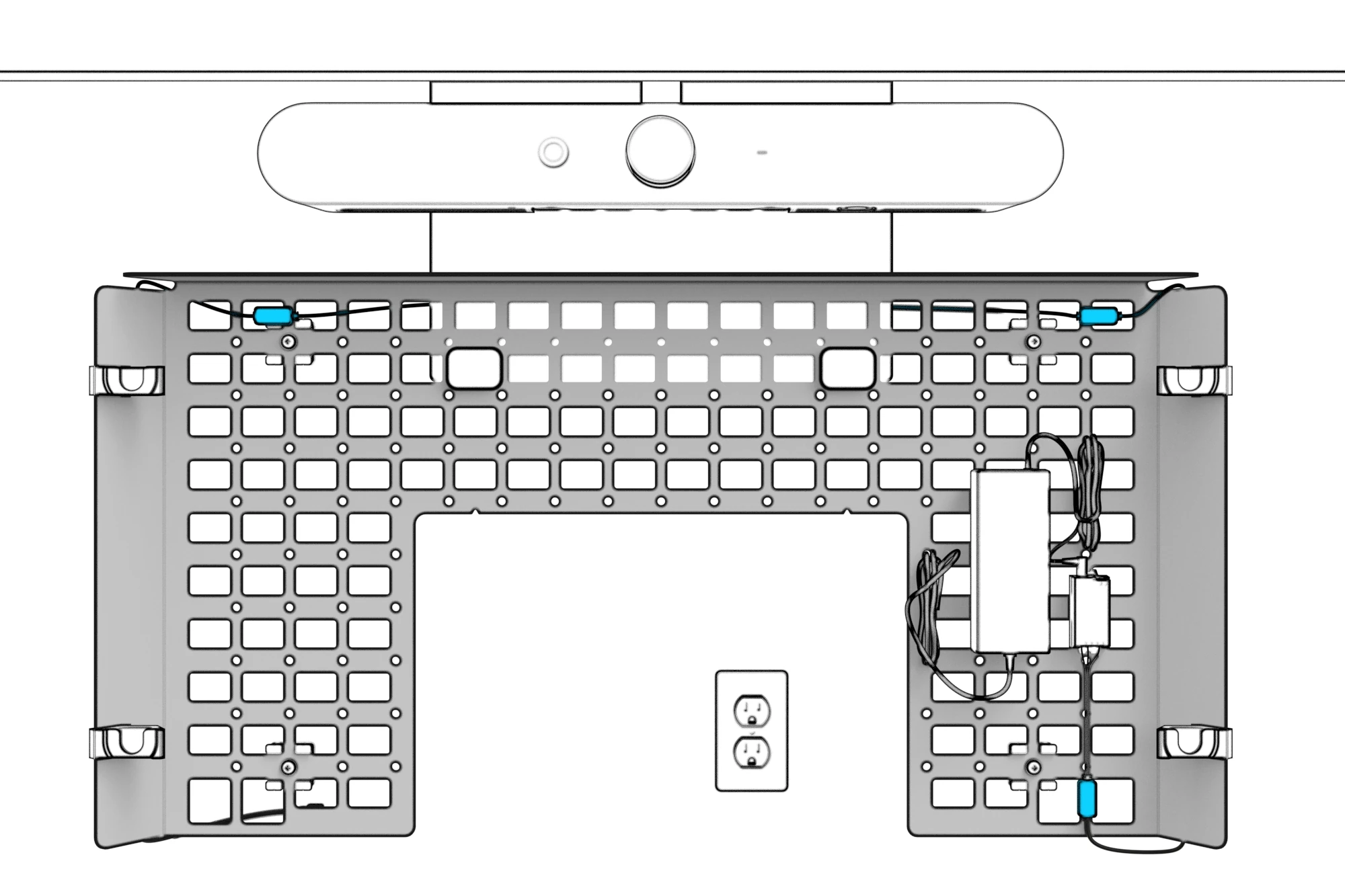

Rear overview showing connection covers on the routed LED cables.

Strap the controller, power adapter, and excess cable to the chassis grid

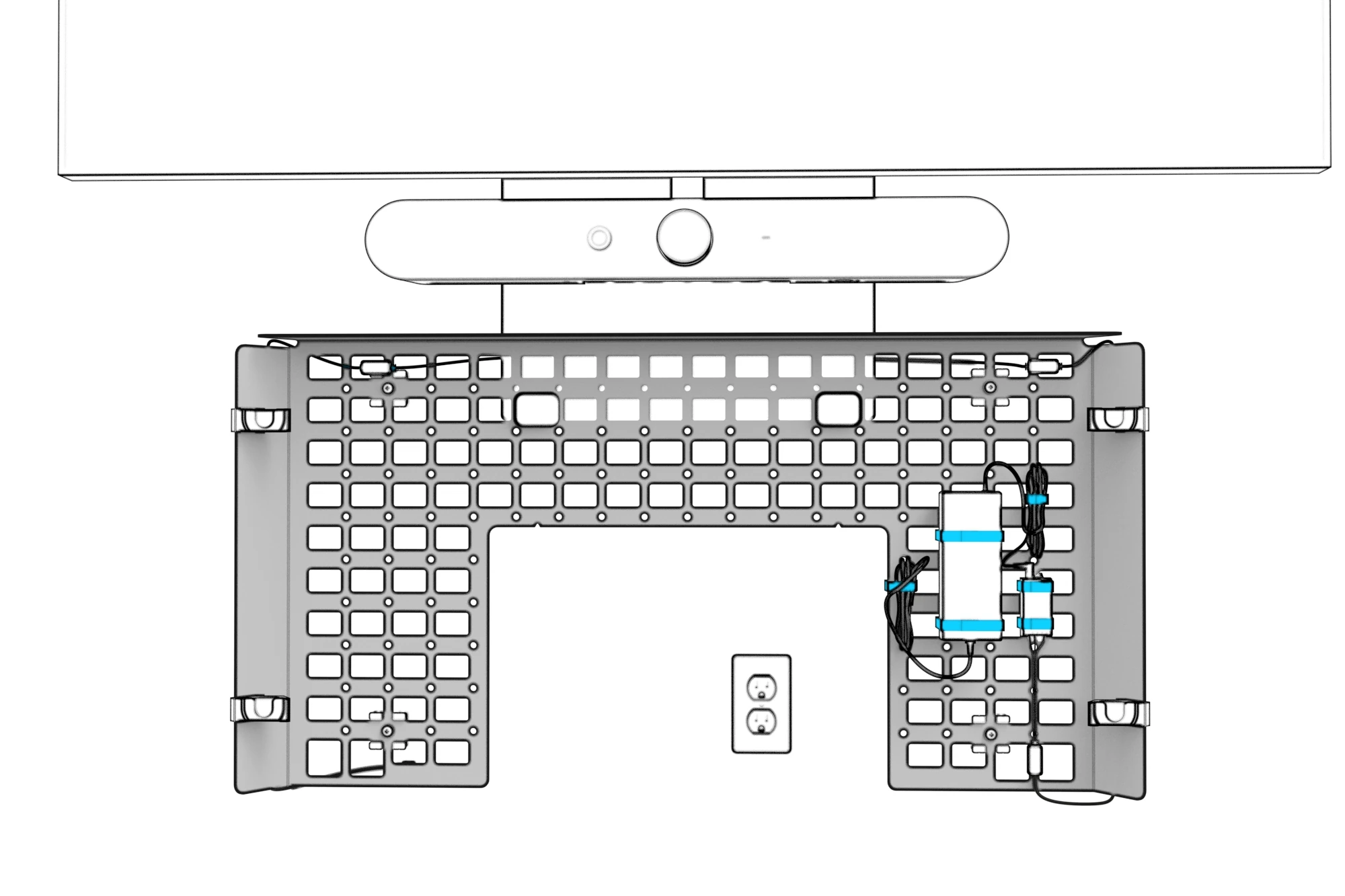

Hook-and-loop straps holding the controller, power adapter, and coiled excess cable to the chassis grid.

Connect power and use the remote

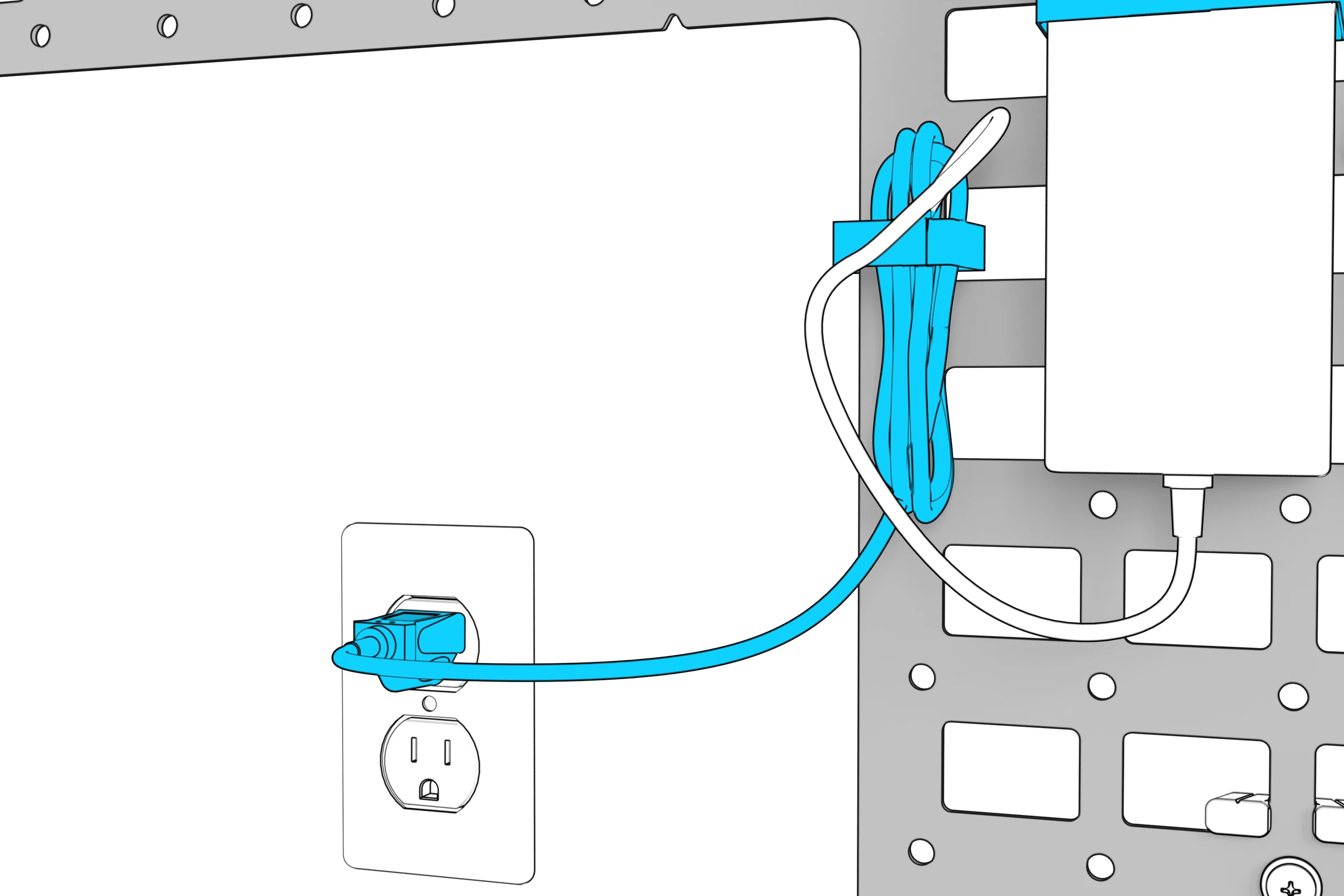

Power-adapter plug connected to the wall outlet behind the chassis.

Follow the instructions supplied with the remote controller. To link the light to a zone, switch the light off, wait 10 seconds, then switch it on. Within 3 seconds, briefly press that zone’s ON/link button three times. Three slow flashes confirm linking; repeat if the light does not flash slowly. To unlink, follow the same power cycle and press the zone’s ON/link button five times within 3 seconds. Ten quick flashes confirm unlinking; repeat if the light does not flash quickly. A light already linked to the selected zone cannot be linked again. A light that has not been linked does not need to be unlinked.

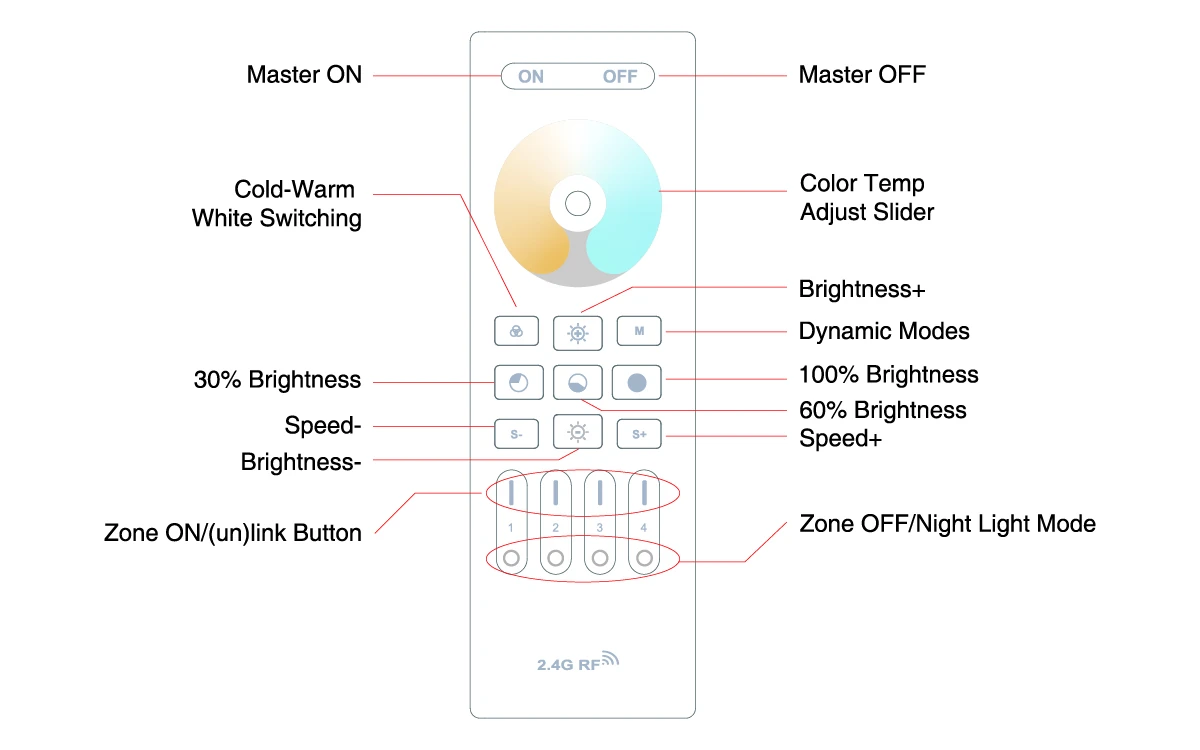

Remote-control diagram labeling power, white-light color temperature, brightness, dynamic modes, speed, and zone controls.

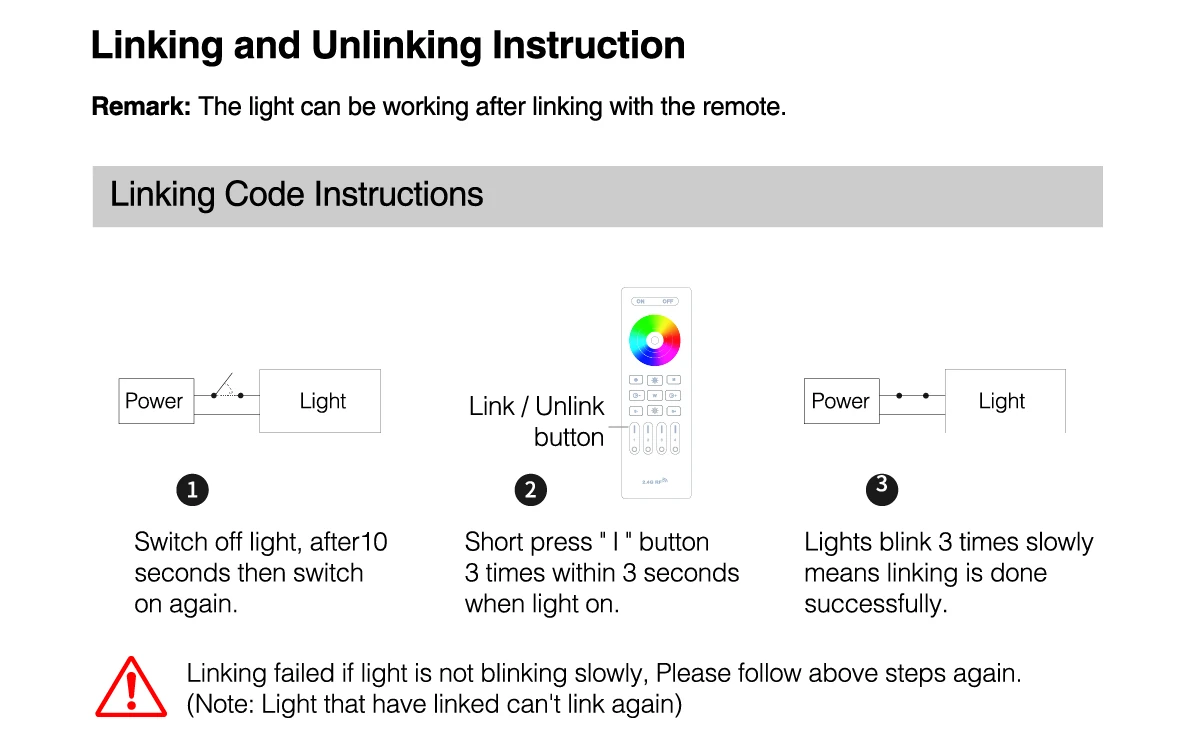

Remote linking sequence: switch the light off for 10 seconds, turn it on, and press the zone ON/link button three times within 3 seconds; three slow flashes confirm linking.

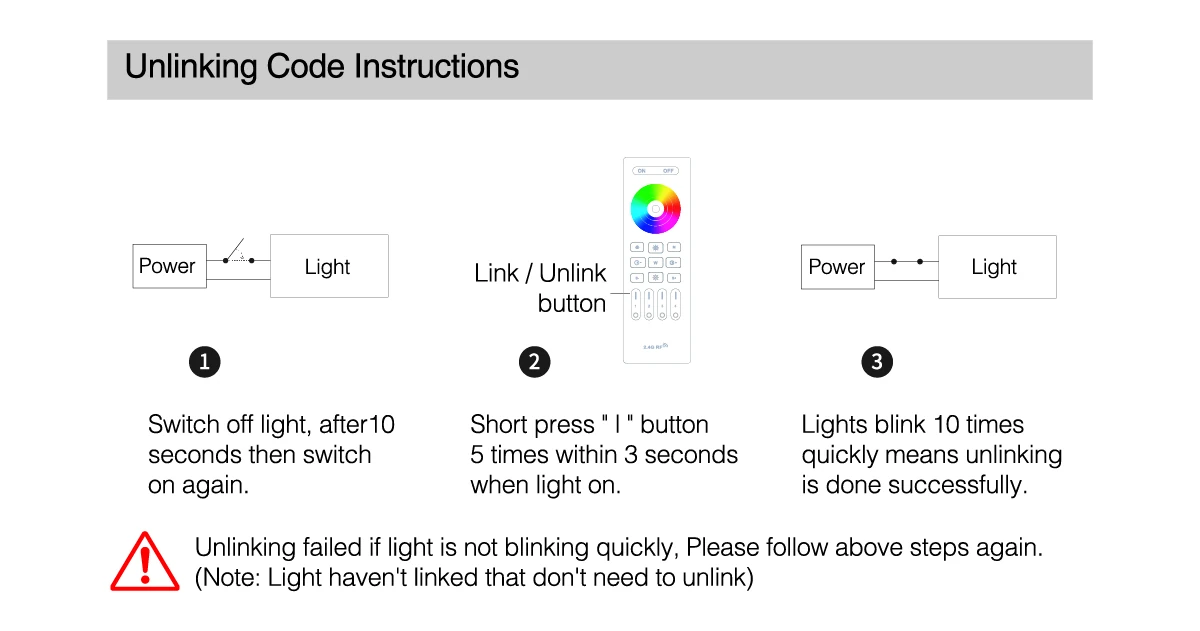

Remote unlinking sequence: switch the light off for 10 seconds, turn it on, and press the zone ON/link button five times within 3 seconds; ten quick flashes confirm unlinking.
