User guide

H659 Side Mount for iPad mini 6th Generation

Read guide

PDF · Letter PDF · A4

Guide details Applicability and revision

Mount the enclosure to the side of a mullion and install iPad mini 6th Generation and its cabling.

ProductH659

Hardware generationH659 · iPad mini 6th Generation

Guide revisionrelease-2026-10-28

Applies to

H659 Side Mount for iPad mini 6th Generation.

In this guide · 21 sections

In the box

a. 1 x Heckler Side Mount

2. 2 x Mullion-mounting Screw (F063) 3. 2 x Rubber Washer (F064) 4. 1 X Cable Tie (F817) 5. 1 x Enclosure Assembly Key (F529) 6. 1 x Set Screw Assembly Key (F914) 7. 1 x Right-angle USB-C to USB-C adapter (F102) 8. 1 x Hook-and-loop Dot (F695)

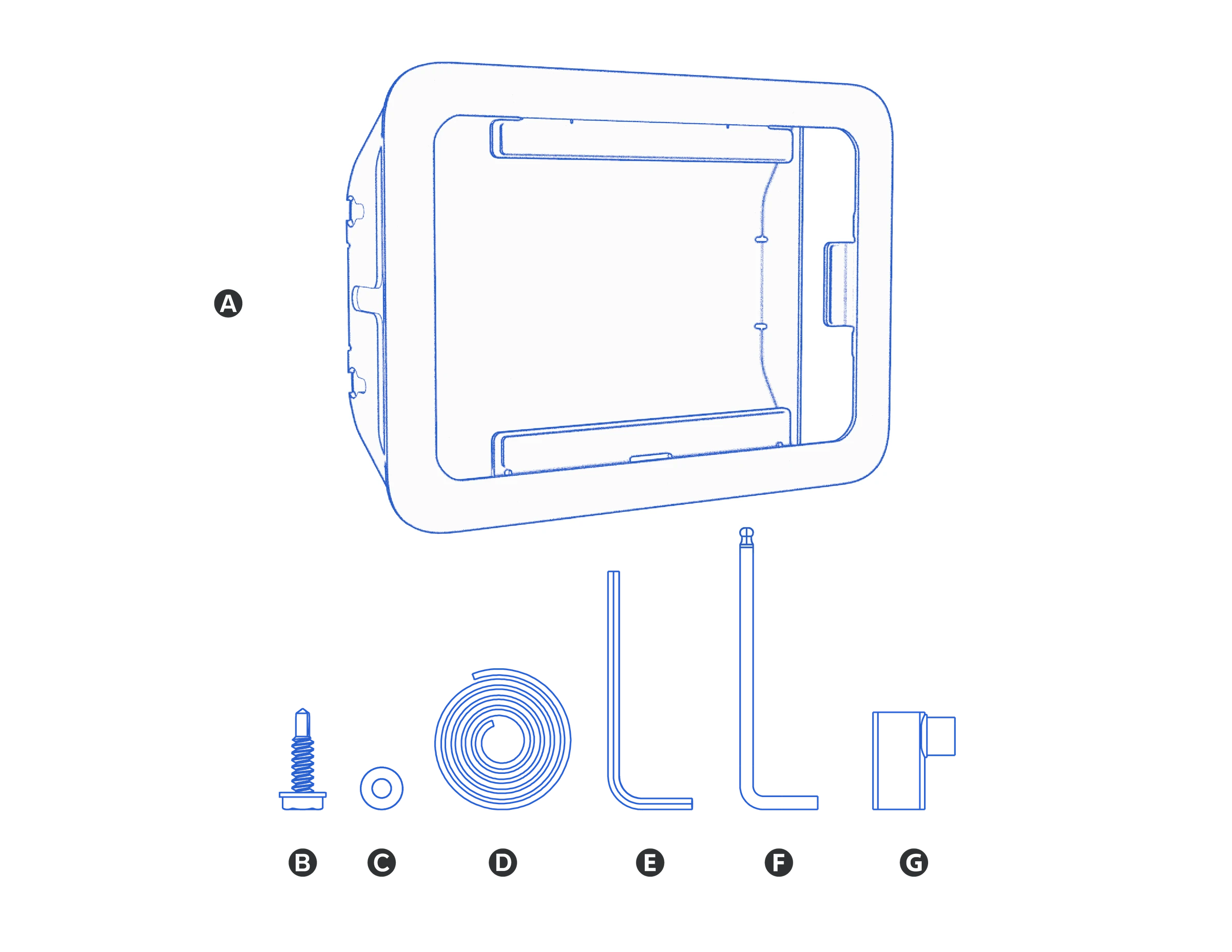

Components labeled A–G: Side Mount, mullion-mounting screw, rubber washer, cable tie, enclosure assembly key, ball-end hex key, and right-angle USB-C adapter.

Mount the pocket to your mullion

Determine the installation height

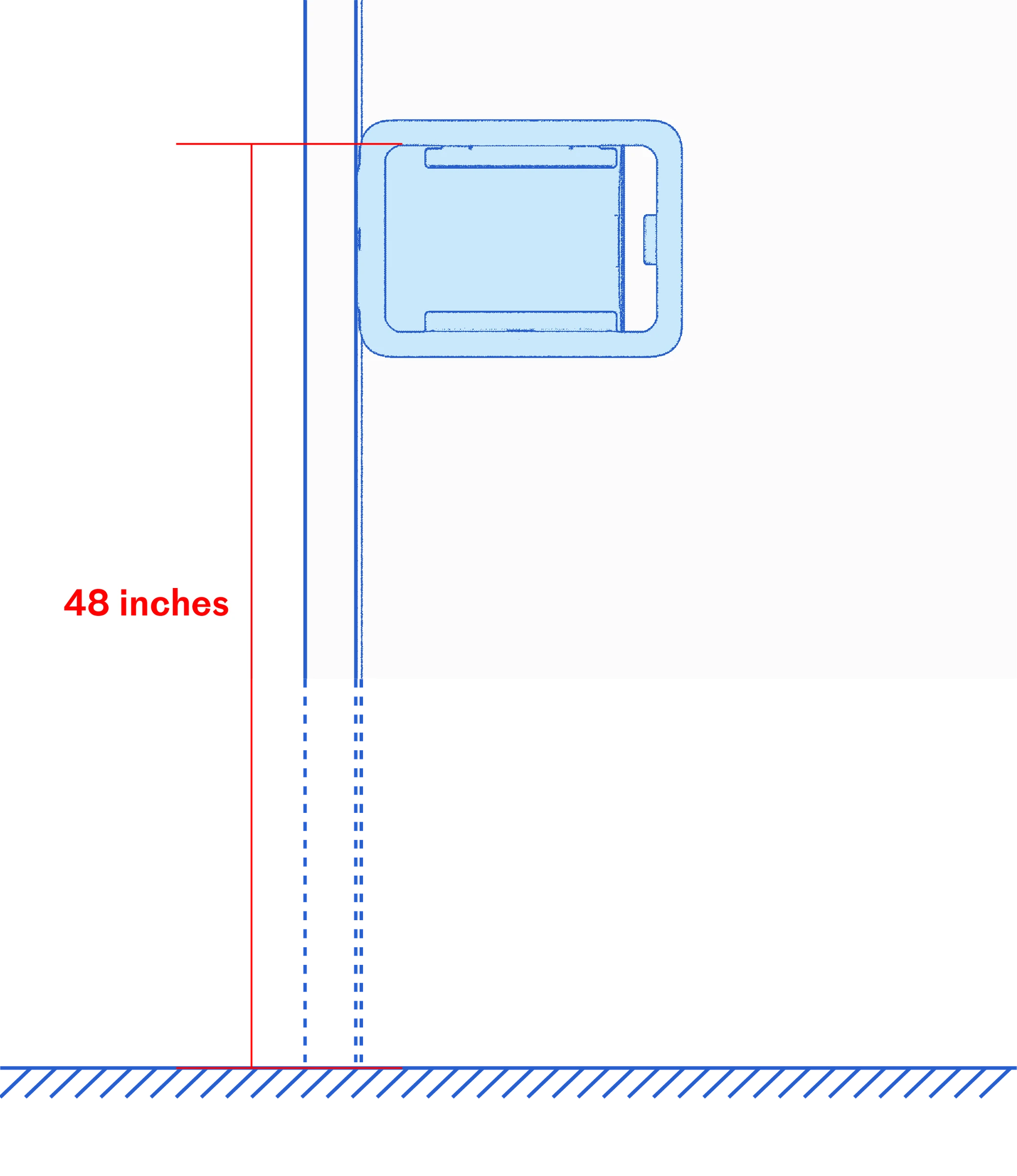

Side-mounted enclosure with a dimension line labeled 48 inches from the finished floor to the top of the screen opening.

Tape the enclosure to the mullion at its desired installation height

Using a felt-tipped marker, mark the two screw positions and the CAT cable hole position as shown.

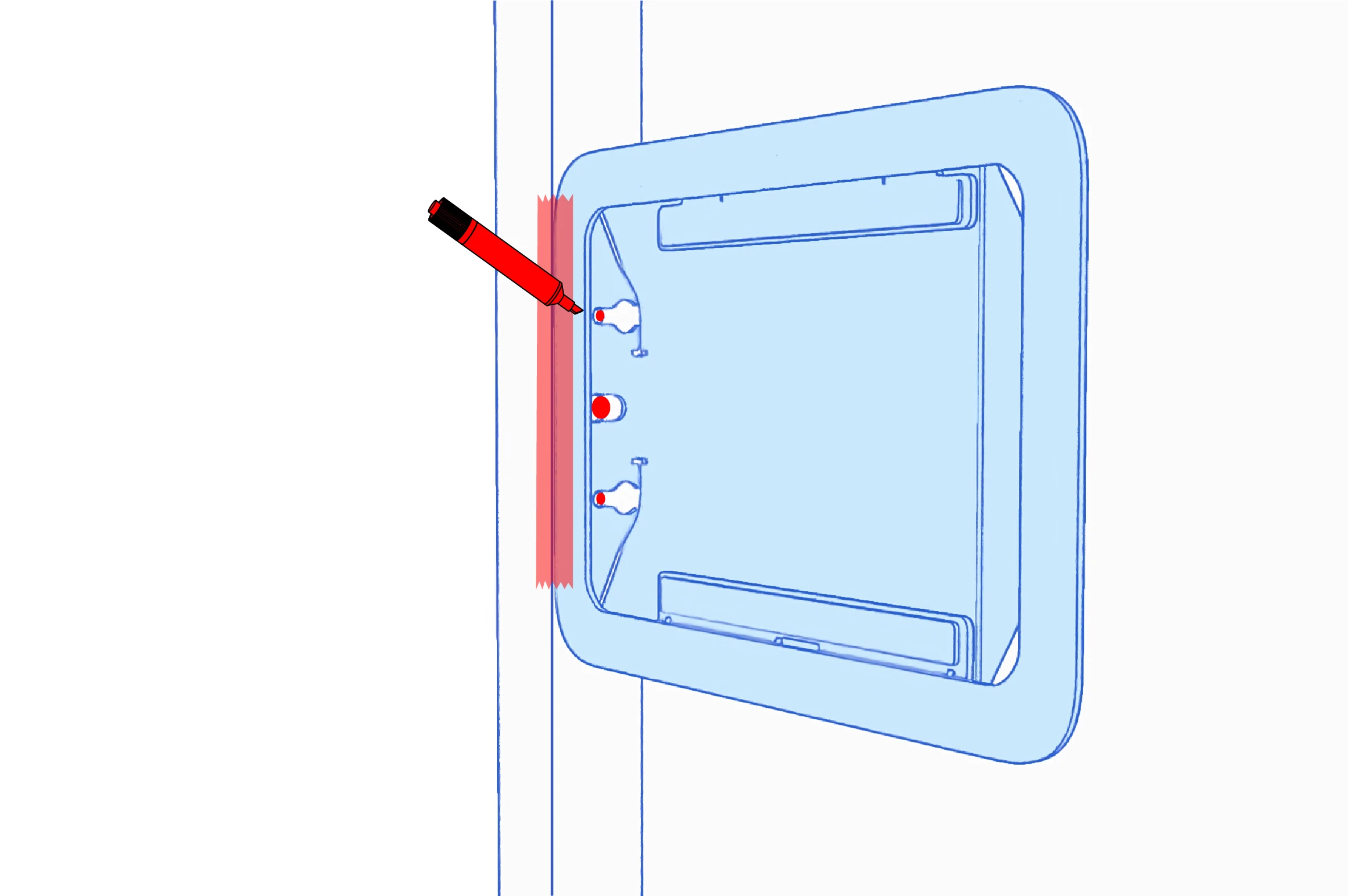

Side Mount taped against the mullion, with a marker indicating the two mounting-screw positions and the center cable opening.

Remove the mount from the mullion.

Drill the mounting screw holes into the mullion

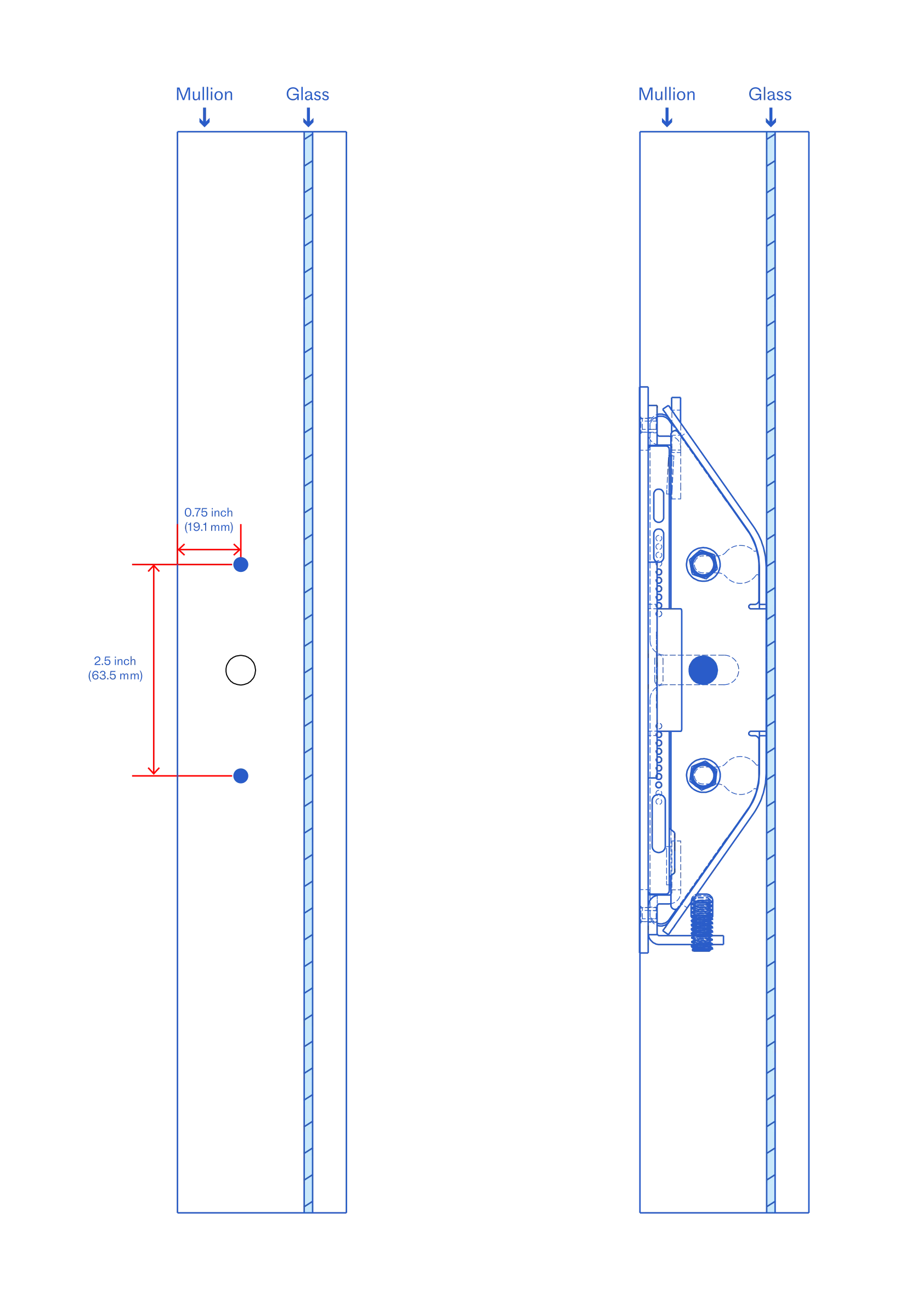

Mullion and glass cross-sections showing mounting holes 2.5 inches (63.5 mm) apart and 0.75 inch (19.1 mm) from the front edge, with the Side Mount pocket positioned beside the glass.

Drill the network cable hole into the mullion

Use the smallest diameter drill bit possible to enable your network cable to pass through the mullion.

Fasten the mounting screws into the mullion

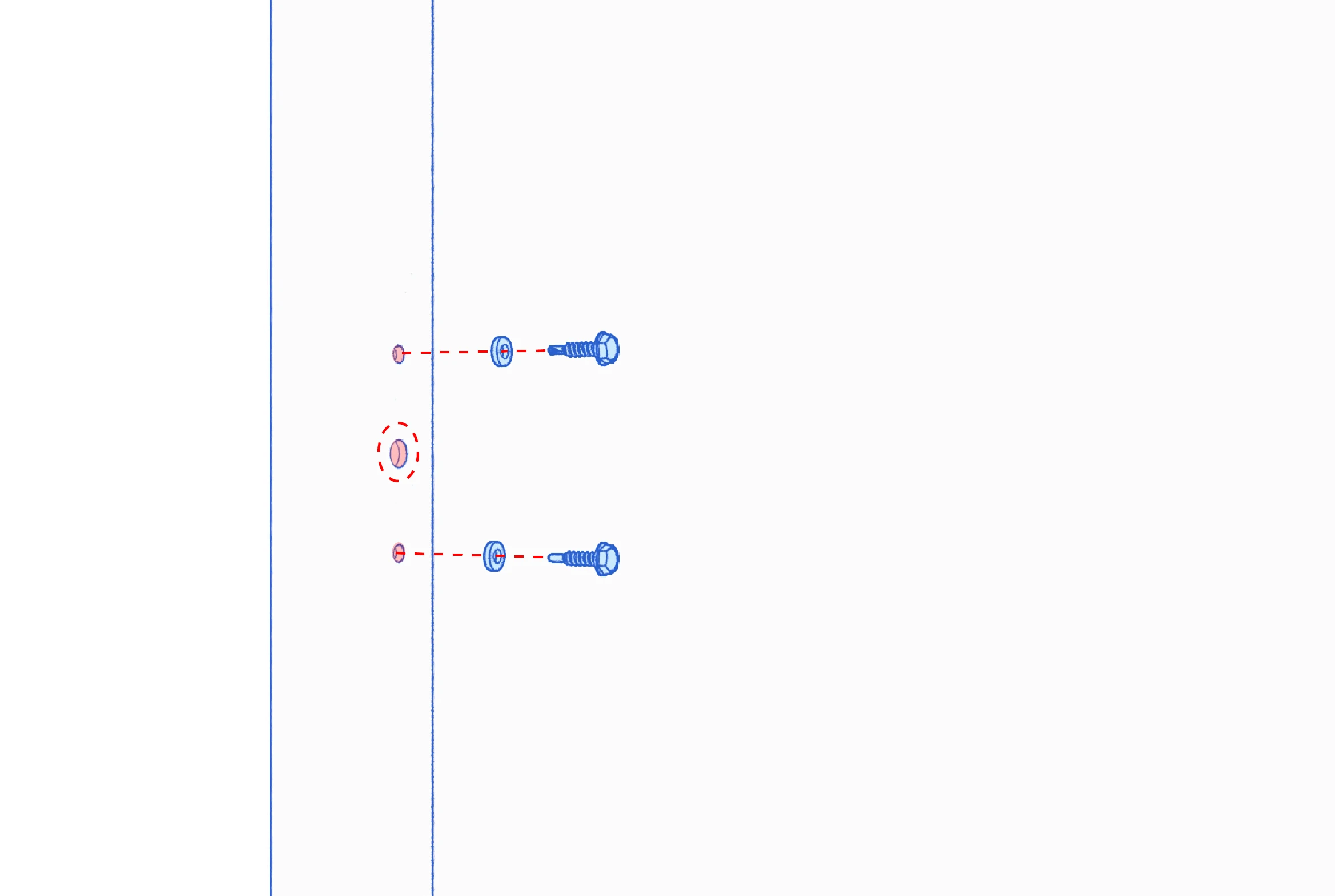

Two mounting screws and rubber washers aligned with the mullion holes, above and below the larger cable opening.

Route the CAT cable through the mullion

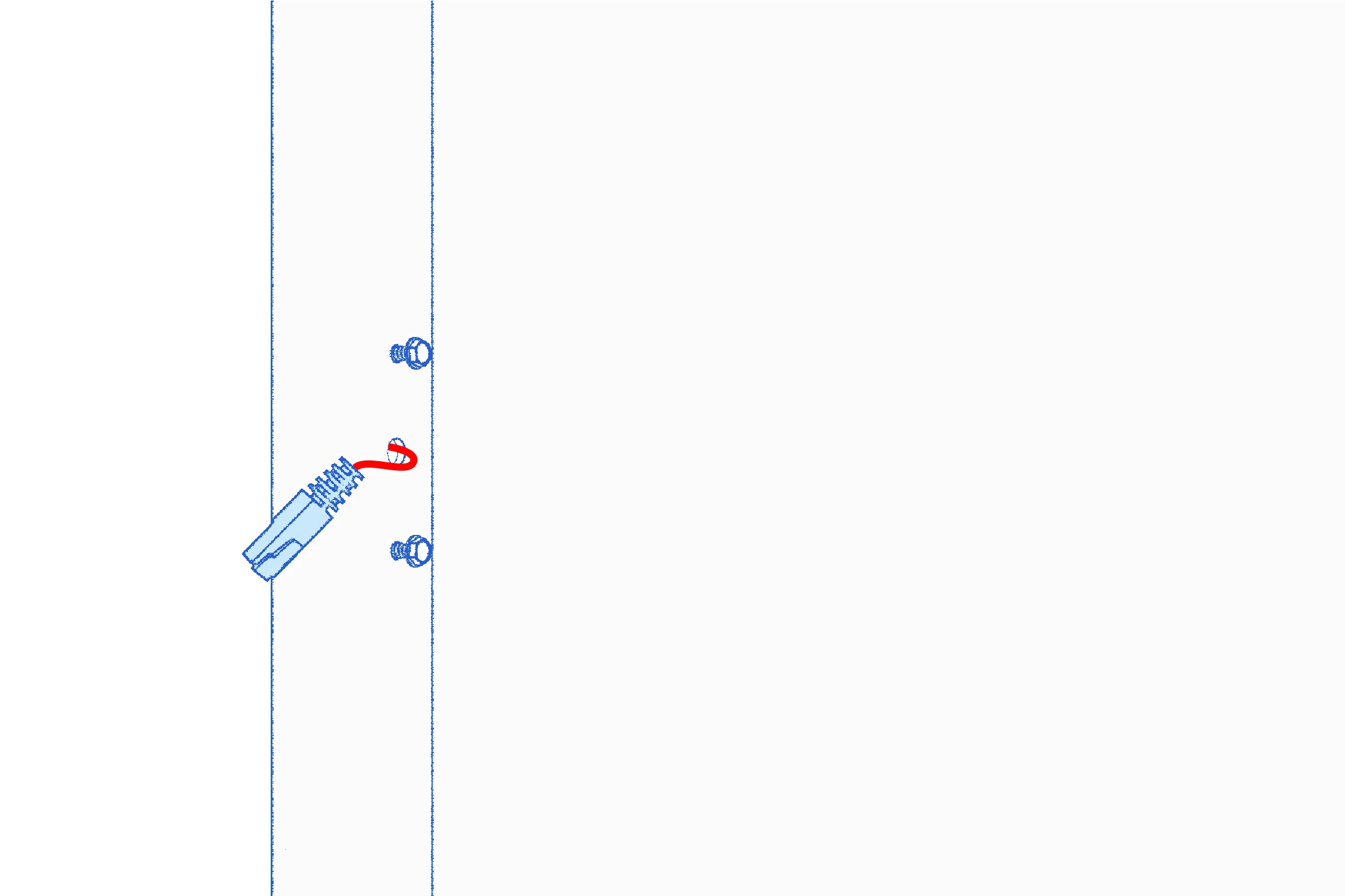

Network cable with an RJ45 connector passing through the center mullion opening between the mounting screws.

Remove the tablet enclosure from the pocket

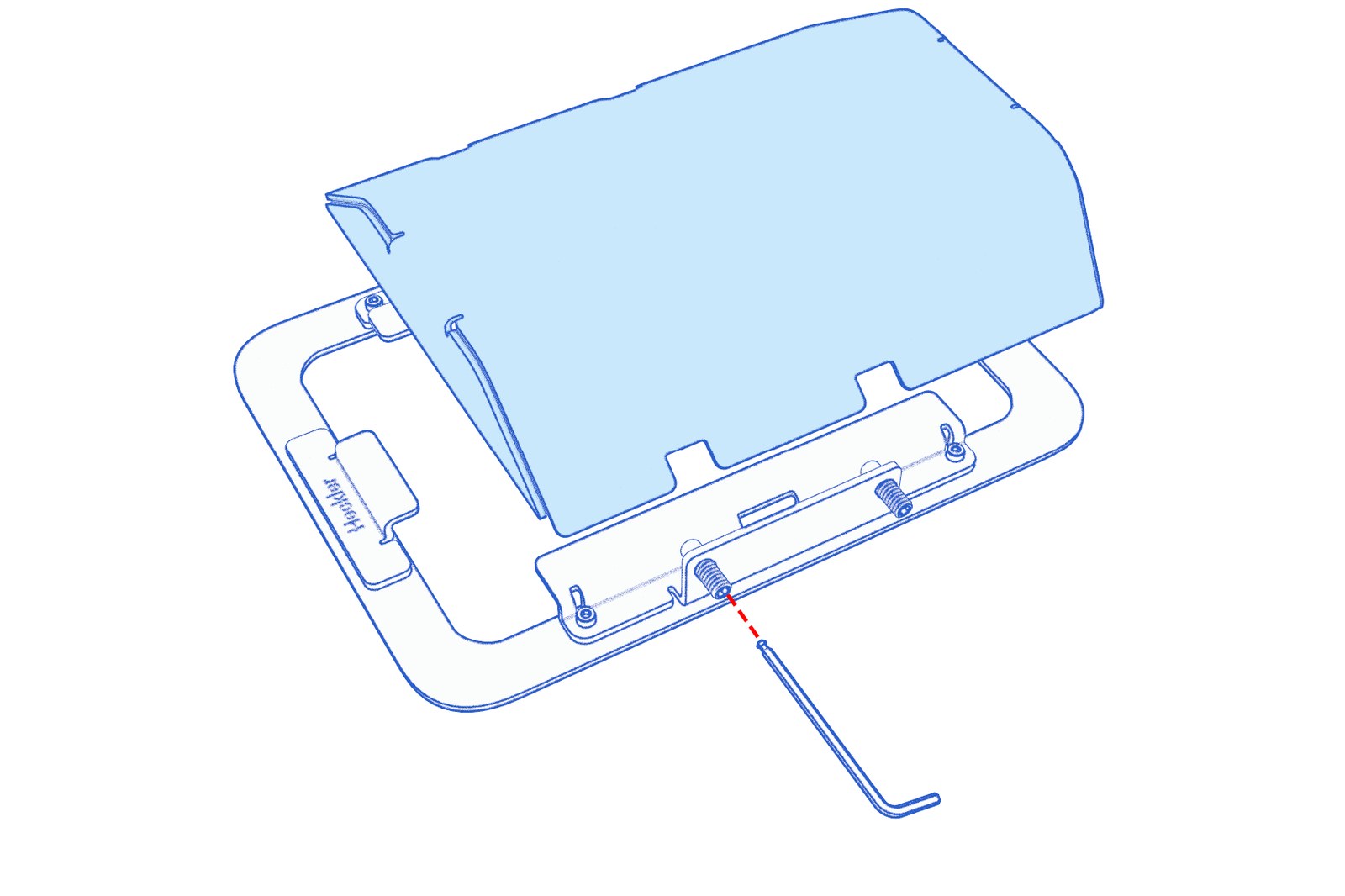

Animated diagram showing the hex key at a lower set screw and the pocket lifted away from the tablet enclosure.

Slide the pocket to the screw and tighten the mounting screws

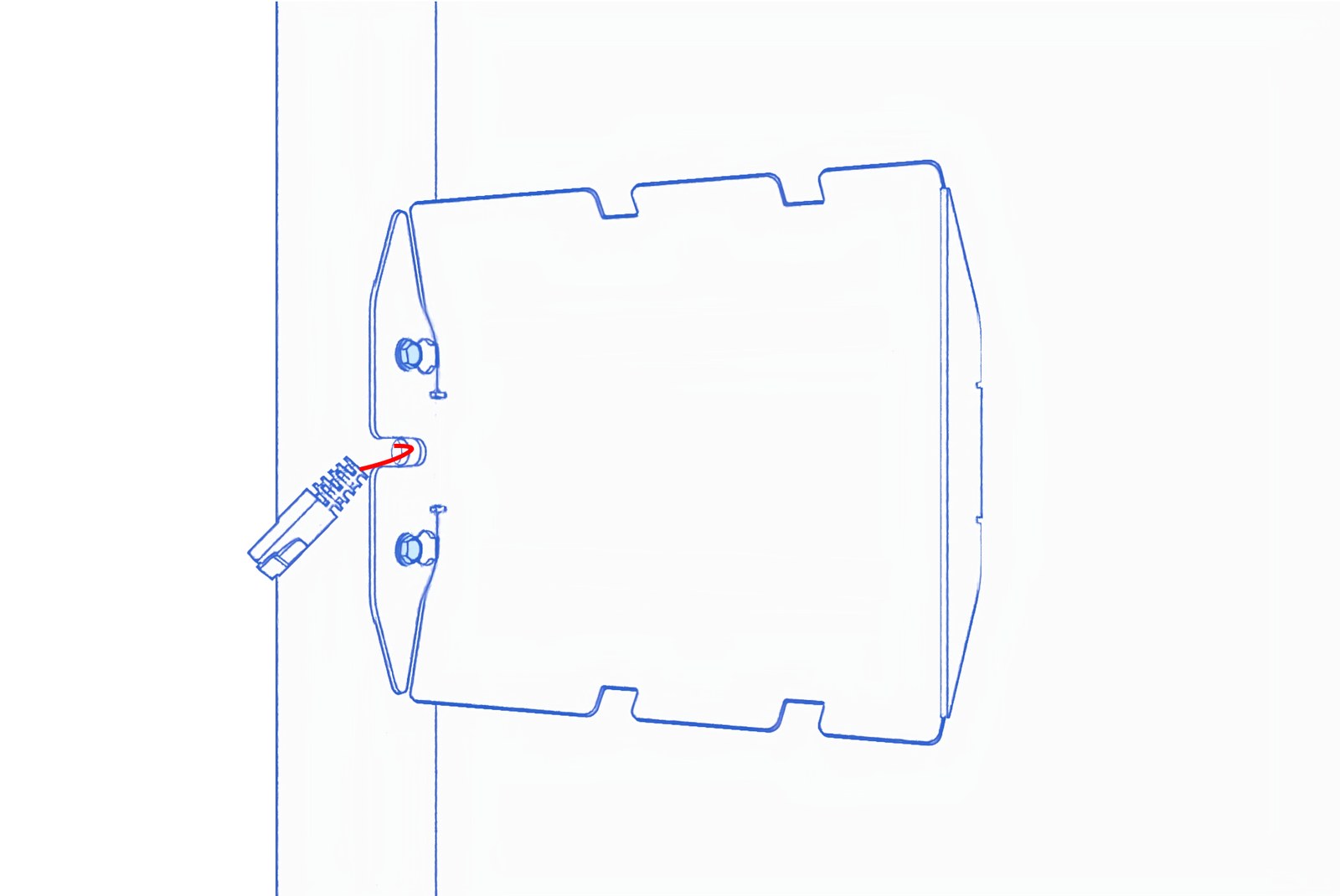

Animated diagram showing the pocket positioned over the two mullion-mounting screws, with the network cable passing through its center opening.

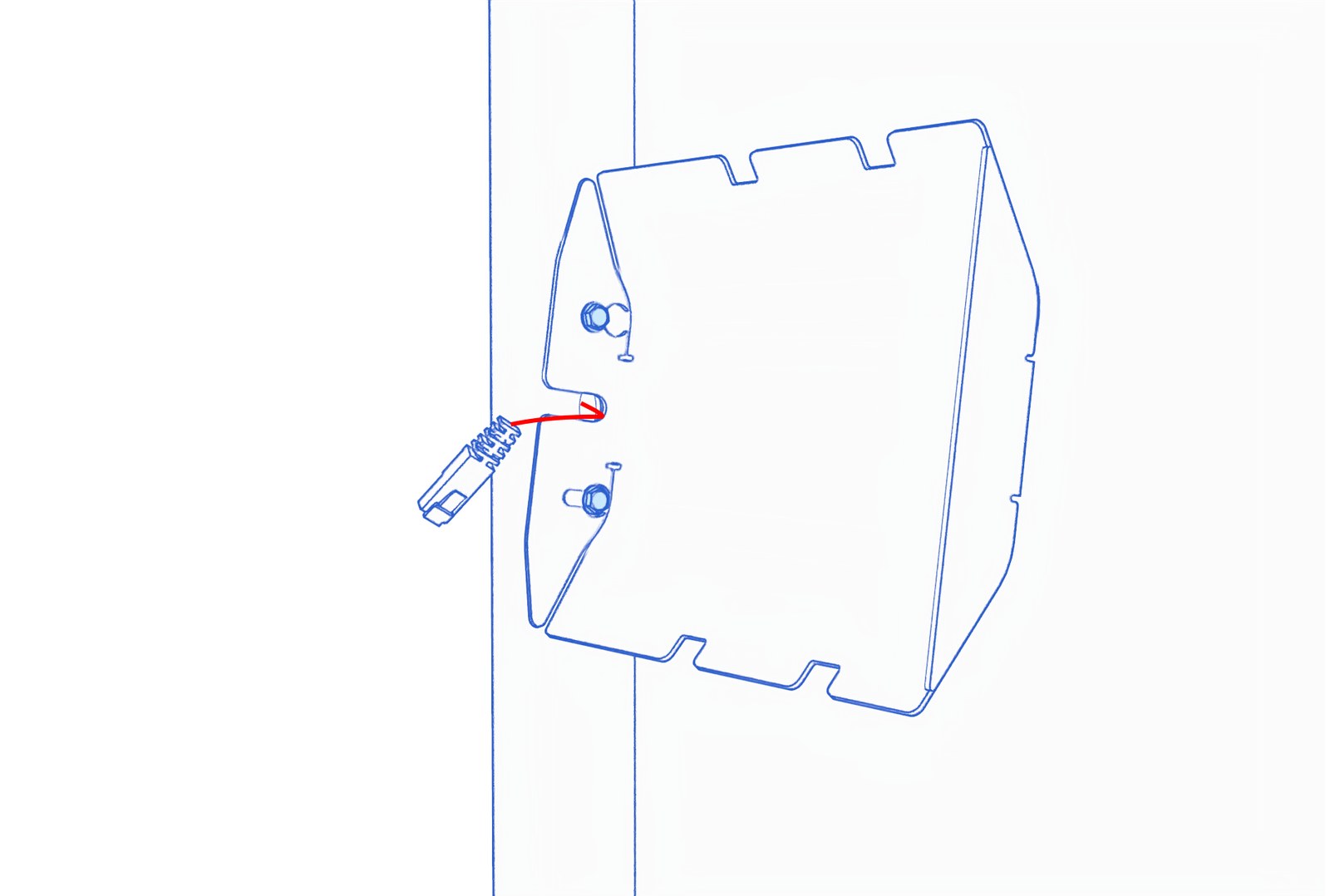

Animated diagram showing the pocket in an angled position on the mullion-mounting screws, with the network cable passing through its center opening.

Install your PoE adapter inside the pocket

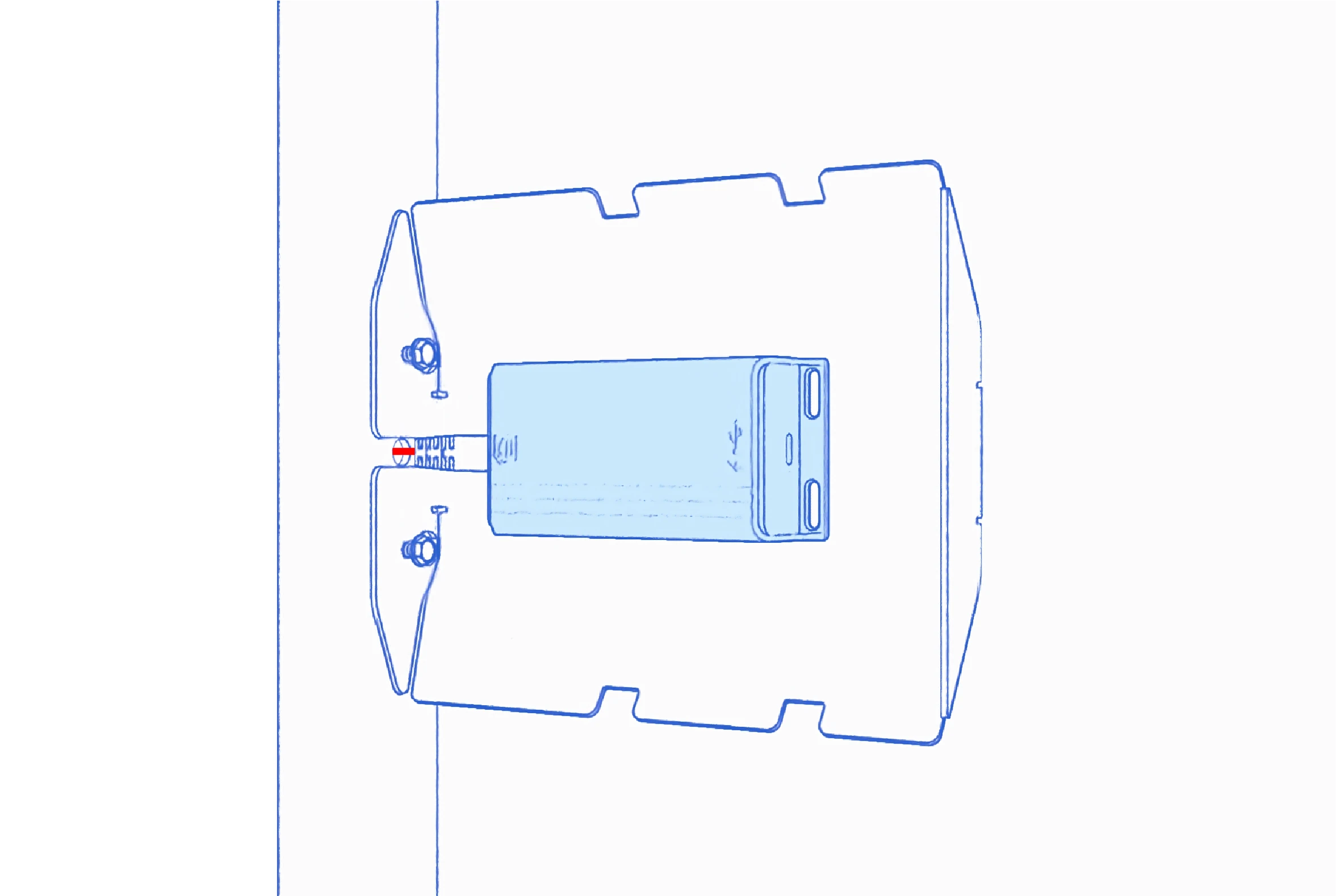

PoE adapter positioned inside the mounted pocket with the network cable connected through the mullion-side opening.

Install the iPad mini 6th Generation

Loosen the top and bottom enclosure brackets

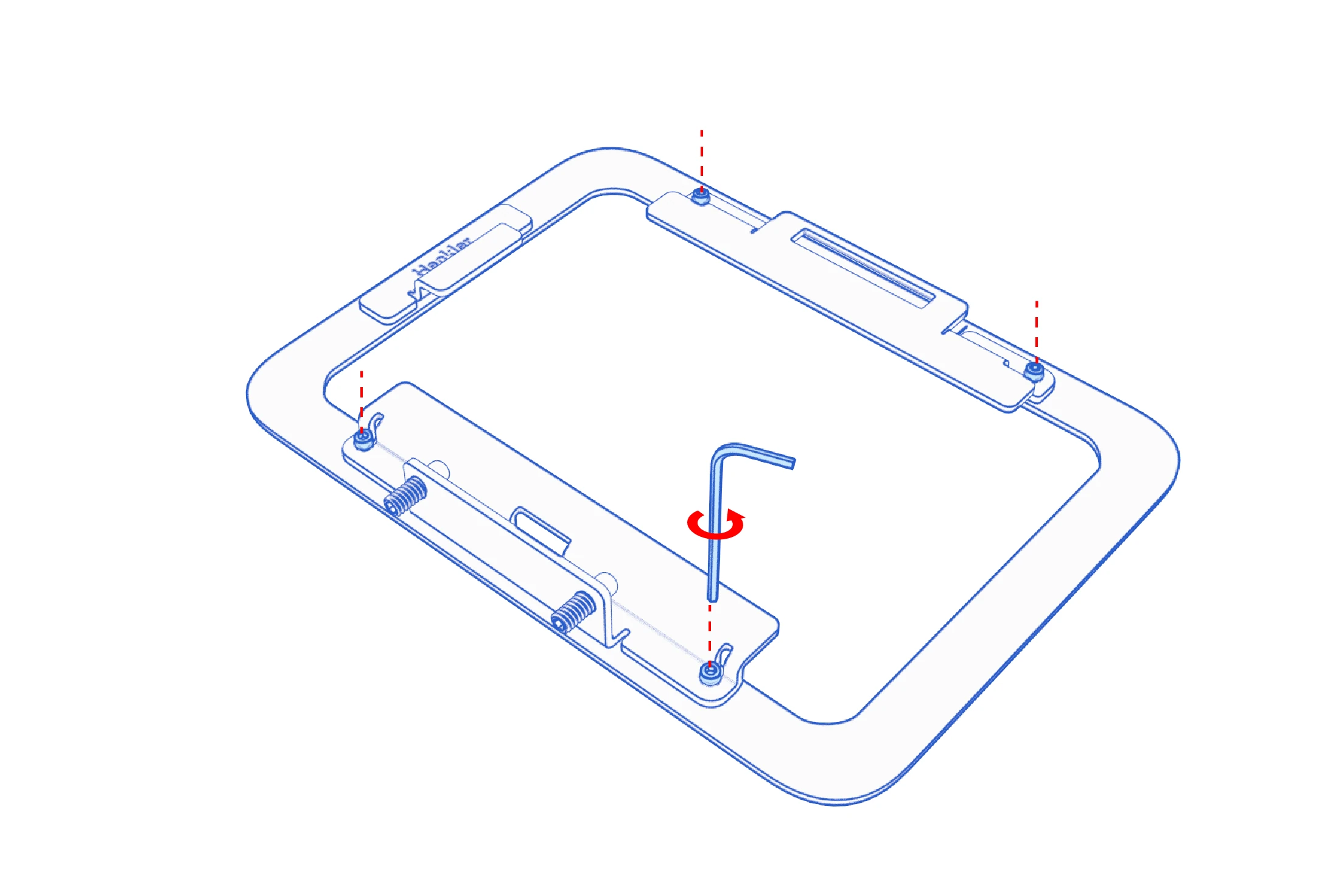

Rear view of the tablet enclosure, with four bracket screws indicated and an assembly key at one screw.

Install the iPad mini 6th Generation into the enclosure

Carefully slide the iPad mini into the open end of the enclosure, past the loosened brackets.

Slide the iPad mini until it fully engages with the tab on the far side of the enclosure.

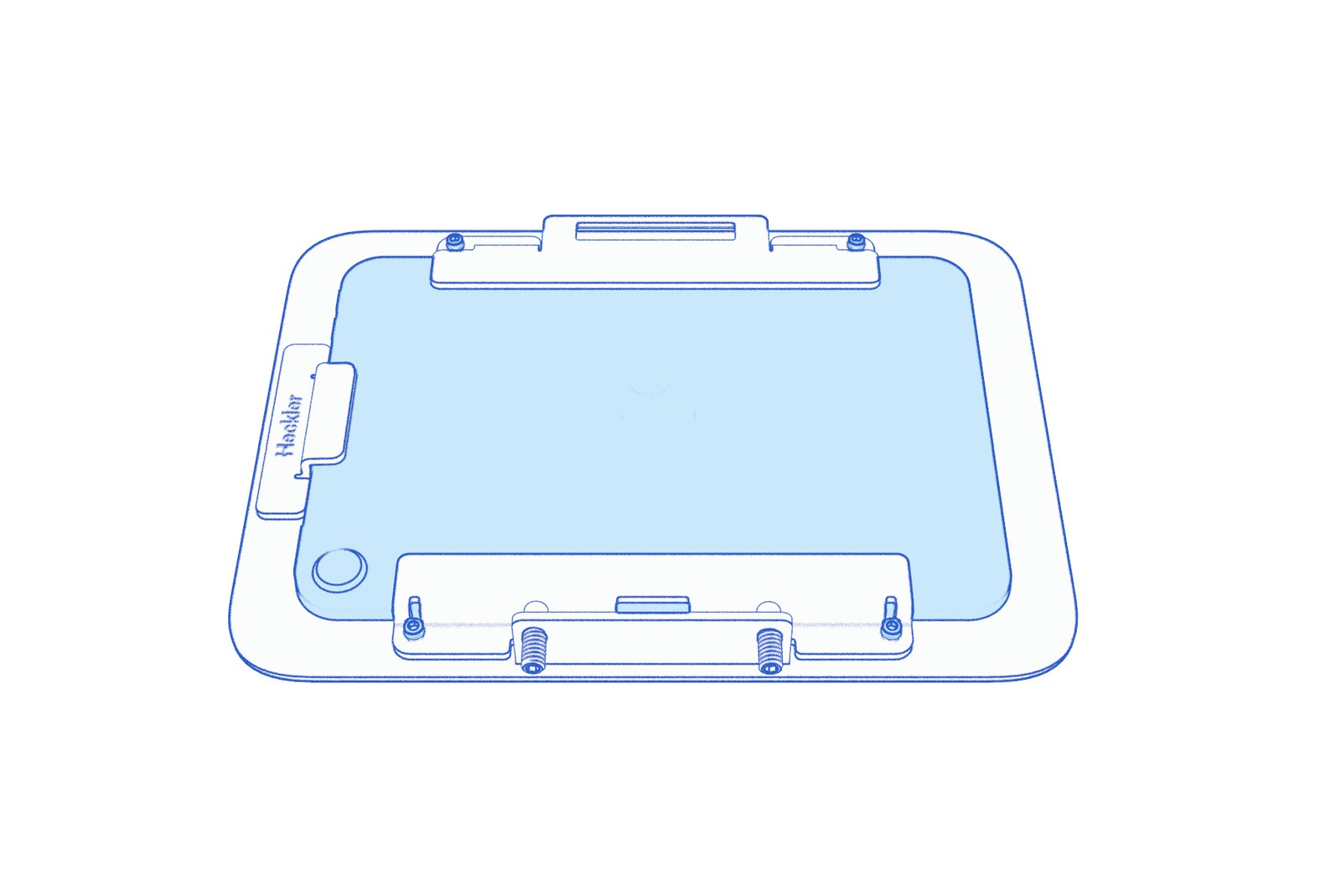

Animated diagram showing the iPad mini sliding through the open side of the enclosure, beneath the brackets and against the far-side tab.

Connect the right-angle USB-C adapter and Apple USB-C cable

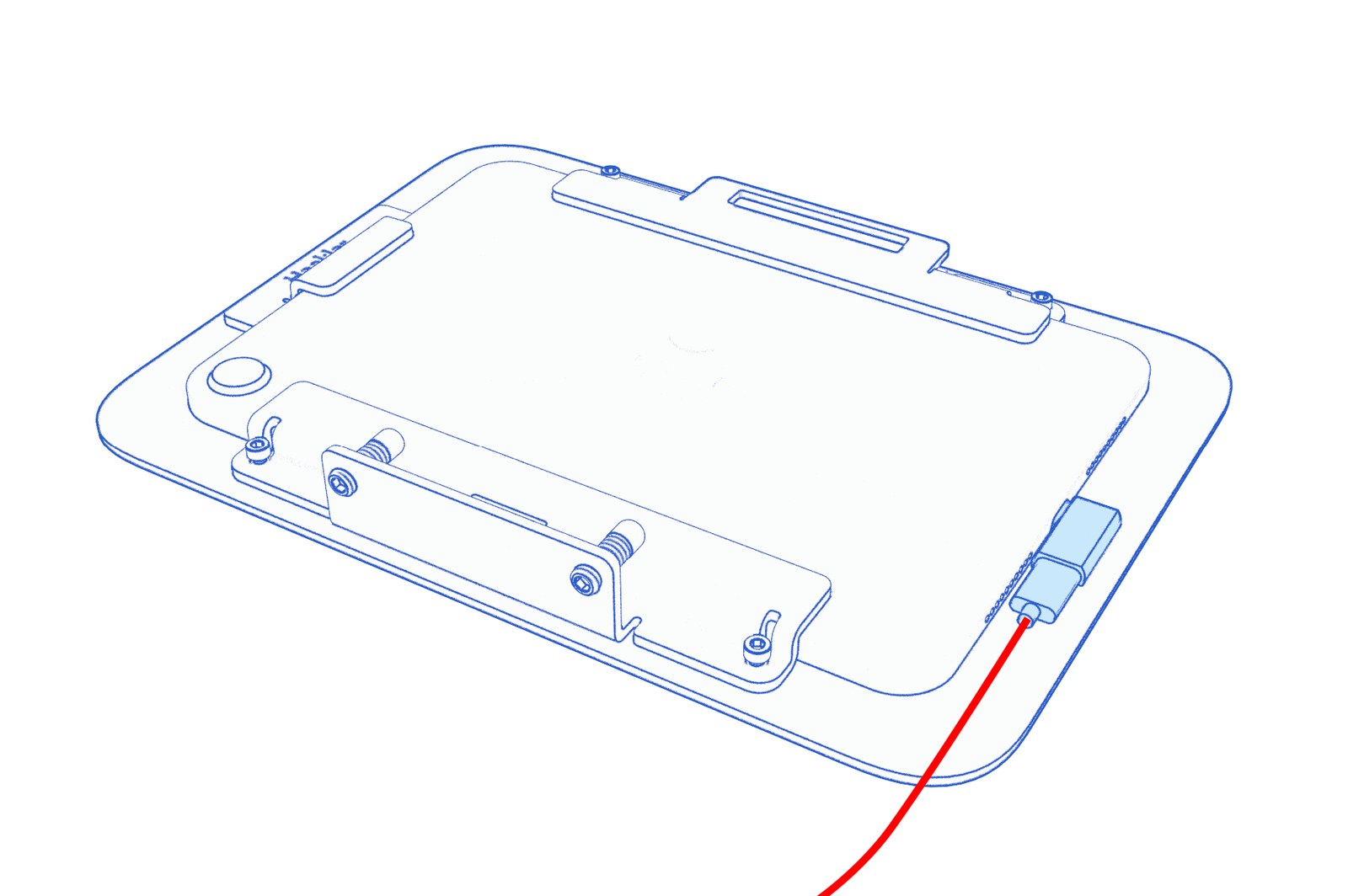

Animated diagram showing the USB-C cable connected to the right-angle adapter and the adapter inserted into the iPad mini.

Tighten the enclosure-bracket screws

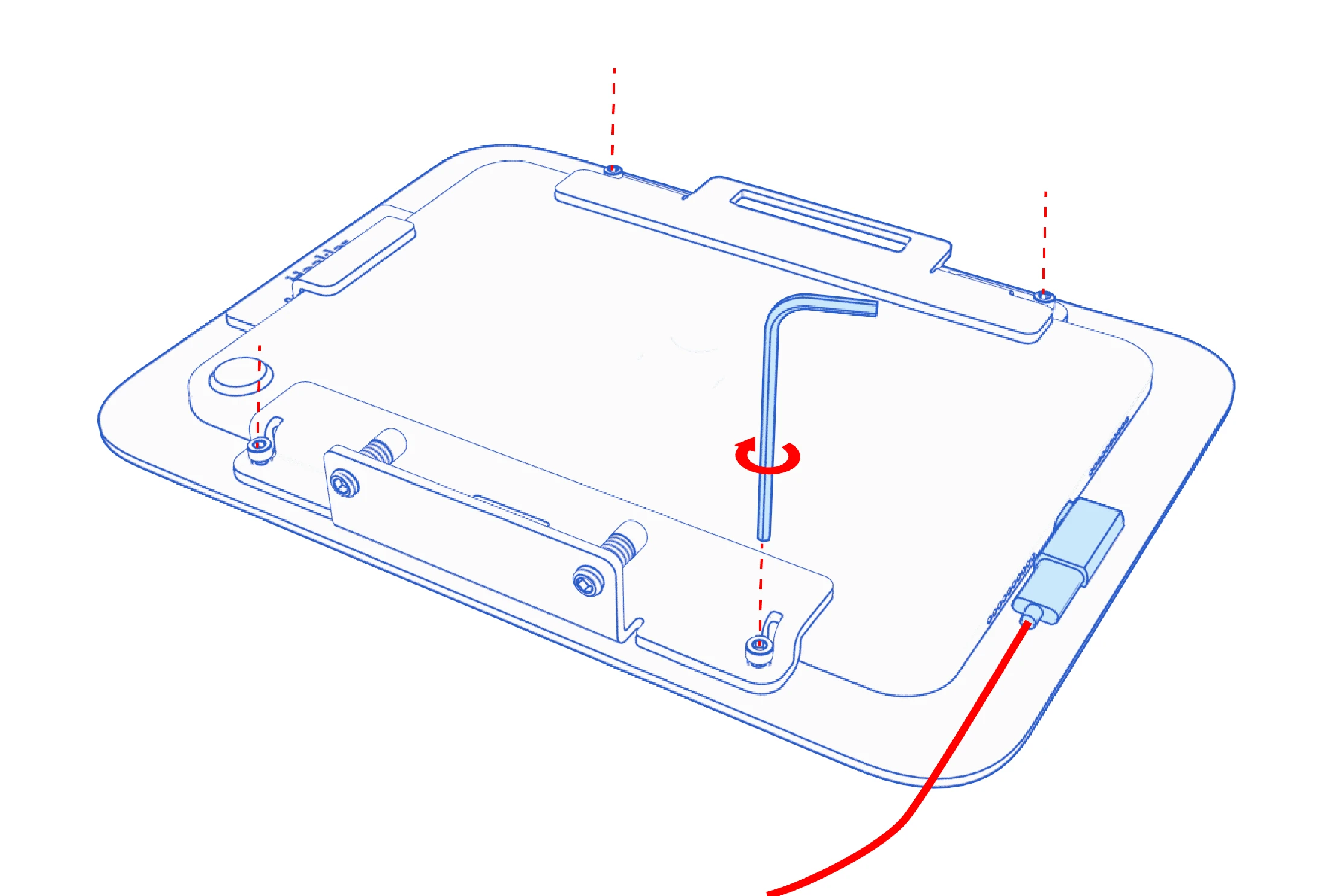

Rear view of the installed iPad mini, with an assembly key at an enclosure-bracket screw and the USB-C cable connected at the side.

The iPad mini enclosure is ready to mount to the pocket.

Install the tablet enclosure to the pocket

Connect the charging cable to the PoE adapter (optional)

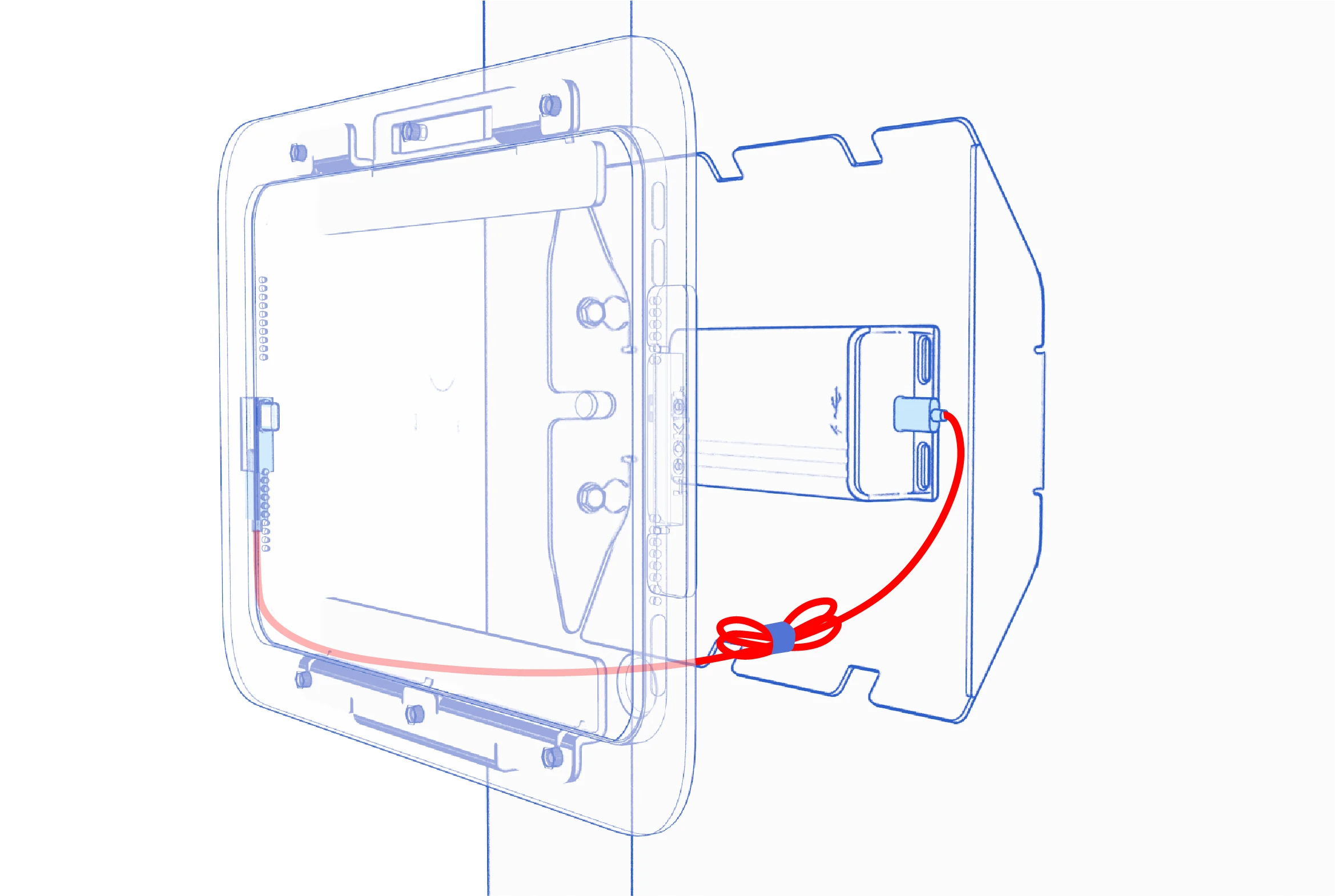

Transparent view showing the charging cable between the iPad mini and PoE adapter, with excess cable bundled inside the pocket.

Hang the enclosure on the pocket

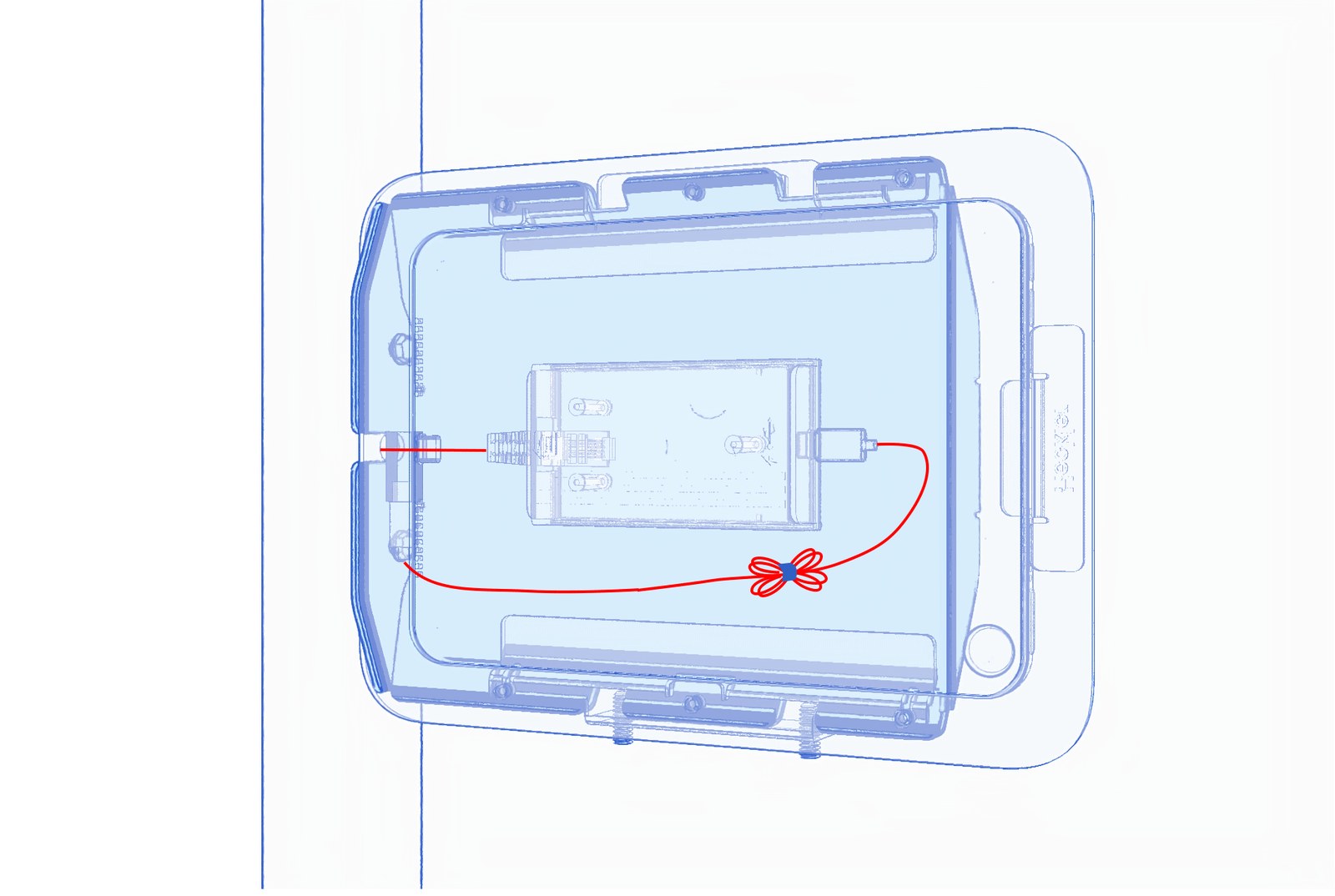

Animated transparent view showing the tablet enclosure engaging with the pocket and moving into its resting position, with cabling visible inside.

Tighten the set screws

Using the supplied ball-end hex key, gently tighten each set screw until the enclosure is firmly fastened to the pocket.

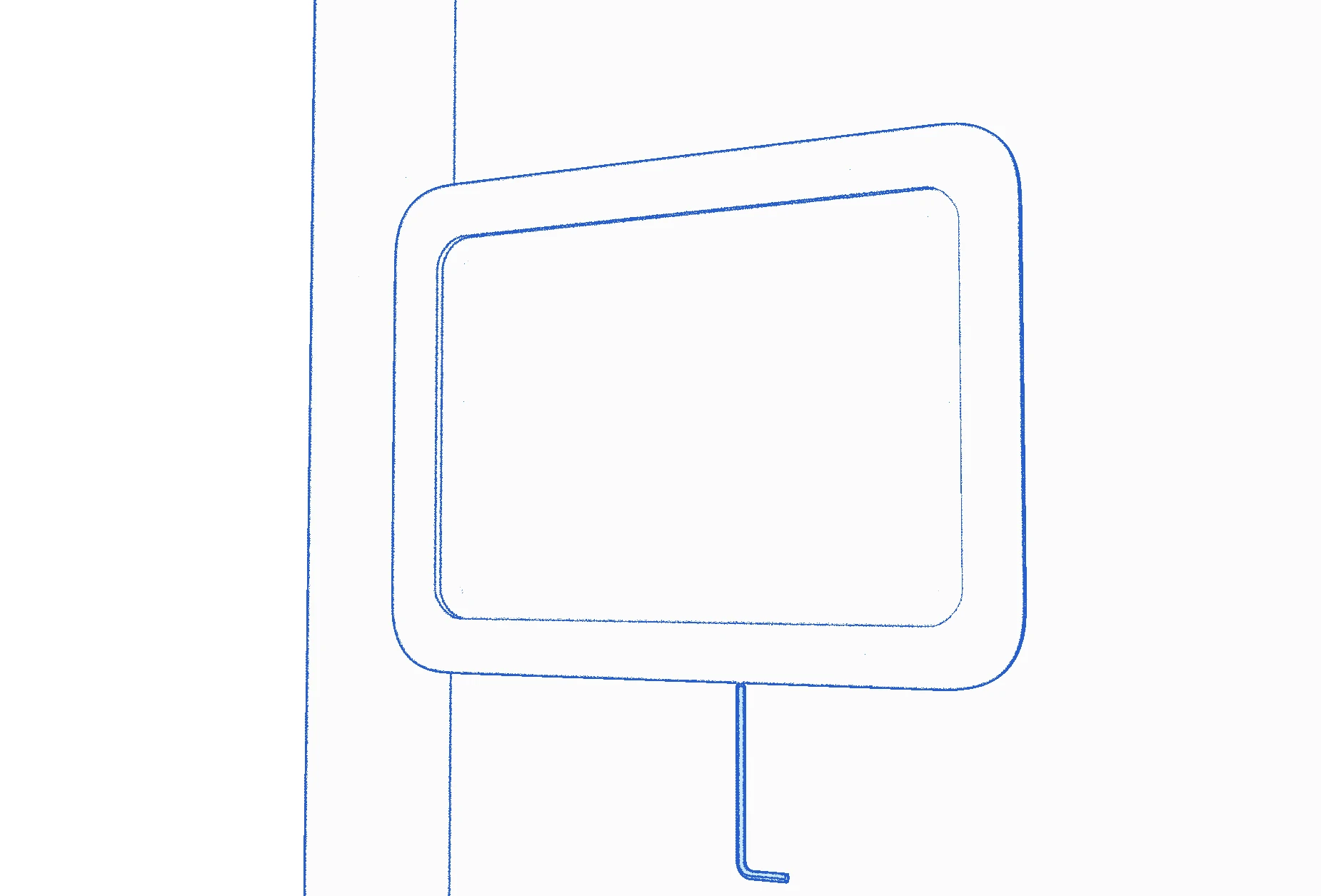

Front view of the mounted enclosure with a ball-end hex key reaching a set screw from below.
