H726 Amazon TV Stand with Quad Camera Mount

Read guide

PDF · Letter PDF · A4

Guide details Applicability and revision

Assemble the TV stand, fit the Quad Camera mounting bracket, and organize cables.

ProductH726

Hardware generationH726

Guide revisionrelease-2026-10-28

Applies to

H726 Amazon TV Stand with Quad Camera Mount.

In this guide · 8 sections

In the box

a. 1 x TV Stand Base (R258-WT1)

b. 2 x TV Stand Arm (R258-WT2) c. 1 x Quad Camera Mounting Bracket (R350) d. 2 x Safety Pin (F492) e. 1 x Hex Key, 1/8 inch (F180) f. 1 x Hex Key, 4 mm (F674) g. 2 x Quad Camera Mounting Screw (F675) h. 4 x Wing Nut (F520)

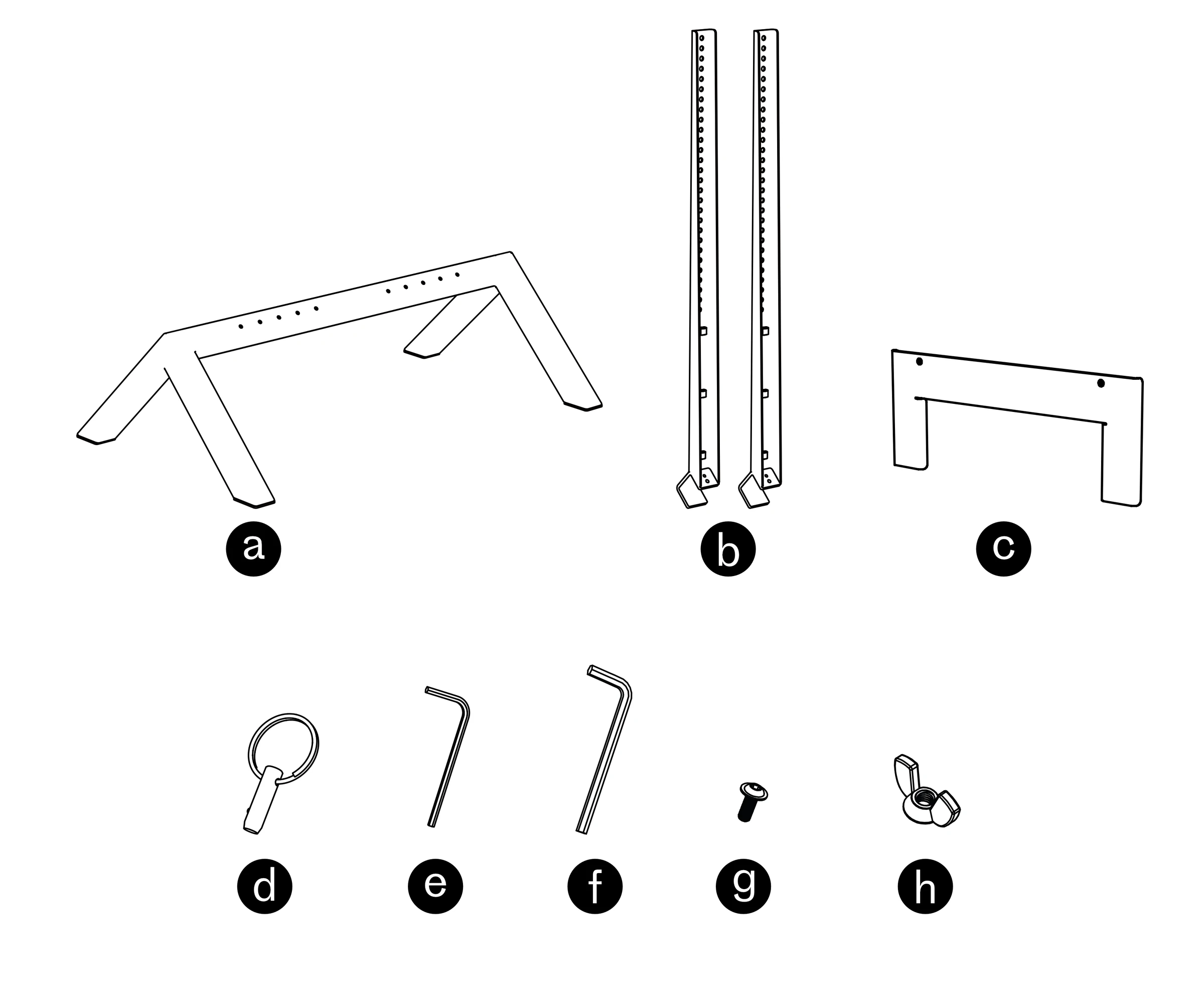

Labeled components: stand base, two upright arms, camera adapter, ring-handled safety pin, two hex keys, camera screw, and wing nut.

Install TV Stand Arms to the TV Stand Base

Align the TV Stand Arms with the middle mounting hole on each side of the base. Seat the claws fully on the TV Stand Base.

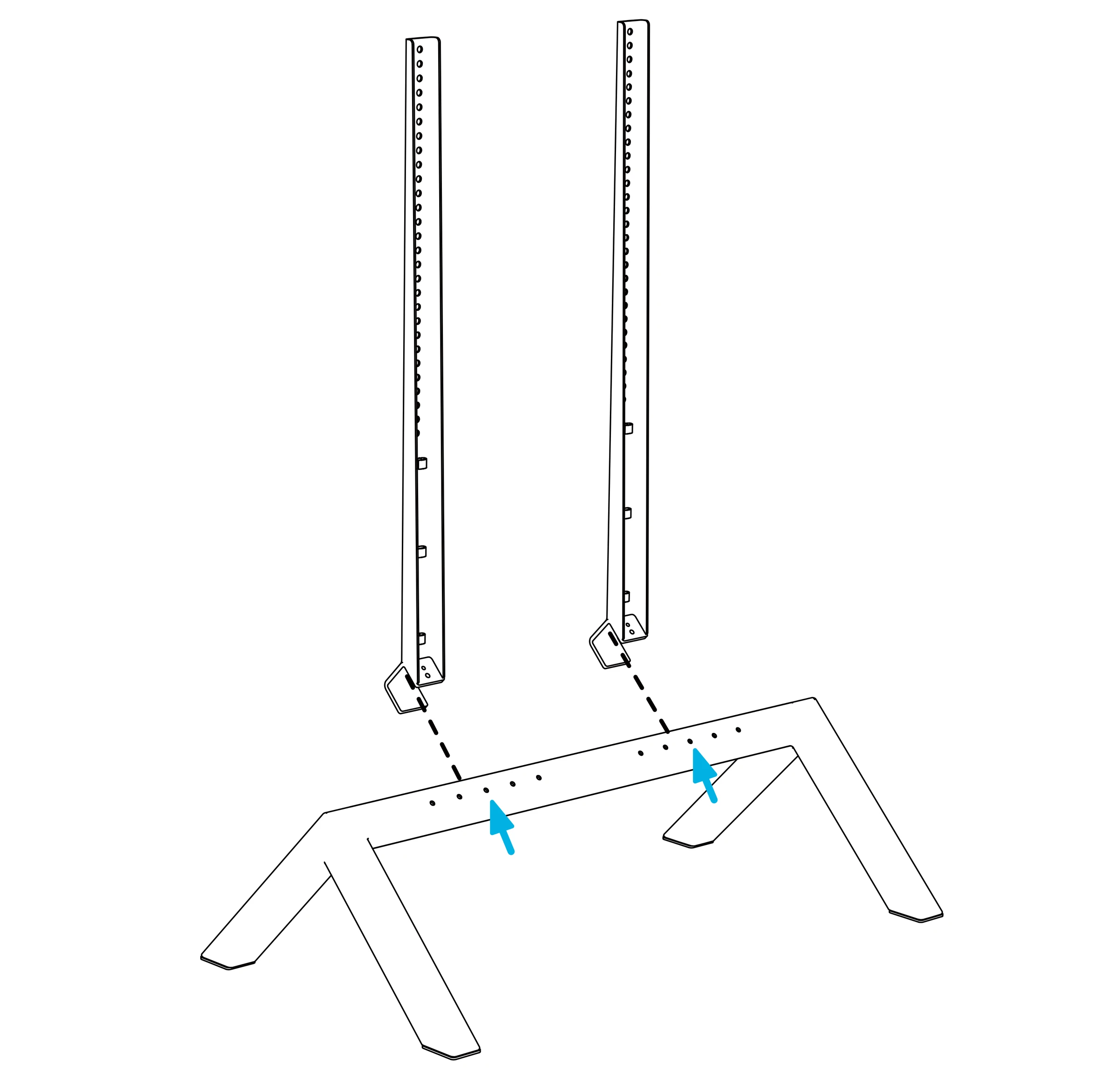

Two upright arms above the base, with dashed alignment lines and arrows at the middle mounting positions.

Insert safety pins

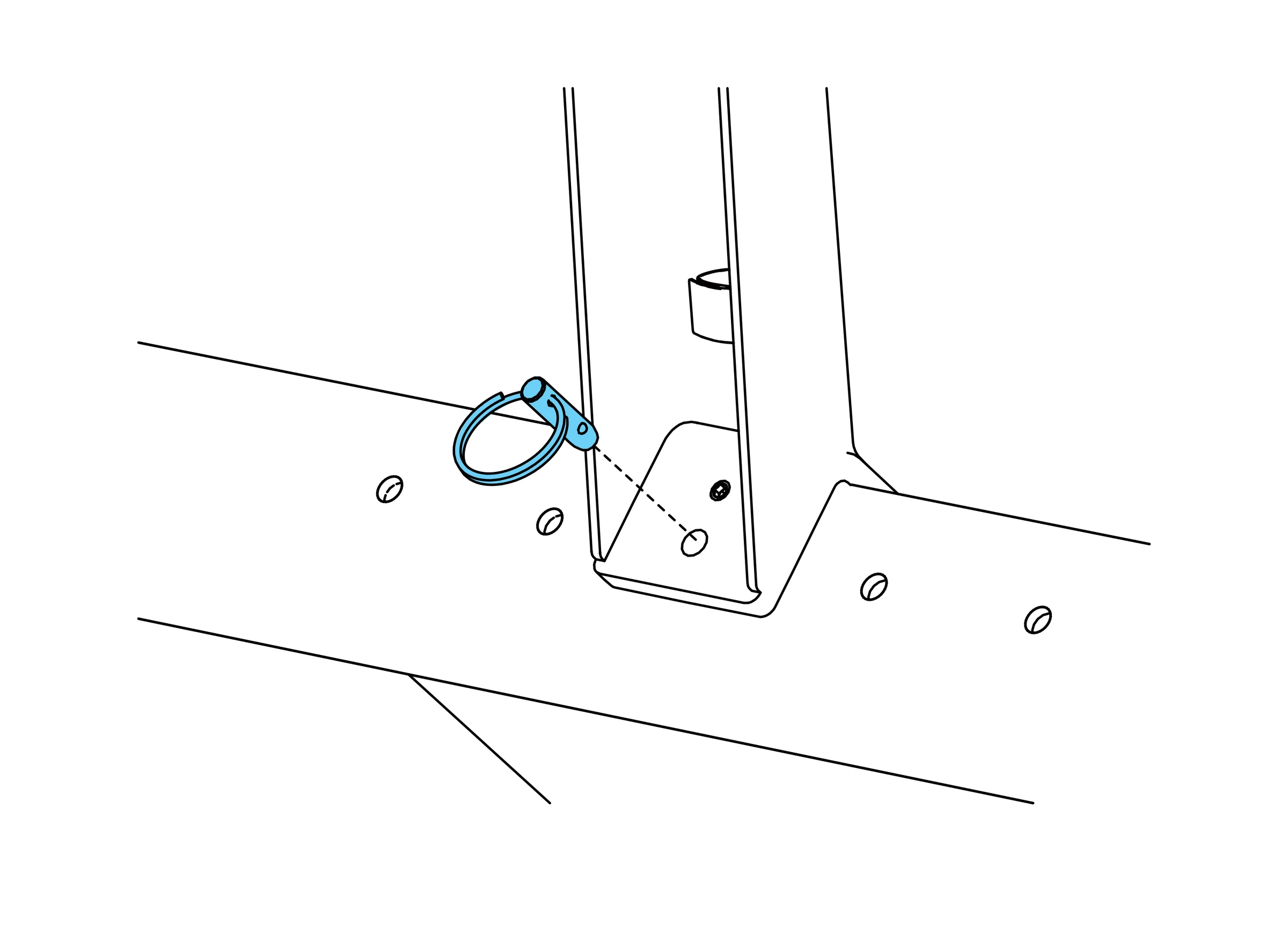

Ring-handled safety pin aligned with the hole through the arm and base connection.

Tighten set screws

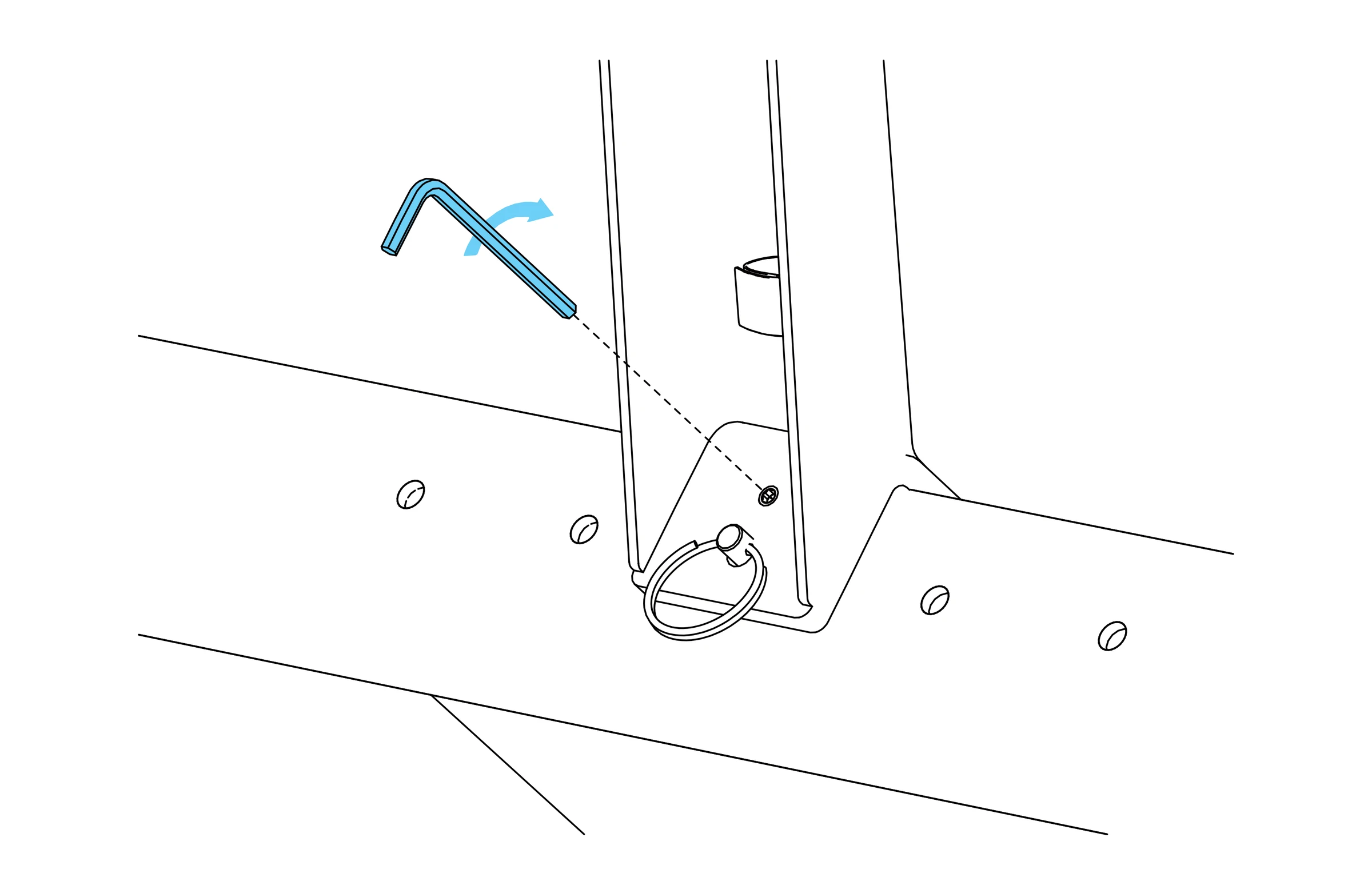

Hex key at the arm set screw, with a turning arrow and the safety pin seated below.

Install the Quad Camera Wall Bracket to the Mounting Bracket

The wall bracket comes with the Quad Camera.

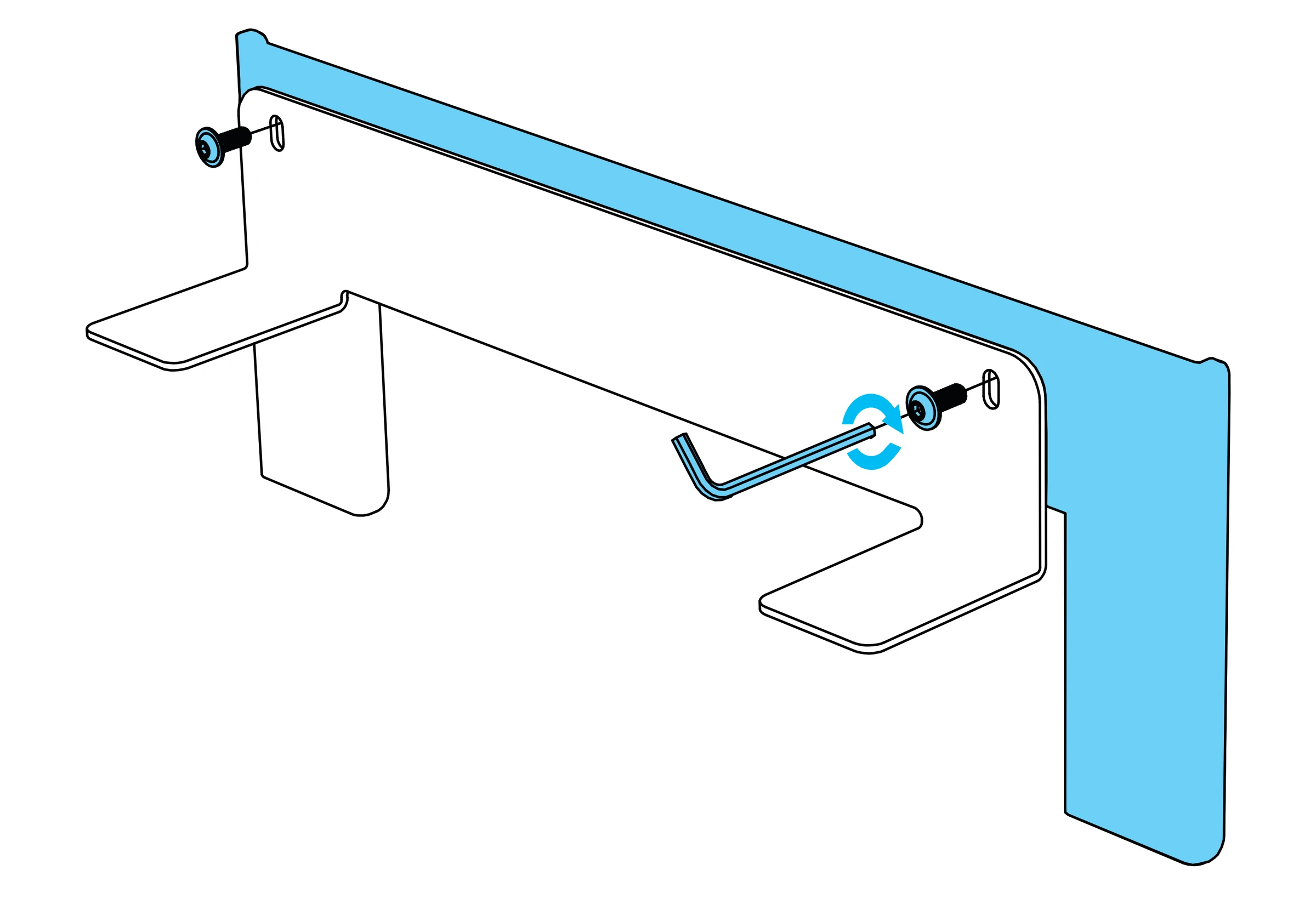

Quad Camera wall bracket against the adapter plate, with two screws and a hex key at one screw.

Install the Mounting Bracket to Heckler TV Stand

Insert the Mounting Bracket posts into the preferred holes on the TV Stand Arms, then fasten the wing nuts from the back.

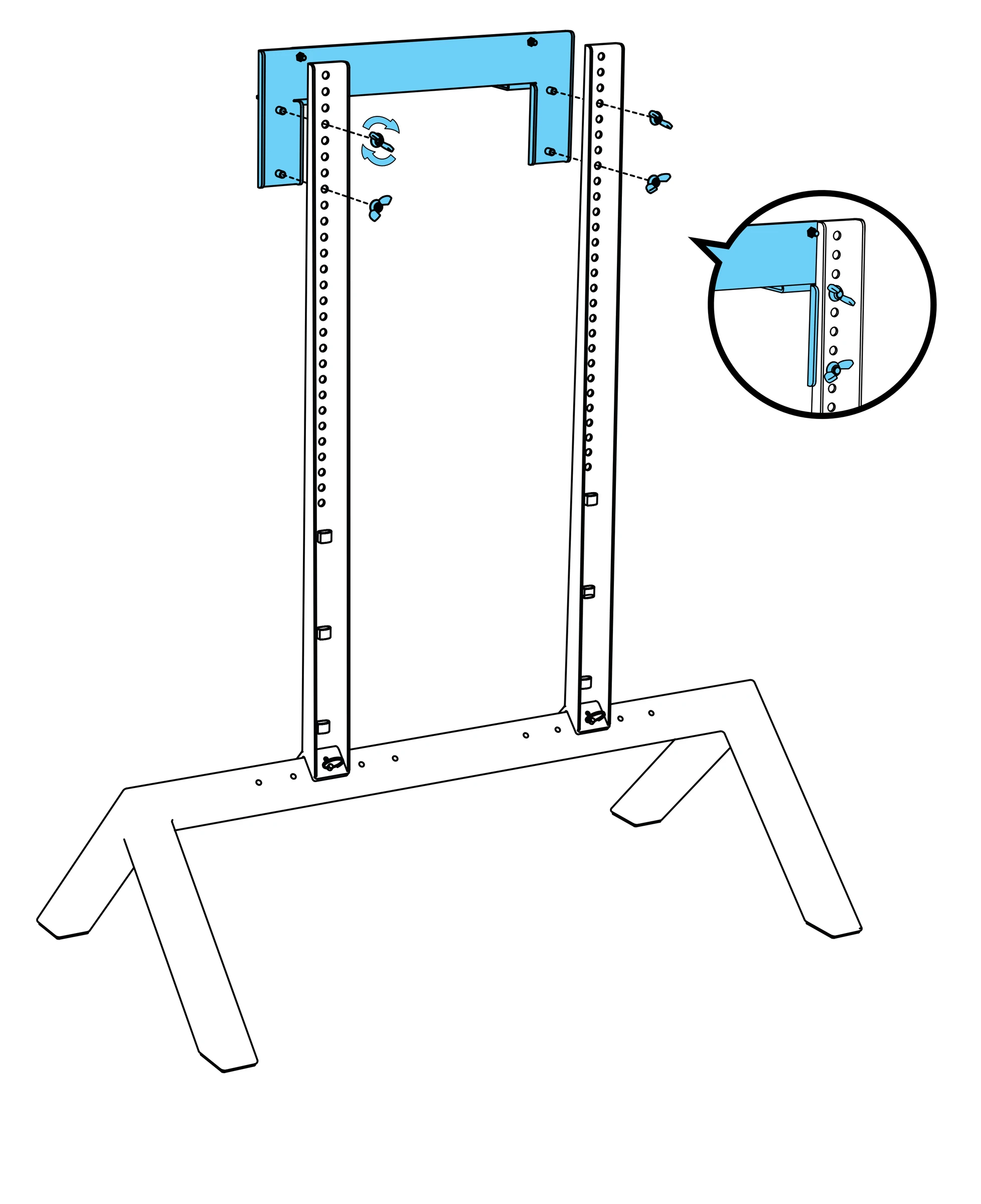

Camera adapter across the two arms, with four wing nuts aligned behind the mounting holes and a close-up of the joined plates.

Install the Quad Camera

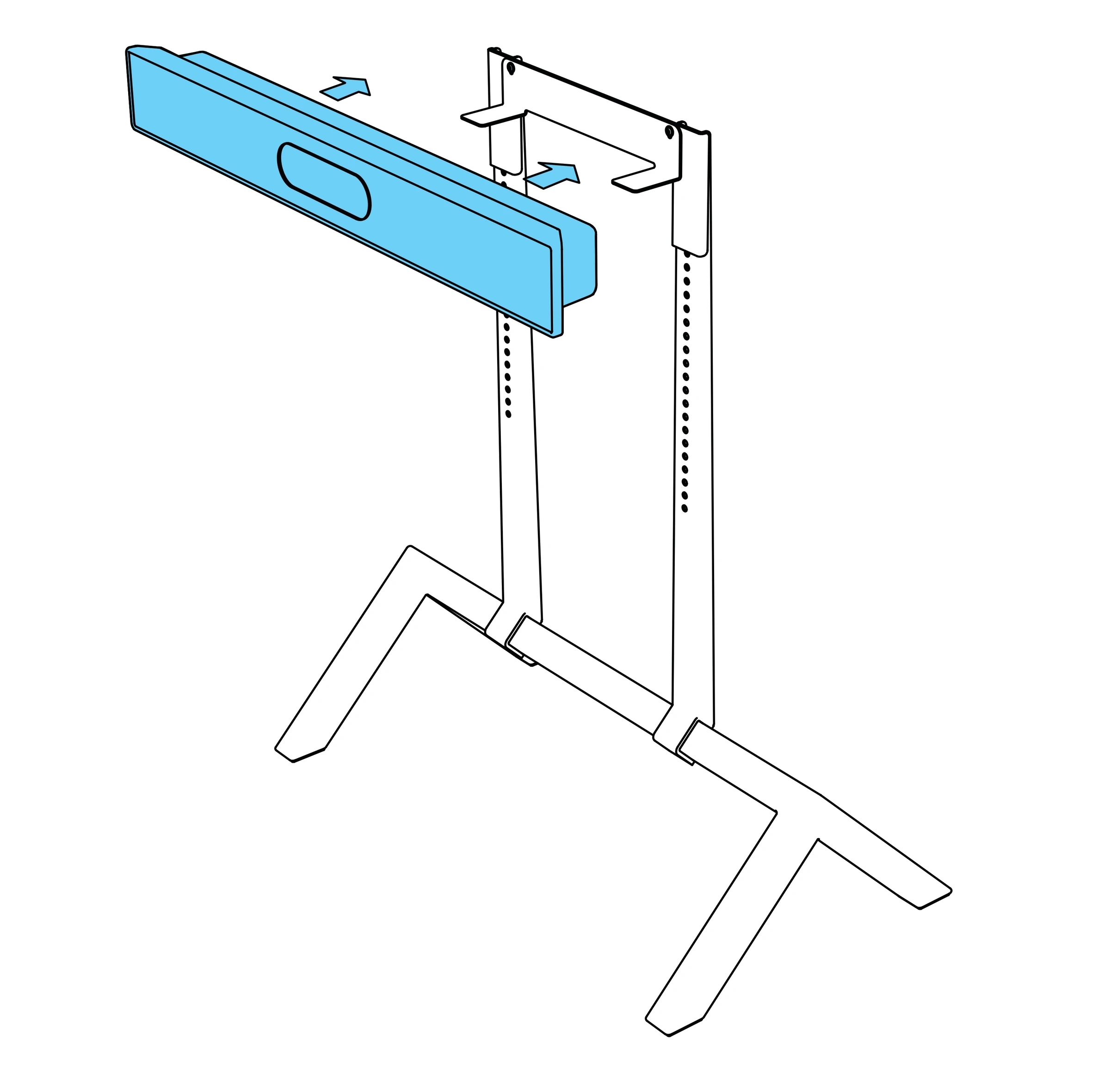

Quad Camera in front of its wall bracket, with arrows toward the bracket.

Organize the cables

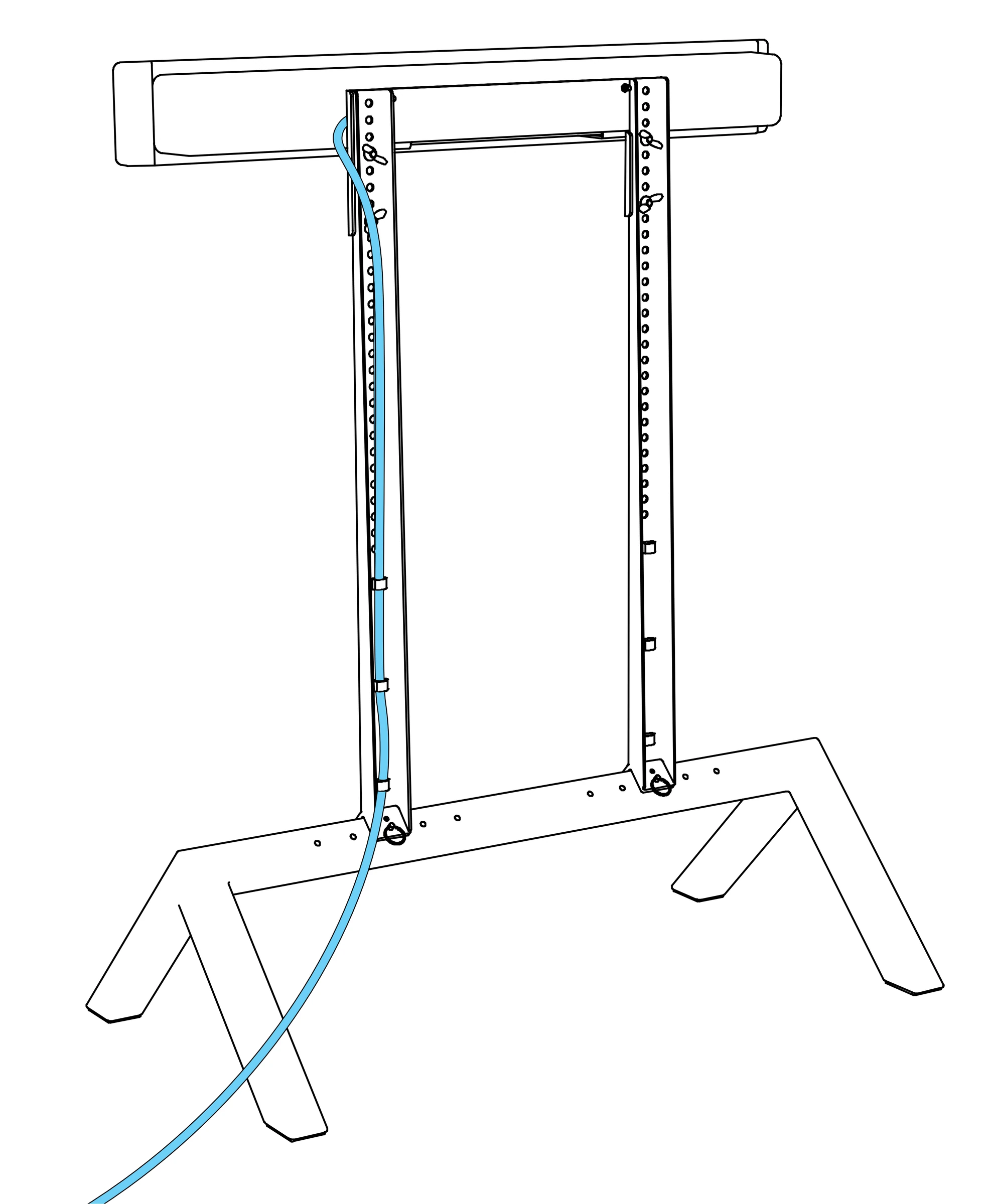

Rear view of the camera stand with a cable routed down one upright and held at several points.

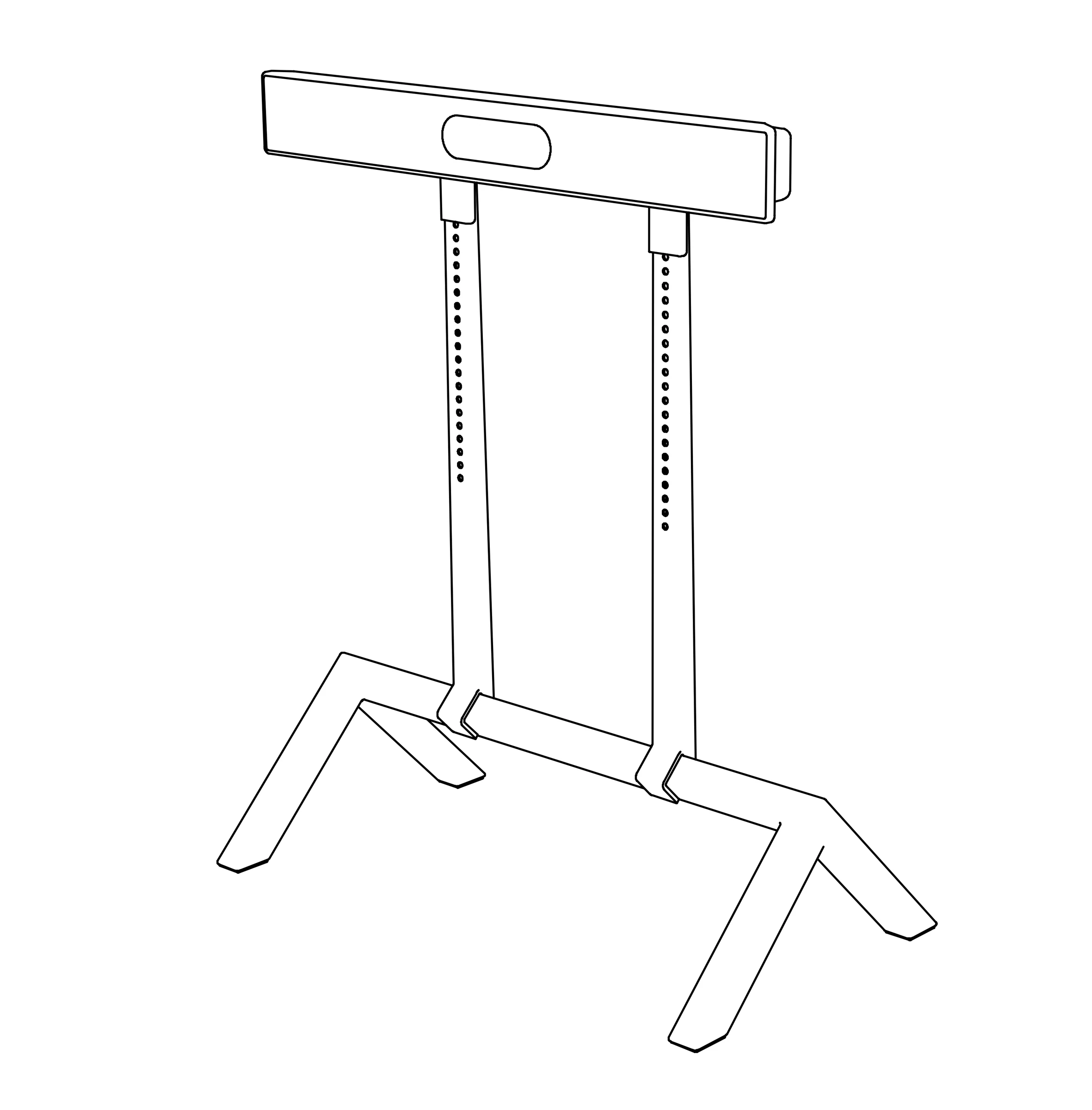

Completed upright stand with the Quad Camera across the top.
