H738

Whiteboard Mount for Huddly Canvas

Attach the Huddly Canvas bracket and camera, then secure the mount to the whiteboard.
Huddly Canvas fitted to the H738 Whiteboard Mount over a board-edge segment.

This guide is also available as a printable PDF.

In the box

  1. 1 x Whiteboard Mount for Huddly Canvas
  2. 4 x Preinstalled mounting screws

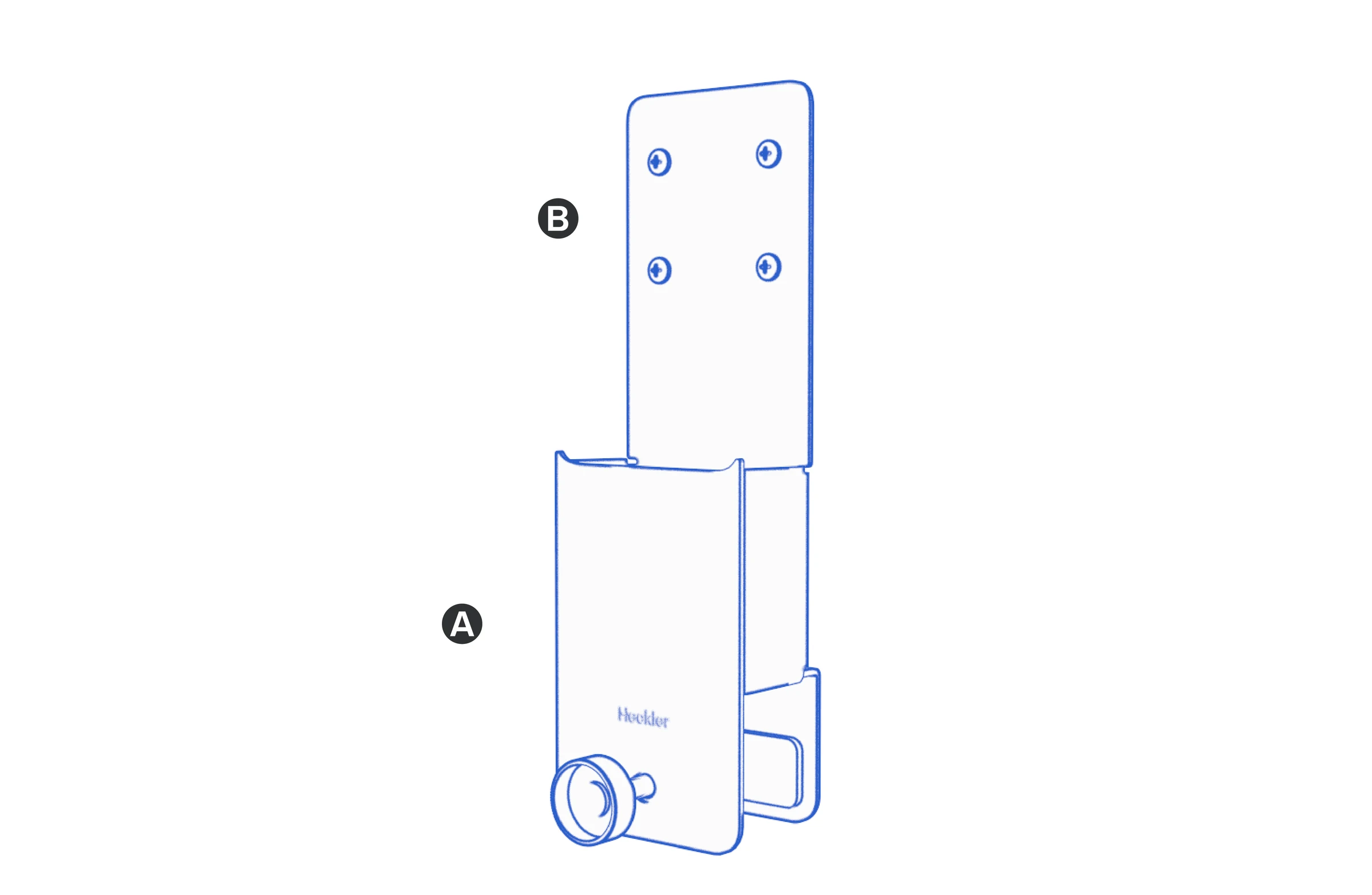

Whiteboard clamp mount with its clamping knob and four preinstalled screws on the camera mounting plate, labeled A and B.
2. 4 x Pre-installed mounting screws

Tool needed

  • Phillips screwdriver

Remove the four screws

Remove the four screws from the mount as shown.

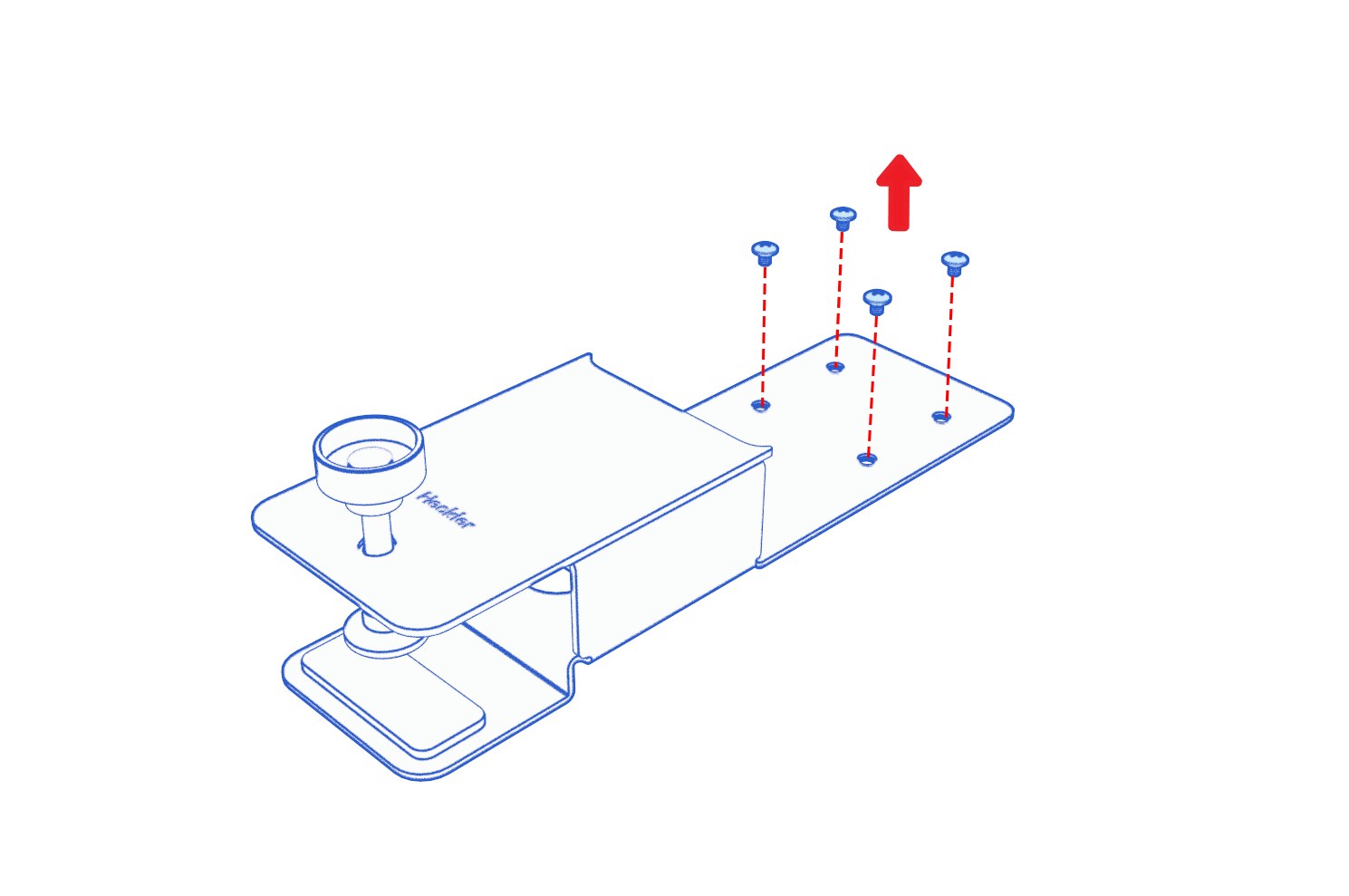

Animation of four screws lifting out of the camera mounting plate, with an upward arrow.

Fasten the Huddly Canvas wall bracket to the whiteboard mount

Using the four screws provided, fasten the wall bracket to the whiteboard mount.

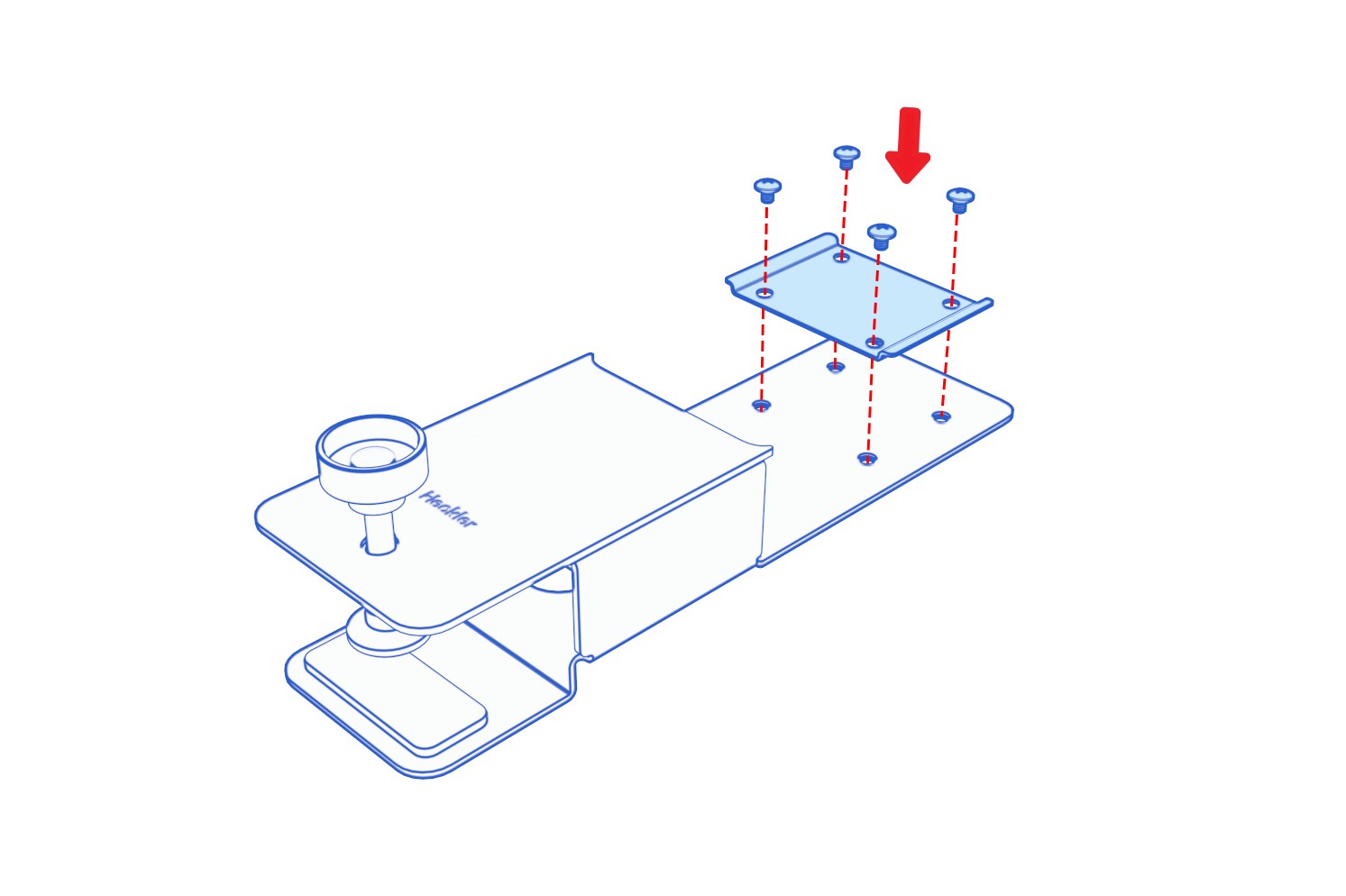

Animation of the Huddly Canvas wall bracket aligned with the mounting plate and fastened using four screws.

Slide Huddly Canvas onto the wall bracket

Slide the Huddly Canvas housing onto the wall bracket until it rests against the top of the whiteboard mount.

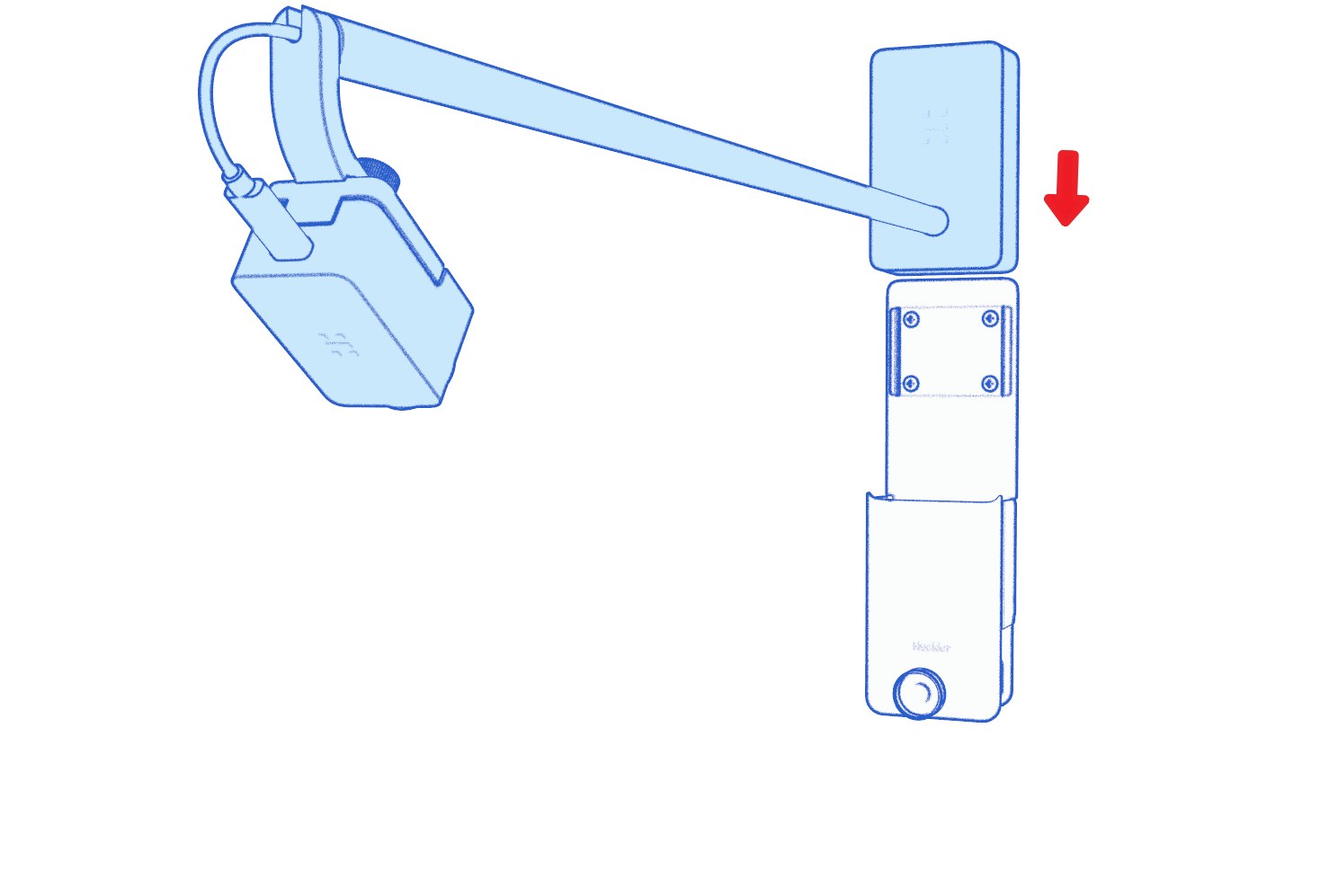

Animation of the Huddly Canvas housing sliding down onto its wall bracket until it meets the whiteboard mount.
Place and slide the compartment of Huddly Canvas onto the wall bracket until the compartment rests and nest atop the whiteboard mount.

Connect Ethernet cable

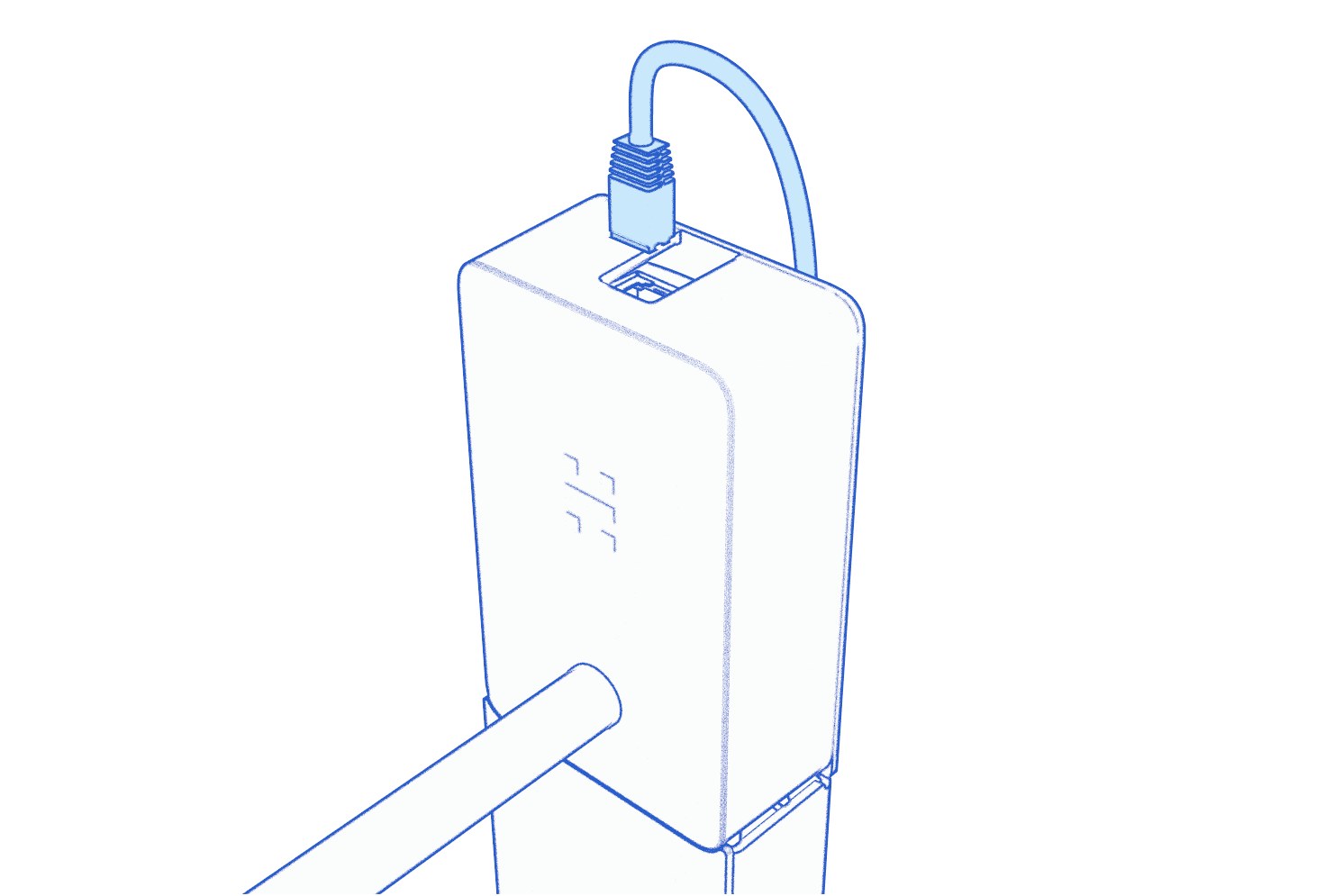

Animation of an Ethernet connector entering the port on the Huddly Canvas housing.

Tuck the CAT cable through the strain-relief feature on the back of the whiteboard mount.

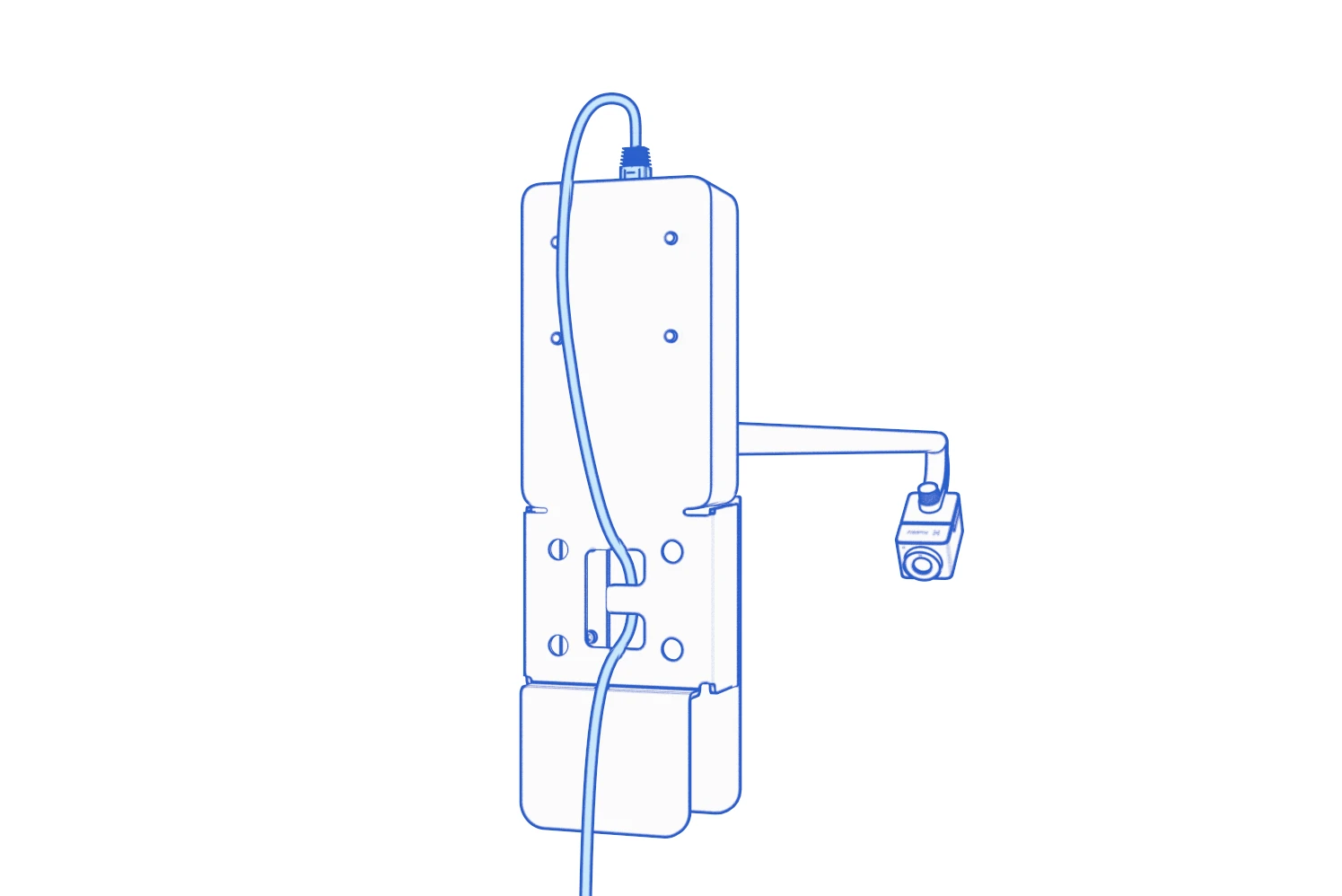

Rear view of the installed camera with the Ethernet cable routed through the strain-relief opening in the mount.

Clamp Whiteboard Mount to your whiteboard

Two side views show the clamp fitted to whiteboards labeled 25 mm thick and 5 mm thick.

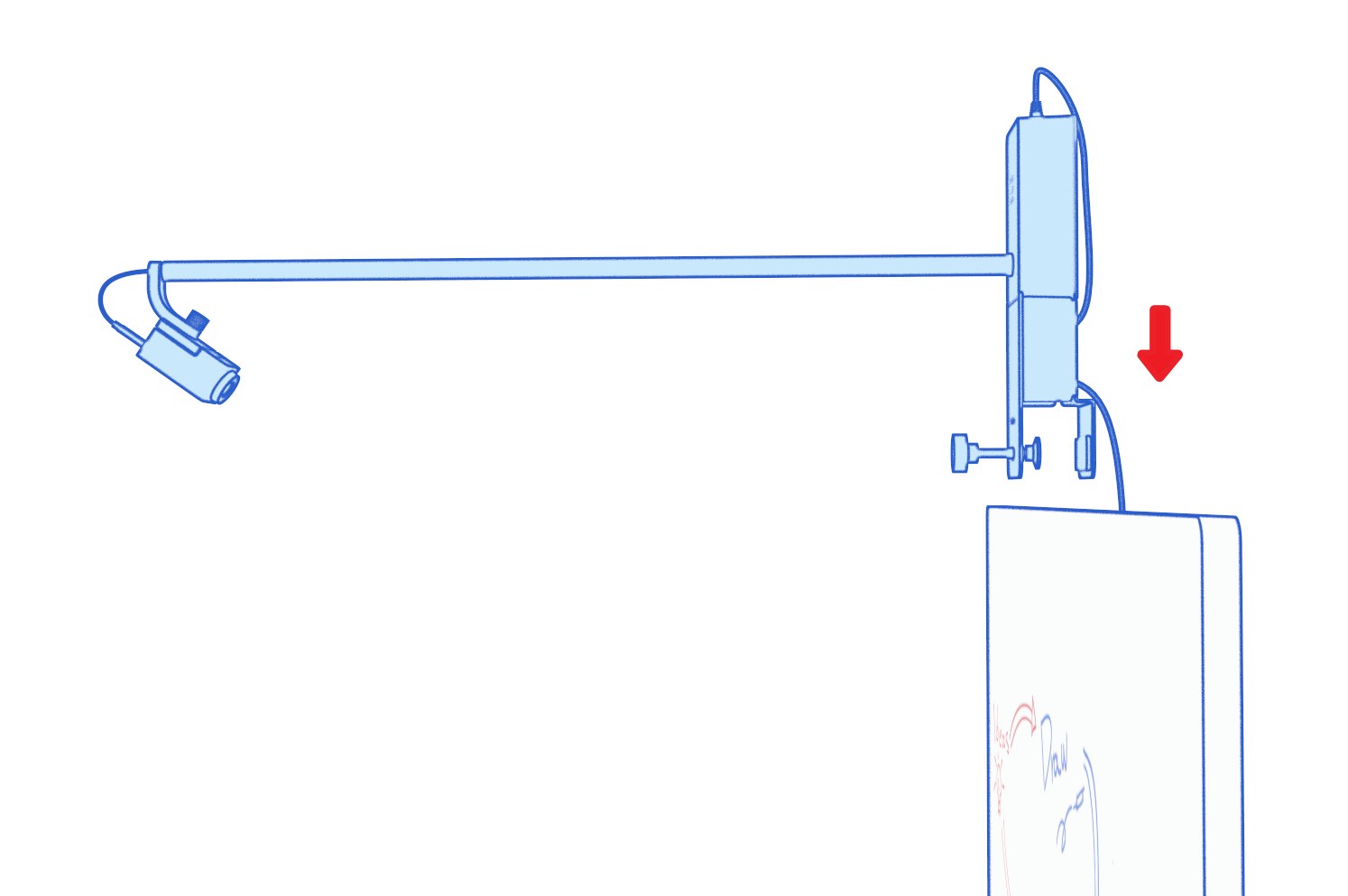

Animation of the camera and clamp lowered over the top edge of a whiteboard.

Tighten the thumbscrew

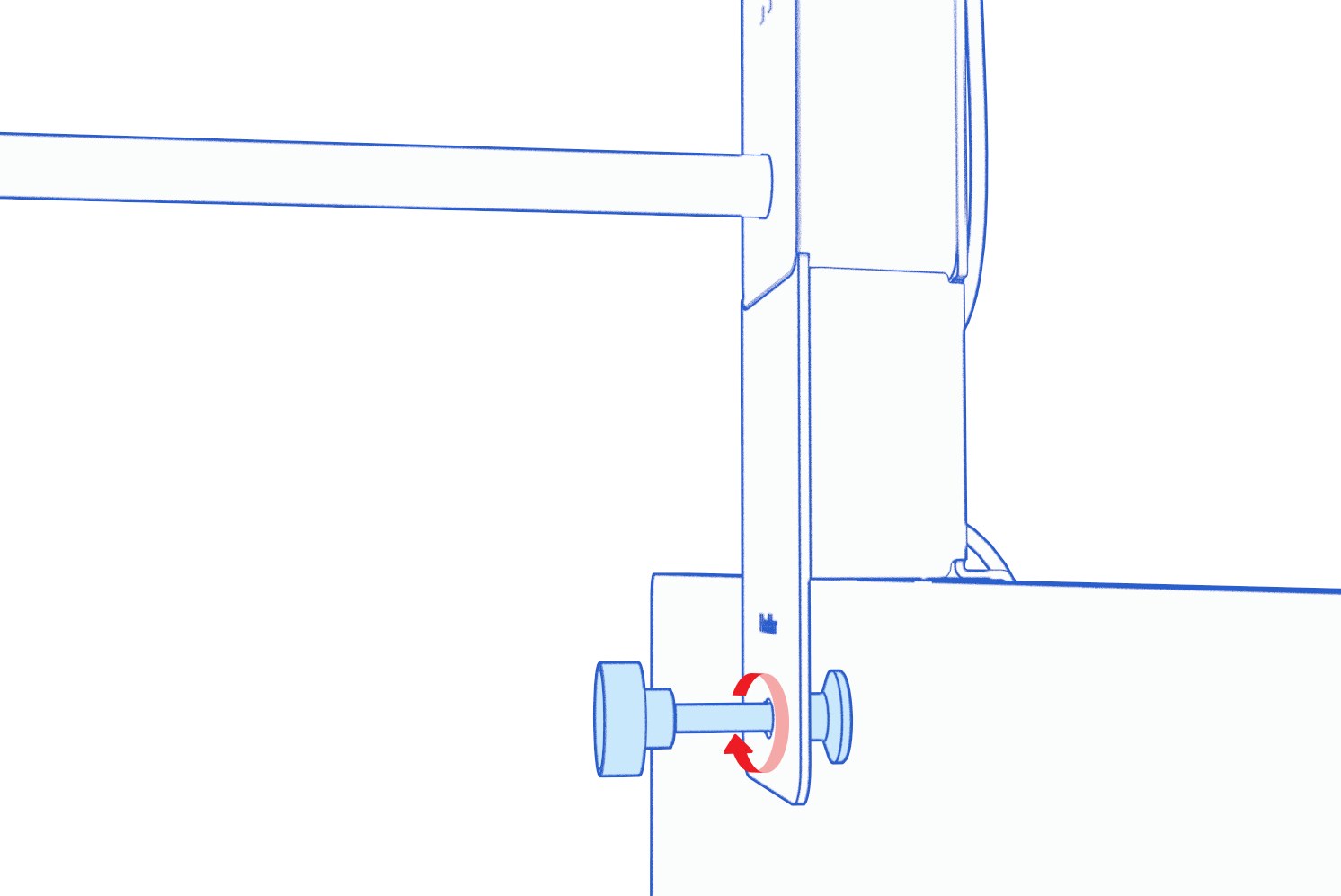

Close-up animation of the clamping knob turning and the thrust pad moving against the whiteboard.
Tighten the thumb screw

Done

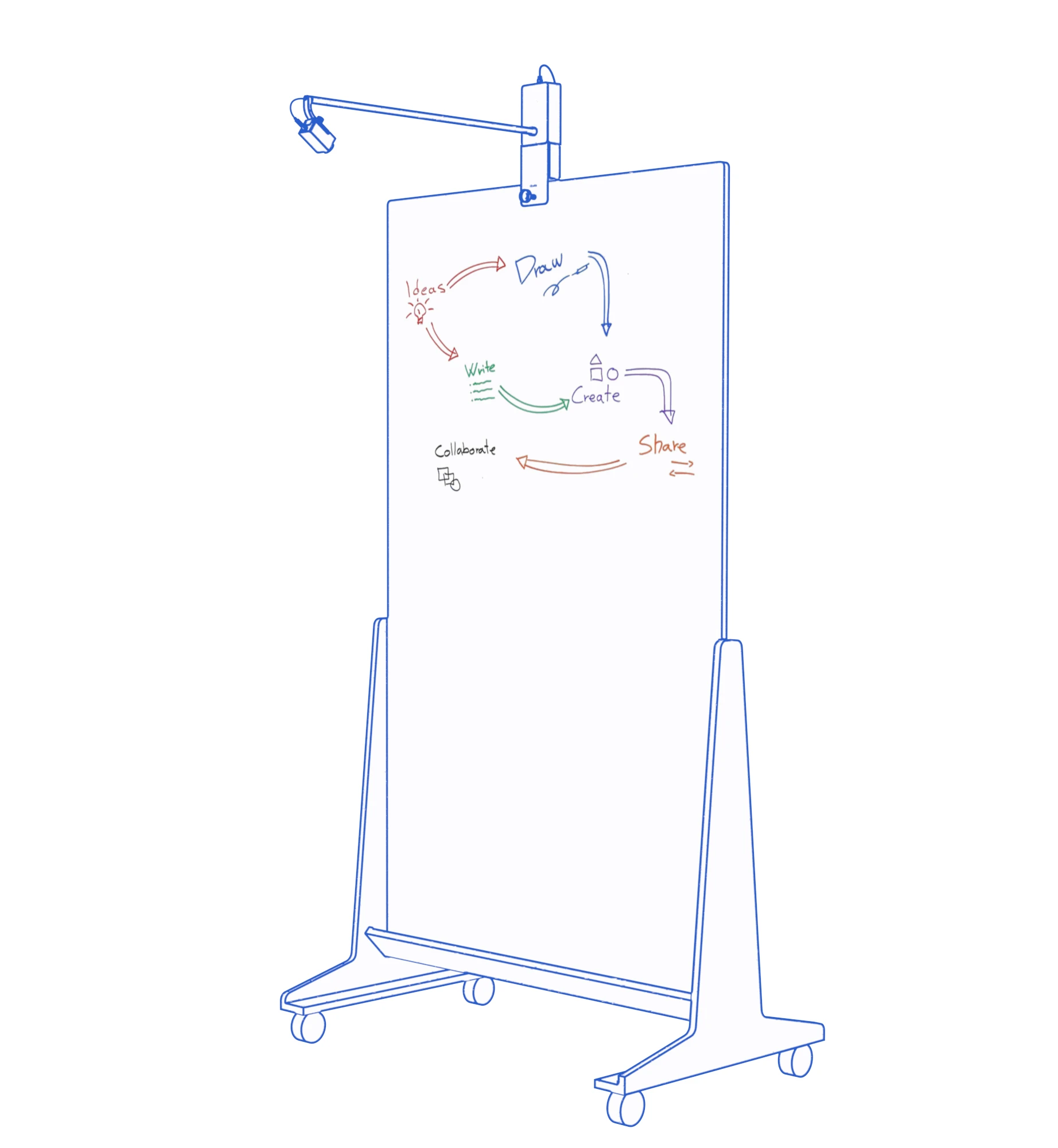

Huddly Canvas mounted above a rolling whiteboard, with its camera arm extending over the writing surface.
