H747

Microsoft Surface Hub 85 Spacer Kit for Heckler AV Wall

Review the spacer kit hardware and illustrated installation for Surface Hub 85 on AV Wall.
H747 cylindrical spacers installed between two mounting rails and the rear of a Surface Hub 85 display.

This guide is also available as a printable PDF.

In the box

  1. 4 x spacer
  2. 4 x M8 screw
  3. 4 x lock washer
  4. 1 x hex key

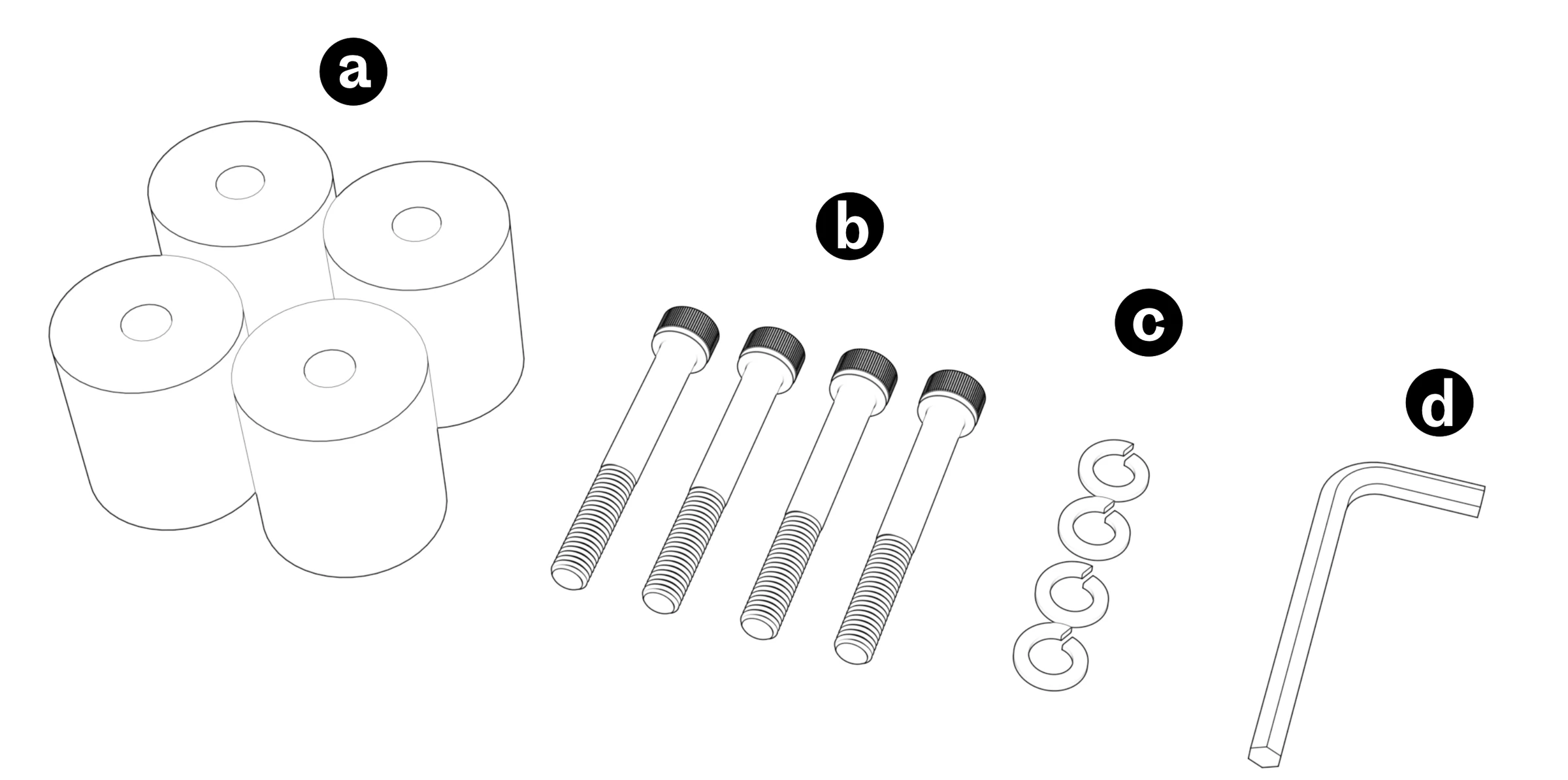

Included parts labeled a–d: four cylindrical spacers, four socket-head screws, four lock washers, and a hex key.

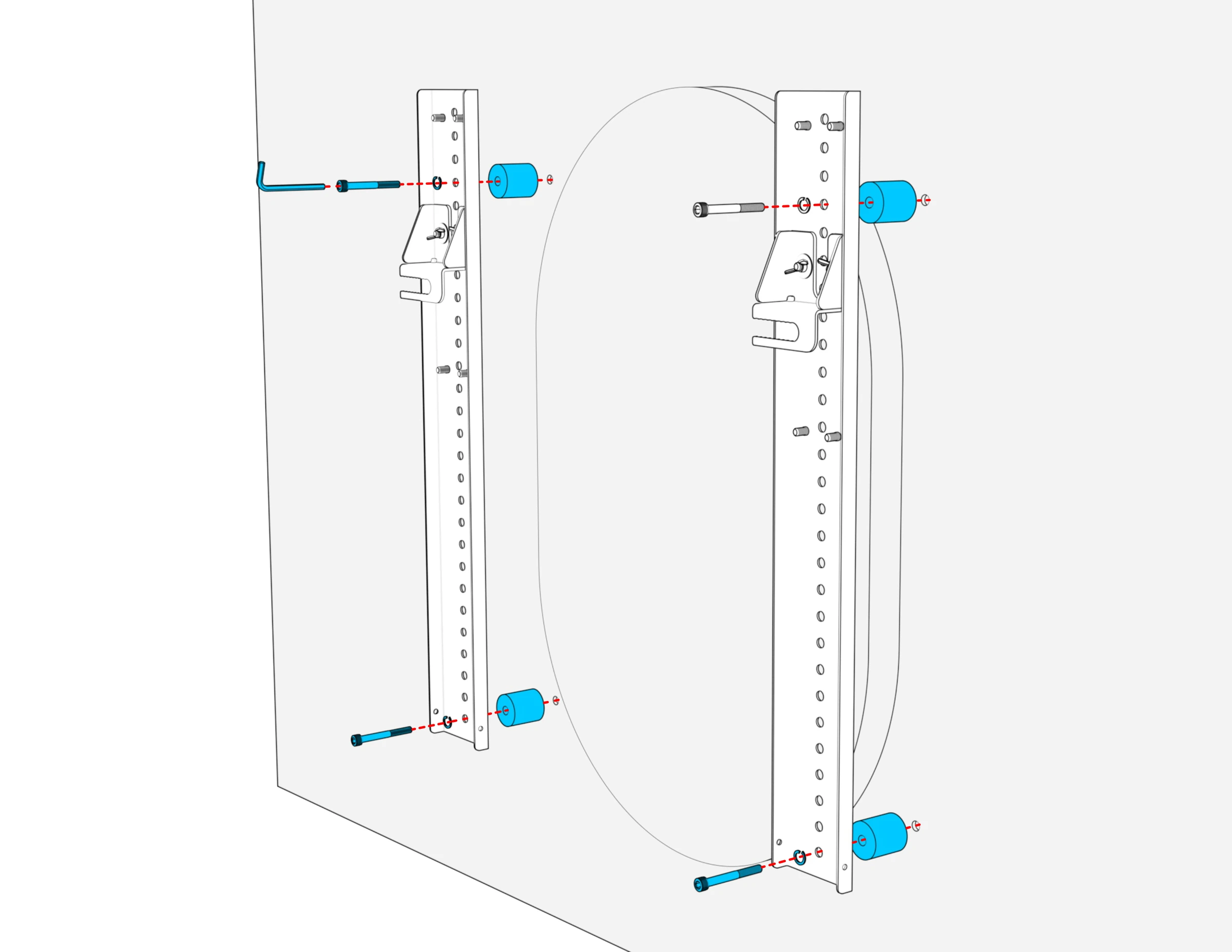

Rear view of the display with two vertical rails, spacers between the rails and display, and mounting screws aligned at four positions.

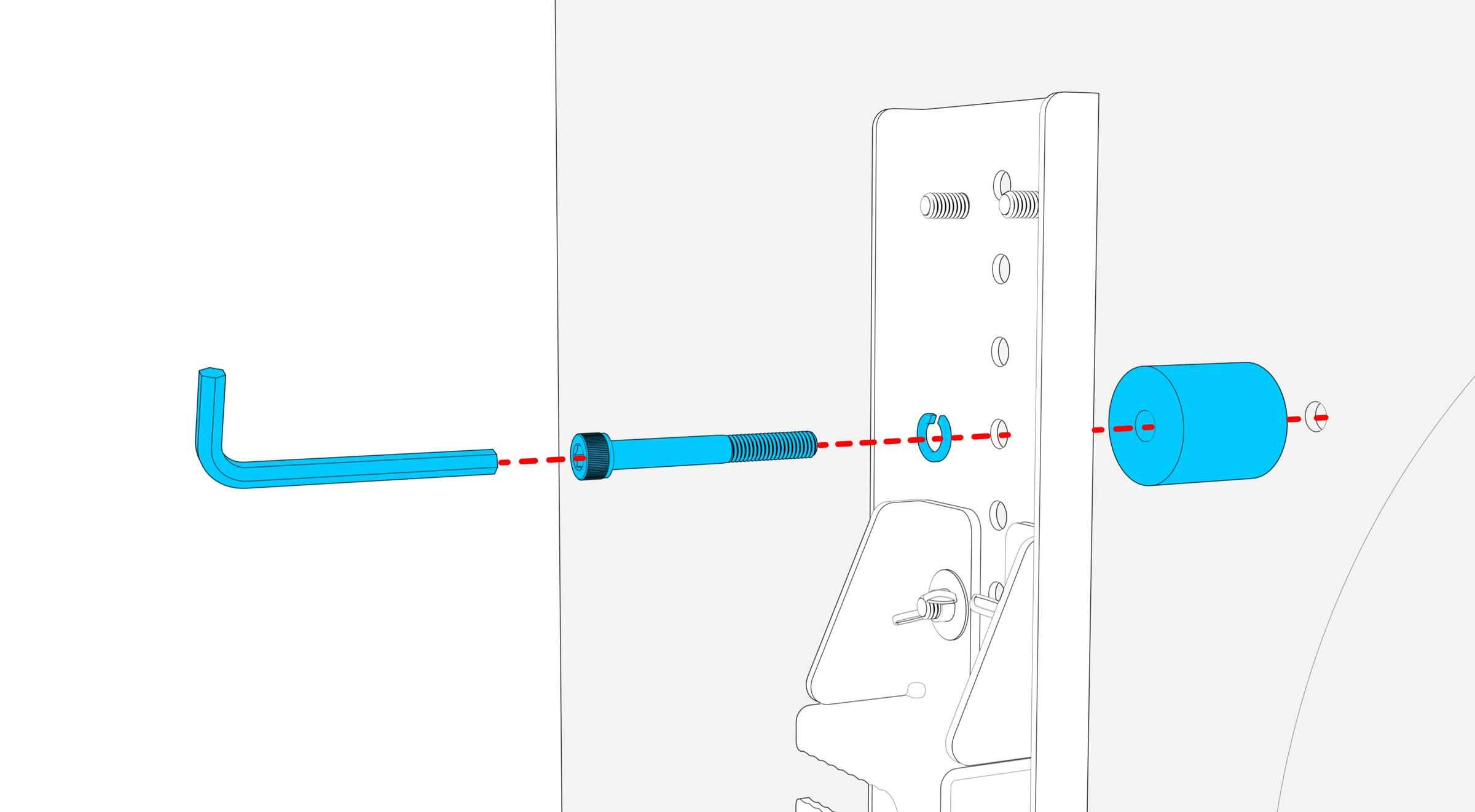

Exploded close-up showing a hex key, screw, lock washer, display rail, spacer, and display mounting hole in order.
