User guide

H752 Zoom Rooms Console for iPad 10th Generation with PoE+Ethernet Adapter

Read guide
PDF · Letter PDF · A4
Guide details Applicability and revision

Install iPad 10th Generation and the PoE/Ethernet adapter in the Zoom Rooms Console, then route the cables.

ProductH752
Hardware generationH752 · iPad 10th Generation
Guide revisionrelease-2026-10-28
Applies to

H752 Zoom Rooms Console for iPad 10th Generation with PoE+Ethernet Adapter.

In this guide · 8 sections

In the box

a. 1 x Zoom Rooms Console with PoE+Ethernet Adapter

b. 1 x Key (F160) c. 1 x Cable Anchor (F753) d. 1 x Ethernet Cable (T279)

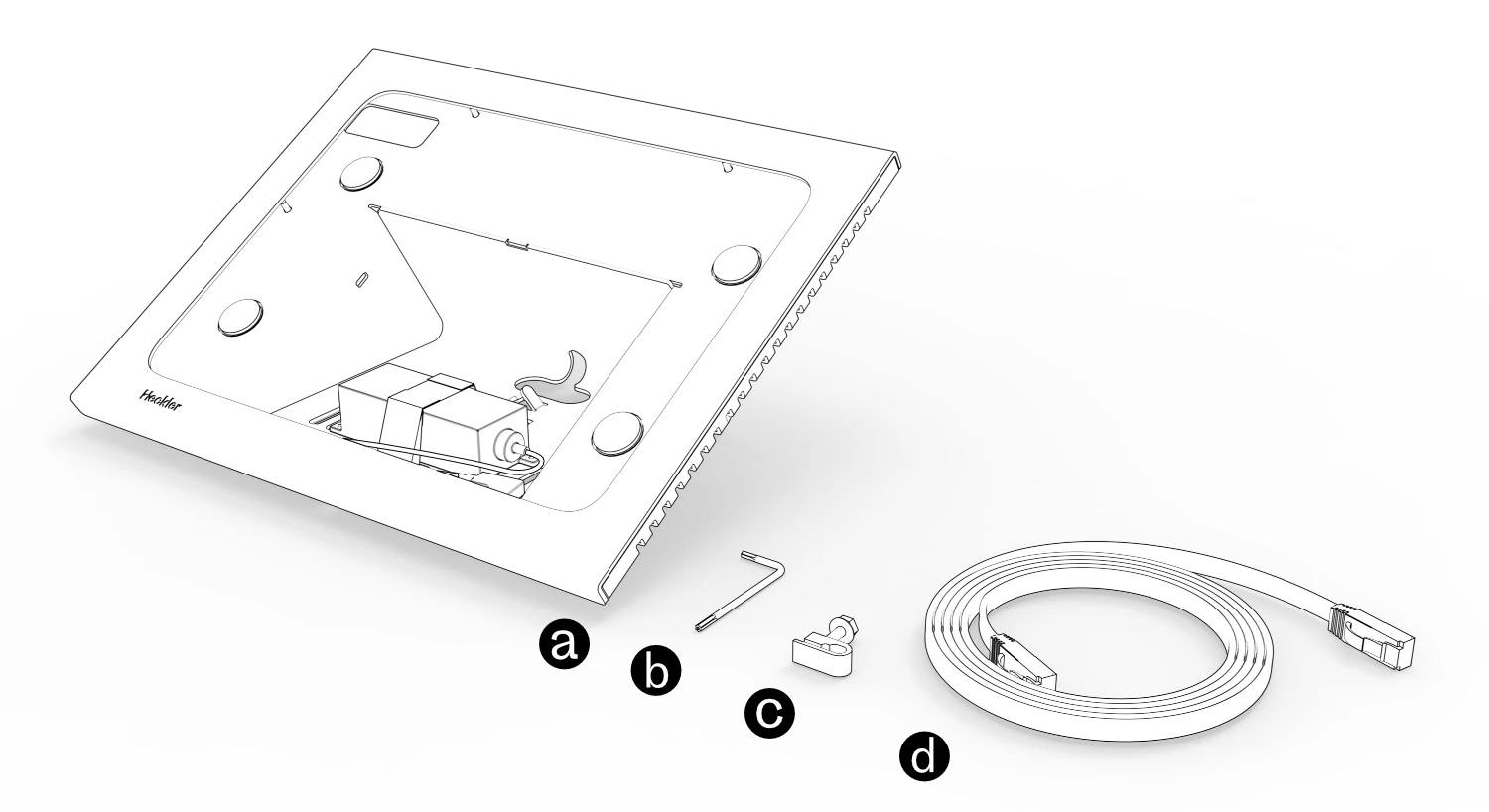

Included components labeled a-d: Zoom Rooms Console with its installed adapter, assembly key, cable anchor, and coiled Ethernet cable.

Remove the front bezel

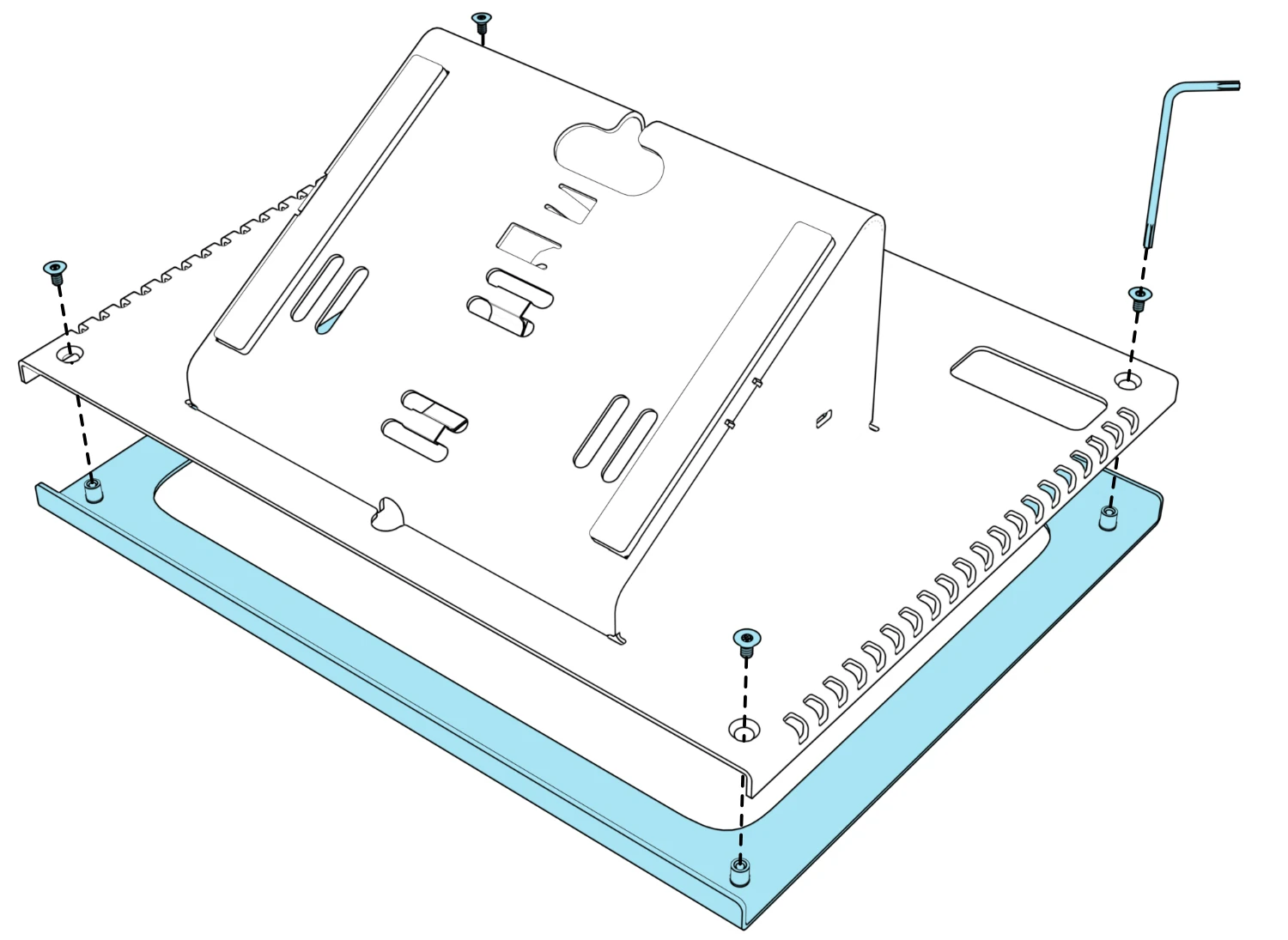

Exploded underside view of the console and separated front bezel, with four screws and the assembly key aligned to the mounting holes.

Install the Ethernet cable

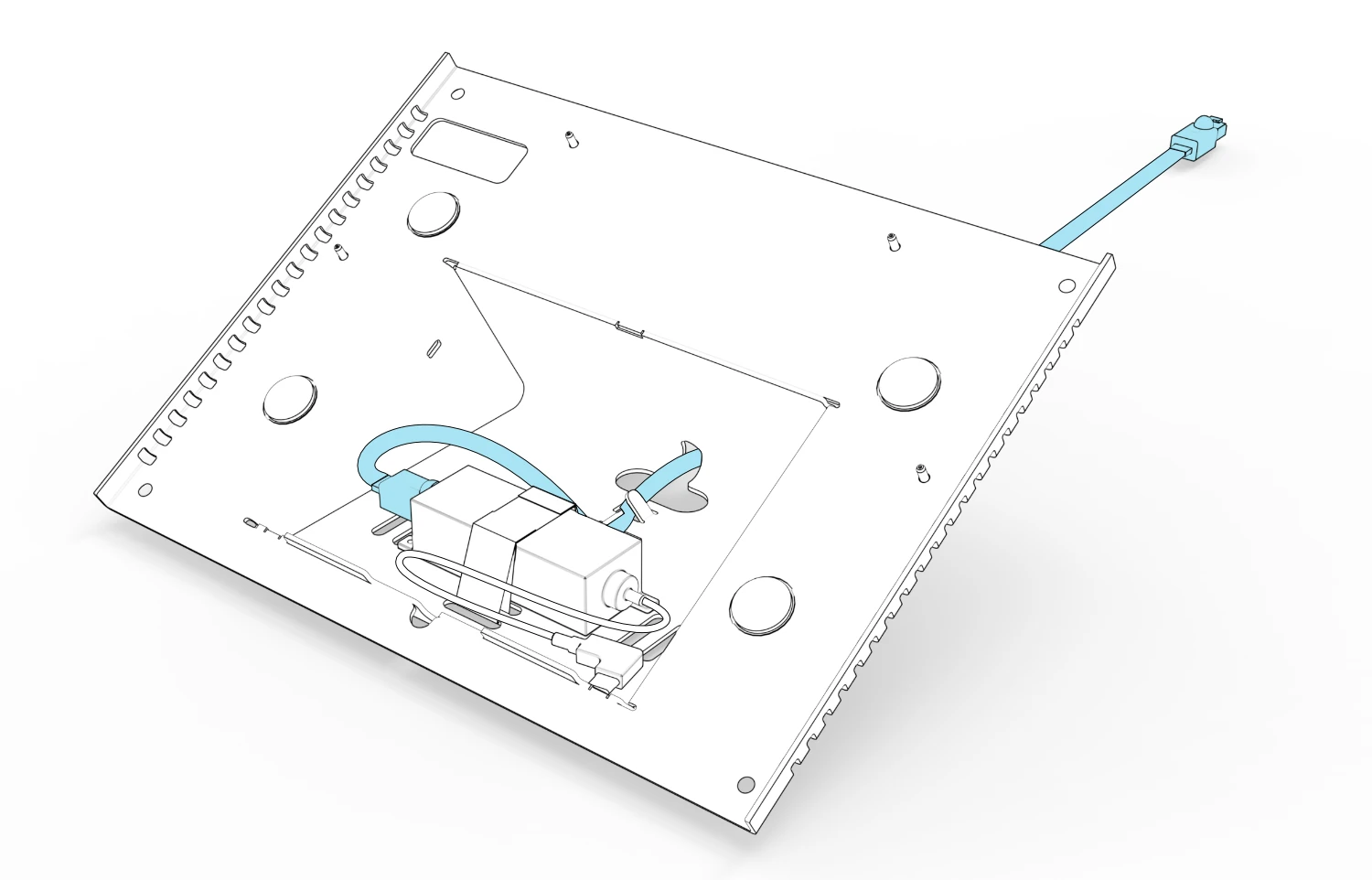

Ethernet cable connected to the adapter, looped through the console cable guides, and routed out the rear opening.

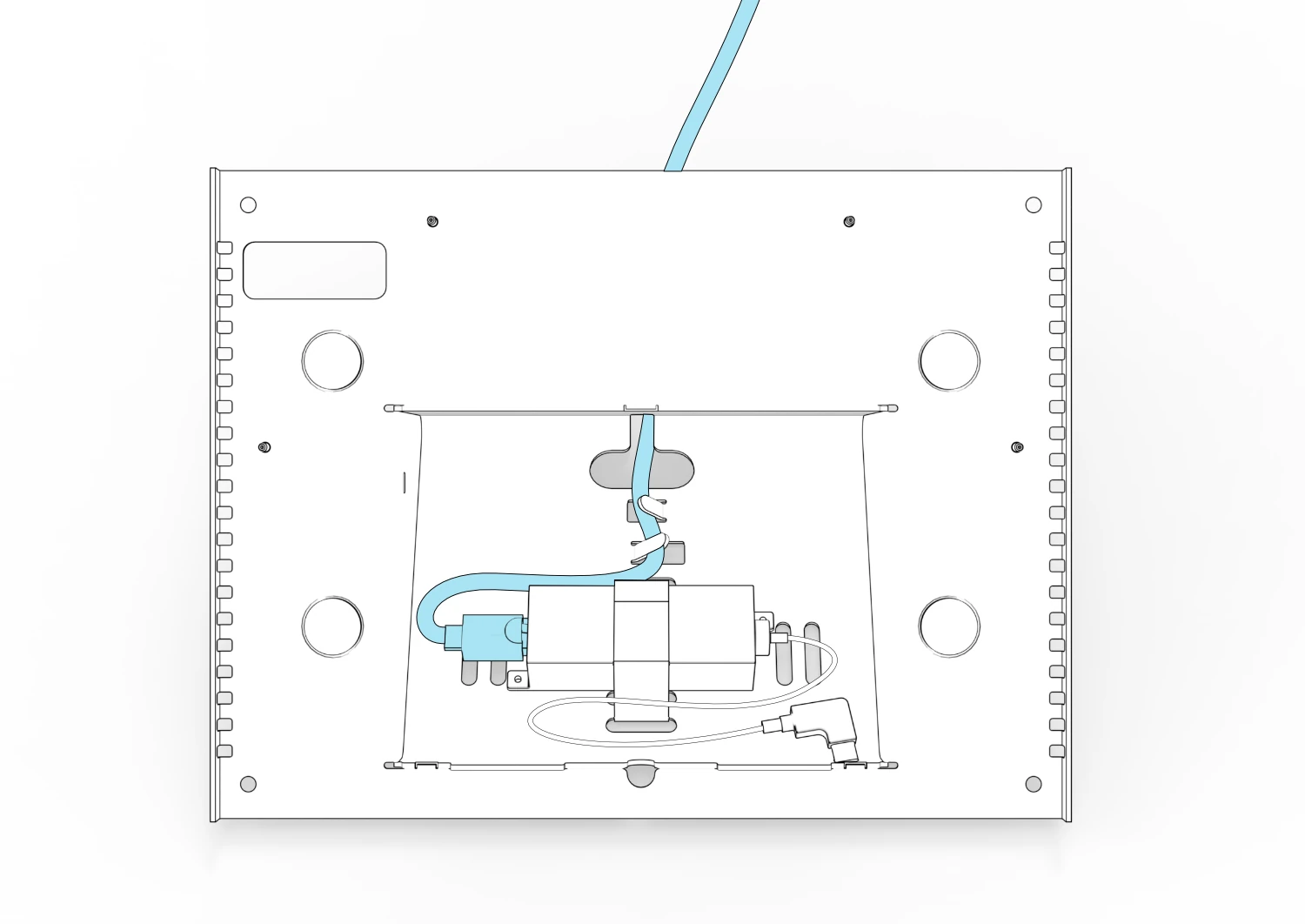

Top view of the Ethernet cable routed through the console cable guides and rear opening, beside the secured adapter and USB-C cable.

Prepare the USB-C charging cable

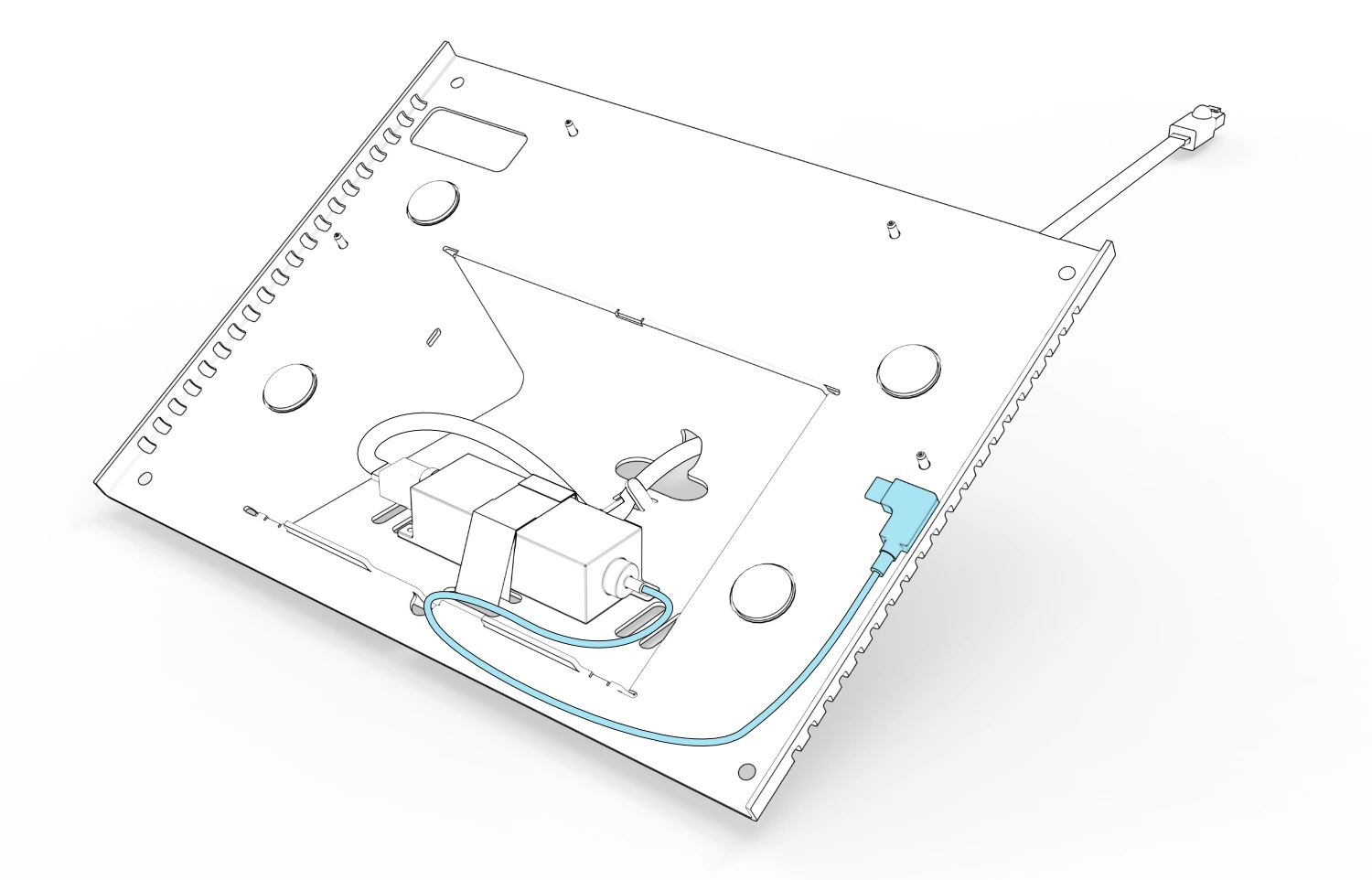

USB-C cable looped around the adapter and routed to a right-angle connector at the side of the console.

Install the iPad

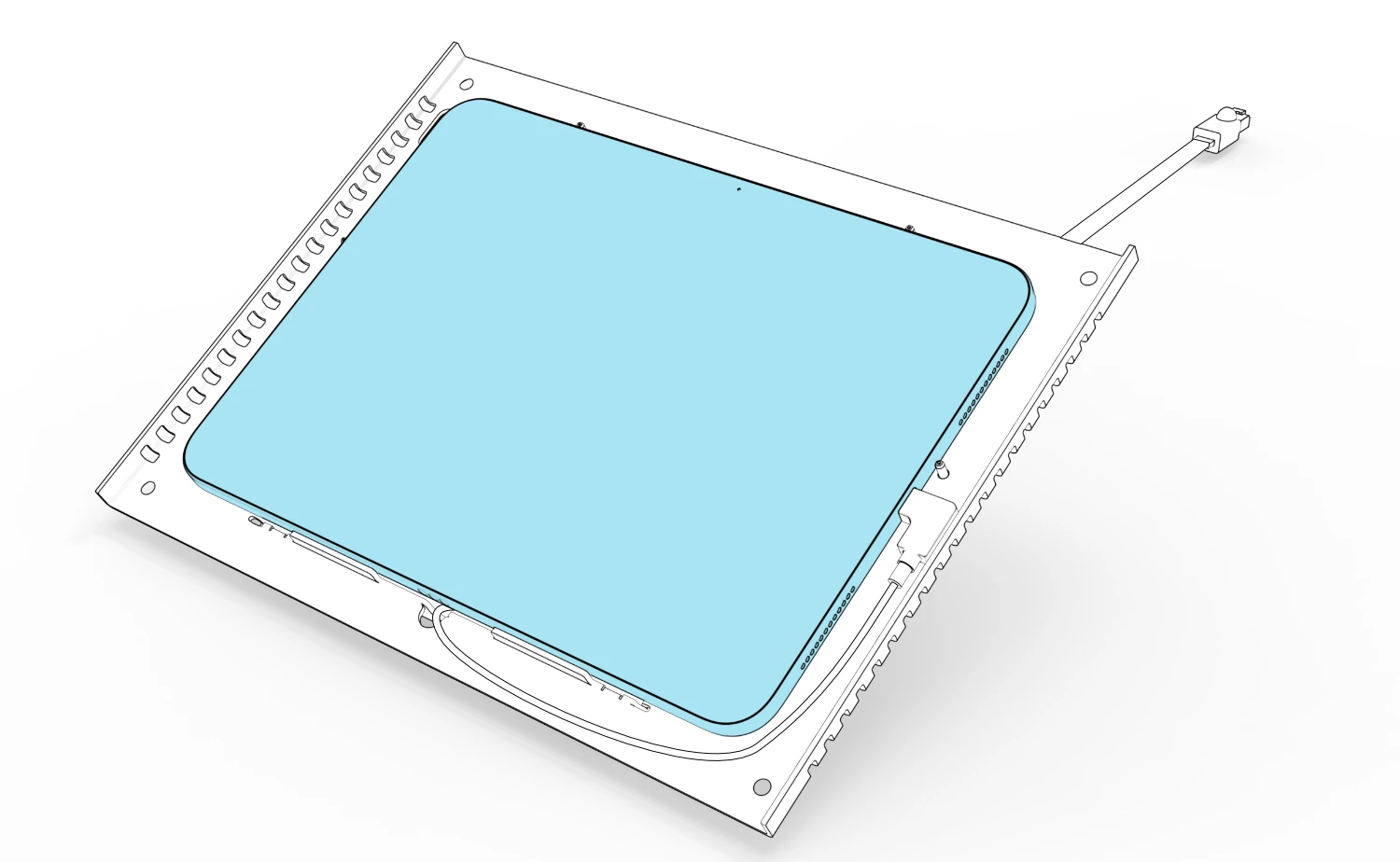

iPad seated screen-up in the console, with the right-angle USB-C connector attached at its side and the Ethernet cable exiting the rear.

Reinstall the front bezel

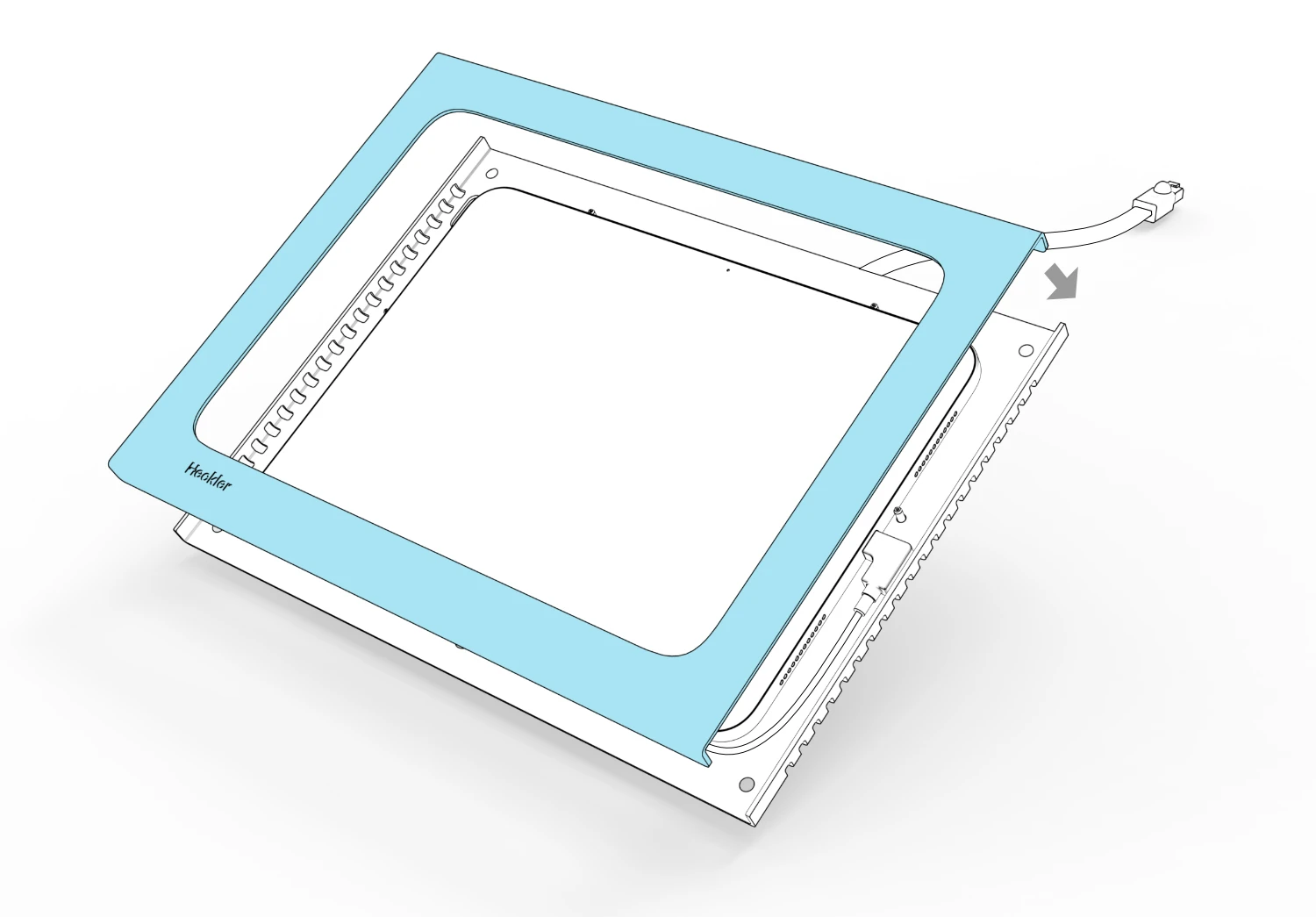

Front bezel positioned above the installed iPad, with a downward arrow indicating placement onto the console.

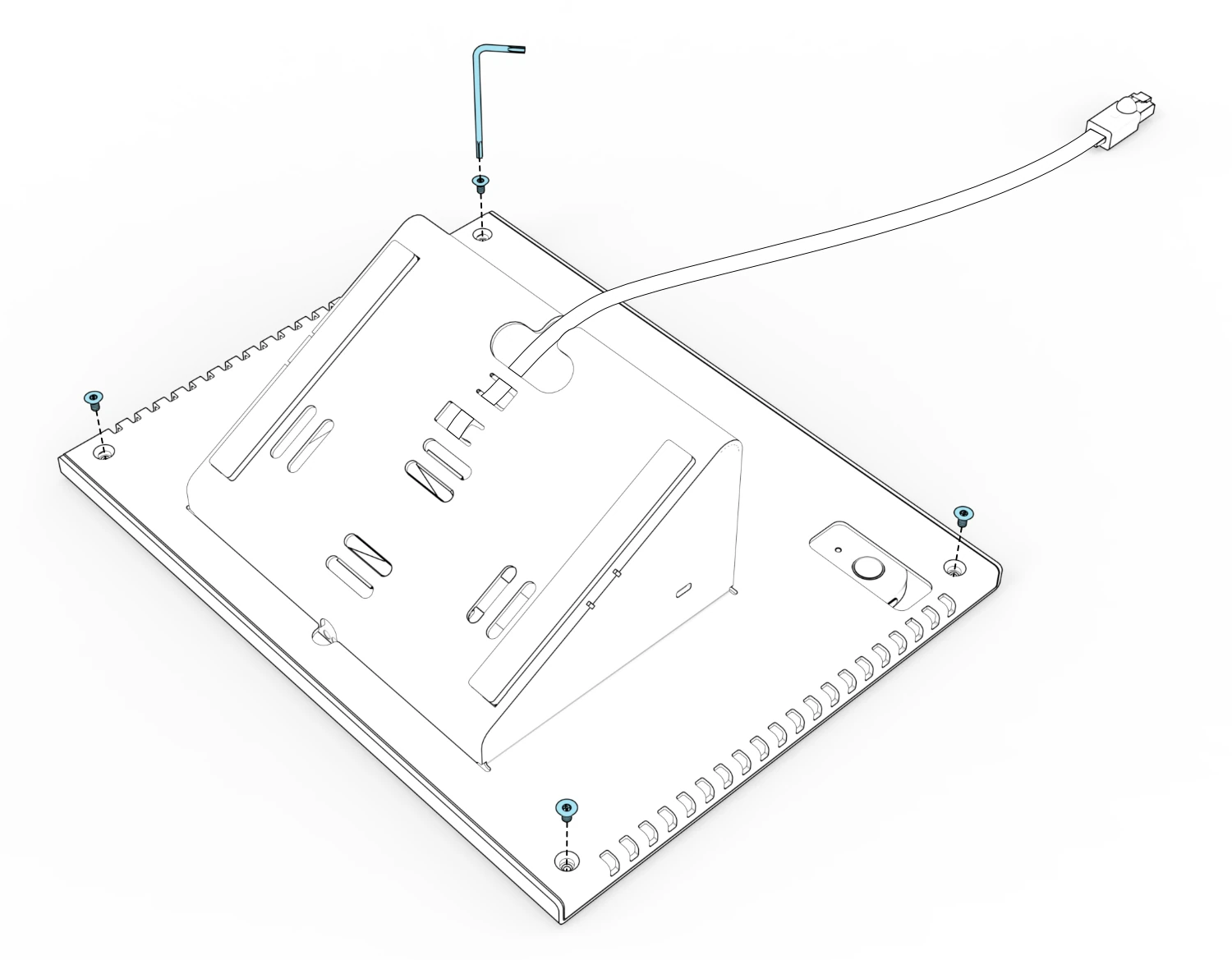

Underside view of the console with four screws aligned at the corners and the assembly key positioned at one screw.

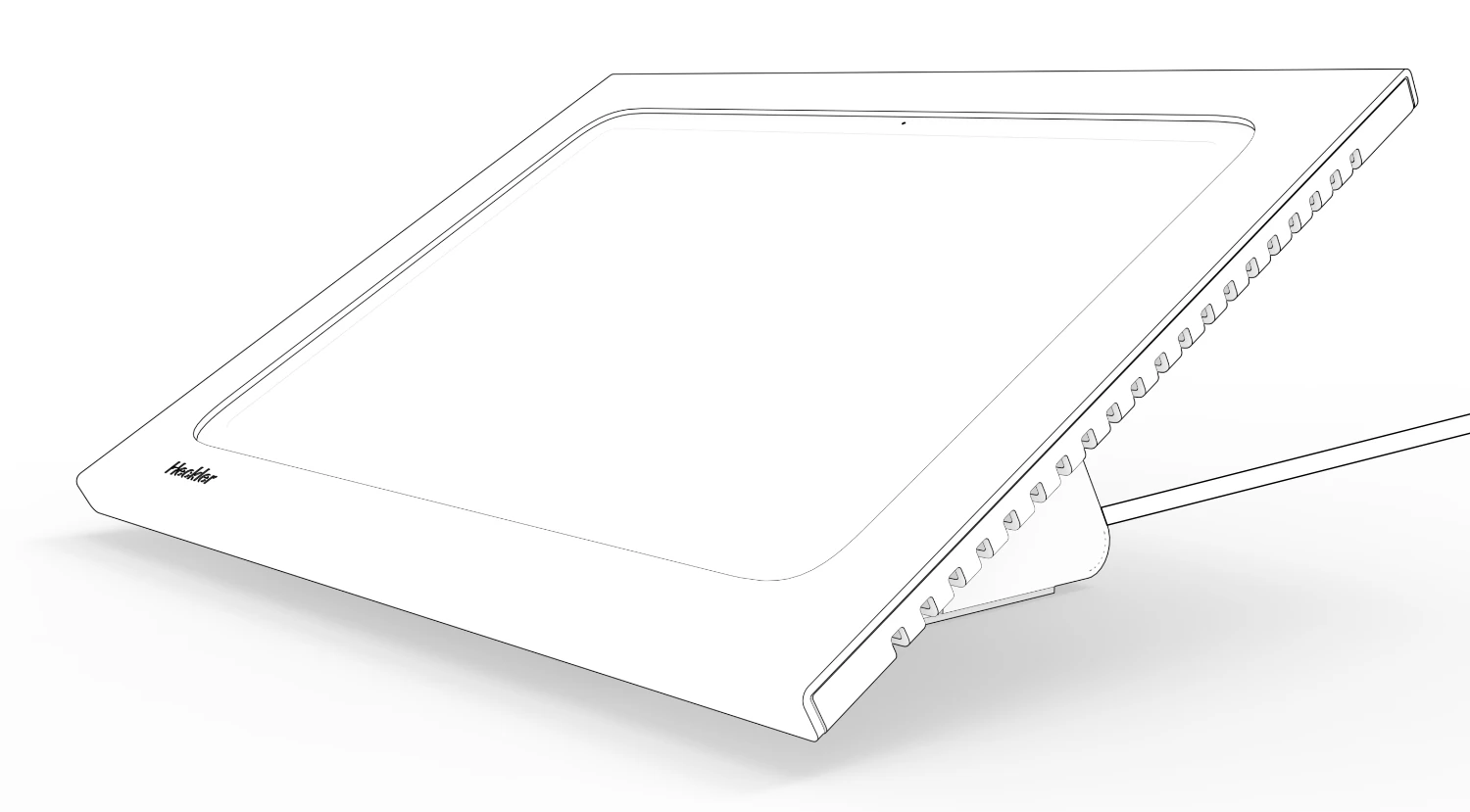

Assembled console viewed from the front at an angle, with the Ethernet cable extending behind it.

Anchor the Ethernet cable to the underside of the table (optional)

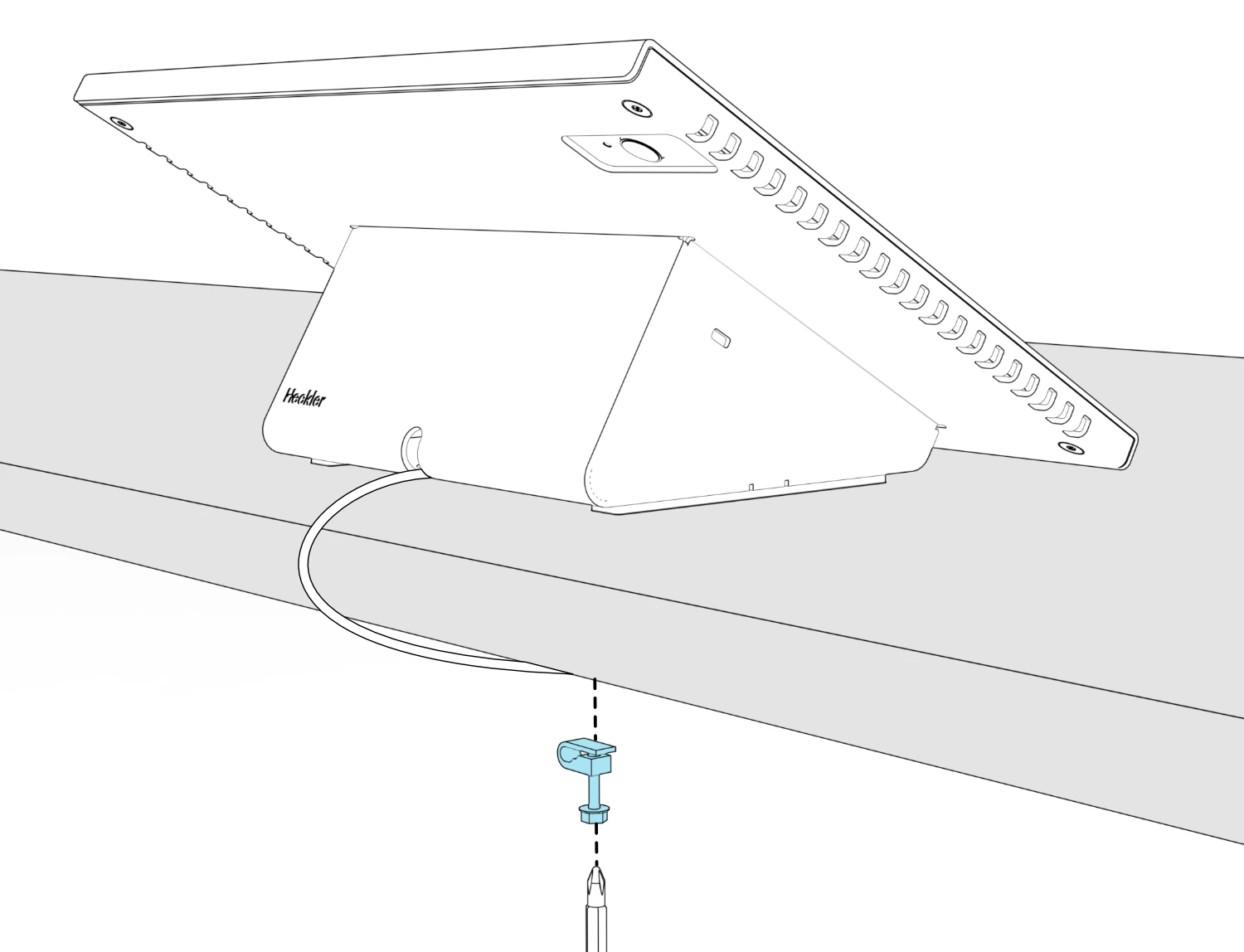

Rear view of the console on a table, with the Ethernet cable routed over the edge and a cable anchor, screw, and screwdriver positioned beneath the tabletop.

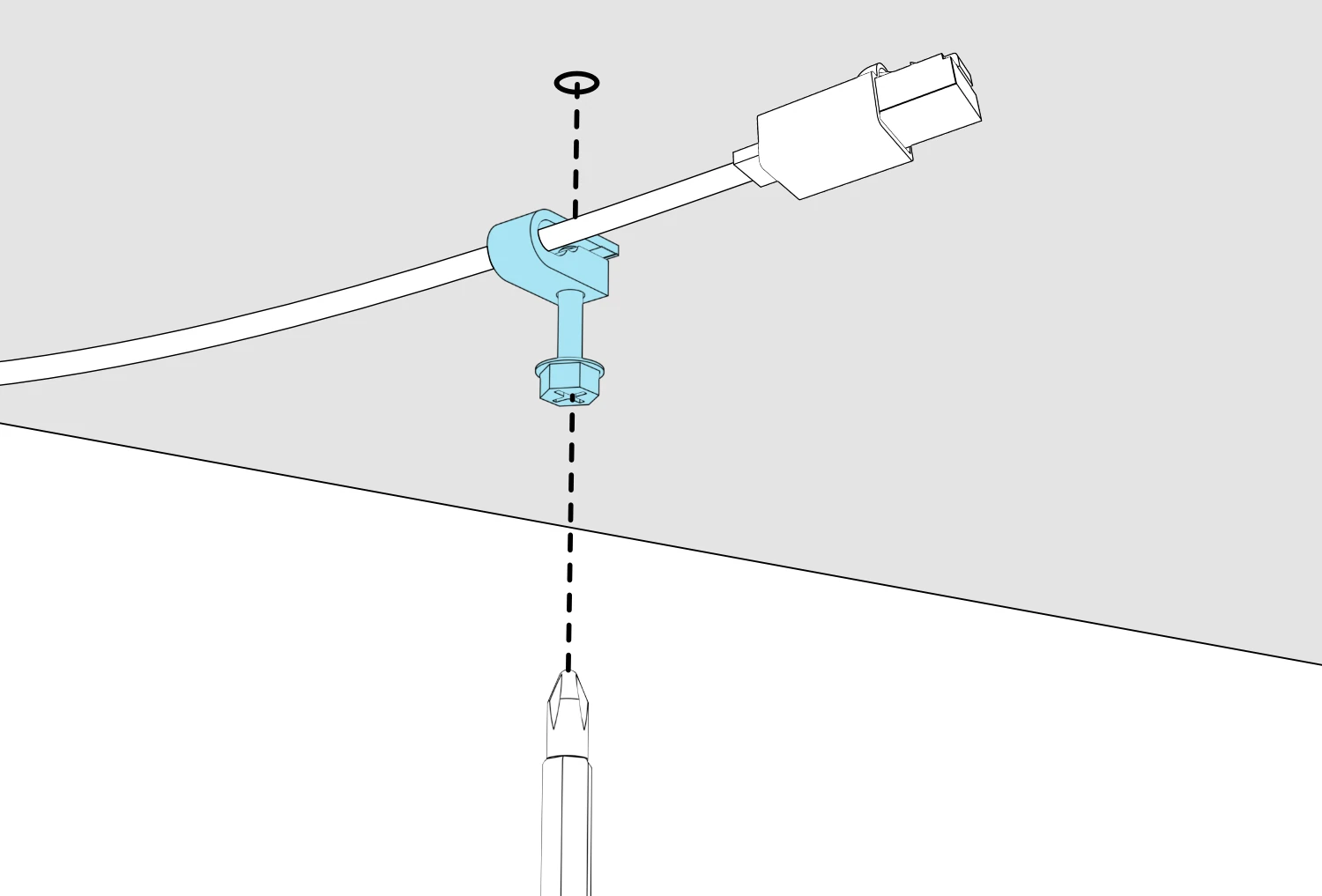

Close-up of the Ethernet cable held in a cable anchor beneath the tabletop, with a screw and screwdriver aligned with the anchor.

How to power your iPad

Your Zoom Rooms Console includes a pre-installed PoE Texas adapter for power and wired Ethernet data. Connect the adapter to a PoE switch on your network to supply power and Ethernet data to your iPad. The adapter uses the 802.3af PoE standard.

Questions? Please contact service@heckler.com.

Warranty support for this adapter is provided directly by PoE Texas. For more information, visit PoE Texas AF-USBC-PD.

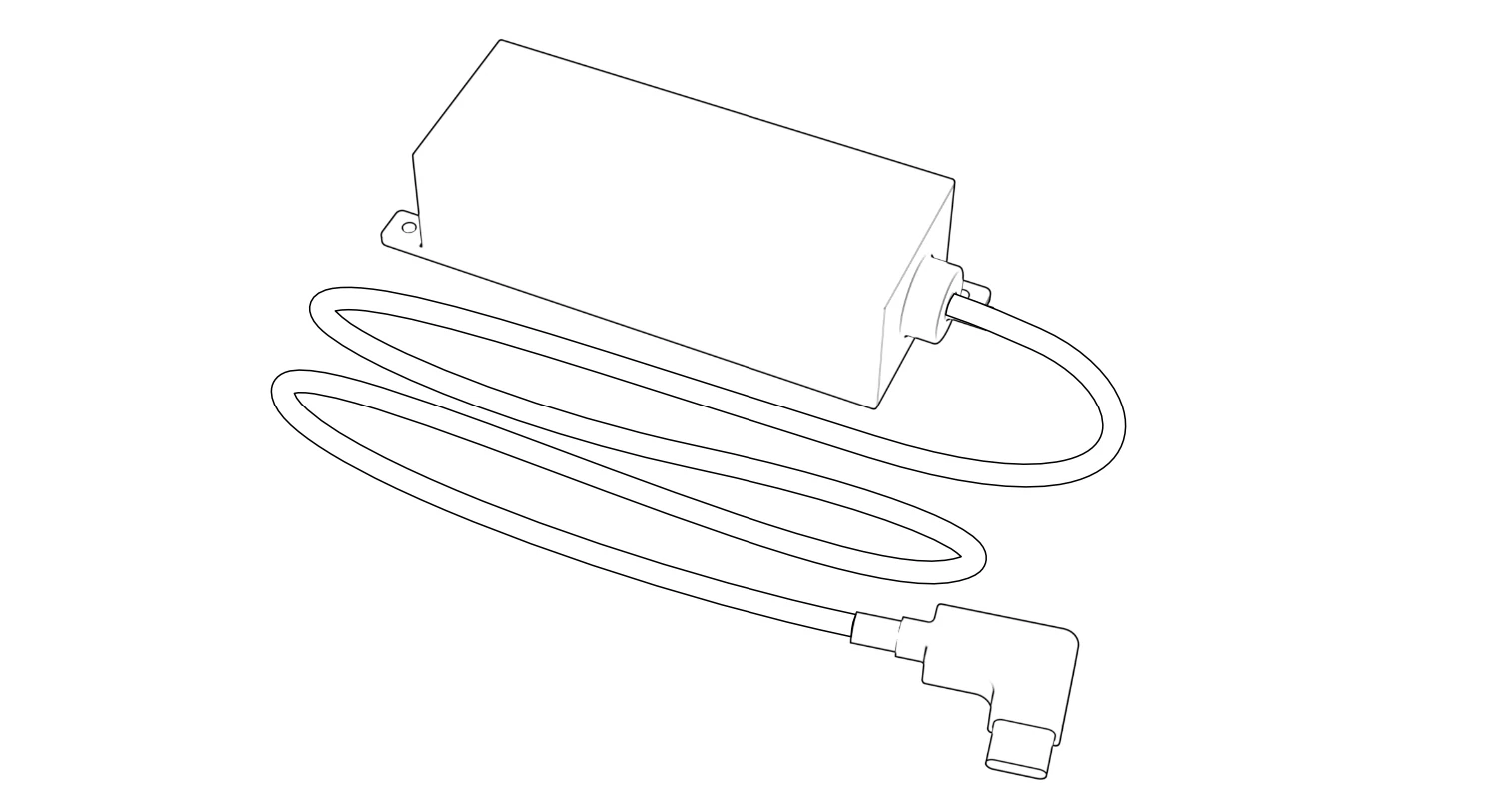

PoE/Ethernet adapter with an attached cable ending in a right-angle USB-C connector.
