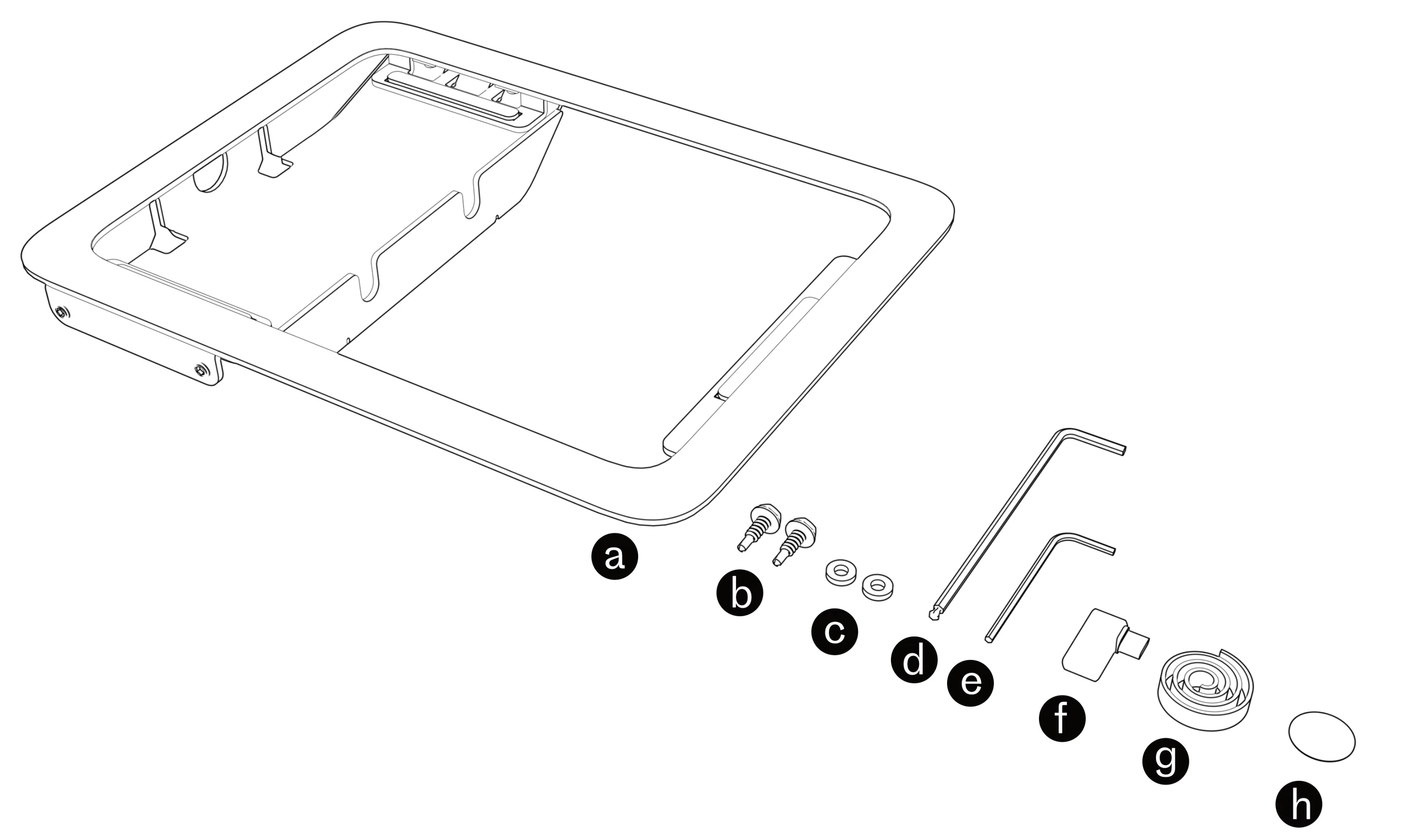

1 x Side Mount 2 x Mullion-mounting Screw (F063) 2 x Rubber Washer (F064) 1 x Set Screw Assembly Key (F914) 1 x Enclosure Assembly Key (F529) 1 x Right-angle USB-C to USB-C adapter (F102) 1 x Cable Tie (F817) 1 x Velcro dot set (F695) Enlarge image ↗ Included components labeled a–h: Side Mount, two mullion-mounting screws, two rubber washers, set-screw assembly key, enclosure assembly key, right-angle USB-C adapter, cable tie, and hook-and-loop dot set.
To install the iPad to your mullion at an ADA-compliant height, position the enclosure so that the top edge of the iPad screen is no higher than 48 inches above the finished floor.

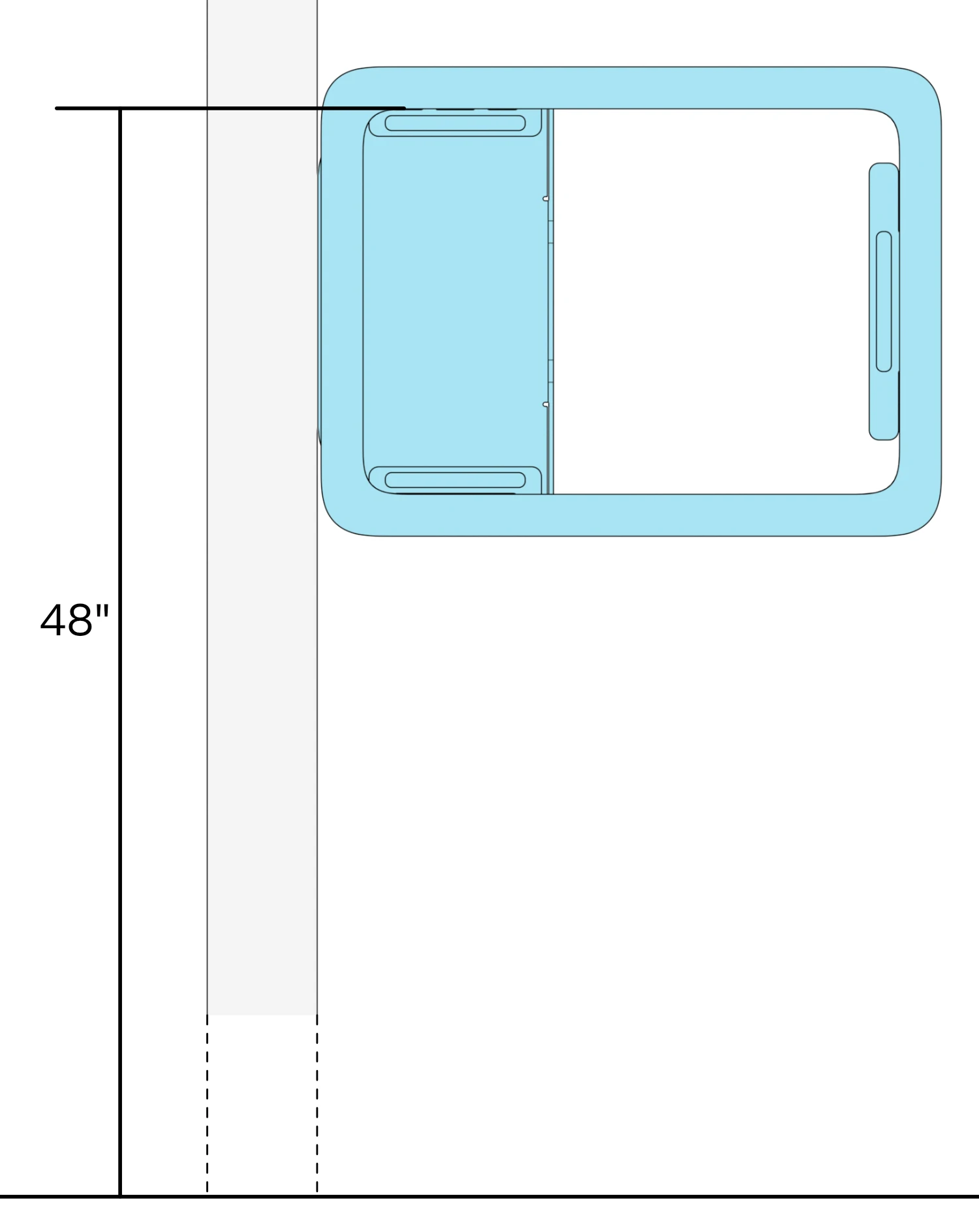

Enlarge image ↗ Side Mount positioned on a mullion, with a 48-inch maximum-height dimension from the finished floor to the top edge of the iPad screen.
Align the front face of the enclosure bezel to the front face of your mullion. Using a felt-tipped marker, mark the two screw positions and the CAT cable hole position as shown. Remove the mount from the mullion.

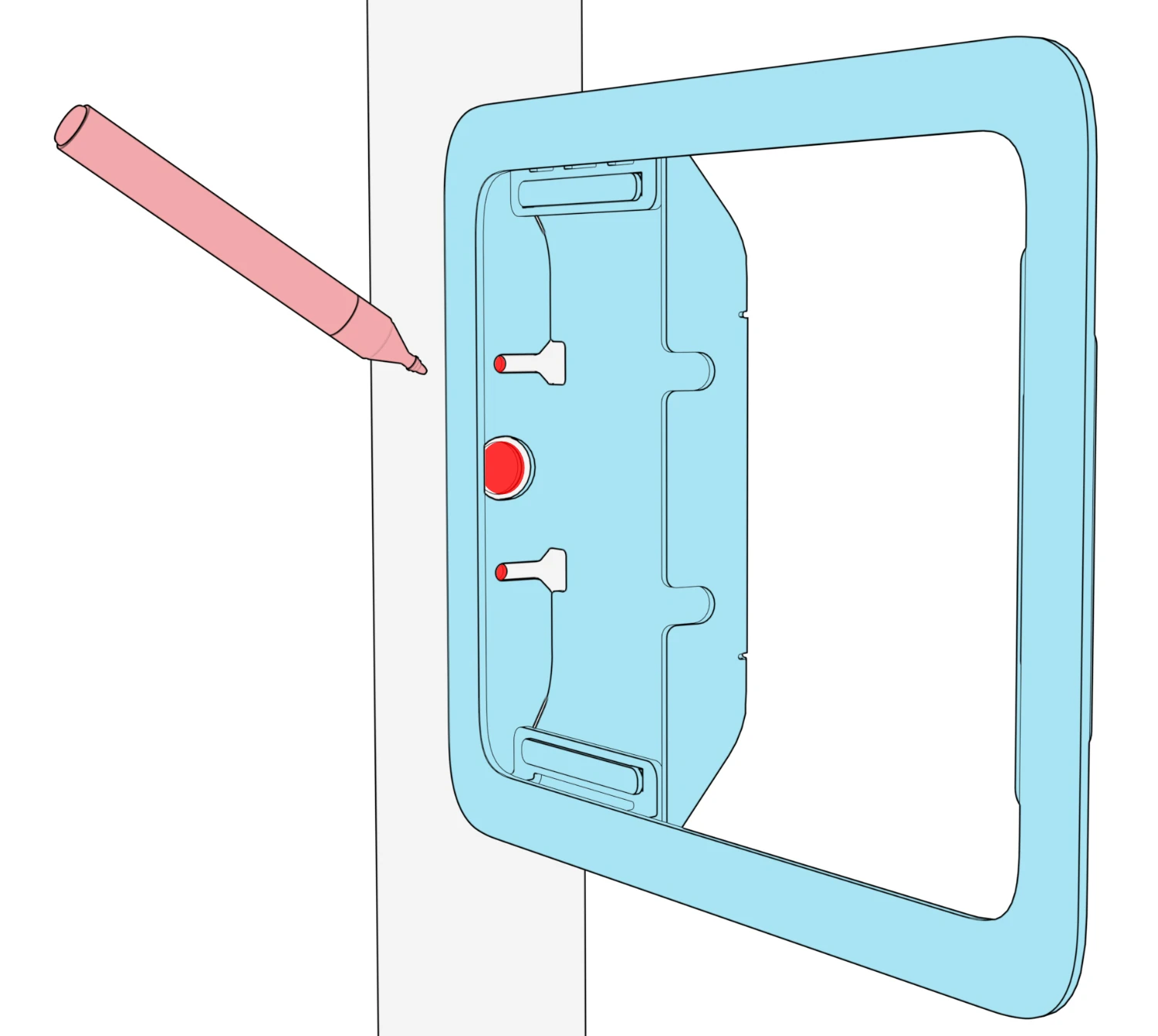

Enlarge image ↗ Enclosure held against the mullion, with a marker indicating two mounting-screw positions and the center cable opening.
Please review the internal structure of your mullions to ensure drilling holes and installing screws will not strike internal elements such as glass or electrical wiring.
For your convenience, two mullion-mounting screws are provided. If you feel these screws are not appropriate for use with your mullions, please source alternate screws.
The provided screws are self-drilling. However, for the most accurate installations, we recommend drilling a 5/32-inch pilot hole for each mounting screw.
The provided screws are self-drilling. However, for the most accurate installations, we recommend drilling a 5/32-inch pilot hole for each mounting screw.
To be compatible with Side Mount, the face of the glass must be offset from the front face of the mullion by 1.5 inches or greater. If your glass setback is less, consider using Heckler Front Mount for iPad 10th Generation.

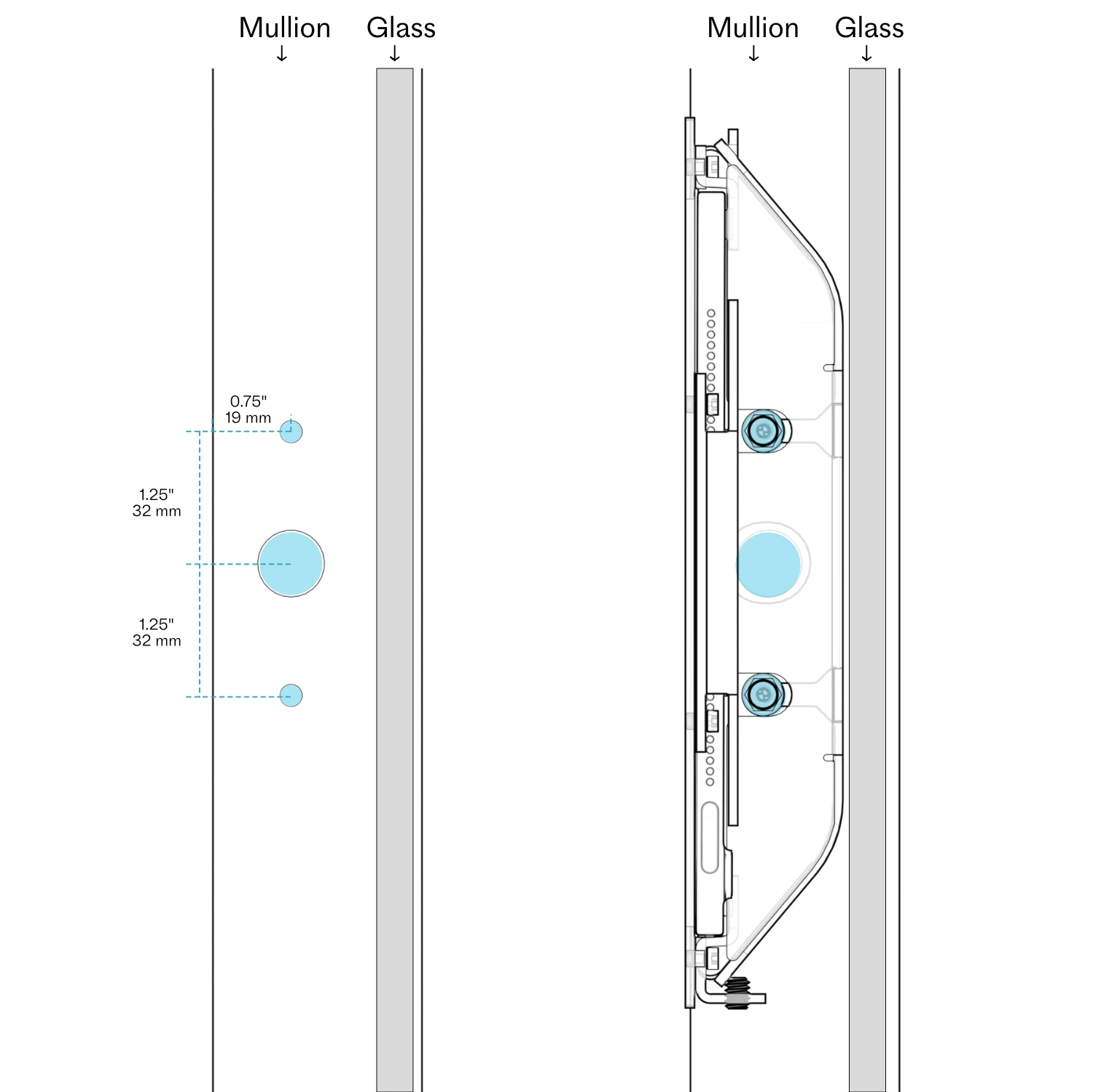

Enlarge image ↗ Mullion and glass cross-sections showing a hole centerline 0.75 inches (19 mm) from the front edge, with the cable-hole center 1.25 inches (32 mm) from each mounting-screw hole; the adjacent view shows the pocket beside the glass.
Use the smallest diameter drill bit possible to enable your network cable to pass through the mullion.
If your CAT cable has its RJ45 connector pre-installed, we recommend you create a 5/8” diameter hole. If you will install the RJ45 connector after passing the cable through your mullion, create a smaller hole.
Do not fully tighten the mounting screws. Leave about 0.25 inches between each screw head and the mullion at this step.

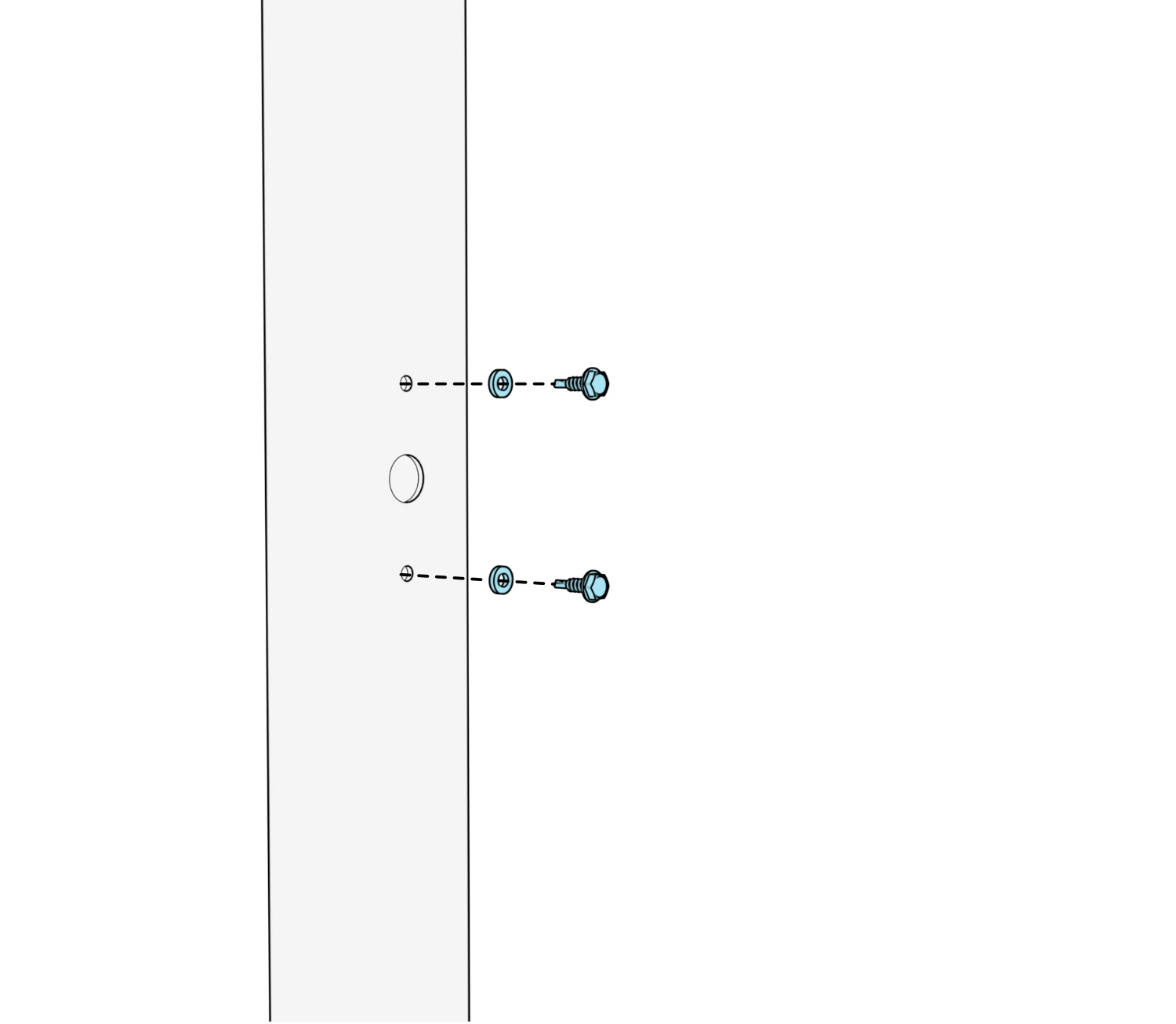

Enlarge image ↗ Two mounting screws and rubber washers aligned with the mullion holes above and below the center cable opening.

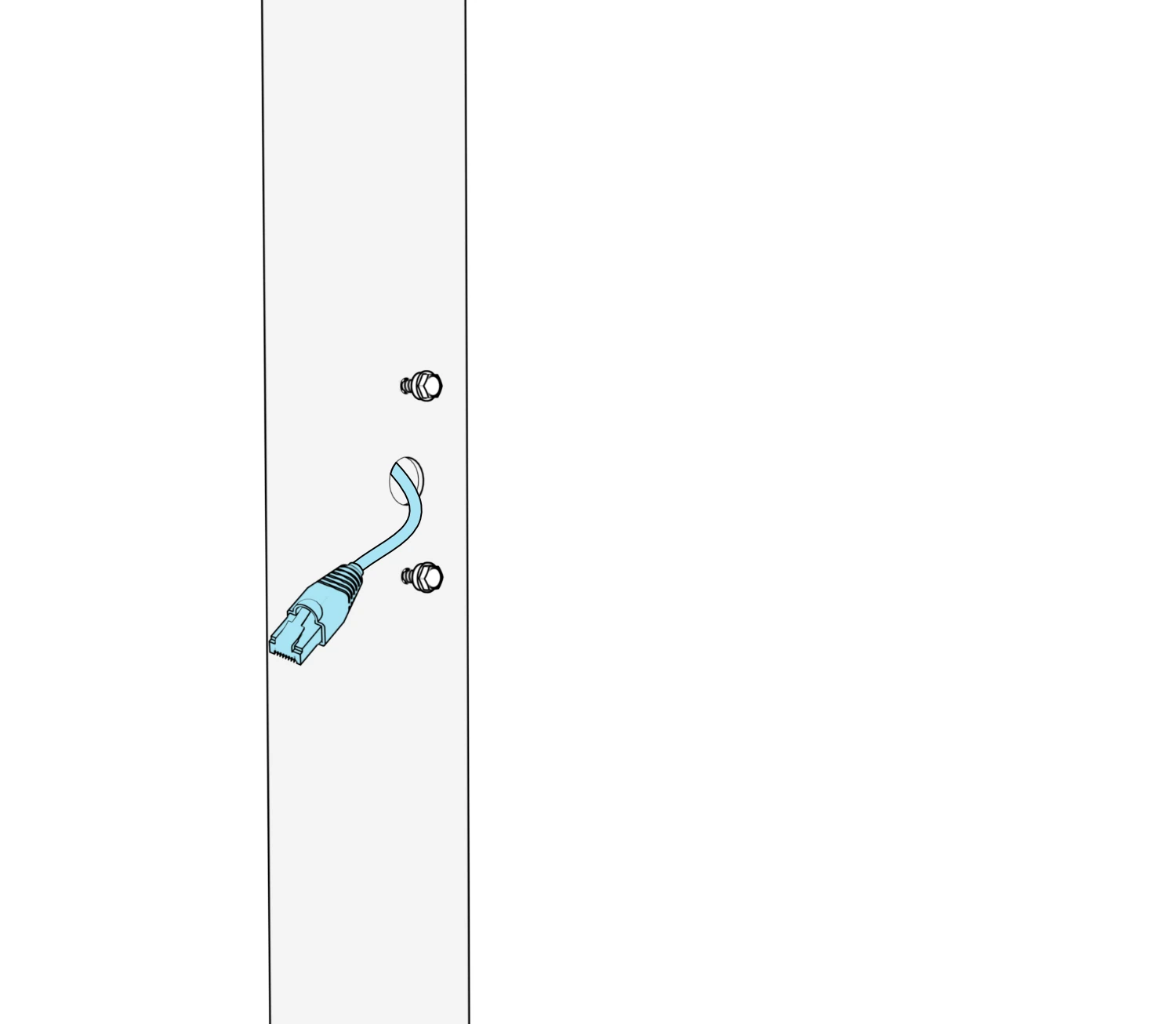

Enlarge image ↗ Network cable with an RJ45 connector extending through the center mullion opening between two partially installed mounting screws.
Loosen both set screws to the point where the pocket can slide past the brackets on the tablet enclosure. Do not remove the set screws from the bottom bracket of the tablet enclosure.

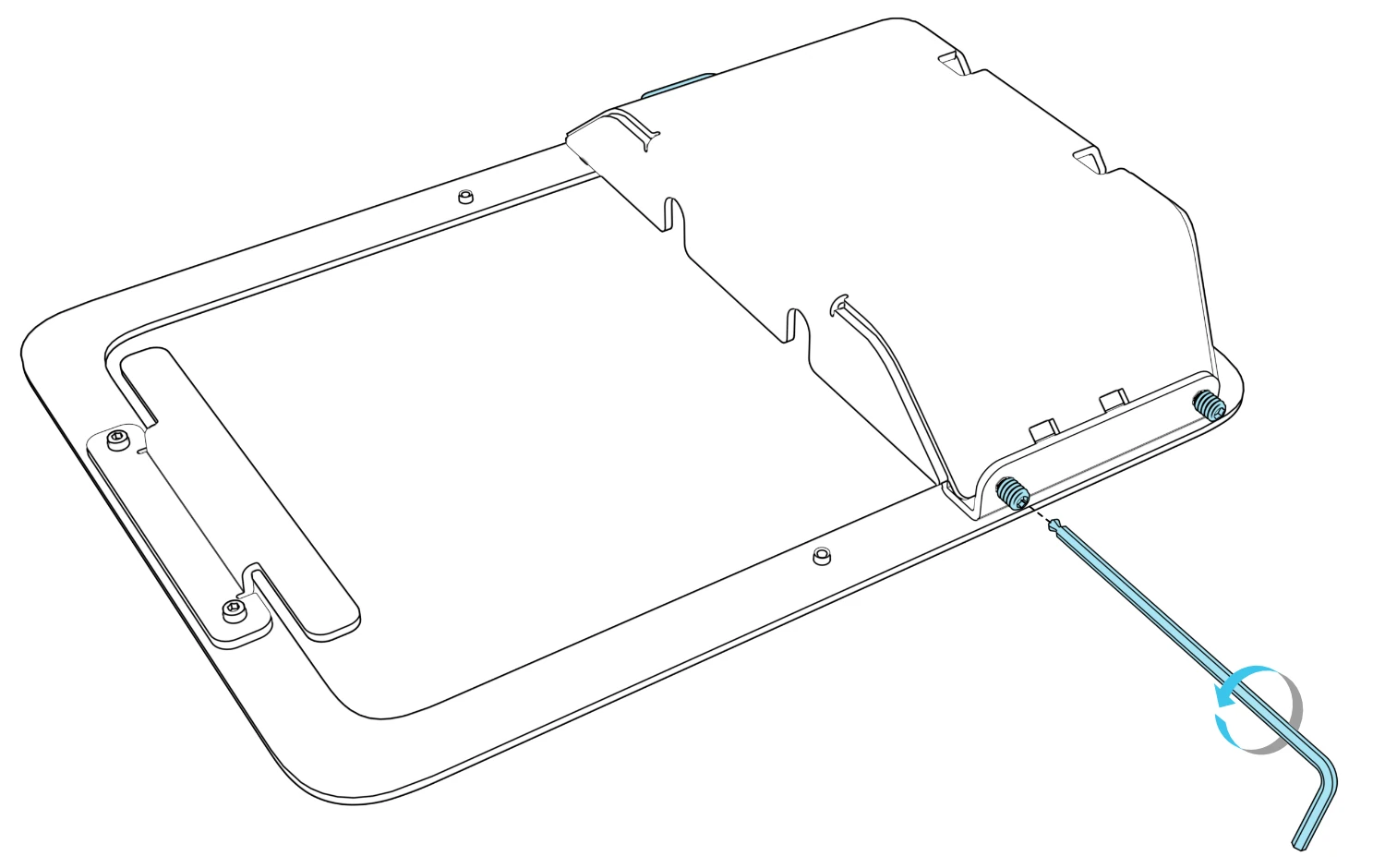

Enlarge image ↗ Rear view of the enclosure with a hex key aligned to one of the two set screws beside the pocket and a curved arrow indicating rotation.

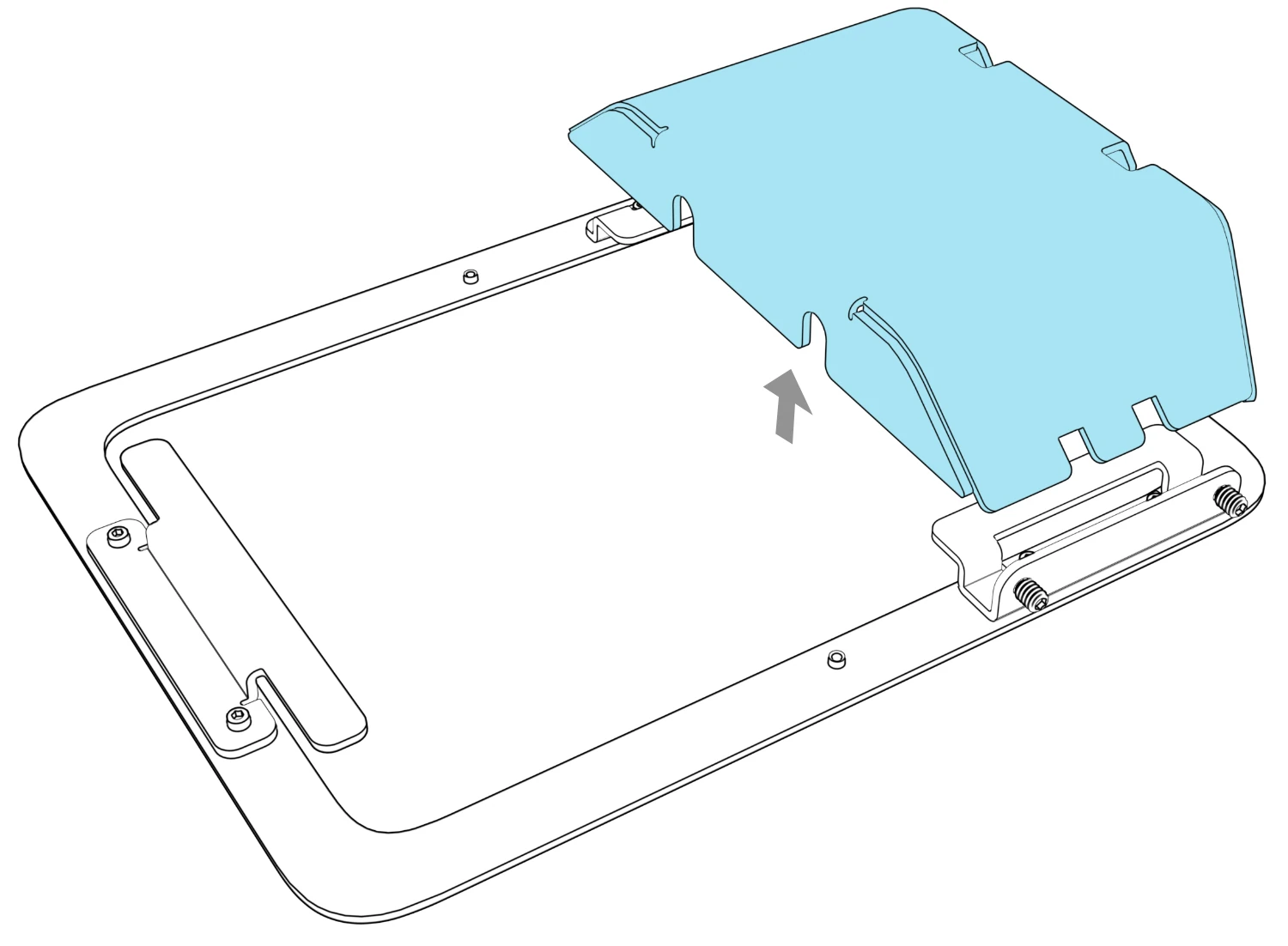

Enlarge image ↗ Pocket lifted away from the enclosure brackets, with an arrow indicating separation and both set screws retained in the bottom bracket.

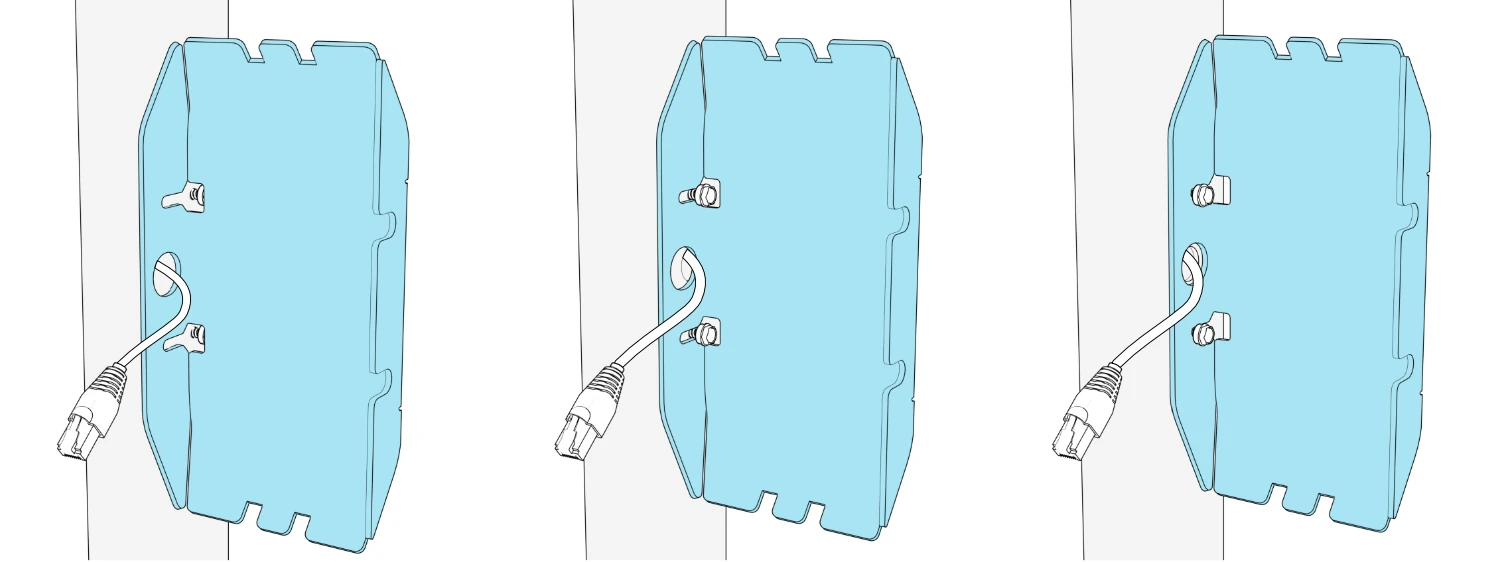

Enlarge image ↗ Three views showing the pocket slots passing over the two mounting-screw heads and engaging behind them, with the network cable through the center opening.

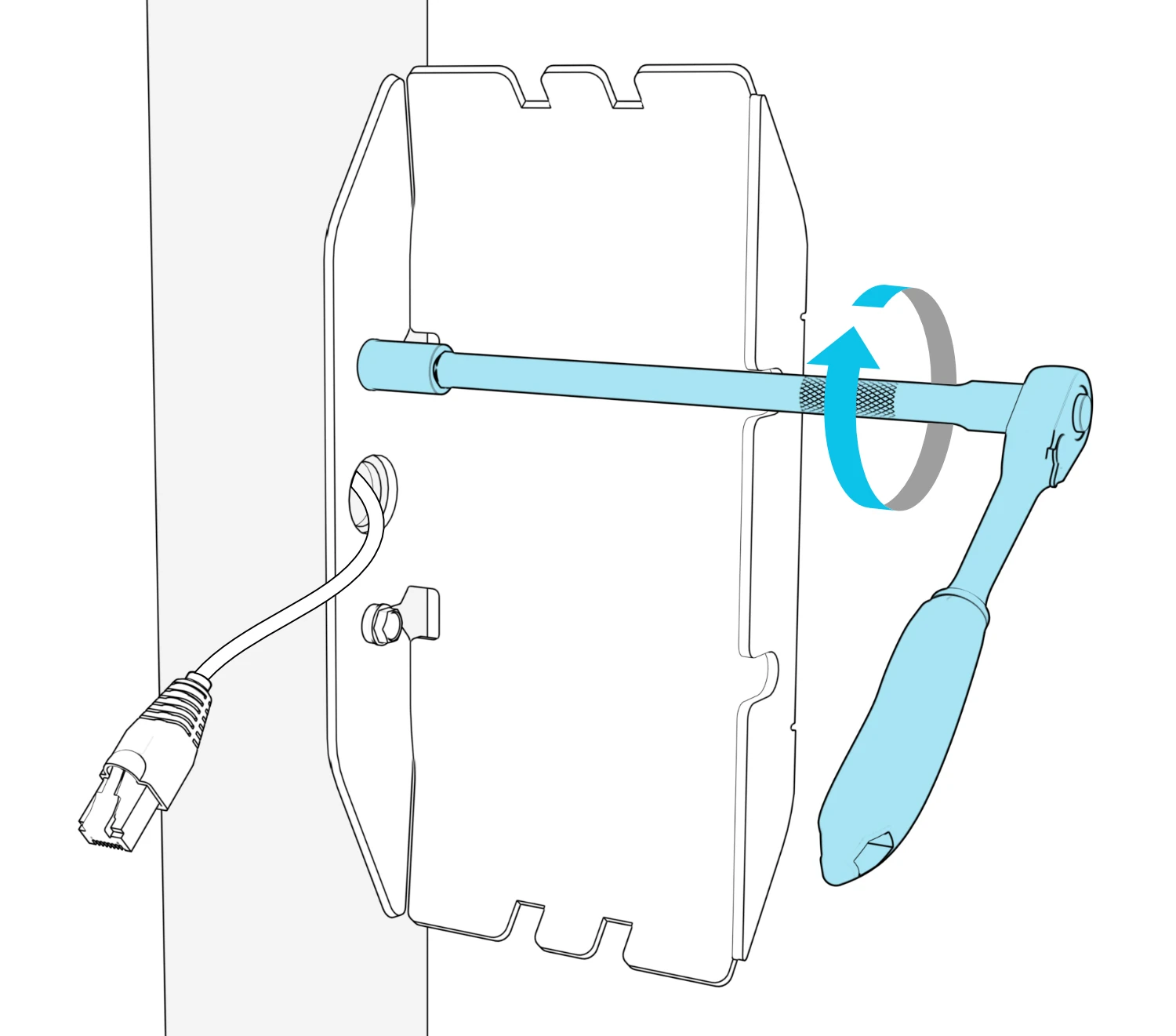

Enlarge image ↗ Socket wrench aligned with the upper mounting screw inside the pocket, with a curved arrow indicating tightening and the network cable extending through the center opening.
Any adapter that is 5 inches long, 3 inches wide, and 1 inch thick (or smaller) should fit inside the pocket.

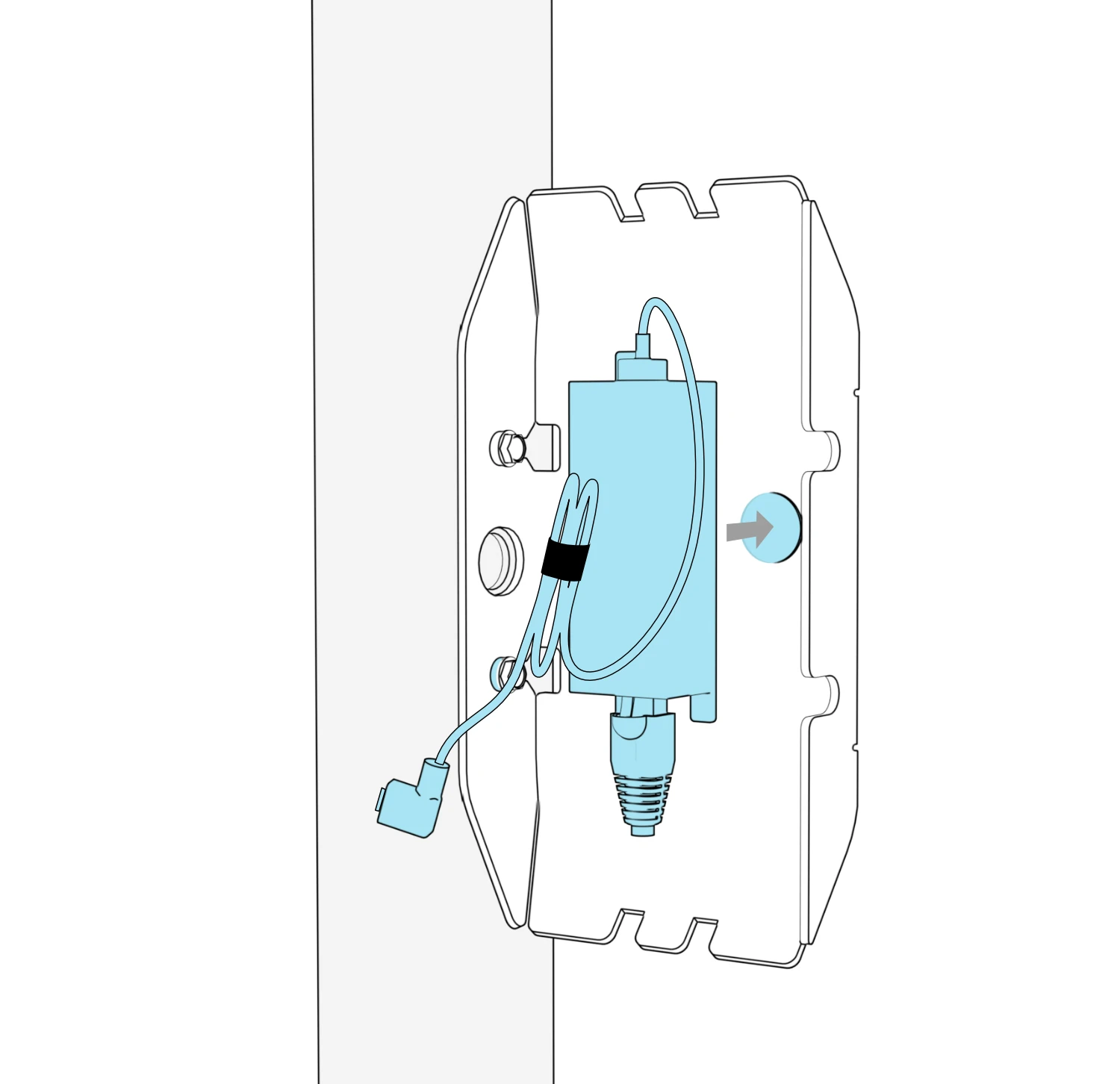

Enlarge image ↗ PoE adapter positioned inside the pocket with connected cables, bundled excess cable, and a circular hook-and-loop dot shown behind the adapter.

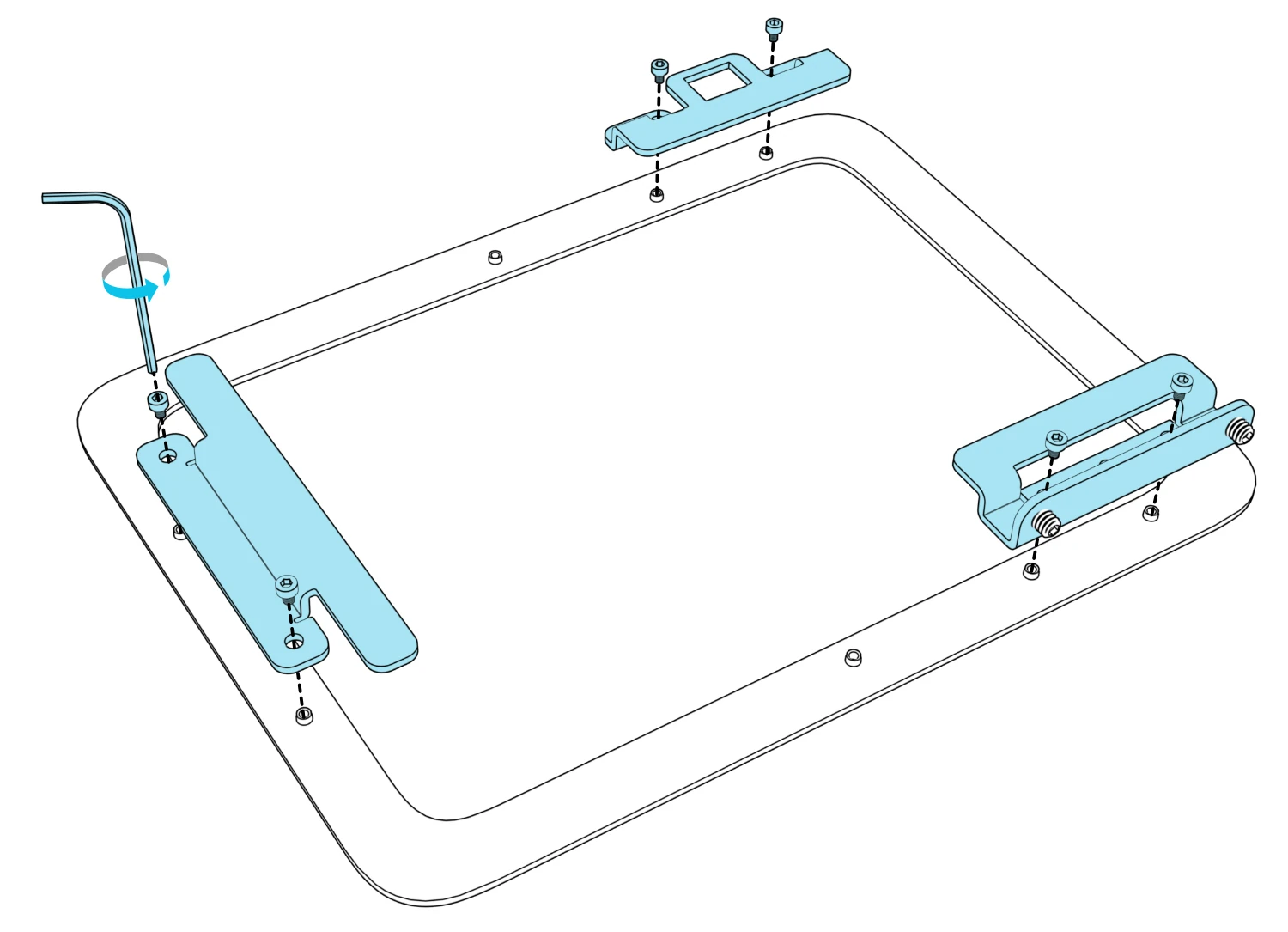

Enlarge image ↗ Exploded rear view showing the top, bottom, and side enclosure brackets, their screws, and a hex key aligned with one bracket screw.
Connect the right-angle USB-C adapter to your iPad so that the female USB-C port faces toward the bottom bracket of the enclosure. The bottom bracket includes the two set screws.

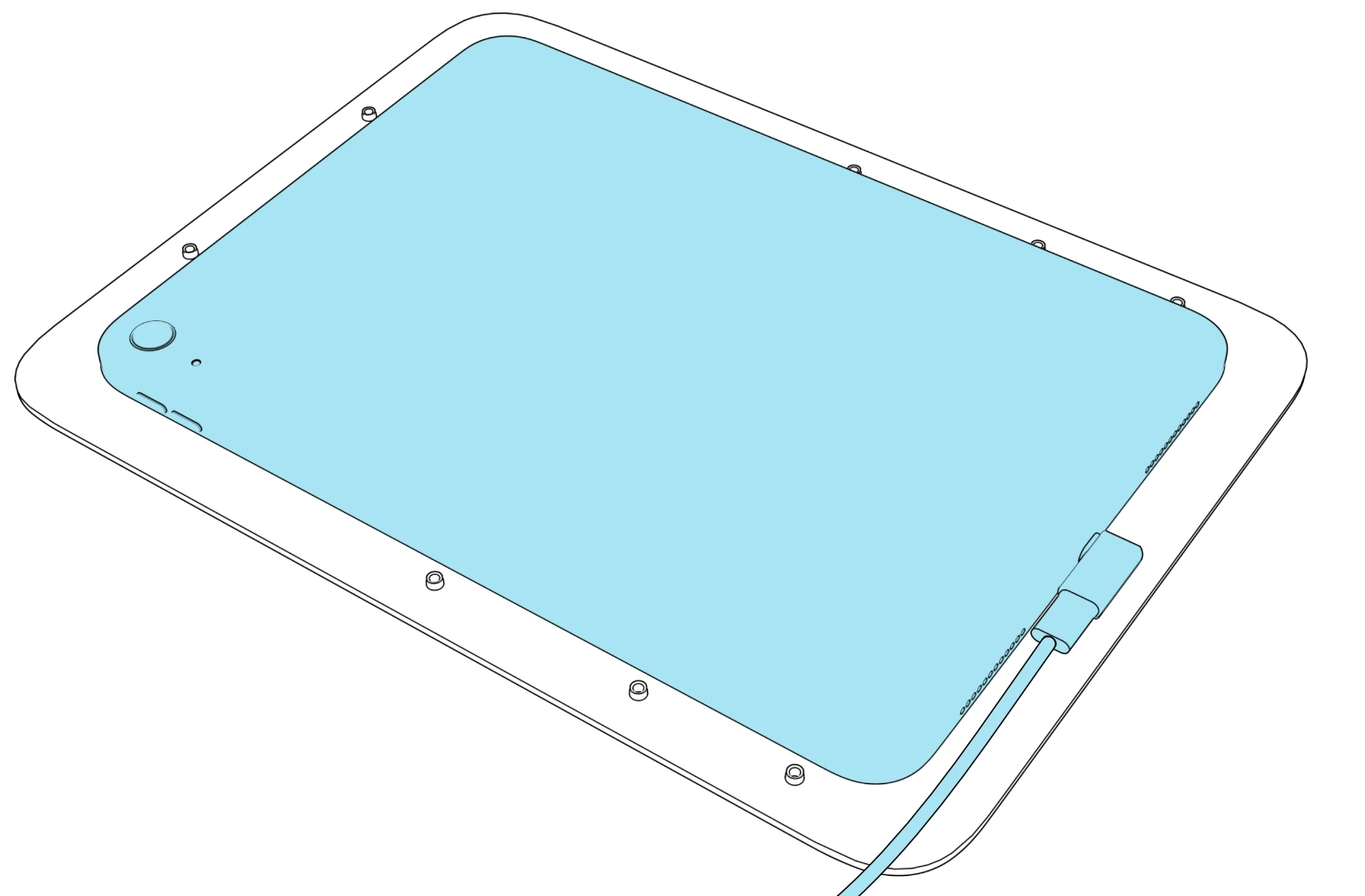

Enlarge image ↗ iPad positioned face down in the enclosure with a right-angle USB-C adapter and charging cable connected at its side port.

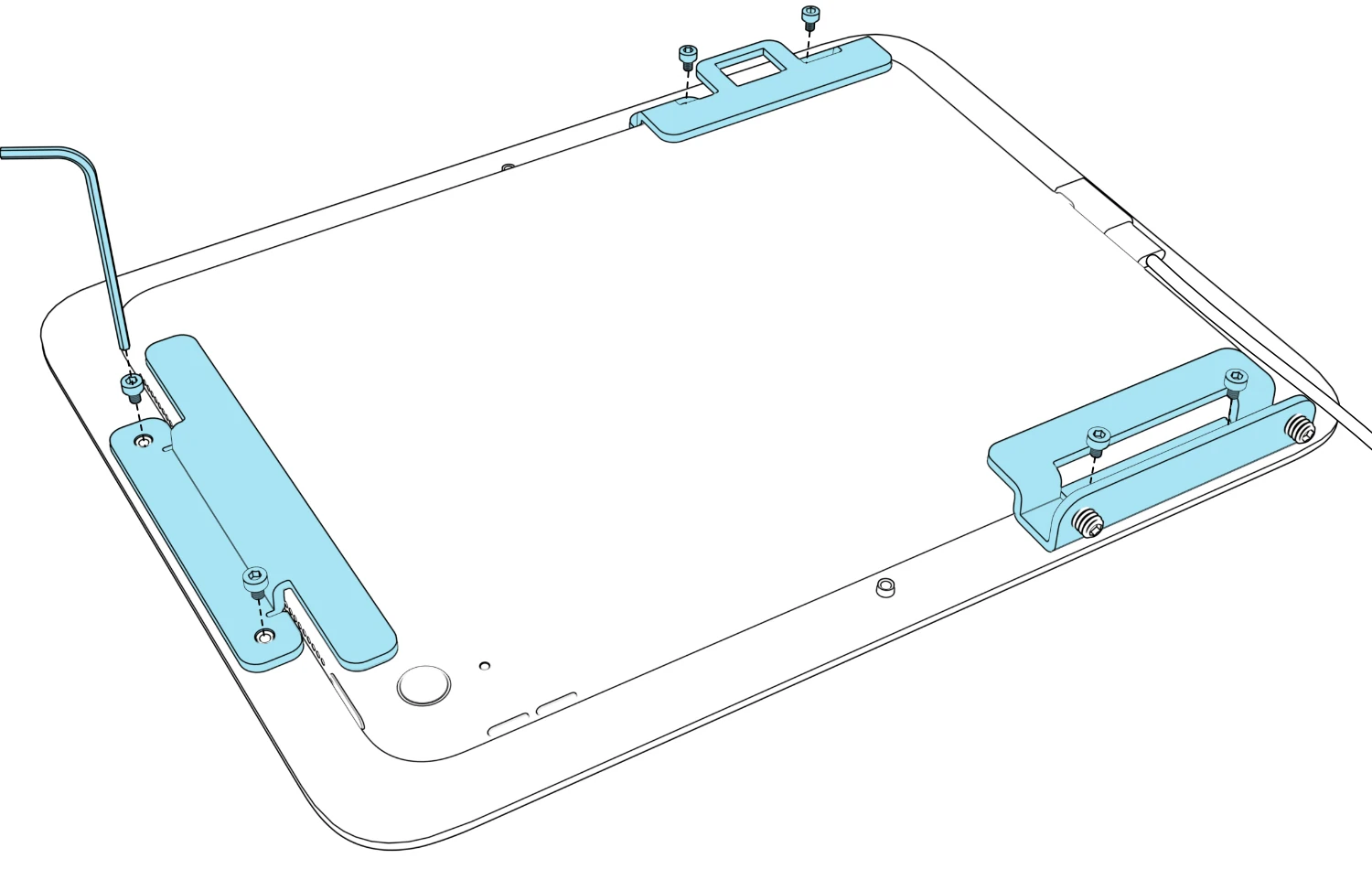

Enlarge image ↗ Rear view of the iPad in the enclosure, with three brackets and their screws aligned over it, a hex key at one screw, and the charging cable extending from the side.

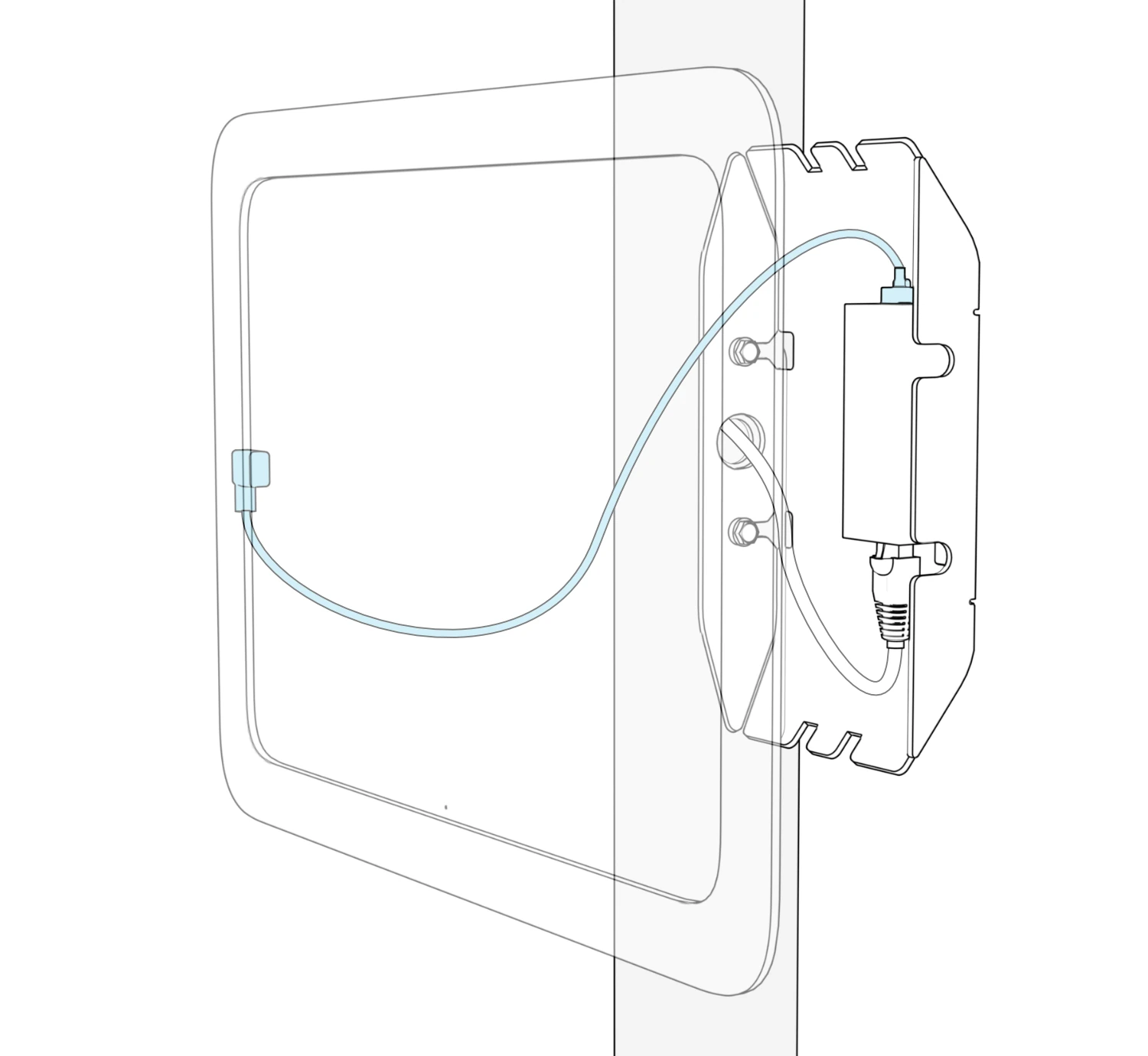

Enlarge image ↗ Transparent enclosure view showing the charging cable connected between the iPad’s right-angle USB-C adapter and the PoE adapter inside the pocket.
Lower the tab on the top of the pocket into the slot on the top of the enclosure and carefully swing the enclosure to its resting position.

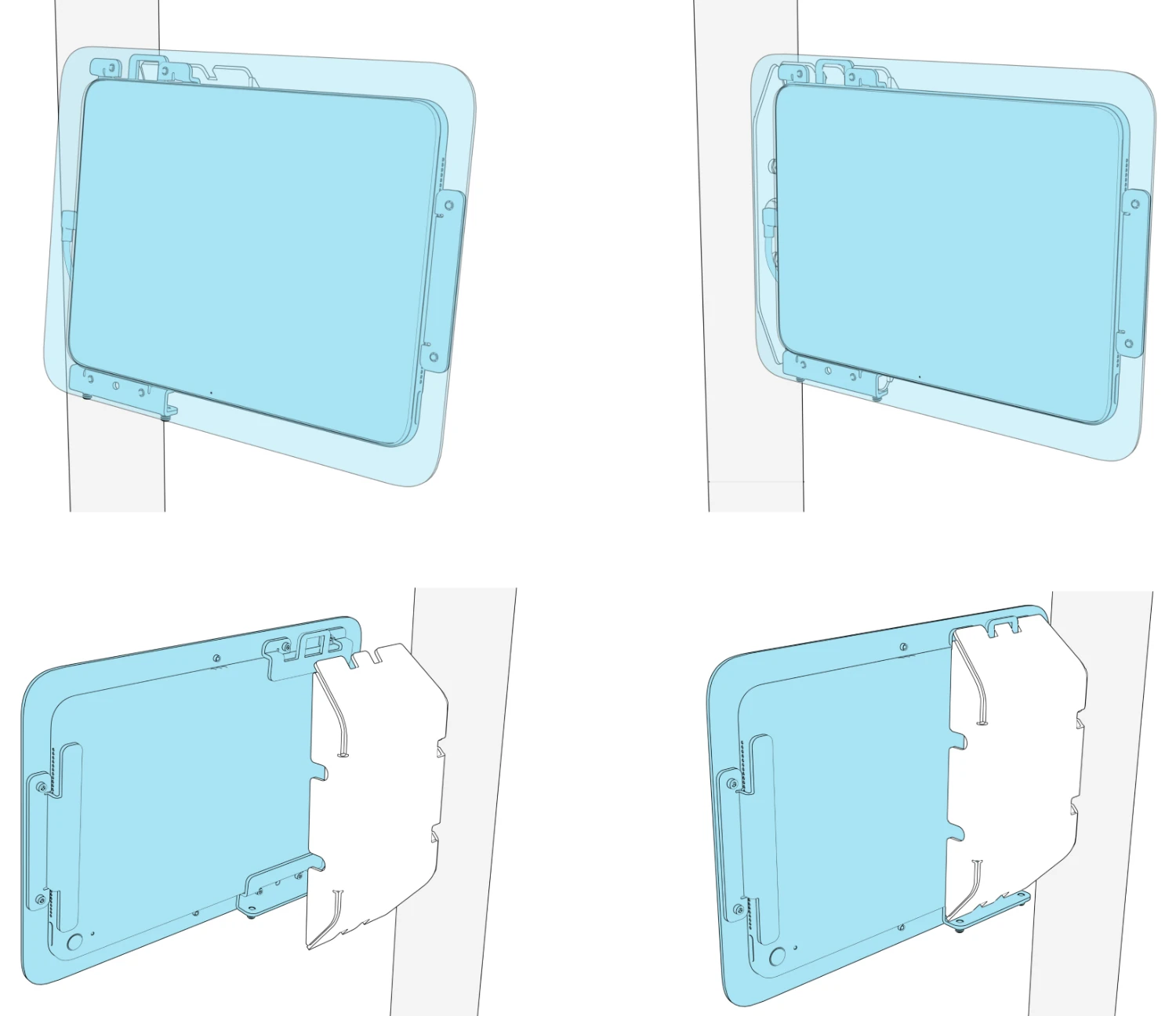

Enlarge image ↗ Four front and rear views showing the enclosure engaging with the pocket’s top tab and moving into its resting position against the pocket.
Using the supplied ball-end hex key, gently tighten each set screw until the enclosure is firmly fastened to the pocket.

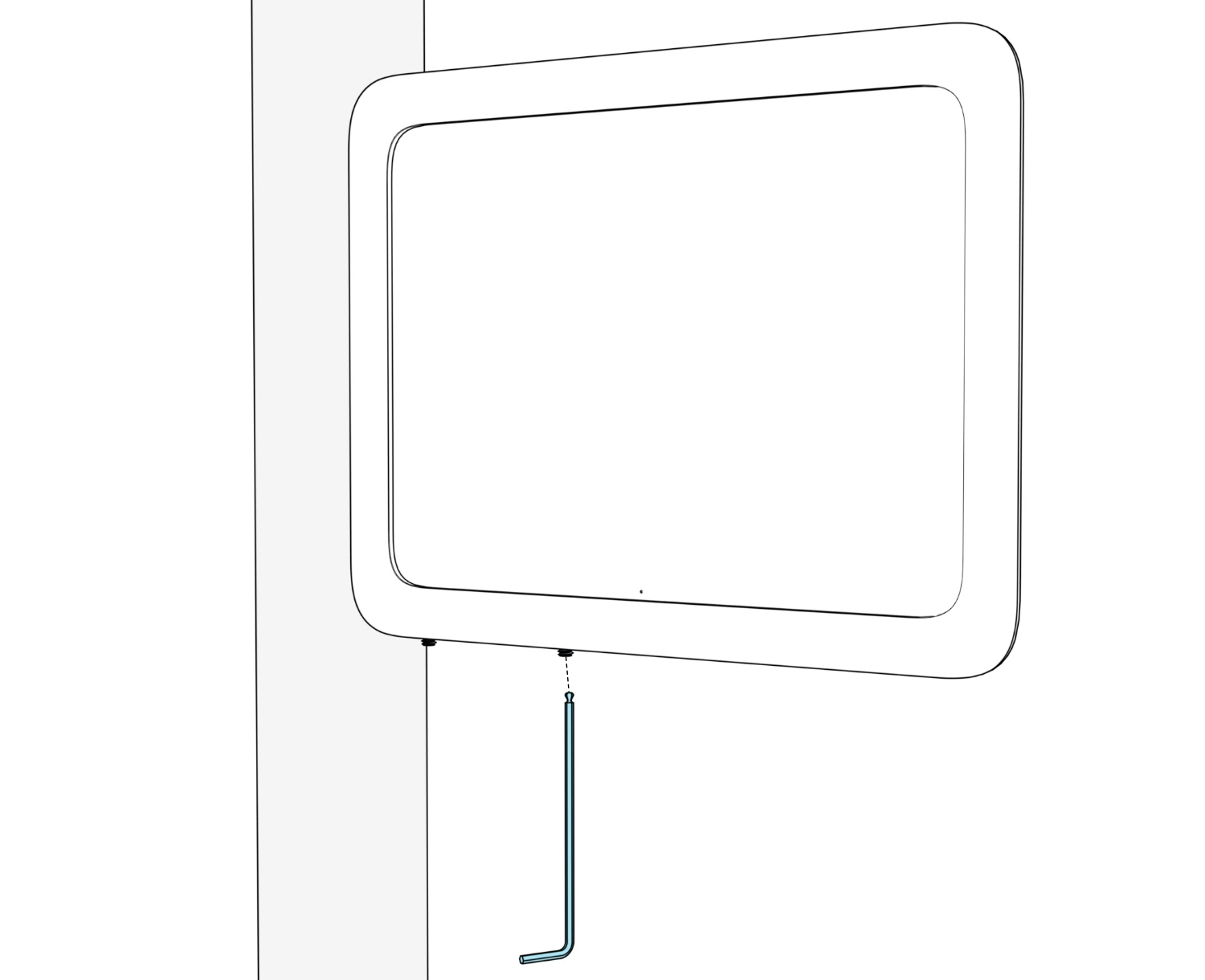

Enlarge image ↗ Front view of the installed enclosure with a hex key aligned upward to one of the two set screws along its bottom edge.

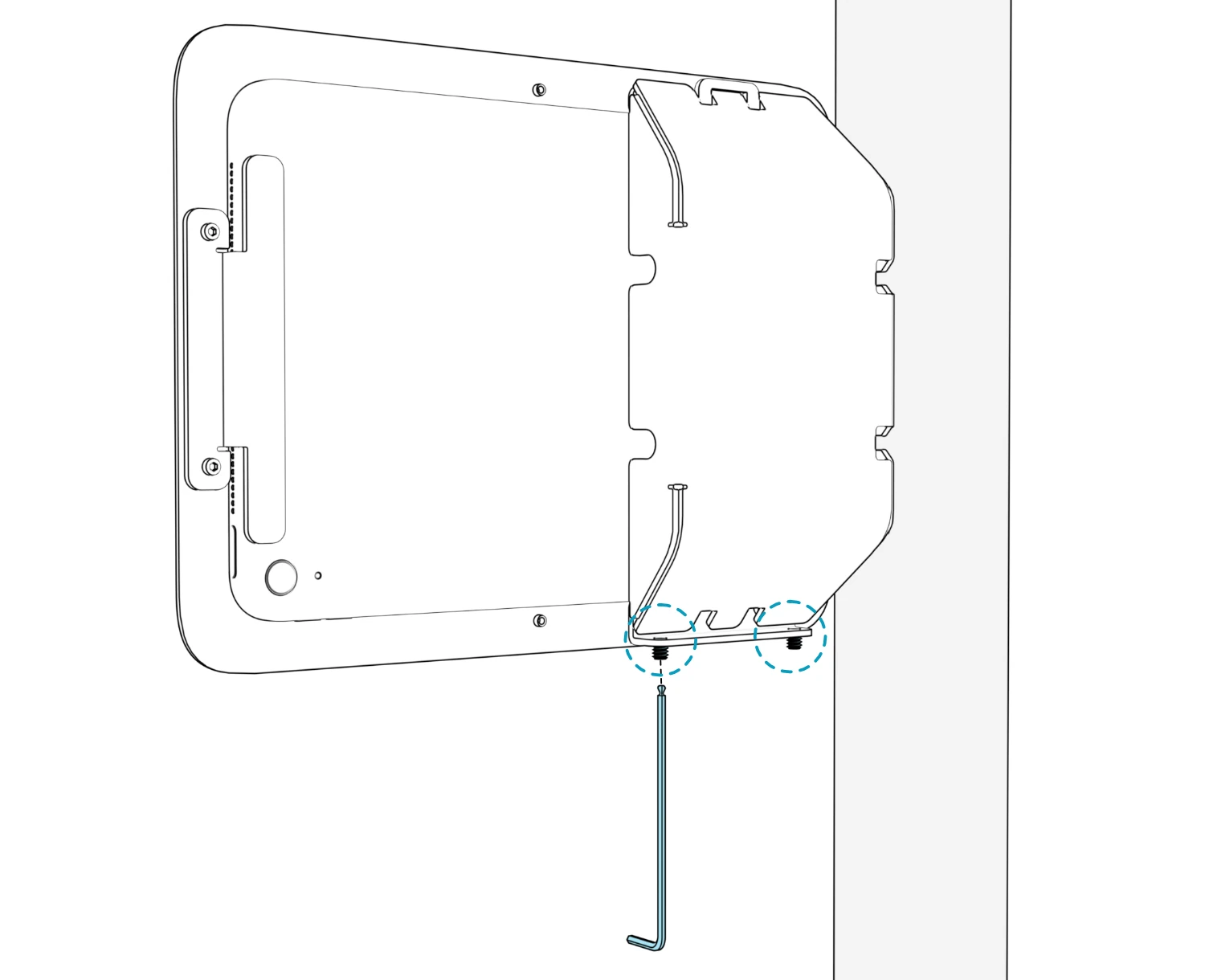

Enlarge image ↗ Rear view of the installed enclosure and pocket, with both bottom set-screw positions circled and a hex key aligned to one screw.
