H754 Front Mount for iPad 10th Generation

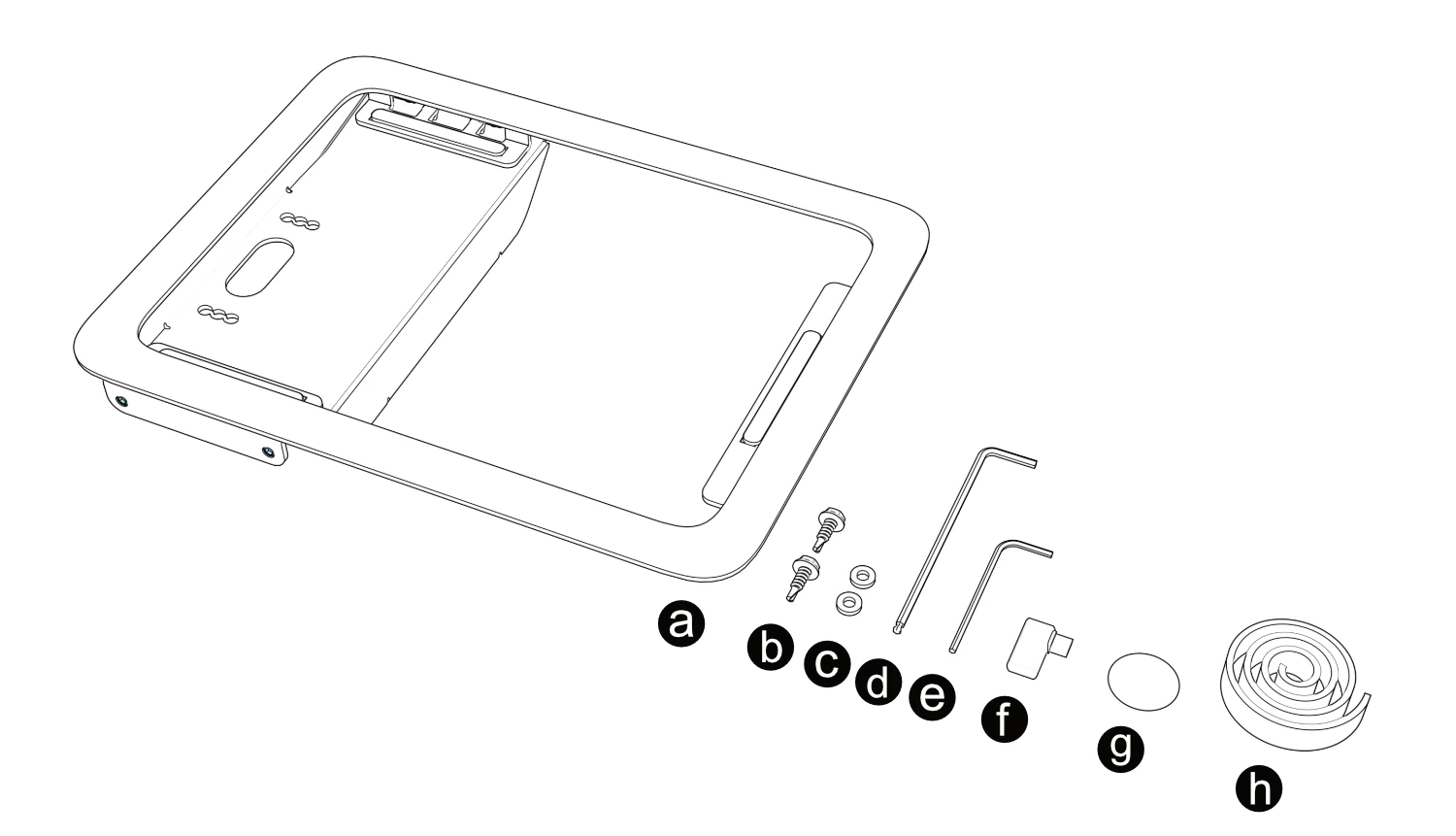

Included components labeled a–h: Front Mount, two mullion-mounting screws, two rubber washers, set-screw assembly key, enclosure assembly key, right-angle USB-C adapter, hook-and-loop dot set, and cable tie.

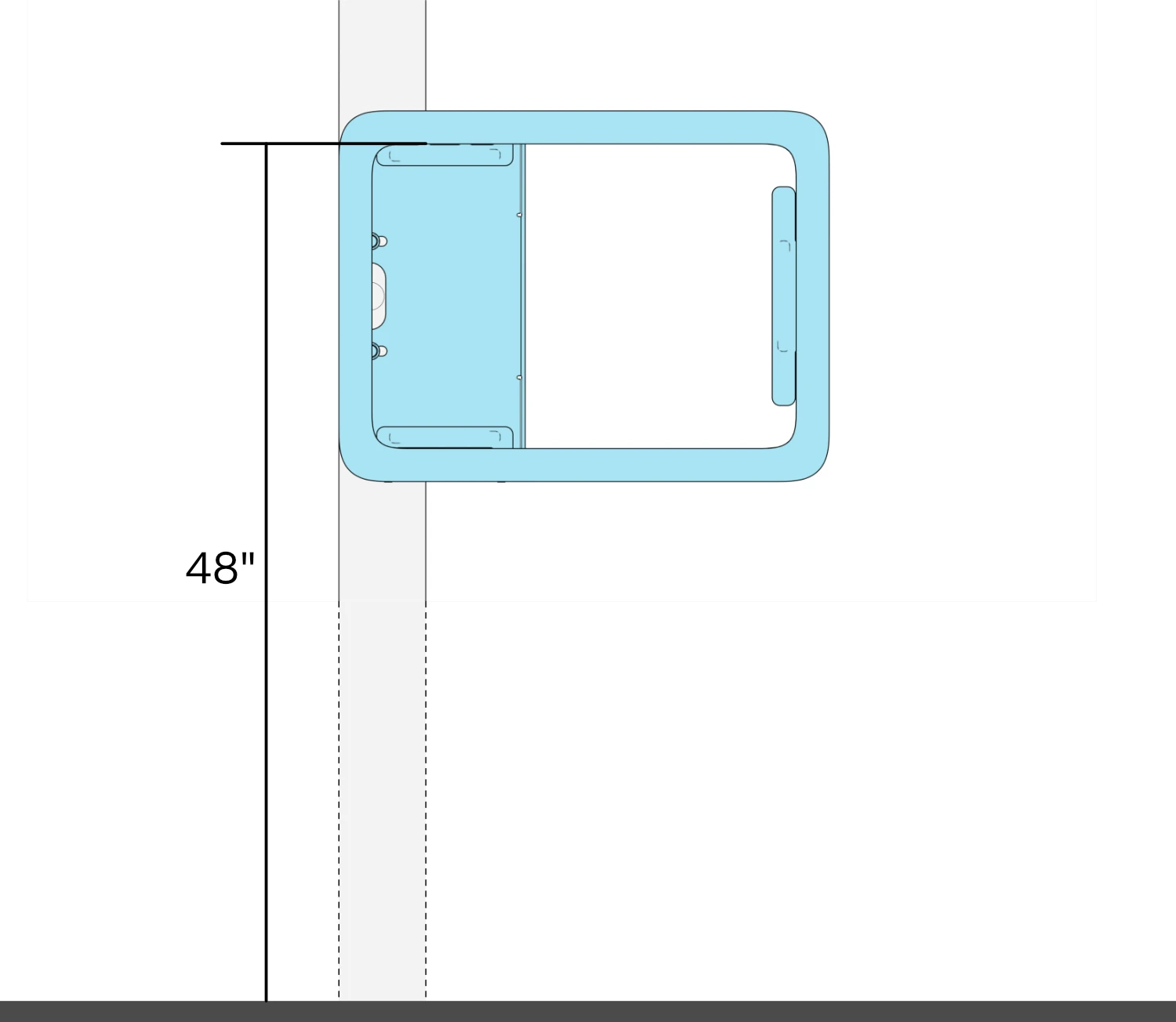

Front Mount positioned on a mullion, with a 48-inch maximum-height dimension from the finished floor to the top edge of the iPad screen.

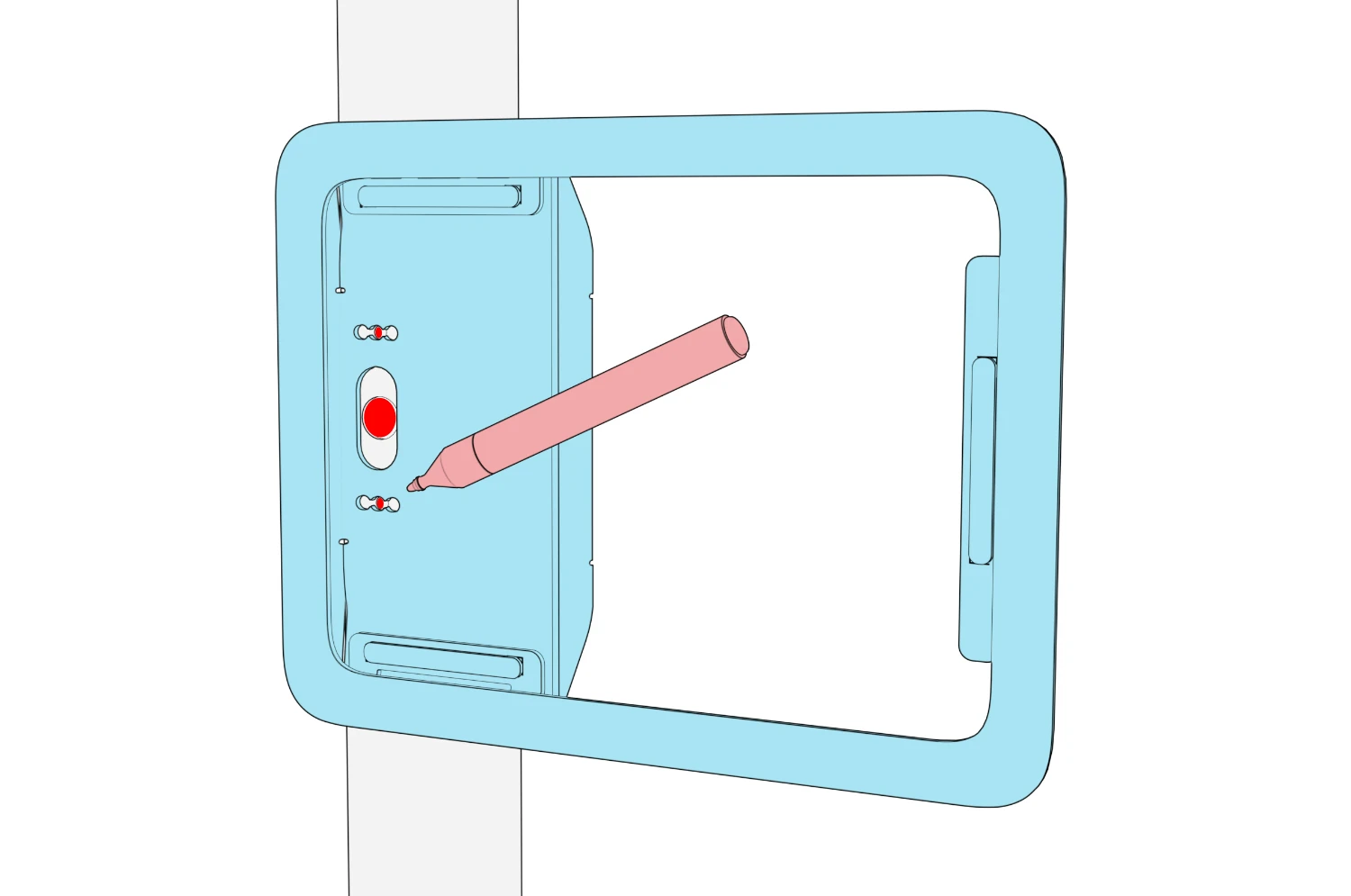

Assembled enclosure positioned against the mullion, with a marker indicating two mounting-screw positions and the center cable opening.

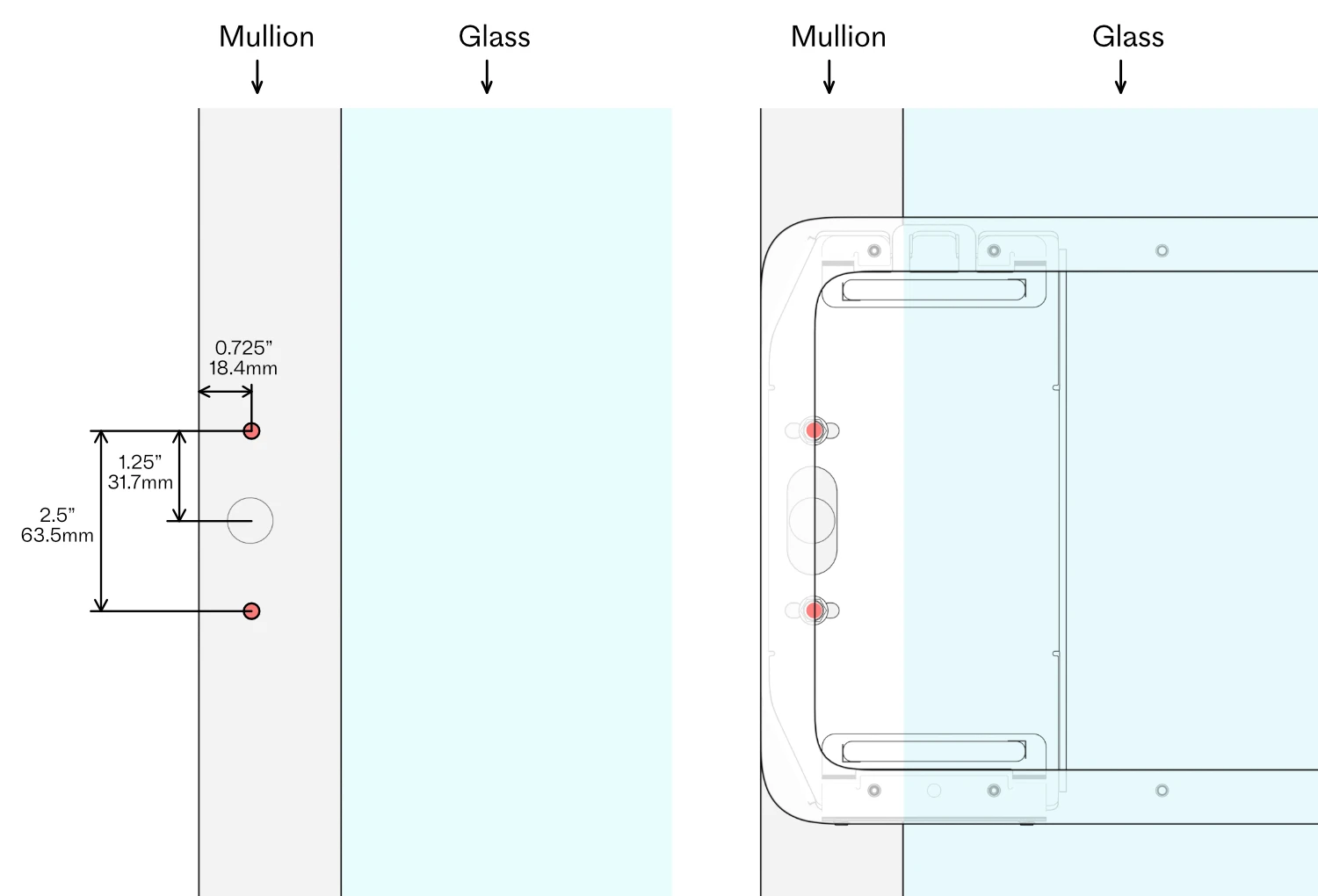

Mullion beside glass, with mounting-screw centers 2.5 inches (63.5 mm) apart on a line 0.725 inches (18.4 mm) from the mullion edge; the upper screw center is 1.25 inches (31.7 mm) above the cable-hole center. An adjacent view shows the mount aligned over the holes.

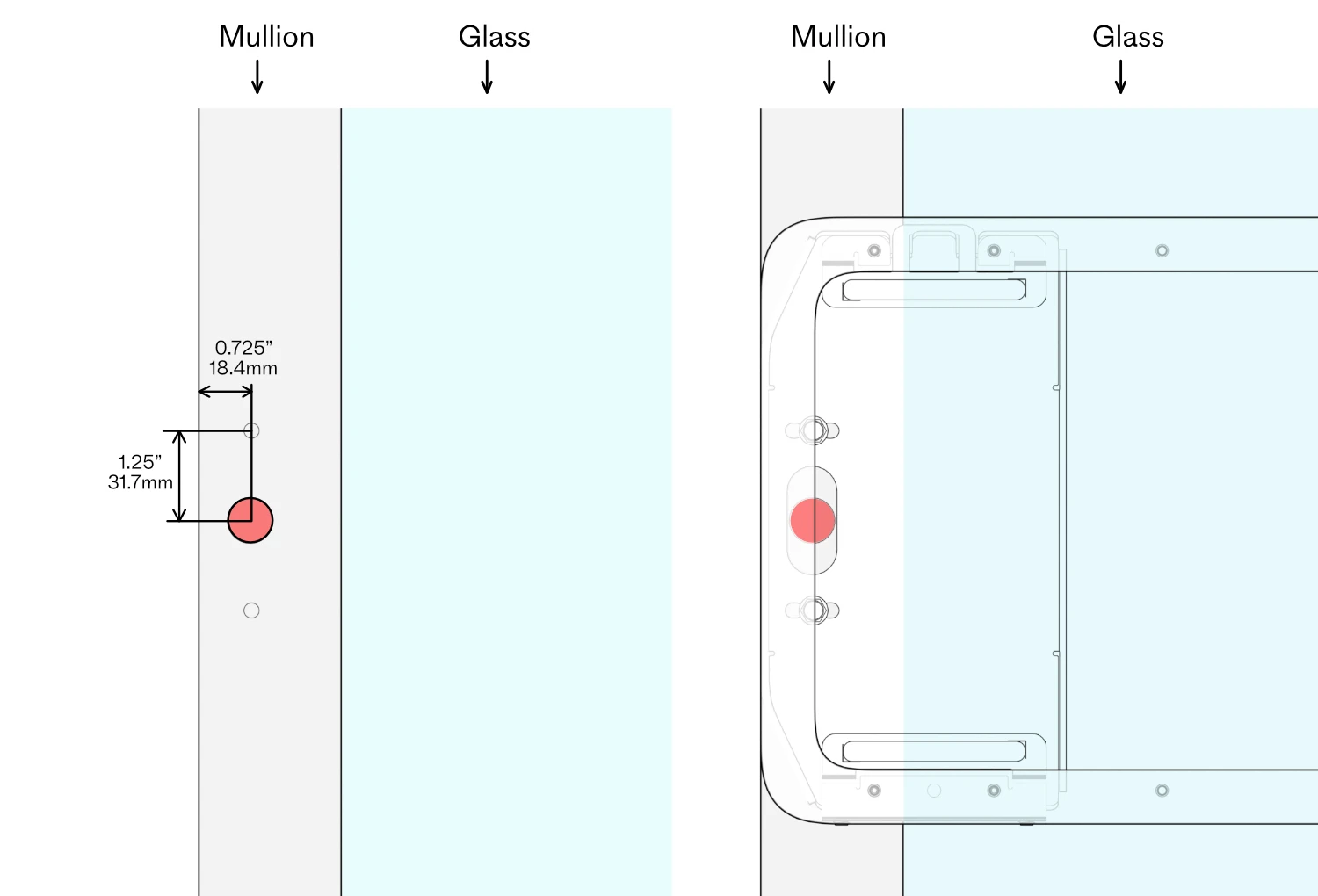

Cable-hole center highlighted on the mullion, 0.725 inches (18.4 mm) from its edge and 1.25 inches (31.7 mm) below the upper mounting-screw center; an adjacent view aligns it with the pocket opening.

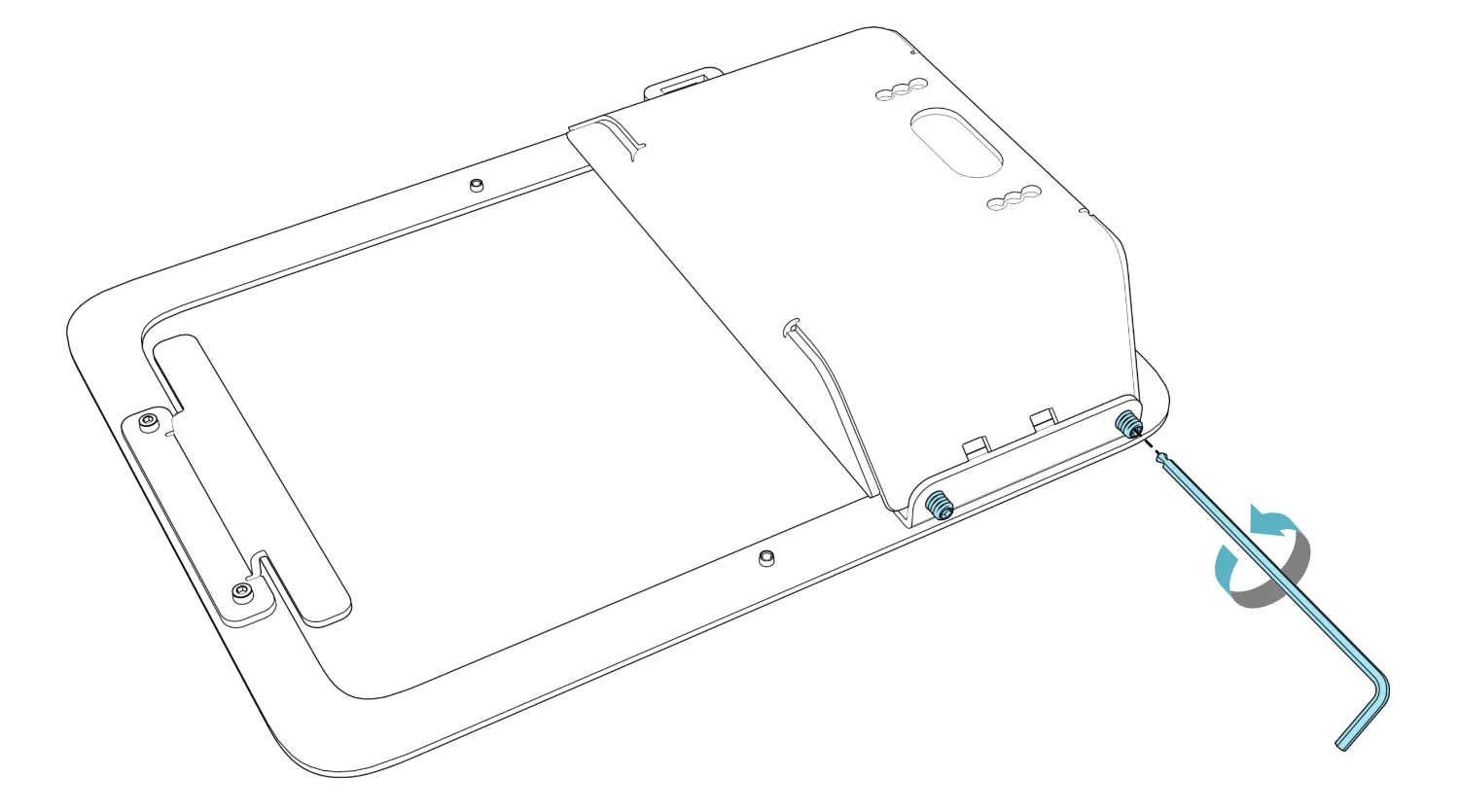

Rear view of the enclosure with a hex key aligned to one of the two set screws beside the pocket and a curved arrow indicating rotation.

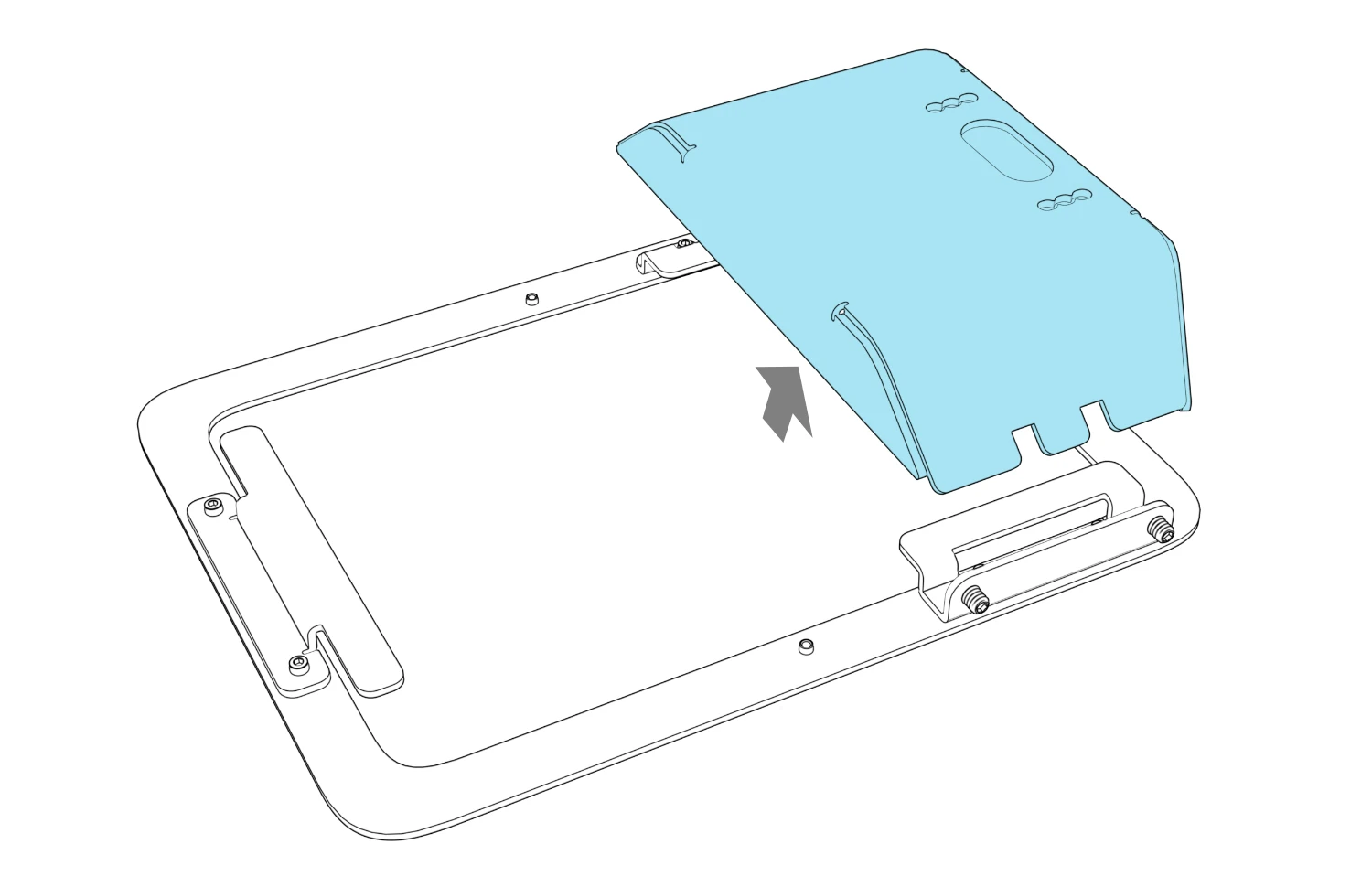

Pocket lifted away from the enclosure brackets, with an arrow indicating separation and both set screws retained in the bottom bracket.

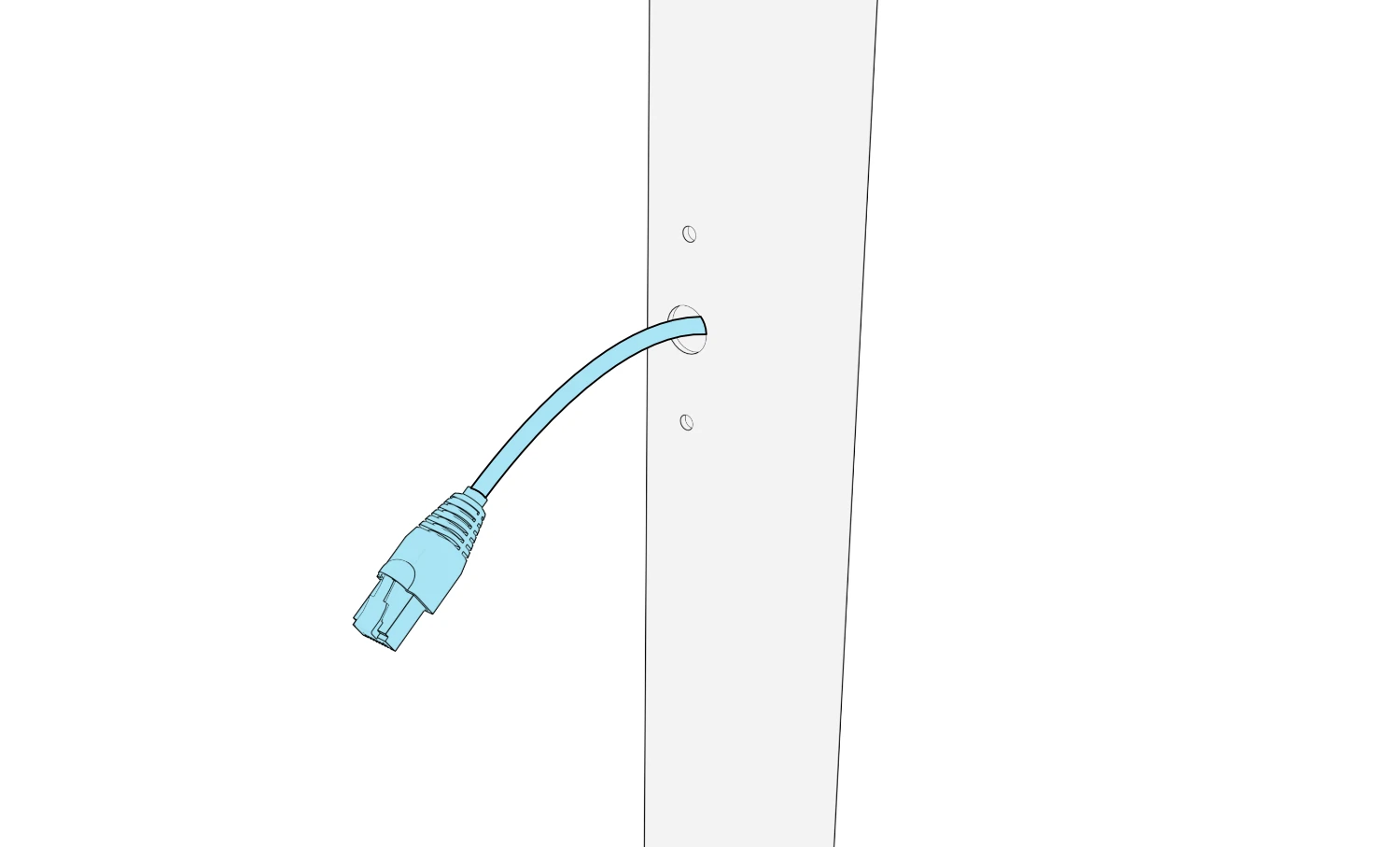

Network cable with an RJ45 connector extending through the center mullion opening between the two mounting-screw holes.

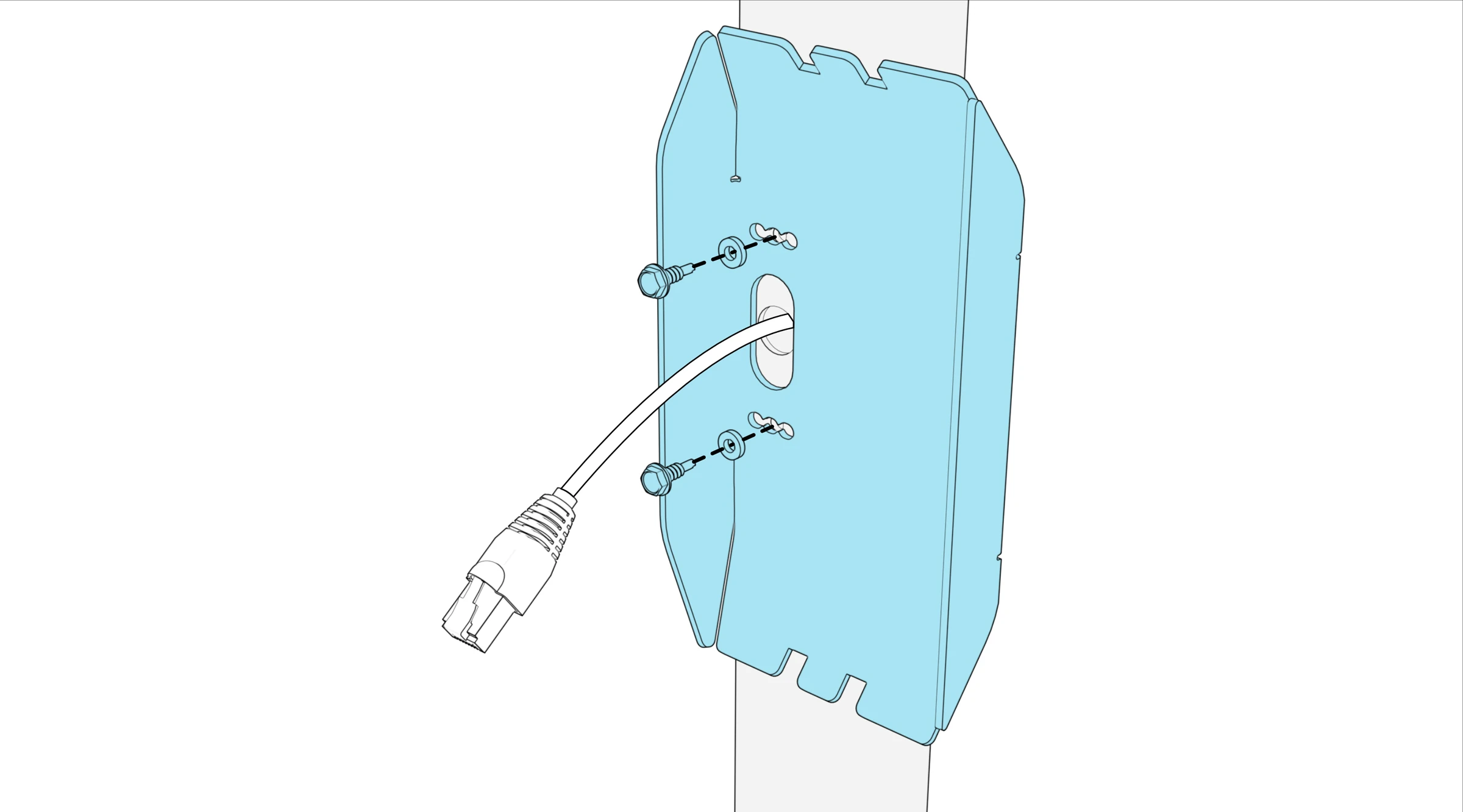

Pocket against the mullion with two screws and rubber washers aligned to its mounting holes; the network cable passes through the center opening.

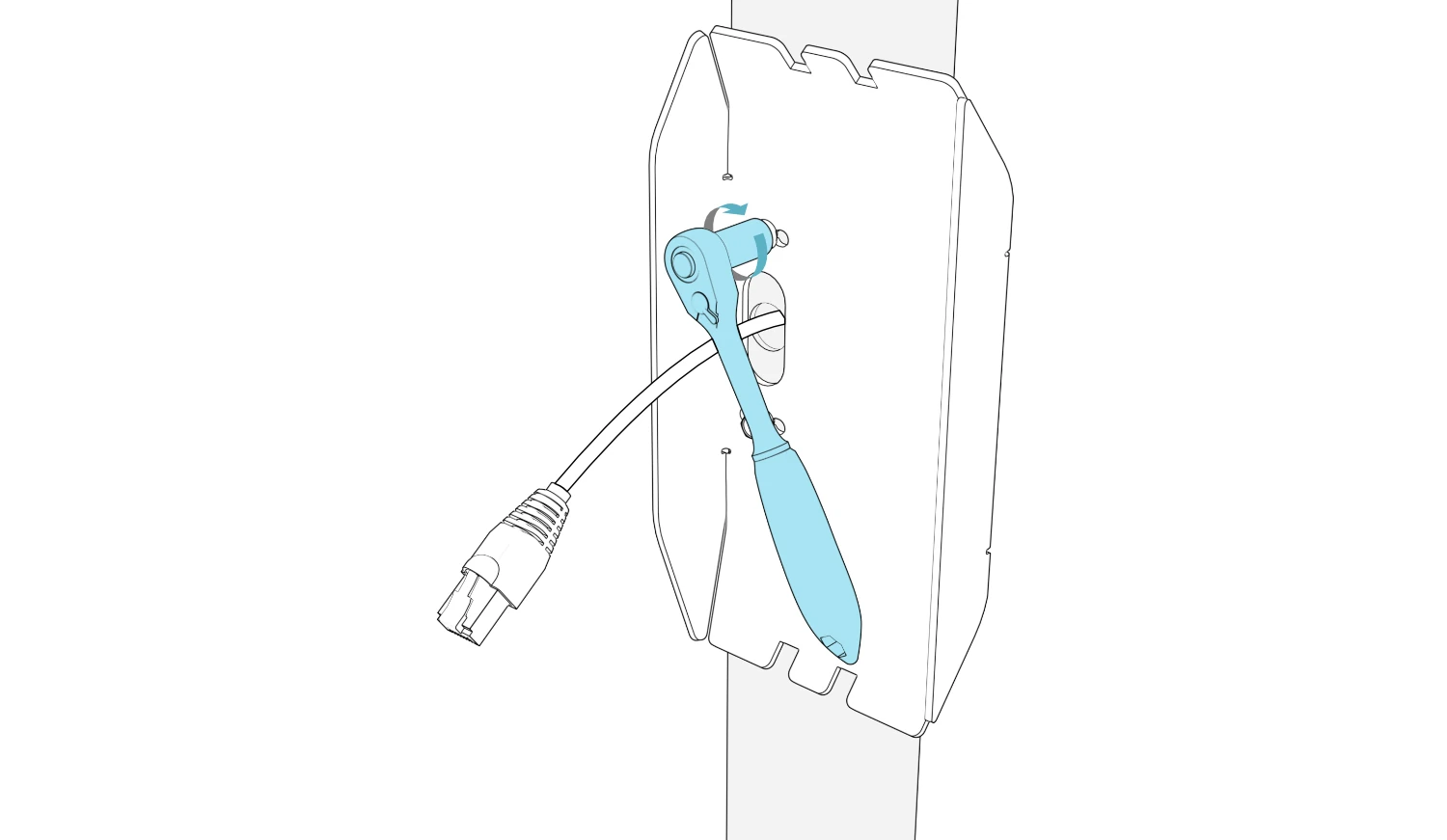

Socket wrench turning the upper mounting screw inside the pocket, with the network cable extending through the center opening.

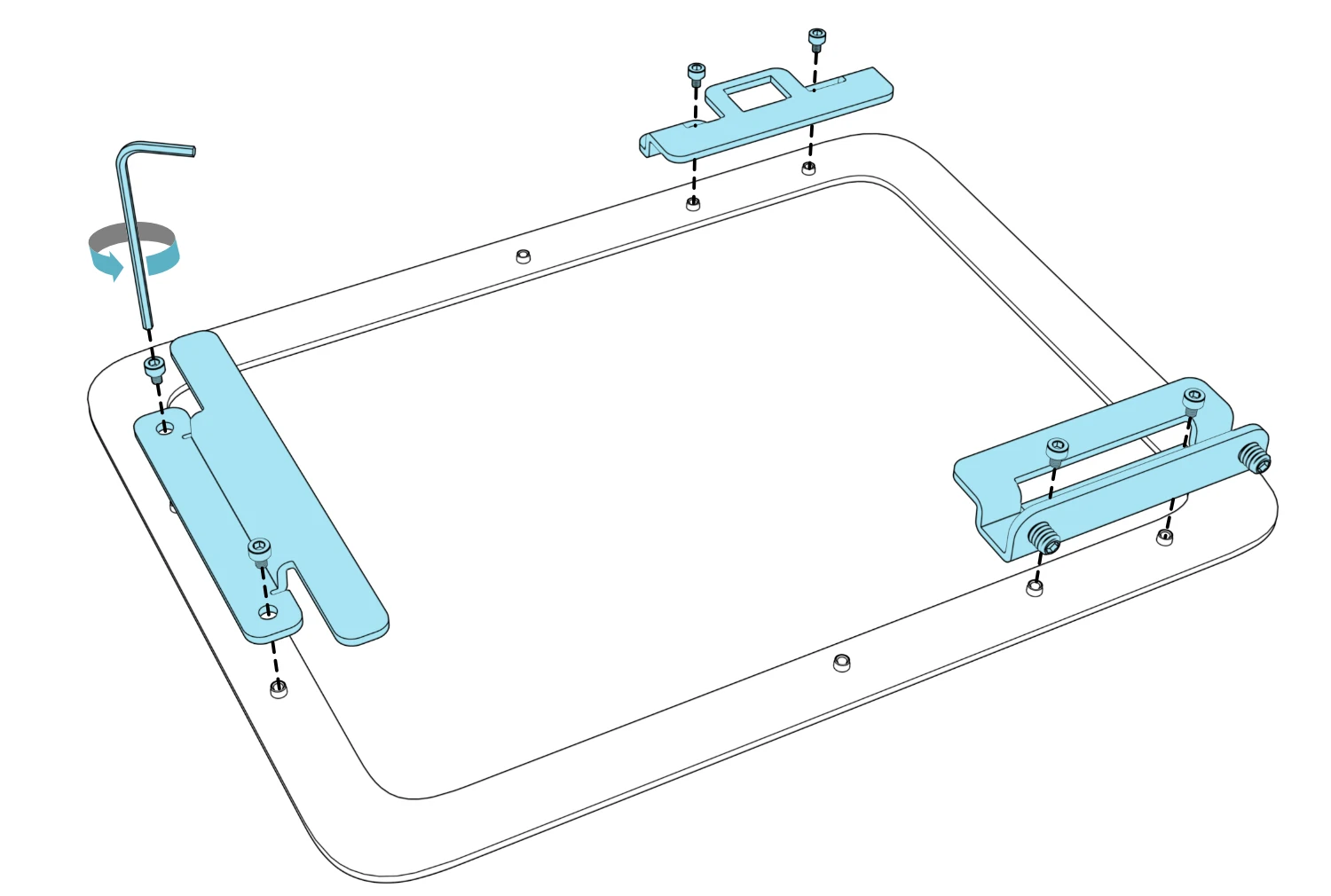

Exploded rear view showing the top, bottom, and side enclosure brackets, their screws, and a hex key aligned with one bracket screw.

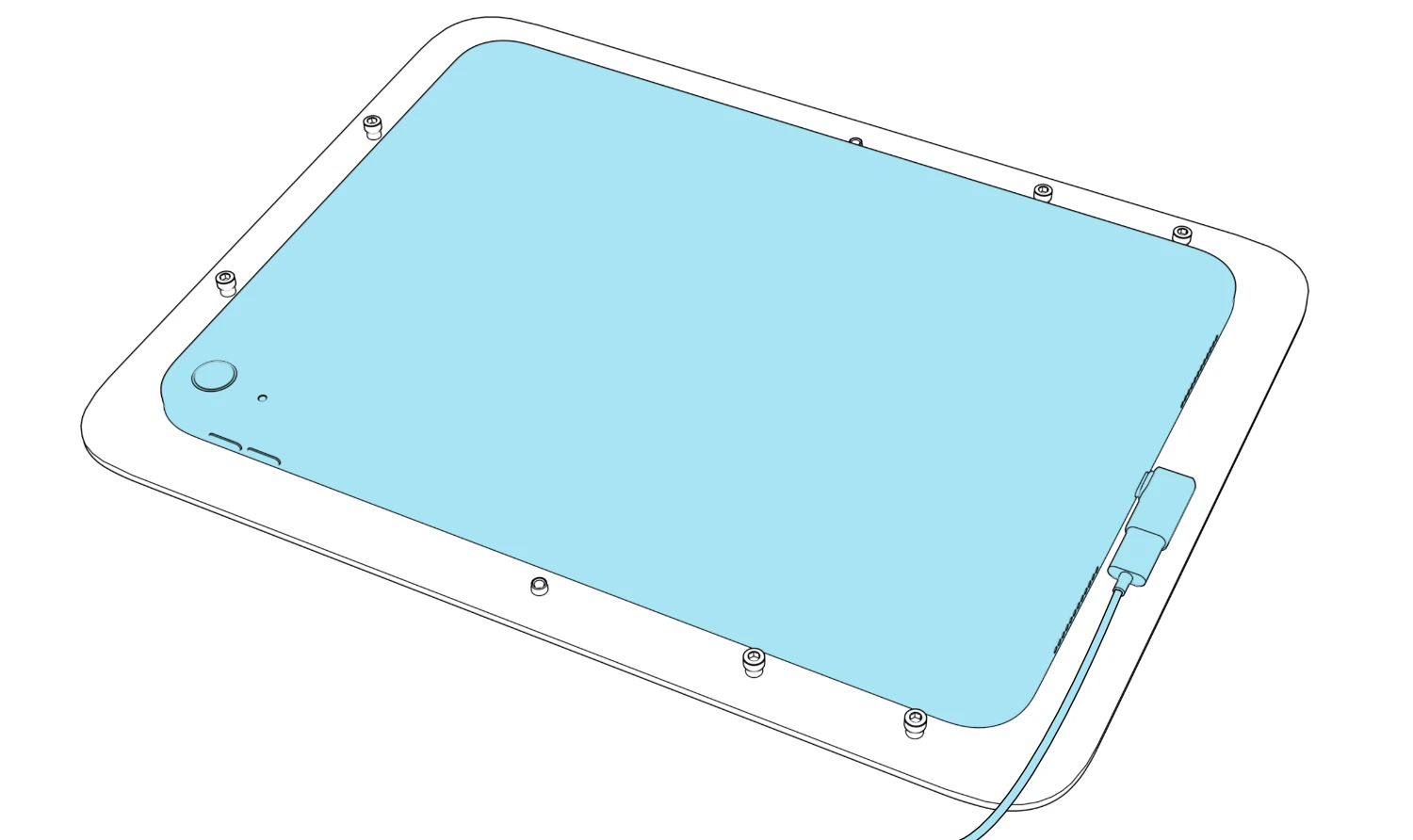

iPad positioned face down in the enclosure with a right-angle USB-C adapter and charging cable connected at its side port.

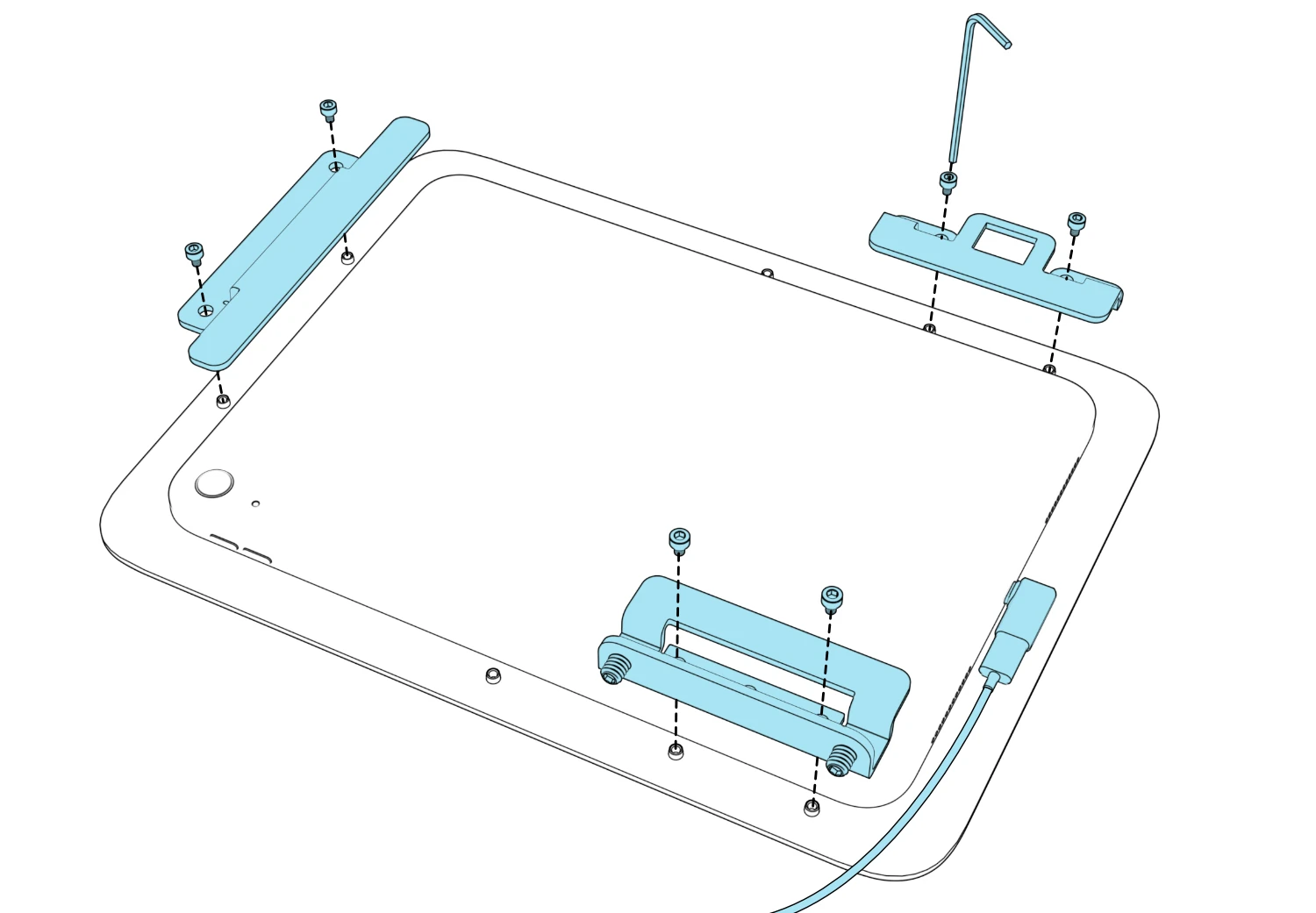

Rear view of the iPad in the enclosure, with three brackets and their screws aligned over it, a hex key at one screw, and the charging cable extending from the side.

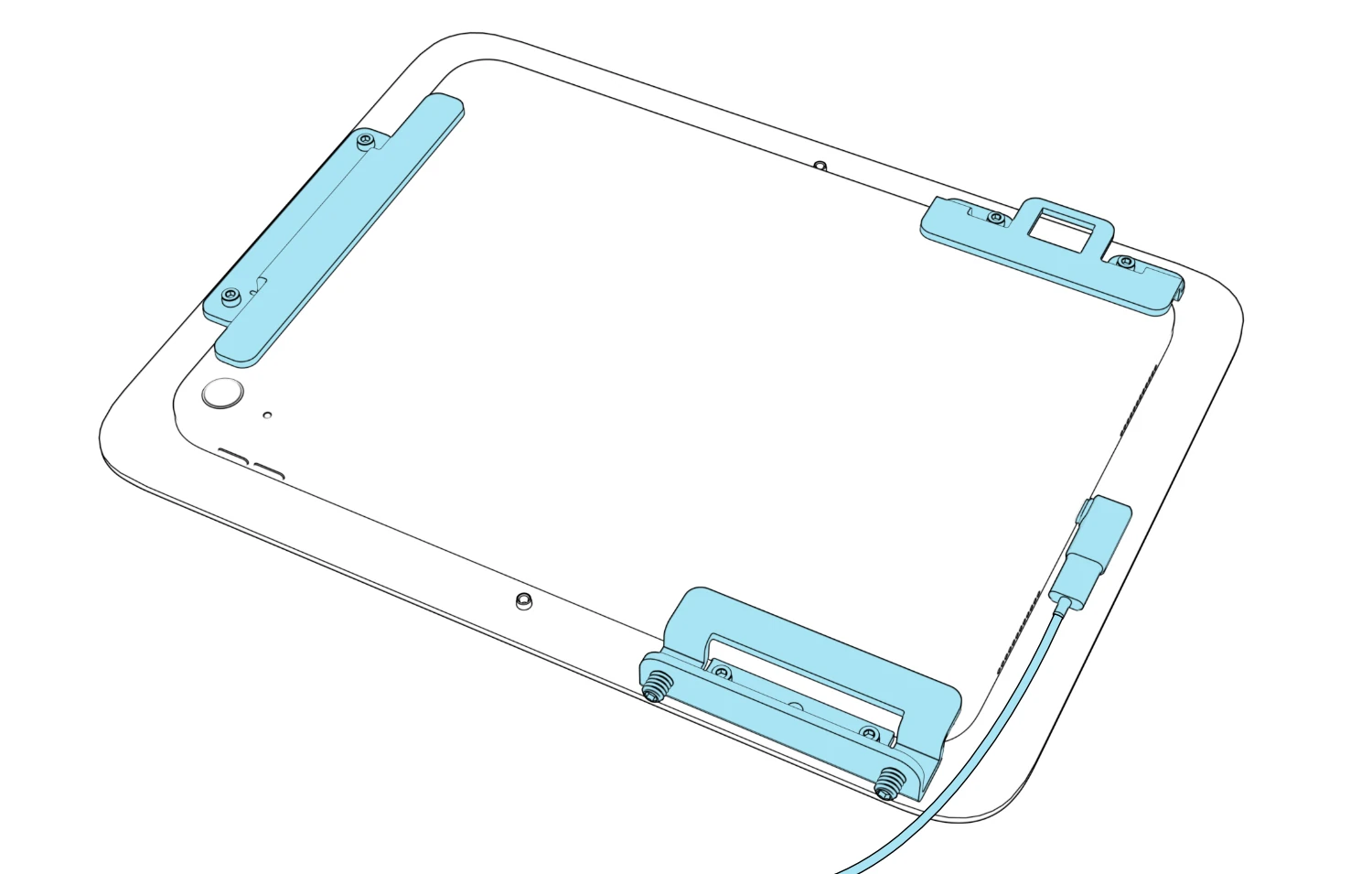

Rear view of the iPad secured by the top, bottom, and side brackets, with the right-angle USB-C adapter and charging cable connected.

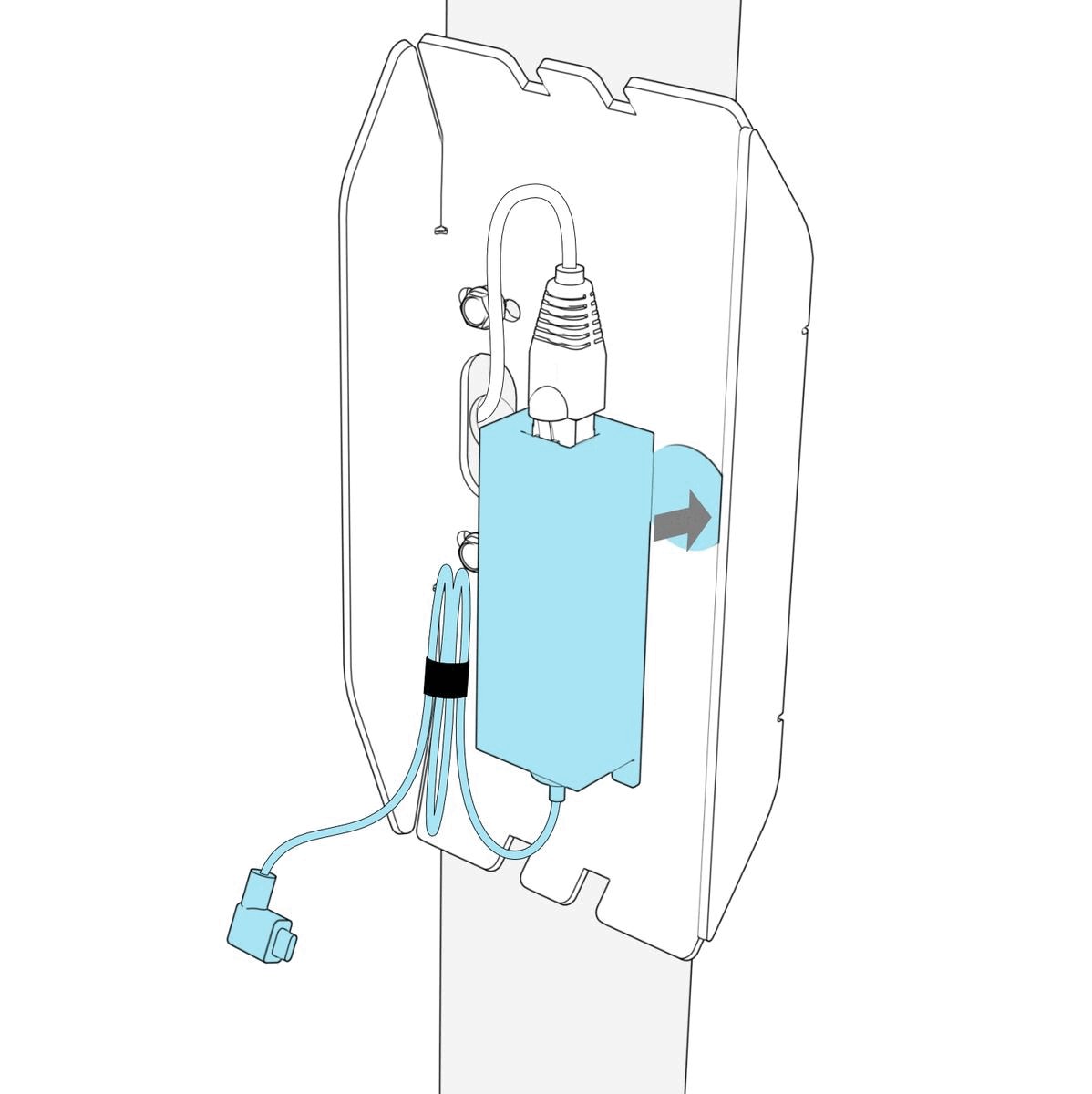

Two-frame illustration showing the PoE adapter moving onto a hook-and-loop dot inside the pocket, with the network connector and bundled charging cable shown.

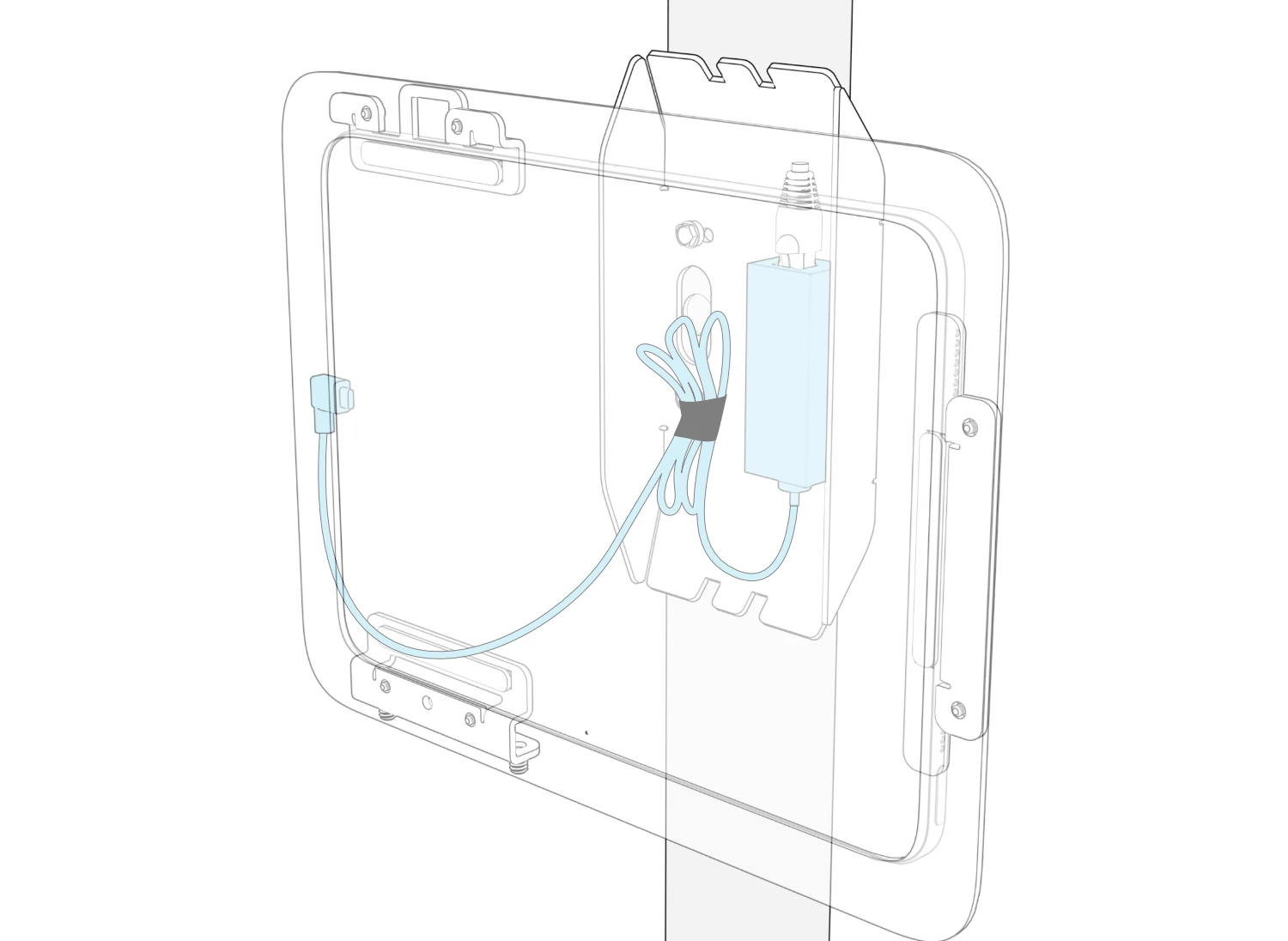

Transparent enclosure view showing the charging cable connected between the iPad’s right-angle USB-C adapter and the PoE adapter inside the pocket, with excess cable bundled beside it.

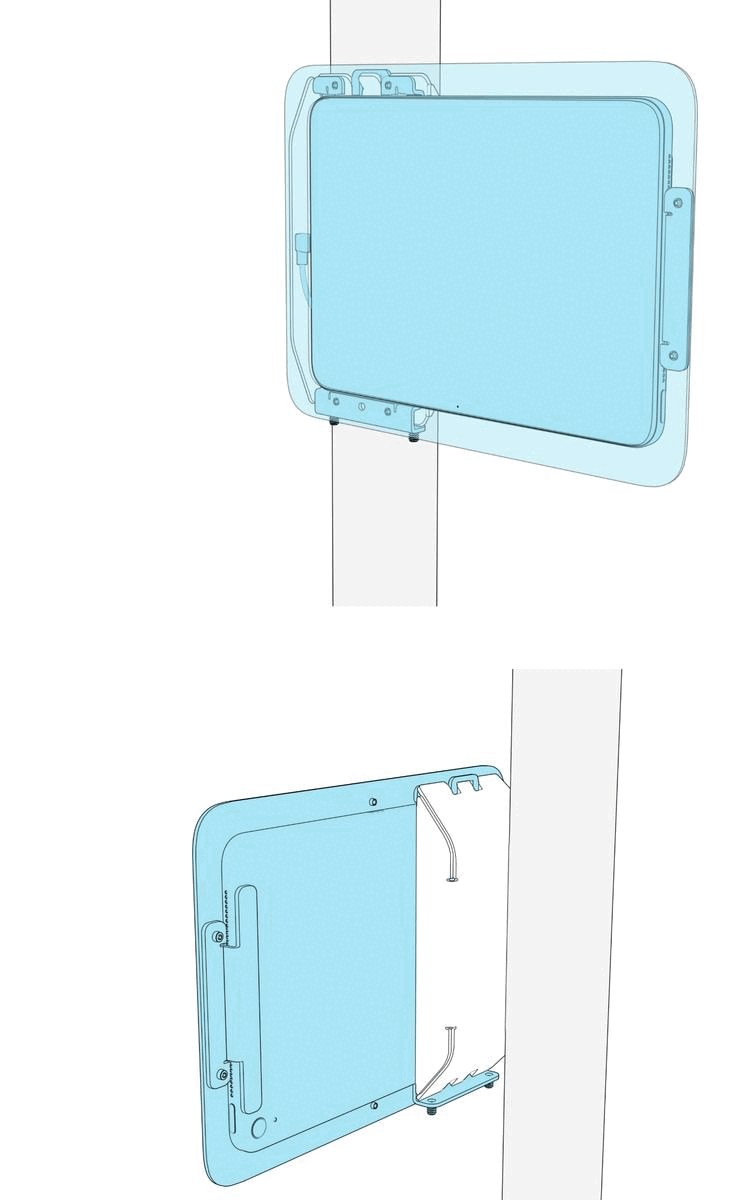

Three-frame front and rear views showing the enclosure engaging with the pocket’s top tab and moving into its resting position against the pocket.

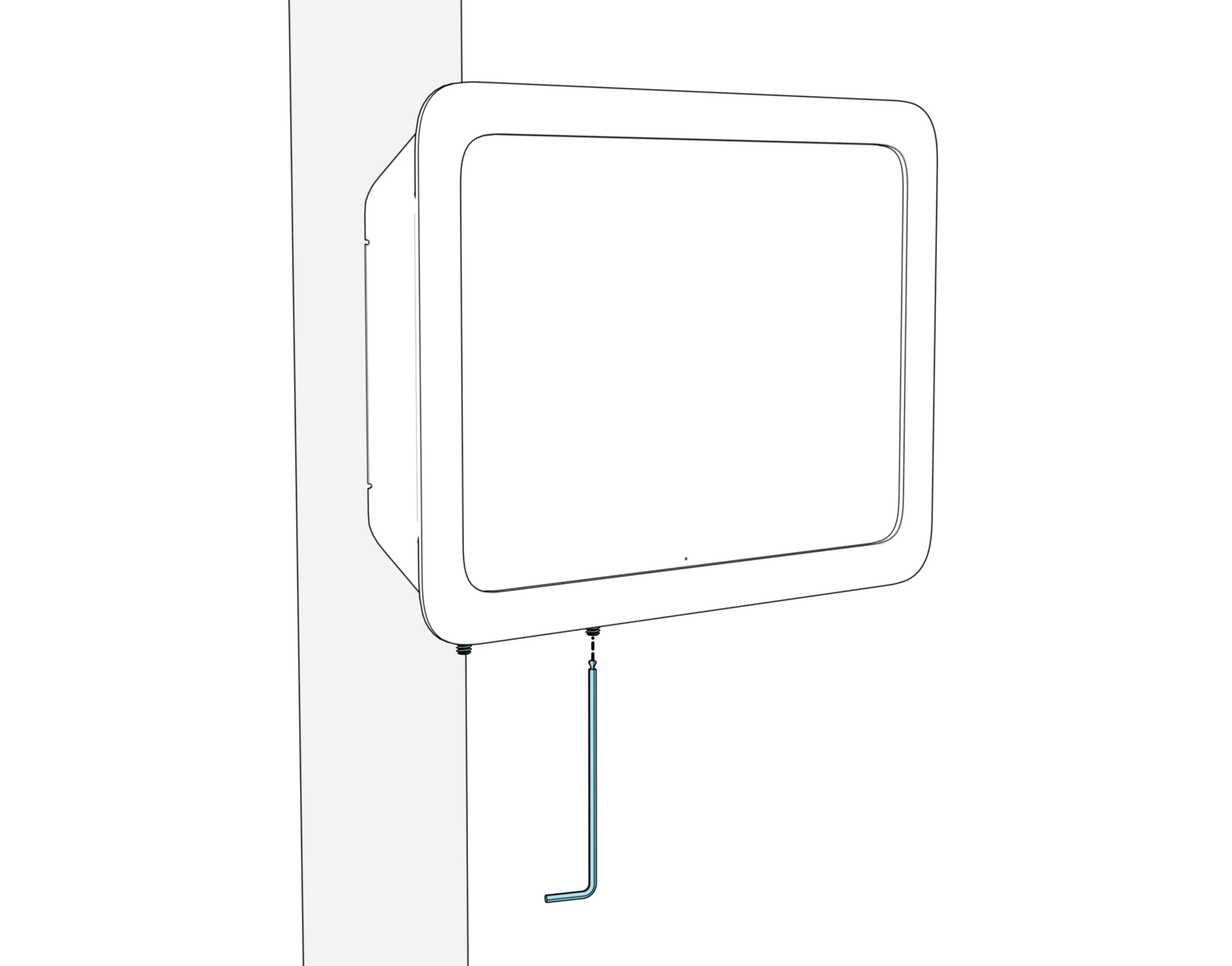

Front view of the installed enclosure with a hex key aligned upward to one of the two set screws along its bottom edge.

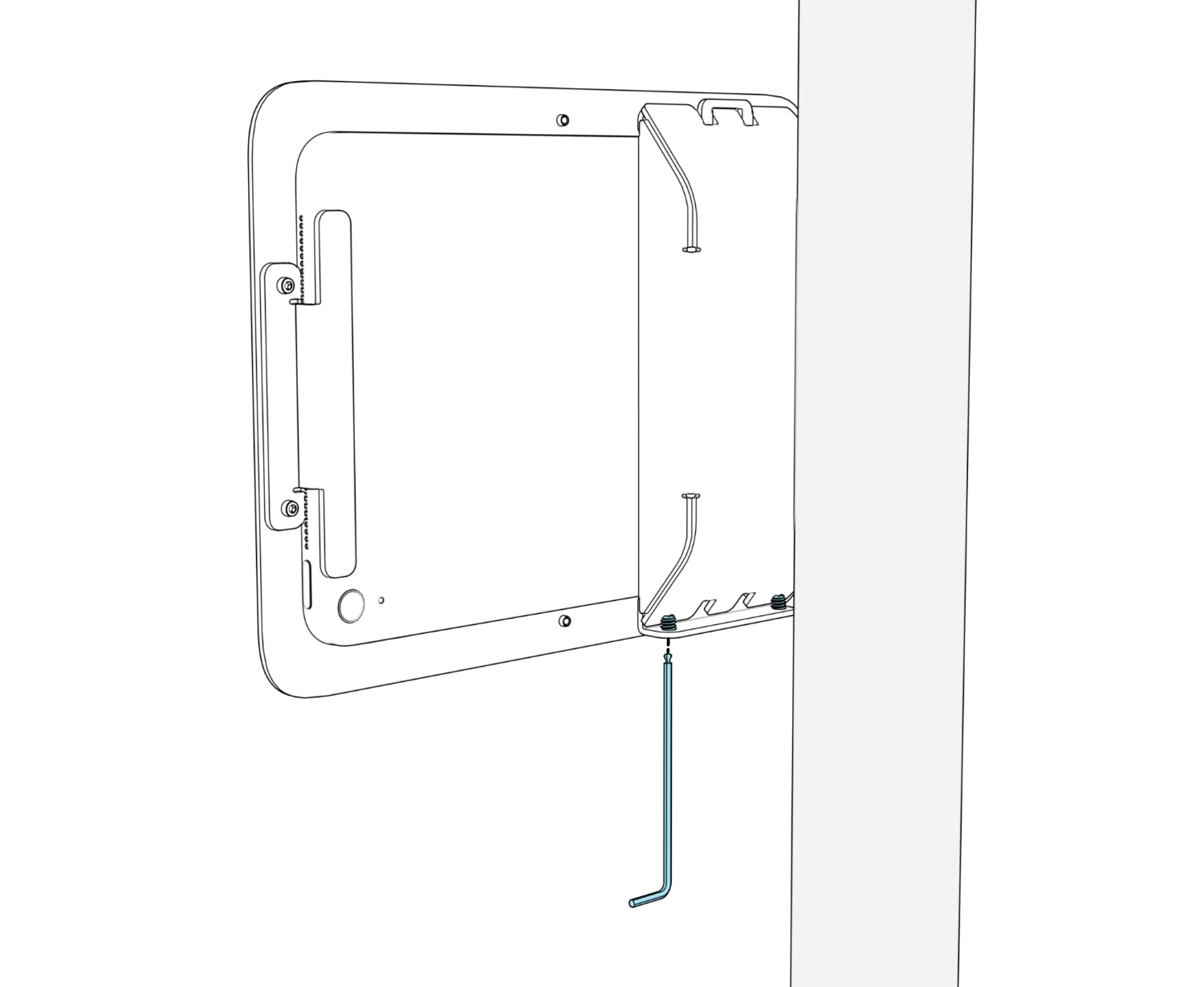

Rear view of the installed enclosure and pocket, with a hex key aligned to one of the bottom set screws.
