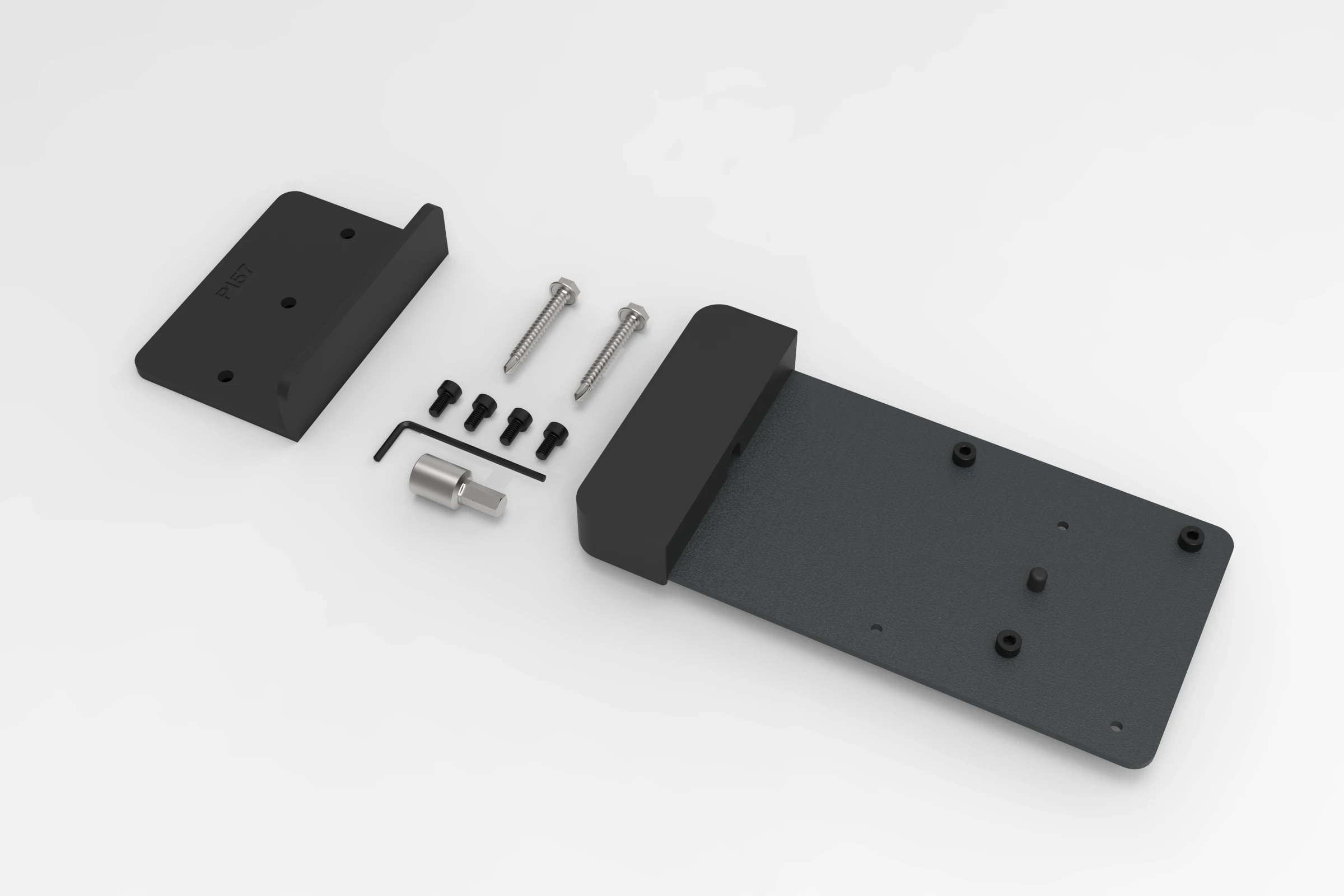

In this guide · 16 sections 01 In the box 02 Other required parts, not included03 Recommended tools04 Create holes in the mullion05 Enlarge the CAT cable hole as needed.06 Prepare Neat Pad07 Prepare Heckler Front Mount08 Determine which side the Neat Pad will be mounted.09 Unscrew the Pre-installed Screws.10 Fasten the Neat Pad Wall Mount to Heckler Mullion Front Mount.11 Pull CAT cable through the mullion.12 Fasten the Heckler Mullion Bracket to Mullion13 Connect CAT cable to Neat Pad.14 Mount Neat Pad to the Neat Pad Wall Mount.15 Use a 2mm hex key to fasten the set screws.16 Magnetically install the Front Mount Cover.- 1 x Front Mount Steel Bracket
- 1 x Front Mount Cover
- 4 x M4 screws, 8 mm long
- 3 x M4 screws, 5 mm long
- 2 x No. 10 drilling screws, 1-1/2 inches long
- 1 x 3 mm hex key
- 1 x 5/16-inch hex socket with 1/4-inch shank
- 1 x Hole-drilling template
Enlarge image ↗ Front-mount steel bracket and cover beside two long mounting screws, smaller socket-head screws, a hex key, and a socket driver bit.

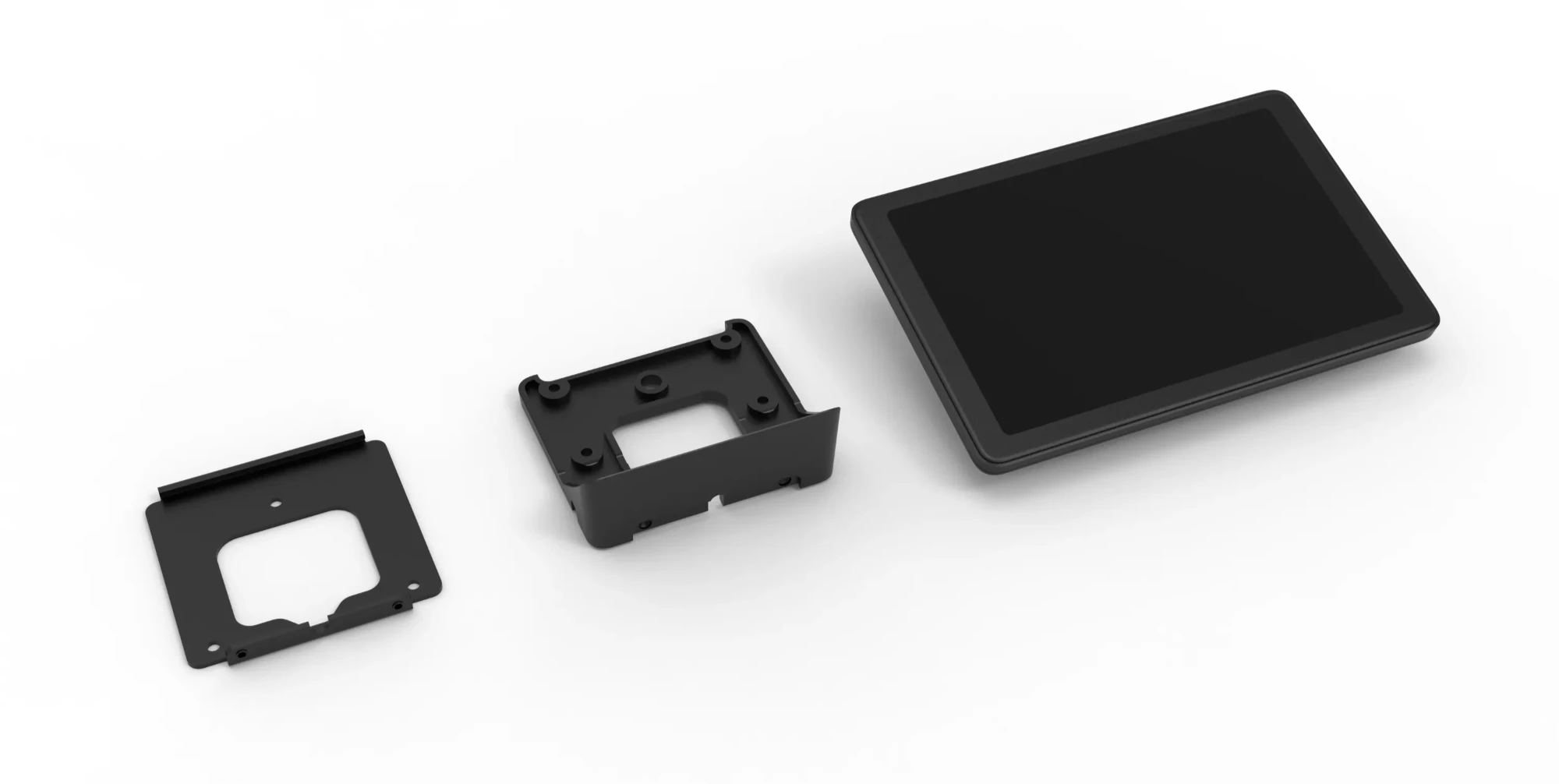

- Neat Pad Mount Adapter
- Neat Pad Wall Mount
- Neat Pad
Enlarge image ↗ Neat Pad mount adapter, wall mount, and Neat Pad shown separately as required items not included with the Heckler mount.
- Hammer drill
- 1/8-inch drill bit for pilot holes
- 2 mm hex key for the Neat Pad set screws (supplied with Neat Pad)
Using the supplied hole position template, mark the hole locations on the front face of the mullion.
Proceed with caution. Heckler is not responsible for damage to the mullion, glass, or equipment. We recommend reviewing the CAD diagram of your specific aluminum mullions to ensure the hole locations do not line up with the layer of glass inside the mullion. Position your holes as needed to prevent glass damage and to access a cavity within the mullion to enable your CAT cable to pass through.
Using a 1/8-inch drill bit, carefully drill pilot holes at all three marked positions.

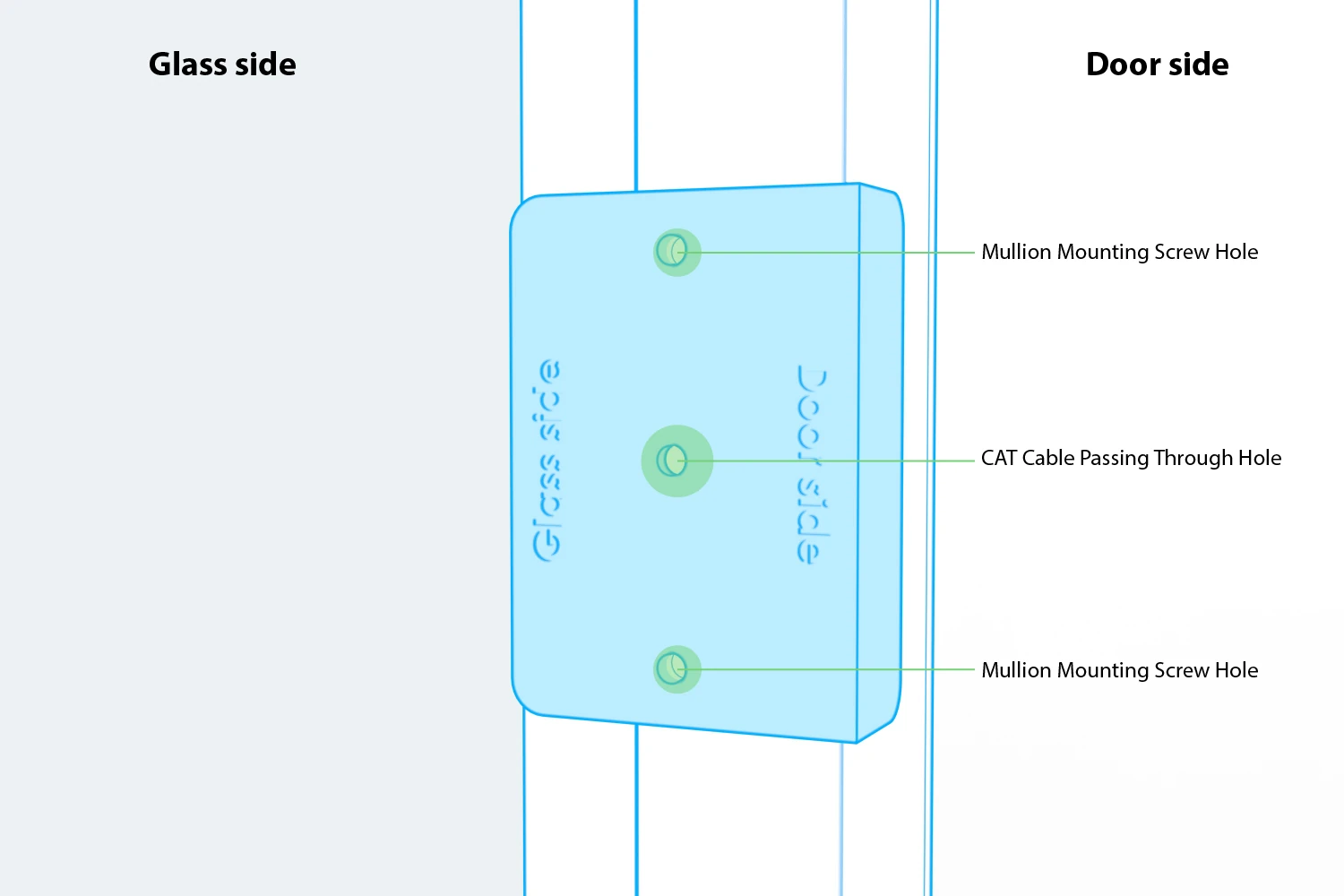

Enlarge image ↗ Hole-position template on the mullion, with two mounting-screw holes and a larger center cable hole between the glass and door sides.
Ensure your CAT cable hole is free of aluminum burrs. Burrs can penetrate the cable insulation, causing hazardous short circuits and fire.
To create a clean, burr-free CAT cable hole, we recommend the use of a tall, slender step drill bit. Use a deburring tool as needed.

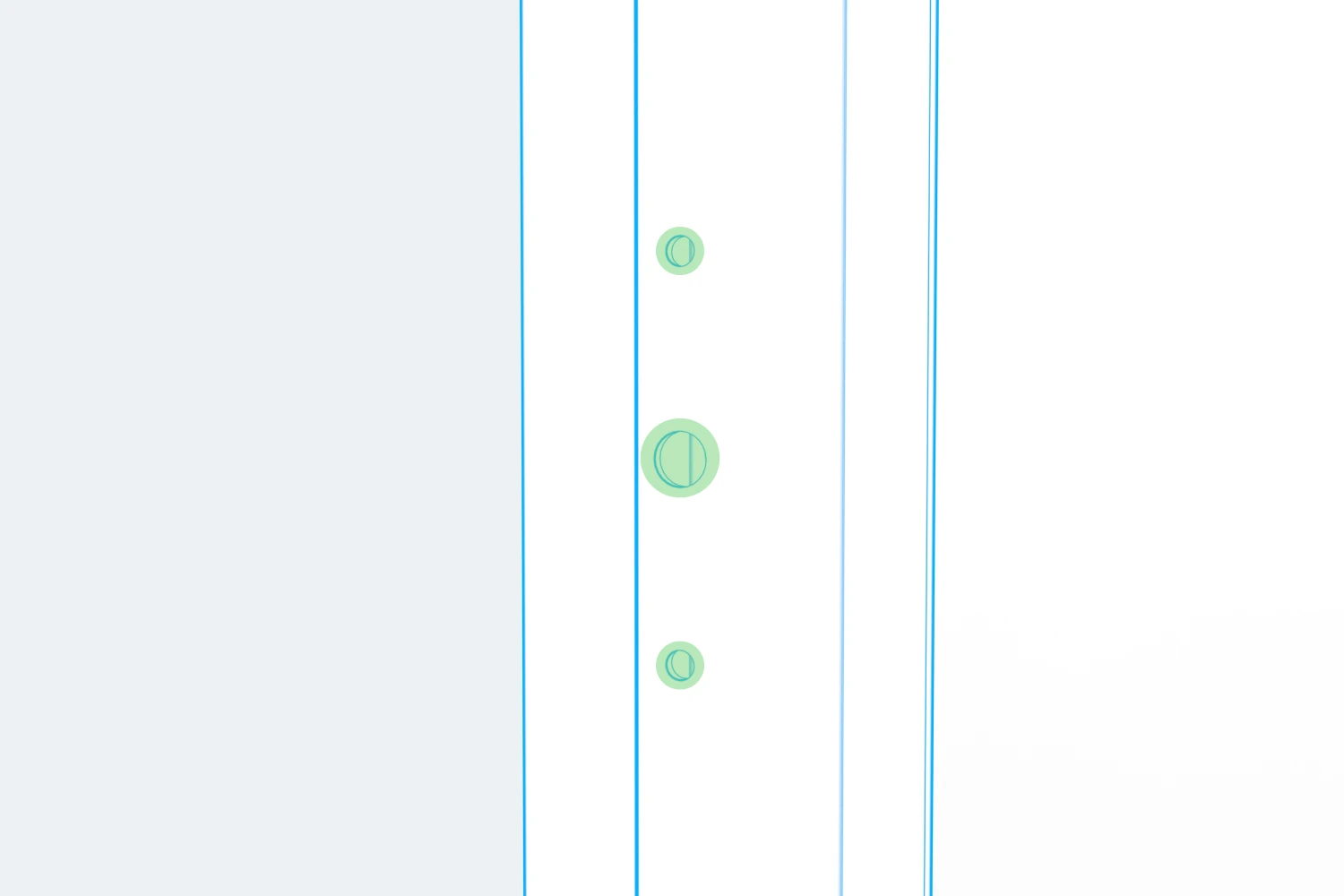

Enlarge image ↗ Mullion with two small mounting holes and the enlarged center cable opening.
Use the 3 mm hex key and supplied M4 screws to fasten the Neat Pad Mount Adapter to Neat Pad.

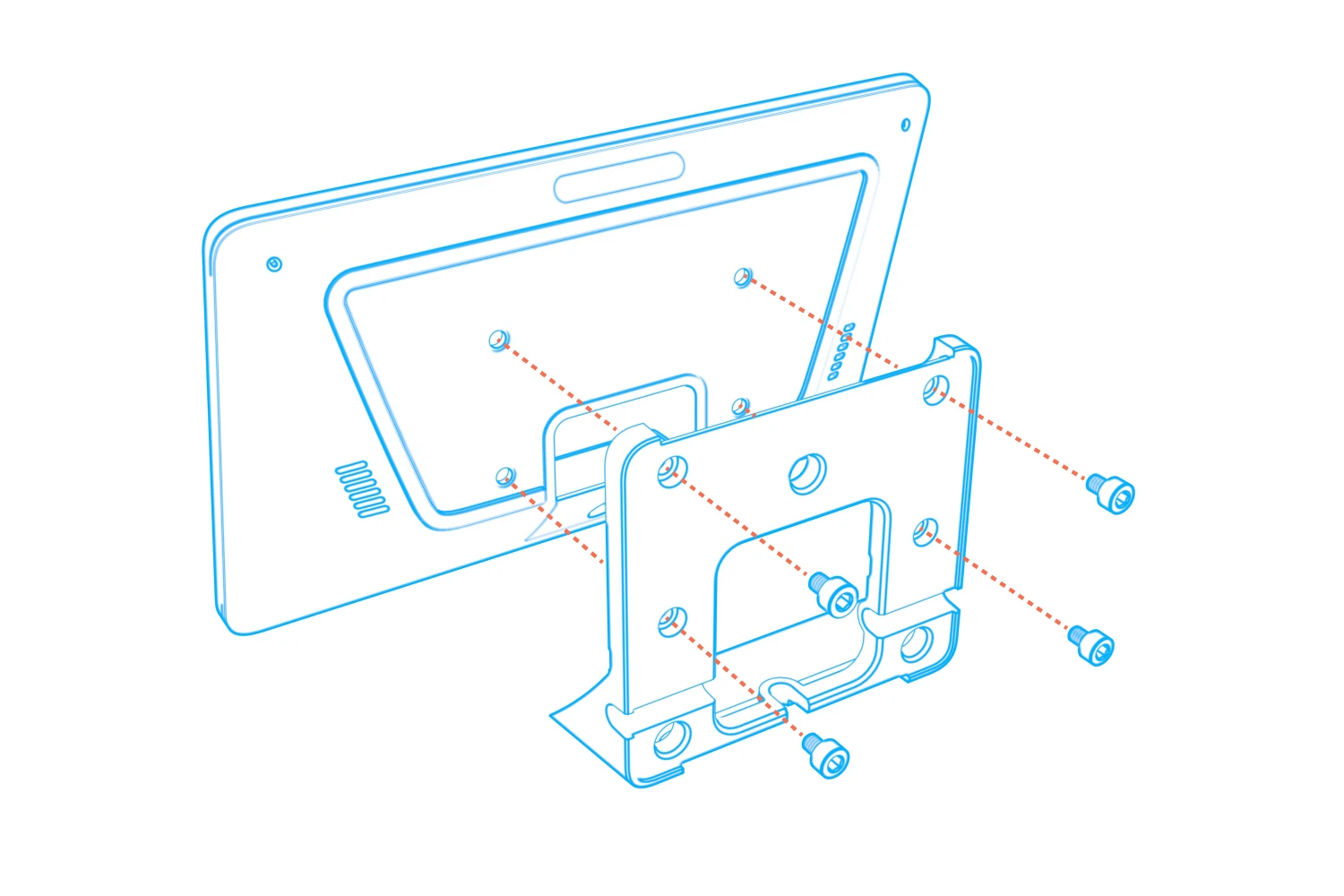

Enlarge image ↗ Neat Pad rear with its mount adapter and four screws aligned at the attachment holes.

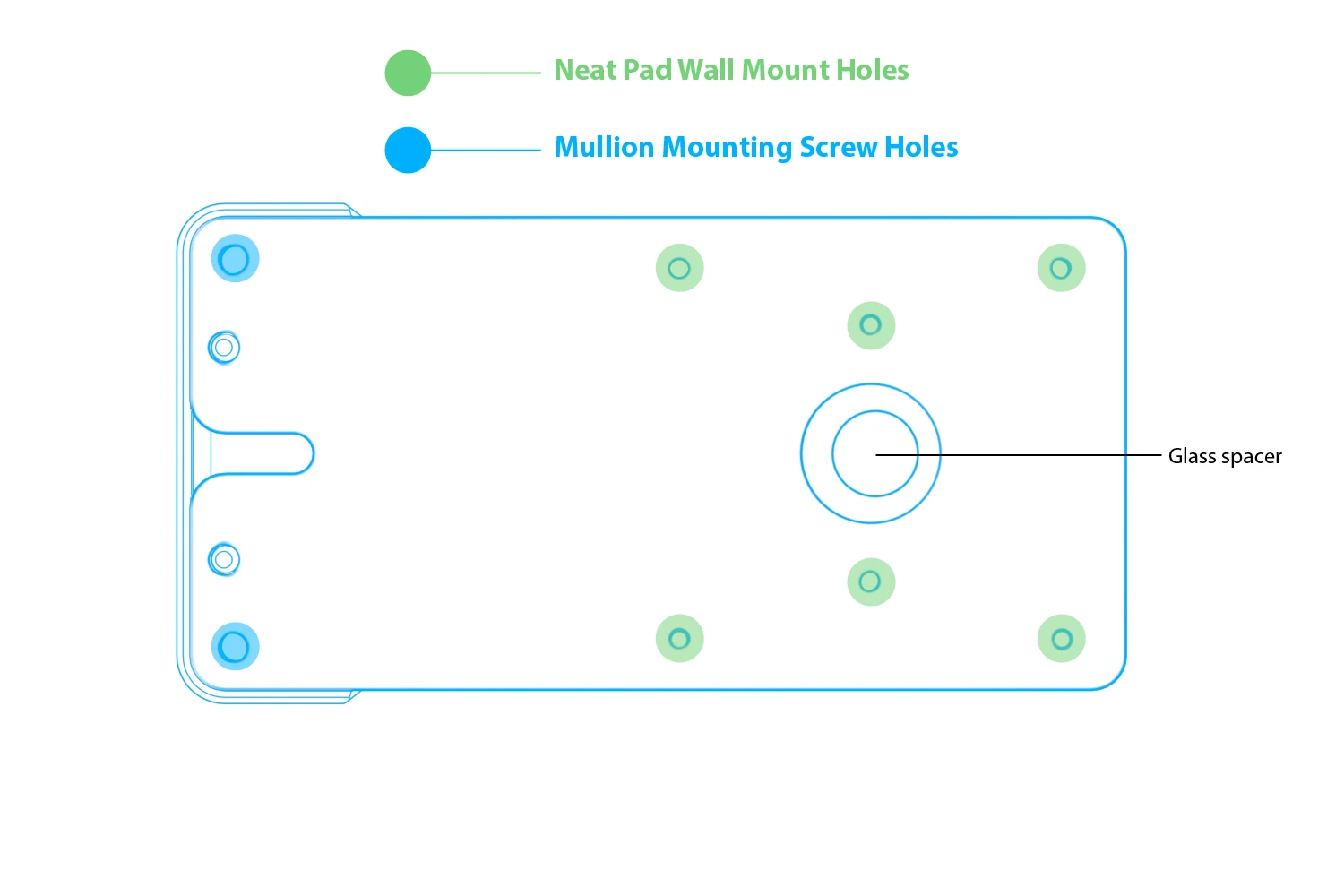

Enlarge image ↗ Bracket diagram identifying Neat Pad wall-mount holes in green, mullion screw holes in blue, and the central glass spacer.
Option 1: Mounting to the right. Door on the left.

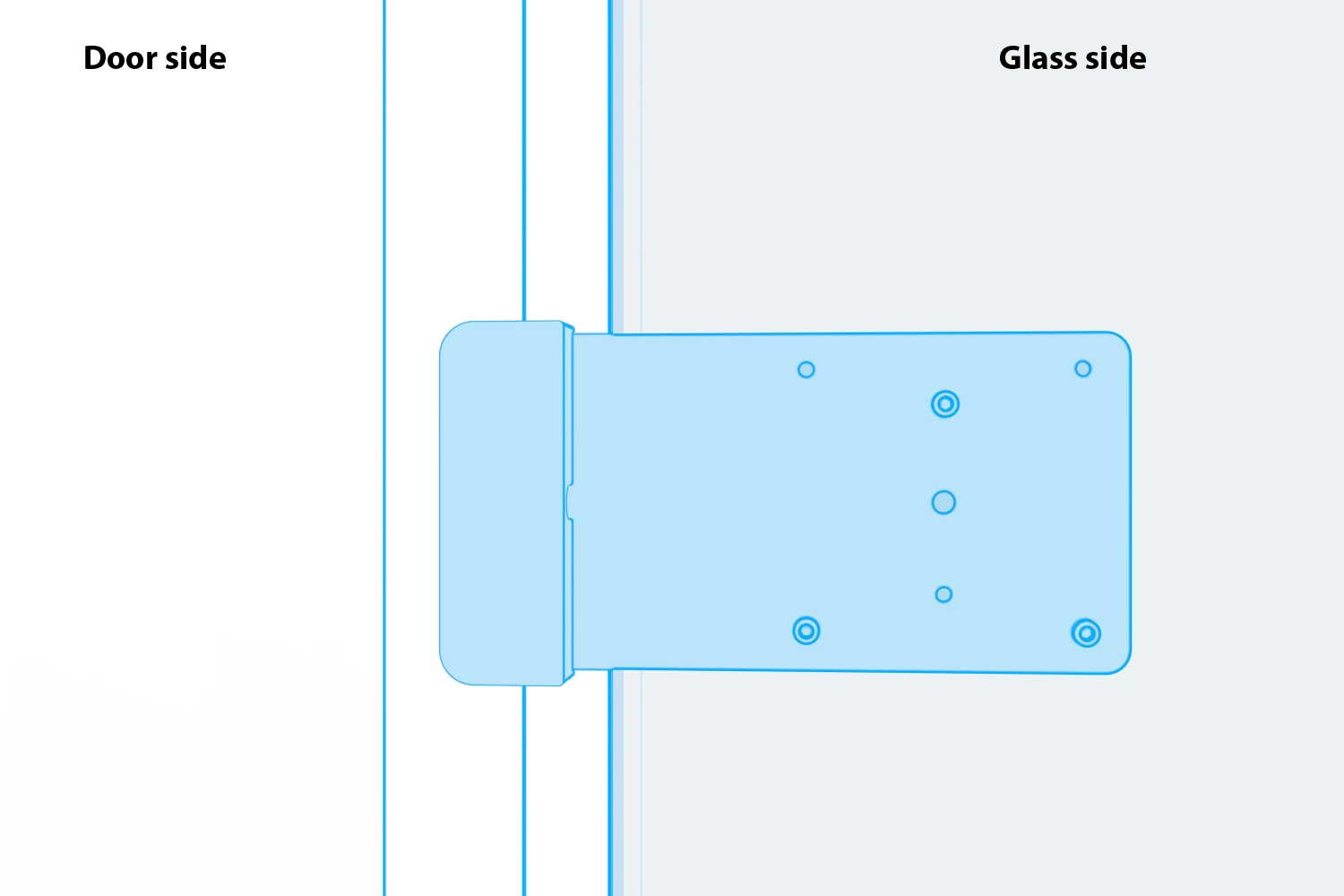

Enlarge image ↗ Right-side mounting arrangement, with the bracket extending toward the glass and the door to the left.

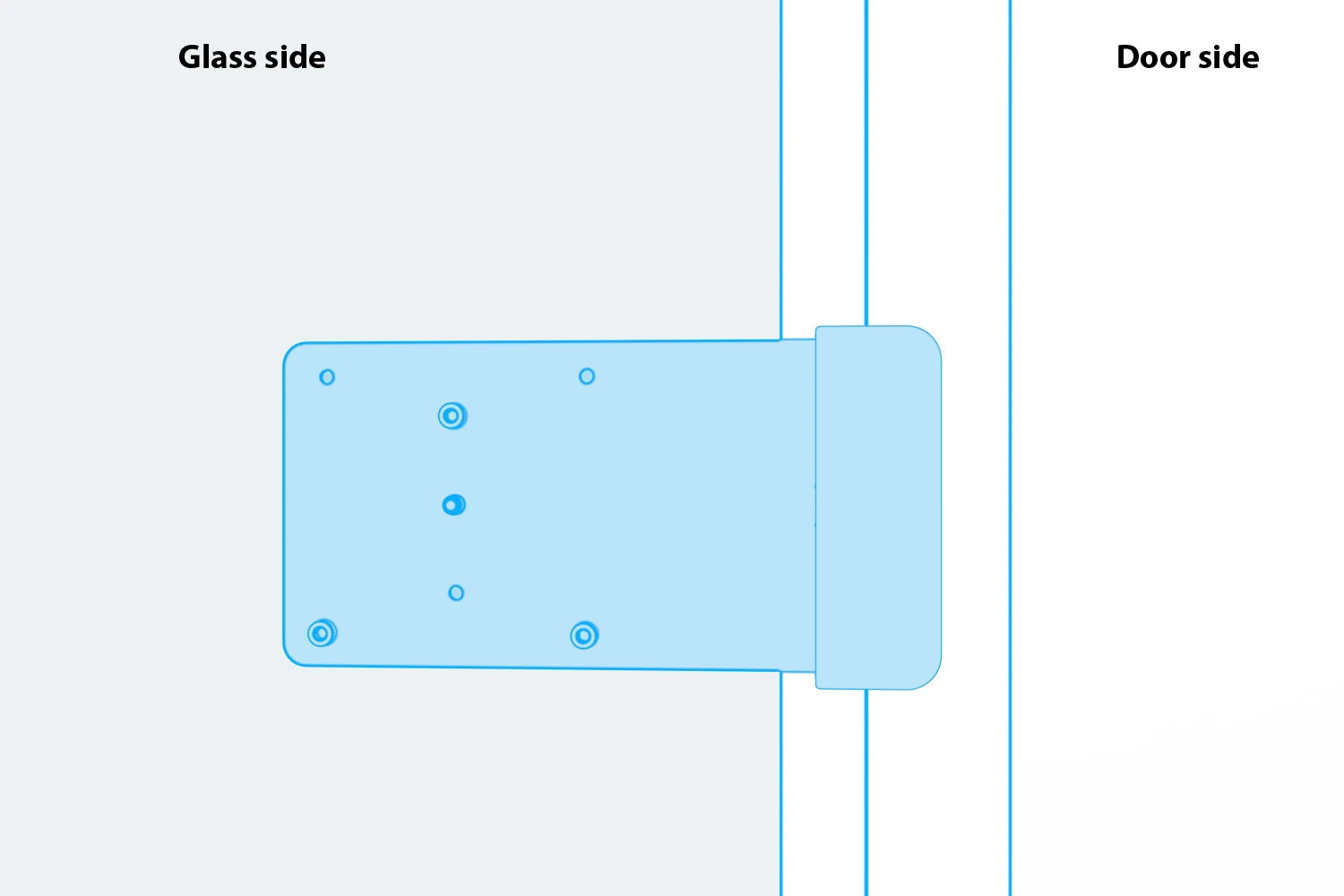

Option 2: Mount to the left. Door on the right.
Enlarge image ↗ Left-side mounting arrangement, with the bracket extending toward the glass and the door to the right.

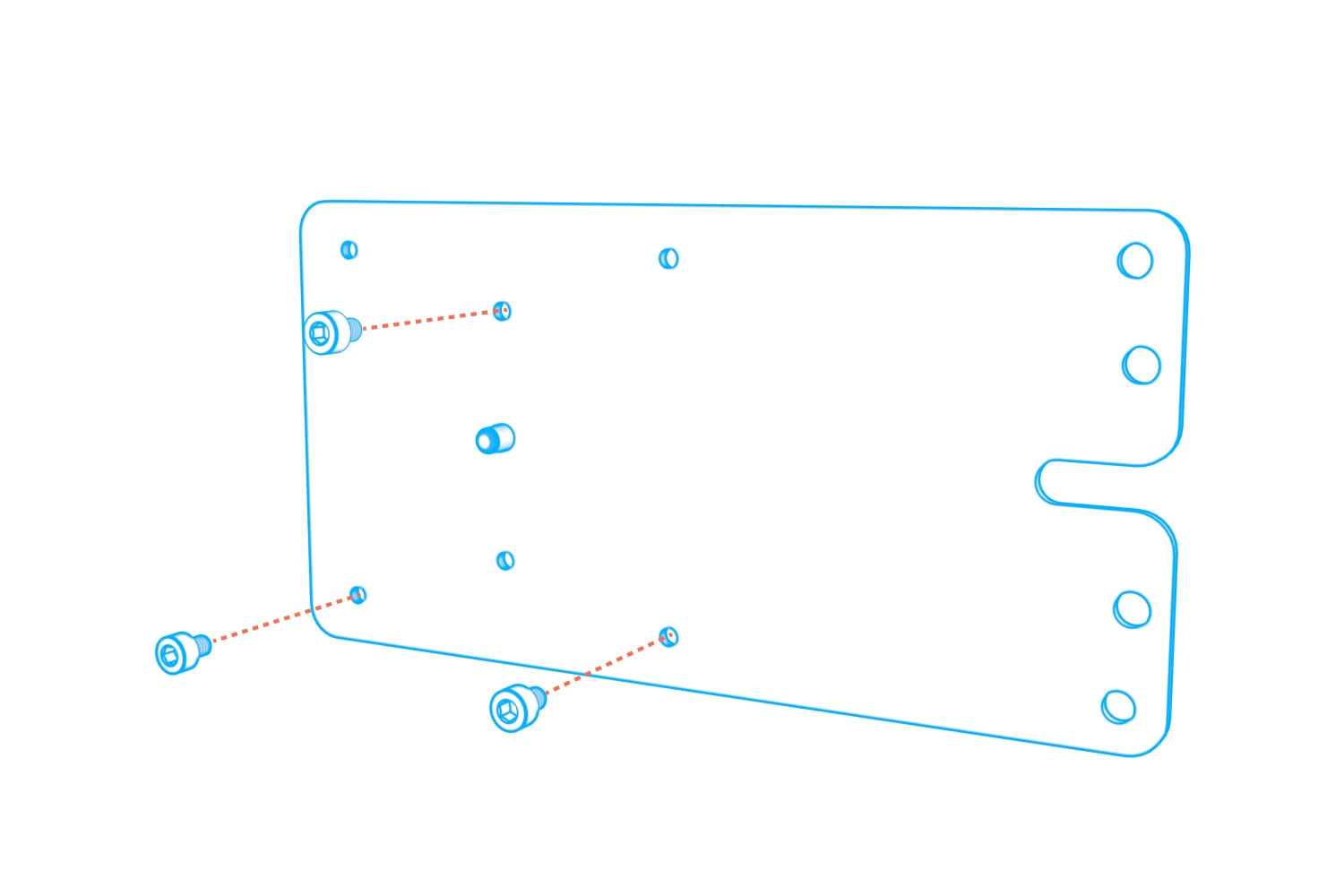

Use the 3 mm hex key to remove the preinstalled screws. Fasten the Neat Pad Wall Mount to the Heckler Mullion Front Mount using the provided M4 screws.
Enlarge image ↗ Three preinstalled screws shown separated from the bracket.

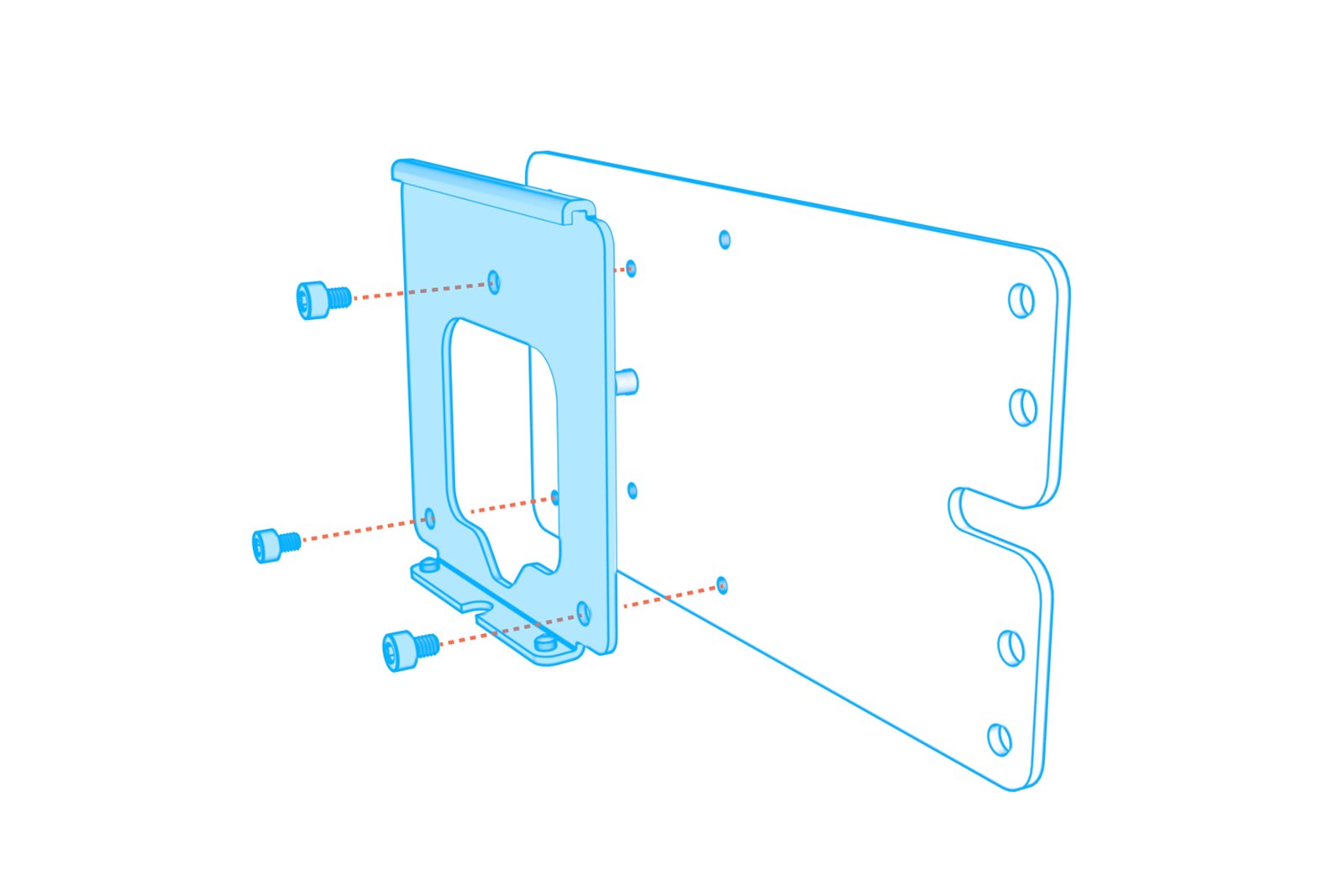

Enlarge image ↗ Play animation Animation showing the Neat Pad wall mount secured to the Heckler bracket with three screws.

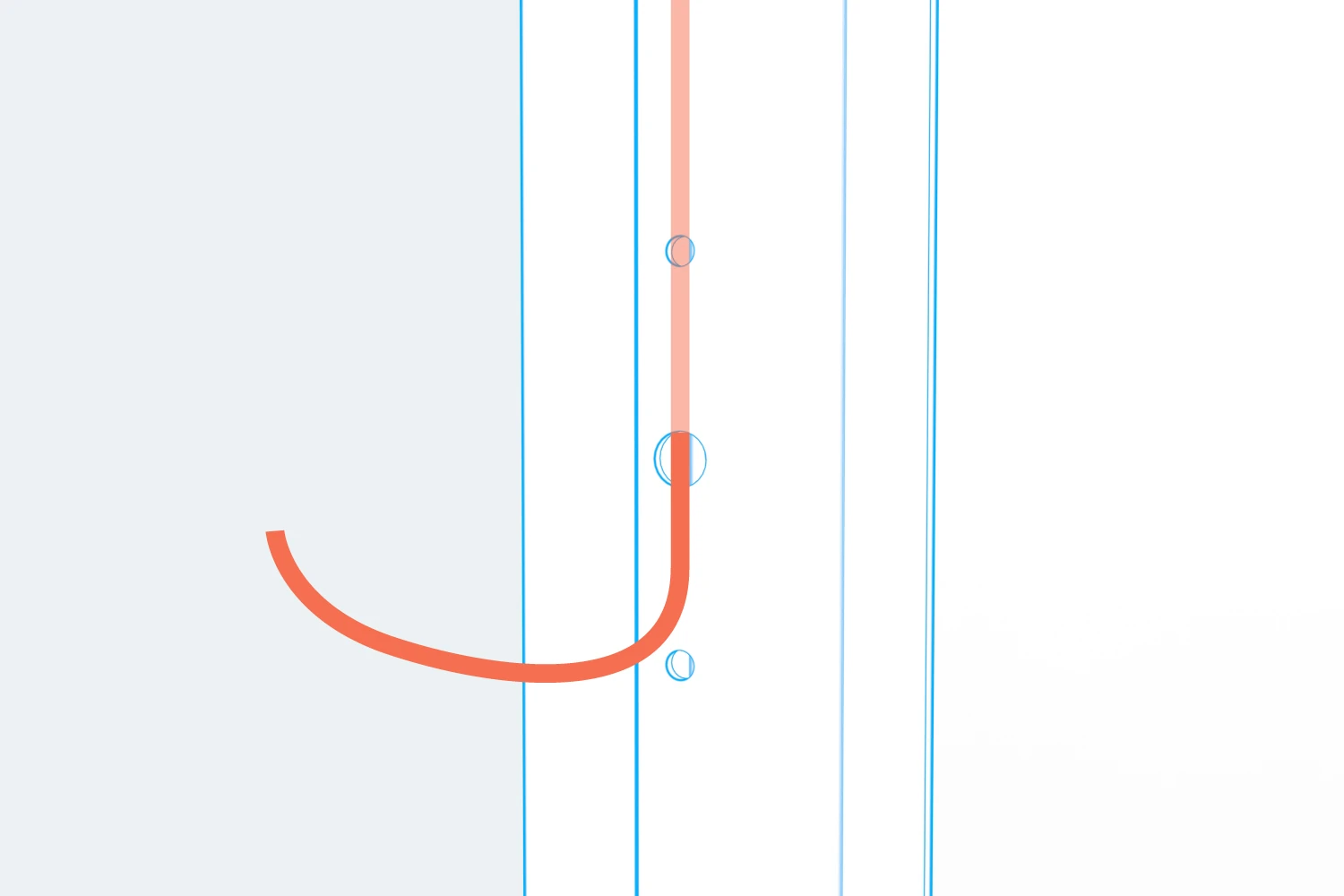

Enlarge image ↗ CAT cable emerging through the center hole in the mullion.
Use the provided #10 self-drilling, self-tapping screws. Use the Hex socket provided in the toolkit.

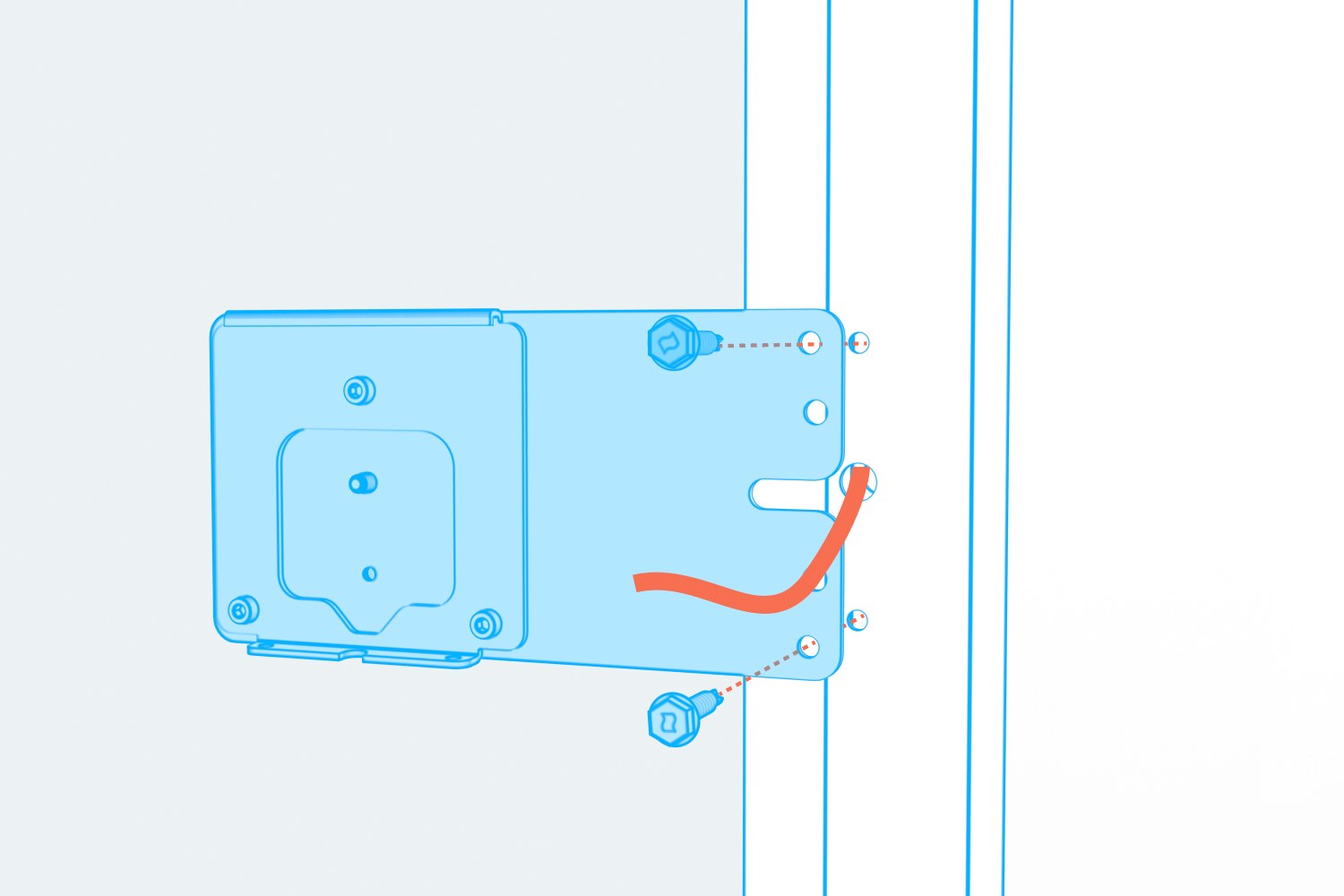

Enlarge image ↗ Play animation Animation of the bracket fastening to the mullion with two hex-head screws while the cable passes through its side notch.

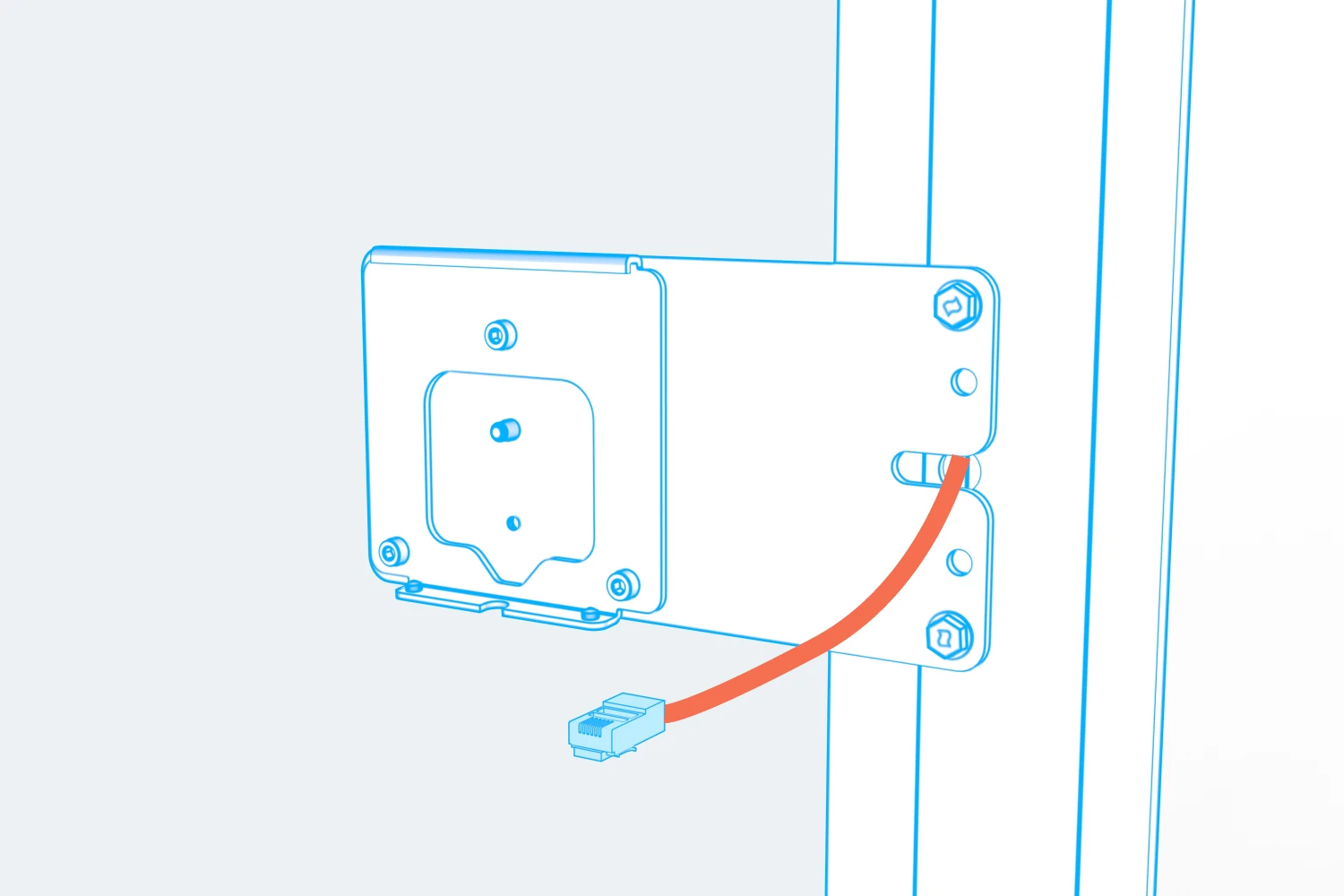

Enlarge image ↗ RJ45 plug on the cable extending from the mounted bracket.

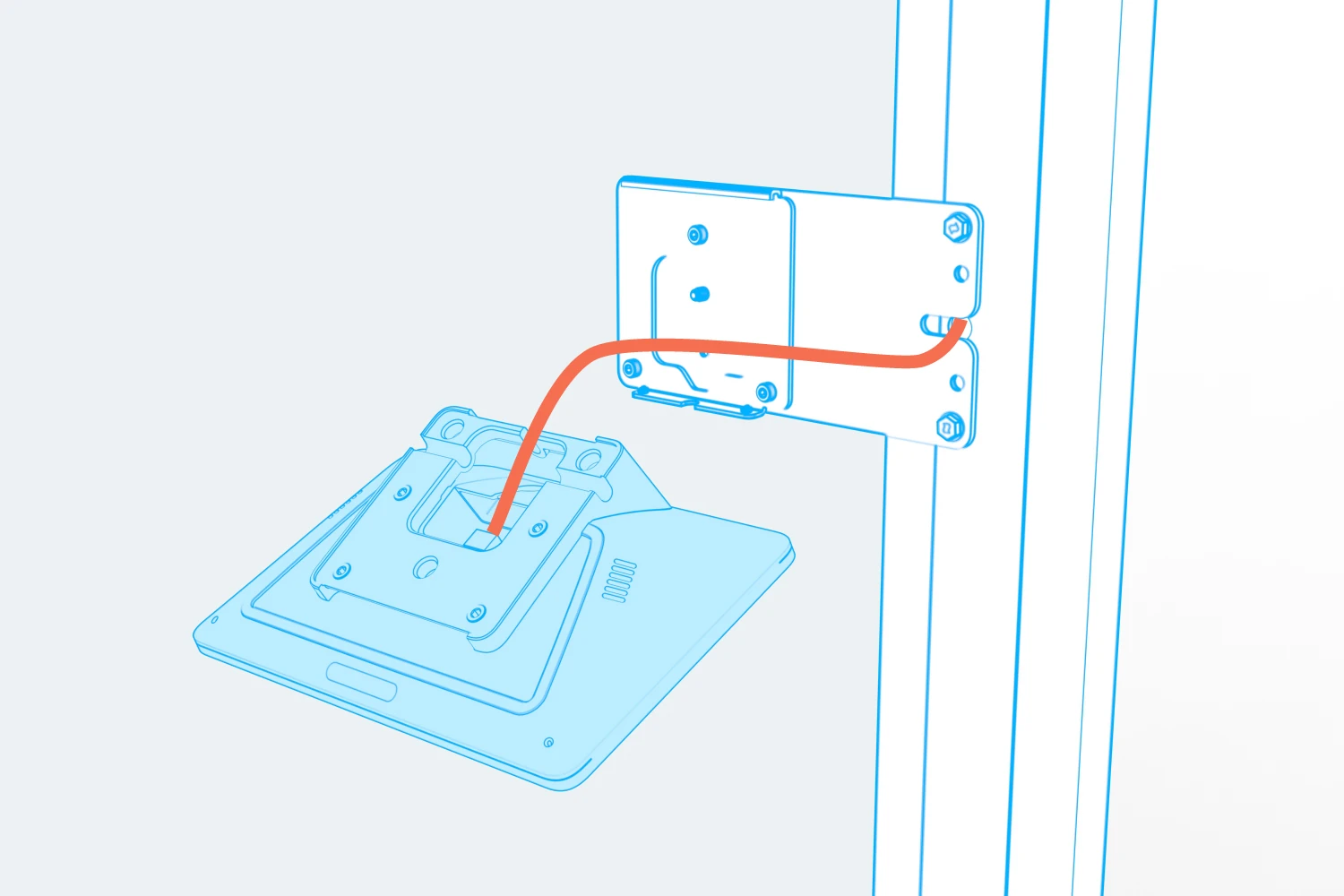

Enlarge image ↗ CAT cable connected to the back of the Neat Pad while the device is held below the wall mount.

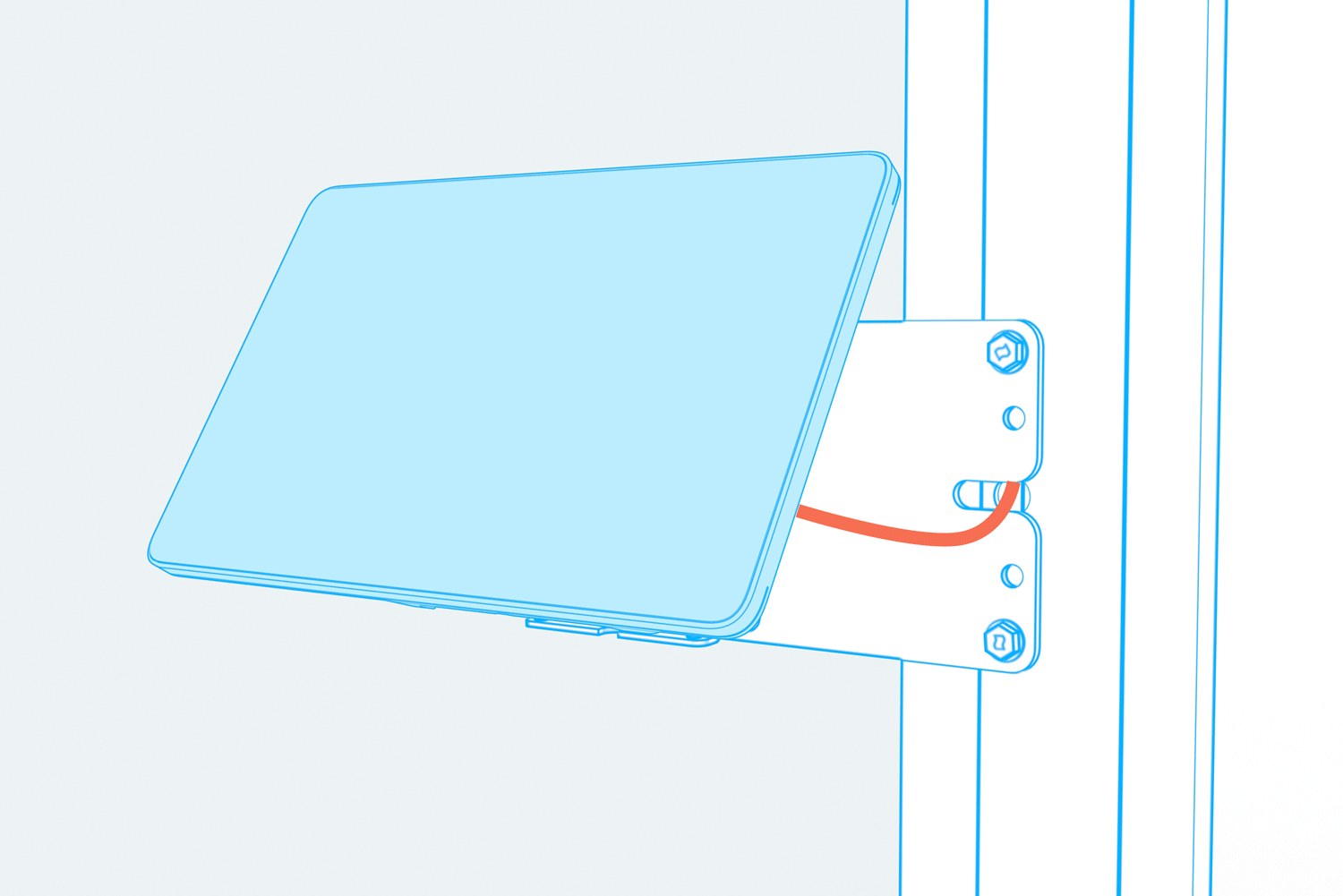

Enlarge image ↗ Play animation Animation showing Neat Pad moving onto and seating against the wall mount.

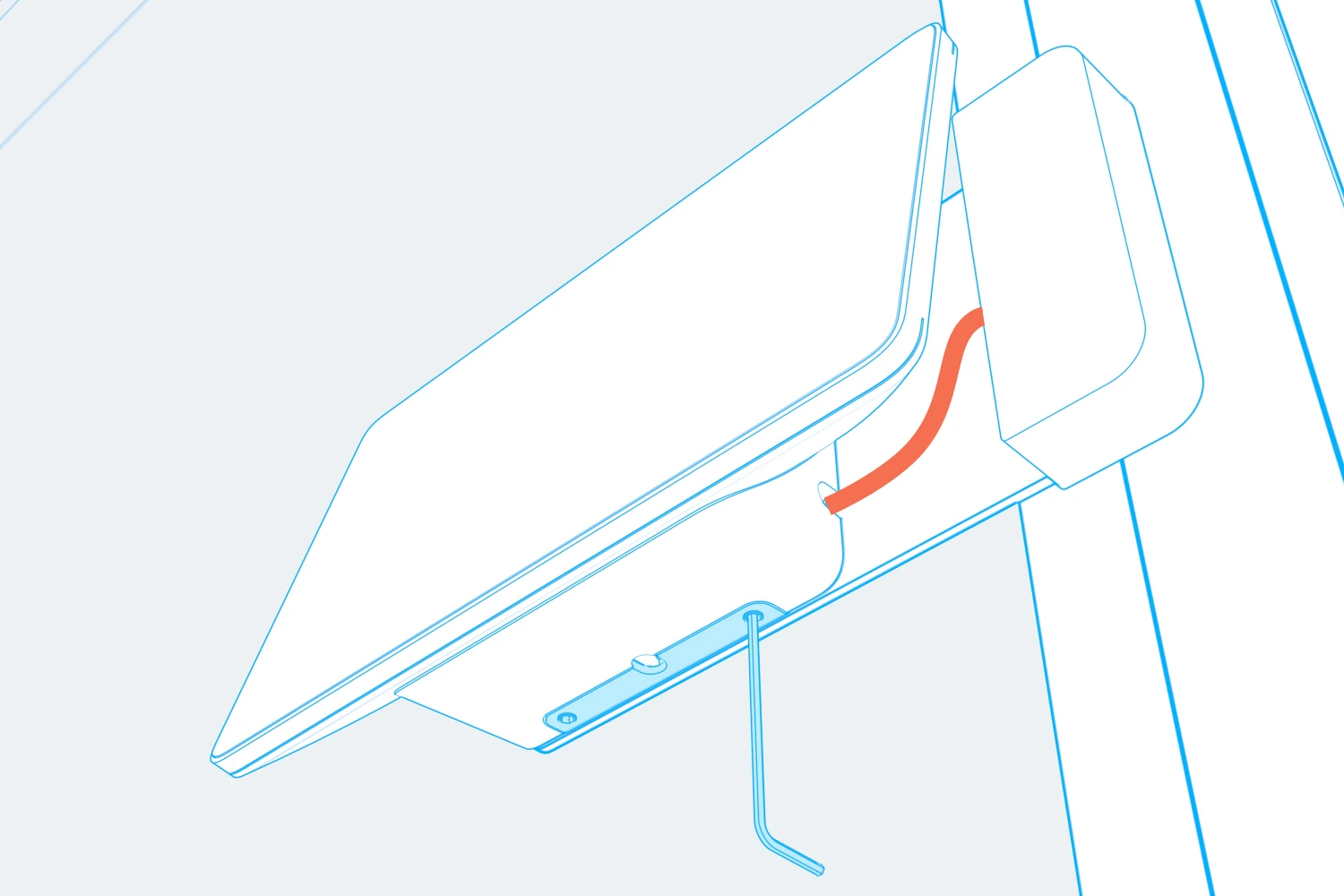

Enlarge image ↗ Underside view of the Neat Pad with a hex key at its retaining set screw.

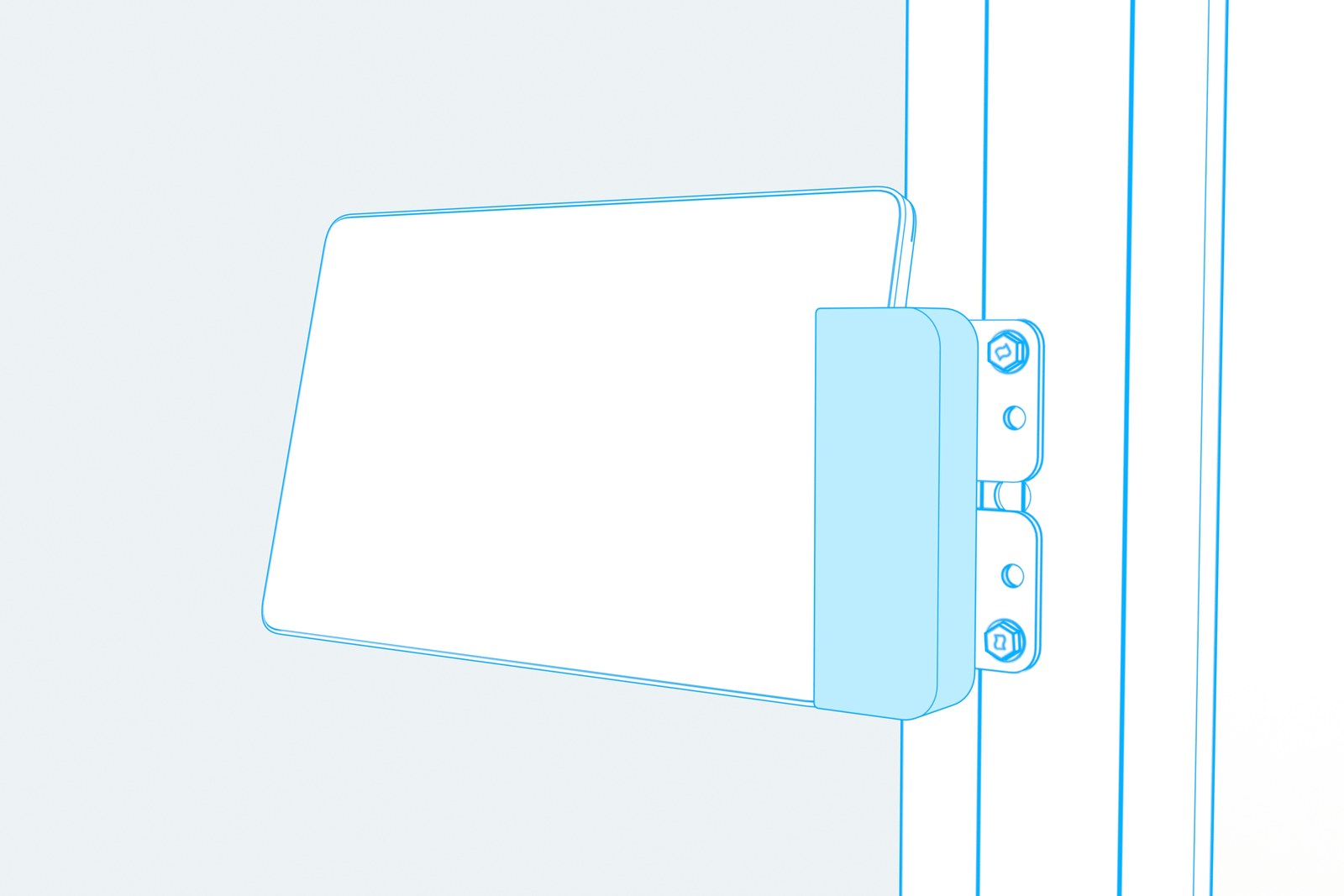

Enlarge image ↗ Play animation Animation showing the magnetic cover moving over the exposed mullion fasteners beside the Neat Pad.
