User guide

H803 Dual Display Kit XL

Guide details Applicability and revision

Prepare the XL dual display bars, mount and align both displays, and route cables on AV Wall.

ProductH803
Hardware generationH803
Guide revisionrelease-2026-10-28
Applies to

H803 Dual Display Kit XL for Heckler AV Wall.

In this guide · 16 sections

Looking for H802 Dual Display Kit (Standard Size)?

In the box

1. 2 x Dual Display Bar XL (R610) 2. 2 x Display Rail (R602) + 2 x Display Hook for Dual Display Kit (R611) 3. 2 x Wall Bumper Bracket (R612) 4. 4 x Display Locking Bumper Kit 5. 4 x Safety Pin with Cotter Pin (F941) 6. 2 x Level Adjustment Screw (F942) 7. 1 x Ball-End Hex Key for Level Adjustment Screw (F943) 8. 3 x Snaptoggle Wall Anchor, ⅜”-16 (F727) 9. 2 x Wall Anchor Screw, ⅜”-16 thread, 2.5” long (F945) 10. 2 x Nylon Spacer with Sleeve, ¾” long (F911) 11. 2 x Washer (F731) 12. 1 x Display Mounting Kit (F742) 13. 4 x Wall Bumper Bracket Mounting Screw (F944) 14. 2 x Wood Rod, 24” long

Tools needed

- Tape measure - Level - Masking tape - Pen - Digital stud finder - Power Drill - 1/8-inch Drill bit - ¾-inch diameter step drill bit. - Optional: step stool or ladder

Prepare the wall and dual display bars

Determine wall anchor locations

Temporarily install each dual display bar to the main structure by sliding the post on the back of the bar into the vertical slot located at the top corners of the structure.

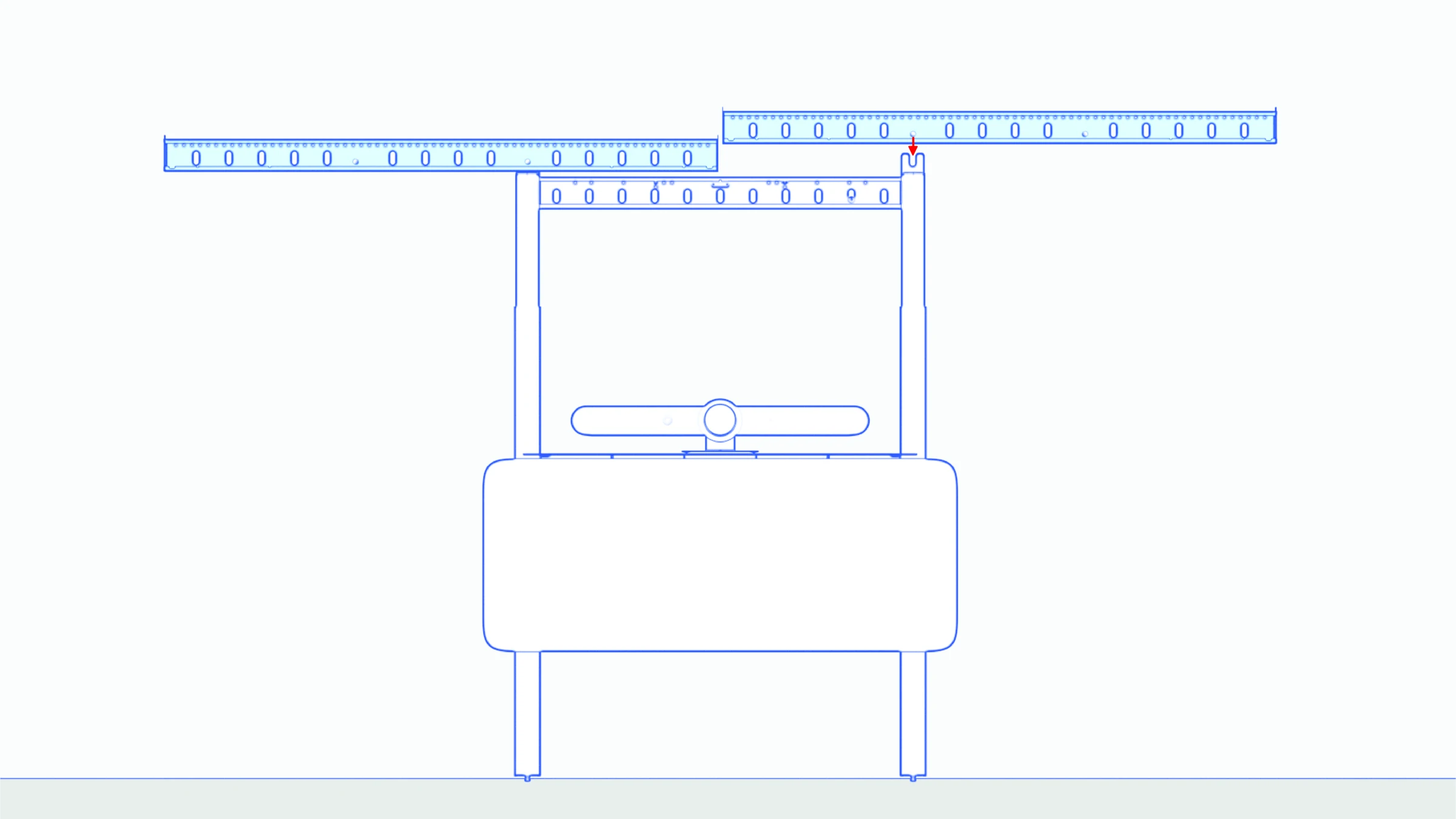

Two dual-display bars aligned with the top corners of the AV Wall structure.

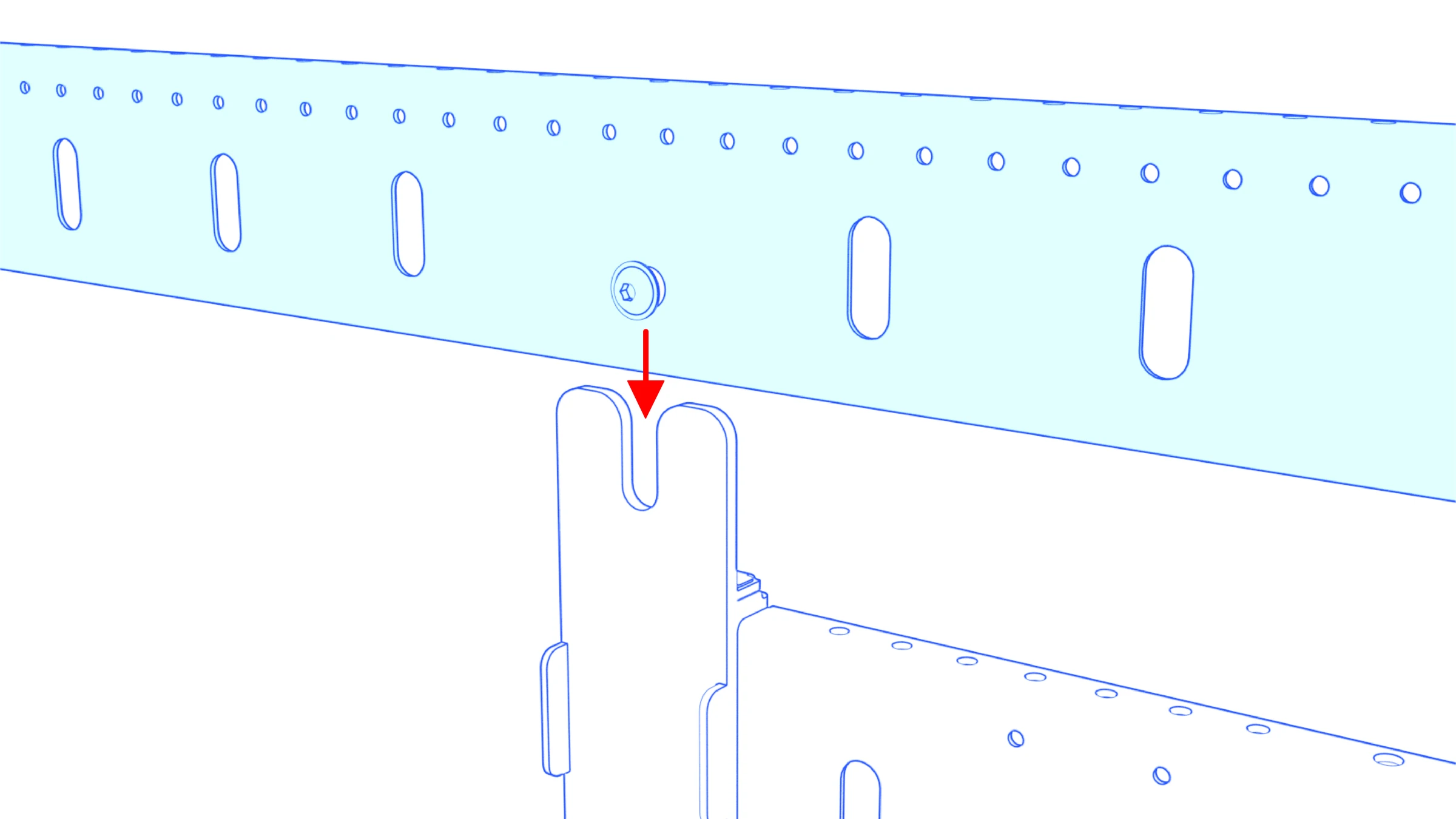

Close-up showing a bar’s rear post aligned with the vertical slot at the top of the structure.

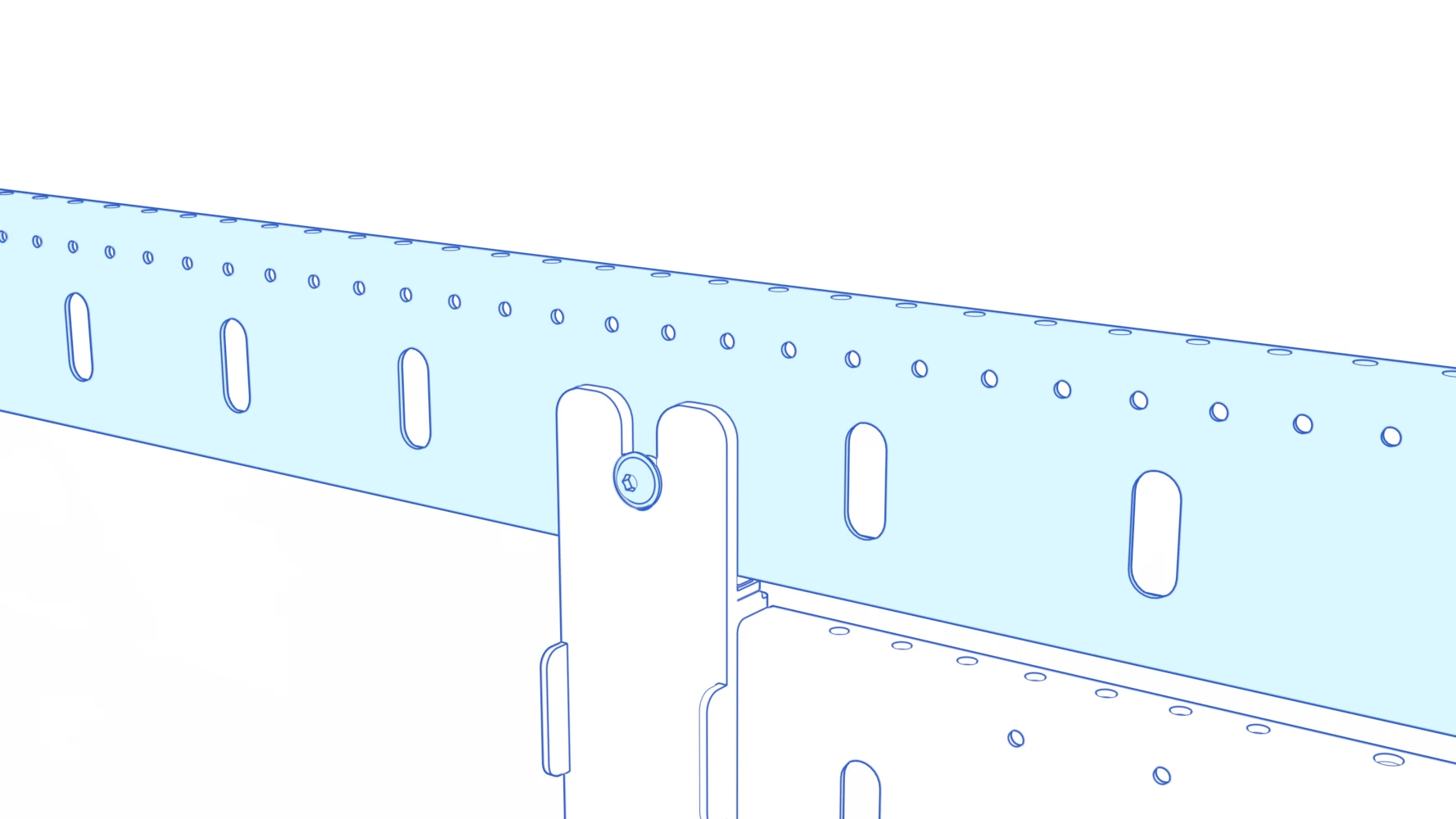

Bar post seated in the structure’s top slot.

Install the safety pins to connect each bar to the beam of the structure. Install two pins to each bar.

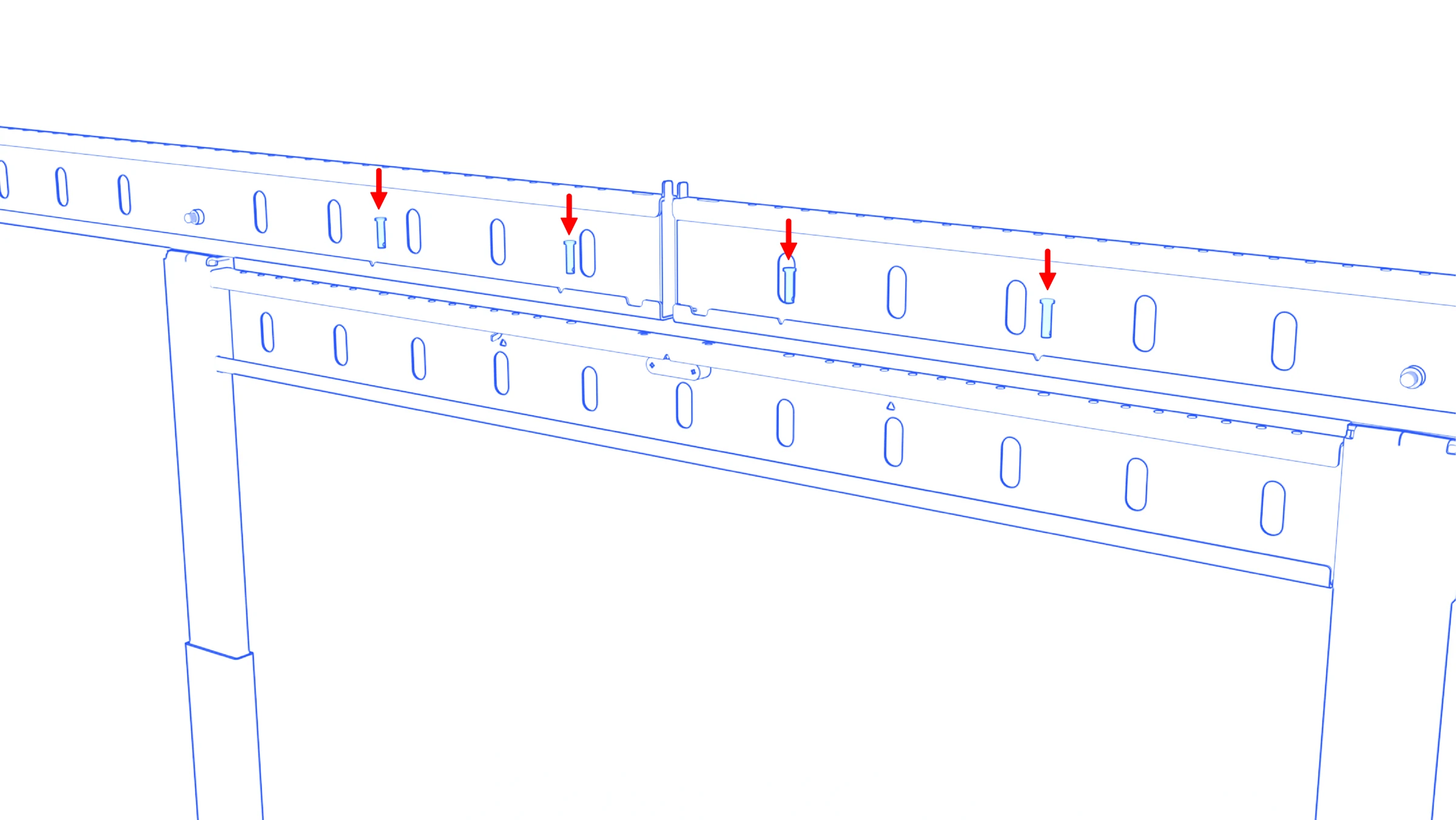

Four safety-pin positions highlighted across the two bars.

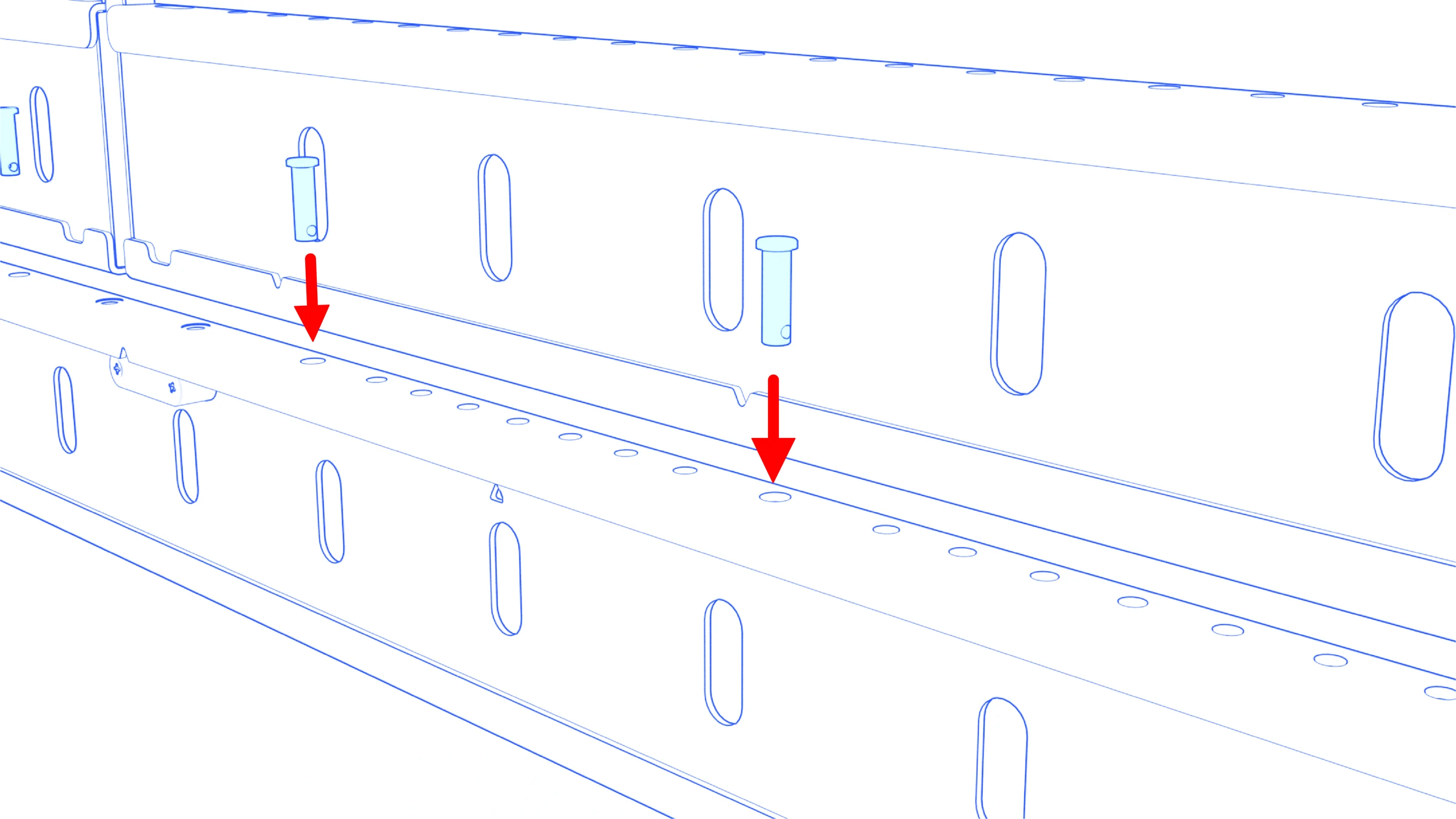

Two safety pins aligned with the bar and beam holes.

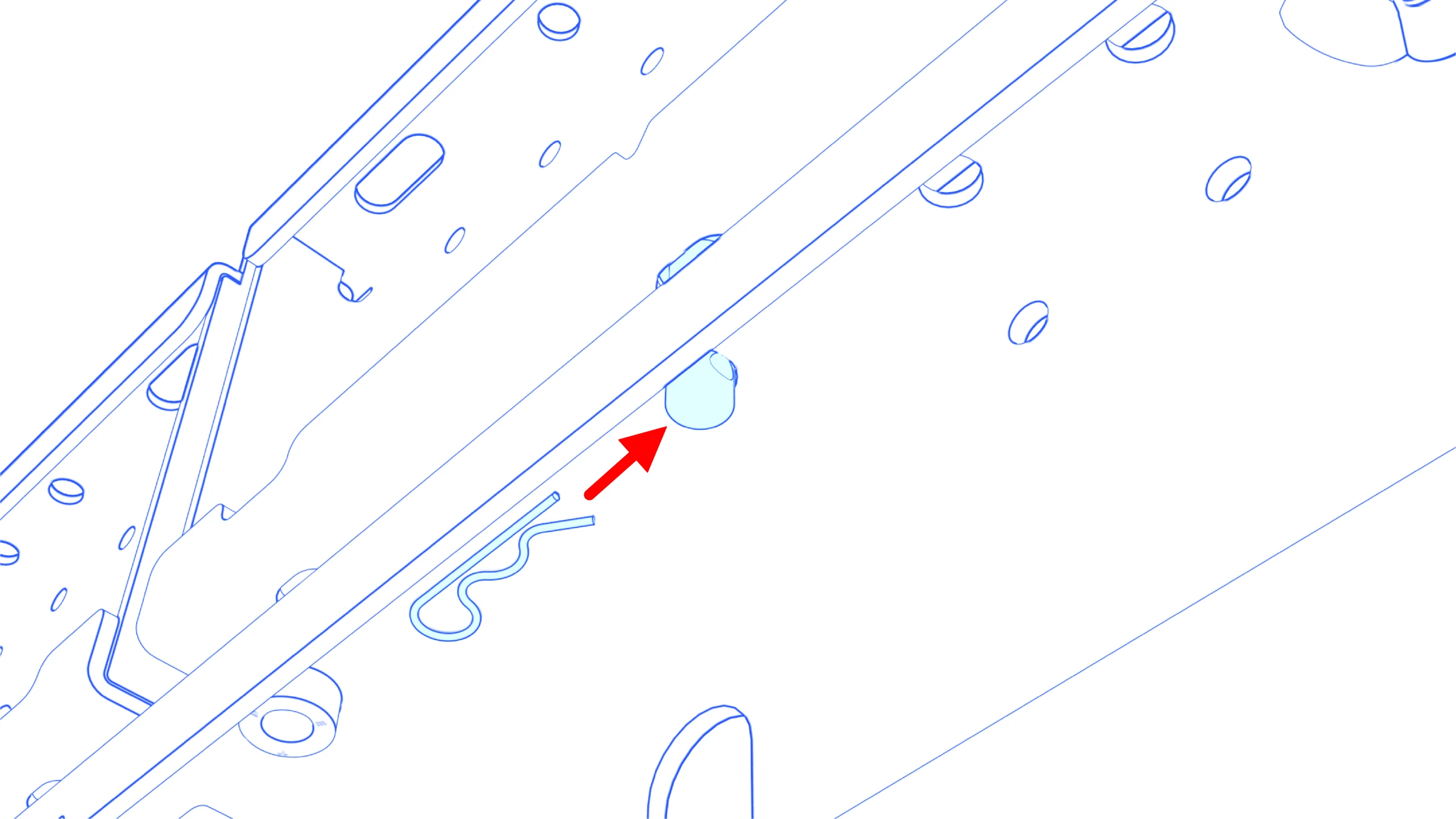

Underside close-up showing a cotter pin approaching a safety-pin hole.

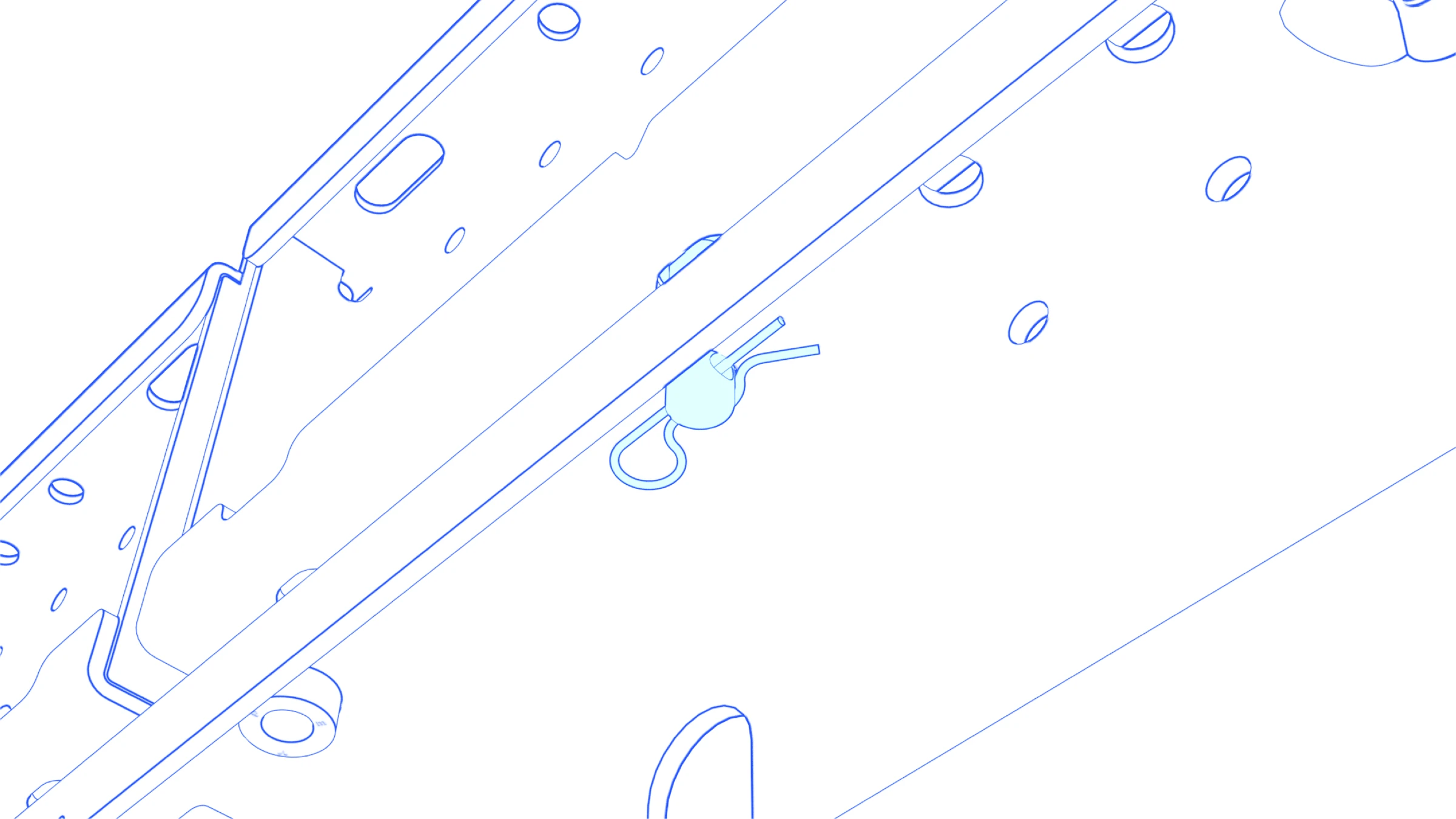

Cotter pin installed through the safety pin.

Fasten the display-alignment screws through each dual display bar. Adjust each screw with the included ball-end hex key until both dual display bars are level.

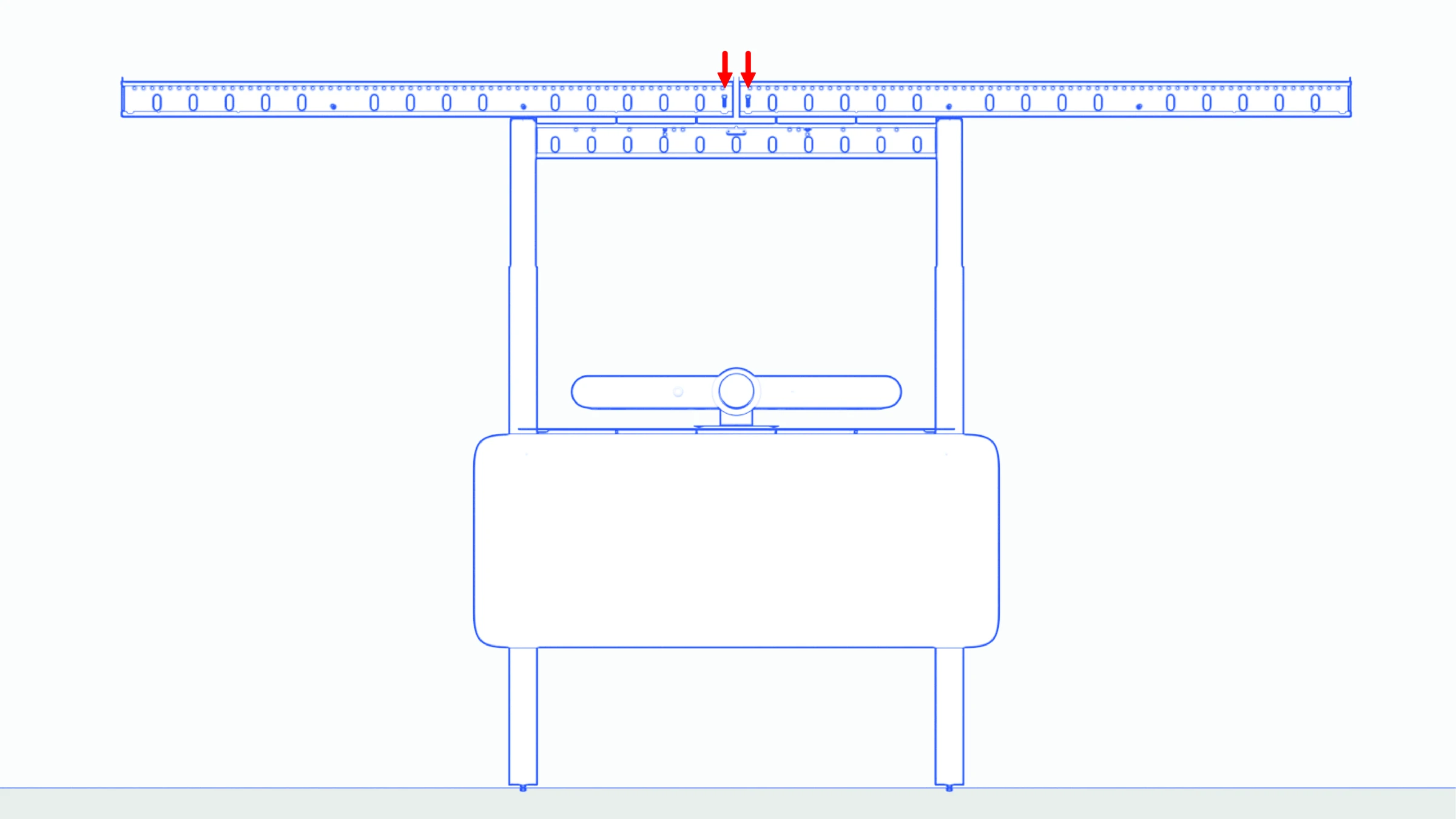

Two display-leveling screw positions indicated near the center of the structure.

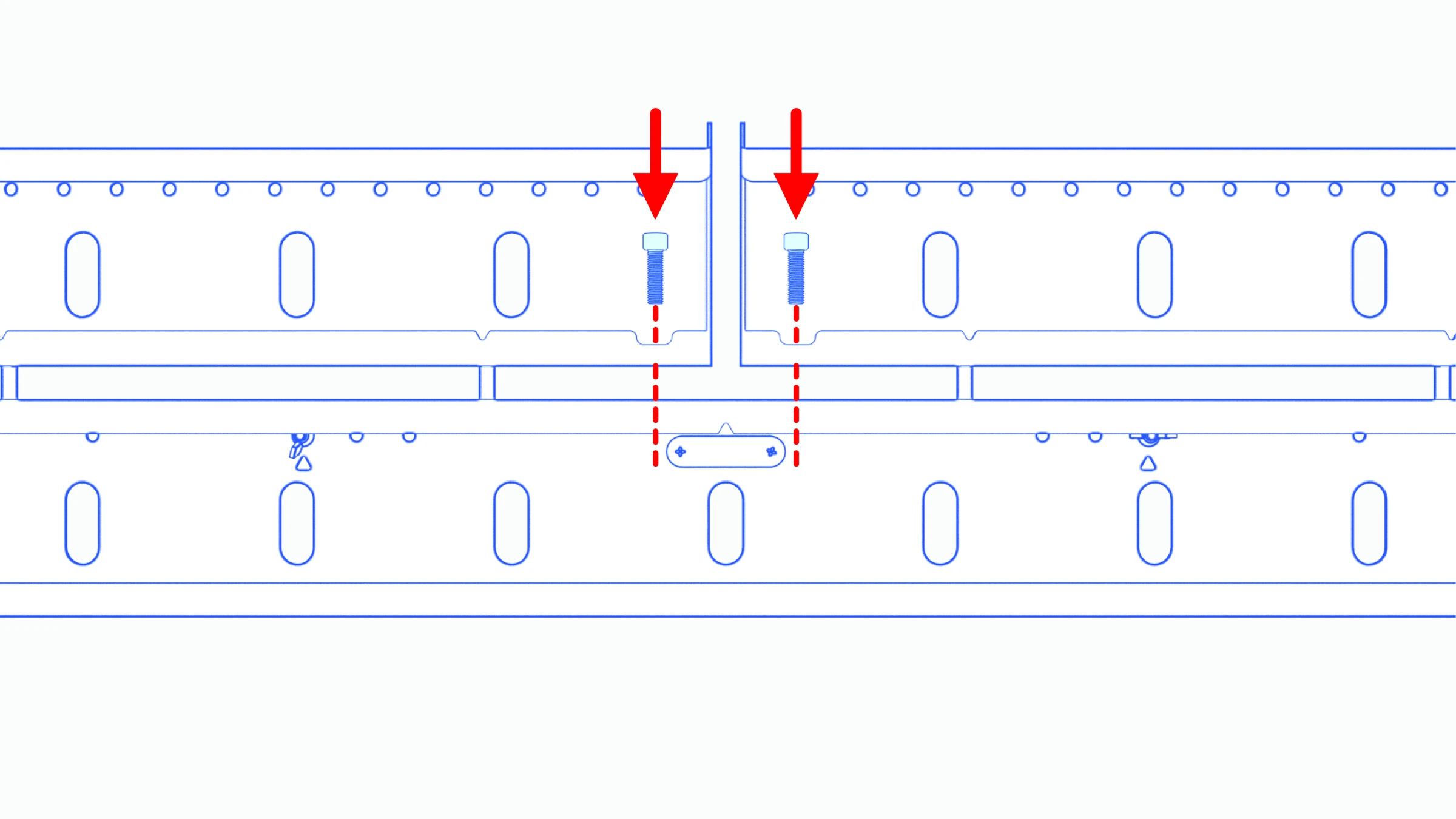

Leveling screws aligned with the bar and beam connections.

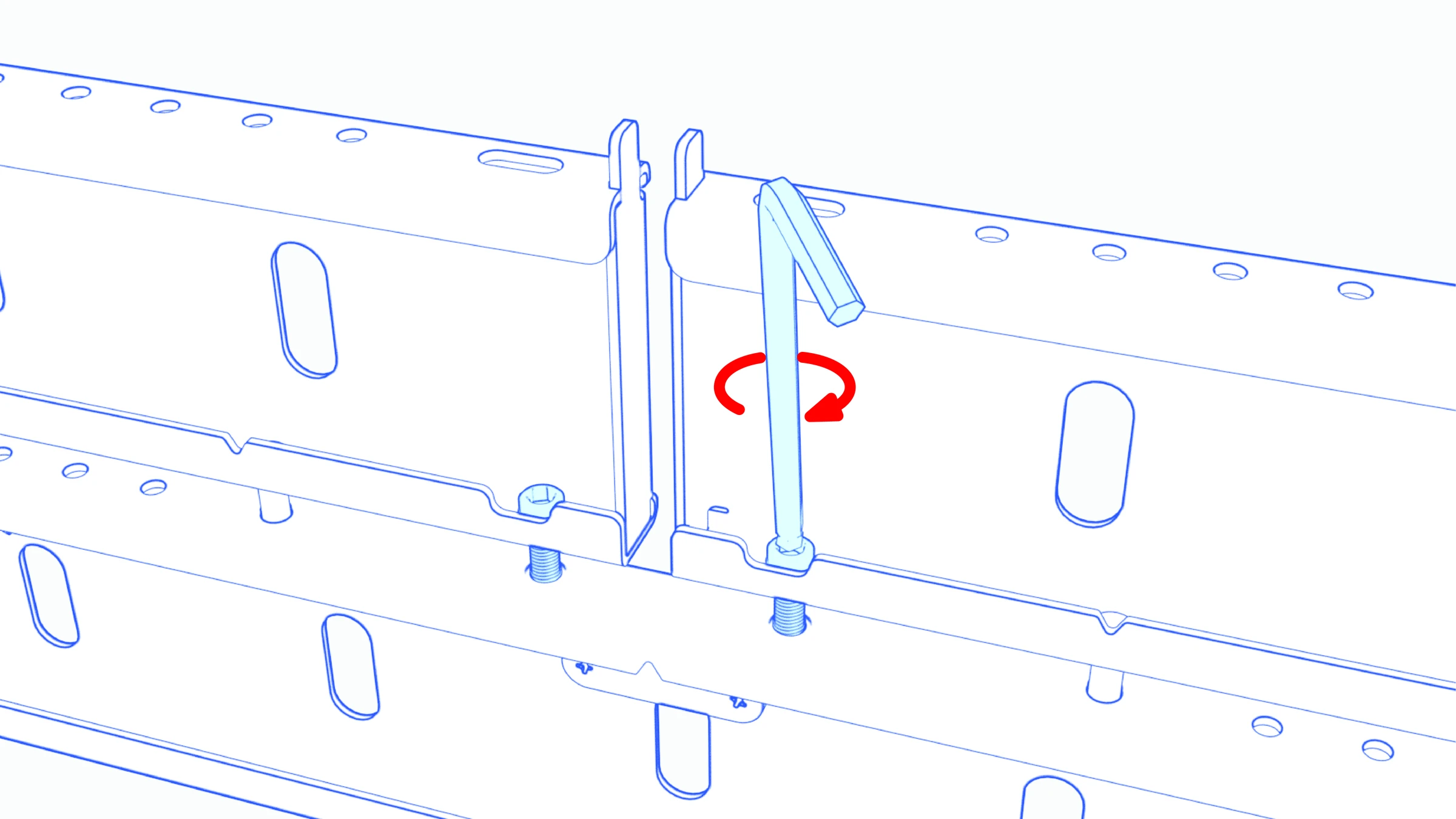

Hex key at the leveling screw, with a curved adjustment arrow.

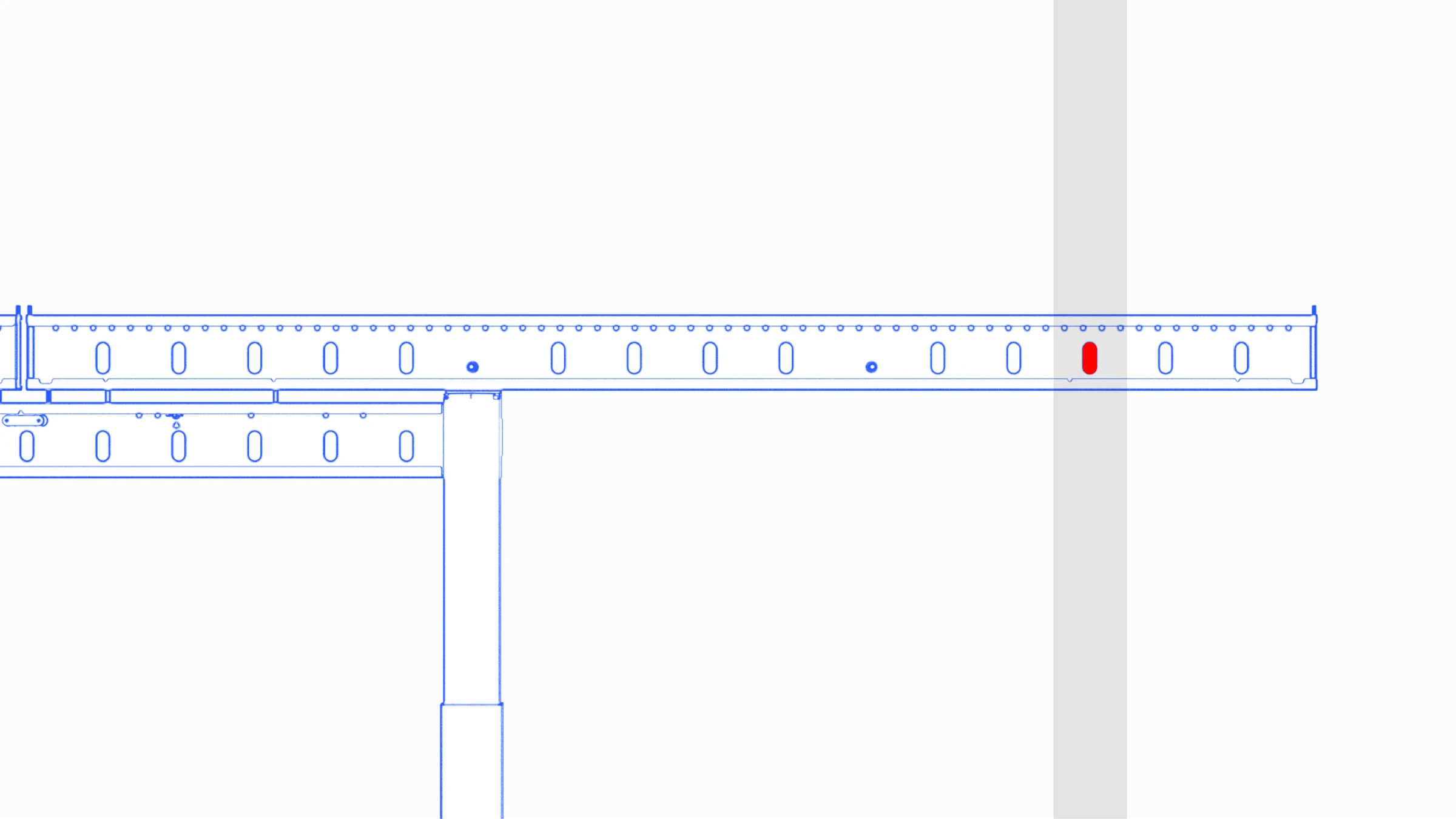

Locate the wall stud, near the far end of each dual display bar, that aligns with a pill-shaped anchor hole on each dual display bar.

Mark the pill-shaped hole on the wall. Do this near the end of both dual display bars.

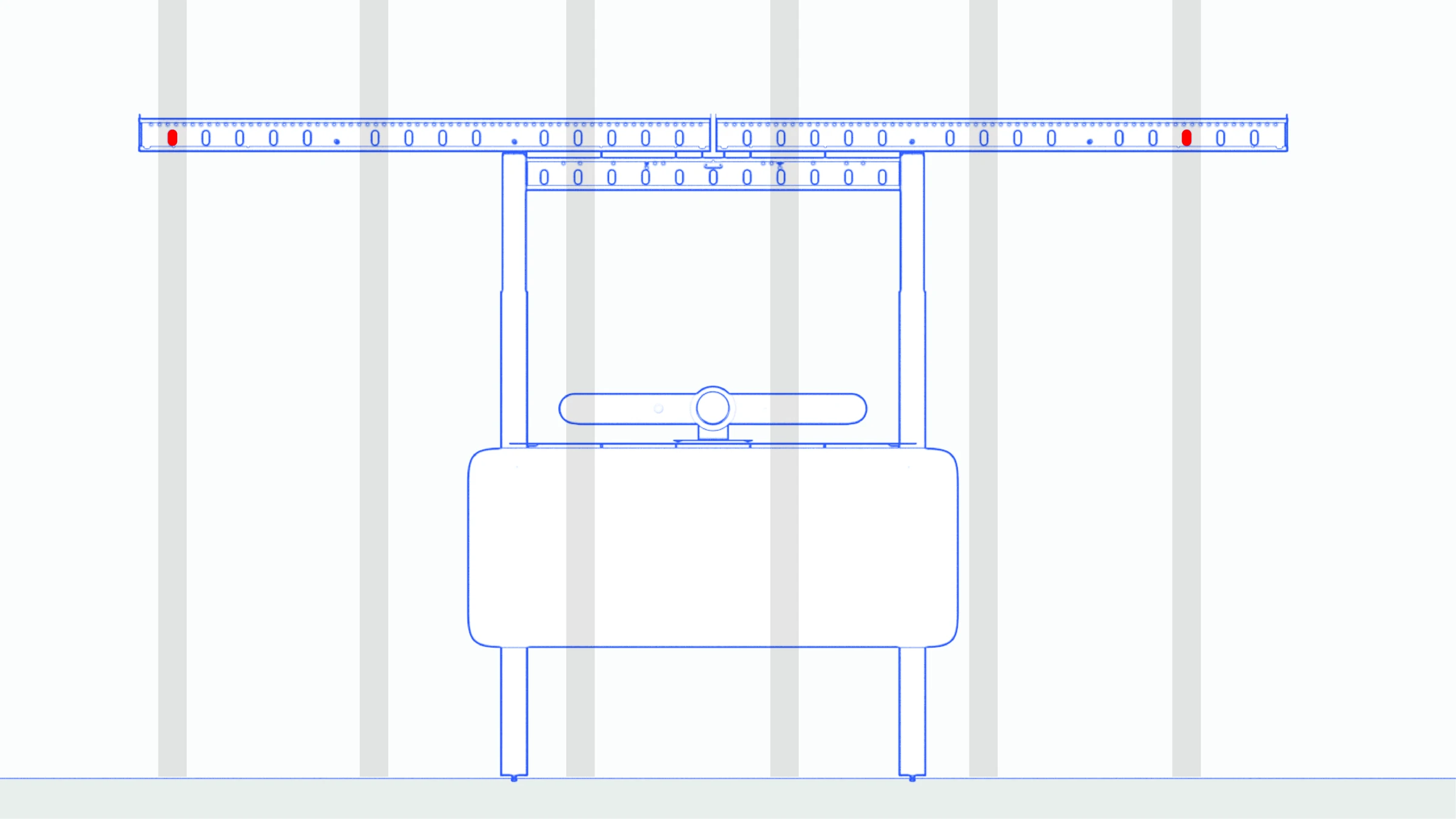

Outer wall-anchor positions aligned with wall studs.

Close-up of a pill-shaped anchor hole positioned over a wall stud.

Install display-locking bumpers

Two display-locking bumpers are pre-installed to each dual display bar.

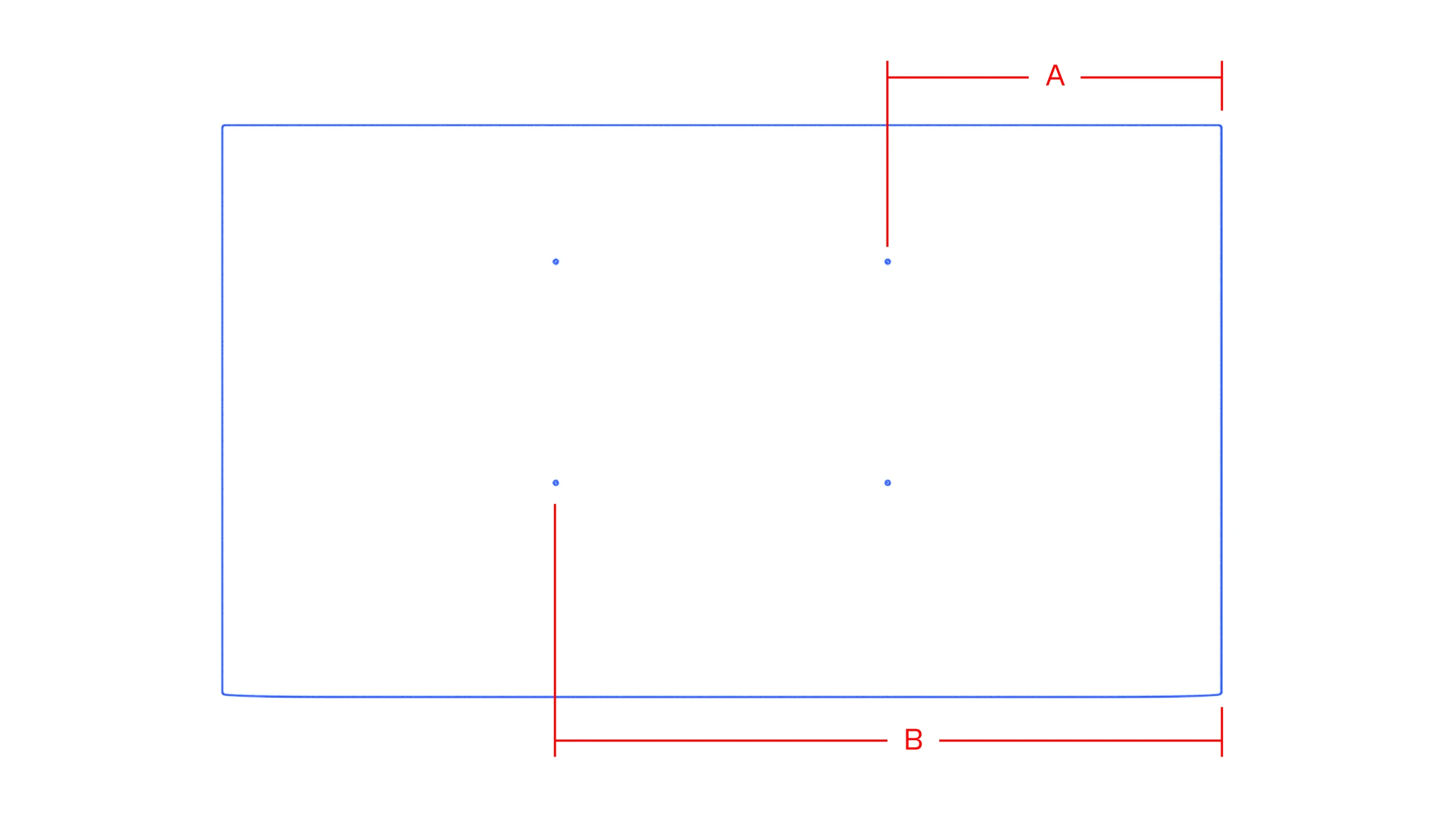

Measure the horizontal distance from the edge of the display to the nearest mounting hole.

Measure the horizontal distance from the edge of the display to the farthest mounting hole.

Rear display view showing Distance A to the nearest mounting hole and Distance B to the farthest mounting hole.

Locate the correct hole on the dual bar to install the inner display-locking bumper. To do so, measure Distance A from the center of the structure (marked with a triangular notch) to the row of bumper-mounting holes on the dual-display bar. Mark the hole that is just short of Distance A with tape.

Locate the correct hole on the dual bar to install the outer display-locking bumper. To do so, measure Distance B from the center of the structure (marked with a triangular notch) to the row of bumper-mounting holes on the dual-display bar. Mark the hole that is just short of Distance B with tape.

Repeat this process to locate the bumper positions on the other dual display bar.

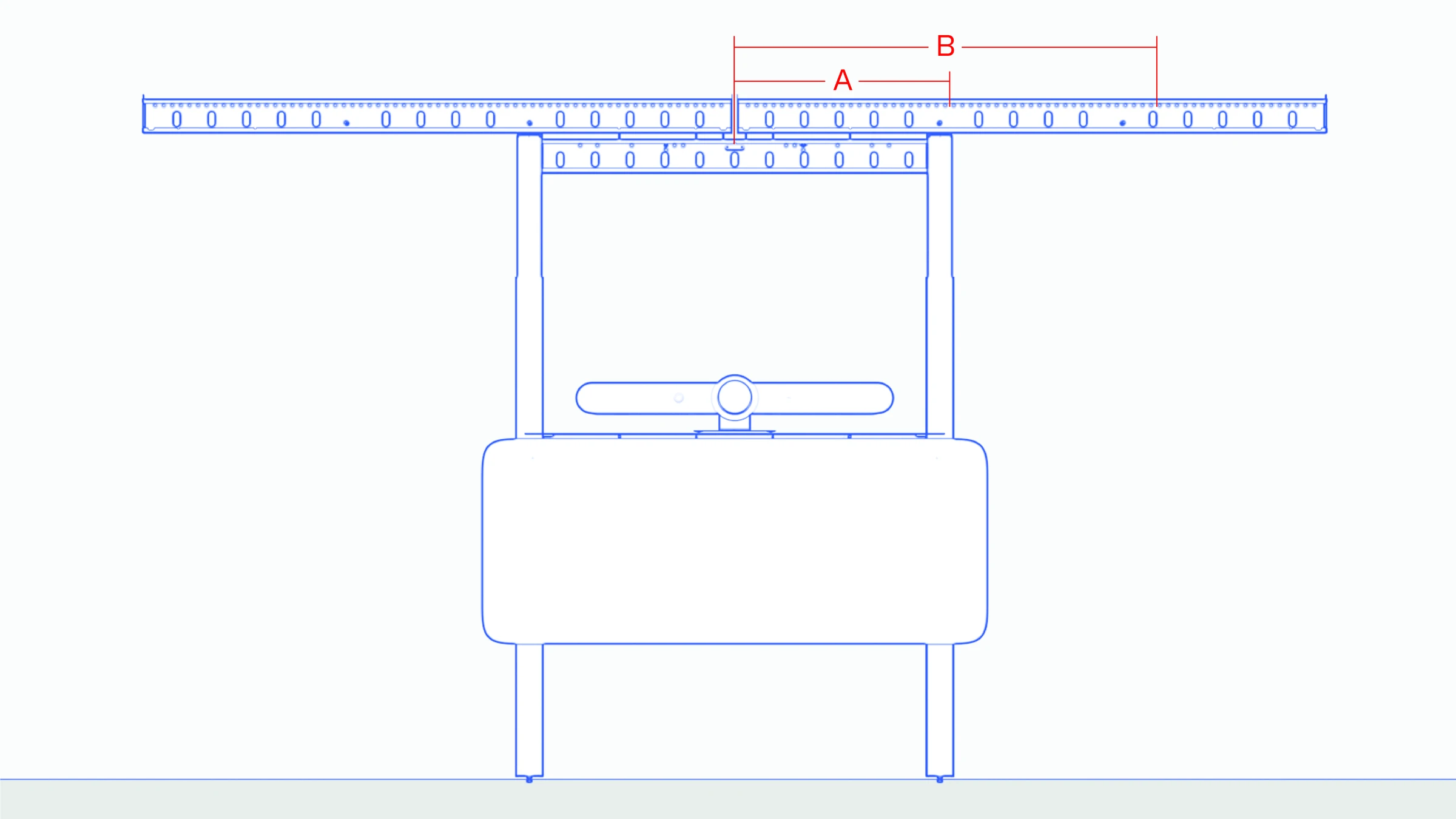

Distances A and B transferred from the structure’s center to the bumper-mounting holes on each bar.

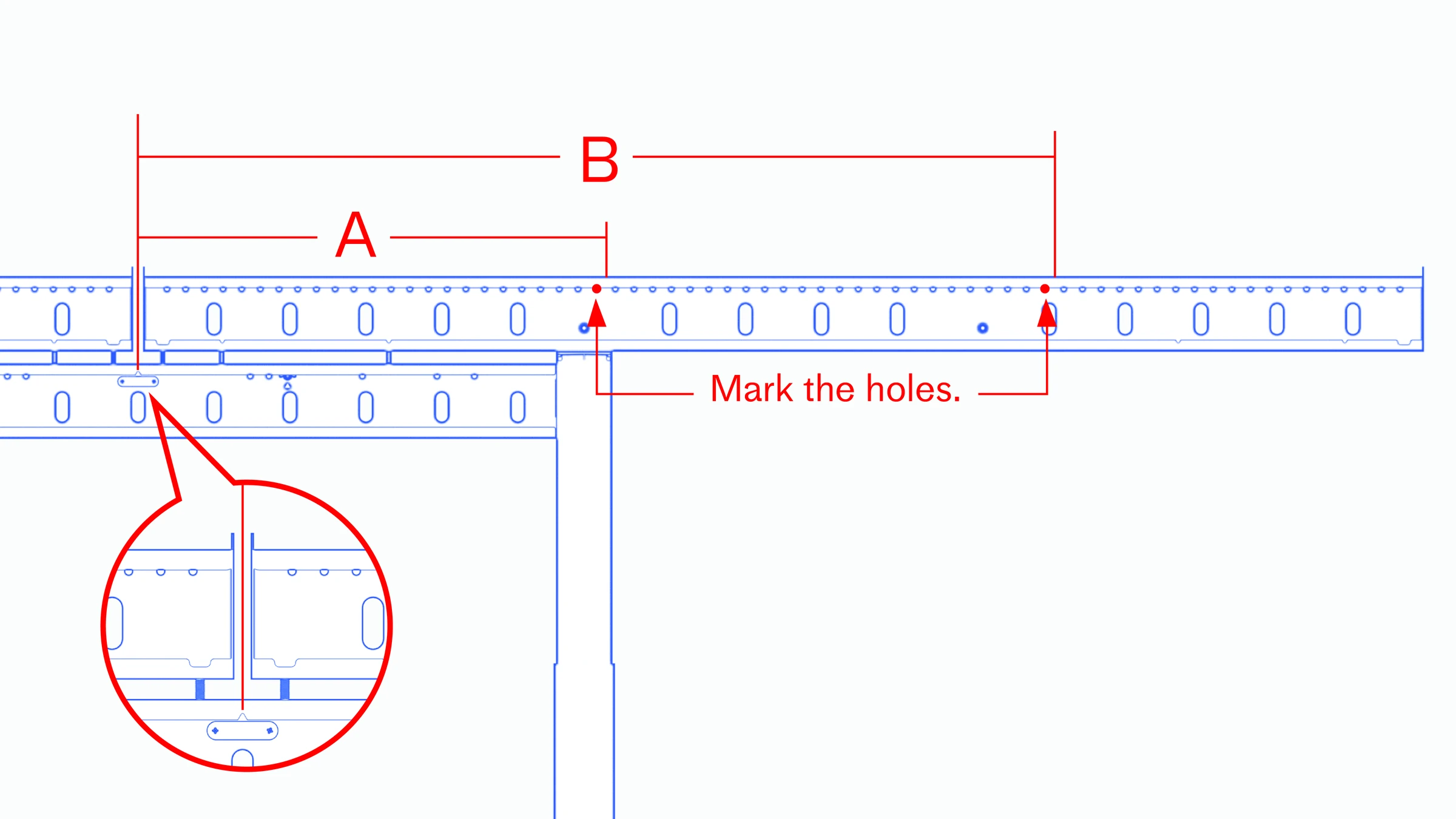

Close-up showing the triangular center notch and marked bumper positions for Distances A and B.

Remove the dual display bars from the structure by removing the adjustment screws and safety pins and lifting the bars from the structure.

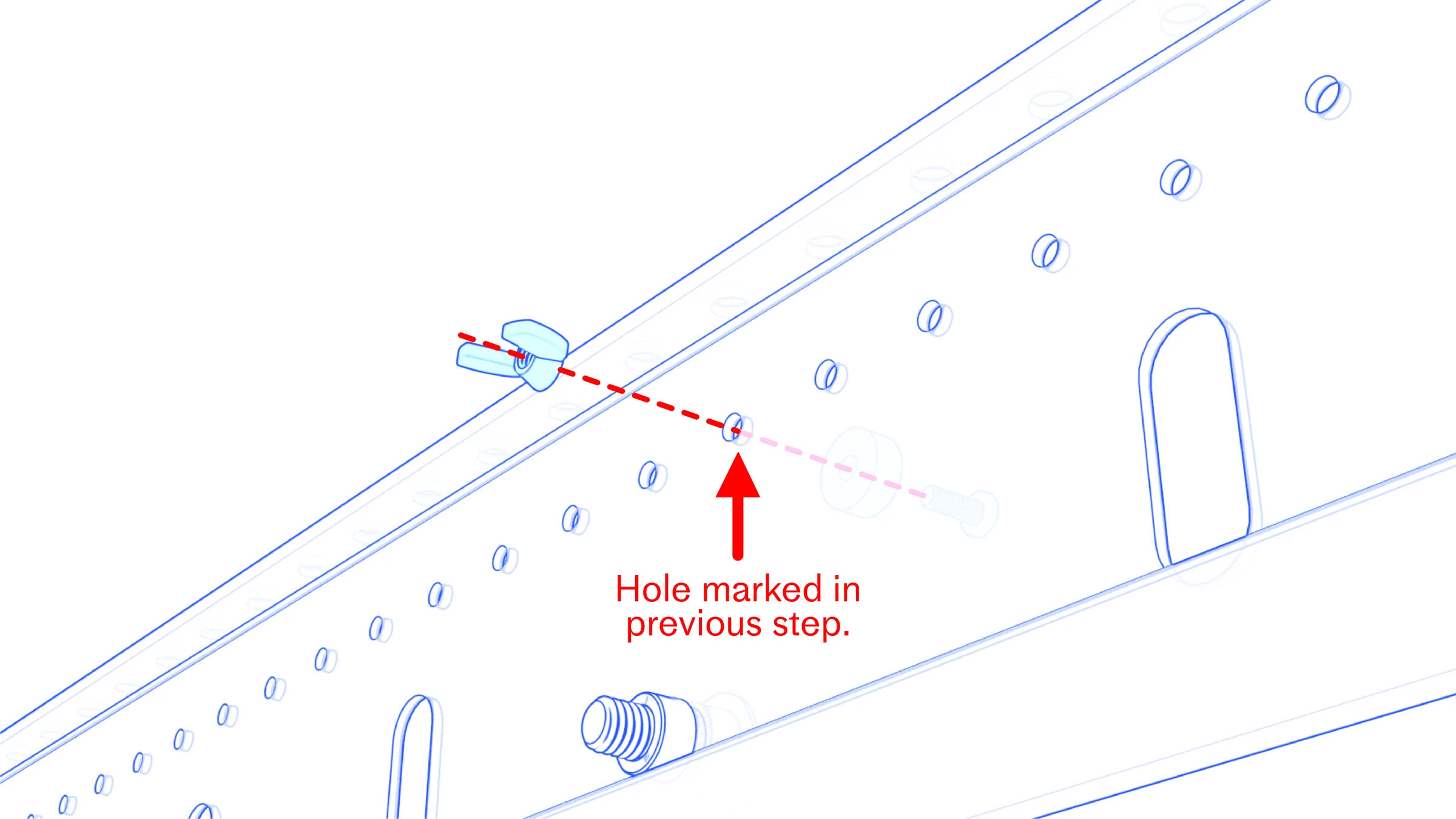

Relocate the bumpers from their pre-installed location to your marked locations.

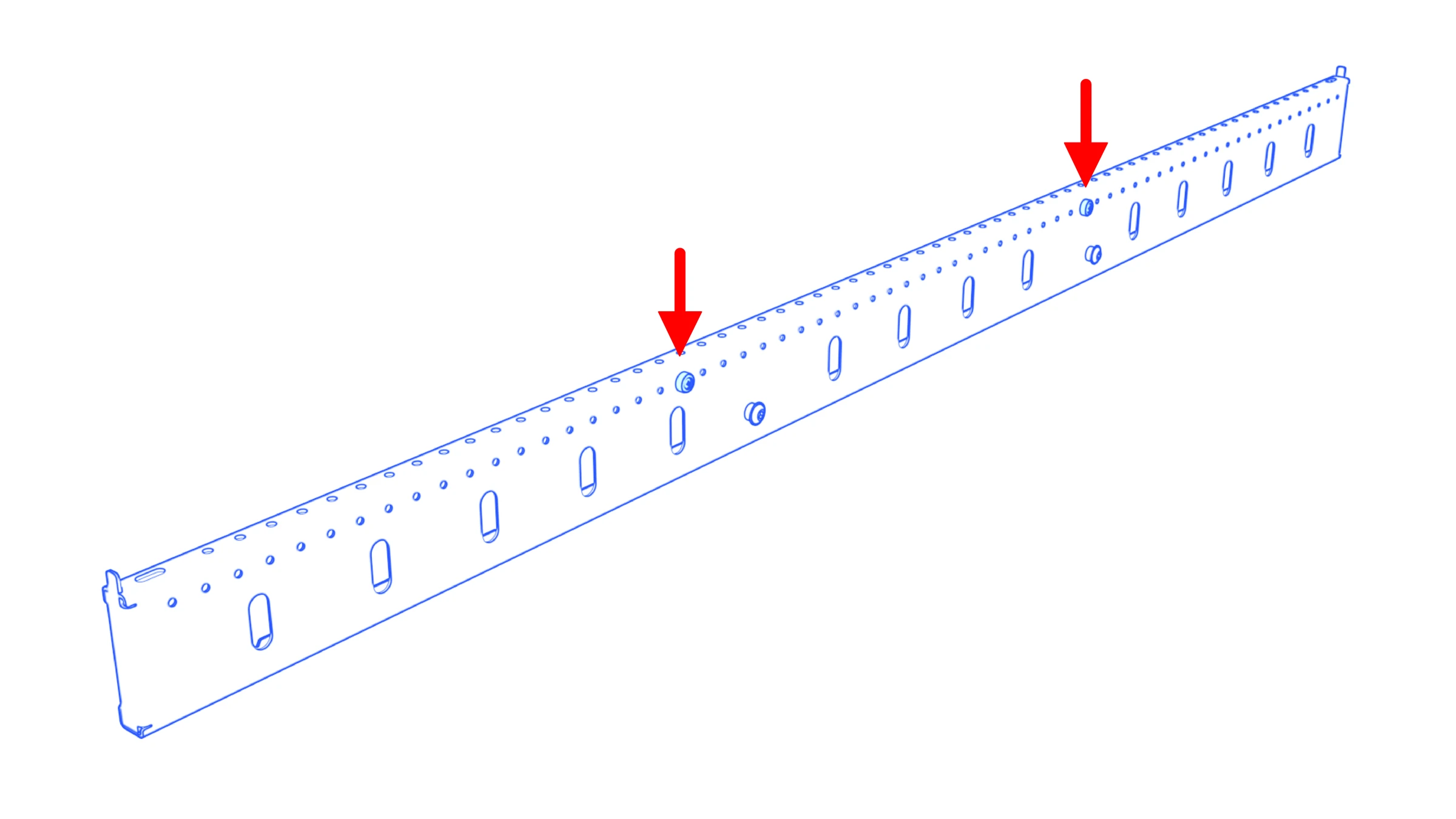

Removed display bar with its two locking-bumper positions indicated.

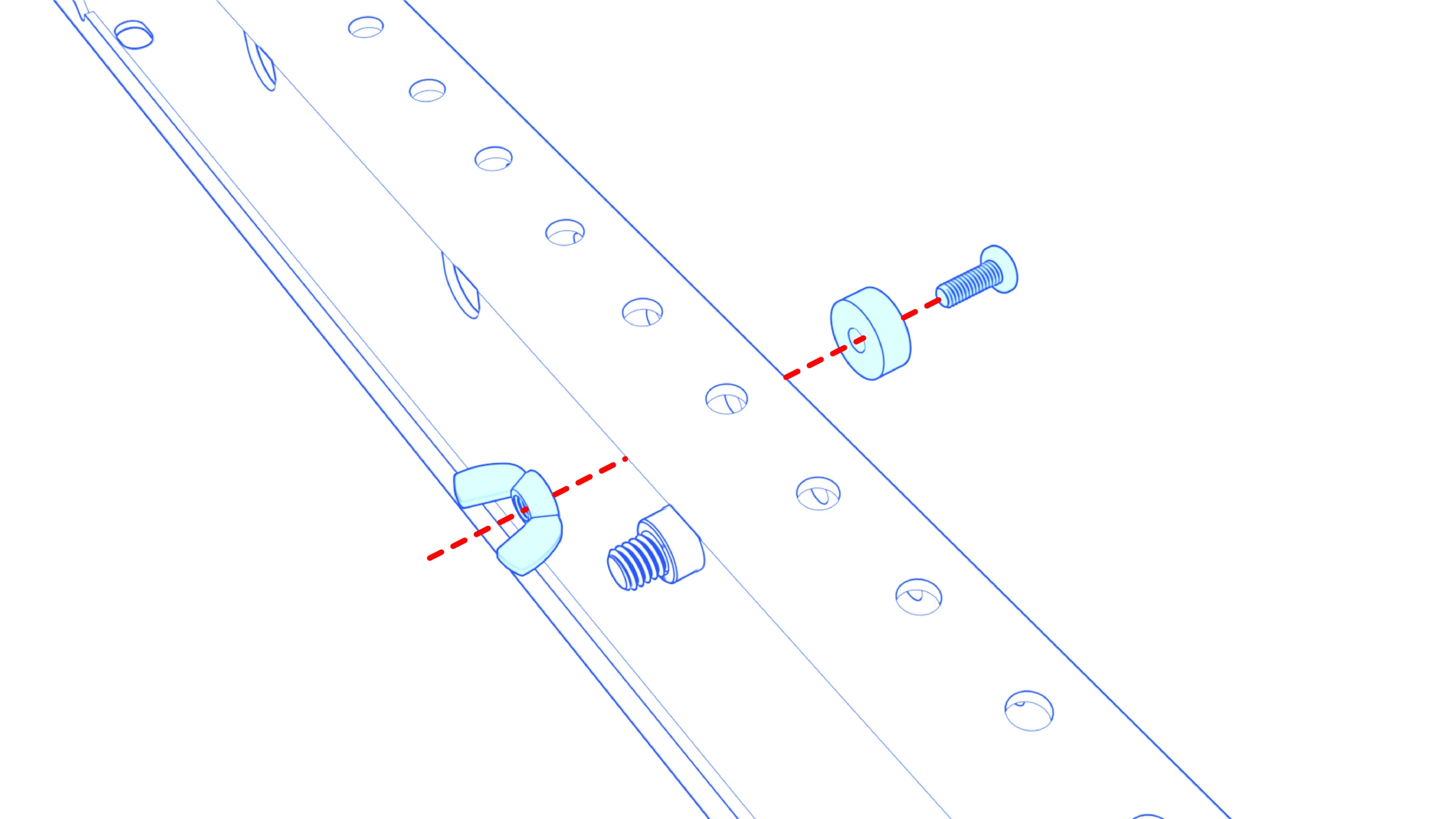

Exploded locking-bumper assembly with its screw, washer, and nut.

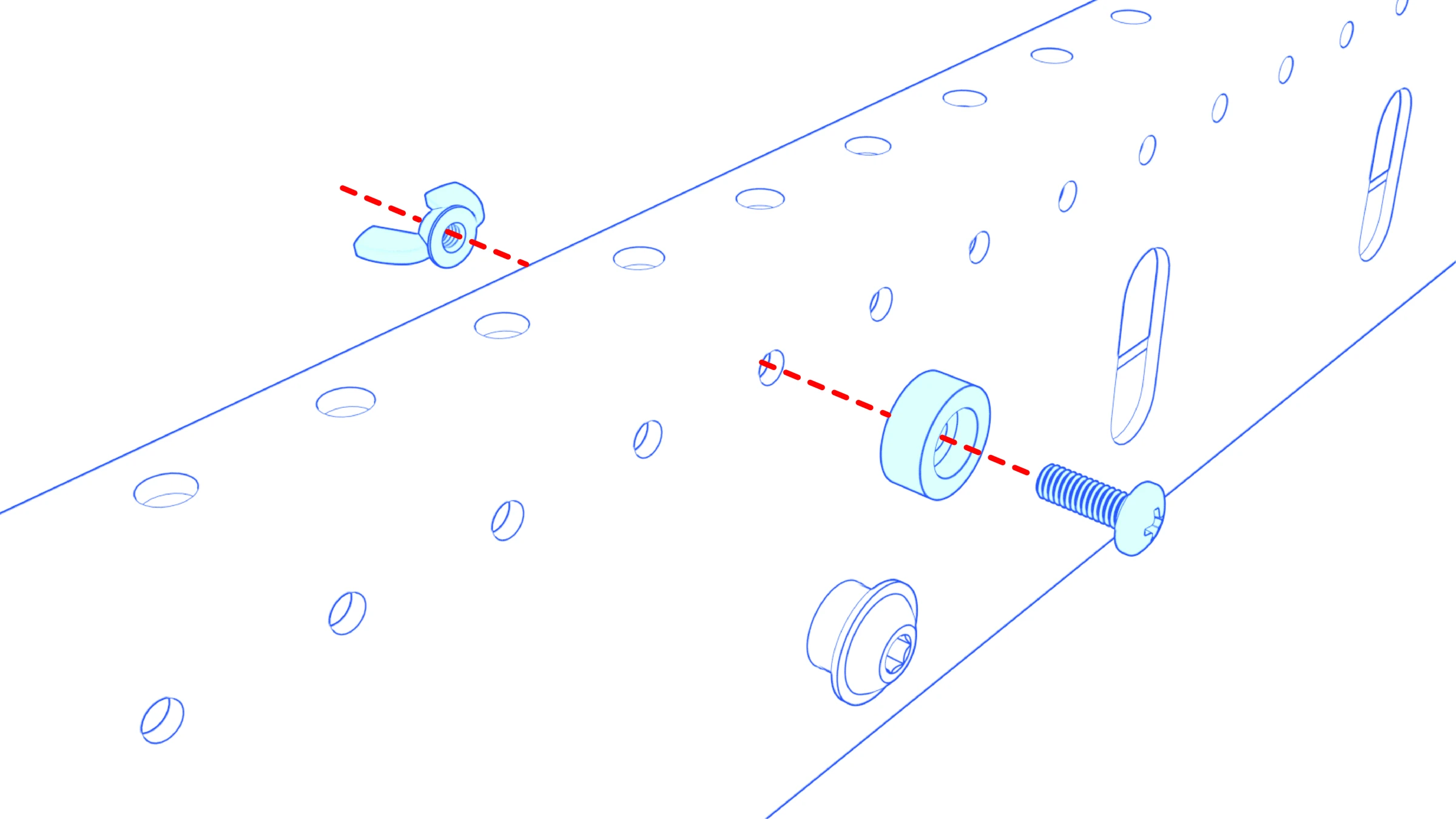

Close-up of the locking-bumper hardware aligned with a display-bar hole.

Locking bumper installed at a marked hole on the display bar.

Install wall anchors

Drill a ¾-inch diameter hole within the pill-shape mark traced to your wall. Drill the hole towards the lower end of the pill shape. Drill through the drywall and the steel wall stud.

Install the SnapToggle wall anchor into the wall and wall stud.

Repeat for the wall anchor location for both dual display bars.

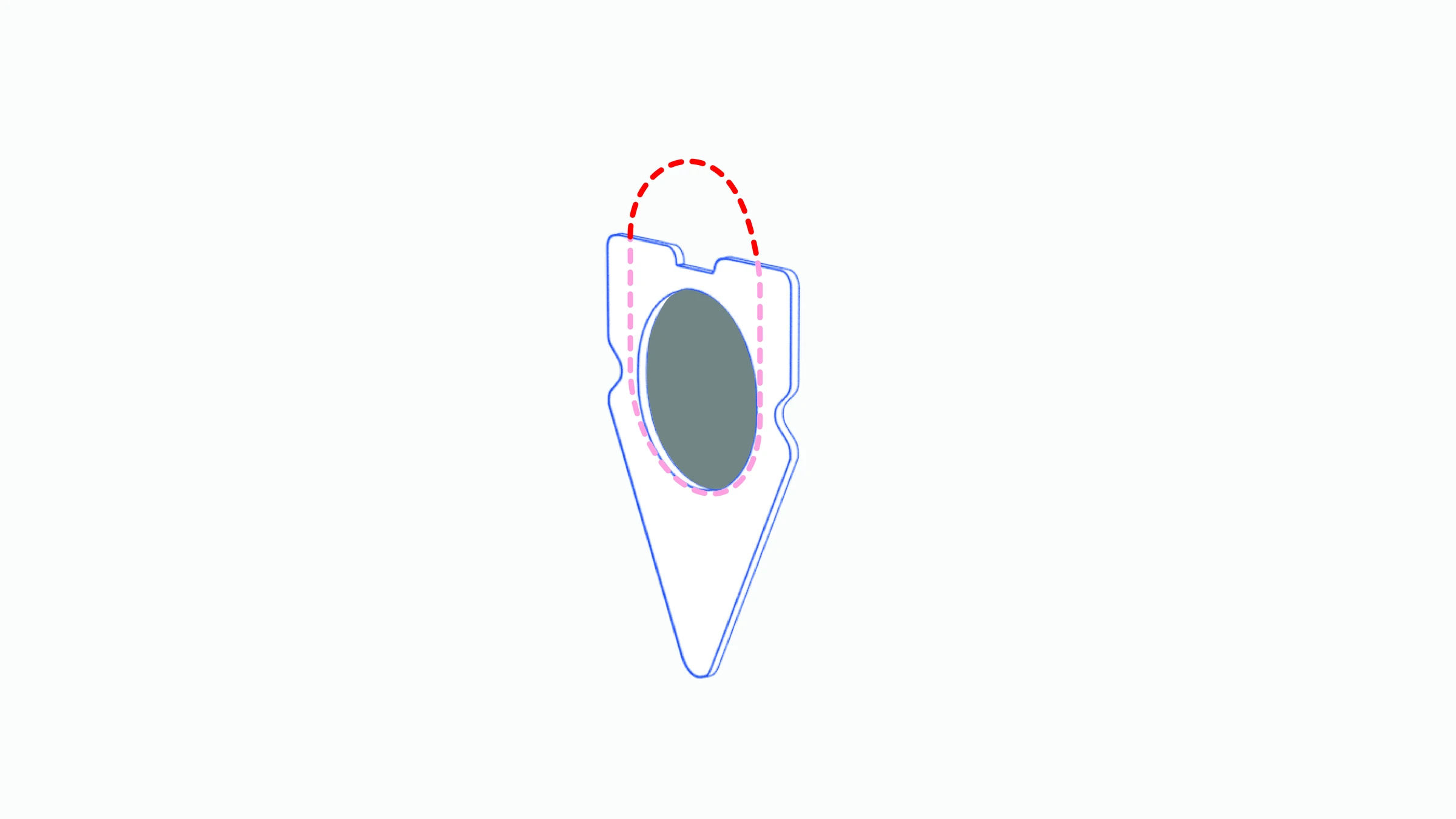

Wall anchor hole shown toward the lower end of the traced pill-shaped mark.

How to install SNAPTOGGLE anchors

1. Hold metal channel flat alongside plastic straps & slide channel through the hole. Minimum clearance behind wall: only 1-7/8” 2. Hold ends of straps together between thumb & forefinger and pull toward you until channel rests behind wall. Ratchet cap along straps with other hand until flange of cap is flush with wall. 3. Place thumb between straps at wall. Push thumb side to side, snapping off straps level with flange of cap. 4. Place item over flange. Insert bolt and tighten until snug against item, then stop. Use machine screw or bolt to match thread in metal channel.

The following video demonstrates a similar toggle-anchor installation using different hardware.

This video nicely demonstrates the steps to deploy a SNAPTOGGLE

Demonstration uses 1/4-20 Elephant anchors. This kit specifies 3/8-16 SNAPTOGGLE anchors and a 3/4-inch hole.

This demonstration uses 1/4-20 Elephant anchors. Follow this kit’s instructions above for its 3/8-16 SNAPTOGGLE anchors and 3/4-inch holes.

Reinstall dual display bars

Reinstall the dual display bar to the main structure.

Install the safety pins.

Fasten the adjustment screw connecting the dual display bar to the horizontal beam.

Adjust the screw to level the dual display bar.

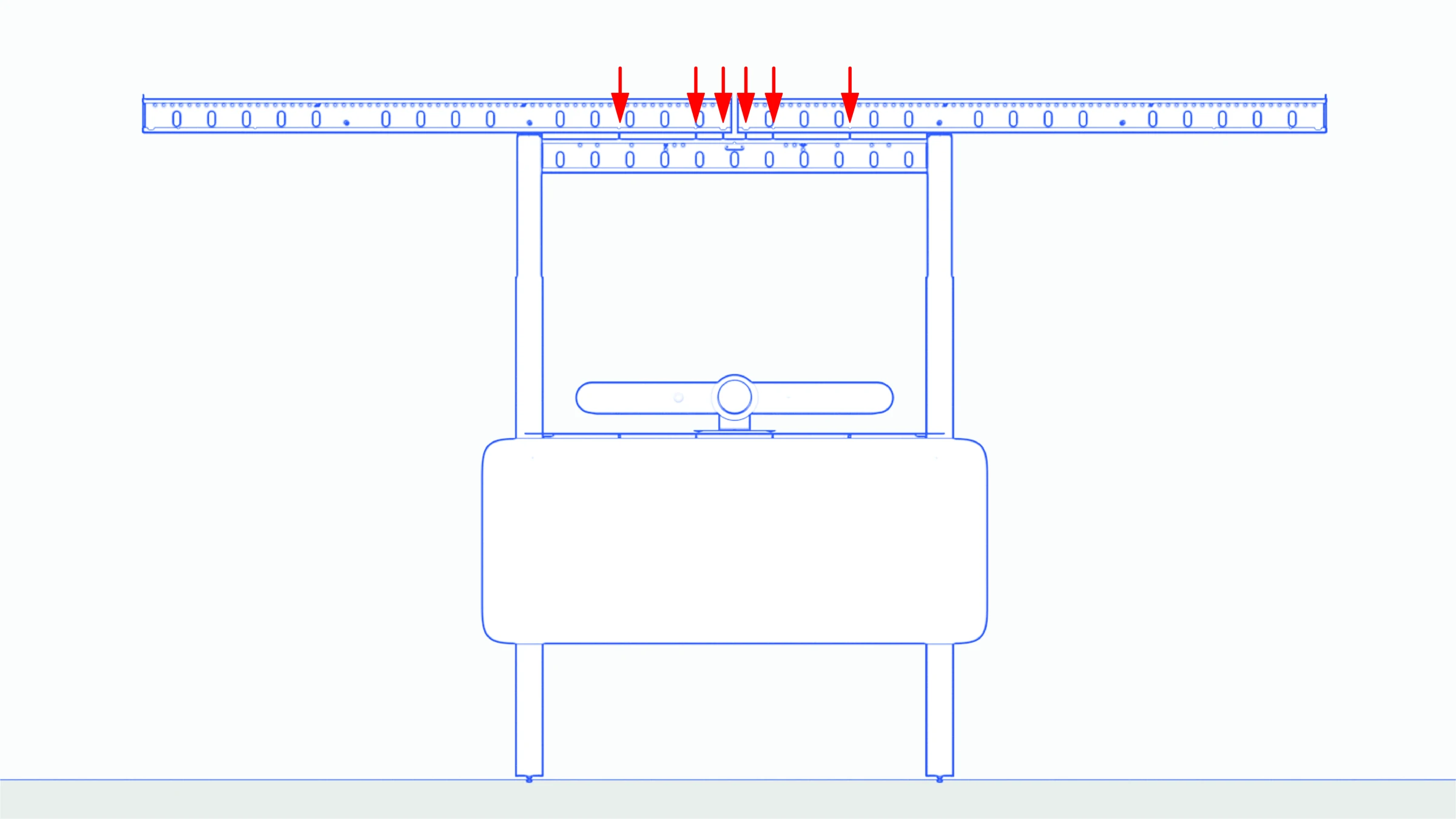

Reinstalled dual-display bars with safety-pin and adjustment-screw positions indicated.

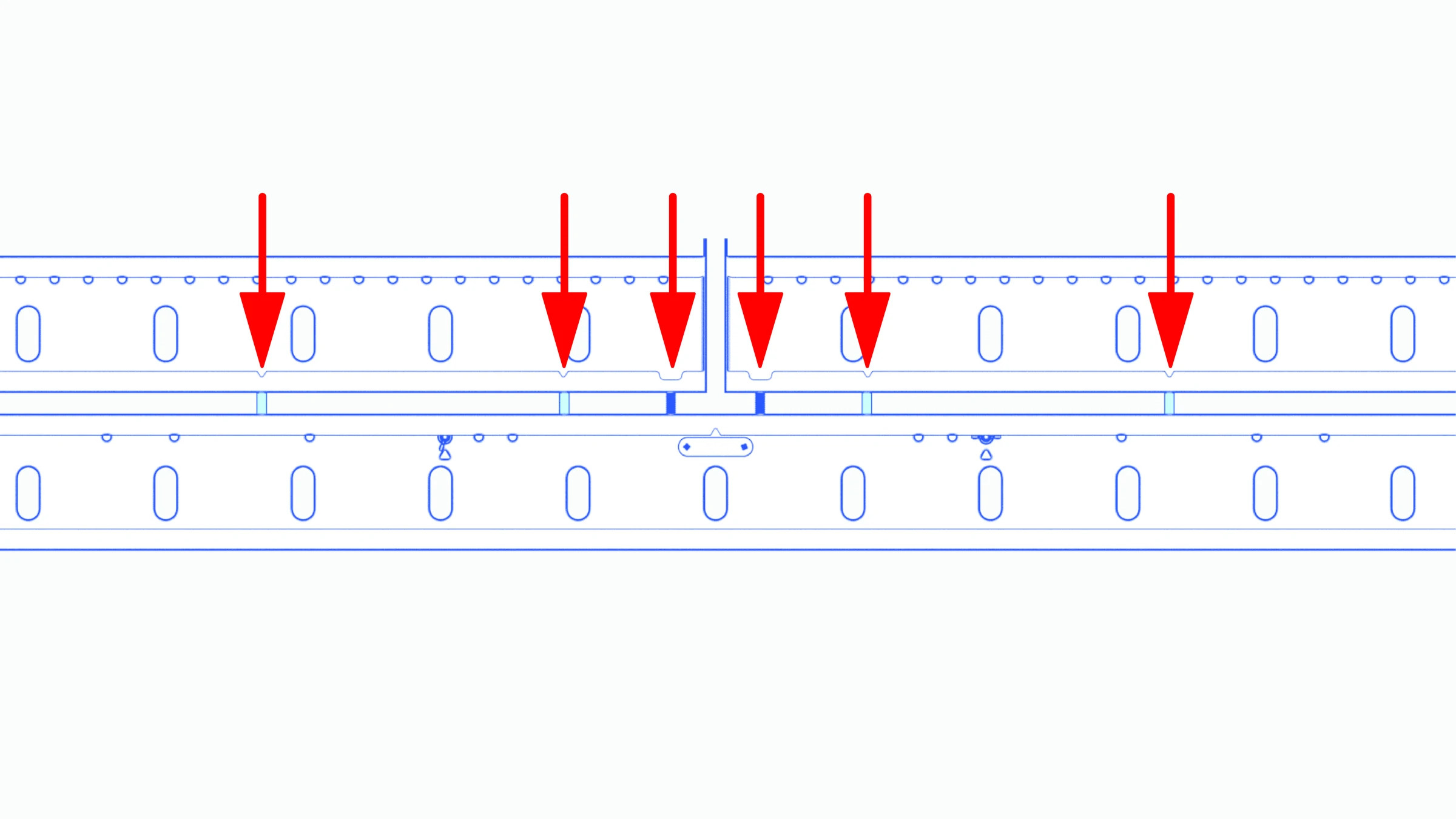

Close-up of the central safety-pin and adjustment-screw connections.

Fasten the dual display bar to its wall anchor using the provided screw, washer, and shouldered nylon spacer.

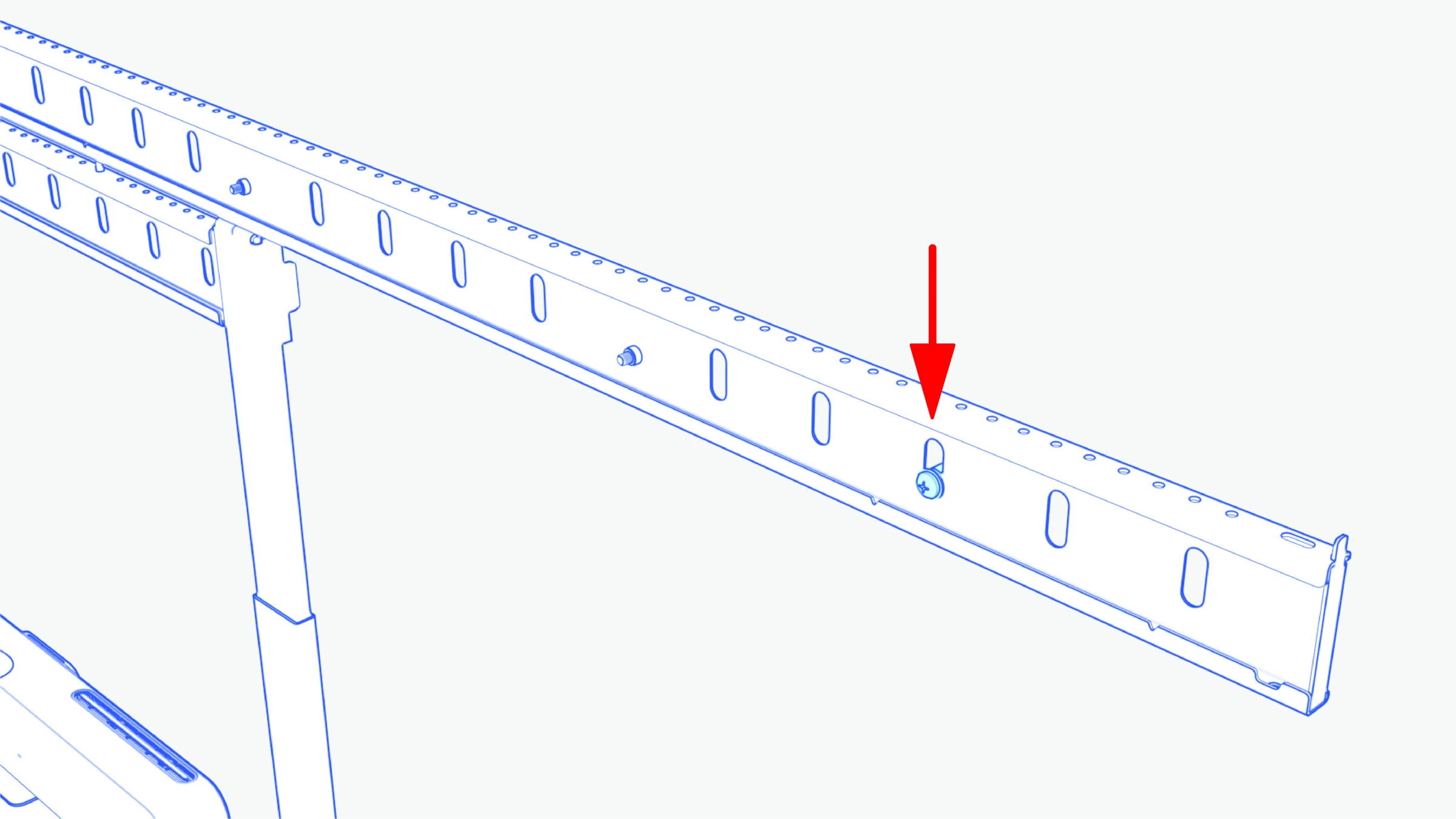

Outer bar mounting position indicated at the wall anchor.

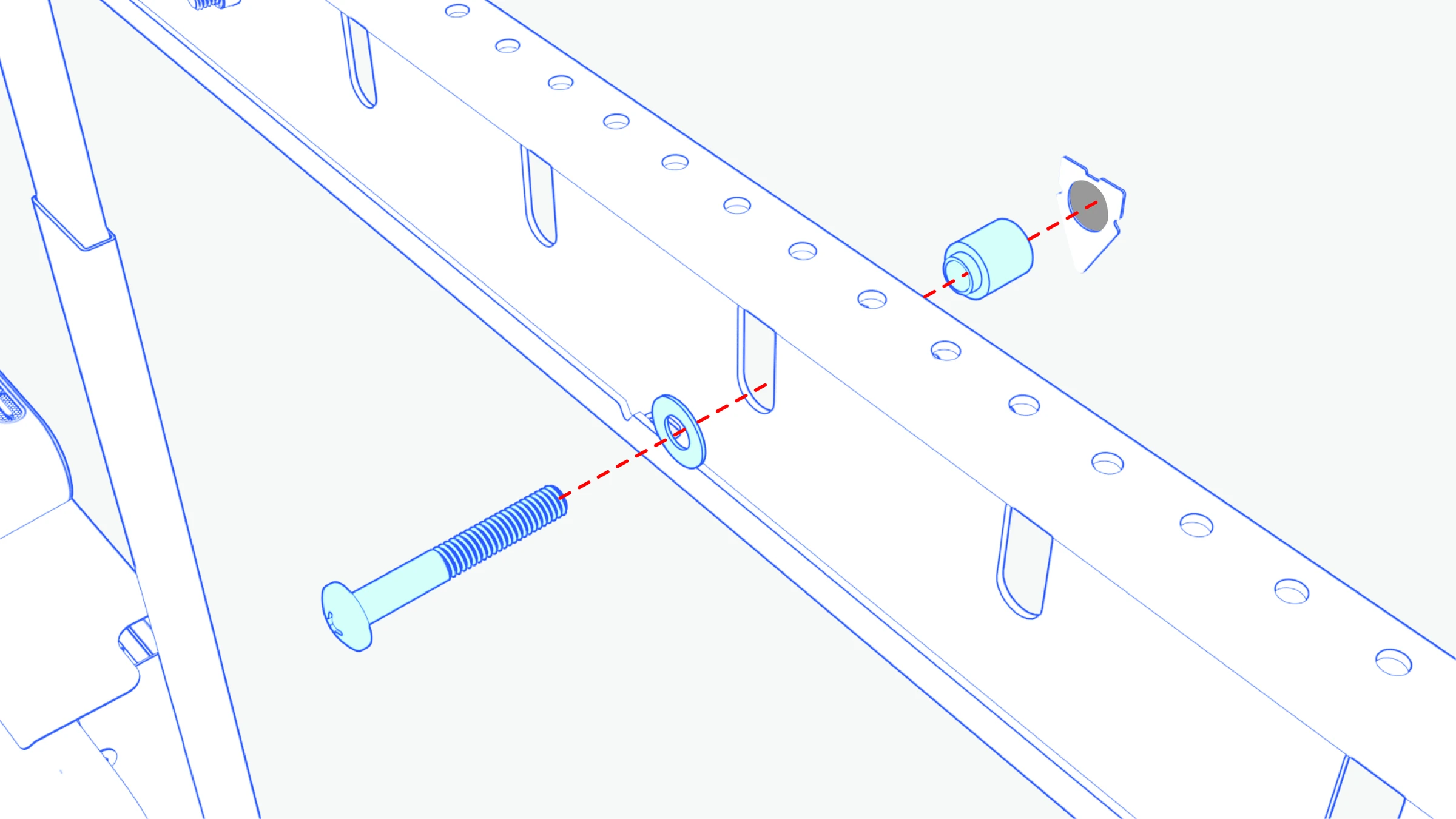

Exploded wall connection showing the screw, washer, display bar, shouldered spacer, and wall anchor.

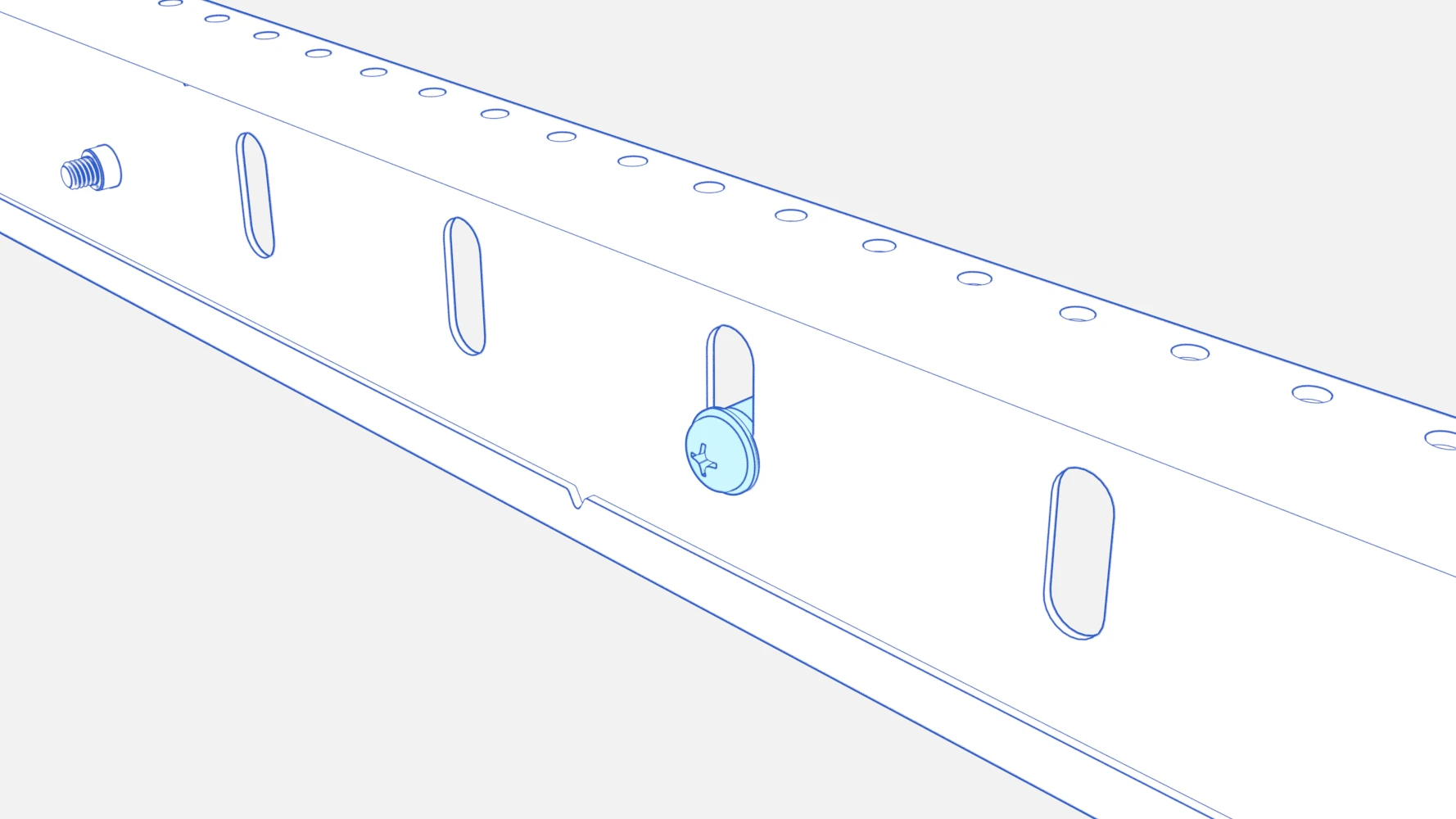

Completed wall-anchor connection within the bar’s vertical slot.

Repeat steps for the second dual display bar.

Determine display height

Place masking tape on the wall at the height where you would like to position the bottom edge of your display.

Measure the distance between the tape and the top edge of the dual display bar.

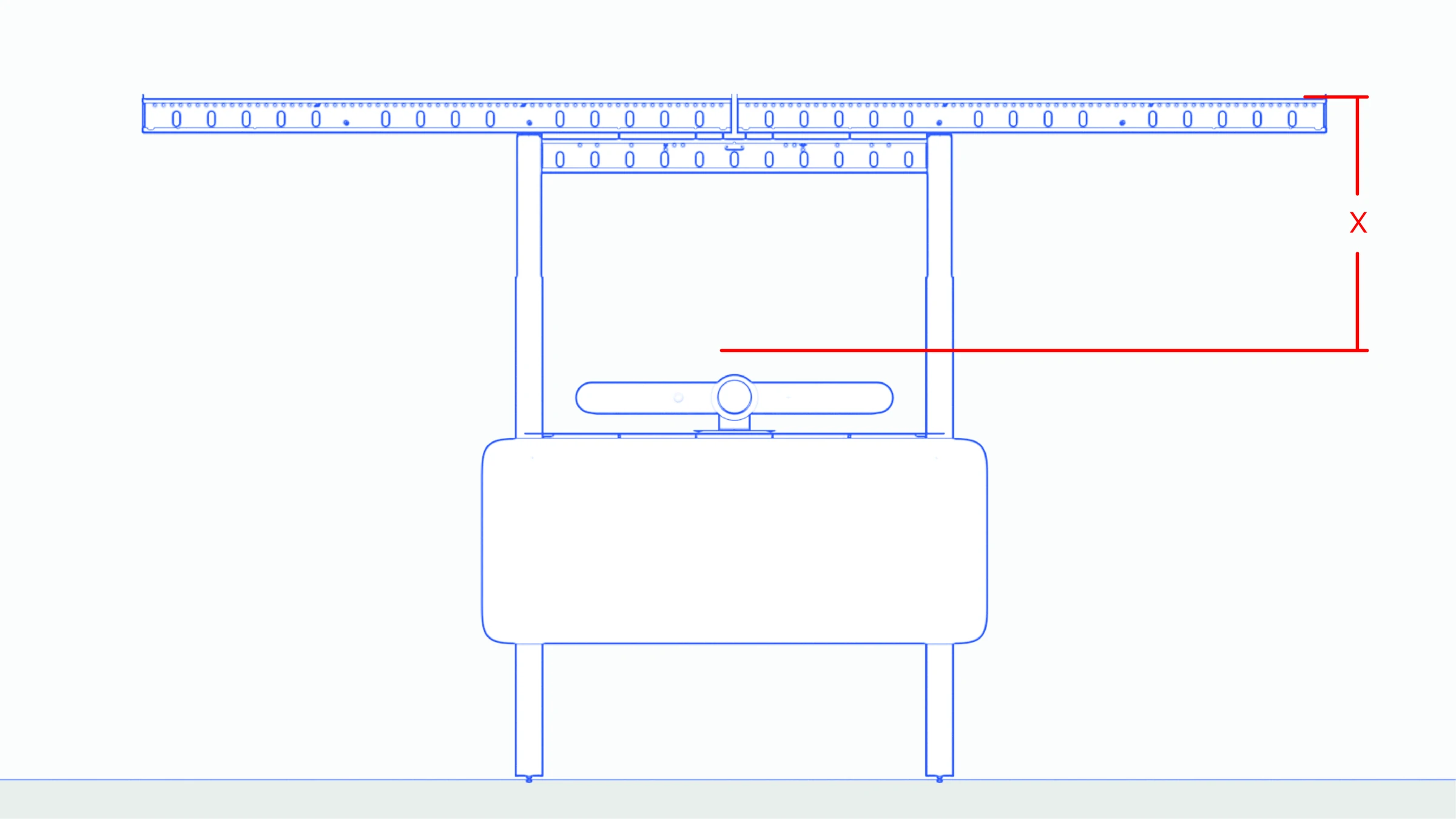

Measurement X shown between the top of the display bar and the marked bottom edge of the display.

Prepare right-hand display

With your display standing in its packaging or leaning against a wall, use a tape measure to measure up from the bottom edge of the display.

Place masking tape on the back of your display at measurement X. You noted this measurement in the previous step.

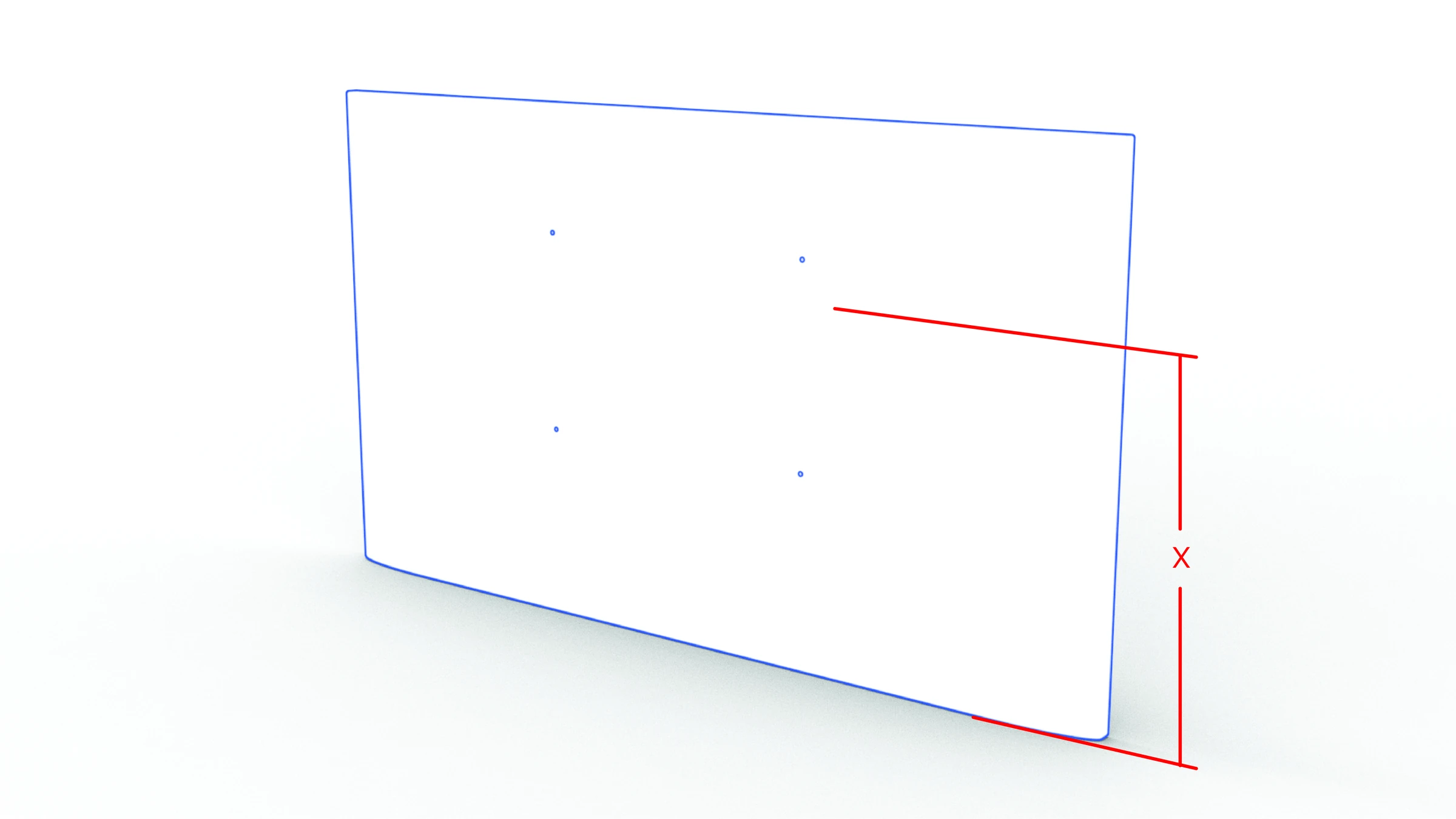

Measurement X transferred upward from the bottom of the right-hand display.

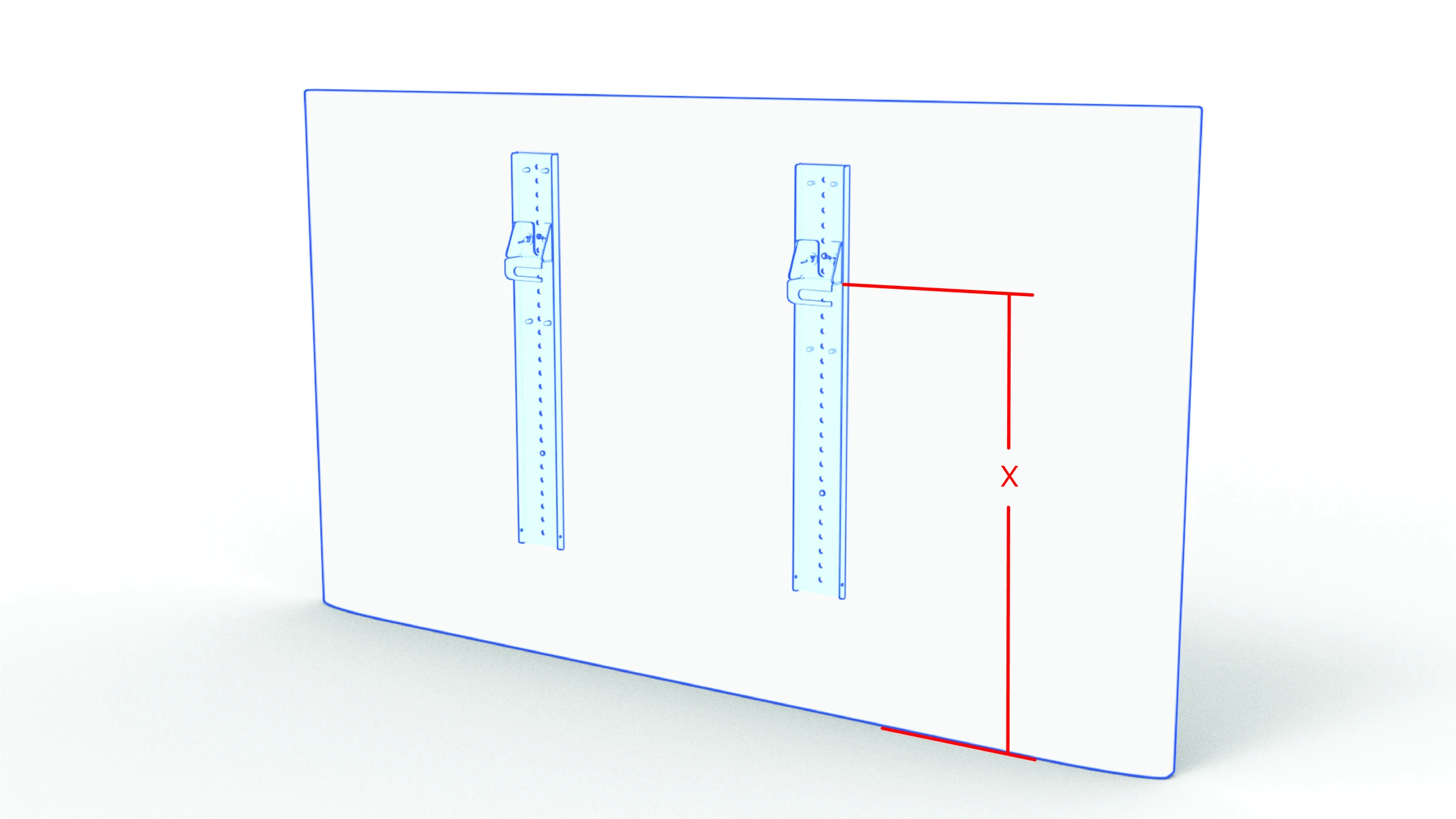

Position a right-hand display rail against your display so that the cork liner on the rail hook aligns with measurement X.

Right-hand display rails positioned with their hooks at Measurement X.

From the provided set of display-mounting screws, select the correct length and size of screws for your display’s mounting holes. Fasten each display rail to your display.

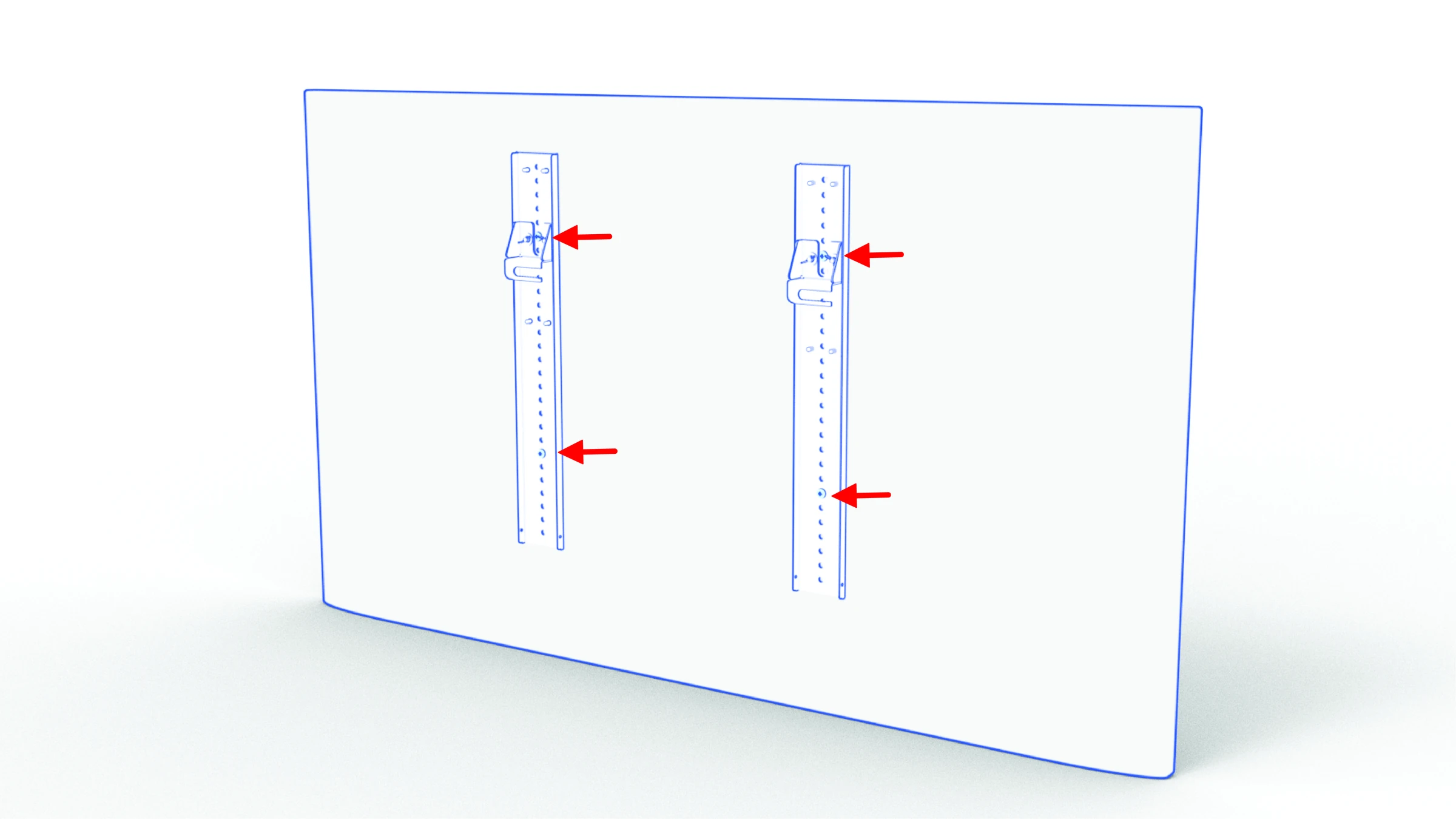

Four display-rail mounting-screw positions indicated on the right-hand display.

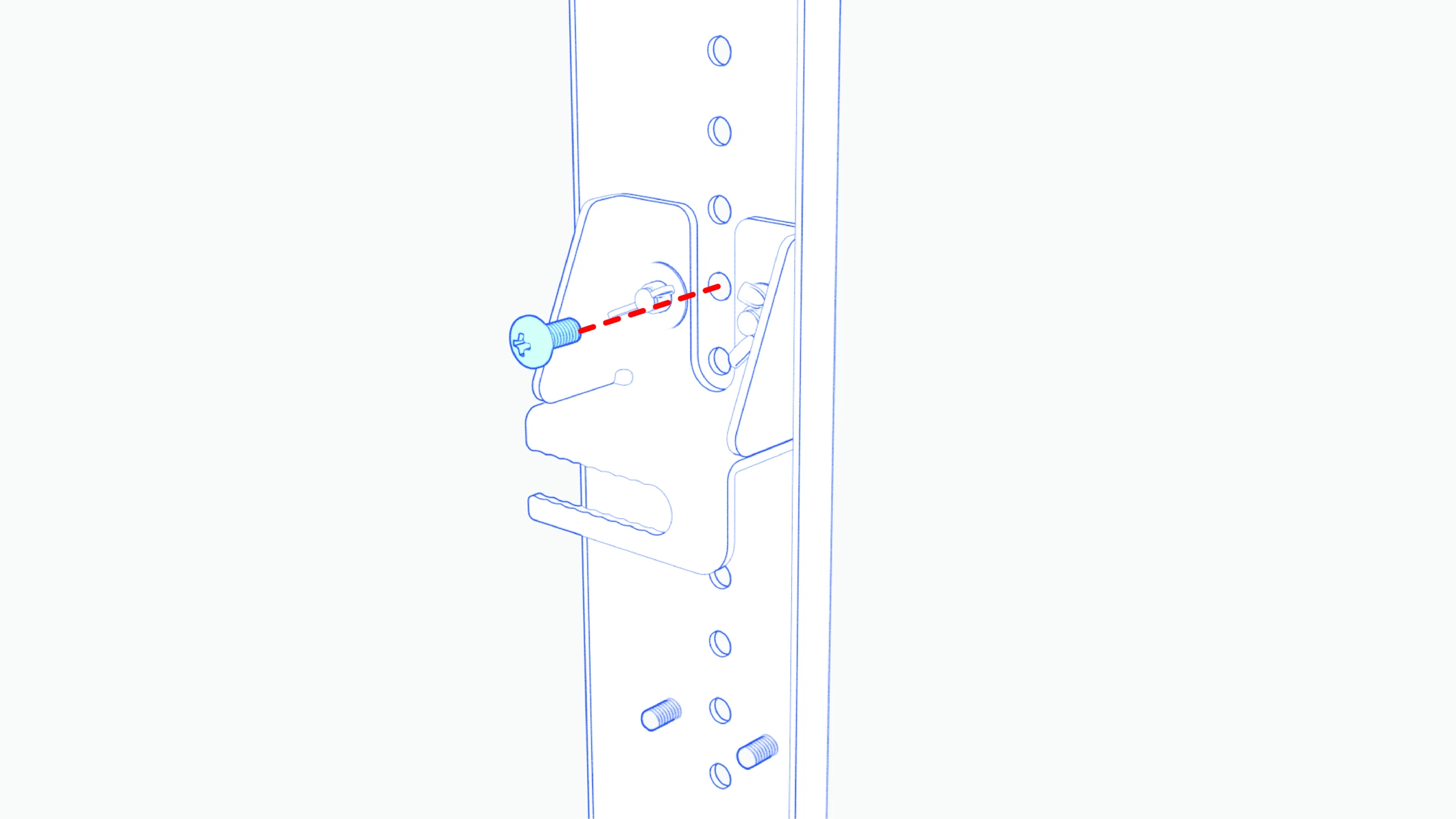

Close-up of a rail mounting screw aligned with the display’s mounting hole.

Fasten the wall bumper bracket to the low end of the right-hand (when viewing your display from the front) display rail using the provided thumbscrews.

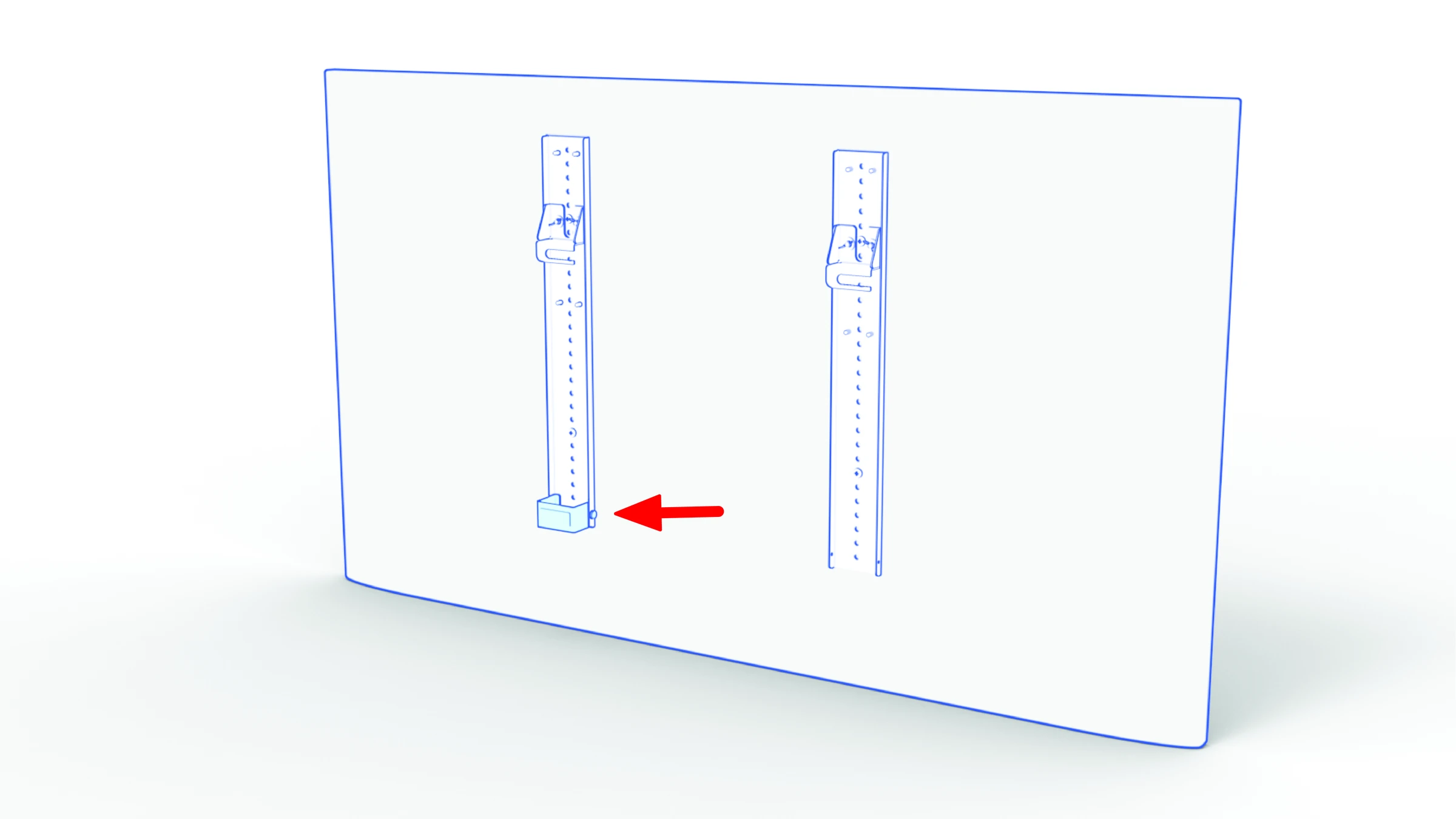

Wall bumper bracket positioned at the lower end of the right-hand rail when viewed from the display’s front.

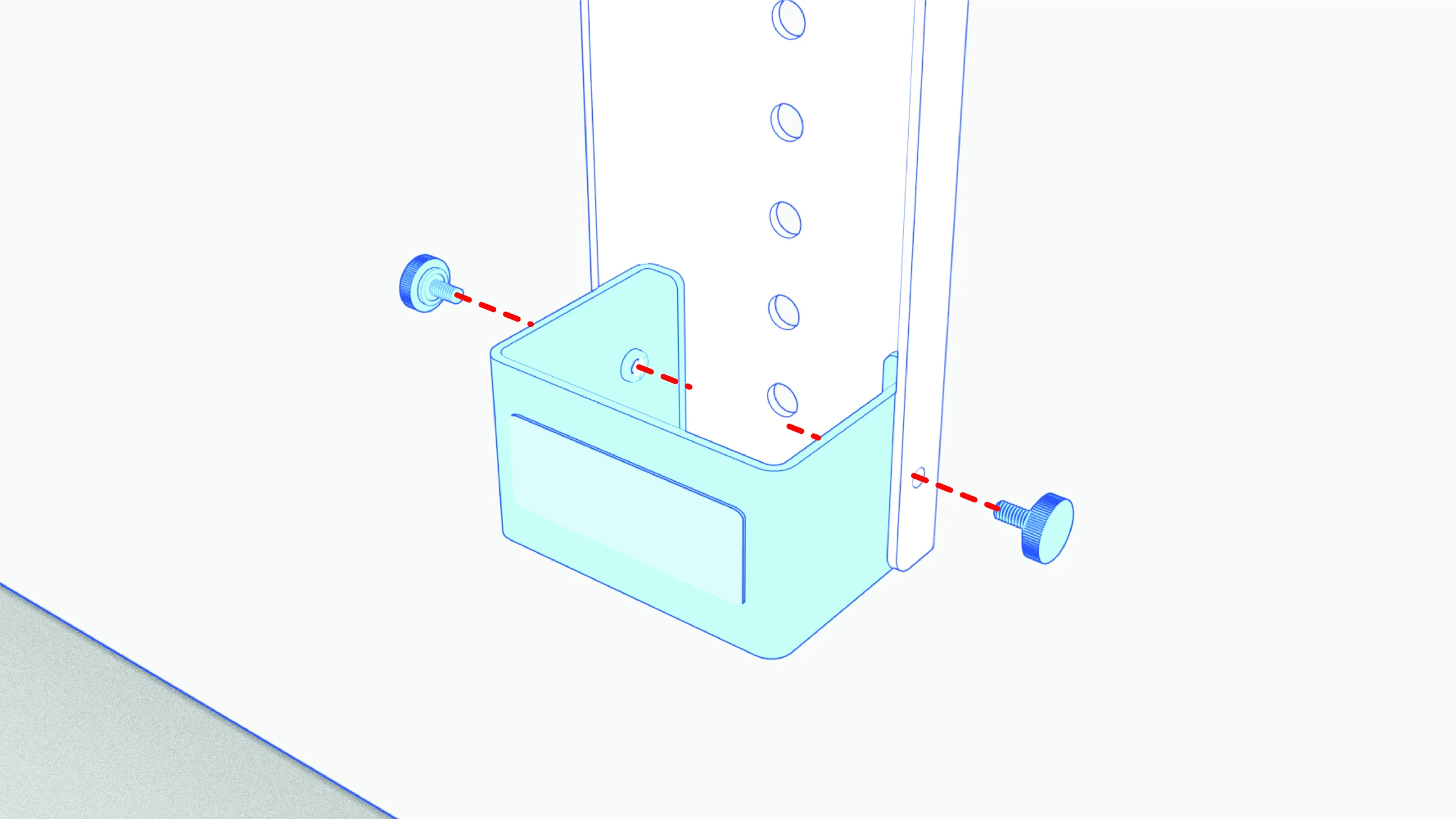

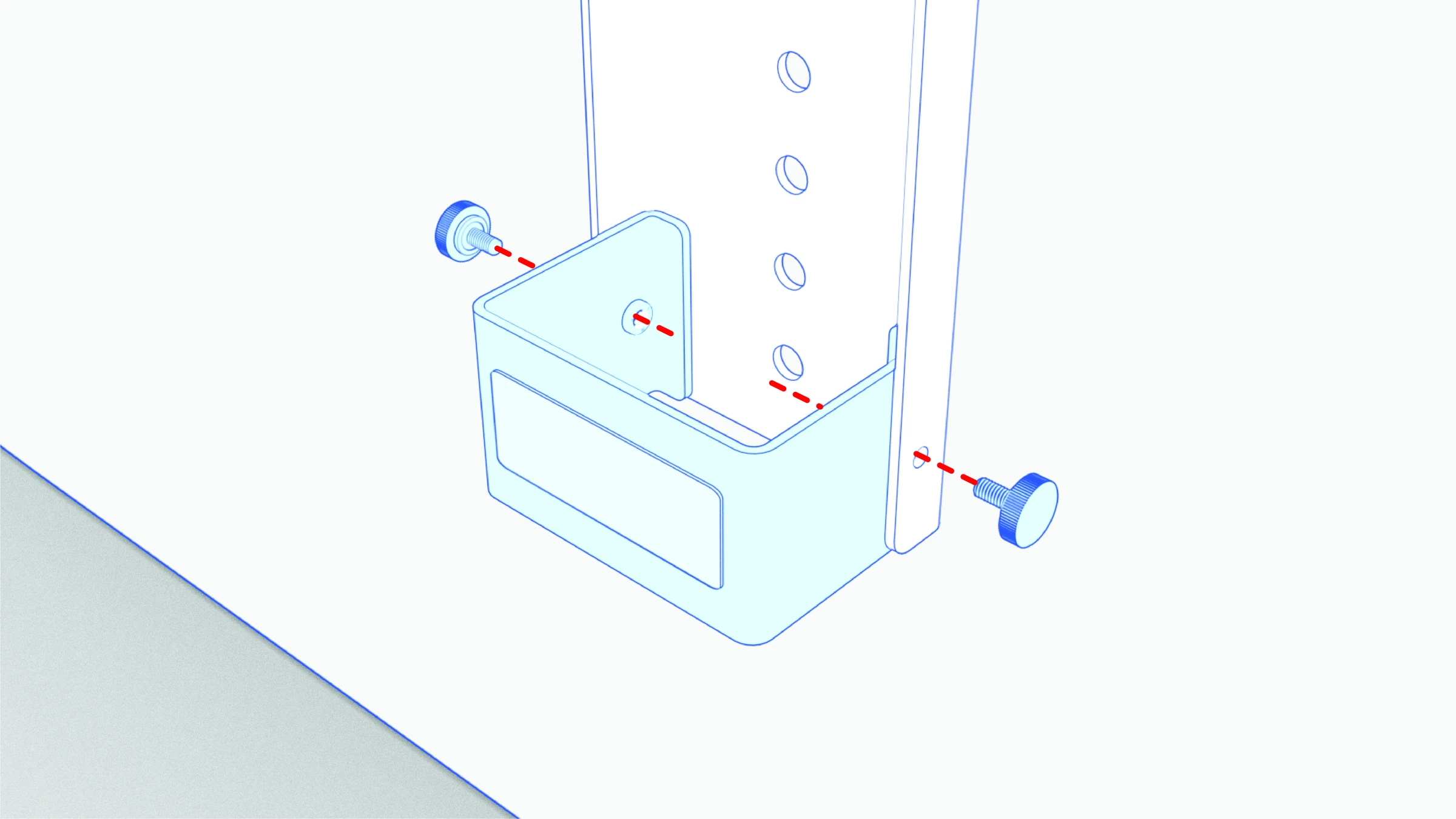

Exploded close-up of the bent wall bumper bracket and two thumbscrews aligned with the rail.

Prepare left-hand display

With your display standing in its packaging or leaning against a wall, use a tape measure to measure up from the bottom edge of the display.

Place masking tape on the back of your display at measurement X. You noted this measurement in the previous step.

Measurement X transferred upward from the bottom of the left-hand display.

Position a left-hand display rail against your display so that the cork liner on the rail hook aligns with measurement X.

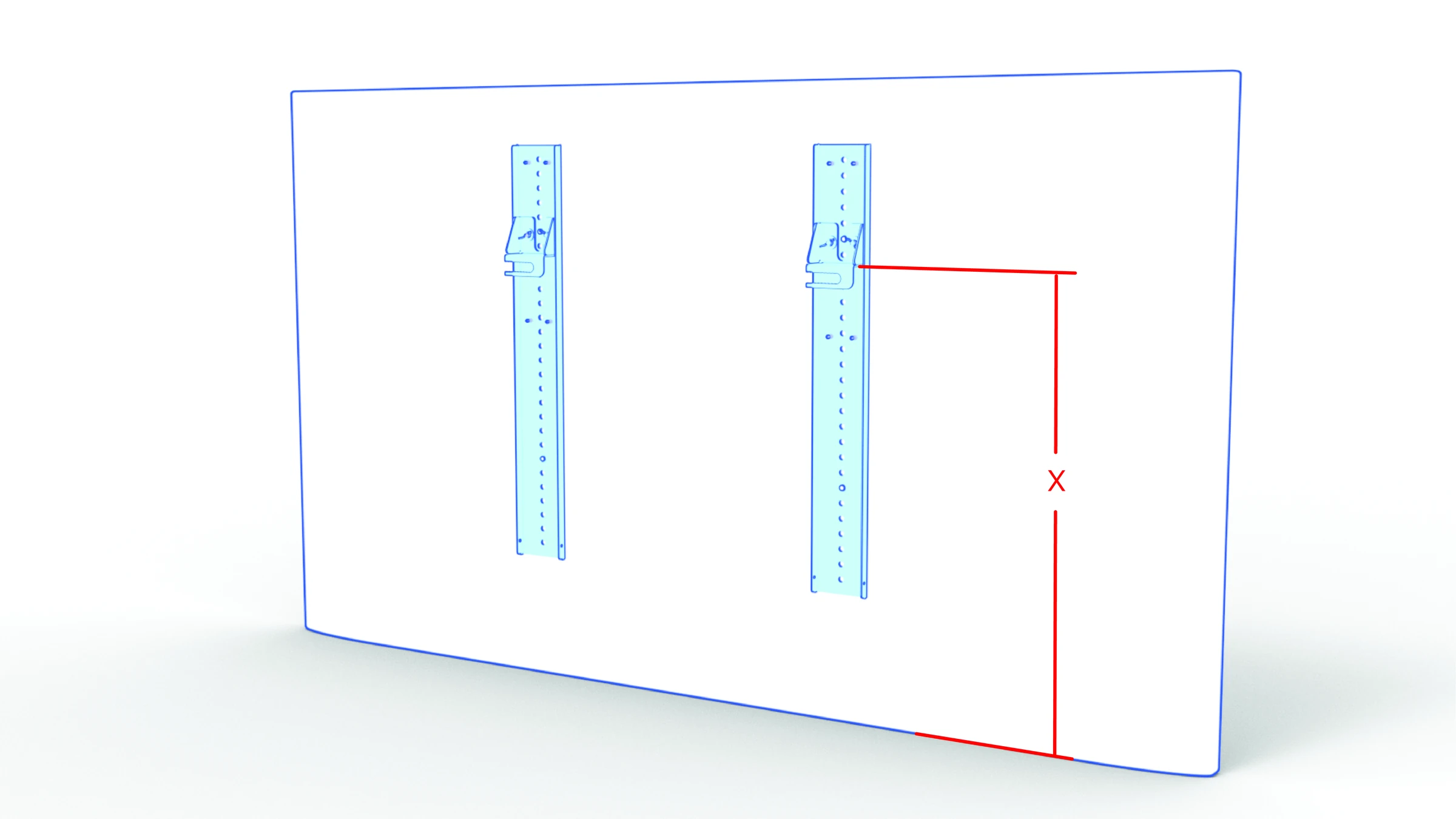

Left-hand display rails positioned with their hooks at Measurement X.

From the provided set of display-mounting screws, select the correct length and size of screws for your display’s mounting holes. Fasten each display rail to your display.

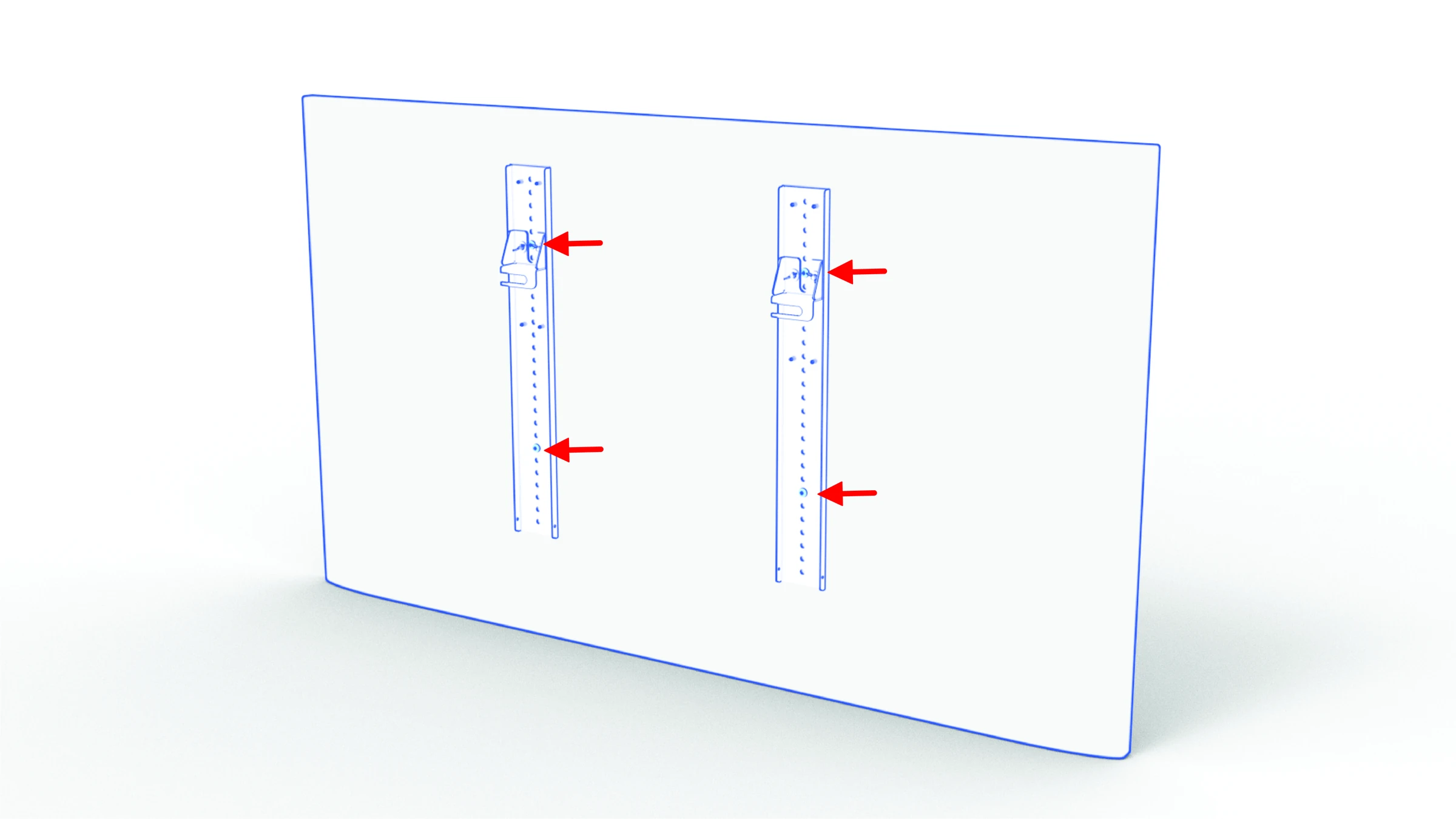

Four display-rail mounting-screw positions indicated on the left-hand display.

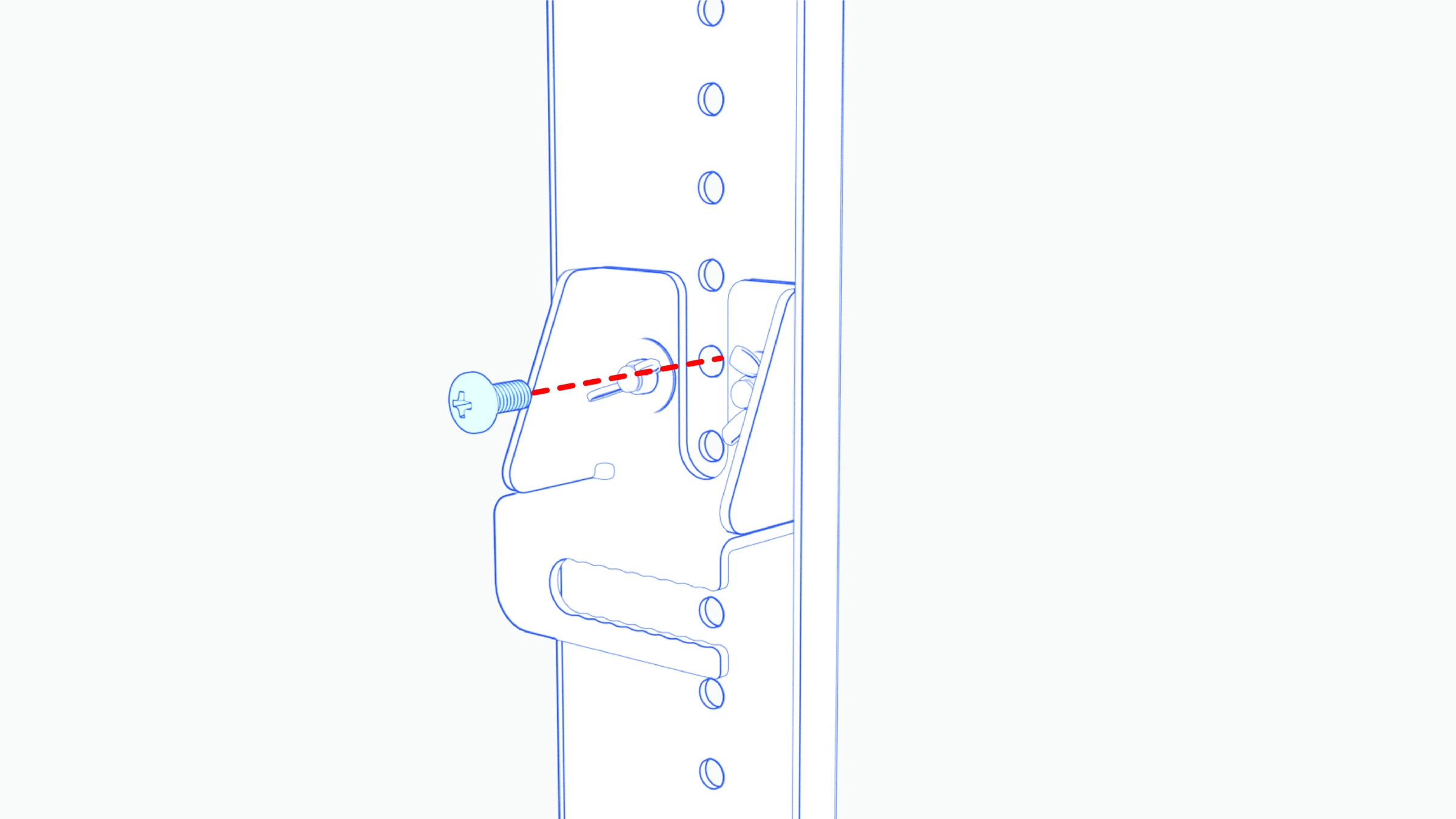

Close-up of a rail mounting screw aligned with the display’s mounting hole.

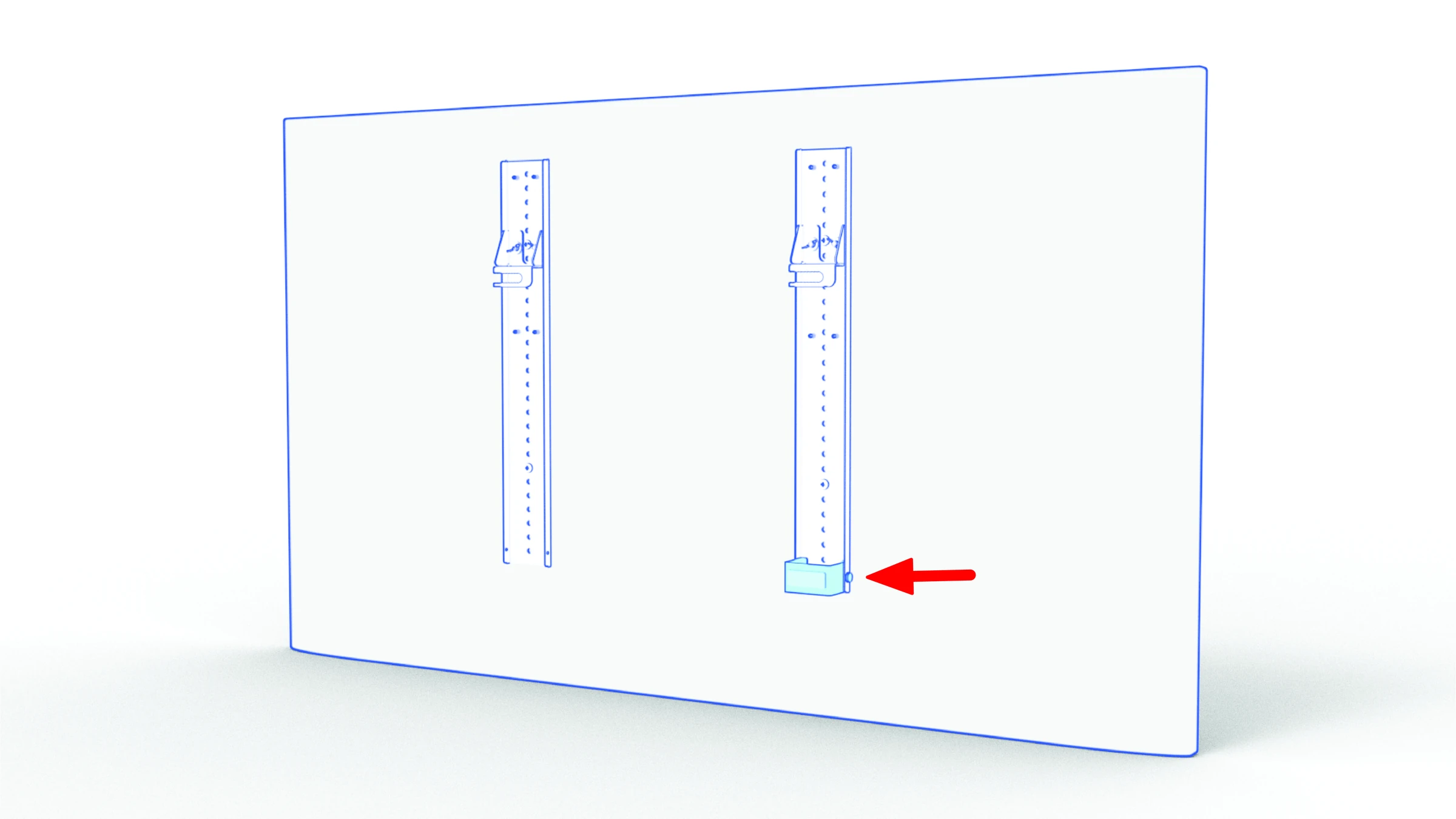

Fasten the wall bumper bracket to the low end of the left-hand (when viewing your display from the front) display rail using the provided thumbscrews.

Wall bumper bracket positioned at the lower end of the left-hand rail when viewed from the display’s front.

Exploded close-up of the bent wall bumper bracket and two thumbscrews aligned with the rail.

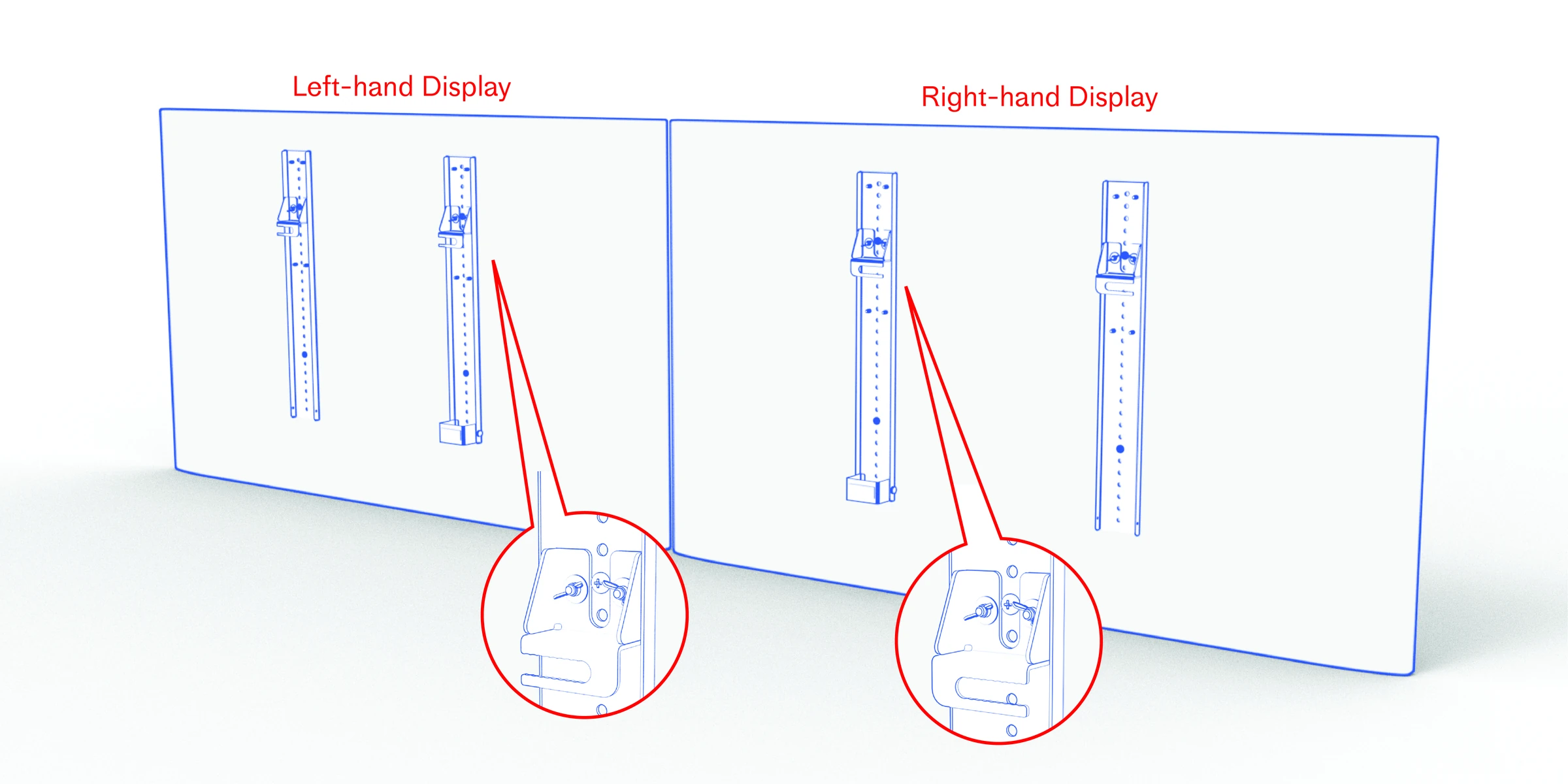

Rear views of the left-hand and right-hand displays with their rail-hook openings facing opposite directions.

Hang right-hand display

Connect the HDMI and power cable to the display.

Carefully lift the display and move close to the structure.

Lower the display onto the right-hand dual display bar so that the hooks do not touch the display-locking bumpers. Rest the cork-lined surface of the hooks directly and firmly on the beam.

Slide the display to the left, towards the center of the structure until the left edge of the display reaches the center of the structure. You will feel the display rails engage with the display-locking bumpers.

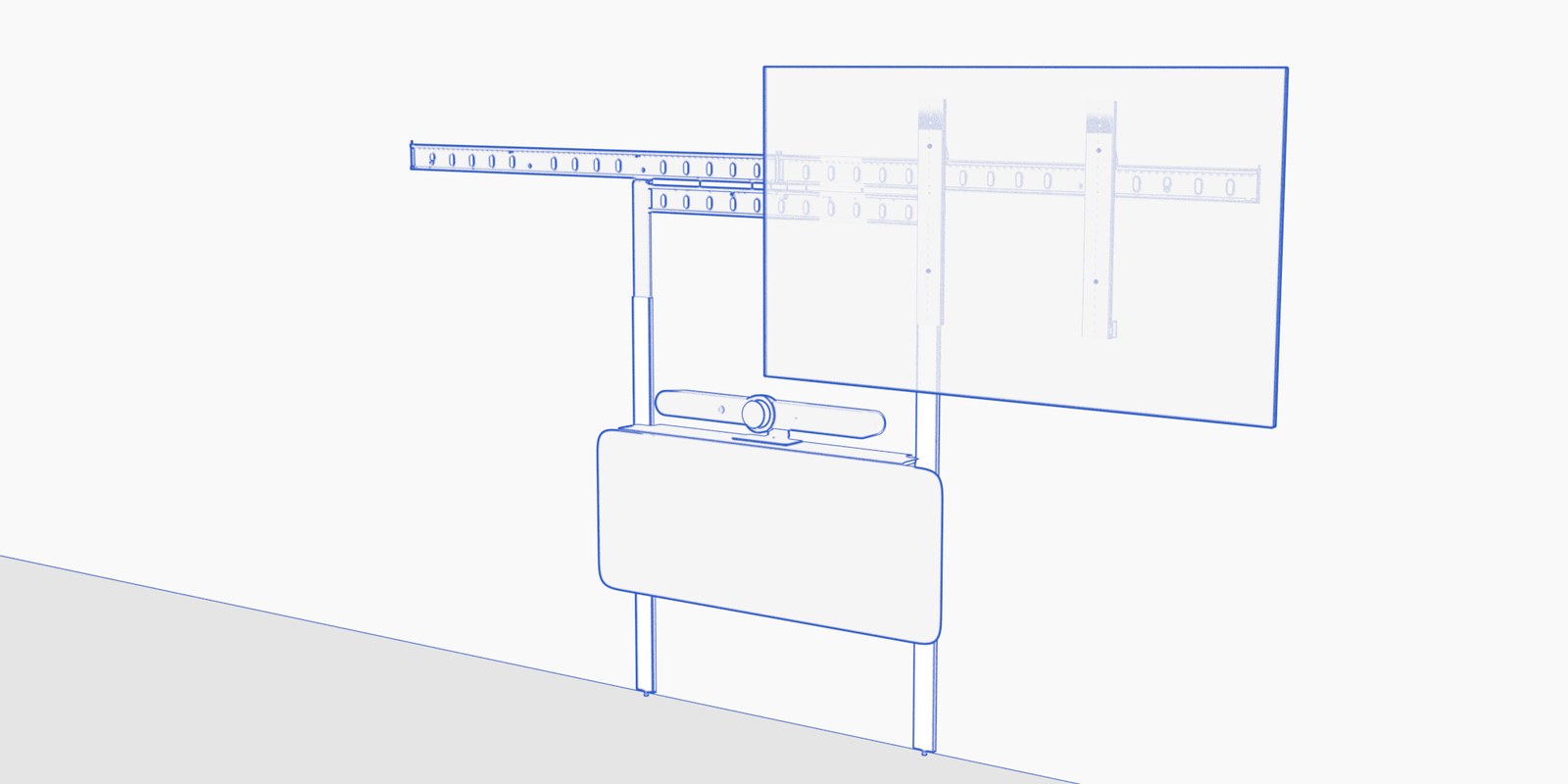

Animation showing the right-hand display lowered onto the bar and slid left toward the center.

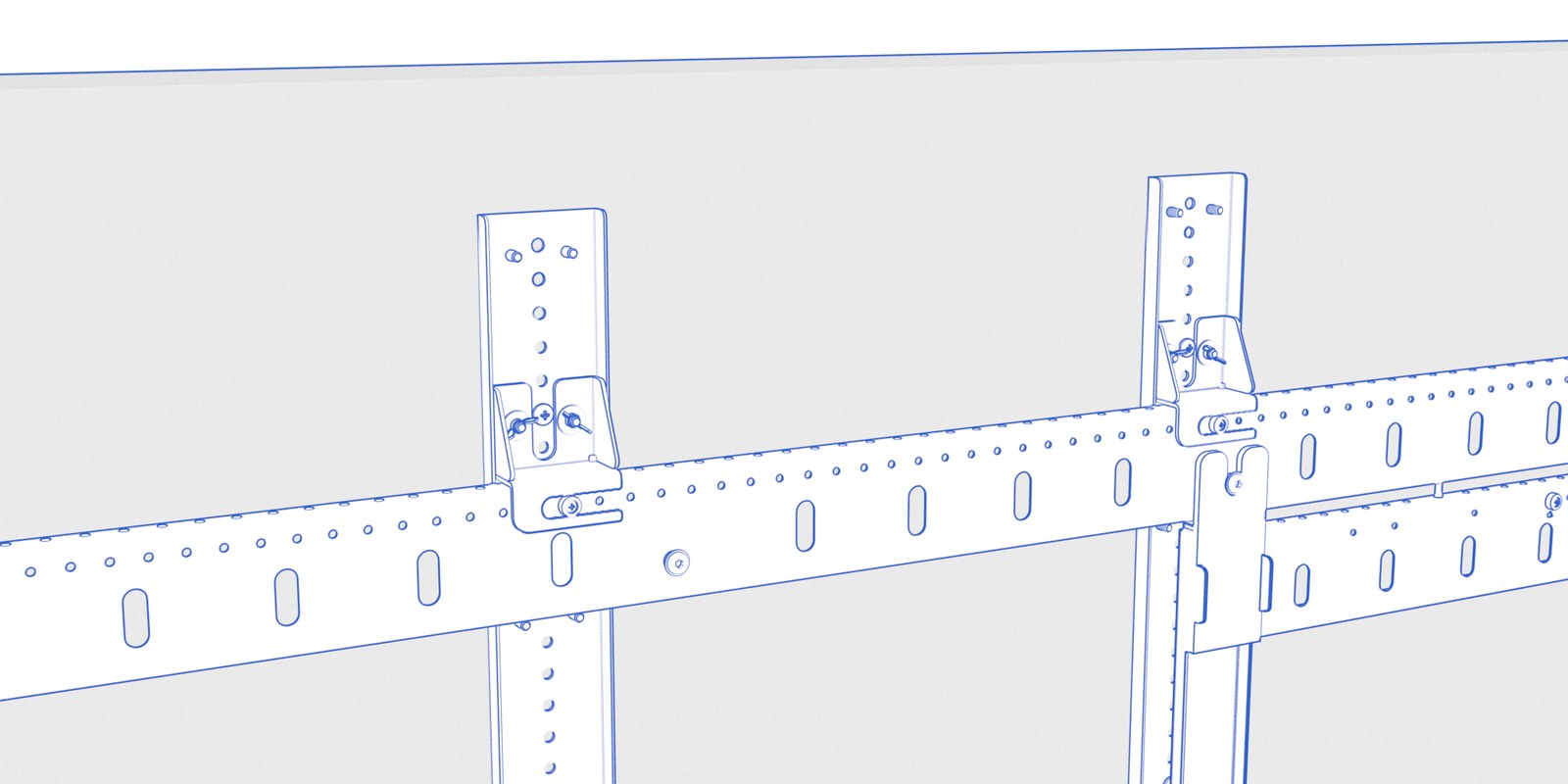

Rear animation showing the right-hand display hooks engaging the locking bumpers.

Hang left-hand display

Connect the HDMI and power cable to the display.

Carefully lift the display and move close to the structure.

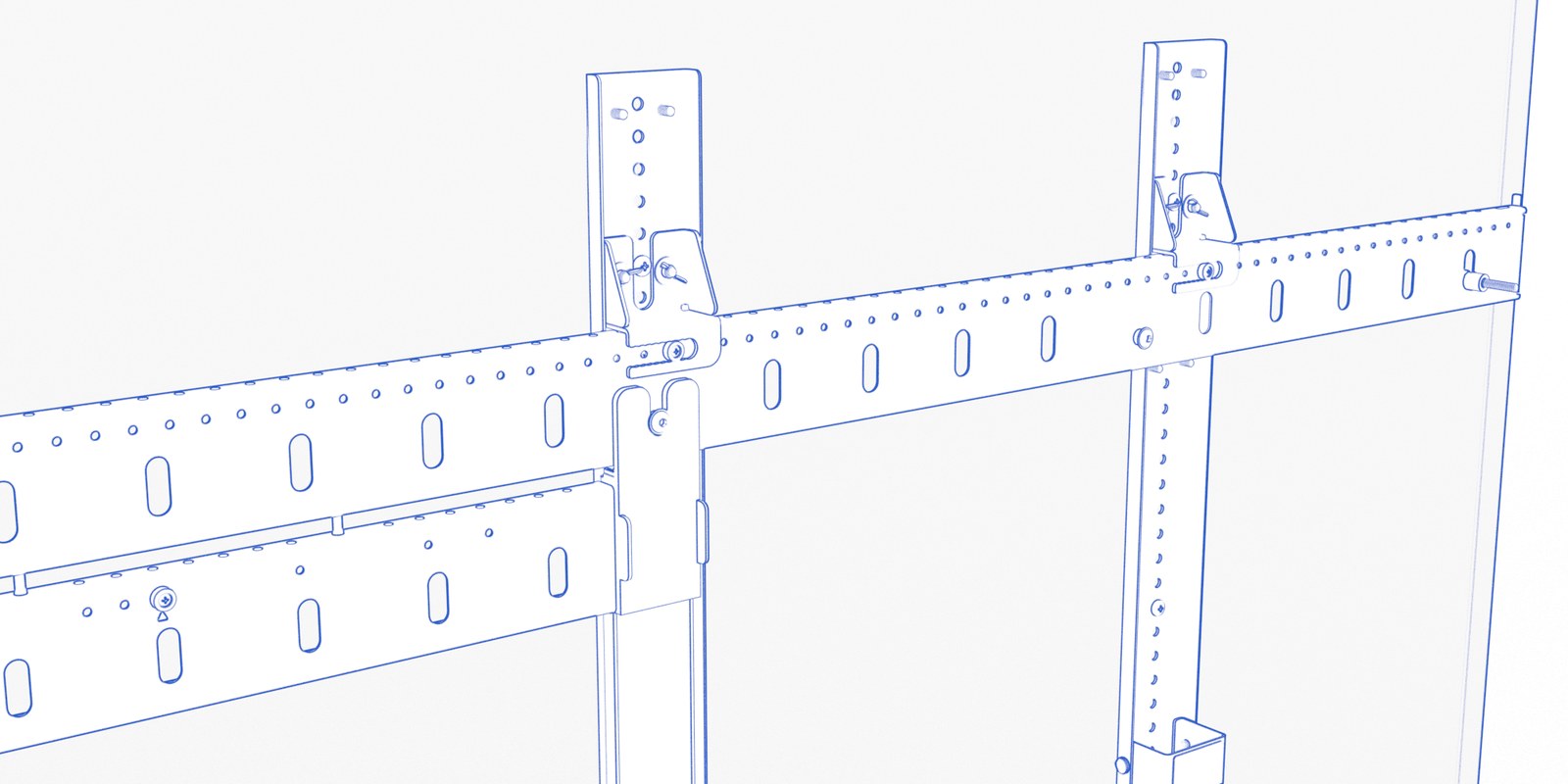

Lower the display onto the left-hand dual display bar so that the hooks do not touch the display-locking bumpers. Rest the cork-lined surface of the hooks directly and firmly on the beam.

Slide the display to the right, towards the center of the structure until the right edge of the display reaches the center of the structure. You will feel the display rails engage with the display-locking bumpers.

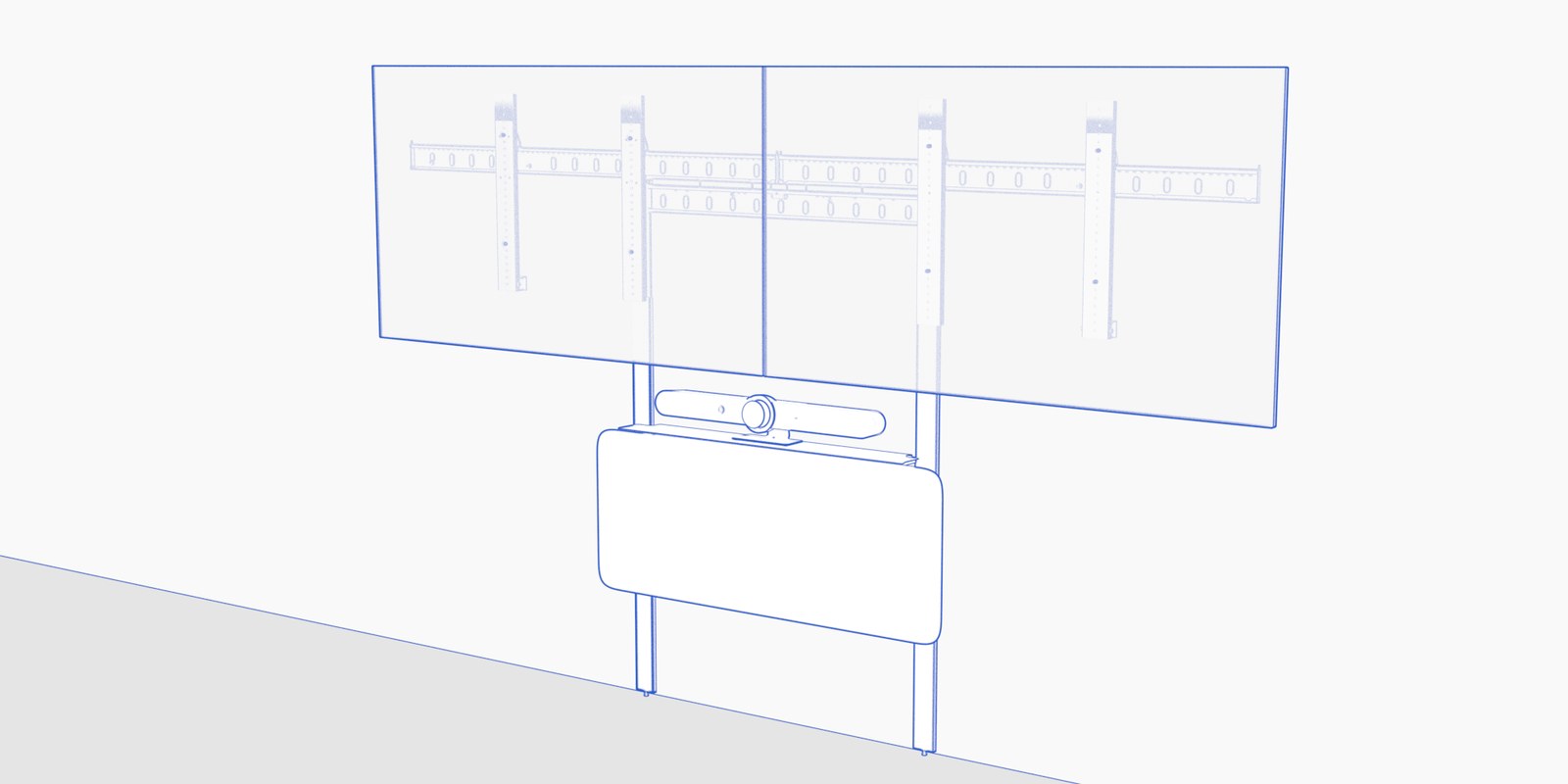

Animation showing the left-hand display lowered onto the bar and slid right toward the center.

Rear animation showing the left-hand display hooks engaging the locking bumpers.

Adjust display alignment

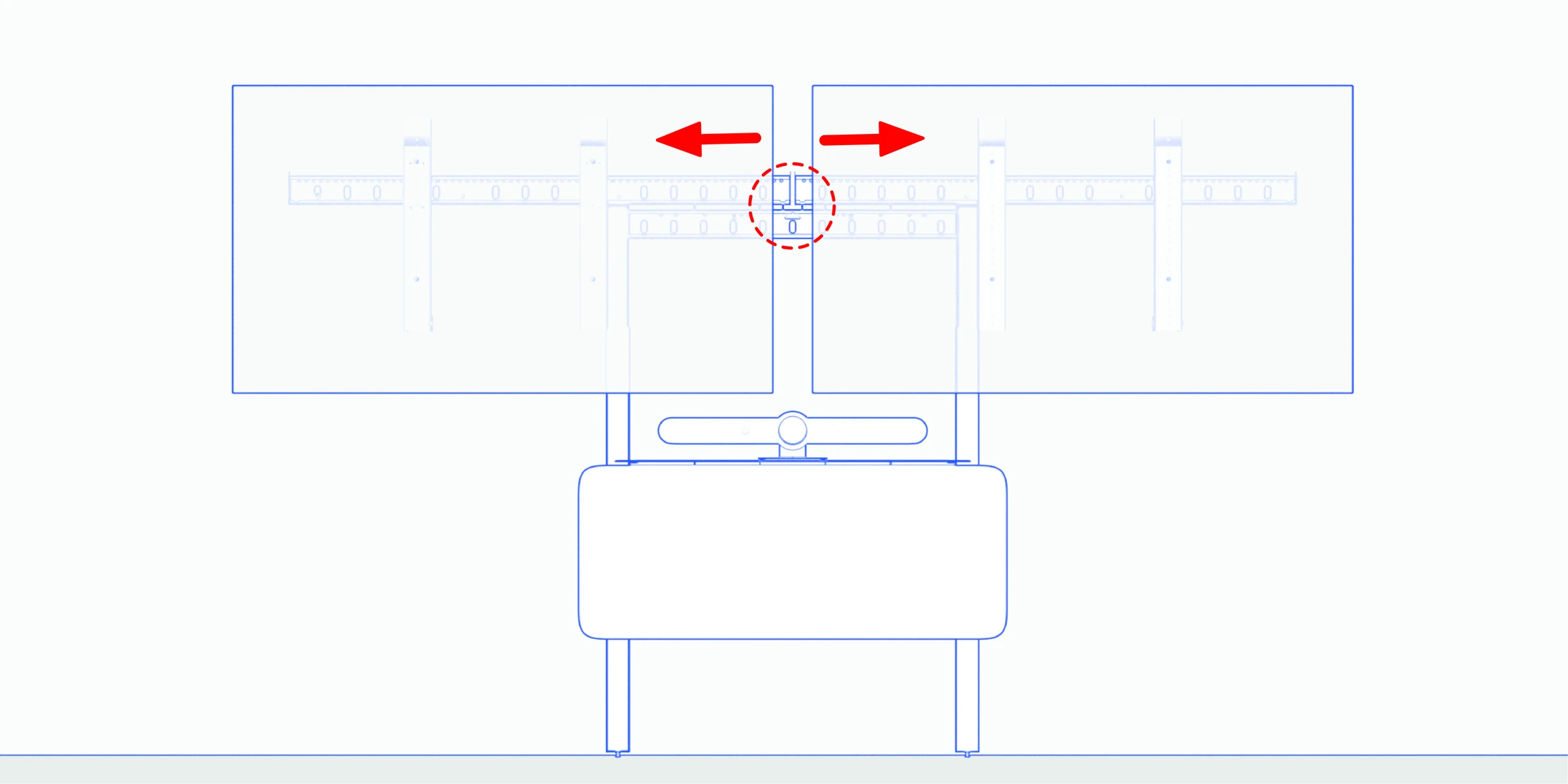

Slide each display away from the center of the structure about two inches until both display-adjustment screws are exposed.

Outward arrows showing the displays moved apart to expose the central adjustment screws.

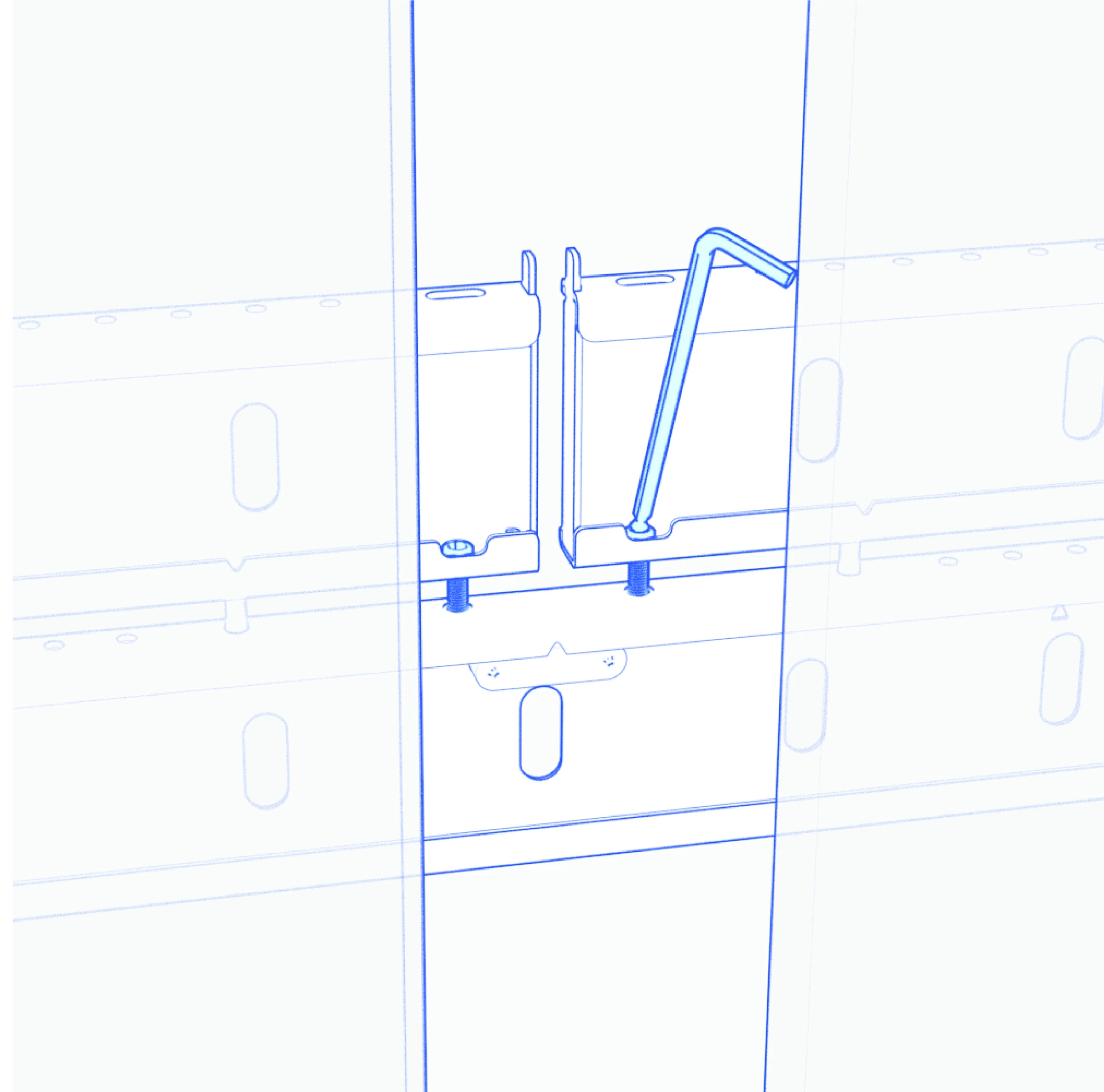

Turn the adjustment screws with the provided ball-end hex key as needed to correct the unevenness in the gap.

Hex key engaging a central adjustment screw between the displays.

Slide both displays back towards the center of the structure. Check for an even gap. Repeat the process if necessary.

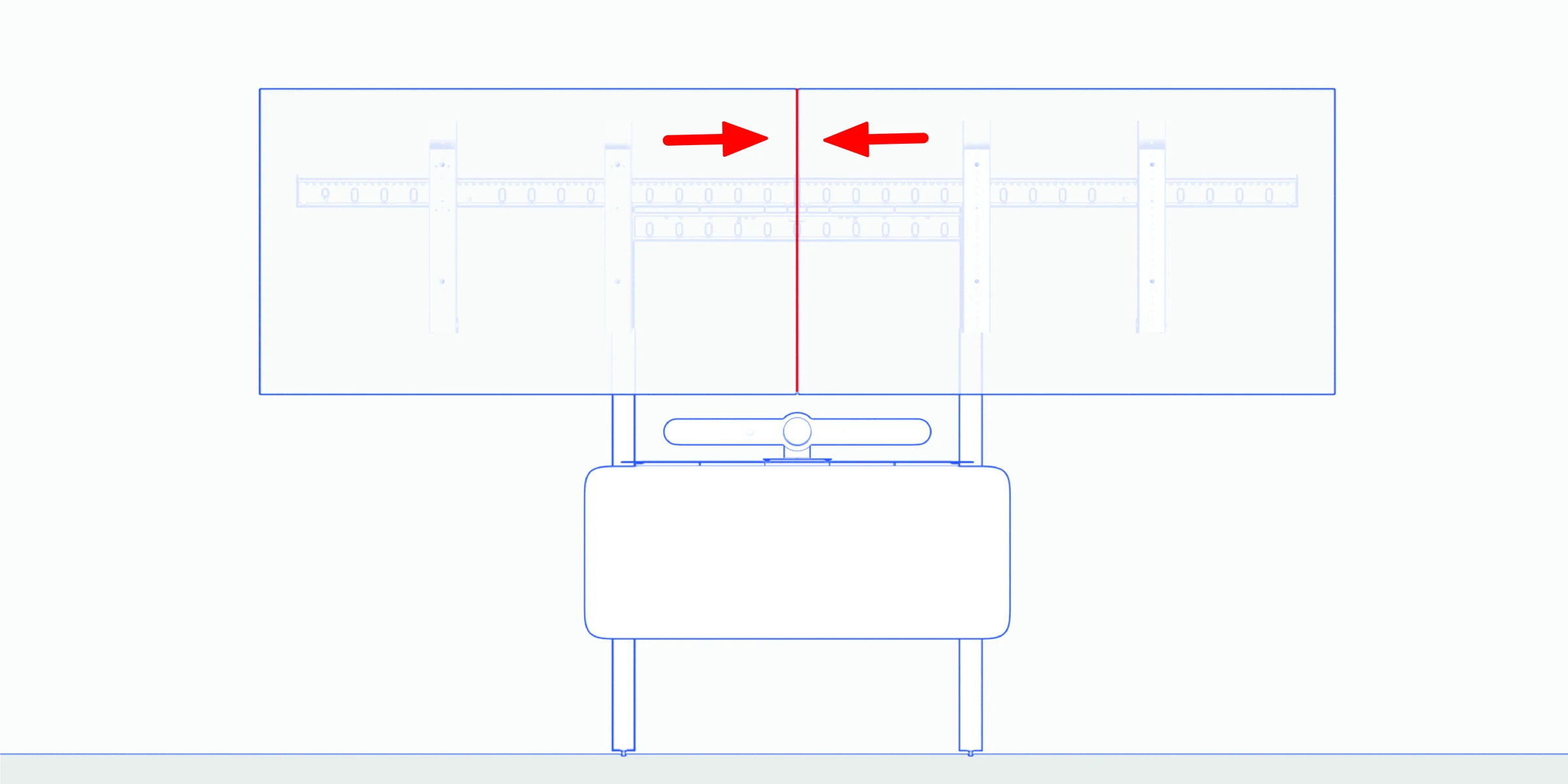

Inward arrows showing the displays returned toward the center with an even gap.

Place Anti-Removal Rods

Use a step stool or ladder, and lower the provided wood rod into a hole on the top surface of the dual-display bar, directly behind a display hook location.

If a portion of the dowel is visible above your display, cut the rod to an appropriate length and reinstall the rod.

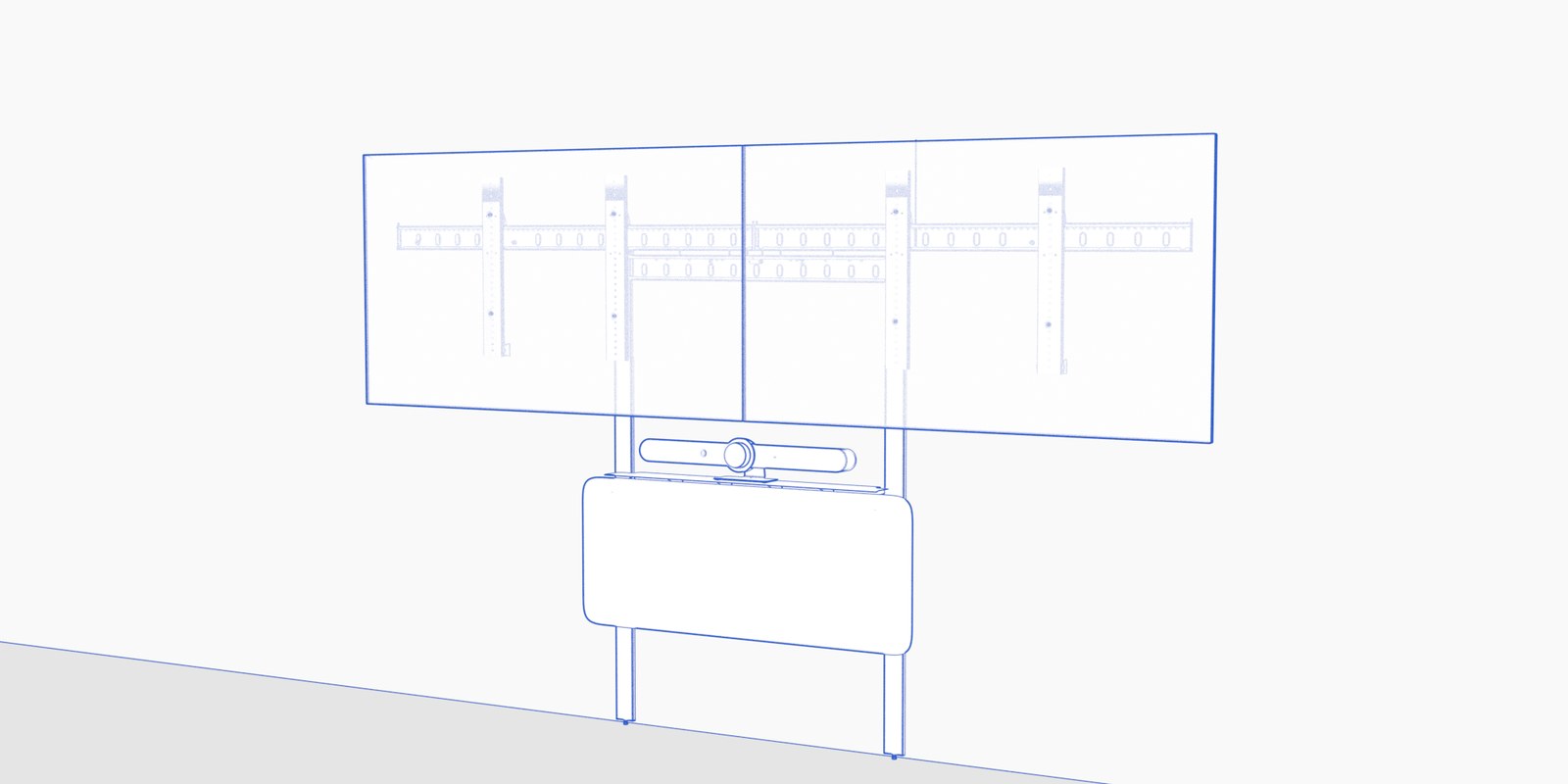

Animation showing a wood anti-removal rod lowered behind a display hook.

Repeat for each display. One rod per display.

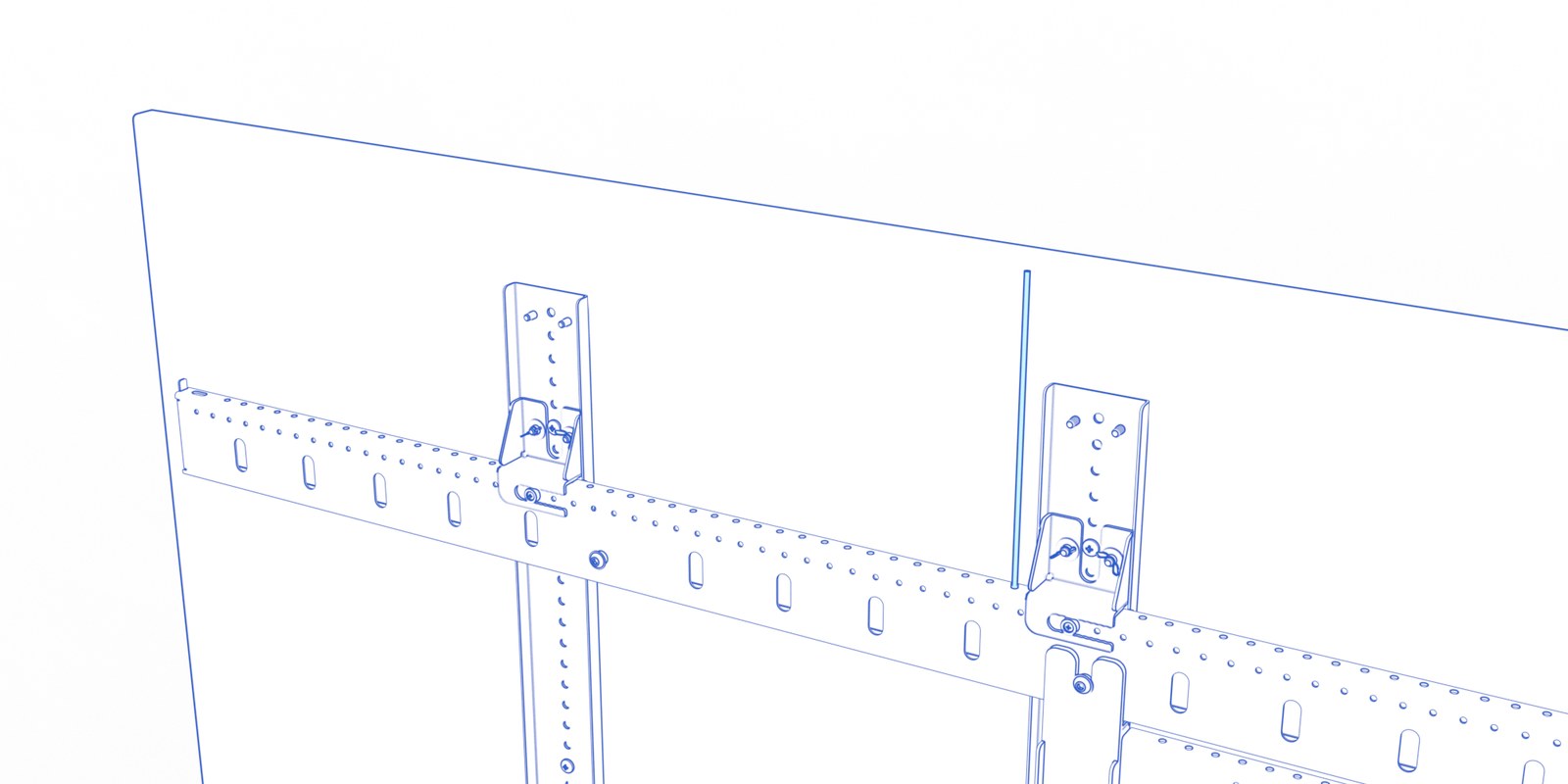

Rear animation showing the rod positioned behind the hook to restrict backward movement.

Route cables

Use the cable guides to organize the cables inside vertical legs.

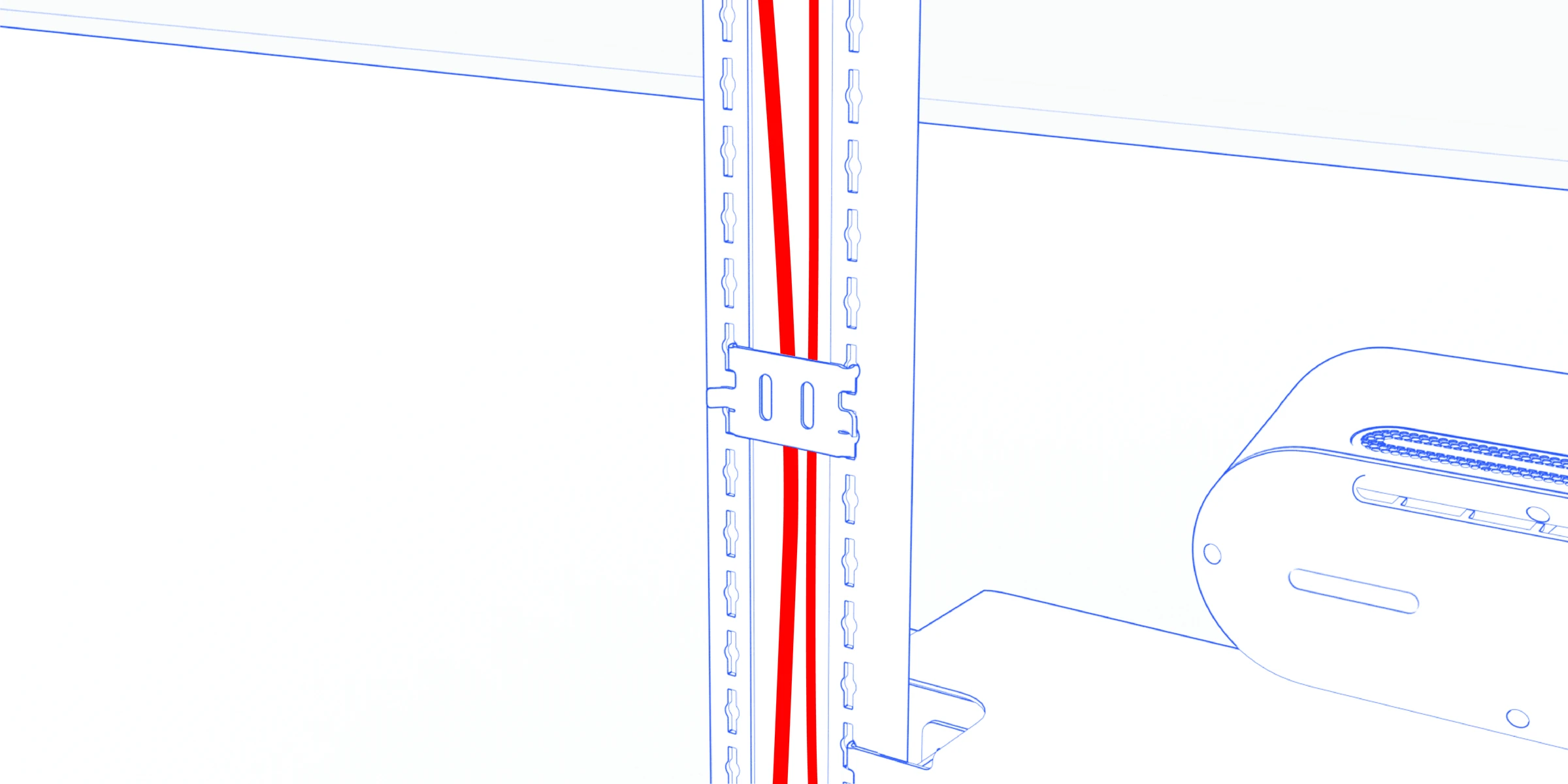

Cable guide holding vertically routed cables inside the structure’s upright.
