In this guide · 5 sections 01 In the box02 Determine the mounting position03 Mount the wall bracket04 Prepare the ADA panel05 Hang the ADA panela. 2 x ADA Panel
b. 2 x Installation template
c. 2 x Panel bracket (R628)
d. 2 x Wall bracket (R629)
e. 4 x Wall anchor (F539)
f. 4 x Wall anchor screw (F843)
g. 4 x Bracket fastening thumbscrew (F801 and F893)
h. 4 x Panel bracket screw (F950)
i. 4 x Wall anchor washer (F896)

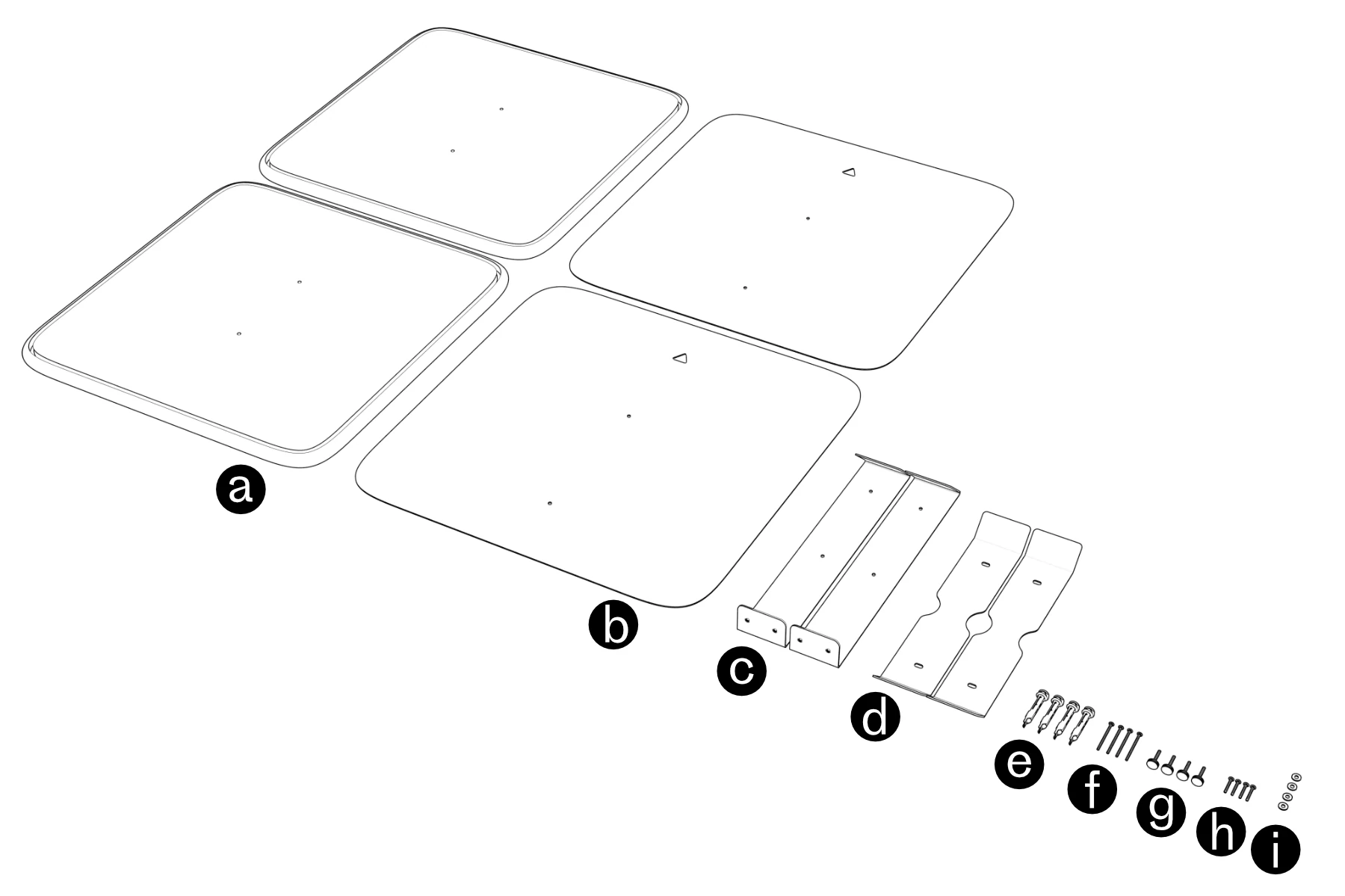

Enlarge image ↗ Included parts labeled a–i: two panels, two templates, panel brackets, wall brackets, wall anchors, screws, thumbscrews, and washers.
Use a laser level to mark the top edge of your preferred panel location.
Use the same laser line to align both ADA panels at the same height.
Position the panel so that its lower edge is at or below 27 inches above the finished floor, following the placement shown here. Check the complete installation against the applicable
ADA protruding-object requirements ; panel height alone does not establish compliance.
Tape the installation templates to the wall as shown below.
Mark the two mounting-hole locations on the wall.

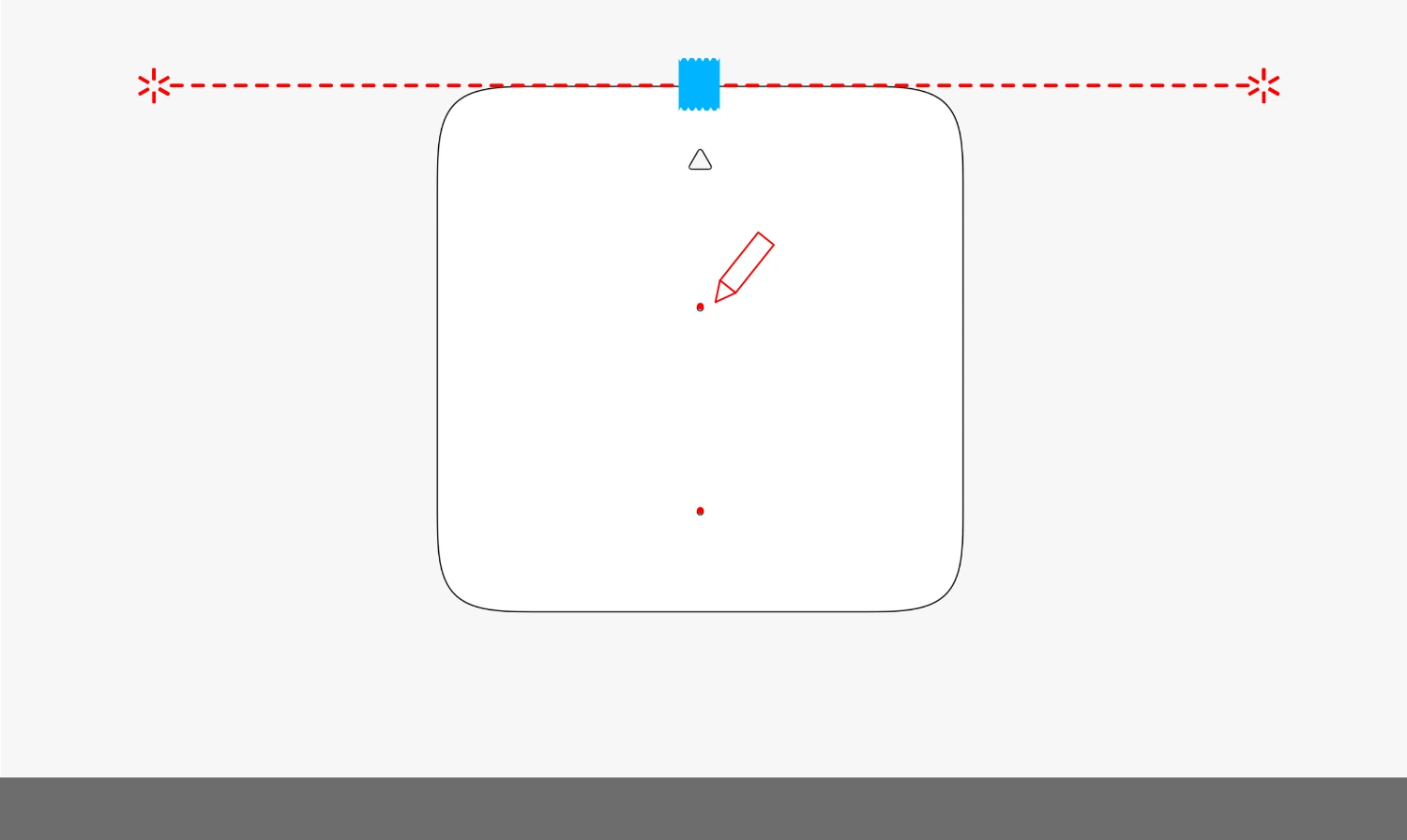

Enlarge image ↗ Installation template taped to the wall with its top edge aligned to a laser line and mounting holes marked.

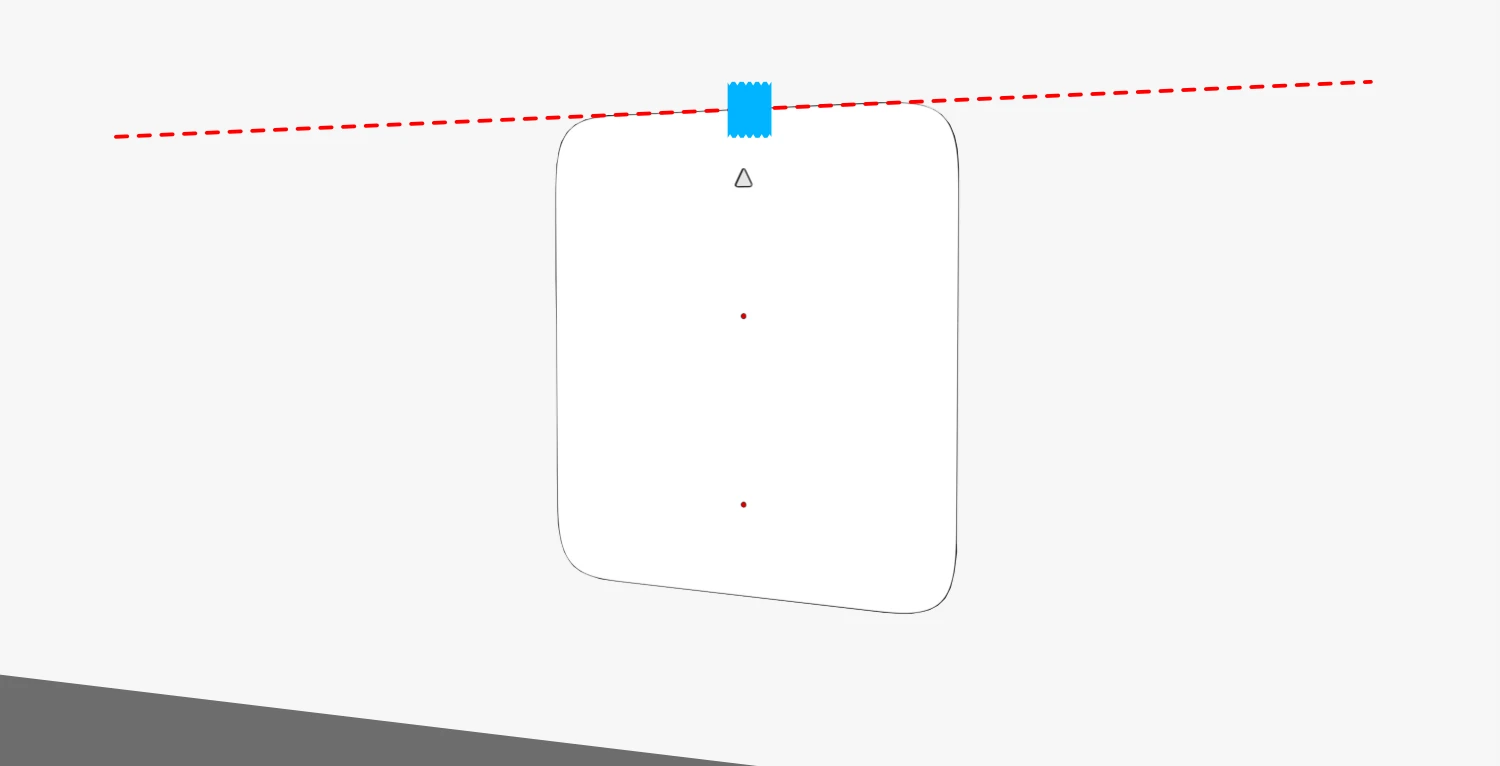

Enlarge image ↗ Angled view of the template aligned to the horizontal laser reference.
Install the wall anchors.

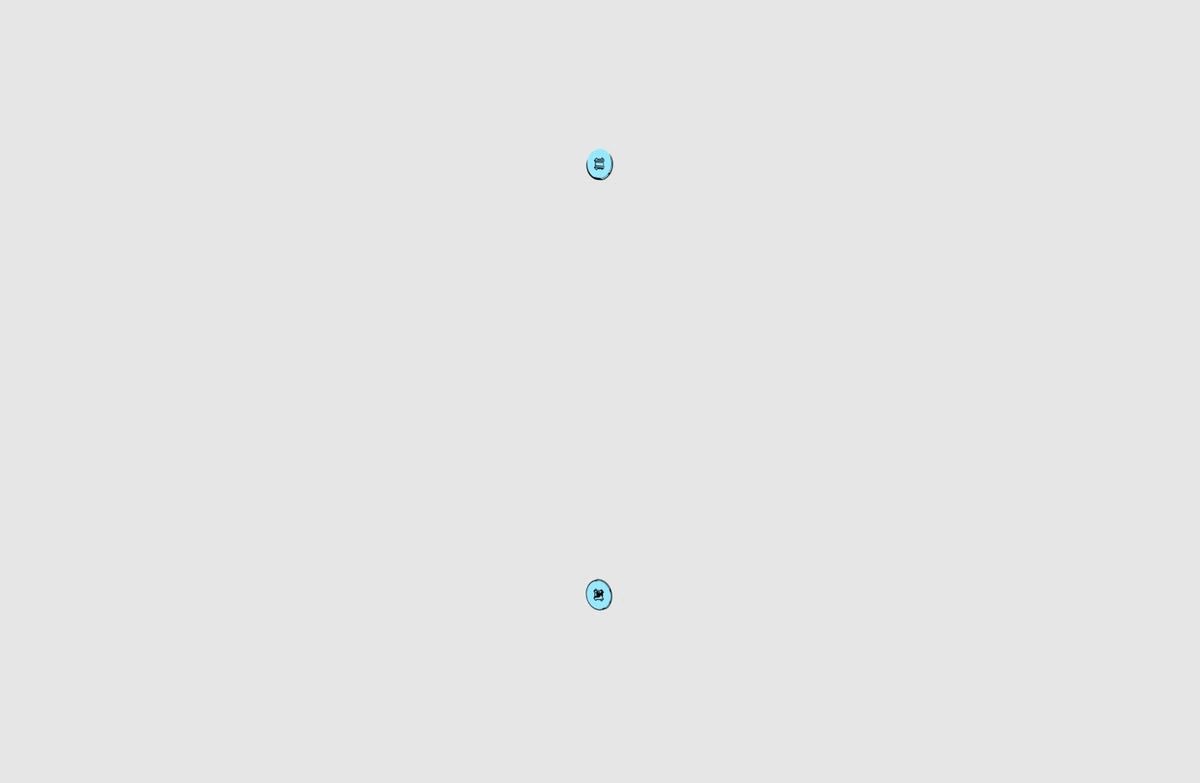

Enlarge image ↗ Play animation Animation showing wall anchors inserted at the marked mounting positions.
Install the wall bracket with screws and washers included.

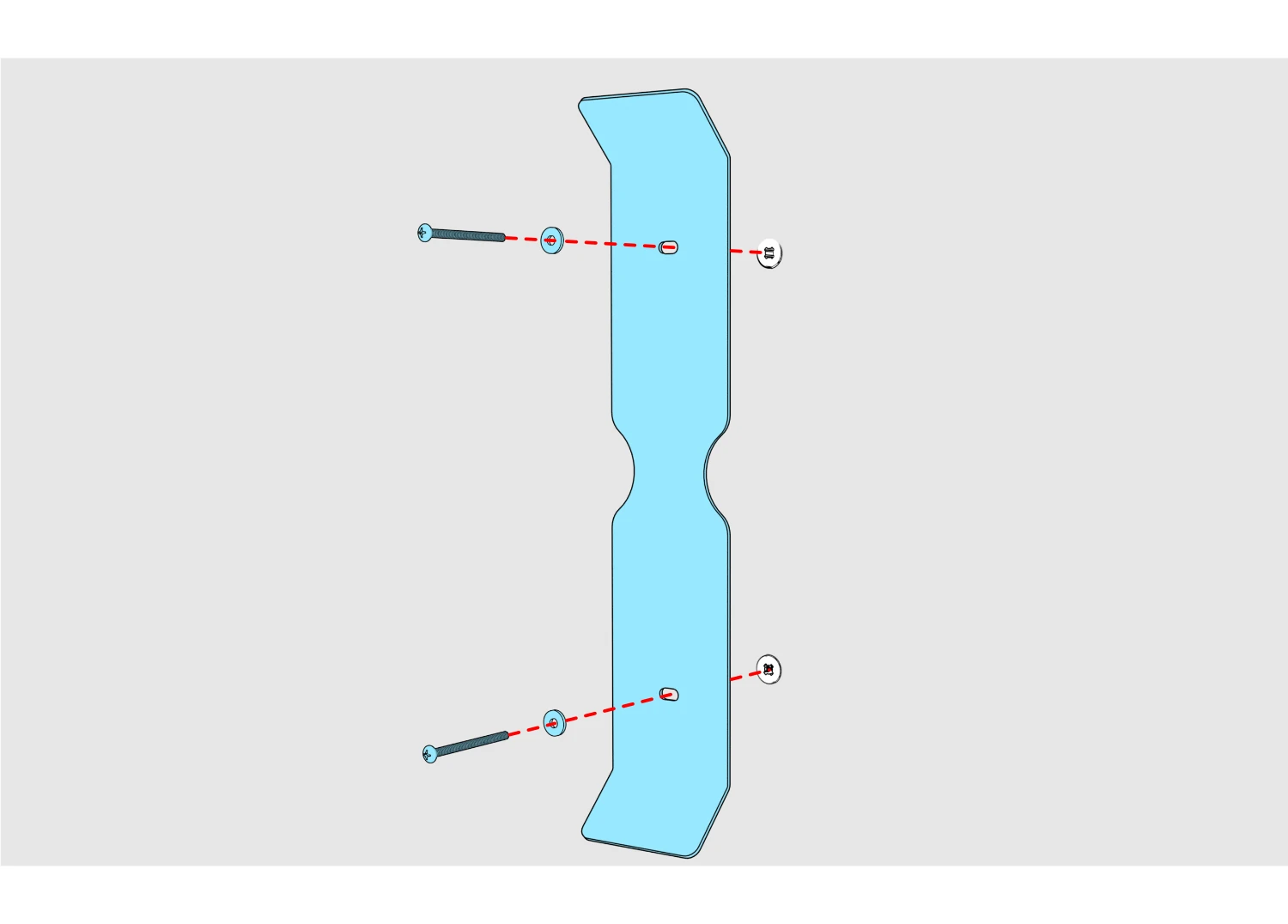

Enlarge image ↗ Wall bracket aligned with the anchors, with screws and washers shown in exploded view.

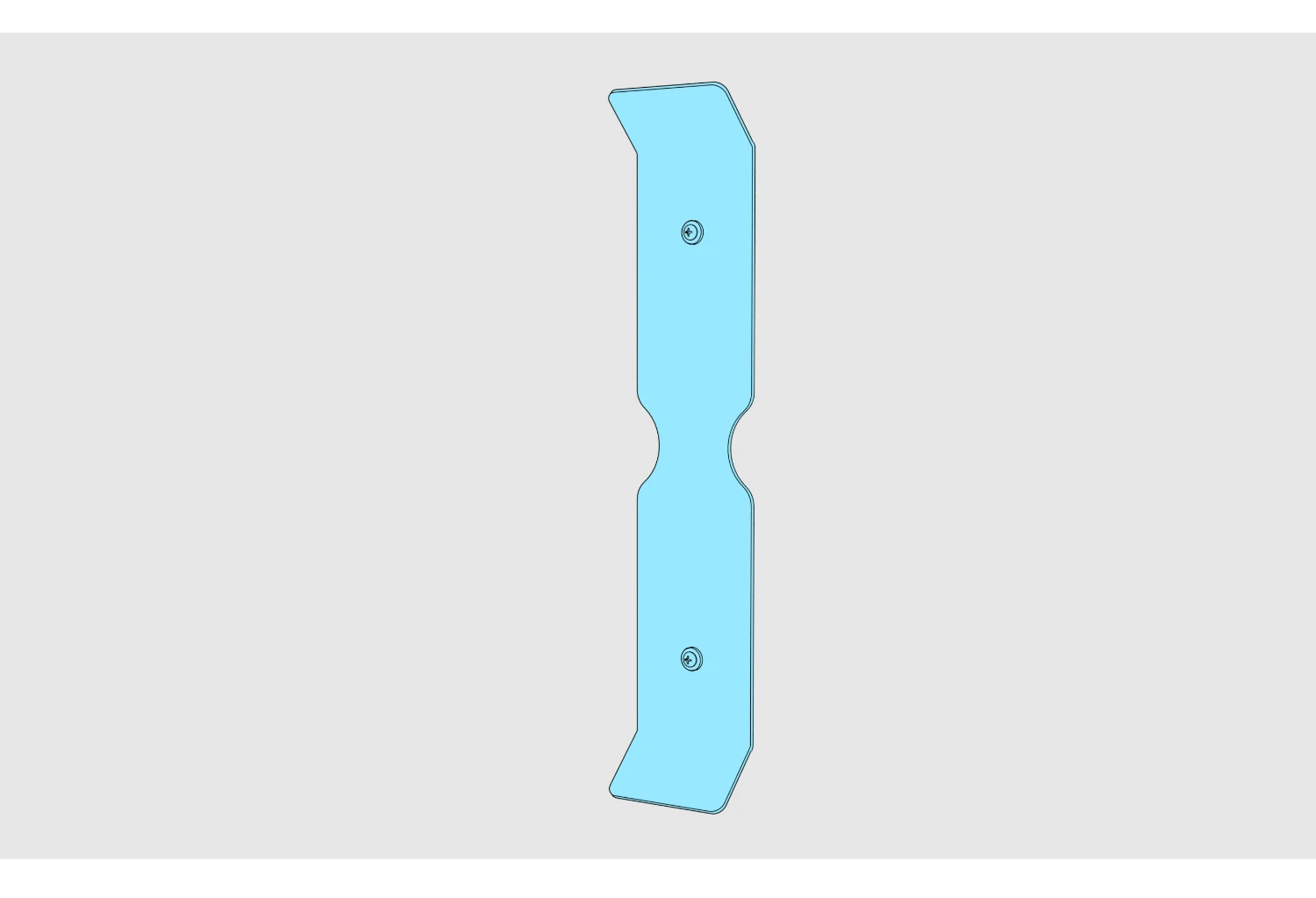

Enlarge image ↗ Wall bracket fastened to the wall.

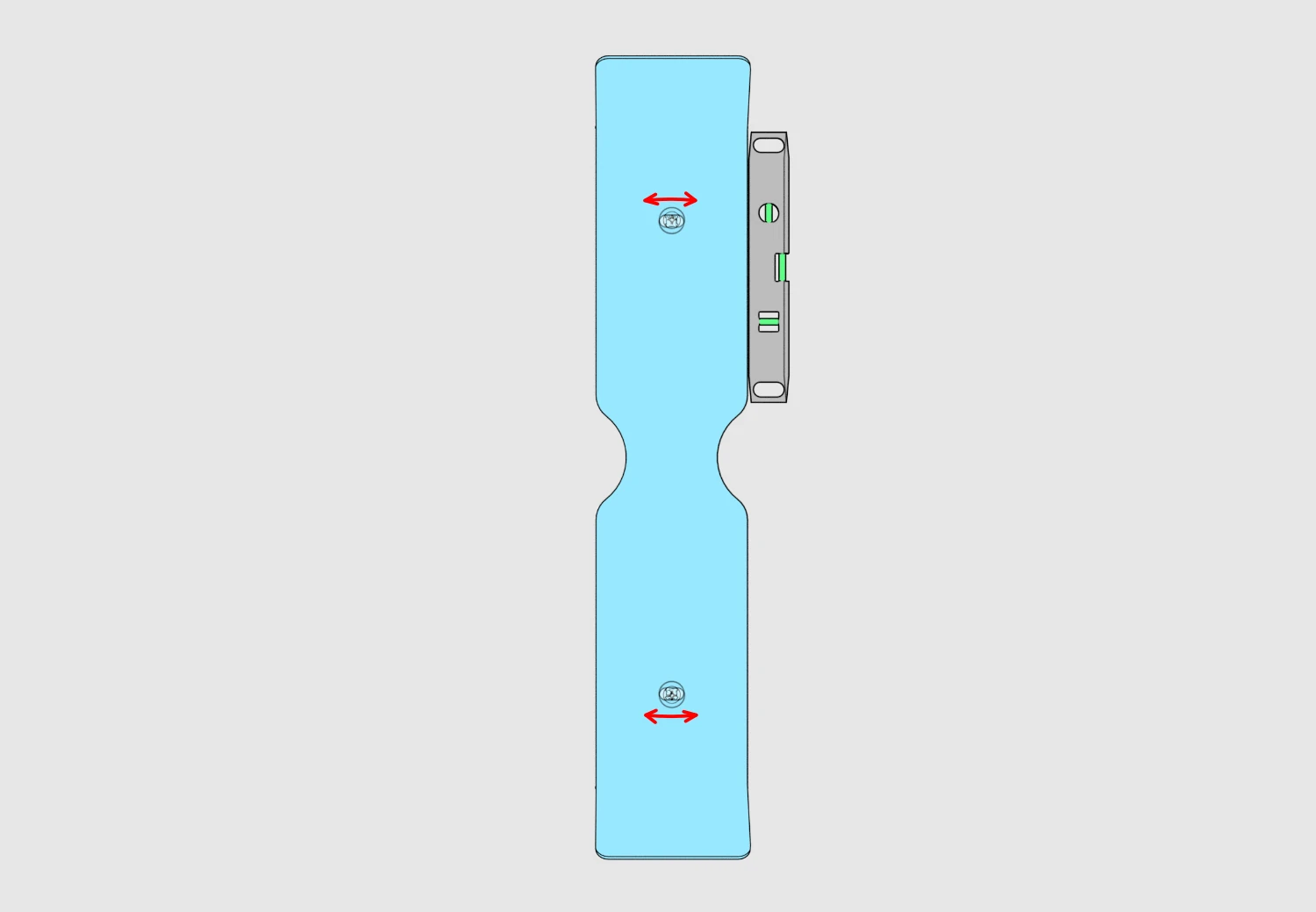

Enlarge image ↗ Level held beside the bracket with horizontal adjustment arrows at its mounting slots.
Fasten the panel bracket to the ADA panel with the screws included.

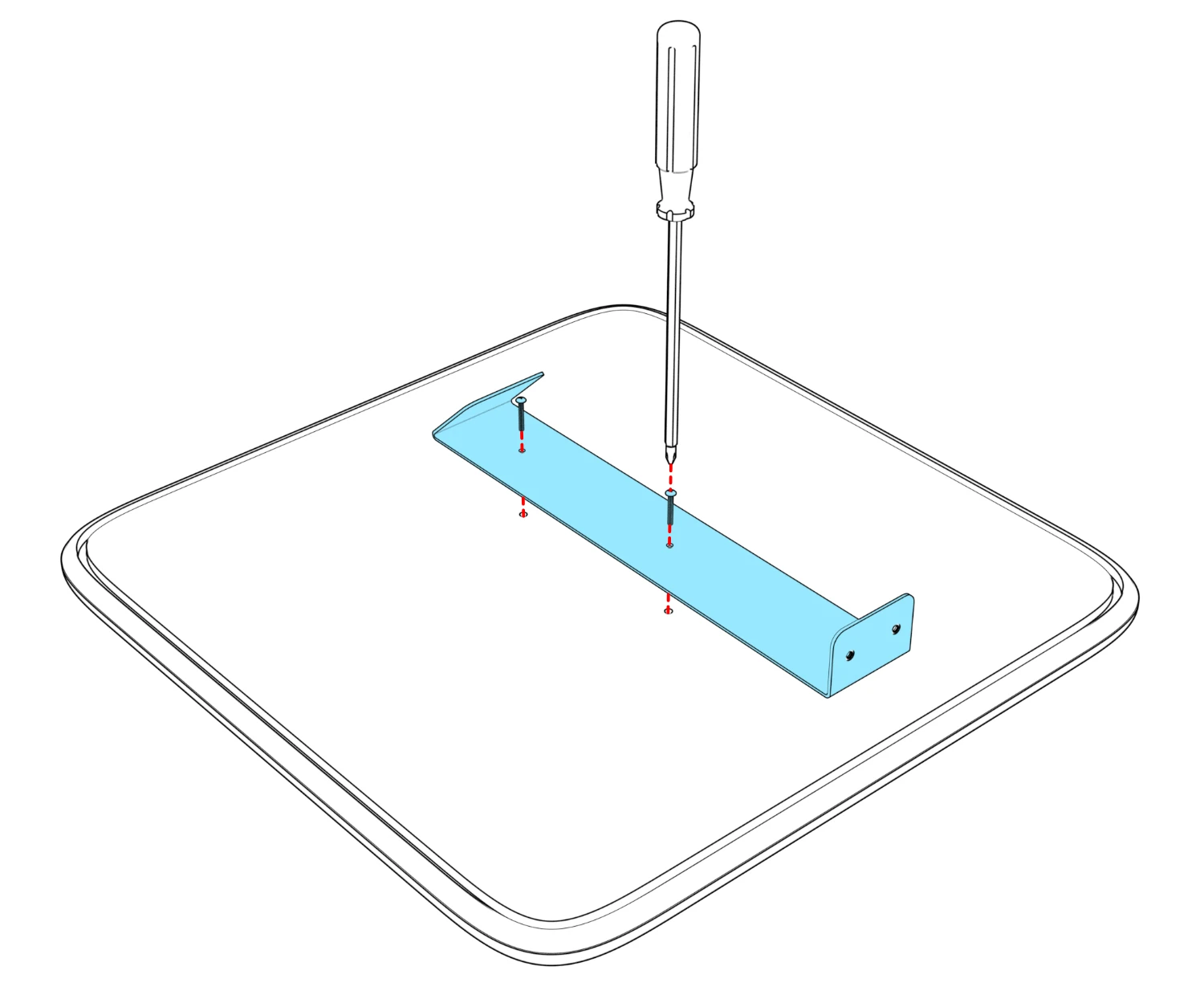

Enlarge image ↗ Panel bracket aligned with the panel’s rear holes and fastened using a screwdriver.

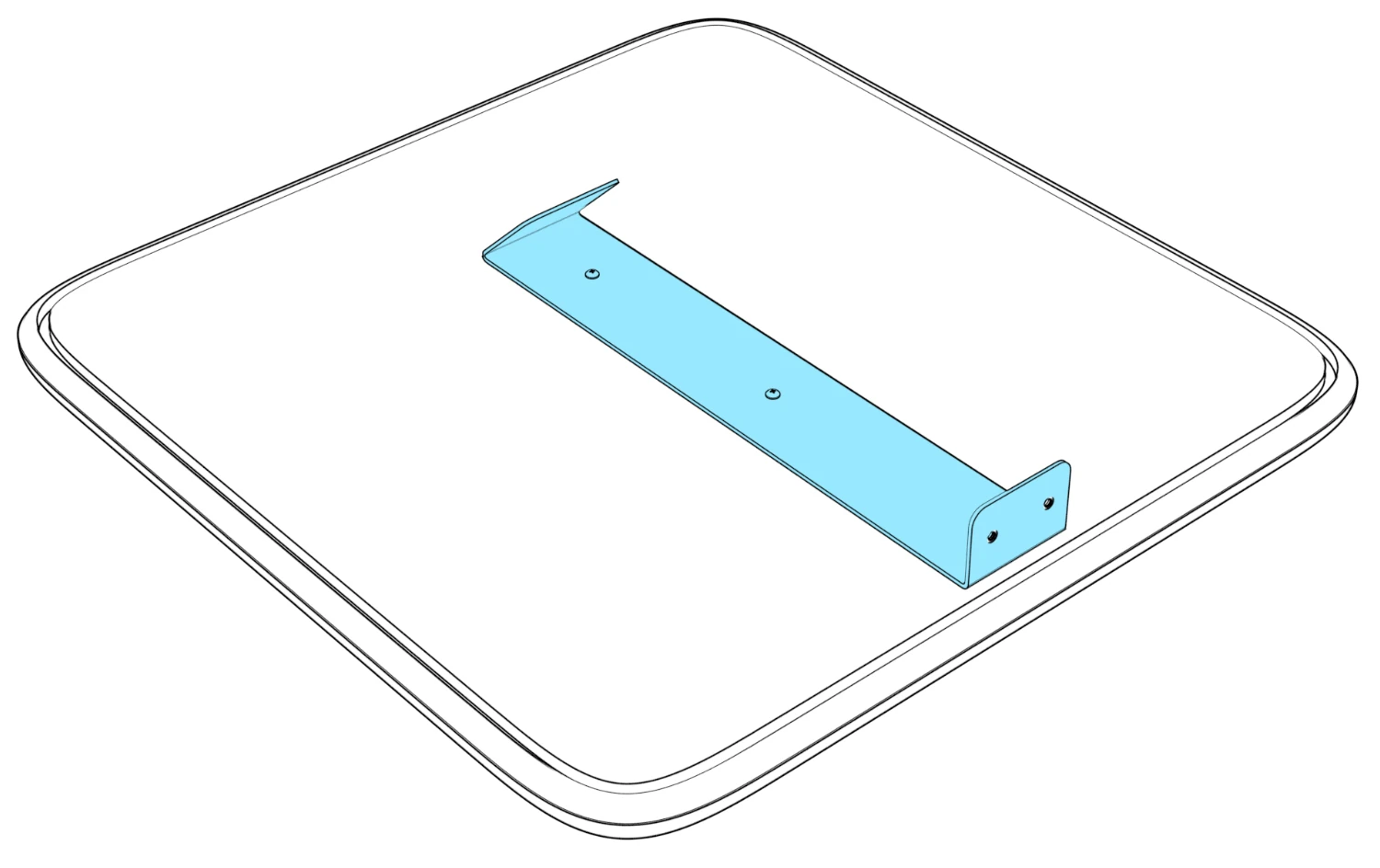

Enlarge image ↗ Panel bracket installed on the rear of the panel.
Install the thumbscrews to the panel bracket.

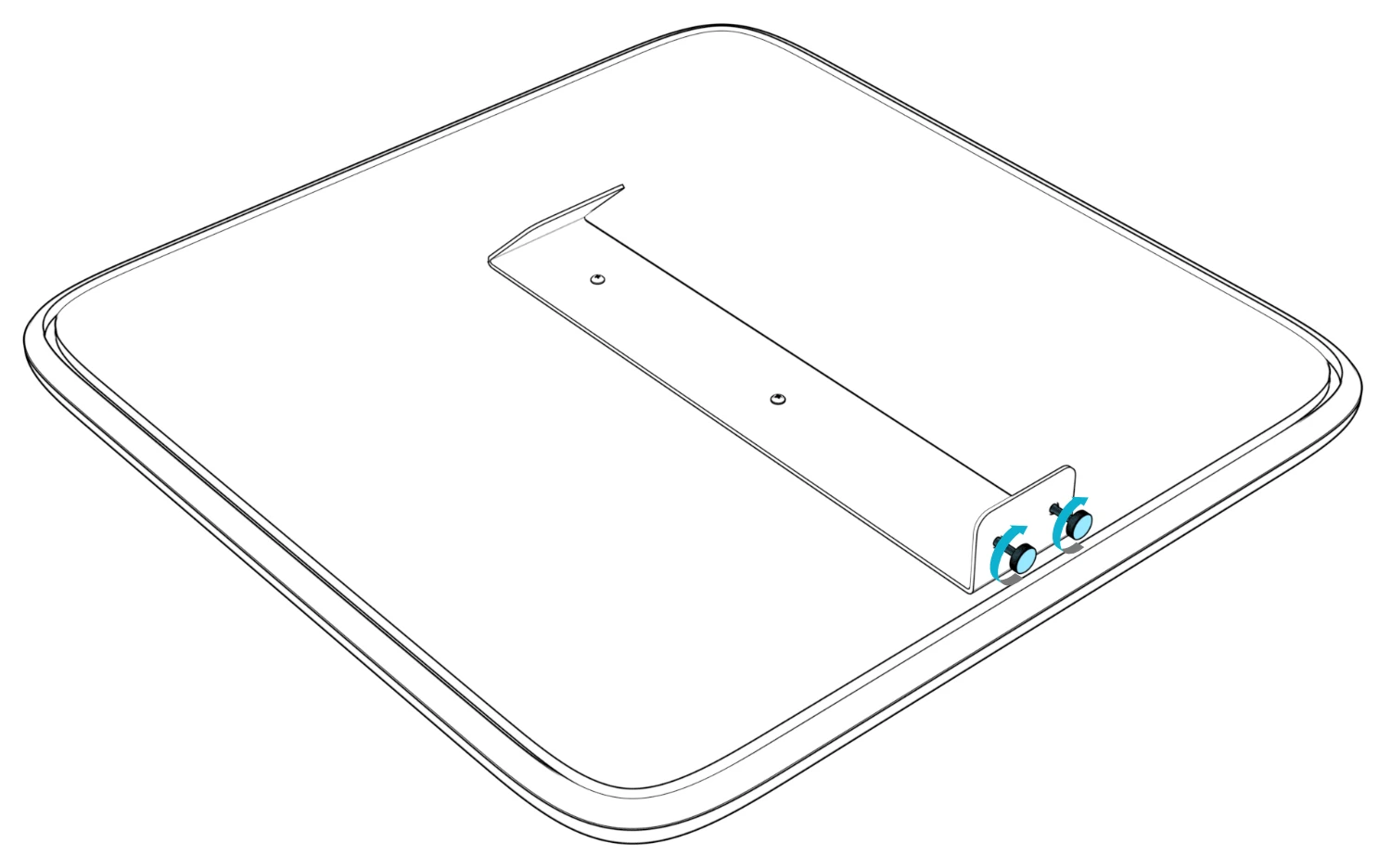

Enlarge image ↗ Two thumbscrews started through the lower flange of the panel bracket.
Turn the thumbscrews until about 1/8 inch of thread passes through the bracket. Do not fully tighten the thumbscrews at this step.

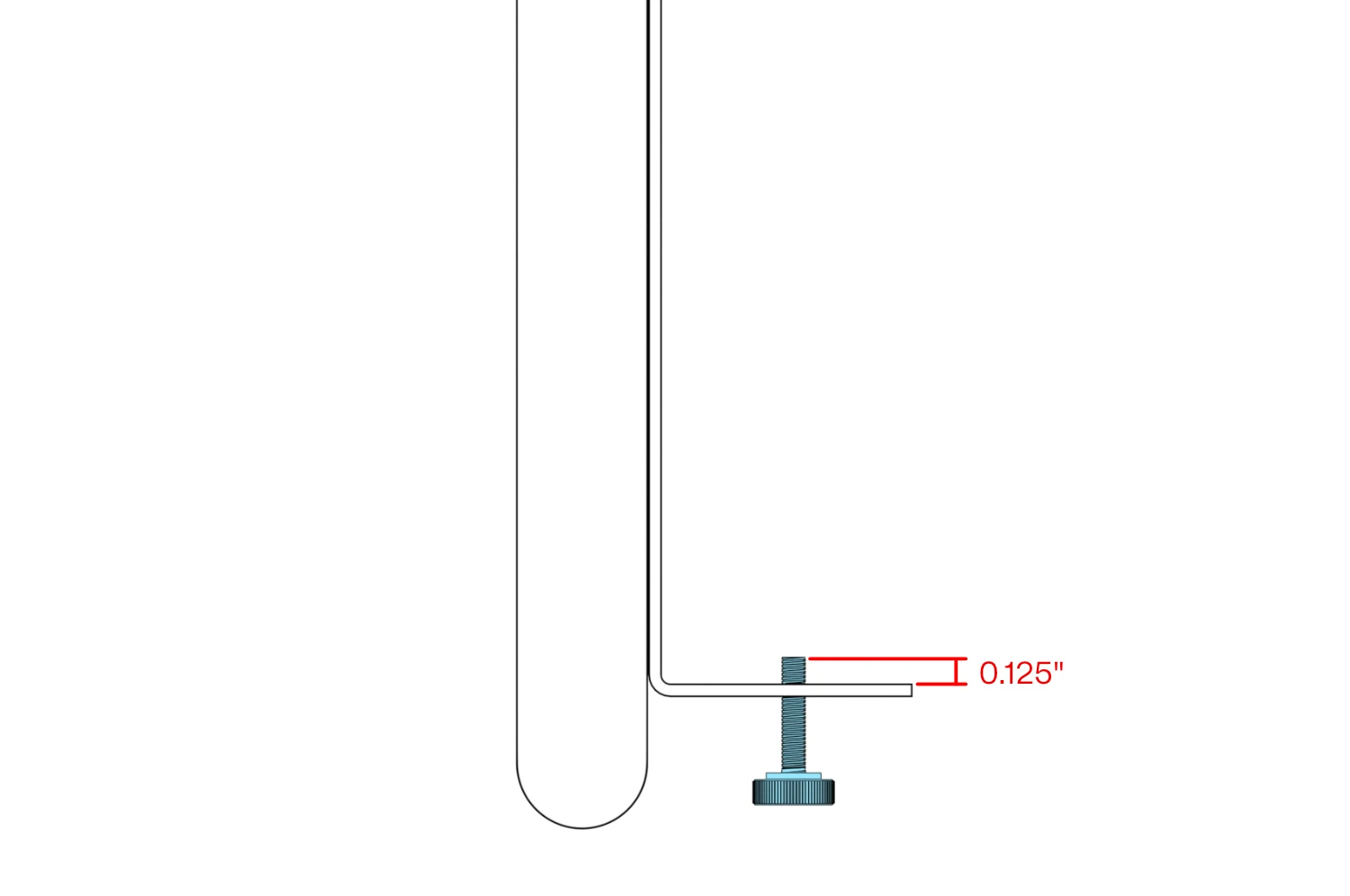

Enlarge image ↗ Side detail showing approximately 0.125 inch of thumbscrew thread protruding through the bracket.

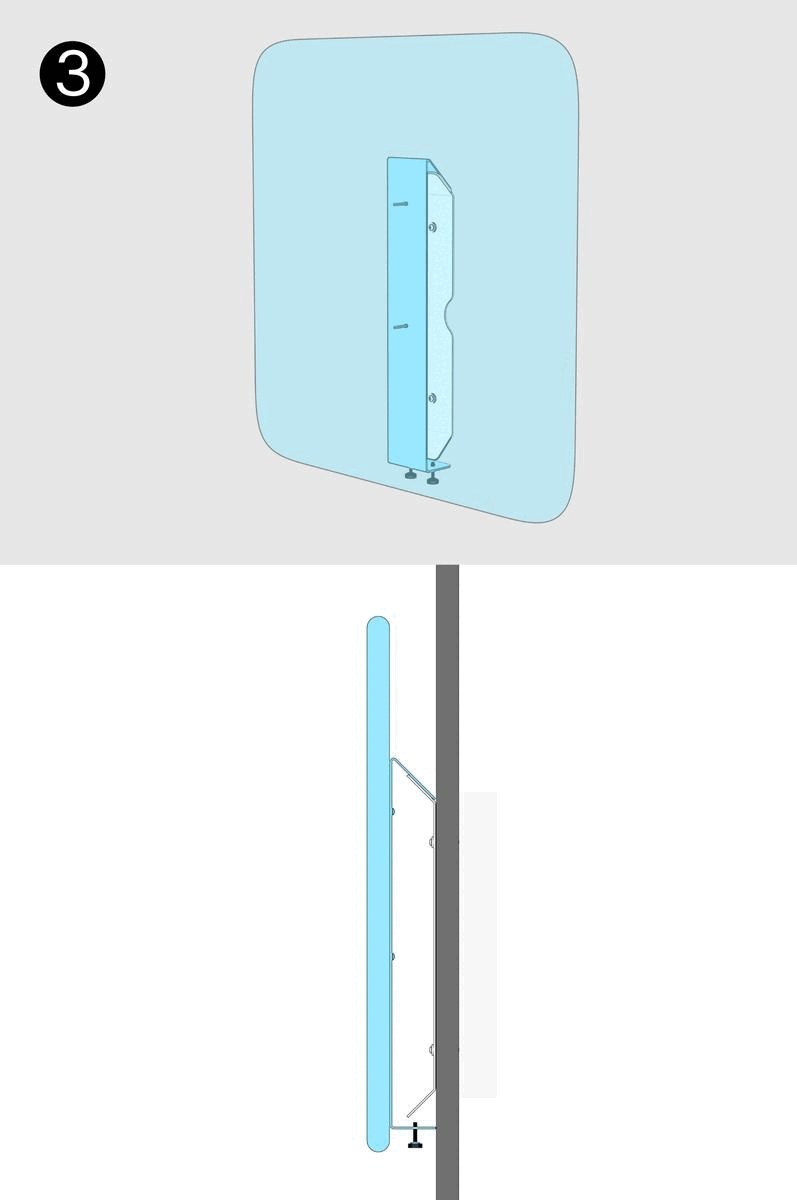

Enlarge image ↗ Play animation Animation showing the panel lowered over the wall bracket and rotated into its installed position.
Fasten the thumbscrews from the bottom to fully secure the ADA panel.

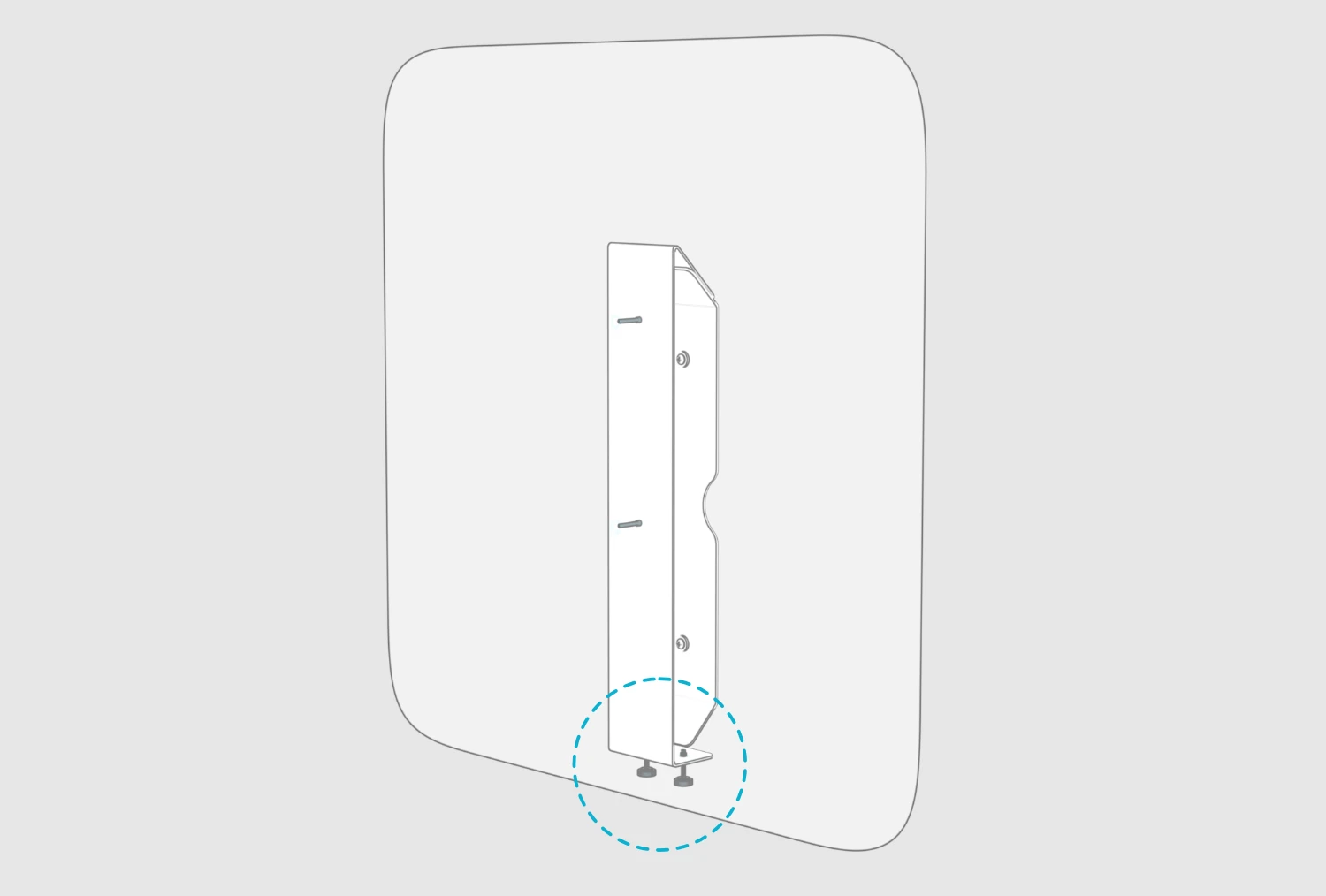

Enlarge image ↗ Rear panel view highlighting the lower thumbscrew locations.

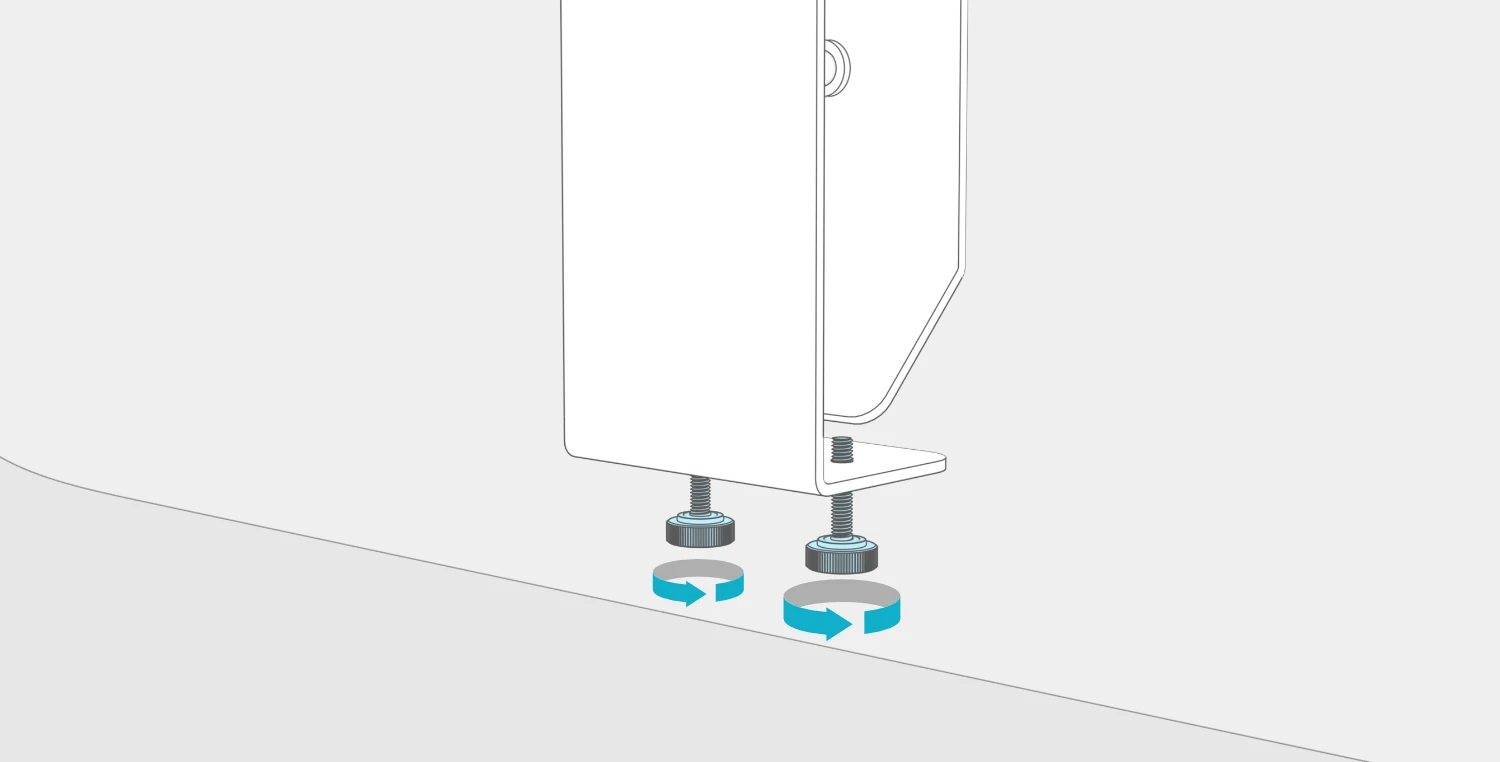

Enlarge image ↗ Close-up showing both thumbscrews tightened from beneath the panel.

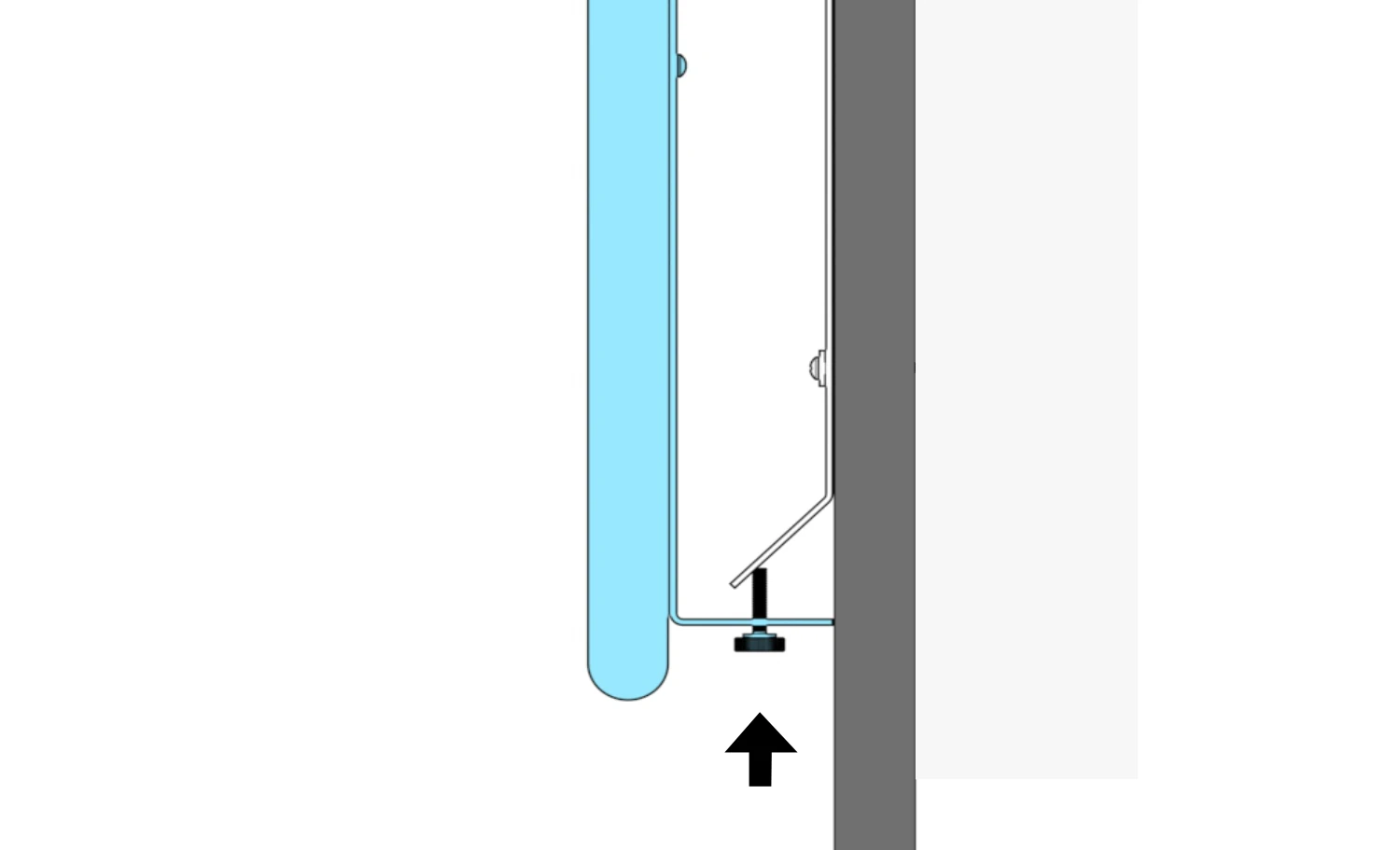

Enlarge image ↗ Side detail showing a thumbscrew raised to secure the panel bracket to the wall bracket.
