User guide

H809 Heckler ADA Panel 68X20

Guide details Applicability and revision

Position the 68x20 panel, install the anchors, and hang the panel.

ProductH809
Hardware generationH809
Guide revisionrelease-2026-10-28
Applies to

H809 Heckler ADA Panel 68X20.

In this guide · 7 sections
H809 Heckler ADA Panel 68X20

In the box

a. 1 x ADA Panel 68x20

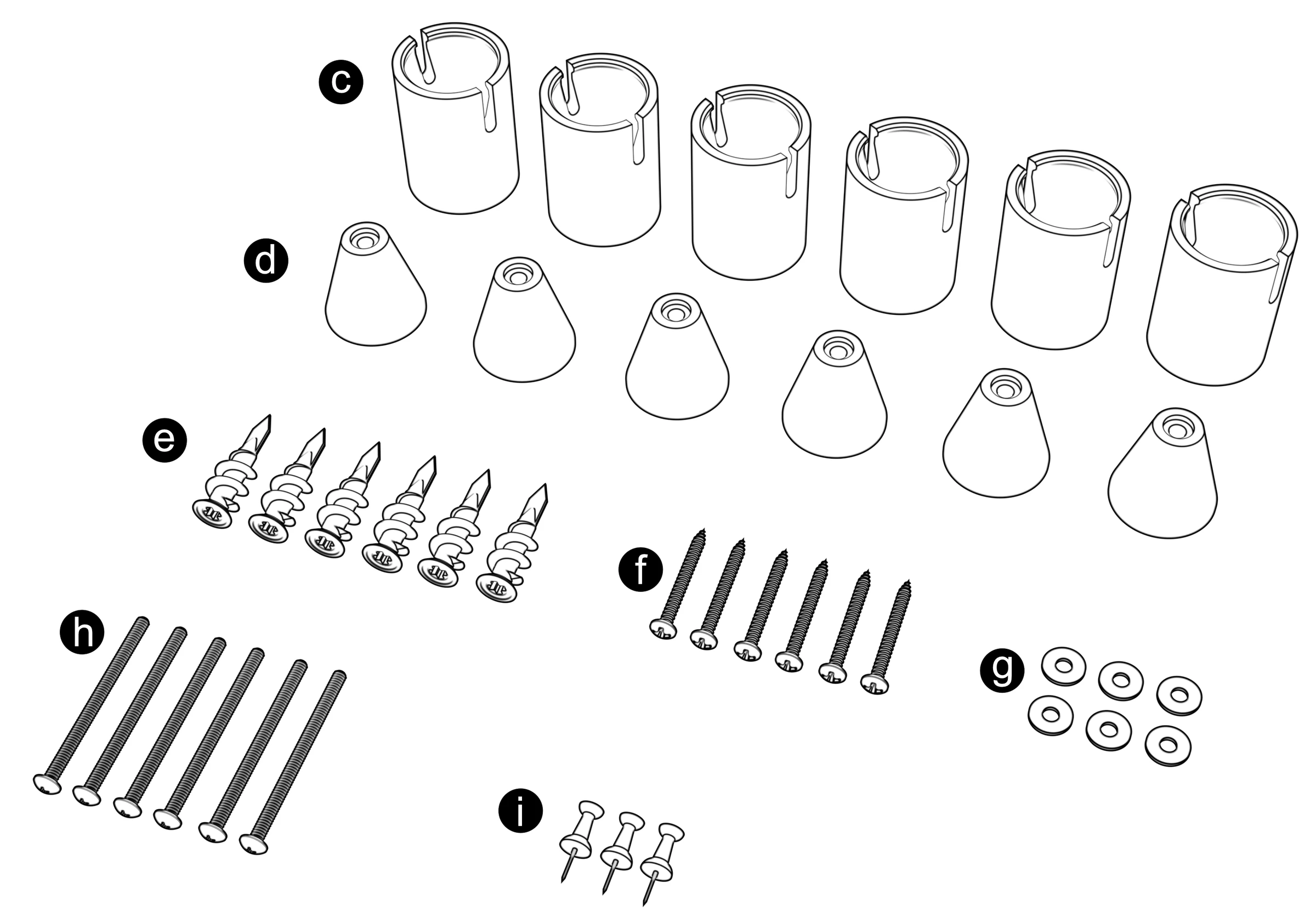

b. 1 x Installation template c. 6 x Wall mount cup (P164) d. 6 x Panel mount anchor (P165) e. 6 x Wall mount anchor (F155) f. 6 x Wall mount screw (F360) g. 6 x Wall mount washer (F896) h. 6 x Panel mount screw (F251) i. 3 x Push pin (F254)

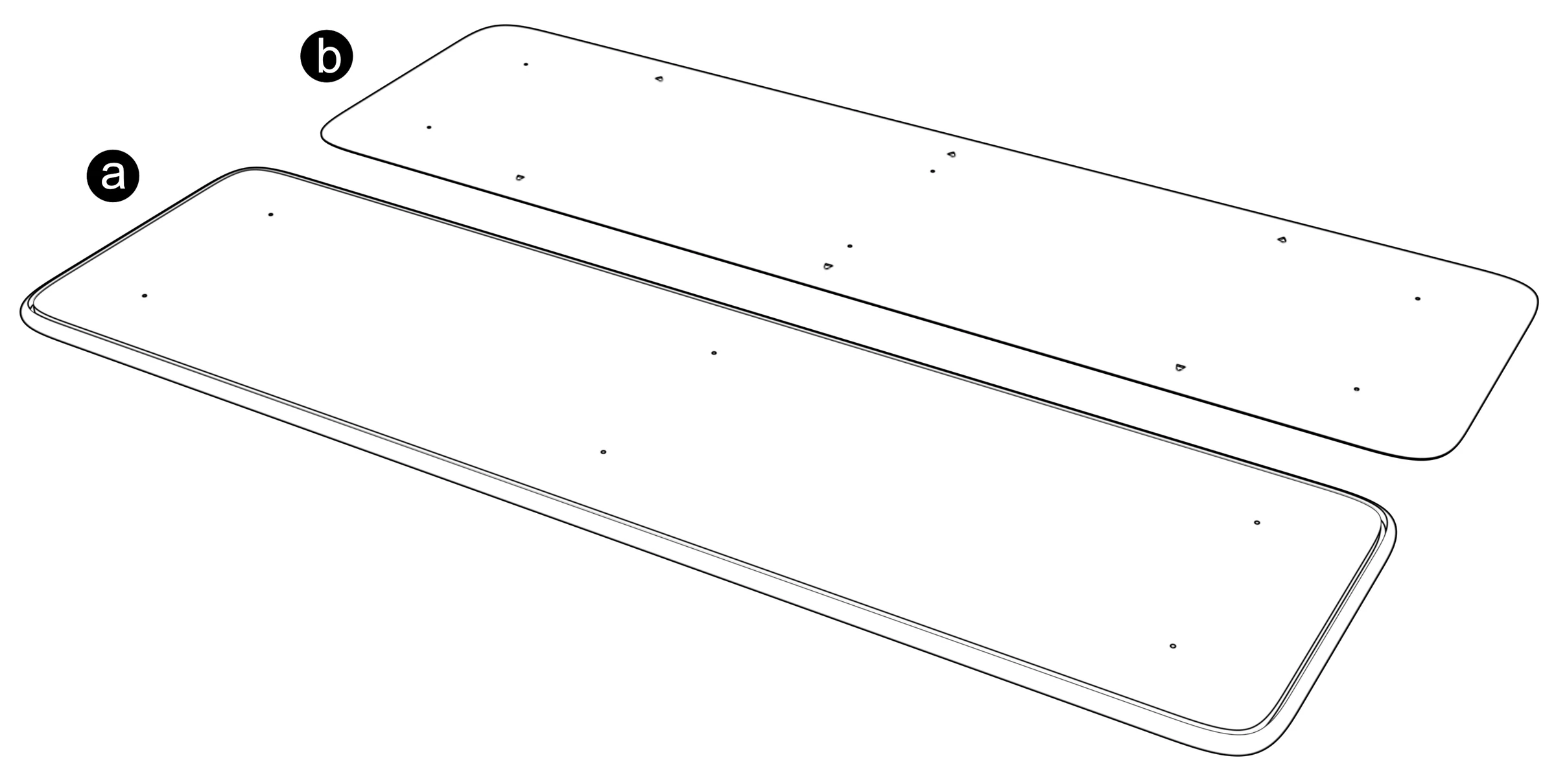

One wide ADA panel and its installation template labeled a and b.

Mounting components labeled c–i: wall cups, panel anchors, wall anchors, screws, washers, and push pins.

How Heckler ADA Panels work

The guide path of a room is defined by the objects near the walls, at 27 inches above the finished floor (AFF) or lower. The objects in this area are used for navigation for individuals with visual impairments. If no objects are present in this area, the wall is used as the guide path.

For the wall-mounted objects shown here, ADA Section 307.2 limits horizontal projection into a circulation path to four inches when the leading edge is above 27 inches and no higher than 80 inches above the finished floor. See the U.S. Access Board guidance.

Front and top views of a thin display, with a four-inch projection limit and 27-inch reference height; a check mark identifies the illustrated acceptable projection.

In this example, a thin display is mounted to the wall and protrudes from the wall less than four inches. This example meets the illustrated protrusion limit.

Front and top views of a camera projecting beyond the four-inch line below a display; an X marks the illustrated excessive projection.

In this example, a camera is mounted below the display. The camera protrudes from the wall more than four inches. This example exceeds the illustrated protrusion limit.

Front and top views showing an ADA panel below a camera at the 27-inch reference height and four-inch projection dimensions measured from the panel.

In this example, the panel intersects the 27-inch cane-detection height and projects three inches from the wall. The illustration shows objects above the panel projecting up to four inches beyond it: up to seven inches from the wall and four inches to the left and right of the panel. Required reach ranges, clear floor space, and circulation width must remain unobstructed. See the U.S. Access Board guidance for the applicable protruding-object requirements.

Determine the mounting position

Use a laser level to mark the top edge of your preferred panel location.

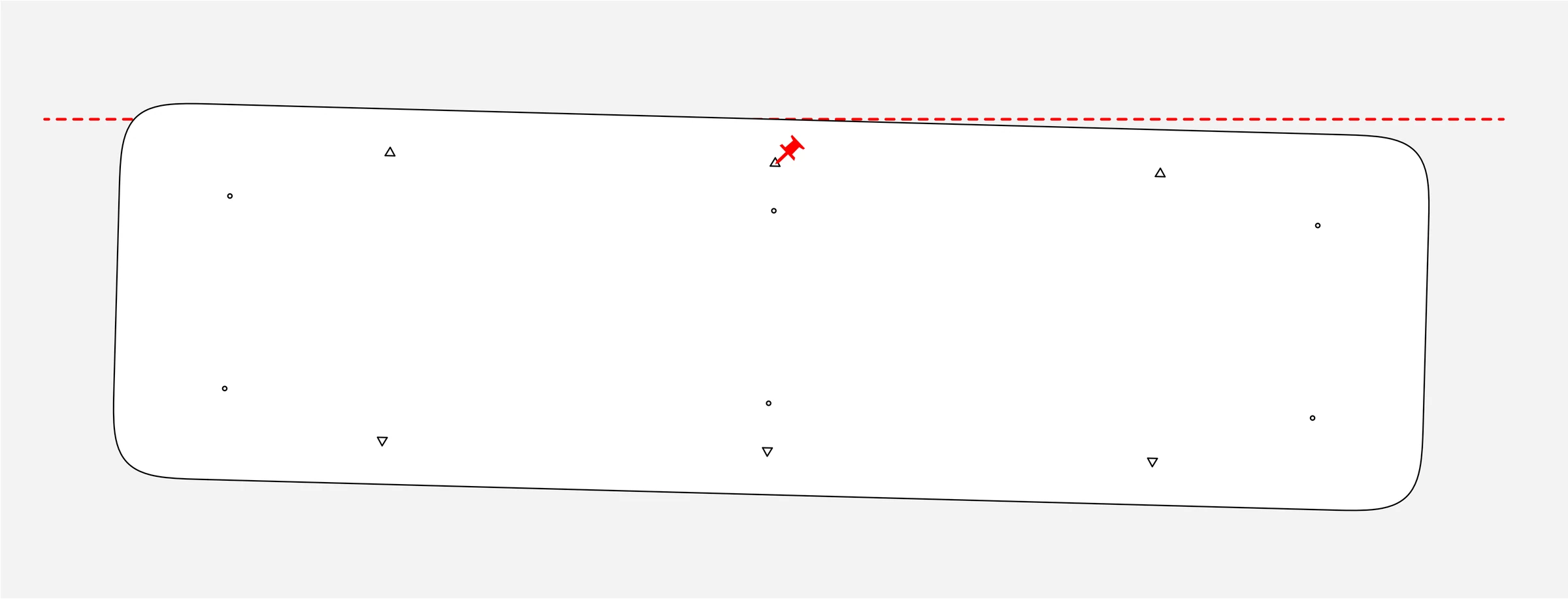

Use the push pin provided to pin the installation template at your preferred location as shown below.

Installation template suspended from a push pin below a horizontal laser-level reference line.

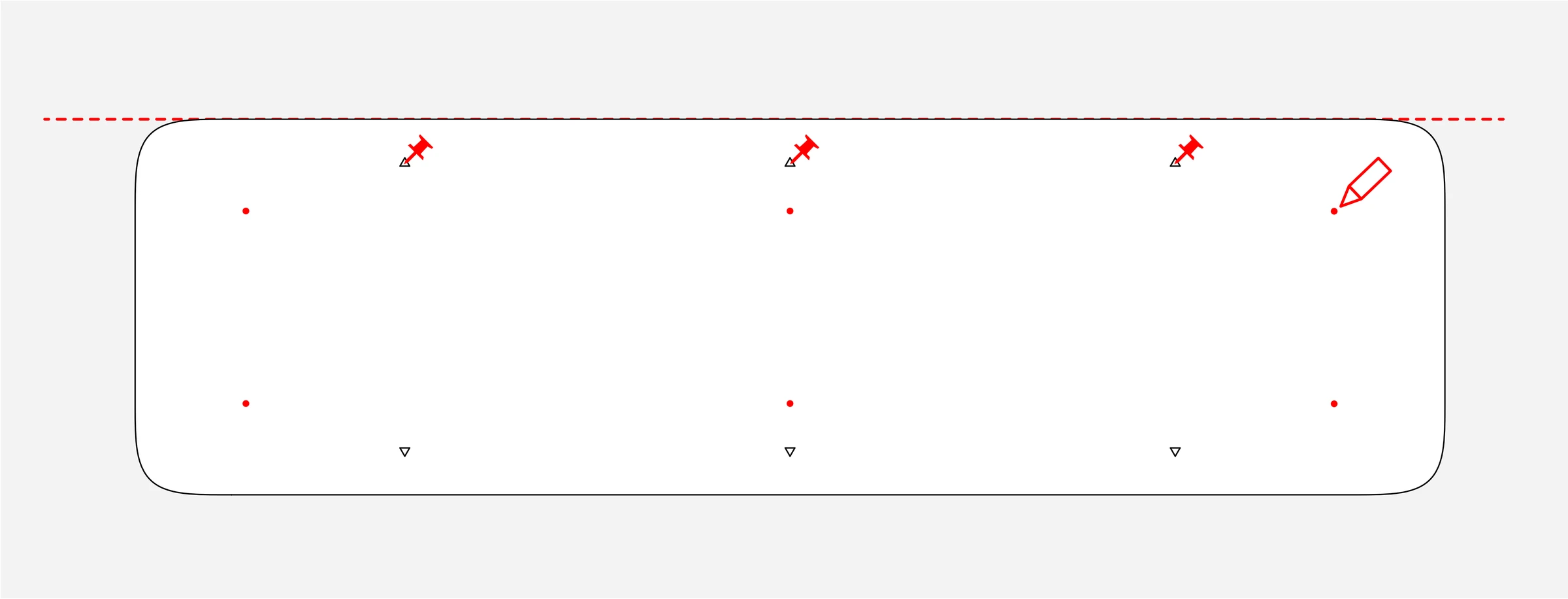

Adjust the installation template until it is level with the laser line, then secure it with the second push pin. Mark the six circular mounting-hole locations on the wall.

Leveled installation template secured with push pins, with 6 mounting-hole locations marked.

If you are installing multiple panels, repeat the process above. We recommend positioning every template prior to marking the wall.

Multiple panel templates aligned along the same horizontal reference line.

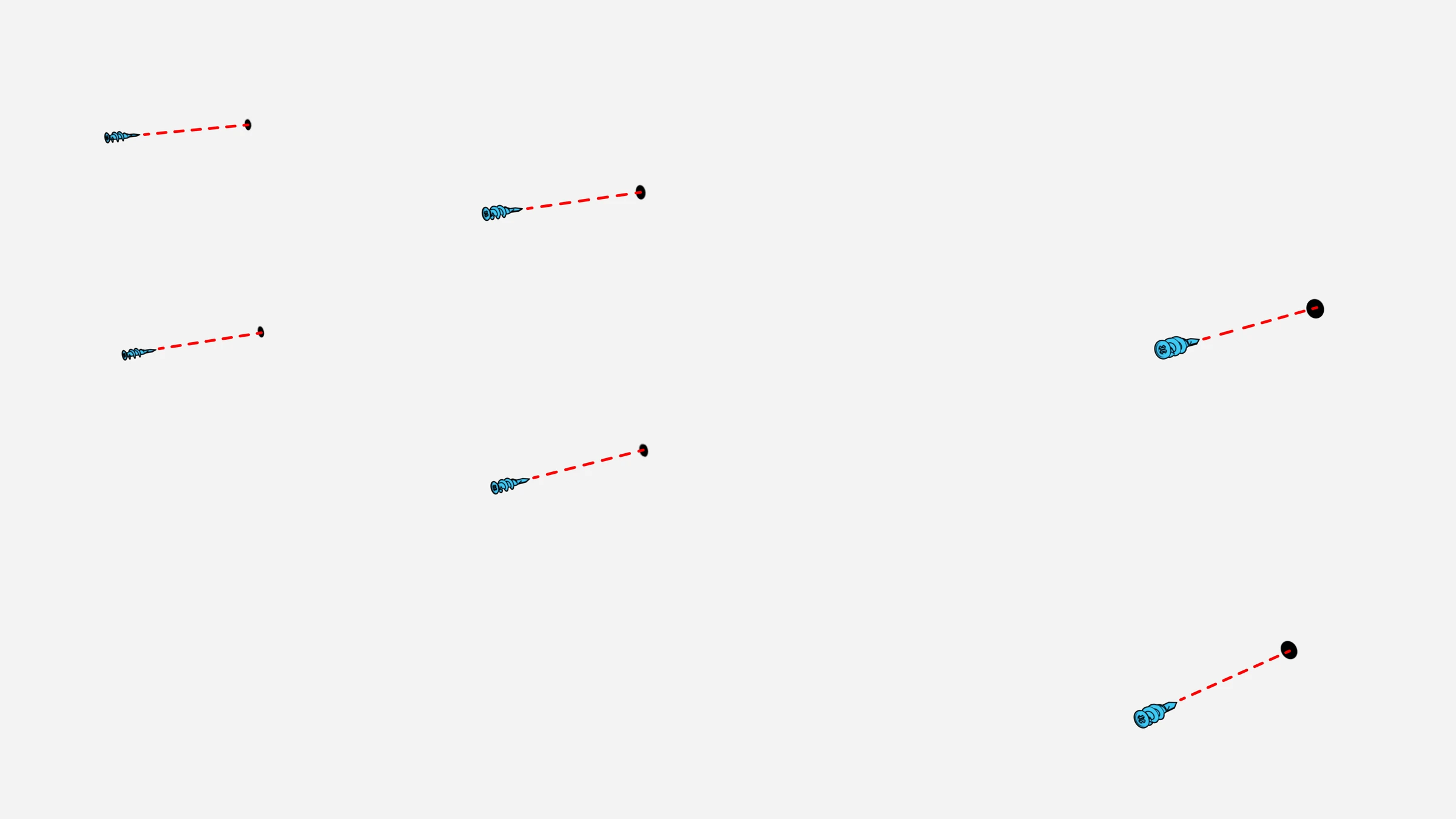

Install the wall mount anchors.

Install the wall mount anchors.

6 wall anchors aligned with their marked wall positions.

Install the wall mount cups with screws and washers included.

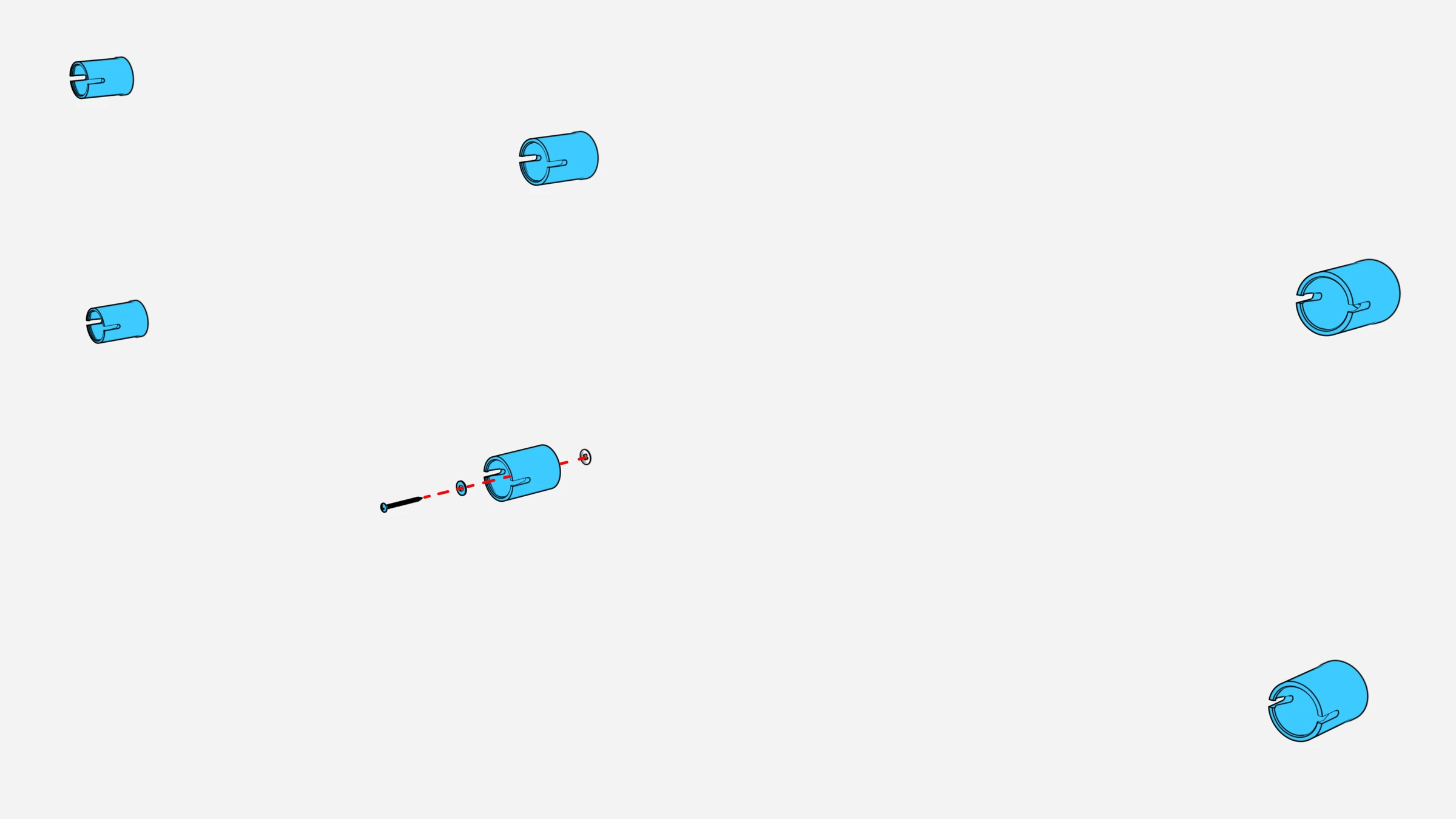

6 wall-mount cups, with a screw and washer aligned through one cup into its anchor.

Close-up showing a screw and washer passing through the wall cup into the wall anchor.

Install the panel anchors

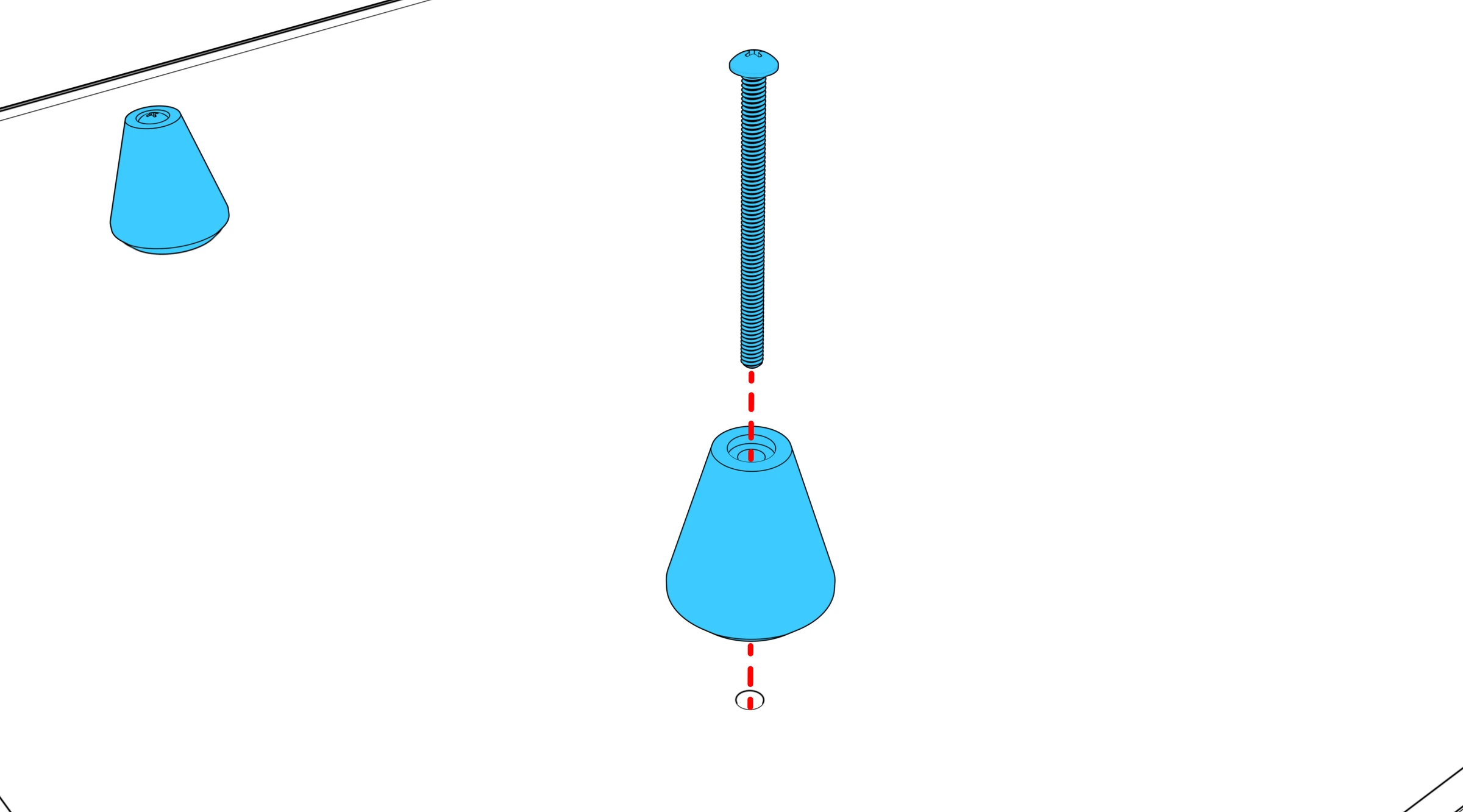

Install six panel anchors to the back of the ADA panel with screws provided.

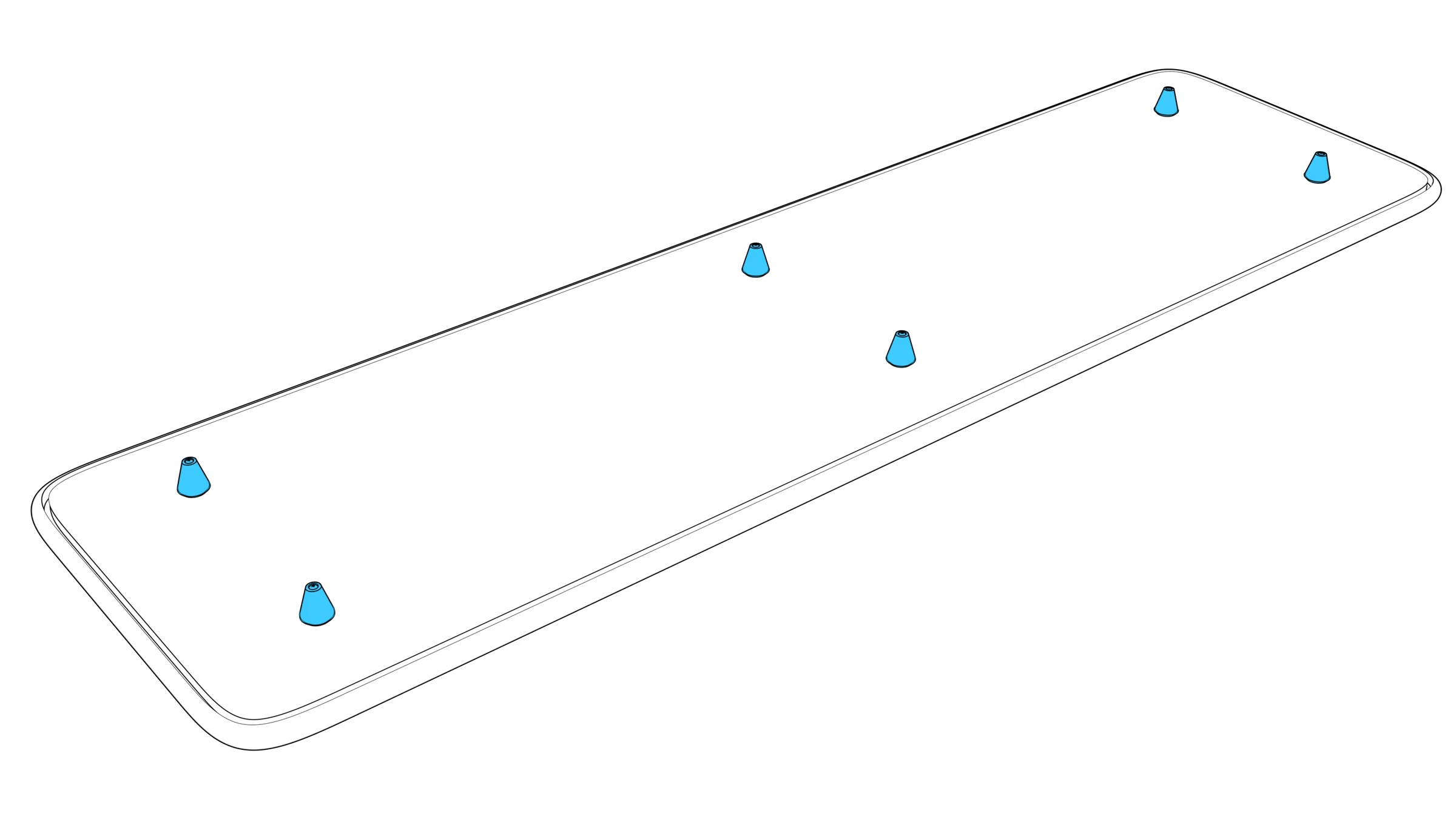

Rear of an ADA panel showing 6 conical panel anchors.

Close-up showing a mounting screw passing through a conical anchor into the back of the panel.

Hang the ADA panel

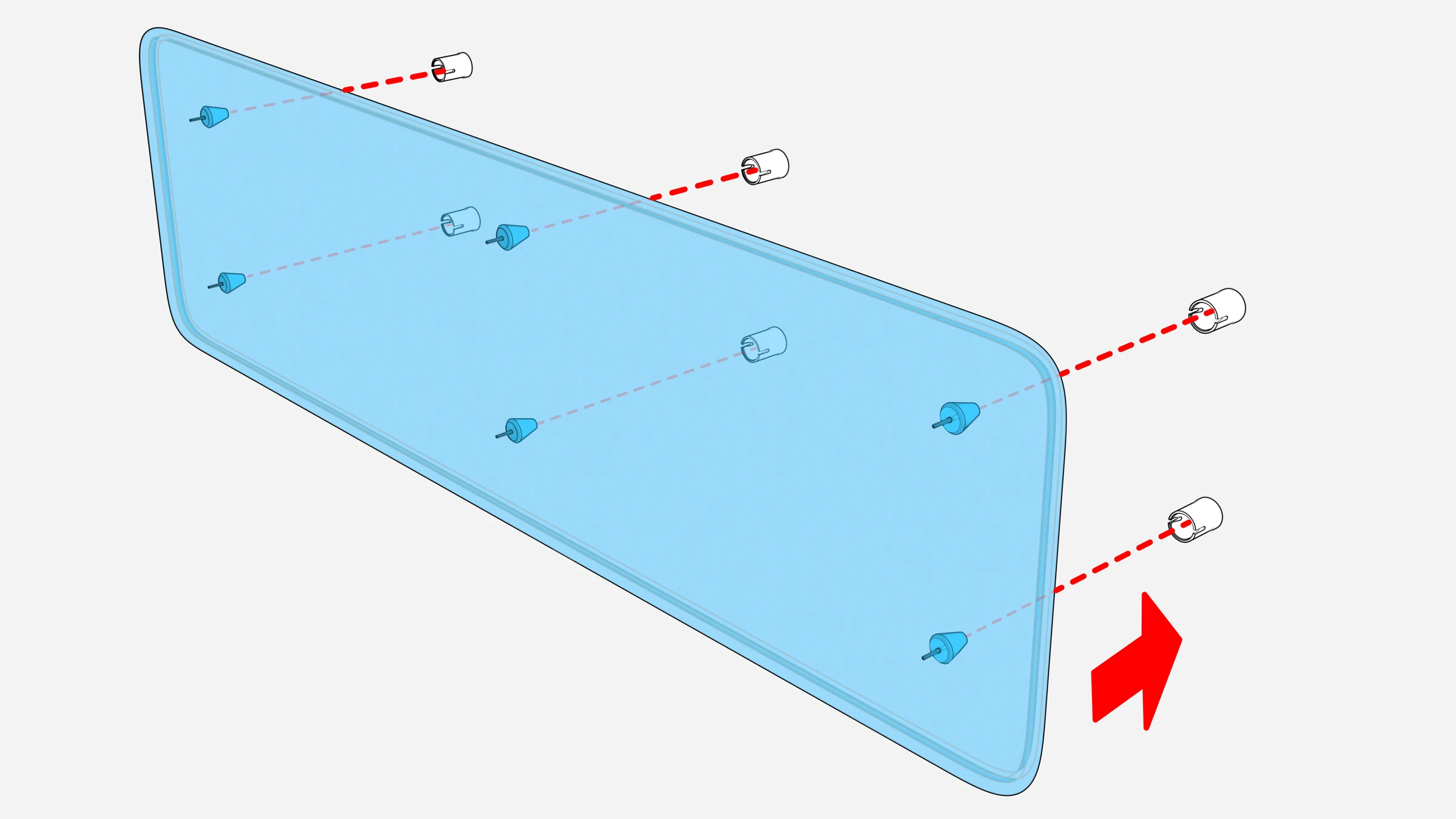

Align the six cones on the panel with the wall-mount cups. Fully press each cone into its cup until you hear a click.

Panel with 6 conical anchors aligned to the matching wall cups and an arrow showing the panel pressed toward the wall.

Close-up of a conical panel anchor seated inside a wall cup, with a click symbol.

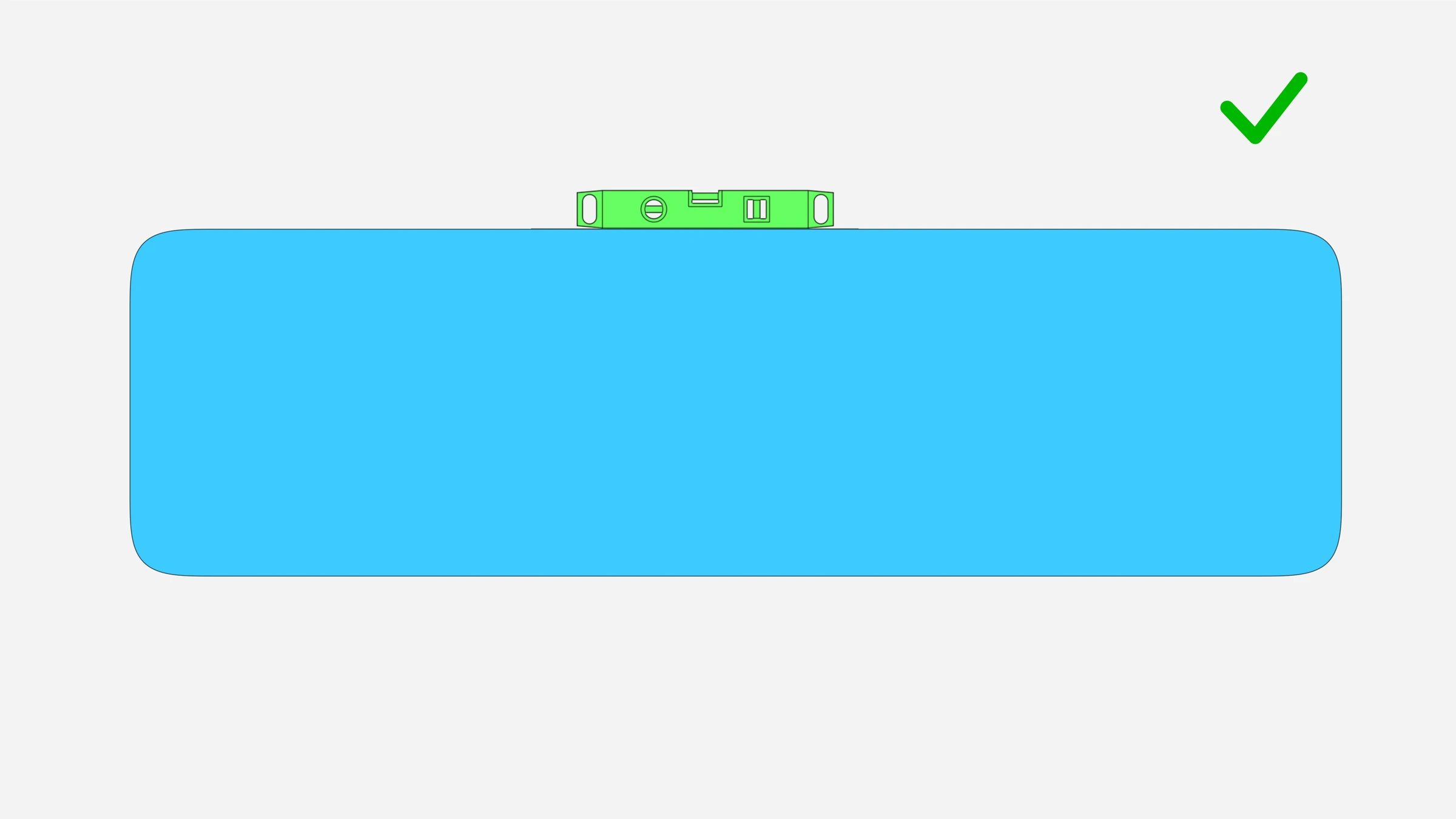

Panel with a level on its top edge and a check mark indicating a level installation.
