Important Safety Notice:
When mounting to mobile whiteboards, be cautious when rolling through doorways. In many cases, you'll want to remove this mount from your whiteboard to avoid potential damage to Logitech Scribe, the whiteboard, and the doorway.

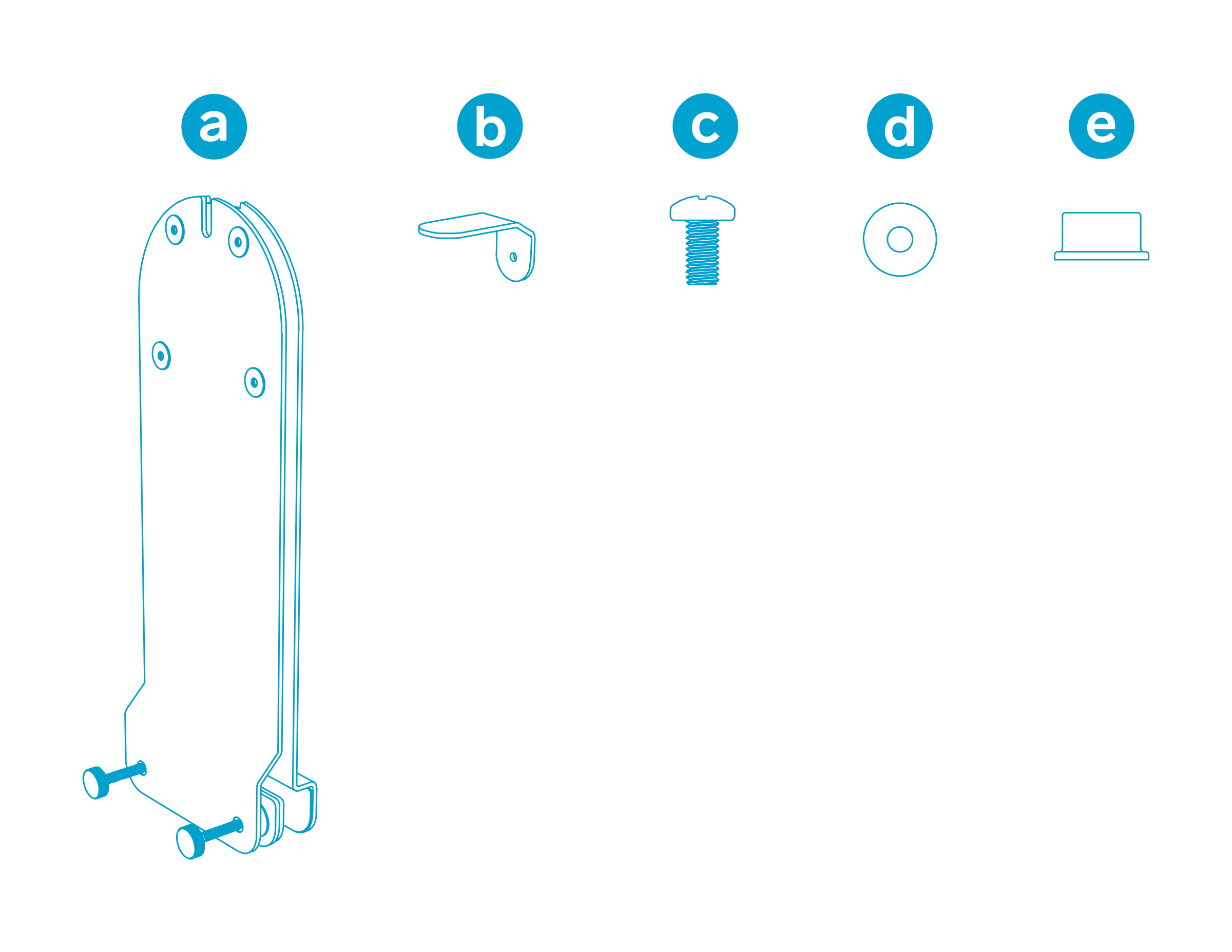

1 x Whiteboard mount 1 x Stay-in-place tab 4 x Pan-head screw, M4 x 0.7 mm, 8 mm long (F896) 2 x Washer (F897) 2 x Bumper (F056) Enlarge image ↗ Labeled parts diagram showing the whiteboard mount, stay-in-place tab, pan-head screw, washer, and bumper.
Fasten the Scribe Camera Mounting Bracket to the mount using the included screws (c) and washers (d). Do not overtighten.

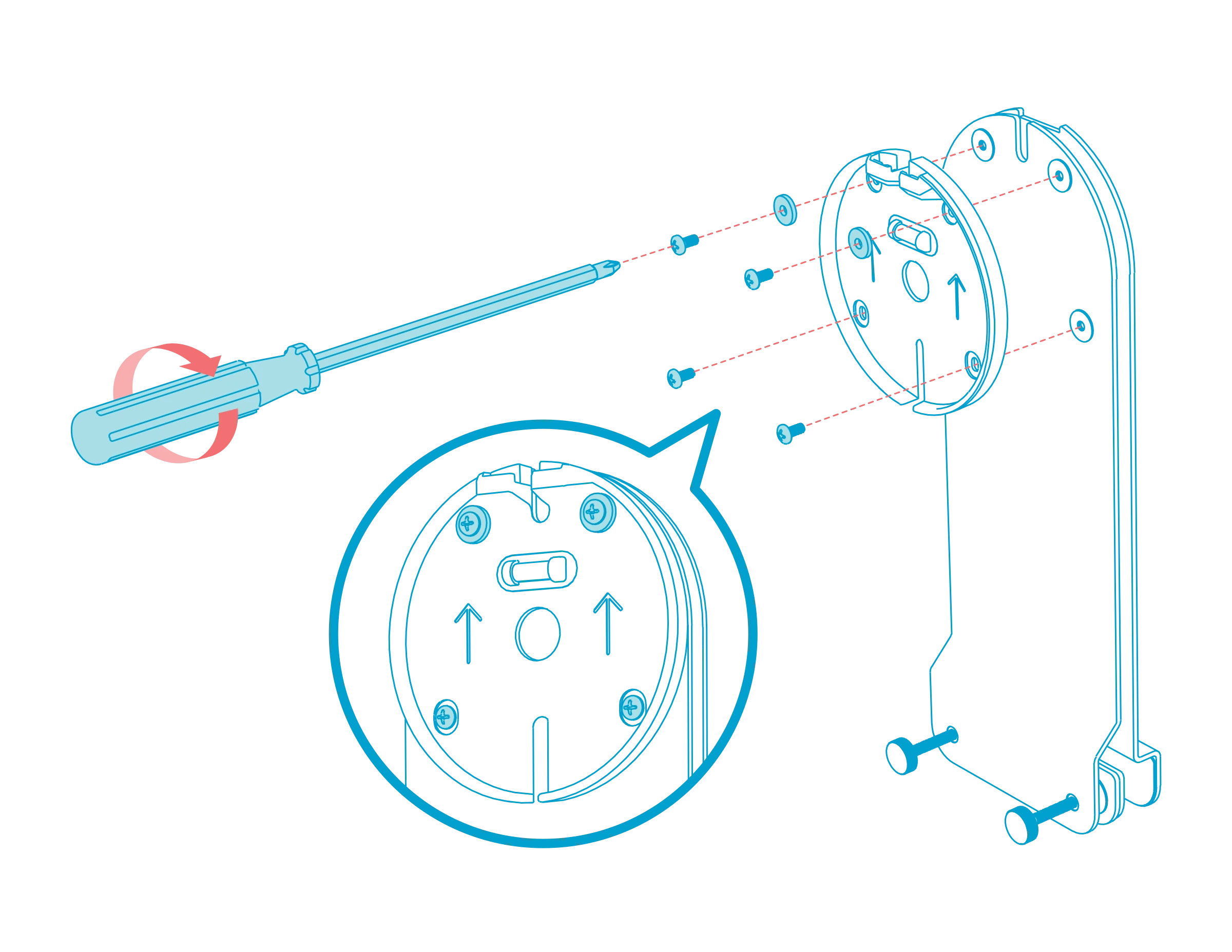

Enlarge image ↗ Four screws aligned through the circular Scribe mounting bracket into the whiteboard mount, with a Phillips screwdriver and an enlarged view of the upward orientation arrows.
Route the CAT5e cable between the front and rear surfaces of the mount as shown. Connect the CAT5e cable to the Logitech Scribe Camera. Hang and connect the Scribe Camera to its Camera Mounting Bracket.

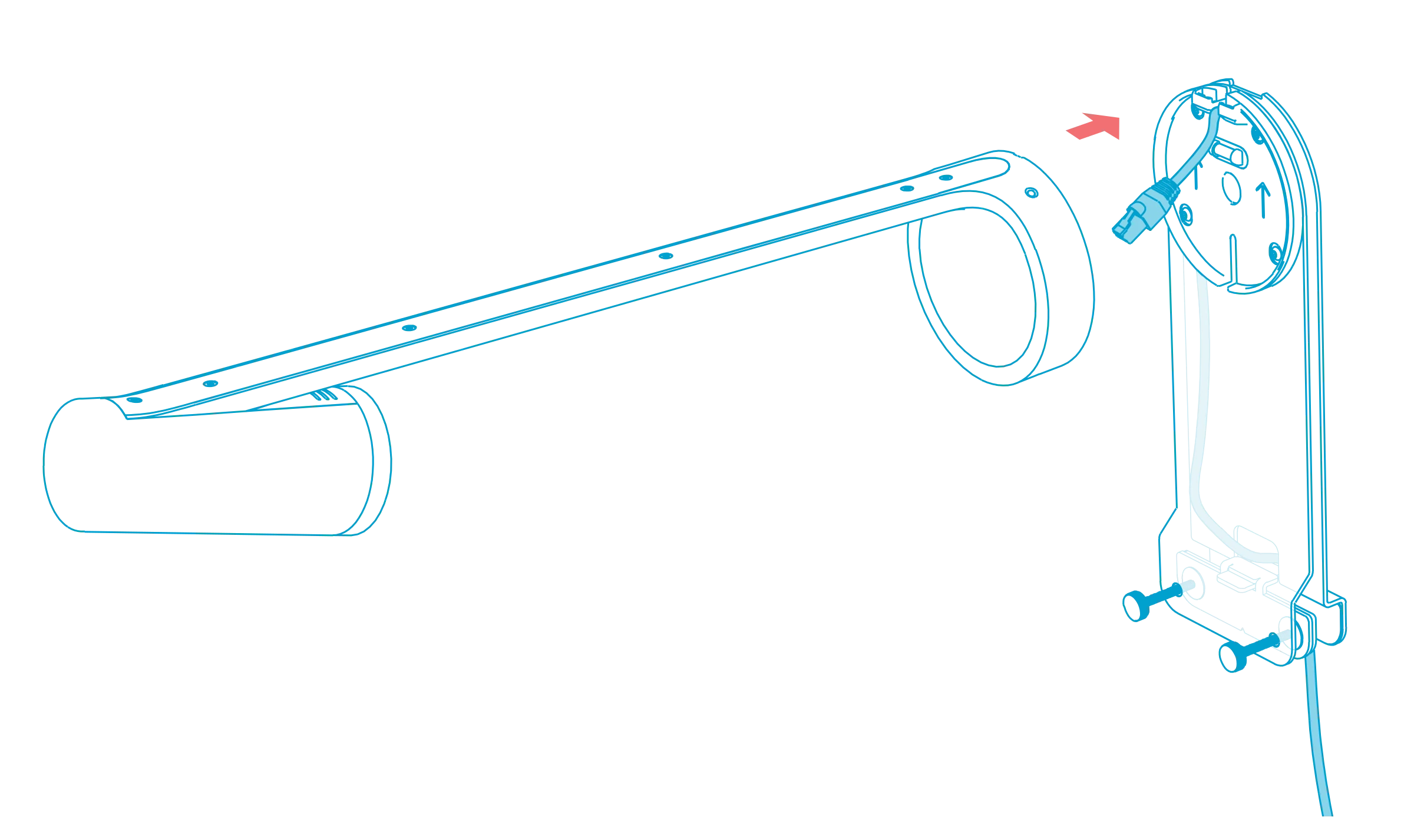

Enlarge image ↗ Scribe camera arm aligned with the circular mounting bracket, with the cable plug beside the bracket and an arrow toward the mount.

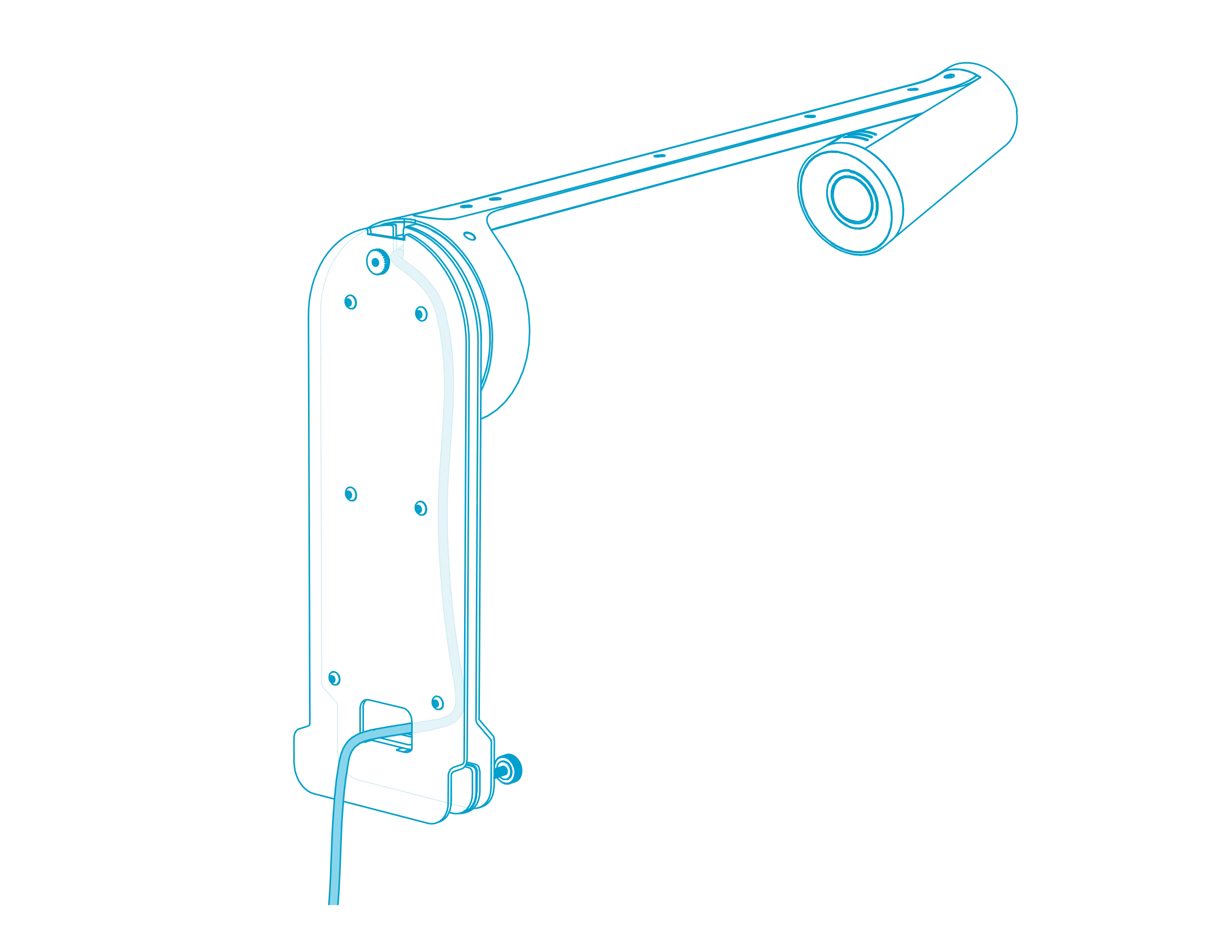

Enlarge image ↗ Scribe camera attached to the mount, with the cable routed down through the space between the front and rear surfaces.
Tip: The use of the stay-in-place tab is optional, but recommended when the Scribe Camera is mounted to mobile whiteboards.

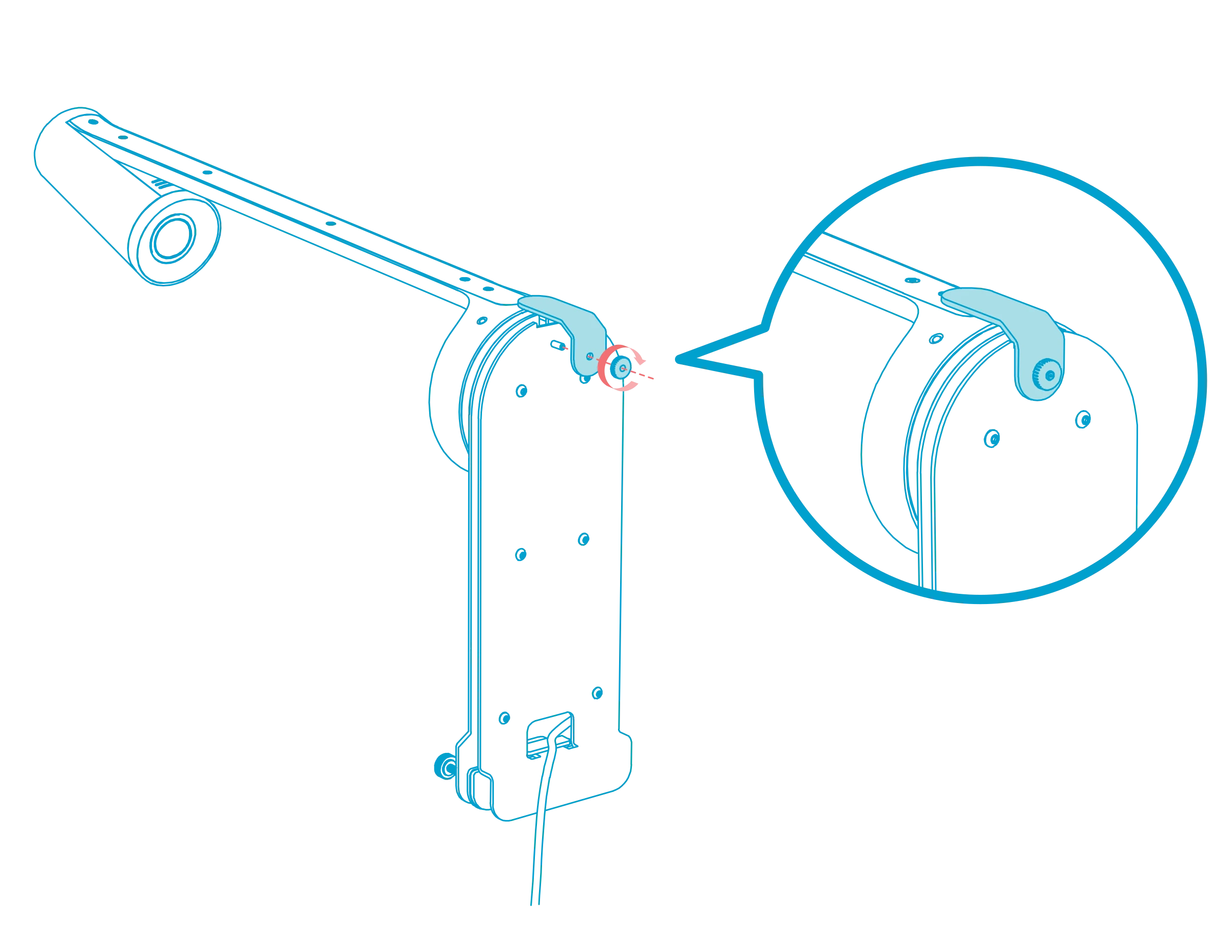

Enlarge image ↗ Stay-in-place tab at the top of the Scribe mounting bracket, with a close-up of the tab and its screw.
Measure the width of your whiteboard and mark the center point of the board with a dry-erase marker.
If your whiteboard has thicker, non-flush trim, apply two bumpers (e) to the whiteboard against the trim as shown. Position the mount so its centering notch aligns with the centerline on your whiteboard.
Important: Continue to support the weight of the mount and camera until the clamp is firmly engaged.

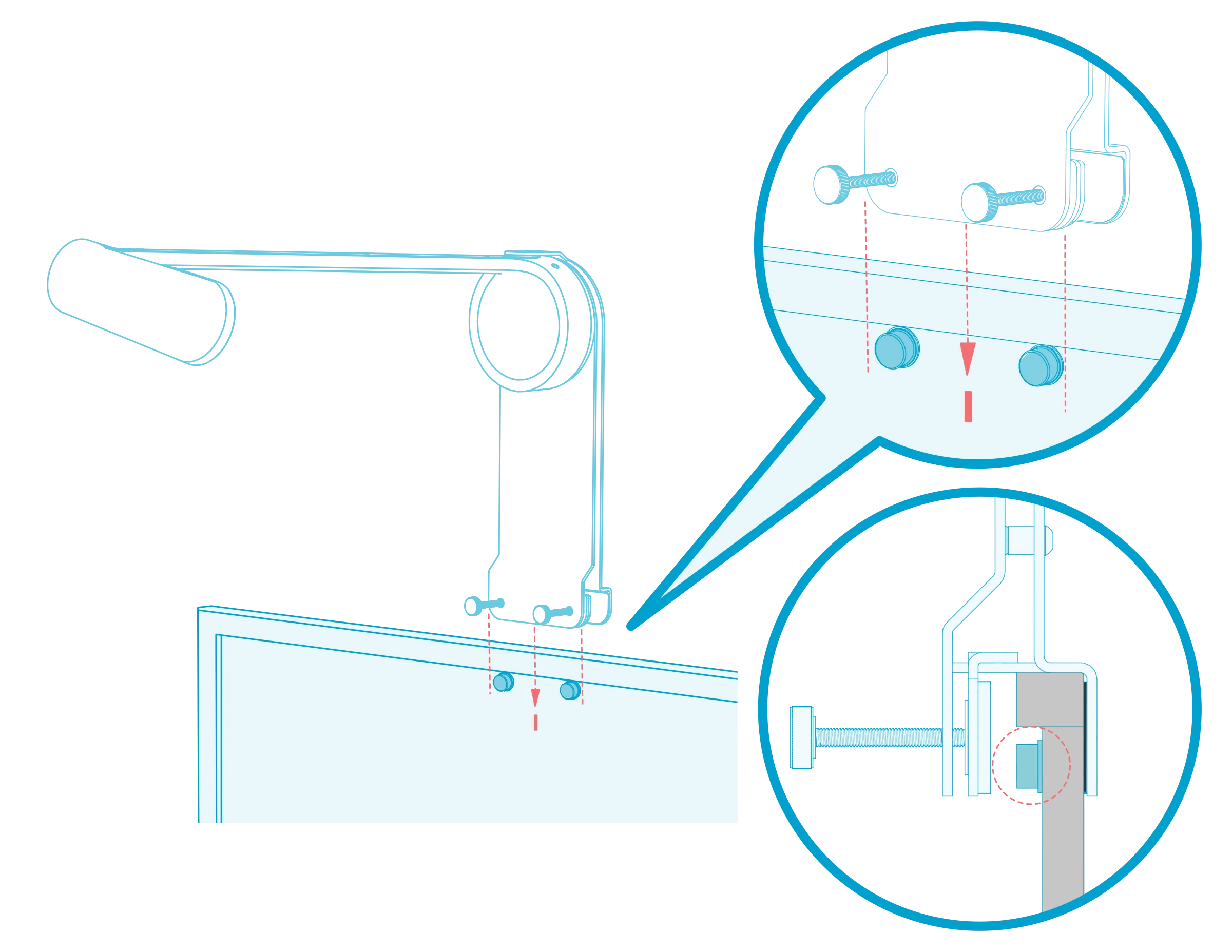

Enlarge image ↗ Mount positioned over a whiteboard edge, with two bumpers against the raised trim and cross-section detail of the clamp.
Tighten the two thumbscrews to clamp the mount to your whiteboard.
Tip: While tightening, lean the mount backward slightly. This will help ensure a near-vertical mount orientation when the clamp is fully engaged.
Tip: As you tighten the clamp, alternate between the two thumbscrews to help ensure even clamping pressure. Do not overtighten. The clamp is fully engaged when the moving plate is pushed firmly against the front surface of your whiteboard.

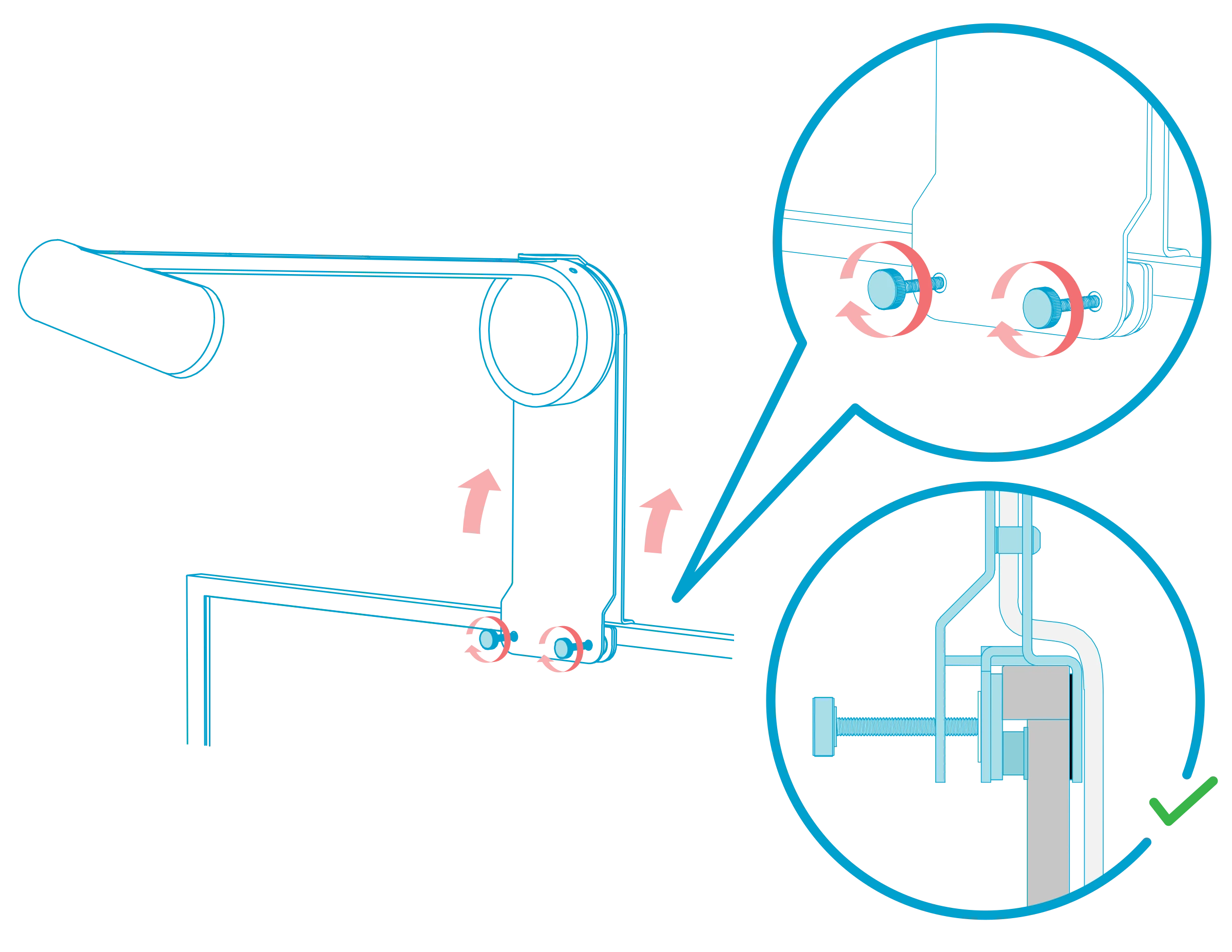

Enlarge image ↗ Two clamp thumbscrews shown with turning arrows; the side cross-section shows the moving plate against the whiteboard, with a check mark.
