User guide

H905 Floor Stand for Short Throw Projectors

Read guide

PDF · Letter PDF · A4

Guide details Applicability and revision

Assemble the projector stand and configure the projector, camera, equipment, and cables.

ProductH905

Hardware generationH905

Guide revisionrelease-2026-10-28.1

Applies to

H905 Floor Stand for Short Throw Projectors.

In this guide · 10 sections

This stand is designed for a telepresence-quality video meeting room with an exceptionally large projected screen, camera coverage of up to eight people, and space for computers and rack-mounted components.

This stand is designed specifically for the Epson EB-PU1007B projector and the Jabra PanaCast 50 or Logitech Rally Bar camera system.

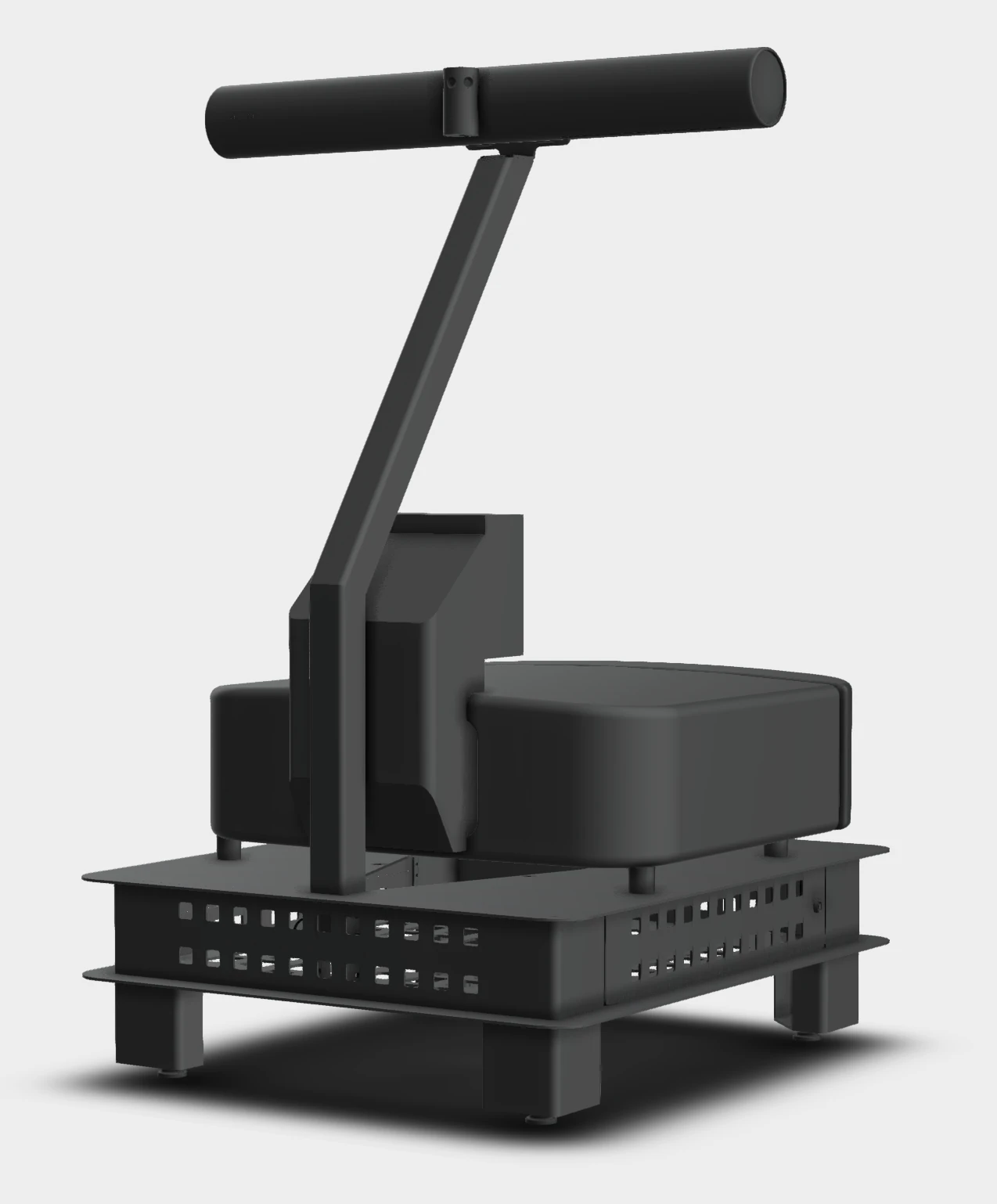

Assembled floor stand with a projector on its upper shelf, enclosed equipment compartment below, and a video bar on the angled neck.

For support, contact Heckler at service@heckler.com or +1 (844) 432-5930.

In the box

• Stand base

• Neck

• 2 rack mount cover plates

• 4 leveling feet

• Rack mount screws

• 1 cam lock key for locking component compartment

• 4 M6 thumbscrews for fastening Epson projector

• 1 quick-release pin for neck assembly

• 2 sets of M5 screws and wing nuts for mounting Jabra Panacast 50

• 2 feet of black hook-and-loop strap for device mounting

• 5 Cable Ties for routing cables within neck

Tools needed

- Phillips screwdriver - Level - Scissors

Install neck

Slide the neck into the neck channel on the stand base.

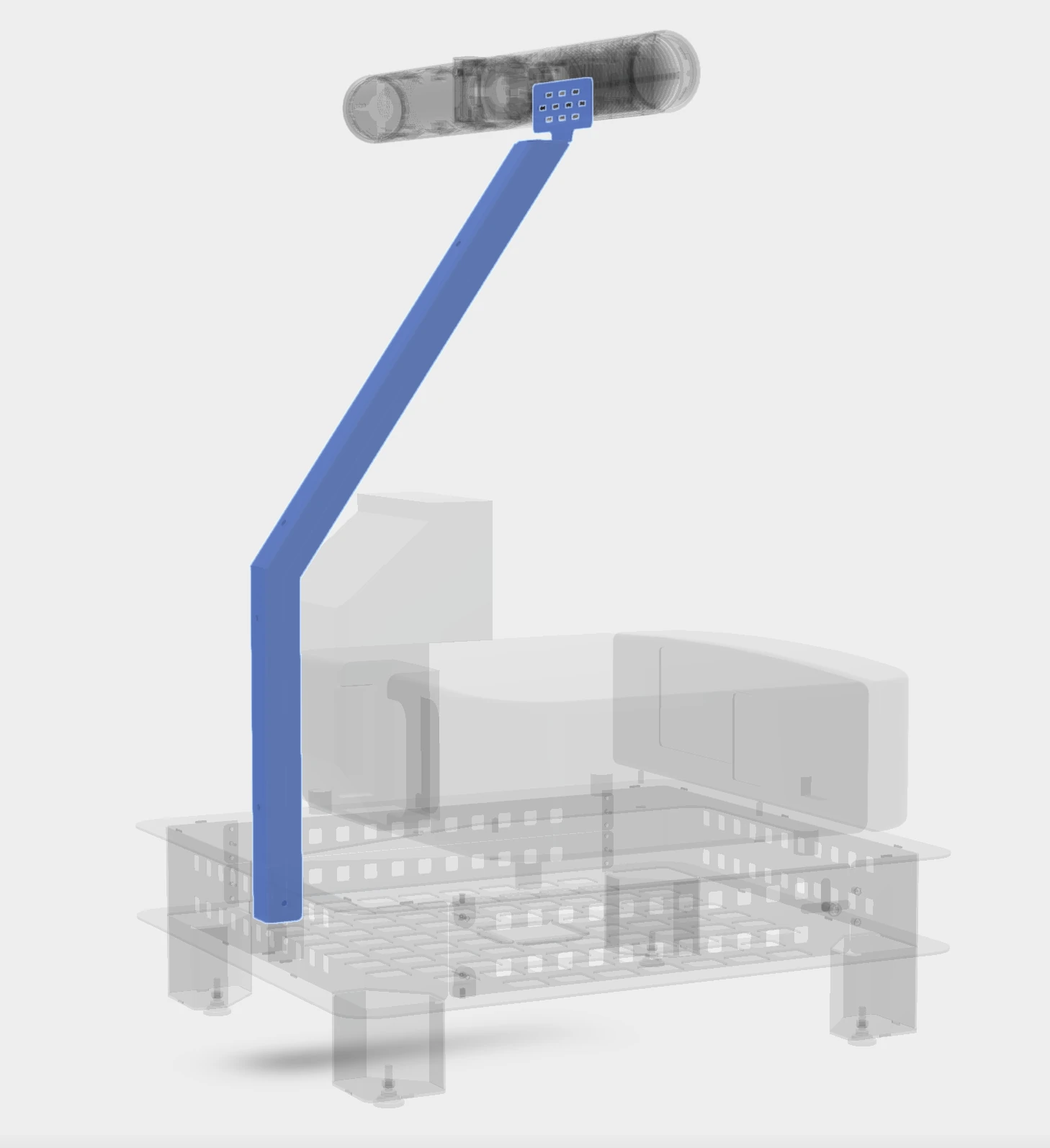

Angled neck highlighted from the stand base to the camera mounting plate, with the surrounding equipment transparent.

Insert the quick-release pin through neck channel and neck.

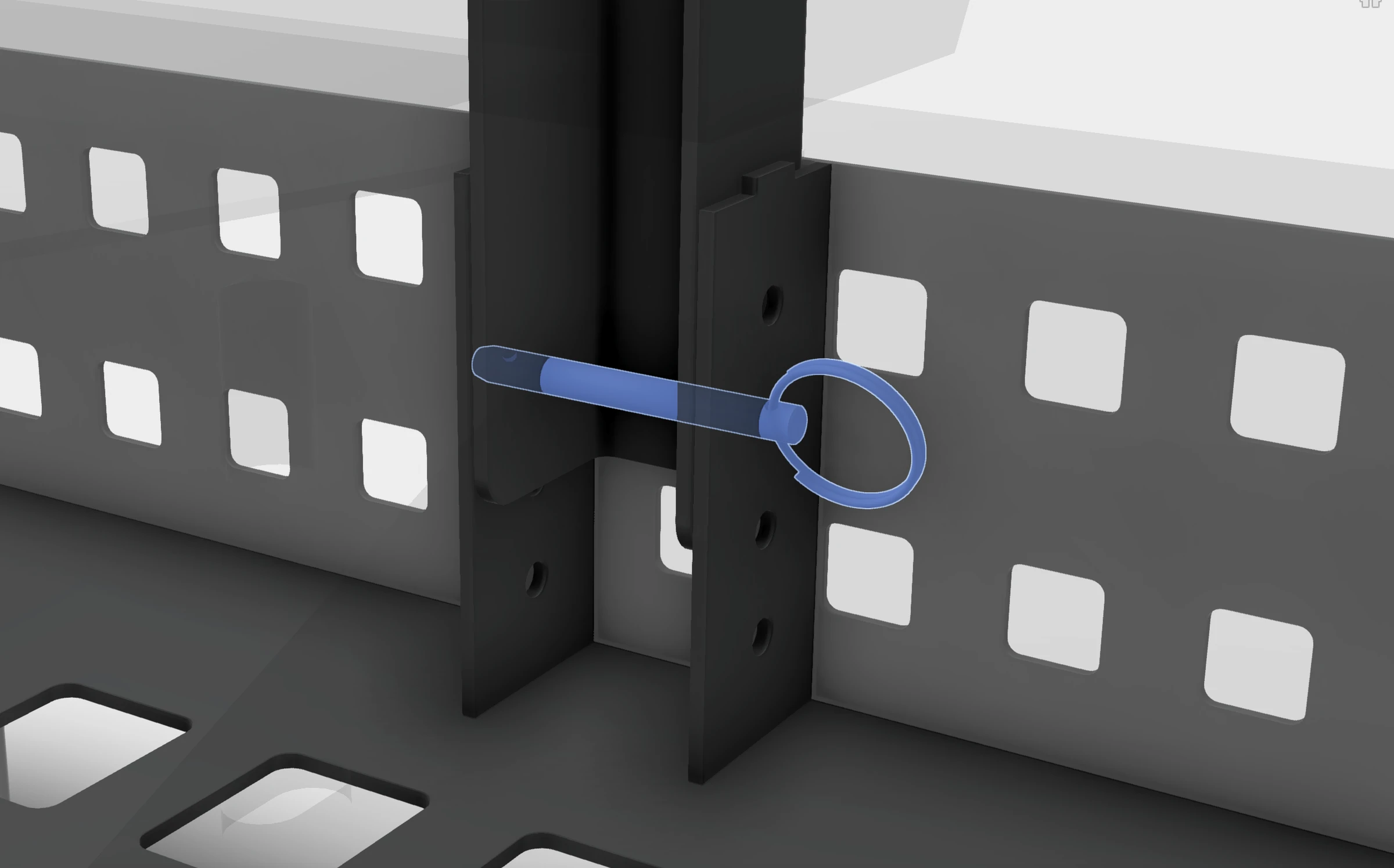

Ring-handled quick-release pin crossing the neck channel and the inserted neck.

Install camera

Fasten the Jabra Panacast 50 to the mounting plate at the top of the neck using the M5 screws and wing nuts provided.

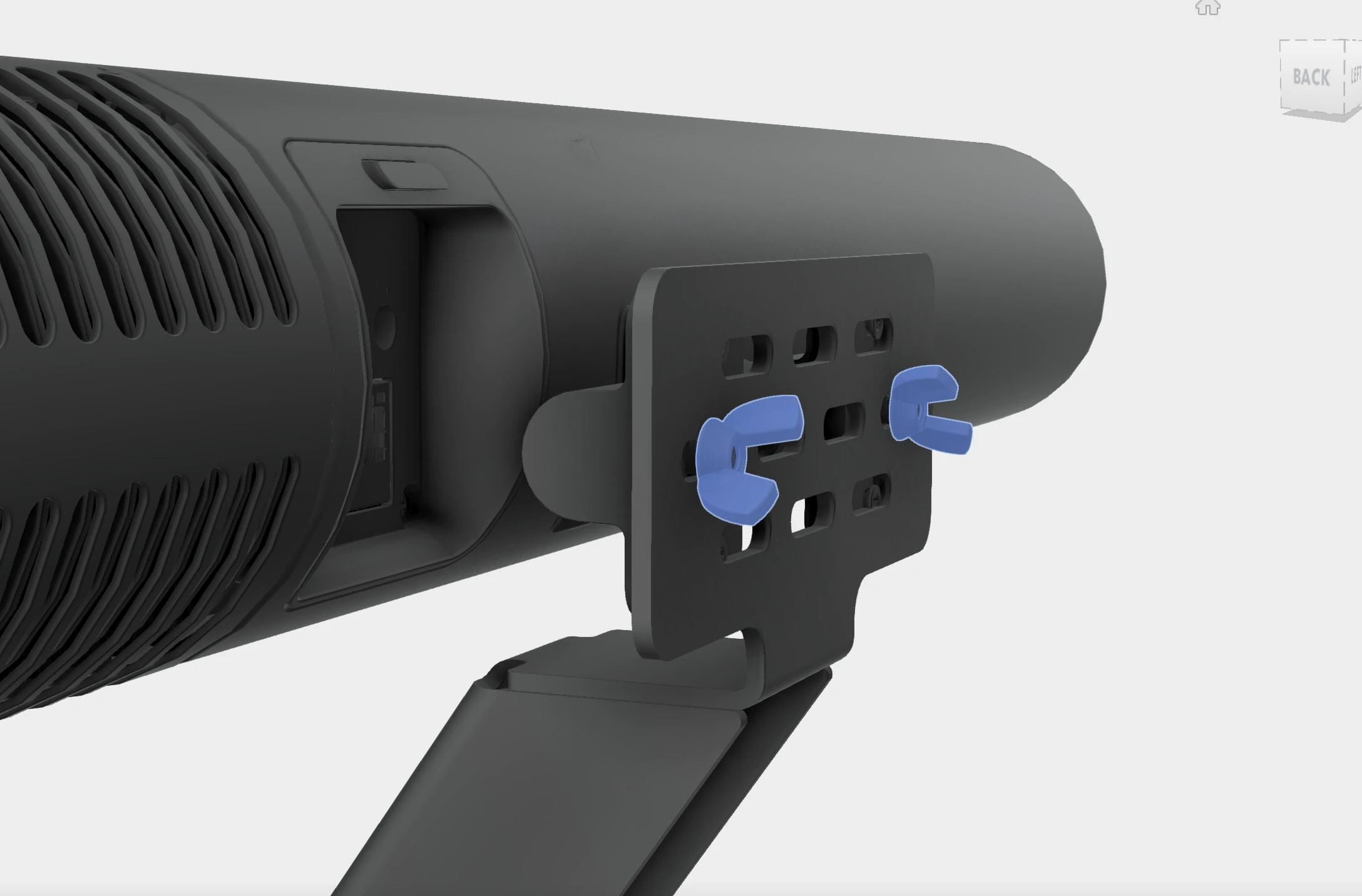

Rear of the video bar with two wing nuts at the camera mounting plate.

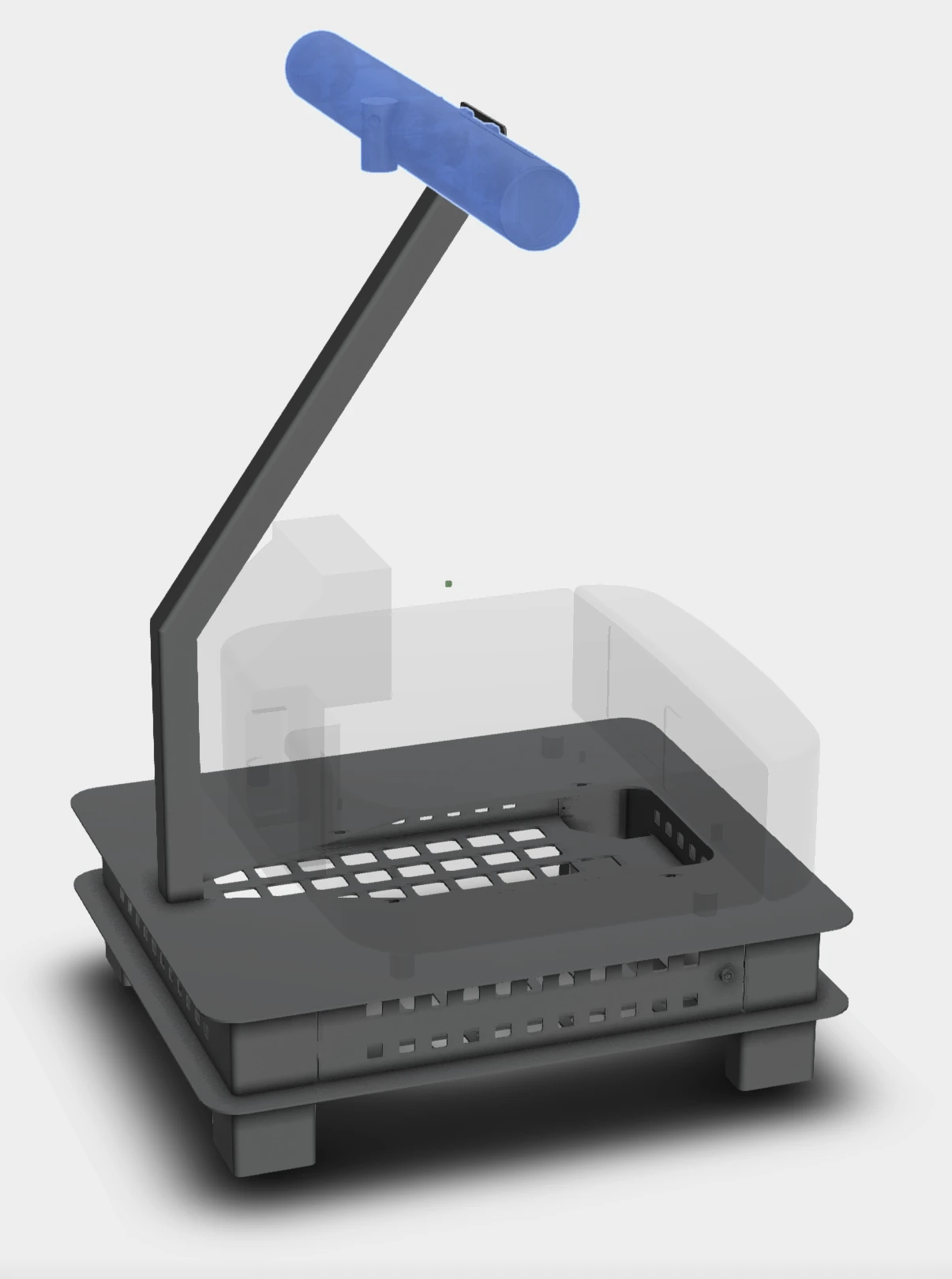

Video bar highlighted on the neck, facing outward from the stand base.

Route and secure the camera cabling along the neck and into the compartment using the provided cable ties and pre-installed cable-tie anchors. Trim the excess cable-tie length.

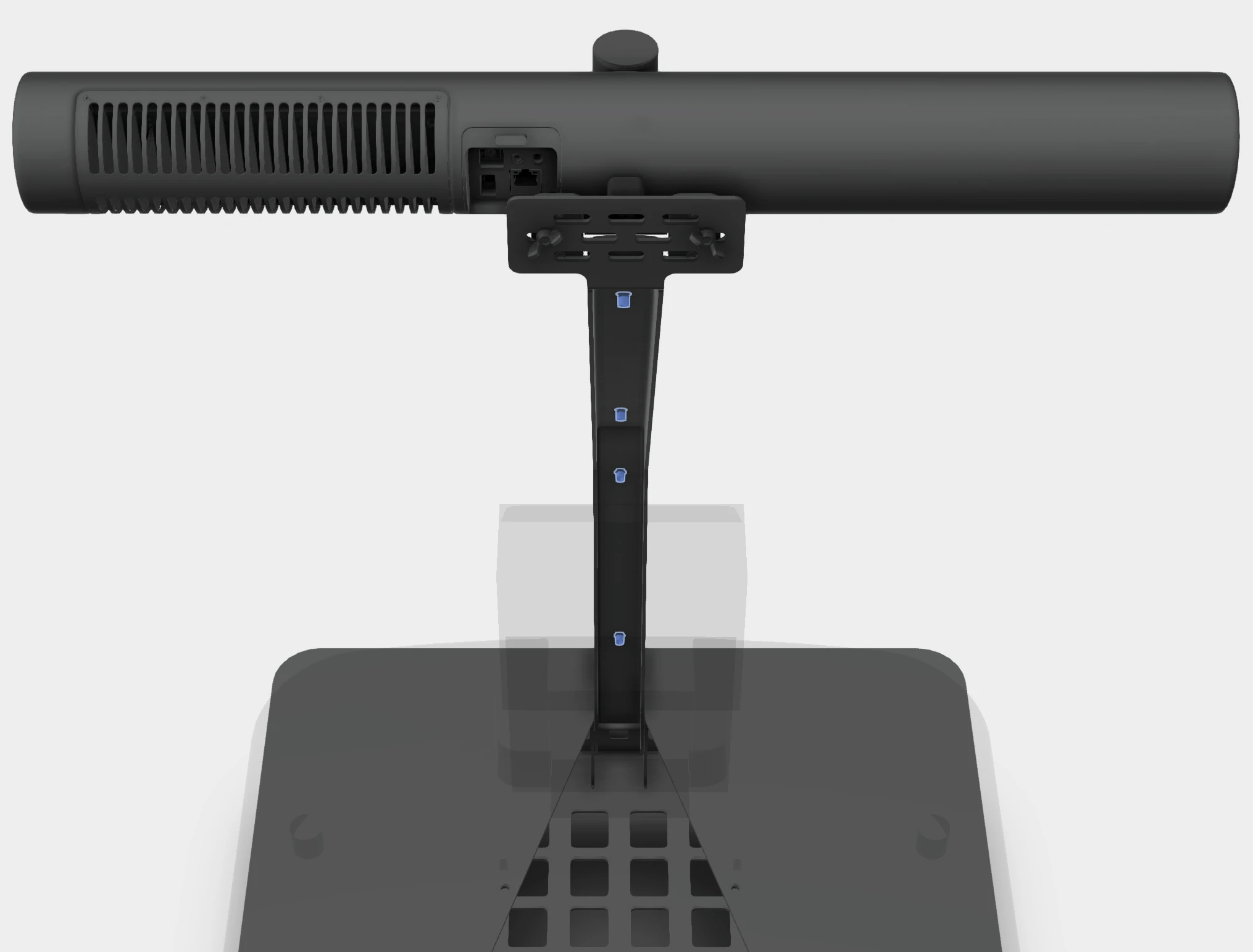

Rear of the video bar and neck showing the cable tie mounting points down the neck.

Install projector

Position the Epson EB-PU1007B projector on the top of the stand.

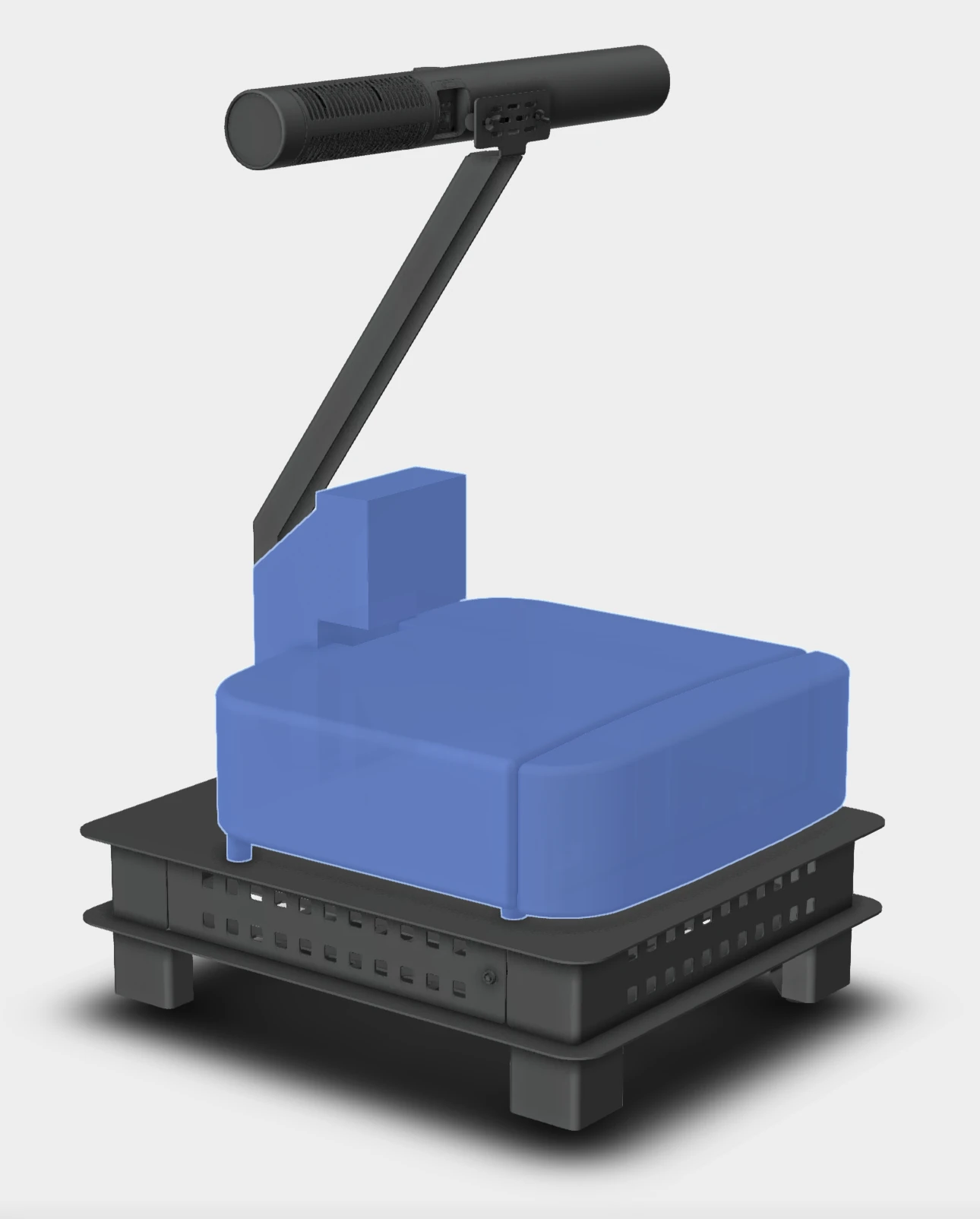

Projector highlighted on the upper surface of the stand, with its lens housing away from the neck.

Align the mounting holes on the bottom of the projector with the mounting holes on the surface of the stand base.

Fasten the projector using the provided M6 thumbscrews.

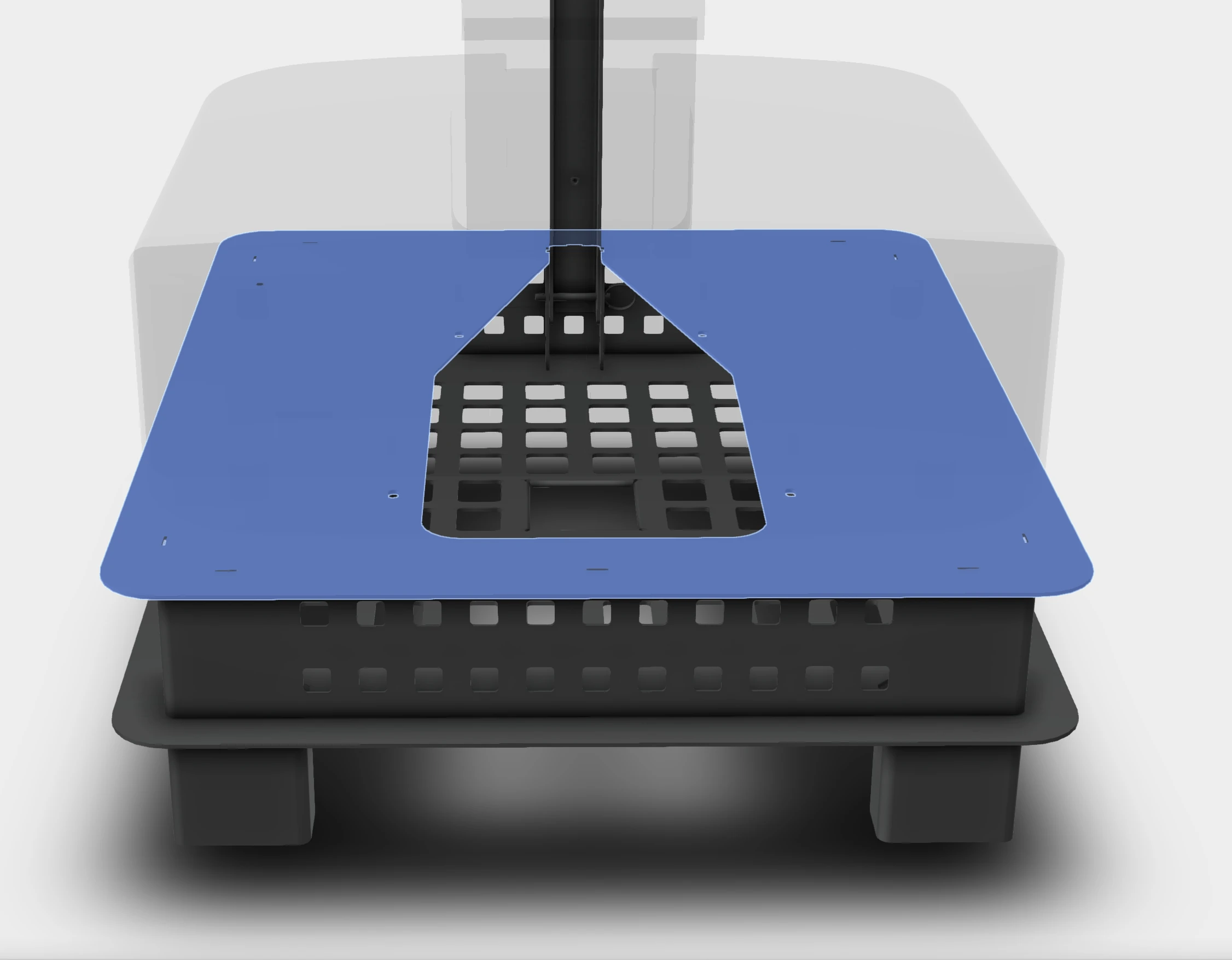

Top shelf highlighted beneath a transparent projector, showing the large cable opening.

Route cables from the projector into the stand storage compartment by removing the front cover of the projector.

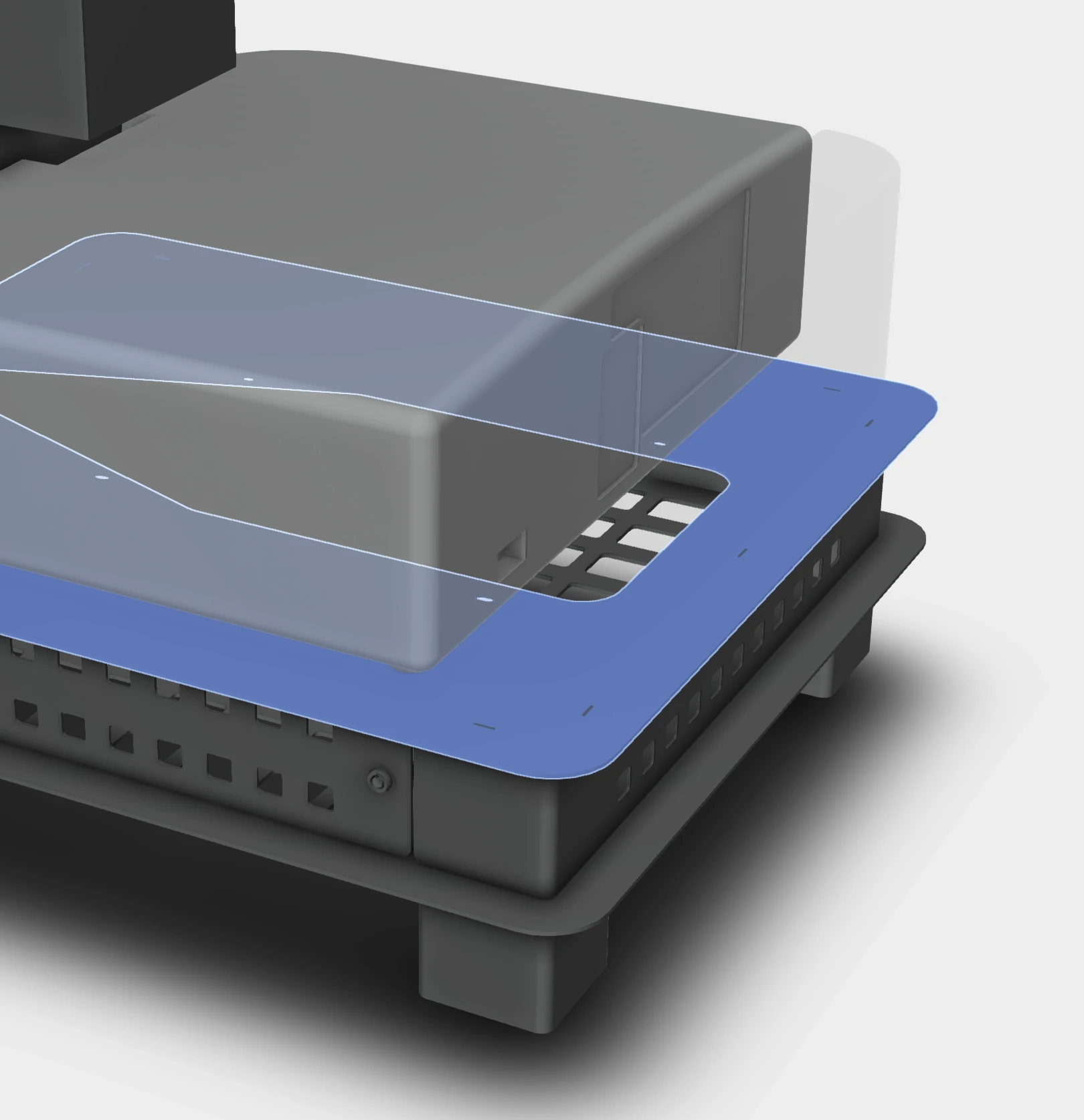

Close-up of the projector corner and the shelf beneath it, with the projector partially transparent.

Install rack components

Remove the rack mount cover plates by removing the wing nuts from the inside.

Fasten rack mount components to the stand base using provided rack mount screws.

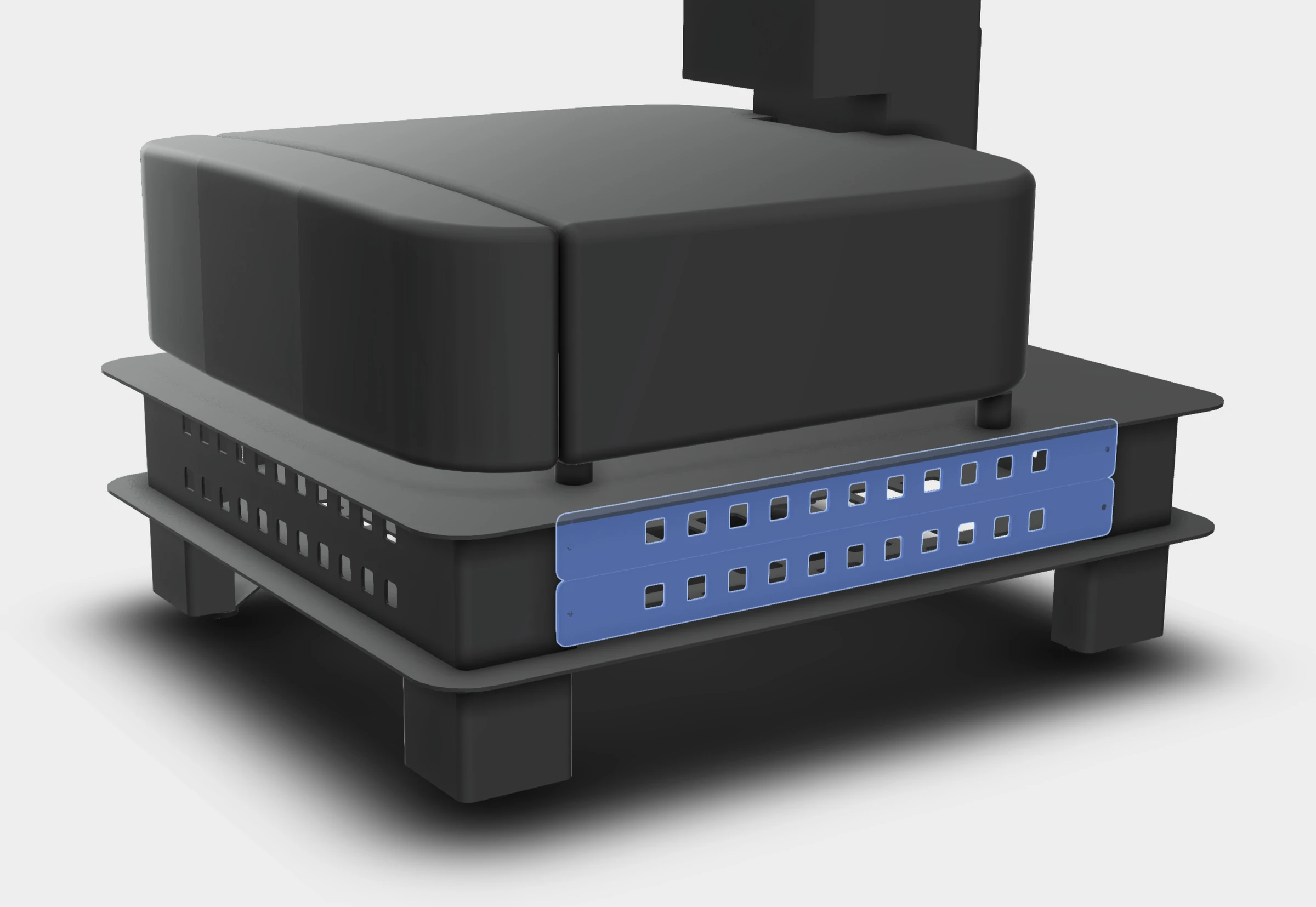

Rack cover plate highlighted on one side of the equipment compartment.

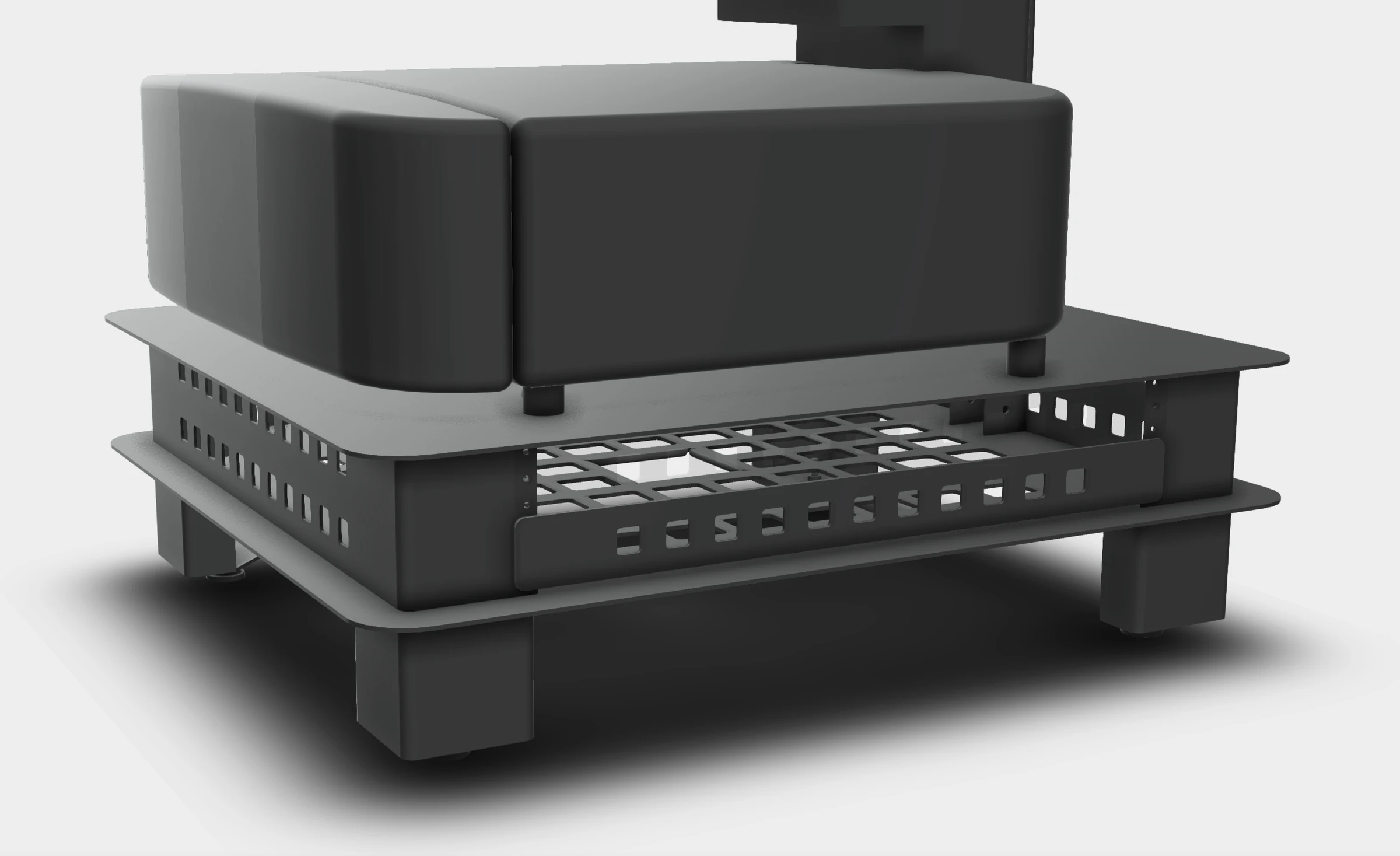

Open rack bay beneath the projector shelf after the cover plate has been removed.

Install small components

Unlock and open the component compartment using the provided key.

Place small components.

Use the provided hook-and-loop strap to secure components to the hole pattern in the compartment floor. Cut the strap to the lengths needed for your components.

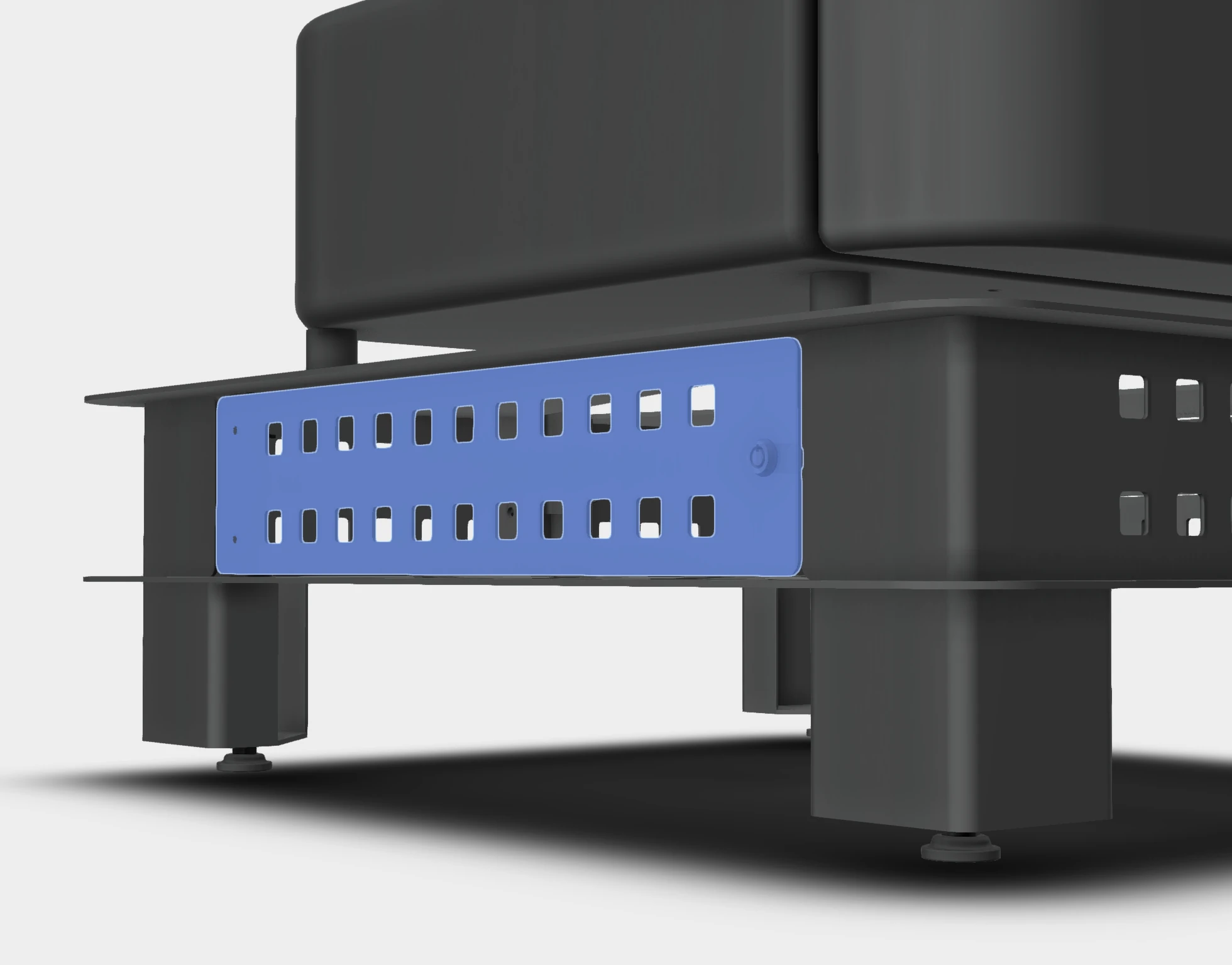

Side access panel highlighted, with a round cam lock near its end.

Manage cables

Route cables through the large center hole in the floor of the compartment to access floor outlets.

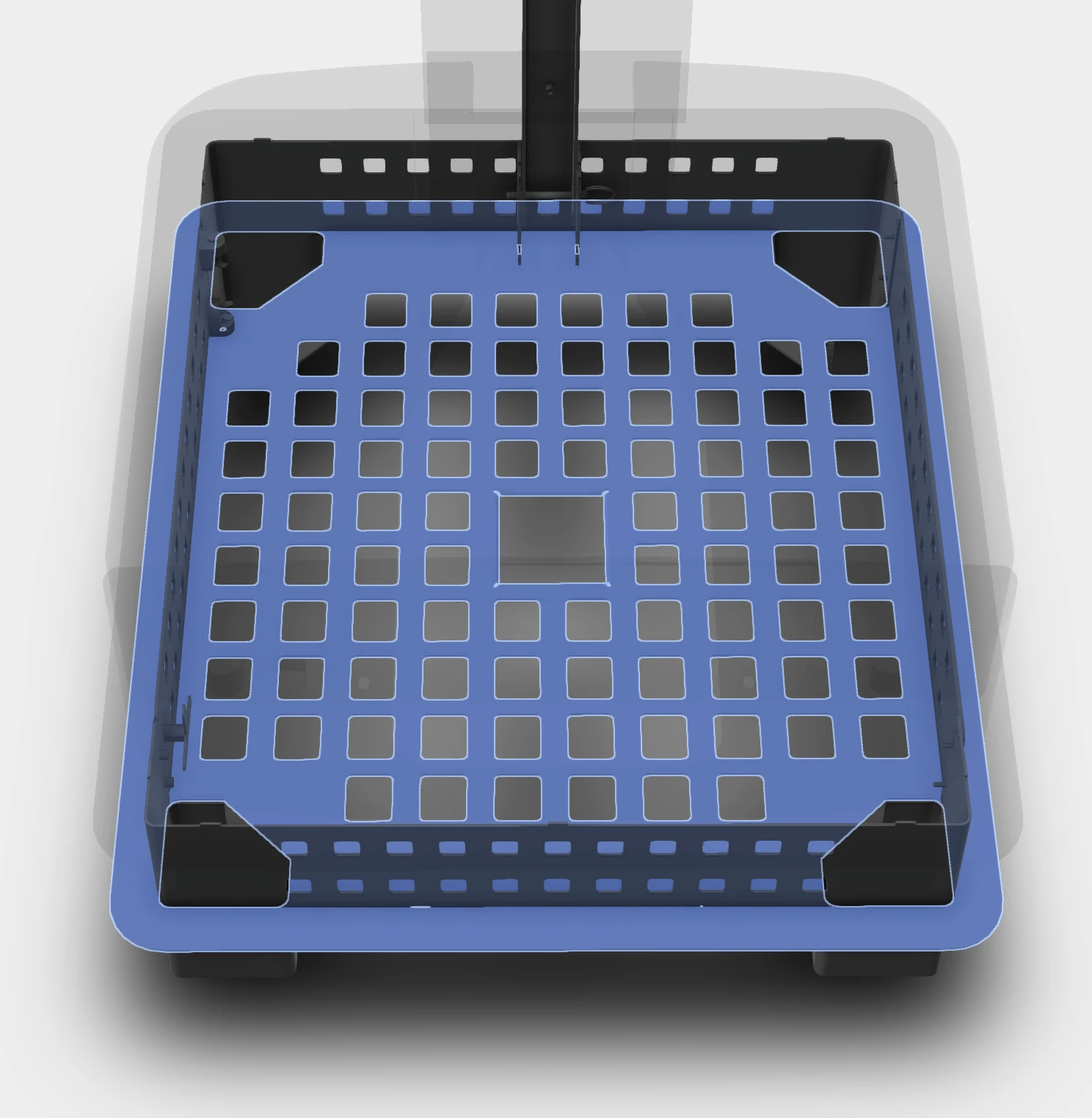

Perforated compartment floor highlighted, with a large central opening and smaller attachment holes.

Level stand

Adjust the leveling feet as needed to level the stand. Use a bubble level for reference.

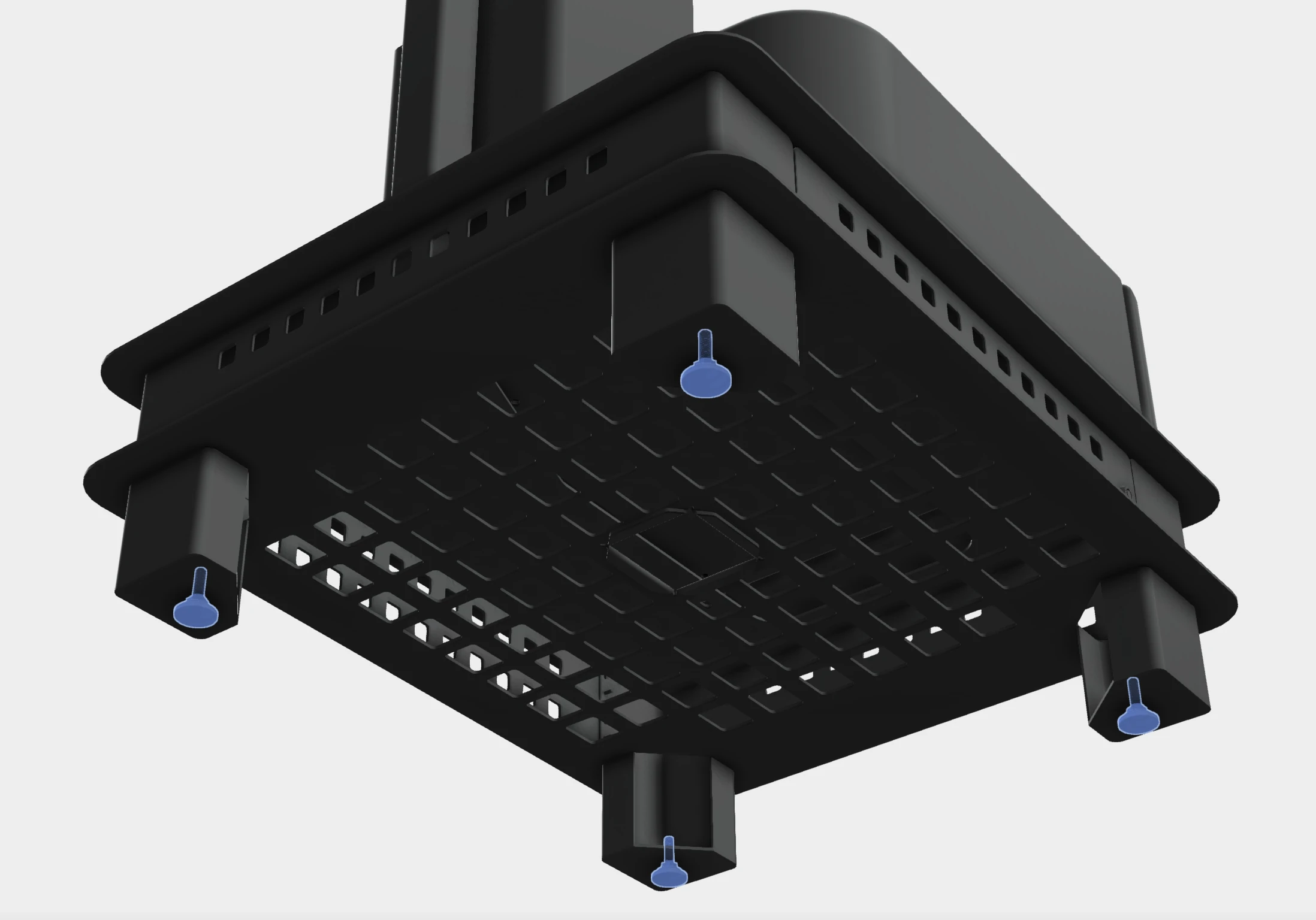

Underside of the stand with four leveling feet highlighted beneath its legs.
