User guide

H906 Stand for Microsoft Signature Teams Rooms

Read guide
PDF · Letter PDF · A4
Guide details Applicability and revision

Assemble the stand and configure the projector, camera, equipment, and cables for the illustrated room setup.

ProductH906
Hardware generationH906
Guide revisionrelease-2026-10-28
Applies to

H906 Stand for Microsoft Signature Teams Rooms.

In this guide · 11 sections

This special stand is designed to create a telepresence-quality video meeting room with an exceptionally large projected screen, full camera coverage of up to eight people, and computer and rack-mounting component mounting and storage.

This stand is designed specifically for the Epson EB-PU1007B projector, Epson ELPLX01S Ultra Short Throw Lens, and the Jabra Panacast 50 or Logitech Rally Bar camera system.

For support, contact Heckler at service@heckler.com or +1 (844) 432-5930.

In the box

a. 1 x Stand base

b. 1 x Neck

c. 1 x Camera-mounting plate

4. 4 x Leveling foot (F968) 5. 4 x Leveling carpet spike (F977) 6. 4 x M6 thumbscrew for fastening Epson projector (F972 + F973) 7. 4 x 10-32 Thumbscrew for neck assembly (F976 + F893) 8. 4 x M5 screw for mounting Jabra Panacast 50 (F974) 9. 2 x M5 wing nut for mounting Jabra Panacast 50 (F975) 10. 1 x Key (F674) 11. 3 x Buckle (F751) 12. 1 x Velcro roll, 2ft (F947) 13. 1 x Cam lock key (S129) 14. 5 x Cable tie (F530)

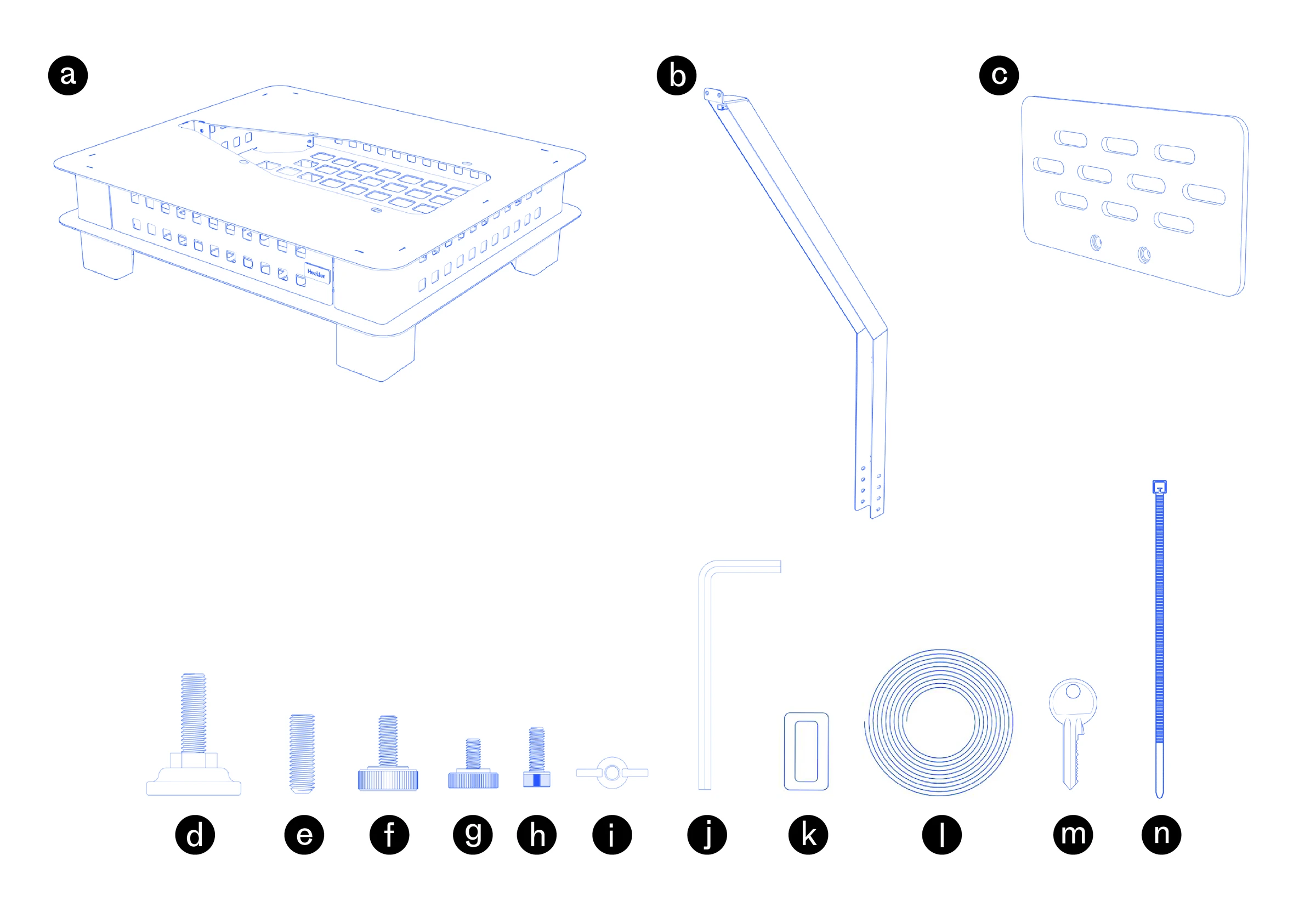

Parts diagram labeled a–n showing the base, neck, camera plate, leveling feet and spikes, screws, hex key, buckles, strap roll, lock key, and cable tie.

Tools needed

- Phillips screwdriver - Level - Scissors

Install the feet

Choose the leveling feet suited to your installation. Two types are included: adjustable feet (d) and adjustable carpet spikes (e).

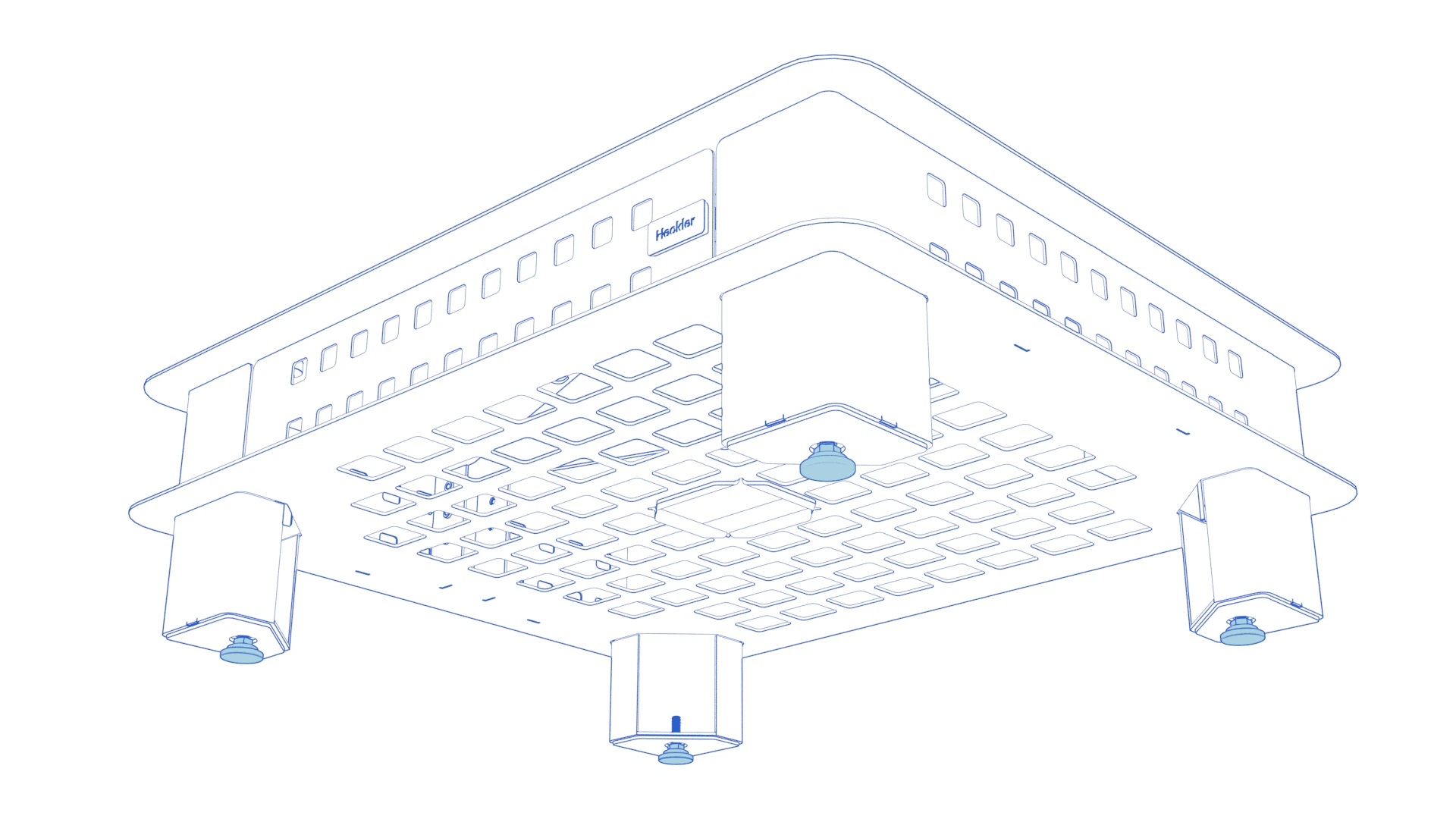

Underside of the stand with a leveling foot at each of its four legs.

Level stand

Adjust the leveling feet as needed to level the stand. Use a bubble level for reference.

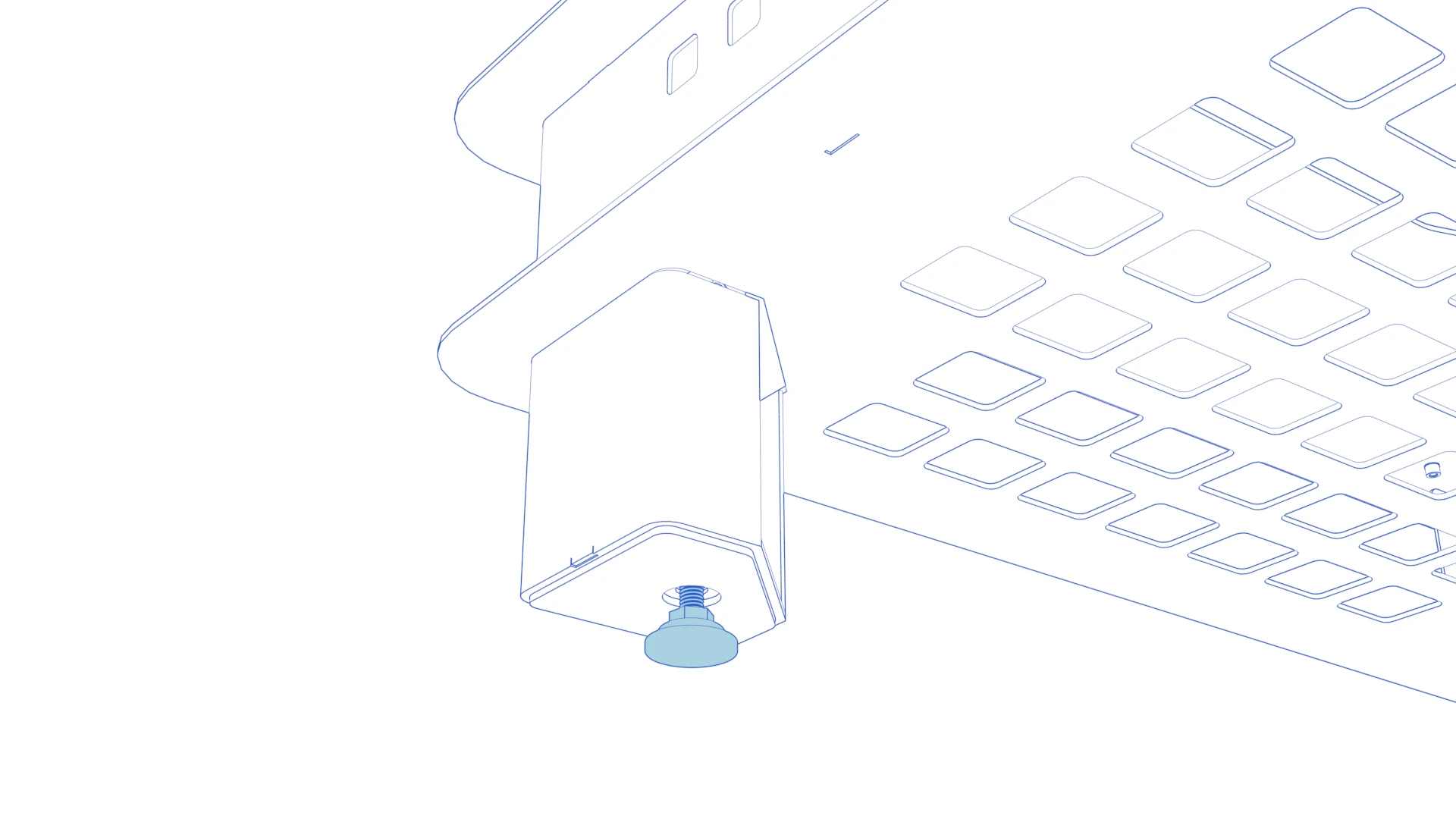

Close-up of a broad adjustable leveling foot beneath one stand leg.

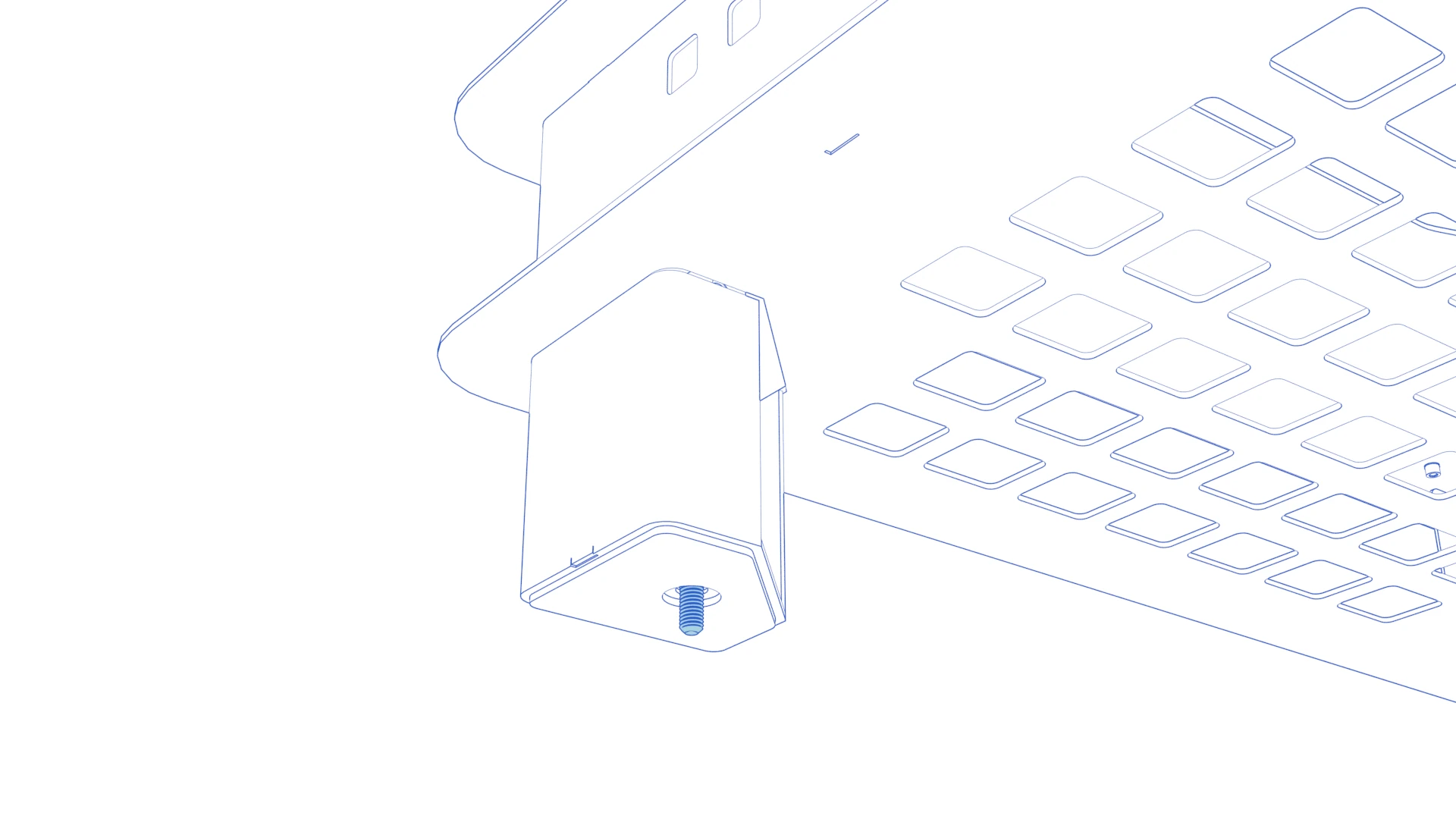

Close-up of a narrow adjustable carpet spike beneath one stand leg.

Install 19-inch rack-mount equipment.

Remove the rack mount cover plates by removing the screws from the outside.

Fasten rack mount components to the stand base using the same screws.

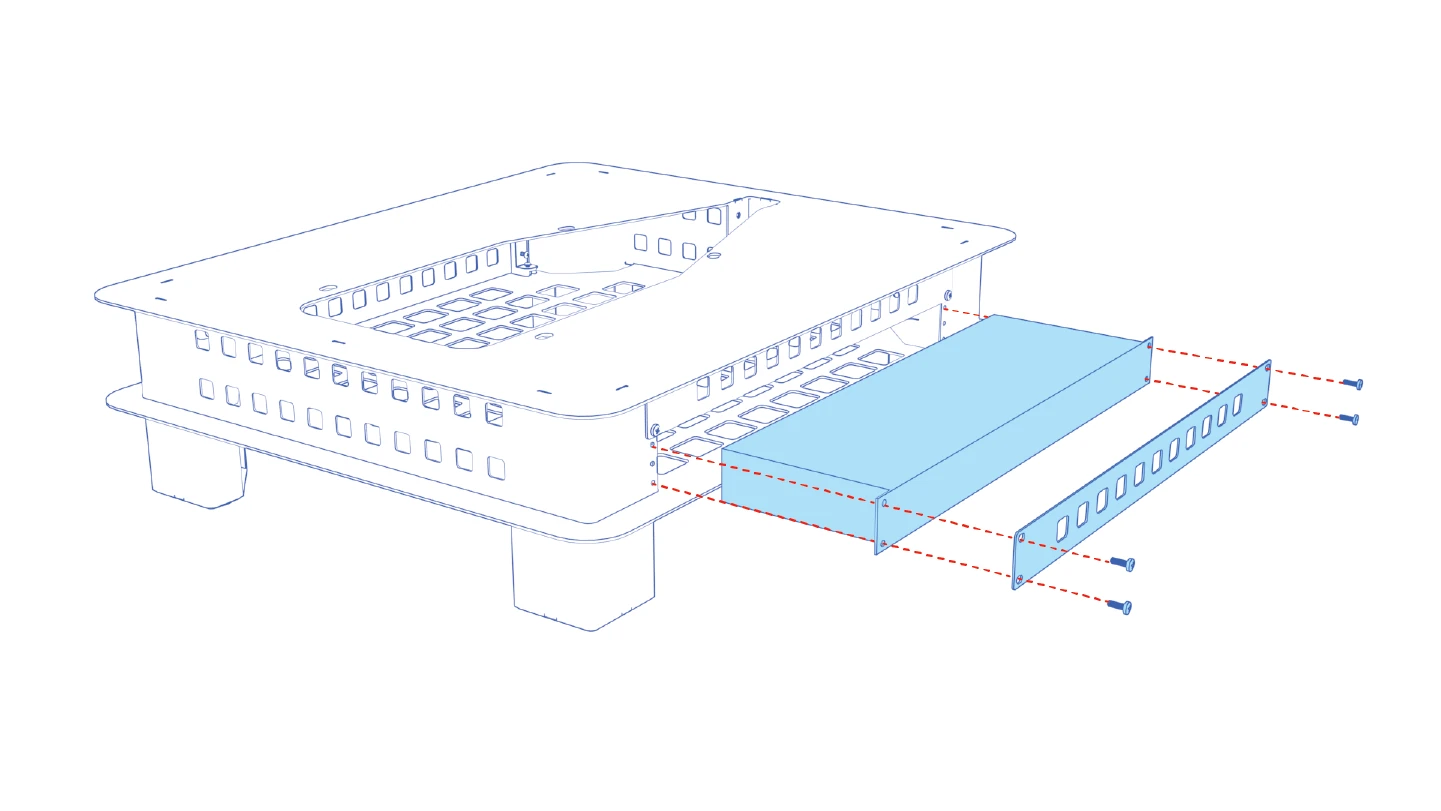

Rack cover plate and rack equipment aligned with the stand bay, with screws shown at the sides.

Organize small gear and cables

Remove the Heckler branding plate. Unlock the side panel to get access to the storage area.

Unlock and open the component compartment using the provided key.

Place small components.

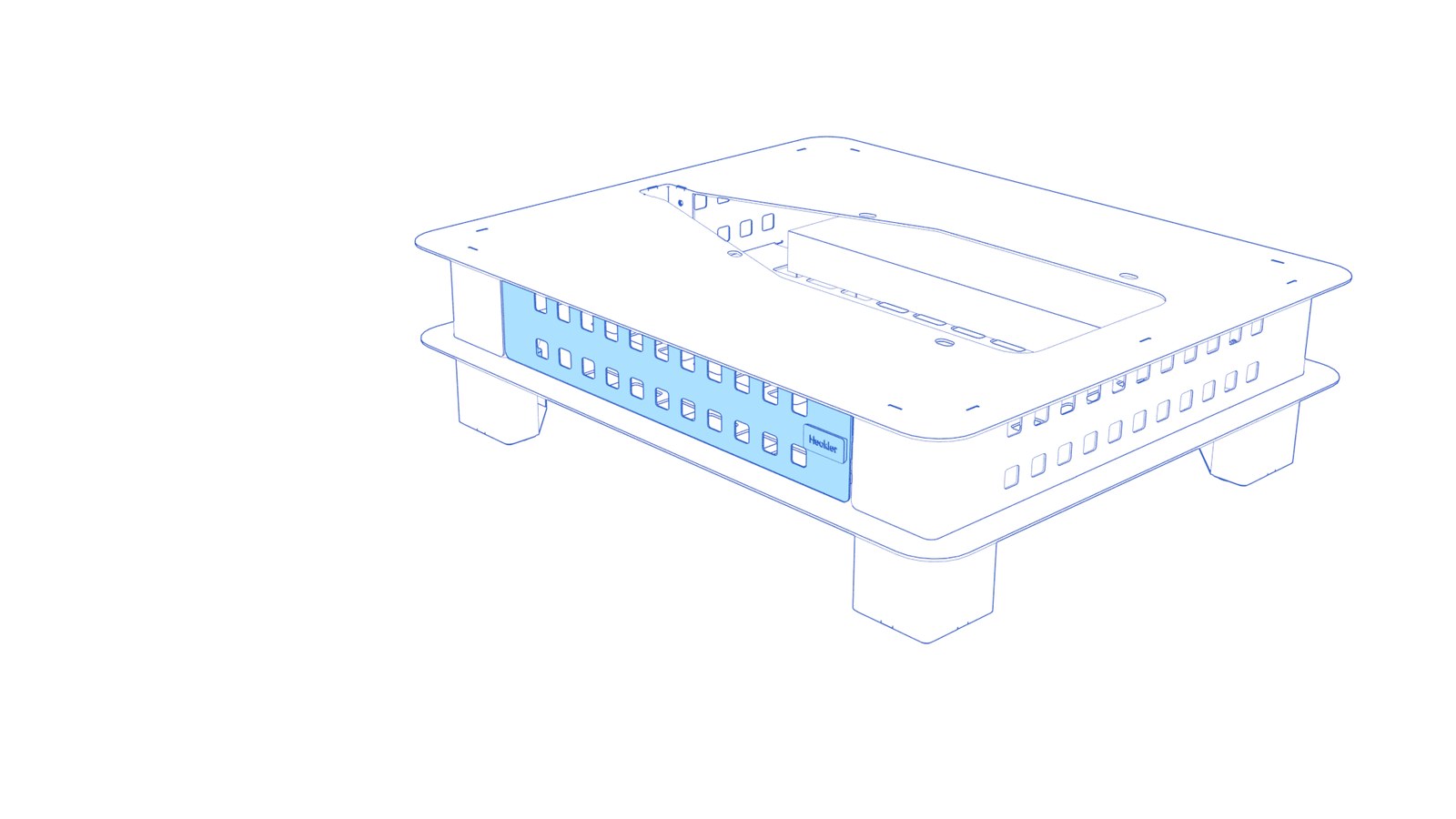

Animated side view showing the branding plate removed and the access panel swinging open.

Use the provided buckles (k) and hook-and-loop strap (l) to secure components to the hole pattern in the compartment floor. Cut the strap to the lengths needed for your components.

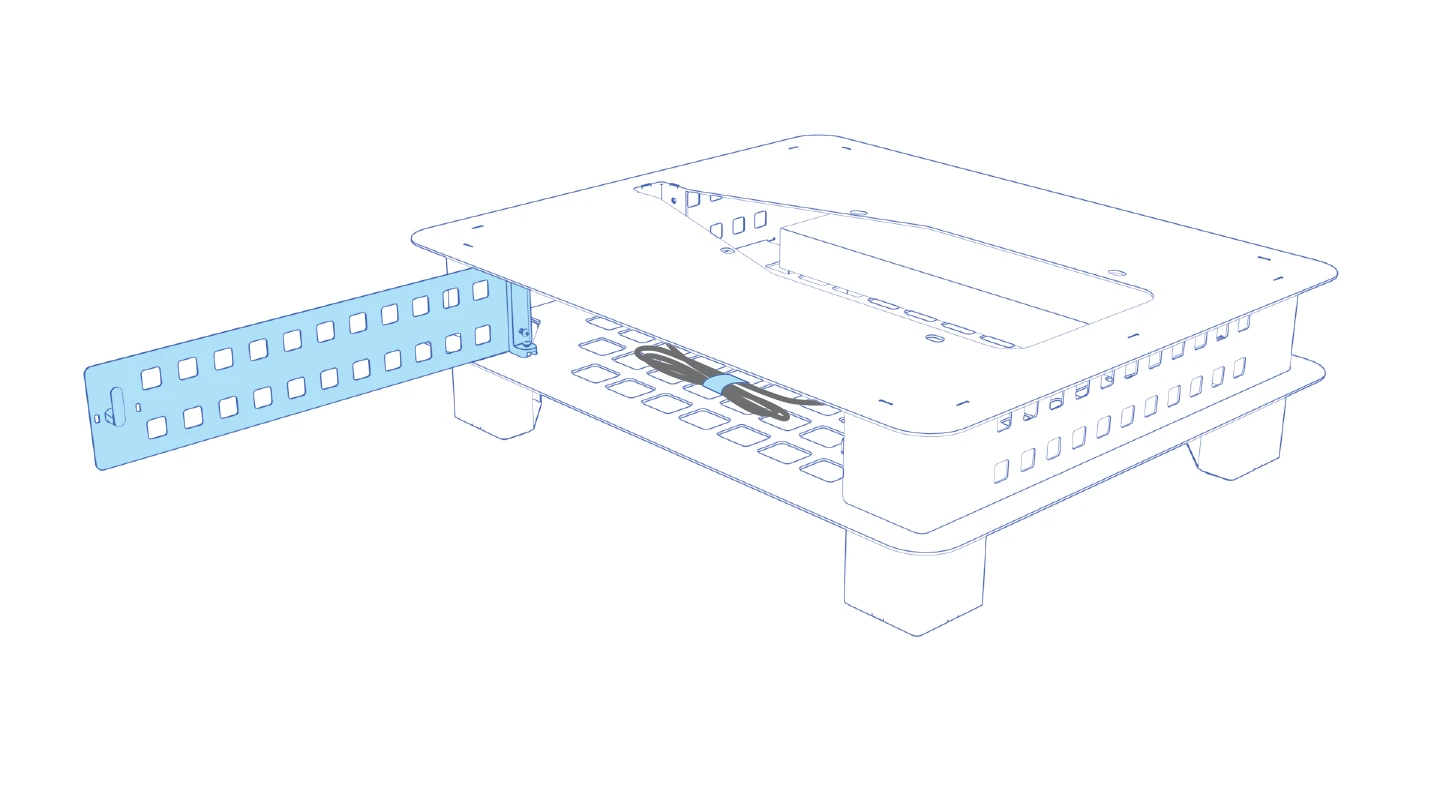

Open side compartment with a small device secured to the perforated floor.

Assemble the camera mounting plate to the neck

Fasten the camera mounting plate to the neck using the provided M5 screws (h) and hex key (j).

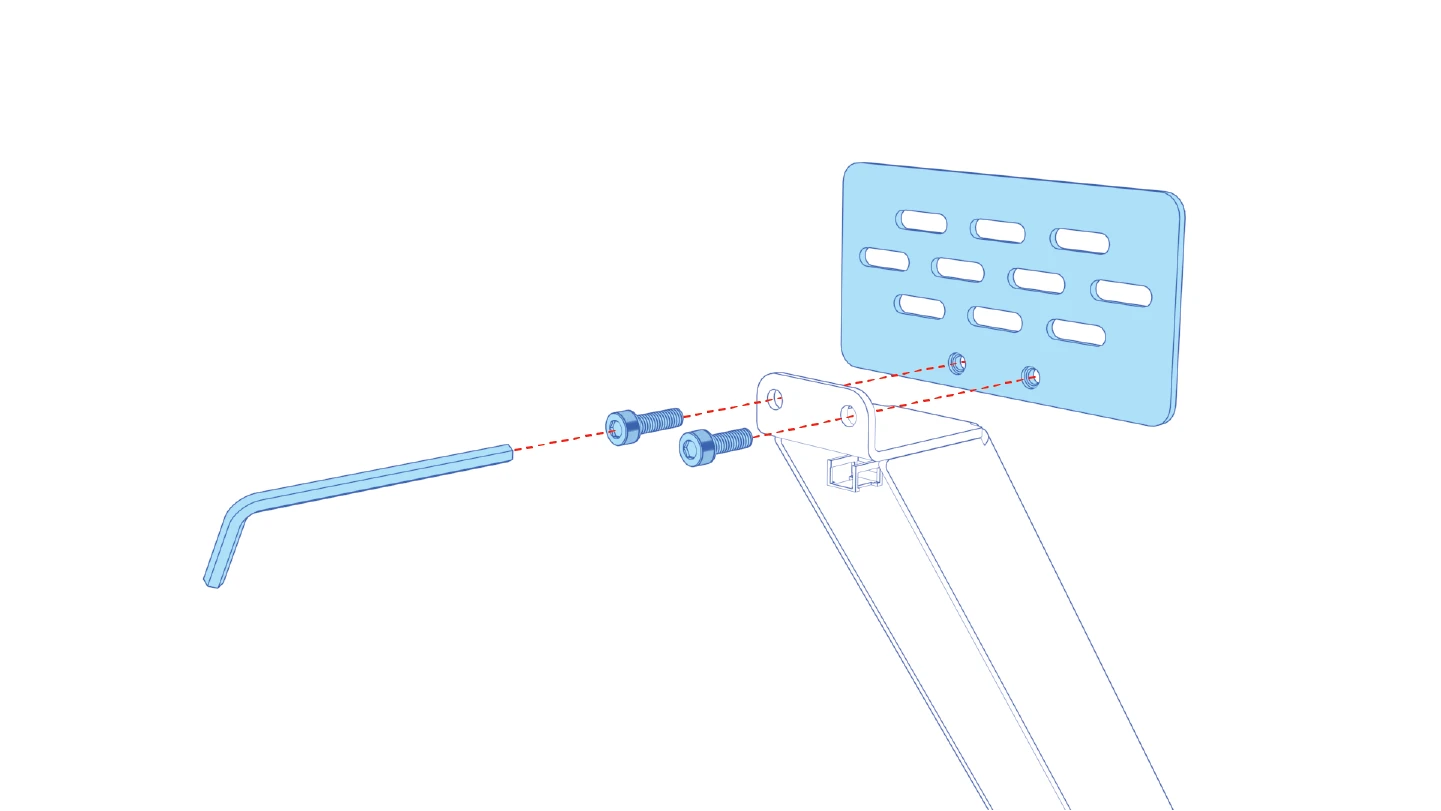

Camera mounting plate aligned with the top of the neck, with two screws and a hex key.

Fasten the Panacast 50 to the mounting plate

Fasten the Jabra Panacast 50 to the mounting plate at the top of the neck using the M5 screws(h) and wing nuts(i) provided.

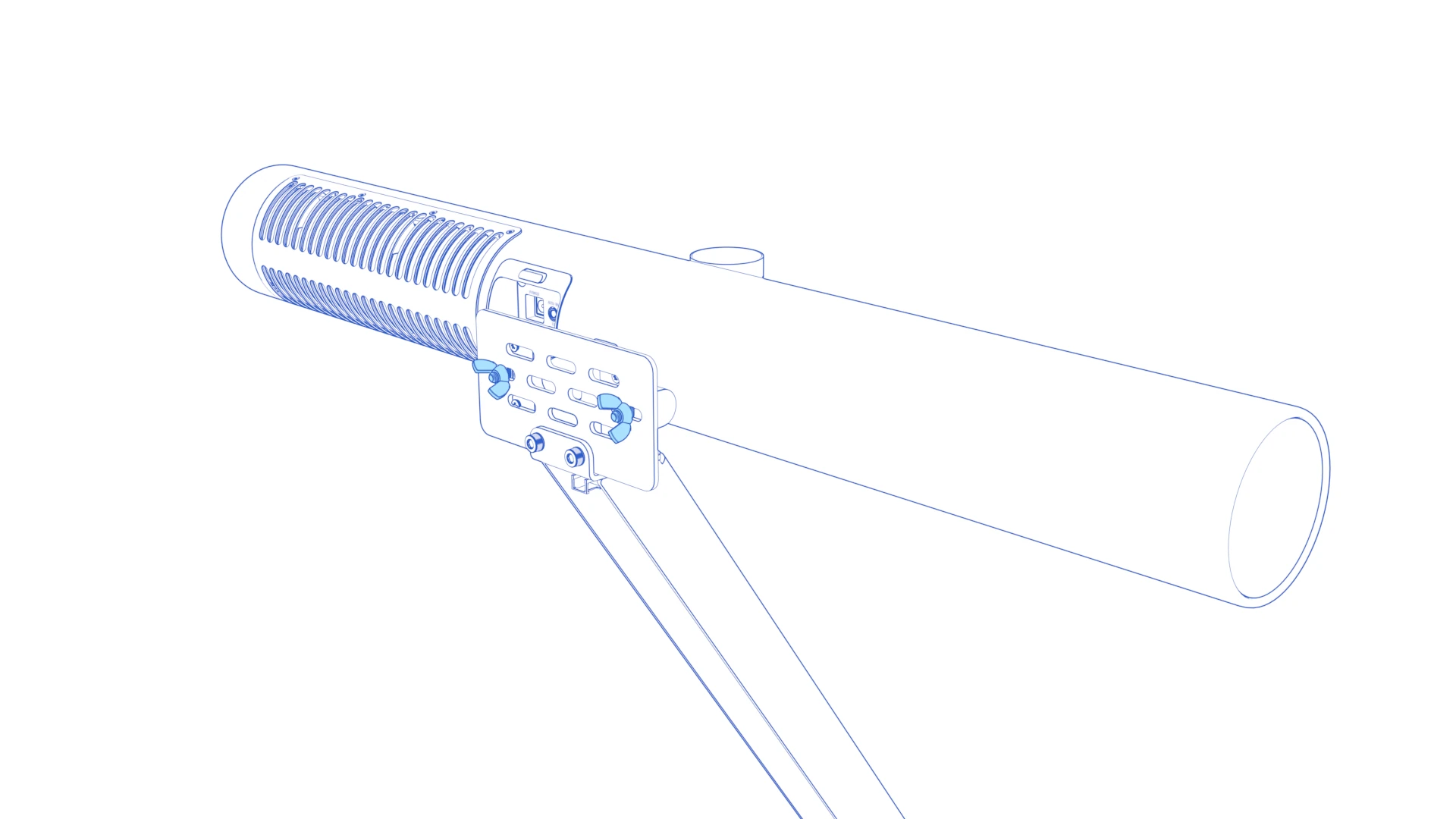

Rear of a PanaCast 50 attached to the mounting plate with two wing nuts.

Route and secure the camera cabling along the neck and into the compartment using the provided cable ties (n) and pre-installed cable-tie anchors. Trim the excess cable-tie length.

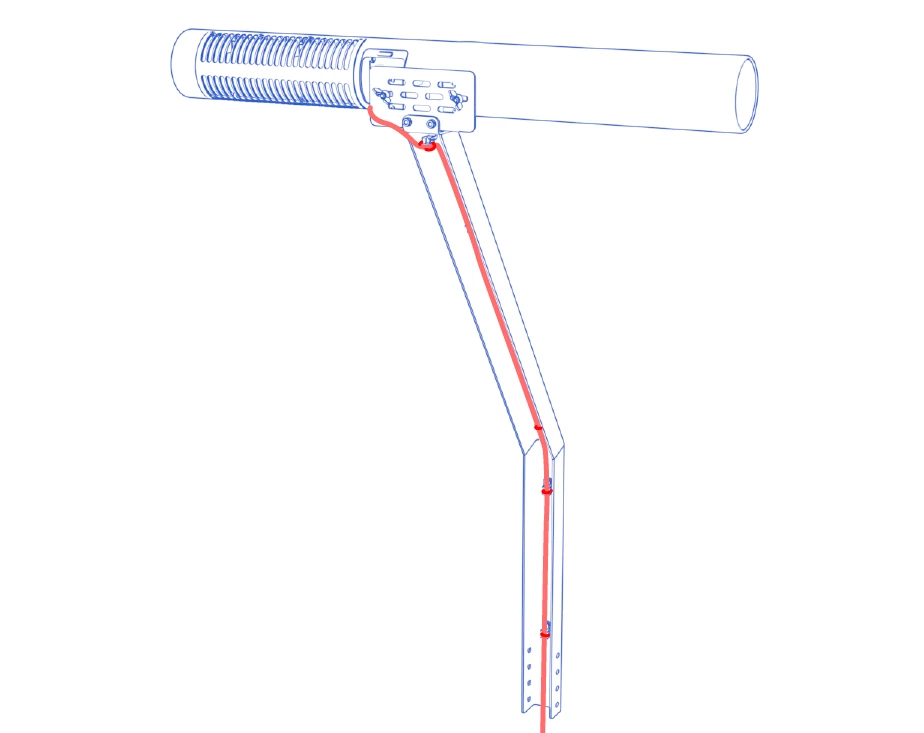

Red cable routed from the camera down the neck through cable-tie attachment points.

Install the camera assembly to the main body

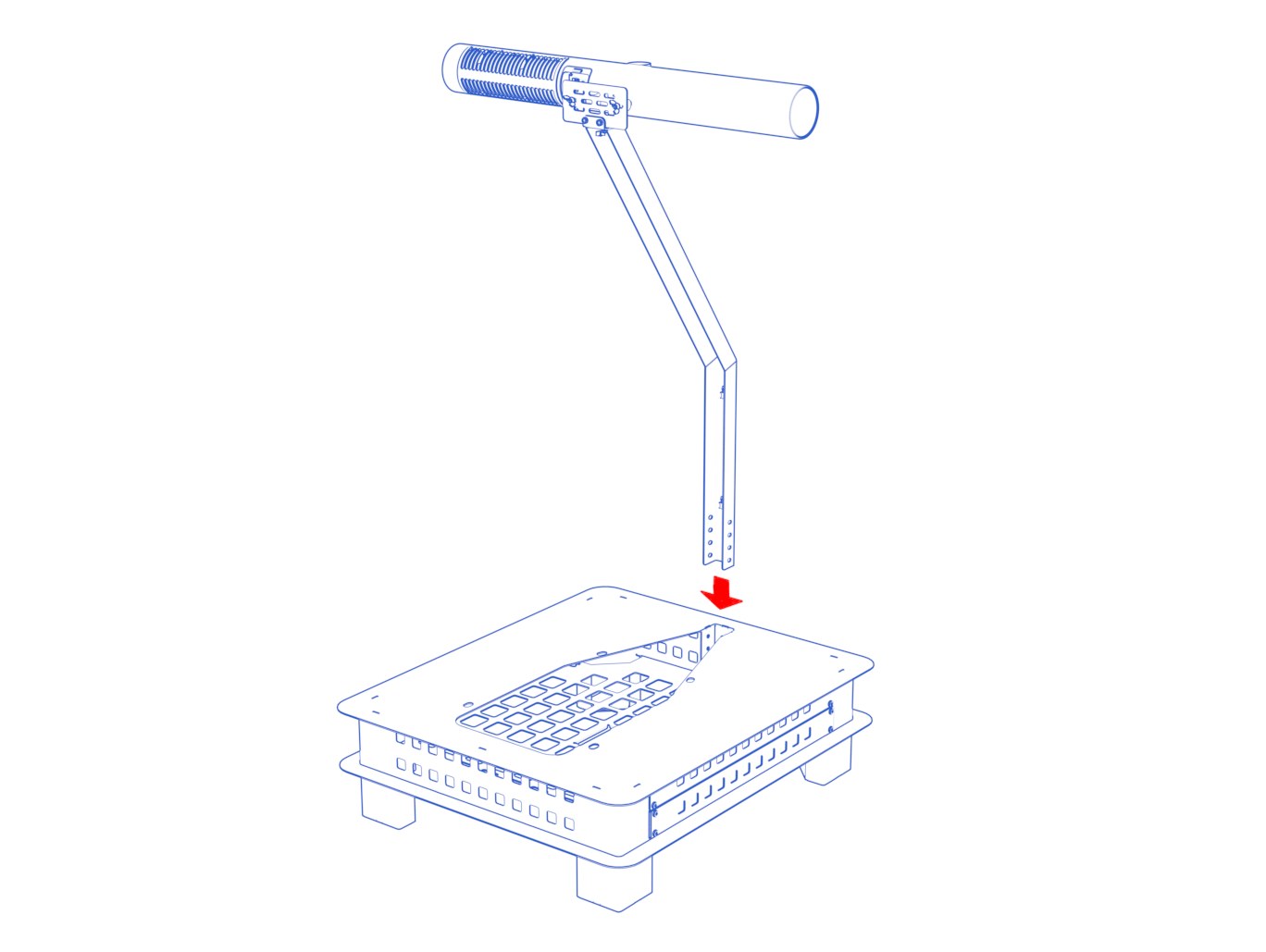

Animation of the camera and neck assembly lowering into the stand base.

Fasten the neck to the base using the provided 10-32 thumbscrews (g).

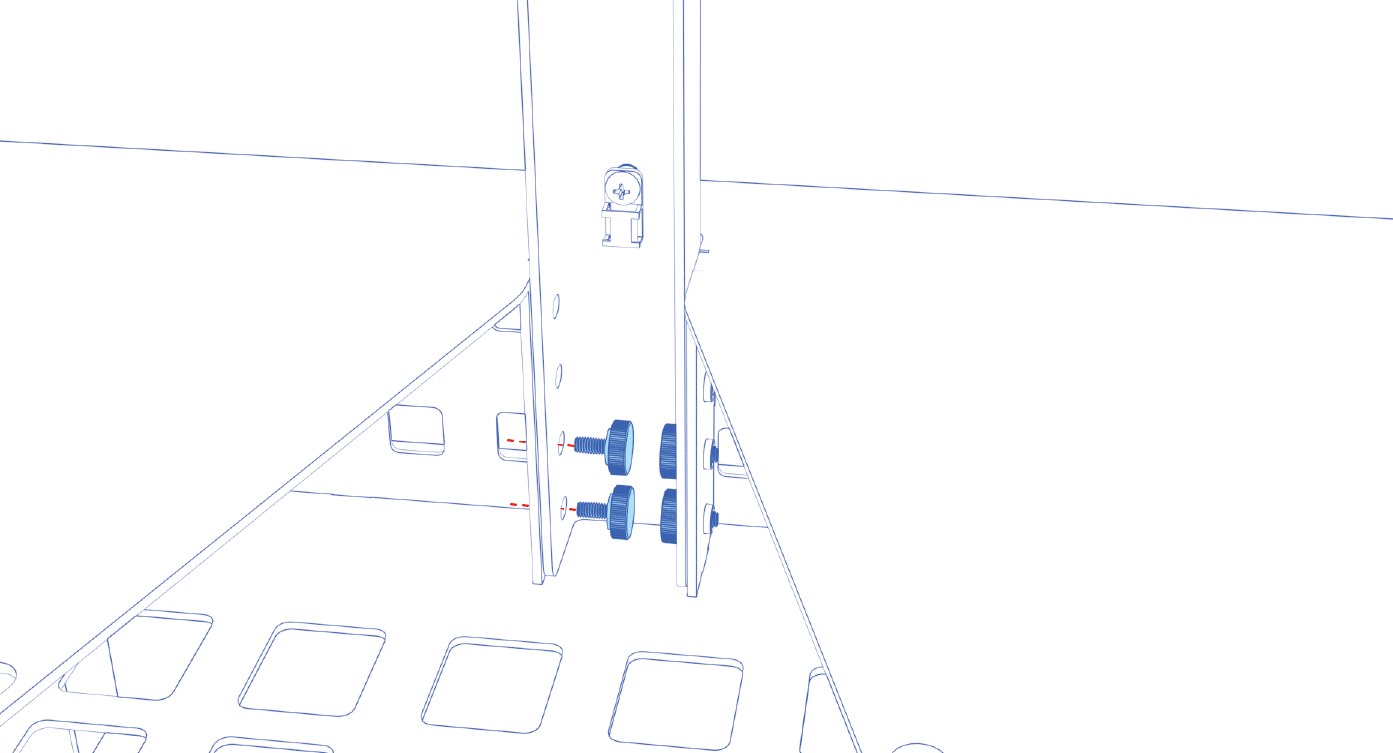

Animation of four thumbscrews entering the neck-to-base connection.

Place the Short-throw projector on the stand.

Position the Epson EB-PU1007B projector on the top of the stand.

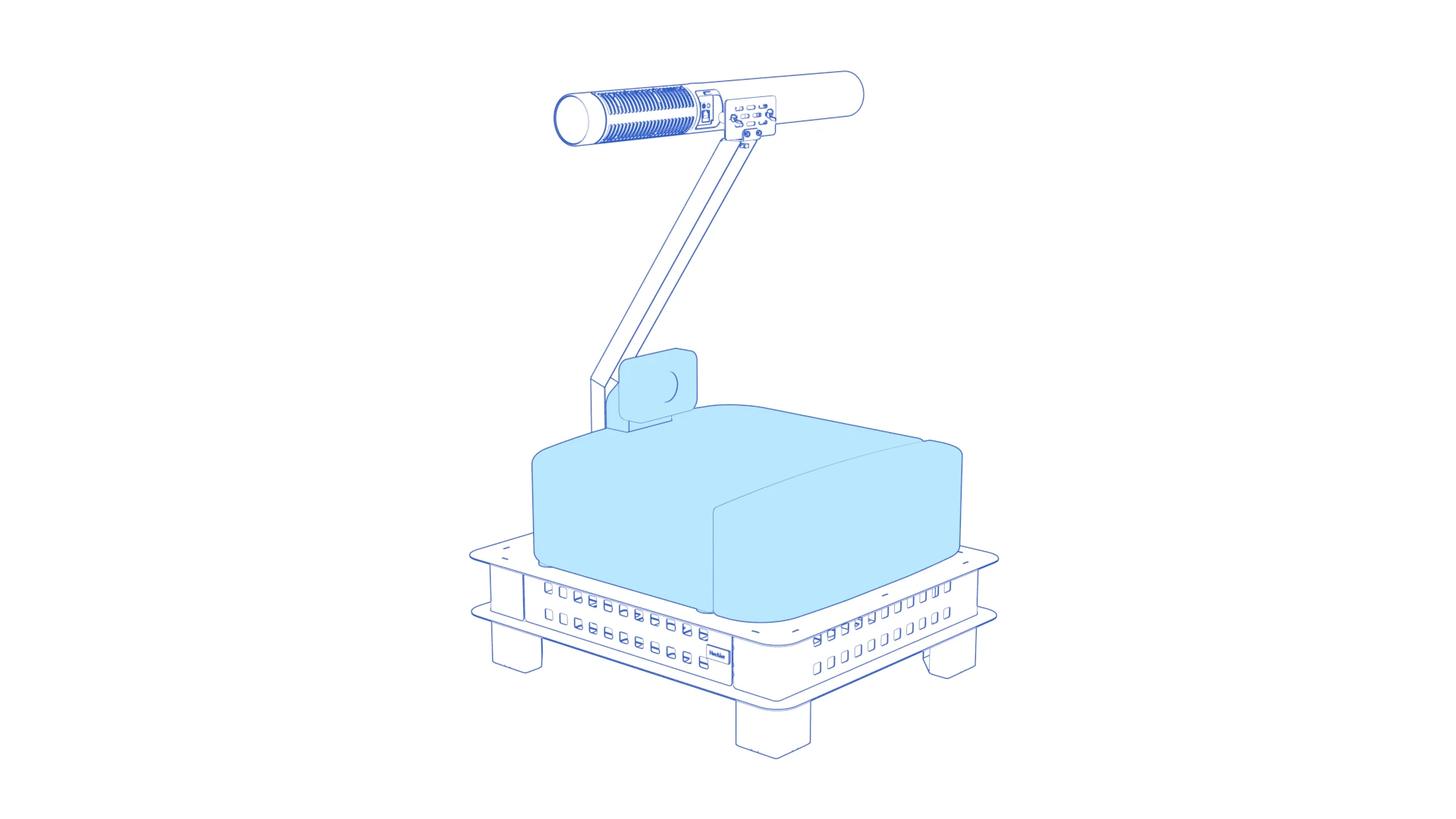

Projector on the upper stand surface with its lens housing directed away from the neck.

Align the mounting holes on the bottom of the projector with the mounting holes on the surface of the stand base.

Fasten the projector using the provided M6 thumbscrews (f).

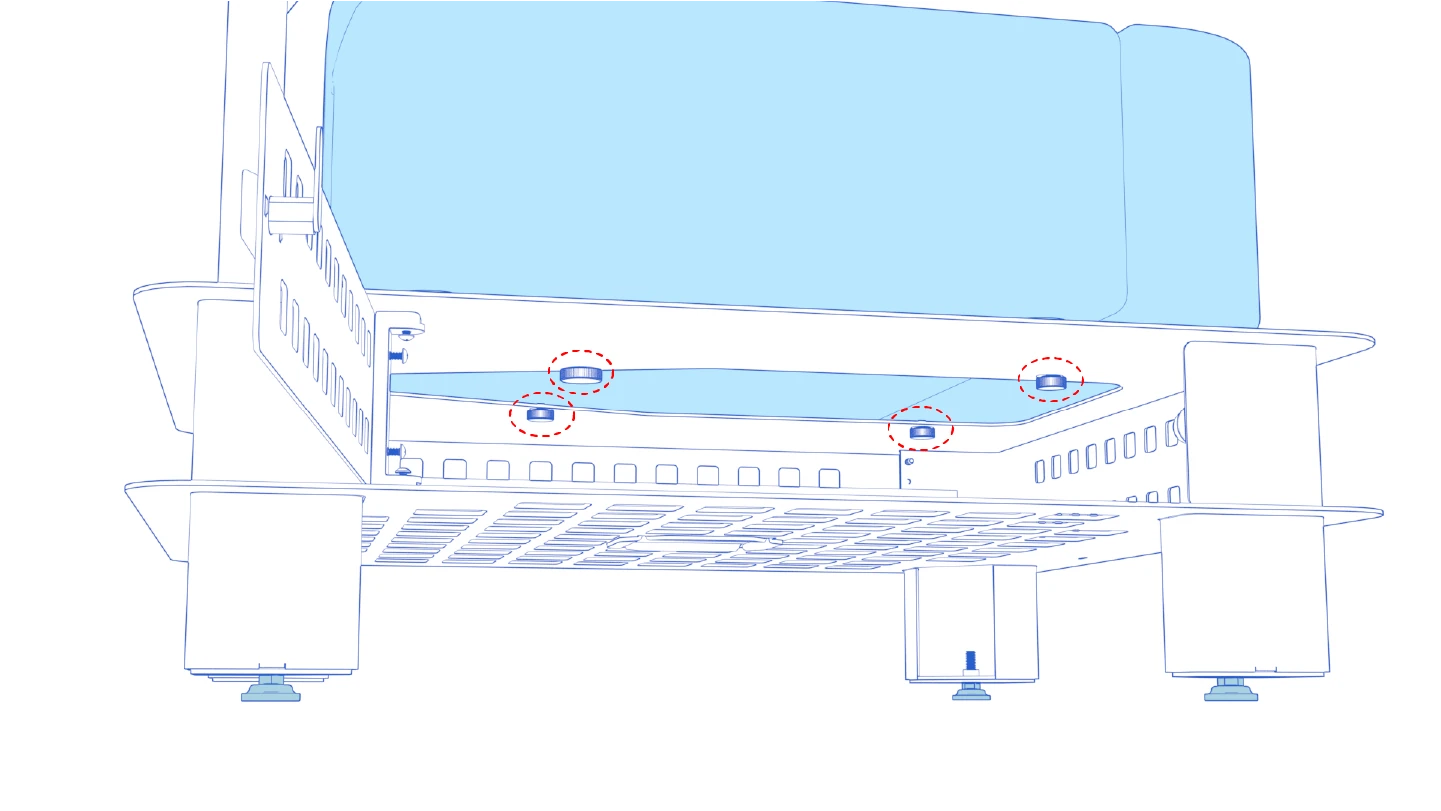

View beneath the projector showing four circled mounting positions and the M6 thumbscrews.

Route cables from the projector into the stand storage compartment by removing the front cover of the projector.

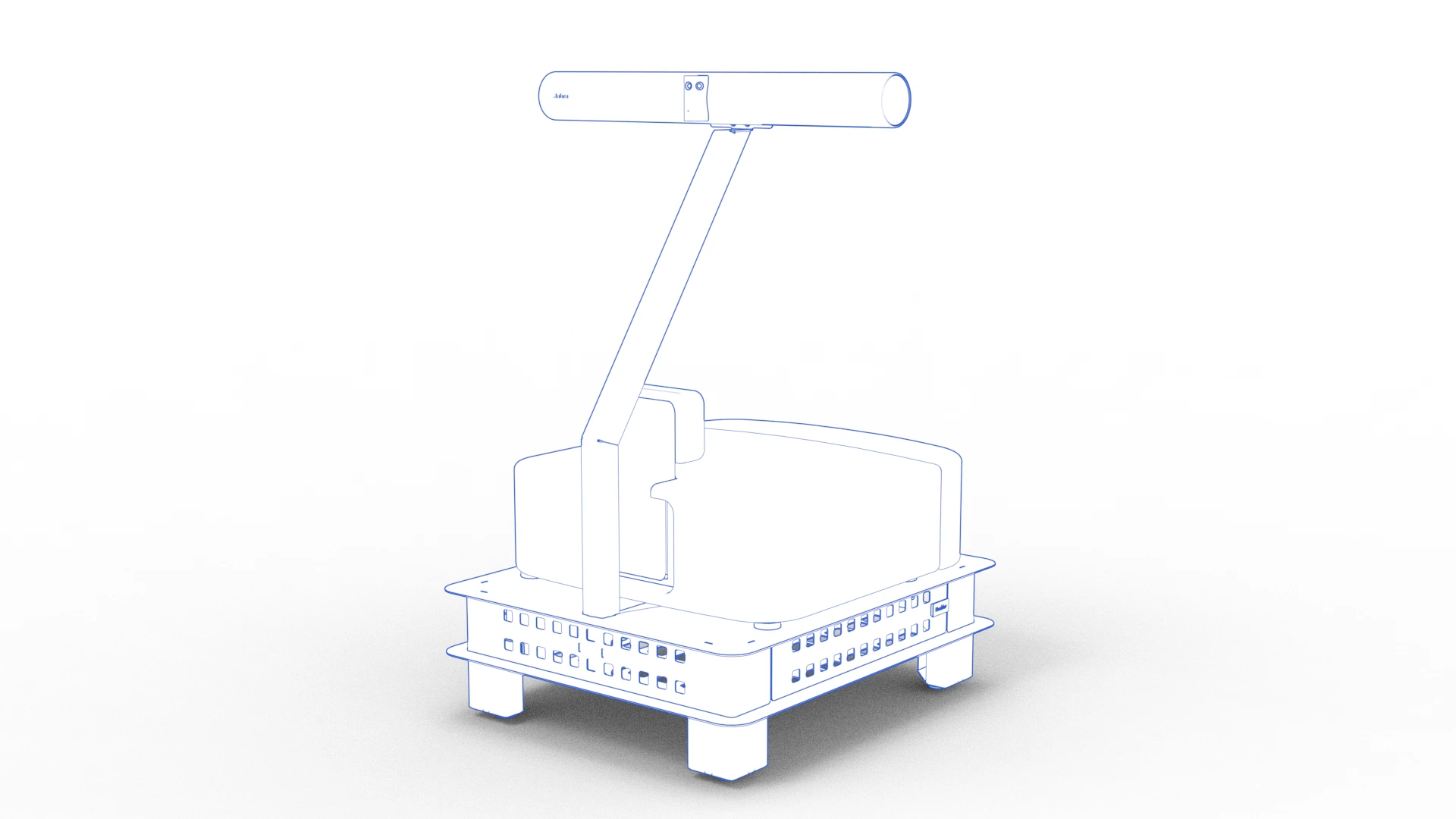

Completed stand with projector, angled neck, and video bar.
