User guide

H907 Camera Floor Stand For Video Meetings

PDF · Letter PDF · A4

Guide details Applicability and revision

Assemble the floor stand, install the camera mounting hardware, and organize cables.

ProductH907

Hardware generationH907

Guide revisionrelease-2026-10-28

Applies to

H907 Camera Floor Stand For Video Meetings.

In this guide · 9 sections

In the box

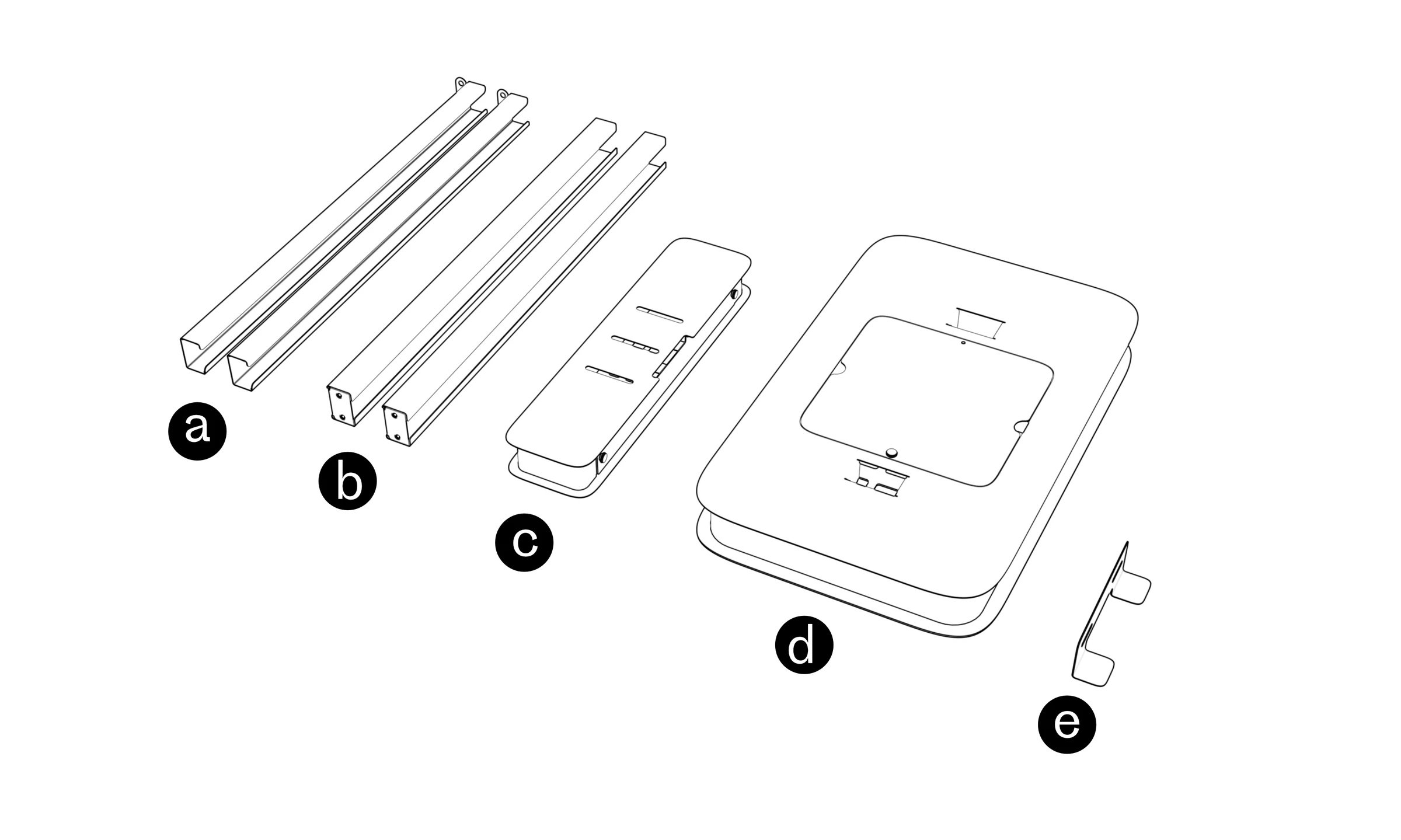

Main components labeled a–e: upper arms, lower arms, top shelf, bottom shelf, and PanaCast 50 mounting bracket.

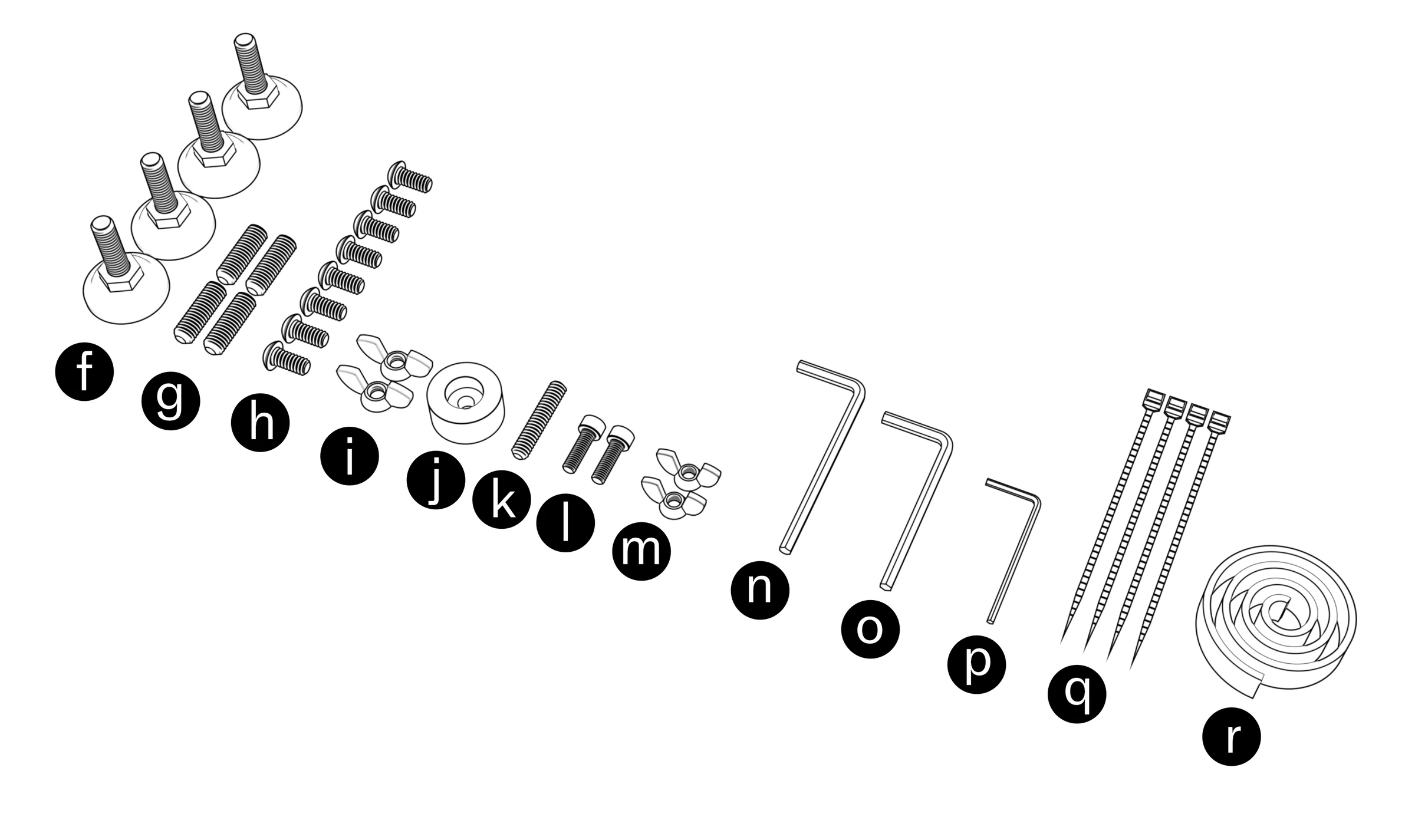

Hardware labeled f–r: leveling feet, carpet spikes, screws, wing nuts, bumper, hex keys, cable ties, and strap.

a. 2 x Top Arm (R637)

b. 2 x Bottom Arm (R638) c. 1 x Top Shelf (R635) d. 1 x Bottom Shelf (R640) e. 1 x PanaCast 50 Video Bar Mounting Bracket (R641) f. 4 x Leveling Foot (F968) g. 4 x Carpet Spike (F977) h. 8 x Arm Assembly Screw (F038) i. 2 x Camera Mounting Wingnut (F975) j. 1 x Camera Mounting Bumper (F042) k. 1 x Camera Mounting Set Screw (F040) 1b. 2 x Camera Mounting Screw for PanaCast 50 1c. 2 x Camera Mounting Wingnut PanaCast 50 1d. 1 x Key for Mounting PanaCast 50 (F674) 1e. 1 x Key for Arm Assembly Screw (F776) 1f. 1 x Key for Height Adjustment (F511) 1g. 4 x Cable Ties (F530) 1h. 1 x Velcro Strap (F856)

Install leveling feet or carpet spikes

Choose between leveling feet (item f) and carpet spikes (item g), and install them on the bottom shelf.

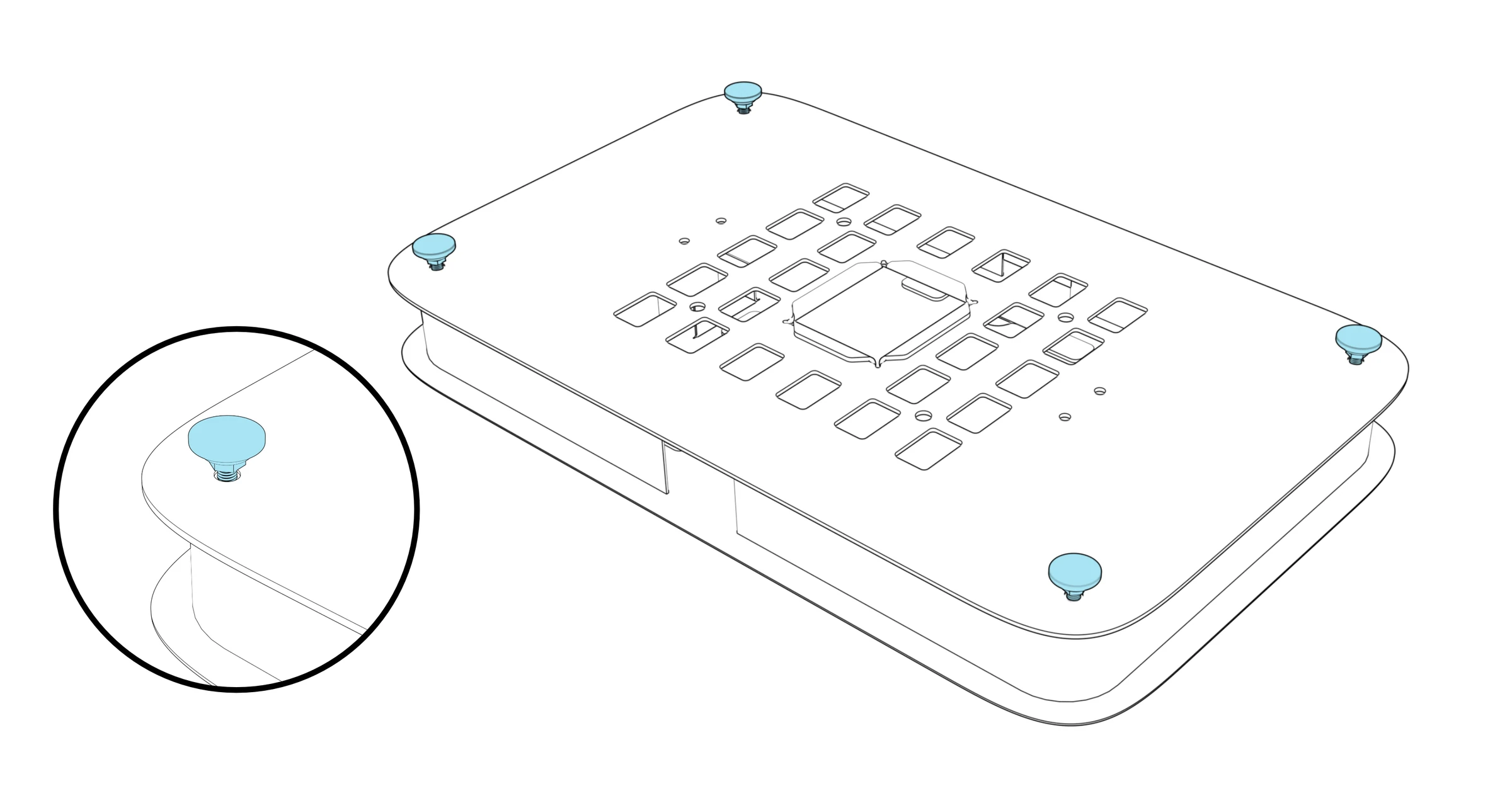

Leveling feet threaded into the underside of the bottom shelf.

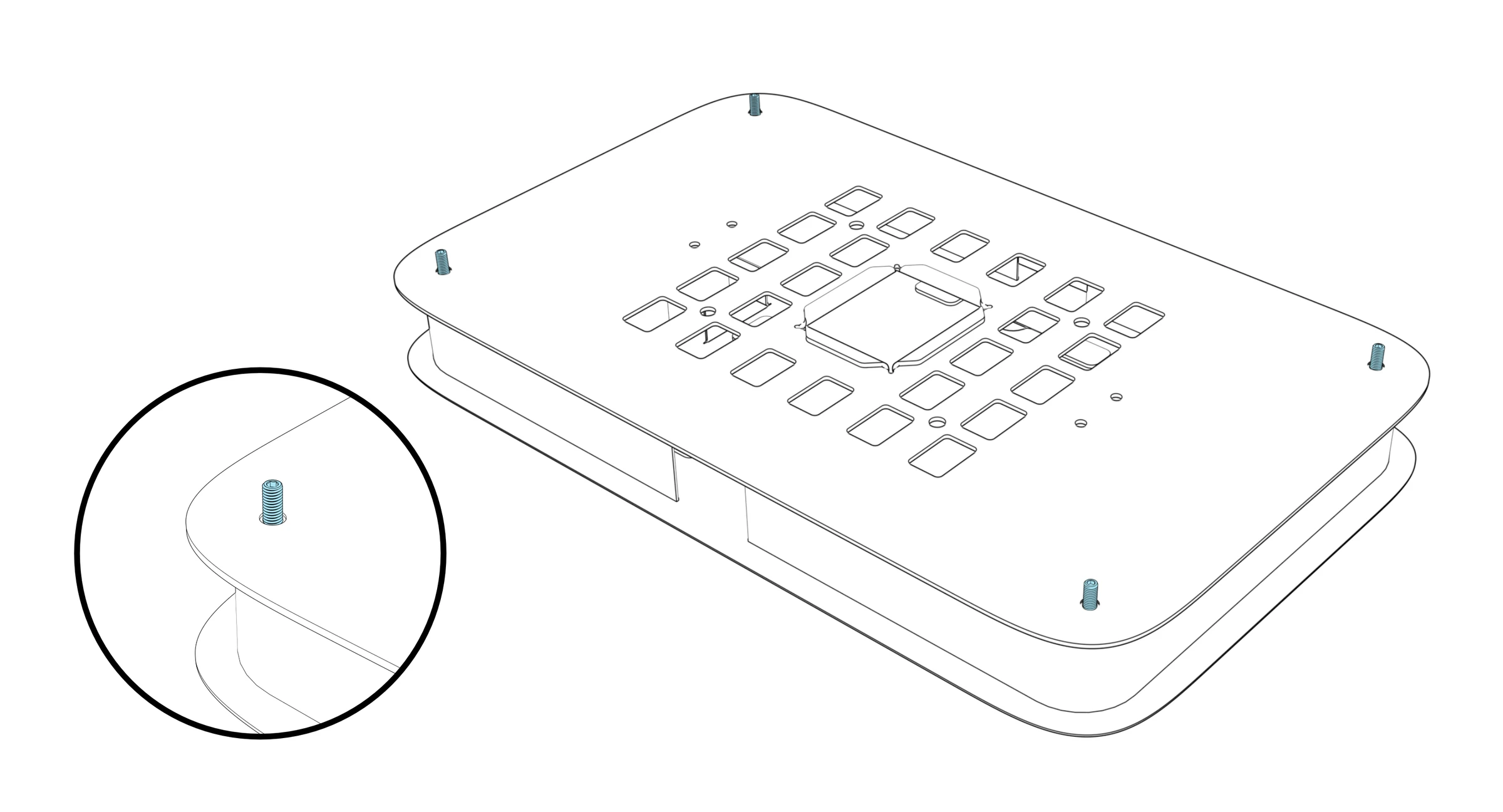

Carpet spikes shown as the alternative supports beneath the bottom shelf.

Install the bottom arms to the bottom shelf

Stand the bottom shelf on its edge as shown. Slide the bottom arms into the rectangular cutouts on the bottom shelf. Fasten the screws (item h) from the underside with the provided key (item o).

Set the assembled base upright.

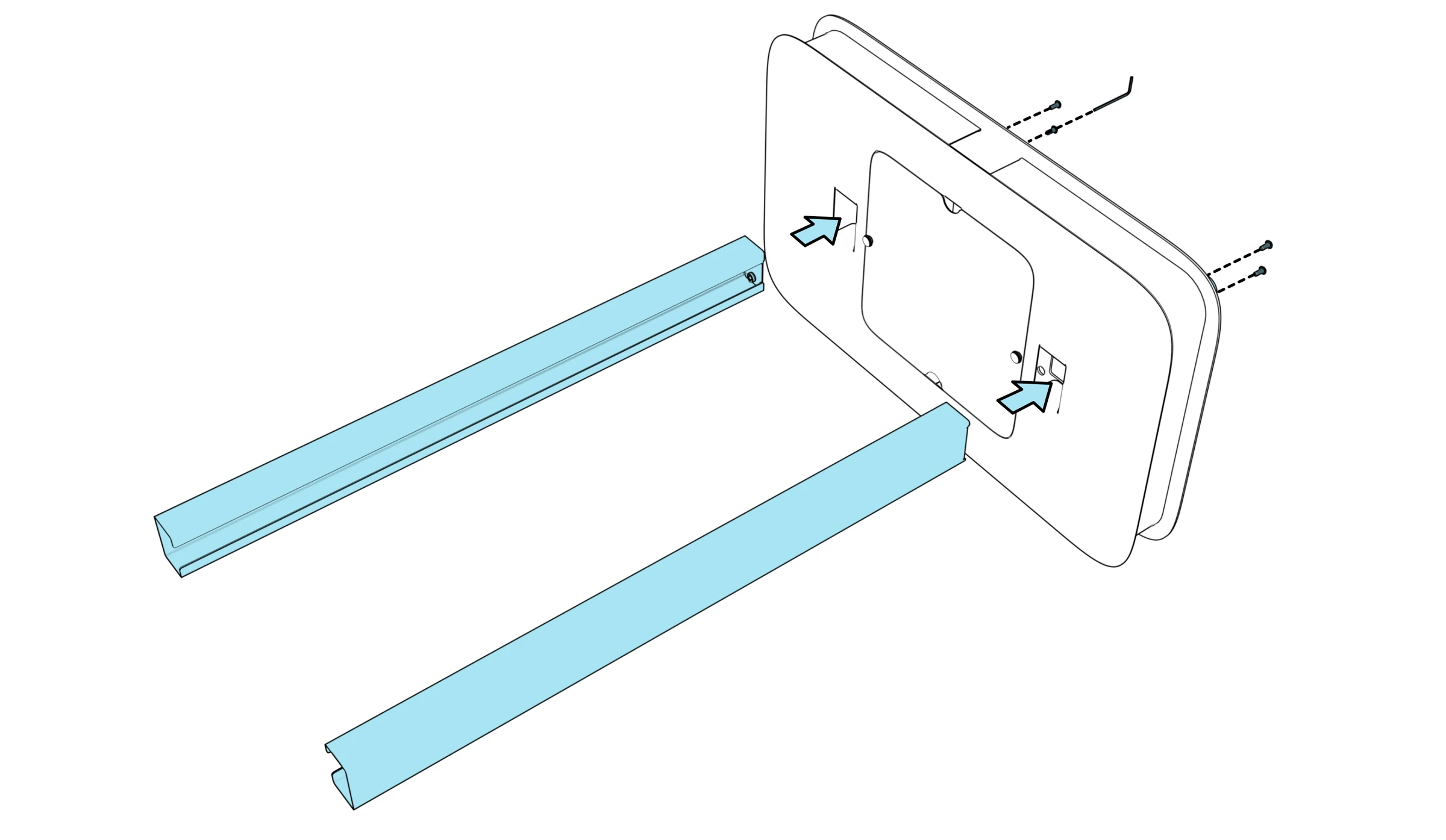

Lower arms aligned with the rectangular cutouts while the bottom shelf rests on its edge.

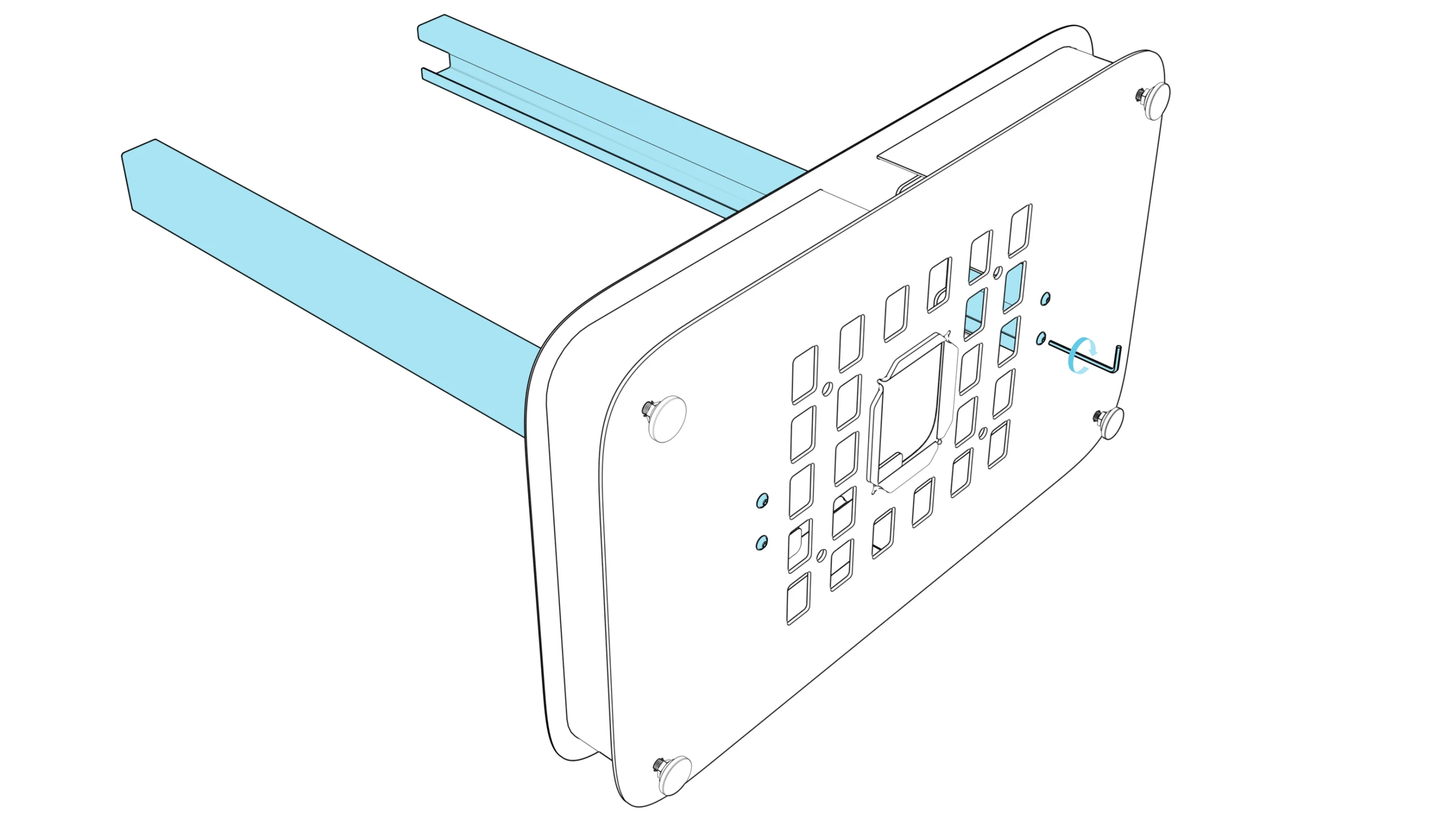

Hex key fastening the lower-arm screws from the underside of the bottom shelf.

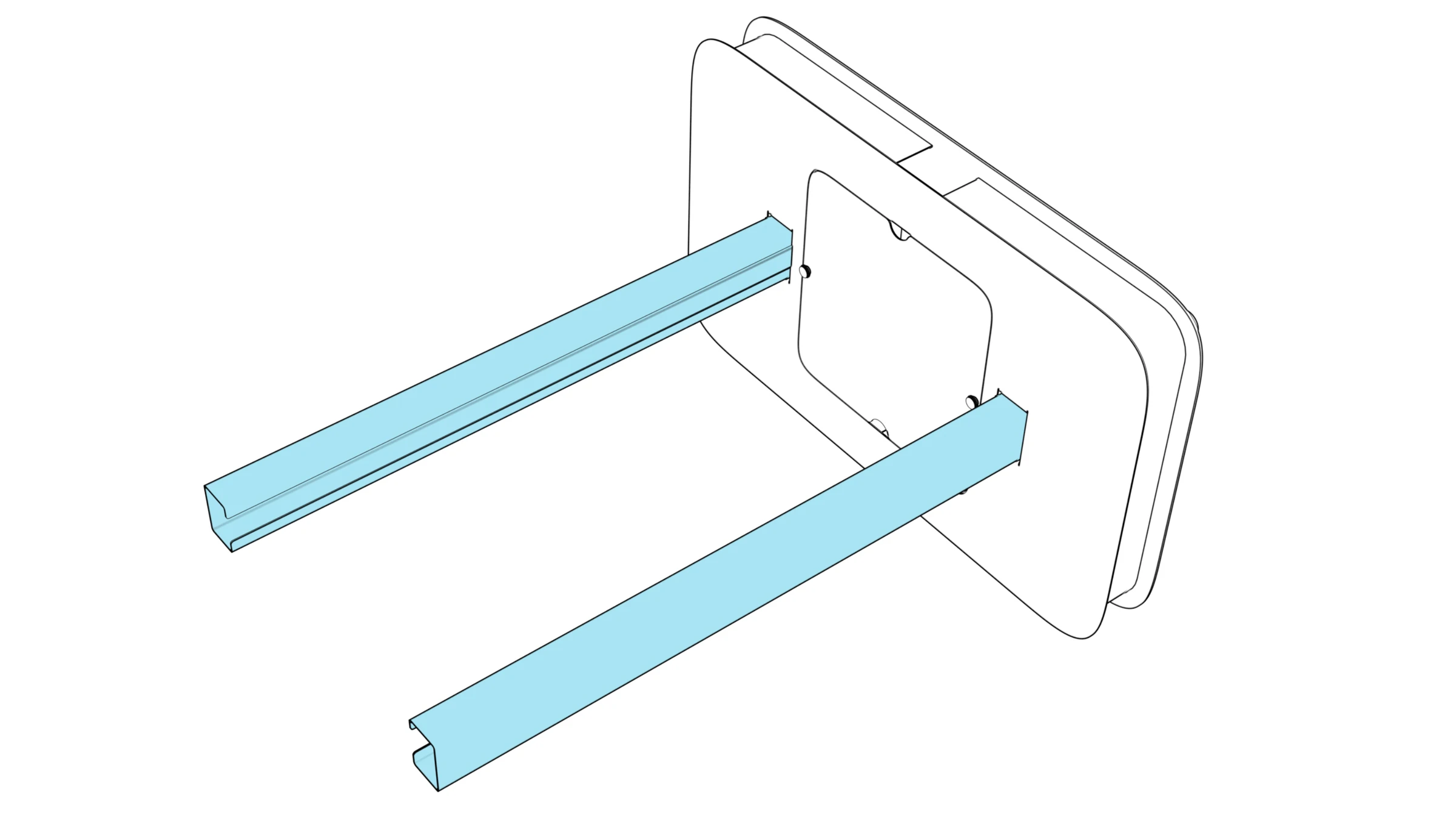

Both lower arms fastened to the bottom shelf while the base remains on its edge.

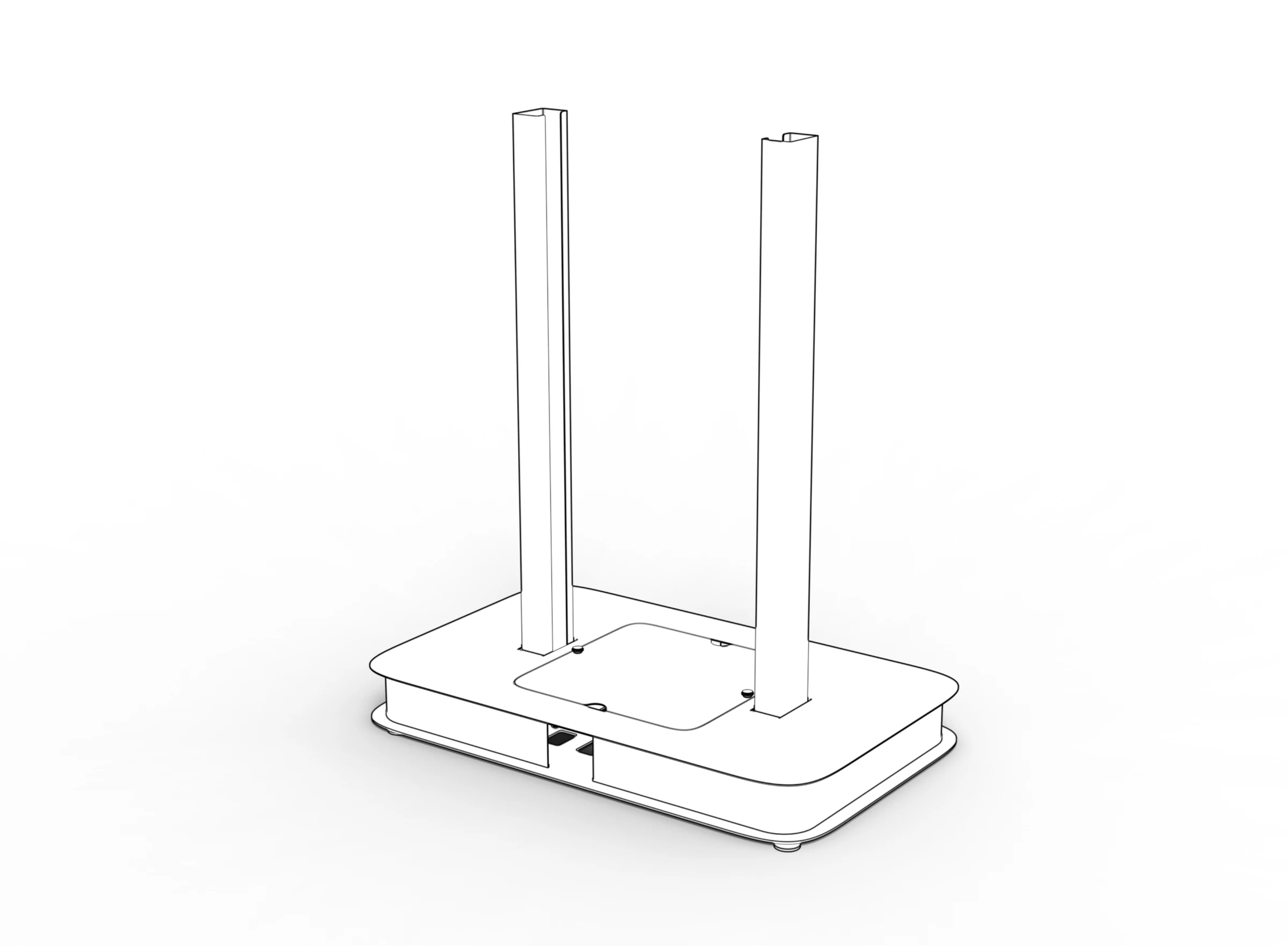

Assembled base upright with both lower arms extending upward.

Install the top arms to the top shelf

Fasten the top arms to the top shelf with screws (item h) and the key (item o) provided.

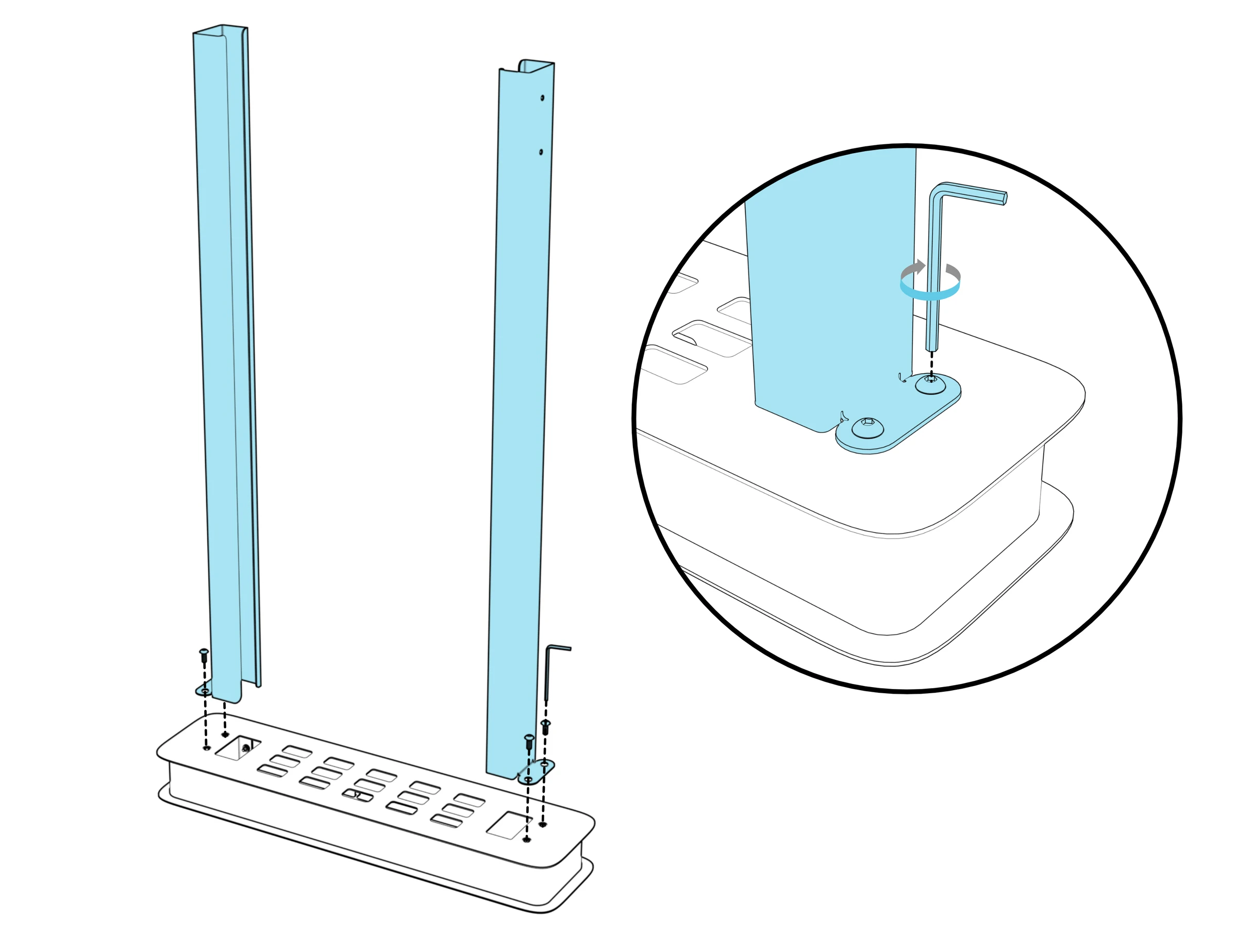

Upper arms fastened to the underside of the top shelf.

Install the top shelf to the bottom shelf

Slide the top arms down into the bottom arms.

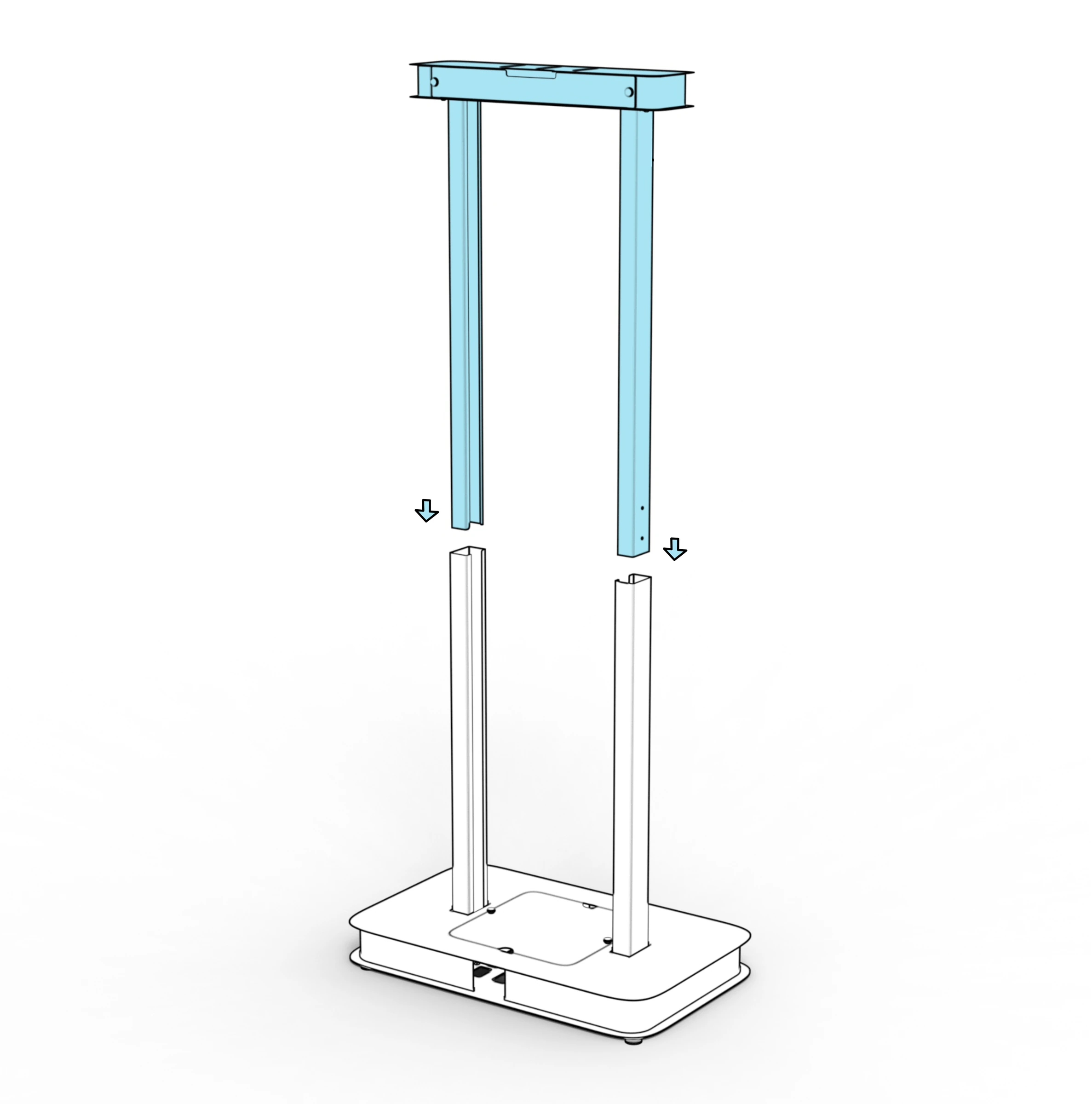

Upper-arm and top-shelf assembly lowered into the two lower arms.

Adjust the top shelf to the preferred height and use the key (item p) to fasten two set screws on both the left and right top arms to lock the top shelf in position.

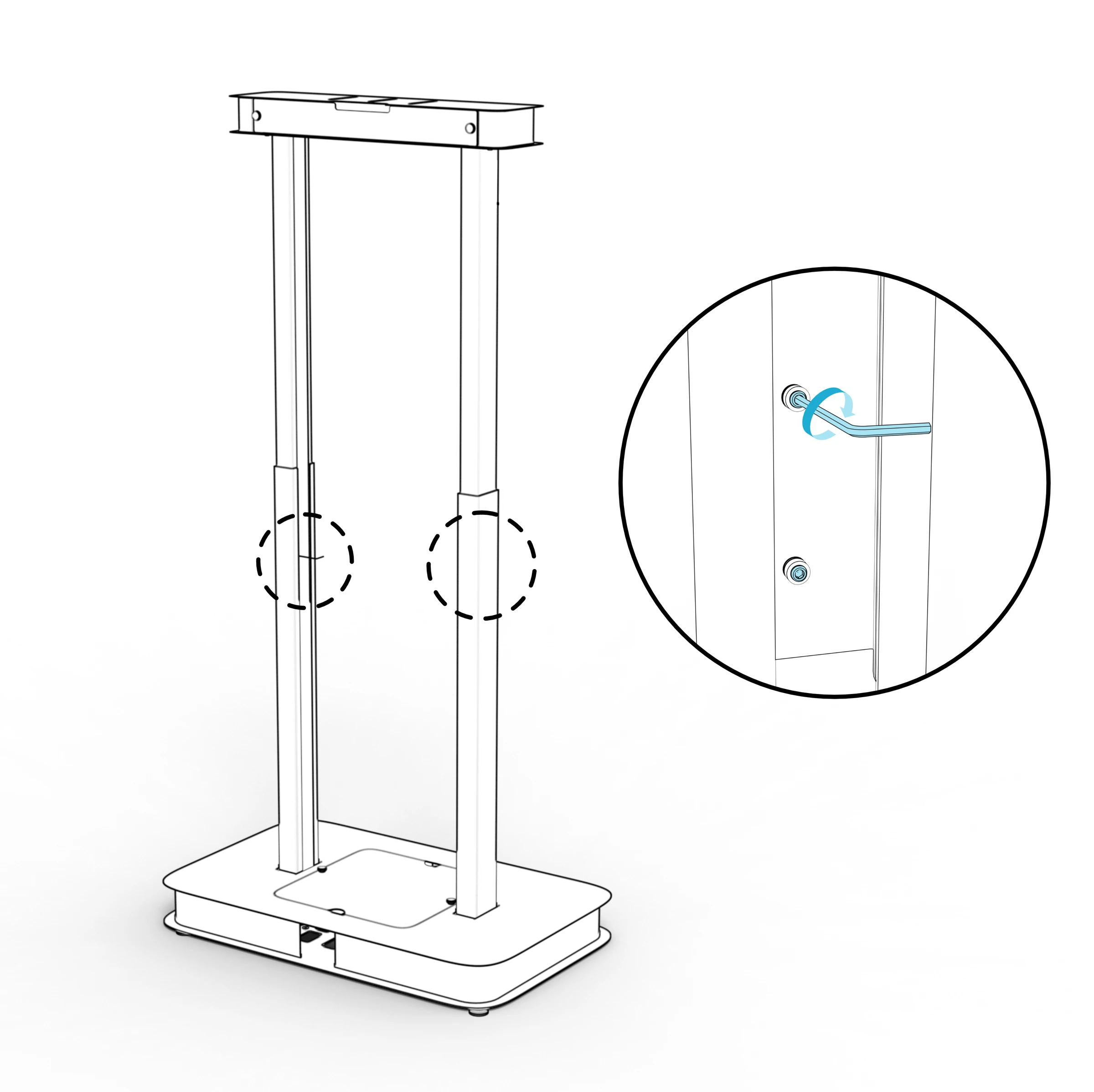

Height-adjustment screw locations on the uprights, with a close-up of the hex key engaging a set screw.

Install Camera

When using PanaCast 50 Video Bar

Install the PanaCast 50 Video Bar to the mounting bracket with screws (item l), wing nuts (item m), and the key (item n) provided.

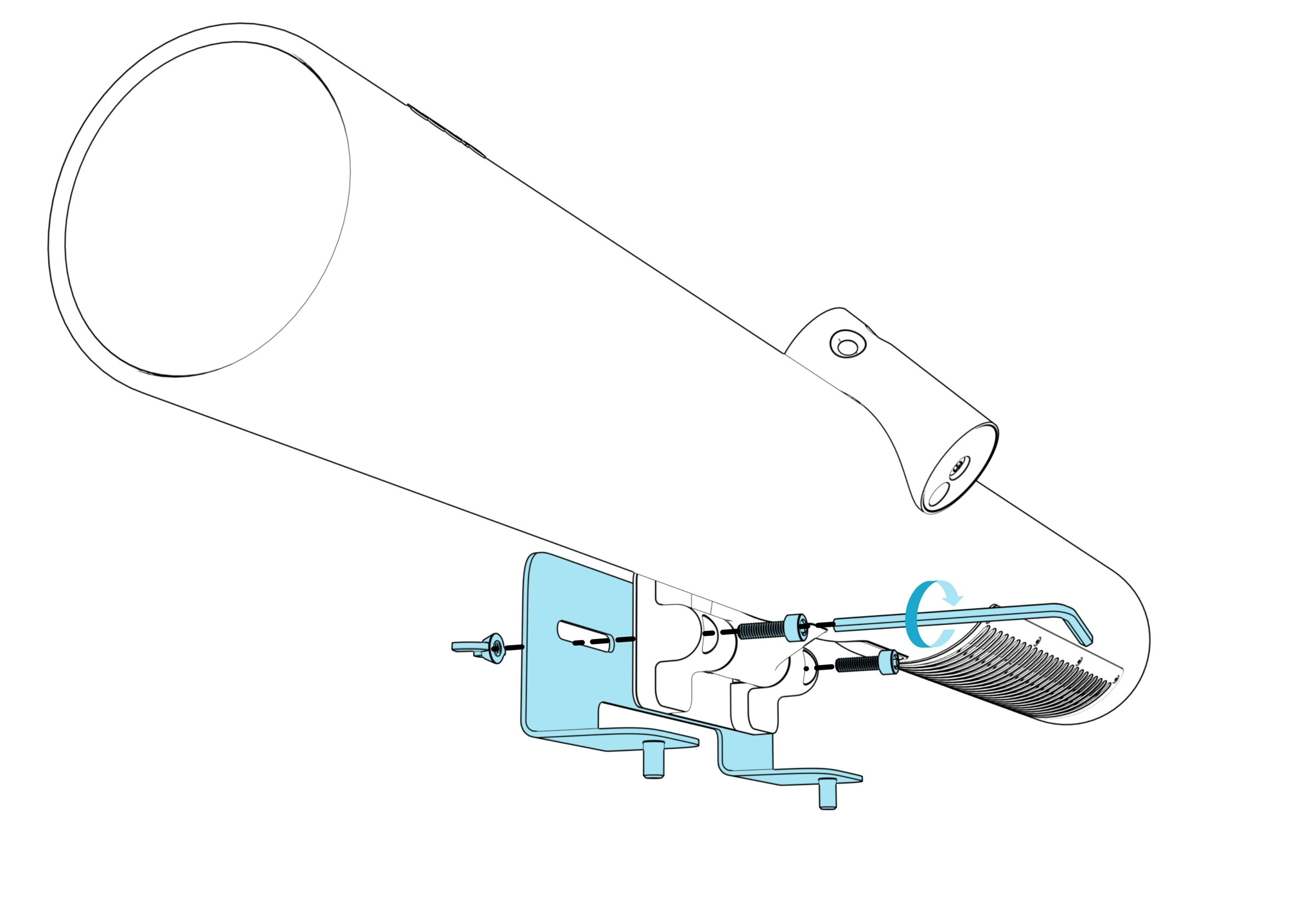

Exploded view of the PanaCast 50 bracket, camera, mounting screws, wing nuts, and hex key.

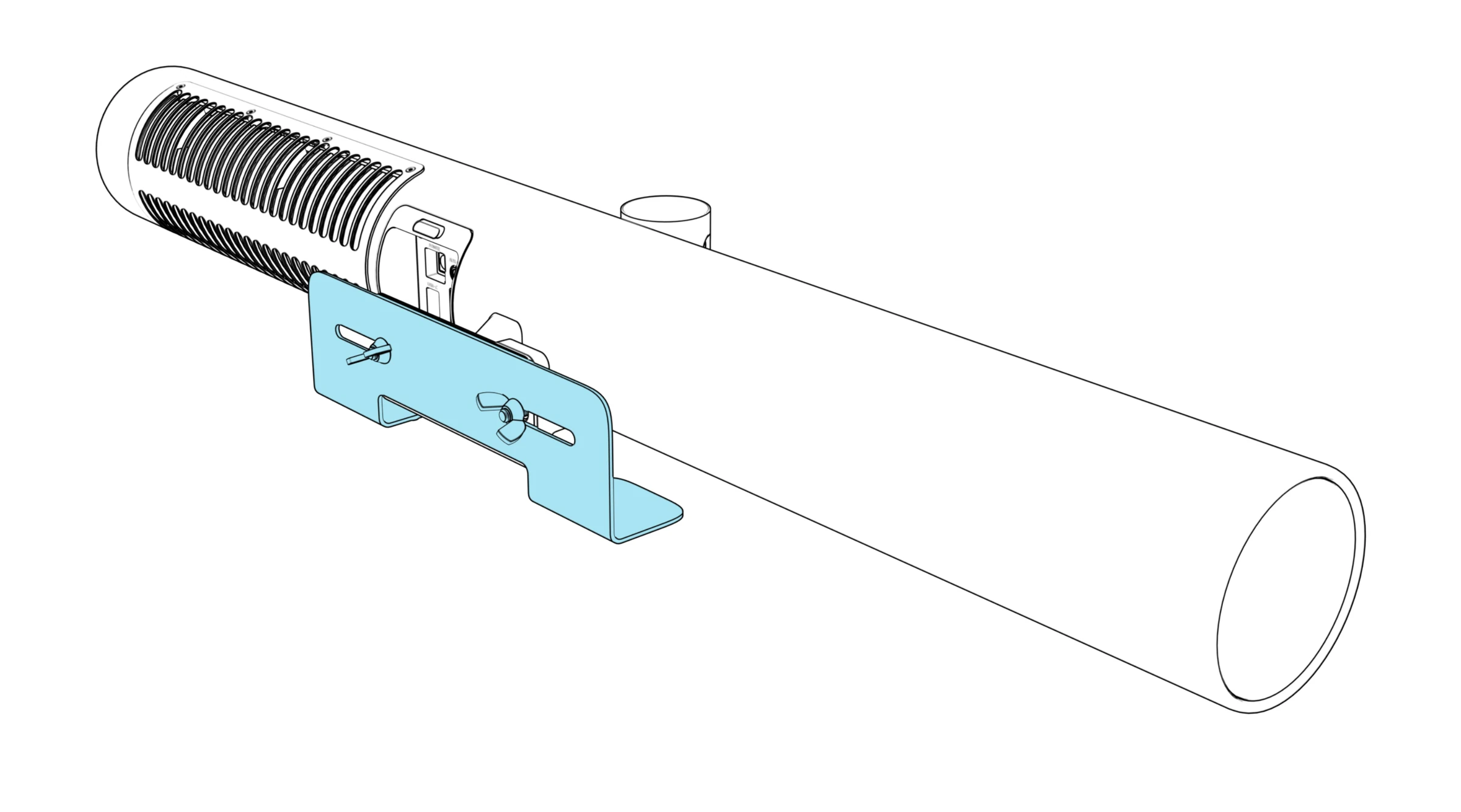

PanaCast 50 bracket fastened to the rear of the video bar.

Install the PanaCast 50 Video Bar to the top shelf by inserting the posts on the bracket to the slots on the top shelf and fastening the wing nuts (item i) from the bottom.

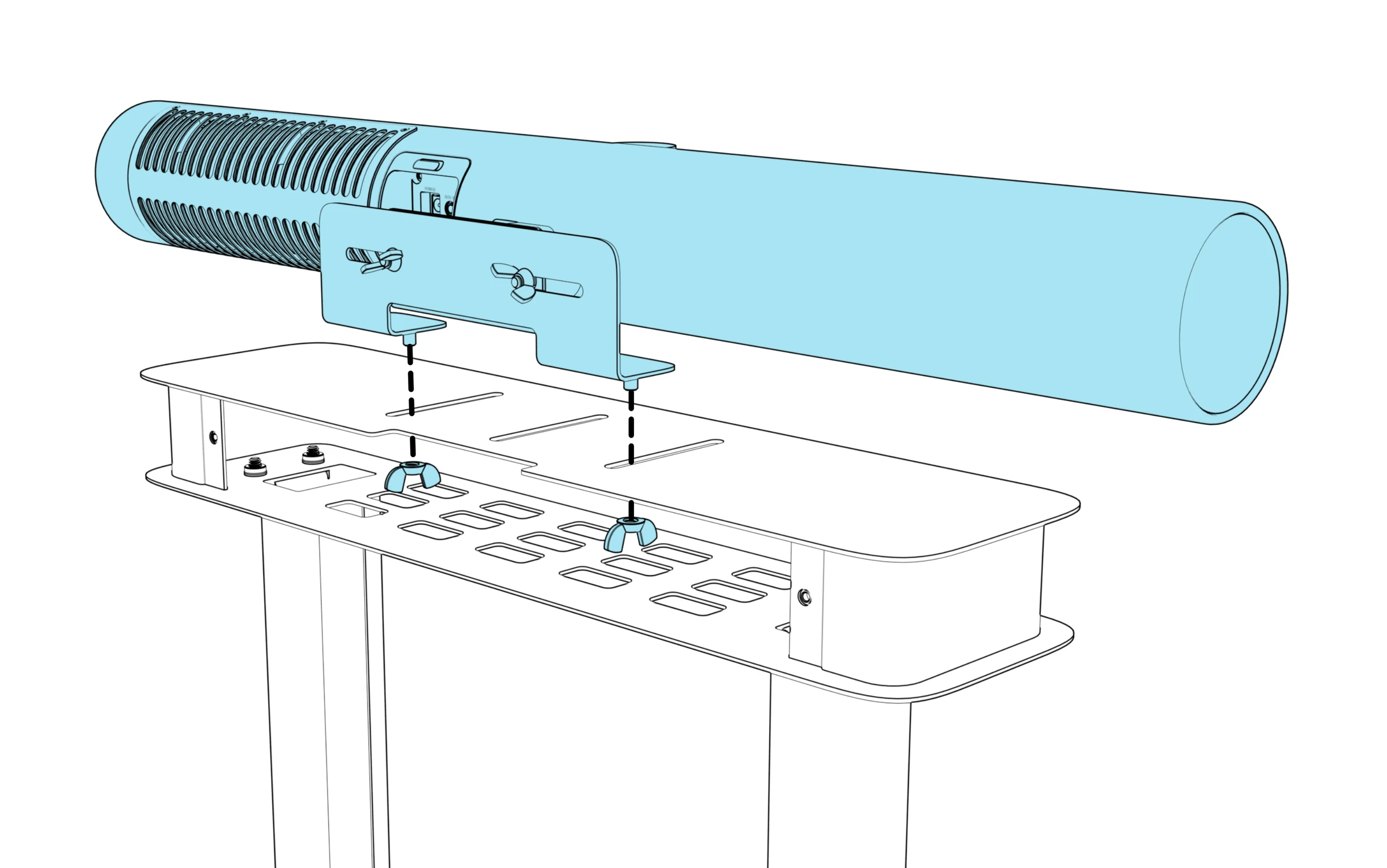

Bracket posts inserted through the top-shelf slots and secured with wing nuts underneath.

When using a PTZ camera

Install the bumper (item j) and the set screw (item k) to the PTZ camera.

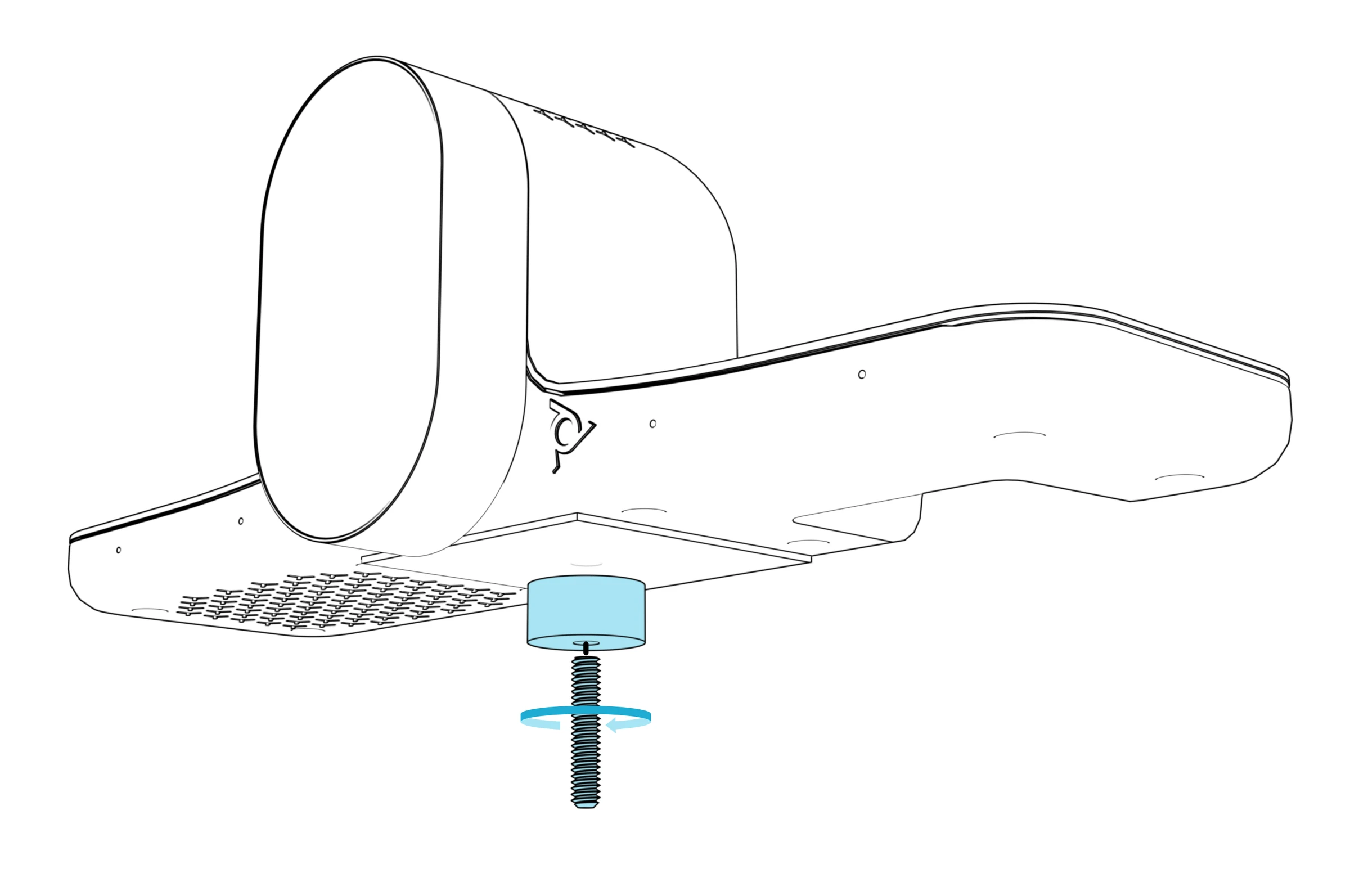

Bumper and mounting set screw positioned beneath a PTZ camera.

Install the PTZ camera to the top shelf by fastening the wing nut (item i) from the bottom.

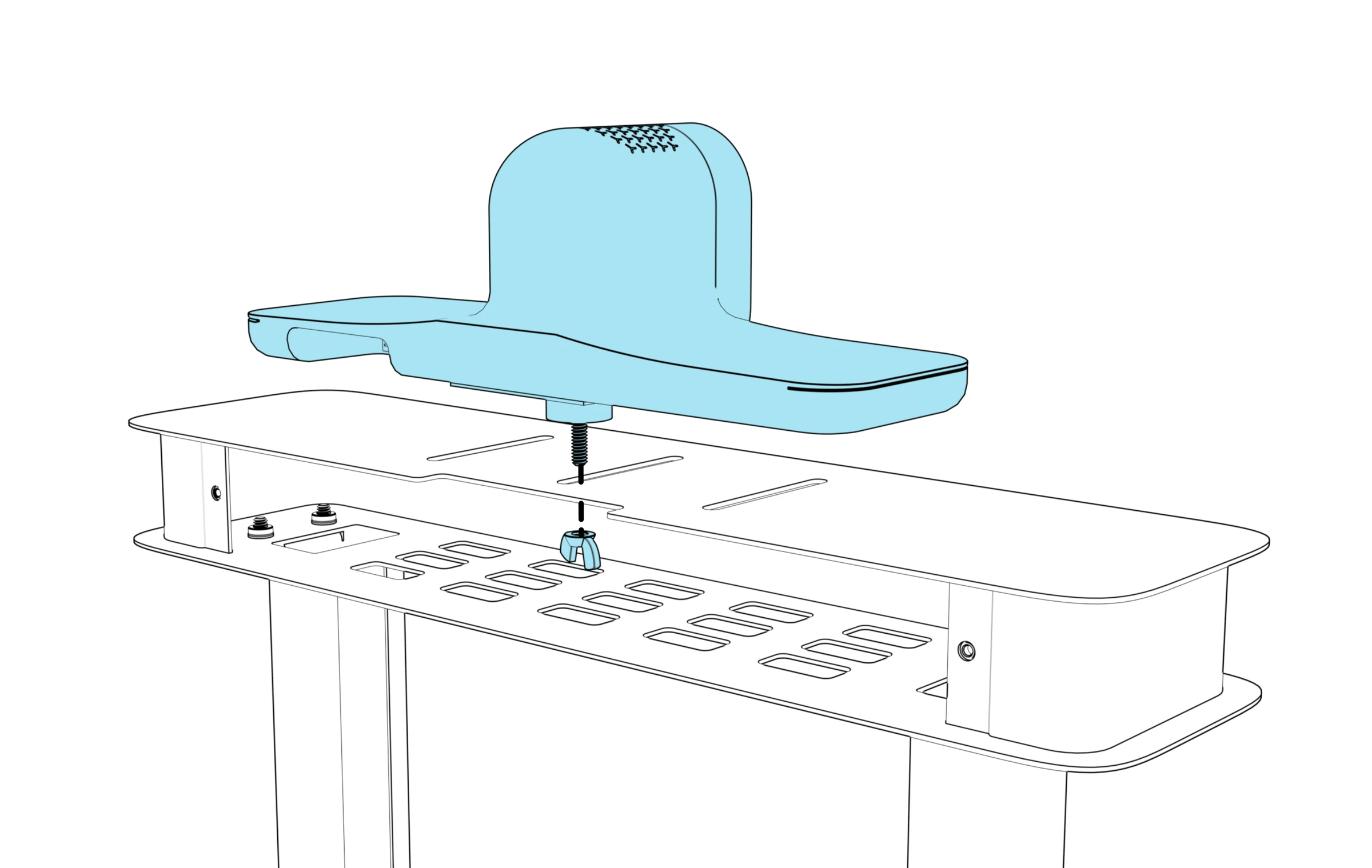

PTZ camera secured to the top shelf with a wing nut from below.

Organize cables and small devices

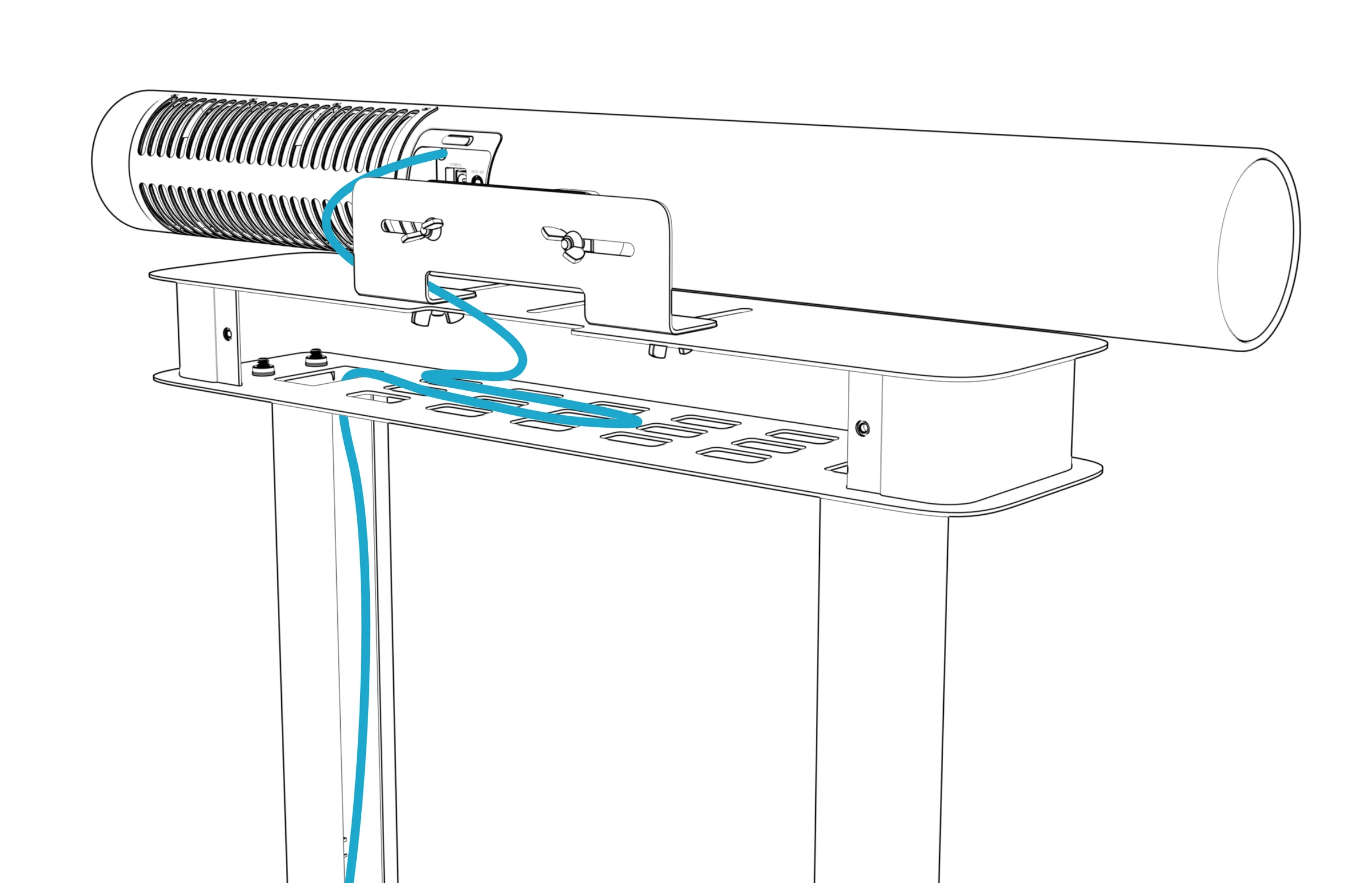

Camera cable routed through the top shelf’s openings.

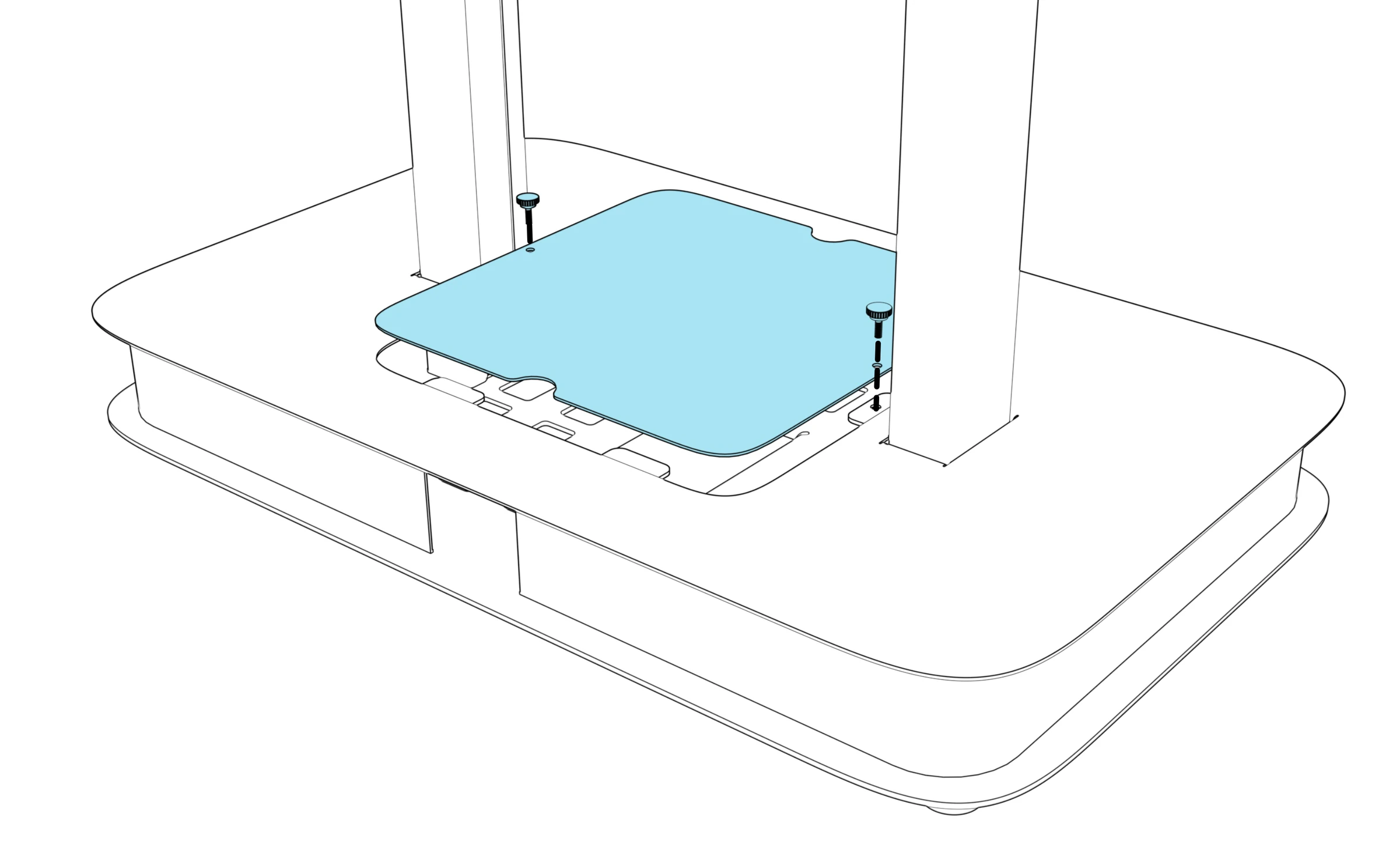

Bottom-shelf cover lifted away after its two screws are removed.

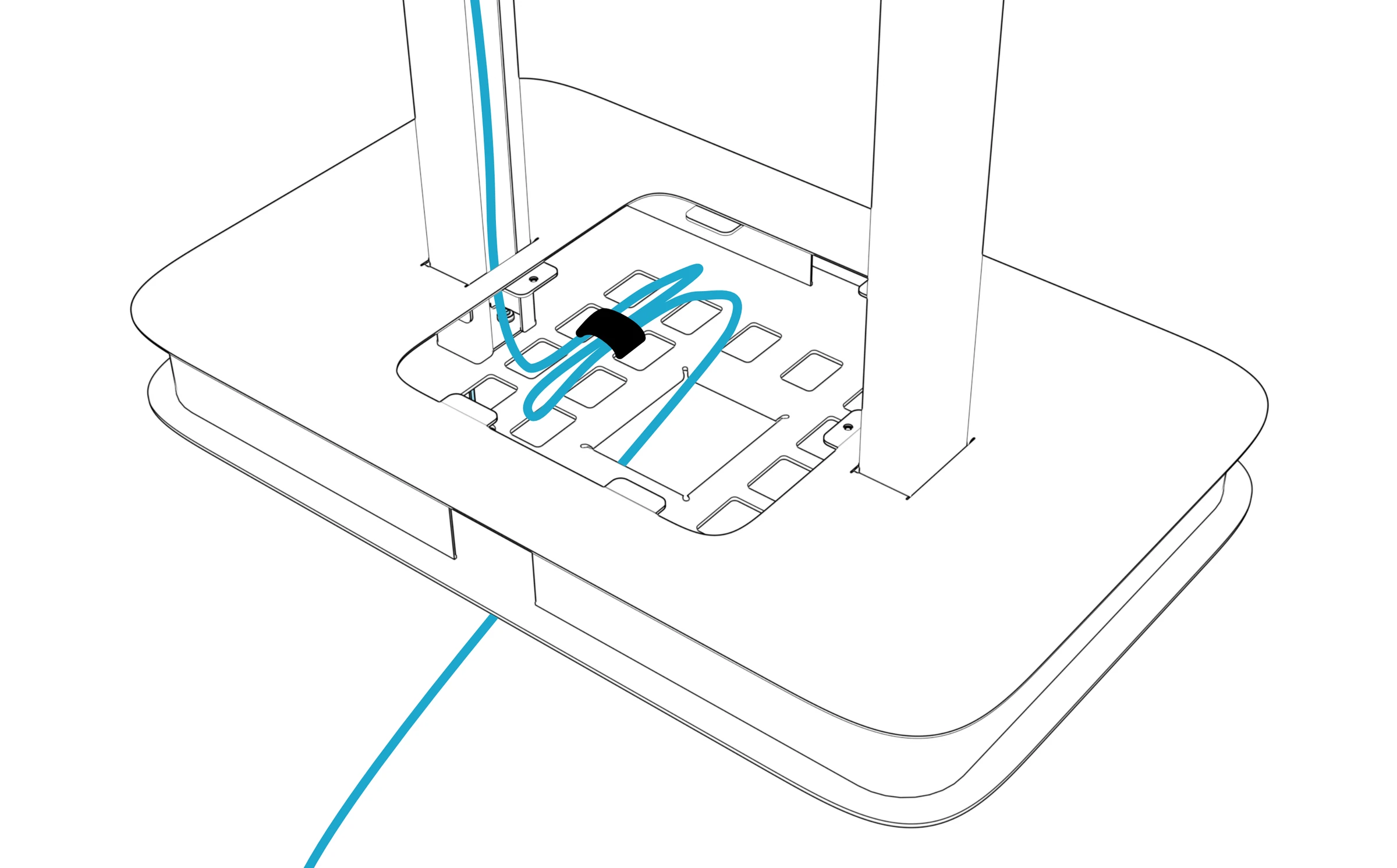

Small device strapped inside the bottom shelf with its cable routed toward an upright.

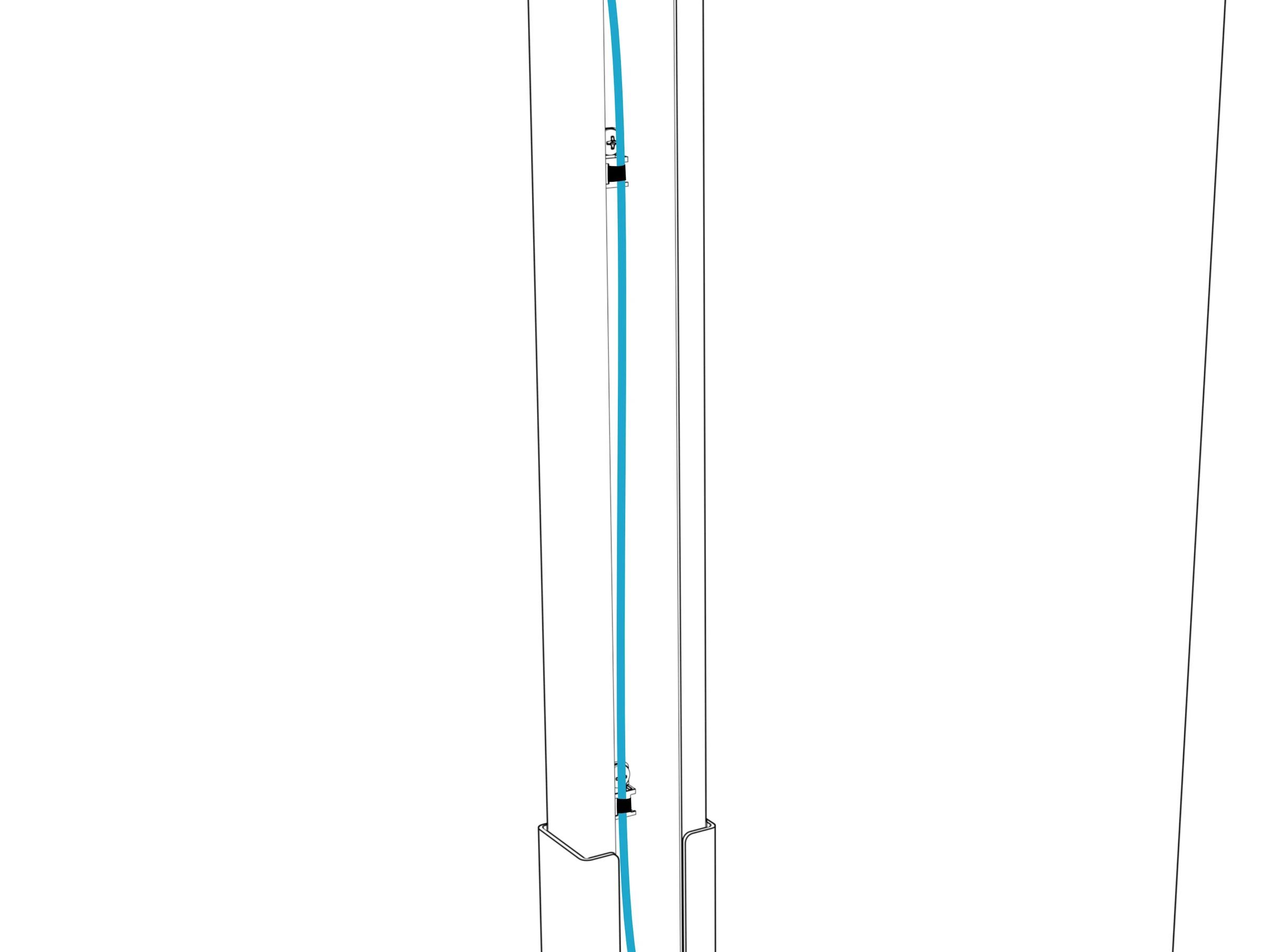

Cable ties securing a cable inside the upright.

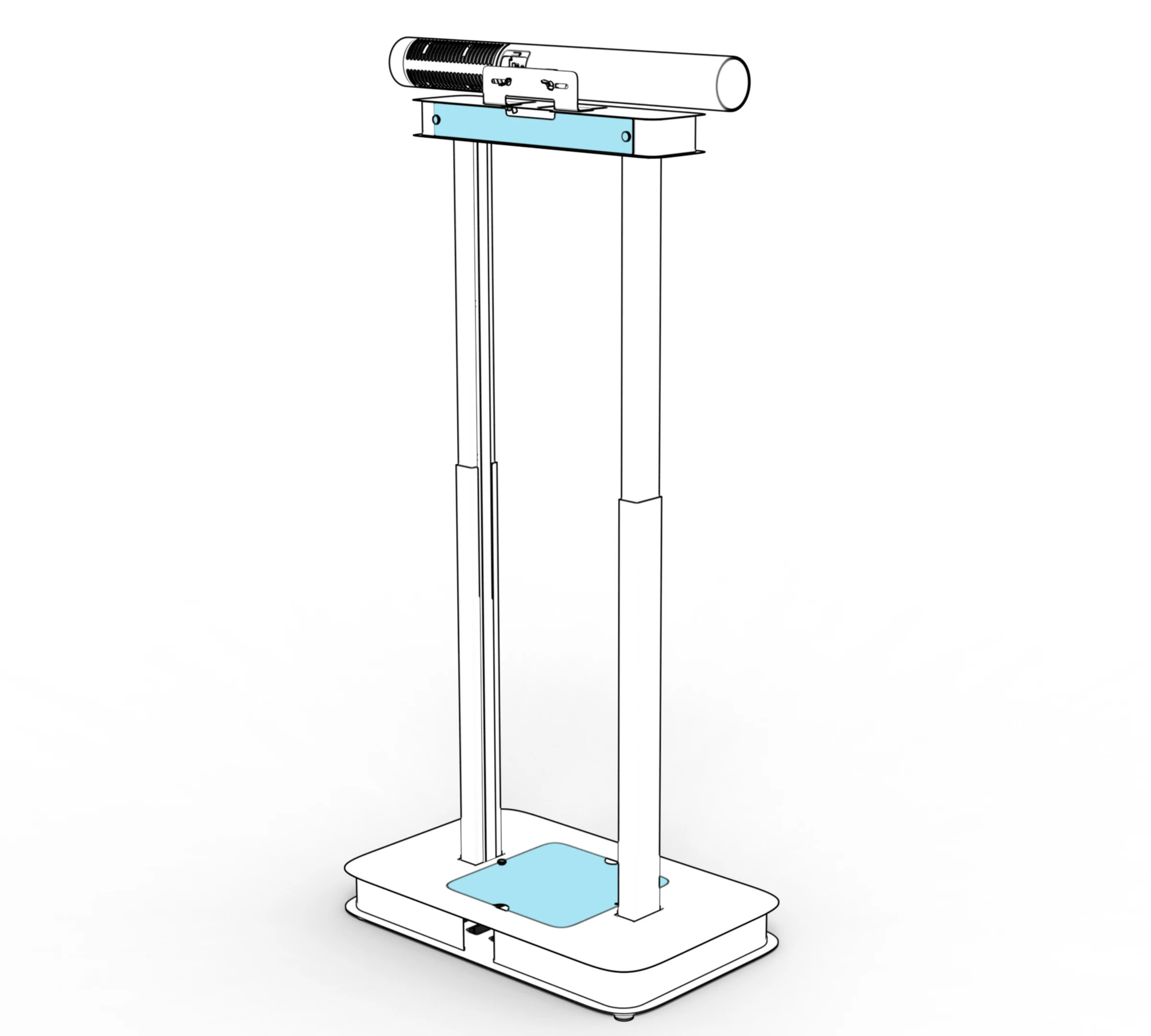

Rear view of the assembled stand with camera, routed cables, and lower cover installed.

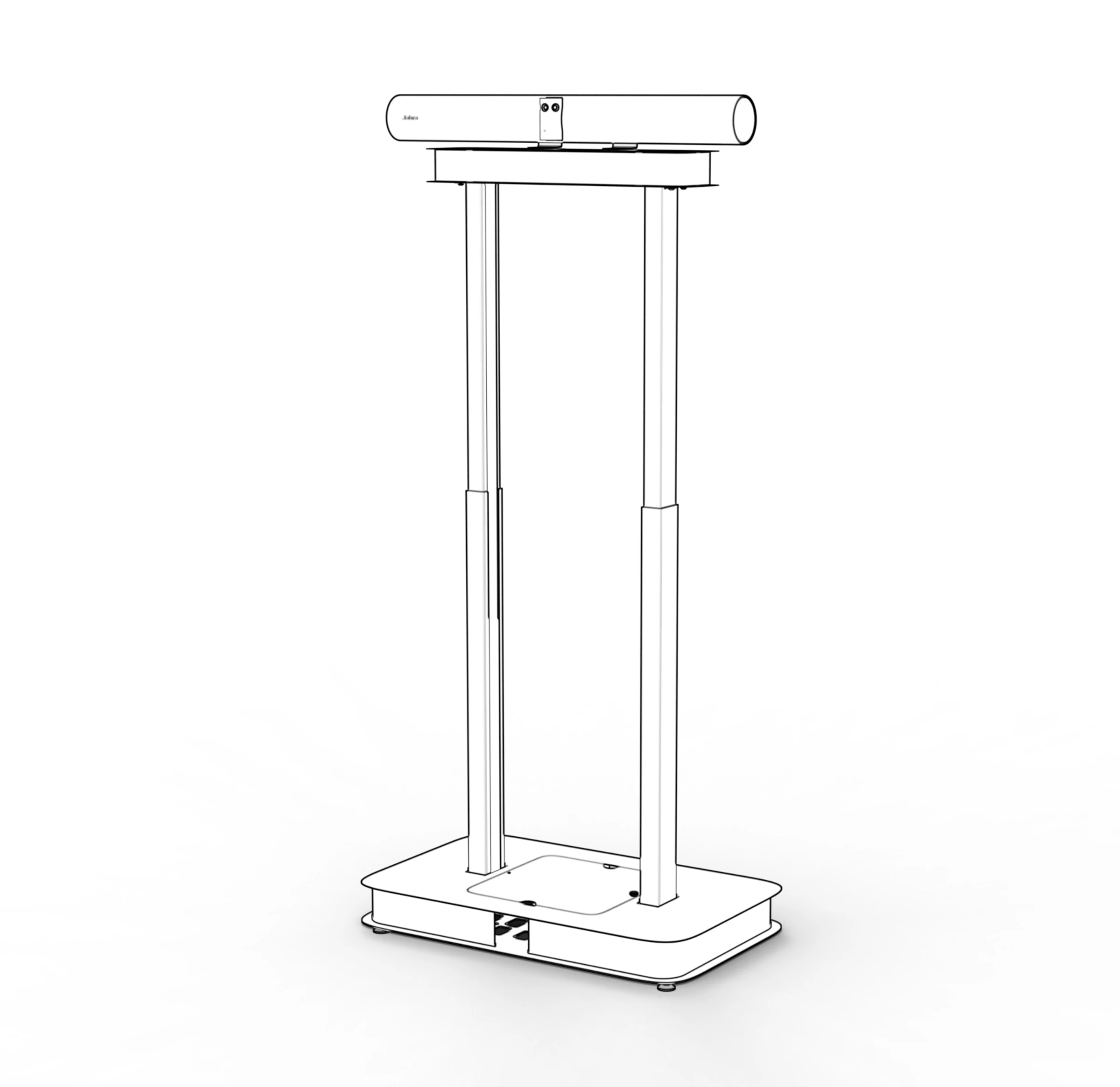

Front view of the assembled camera floor stand.
