H909 Standard Modesty Panel Set for Heckler Lectern 6U

In the box

- One large panel - Two small panels

Enlarge image ↗

Close image ×

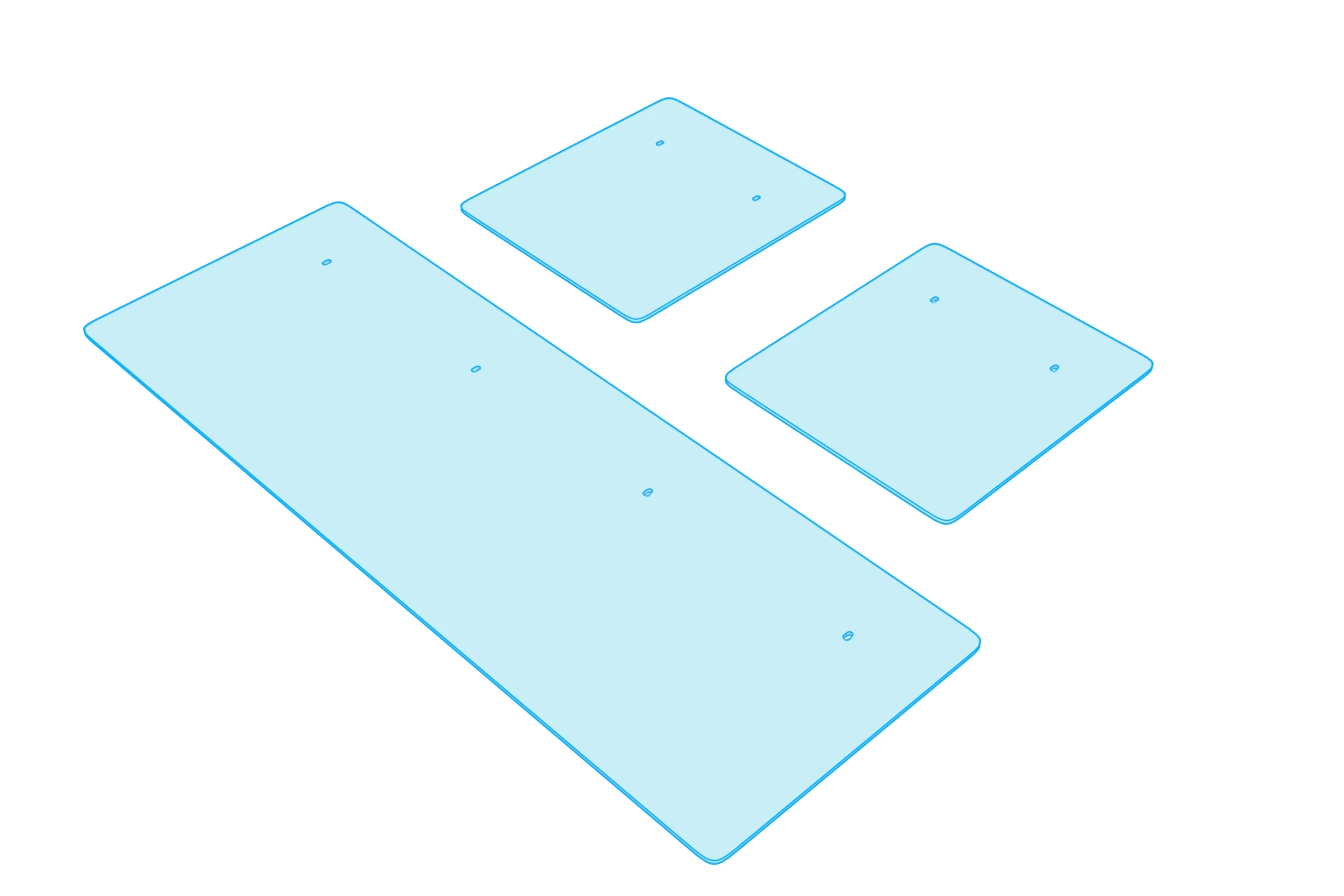

One large front modesty panel and two smaller side panels.

Unpacking

Carefully remove the three panels of your modesty panel set from the packaging.

Enlarge image ↗Play animation

Close image ×

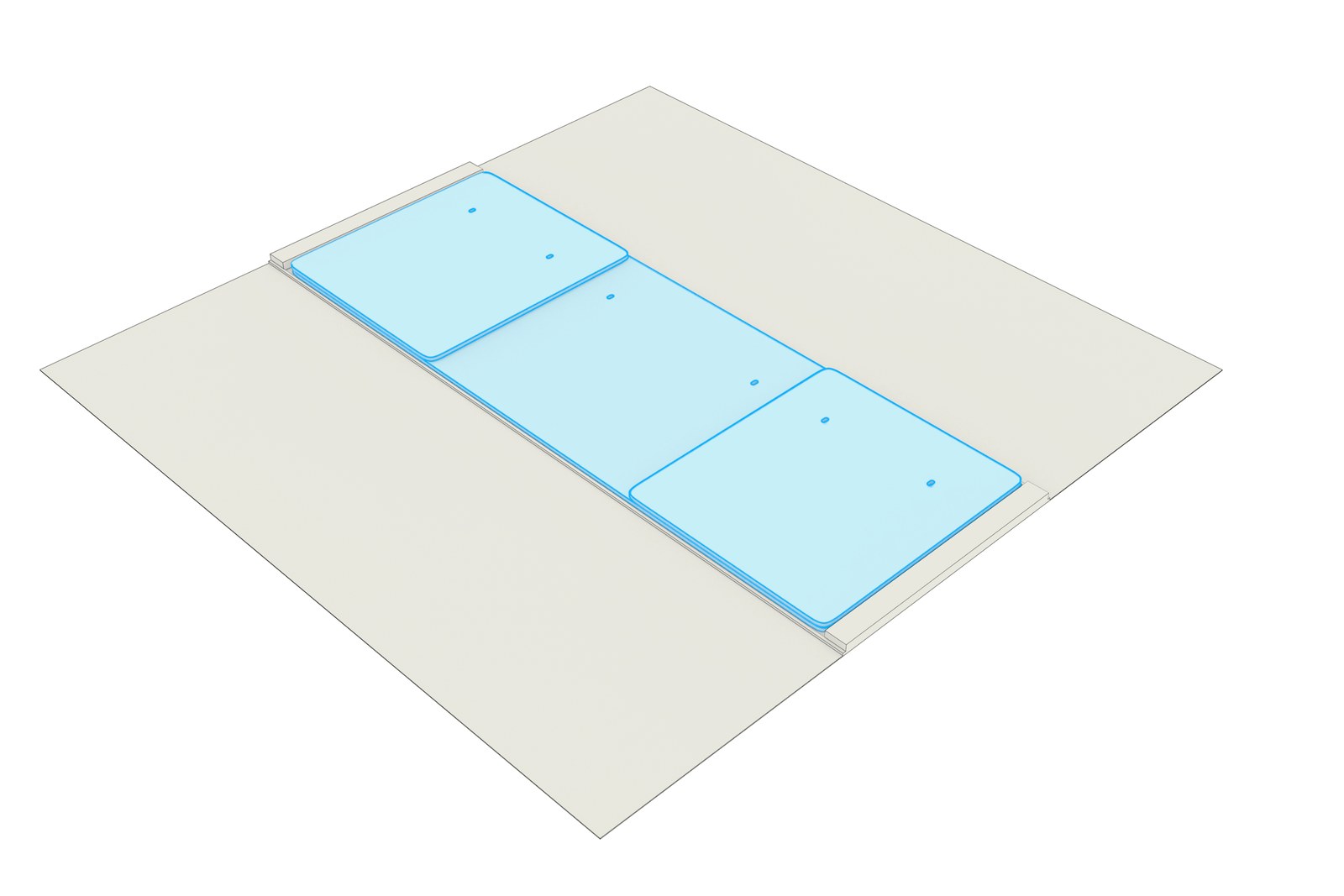

Animation showing the modesty-panel packaging opened to reveal the panels.

Rest each panel on a towel or the packaging foam. Remove the masking paper or film from both sides of each panel.

Assembly

Enlarge image ↗

Close image ×

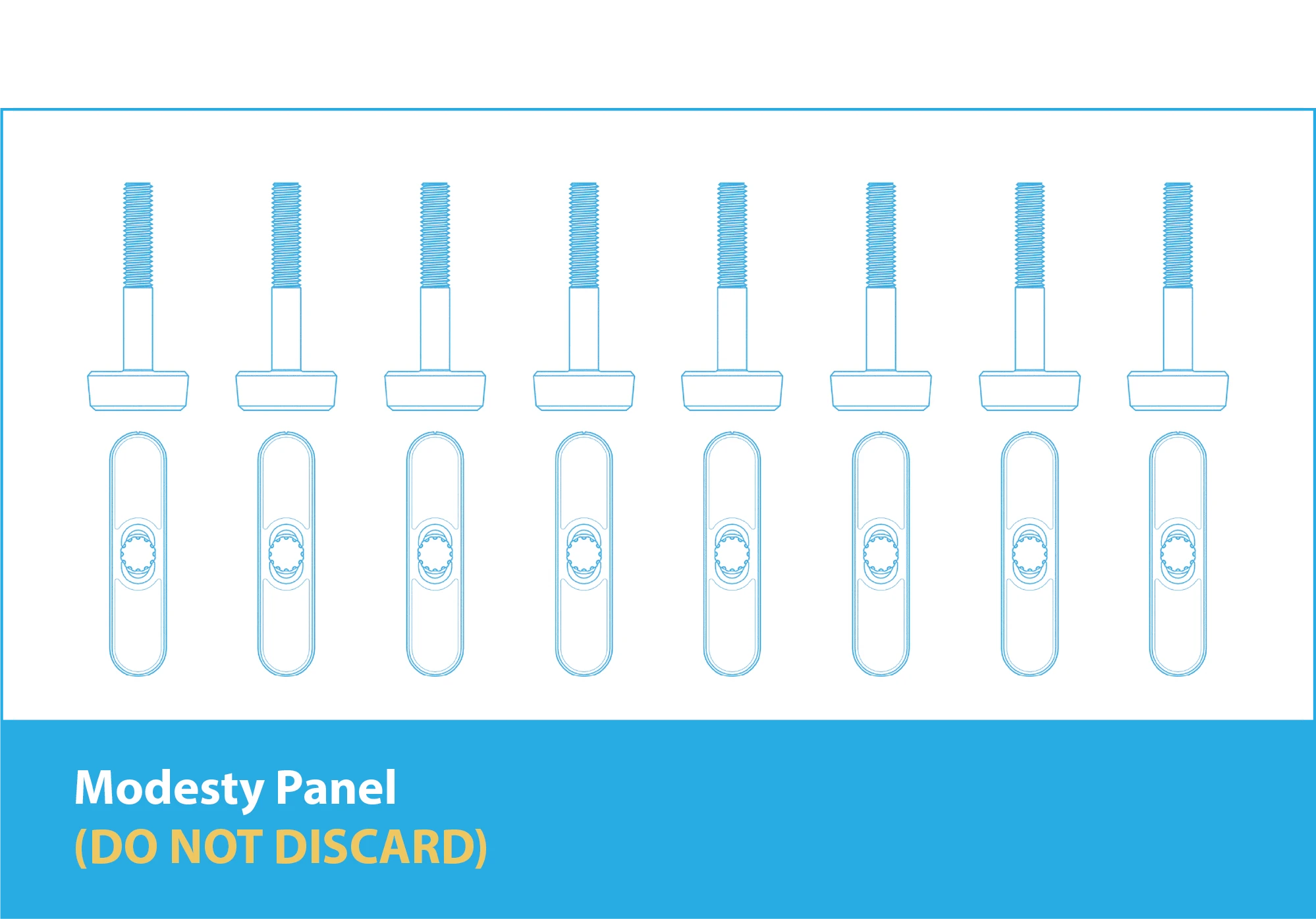

Modesty-panel hardware pack with thumbscrews and spacers, labeled do not discard.

Press and install a modesty panel spacer into each pill-shaped hole in the panel.

Enlarge image ↗Play animation

Close image ×

Animation showing spacers pressed into the pill-shaped panel holes.

Fasten each modesty panel thumbscrew through the panel and then through the spacer. The spacer will retain the screw, creating a tool-less panel installation.

Enlarge image ↗Play animation

Close image ×

Animation showing thumbscrews passing through the panel and its installed spacers.

Installation

Grip the top center edge with one hand and lift the panel. Position it to align the screws with the mounting hole positions on the sides of the lectern. With your other hand, tighten each thumbscrew. Gently wiggle the panel as you tighten the thumbscrews to ensure a firm installation.

Repeat this installation process for each of the three panels. Remove the protective film placed over the custom-printed logo.

Enlarge image ↗Play animation

Close image ×

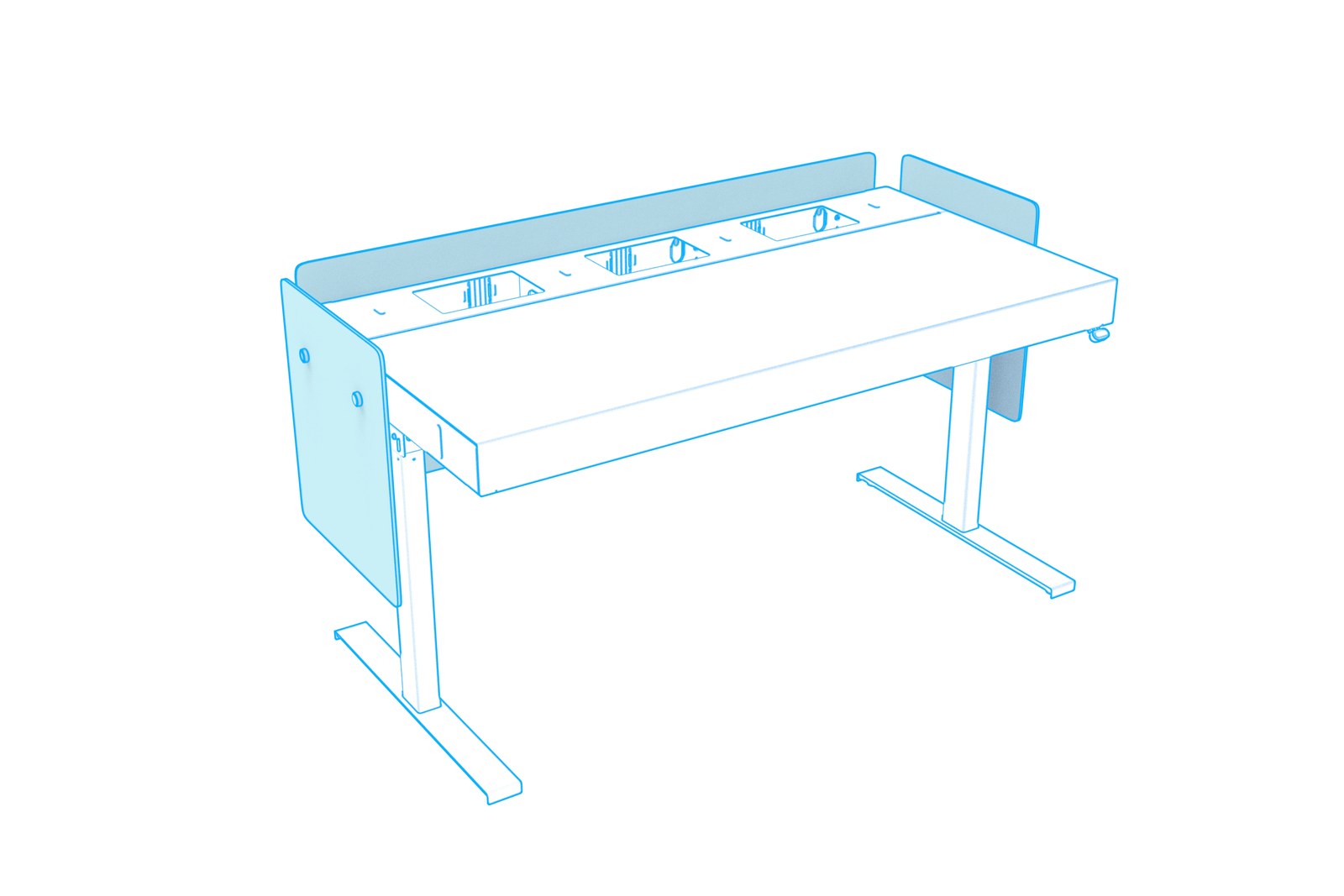

Animation showing the three modesty panels aligned and seated around the lectern.
