User guide

H910-BK Console Insert for Shure SBC 220 or SBC 240

Read guide
PDF · Letter PDF · A4
Guide details Applicability and revision

Fit and lock the console insert, then install the Shure SBC 220 or SBC 240 equipment.

ProductH910-BK
Hardware generationH910-BK
Guide revisionrelease-2026-10-28
Applies to

H910-BK Console Insert for Shure SBC 220 or SBC 240.

In this guide · 6 sections

In the box

- Console Insert for Shure SBC 220 or SBC 240

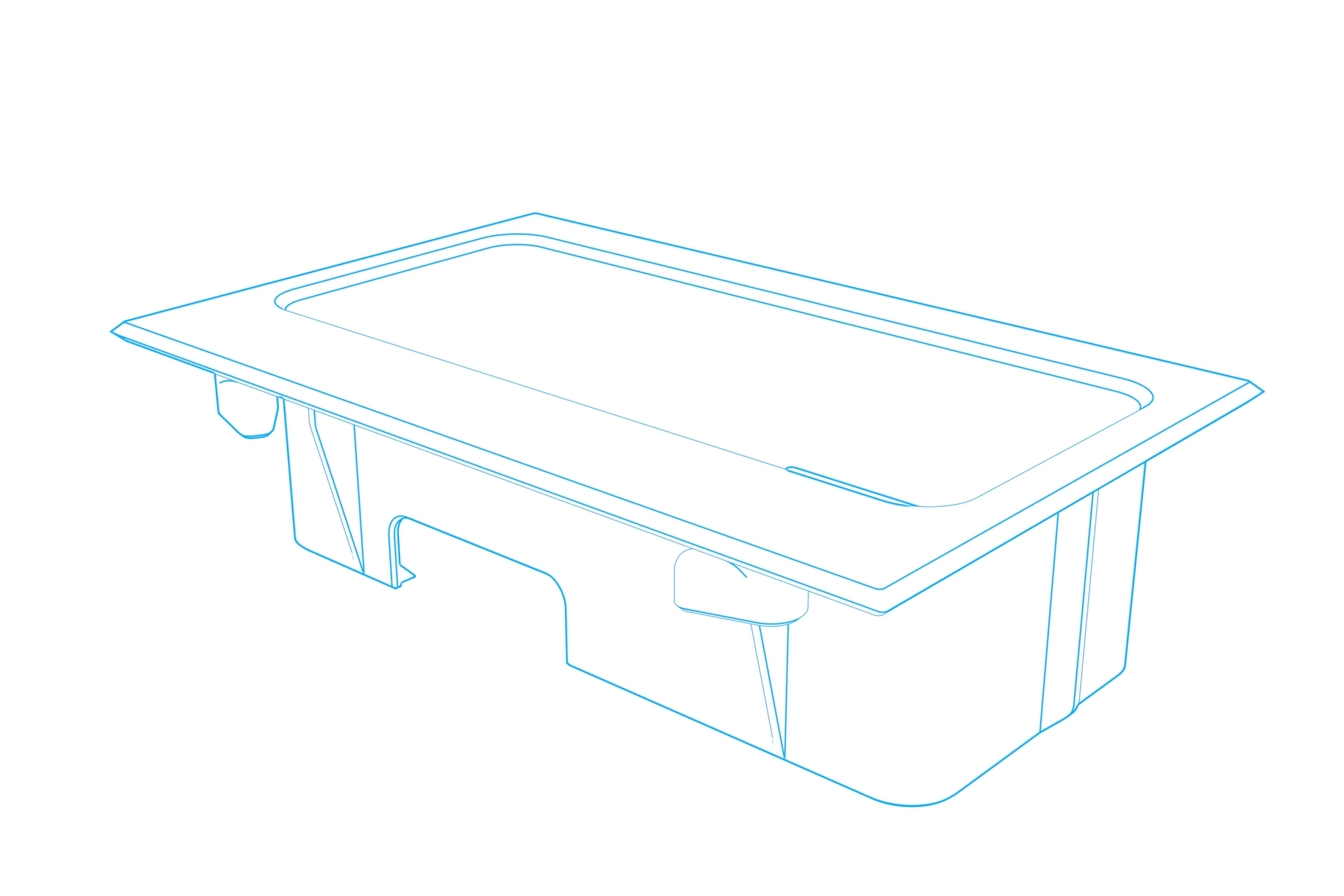

Console insert with a rectangular opening and recessed support for a Shure SBC 220 or SBC 240 charger.

Items needed

- Shure SBC 220 or SBC 240 - Shure microphone - Shure transmitter - Shure rechargeable battery

Slide the Console Insert into the Lectern cutout space.

Underside animation showing the rear lip of the console insert tucked beneath the lectern opening while its retaining tabs are parallel to the front edge.

Rotate the Turn Knob to lock the Console Insert.

Underside animation showing the retaining tabs rotating outward to hold the console insert beneath the lectern surface.

Insert Shure SBC 220 or SBC 240 into slot.

Insert the Shure microphone, transmitter, or rechargeable battery

Insert Shure Speaker, Transmitter or Rechargeable Battery.
