H911-BK Console Insert for Dual Shure SBC 220 or SBC 240

Read guide

PDF · Letter PDF · A4

Guide details Applicability and revision

Mount the dual Shure charging units to the base and secure the console insert and equipment.

ProductH911-BK

Hardware generationH911-BK

Guide revisionrelease-2026-10-28

Applies to

H911-BK Console Insert for Dual Shure SBC 220 or SBC 240.

In this guide · 7 sections

In the box.

- Console Insert Trim for Dual Shure SBC 220 or SBC 240 - Base for Dual Shure SBC 220 or SBC 240 - Self-adhesive hook-and-loop strap - Assembly Hardware

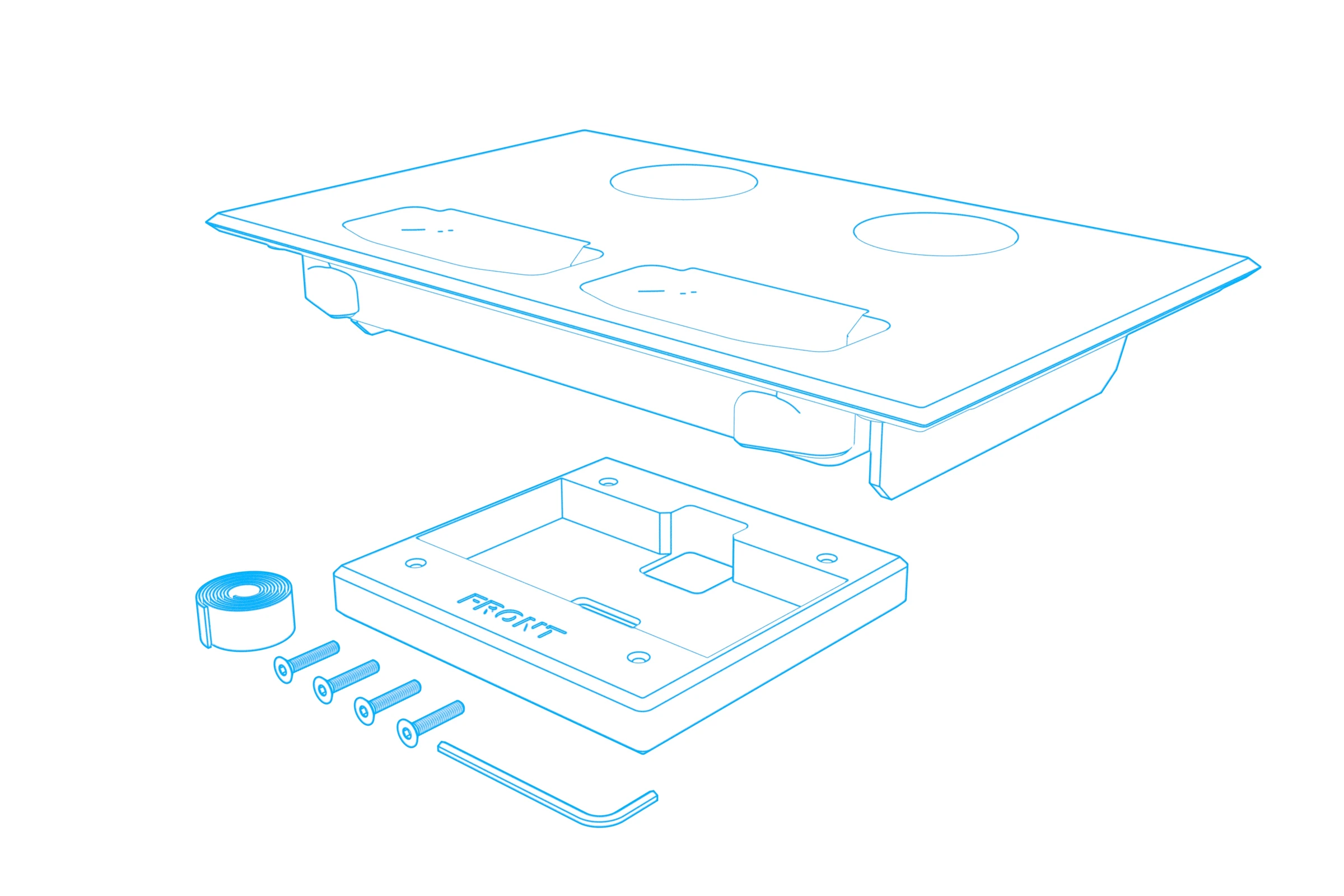

Included console trim with four openings, charger base, adhesive hook-and-loop strap, screws, and hex key.

Items needed.

- Shure SBC 220 or SBC 240 - Shure microphone - Shure Transmitter - Shure SB900B rechargeable battery

Mount the dual Shure SBC 220 or SBC 240 charging docks to the base.

Mount the Dual Shure 220 or SBC 240 to the Base.

Slide the paired charging docks and base into position.

Slide the Dual SBC and the base to the location.

Animation showing the rear lip tucked beneath the console edge with the retaining tabs parallel to the front edge.

Rotate the Turn Knob to lock the Console Insert Trim.

Animation showing the retaining tabs rotated outward beneath the console to hold the trim.

Insert Shure microphones and transmitters.

Insert Shure microphone and Transmitter.

Secure the Base with Velcro Strap.
