User guide
H912-BK Console Insert for Crestron TSW 770 & TSW 1070
Guide details Applicability and revision
Mount the Crestron wall plate to the console insert, lock the insert in place, and fit the touchscreen.
ProductH912-BK
Hardware generationH912-BK
Guide revisionrelease-2026-10-28
Applies to
H912-BK Console Insert for Crestron TSW 770 & TSW 1070.
In this guide · 6 sections

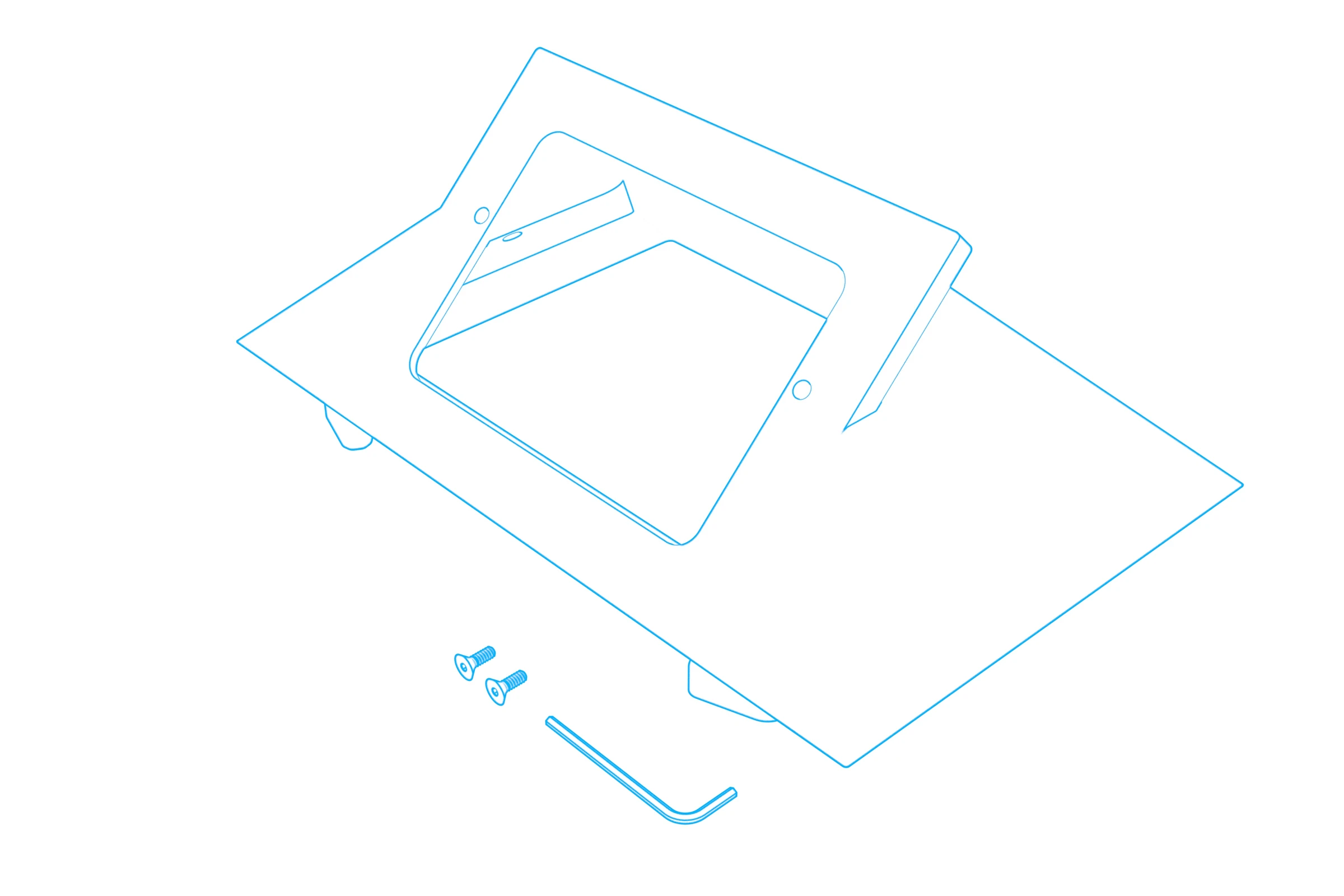

In the box
- Console Insert for Crestron TSW 770 & TSW 1070 - Assembly Hardware
Items needed
- Crestron TSW 770 or TSW 1070 - Crestron wall-mount plate (included with the Crestron TSW 770 or TSW 1070)
Install the TSW 770 or TSW 1070 Wall Mount plate to Console Insert.
Use the provided assembly hardware to fasten the Crestron wall-mount plate to the console insert.
