H913-BK

Console Insert for Extron AAP 104

Prepare the Extron AAP modules, attach AAP 104 to the console insert, and lock the insert in place.
H913 lectern console insert with two power outlets and modular Extron AAP 104 connections.

This guide is also available as a printable PDF.

In the box

  • Console Insert for Extron AAP 104

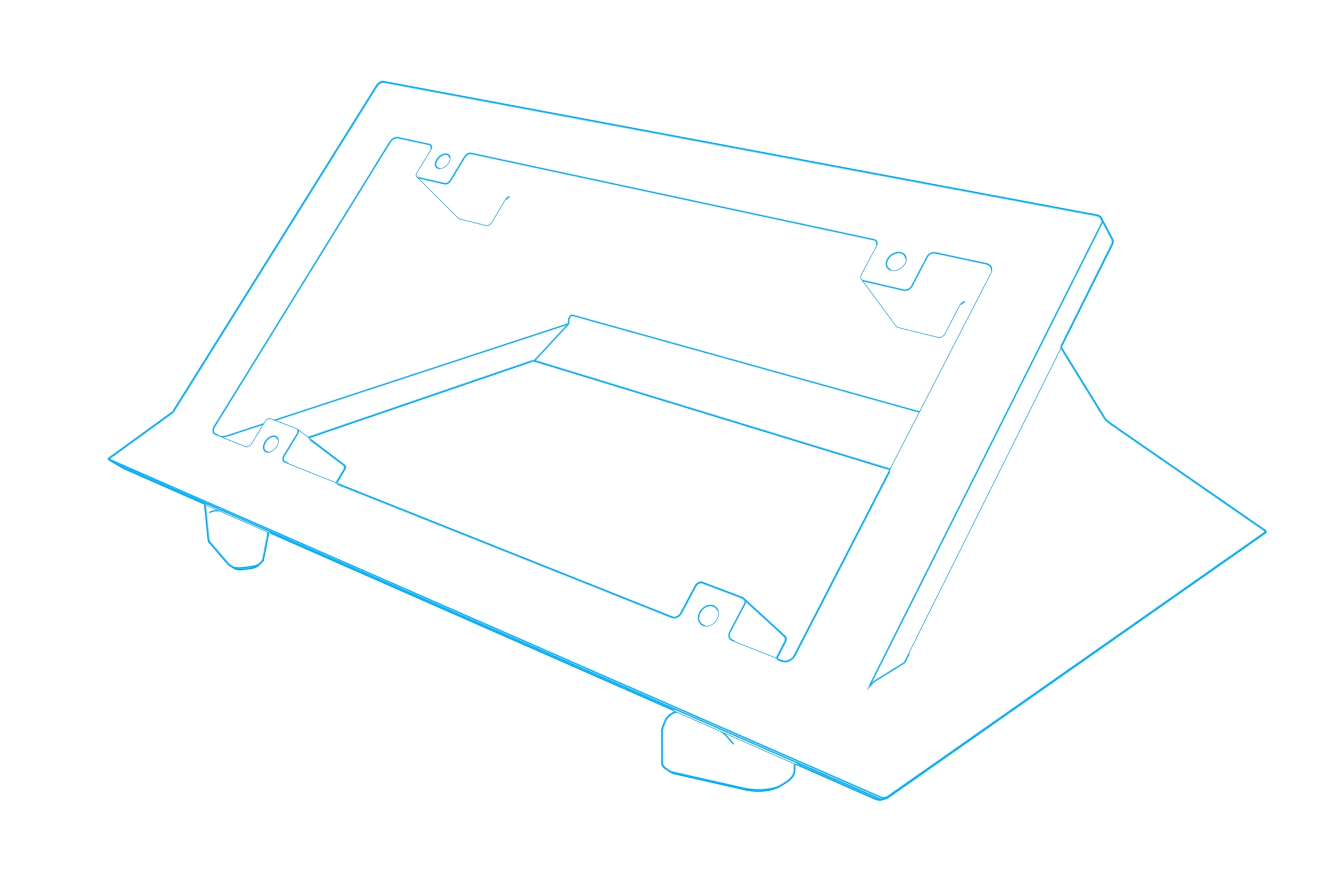

Angled console insert with a rectangular Extron AAP 104 mounting opening and two upper mounting tabs.

Items and tools needed

  • Extron AAP 104
  • Extron AAP modules
  • Phillips screwdriver

Preinstall selected Extron AAP modules to Extron AAP 104.

Select the Extron AAP modules for your build and preinstall them in the Extron AAP 104.

Pick the Extron AAP modules fits your build and preinstall them to Extron AAP 104

Install the Extron AAP 104 to Console Insert.

Slide the Console Insert into the Lectern cutout space.

Underside animation showing the rear lip of the console insert tucked beneath the lectern opening while its retaining tabs are parallel to the front edge.

Rotate the Turn Knob to lock the Console Insert.

Underside animation showing the retaining tabs rotating outward to hold the console insert beneath the lectern surface.
