User guide

H916-BK Console Insert for Shure SBC 200

Read guide
PDF · Letter PDF · A4
Guide details Applicability and revision

Fit and lock the console insert, then install the Shure SBC 200 equipment.

ProductH916-BK
Hardware generationH916-BK
Guide revisionrelease-2026-10-28
Applies to

H916-BK Console Insert for Shure SBC 200.

In this guide · 6 sections

In the box.

- Console Insert for Shure SBC 200

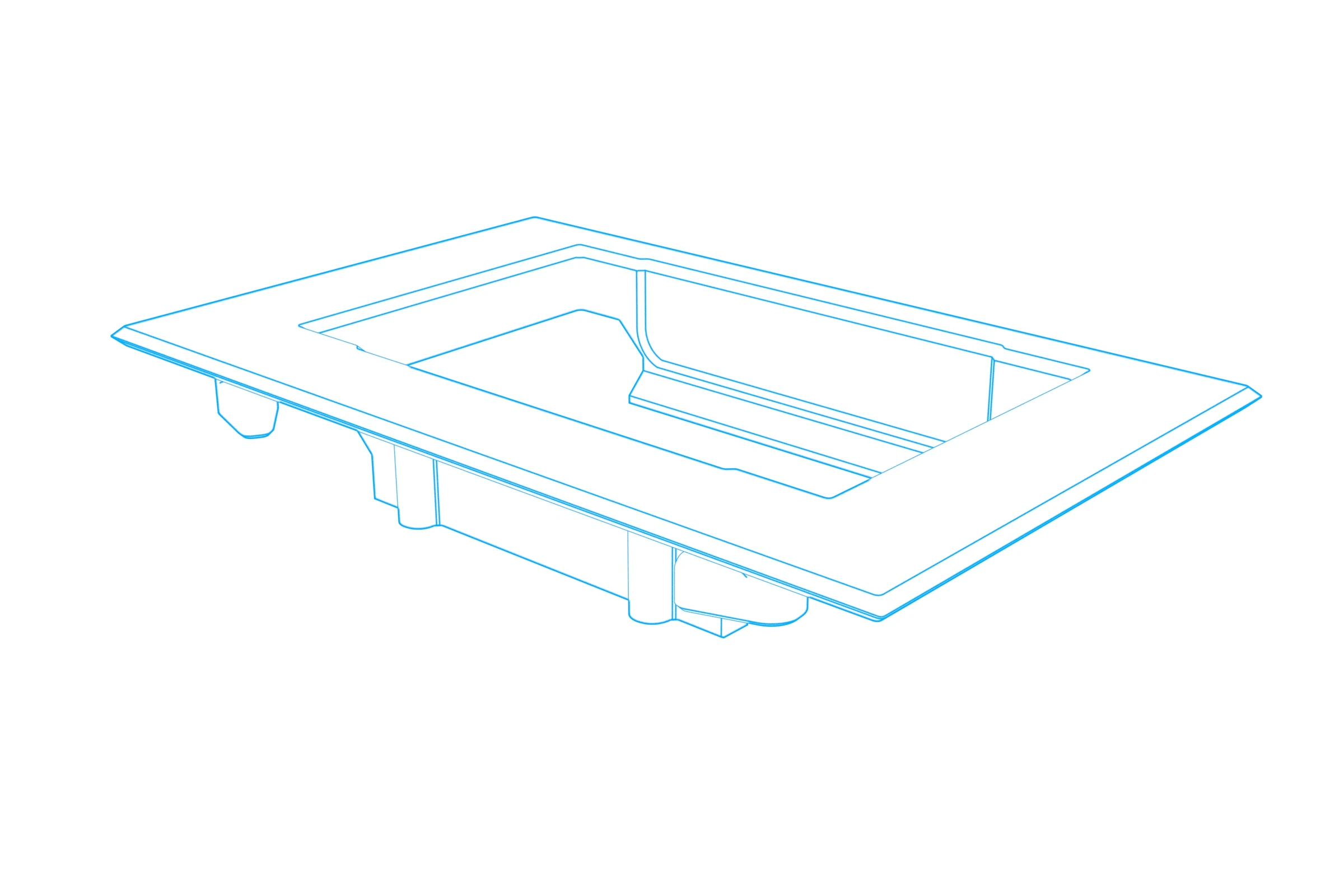

Console insert with an opening and support ledges for a Shure SBC 200 charging dock.

Items Needed.

- Shure SBC 200 - Shure microphone - Shure transmitter - Shure rechargeable battery

Slide the Console Insert into the Lectern cutout space.

Animation showing the rear lip tucked beneath the console edge with retaining tabs parallel to the front edge.

Rotate the Turn Knob to lock the Console Insert.

Animation showing the retaining tabs rotated outward beneath the console.

Insert Shure SBC 200 into the Console Insert.

Insert Shure microphone, transmitter, or rechargeable battery into the slot.
