H917-BK

Console Insert for Crestron Swivel Mount Kit

Fit the Crestron Swivel Mount Kit console insert into the lectern and lock it in place.
H917 lectern console insert holding a Crestron touch controller on a swivel mount.

This guide is also available as a printable PDF.

In the box

  • Console Insert for Crestron Swivel Mount Kit
  • Assembly hardware

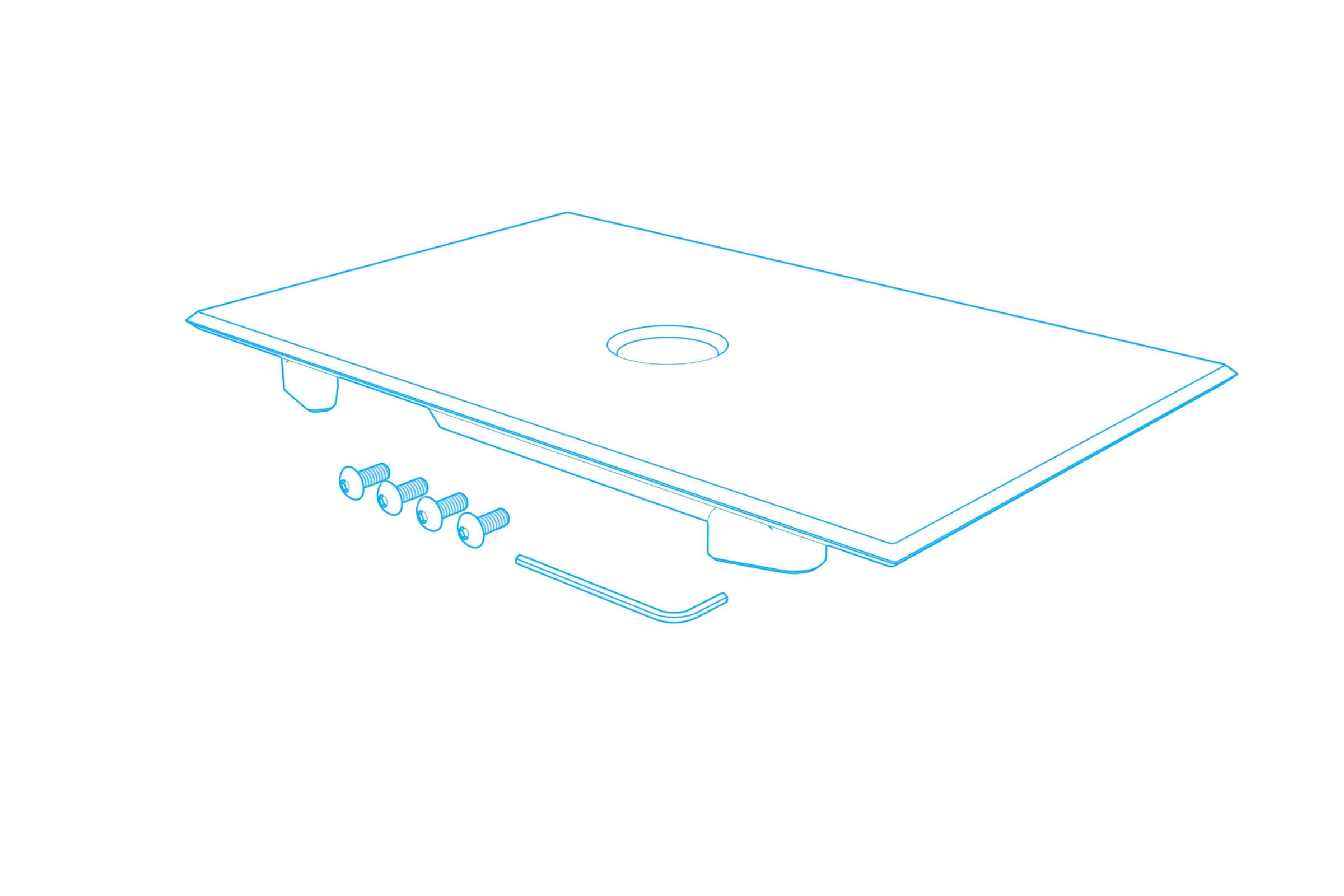

Console insert with a central circular opening, four assembly screws, and an L-shaped assembly key.

Items needed

Crestron TS-770 or TS-1070

Crestron TS-770/1070-SMK Swivel Mount Kit for TS-70 Series

Install the console insert for the Crestron swivel mount kit

Position the console insert between the Crestron TS-770 or TS-1070 touch screen and the TS-770/1070-SMK swivel mount kit.

Slide the console insert into the lectern opening

Underside animation showing the rear lip of a console insert sliding beneath the lectern opening while its two retaining knobs remain parallel to the insert edge.

Rotate the retaining knobs to lock the console insert

Underside animation showing both retaining knobs rotating outward to secure the console insert beneath the lectern surface.
