User guide

H918-BK Console Insert for Neat Pad

Read guide
PDF · Letter PDF · A4
Guide details Applicability and revision

Attach Neat Pad to the console insert, fit the insert in the lectern, and lock it in place.

ProductH918-BK
Hardware generationH918-BK
Guide revisionrelease-2026-10-28
Applies to

H918-BK Console Insert for Neat Pad.

In this guide · 5 sections

In the box

- Console Insert for Neat Pad - Assembly hardware

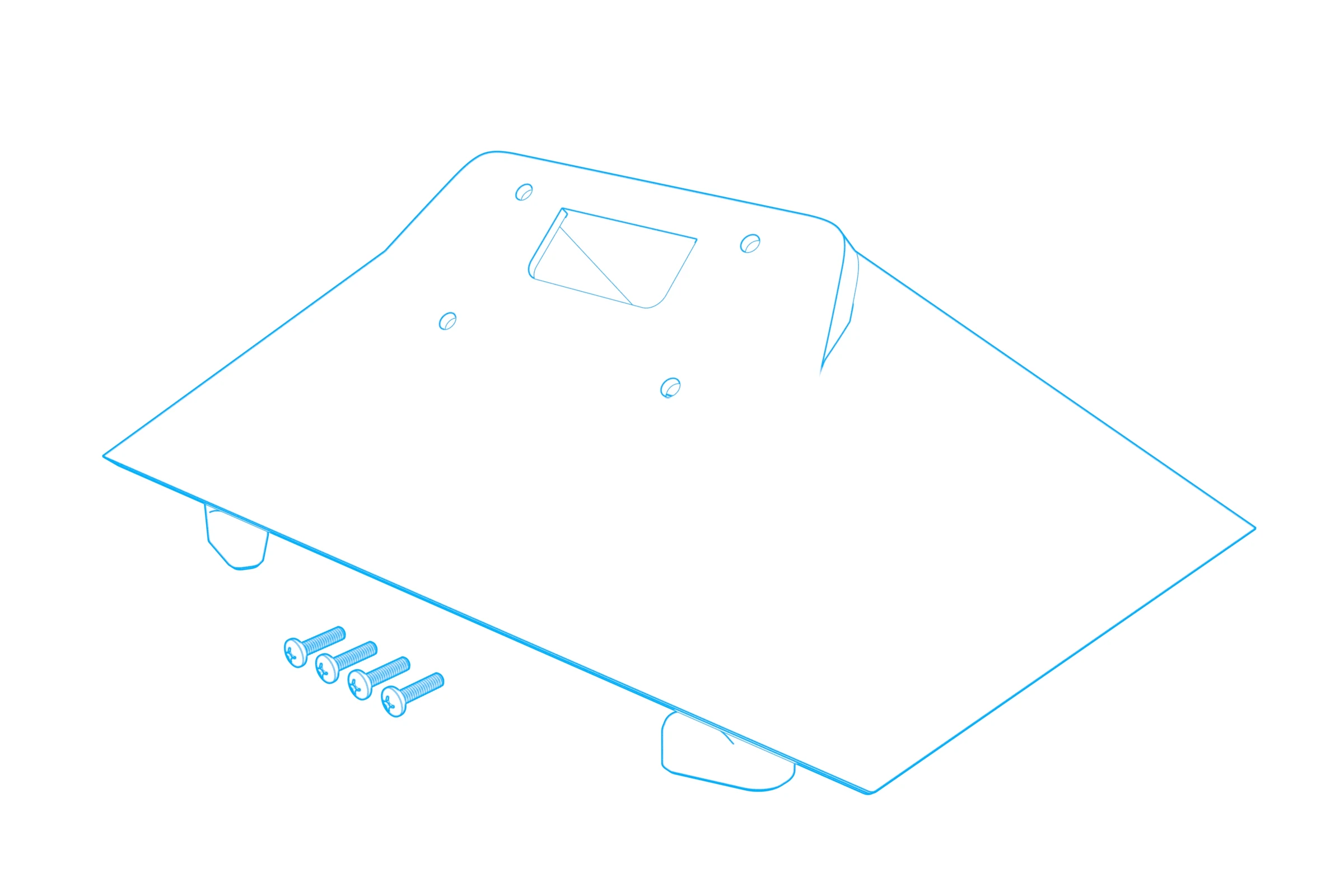

Console insert with four mounting holes, a central cable cutout, and four mounting screws.

Items needed

- Neat Pad - Phillips screwdriver

Install Neat Pad to Console Insert.

Route the Ethernet cable through the console-insert cutout and connect it to the back of Neat Pad. Align the four mounting holes and fasten Neat Pad to the console insert.

Fish the ethernet cable through the console insert cutout and plug to the back of Neat Pad, then align the 4 mounting holes and fasten the Neat Pad to Console Insert.

Slide the Console Insert into the Lectern cutout space.

Animation showing the rear lip tucked beneath the console edge with the retaining tabs parallel to the front edge.

Rotate the Turn Knob to lock the Console Insert.

Animation showing the retaining tabs rotated outward beneath the console to hold the insert.
