User guide

H919 Console Insert for SBC 220 or 240 and A400SM

Guide details Applicability and revision

Mount the SBC 220 or 240 and A400SM components, then secure the console insert and base.

ProductH919
Hardware generationH919
Guide revisionrelease-2026-10-28
Applies to

H919 Console Insert for SBC 220 or 240 and A400SM.

In this guide · 8 sections

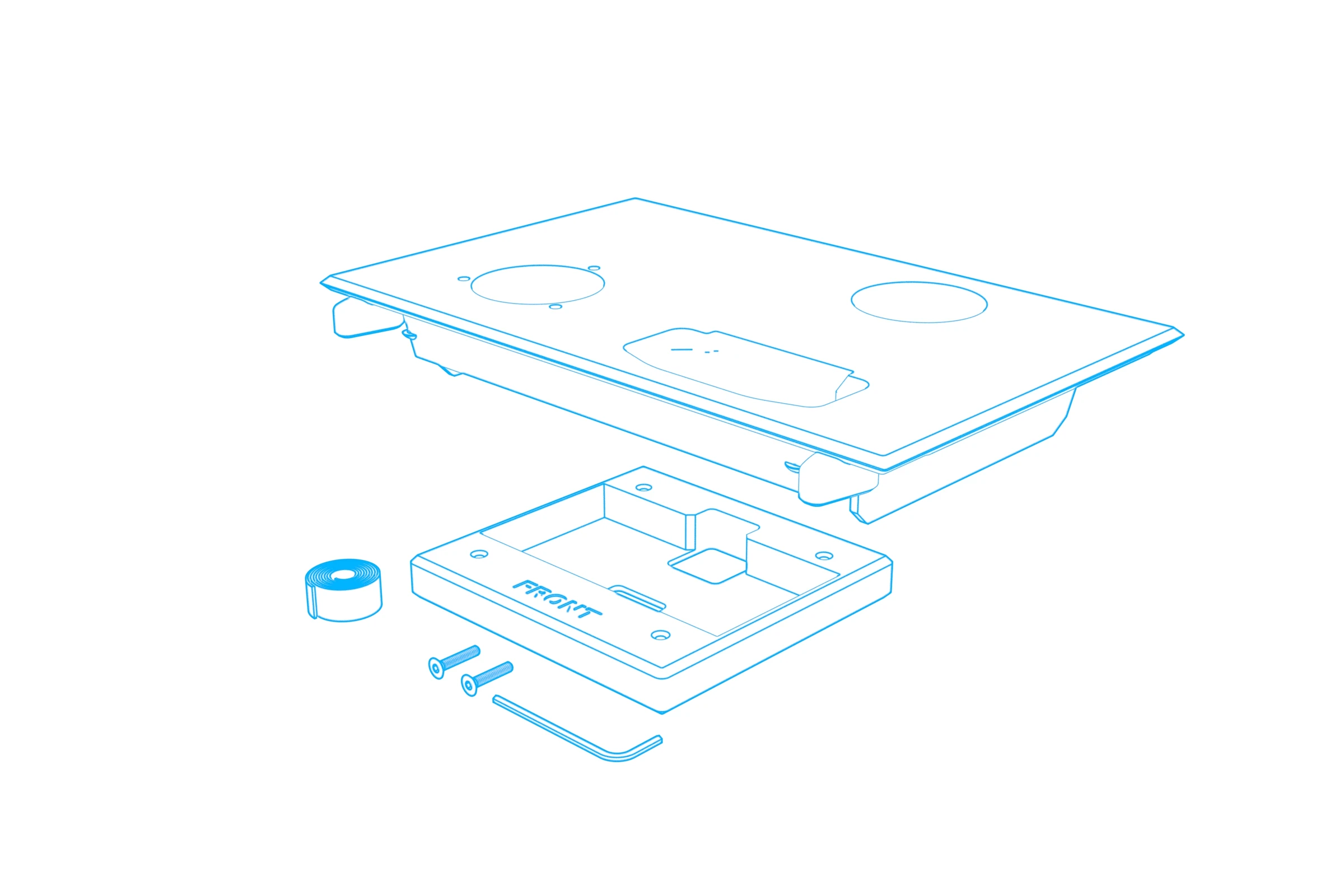

In the box

- Console insert trim for SBC220 or SBC240 and A400SM - Base for SBC220 or SBC240 and A400SM - Self-adhesive hook-and-loop strip - Assembly hardware

Console trim with two round openings and a rectangular opening, a separate charger base, self-adhesive hook-and-loop material, screws, and an assembly key.

Items needed

• Shure SBC220 or SBC240

• Compatible Shure microphones

• Compatible Shure transmitter

• Shure A400SM shock mount

Mount the A400SM to the console insert

Fasten the SBC220 or SBC240 to the base

Slide the console insert into the lectern opening

Underside animation showing the rear lip of a console insert sliding beneath the lectern opening while its two retaining knobs remain parallel to the insert edge.

Rotate the retaining knobs to lock the console insert

Underside animation showing both retaining knobs rotating outward to secure the console insert beneath the lectern surface.

Insert the Shure microphones and transmitter

Secure the base with the hook-and-loop strip
