In this guide · 11 sections 01 In the box02 Install the casters03 A. If the legs come with caster posts pre-installed.04 B. If the legs do not come with caster posts pre-installed.05 Install the Wood Shelf06 Install the Display Mounting Bracket07 Install the D7 Display08 Prepare the display09 Hang the display10 Route the cables11 Install magnetic cable managersa. 2 x Leg
b. 1 x Display Mounting Bracket
c. 1 x Wood Shelf
d. 4 x Caster
e. 4 x Magnetic Cable Manager
f. 1 x Hex Key, 6 mm (F535)
g. 1 x Hex Key, 4 mm (F674)
h. 1 x Hex Key, 1/8 inch (F180)
i. 2 x Cable Tie (F530)
j. 4 x Display Mounting Screw, flanged button head (F694)
k. 8 x Wood Shelf Mounting Screw, button head (F693)
l. 4 x Display Bracket Mounting Screw, socket head (F534)
Enlarge image ↗ Included components labeled a–l: legs, display bracket, wood shelf, casters, magnetic cable managers, three hex keys, cable ties, and mounting screws.
Directly snap casters onto the posts.

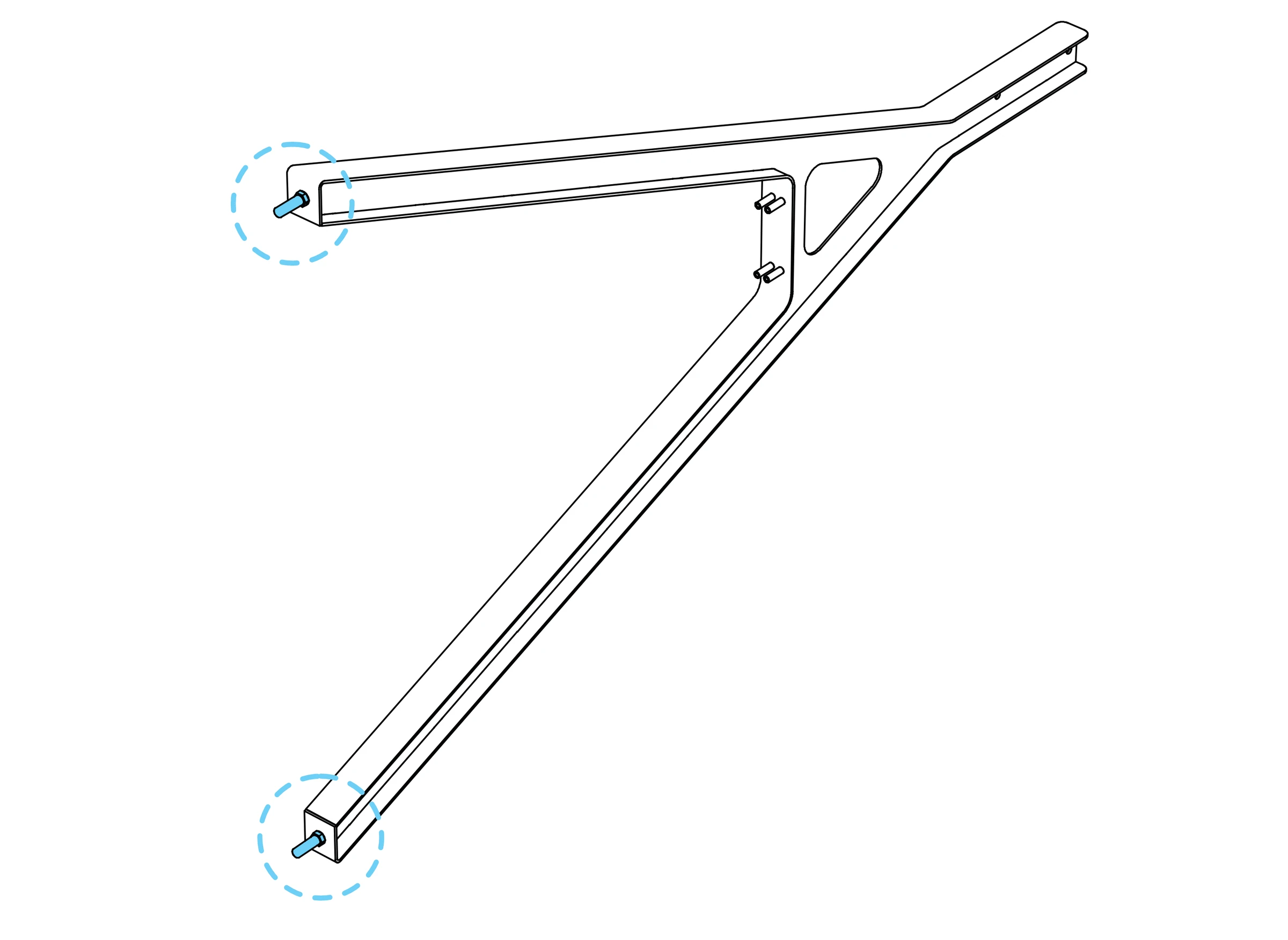

Enlarge image ↗ Leg with the pre-installed caster-post locations circled at both lower ends.

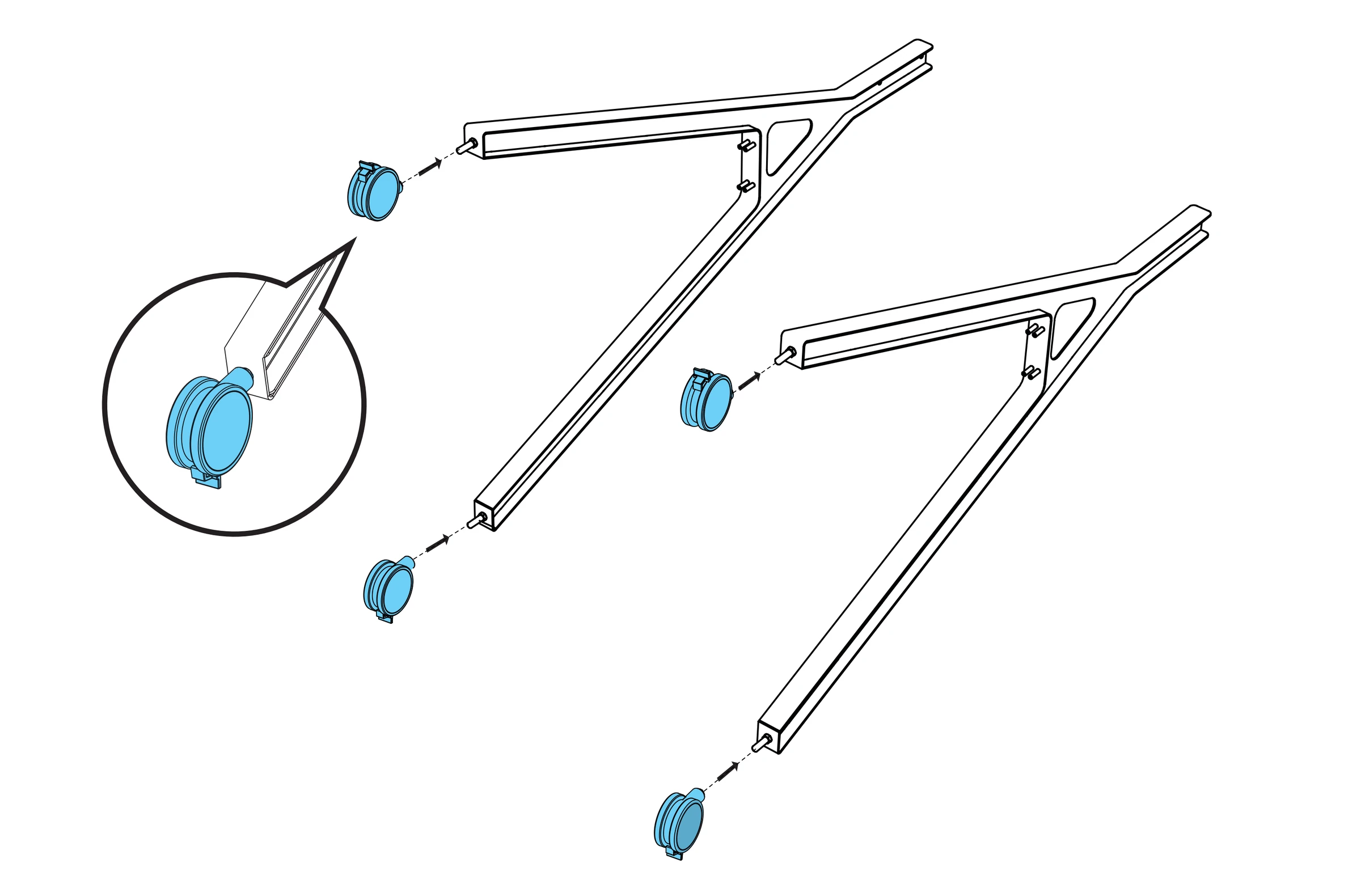

Enlarge image ↗ Four casters aligned with the posts on the two legs, with a close-up of the snap-on connection.

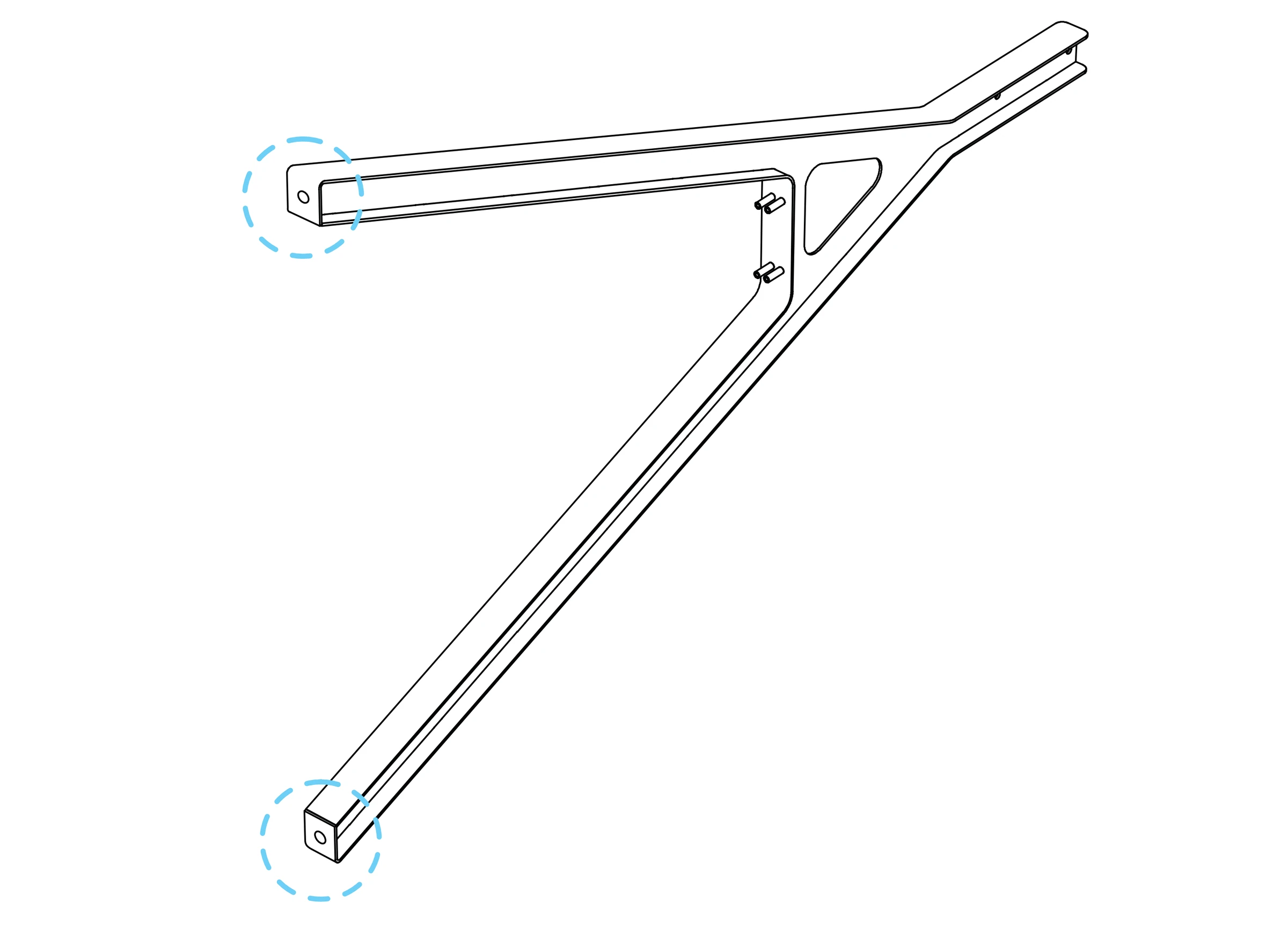

Open video .Enlarge image ↗ Leg with the empty caster-post mounting holes circled at both lower ends.
Use a small flat screwdriver to push the caster posts out of the caster housings.

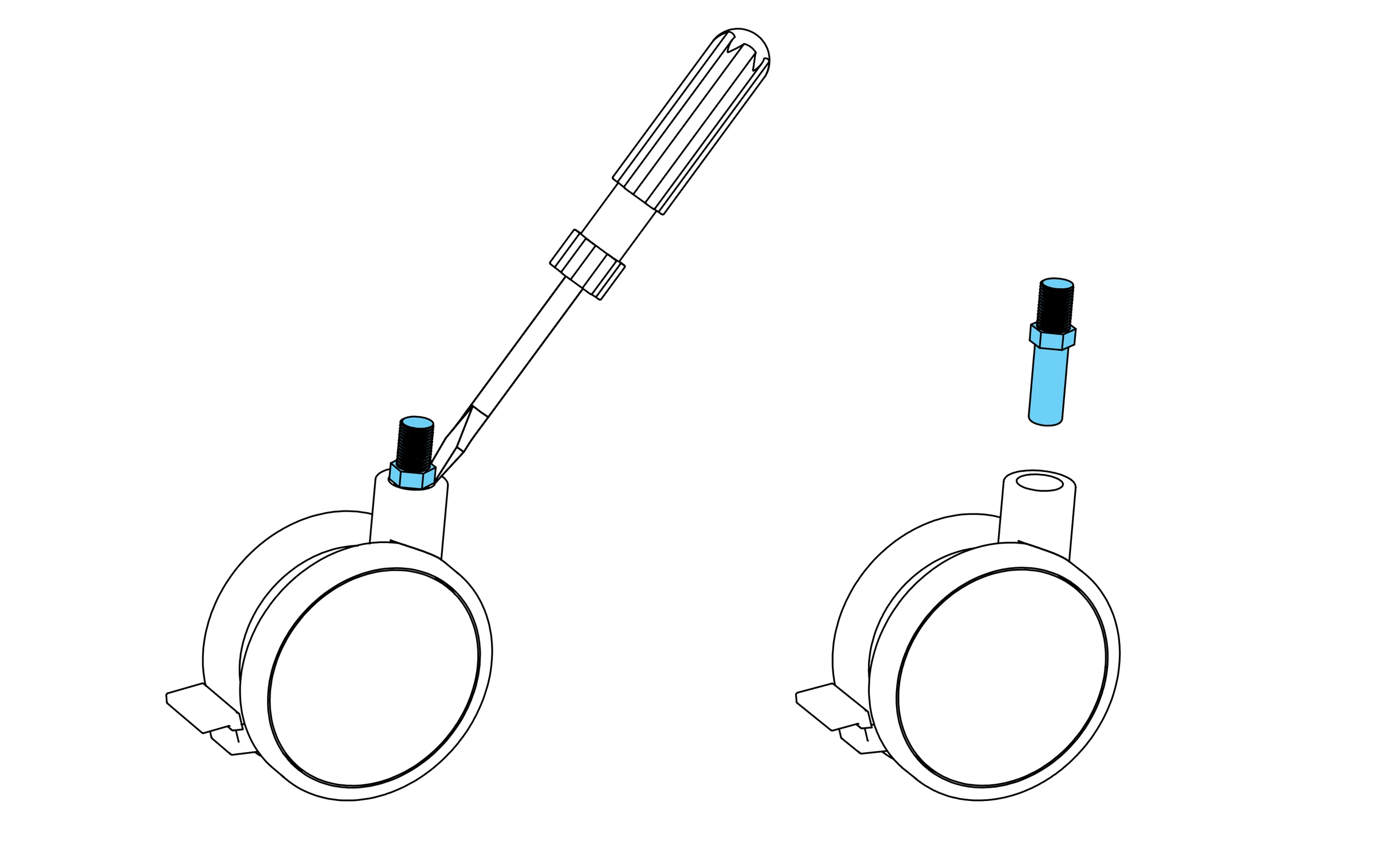

Enlarge image ↗ Small flat screwdriver levering a caster post out of the caster housing.
Fully thread the caster posts into the bottoms of the legs. Use a wrench if needed.

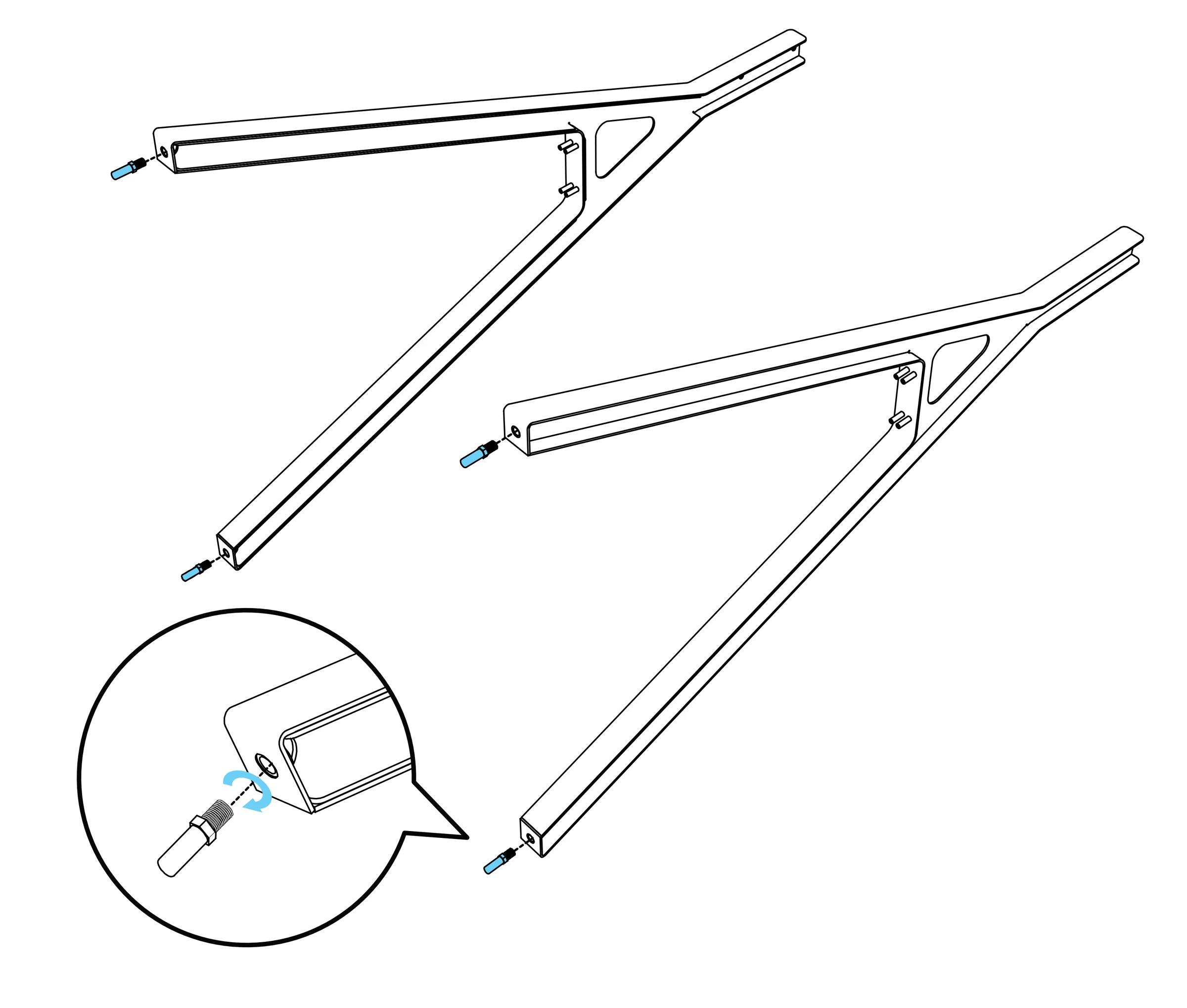

Enlarge image ↗ Caster posts aligned with the leg ends and a close-up of a post threaded into place.
Snap casters onto the posts.
Enlarge image ↗ Four casters aligned with the installed posts on the two legs.
Open video .Install the Wood Shelf with screws (item k) and key (item h).

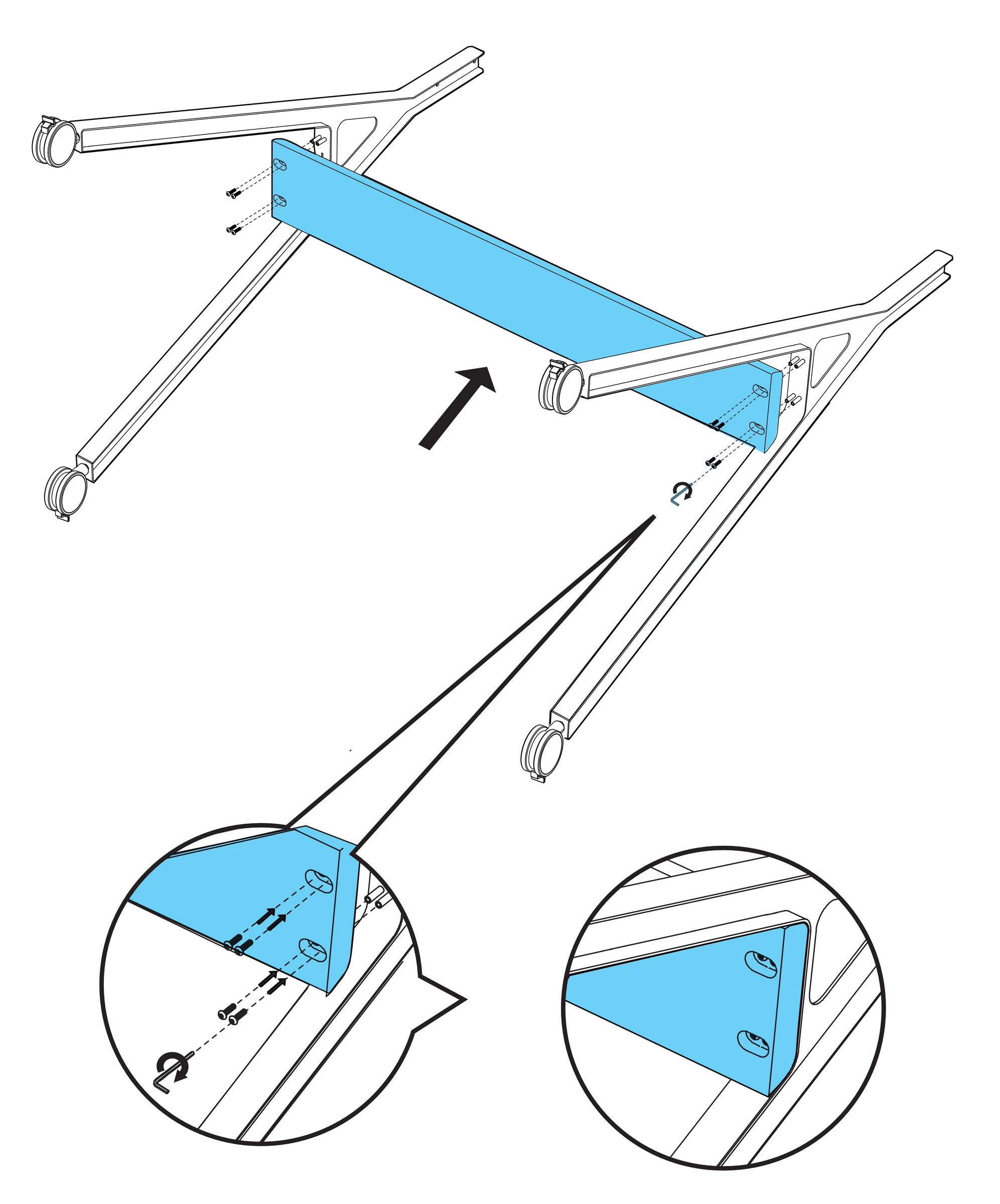

Enlarge image ↗ Wood shelf positioned between the legs, with mounting-screw locations enlarged in two detail views.
Open video .Turn the Rolling Stand upright and engage all caster brakes.
Slide the Display Mounting Bracket in place, and fasten screws (item l) with key (item f).

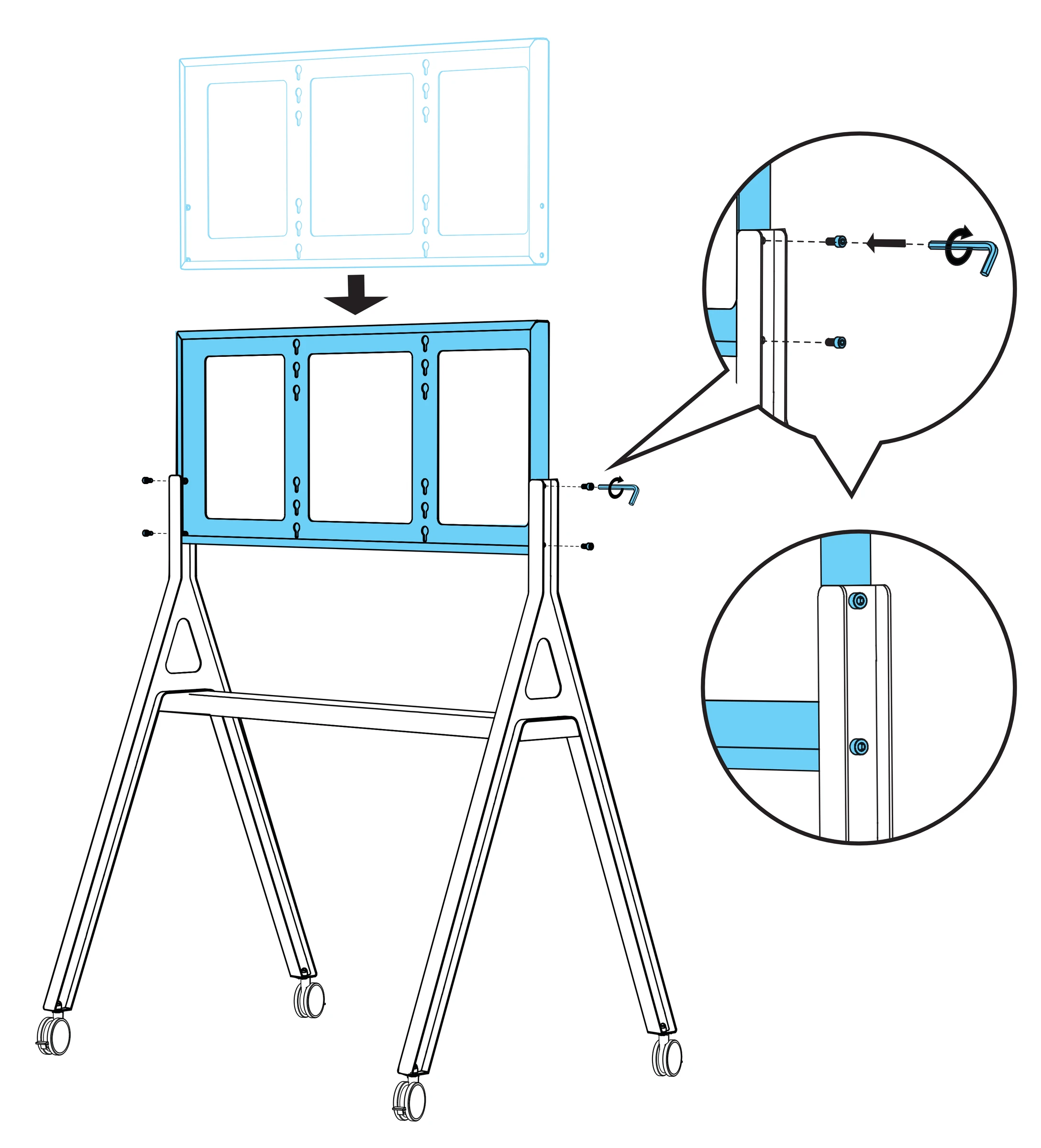

Enlarge image ↗ Display mounting bracket lowered between the upright legs, with enlarged views of the side mounting screws.
Open video .Use the key (item g) to partially fasten mounting screws (item j) to the back of the D7 Display.

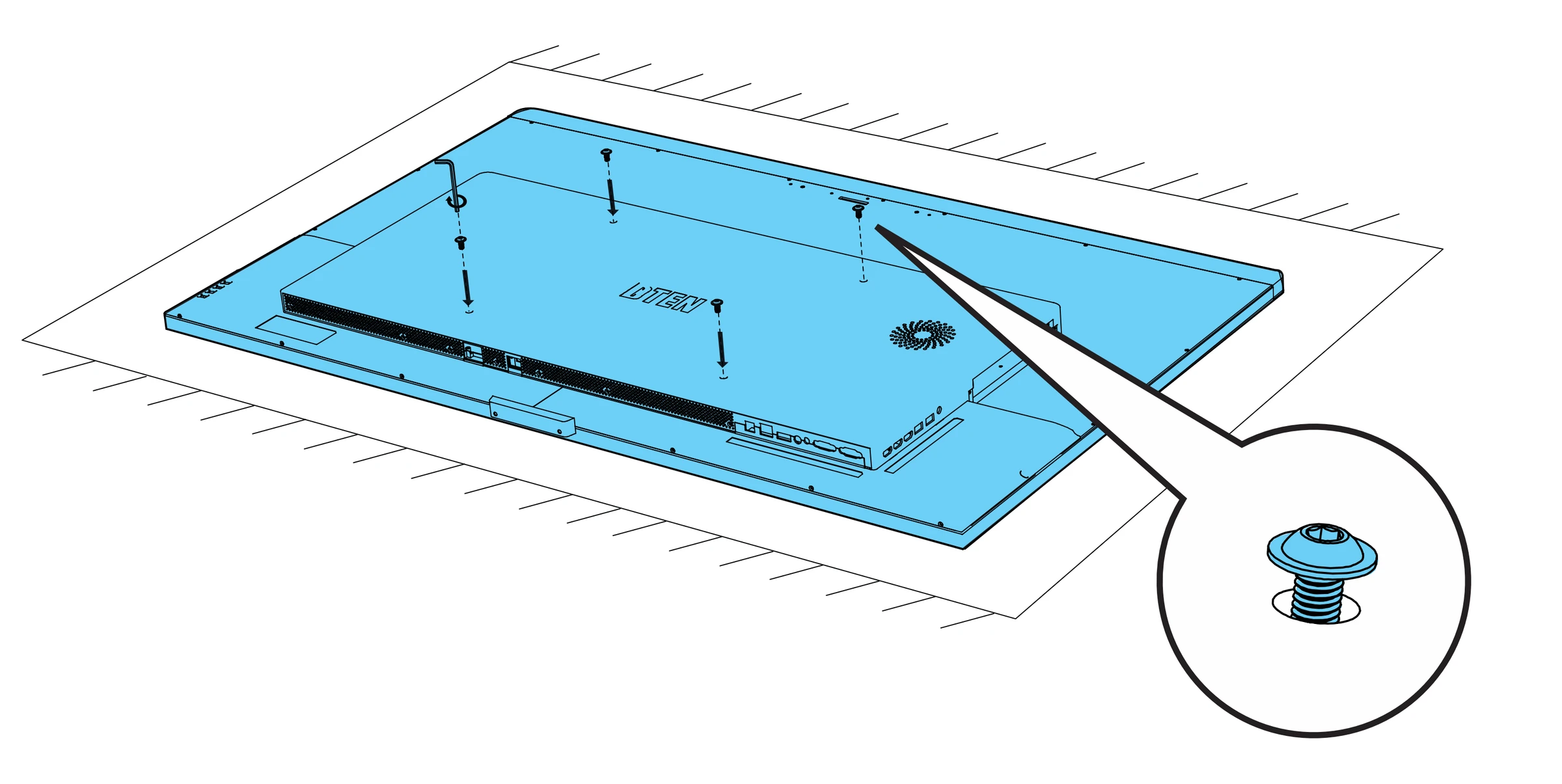

Enlarge image ↗ Display resting face-down on a soft surface, with four mounting screws aligned with its rear holes and clearance beneath a screw head shown in detail.
Hang the D7 Display by engaging its mounting screws in the keyholes, then tighten all display mounting screws.

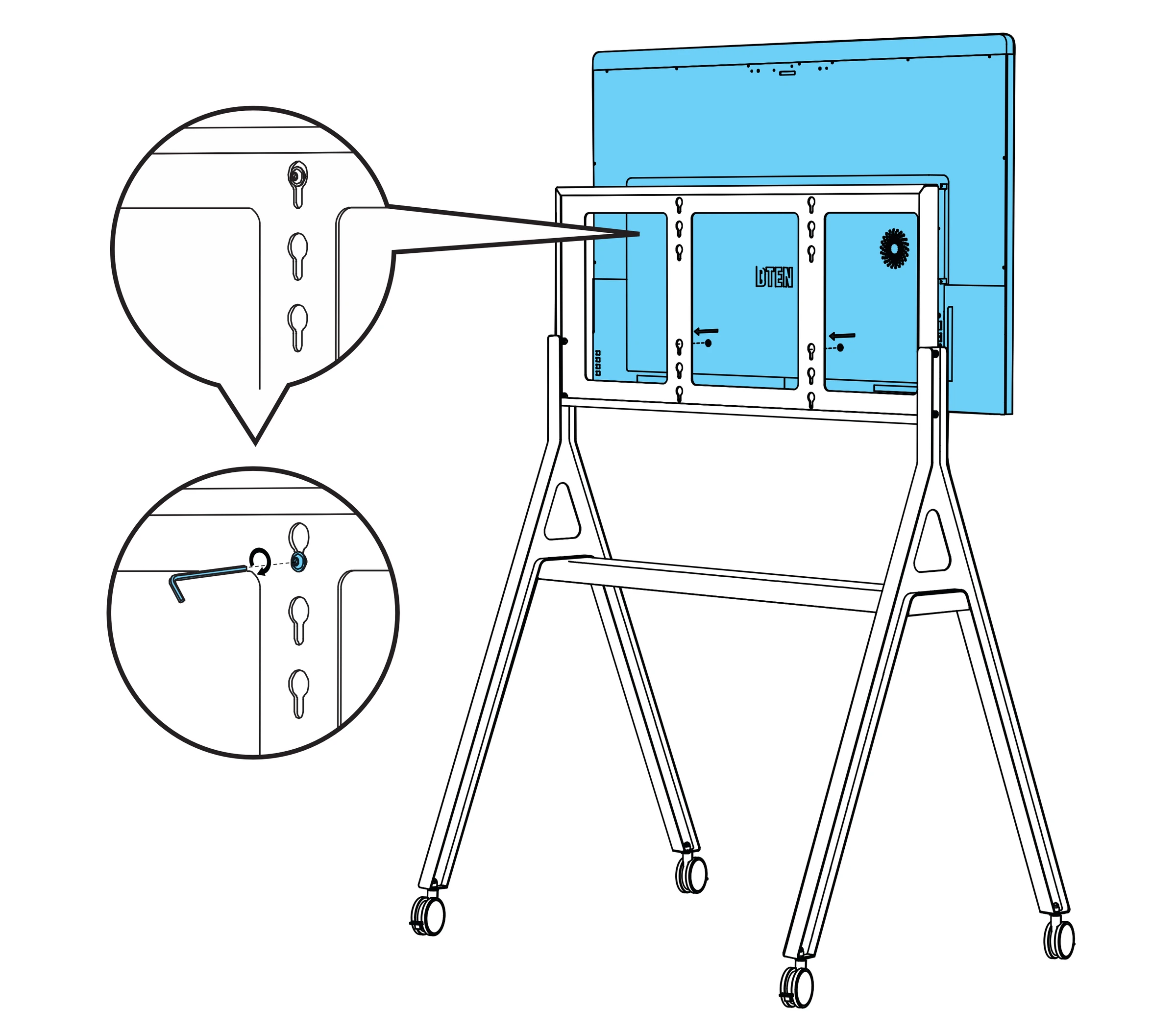

Enlarge image ↗ Display attached to the stand, with close-ups showing the screw heads entering and engaging the bracket keyholes.
Open video .Hang the D7 Display through the keyhole and fasten all display mounting screws. Use cable ties (item i) to route the power and Ethernet cables along the bottom of the Display Mounting Bracket.

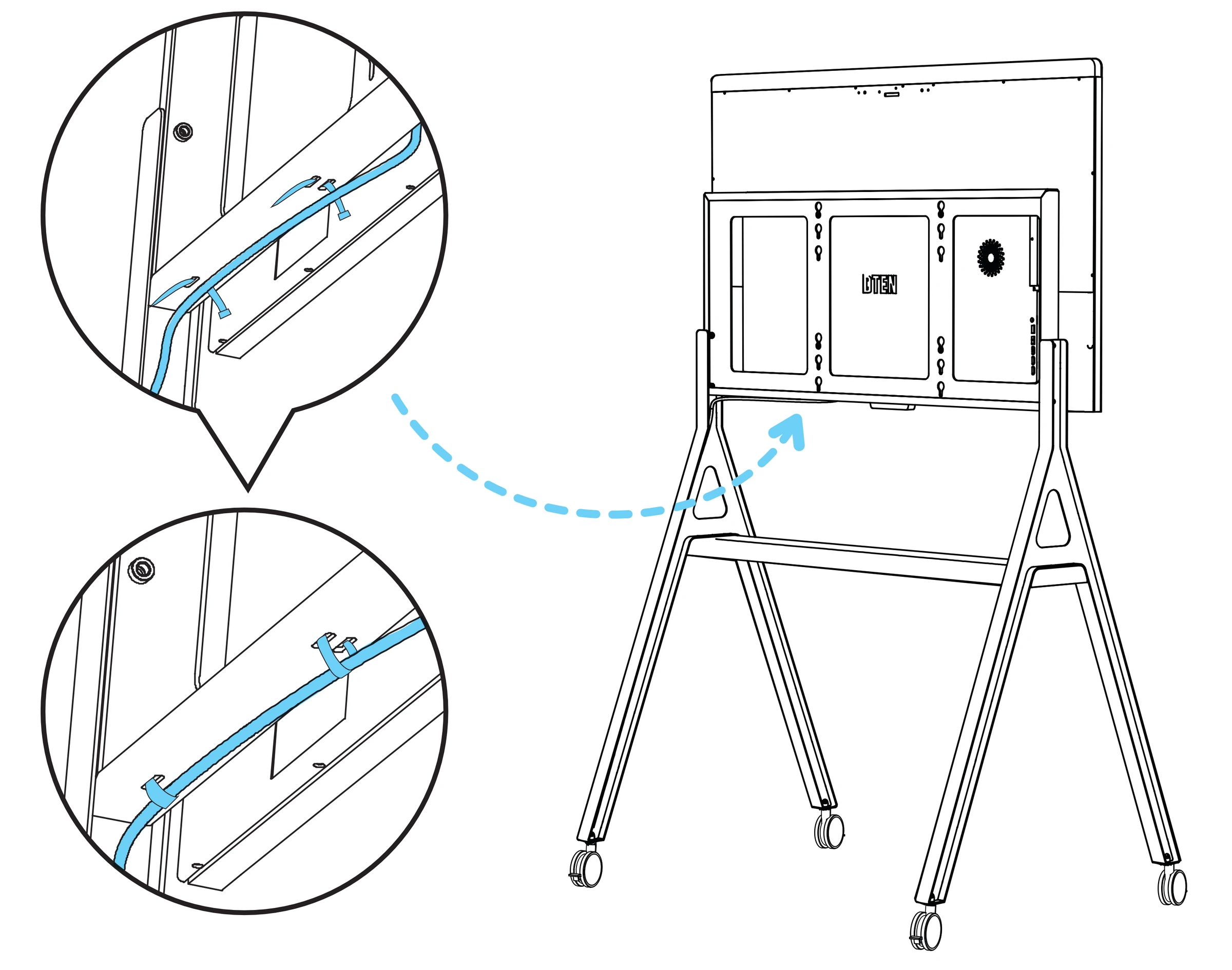

Enlarge image ↗ Power and Ethernet cables routed along the bottom of the display bracket and retained by cable ties.

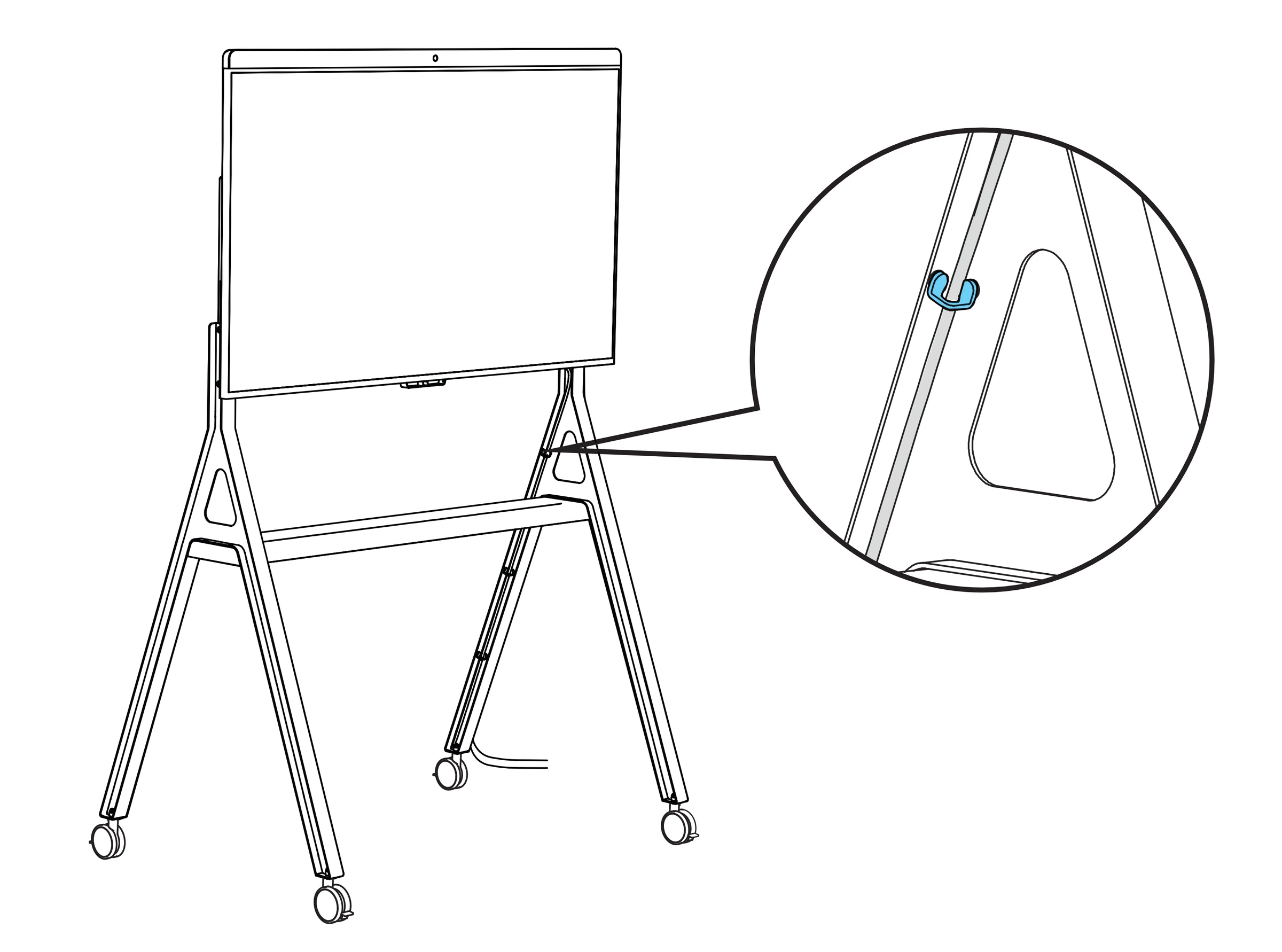

Open video .Enlarge image ↗ Magnetic cable manager positioned on the inside of a stand leg, with a close-up of the cable held in its channel.

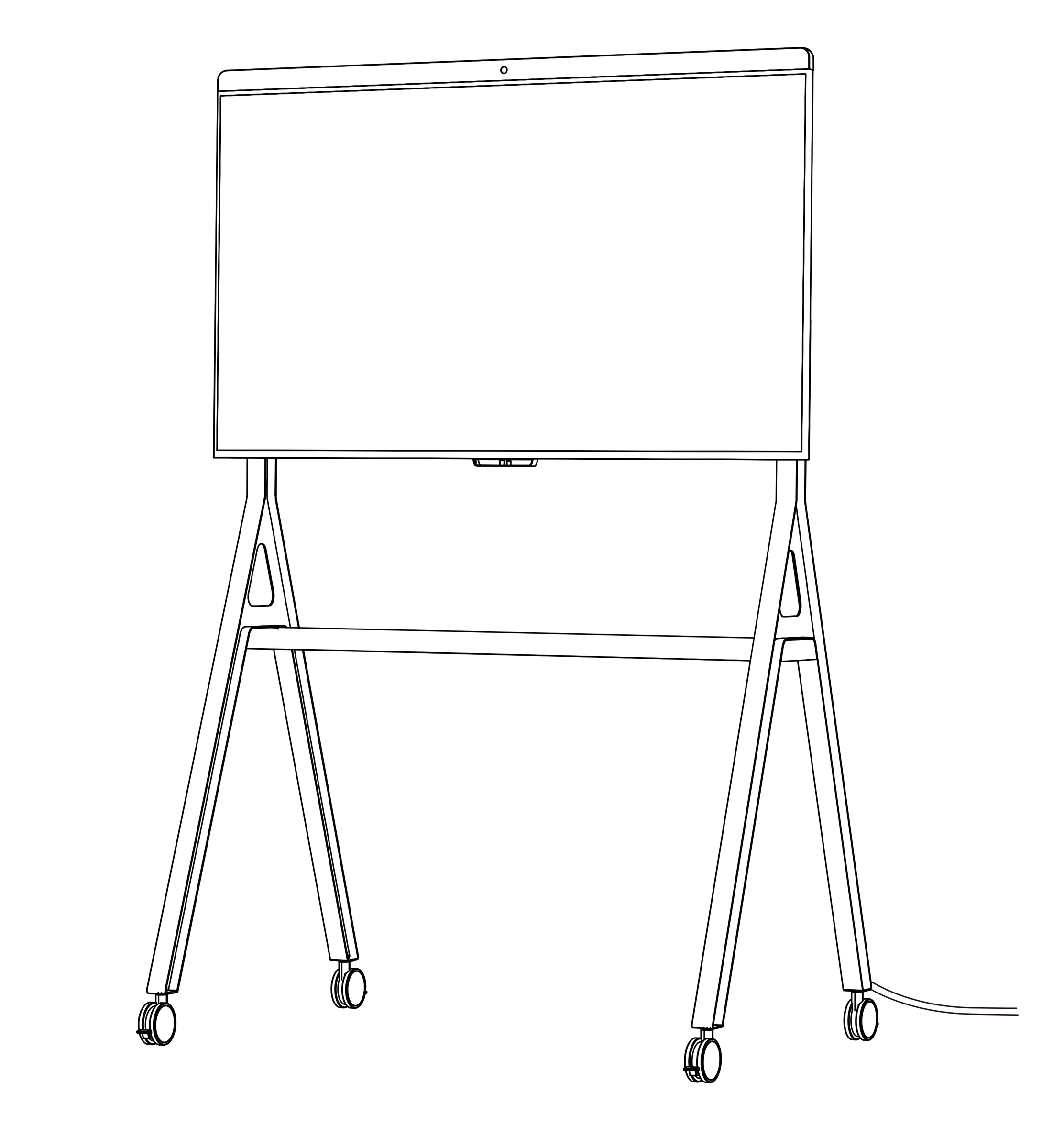

Enlarge image ↗ Completed display stand with cables routed down its leg to the floor.
Open video .Install magnetic cable managers.
