How To Select Your Heckler ADA Panels

ADA panel selection

Read guide

PDF · Letter PDF · A4

Guide details Applicability and revision

Compare the panel arrangements shown for displays, AV Wall, and AV Credenza installations.

ProductADA Panels

Hardware generationADA panel selection

Guide revisionrelease-2026-10-28

Applies to

The Heckler ADA panel configurations illustrated for AV Wall and AV Credenza installations.

In this guide · 8 sections

Introduction

The 2010 ADA Standards, Section 307.2 limit horizontal projection into circulation paths to four inches for objects with leading edges above 27 inches and no higher than 80 inches above the finished floor or ground.

Heckler ADA Panels are installed within cane-detection range to provide a fixed, detectable element below projecting equipment.

When used with Heckler Credenza 4U (H735)

If H735 Heckler Credenza 4U is already installed, H806A is the best choice since they have the same height as the credenza body. You can also pick the same fabric choice to match your Heckler Credenza 4U.

When used with Heckler Credenza 4U (H735)
Total width of the setup	Heckler ADA panels suggested	Examples of the setup
equal or less than 118”	1 set of H806A	Single 55” display Single 65” display Single 75” display Single 86” display Single 98” display Single 105” display Dual 55” displays Dual 65” displays
between 118” and 180.5”	2 sets of H806A	Dual 75” displays Dual 86” displays Dual 98” displays

Single-display examples above an H735 credenza and one H806A pair, with a 118-inch total layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

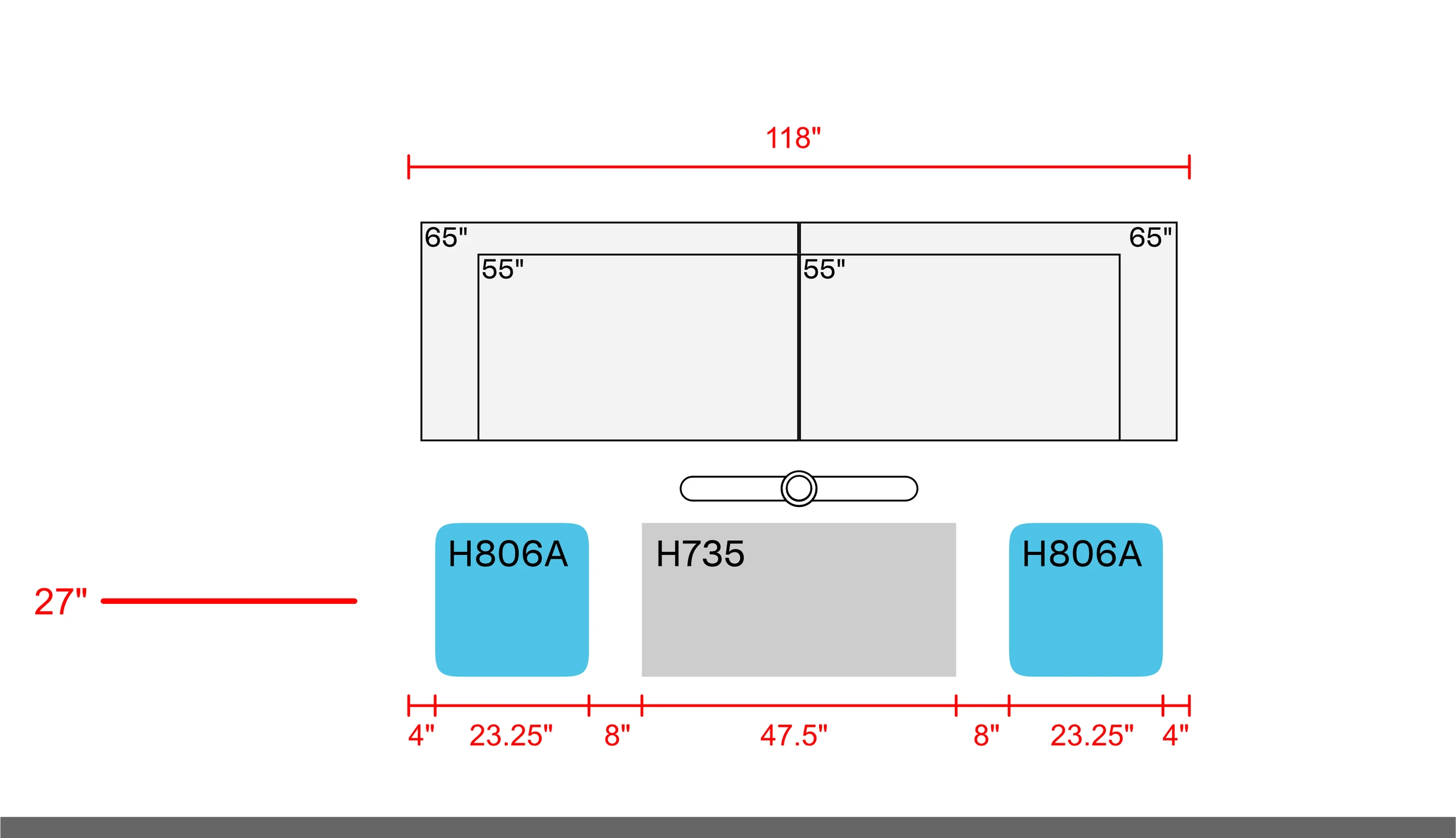

Dual 55-inch and65-inch display examples above an H735 credenza and one H806A pair, within a 118-inch layout. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

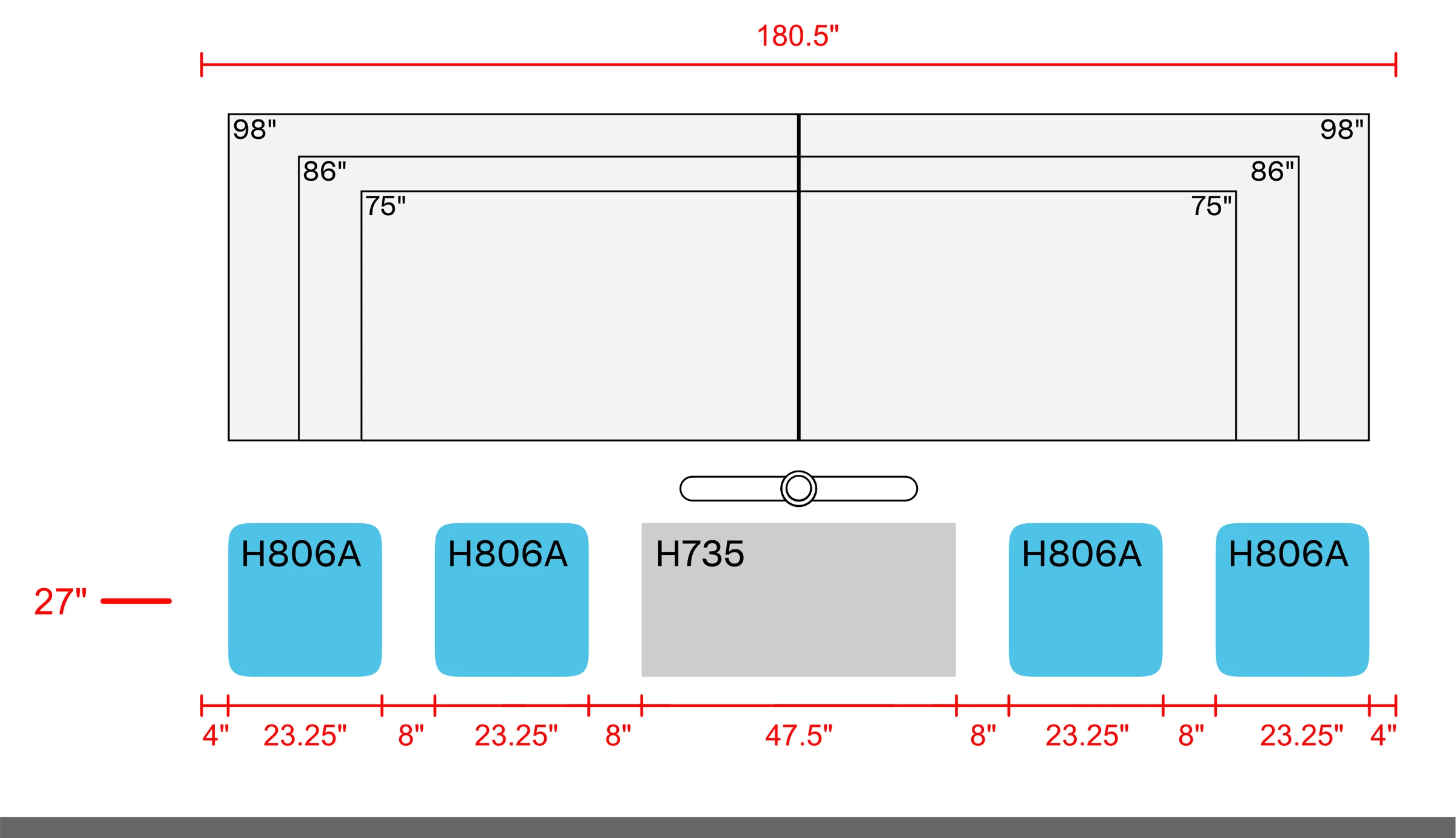

Dual 75-inch to98-inch display examples above an H735 credenza and two H806A pairs, within a 180.5-inch layout. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

When used with Heckler Credenza 4U on Heckler AV Wall (H800+H735)

When used with Heckler Credenza 4U on Heckler AV Wall (H800+H735)
Total width of the setup	Heckler ADA panels suggested	Examples of the setup
equal or less than 118”	1 set of H806A	Single 55” display Single 65” display Single 75” display Single 86” display Single 98” display Single 105” display Dual 55” displays Dual 65” displays
between 118” and 180.5”	2 sets of H806A	Dual 75” displays Dual 86” displays Dual 98” displays

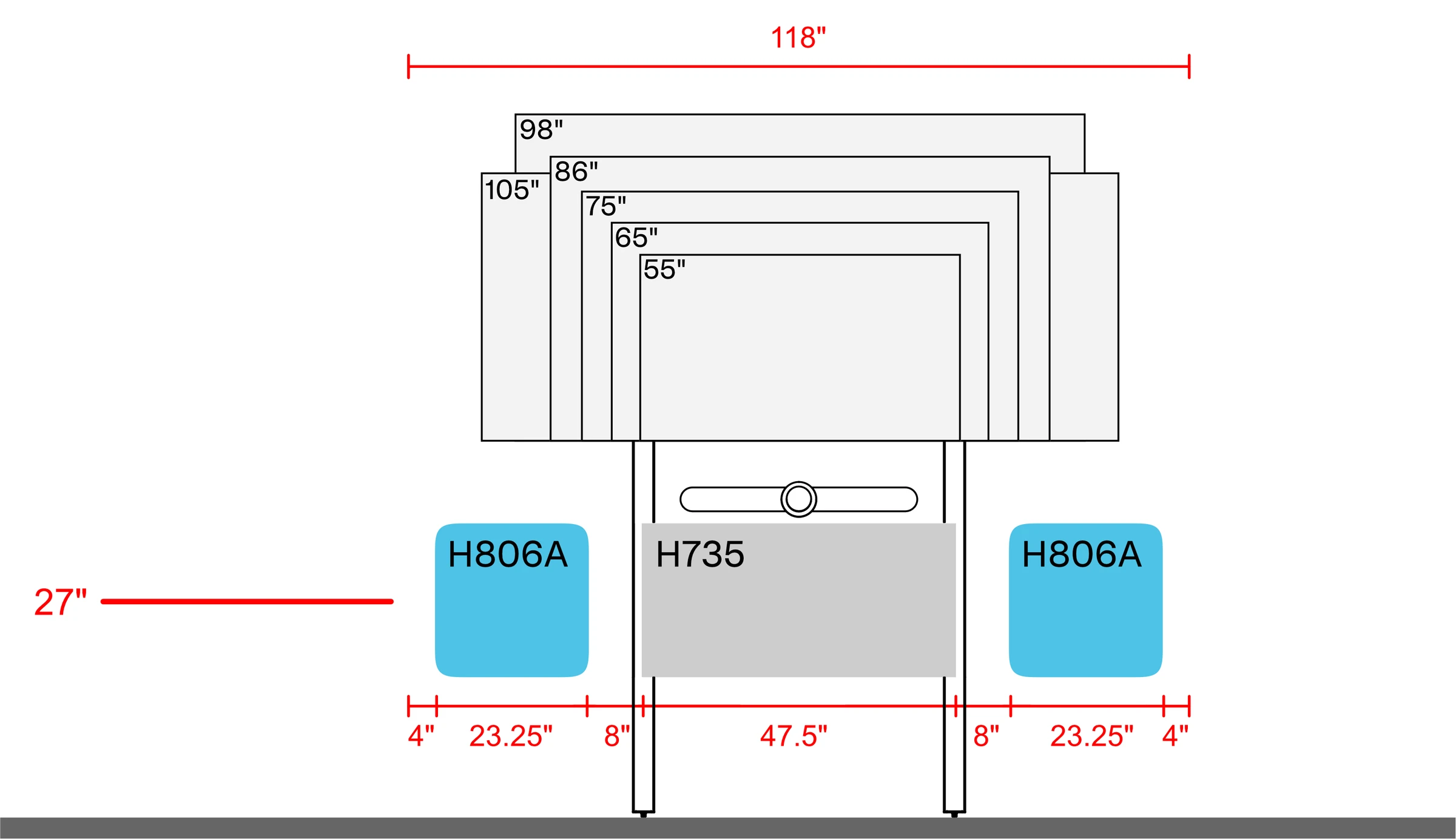

Single-display examples on H800 AV Wall above H735 and one H806A pair, with a 118-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

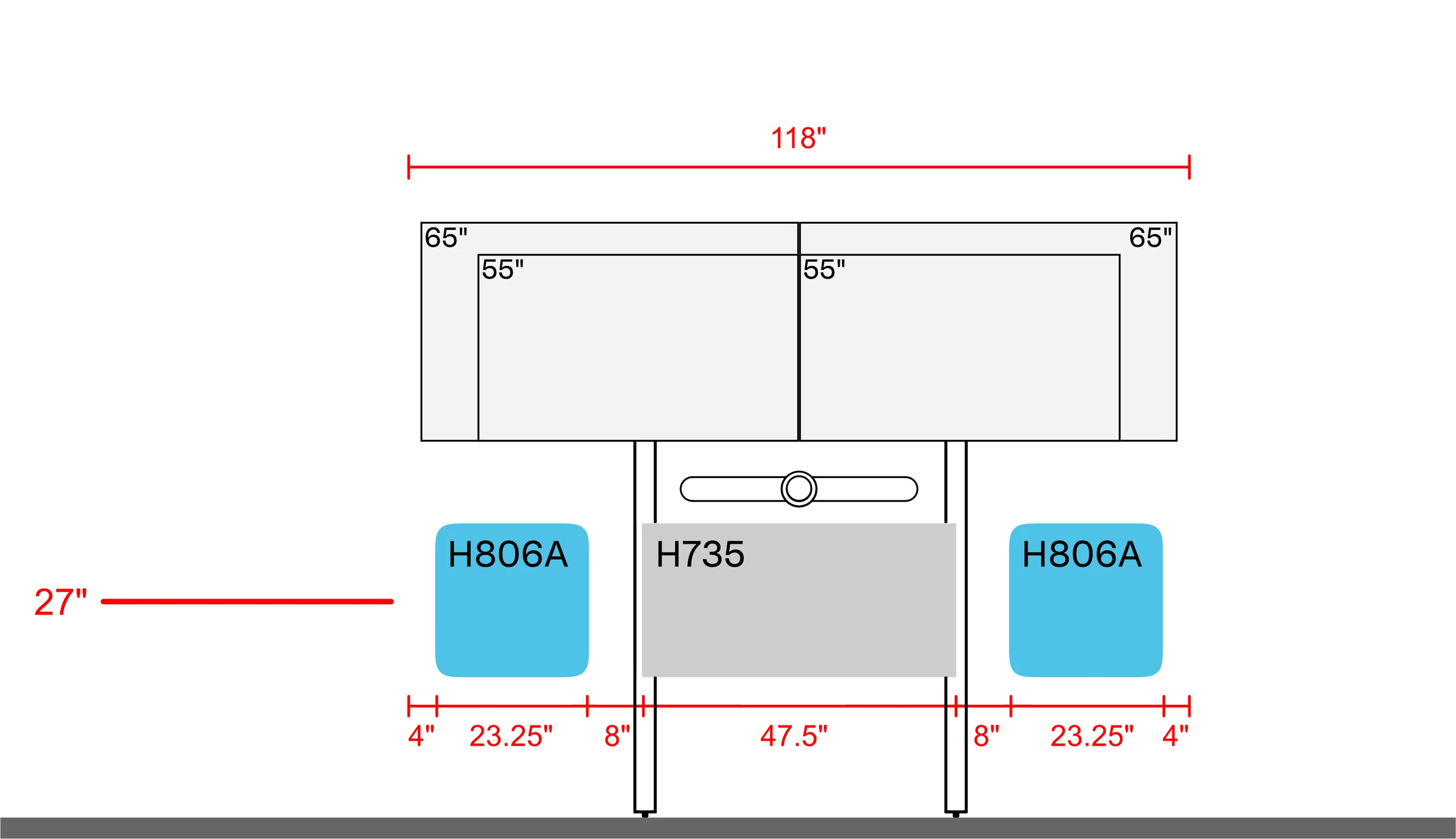

Dual-display examples on H800 AV Wall above H735 and one H806A pair, with a 118-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

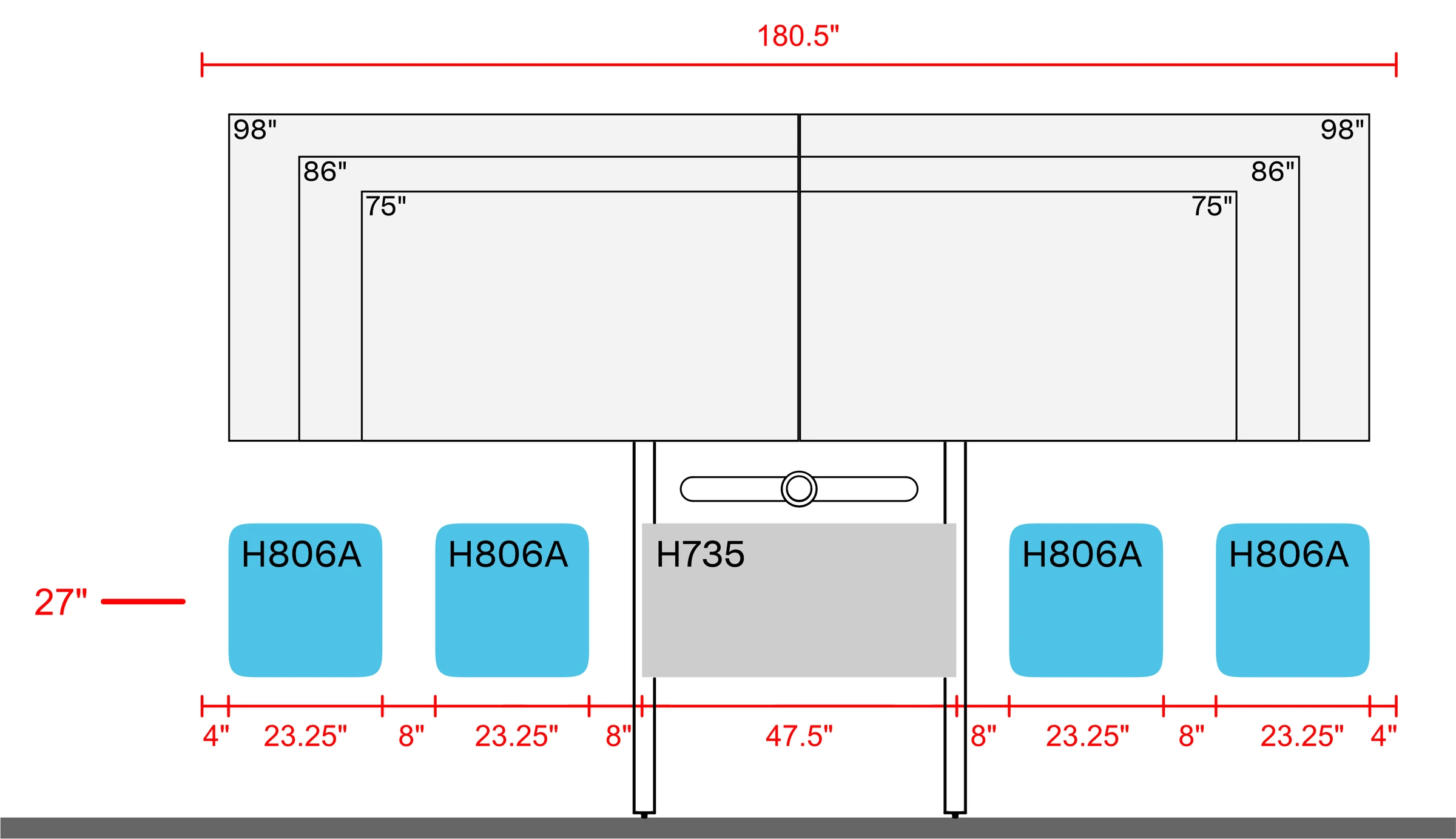

Wider dual-display examples on H800 AV Wall above H735 and two H806A pairs, with a 180.5-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

When used with Heckler AV Wall only (H800)

When used with Heckler AV Wall only (H800)
Total width of the setup	Heckler ADA panels suggested	Examples of the setup
equal or less than 76”	1 unit of H809	Single 55” display Single 65” display Single 75” display Single 86” display
between 76” and 131”	1 unit of H809 1 set of H808	Single 98” display Single 105” display Dual 55” displays Dual 65” displays
between 131” and 186”	1 unit of H809 2 sets of H808	Dual 75” displays Dual 86” displays Dual 98” displays

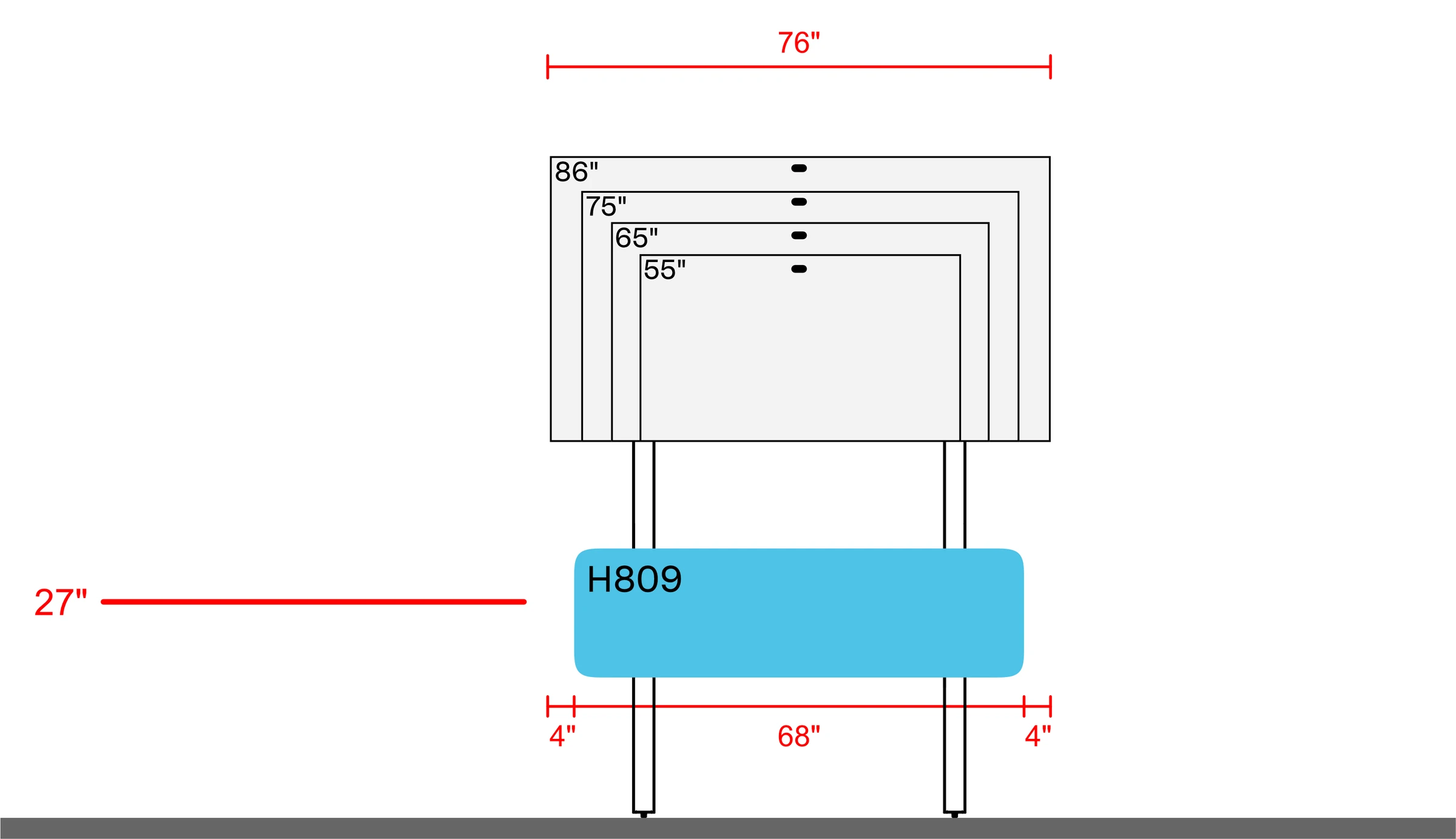

Single-display examples on H800 AV Wall above one H809 panel, with a 76-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

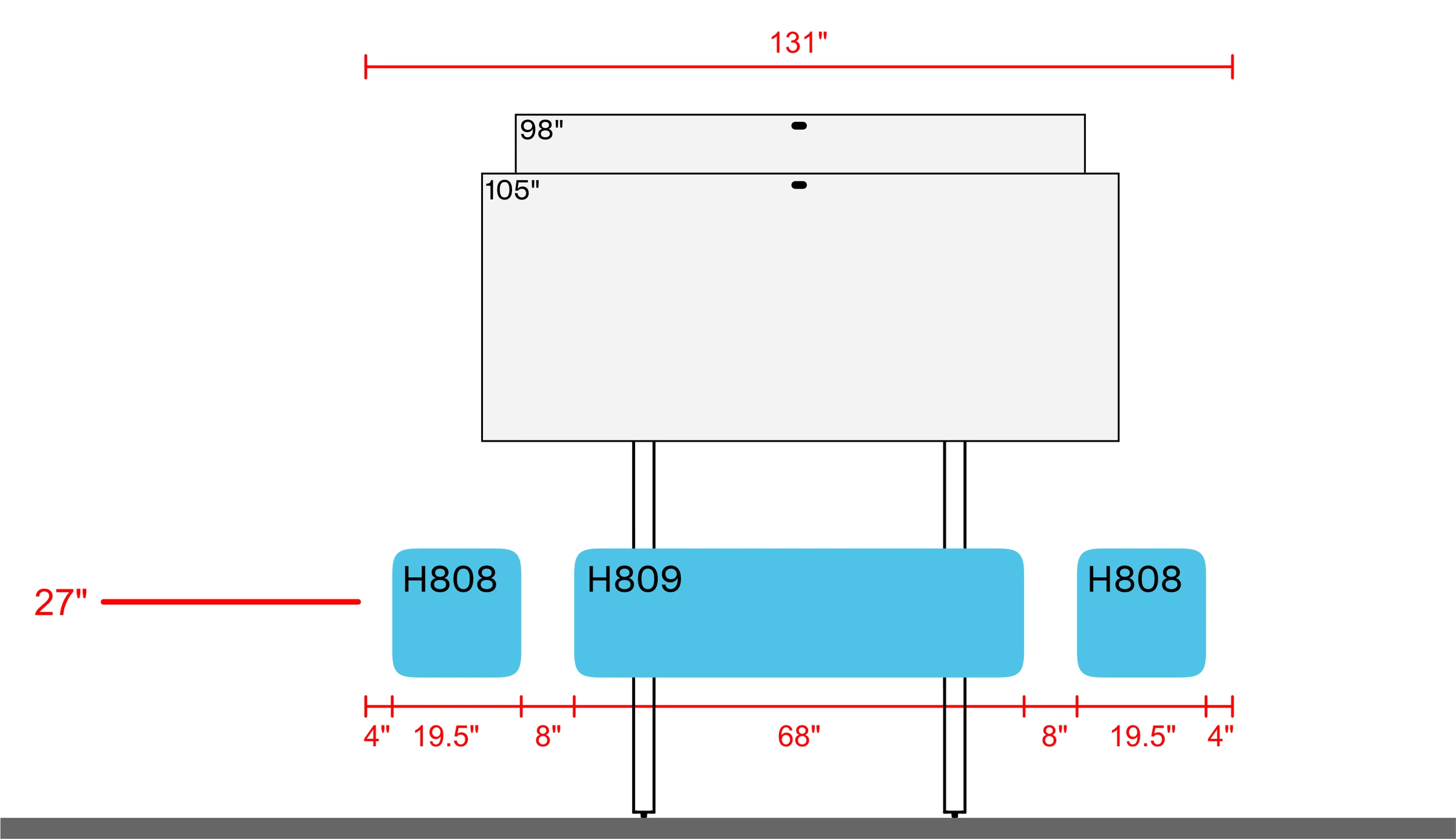

Large single-display examples on H800 AV Wall above H809 and one H808 pair, with a 131-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

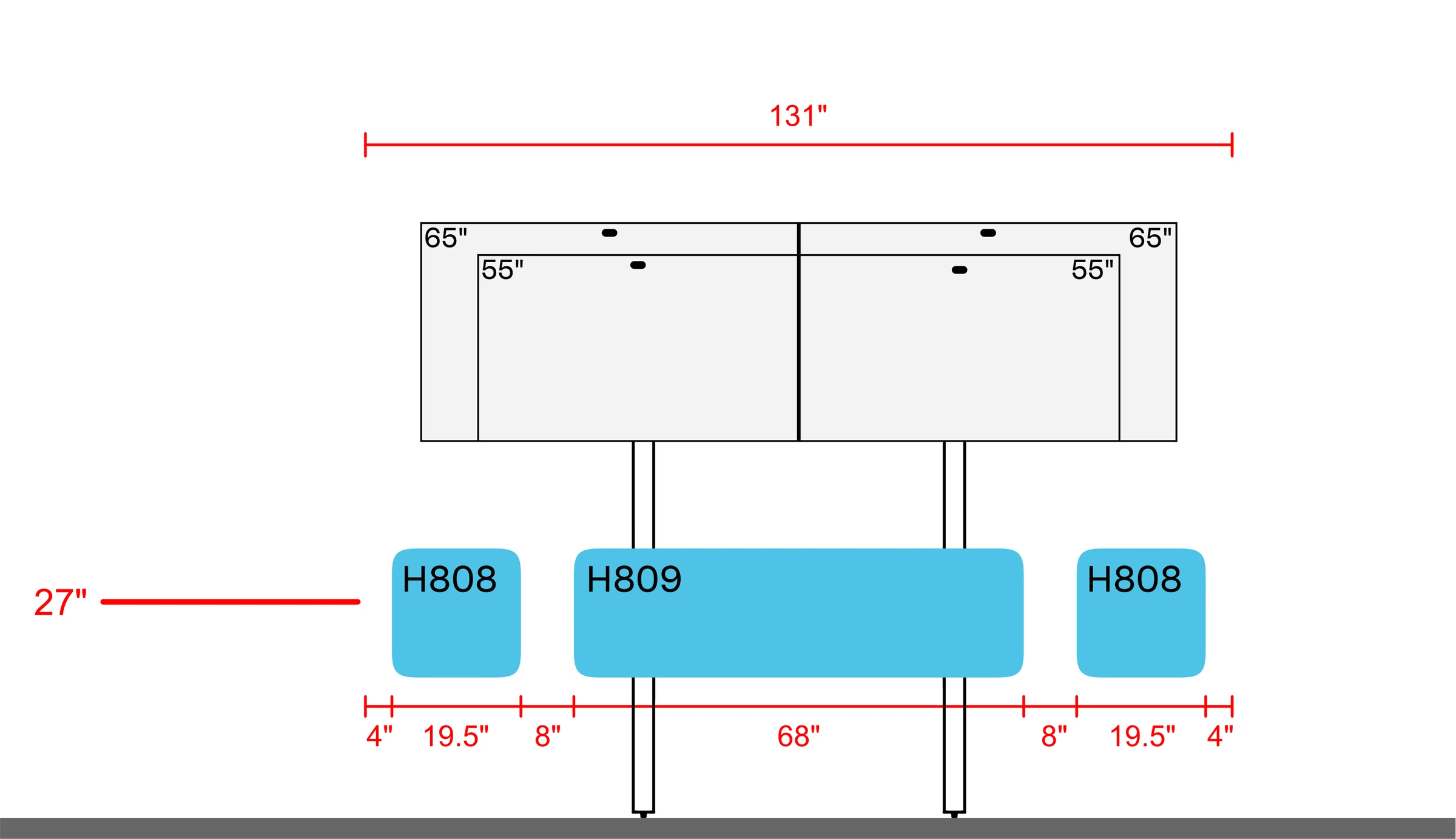

Dual 55-inch and65-inch display examples on H800 AV Wall above H809 and one H808 pair, with a 131-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

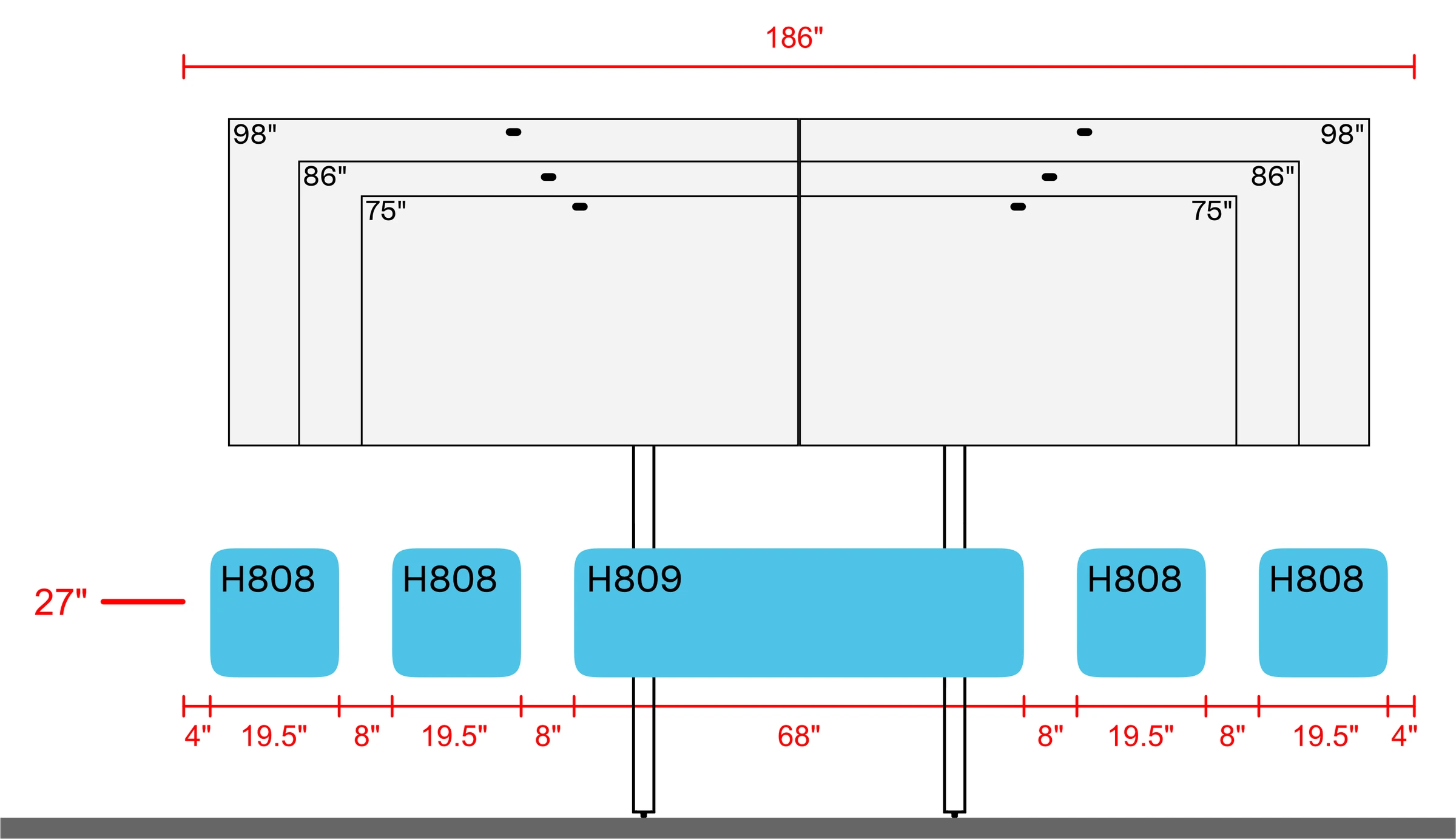

Wider dual-display examples on H800 AV Wall above H809 and two H808 pairs, with a 186-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

When used with Heckler AV Wall and Video Meeting Hub (H800+H807)

If Heckler AV Wall system is already installed, H806A is the best choice since they have the same height as the H807. You can also pick the same fabric choice to match your Heckler AV Wall.

When used with Heckler AV Wall and Video Meeting Hub (H800+H807)
Total width of the setup	Heckler ADA panels suggested	Examples of the setup
equal or less than 127.5”	1 set of H806A	Single 55” display Single 65” display Single 75” display Single 86” display Single 98” display Single 105” display Dual 55” displays Dual 65” displays
between 127.5” and 190”	2 sets of H806A	Dual 75” displays Dual 86” displays Dual 98” displays

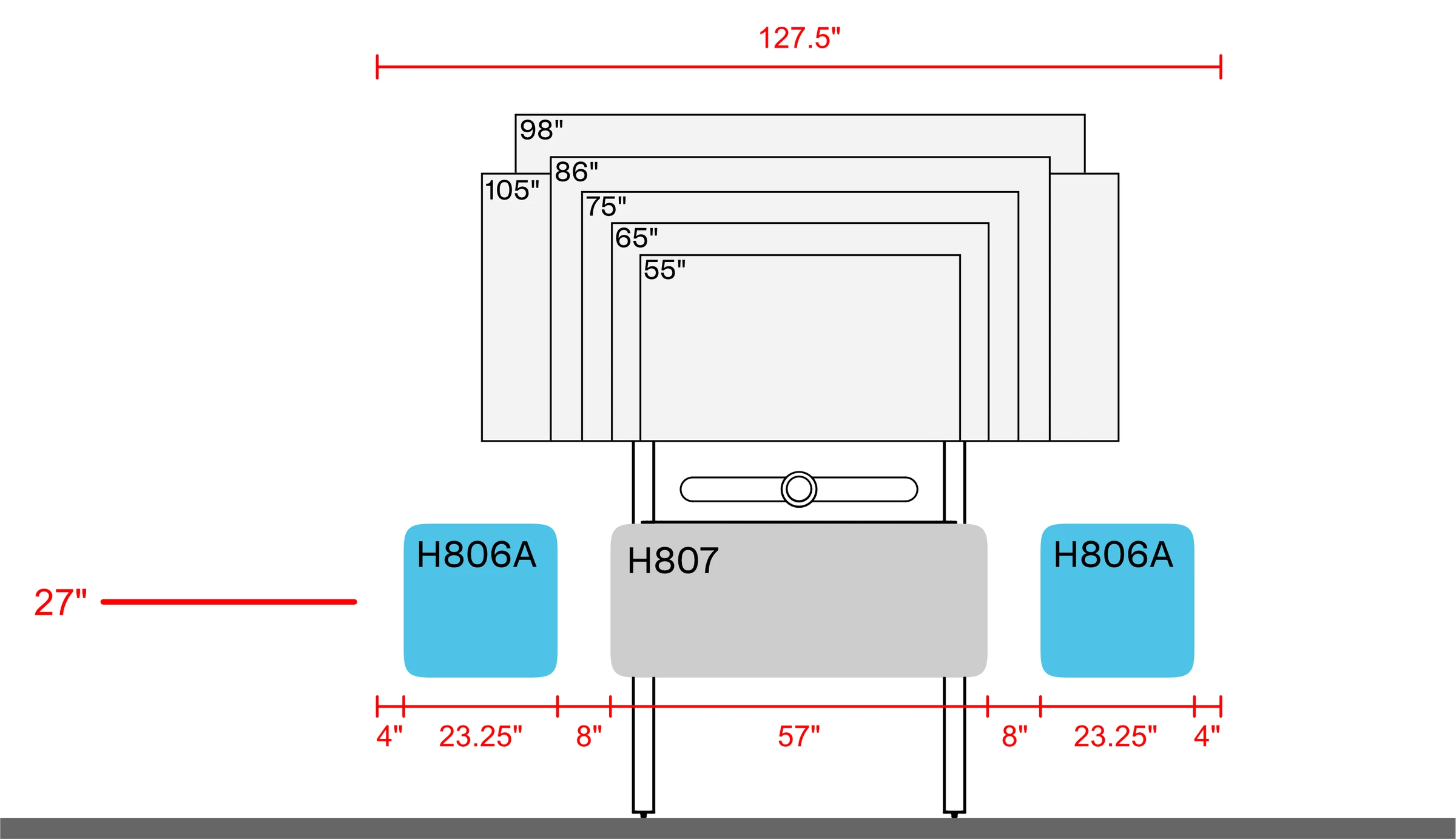

Single-display examples on H800 AV Wall above H807 and one H806A pair, with a 127.5-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

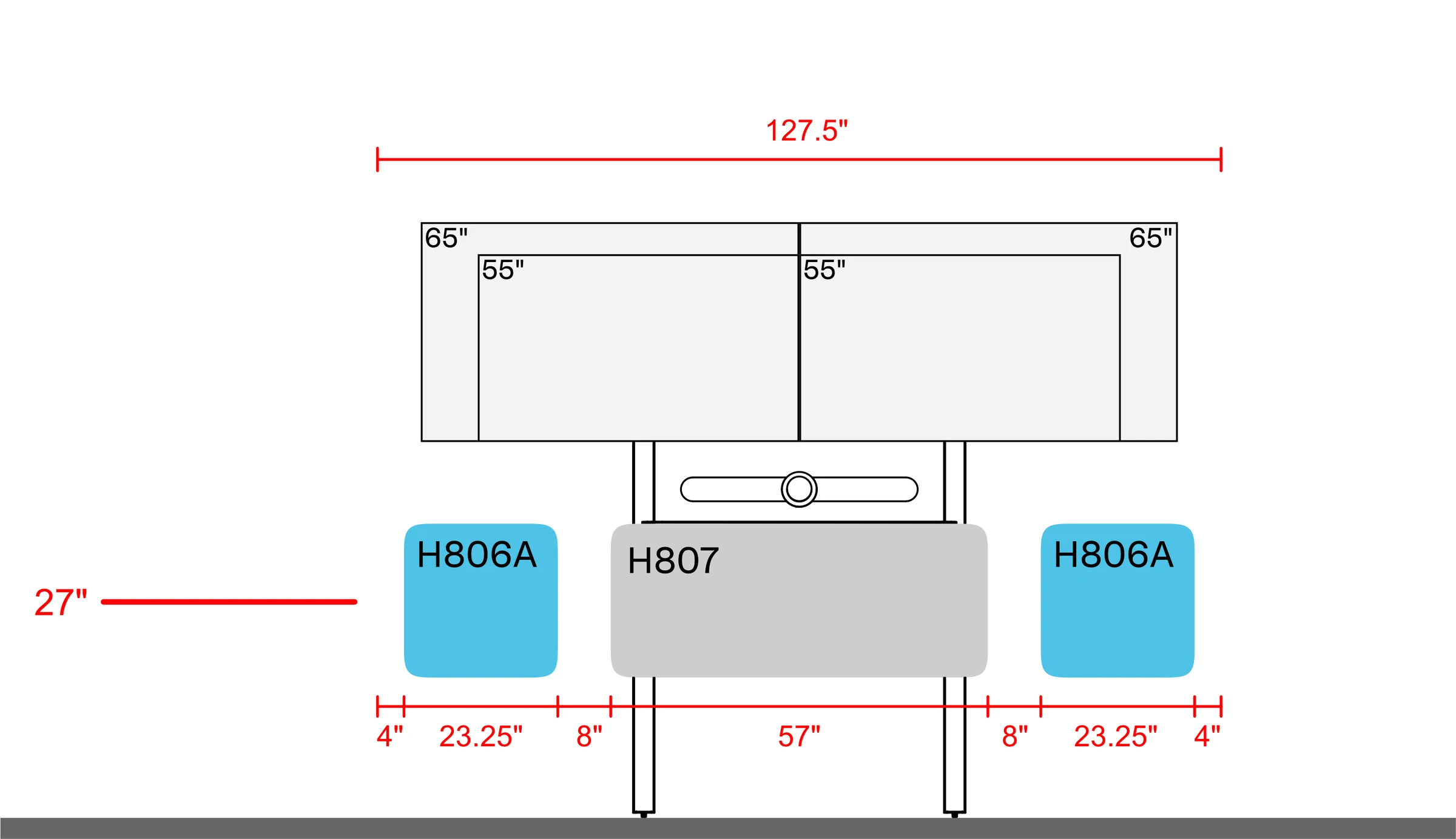

Dual-display examples on H800 AV Wall above H807 and one H806A pair, with a 127.5-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

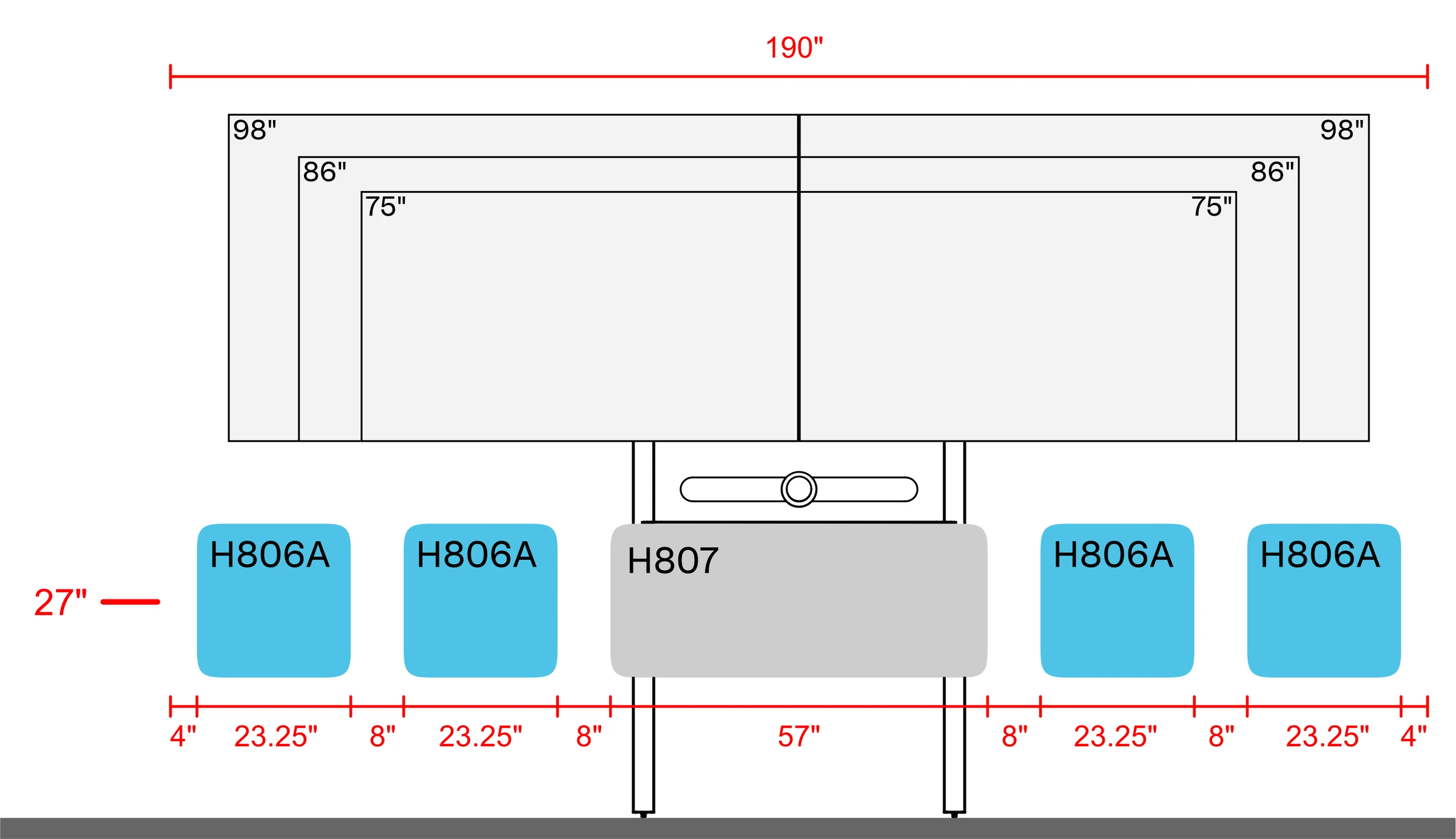

Wider dual-display examples on H800 AV Wall above H807 and two H806A pairs, with a 190-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

When used with Heckler Credenza mini (H892)

When used with Heckler Credenza mini (H892)
Total width of the setup	Heckler ADA panels suggested	Examples of the setup
equal or less than 95.5”	1 set of H806A	Single 55” display Single 65” display Single 75” display Single 86” display Single 98” display Single 105” display

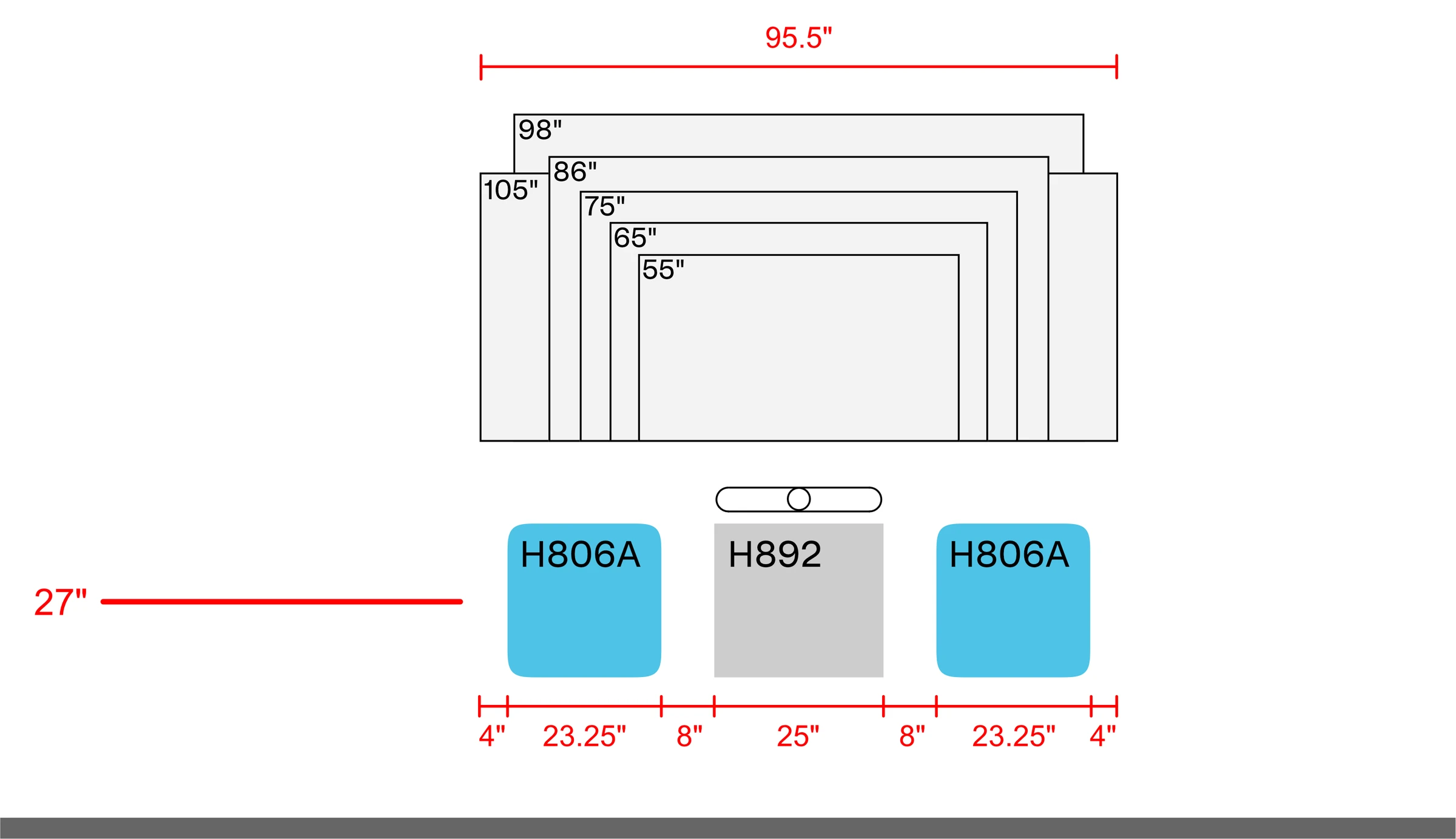

Single-display examples above H892 Credenza Mini and one H806A pair, with a 95.5-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

When only the video conferencing gear protrudes more than 4” off the wall

If you are using a PTZ camera or a narrow video meeting bar that protrudes more than 4” off the wall, and the display protrudes less than 4”, your best choice here is to center mount one panel from the H808 pair.

When only the video conferencing gear extrudes more than 4” off the wall
Total width of the setup more than 4” off the wall	Heckler ADA panels suggested	Examples of the setup
equal or less than 27.5”	Single panel from H808	PTZ camera Narrow video meeting bar

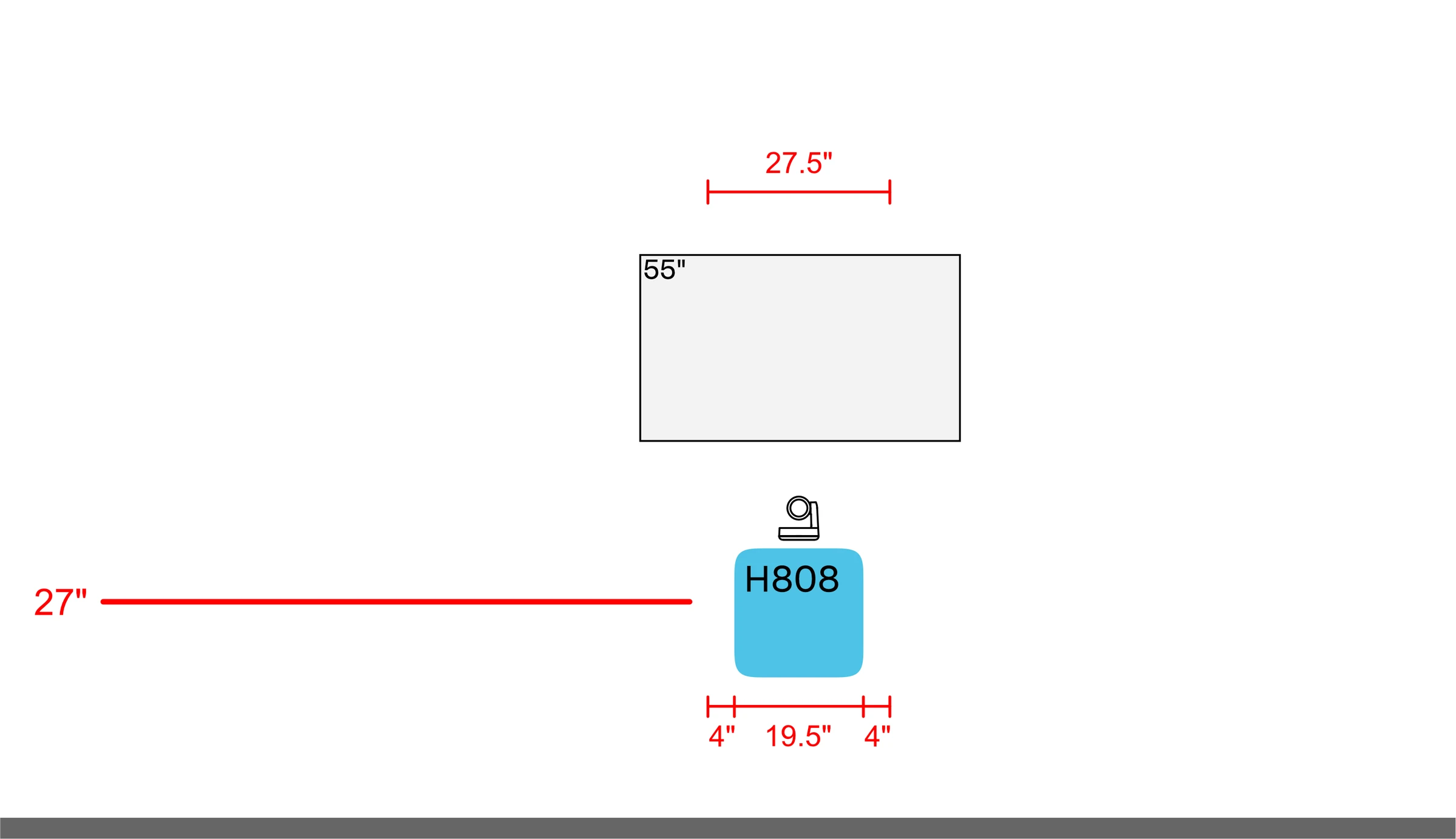

A narrow camera centered above one H808 panel, with a 27.5-inch illustrated coverage width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

When your display setup protrudes more than 4 inches from the wall

When your display(displays) setup extrudes more than 4” off the wall
Total width of the setup	Heckler ADA panels suggested	Examples of the setup
equal or less than 76”	1 unit of H809	Single 55” display Single 65” display Single 75” display Single 86” display
between 76” and 131”	1 unit of H809 1 set of H808	Single 98” display Single 105” display Dual 55” displays Dual 65” displays
between 131” and 186”	1 unit of H809 2 sets of H808	Dual 75” displays Dual 86” displays Dual 98” displays

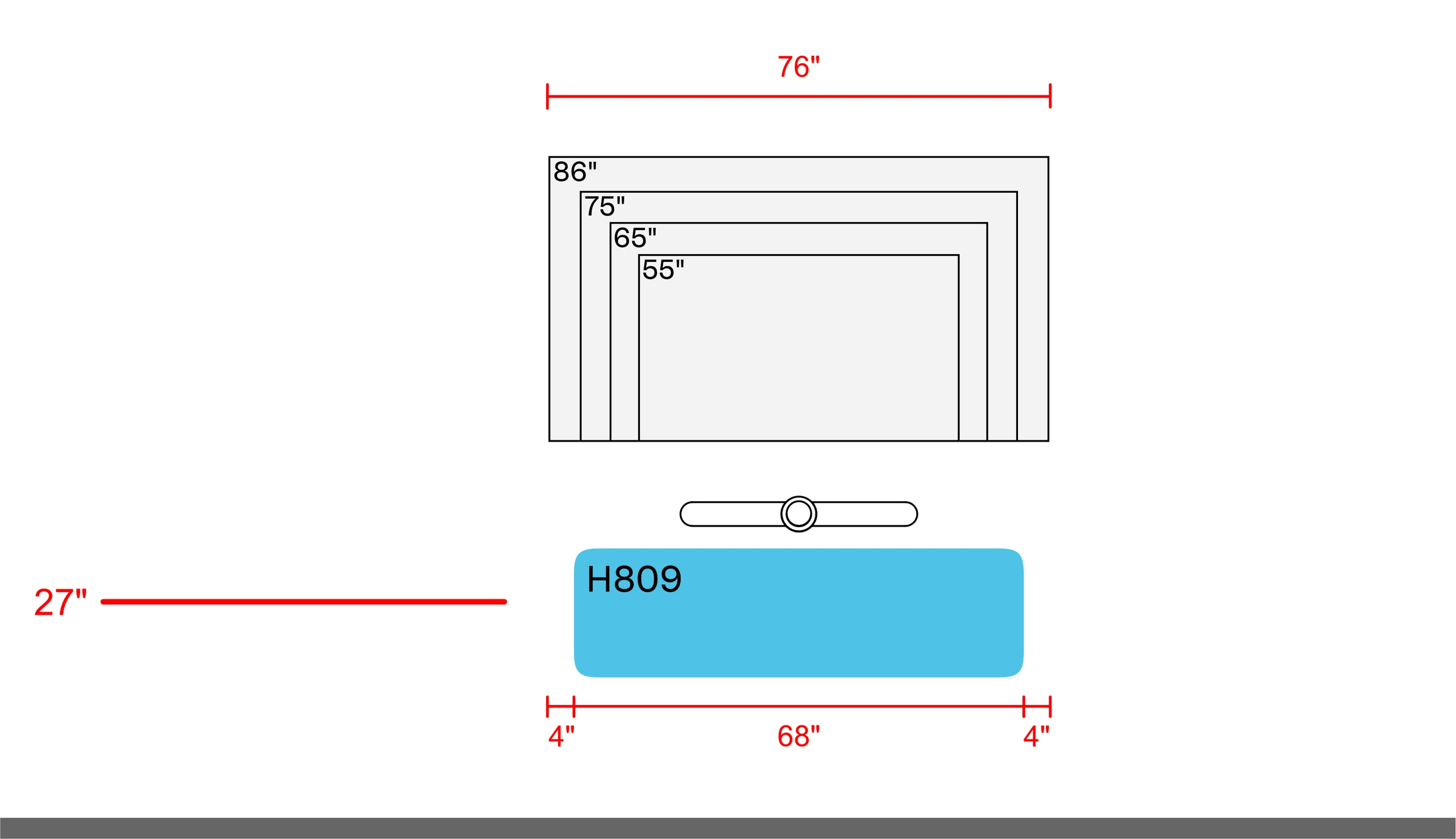

Single-display examples above one H809 panel, with a 76-inch illustrated layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

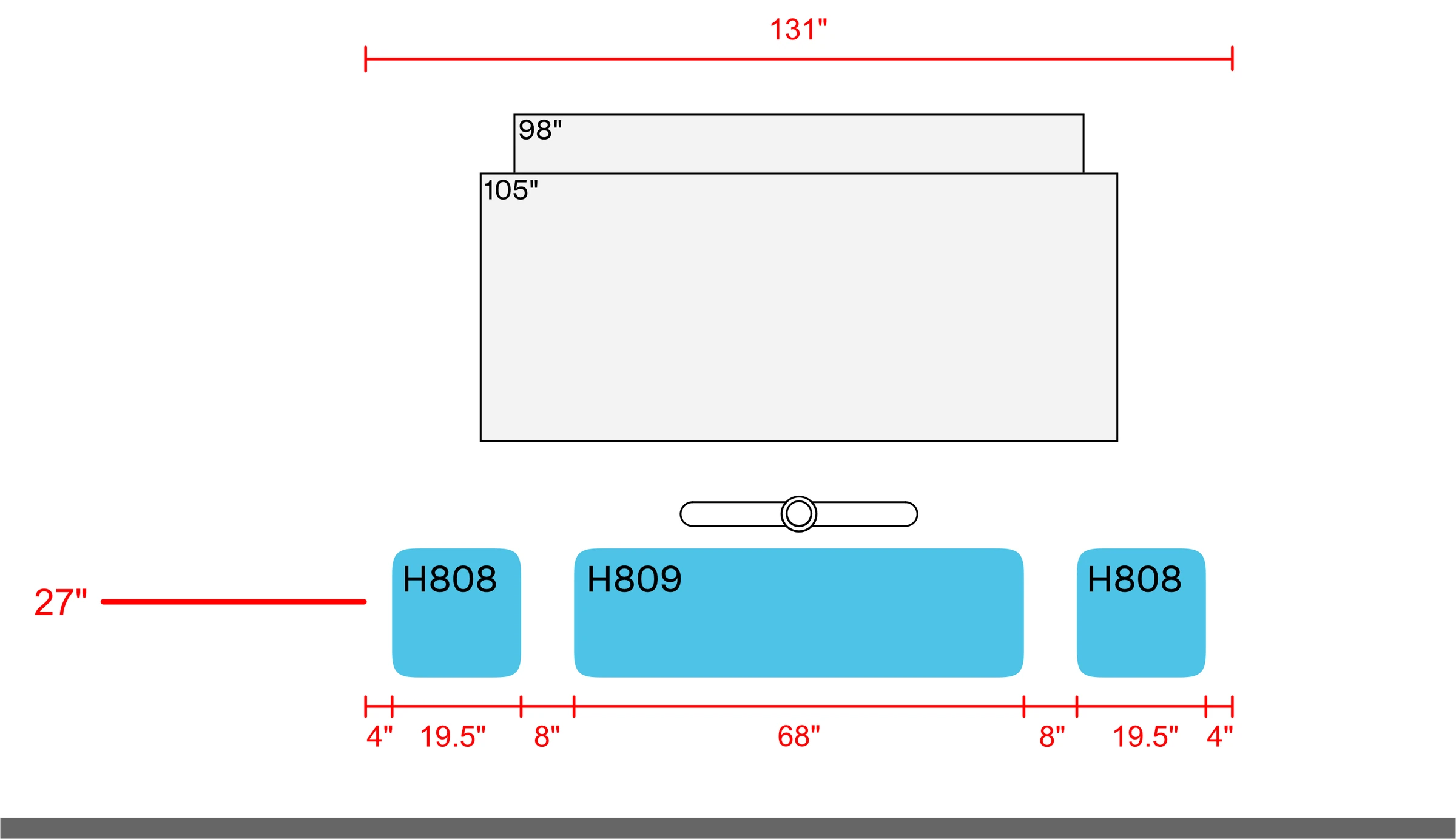

Large single-display examples above H809 and one H808 pair, with a 131-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

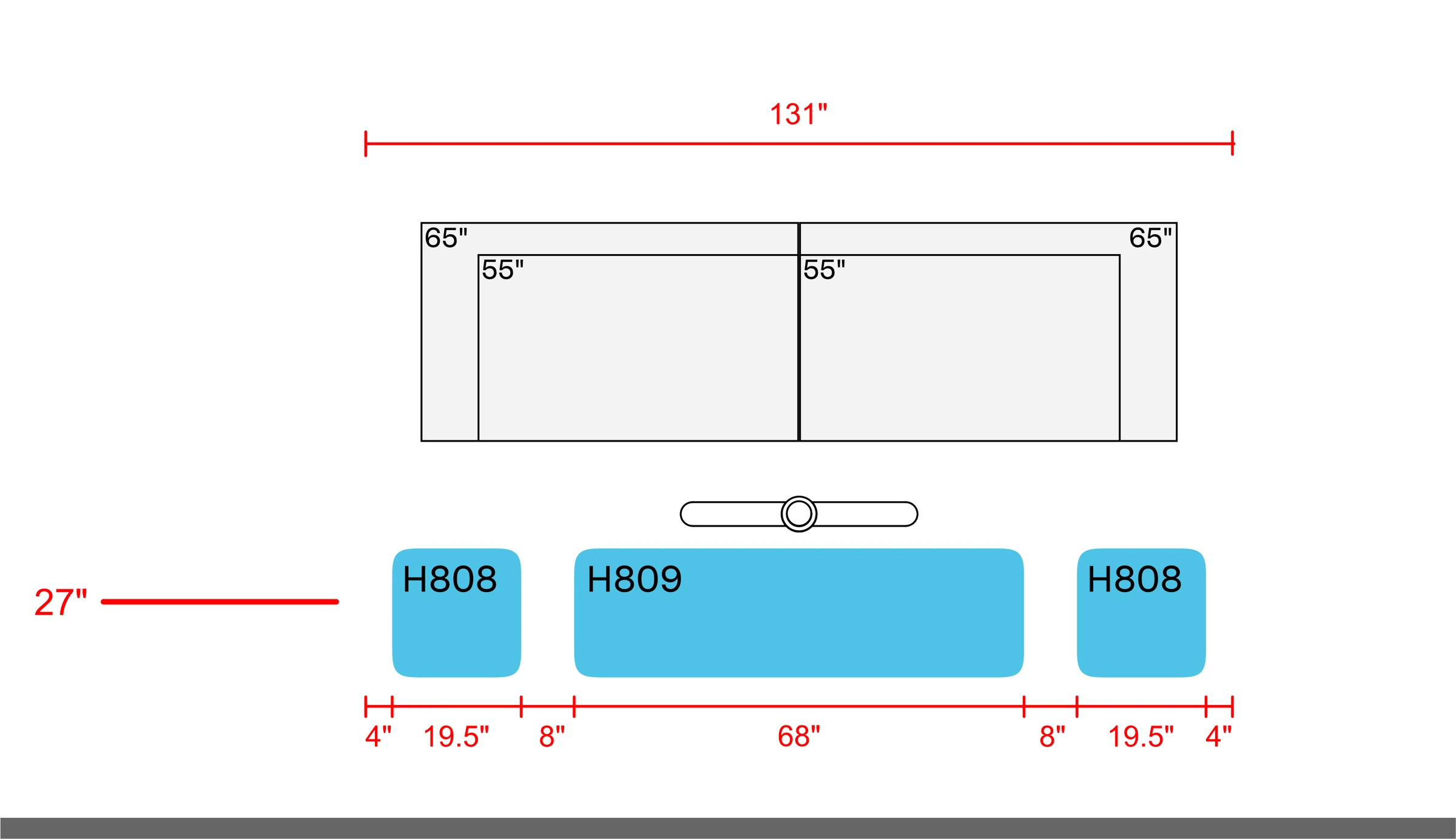

Dual 55-inch and65-inch display examples above H809 and one H808 pair, with a 131-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.

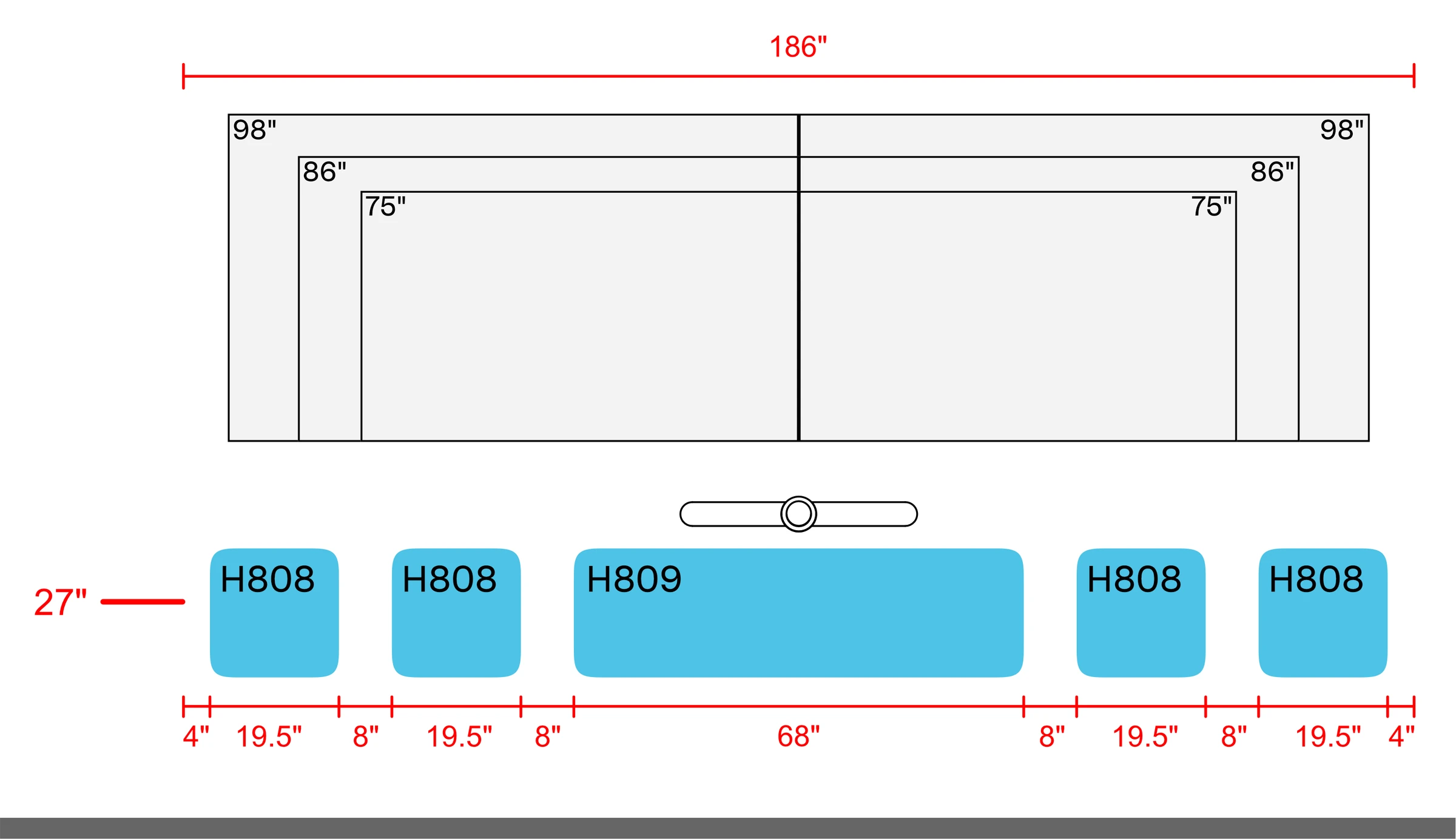

Wider dual-display examples above H809 and two H808 pairs, with a 186-inch layout width. The 27-inch mounting reference, panel widths, and spacing dimensions are shown.
