Dual Display Kit for Heckler AV Wall
Dual-display mounting for Heckler AV Wall Structure. 65–75 in or 82–98 in displays. 300+ lb capacity. TAA compliant.
- Ships from Phoenix, Arizona
- Request a quote or buy online
- Dealer support available
- Warranty-backed hardware
The Dual Display Kit adds dual-display support to any Heckler AV Wall Structure (H800, sold separately). Available in two sizes: H802 for dual 65–75 in displays, and H803 for dual 82–98 in displays. Heavy-duty 12-gauge steel beams cantilever from the AV Wall Structure and transfer more than 300 lb of display weight to the floor. Precision alignment screws bring dual displays into exact alignment. Hook-engagement display mounting prevents unintentional removal. Ships via small-package carriers.
TAA compliant. Designed and manufactured in Phoenix, AZ. Limited lifetime warranty.
- Made in Arizona
- Designed by Heckler
- Commercial-grade steel
- Durable powdercoat finish
- TAA compliant
- Patented design
- Ships globally via common carriers
- Hospital-grade disinfectants compatible
- Paper-first packaging
- Simple assembly
- ADA-conscious design

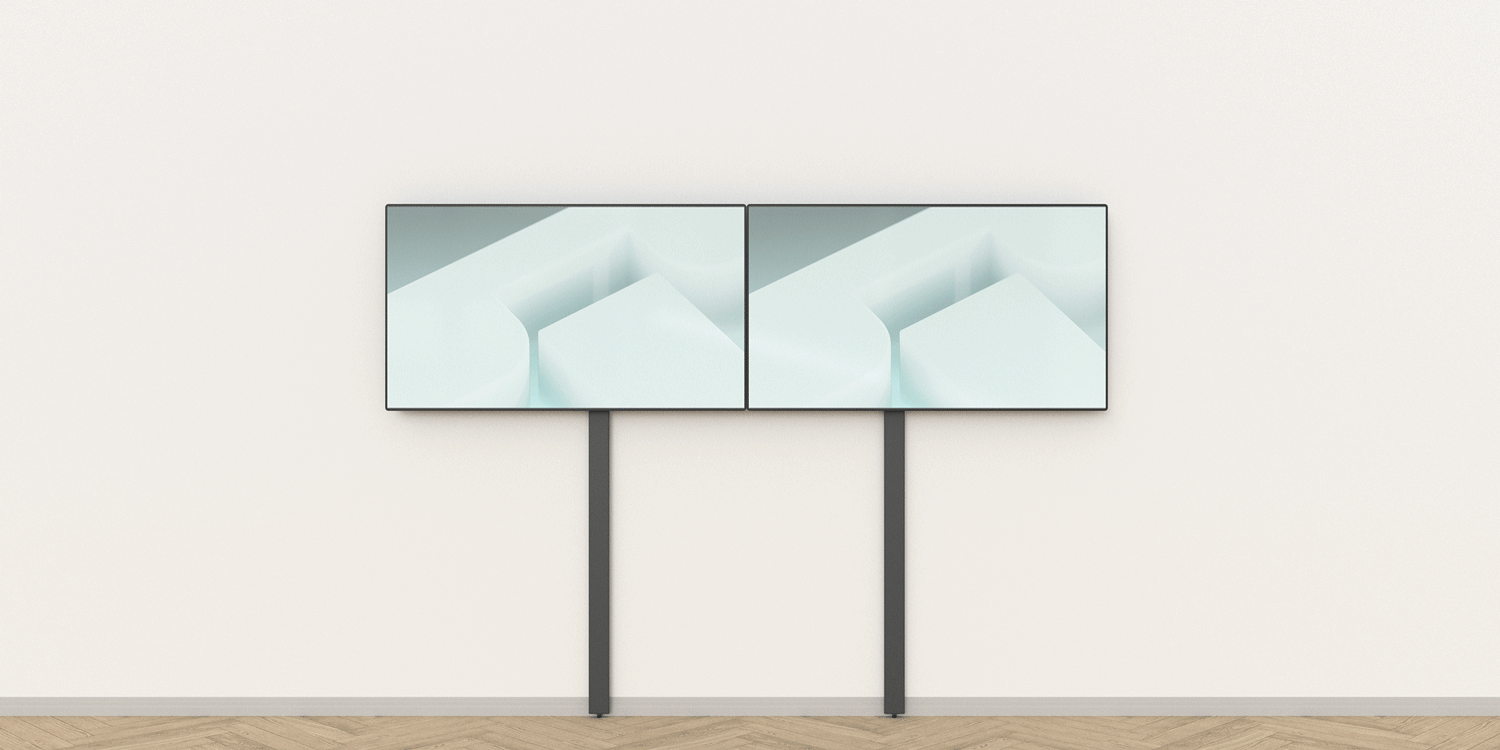

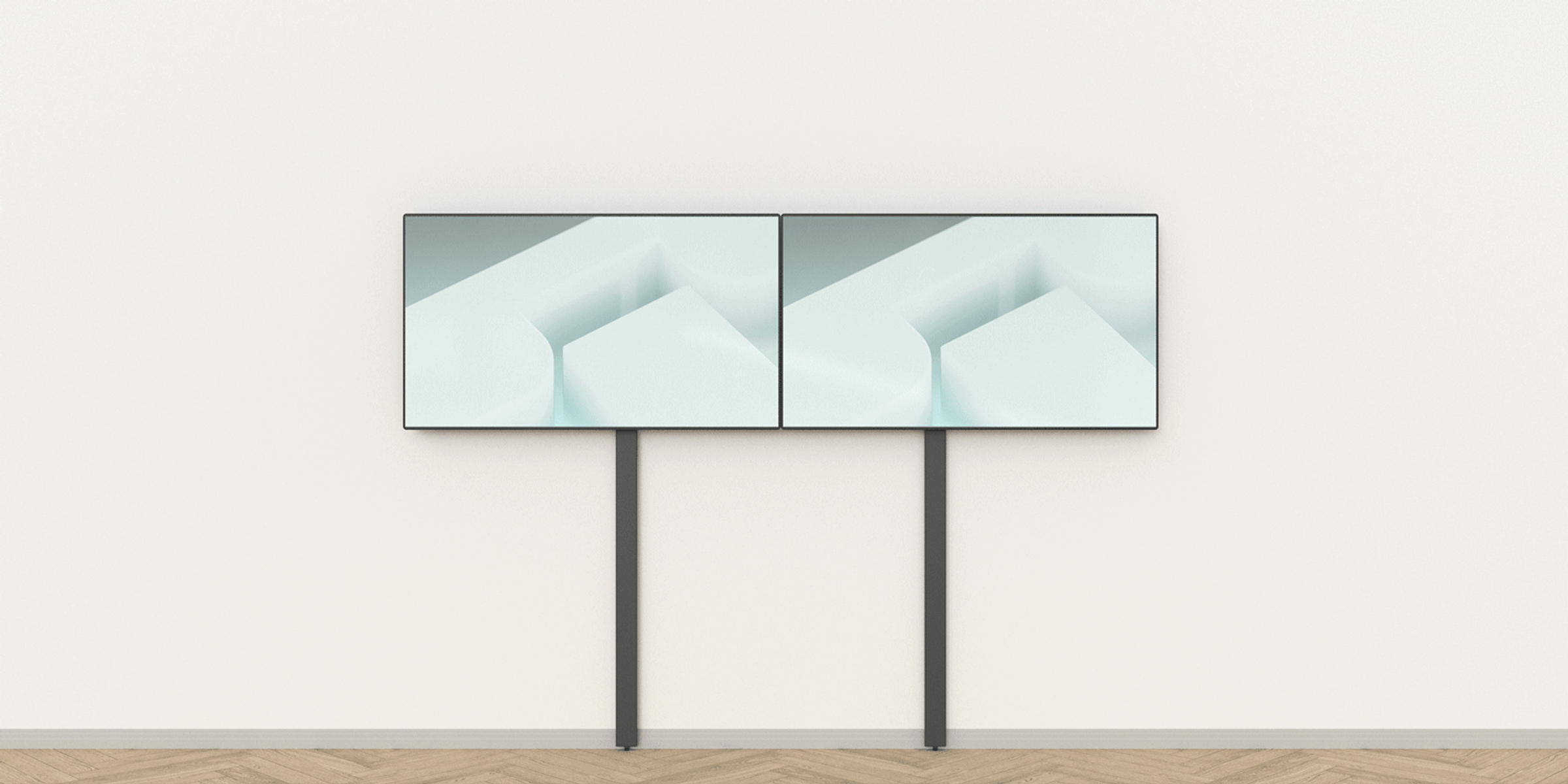

Made for big displays

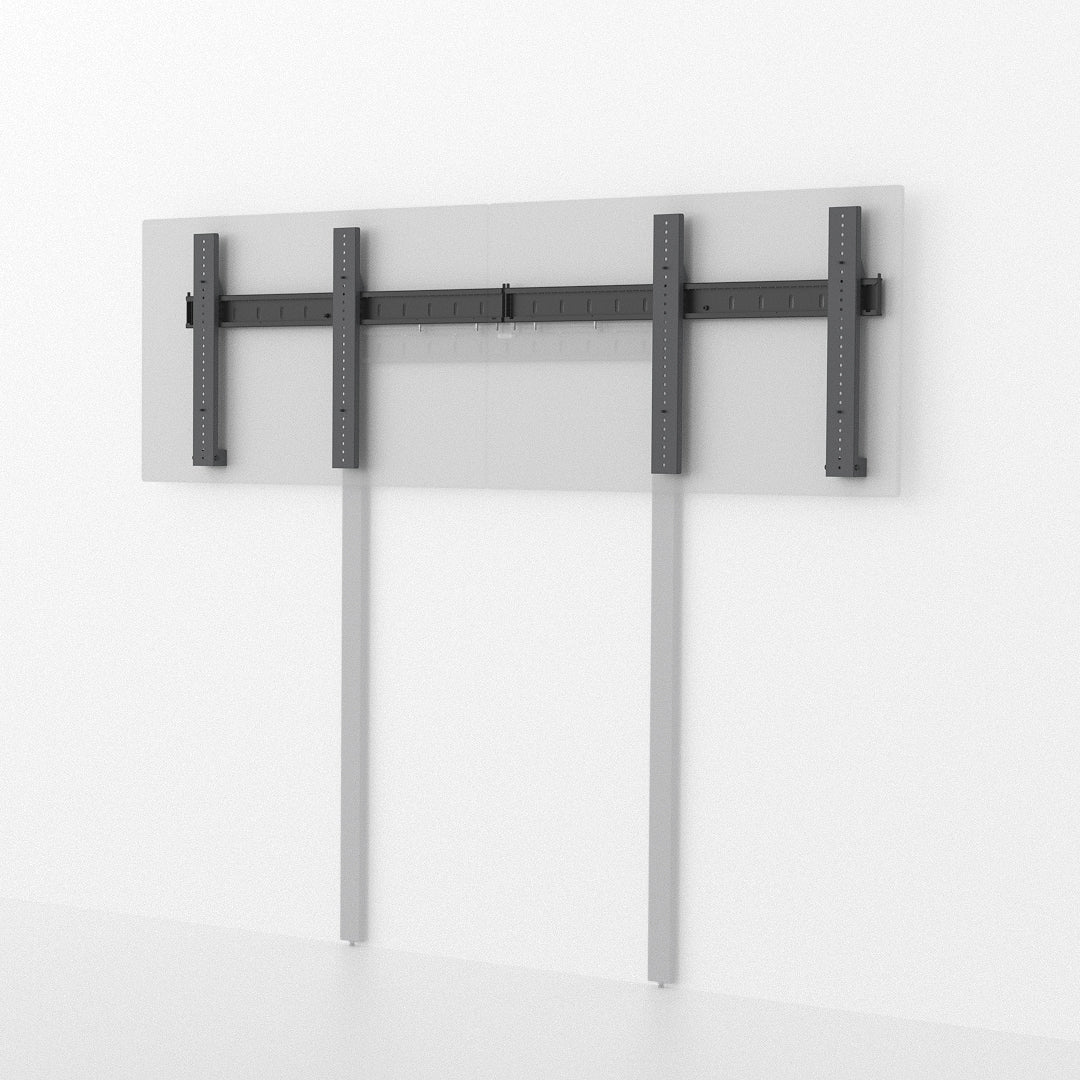

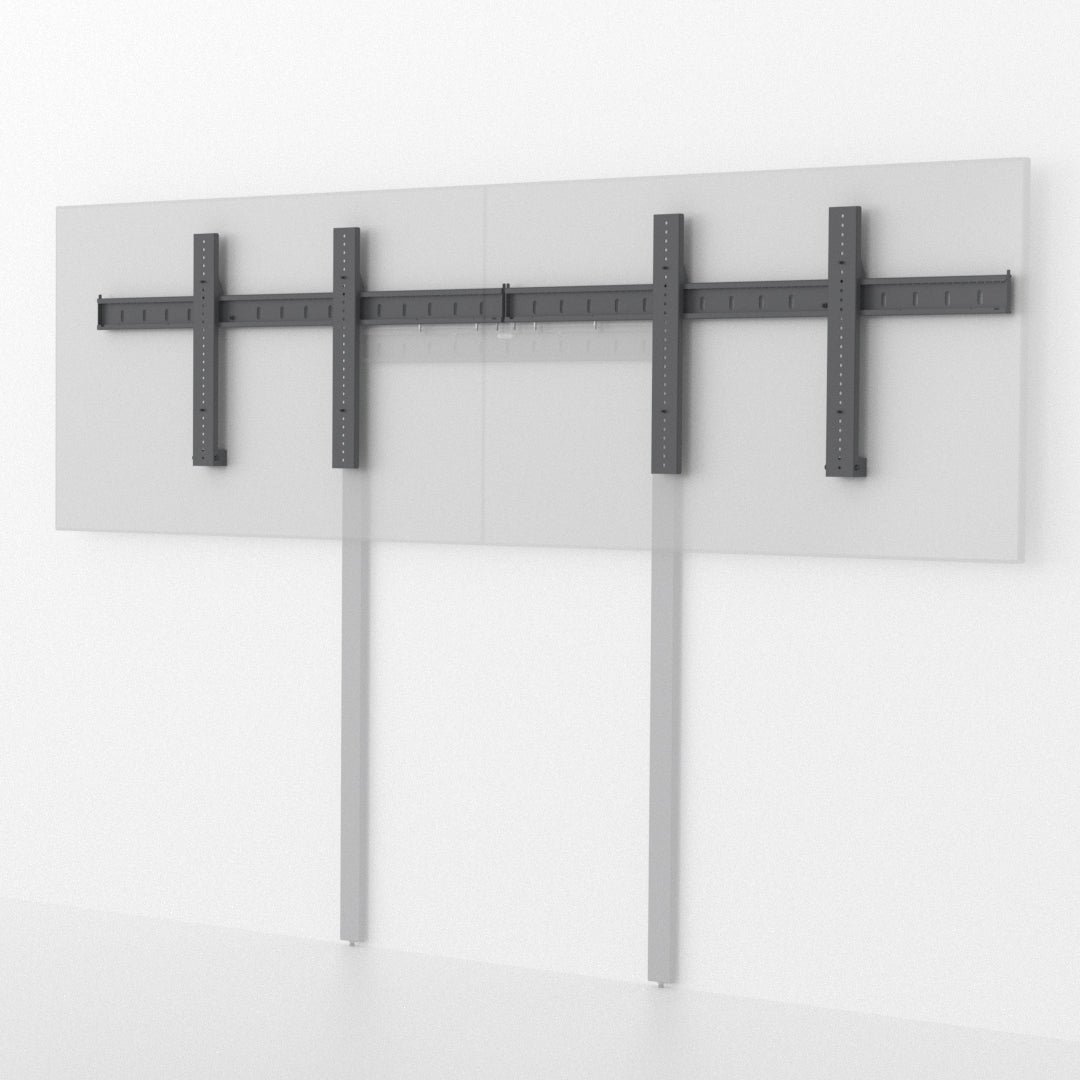

Two sizes. H802 supports dual 65 in and dual 75 in displays. H803 supports dual 82 in to 98 in displays. Transfer display weight to the floor through the AV Wall Structure. No wall reinforcement required.

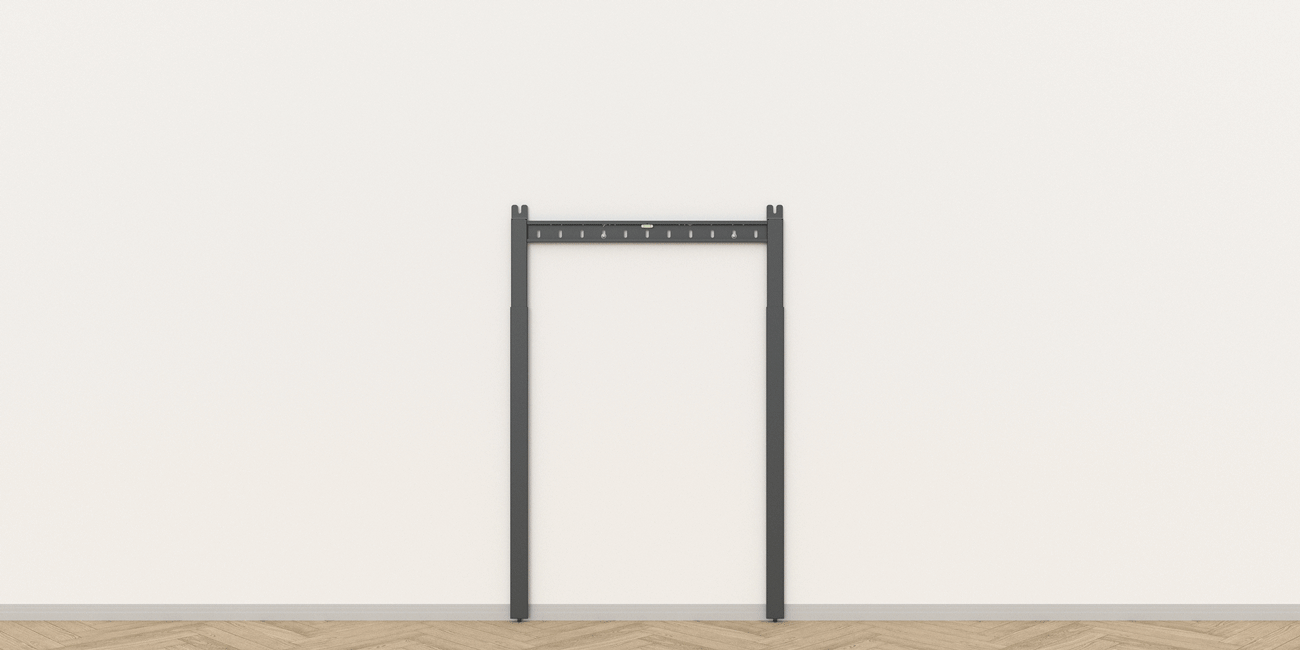

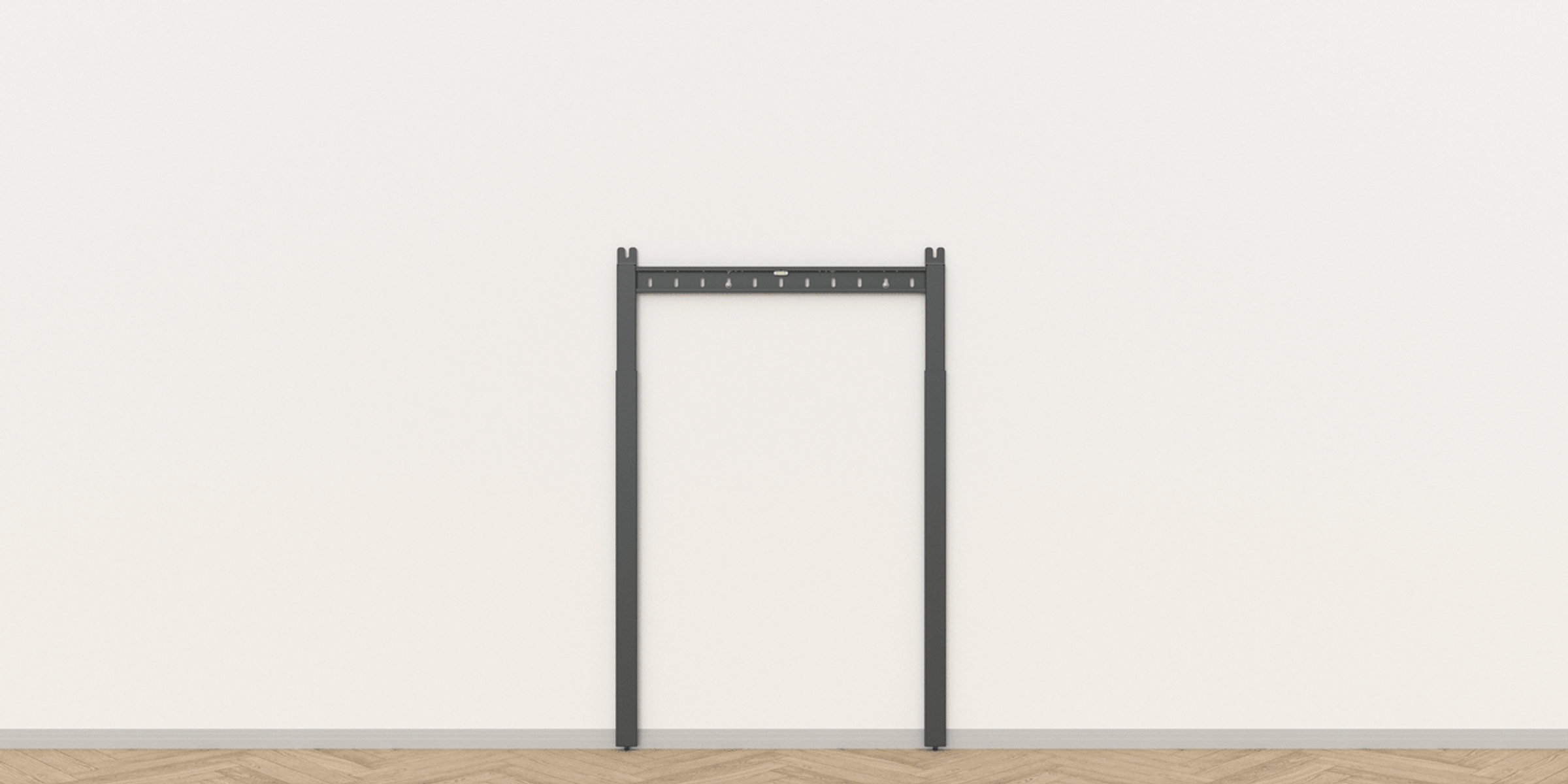

Made for easy installs
One person. A few minutes. No structural engineer, no electrician, no wall reinforcement. The Dual Display Kit and AV Wall Structure eliminate the need to strengthen walls or create new power and network outlets. Install safely by a single technician.

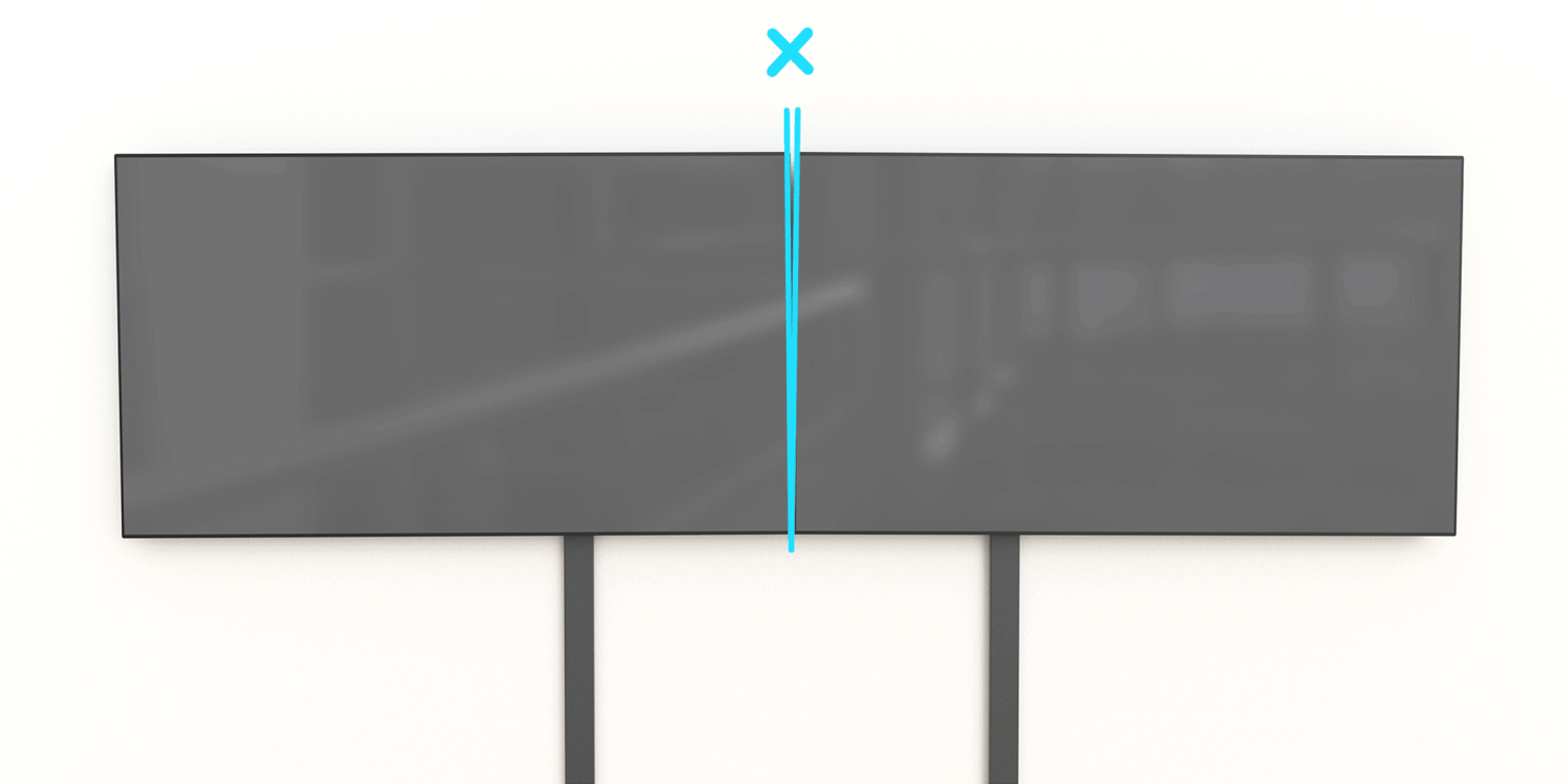

Made to align
Two adjustment screws bring dual displays into precise alignment. Fast. Repeatable. No shimming.

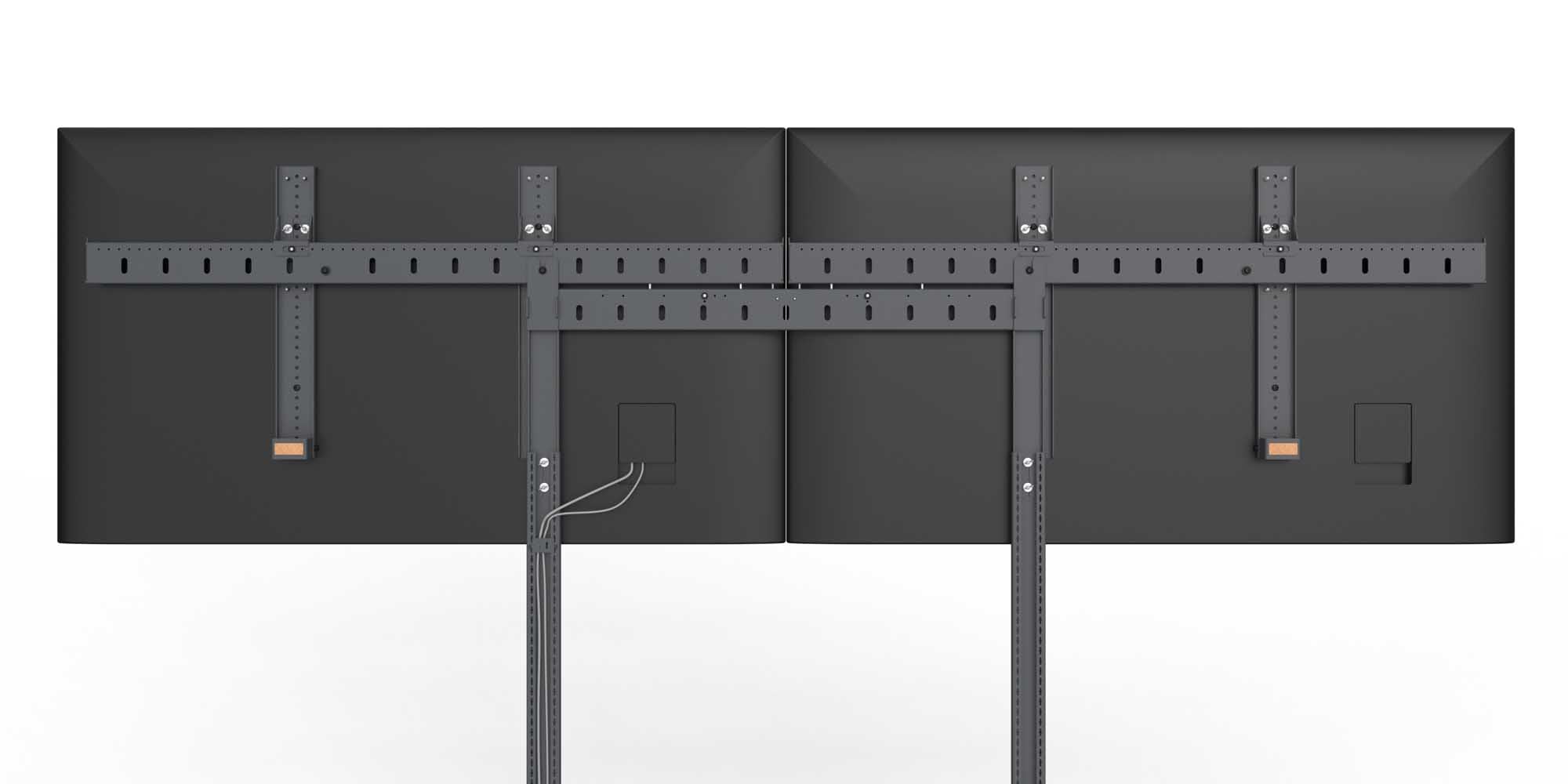

Cable routing made easy
Route display power cables through the AV Wall Structure legs to existing standard-height outlets. Route HDMI cables to components mounted in the Video Meeting Hub. No new outlets required.

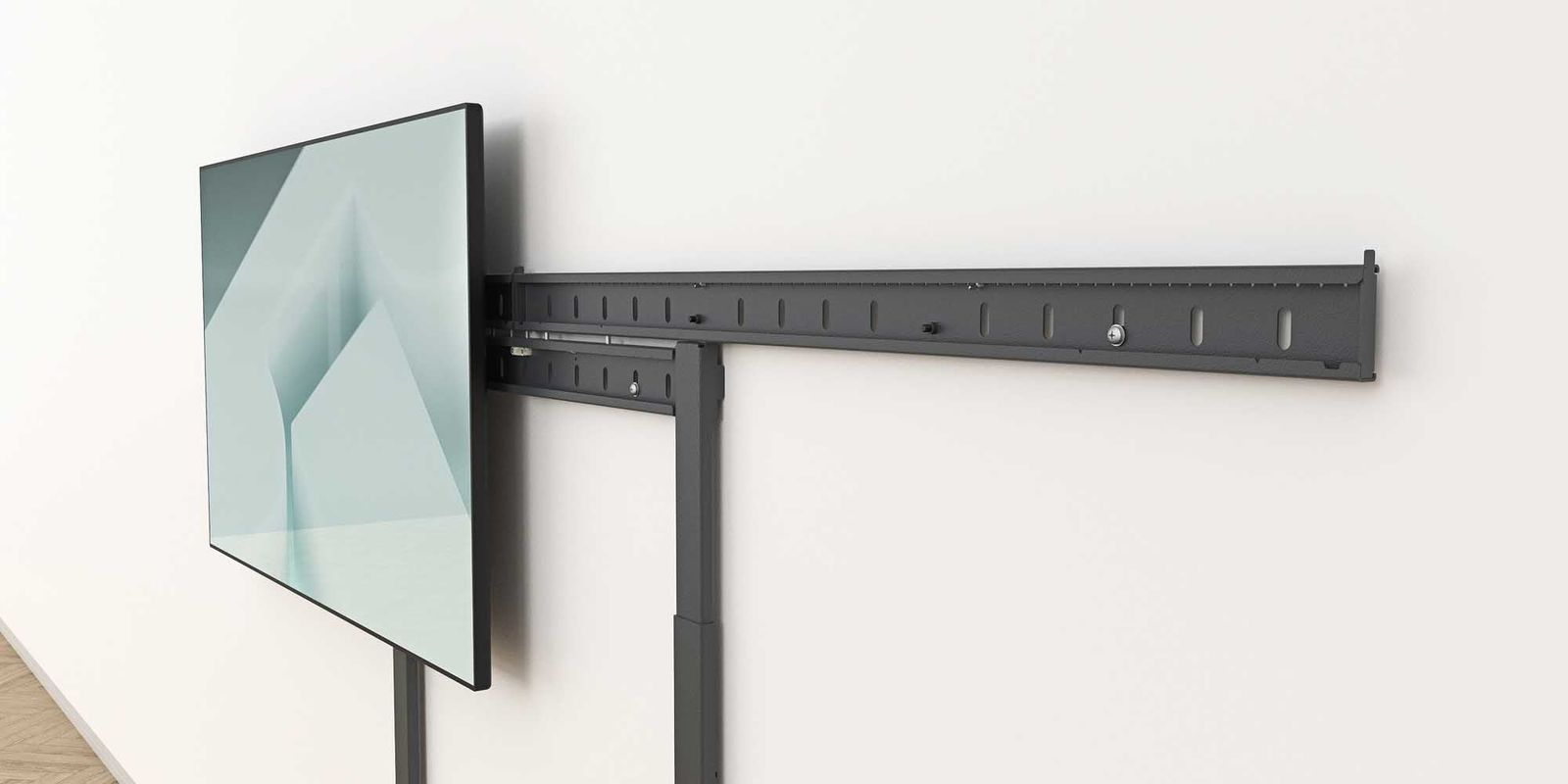

Made to build confidence
Heavy-duty 12-gauge steel beams. Each beam cantilevers from the AV Wall Structure and transfers more than 300 lb of display weight to the floor. Wall-anchored for additional security.

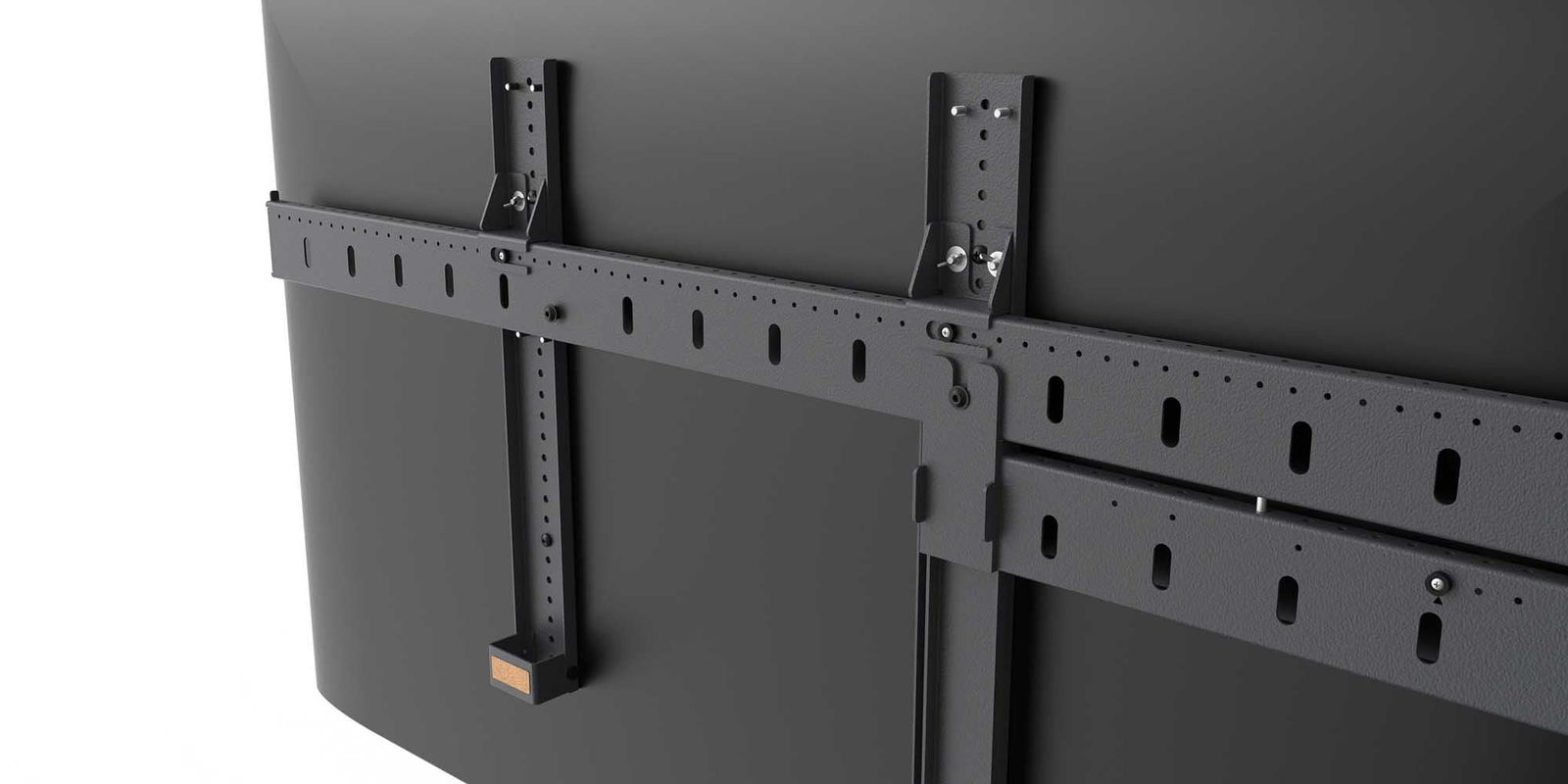

Made for safe display installations
Displays install at adjustable heights on heavy-duty rails. Hook-engagement mounting prevents unintentional display removal.

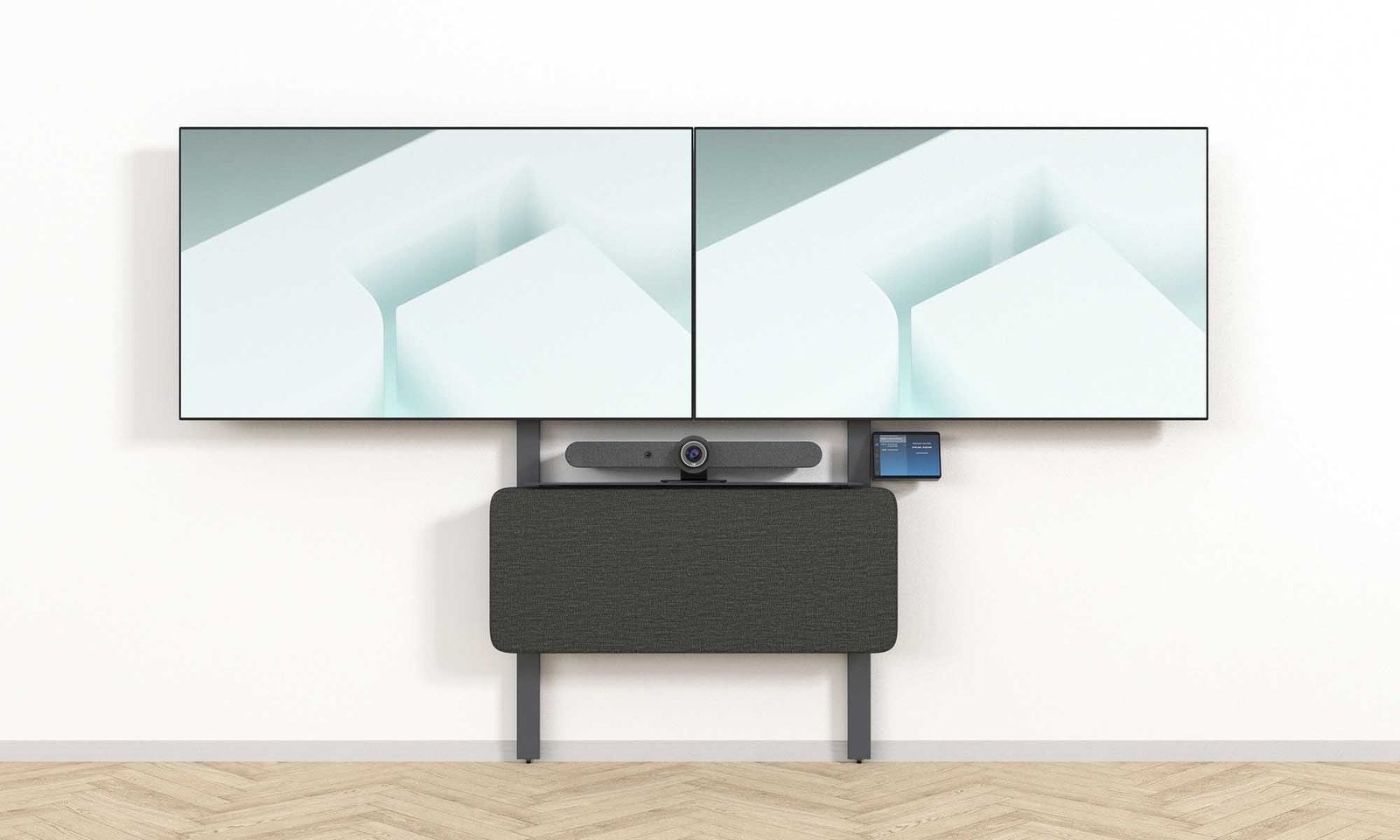

Made for all of your future configurations
One AV Wall Structure supports the full accessory ecosystem: Video Meeting Hub, Dual Display Kit, XL Display Kit, and Controller Mount. Reconfigure as meeting spaces evolve.
Specifications
- Heckler SKU
- H802-BG
- Product Dimensions
- 103.5 x 4.5 x 1.5 inches 2629 x 114 x 37 mm
- Shipping Dimensions
- 69 x 9 x 5 inches 1752 x 229 x 127 mm
- Material
- Powdercoated Steel
- Warranty
- Limited Lifetime
- Product Weight
- 31 lbs / 14 kg
- Shipping Weight
- 36 lbs / 16 kg
- Compatible Devices
- 65" - 75" Display

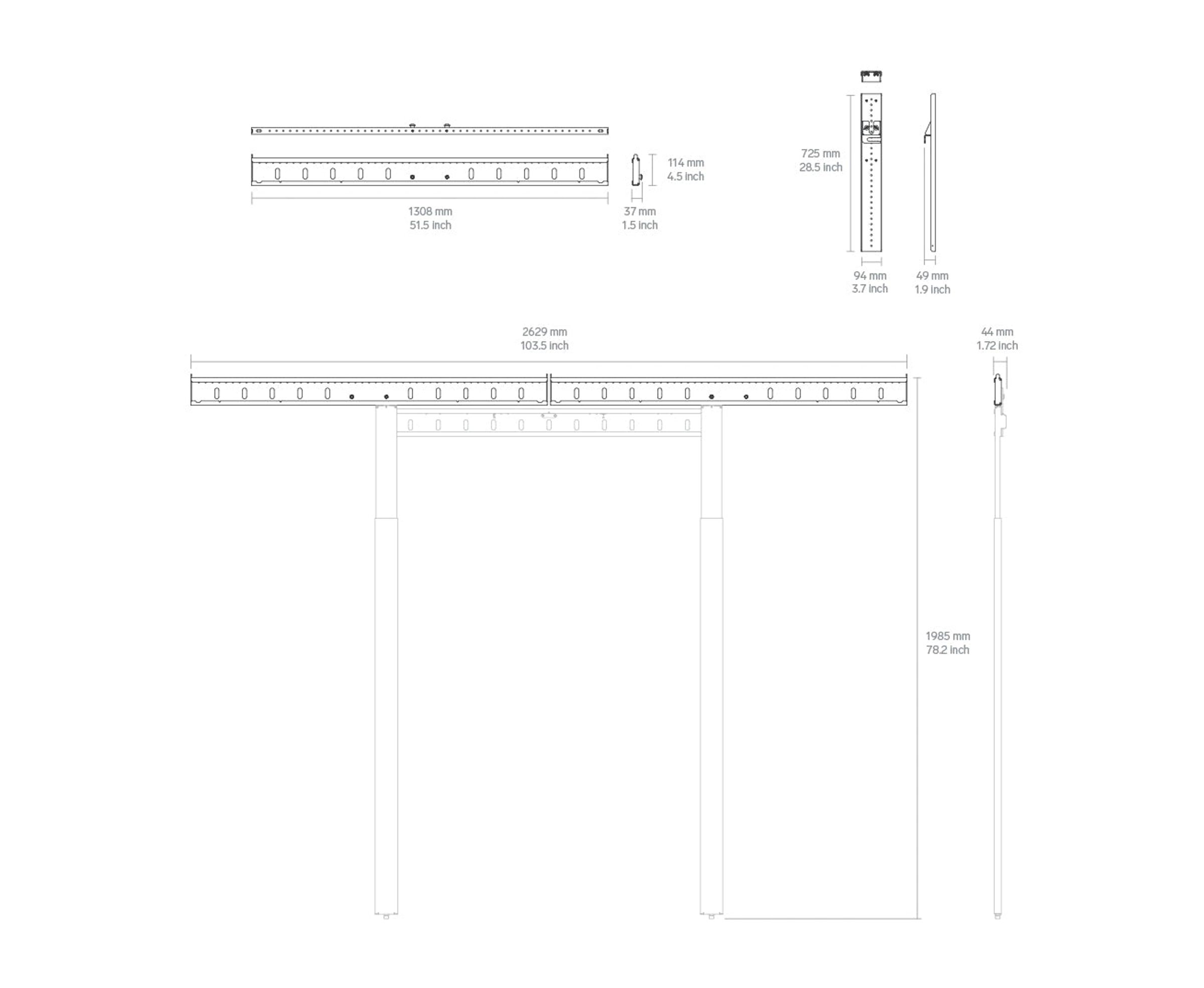

Technical drawing

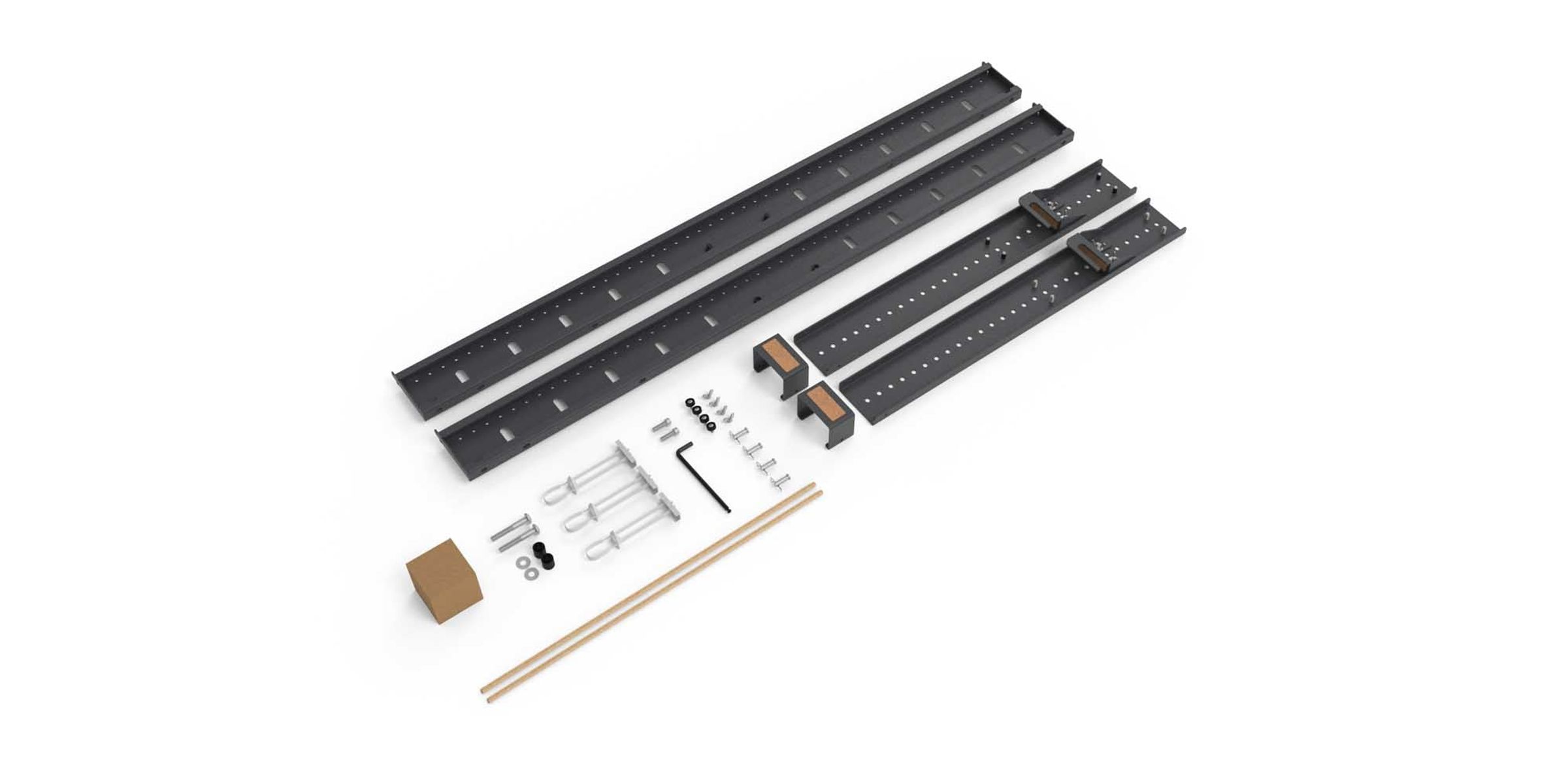

In the box
- Two display beams
- One set of display-mounting rails (Use the set that came with Heckler AV Wall Structure for your first display)
- Display-mounting hardware kit
- Wall-anchoring hardware
