Heckler XL Display Stand MkII
The rolling stand built to mobilize 82–105 inch displays with absolute confidence. VESA 400–1600. 220 lb capacity. TAA compliant.
H1053-BK
$1,599
- Ships from Phoenix, Arizona
- Request a quote or buy online
- Dealer support available
- Warranty-backed hardware

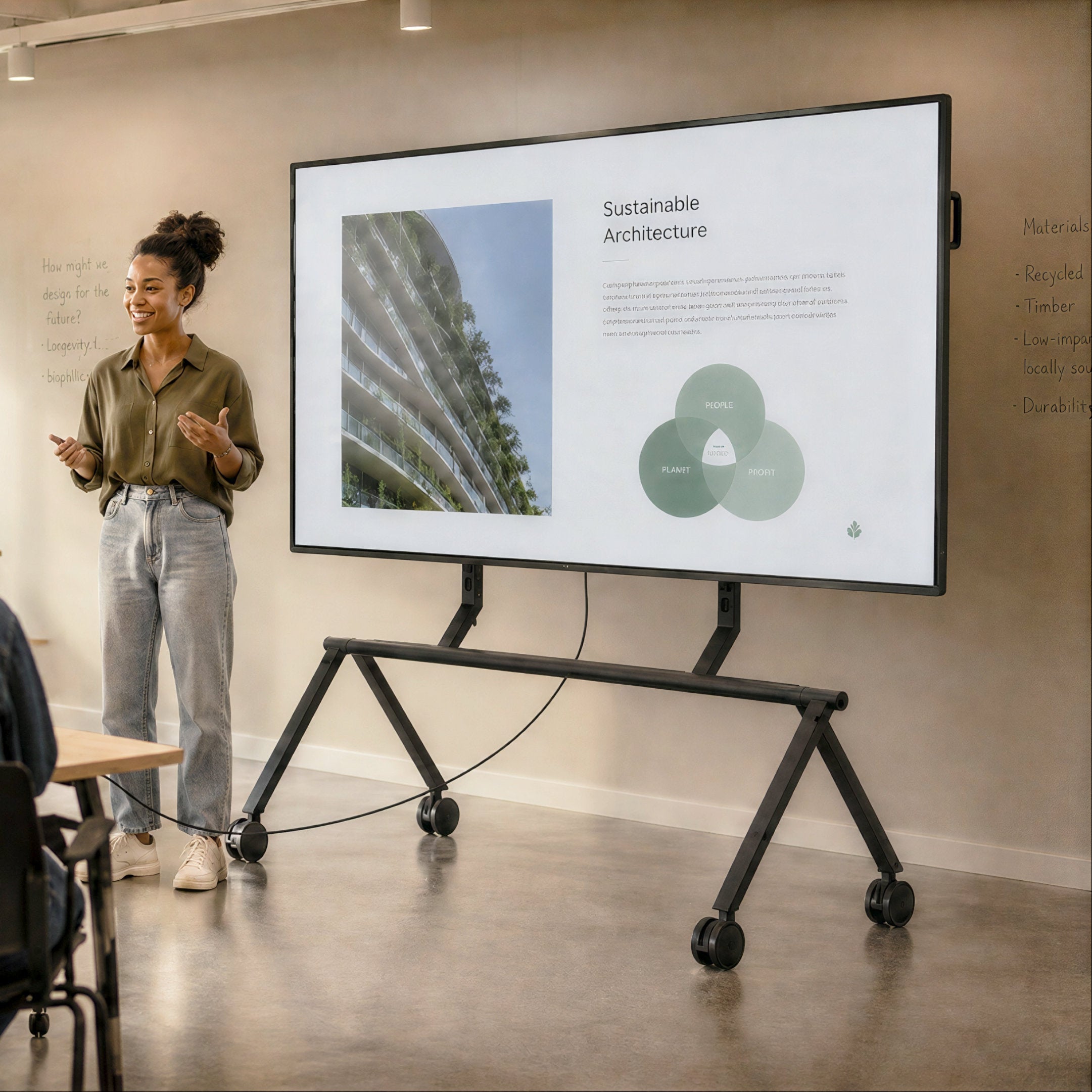

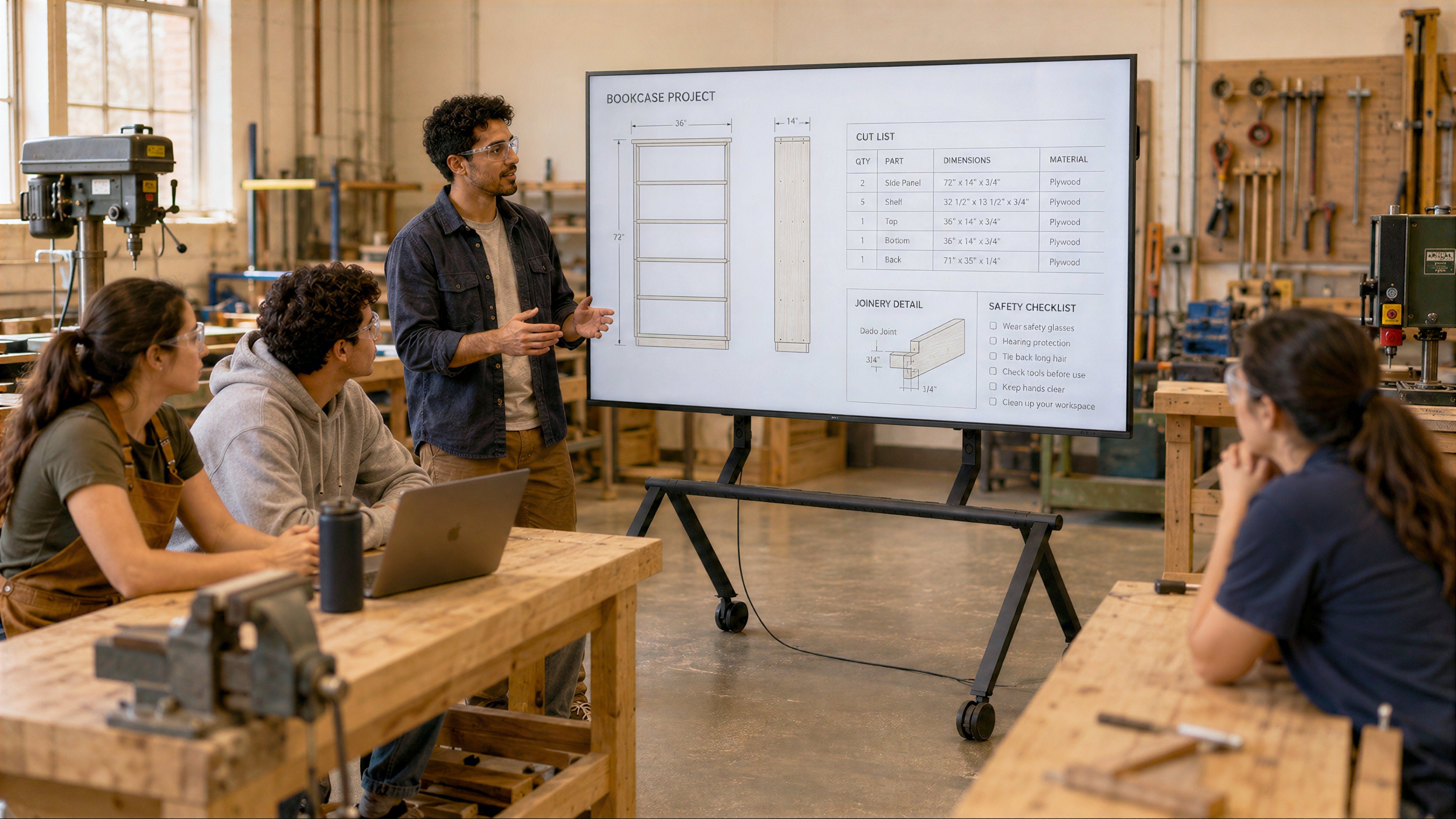

Heckler XL Display Stand MkII mobilizes the largest commercial displays with confidence. Supports 82–98 in 16:9 displays and 85–105 in 21:9 displays weighing up to 220 lb. VESA 400 through 1600.
The patent-pending Heckler Connection System with set-screw locking, larger rectangular steel box-beam legs and columns, and a one-piece structural beam create a stiffer, more rigid stand than its predecessor. Oversized five-inch total-lock casters roll smoothly and lock firmly. Compact nested storage.

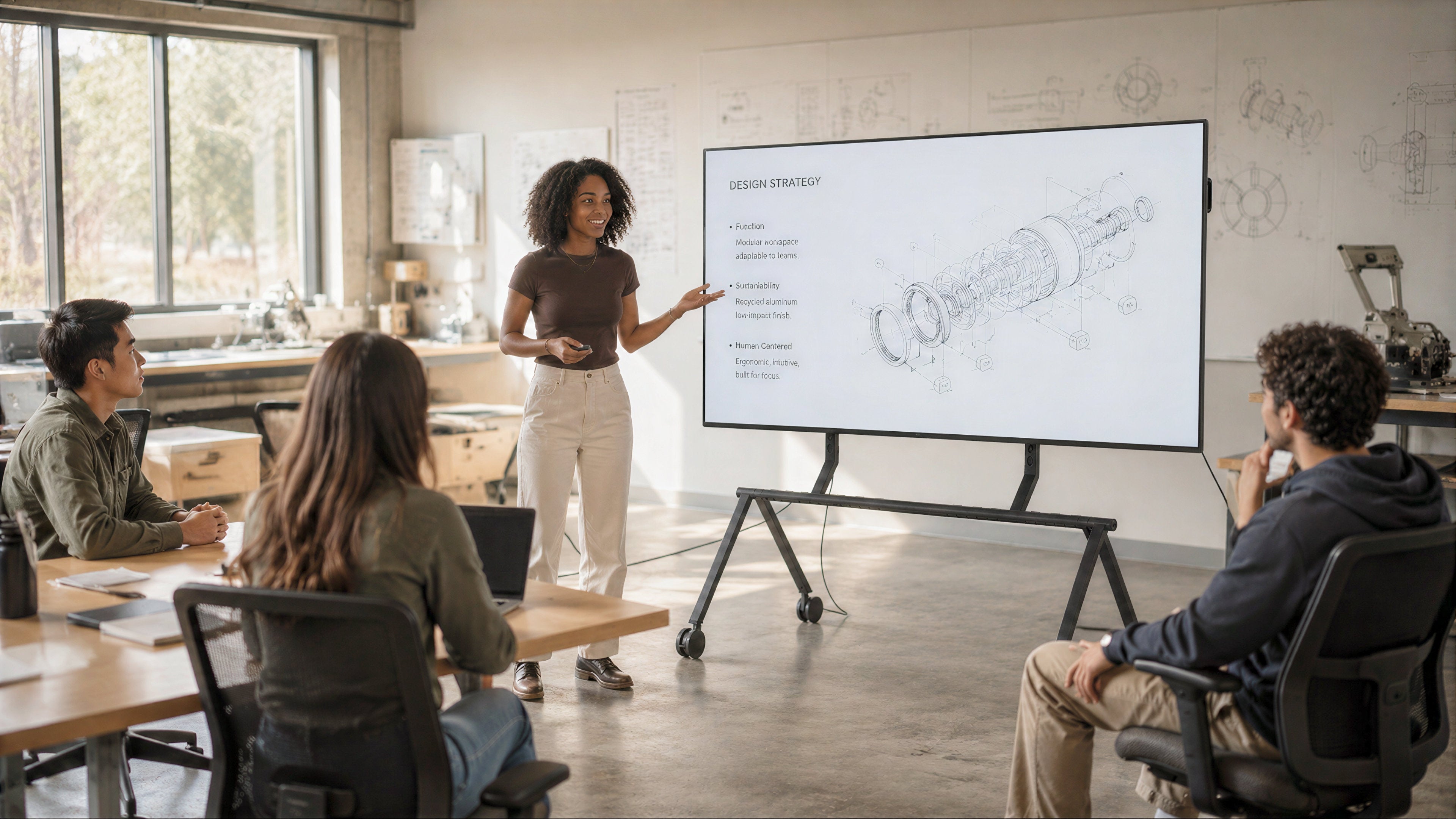

Fast display mounting. Clean cable management. One rolling stand for conference rooms, training spaces, events, and shared AV deployments.
TAA compliant. UL/IEC 62368-1 listed. ADA compliant. Designed and manufactured in Phoenix, AZ. Limited lifetime warranty.
Complete your setup
- Made in Arizona
- Designed by Heckler
- Commercial-grade steel
- Durable powdercoat finish
- TAA compliant
- Patented design
- Ships globally via common carriers
- Hospital-grade disinfectants compatible
- Paper-first packaging
- Simple assembly
- ADA-conscious design
Video
See Heckler XL Display Stand in action
3D model
See Heckler XL Display Stand MkII in 3D

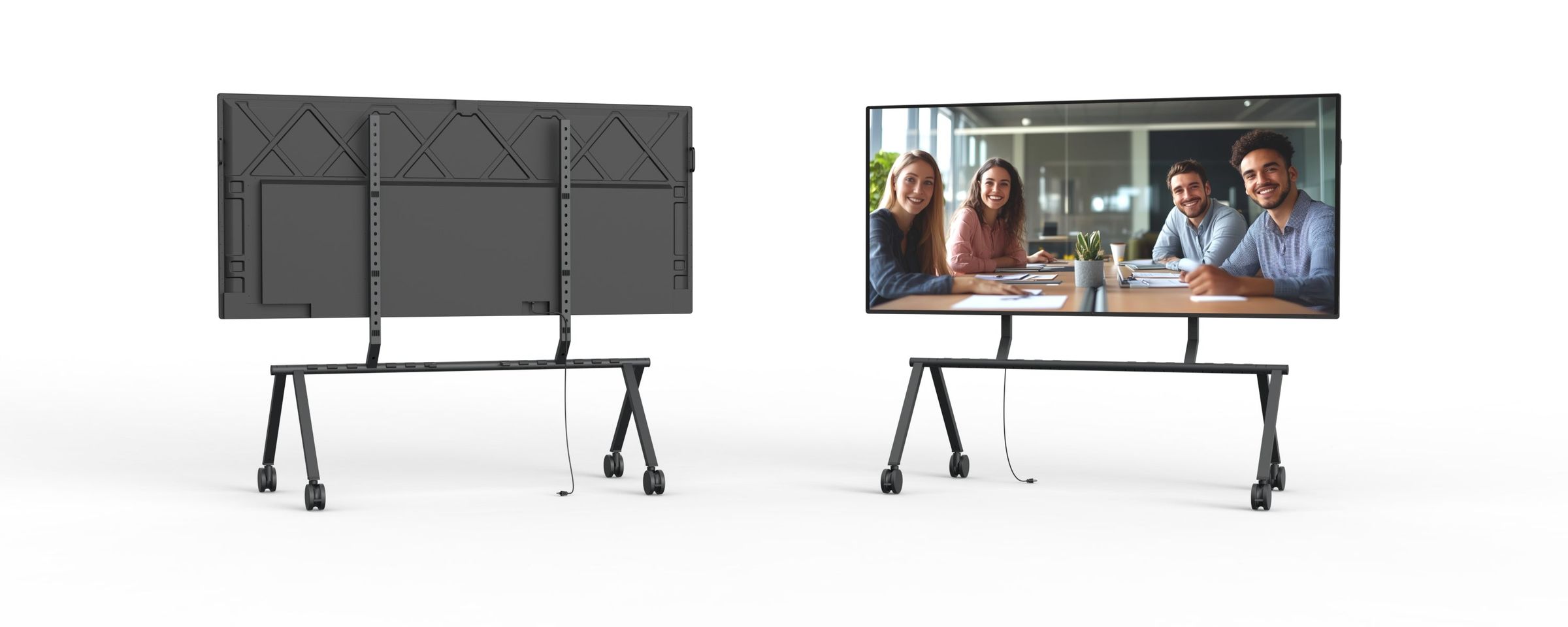

Refined aesthetics from every angle.
Cleaner geometry. Simplified beam. A more deliberate, more premium profile from every angle. Mount displays at optimal height for any room or setting. Most 75 in displays position at approximately 42 inches AFF — supporting eye-level camera mounting for natural video conferencing.

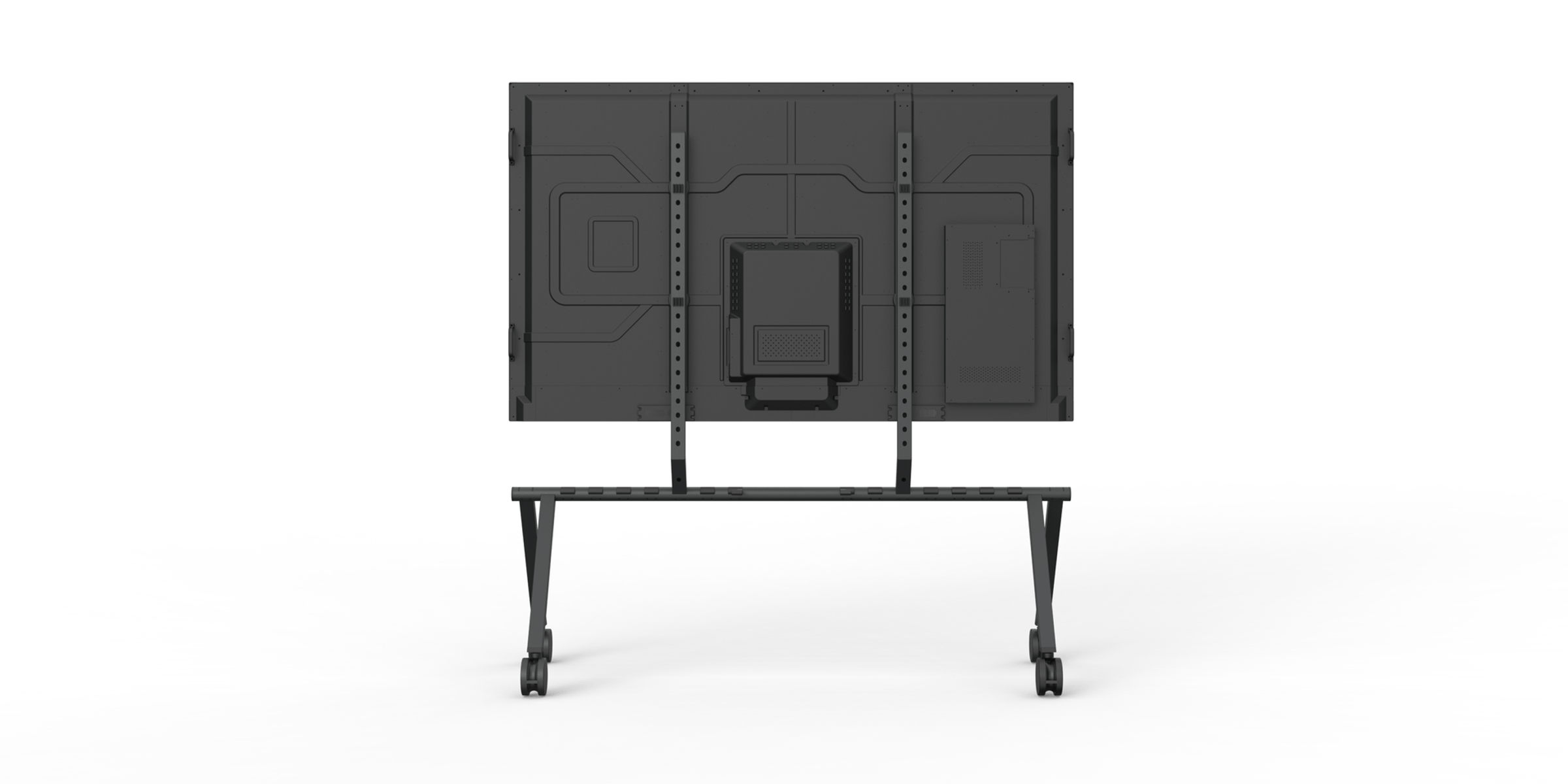

Wide VESA compatibility. Very wide.
Adjustable column and beam architecture supports mounting patterns from VESA 400 to VESA 1600. Standardize on one rolling stand across display brands and models.

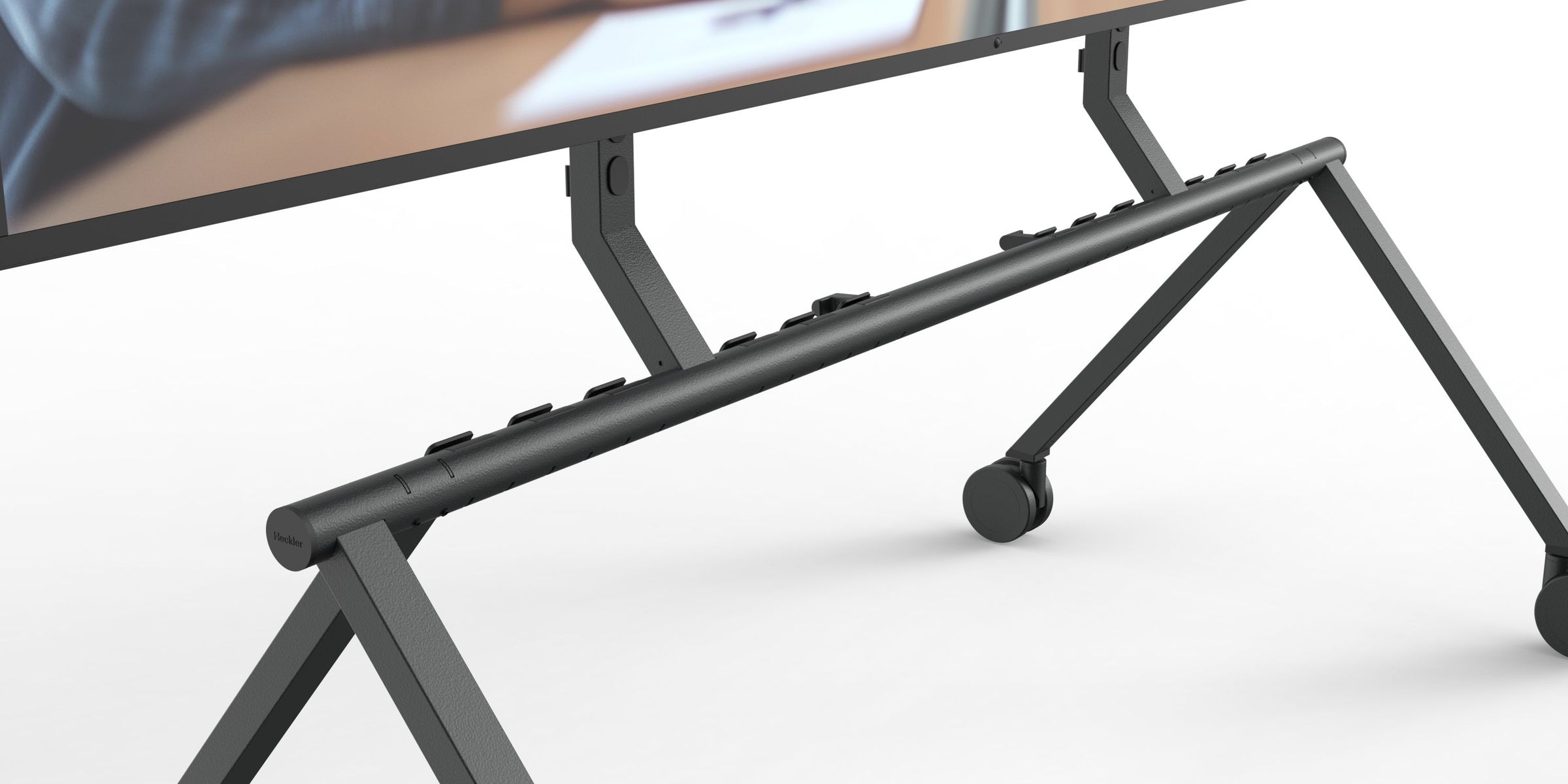

One‑piece beam for maximum strength.
The MkII beam is one solid part. Increased strength and stiffness across the full span. Less flex. More rigidity. A structure that stays aligned under load."

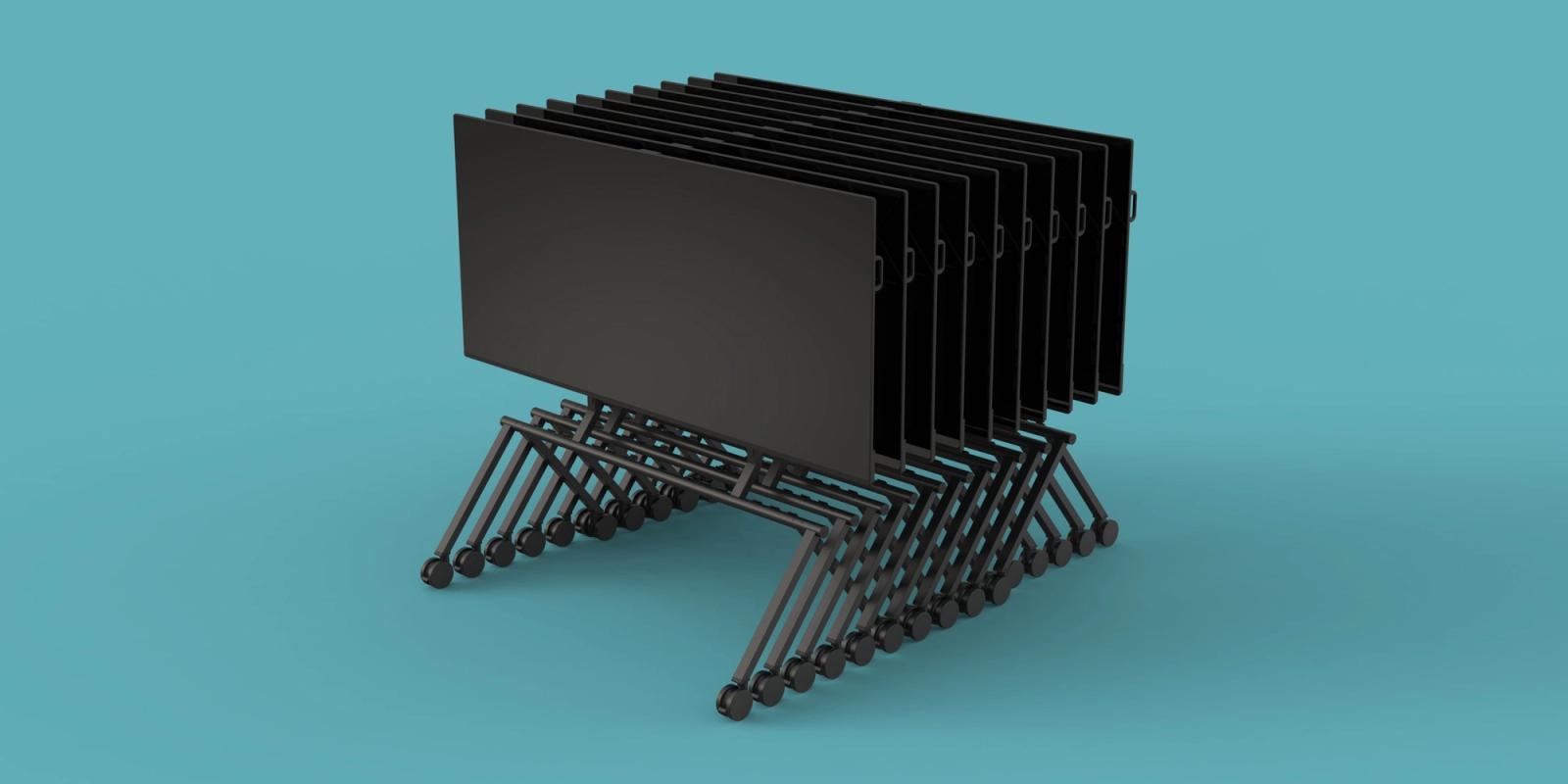

Compact, nested storage.
Multiple stands nest together when not in use, freeing floor space. Designed for event venues, all-hands meetings, and organizations that share large displays across the workspace.

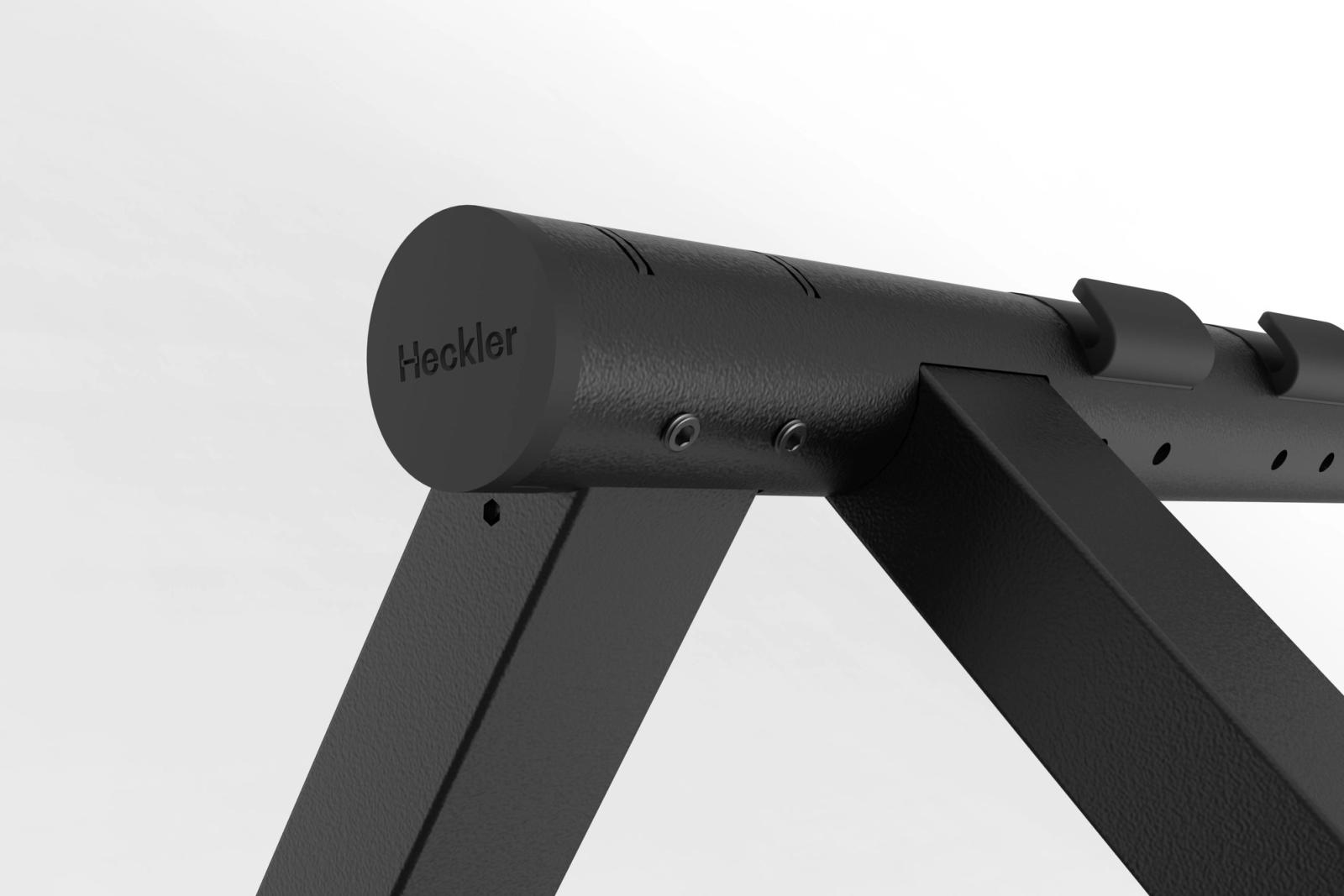

Rock‑solid rigidity, everywhere it matters.
The patent-pending Heckler Connection System with set-screw locking creates rigid connections between legs, columns, and beam. A structure that holds steady with the largest, heaviest displays.

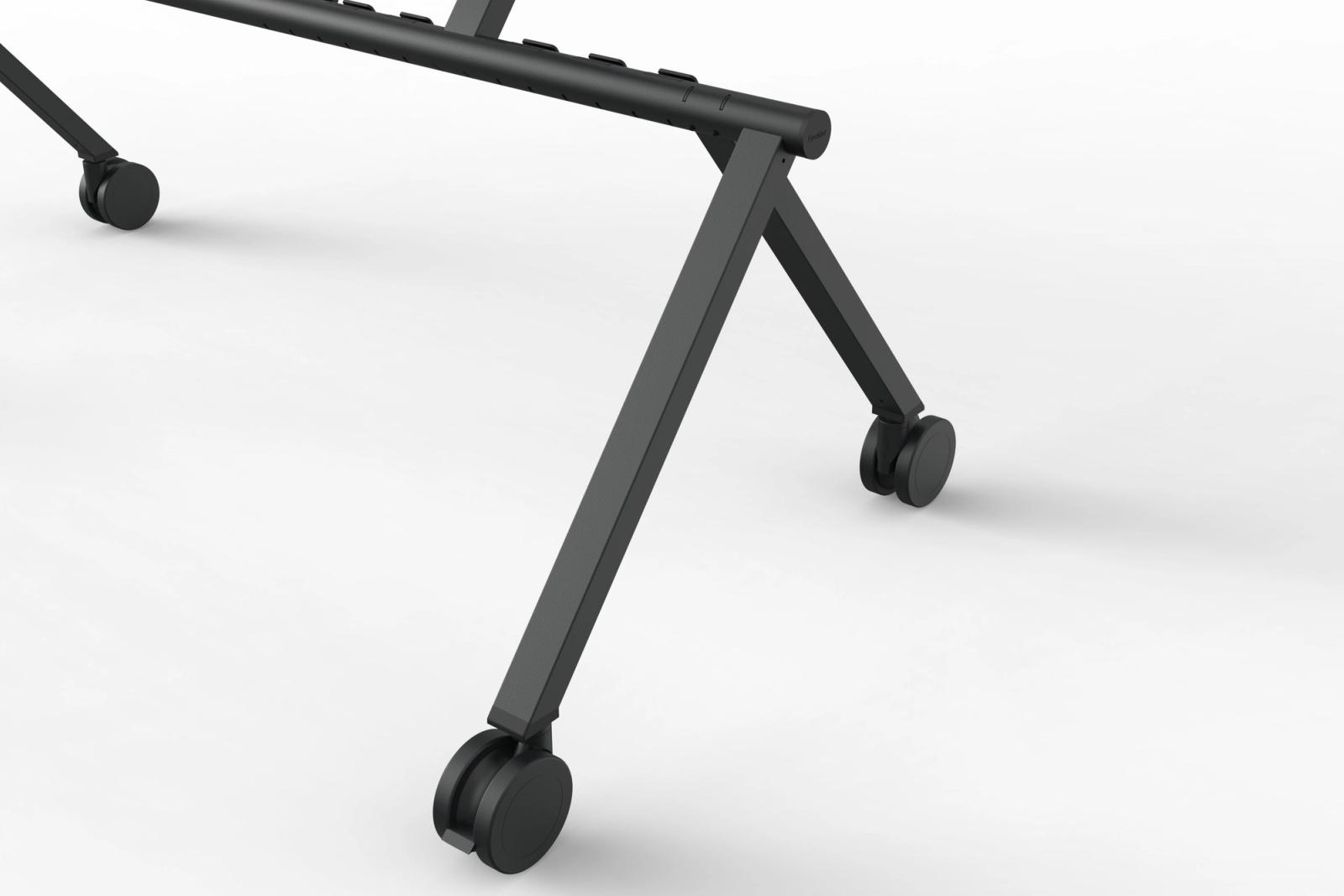

Bigger box beams. Bigger confidence.
MkII upgrades legs and columns to larger rectangular steel box beams. Added strength. Added stability. A more substantial foundation with a cleaner, more architectural profile. Built for daily use in demanding enterprise spaces.

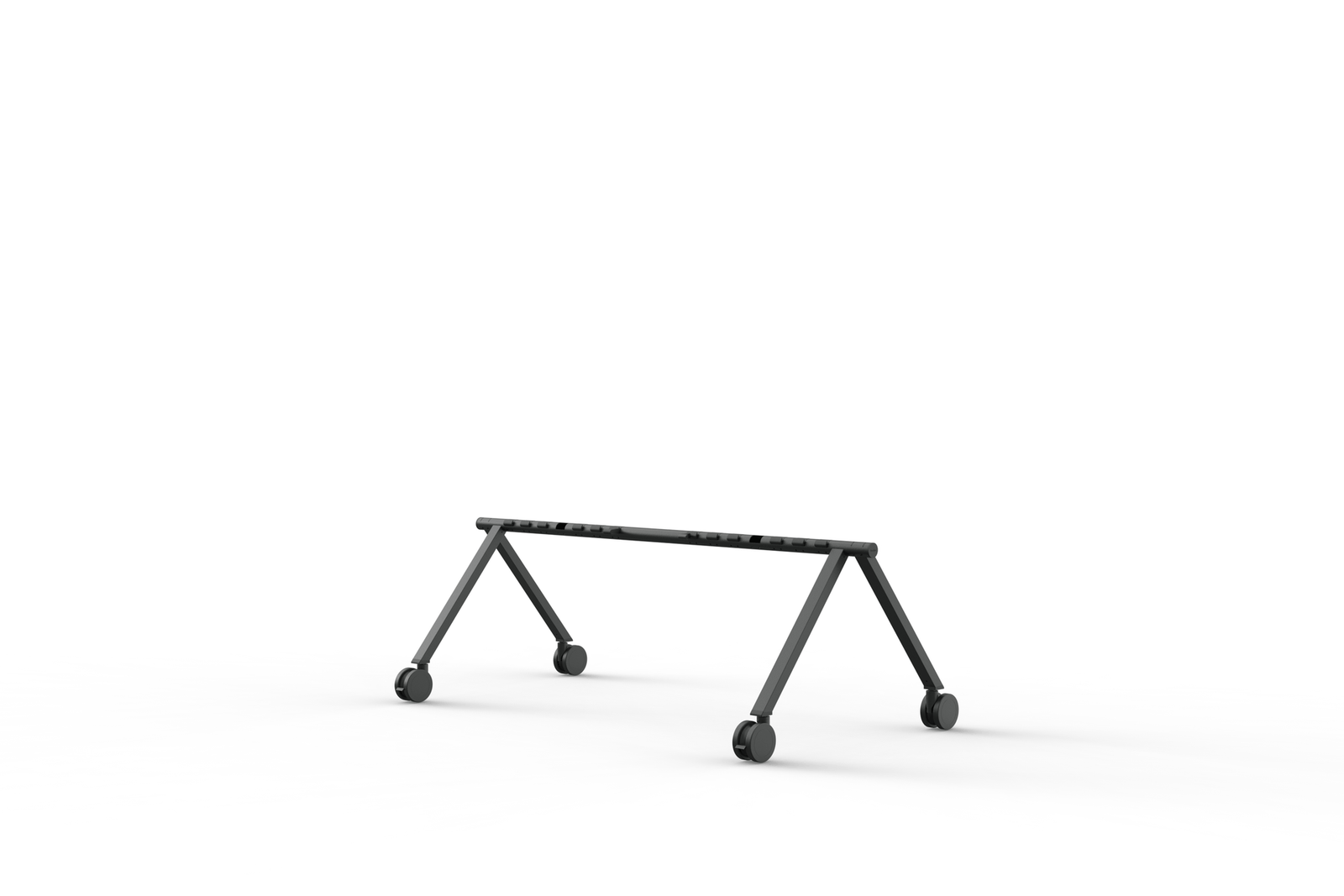

Fast assembly, fast load‑out.
MkII is built for quick setups and efficient teardowns. Our connection system assembles into a strong, precise structure—and MkII’s set‑screw locking takes that confidence even further, turning quick setup into a truly rock‑solid build. Like the rest of the Mobile Fleet line, MkII inherits the 30-second display mounting system: attach our display anchors to your screen, hang it on the columns, then snap in the cable managers to secure the anchors. That’s it—no fiddly spacers, no wasted hardware. Includes M8 mounting hardware (M6 sold separately).

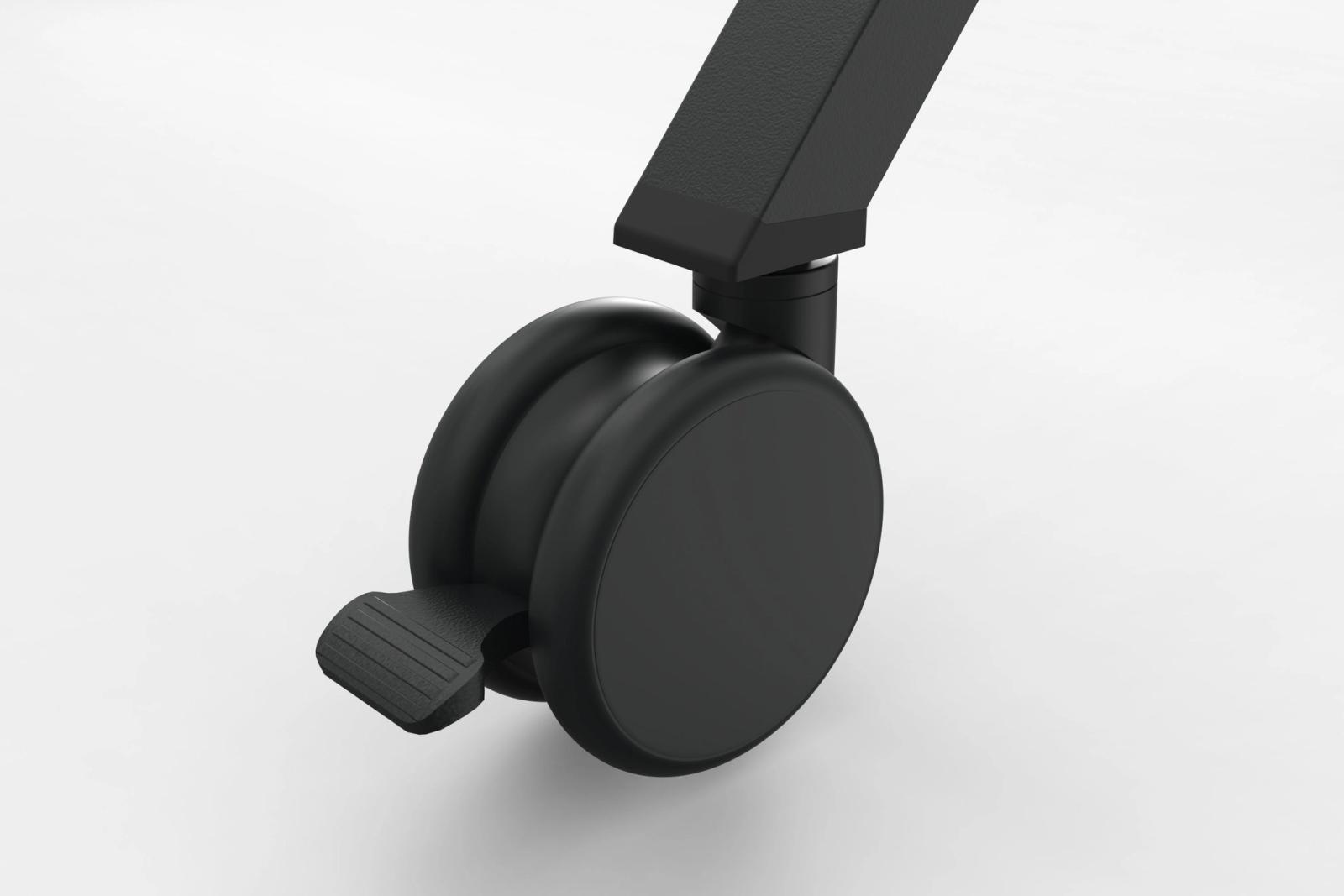

XL casters for your XL displays.
Confidently roll your largest displays with oversized five‑inch casters. Each caster features a twin‑wheel design and a total‑lock braking system that locks both wheel spin and caster pivot.

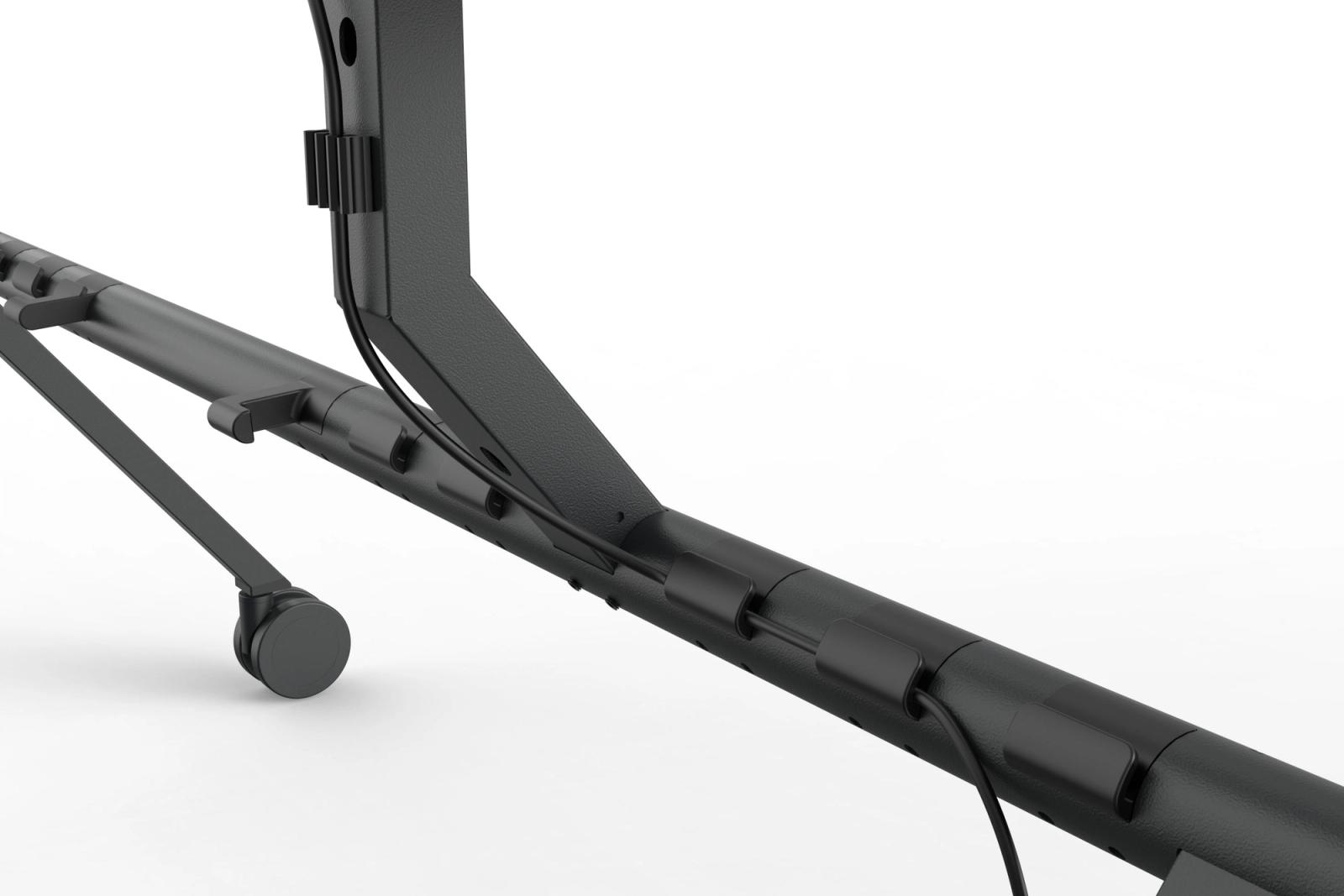

Every cord, wrapped and routed.
Every XL Display Stand MkII ships with cord wraps and cable routing accessories. Accessories mount to sockets along the beam for clean cable management tailored to each room and deployment.

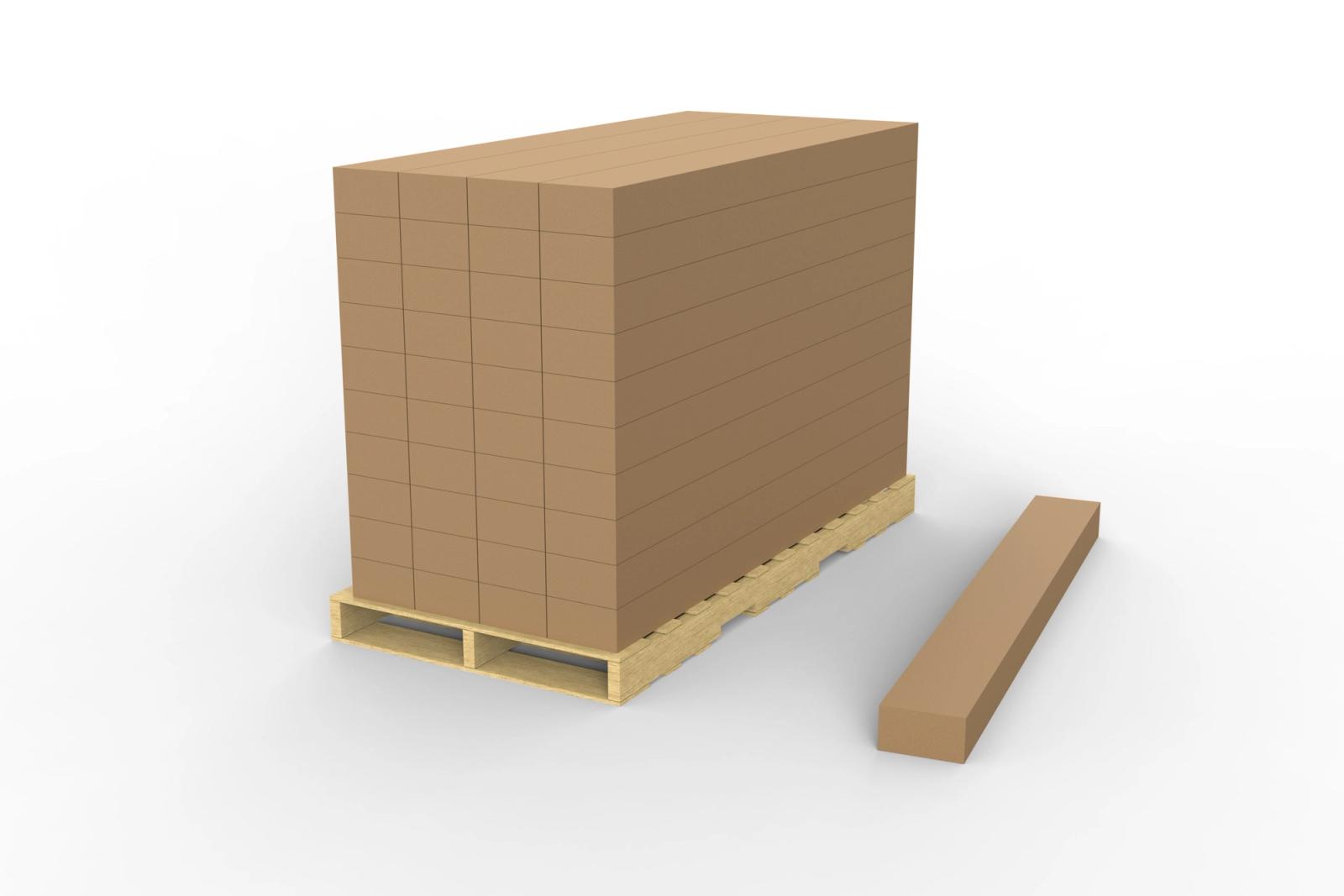

Spend your budgets on hardware, not shipping.
The XL Display Stand MkII Packs down into a compact flat-pack bundle. Ships via small-package carriers. Space-saving packaging cuts waste and accelerates lead times. Reusable bundling rings and Velcro straps for quick, repeatable setups. Up to 40 units per freight pallet for fleet-scale deployments.
Specifications
- Material
- Powdercoated Steel ASA plastic Urethane
- Product Weight
- 55 lbs
- Shipping Weight
- 65 lbs
- Compatible Devices
- Displays with VESA 400 to VESA 1600 M8 Mounting patterns. 85-inch to 98-inch 16:9 displays. 85-inch to 105-inch 21:9 displays. Displays weighing up to 220 pounds.
- Product Dimensions
- 78.9 x 76.6 x 35 inches (2003 x 1945 x 890mm)
- Shipping Dimensions
- 81 x 12 x 6 inches (2057 x 305 x 152 mm)
- Warranty
- Limited Lifetime

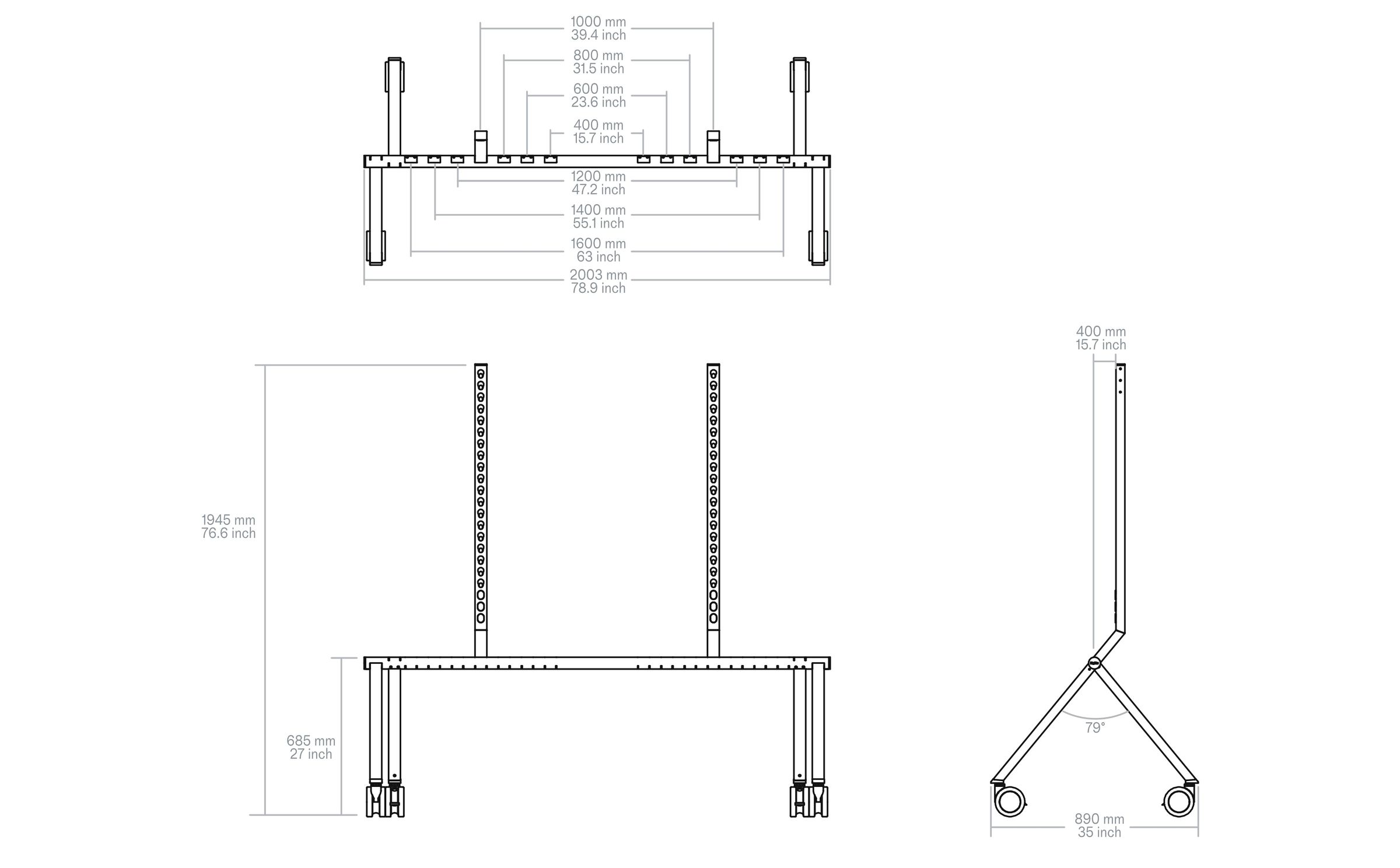

Technical drawing

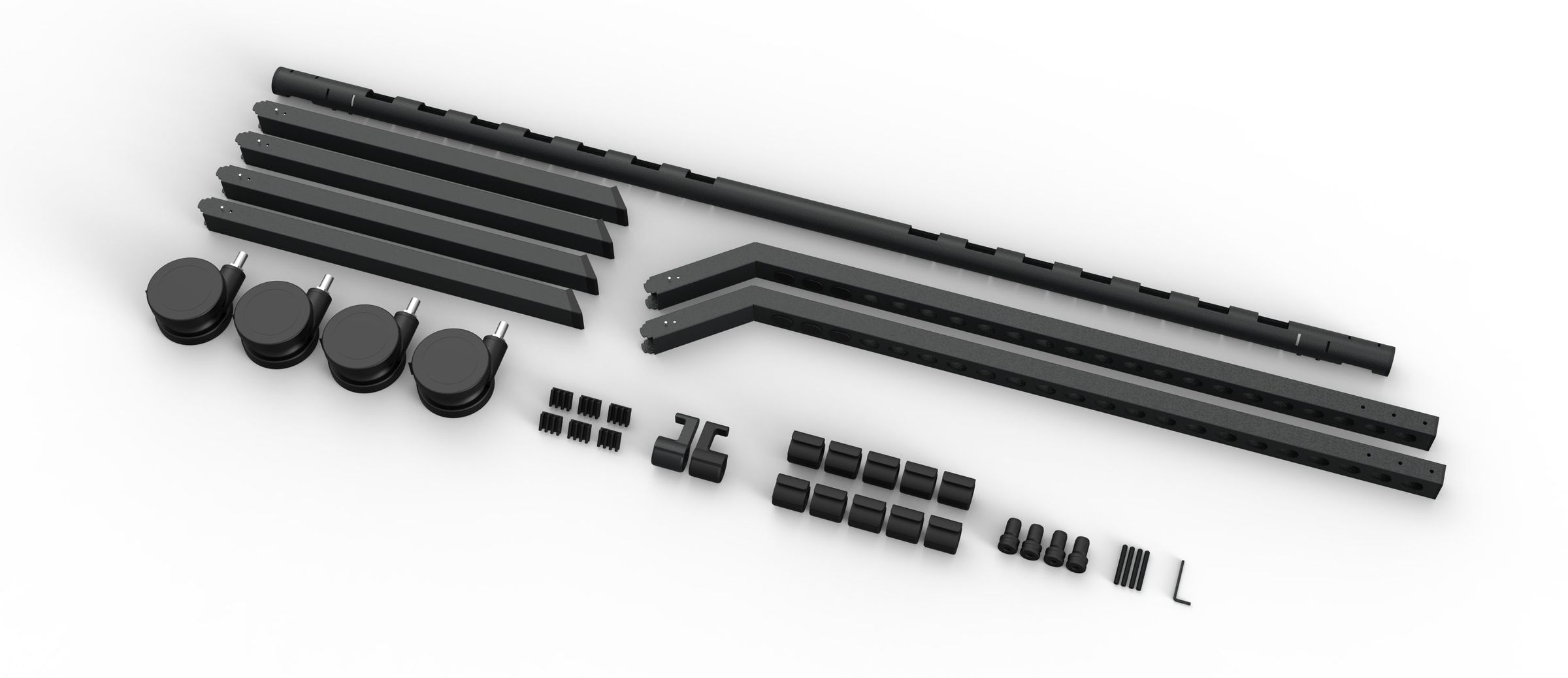

In the box
- Heckler XL Display Stand MkII main body
- Four 5‑inch, total‑lock casters
- Display‑mounting anchors + M8 mounting hardware
- Cord wraps & cable managers
