In this guide · 7 sections 01 In the box02 Tools required03 Prepare the Heckler Framework structure.04 Assemble and install Inner Panel(s).05 Assemble and install Outer Panel(s)06 Install each panel.07 Panel access and removal.a. 1 x Framework Panel (C-PVC-Black-0007)
b. 2 x Panel Hook (P306)
c. 2 x Hook Mounting Screw (F321)
d. 2 x Hook Anchor (P307)
e. 2 x Magnet Holder (P308)
f. 2 x Magnet (F930)
g. 2 x Magnet Mounting Screw (F322)
h. 2 x Panel Pad (P309)
#1 Phillips screwdriver

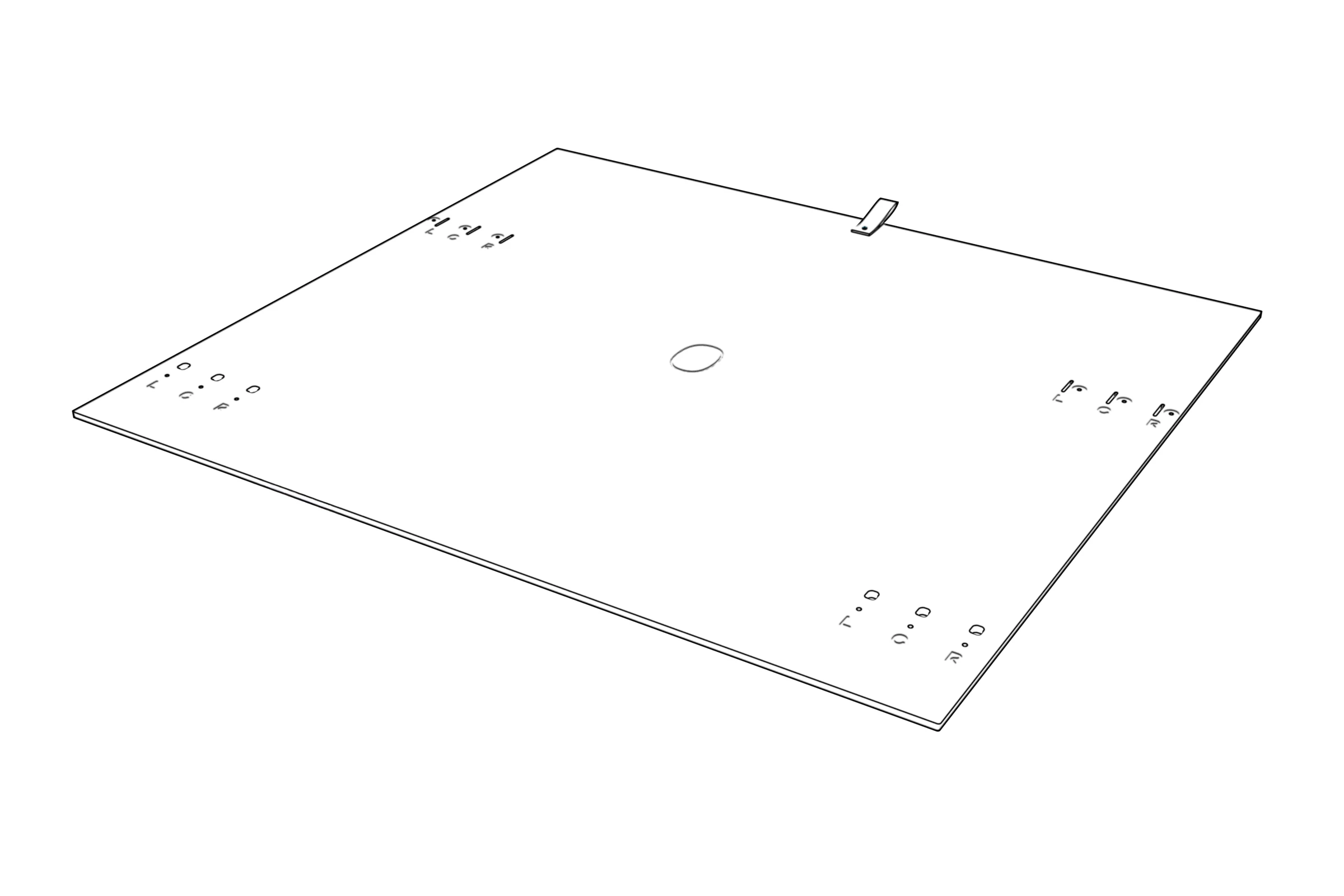

Enlarge image ↗ Rear face of a Framework panel, showing its mounting holes and top pull tab.

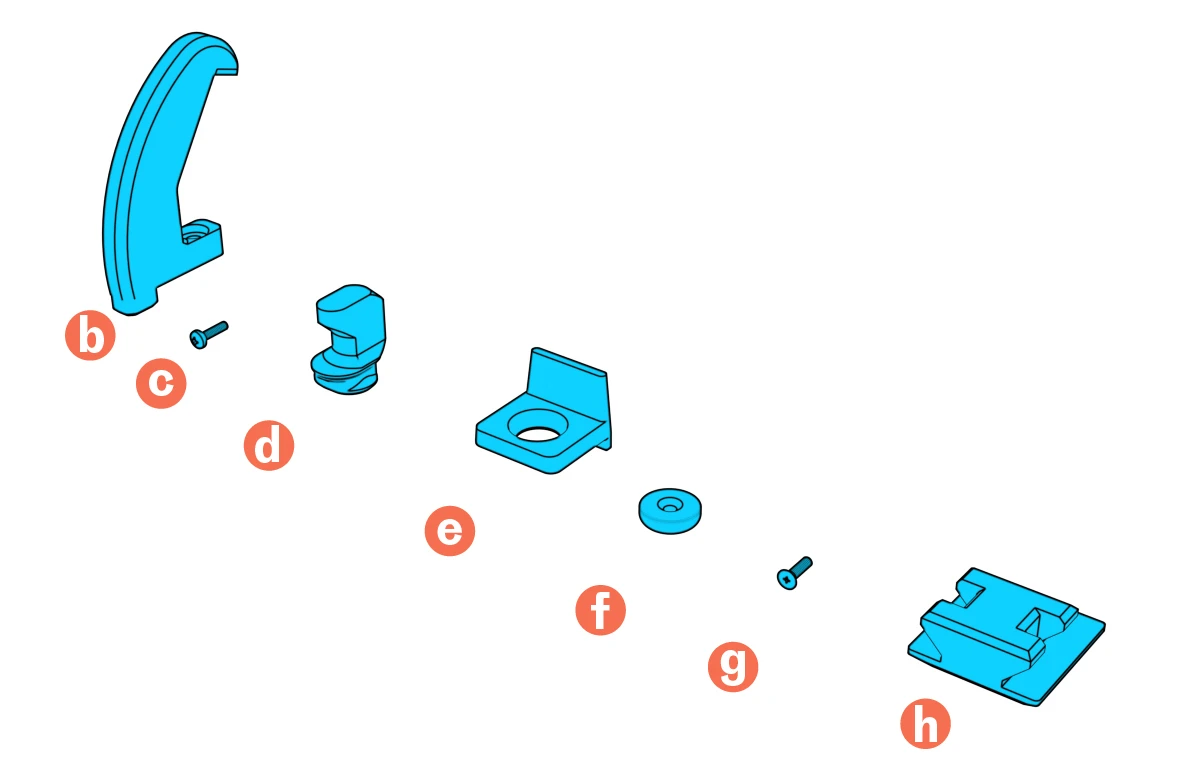

Enlarge image ↗ Panel hardware labeled b through h: hook, hook screw, hook anchor, magnet holder, magnet, magnet screw, and panel pad.
Install panel pads on the fronts of the Framework legs.

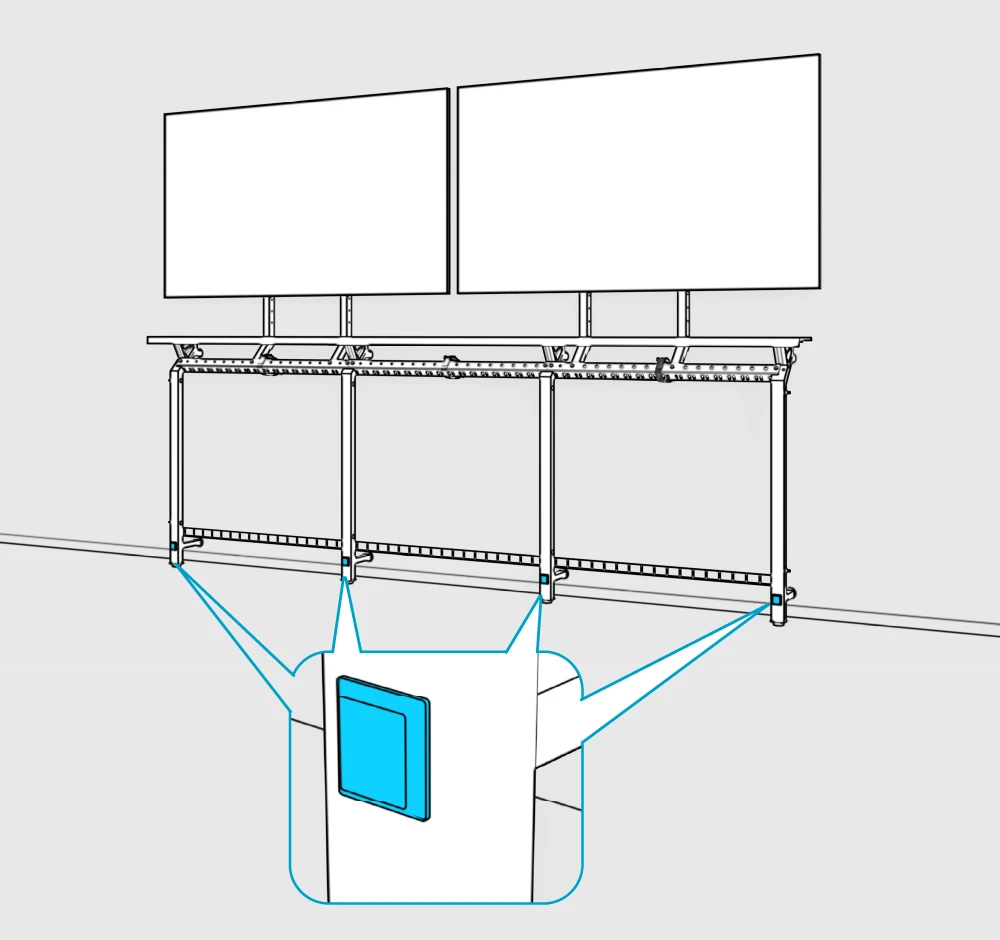

Enlarge image ↗ Panel-pad locations highlighted at the fronts of the Framework legs, with an enlarged installed pad.

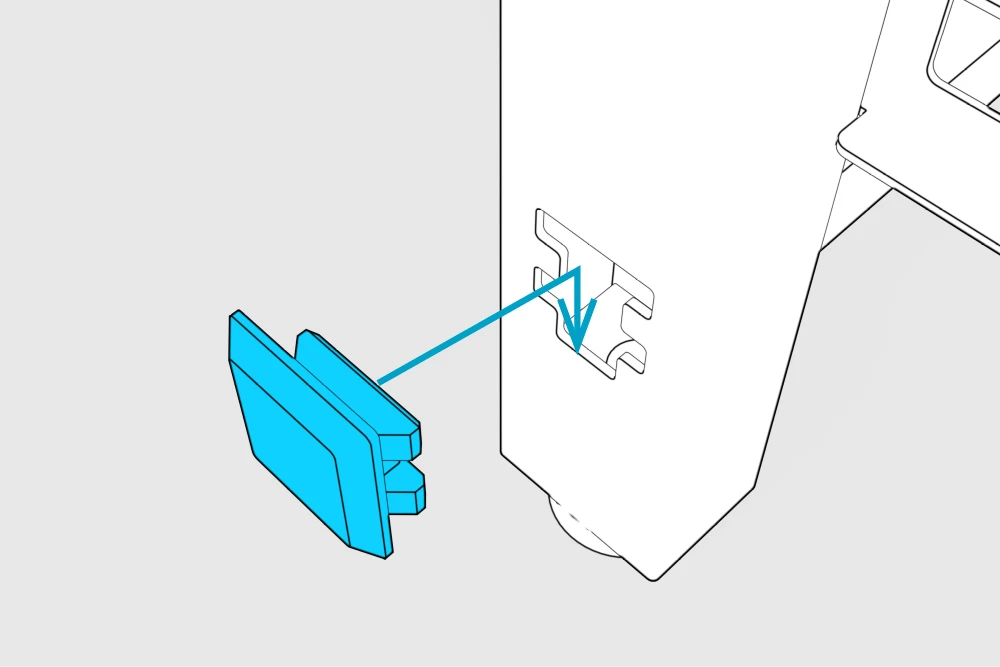

Enlarge image ↗ A panel pad aligned with the slots on the front of a leg, with arrows showing insertion and downward seating.
Install hook anchors on the lower sides of the legs.

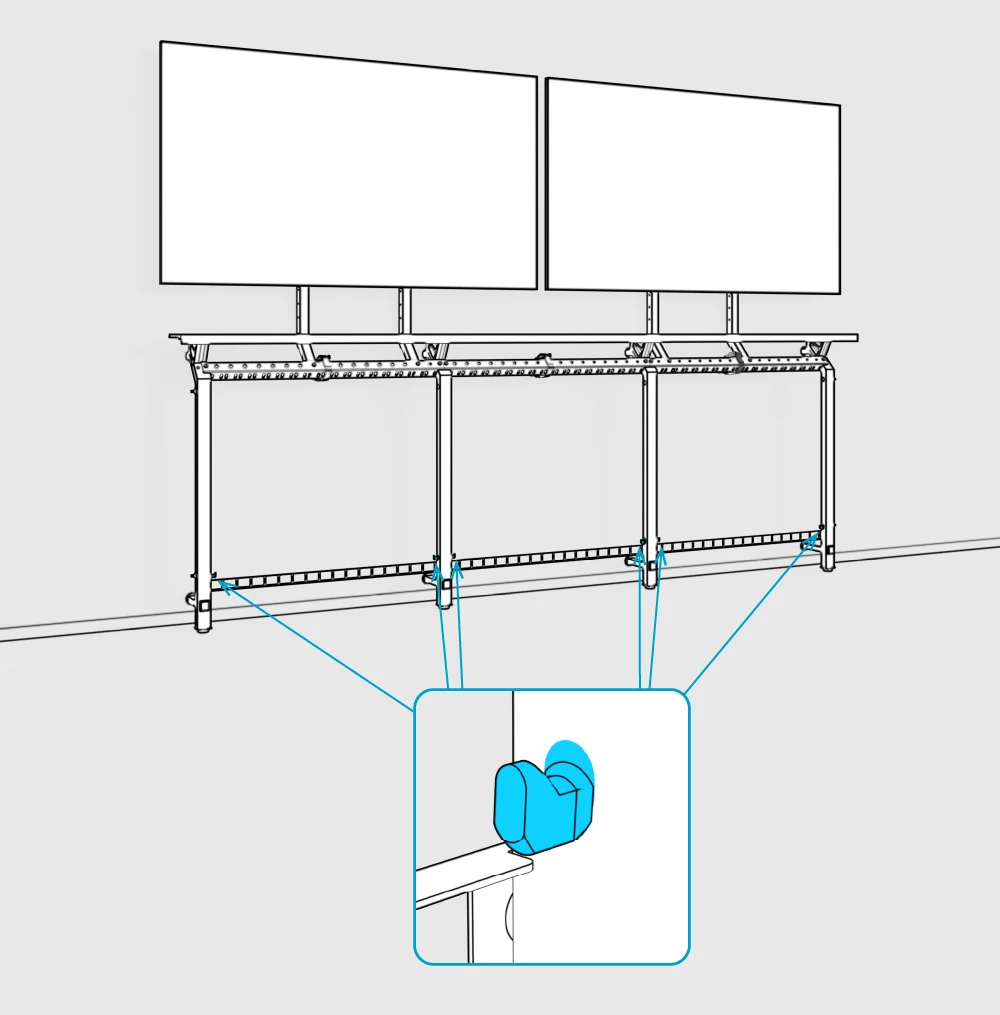

Enlarge image ↗ Hook-anchor positions highlighted low on the Framework legs.

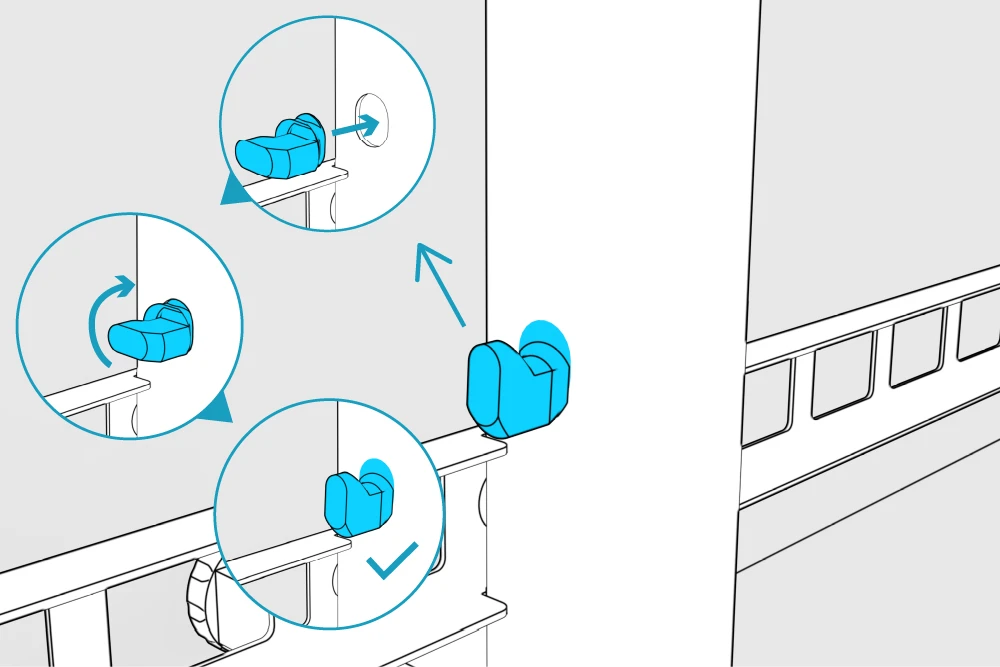

Enlarge image ↗ Close-ups showing a hook anchor entering the leg, rotating, and seating upright, with a check mark at the final position.
Assemble a magnet to each of the two magnet holders.
Fasten the two magnet holders to the panel as shown.

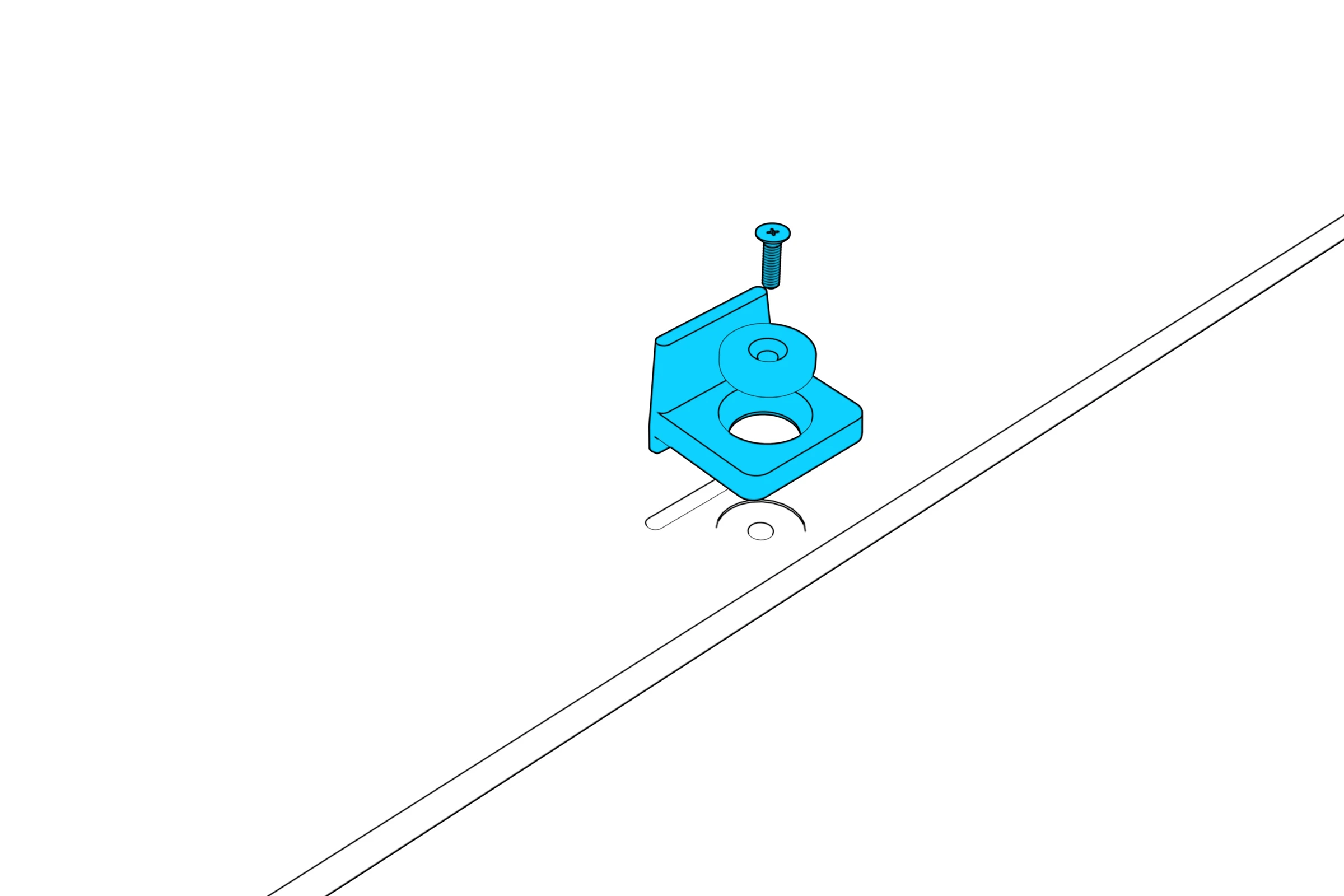

Enlarge image ↗ An exploded view of a screw, round magnet, and magnet holder above a mounting hole on the inner panel.

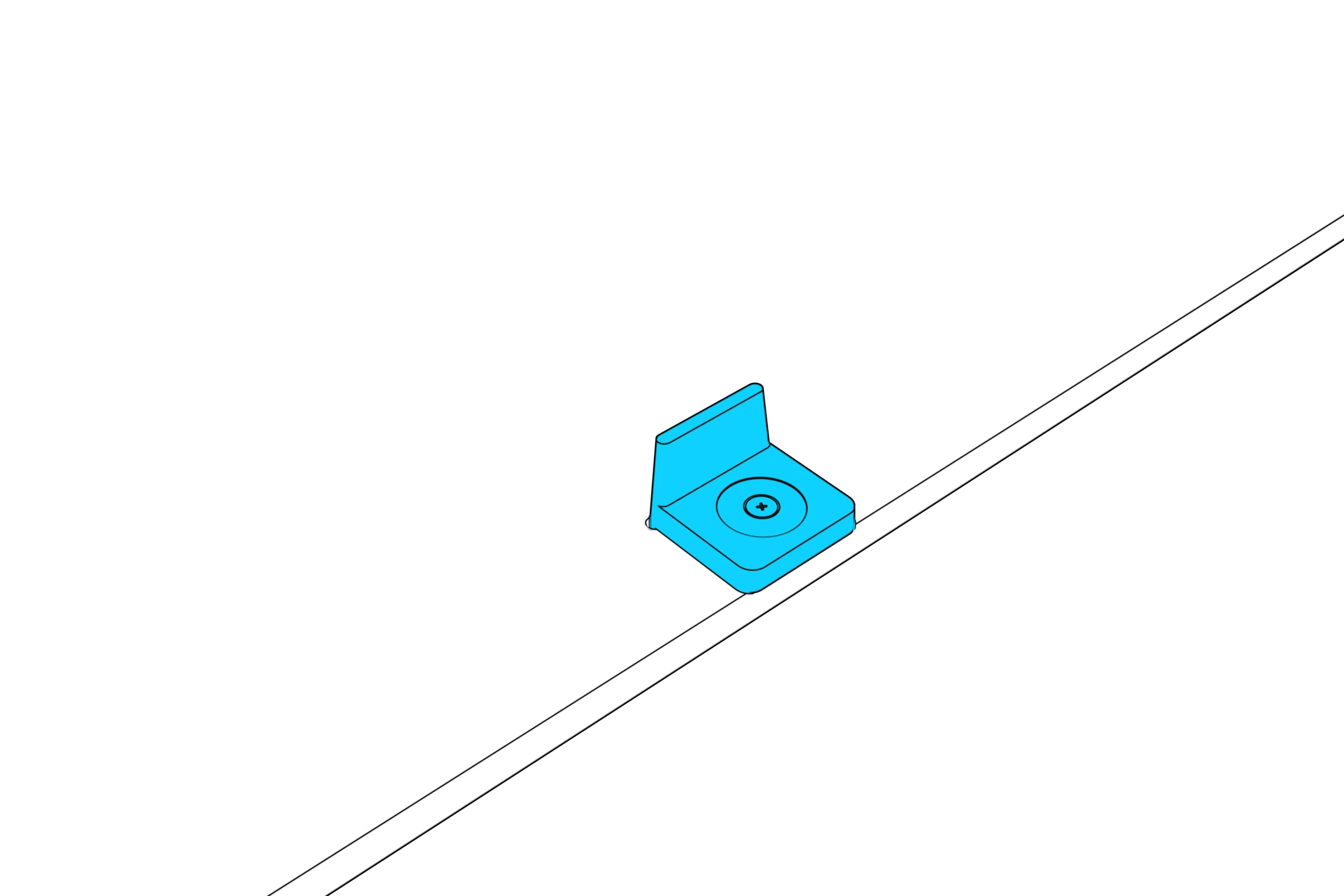

Enlarge image ↗ The magnet seated in its holder on the inner panel.
Fasten the two hooks to the panel as shown.
Enlarge image ↗ A screwdriver fastening a panel hook to the inner panel.

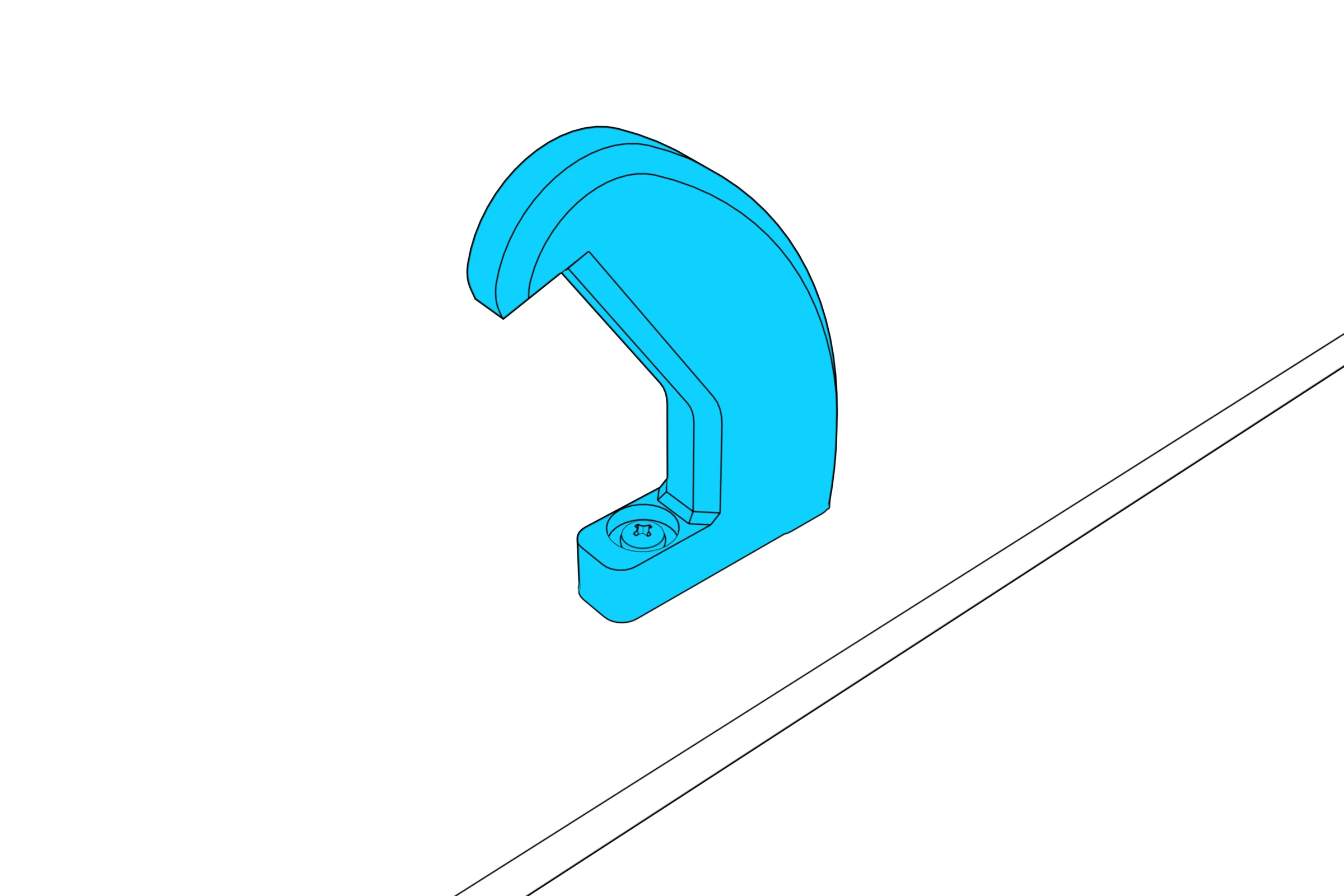

Enlarge image ↗ A panel hook seated against the rear of the inner panel.

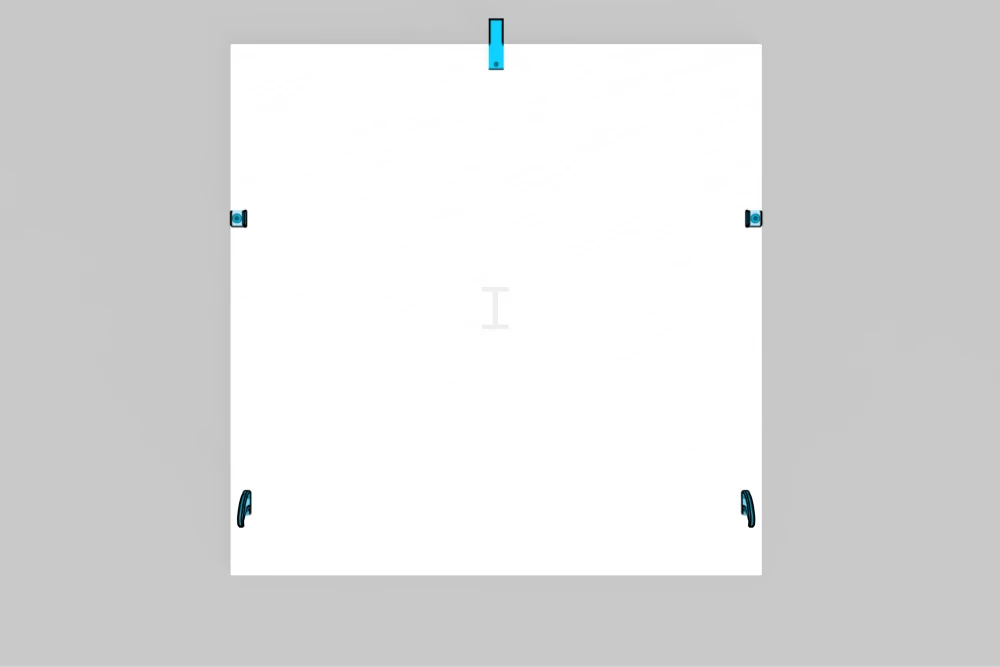

Enlarge image ↗ The rear of an inner panel marked I, with upper magnet holders, lower hooks, and a top pull tab.
Outer panels have three possible installation locations: left (when viewing the front of the Framework), center, or right.
Each outer panel has three sets of hardware mounting points labeled L, C, and R.

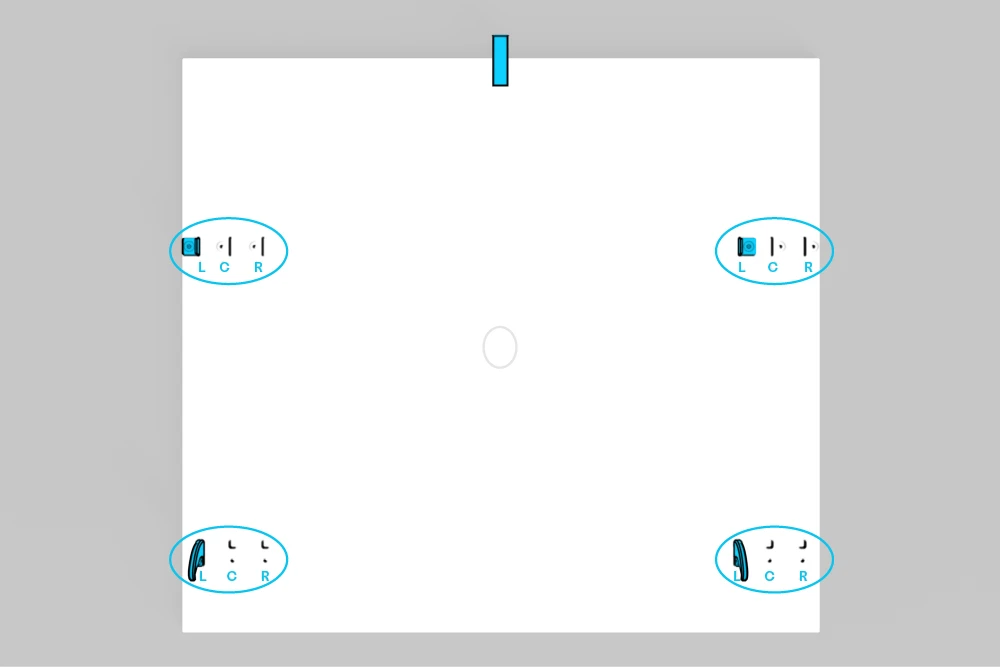

Enlarge image ↗ The rear of an outer panel marked O, with L, C, and R hardware mounting positions highlighted.
Assemble a magnet to each of the two magnet holders.
Fasten the two magnet holders to the panel as shown.
Enlarge image ↗ An exploded screw, magnet, and magnet holder aligned with an outer-panel mounting position beside the L, C, and R marks.

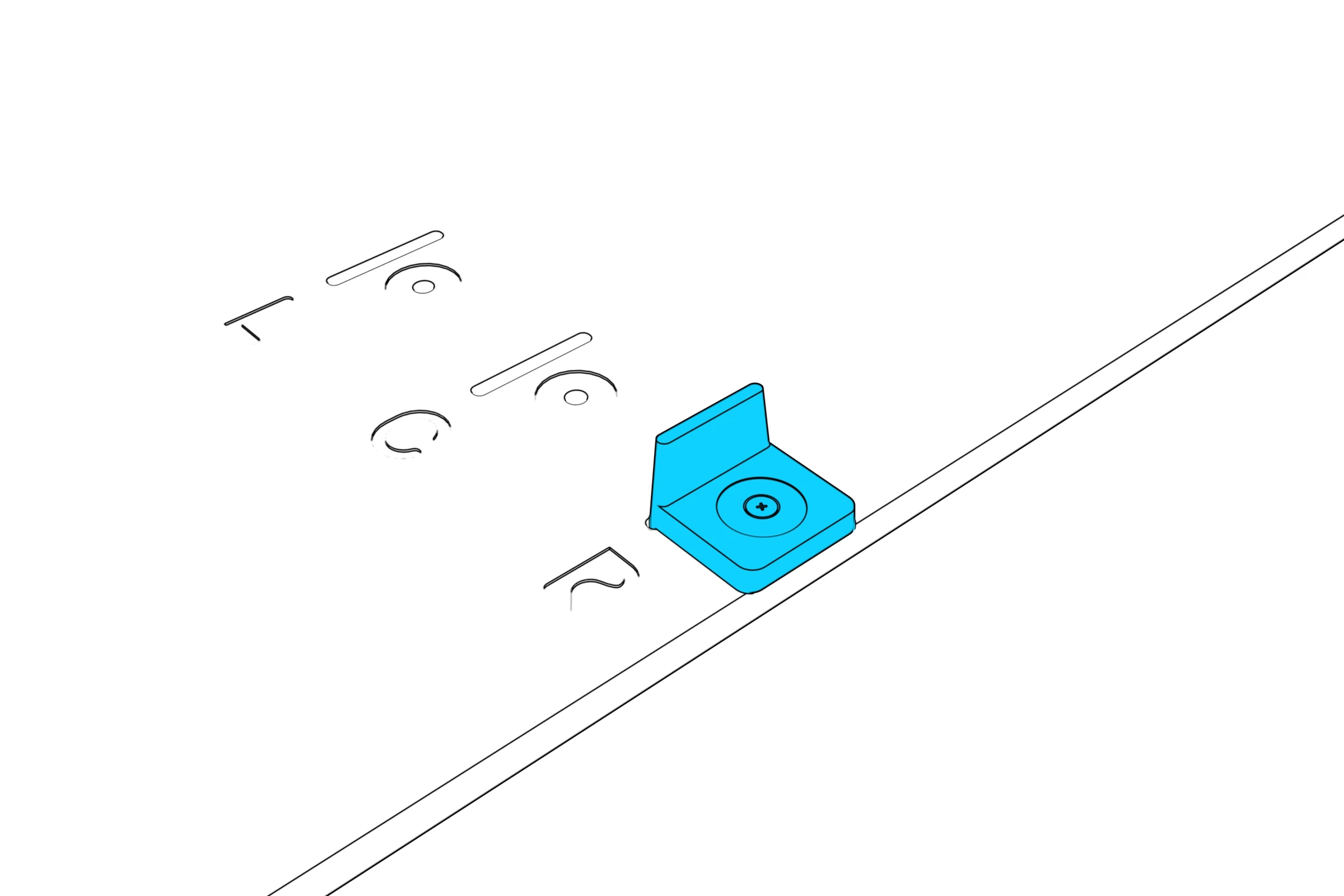

Enlarge image ↗ The magnet holder installed at the outer-panel mounting position.
Fasten the two hooks to the panel as shown.

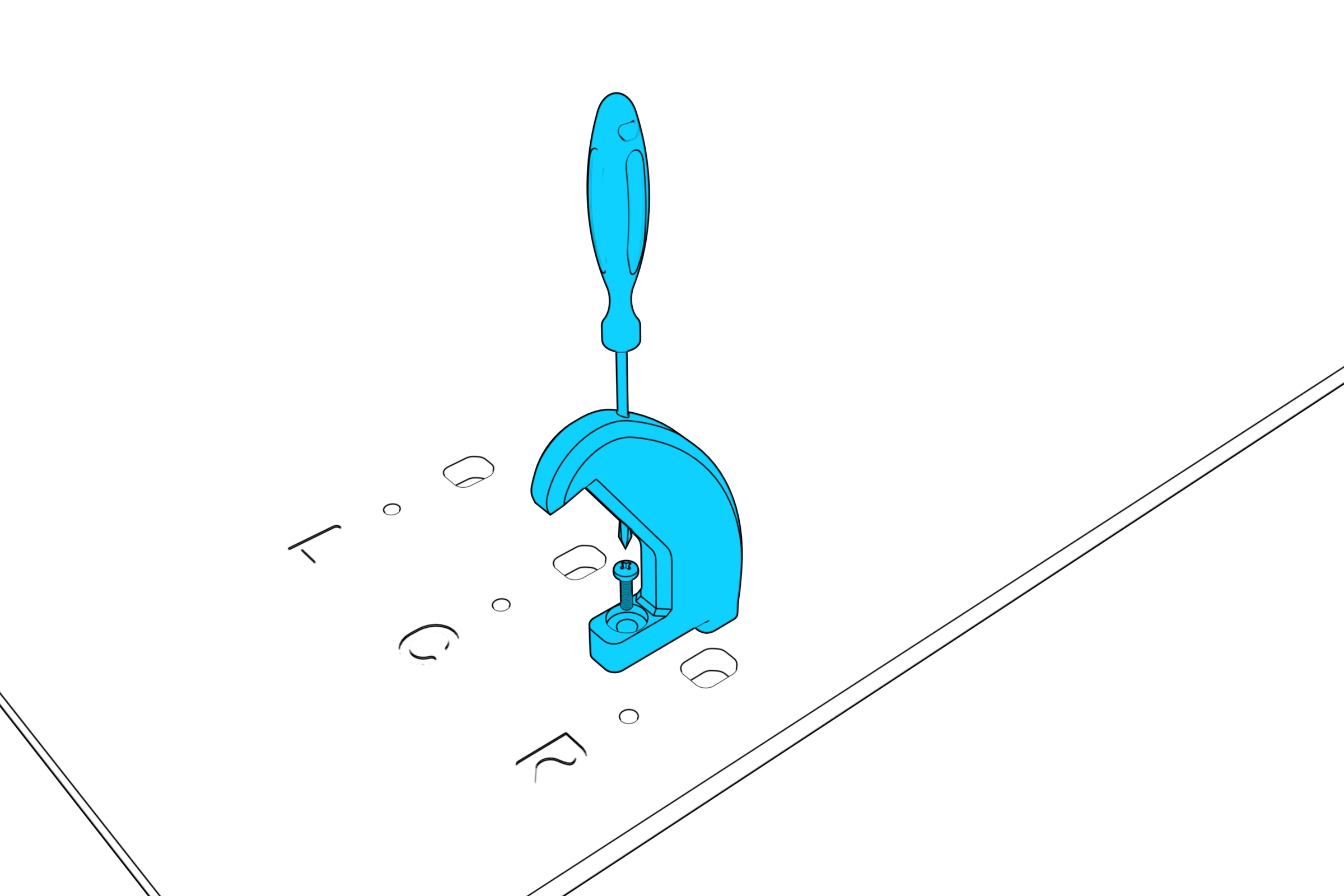

Enlarge image ↗ A screwdriver fastening a hook at an outer-panel mounting position beside the L, C, and R marks.
Enlarge image ↗ The hook installed at the outer-panel mounting position.

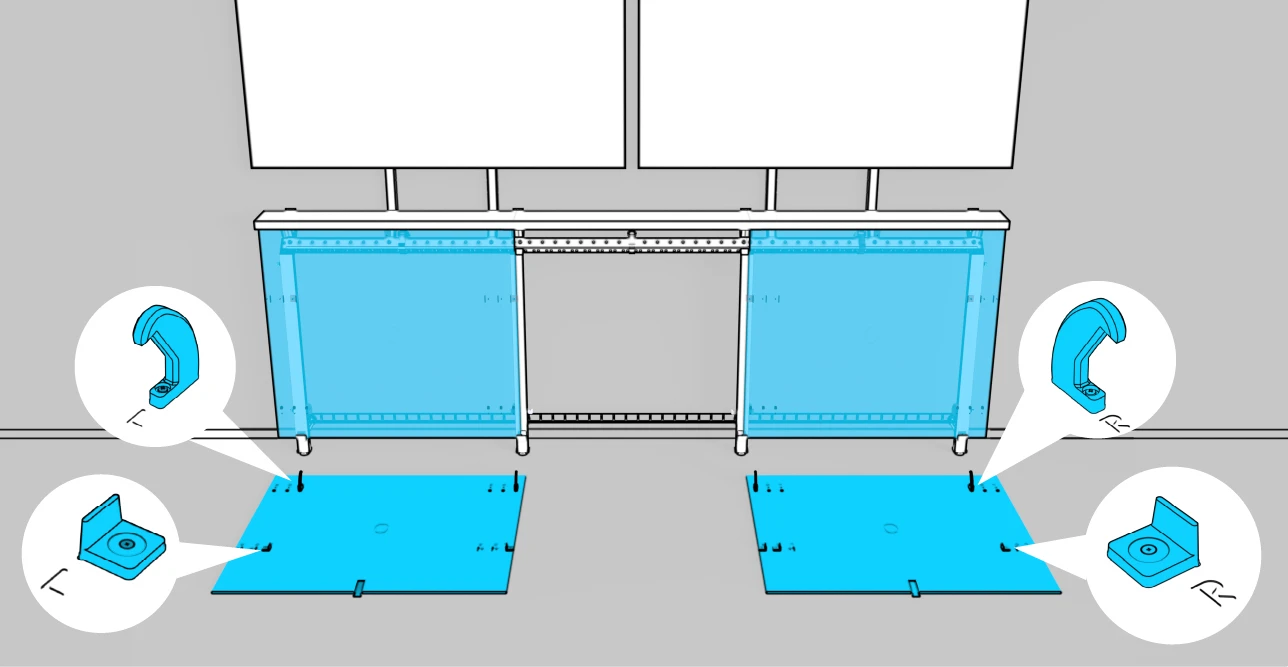

Enlarge image ↗ Left and right outer panels shown in front of the frame, with enlarged views identifying their L and R hook and magnet-holder positions.
Lower the hooks of each panel onto the hook anchors.
Rotate the panel forward until the magnets snap to the legs.

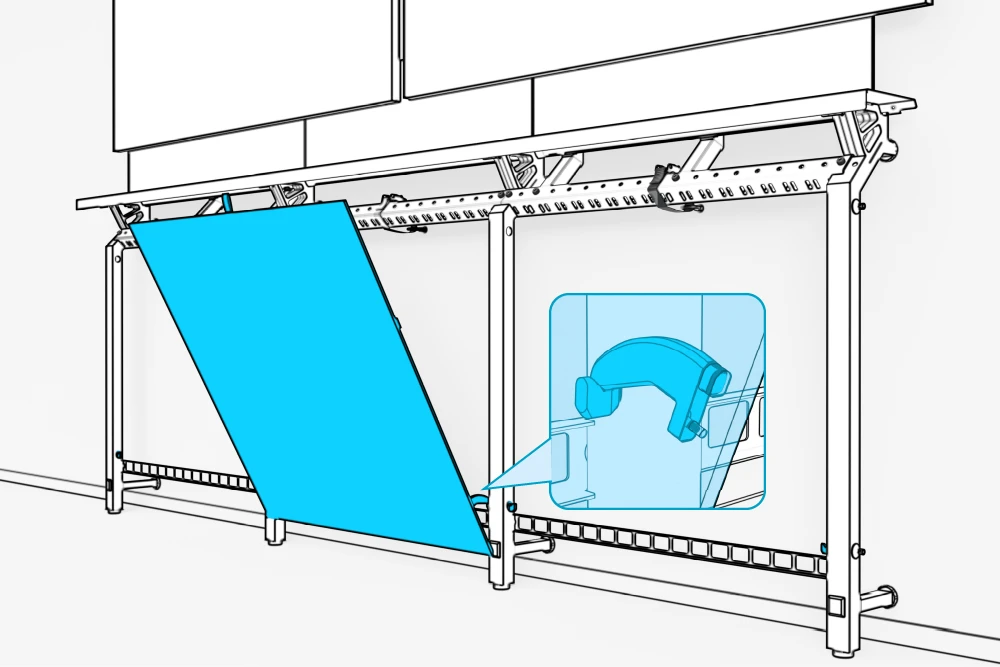

Enlarge image ↗ An open, angled panel with an enlarged detail of its hook resting on the leg's hook anchor.

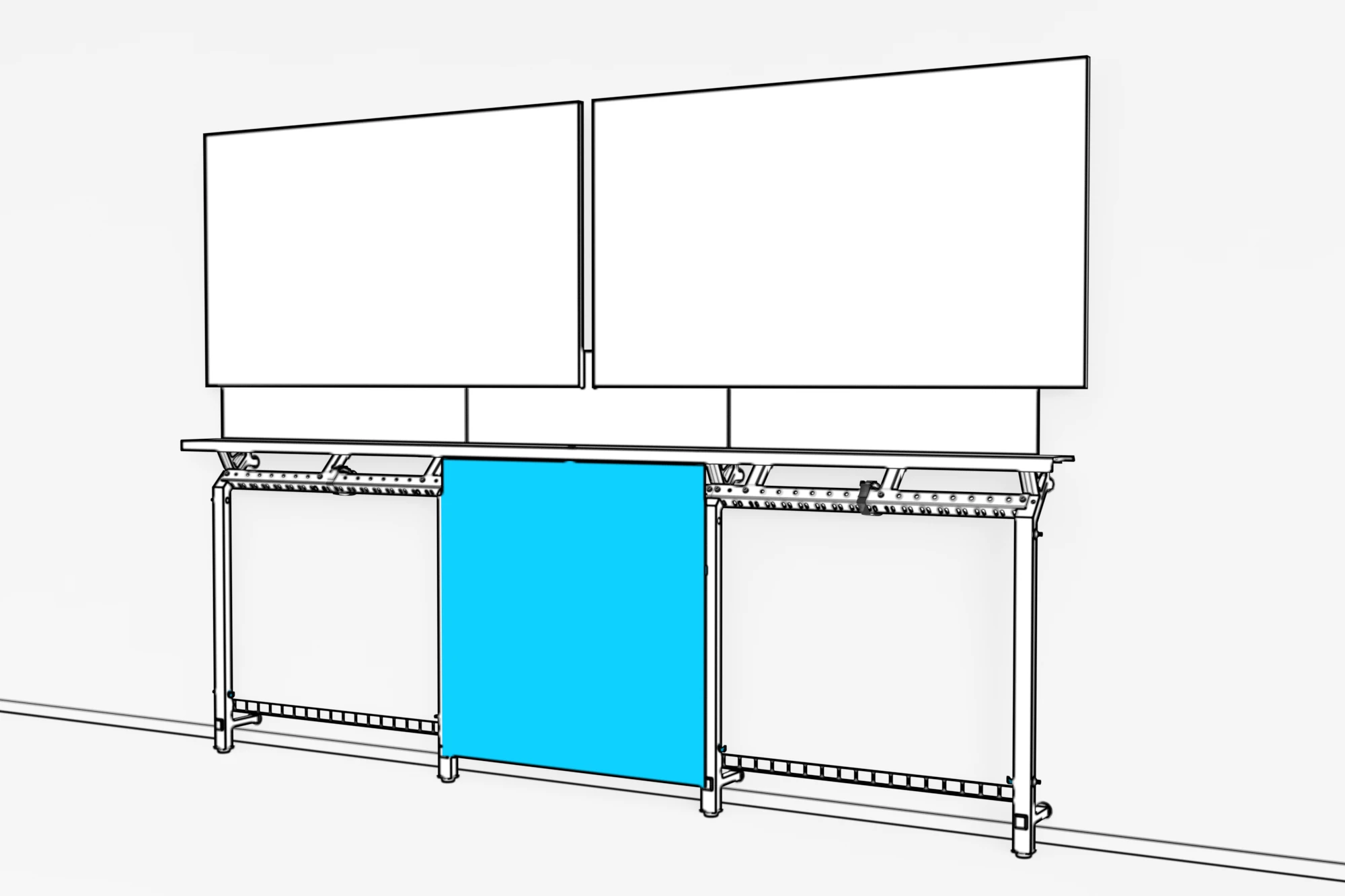

Enlarge image ↗ The center panel closed against the Framework legs.
Repeat this technique for all inner panels, then install two outer panels. Adjust panels as needed to ensure consistent panel gaps.

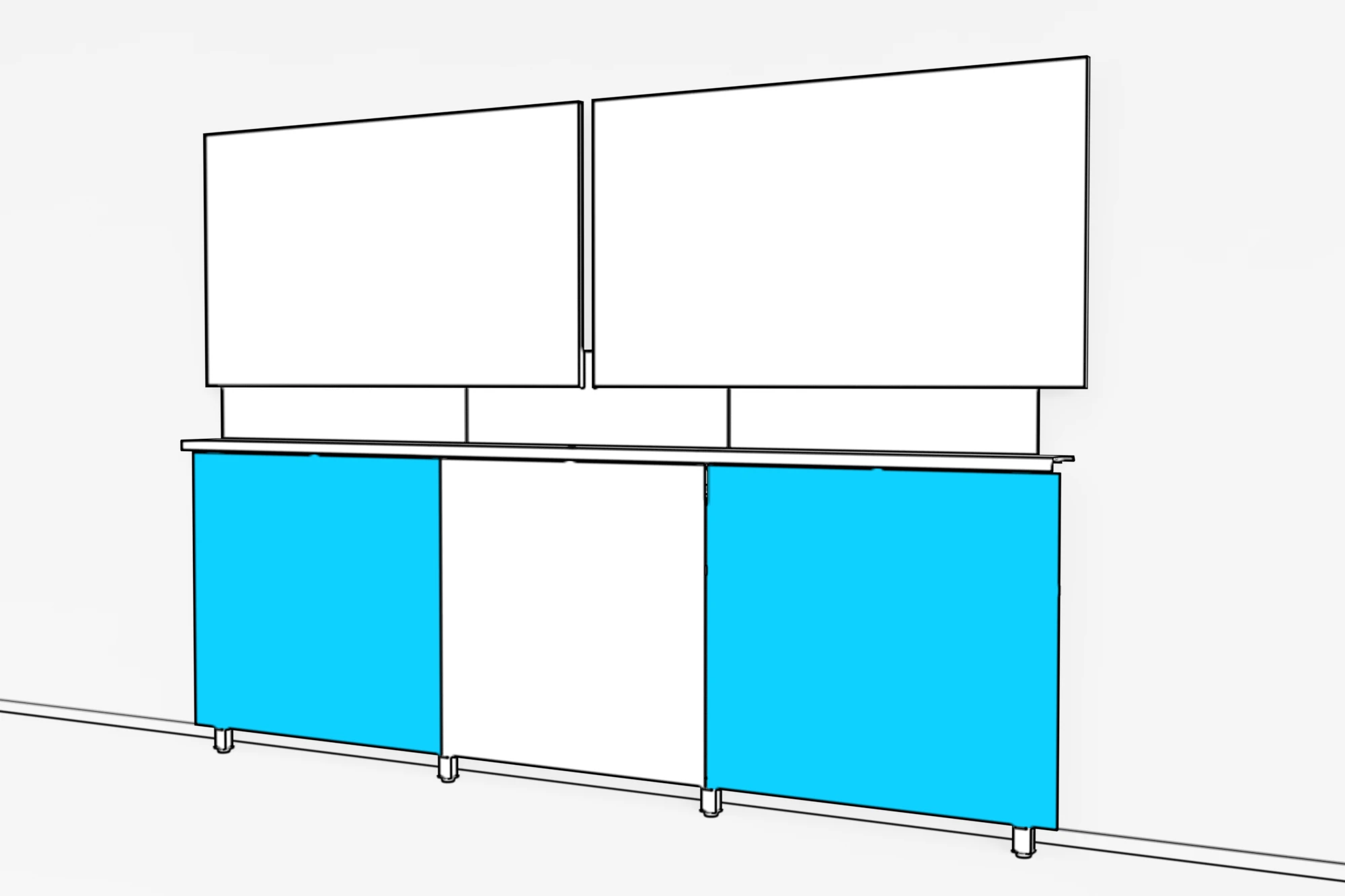

Enlarge image ↗ All three front panels installed, with the two outer panels highlighted.
And that’s it! You’re done! You’ve successfully installed, configured, and paneled your 3-Bay Heckler Framework.

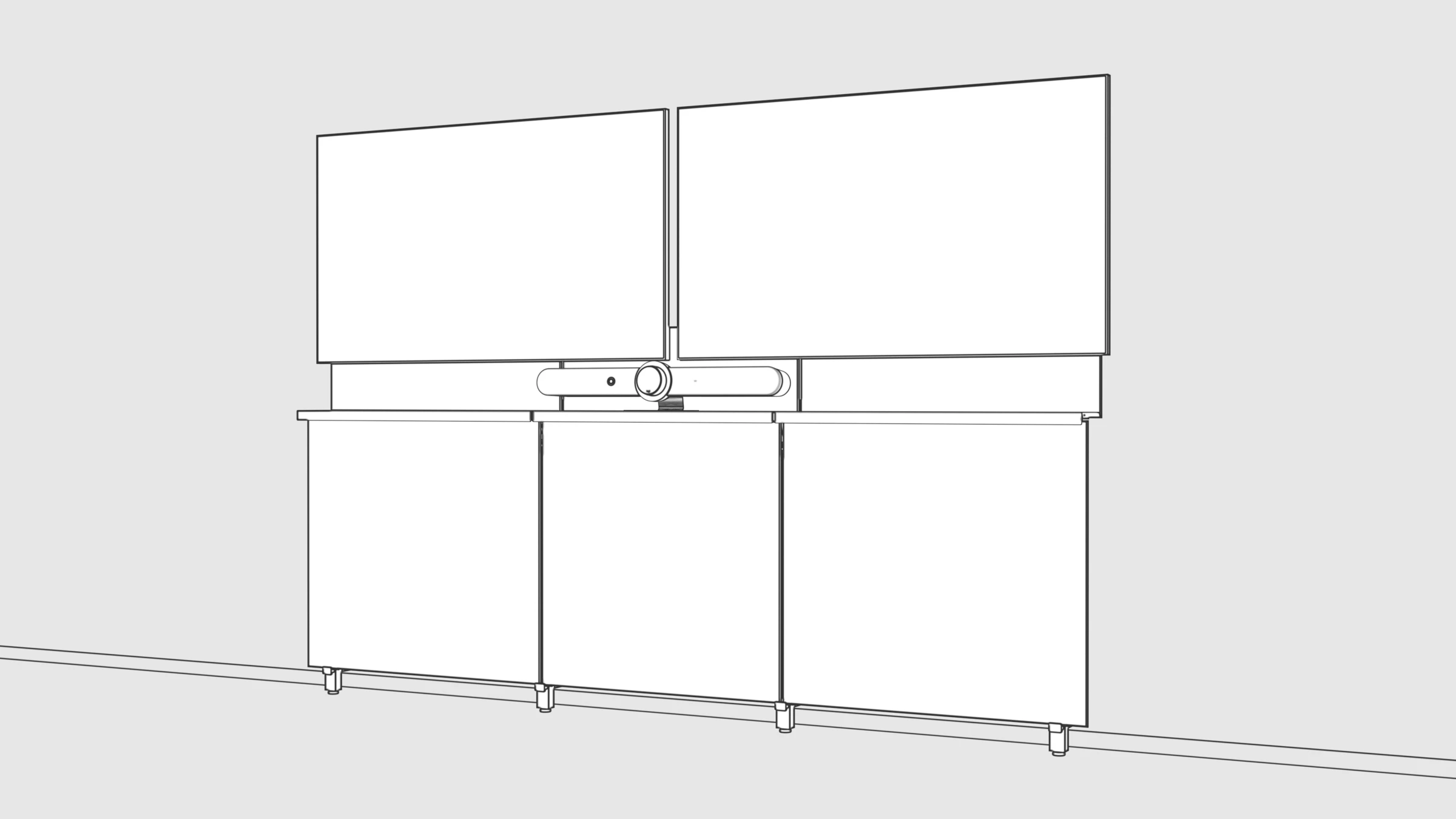

Enlarge image ↗ The completed three-bay Framework installation with front panels, two displays, and a video bar.
Pull the tab located at the top center of each panel to access the panel.
Panels can rest open to free your hands.
