In this guide · 11 sections 01 Safety Information and Precautions02 In the box03 Unpack the box04 Install casters05 Install Legs06 Install Columns07 Install the display08 Organize cables09 Nesting Multiple Stands10 Disassembly & Storage11 Questions?Important: Read Before Assembly
Thank you for choosing the Heckler Collaboration Stand. To ensure safe and proper assembly, operation, and maintenance of this product, it is essential to thoroughly read and understand this user guide before beginning any assembly.
Failure to follow the instructions and safety guidelines provided in this manual may result in serious personal injury, equipment damage, or voided warranties.
- Assembly Requirements: This product requires multiple people to assemble and safely mount the display. Attempting to assemble or mount the display alone could result in injury or damage to the equipment.
- Weight and Stability: Ensure that the stand is placed on a stable, level surface during assembly and when in use. Uneven or unstable surfaces may cause the stand to tip over, leading to potential injury or damage.
- Use Proper Tools: Only use the recommended tools for assembly. Improper tools or techniques may damage the components and compromise the safety and stability of the stand.
- Display Mounting: Mounting a display on this stand requires careful attention to weight limits and proper alignment. Exceeding weight limits or incorrect mounting can cause the display to fall, resulting in injury or damage.
- Secure All Components: Ensure all bolts, screws, and other fasteners are securely tightened and engaged as per the instructions. Loose or improperly engaged components may cause the stand or display to become unstable.
- Electrical Safety: If your display or any attached components require electrical connections, ensure that all wiring is correctly installed and free of damage. Avoid routing cables where they could be pinched or damaged during assembly or operation.
- Routine Inspection: Regularly inspect the stand and mounted display for any signs of wear, damage, or loose components. Address any issues immediately to maintain safety and functionality.
Heckler Design is not liable for any injuries, damages, or losses resulting from improper assembly, use, or maintenance of this product. By assembling and using this product, you agree to follow all safety guidelines and instructions provided in this user guide.
a. 1 x Beam (R1000)
b. 2 x Column (R105)
c. 4 x Leg (R1011)
d. 4 x Caster (F190)
e. 2 x packaging ring, buckle and Velcro tape (P126, F213, F947)
f. 4 x M6 display mounting screw (F589)
g. 4 x M6 display mounting anchor (P124)
h. 4 x M8 display mounting screw (F519)
i. 4 x M8 display mounting anchor (P123)
j. 2 x Beam cable hook (P122)
k. 2 x Beam plug (P119)
l. 1 x Beam cable wrap left (P121)
m. 1 x Beam cable wrap right (P120)
n. 6 x Column plug (P125)
o. 6 x Cable manager (P118)

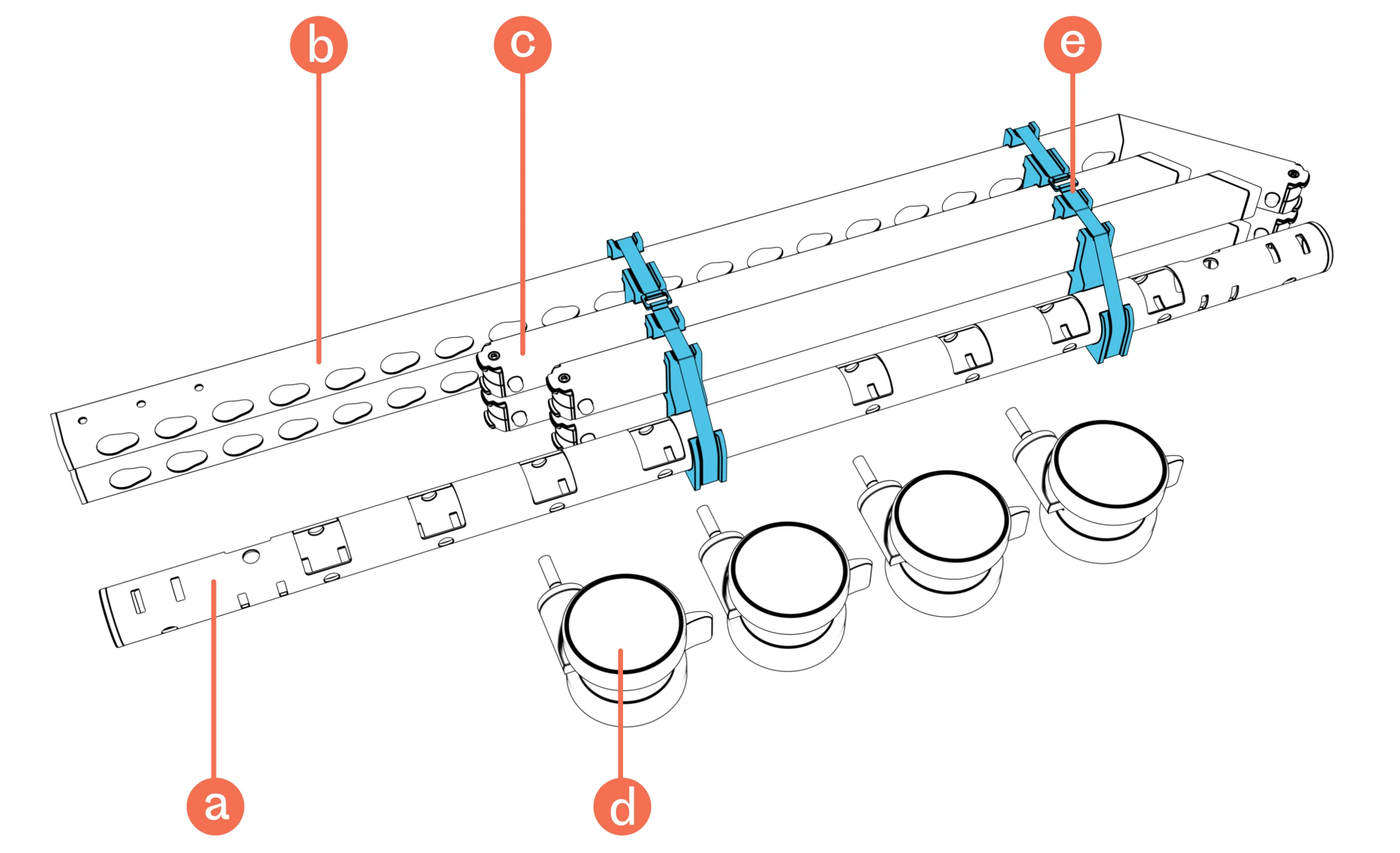

Enlarge image ↗ Packed stand components labeled a through e, showing the beam, columns, legs, casters, and reusable packaging rings and straps.

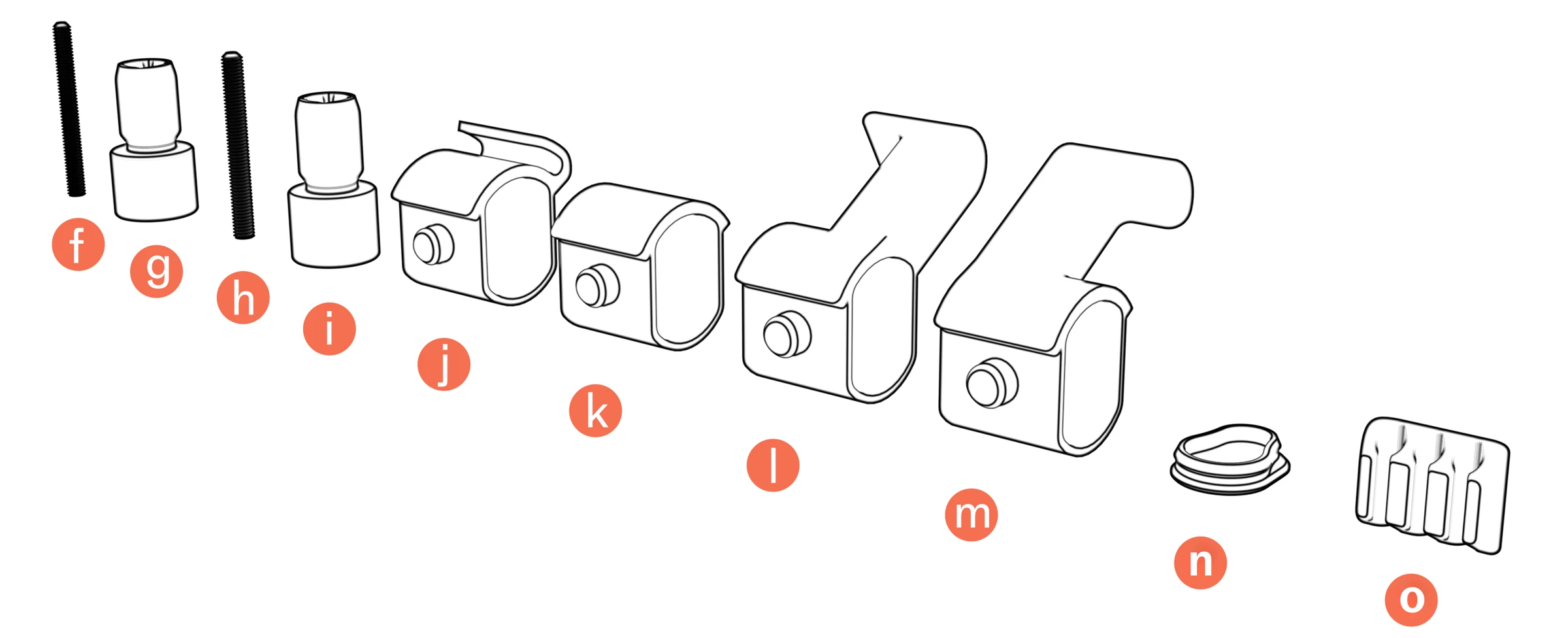

Enlarge image ↗ Small hardware labeled f through o, including display screws and anchors, beam cable hooks and plugs, left and right cord-wrap hooks, column plugs, and cable managers.
This stand includes reusable packaging rings and Velcro straps. Do not discard these items as they can be used to conveniently pack and transport your disassembled stand in the future.
Enlarge image ↗ The stand components held in reusable packaging rings with the straps unfastened and extended outward.
Engage the caster brake.
The casters have a total lock feature, locking the wheels from spinning as well as the swivel axis from swiveling.
Insert the caster post into the leg socket.

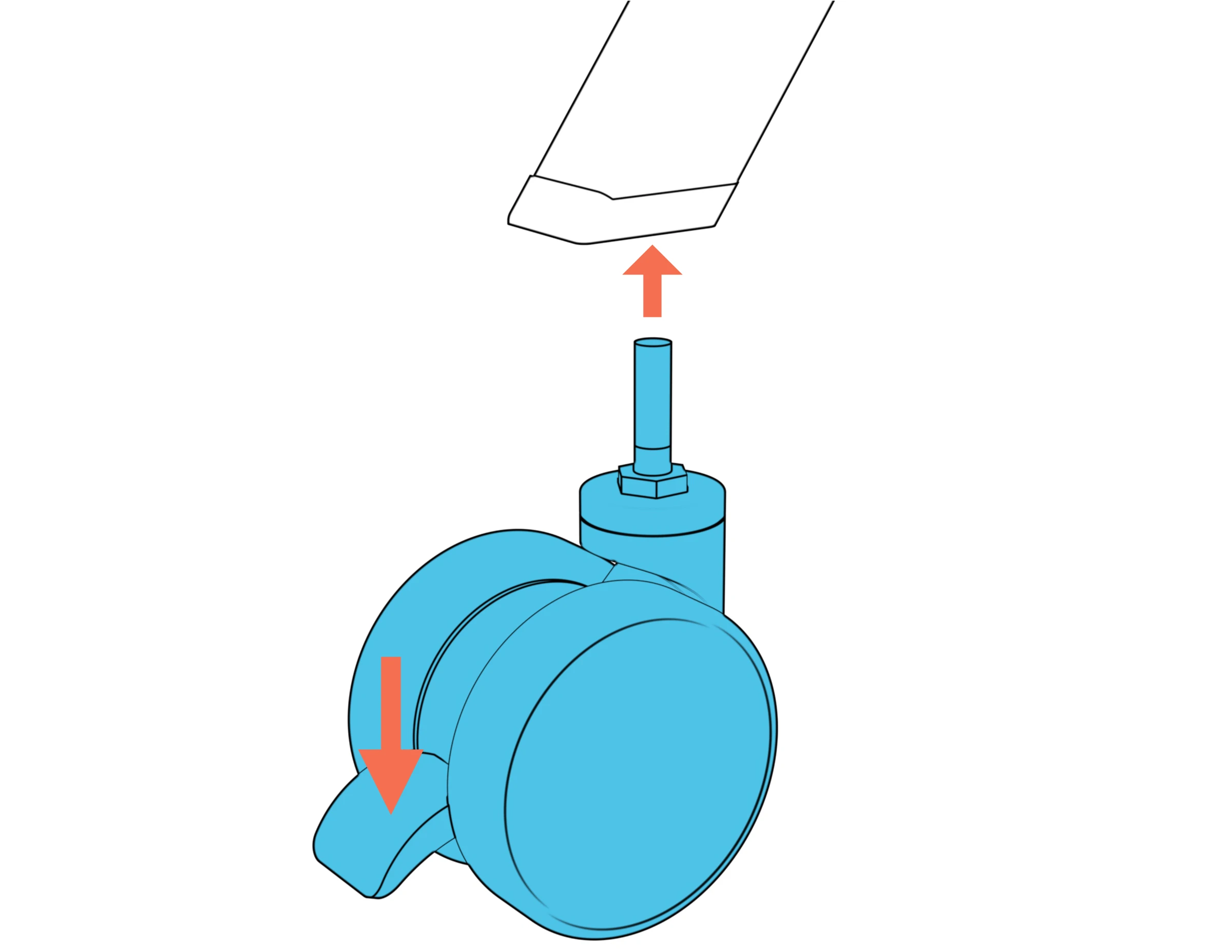

Enlarge image ↗ A caster with its brake pressed down and its mounting post aligned with the leg socket.
Rotate the caster until the hex shapes are aligned.
Push until you feel the grip ring pop into position. The hex feature should be fully seated inside the leg socket.

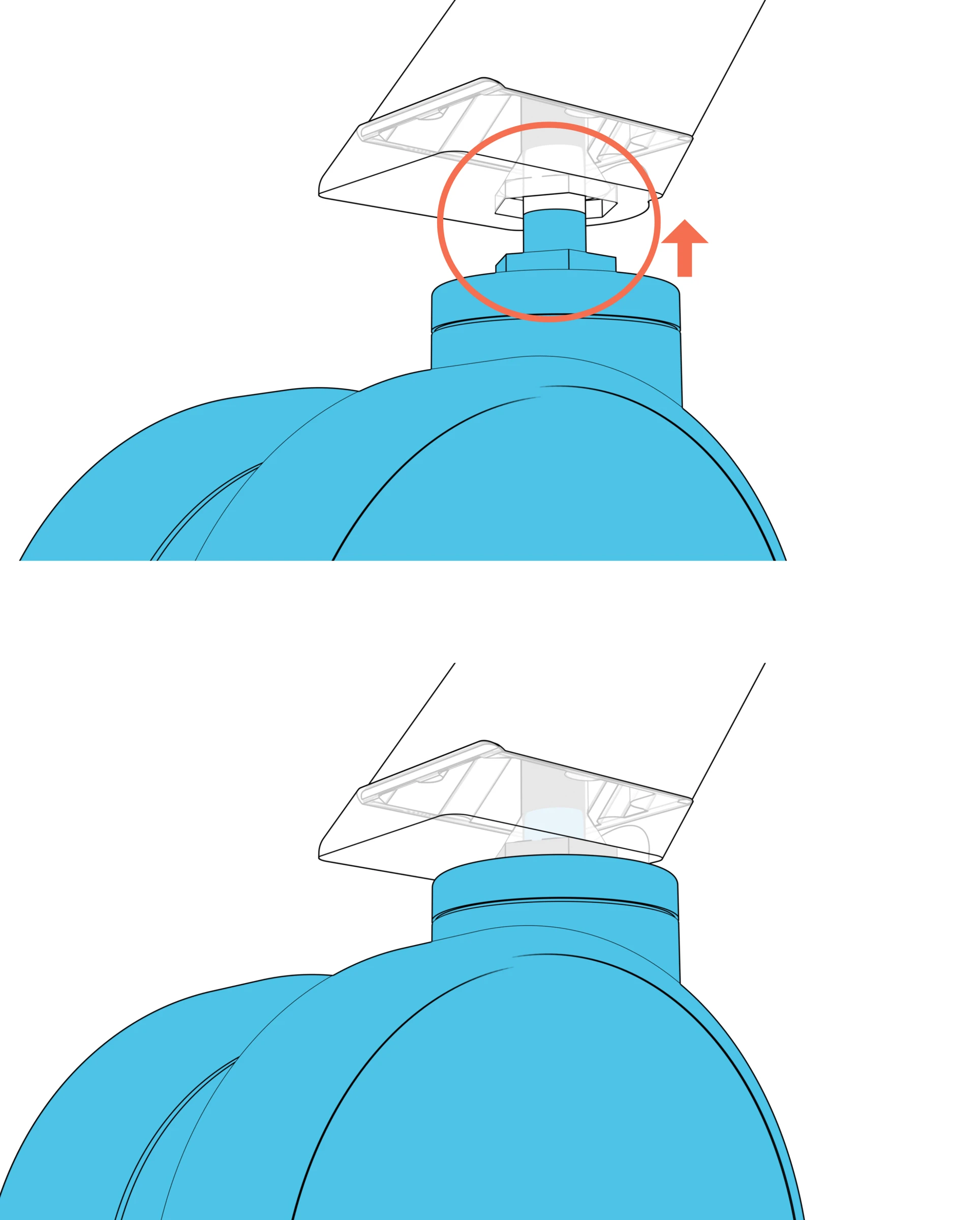

Enlarge image ↗ Two close-ups showing the caster's hex feature aligned with the leg socket and then fully seated.
Lay the beam on the ground and install the first leg.

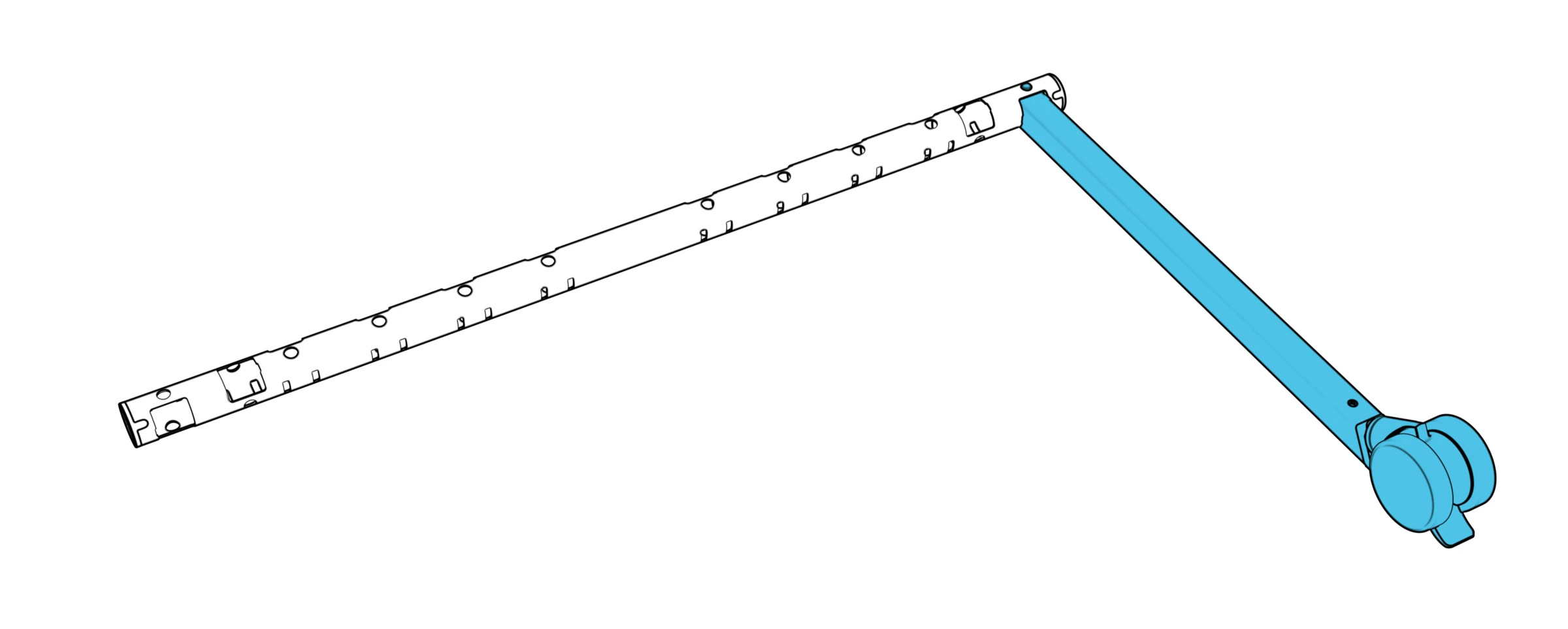

Enlarge image ↗ The first leg installed at one end of the beam while the assembly rests on the ground.
To install each leg in its correct orientation, align the screw head on the side of the leg to the notch on the beam socket.
If the leg becomes misaligned during your installation attempt, remove the leg from the socket and try again. Attempting to pry or force a misaligned leg into position may cause damage to the stand.

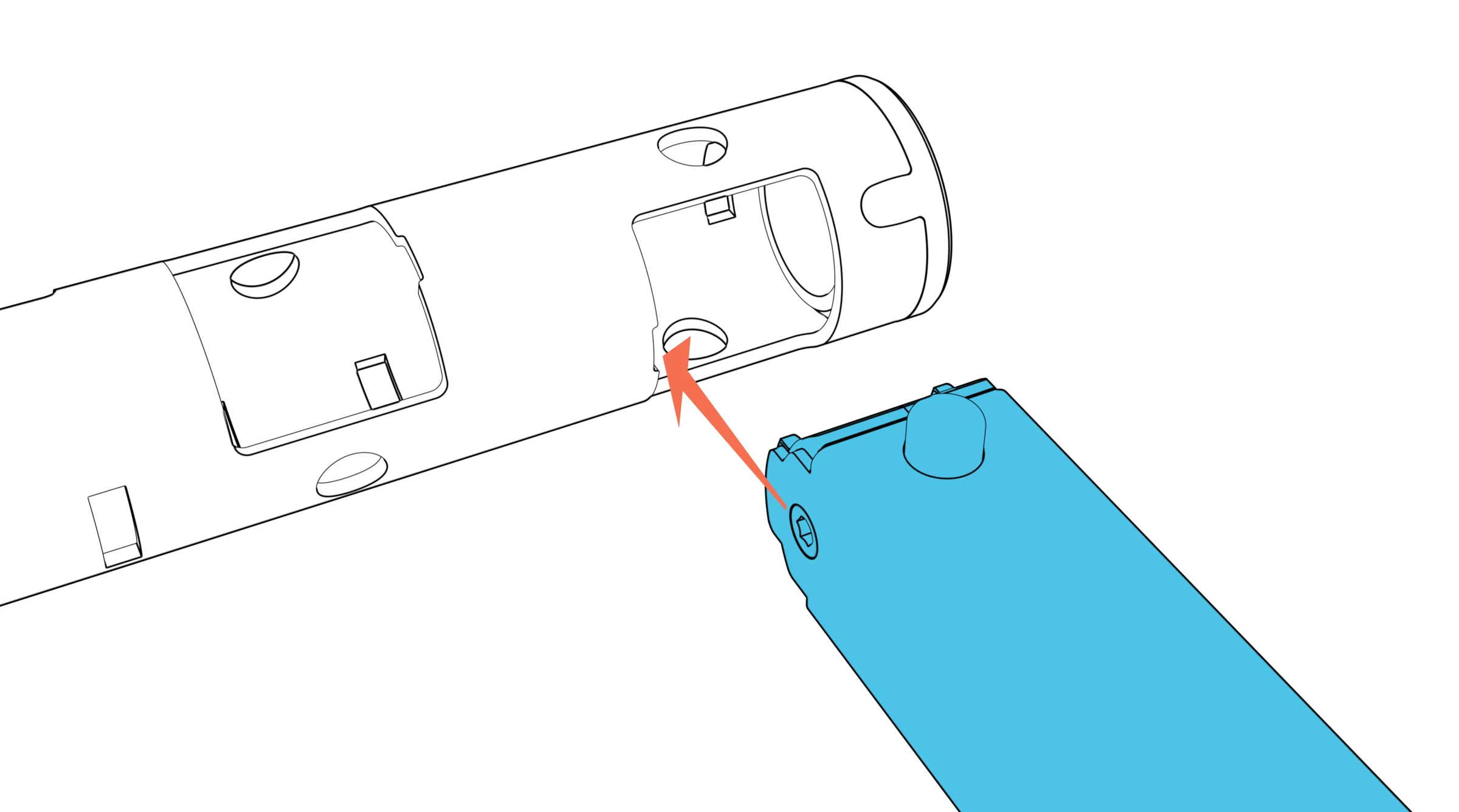

Enlarge image ↗ A leg's side screw head aligned with the notch in the beam socket.
Once the leg has entered its socket, depress both spring buttons completely then continue inserting the leg until the two tabs on the top of the leg pass through the slots in the surface of the beam and both spring buttons pop through the holes on the beam.

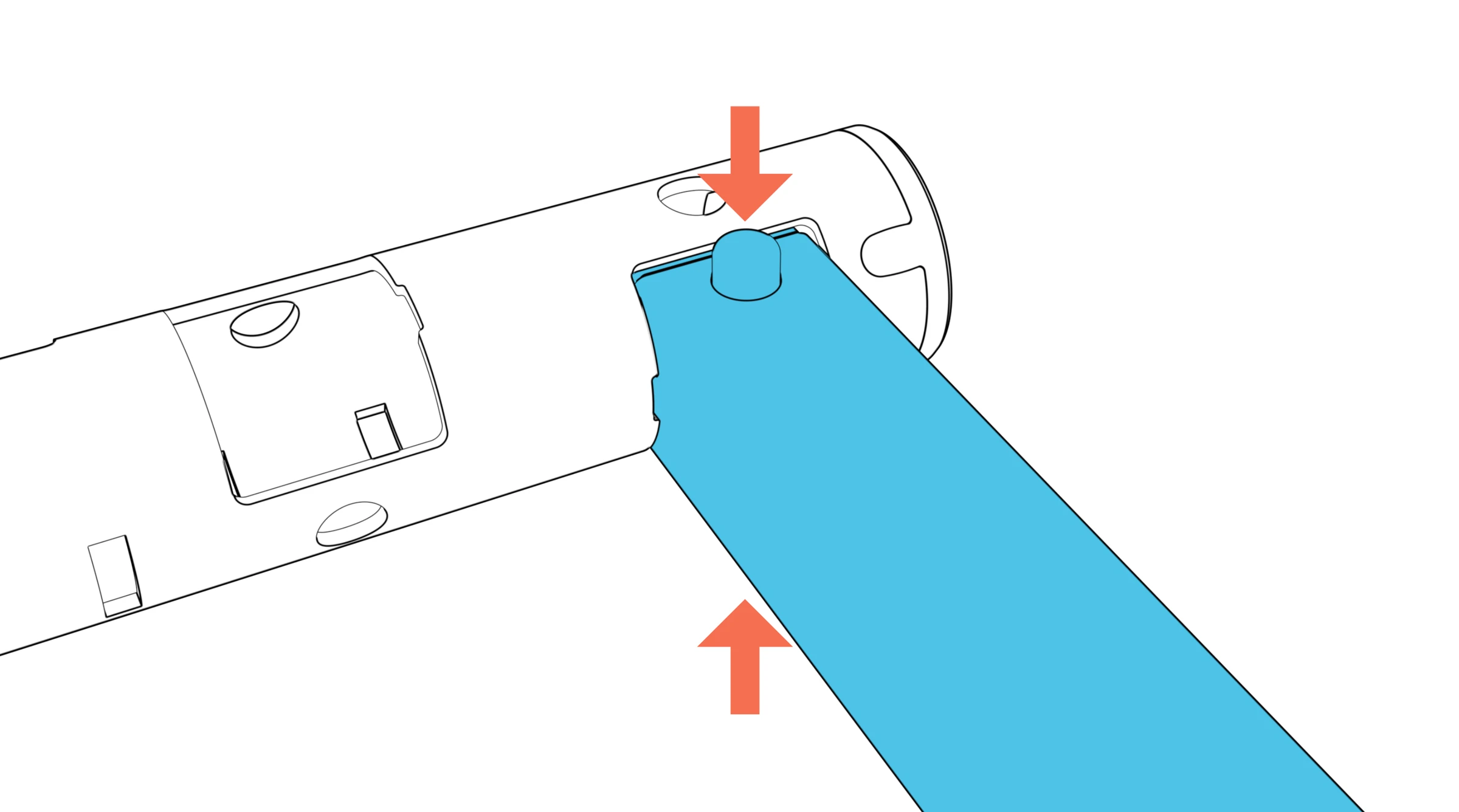

Enlarge image ↗ Arrows indicating both spring buttons being pressed inward as the leg enters the beam socket.

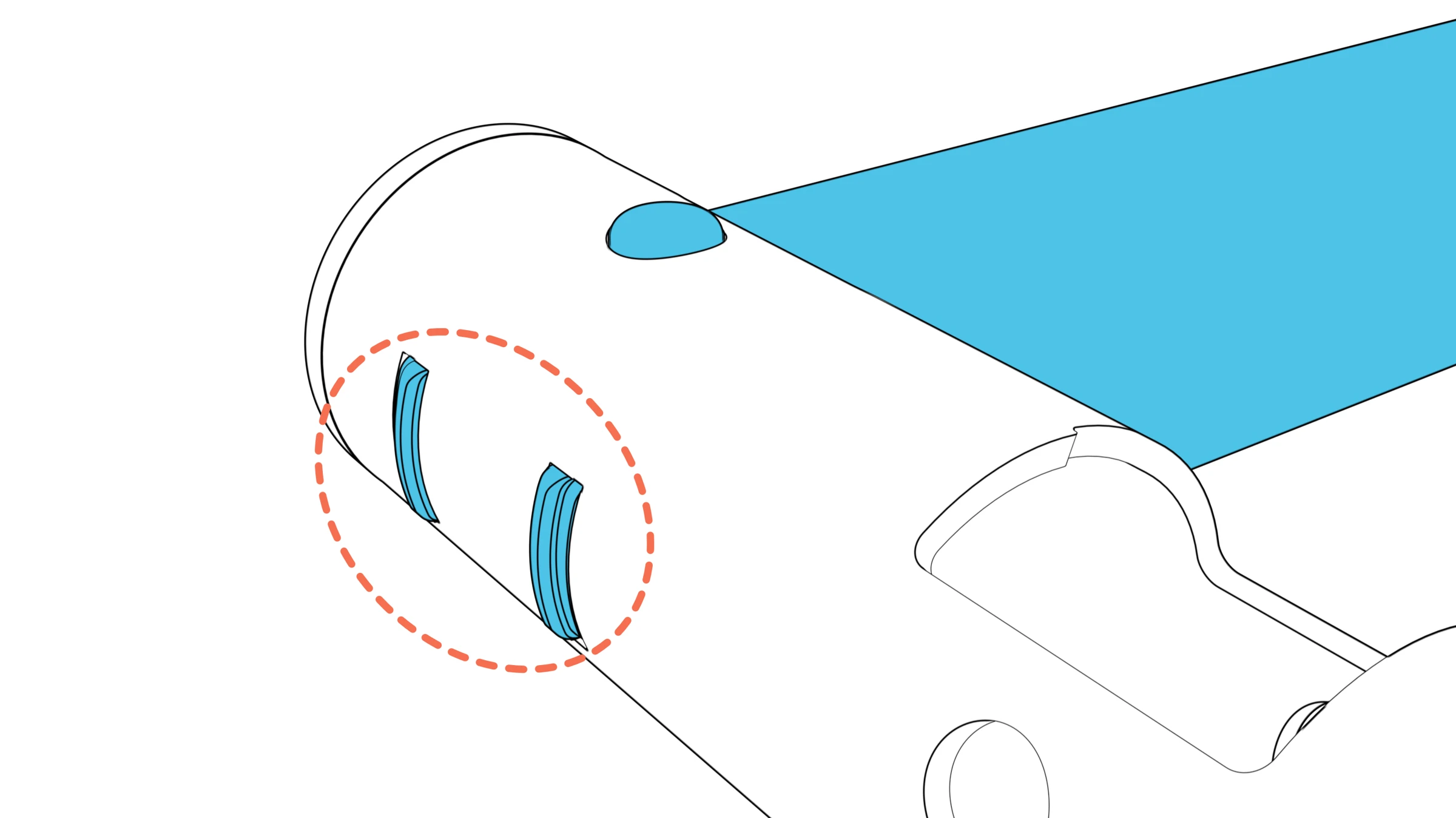

Enlarge image ↗ The two leg tabs protruding through slots in the beam, highlighted by a dashed circle.

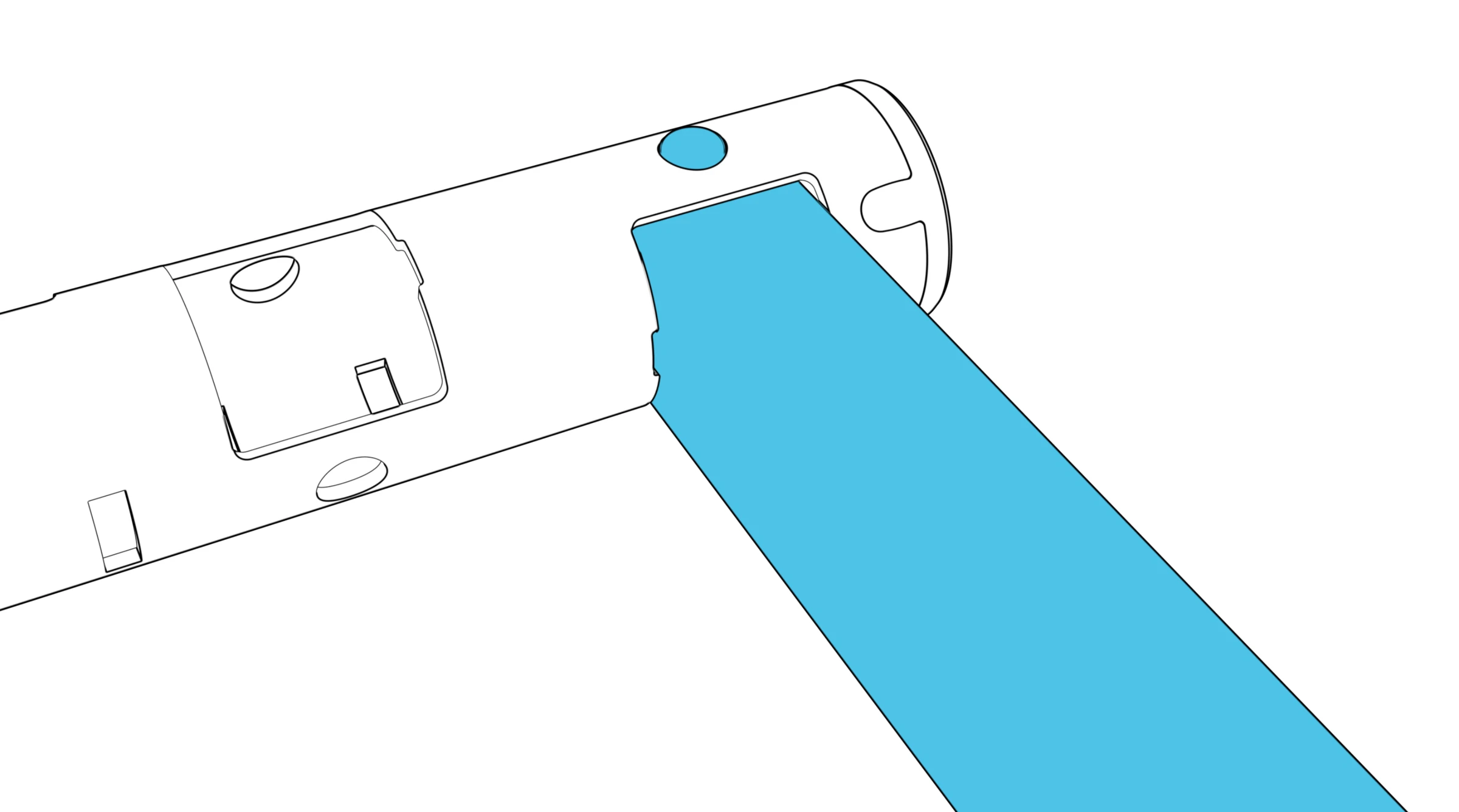

Enlarge image ↗ The leg seated in the beam socket with a spring button protruding through its hole.

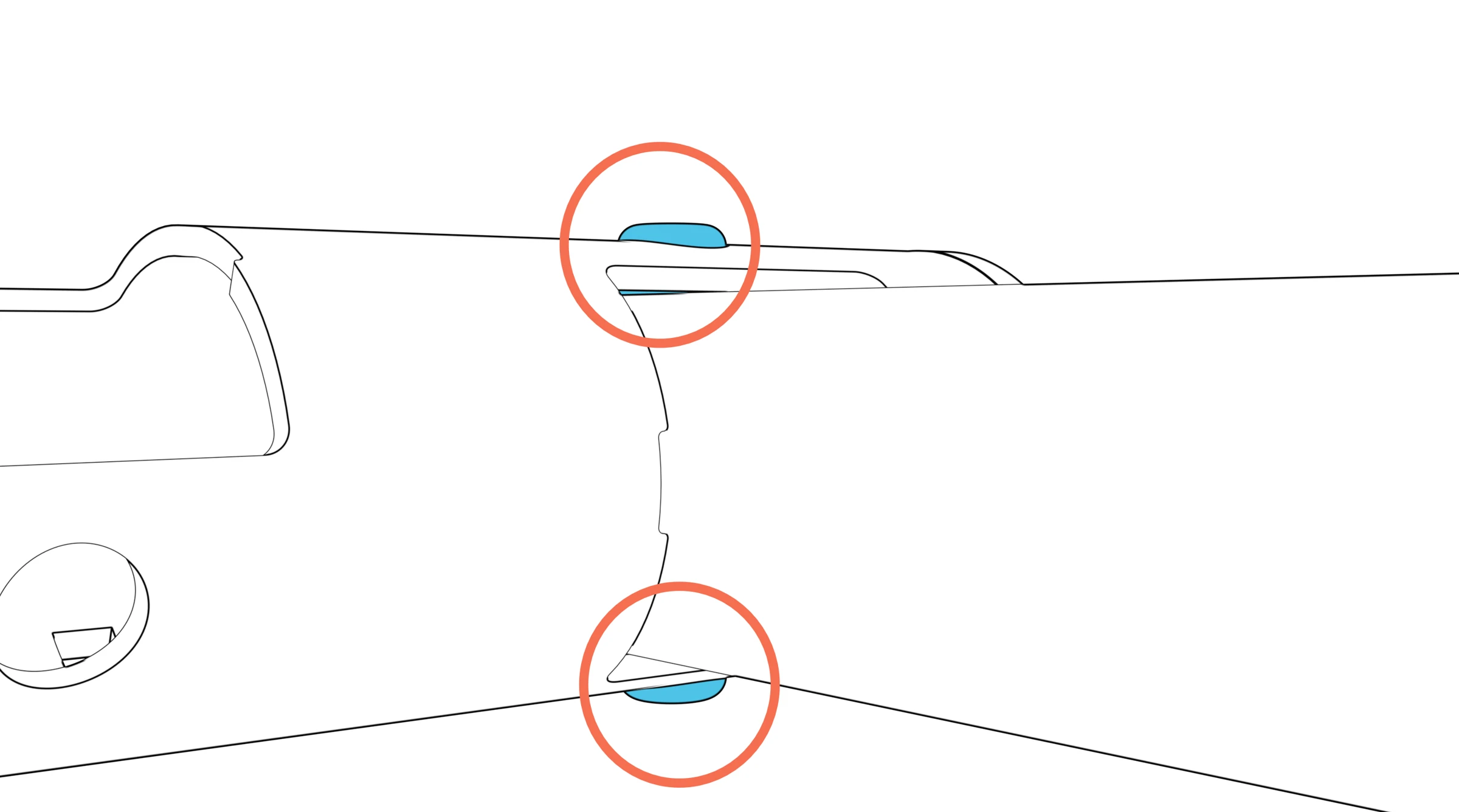

Enlarge image ↗ Both spring-button heads fully protruding through the beam, circled in the close-up.
Repeat this process for the rear leg while the beam and first leg rest on the ground or tabletop.

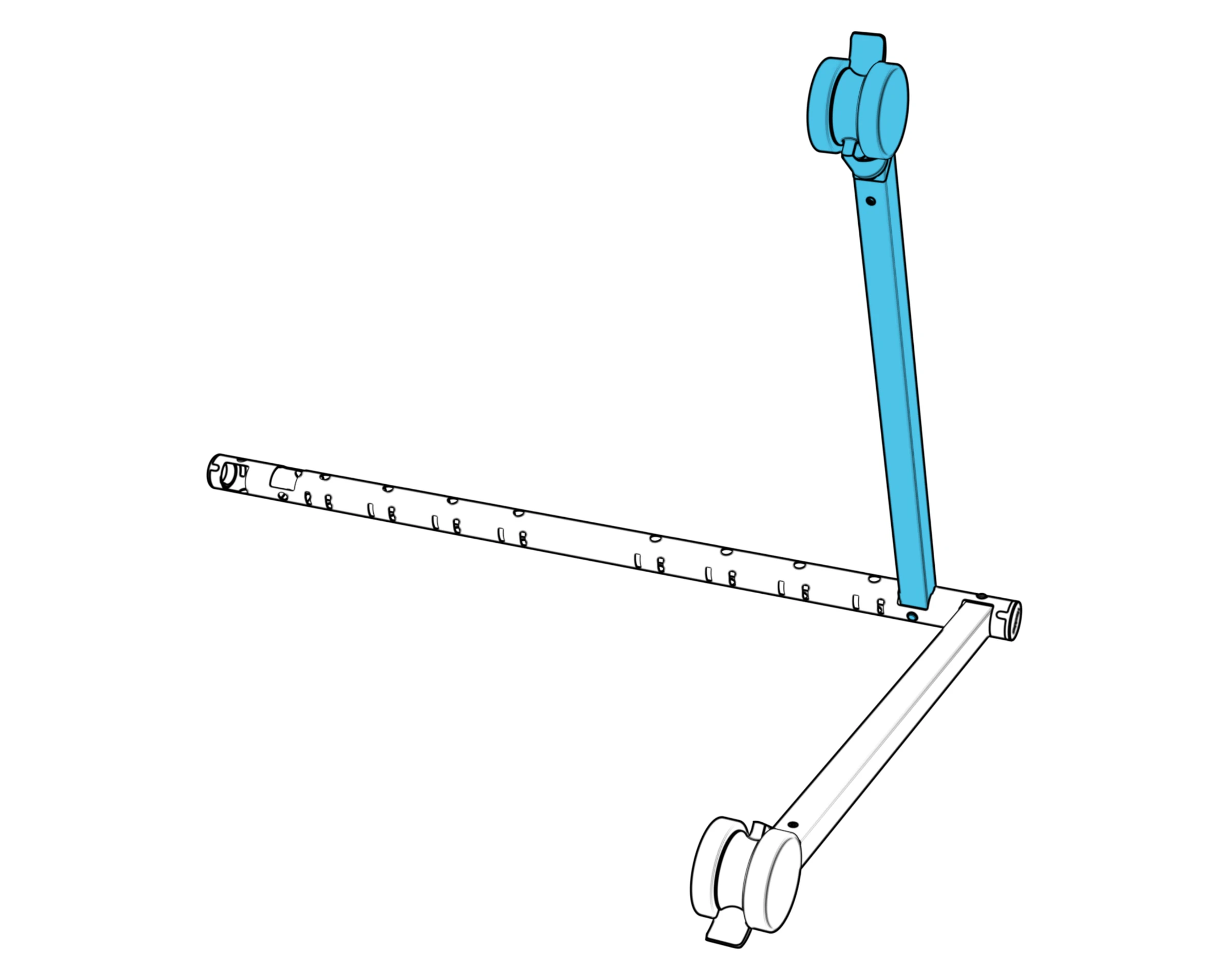

Enlarge image ↗ The second leg being installed while the beam and first leg rest on the ground.
Repeat the process with the remaining two legs.
Raise the completed stand base upright.

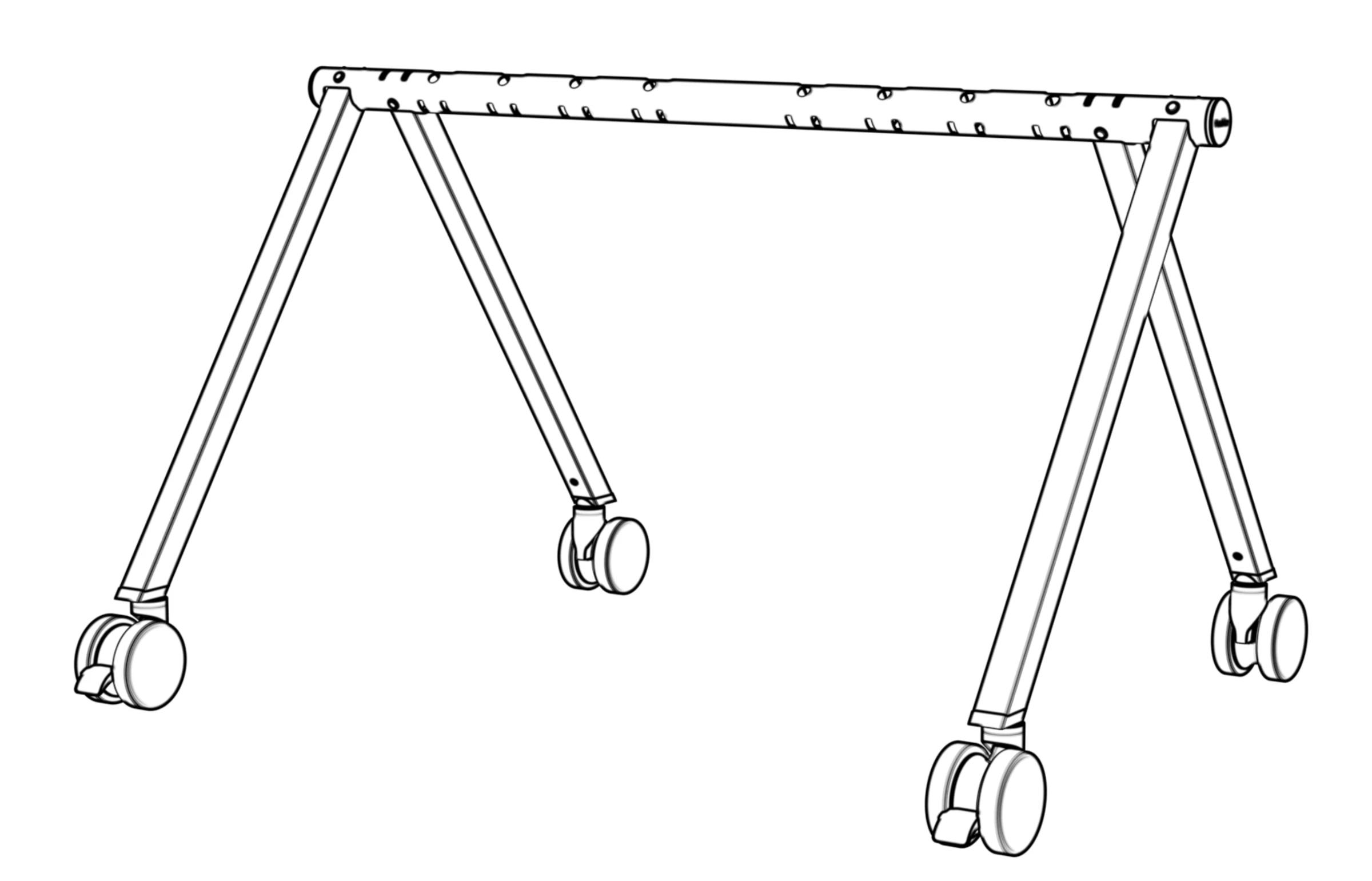

Enlarge image ↗ The completed stand base upright on four casters.
Engage the brake on all four casters.

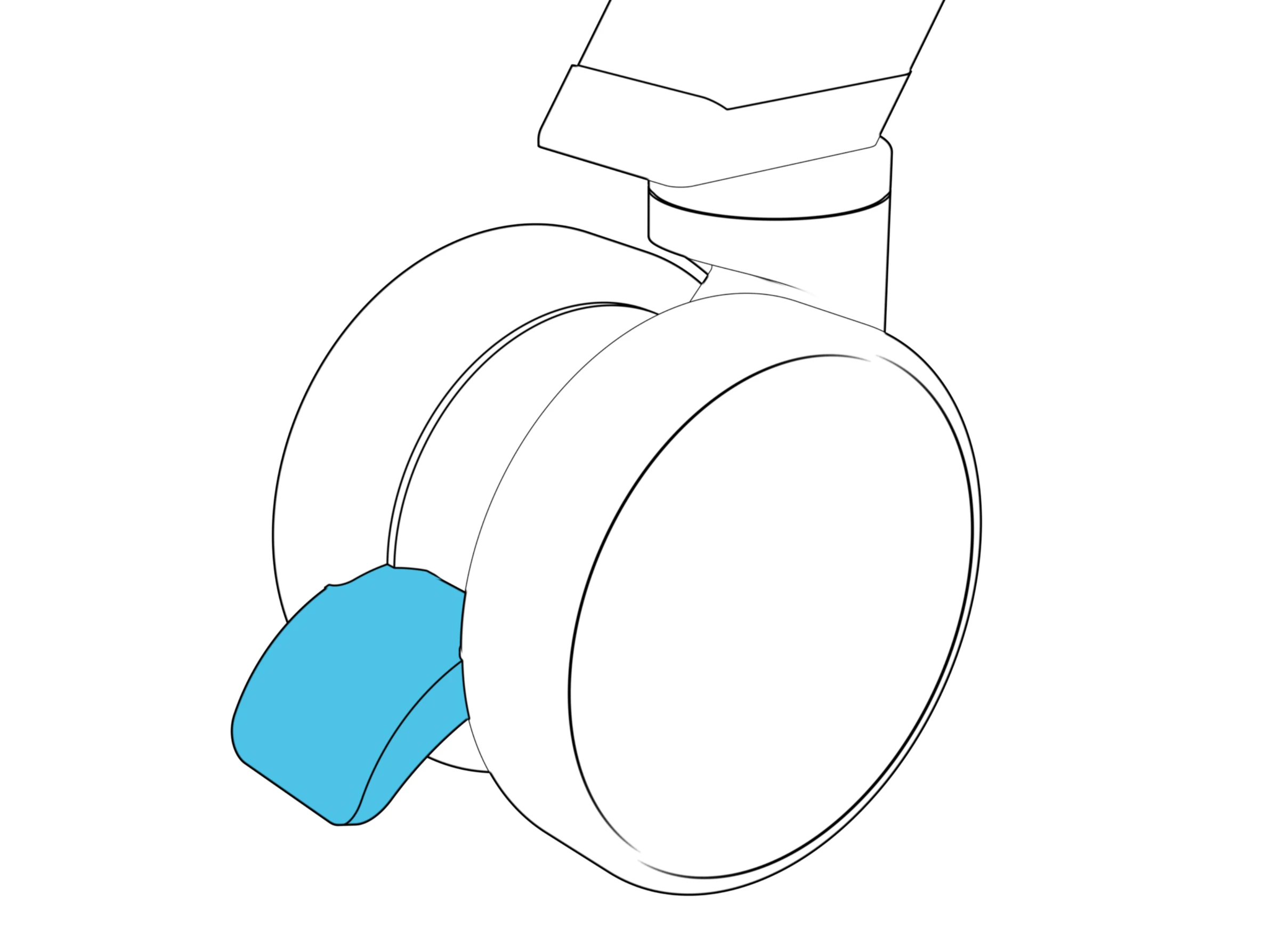

Enlarge image ↗ Close-up of a caster with its brake lever highlighted.
Identify your display’s horizontal VESA pattern and choose the corresponding column inserts on the beam.
Your beam ships with the VESA 400 sockets unplugged. If your display does not have a VESA 400 mounting pattern, move the socket plugs as needed.

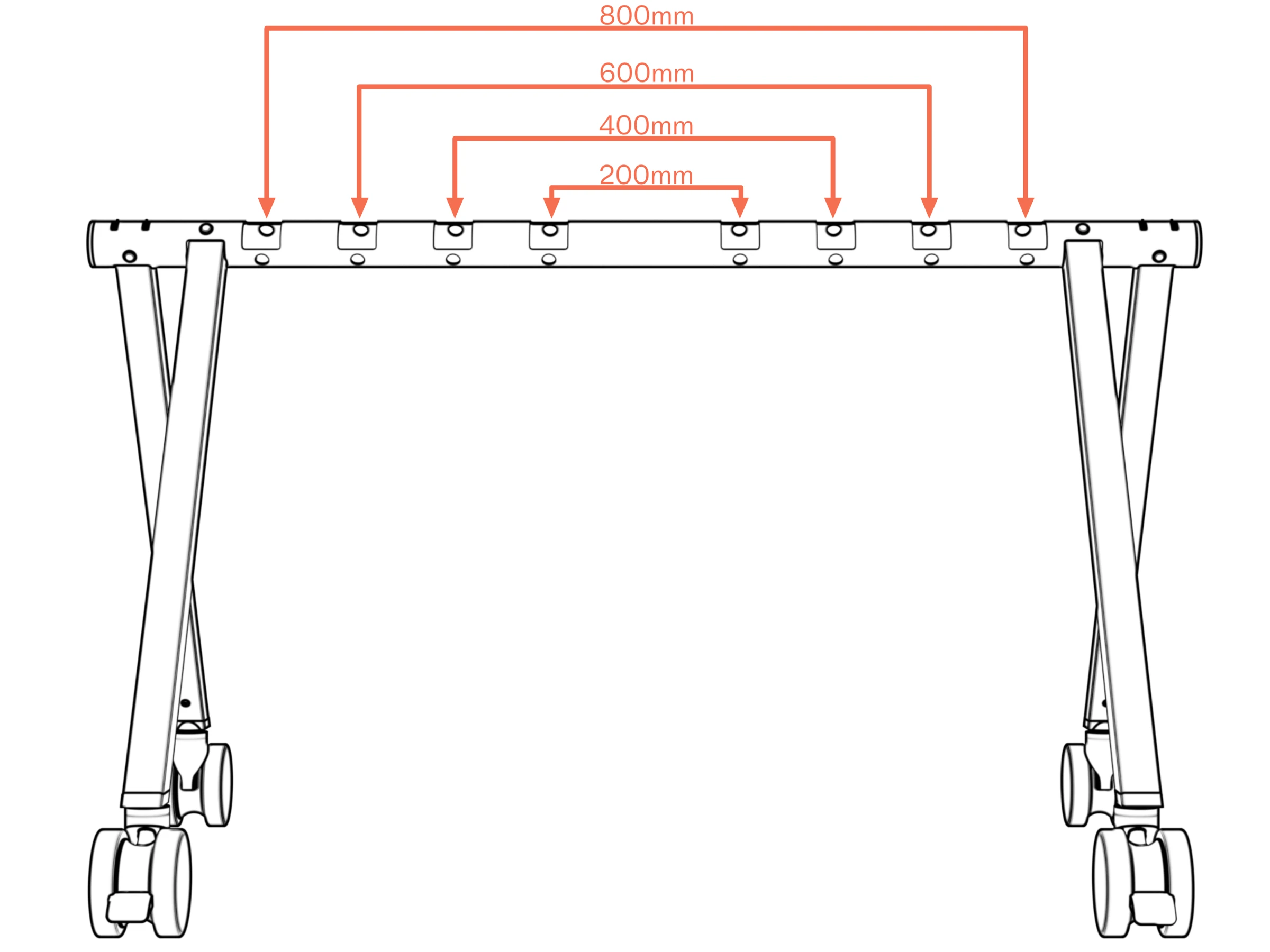

Enlarge image ↗ Beam sockets labeled for 200, 400, 600, and 800 mm horizontal VESA spacing.
Displays with VESA 300, VESA 500, and VESA 700 horizontal mounting patterns are also compatible. To mount VESA 300, VESA 500, and VESA 700 displays, move one column away from the center of the beam. The resulting install will off-center the display to the stand body by 50 mm.

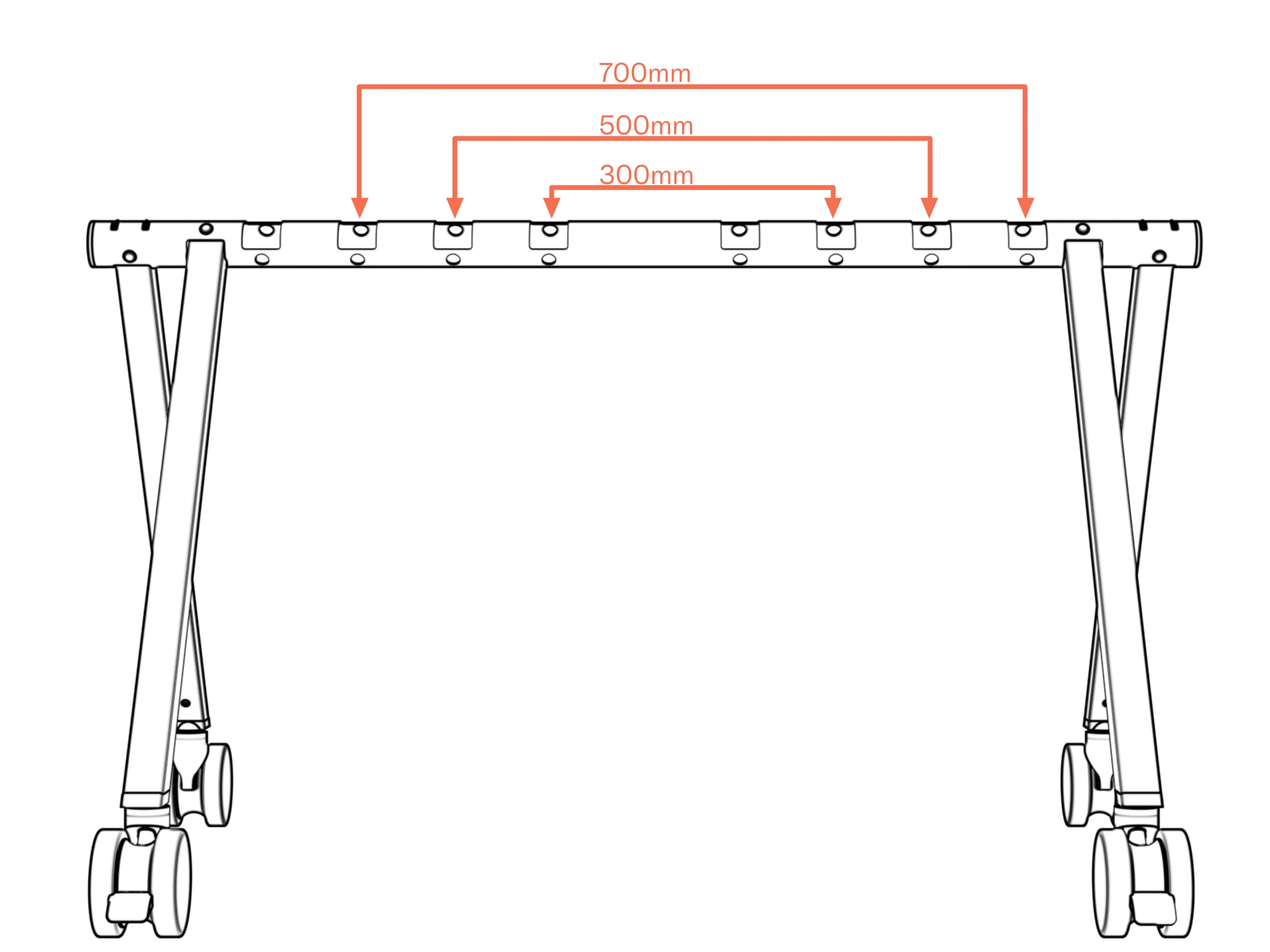

Enlarge image ↗ Beam sockets labeled for 300, 500, and 700 mm horizontal VESA spacing.
Hold the column vertically throughout this process to ensure proper socket alignment. If the column becomes misaligned during your installation attempt, remove the column from the socket and try again. Attempting to pry or force a misaligned column into position may cause damage to the stand.

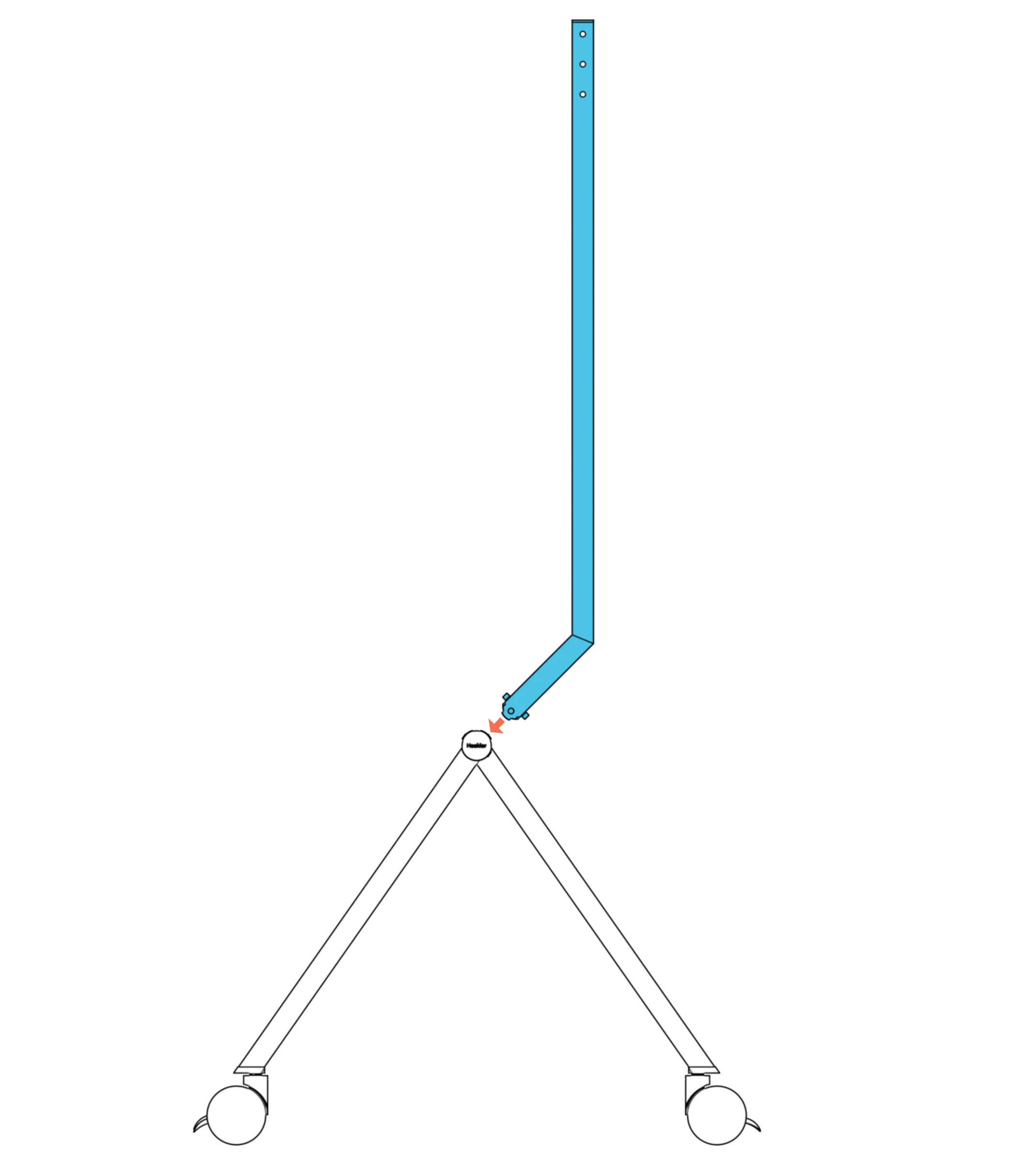

Enlarge image ↗ Side view of a display column held vertically above its beam socket.

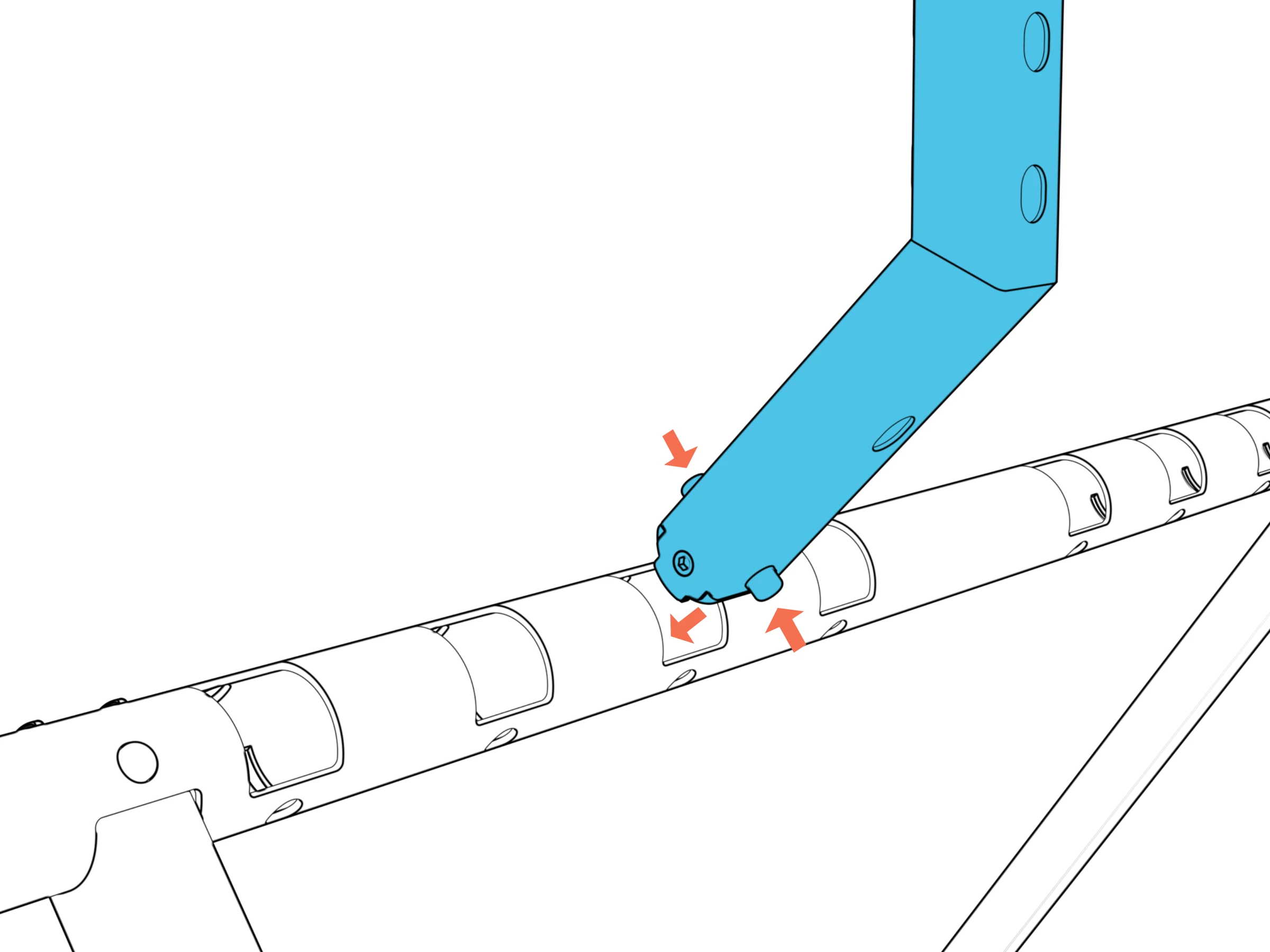

Align and insert the end of the column into the socket on the beam. When the column end approaches the beam, depress both spring button heads and continue inserting the column until both spring button heads extend fully through the beam.
Enlarge image ↗ Both column spring buttons being pressed inward as the column enters the beam socket.

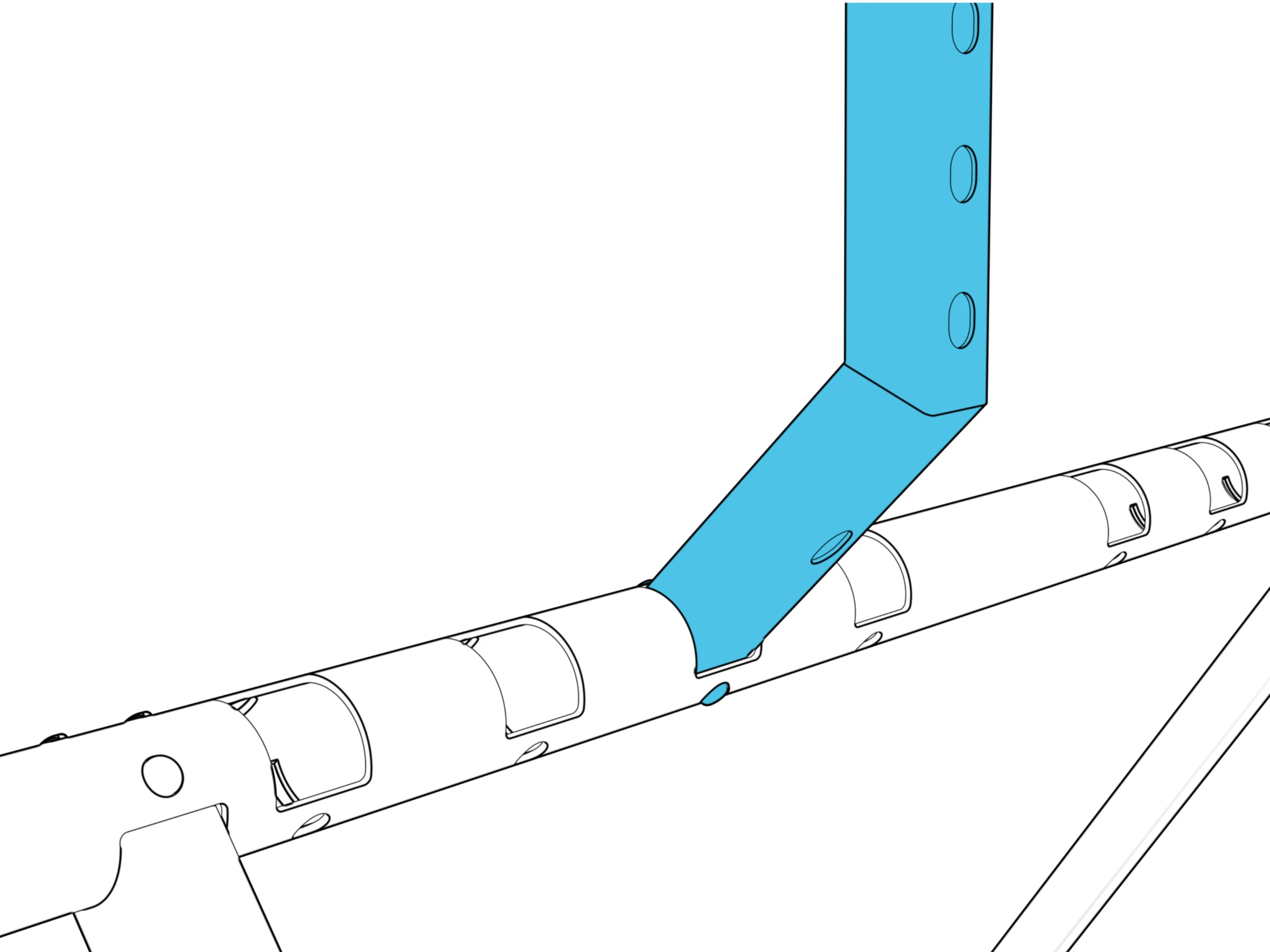

Enlarge image ↗ The column seated in its beam socket.
Ensure both spring button heads are fully engaged through the beam.

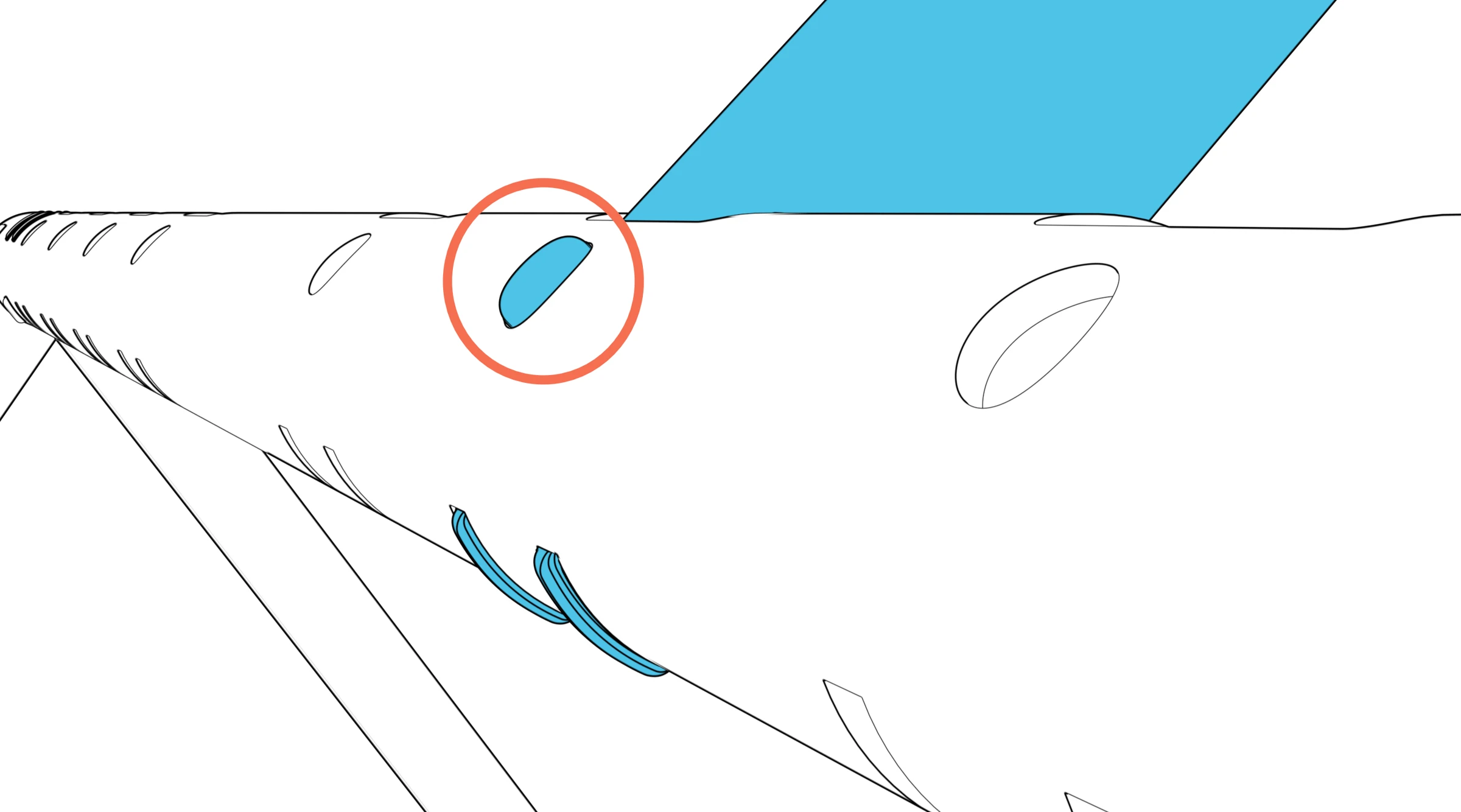

Enlarge image ↗ Close-up highlighting a column spring-button head fully extended through the beam.

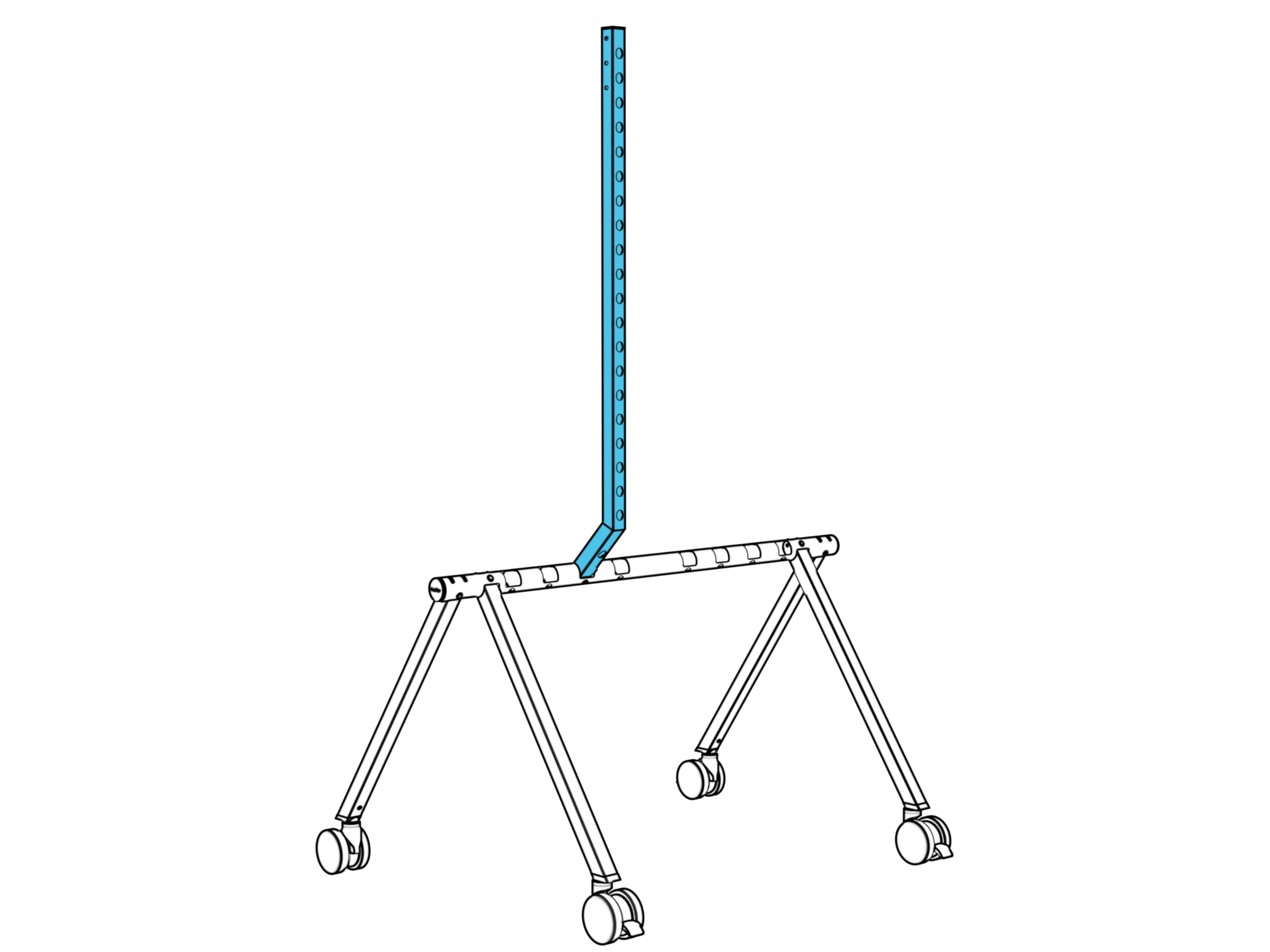

Enlarge image ↗ One display column installed on the stand base.
Repeat this process to install the second column.

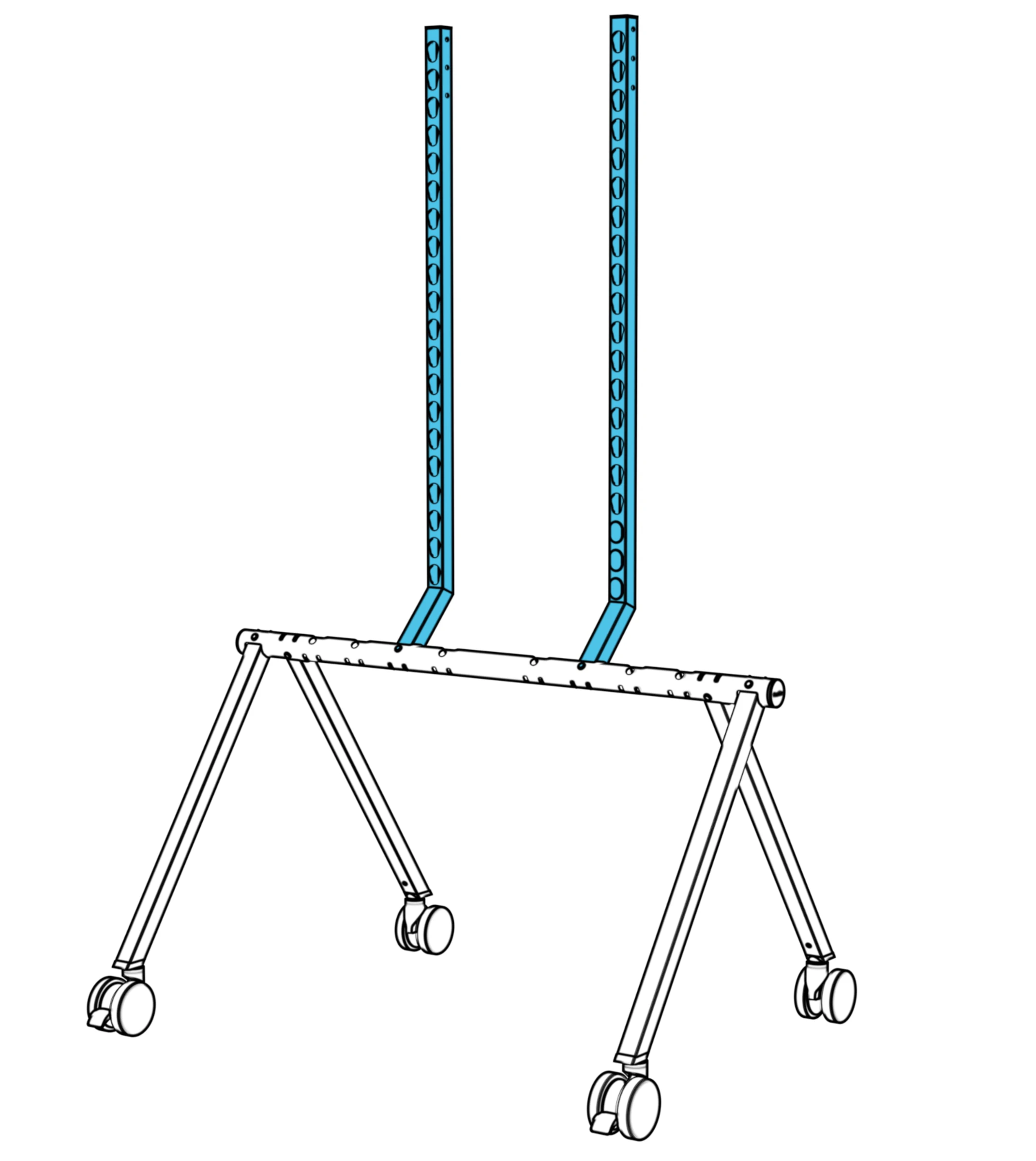

Enlarge image ↗ Both display columns installed on the stand base.
This stand is designed to safely mount displays with screen sizes 50 to 75 inches, with VESA 200 to VESA 800 horizontal mounting patterns, weighing up to 220 pounds.
Determine if your display has M6 or M8 size mounting holes.
Fasten the supplied display-mounting screws into the four VESA mounting positions on your display.
In most cases, no tools are needed for this step. Fasten by hand. If you used a tool (not included) to fasten the set screws, do not overtighten.

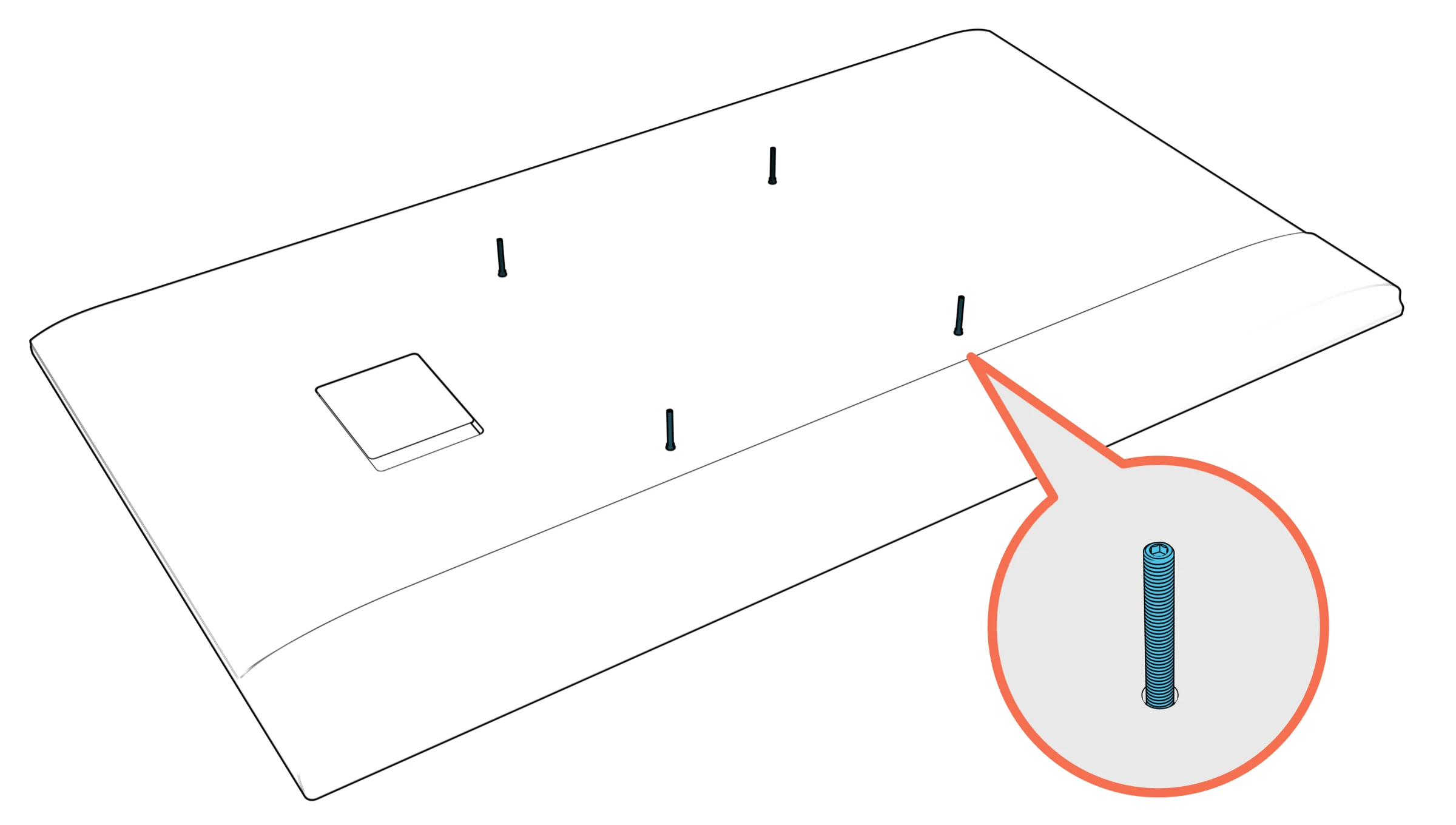

Enlarge image ↗ Four set screws positioned at the display's rear VESA mounting holes, with an enlarged screw detail.
Fully fasten the display anchors to the set screws. Do not overtighten.
Each display anchor features an embedded steel nut. Ensure the set screw fully threads through this nut.

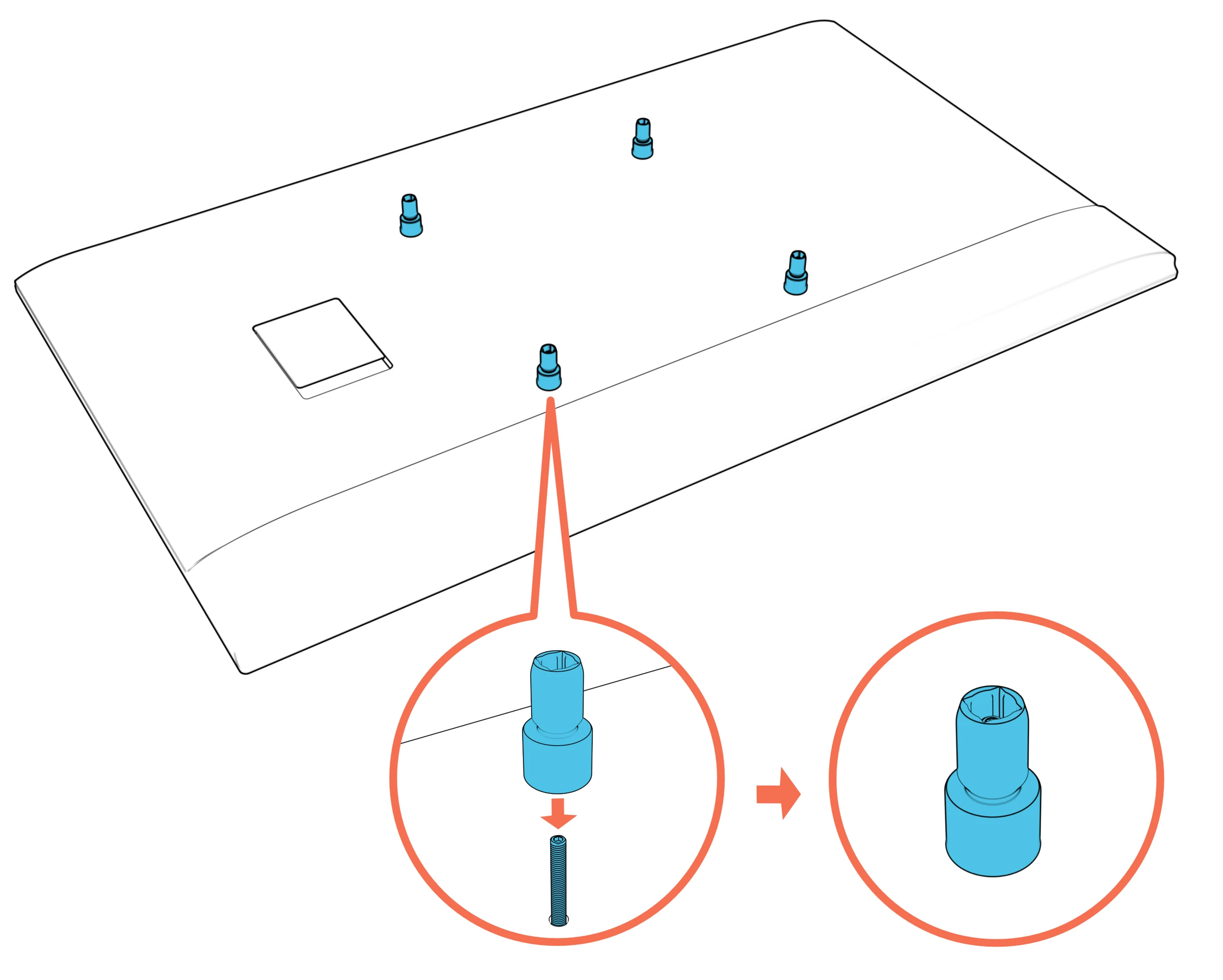

Enlarge image ↗ Display anchors installed over the set screws, with details showing the screw threaded through the anchor.
Choose the mounting position on the columns based on the preferred display mounting height.

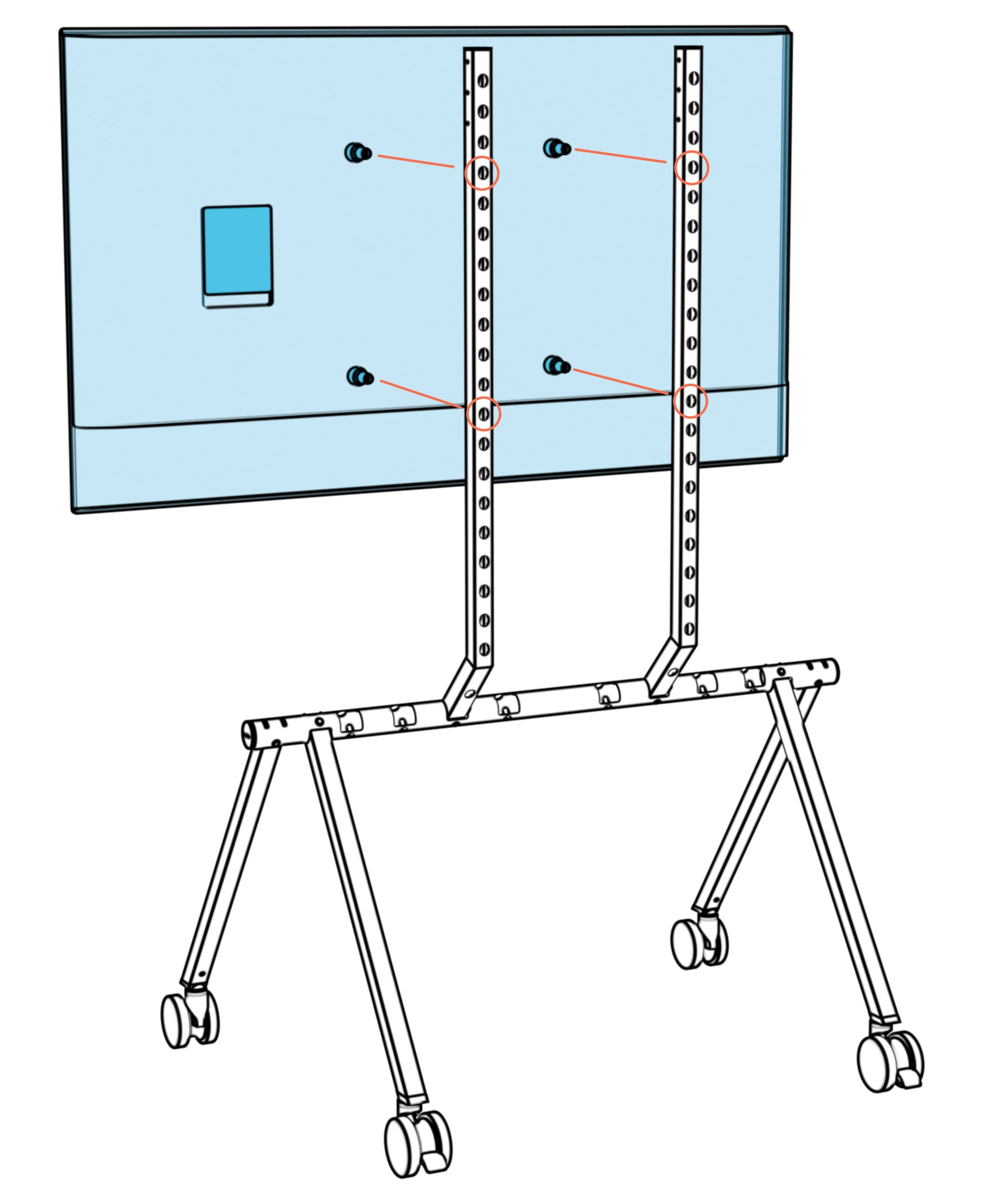

Enlarge image ↗ The display's four anchors aligned with keyholes in the two columns.

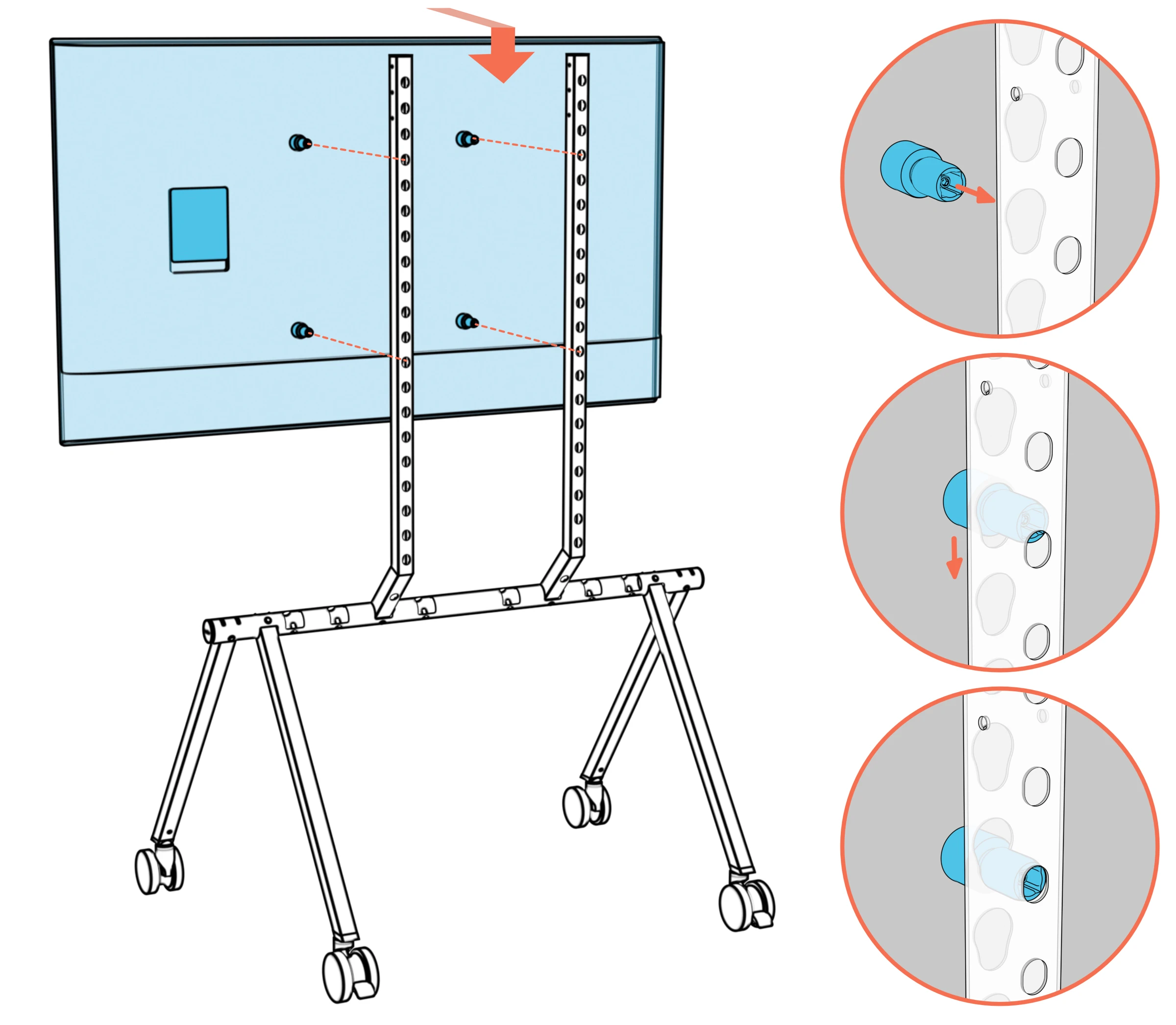

Bring the display close to the columns, fully insert all four display anchors into the four mounting keyholes on the columns, then lower the anchors onto the keyholes. This will hold the display to the stand.
Enlarge image ↗ The display lowered onto the columns, with enlarged views of an anchor entering and seating in a keyhole.
To create a safe assembly, the display must be affixed in place. To do so, insert a cable manager through the rear holes on each column corresponding to each display anchor.

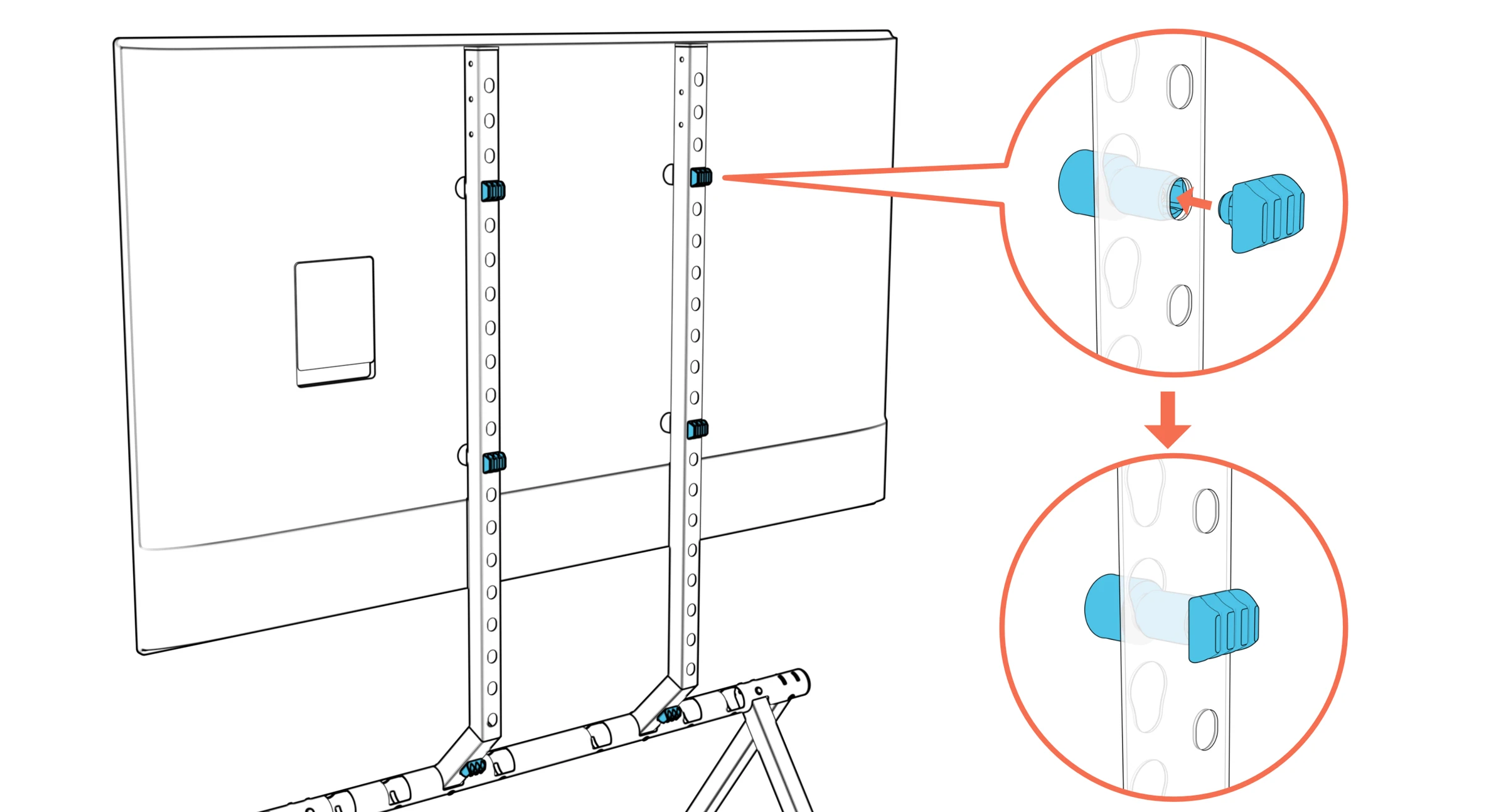

Enlarge image ↗ Cable managers inserted from behind the columns at the display-anchor positions, shown in enlarged before-and-after details.
Install cable guides, beam socket plugs, and cord wrap hooks into the unused sockets on the beam.

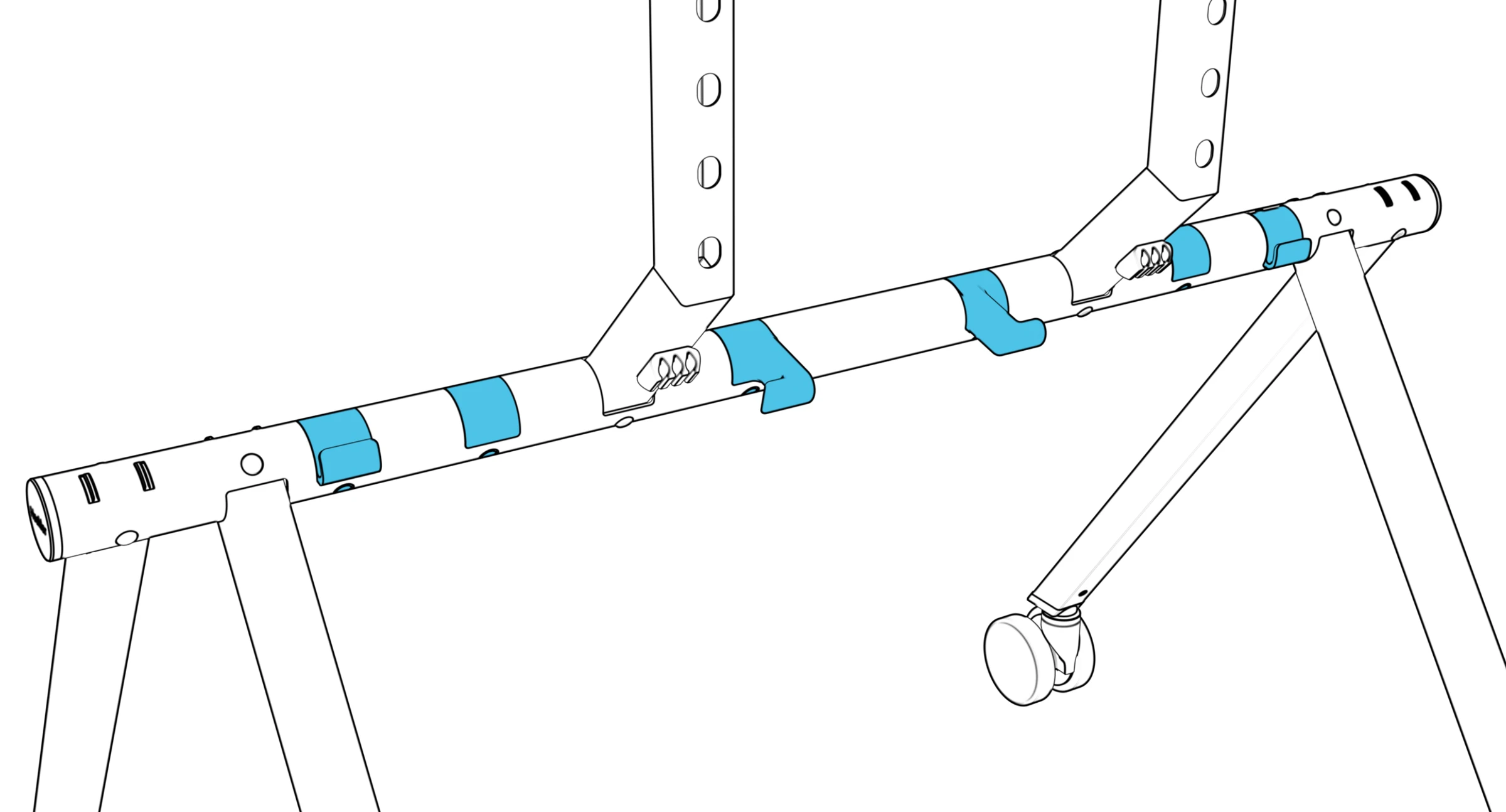

Enlarge image ↗ Cable guides, plugs, and cord-wrap hooks installed in unused beam sockets.

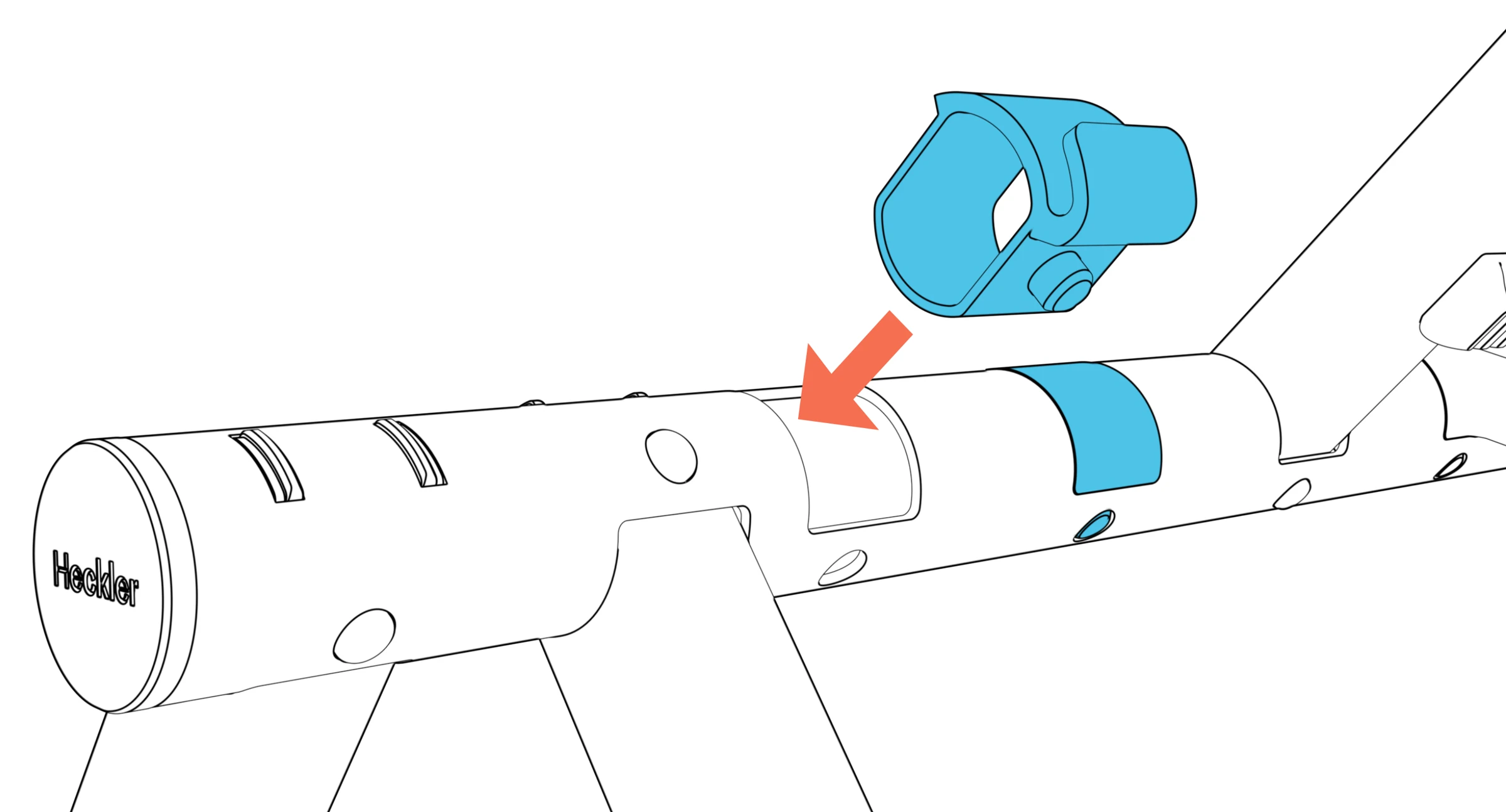

Enlarge image ↗ A beam cable hook aligned with an unused beam socket.

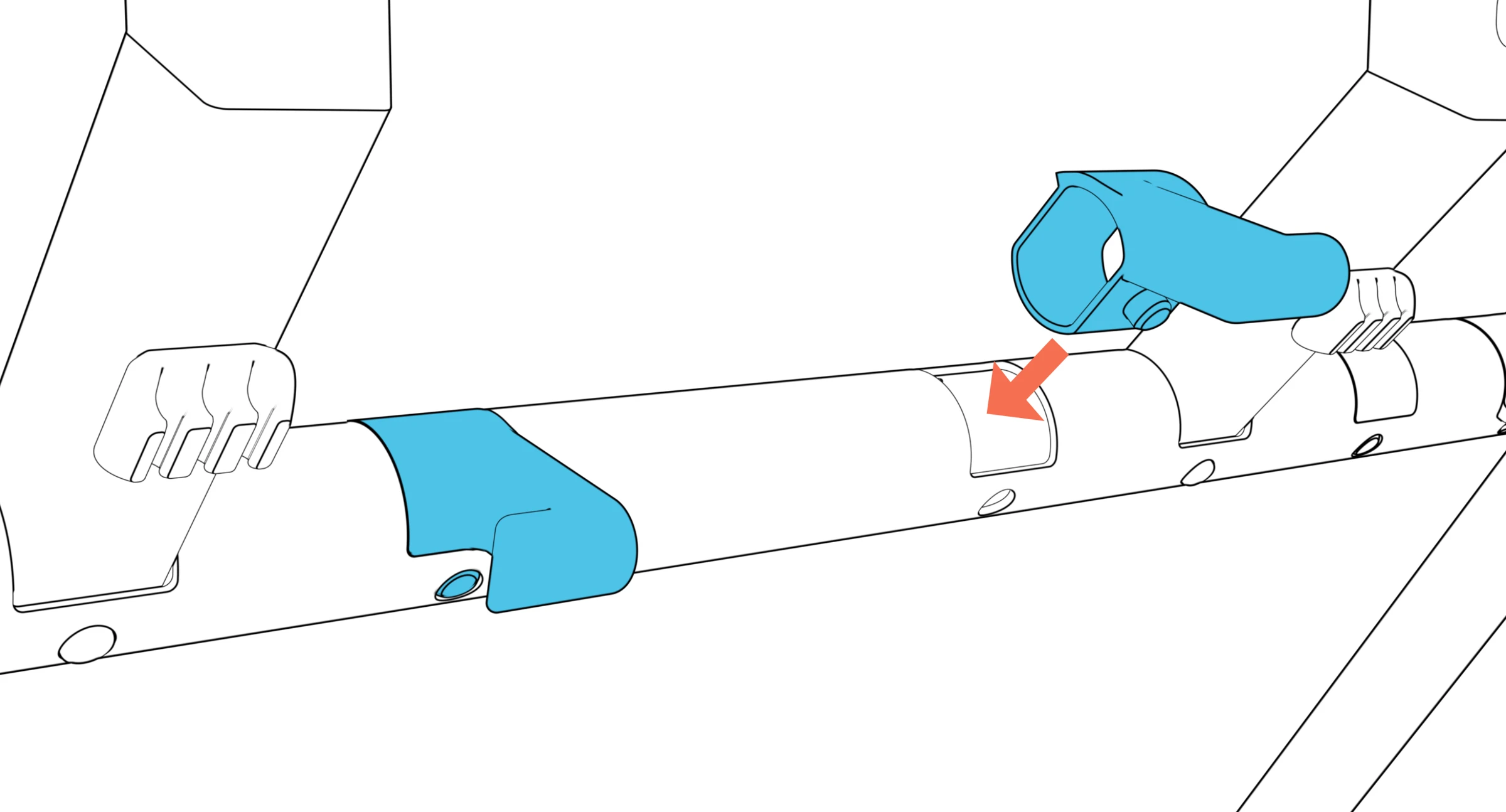

Enlarge image ↗ A cord-wrap hook aligned with its beam socket, with the opposite hook already installed.
Route cables along the columns and the beam.

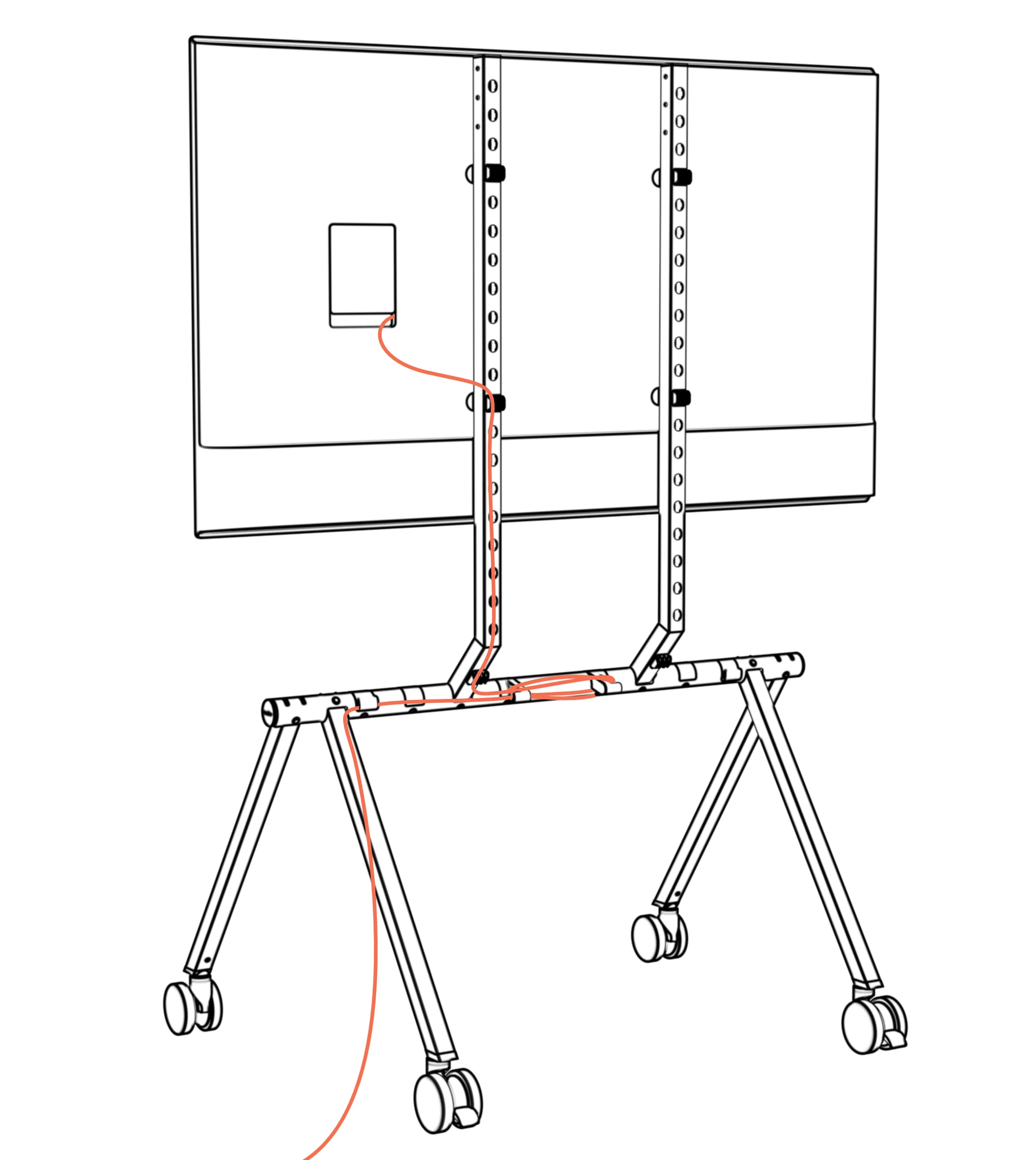

Enlarge image ↗ A cable routed from the rear of the display down a column and along the beam.

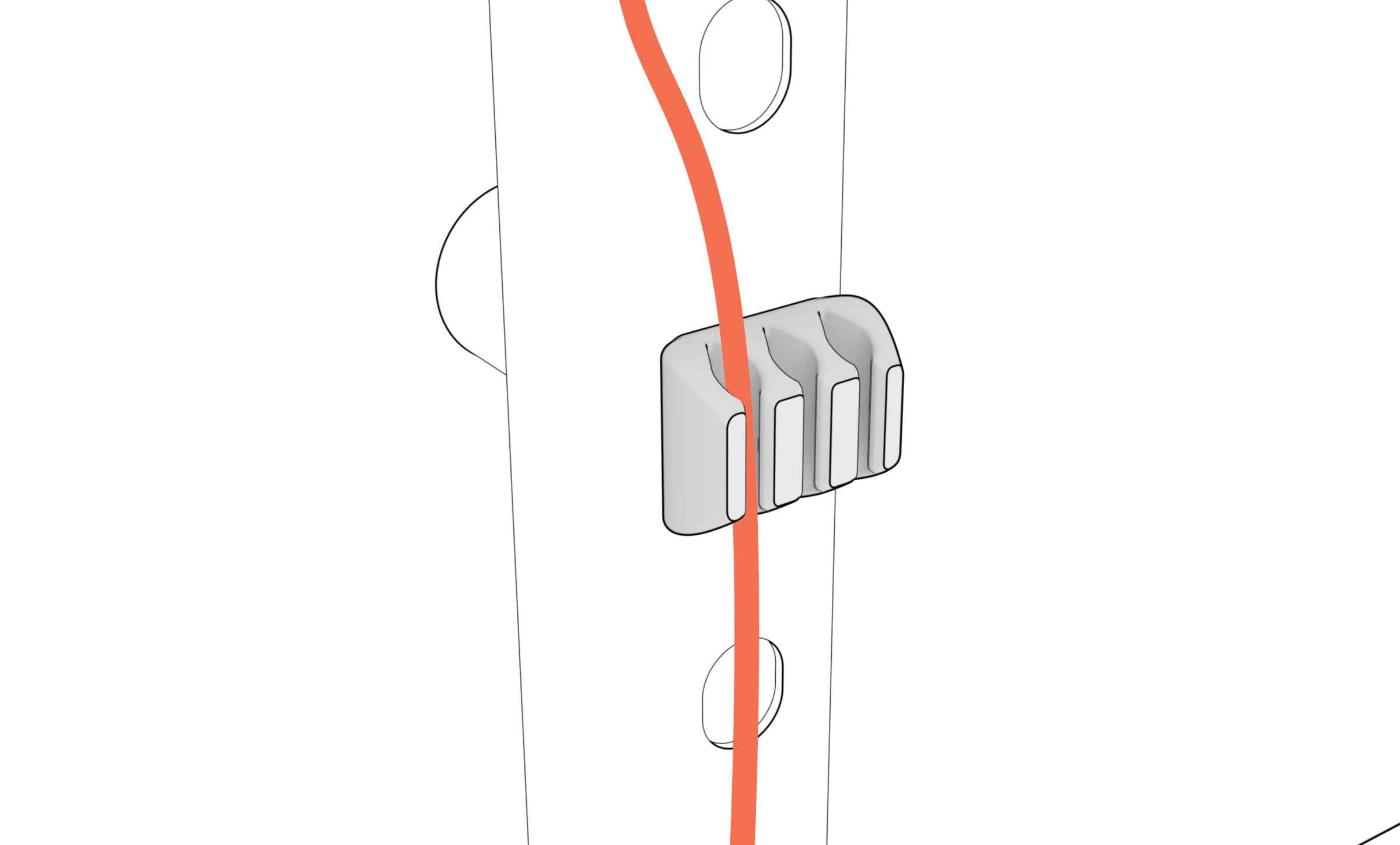

Enlarge image ↗ Close-up of a cable held in a column cable manager.

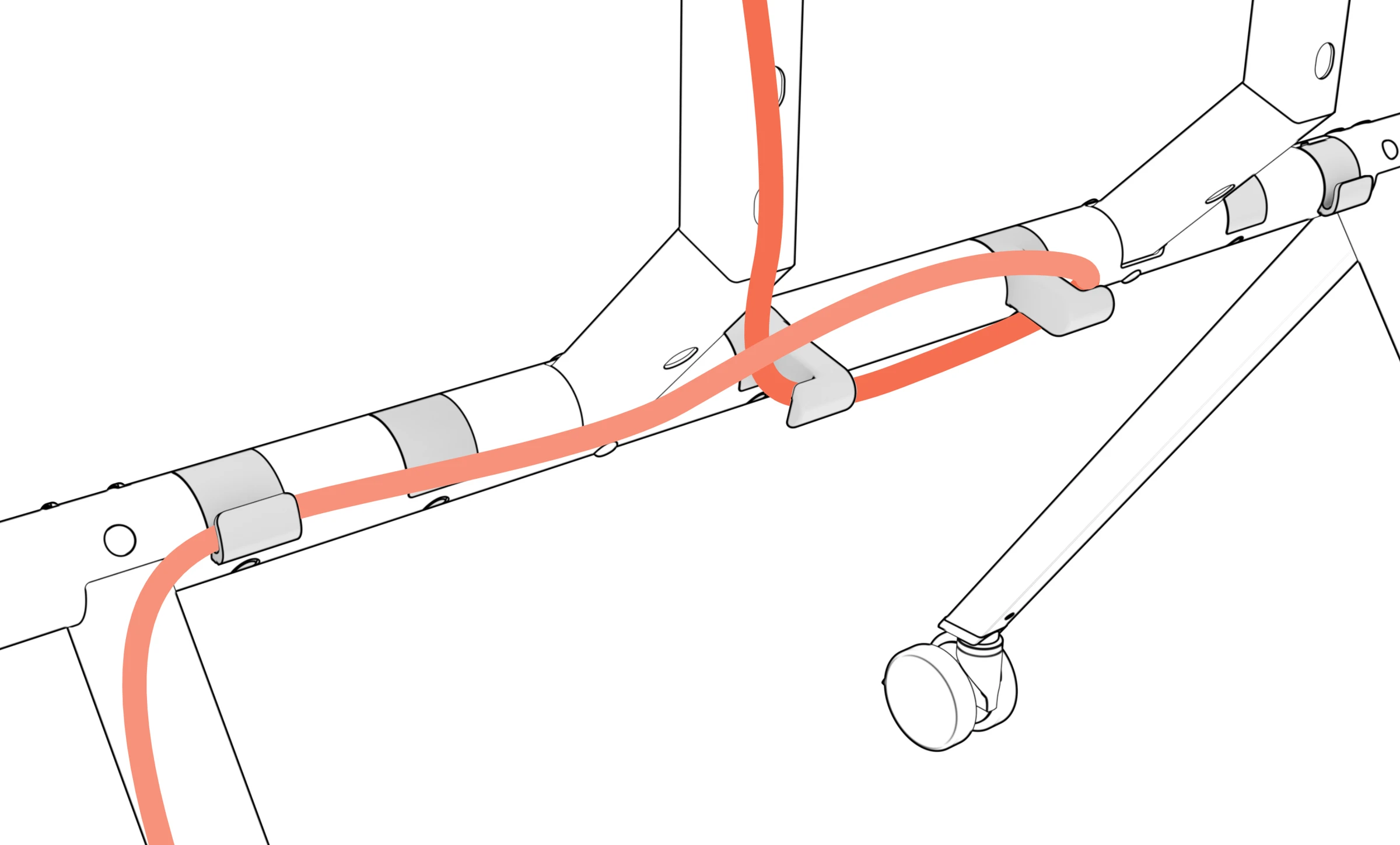

Enlarge image ↗ A cable routed through beam guides and looped around the cord-wrap hooks.
Use column plugs to cover unused but visible holes on the column’s front surface.

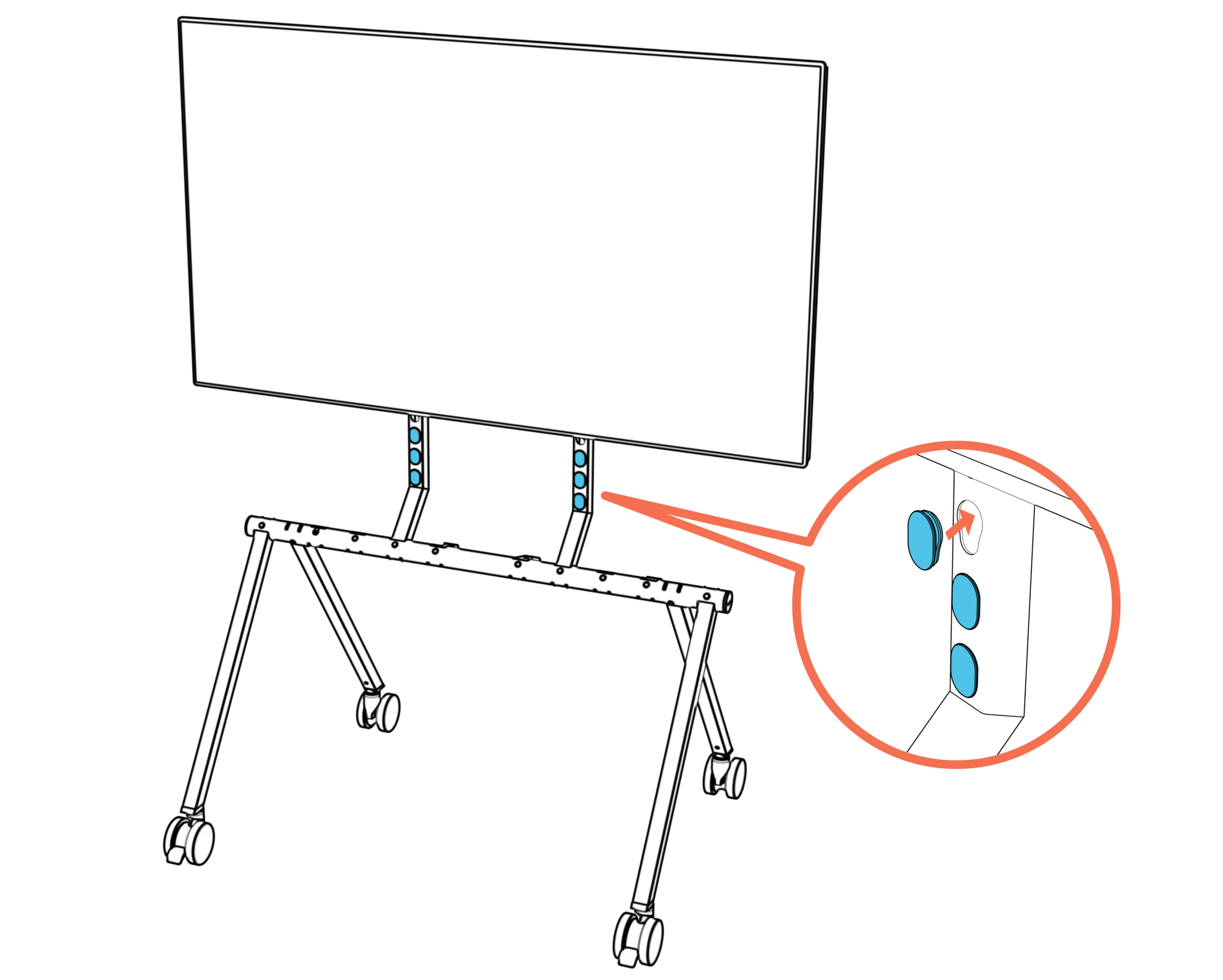

Enlarge image ↗ Column plugs covering unused front-facing column holes, shown in an enlarged detail.

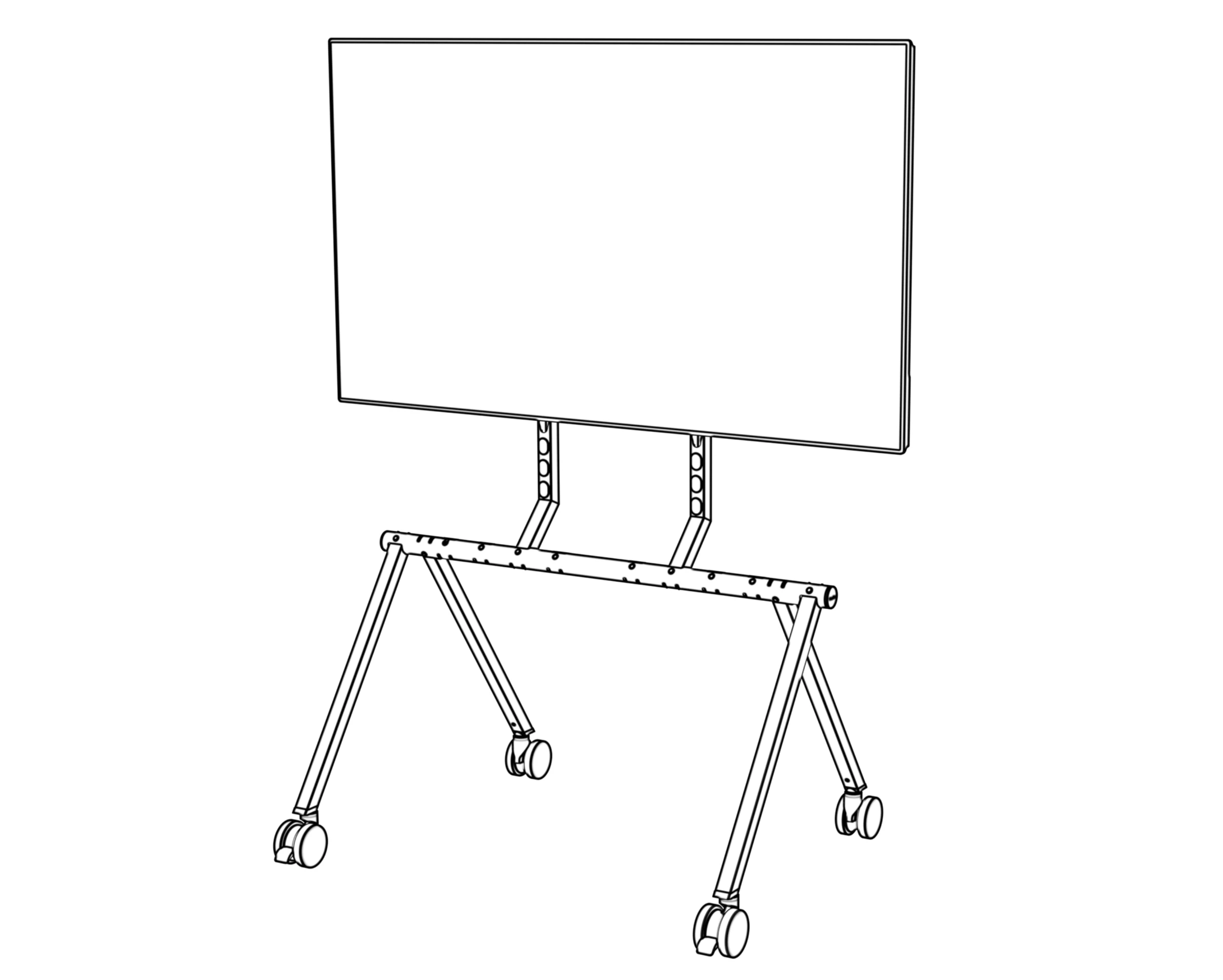

Enlarge image ↗ Front view of the completed stand with its display mounted.

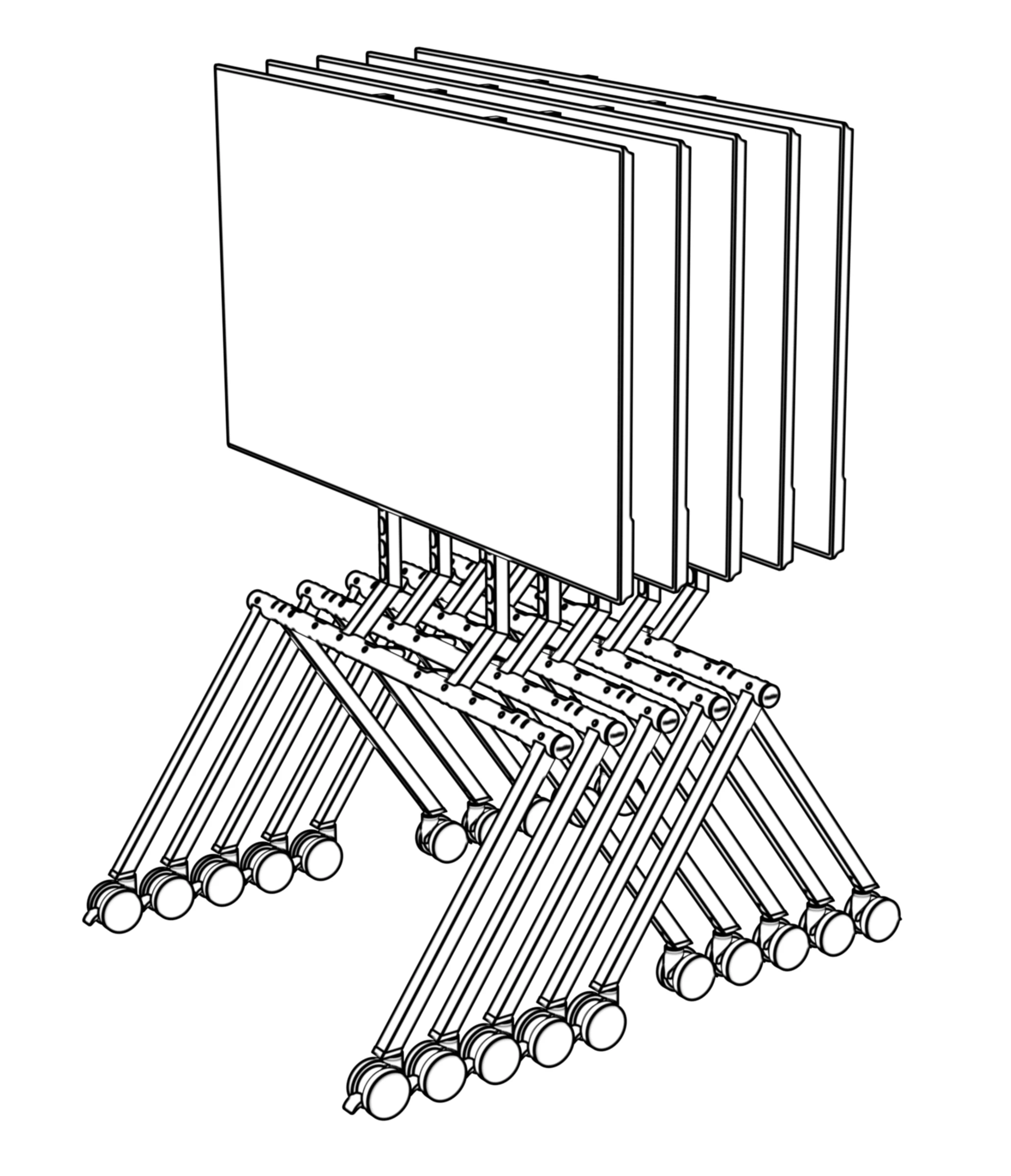

Enlarge image ↗ Several display stands nested closely together for storage.

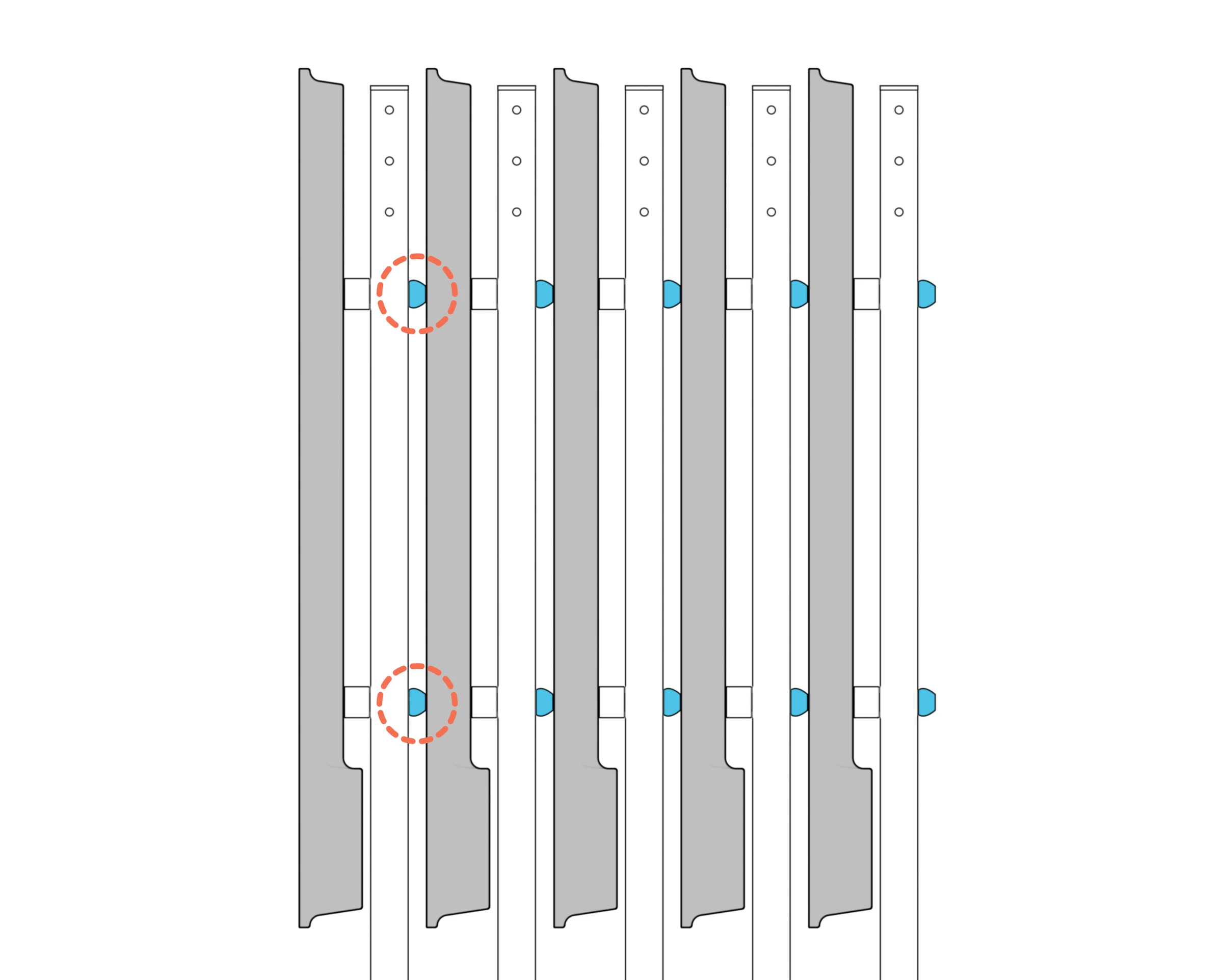

Enlarge image ↗ Side view showing the column cable managers acting as spacers between nested displays.
Attach the first storage ring on the column as shown.

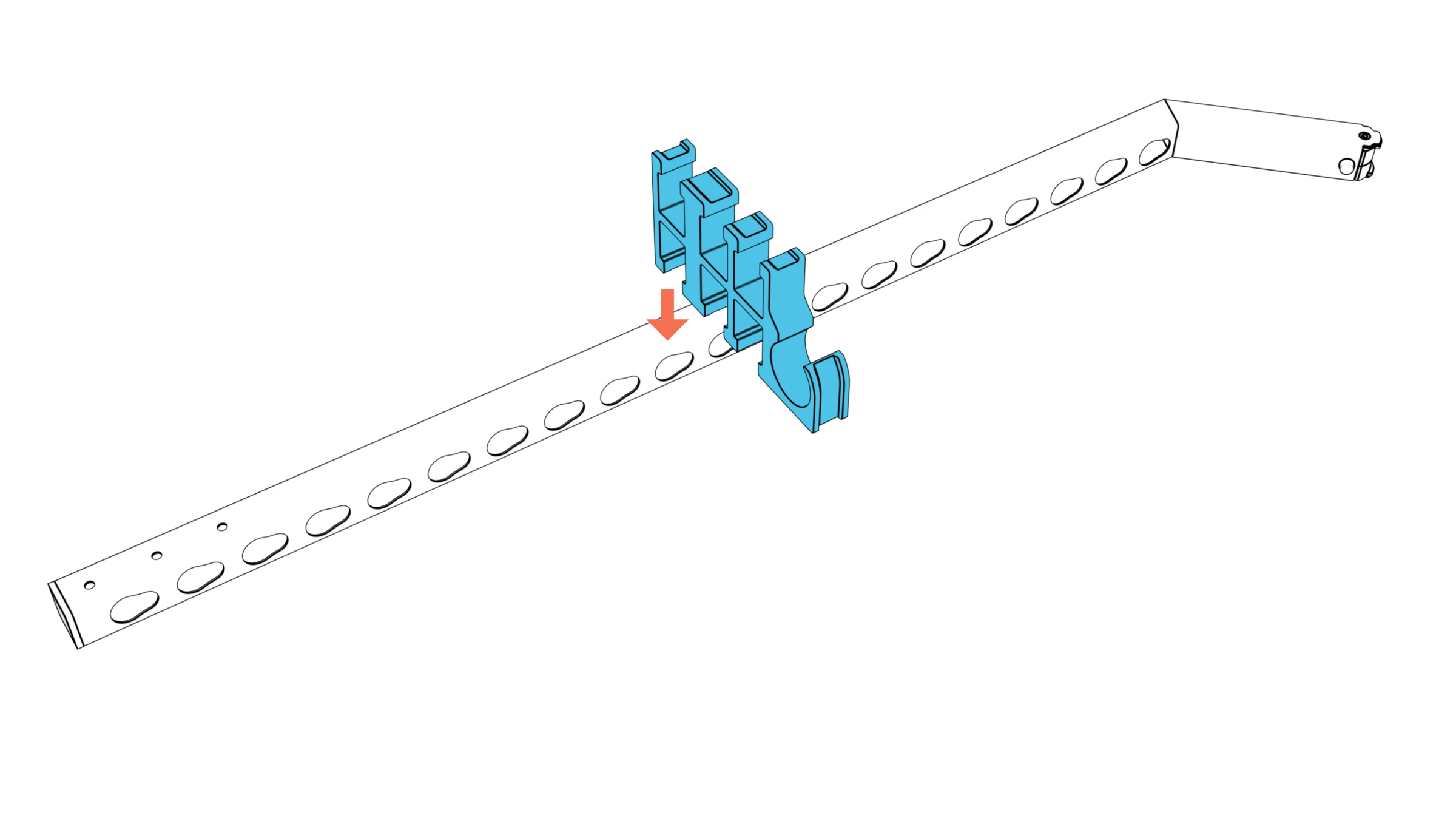

Enlarge image ↗ The first storage ring positioned on a disassembled column.

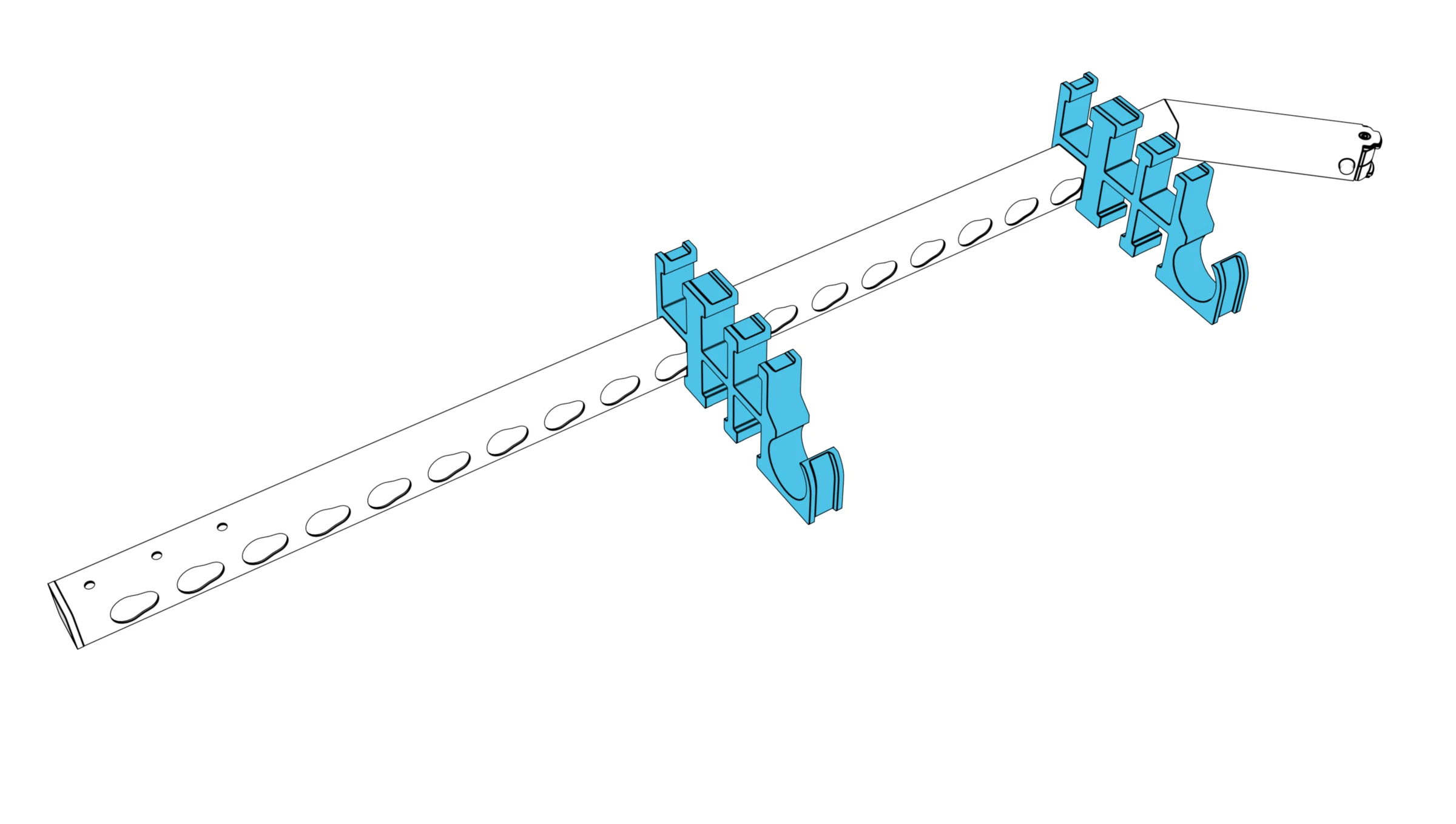

Place the second storage ring as shown.
Enlarge image ↗ Two storage rings positioned along the first column.
Place the second column as shown.

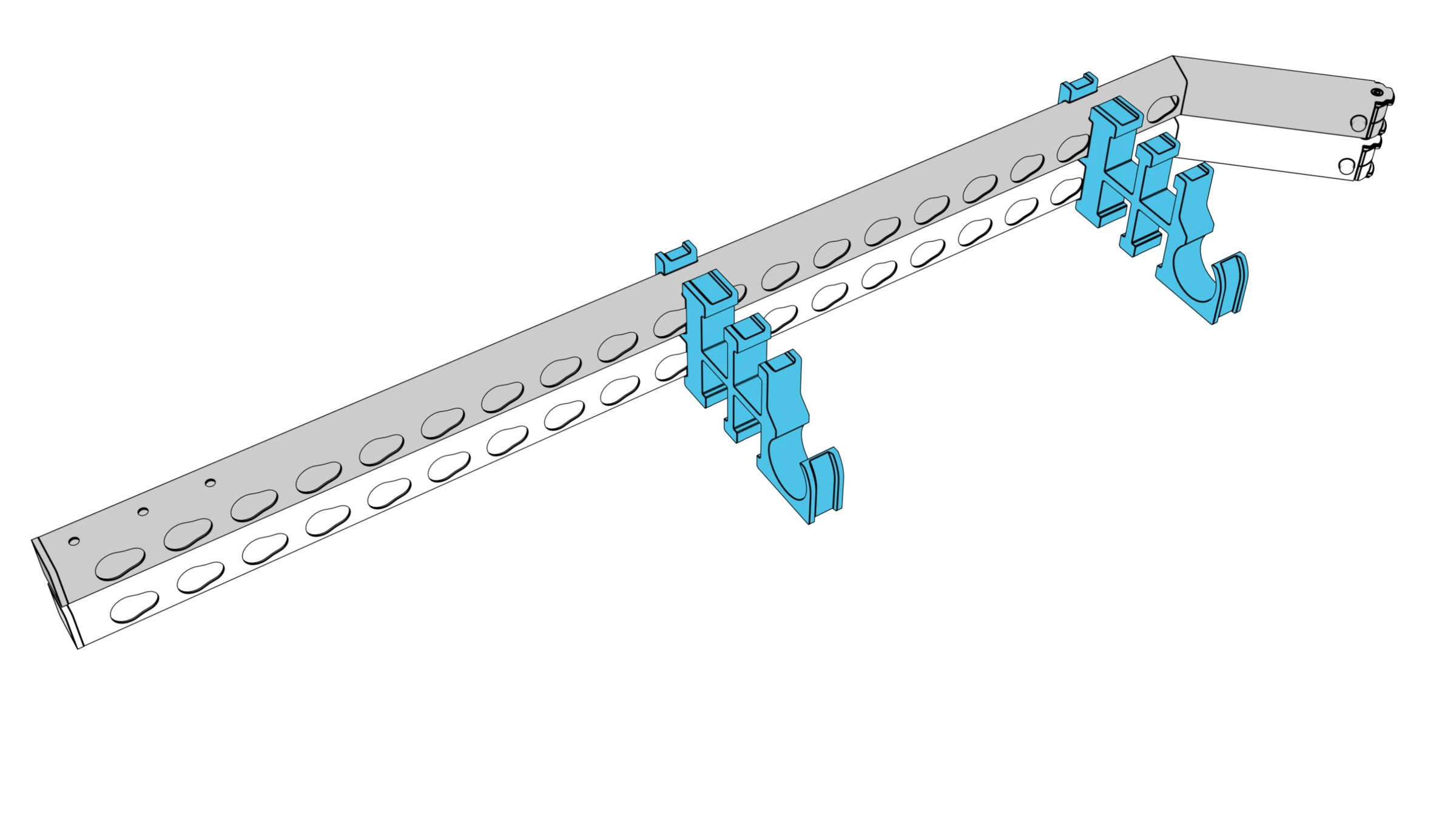

Enlarge image ↗ A second column nested beside the first within the storage rings.

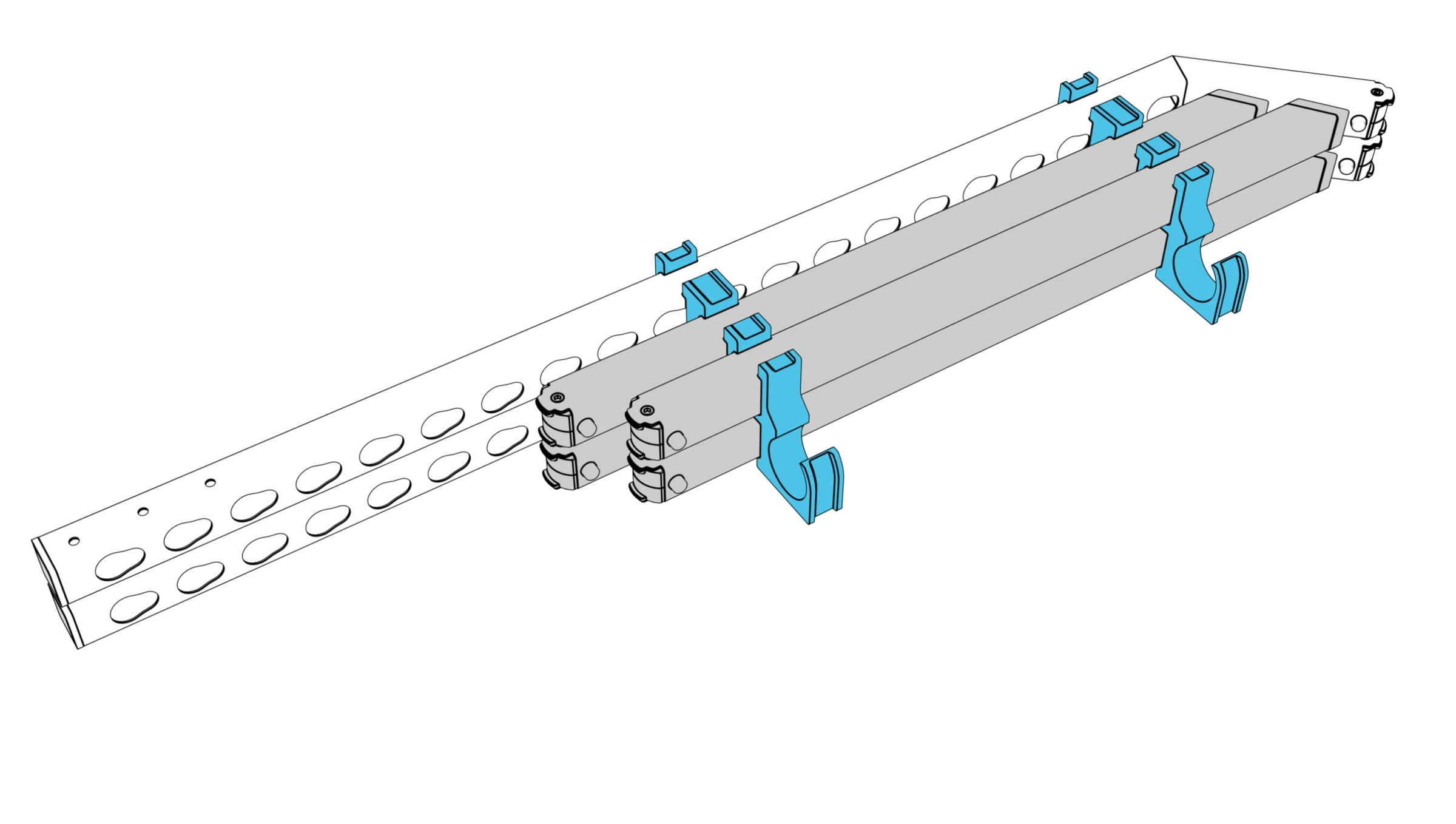

Place four legs as shown.
Enlarge image ↗ Four legs stacked within the storage rings beside the columns.
Place the beam as shown.

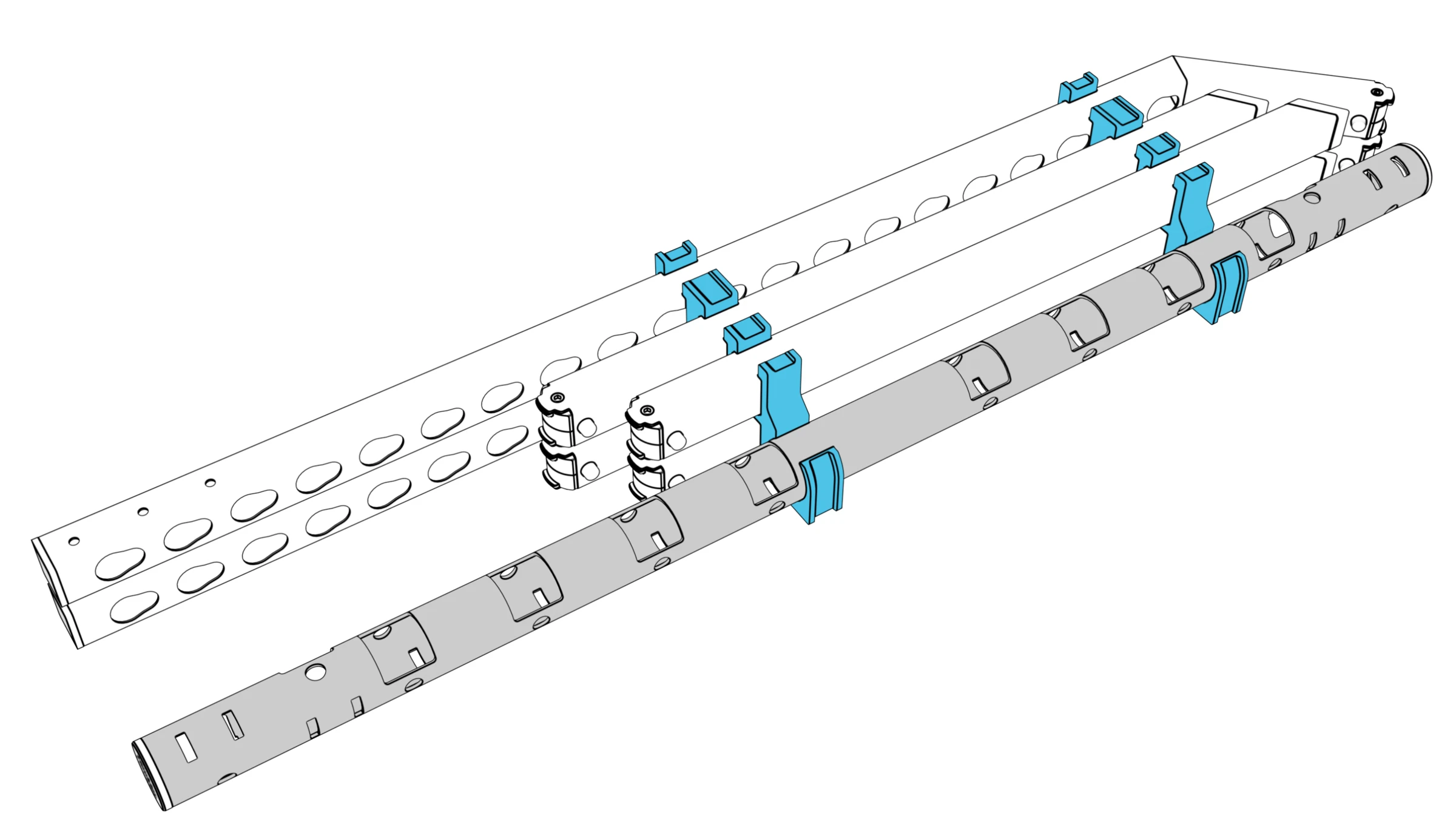

Enlarge image ↗ The beam positioned alongside the packed columns and legs.

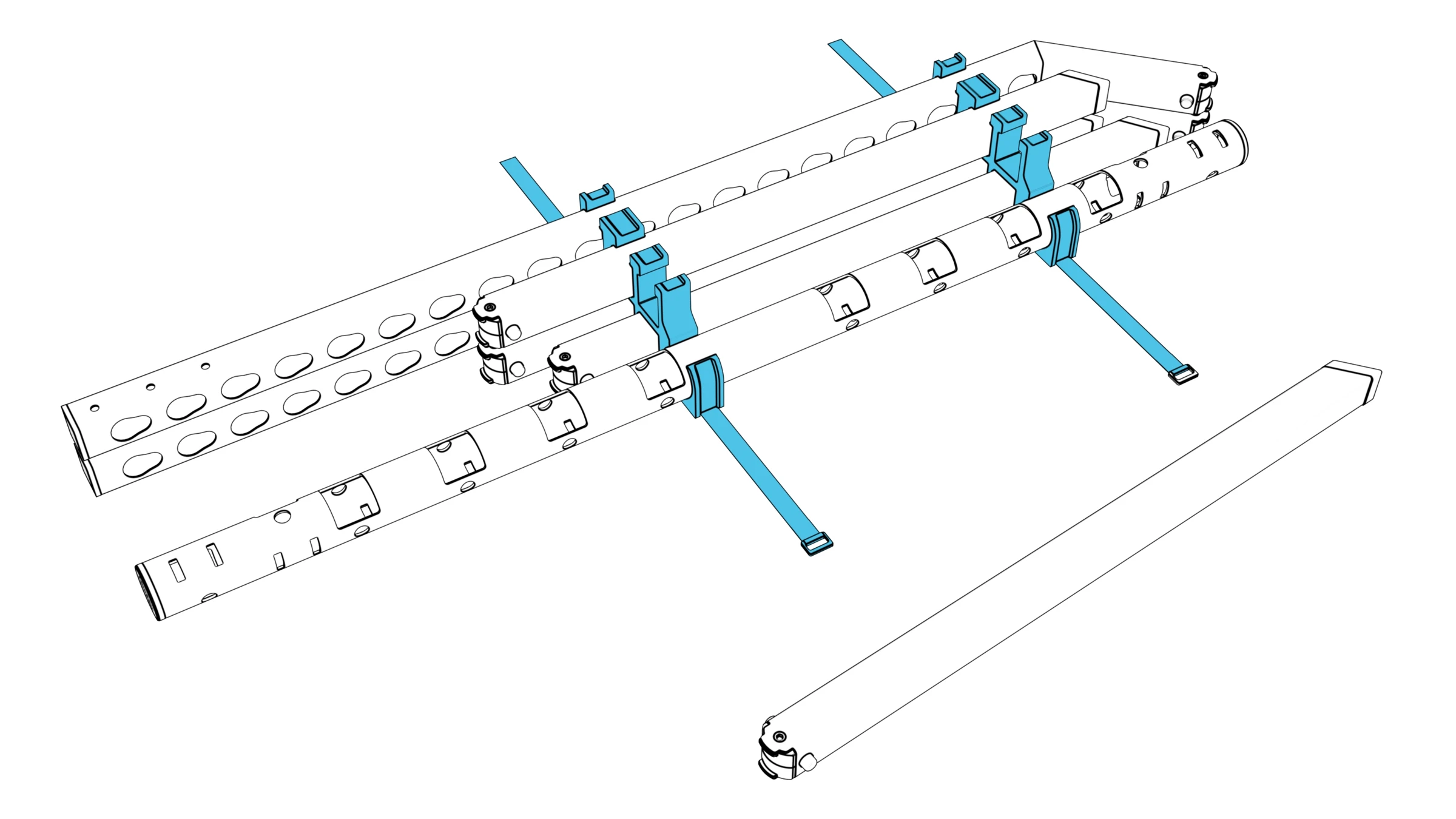

Install the Velcro straps with steel buckles.

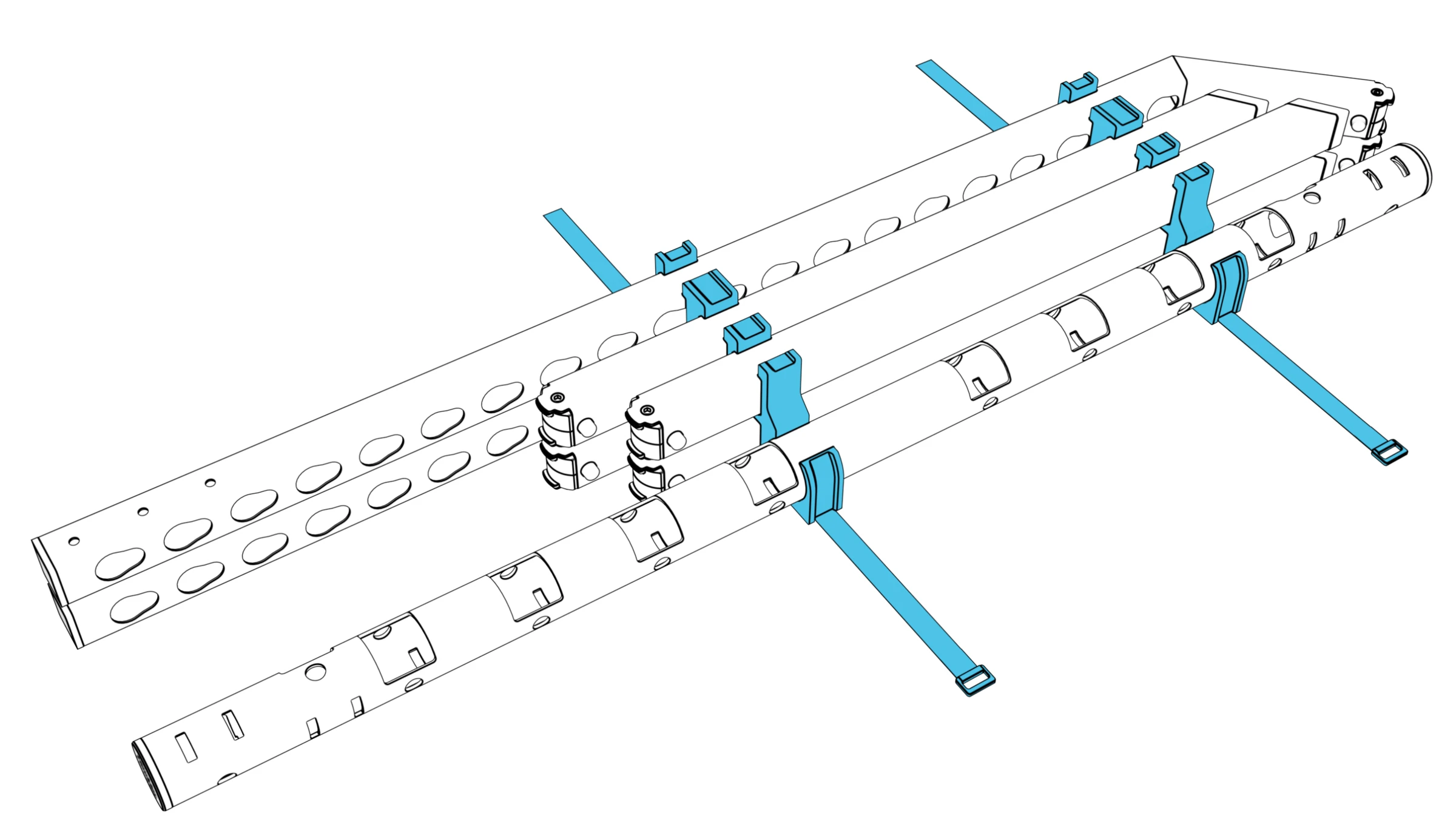

Enlarge image ↗ Two unfastened straps extended across the packed stand components and storage rings.

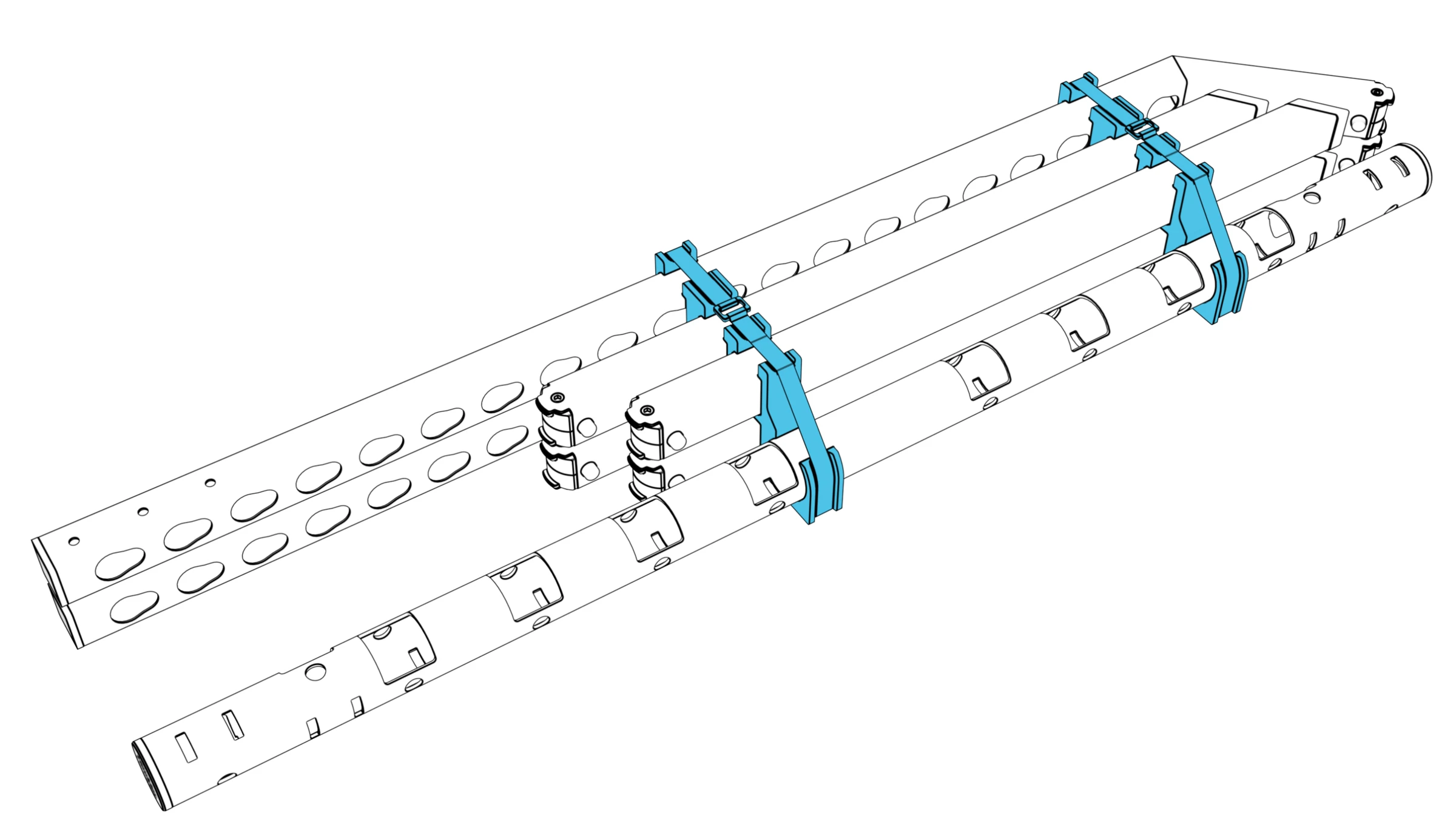

Enlarge image ↗ The straps fastened around the packed components.

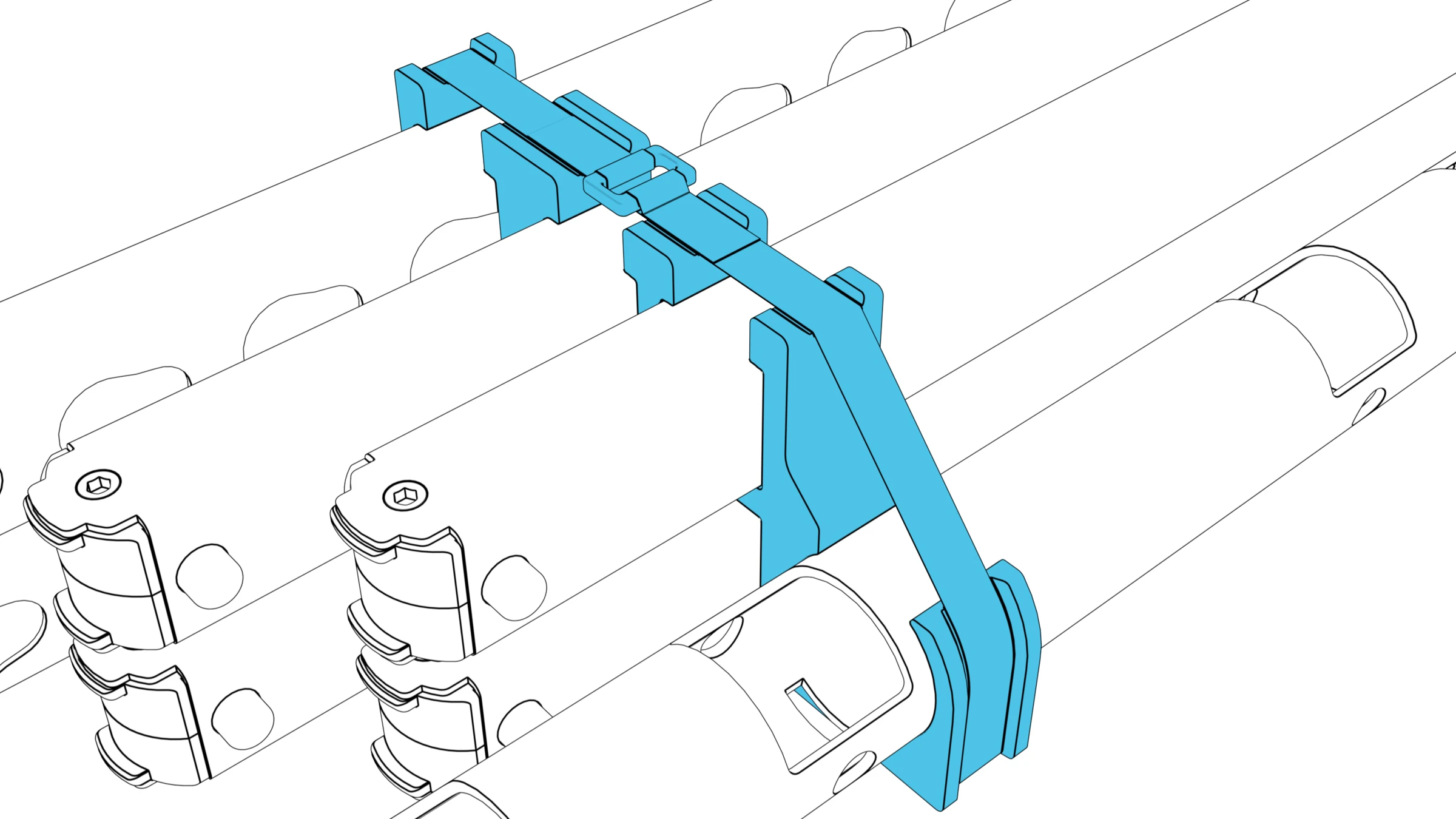

Enlarge image ↗ Close-up of a strap and steel buckle securing the packed stand components in a storage ring.
