←Back to Resource Library

CAD Drawing

Wall Mount MX for iPad for iPad mini 6th and 7th Generation and iPad Air 13-inch CAD Drawing

Download all (~1.7 MB)

CAD files

4 files

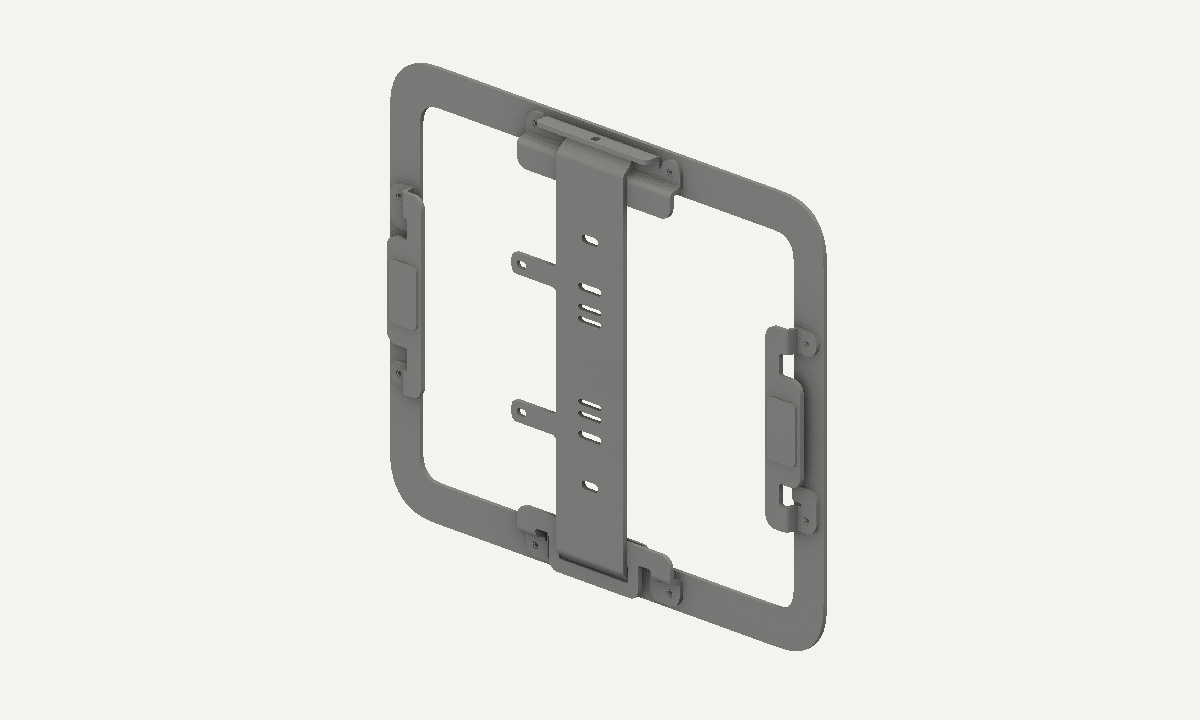

H649 Wall Mount MX for iPad Pro 12.9.STL

H649 H650 CAD files

Format: STL
Type: 3D model
Size: 765 KB

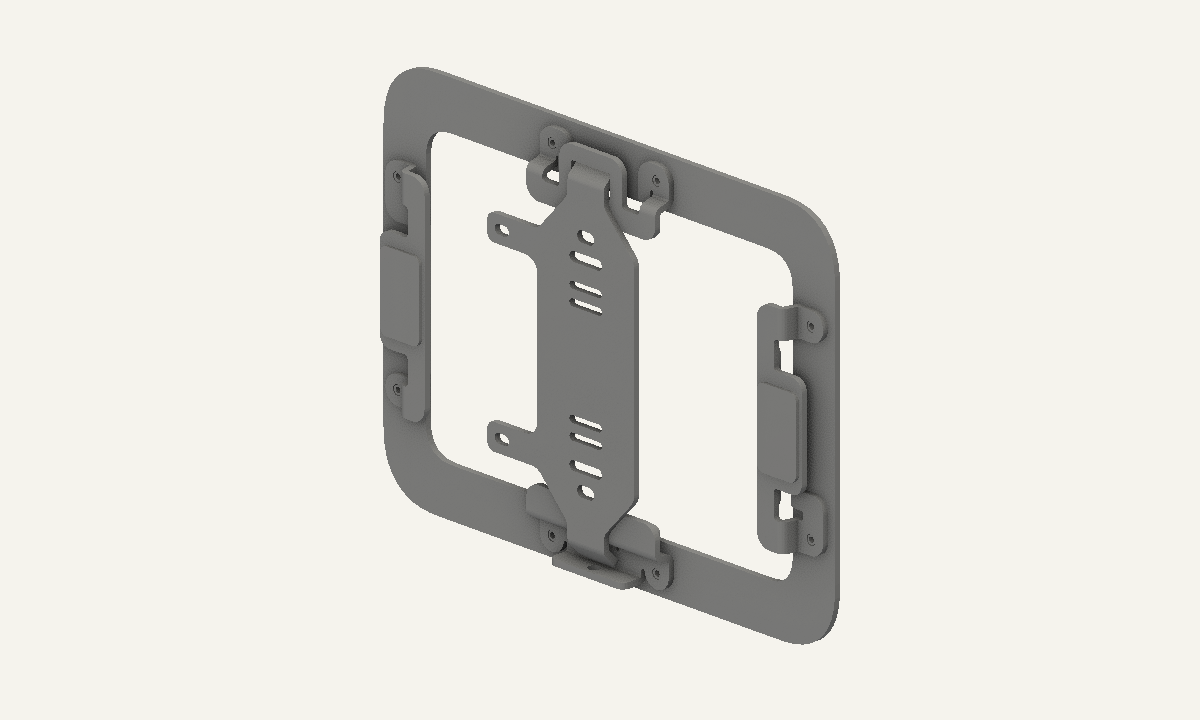

H650 Wall Mount MX for iPad mini 6th gen.STL

H649 H650 CAD files

Format: STL
Type: 3D model
Size: 770 KB

DWG

H649 Wall Mount MX for iPad pro 12.9 2D drawing.DWG

H649 H650 CAD files

Format: DWG
Type: 2D drawing
Size: 96 KB

DWG

H650 Wall Mount MX for iPad mini 2D drawing.DWG

H649 H650 CAD files

Format: DWG
Type: 2D drawing
Size: 98 KB
