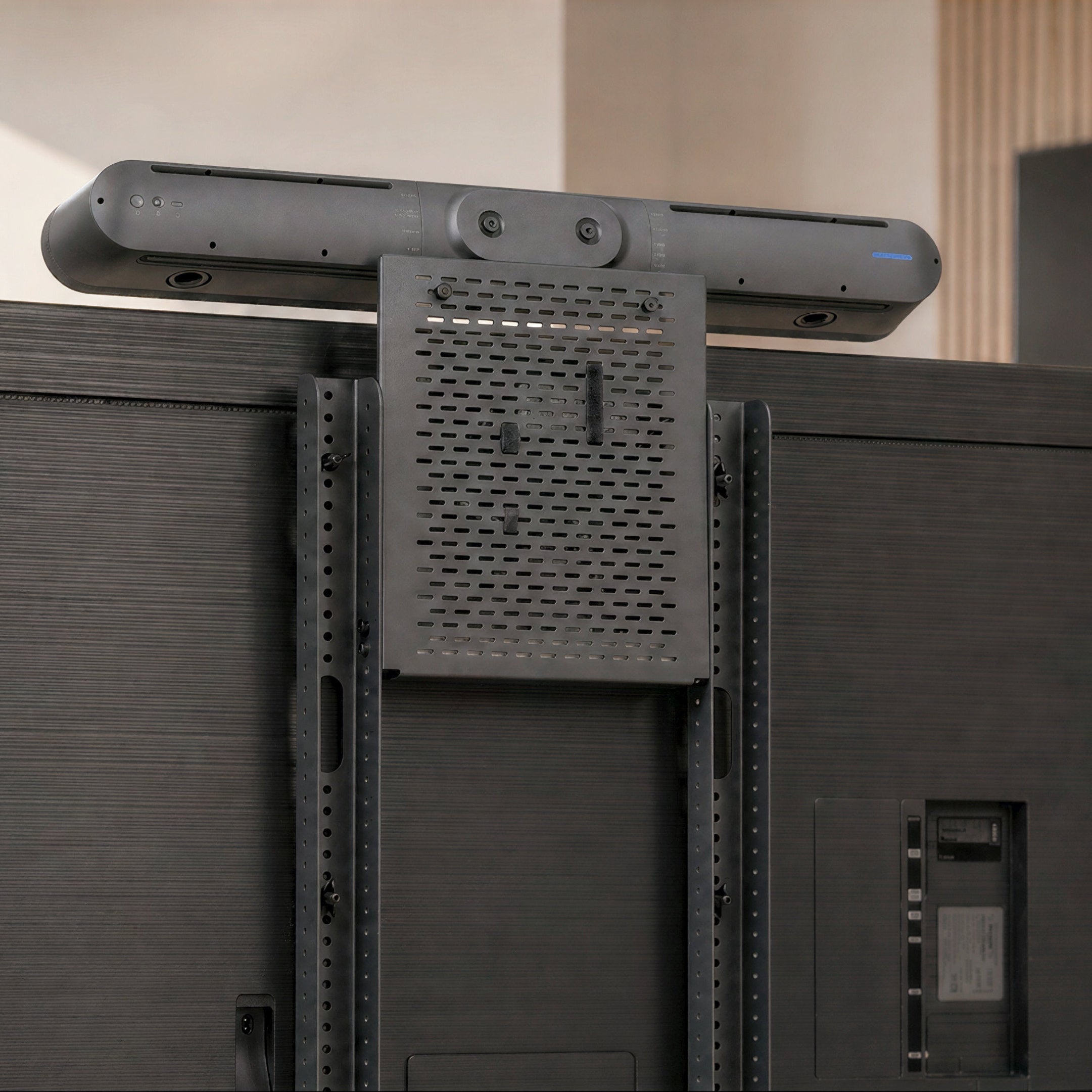

Device Panel for Heckler AV Cart
Swing-down mounting panel for cameras, conference bars, and compute — mounts above or below the display
Usually ships within 3 business days.
This estimate could move a few days.
| Quantity | Usually ships |
|---|---|
| 1–100 your quantity | Within 3 business days |
| 101 or more | Confirmed with your order · Add to quote to confirm it first |
Business days are Monday to Friday, not counting days Heckler is closed. A week here means 5 business days.
Ships means it leaves Phoenix, Arizona. Transit time depends on the carrier and the destination.
The daily order cutoff is 12 PM Arizona time. Overnight shipping speeds up delivery, not the ship date. Shipping & Delivery Policy
Each color is estimated on its own. For mixed orders, we confirm the lead time with your order.
Estimates round up and can move until you order. Terms of Service, section 5
- Request a quote or buy online
- Dealer support available
- Warranty-backed hardware

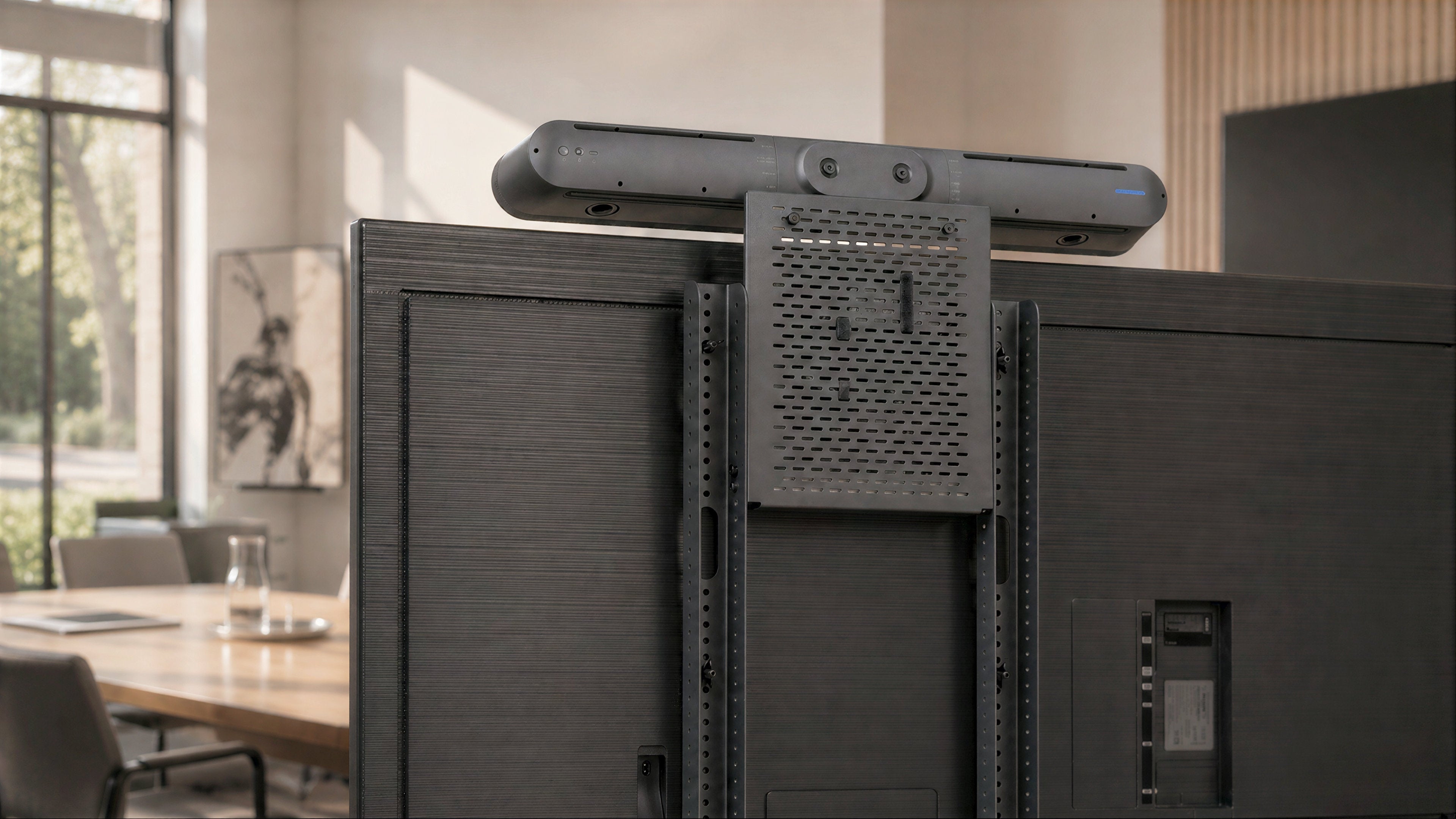

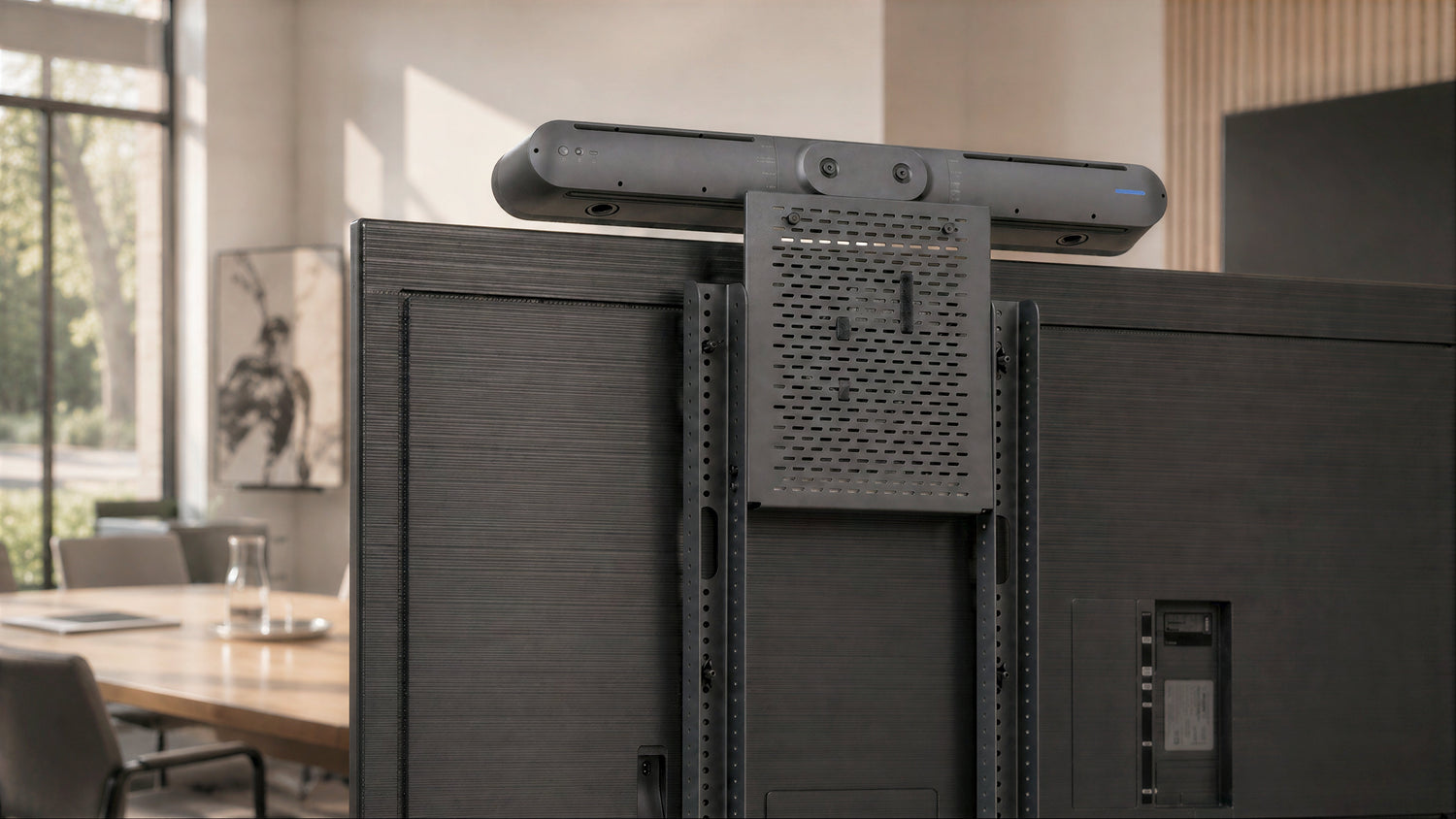

Mount cameras, conference bars, and compute above or below your Heckler AV Cart display. Device Panel's swing-down hinge provides tool-free access to cabling and devices for fast maintenance. Pre-configure systems at the bench, then ship to site — deploy dozens of carts per day with a small crew. Includes PTZ camera adapter for 1/4-20 mount cameras.
Packaging & shipping
- Box dimensions
- 15.875 × 14.75 × 2.5 in
- Boxed weight
- 3.01 lb
- Country of origin
- US
- HS code
- 9403.20
- Schedule B
- 9403.20.0030
- Made in Arizona
- Designed by Heckler
- Commercial-grade steel
- Durable powdercoat finish
- TAA compliant
- Patented design
- Ships globally via common carriers
- Hospital-grade disinfectants compatible
- Paper-first packaging
- Simple assembly
- ADA-conscious design

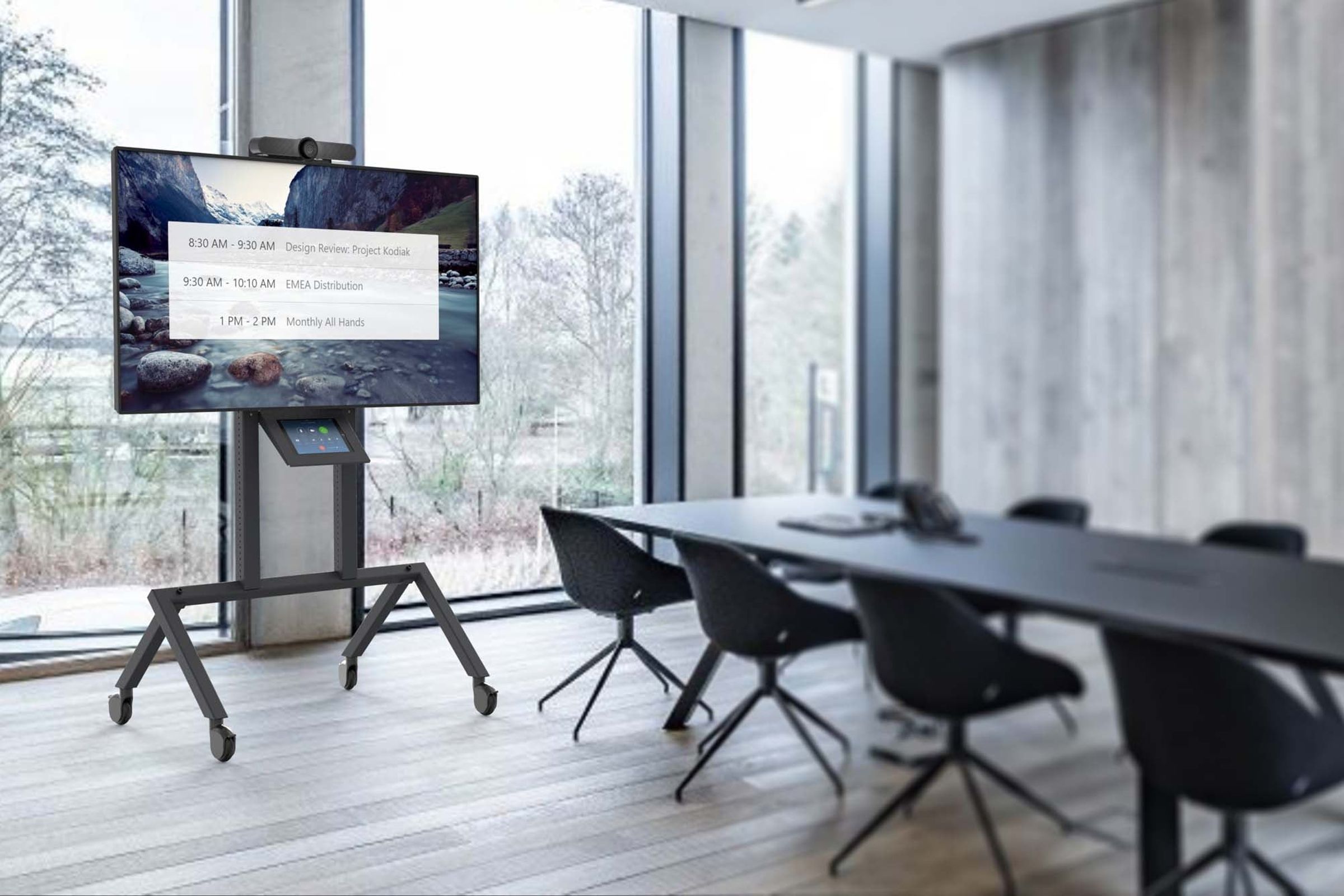

Deploy self-contained video meeting carts across your enterprise.
Device Panel turns each Heckler AV Cart into a fully configured, ready-to-roll video meeting station. Pre-mount your camera, conference bar, compute, and cabling — then deploy wherever your teams need to meet.

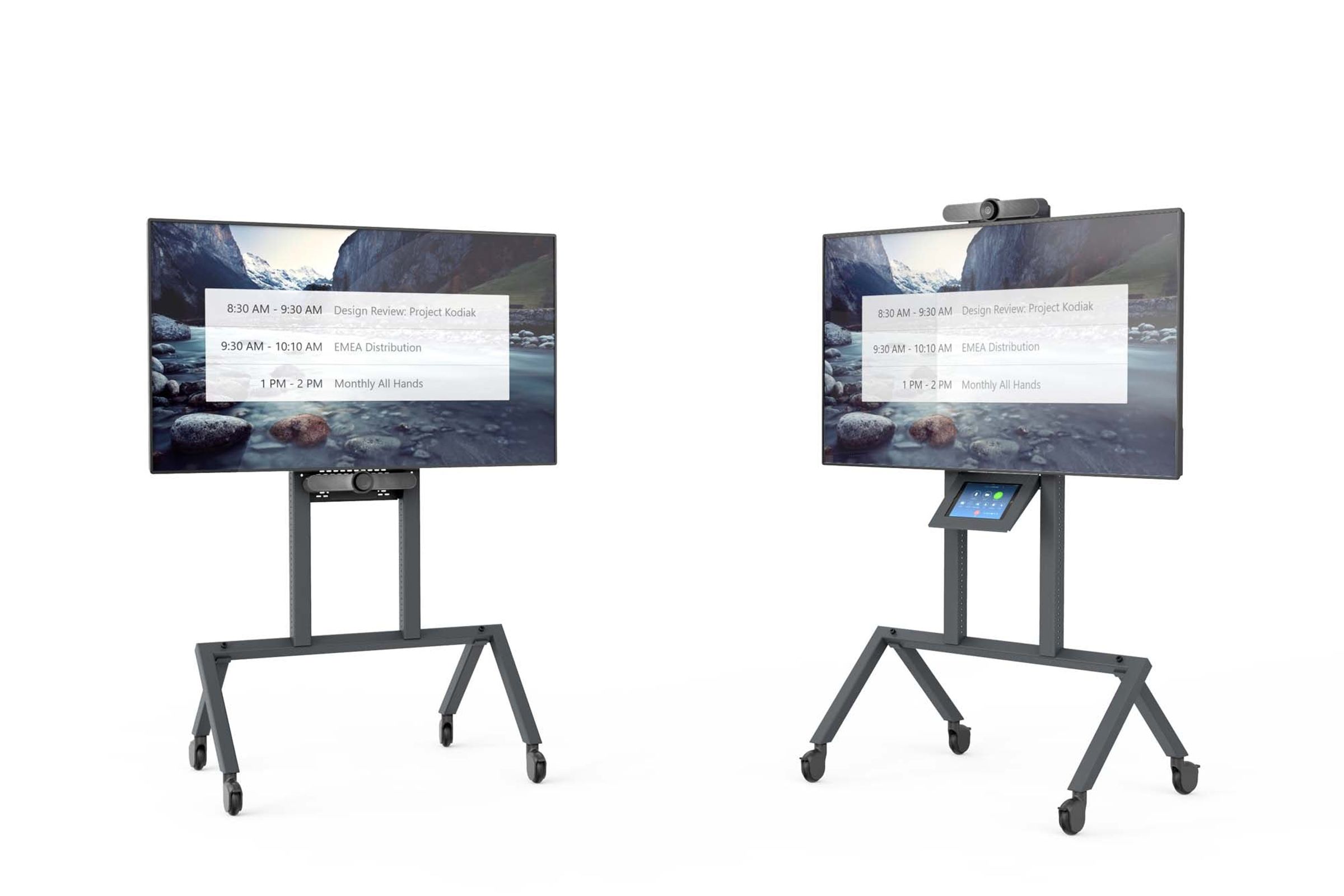

Mount above. Mount below.
Install Device Panel above the display for elevated camera angles in large rooms, or below the display for seated-eyeline positioning in huddle spaces. Both orientations maintain full compatibility with Heckler AV Cart's cable management system.

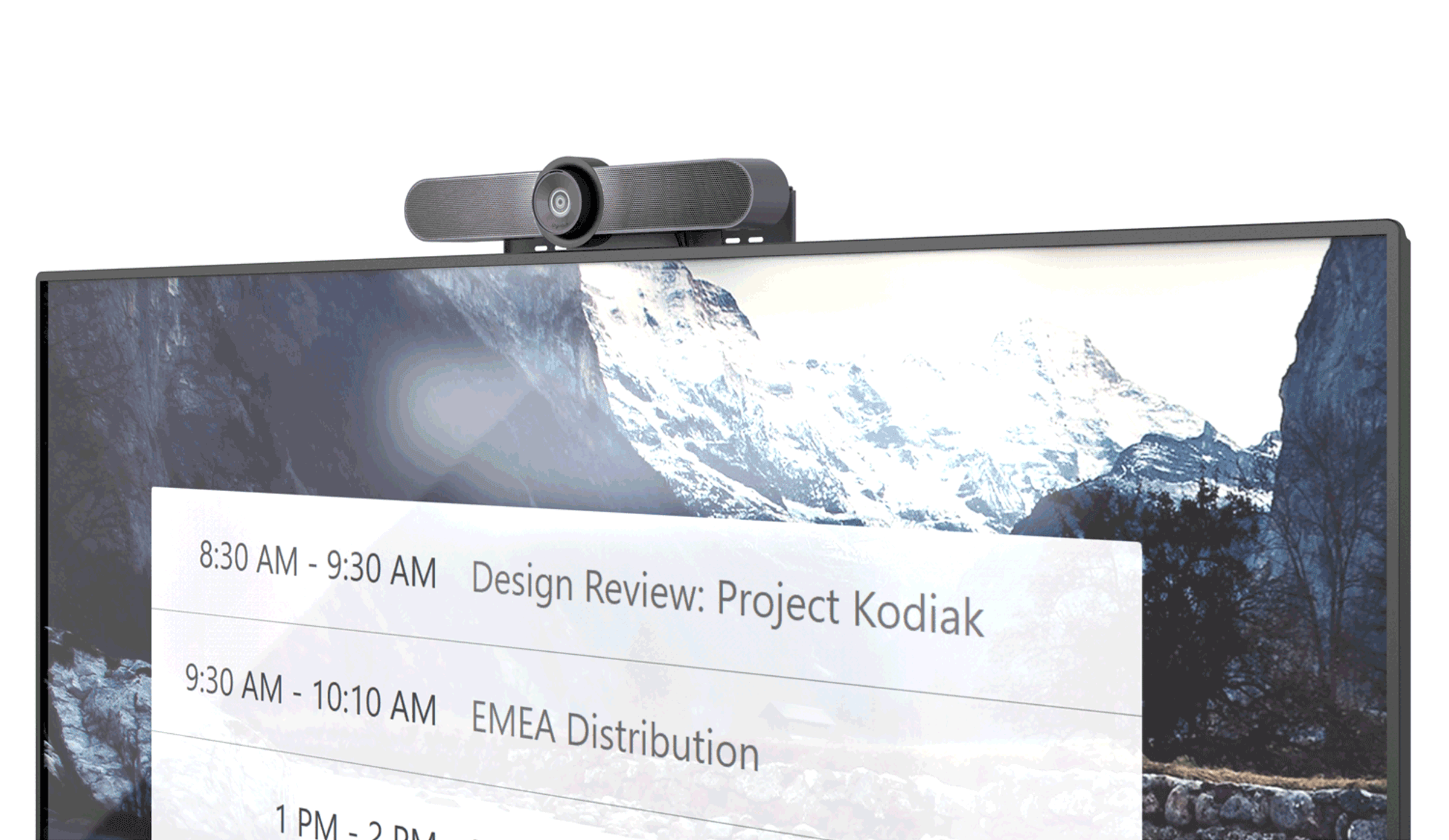

Natively compatible with 20+ cameras and conference bars.
Device Panel includes purpose-built mounting provisions for Logitech, Neat, Poly, Jabra, AVer, Bose, and PTZOptics devices. See the full compatibility list in Specifications.

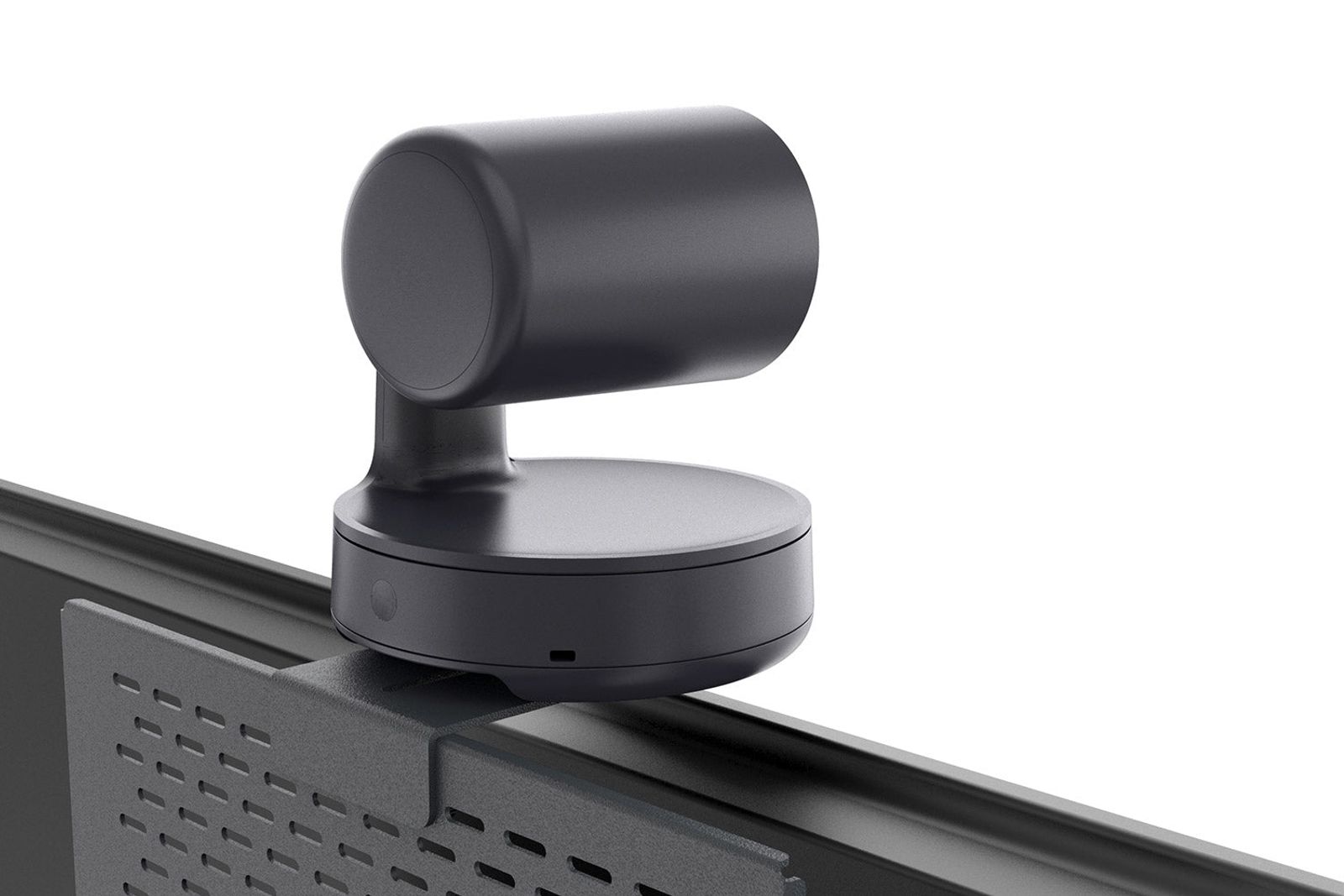

Included PTZ camera adapter with standard 1/4-20 mount.
Mount any PTZ camera with a standard 1/4-20 threaded hole using the included adapter. No additional hardware required.

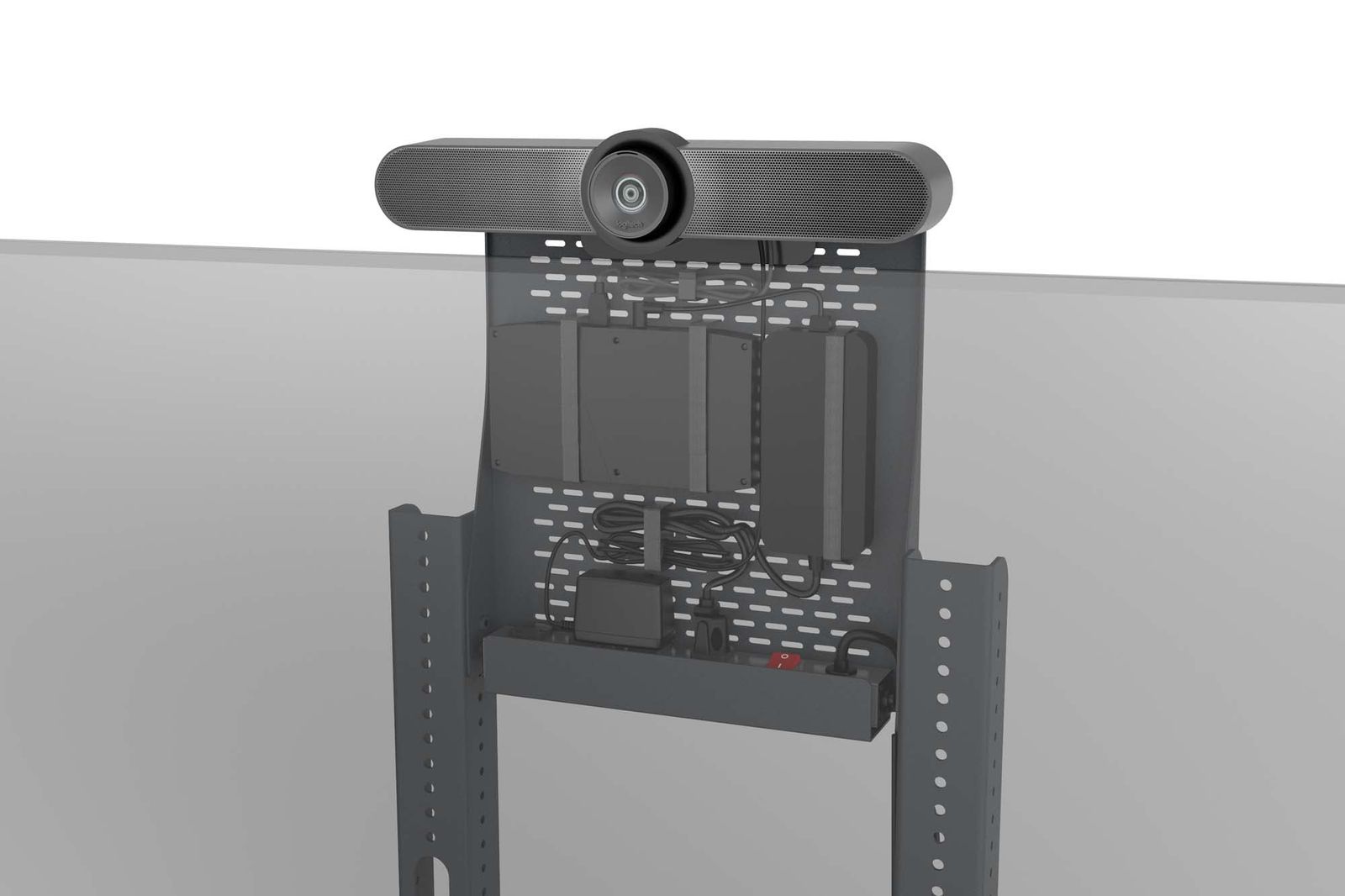

Configure offsite. Save time onsite.
Pre-mount compute, cabling, and power adapters to Device Panel at the bench, then ship to site. Deploy dozens of fully configured AV Carts per day with a small crew.

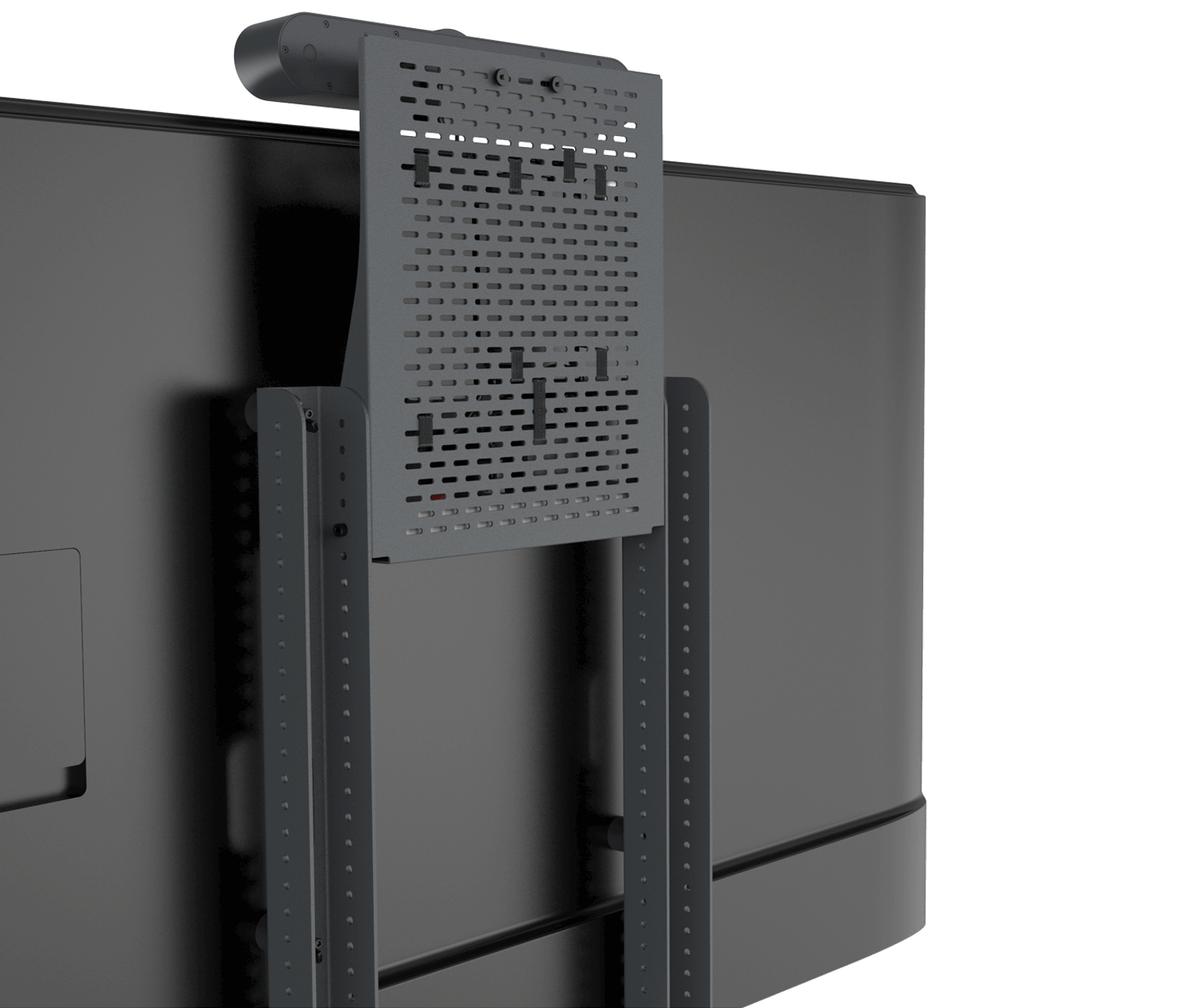

Swing up. Swing down.
Device Panel's integrated hinge swings down for tool-free access to cabling, compute, and mounted devices — without removing the display. Swap a camera or re-route a cable in minutes, not hours.
Specifications
- Warranty
- 2 years
- Product Dimensions
- 13.2 x 15.5 x 2.2 inches 336 x 394 x 55 mm
- Shipping Dimensions
- 15 x 16 x 3inches 406 x 406 x 76 mm
- Compatible Devices
- Logitech MeetUp Logitech Rally Camera Neat Bar Neat Bar Pro Poly X30 Poly X50 Poly X70 Poly X72 Poly Studio Poly Cube AVer CAM520 AVer CAM540 TelyCam TLC-300-IP-12 HD TelyCam TLC-300-U2-12 Bose Video Bar VB1 PTZOptics PT12X-USB PTZOptics PT12X-SDI PTZOptics PT20X-SDI PTZOptics PT30X-SDI Sonos Beam with Wall Mount Jabra PanaCast 50
- Material
- Powdercoated Steel
- Product Weight
- 5.9 lbs /2.6 kg
- Shipping Weight
- 6.8 lbs / 3.1 kg

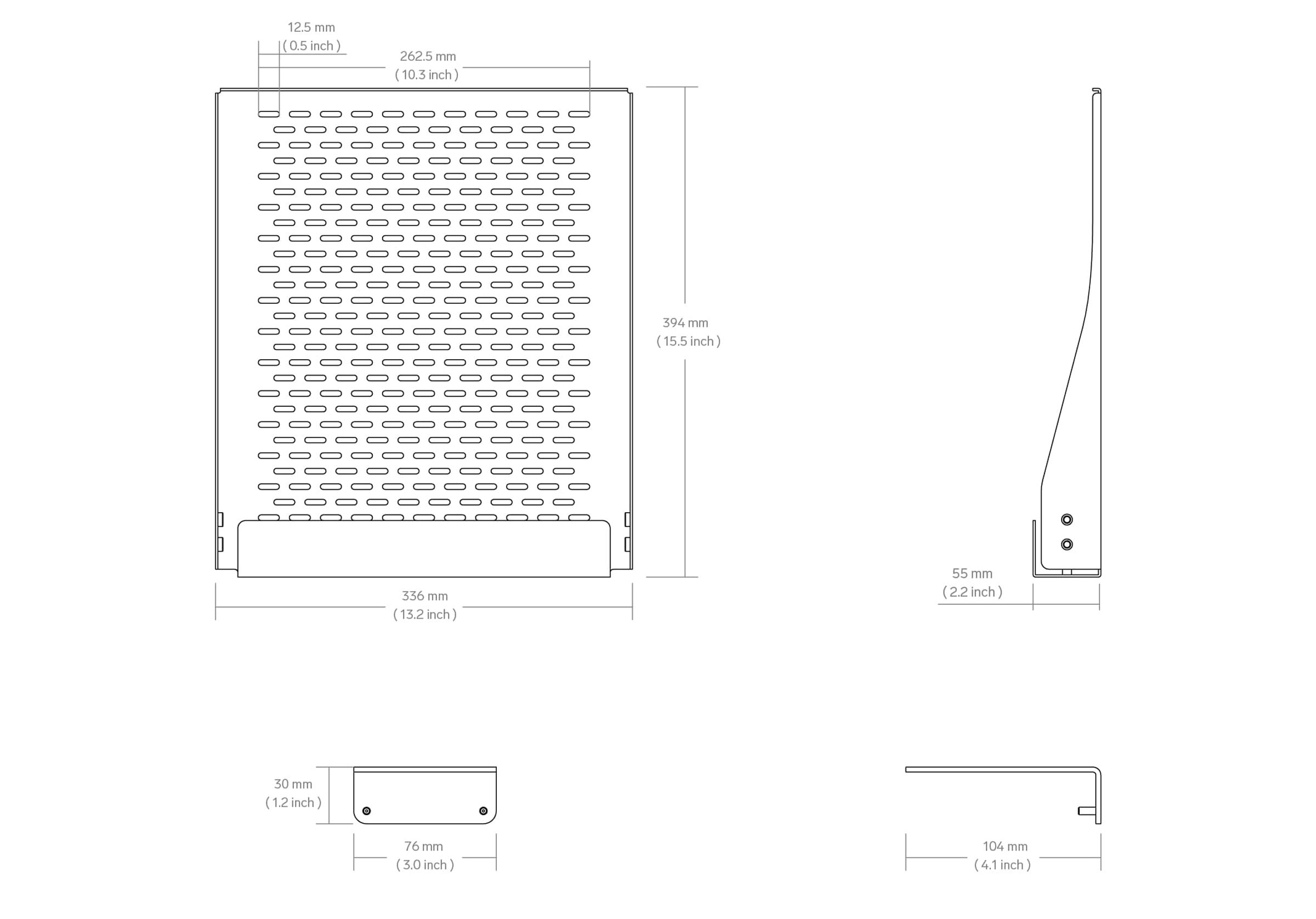

Technical drawing

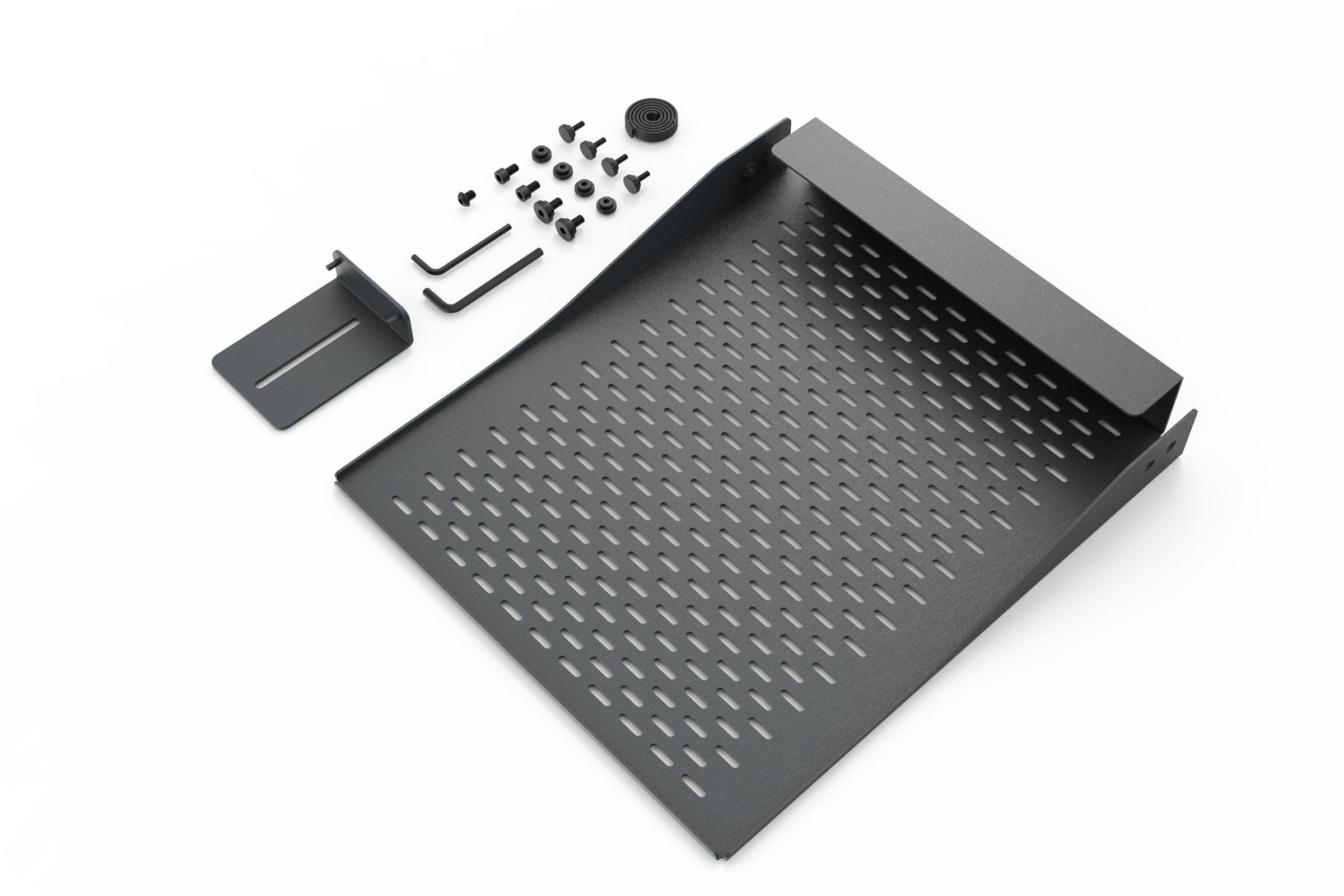

In the box
- Device panel for Hecker AV Cart
- PTZ camera adapter
- Hook and loop strap
- Assembly hardware
