Eyeline Camera Mount for Dual Displays
1/4"-20 Camera Mount for Eyeline Positioning Between Dual Displays
Usually ships today.
Order by 12 PM Arizona time to ship today.
| Quantity | Usually ships |
|---|---|
| 1–45 your quantity | Today or the next business day |
| 46–80 | Within 3 business days |
| 81–100 | Within 5 weeks |
| 101 or more | Confirmed with your order · Add to quote to confirm it first |
Business days are Monday to Friday, not counting days Heckler is closed. A week here means 5 business days.
Ships means it leaves Phoenix, Arizona. Transit time depends on the carrier and the destination.
The daily order cutoff is 12 PM Arizona time. Overnight shipping speeds up delivery, not the ship date. Shipping & Delivery Policy
Each color is estimated on its own. For mixed orders, we confirm the lead time with your order.
Estimates round up and can move until you order. Terms of Service, section 5
- Request a quote or buy online
- Dealer support available
- Warranty-backed hardware
A powder coated steel mount that positions conferencing cameras at eyeline between two side-by-side displays. Universal 1/4"-20 mounting standard. Adjustable arm accommodates display protrusions from 3 to 5 inches. Compatible with wall installations and dual-display Heckler AV Carts. Integrated cable pass-through conceals the USB cable and wall penetration.
Packaging & shipping
- Box dimensions
- 5.75 × 3.5 × 3.375 in
- Boxed weight
- 0.26 lb
- Country of origin
- US
- HS code
- 8473.30
- Schedule B
- 8473.30.0002
- Made in Arizona
- Designed by Heckler
- Commercial-grade steel
- Durable powdercoat finish
- TAA compliant
- Patented design
- Ships globally via common carriers
- Hospital-grade disinfectants compatible
- Paper-first packaging
- Simple assembly
- ADA-conscious design

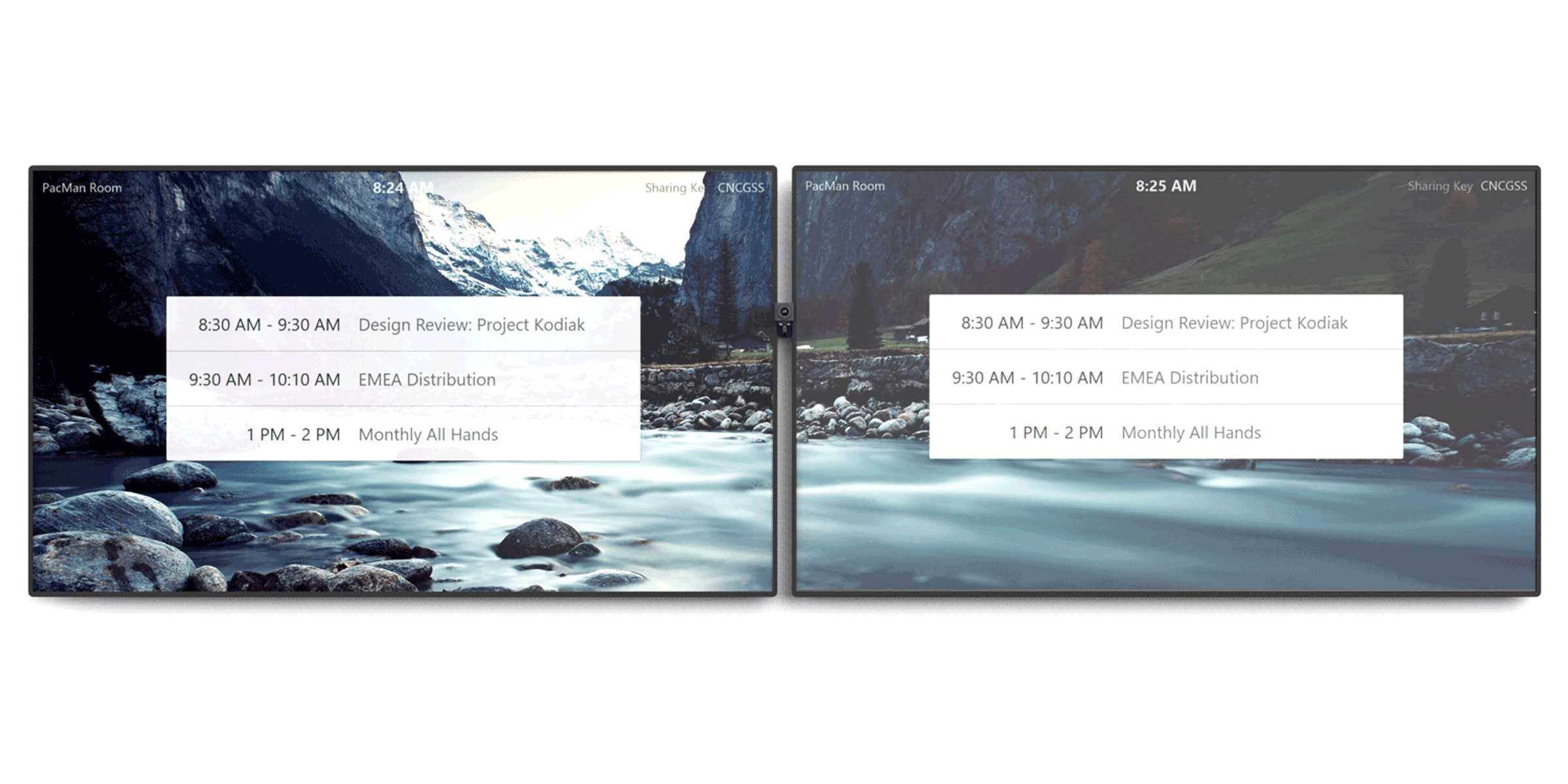

Camera at Eyeline. Displays at Optimal Height.
The Eyeline Camera Mount positions the conferencing camera between two side-by-side displays, placing the lens at participants' natural eyeline. Both displays sit at the optimal viewing height — no tradeoff between camera angle and screen position.

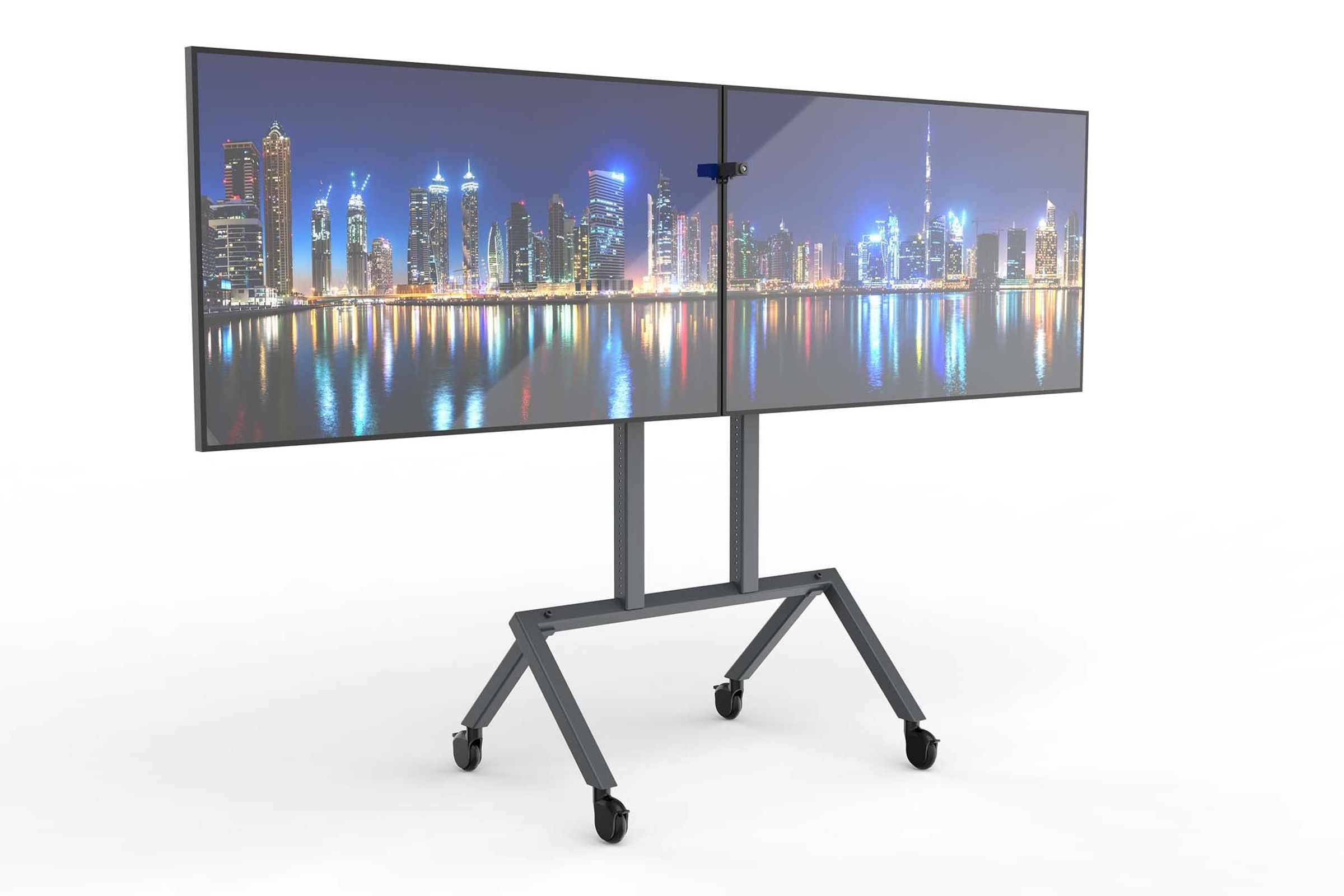

Mobile Dual-Display Collaboration
Pair the Eyeline Camera Mount with a dual-display Heckler AV Cart. The camera mounts to either the upper or lower display bar, creating an eyeline conferencing experience that rolls between classrooms, production floors, and collaboration spaces.

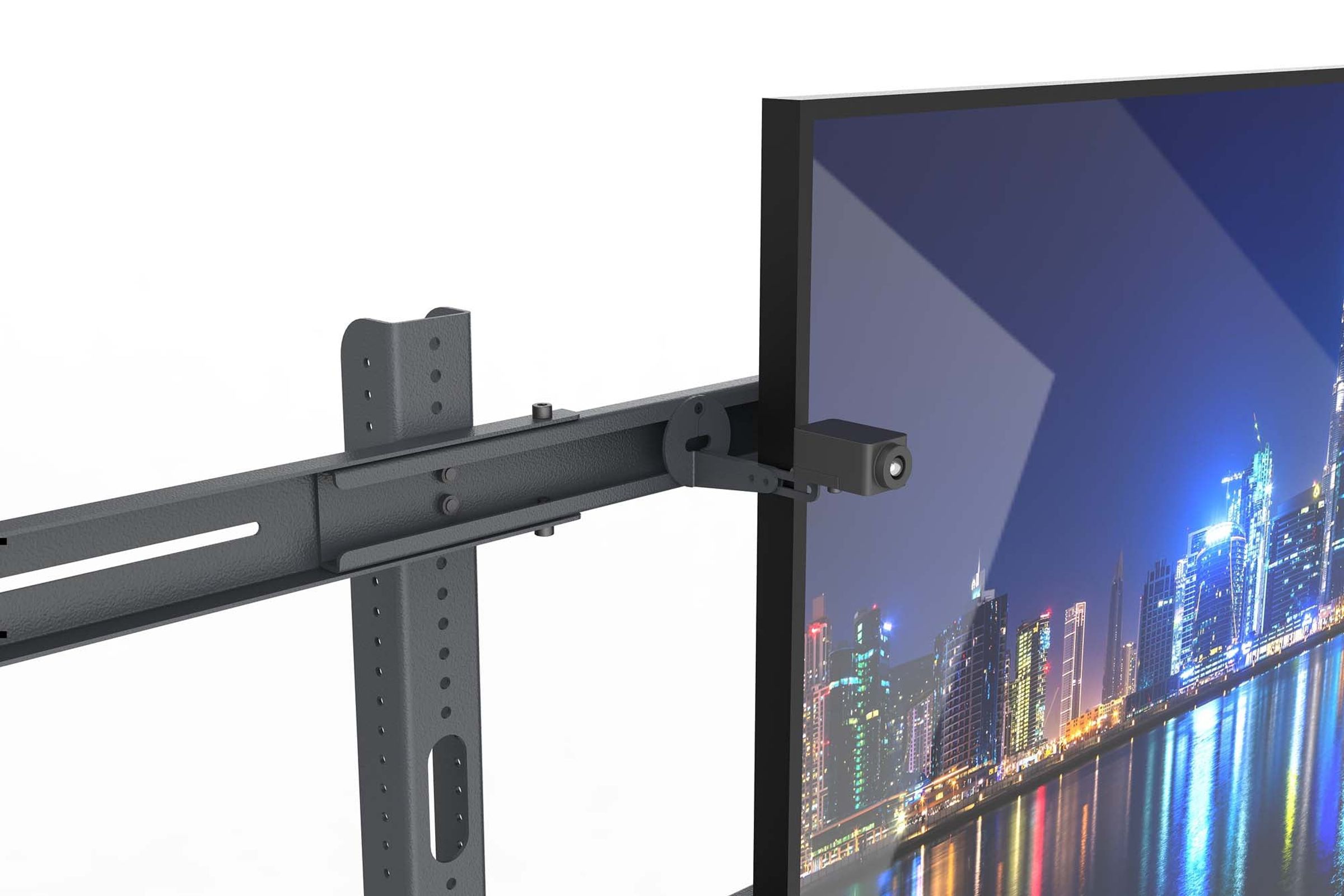

AV Cart Compatible.
Mounts to the upper or lower Dual Display bar on Heckler AV Carts. Supports eyeline camera positioning for both seated and standing meeting configurations.

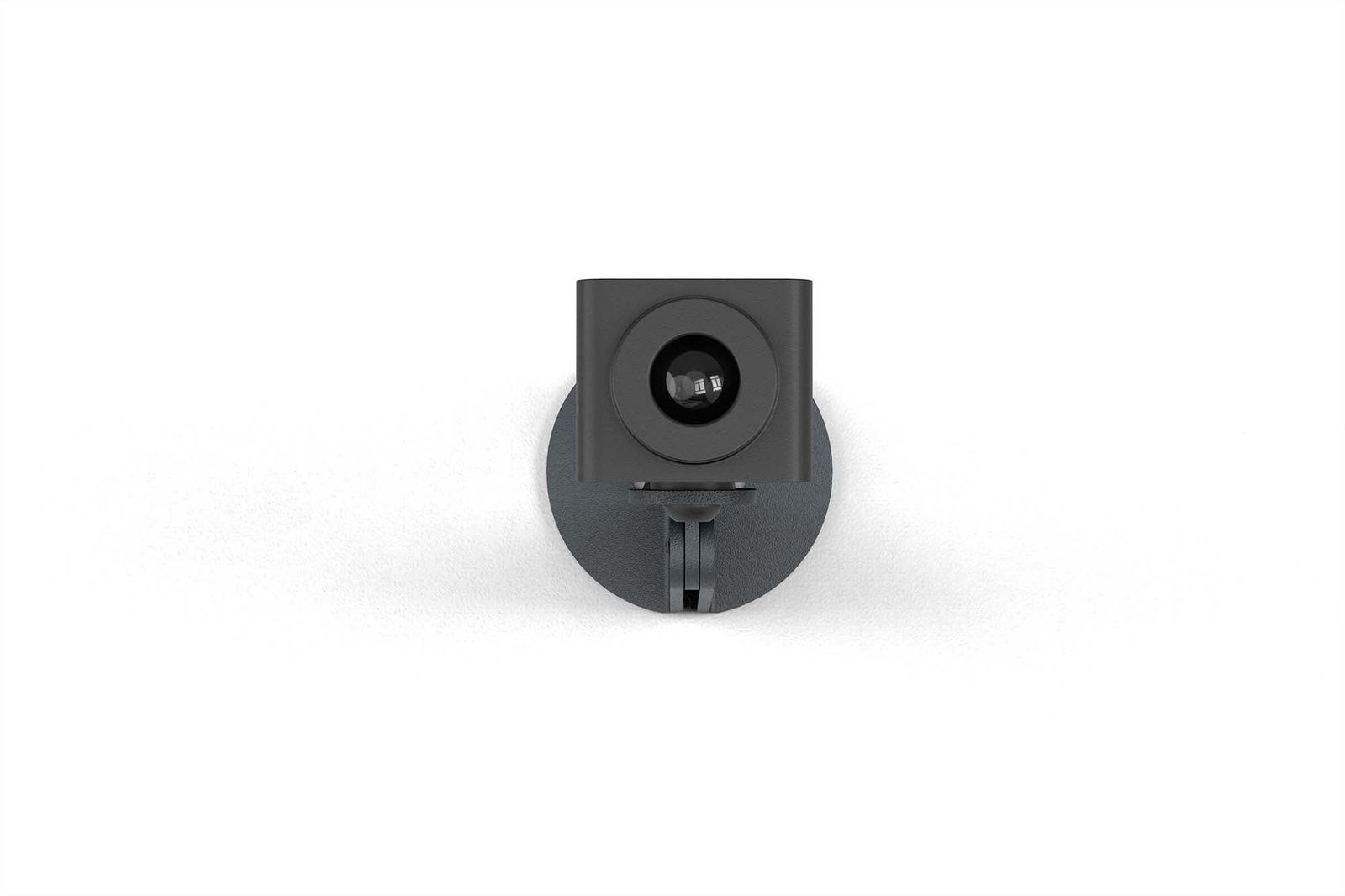

Clean Architectural Lines
The Eyeline Camera Mount sits between or beside displays with a minimal visual footprint. Powdercoated steel finish matches Heckler AV Cart hardware.

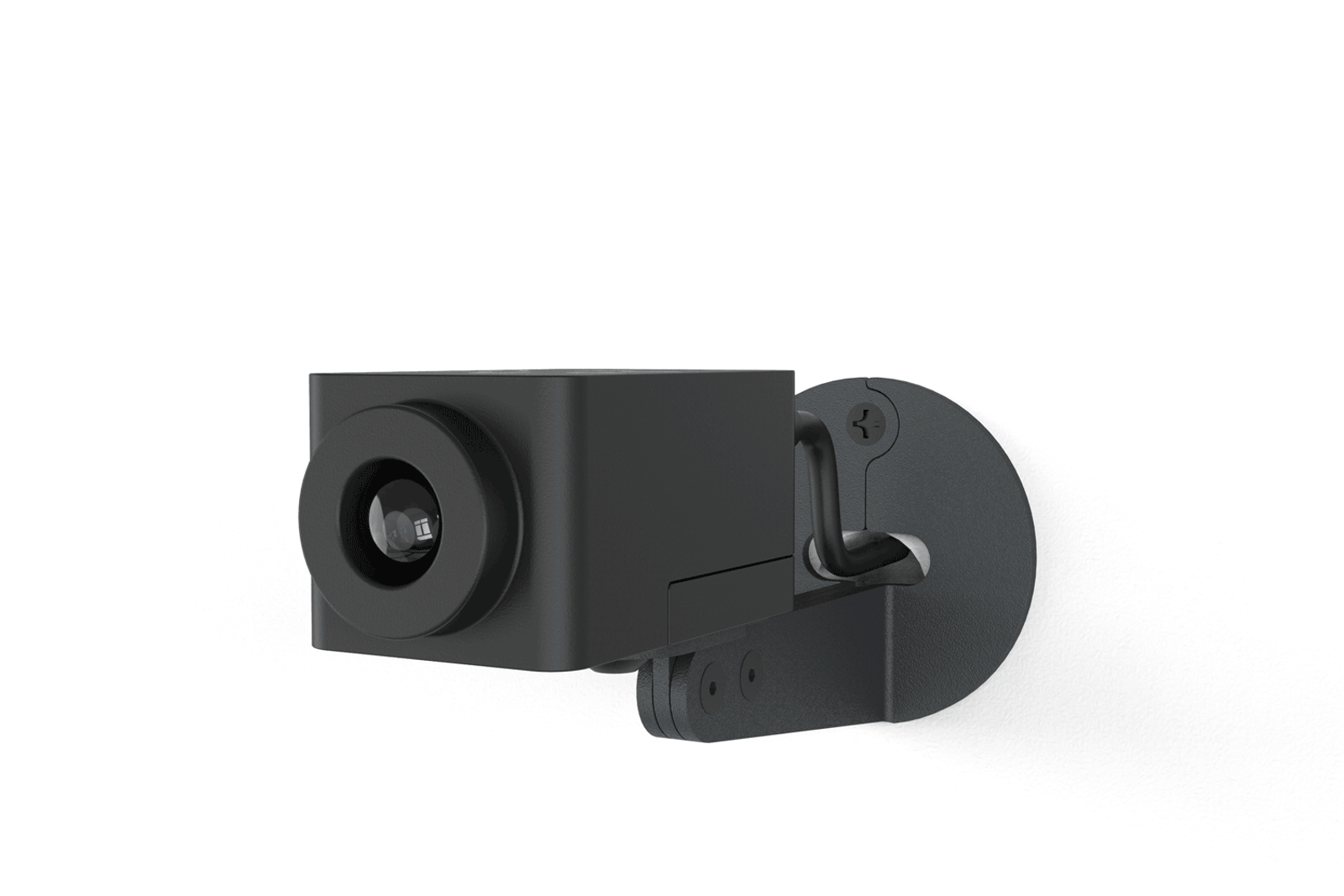

Multi-Camera Compatibility
Universal 1/4"-20 mounting standard. Compatible with Huddly IQ, Huddly GO, Logitech BRIO, Jabra PanaCast, and AVer CAM340.

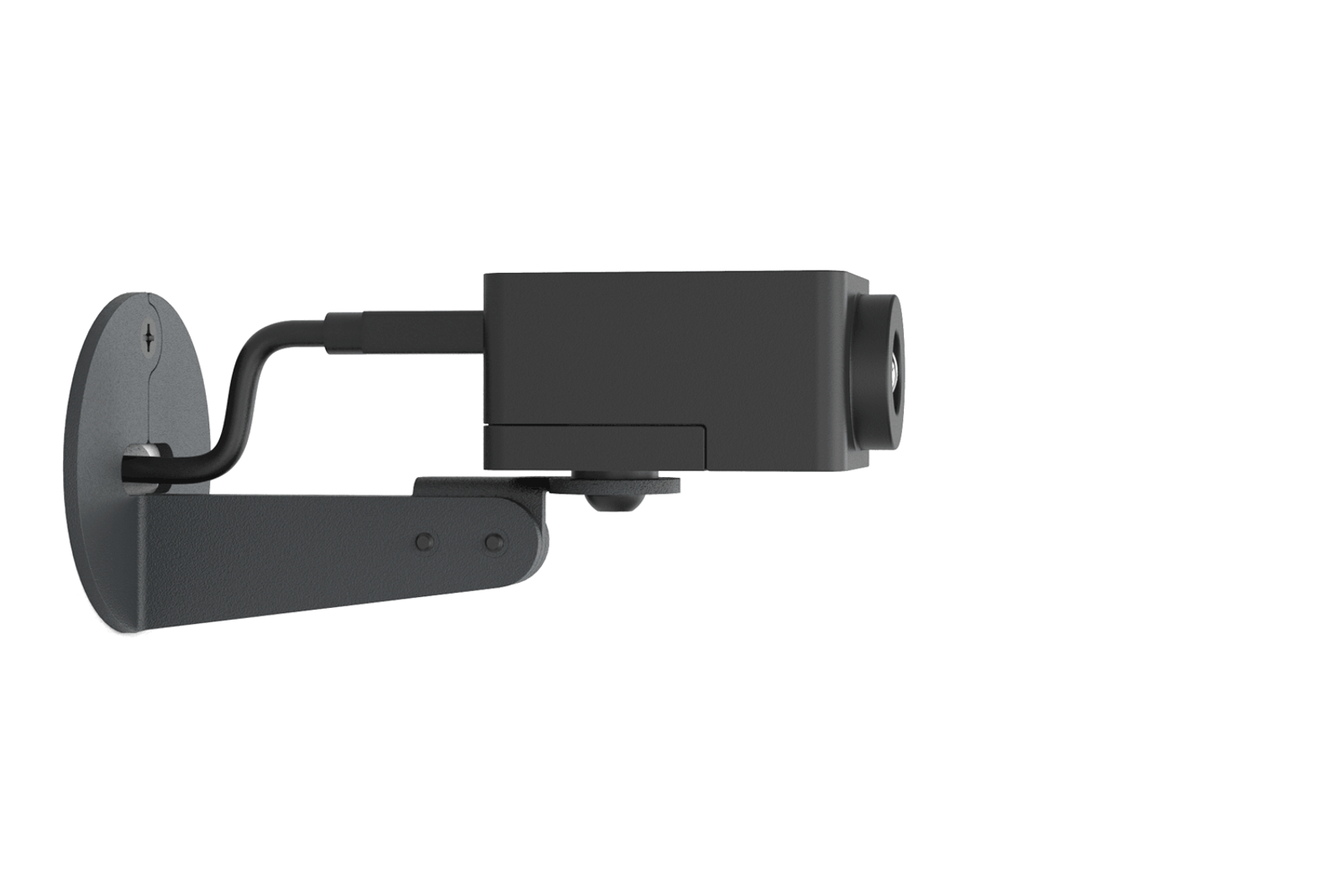

Adjustable Arm Length
The mount arm adjusts to accommodate displays that protrude 3 to 5 inches from the wall surface. At full extension, the rear of the camera aligns with the display face — keeping the USB cable concealed behind the screens.

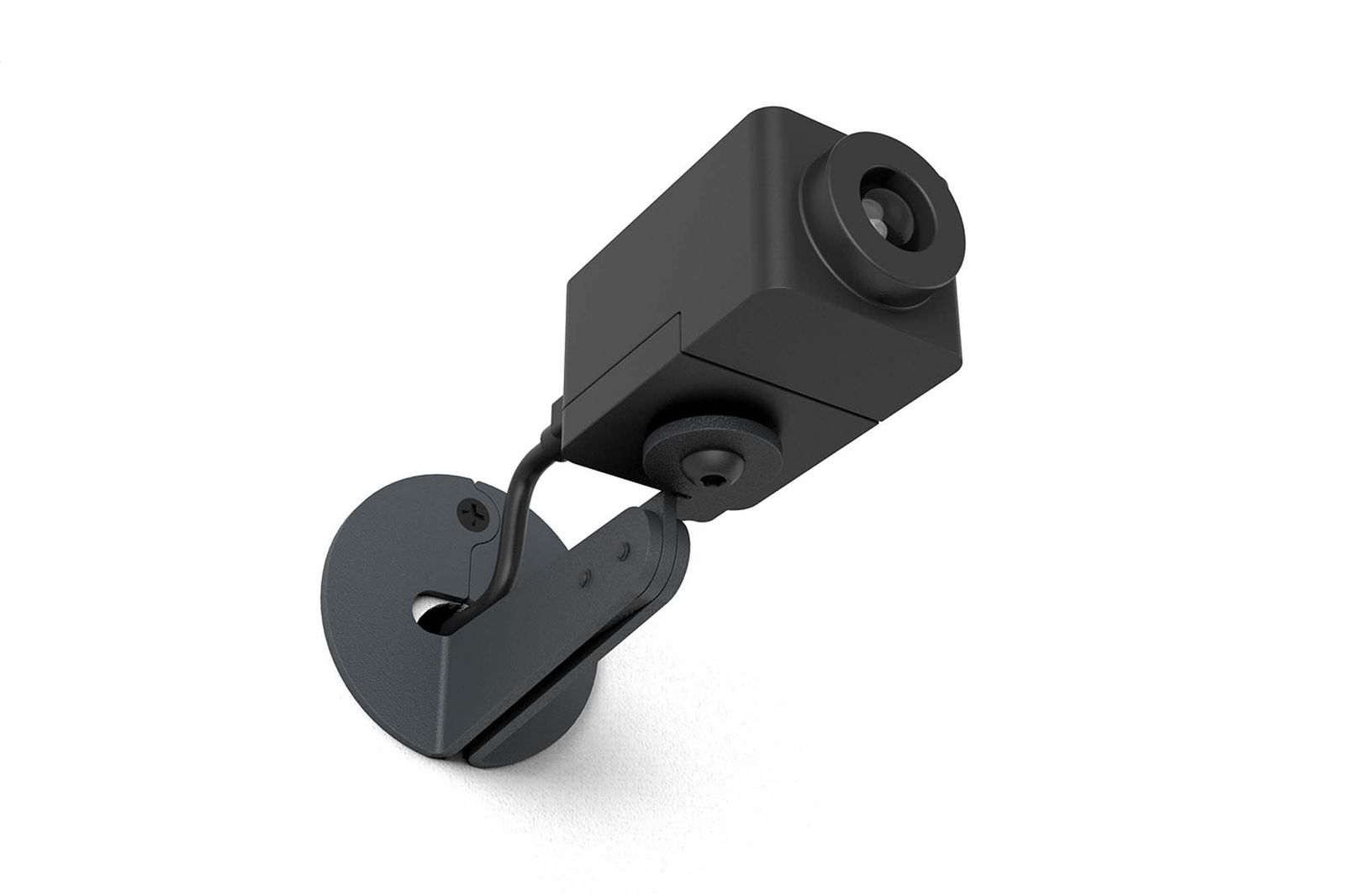

Universal 1/4"-20 Mount
Standard 1/4"-20 threaded mounting position. Compatible with any conference camera that uses the industry-standard tripod thread.

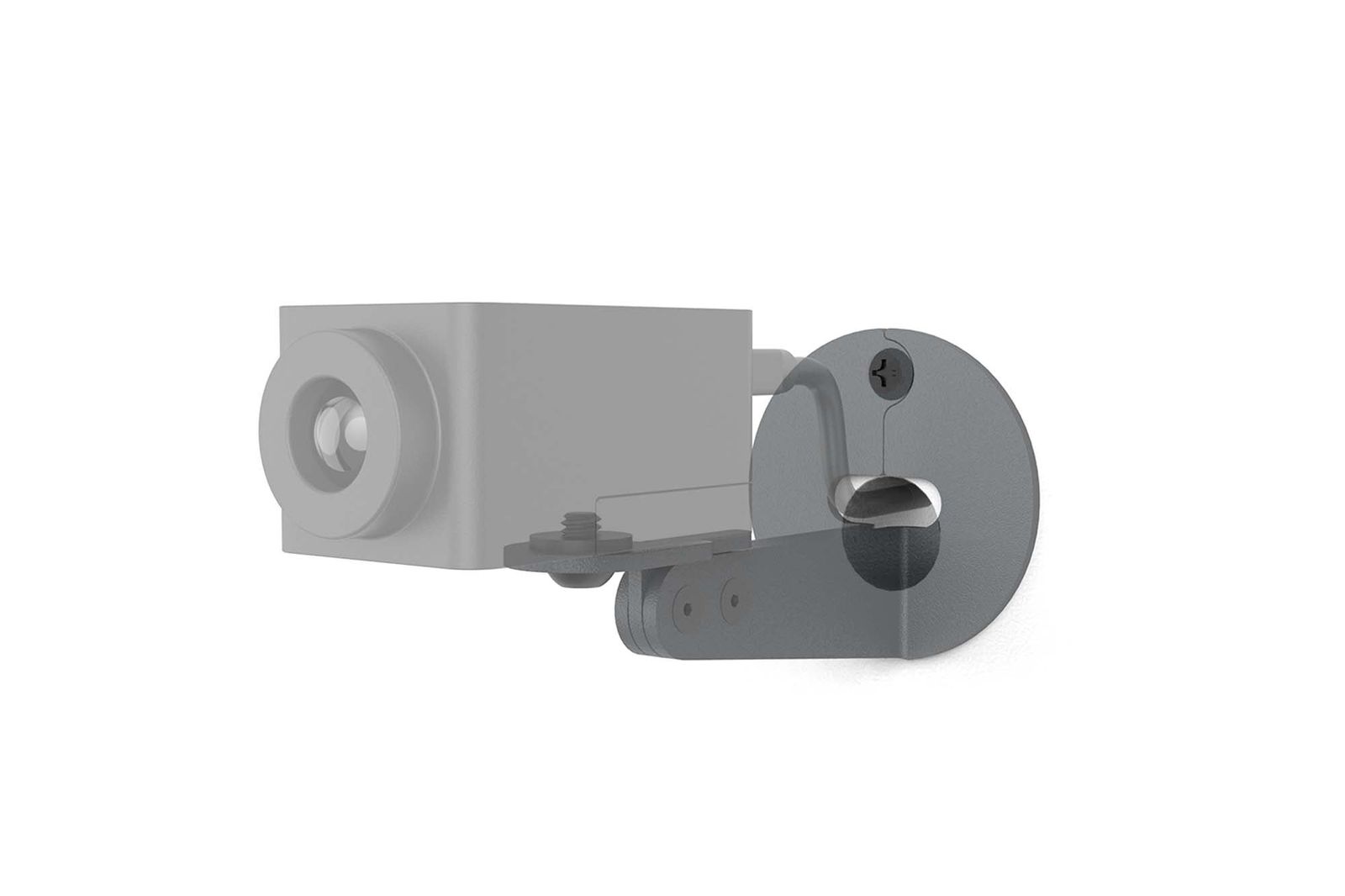

Drywall Installation with Cable Pass-Through
Mounts to drywall with the included anchor. Optional cable pass-through routes the USB cable through a wall penetration; the mount body conceals the hole from forward view.
Specifications
- Heckler SKU
- H598-BG
- Warranty
- 2 years
- Product Weight
- 1 lbs / 0.5 kg
- Shipping Weight
- 1.5 lbs / 0.7 kg Comptible with Huddly Go Huddly IQ Logitech BRIO AVer CAM 340 Jabra PanaCast
- Material
- Powdercoated Steel
- Product Dimensions
- 2.5 x 2.5 x 4.1 inches 64 x 64 x 104 mm
- Shipping Dimensions
- 6 x 4x 4 inches 76 x 76 x 127 mm

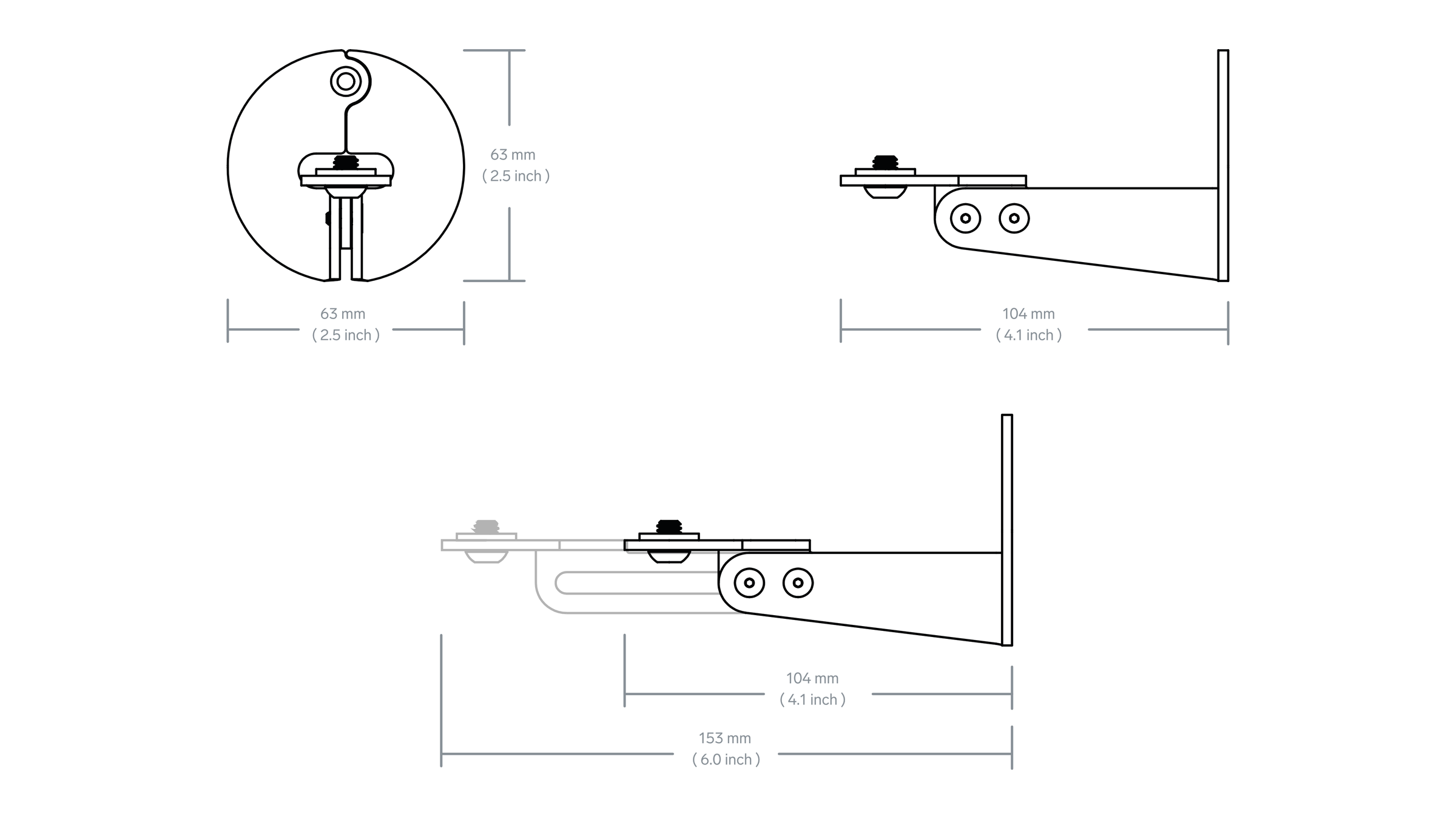

Technical drawing

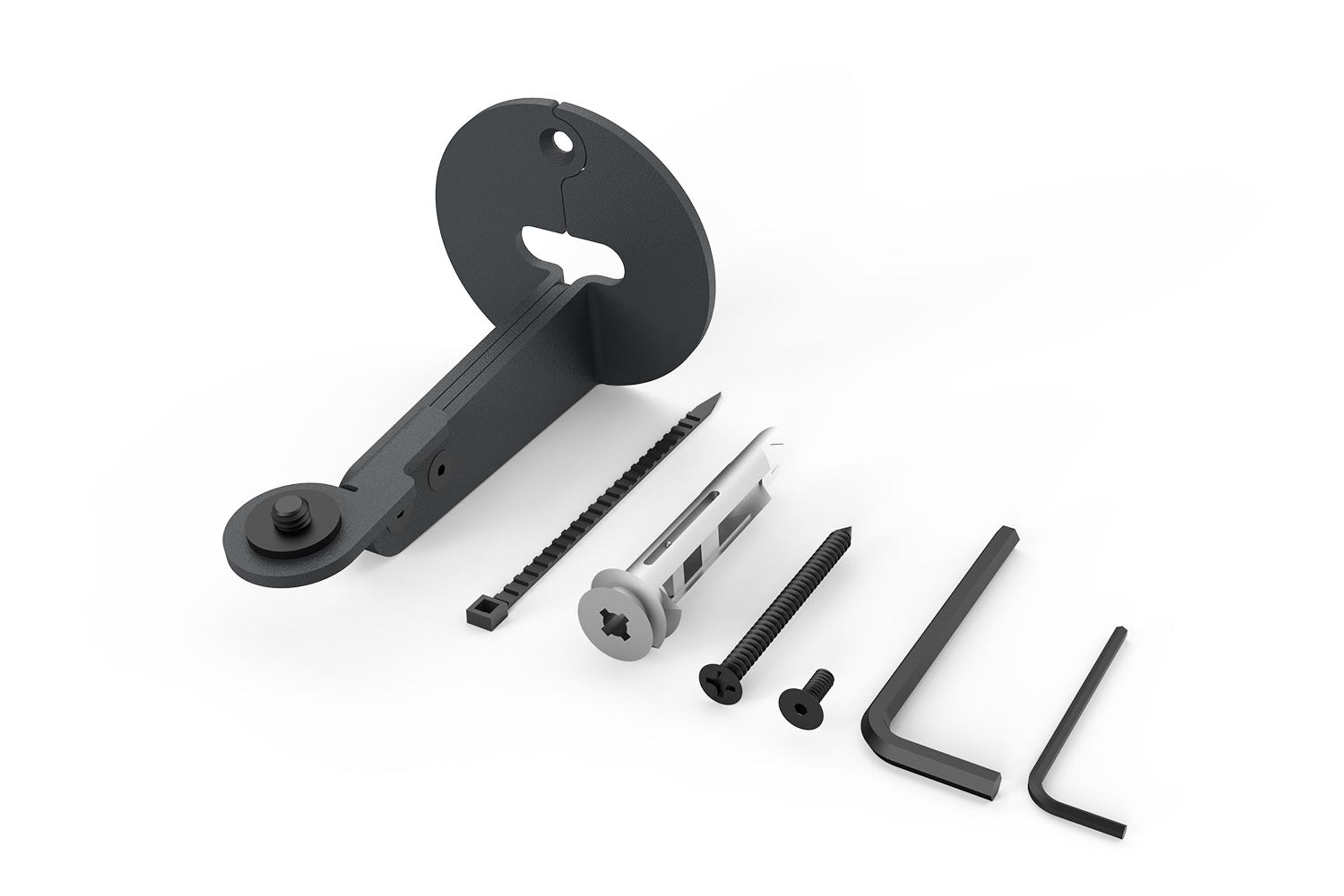

In the box
- Eyeline Camera Mount
- Drywall anchor
- Assembly tools
