Framework Universal Camera Mount
Versatile Mounting for Cameras, Video Bars, Speakers, and More
- Ships from Phoenix, Arizona
- Request a quote or buy online
- Dealer support available
- Warranty-backed hardware
Mount cameras, video bars, and speakers exactly where they belong, without compromise. The Universal Camera Mount for Heckler Framework gives you a flexible, standardized way to integrate AV hardware into your Heckler Framework installations.
- Made in Arizona
- Designed by Heckler
- Commercial-grade steel
- Durable powdercoat finish
- TAA compliant
- Patented design
- Ships globally via common carriers
- Hospital-grade disinfectants compatible
- Paper-first packaging
- Simple assembly
- ADA-conscious design
- Modular system

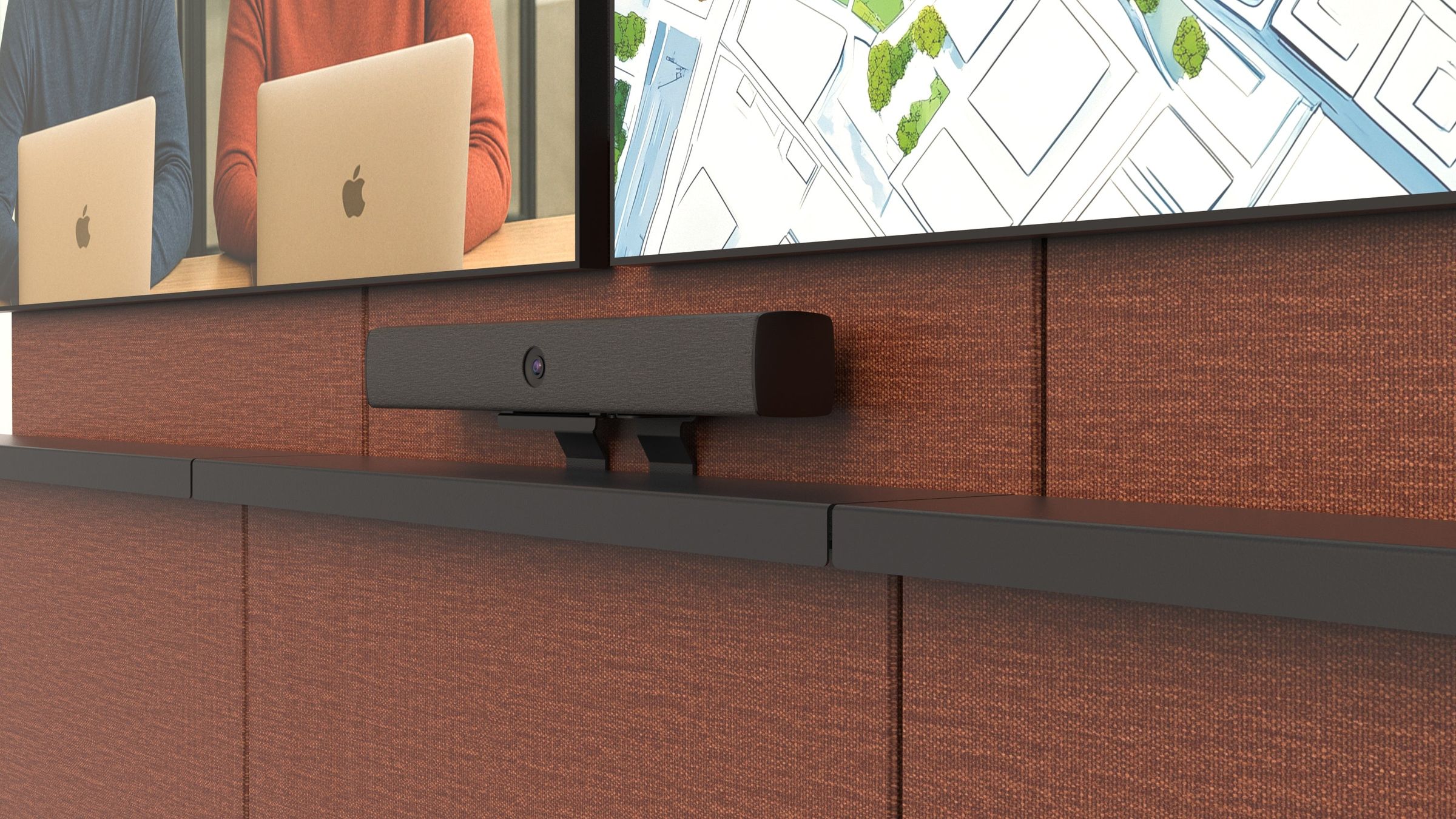

Locked-in performance, above the shelf.
Mount devices above the shelf on a fixed vertical surface to eliminate drift, tampering, and accidental misalignment. Cameras and video bars stay exactly where they were commissioned, preserving framing, audio performance, and system integrity.
The result: fewer support tickets, higher room availability, and consistent performance across every space, while maintaining compatibility with OEM wall-mount solutions.
Compatible with your camera bar standard.
Works with the hardware you already specify. Built for compatibility with the platforms your team already deploys, enabling faster installs, fewer exceptions, and a cleaner path to standardization.

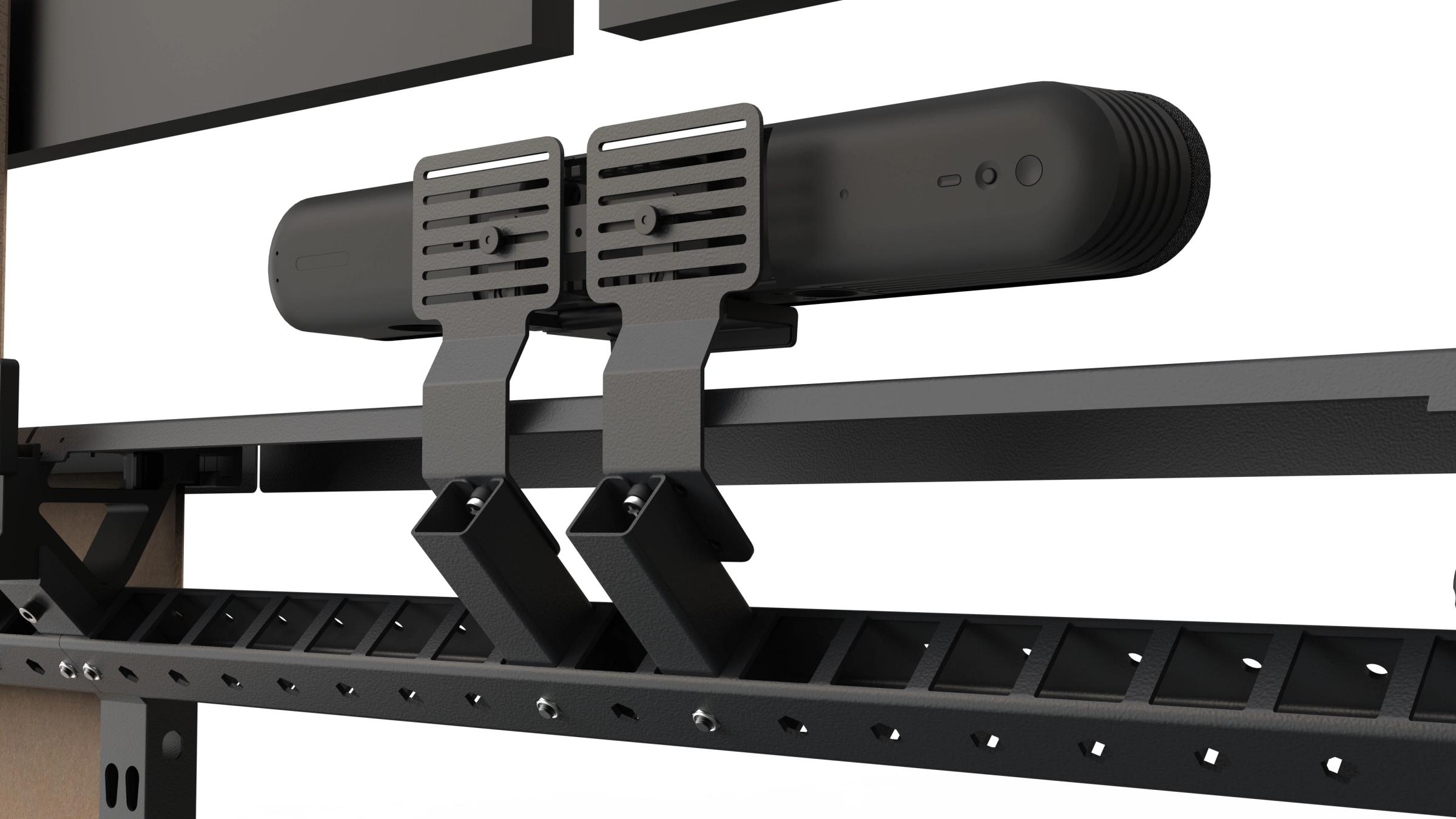

Position with precision.
Each mounting plate connects to a steel tube that installs directly into the Heckler Framework beam. These tubes can be placed anywhere along the beam at 50mm intervals, giving you precise horizontal control.
Align your camera perfectly under the display. Center your video bar exactly where it should be. Maintain consistent sight lines across every room.

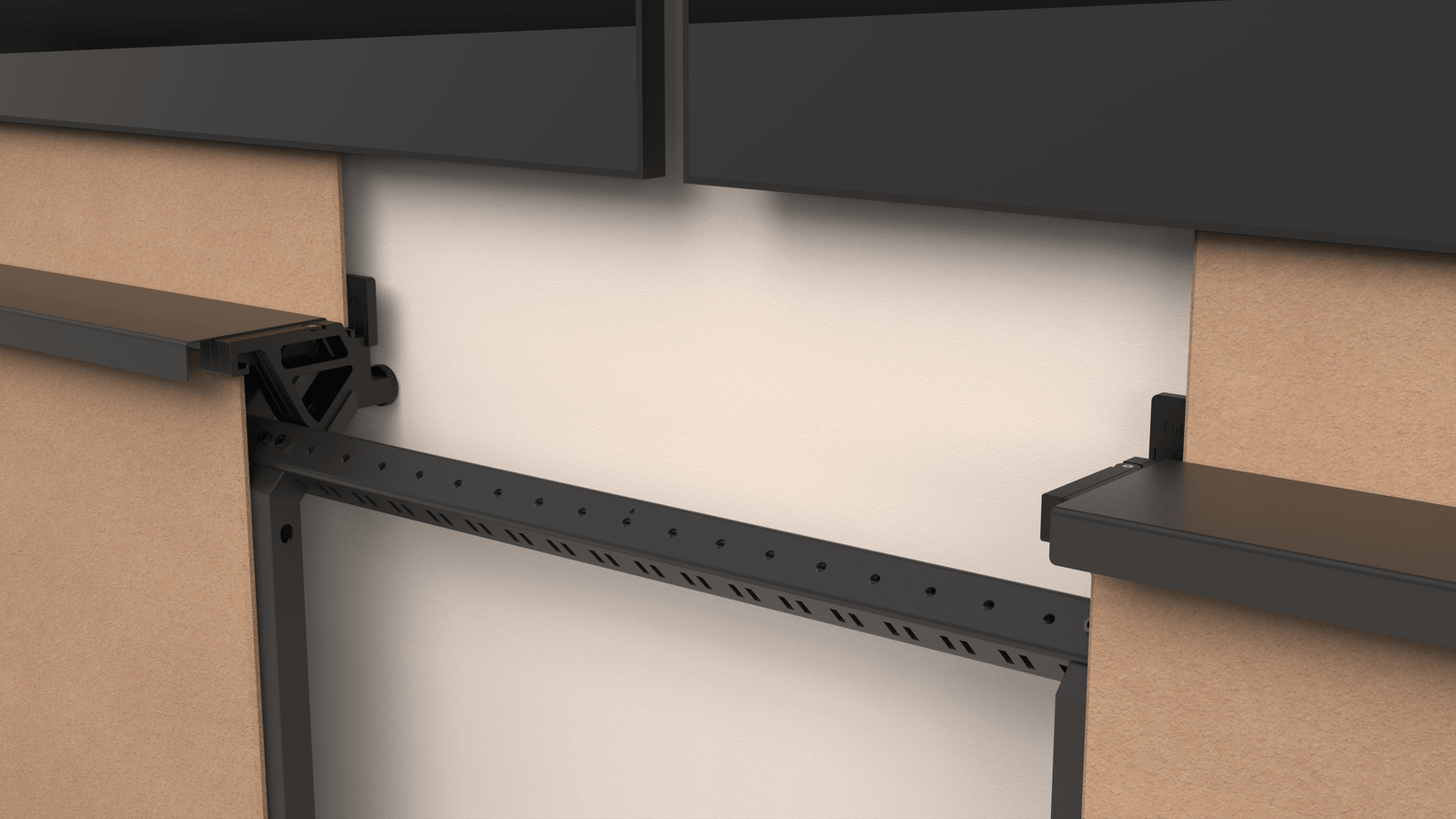

Quick & Easy to install. Built to last.
Mounts cleanly to Framework Columns for a fast, predictable install, no surprises, no second passes.
Specifications
- Material
- Powdercoated Steel Urethane
- Product Weight
- 2.5 lbs
- Shipping Weight
- 4 lbs
- Product Dimensions
- 11 x 4.8 x 4 inches (280 x 121 x 102mm)
- Shipping Dimensions
- 10 x 5 x 3 inches (254 x 127 x 76 mm)
- Warranty
- Limited Lifetime

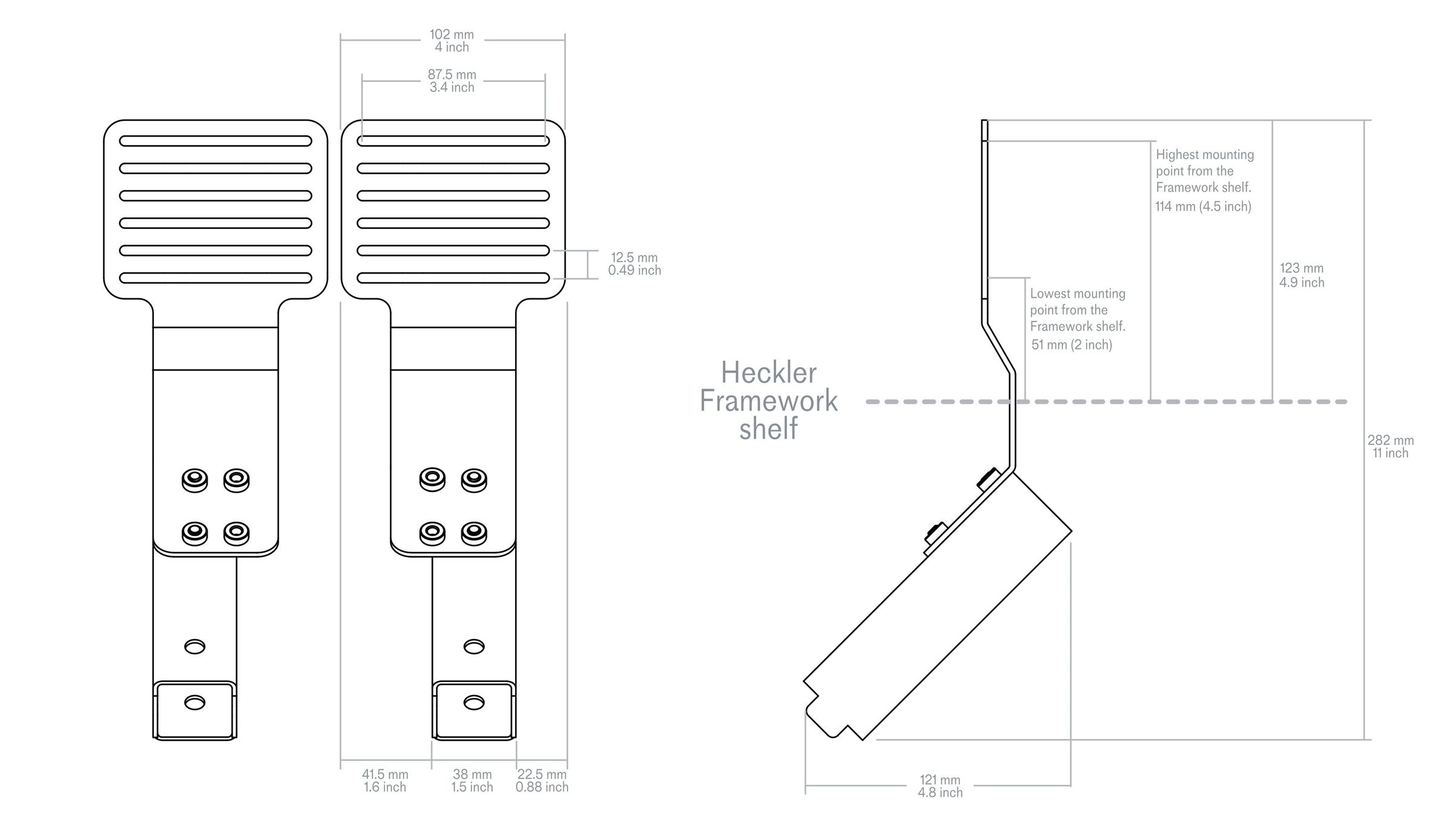

Technical drawing

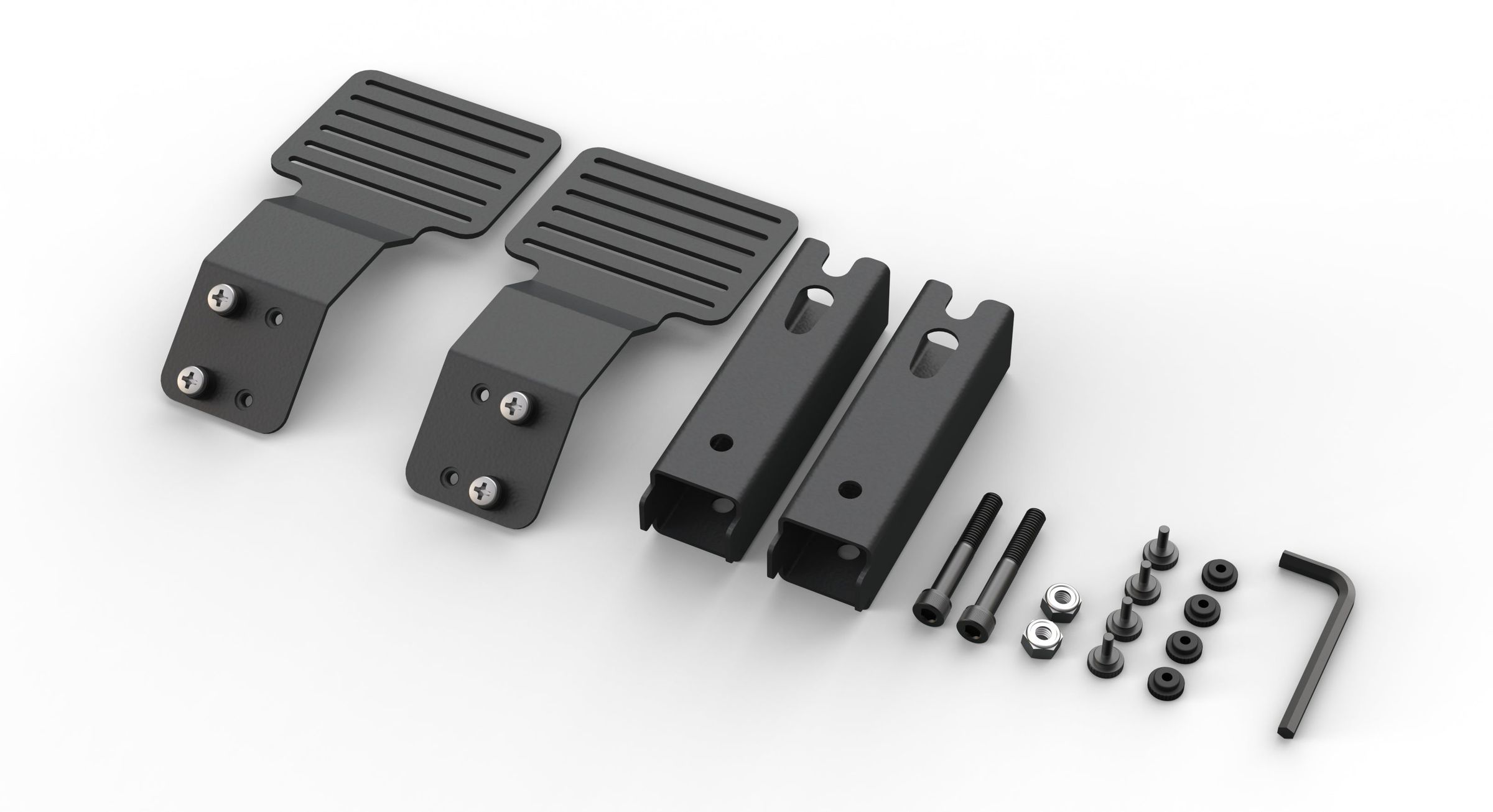

In the box
- Video Bar Brackets x 2
- Column Tubes x 2
- M8 Screws x 2
- M8 Nuts x 2
- Mounting Screws x 4
- Mounting Nuts x 4
- M8 Hex Key
